Week 2 Railwheel and Track

Railwheel and Track

AIM:

Case 1: Multiply the bearing load by 5 times and compare the results with the load of 100000 N (As done in week 2 video). Compare the Total Deformation, Equivalent stress, and the life under both the loads

PROCESS:

• Download the file and import into geometry of static structural in ansys

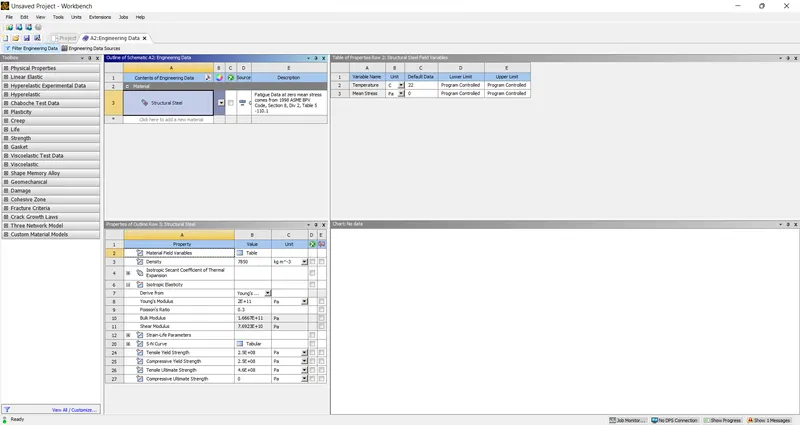

• Add the material in engineering data

•

• Open the model and update before that

•

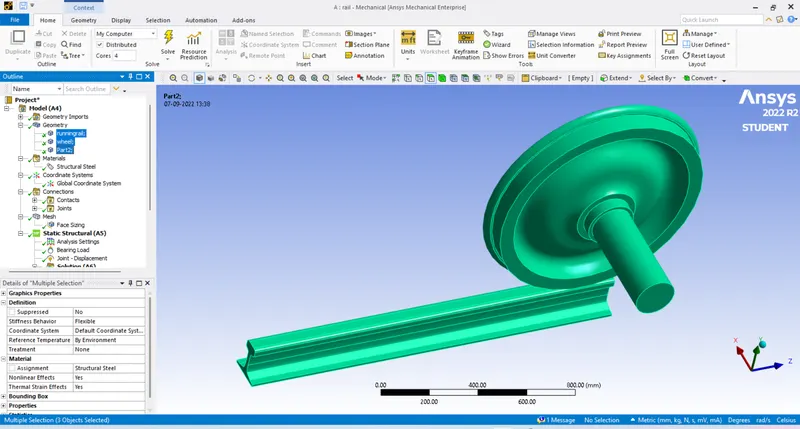

• After opening check the material for both the gears in geometry section
• Keep the stifness behivaour as Flexiable as this is gone a Translate

• Connections are made using contacts & Joints

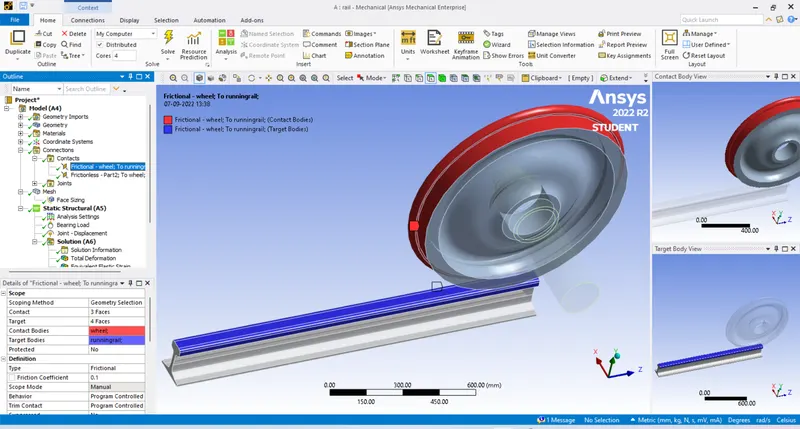

• Incontacts select the track & Wheel surfaces joints that will be contact

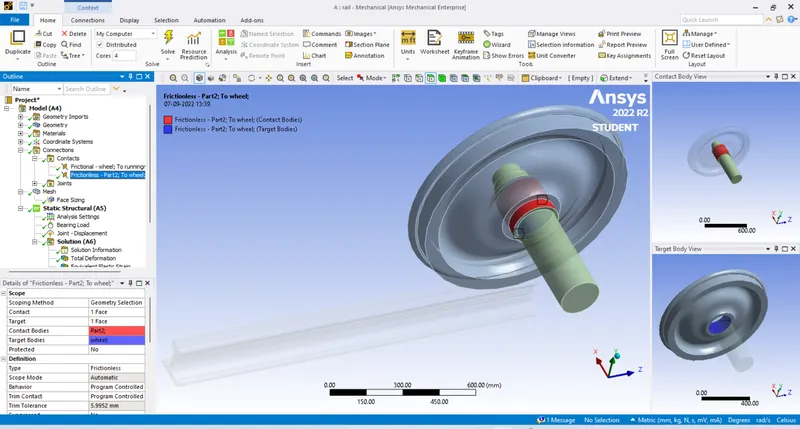

• In Second case select Wheel & Shaft surfaces joints that will be contact (Keep it frictionaless)

• In joints:

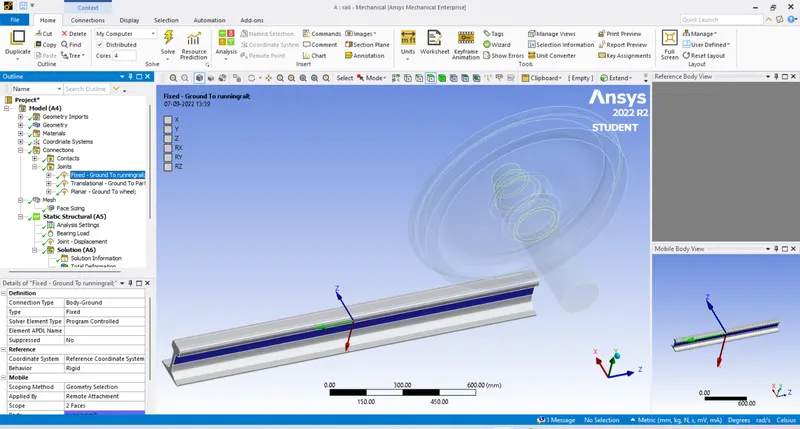

• Fix the track

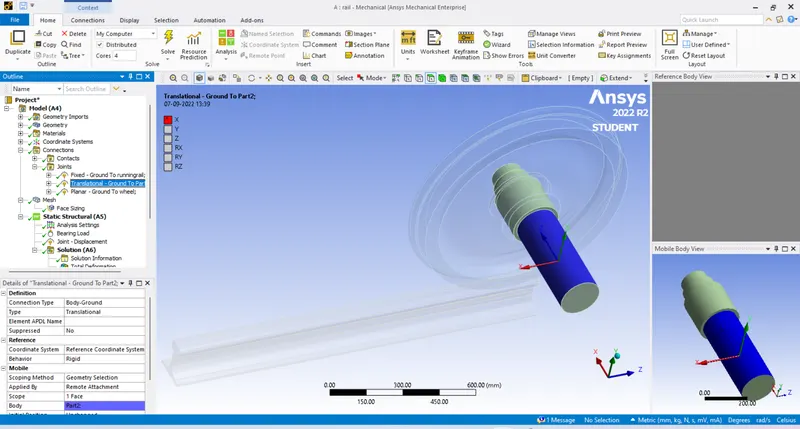

• Provide translation to shaft

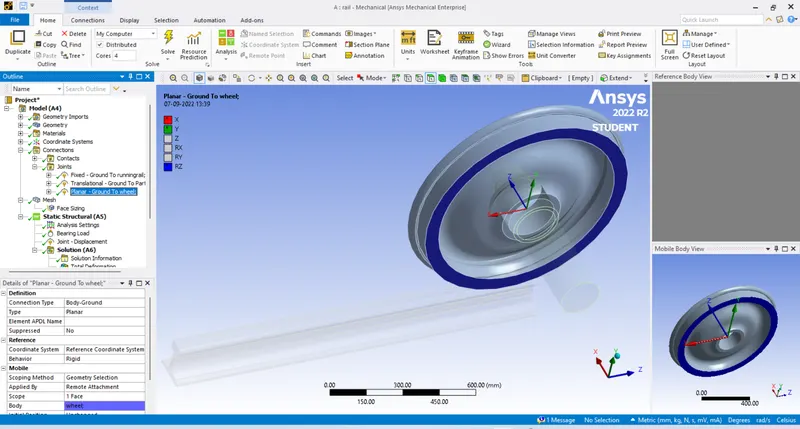

• Provide plane for wheel as it should not move

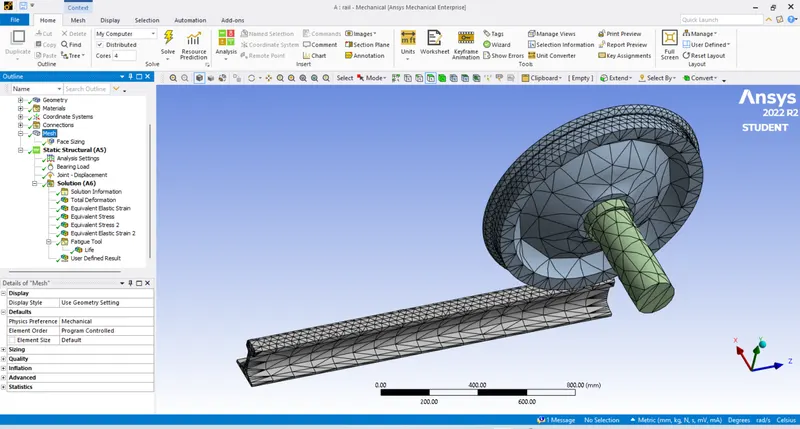

• Keep mesh as defalt and face size the contact surfaces

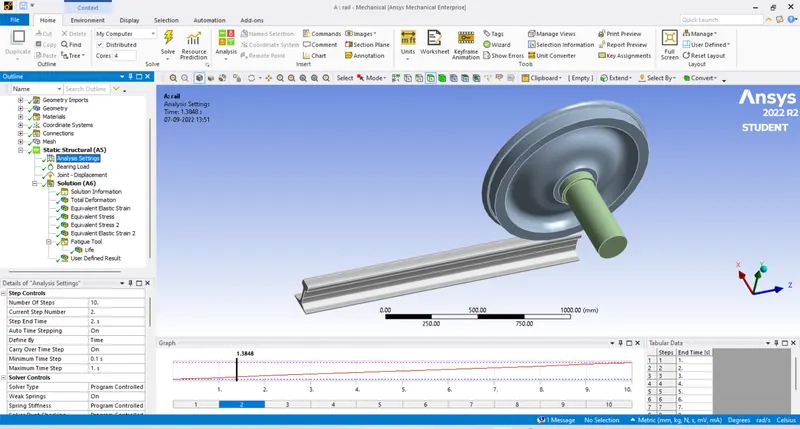

• In static structure we made the steps as 10 for better results

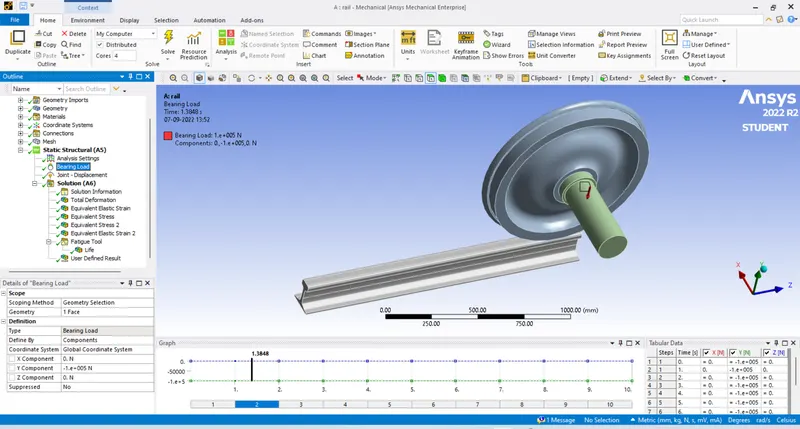

• Put the given bearig load as given 100000N

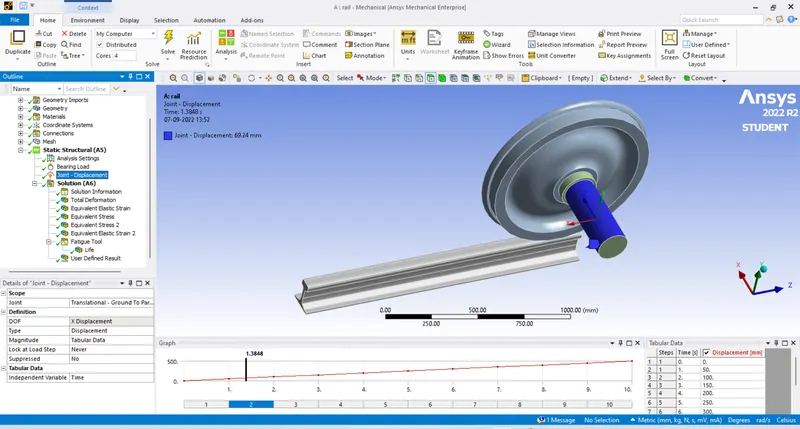

• Provide displacement for the joint

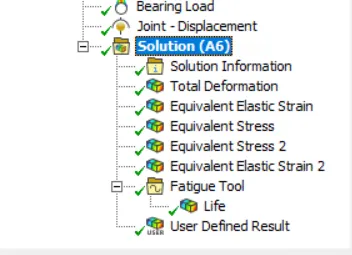

• In solution insert the required analysis that needs to be done

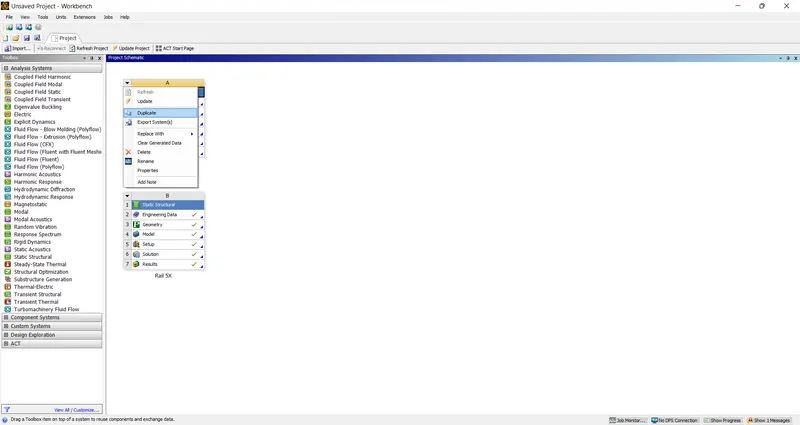

• For the bearing load by 5 times duplicate the current static structural

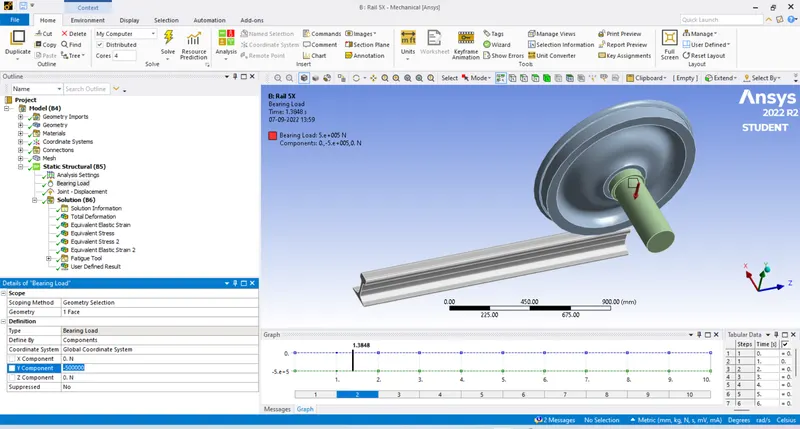

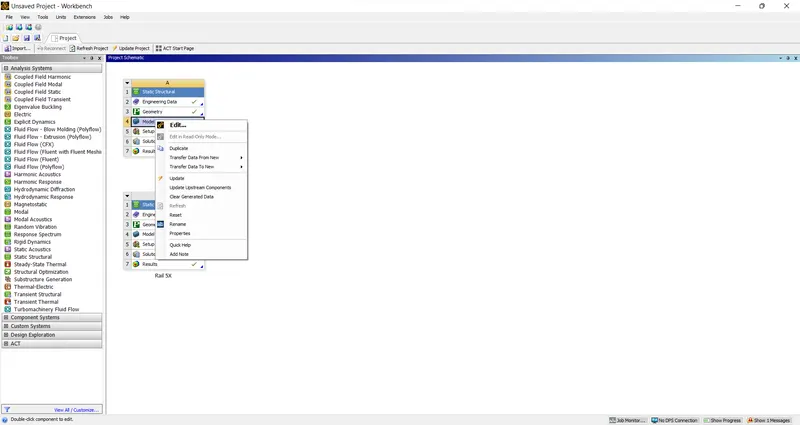

• Open model and change the bearing load as given & clear the solution and go for solve

• Multiply the bearing load by 5 times and compare the results with the load of 100000 N (As done in week 2 video). Compare the Total Deformation, Equivalent stress, and the life under both the loads

FOR the load of 100000 N

Total Deformation

gif

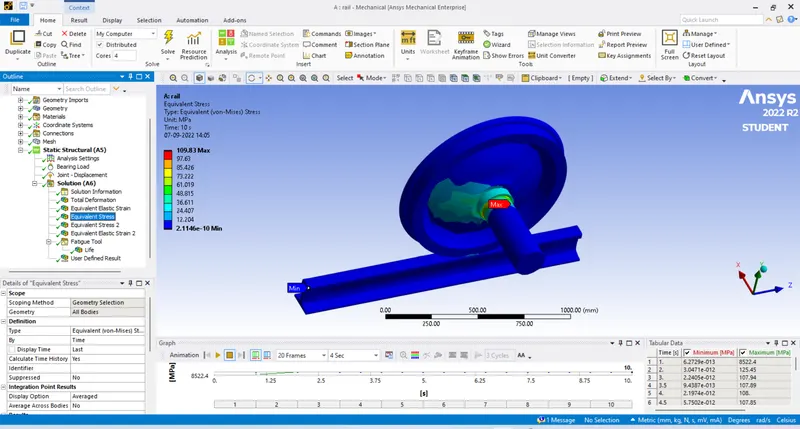

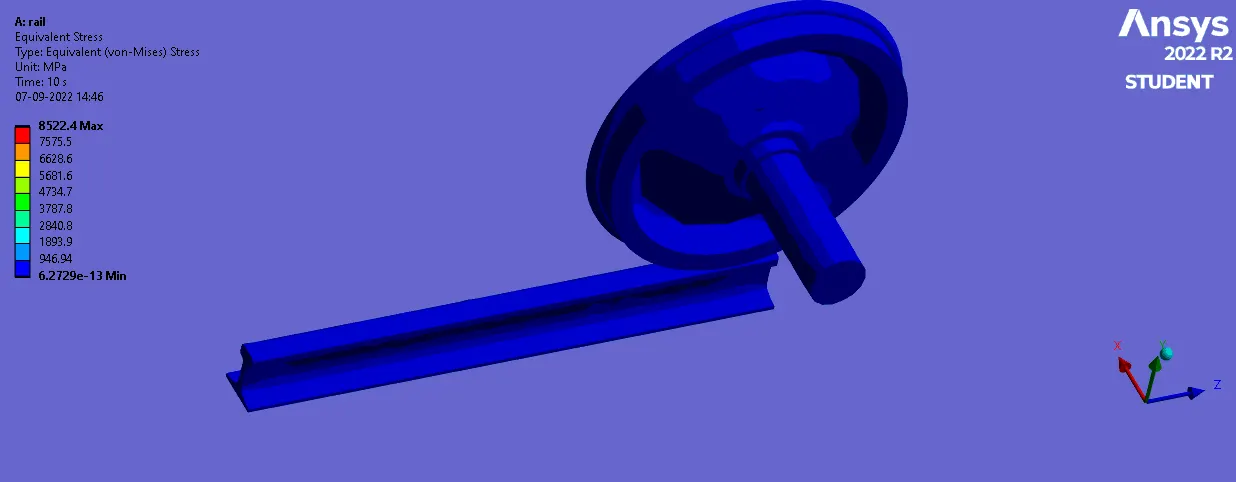

Equivalent stress

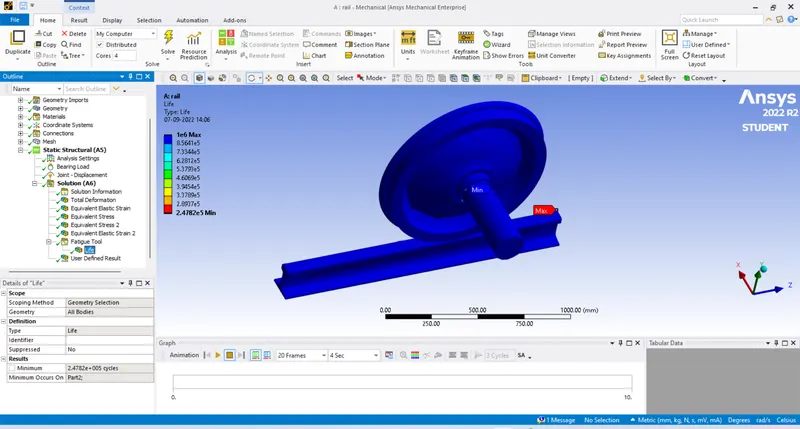

life

gif

FOR the load of 500000 N

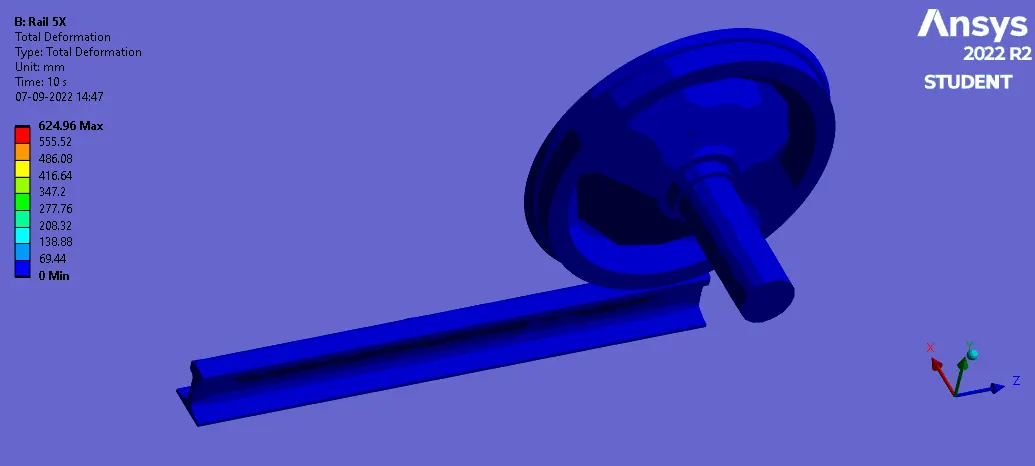

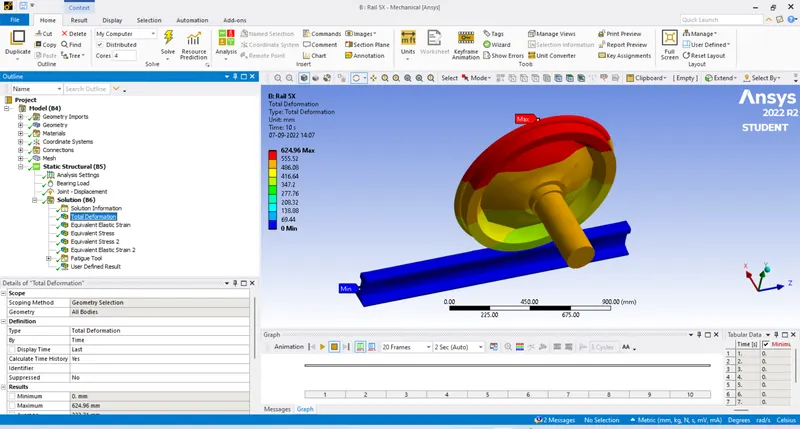

Total Deformation

gif

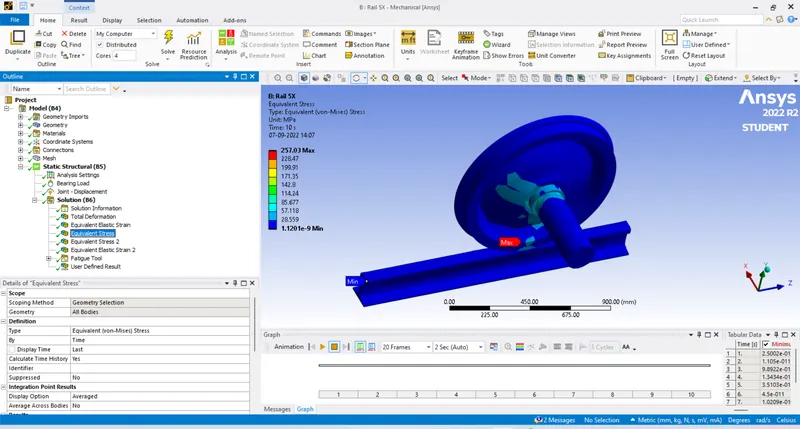

Equivalent stress

gif

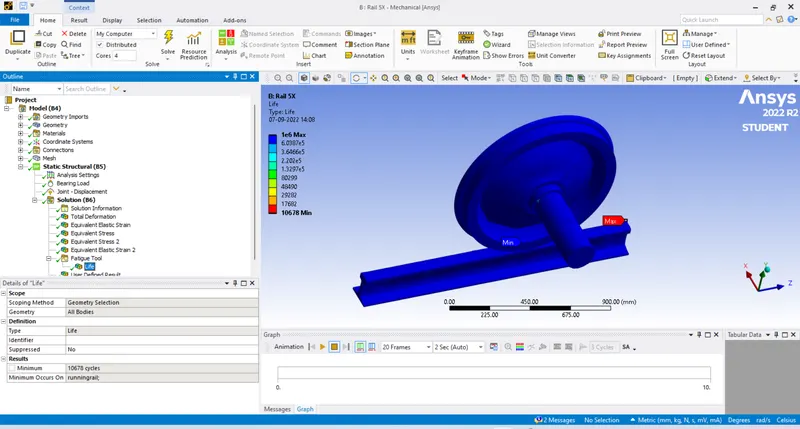

LIFE

gif

	FOR the load of 100000 N	FOR the load of 500000 N
Total Deformation	562.12MM	624.96MM
Equivalent stress	109.83MPa	257.03MPa
LIFE	1e^6	1e^6

Case 2: Implement a User-defined result and calculate the Total Deformation from this result and check if it is the same as that obtained by the inbuilt result by ANSYS for a load of 100000 N.

Total Deformation from this result by ansys

User-defined result

CASE 1 CONCLUSION:

By the data observation we can say that :

• The total deformation length has increased by 62.84mm as the load has increased to 500000 N
• The Equivalent stress has increased by 147.2MPa as the load has increased to 500000 N
• Life expected of both loads is same

CASE 2 CONCLUSION:

YES BOTH ARE SAME
