Week 2 Challenge : Surface meshing on a Pressure valve
Surface Meshing On a Pressure Valve
Aim :-
For the given model, check for the geometrical errors and perform Topology cleanup accordingly. Set three different target lengths as three different cases and mesh the model.
- Target length = 1mm, 3 mm and 5 mm (i.e. 3 cases)
- Element type = Tria
Apply any one target length from the above at a time for the entire model as One case. Submit 3 different models for 3 cases.

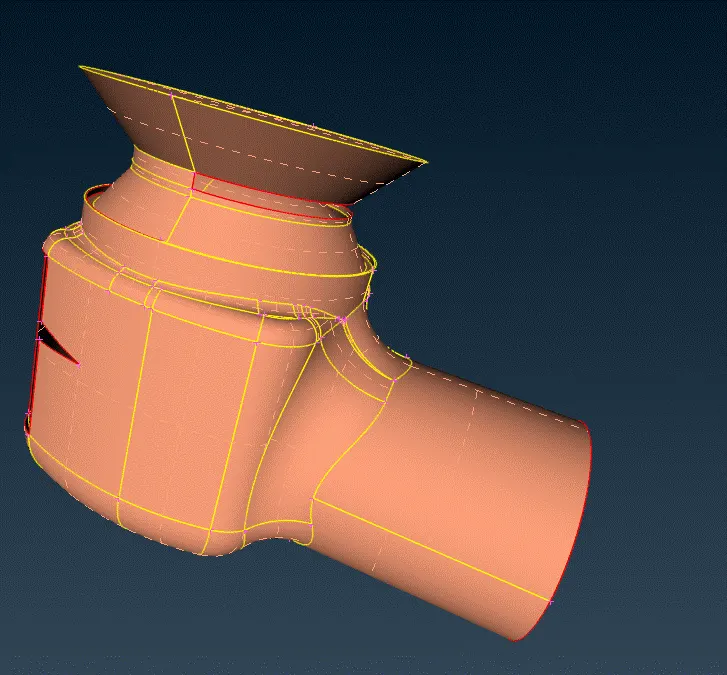

Geometry :-

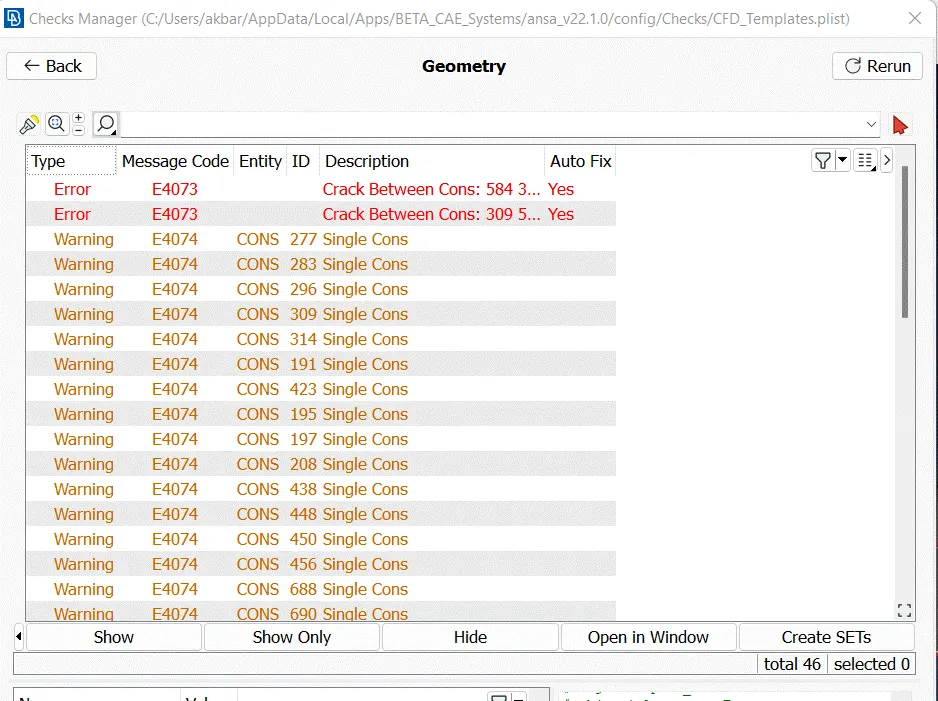

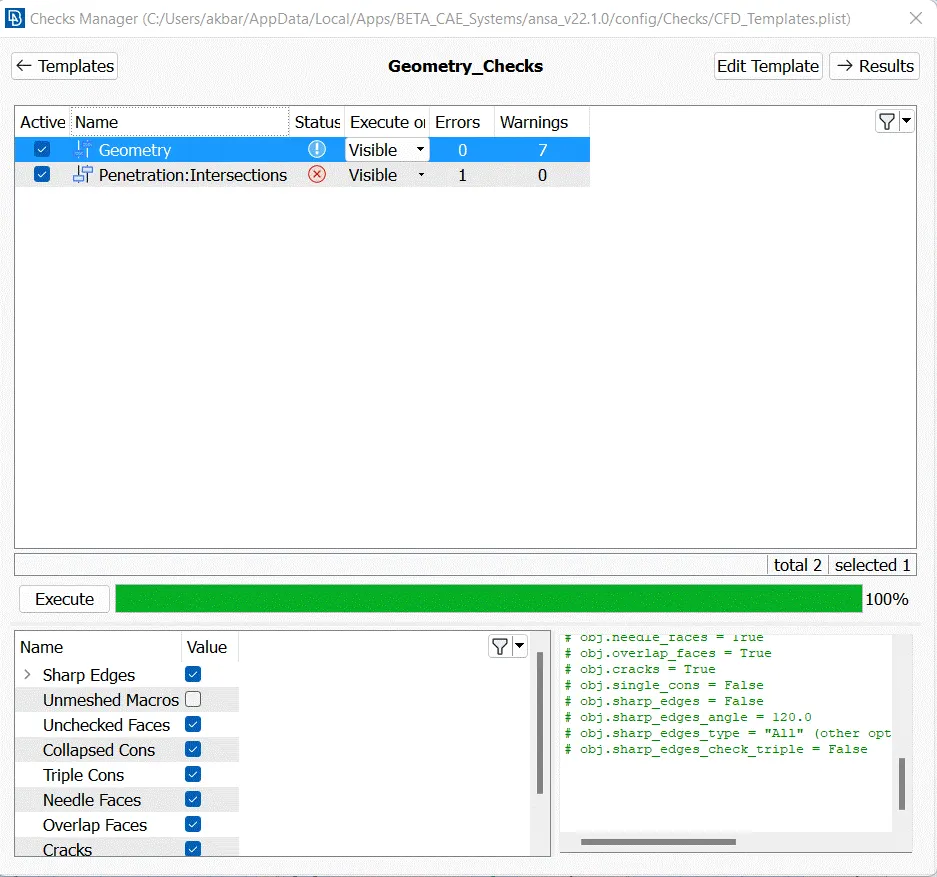

Check Manager errors :-
Checks to be performed on imported geometry and before proceeding with surface meshing

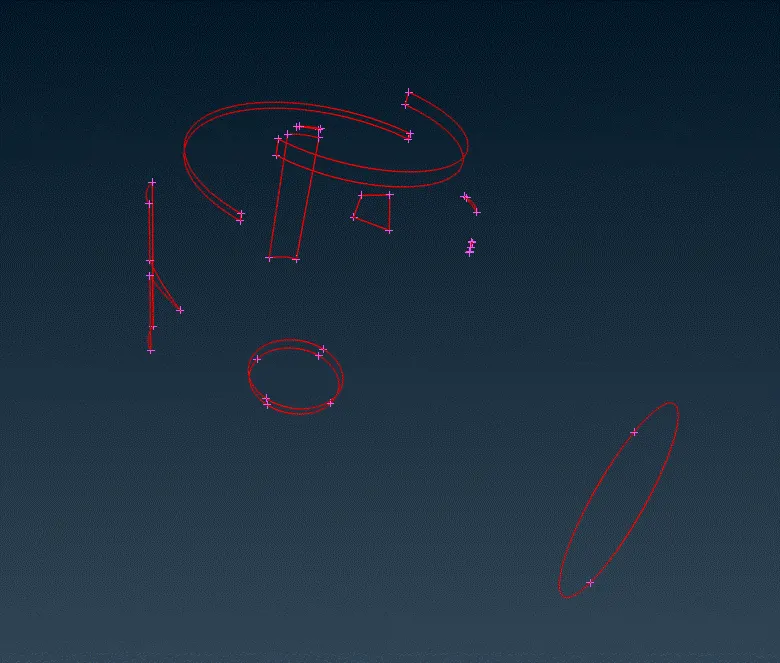

Singles Coons :-
The edges in ANSA are called cons and single cons are highlighted in red color

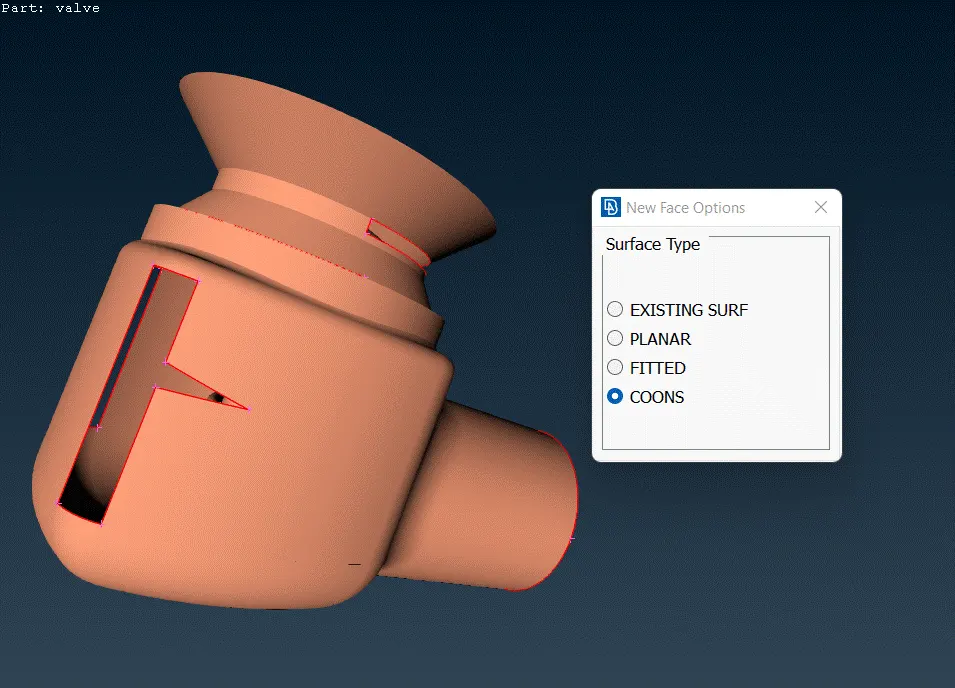

New Faces :-
creating new faces

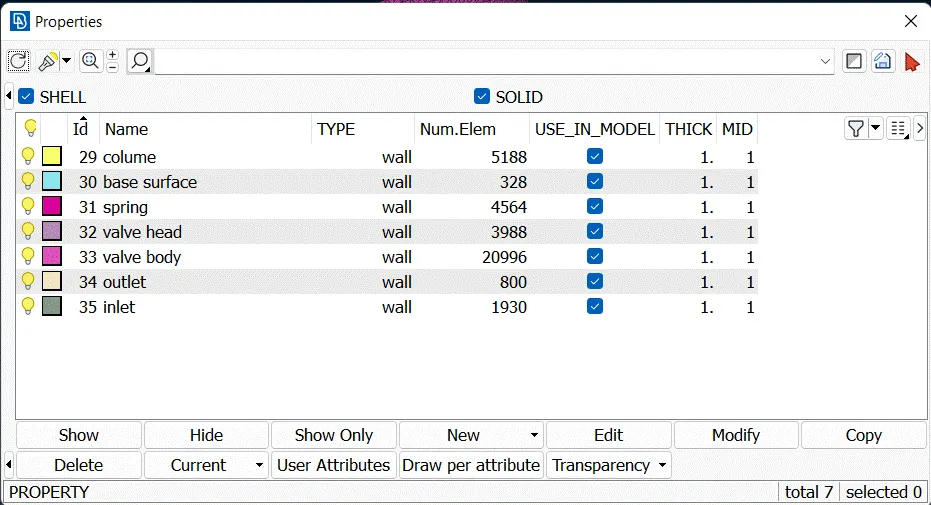

Properties :-
properties list for specification of properties and boundary condition
Meshing :-

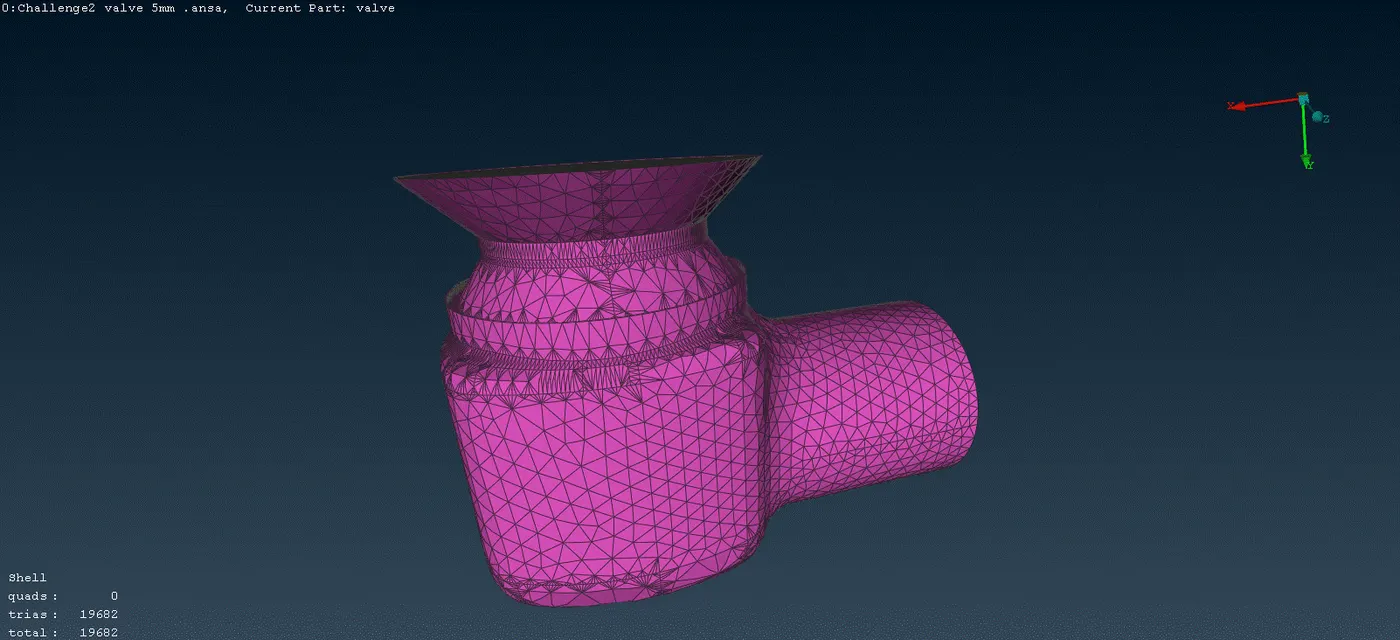

Target length = 5mm
Element type = Tria
Minimum length = 3mm
Maximum length = 7mm

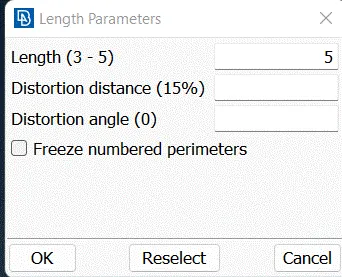

Length Parameters :-

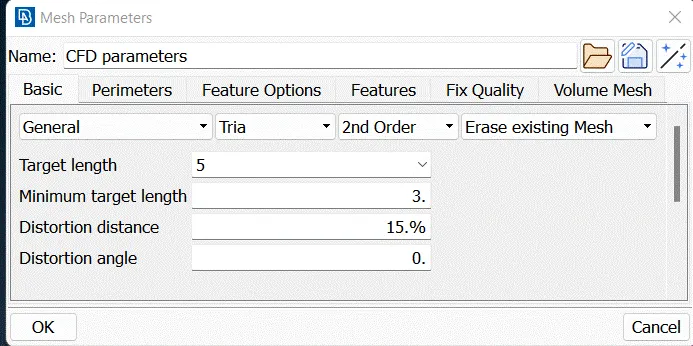

Mesh Parameters :-

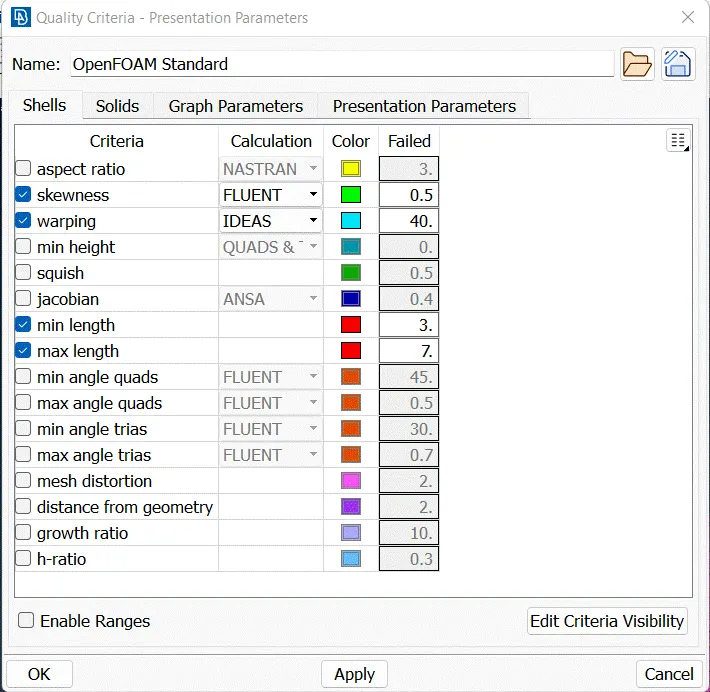

Quality criteria :-
total no.of cells :- 19682

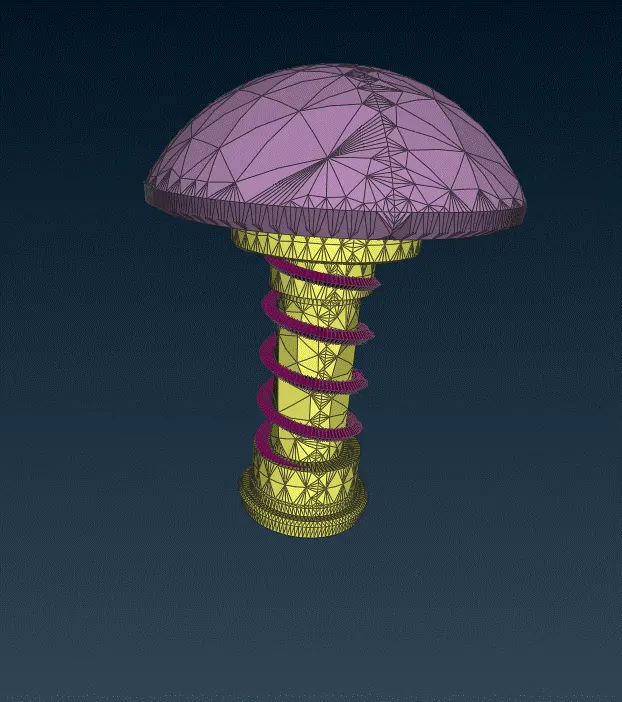

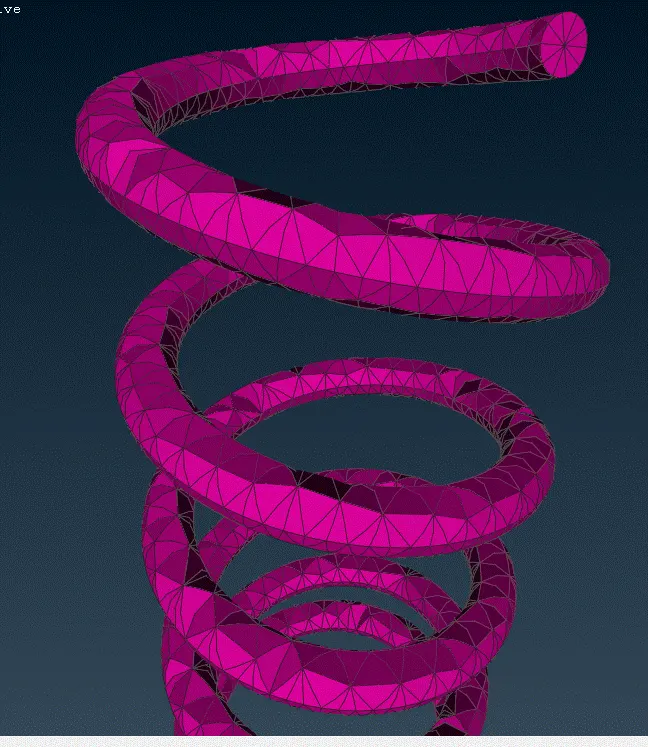

As you can see as we look into the smaller part of geometry the shape is not that sharp and accurate the spring has lost its shape completely
Meshing :-

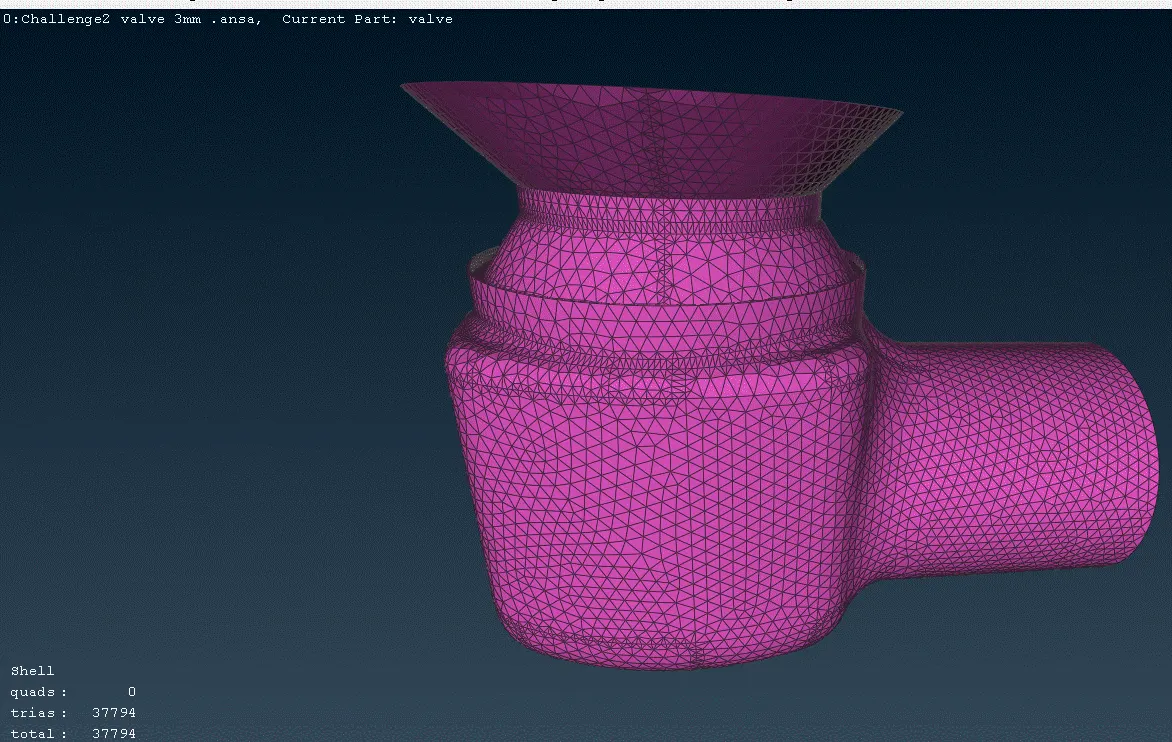

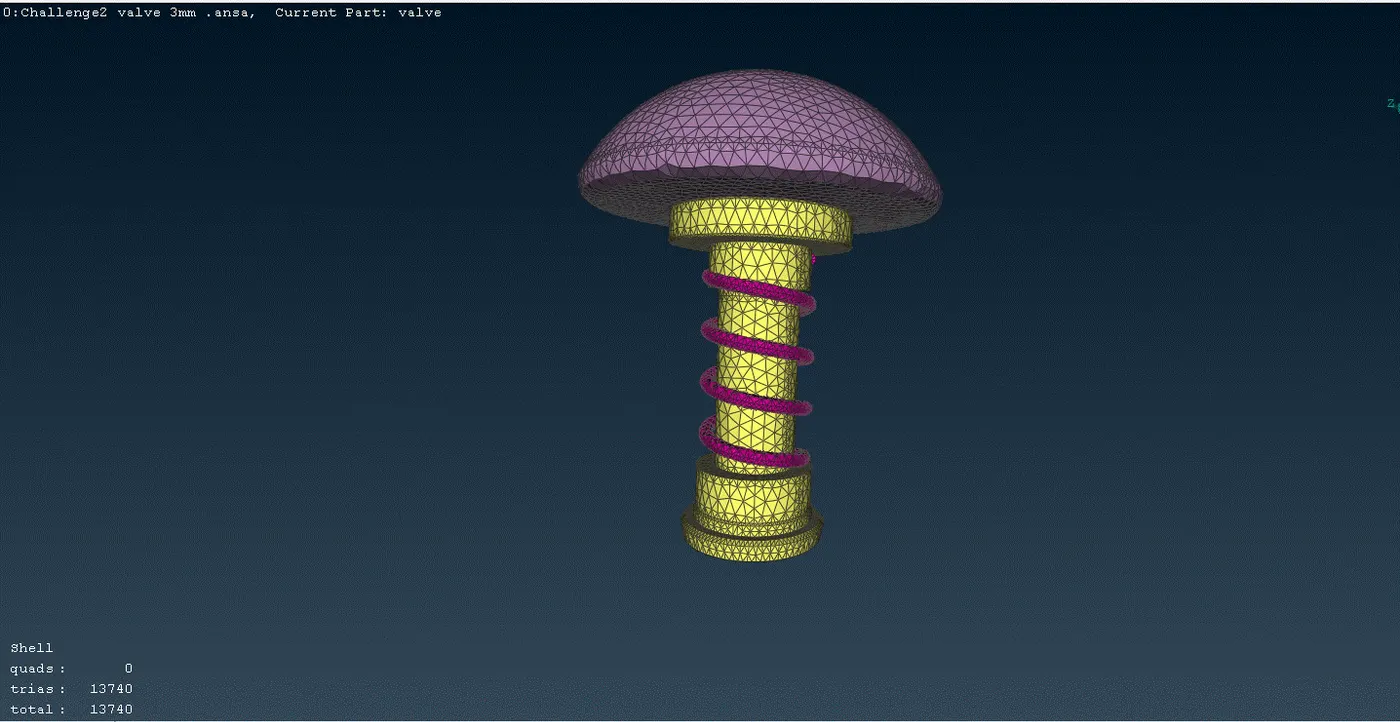

Target length = 3mm
Element type = Tria
Minimum length = 1mm
Maximum length = 5mm

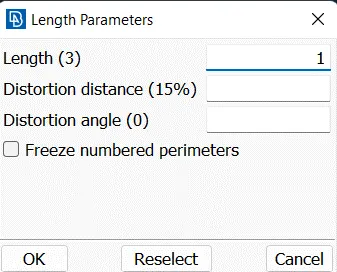

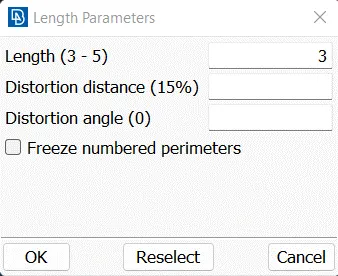

Length Parameters :-

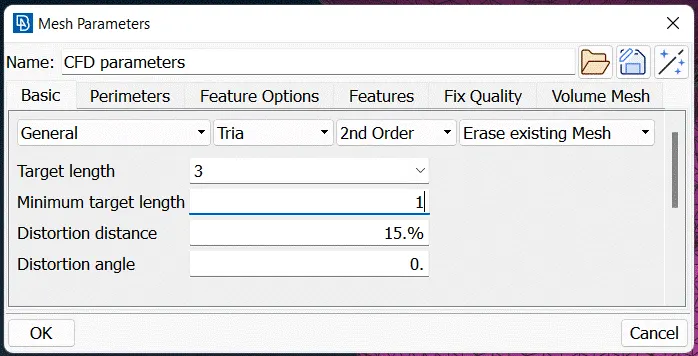

Mesh Parameters :-

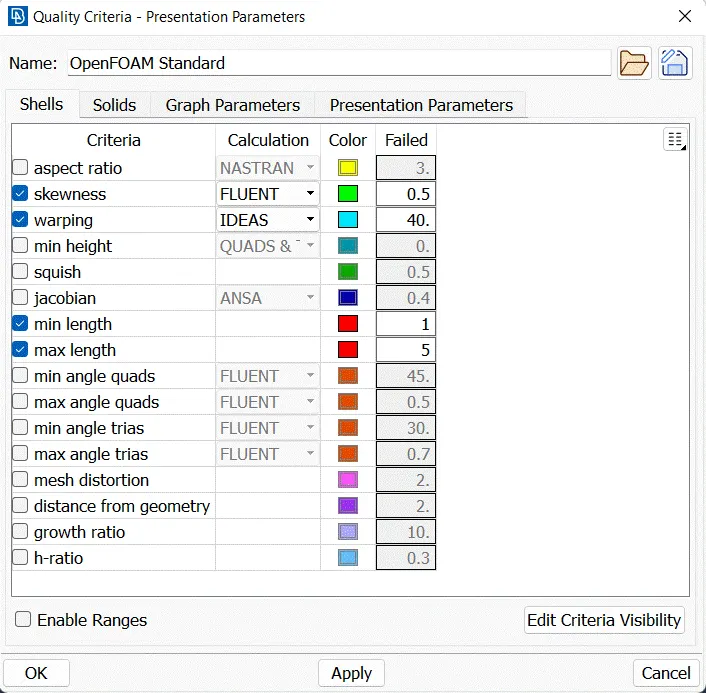

Quality criteria :-
Total no of cells :- 37794
Meshing :-

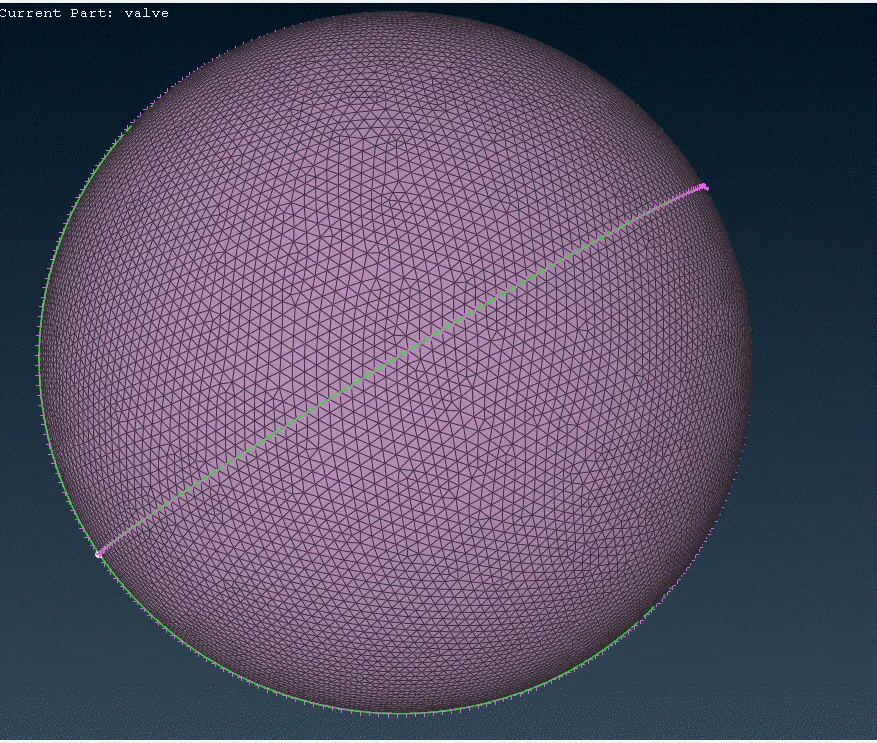

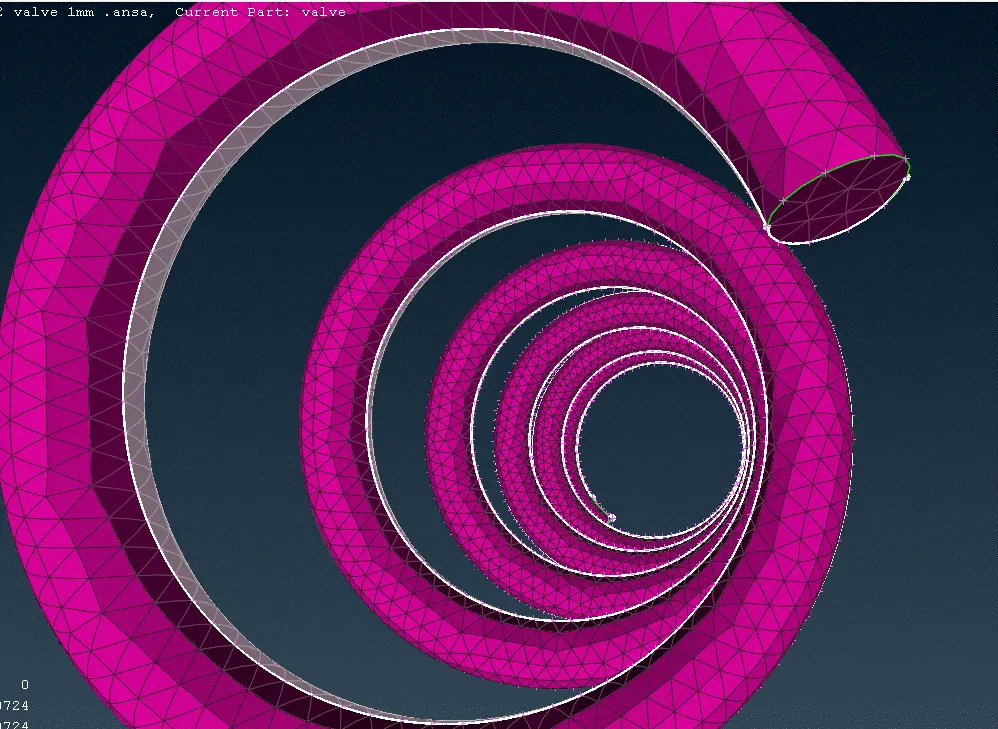

Target length = 1mm
Element type = Tria
Minimum length = 0.25mm
Maximum length = 2mm

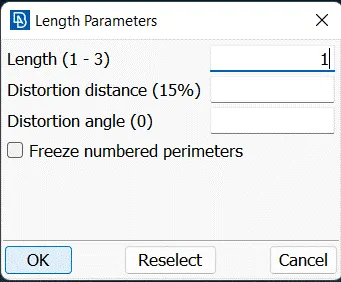

Length Parameters :-

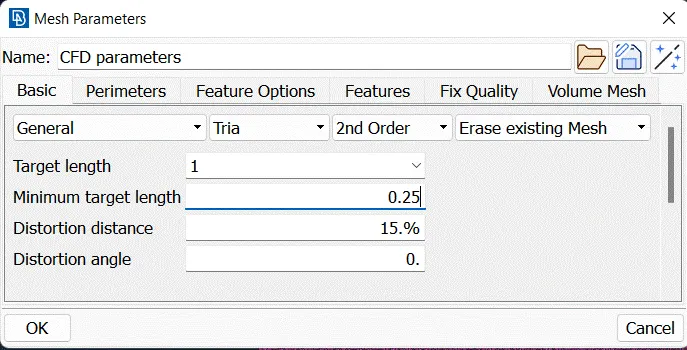

Mesh Paraments :-
Quality Criteria :-

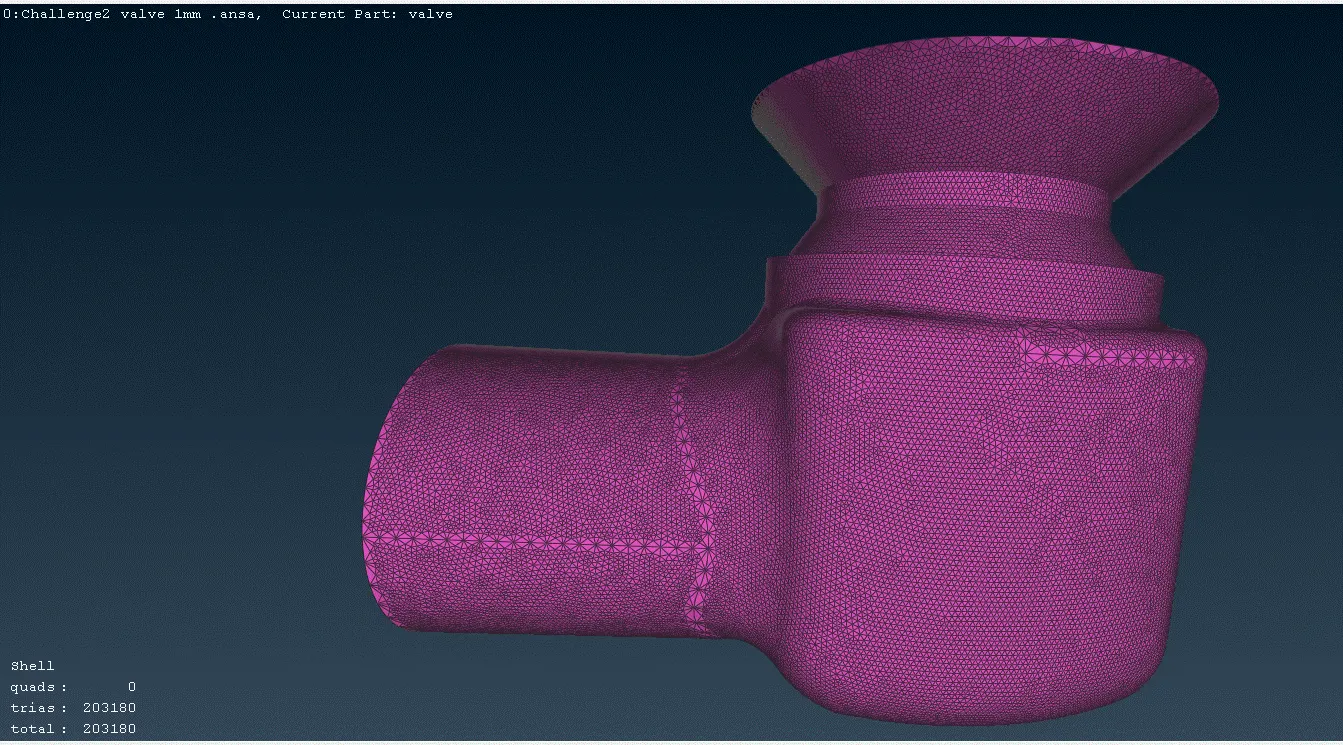

Total no of cells :- 203180
