Week 2 Challenge

Question No 1:

Answer :

AIM :- Create column properties for different types of pedestal members and model in the grids created as per the assignment 1.

Procedure :- To create various column properties is as follows

Steps 1: After strarting TSD software click on HOME TAB

Steps 2 : Click on Manage property set through Ribbon

Step 3 : Click on New Tab

Step 4 : Click on Member and then Select Concrete Column, Steel Column whichever is used while modeling after appearing on screen rename that member as PD 1 or as per your choice.

Step 5 : Click on Section select section

Step 6 : Click on Grade and select proper grade.

Step 7 : Set Proper allignment as per plan.

Step 8 : You can create r add property by right clicking and adding property set.

• Setting Concrete Column property

• Setting steel column property :

• Modeling of column On Grids:

Step 1: Click on Home tab and then click on Settings.

Step 2 :Select Essentials setting option for model as required.

Step 3 : Click on Model Tab through ribbon

Step 4 : Click On Construction Levels

Step 5 ; Create different construction levels as per elevation set ground level,first floor level,roof level,eaves level etc.

Step 6 : After setting levels Draw grids through grid lines options as per plan select proper distance.

Step 7 : After Creating proper grids and construction line , CLick on Model tab Select Column through concrete section apply property and model it on proper grid as per plan.

Step 8 : Click on Column through Steel Coluumn section and Model it on the Grids.

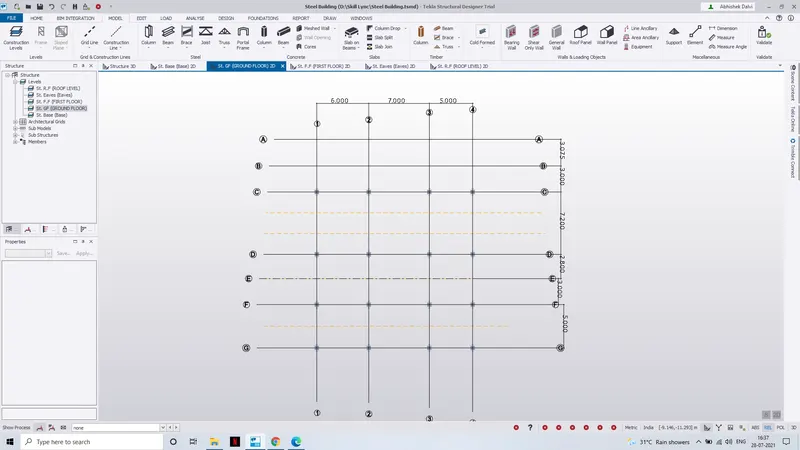

• 2d View of modelled Columns.:

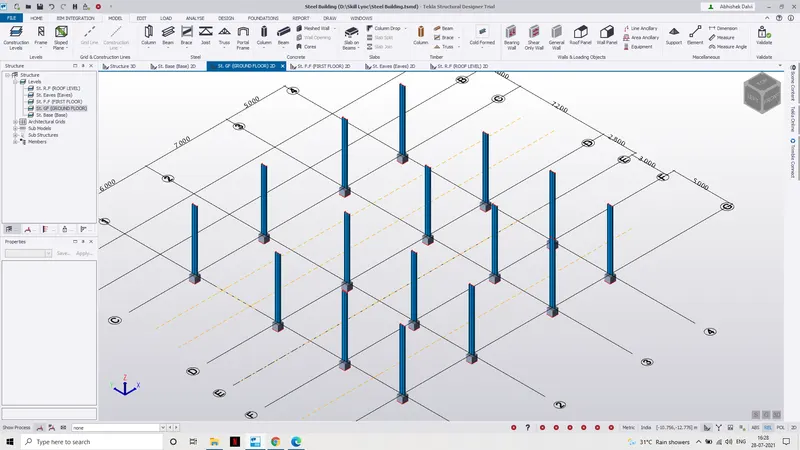

• 3d View. Of column Position:

Questions No 2:

Answer :

Aim : Create column properties for steel columns and model columns in the grid created as per assignment 1.

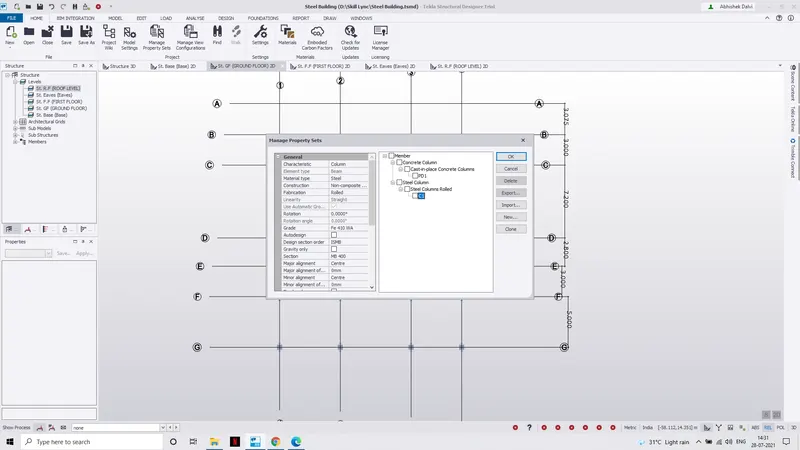

Procedure : Creating steel column properties.

Step 1 : Click on Home Tab

Step 2 : Click on Manage Property Sets

Step 3 : Click on New

Step 4 : Click on Member And select Steel Column and rename it as C1

Step 5 : Click on Proper Section and grade of steel for column.

Step 6 : Select proper allignment of steel column i.e Right,left or centre generally keep it as centre.

Step 7 : select releasing of column properly upper end fixed and lower end Pinned.and then draw on grid as per plan

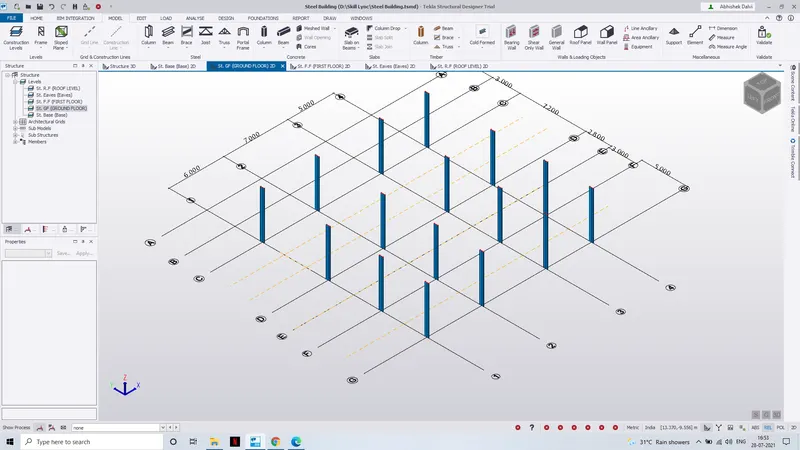

• Modeling of Steel column on Grids:-

Step 1 : After setting of properties for steel columns Click on model tab.

Step 2 : Click on Steel column through steel Section in Ribbon.

Step 3 : Set C1 in property window.

Step 4 : Select proper levels starting and ending level of steel column.

Step 5 : Select the point on the grid where column is suppose to be placed.

Questions 3 :

Answer:

Aim : Create beam properties and model primary and secondary beams on the ground floor.

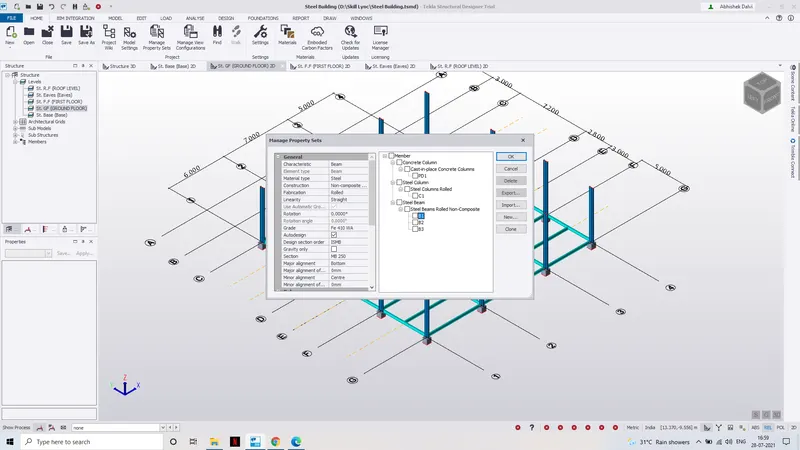

Procedure : Creating Beam properties.

Step 1 : Click on Home Tab

Step 2 : Click on Manage Property Sets

Step 3 : Click on New

Step 4 : Click on Member And select Steel Beam and Rename it as B1,B2,B3...

Step 5 : Click on Proper Section and Grade of steel for Beam.

• Modeling of Steel Beams on Grids:-

Step 1 : After setting of properties for steel Beam Click on model tab.

Step 2 : Click on Steel Beam through steel Section in Ribbon.

Step 3 : Set B1 in property window.

Step 4 : To Create primary beams we should Select proper property.

Step 5 : Select one column and then drag to another column through proper grid and in this way primary beams should be assigned.

Setp 6 : To create Secondary Beam, Click on construction line set construction in proper distance so as long to shorter span should be greater then 2 so it can be one way.

Step 7 : Select proper properties through manage property sets.

Step 8 : Select Proper created property through property window and then Drag on construction line hence secondary beam is created.

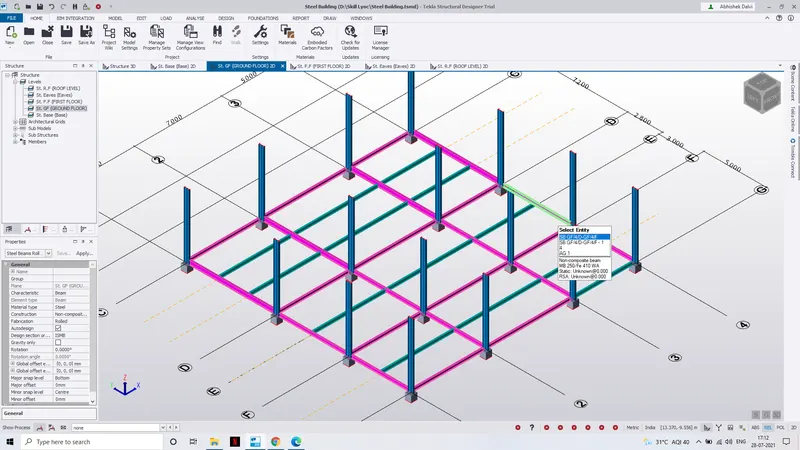

• Primary Beams Shown below which is selected in pink.

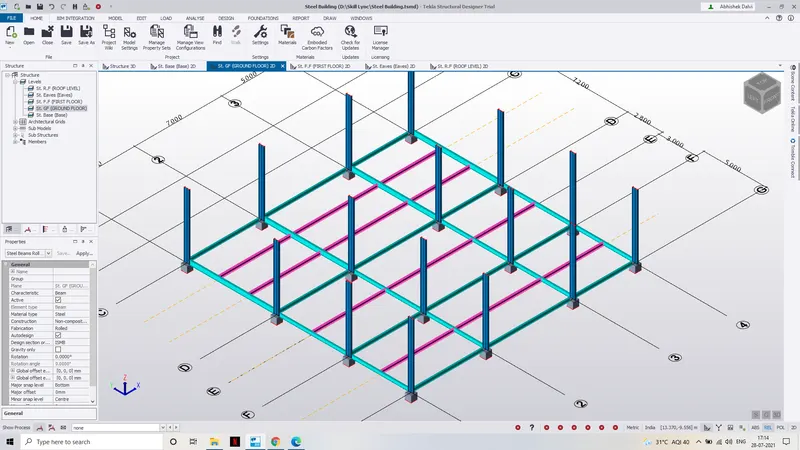

• Secondary Beams Shown in pink.
