Week 2 Challenge

1.

1. Properties tab> define> select a circlura section> enter dimension and assign it to the node.
2. Goto>view > display options > structure units.

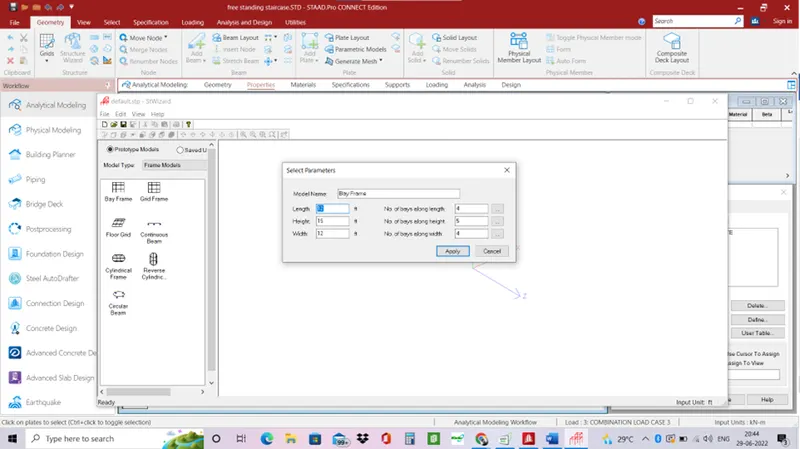

3. Goto > geometry>structure wizard> select frame model>bay frame and edit the frame.
4. pro consists of many materials like steel, column and aluminum and also provide their codal provisions like IS456, IS 800-2016, AISC provisions british provisions etc. Staad.pro also provide provisions for seismic design like IS13920.
5. Goto> Analysis and design > select concrete > select IS 456> define parameters> select FC and if required edit it.

2.1- steps involved in in RCC design are

• Geometry - Nodes are provided in geometry
• Properties – sectional property is provided to the node for ex column, beam and slab.
• Materials – specify the material to the section.
• Specification – specifications are provided.
• Support – supports are provided to the sections.
• Loading – loads are assigned.
• Analysis- analyse the model and results are provided.
• Design – is code is provided and parameters are provided for design of the structure.

2.2 – In fixed support all degree of freedom is restrained but in enforced but support we can release some degree of freedoms as required.

3.1- create model using node system> add beams> apply property> add supports> add loadings > apply perform analysis> goto post processing> note down displacement, shear force, and bending moment.

3.2 – the two ways in which a structural framework can be designed is using node system and using structural wizard for frame model.

3.3 – there are many support conditions in staad.pro they are fixed, pinned, fixed but, enforced, enforced but are some of the most used conditions.

3.4 – after analysis is done on the slab go to post processing go to plate results> plate stress contour select which load case for the stress and select stress type. You can view the max and min stress applied on the slabs mesh.

3.5 – after analysing the beam go to post processing> beam results> select FY for shear and MZ for bending moment.

Practical

1 –

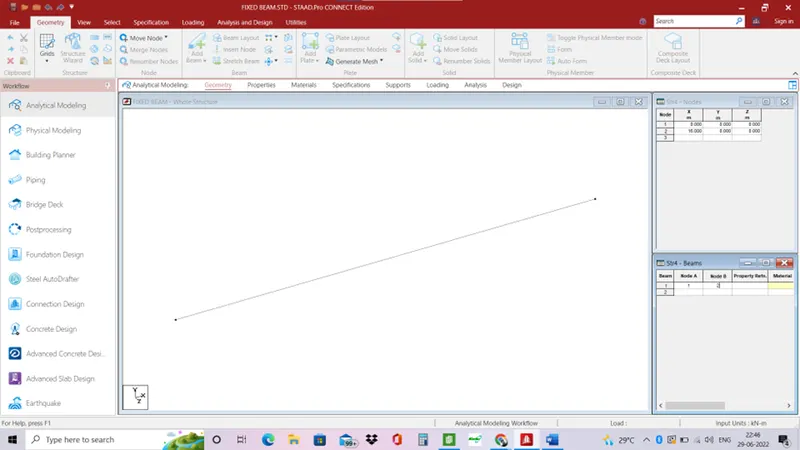

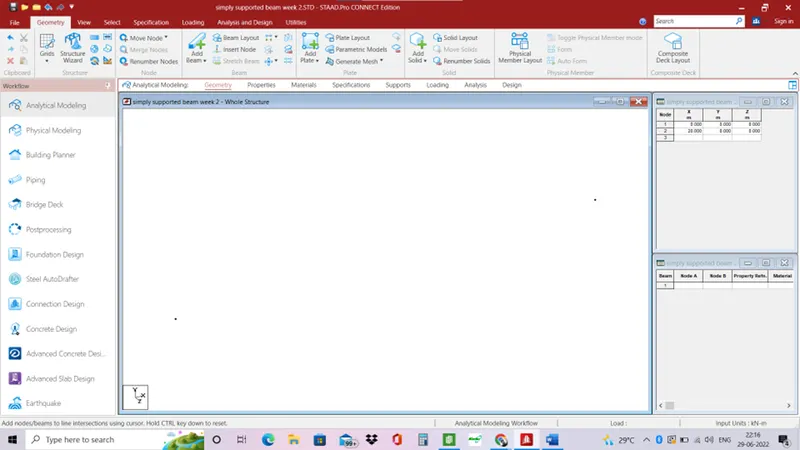

• Open a new project and add 2 nodes spaced at 20
•

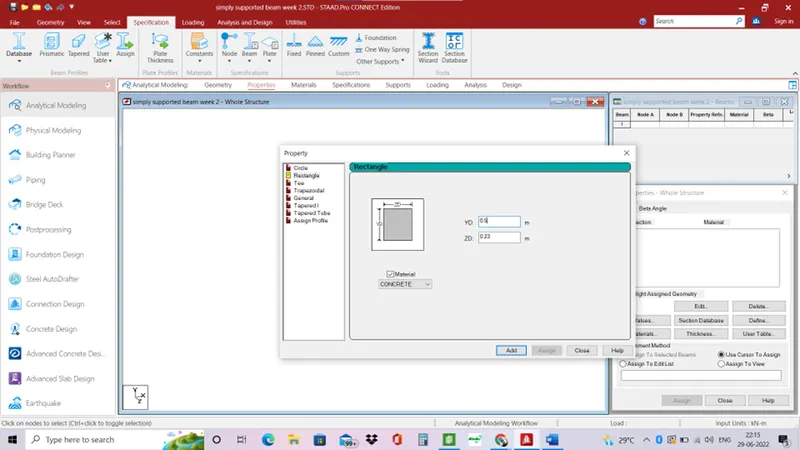

• Apply property details to the beam of 230x500mm to the beam.
•

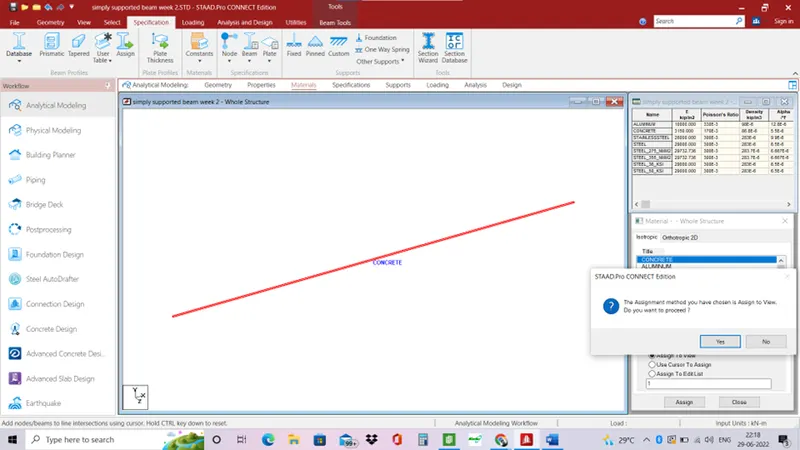

• Apply concrete material to the beam.
•

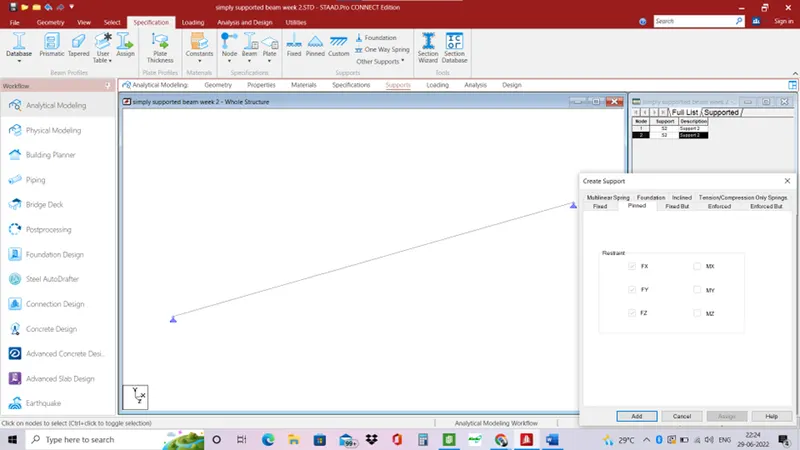

• Apply pinned support to the beam
•

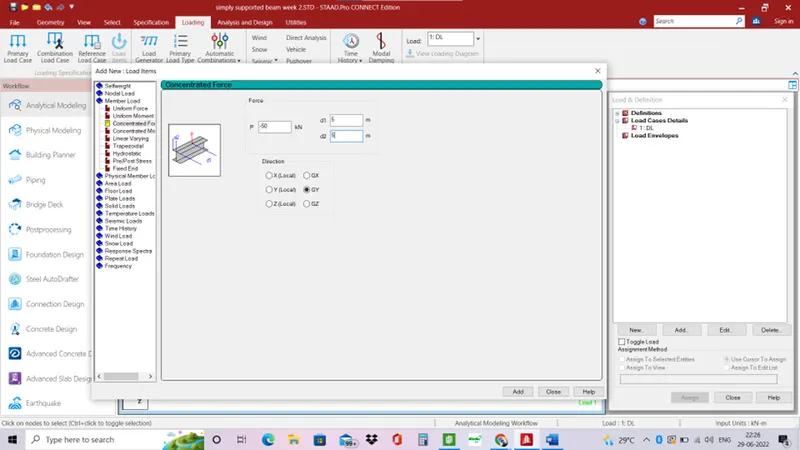

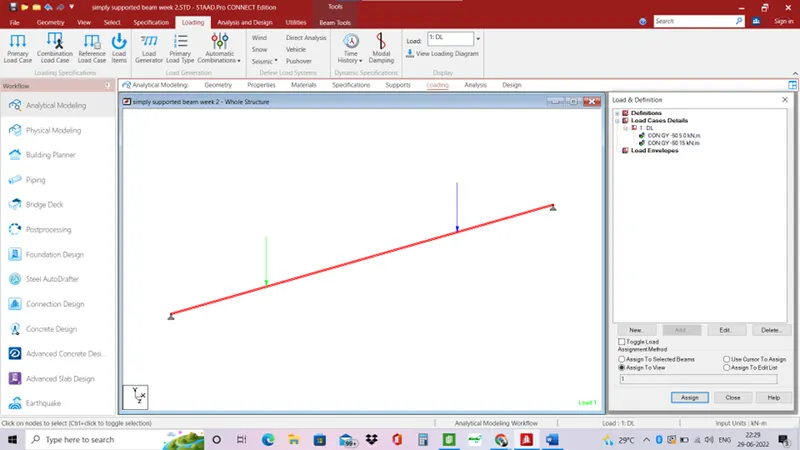

• Apply point loads of 50 kN on 5m and 15m at the beam
•
•

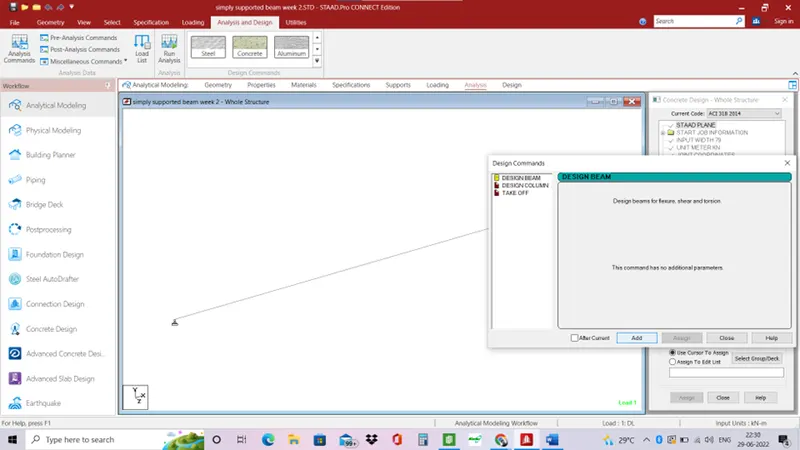

• Select the parameters and assign it to the beams.
•

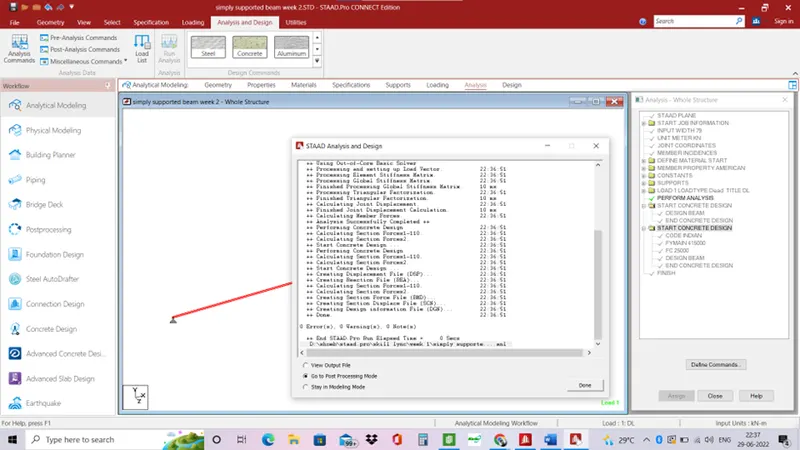

• Analyse the beam for the results.
•

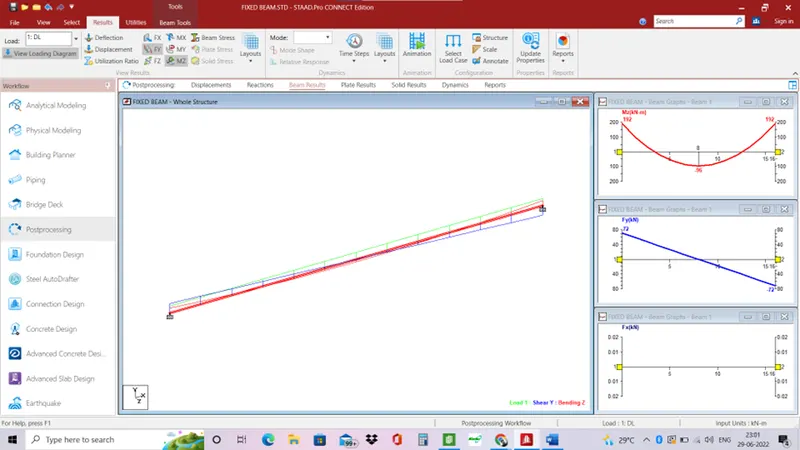

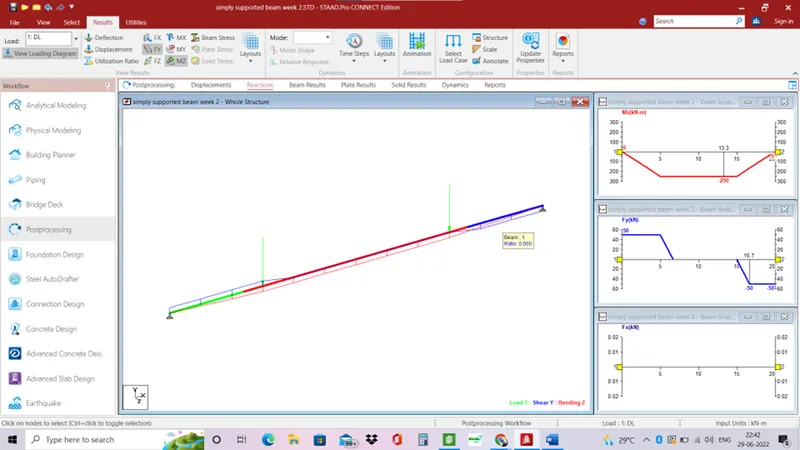

Results -

•

2

• Open a new project and add 2 nodes spaced at 16
•
• Apply property details to the beam of 230x500mm to the beam.

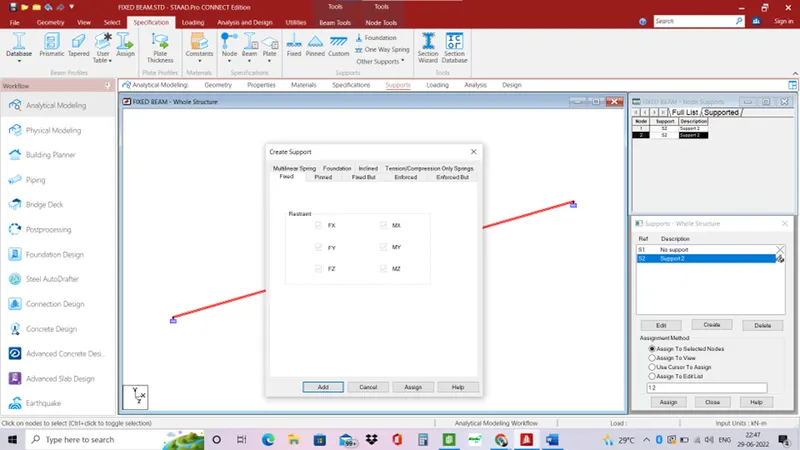

• Apply fixed support on both sides.
•

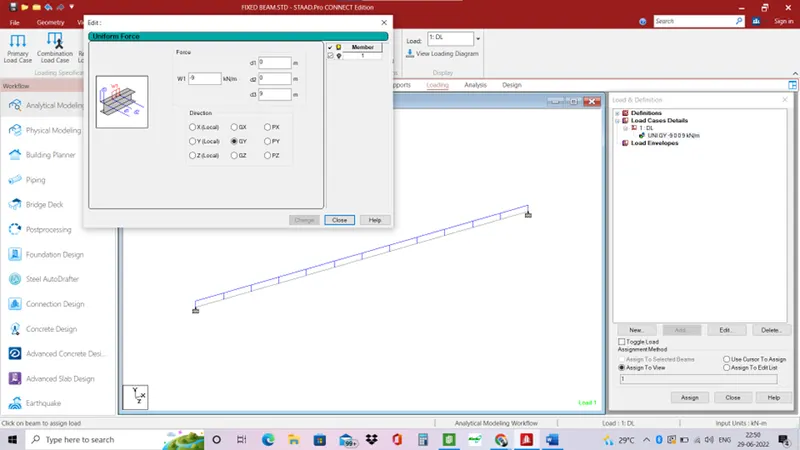

• Apply uniform load of 9kN on the beam.
•
• Analyse the beam and obtain the results,

Results-
