Week 2 : Basic Calibration of Single cylinder SI-Engine

1.Run the case at 1800 rpm and list down important parameters (20 Marks)

• air flow rate

Ans : 26kg/h

• BMEP

Ans :

• BSFC

Ans : 239.2g/KW-h

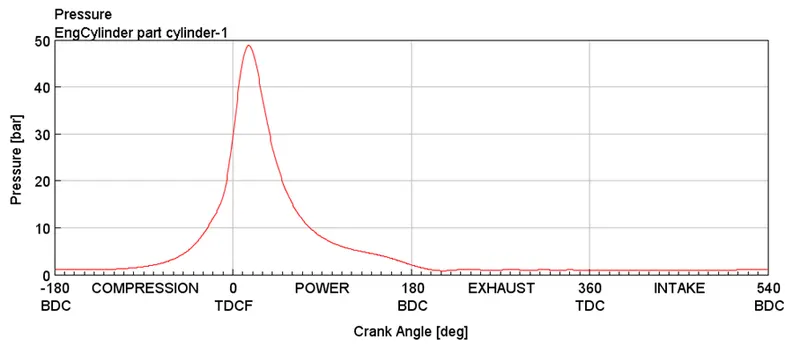

• In-cylinder pressure

2. Increase the power output at 3600 rpm by 10%
