Week -2
1.Make a Simulink model of Doorbell using solenoid block

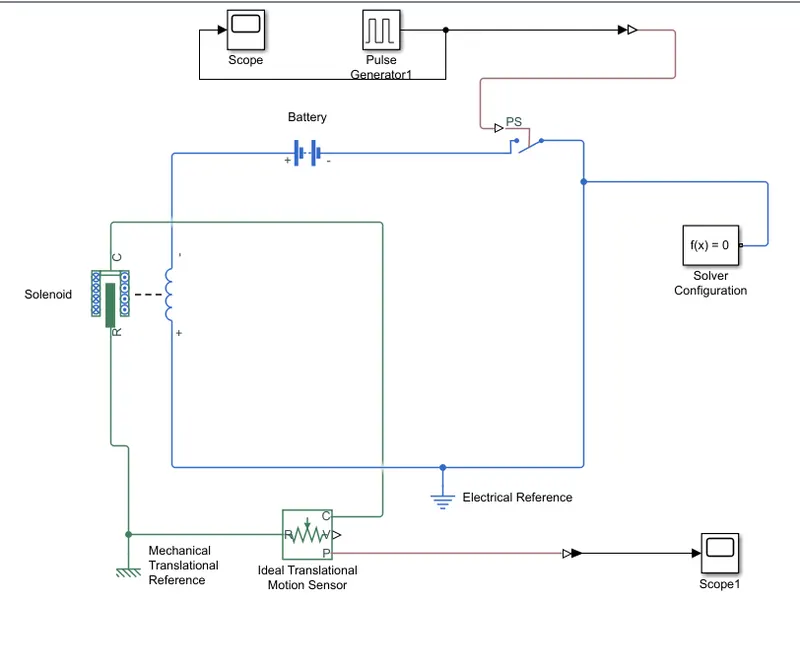

Model
BLOCKS USED IN MODEL
- Pulse Generator
- Simulink-PS conveter
- Switch
- Battery
- Solenoid
- Mechanical Translation Reference
- ideal translational motion sensors
- Electrical reference
- Solver Configuration
- Scope
Explanation
- Pulse generator is use to generate a input signal and its connected to switch trhrough simulink-PS converter
- This converter is used to convert simuink signal to physical signal
- Battery is used as a power source and its connected to solenoid
- solenoid is connected to mechanical translation reference
- ideal translation motion sensor is connected to solenoid and p port of the sensor is connected to scope through ps-simulink converter

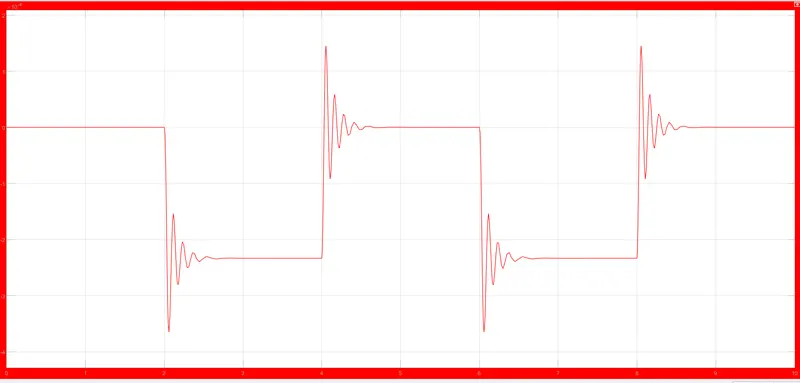

Scope
2. Use a thermistor to sense the temperature of a heater & turn on or turn off the fan

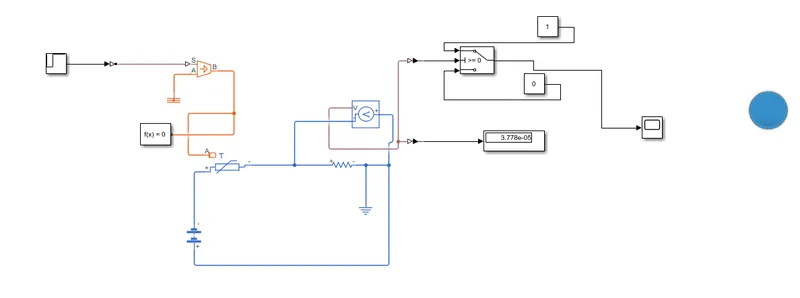

MODEL
BLOCKS USED IN MODEL
- Reapeating sequence stair
- Controlled tempertature soure
- Resistor
- voltage Sensor
- Scope
- Lamp
- Thermistor
- Display
- Solver configuration
- PS- Simulink Converter
- Simulink-PS converter
- Battery
- Switch
- Constant
RESULT
If the temperature is above 296K the lamp in Blue colour
