Week 14 challenge
Report:
- parts are imported in the assembly file first.
2. they are placed according to their local CSYS system, by default.

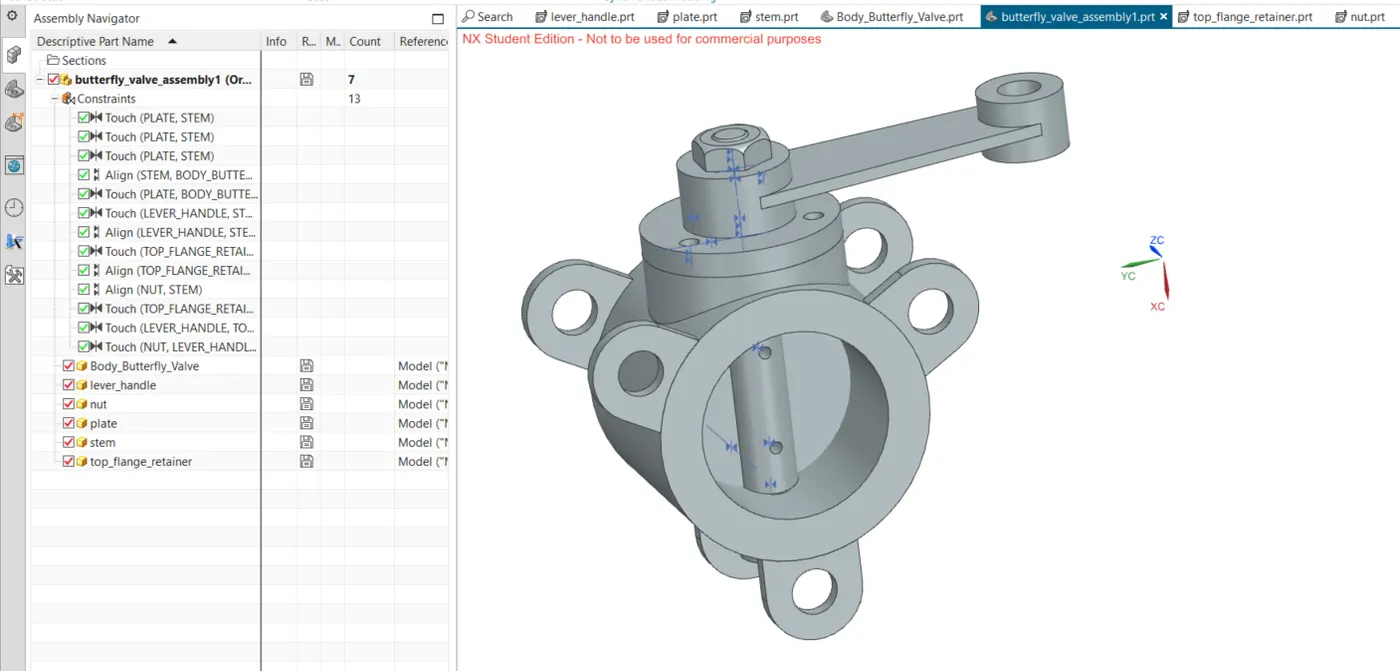

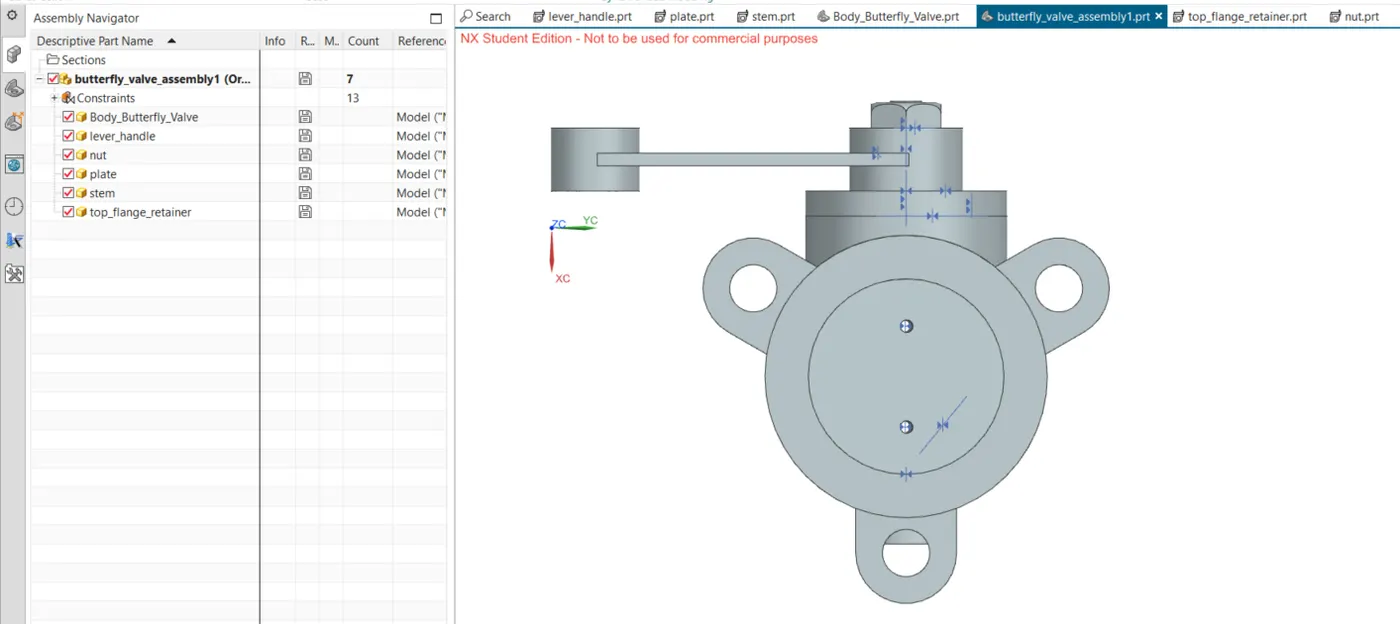

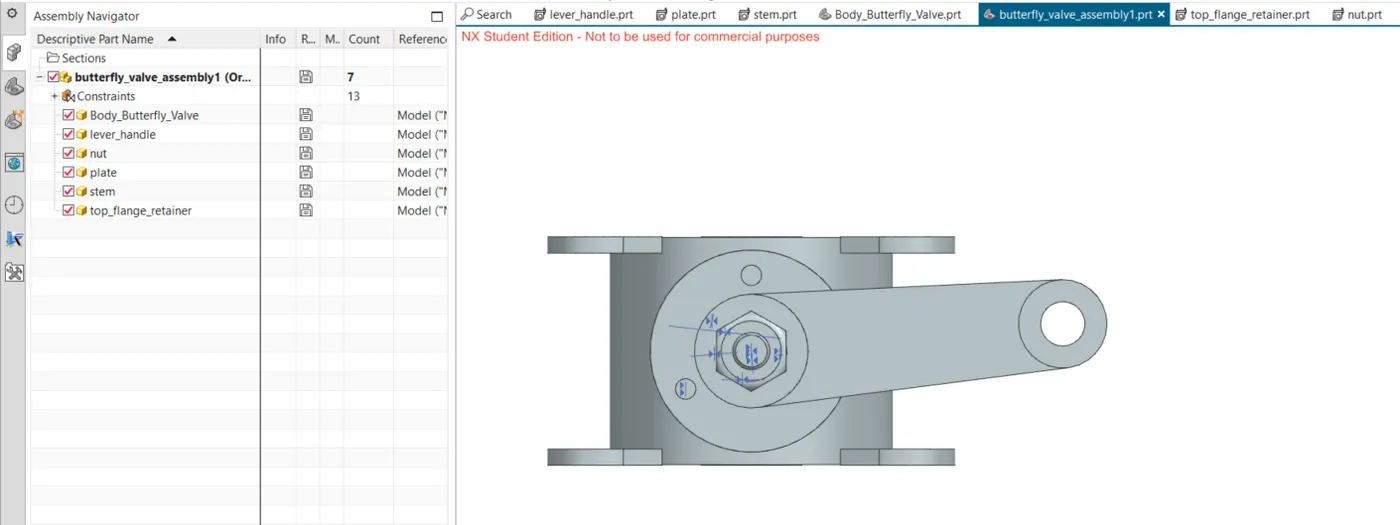

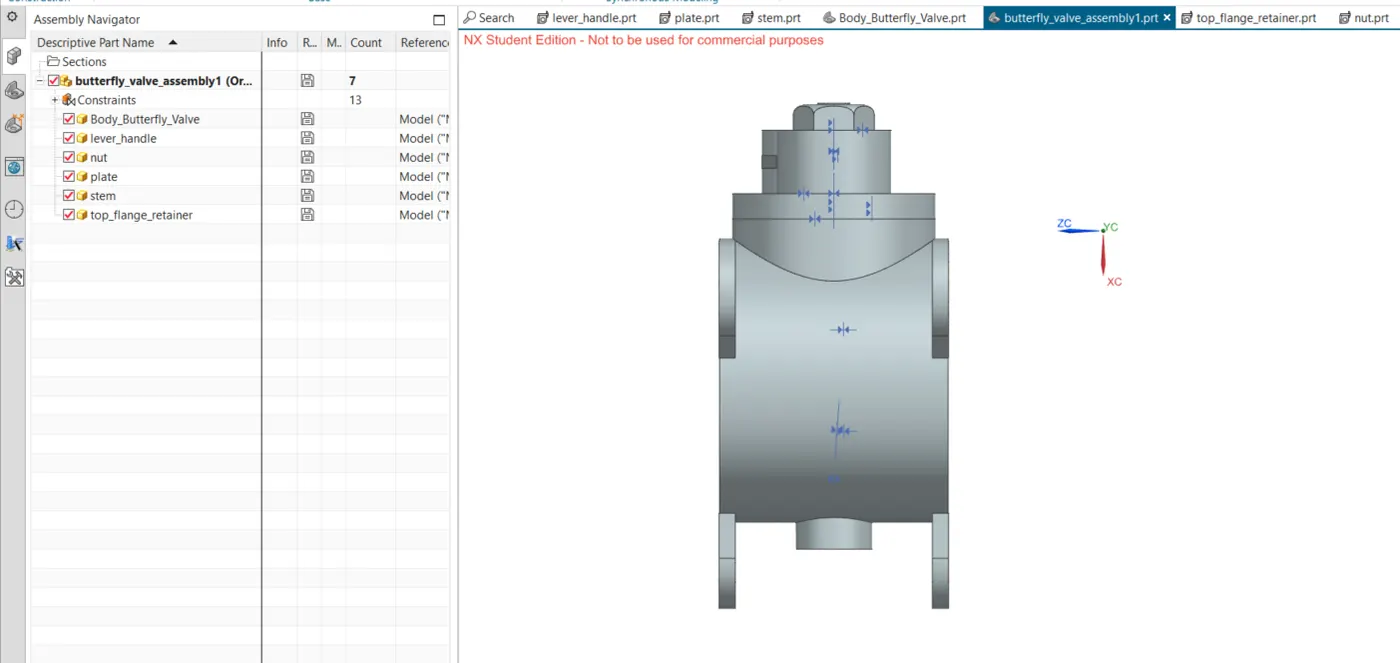

3. then using move object and constrains, we place them in their actual positions.
4. constrains like align axis/centre and touch were used to place the parts in position.
5. after this, they were imported for drafting.

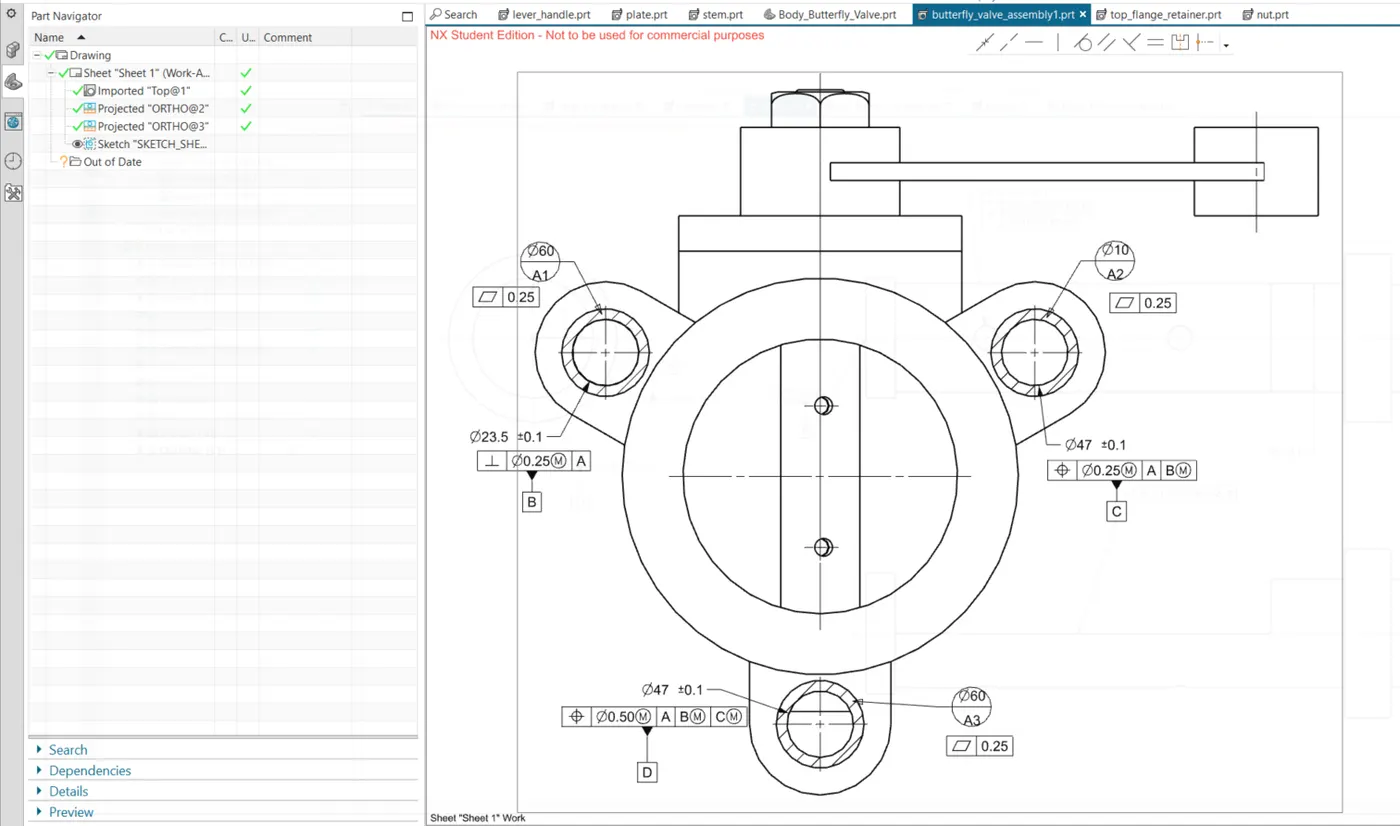

6. circular datum targets were used to fill in tolerance information.
7. Datums were mentioned.

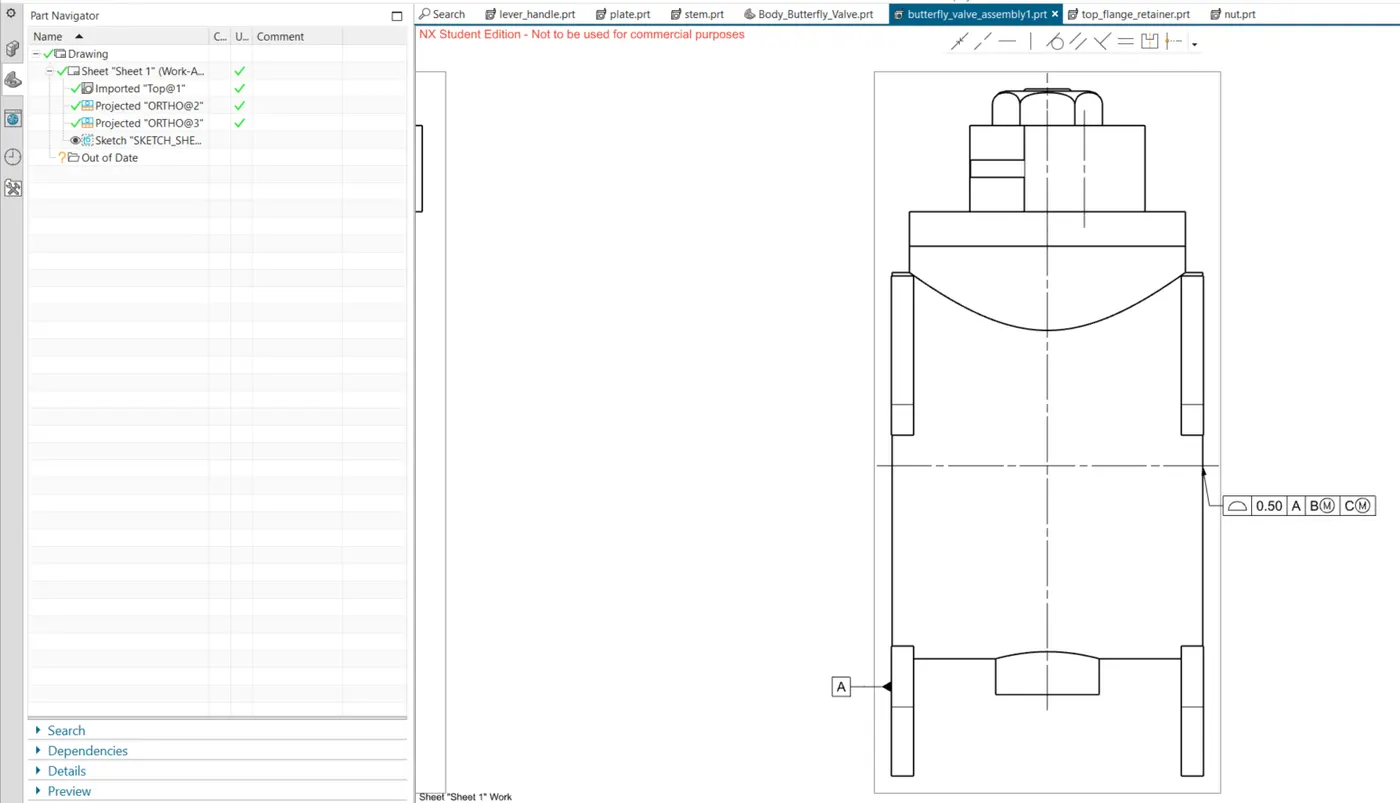

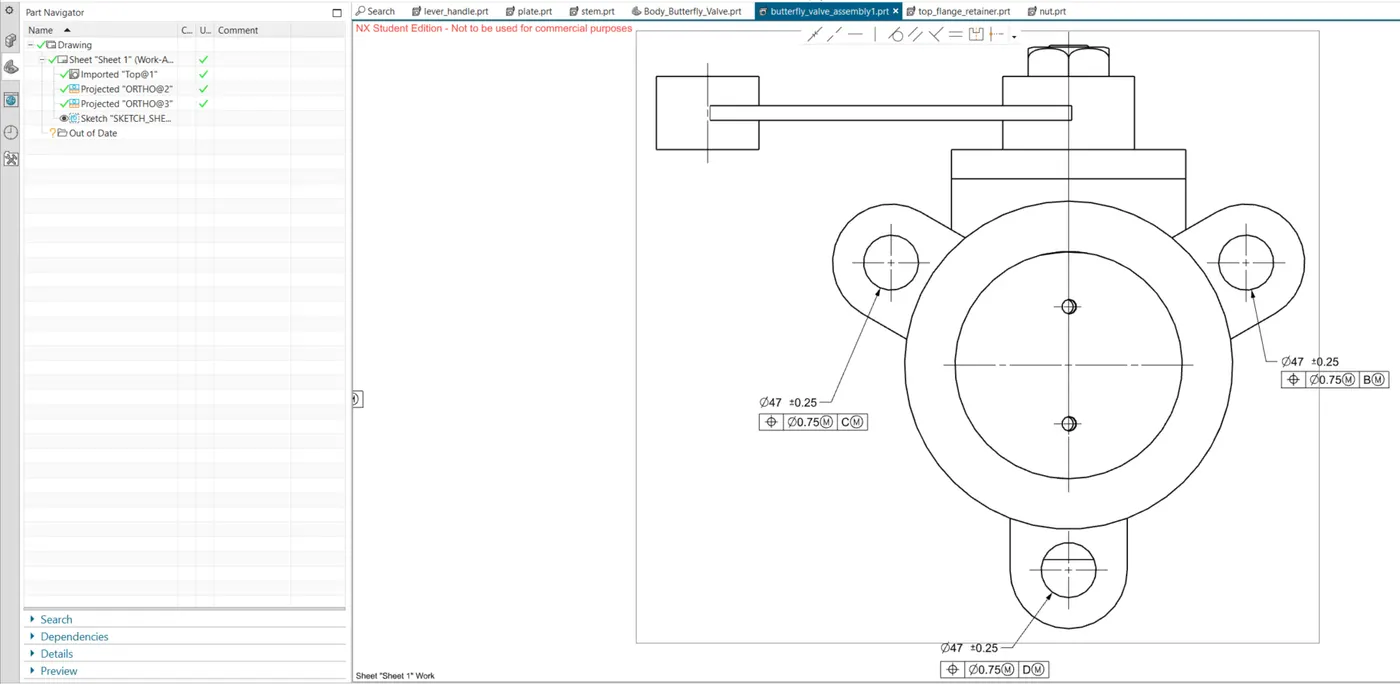

8. flatness, perpendicularity, position tolerances, profile of a surface with respect to datums wherever applicable, were mentioned.
9. proper dimensioning was done.
