Week 14 challenge
Butterfly Valve Assembly
Aim:
To Assemble and apply GD&T to the butterfly valve assembly drawing.
Commands Used:
1.Move
2.Align
3.Touch
4.Assembly Constraints
5.Infer Centre/Axis
6.Datum Feature Control Frame
7.Datum Feature Symbol
8.Datum Target
9.Radial Distance

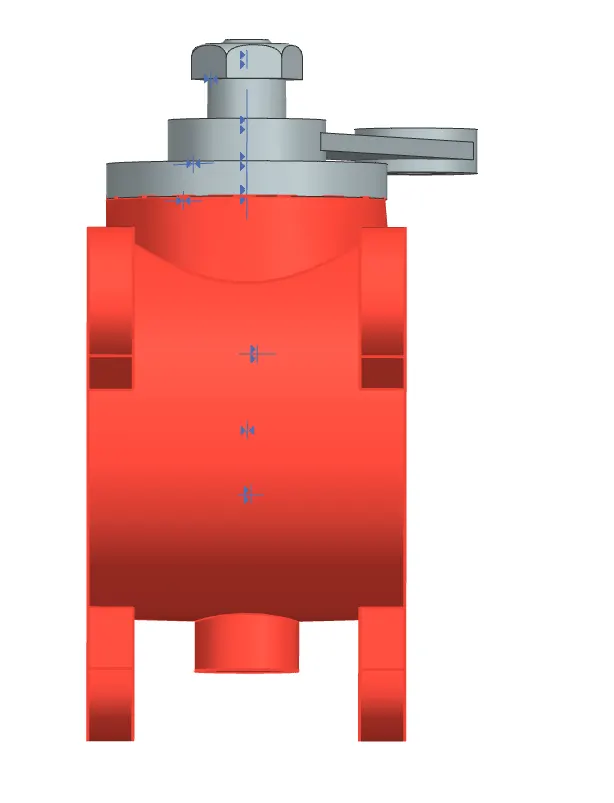

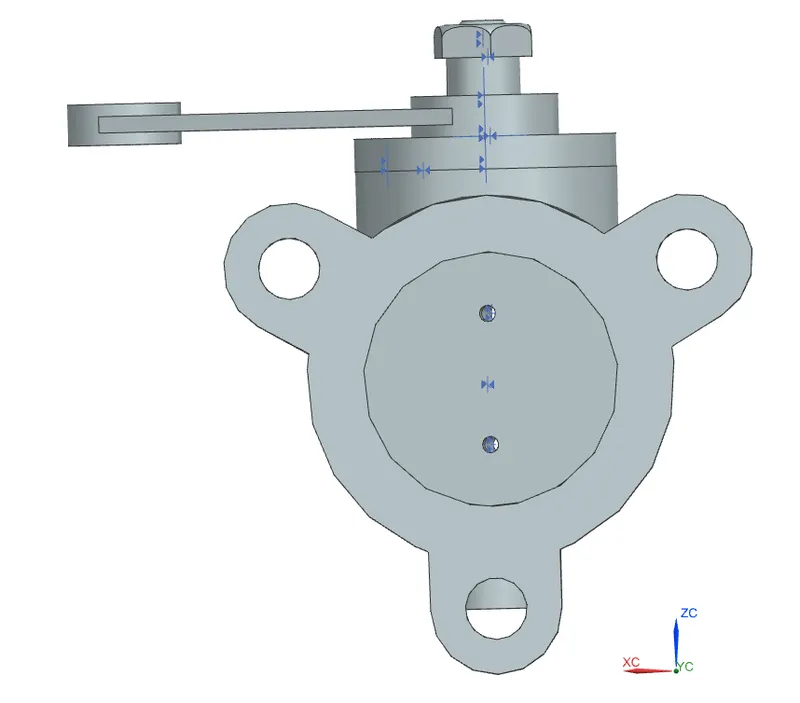

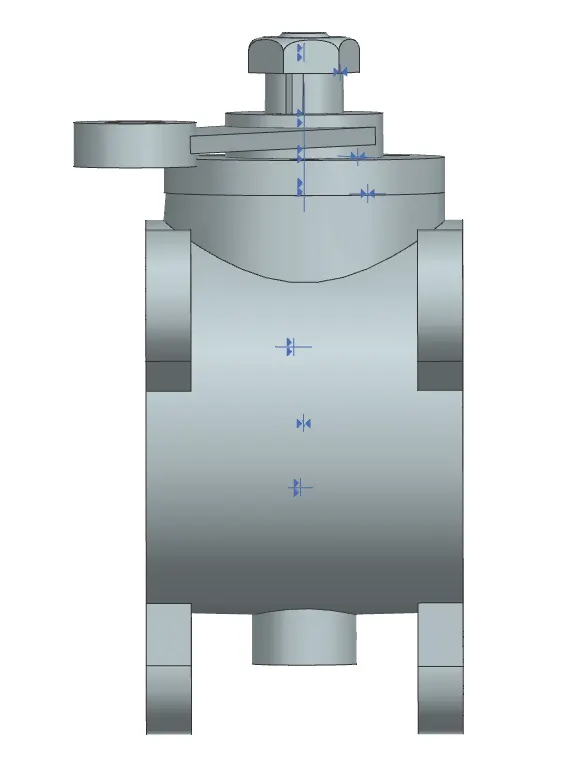

Some Of The Attached Photos In all Views:
Description:
In this assembly first we will be moving all the components seperately and then we will give the assembly constraints to the single components individually and also we will make the alignement of all the six components in the single part after that will going for the drafting of the given part.
After assembly of all the components will apply the GD&T to the part and its components.
Conclusion:
