Challenge

Week 12 - Validation studies of Symmetry BC vs Wedge BC in OpenFOAM vs Analytical H.P equation

DDhananjay Velangi25 May 2023
CFD

AIM

To simulate laminar viscous flow through regular pipe by applying Symmetry Boundary Condition and perform simulation for the below mentioned angles using both symmetry and wedge boundary conditions and validate them with HP equations.

Angles to test

  • 10 deg
  • 25 deg
  • 45 deg

Expected Results

  1. Validate Hydro-dynamic length with the numerical result

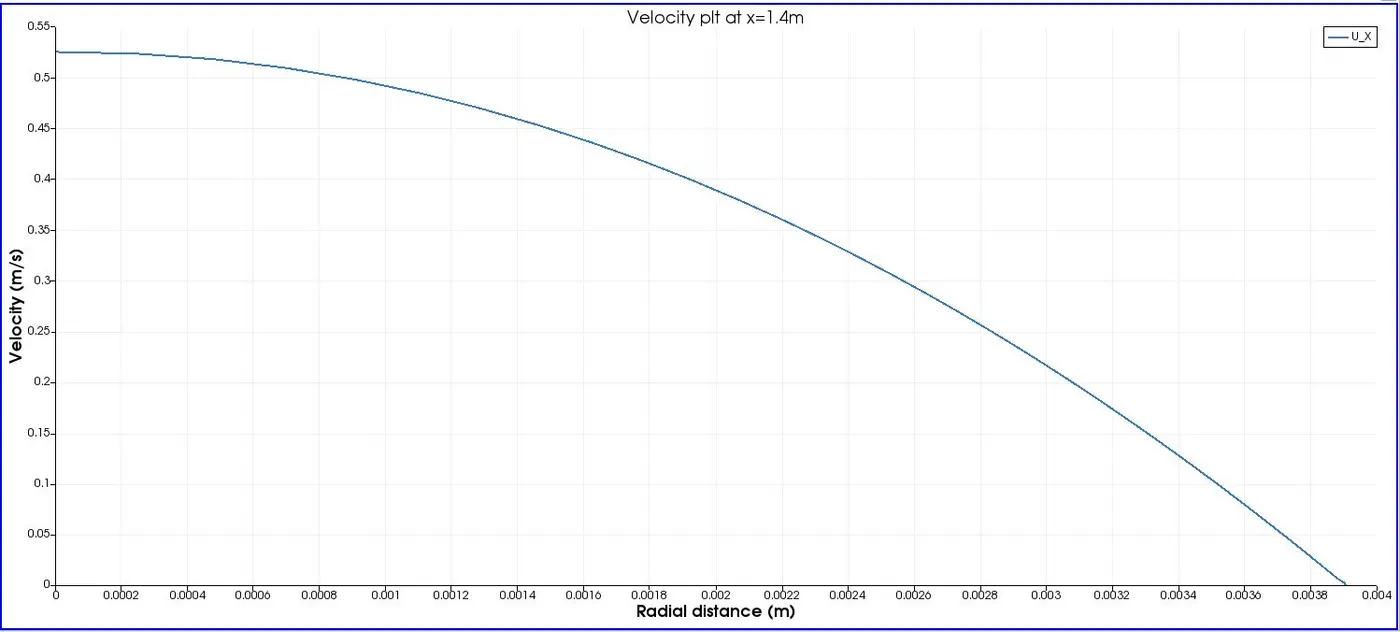

  2. Validate the fully developed flow velocity profile with its analytical profile
  3. Validate maximum velocity and pressured drop for fully developed flow

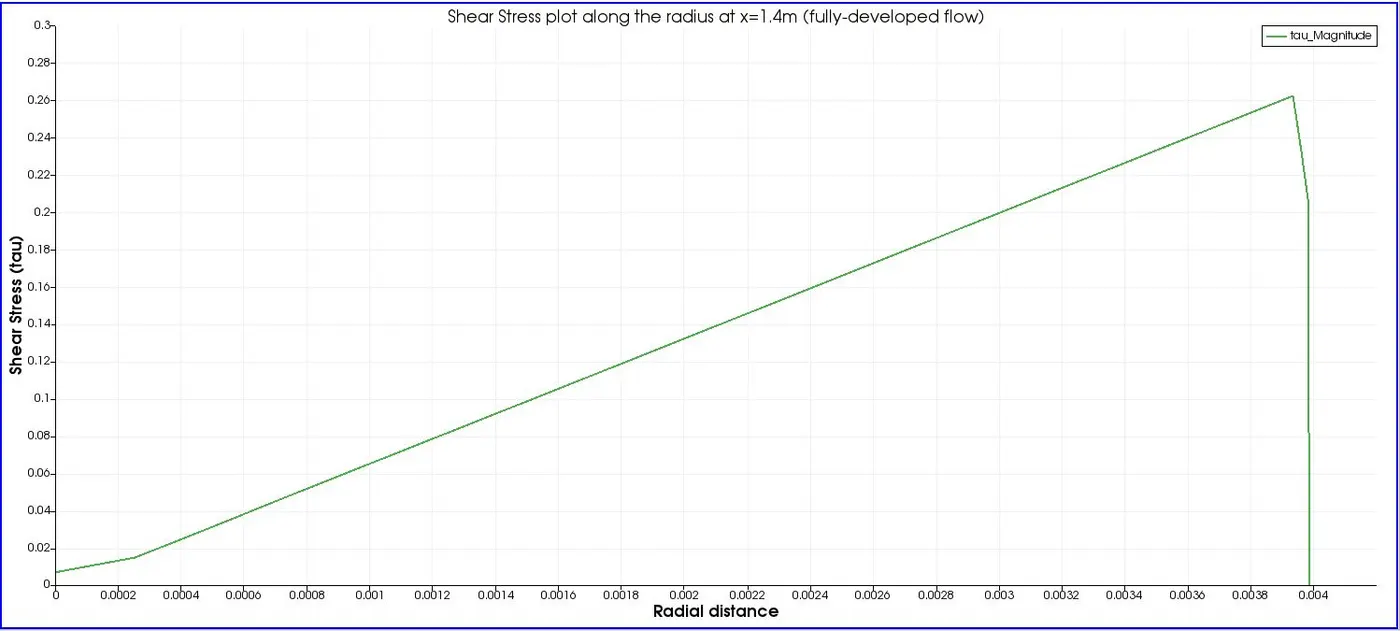

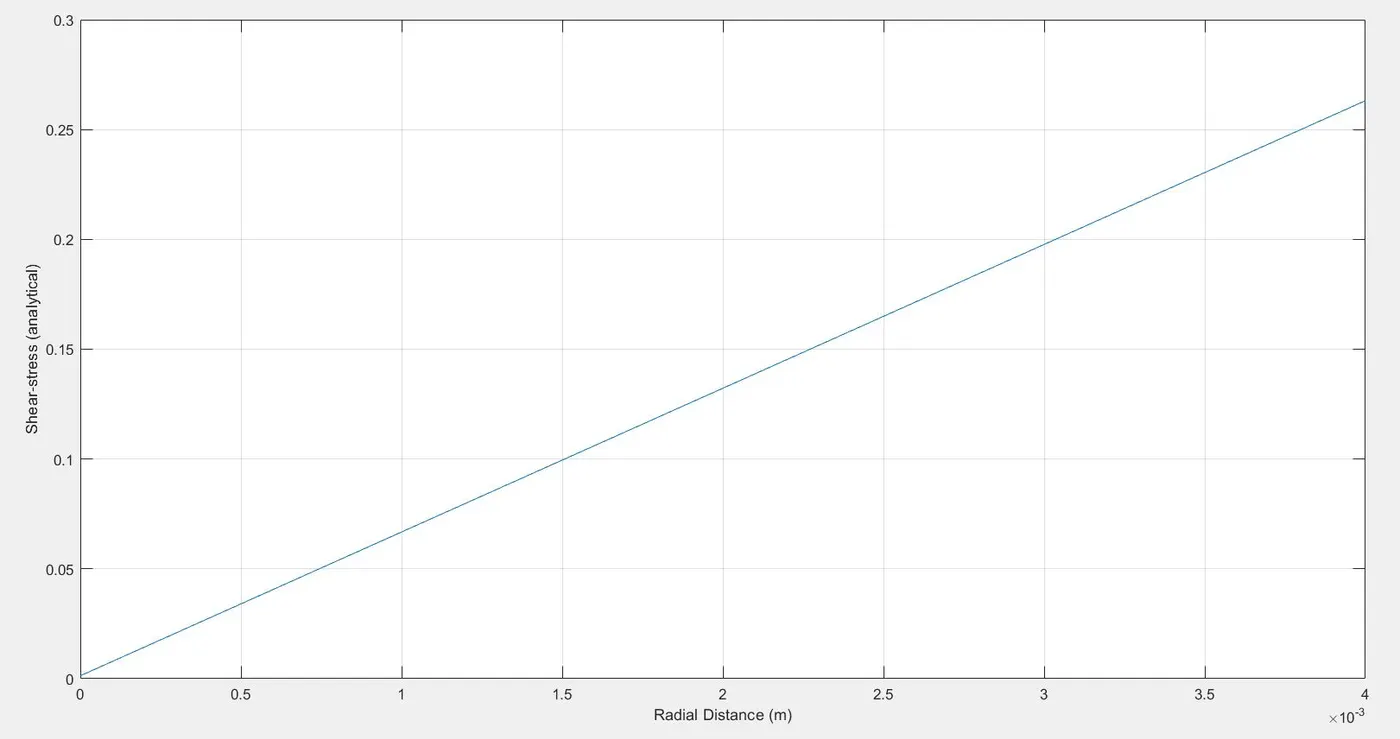

  4. Post-process Shear stress and validate wall shear stress for fully developed flow
  5. Highligh the differences in both boundary conditions in terms of their usage and aplication

EXPLAINATION

To simulate the incompressible laminar flow through a cylindrical pipe, I have used the icoFoam solver in OpenFoam. Also simulating the flow through an entire pipe would be computationally demanding, and since the geometry of the pipe is axisymmetric I have used a wedge section of pipe for the simulation as depicted in the below figure.

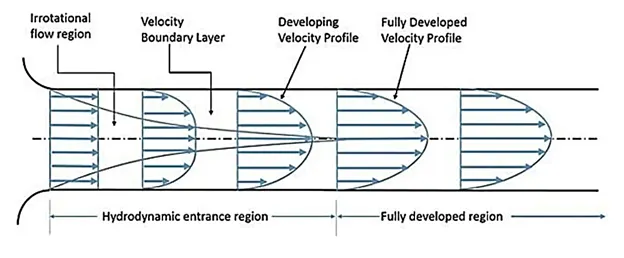

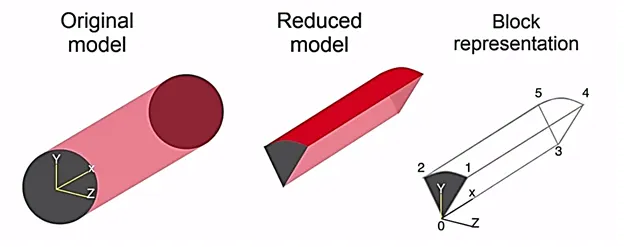

As shown in the above figure, when the fluid enters the pipe, we see viscous effects because of the flow resistance characteristic of the pipe wall. The viscous effects are important at the boundary layer. The boundary layer is a dynamic phenomenon, and it is seen that it grows from the wall to such an extent that they all merge on the centerline of the pipe. That is when the flow is said to be a fully developed flow. The length required for the flow to reach a fully developed flow condition is called the hydrodynamic entrance length denoted by Le.

We have an emperical equation to compute the hydrodynamic entrance length given by

Le = 0.06*Re*D

where, Re = Reynold's number

D = Diameter of the pipe

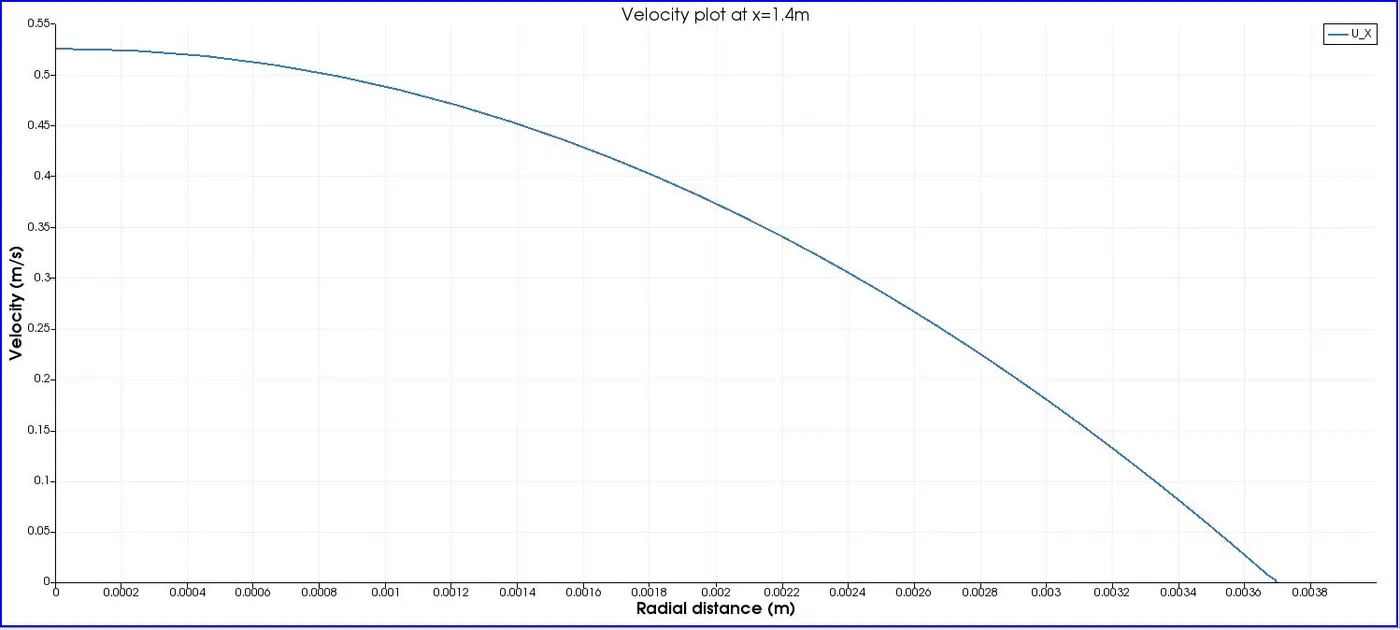

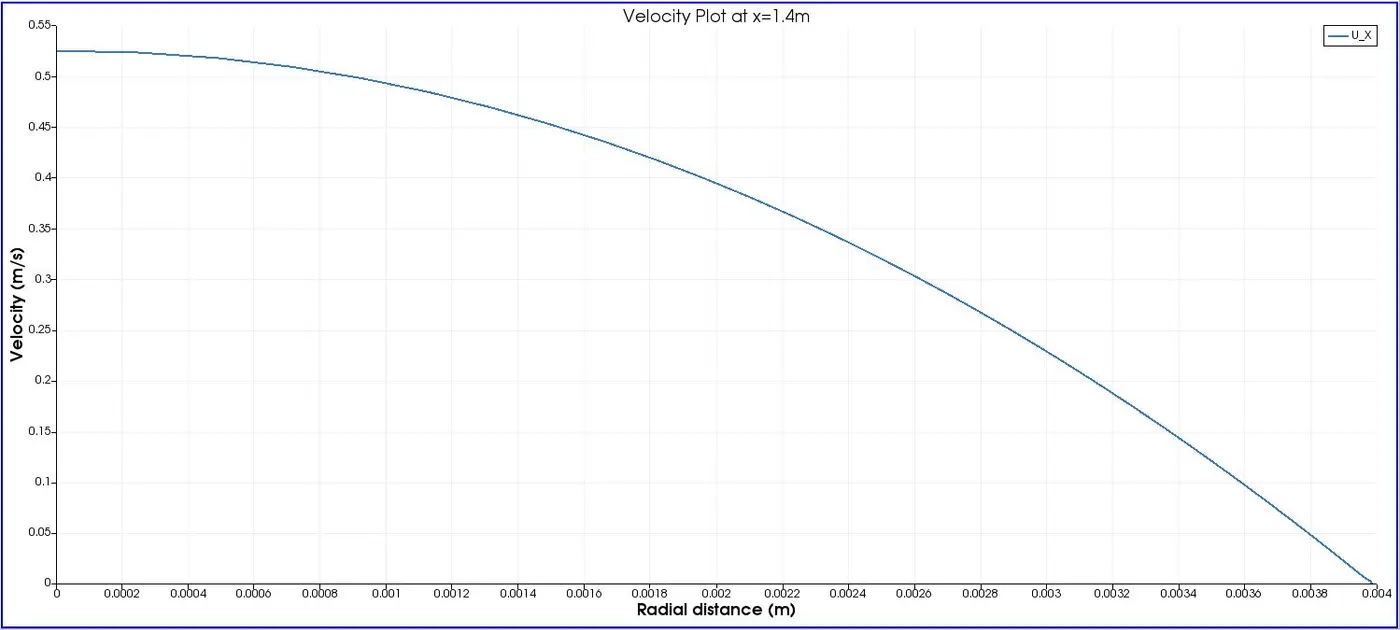

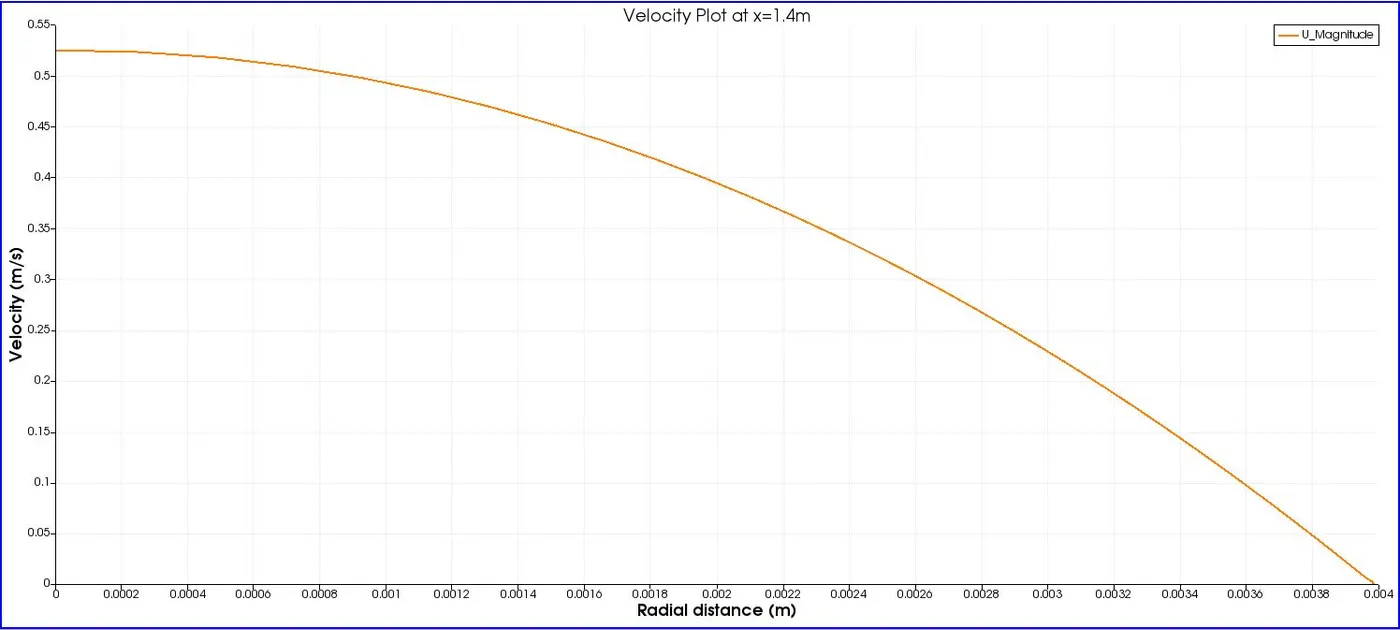

The velocity profile of a fully developed laminar horizontal circular pipe flow is given by

`V = 1/(4mu)(partialp)/(partialx)(y^2-R^2)`

Similarly we have an equation for pressure difference given by

`deltap = (32muLV)/(D^2)`

where, V = average velocity

mu = dynamic viscosity

y = vertical distance from the pipe axis

Analytical solution is given by Hagen-Poiseuille equations

Average velocity can be computed from the Reynold's number equation i.e., `V = (mu*Re)/(rho*D)`

= (0.001003*2100)/(998.2*0.008)

= 0.2637 m/s

WKT, maximum velocity = 2 * Average velocity. Hence max. velocity = 0.5274 m/s

Hydrodynamic entrance length (Le) = 0.06*Re*D = 0.06*2100*0.008 = 1.008 m

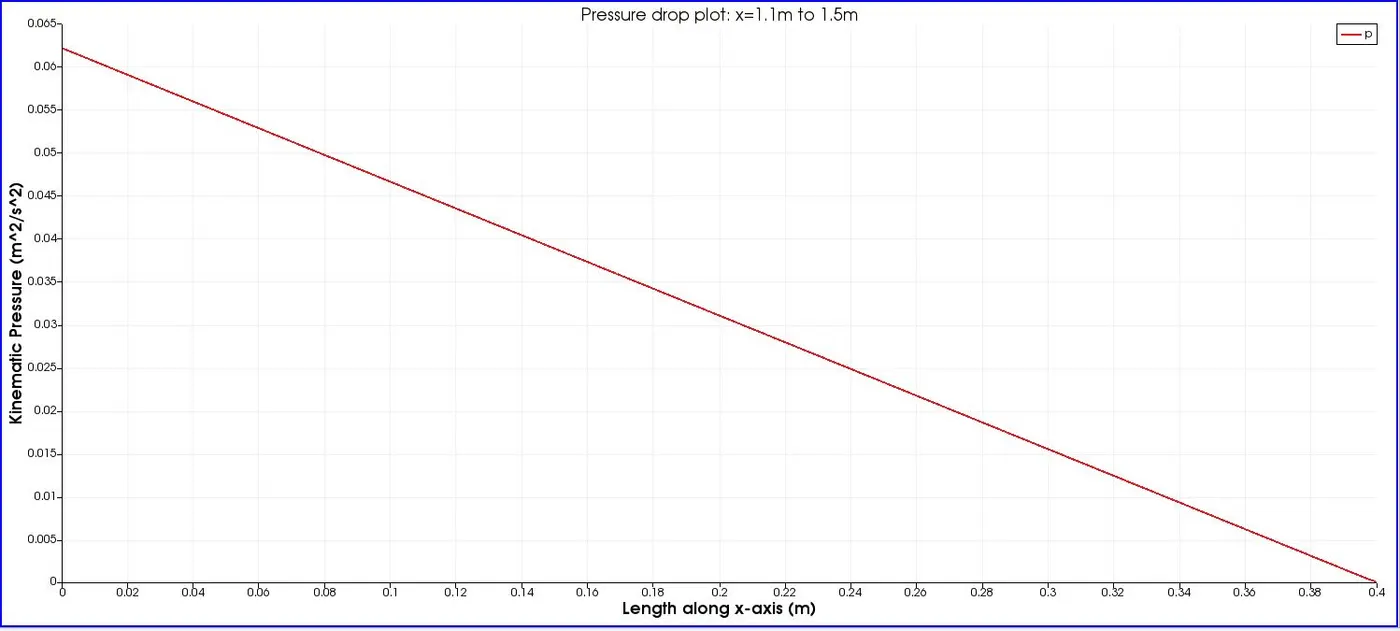

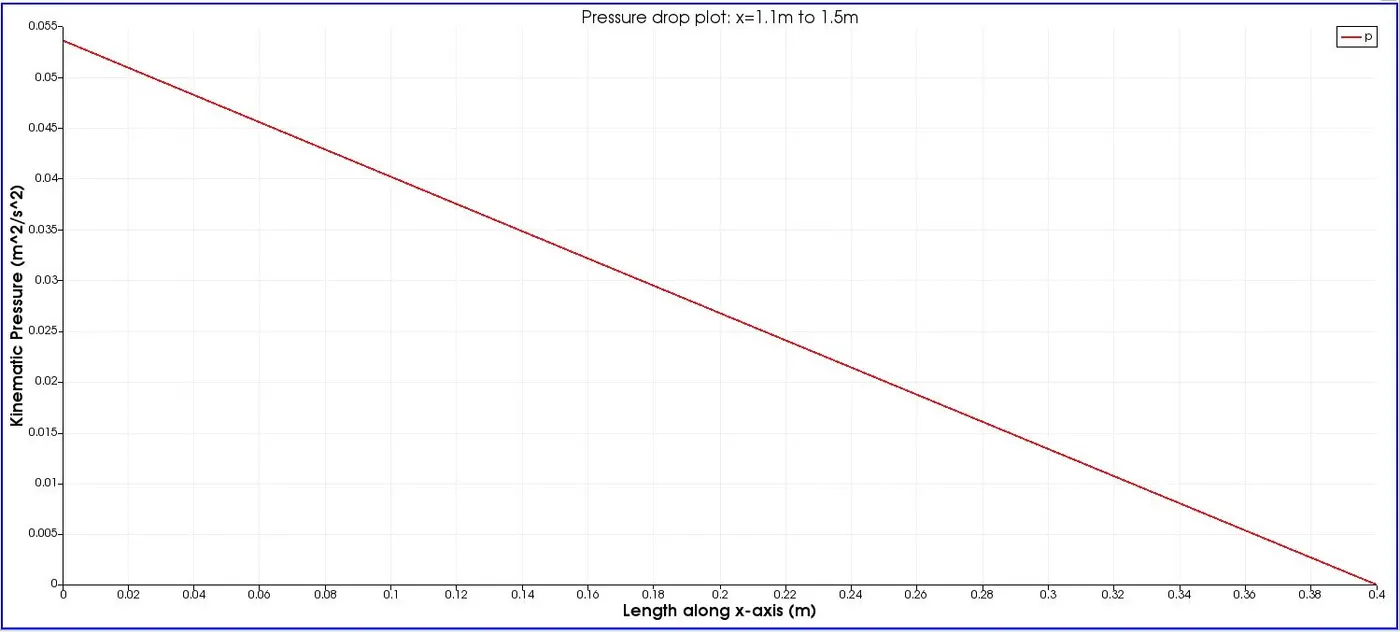

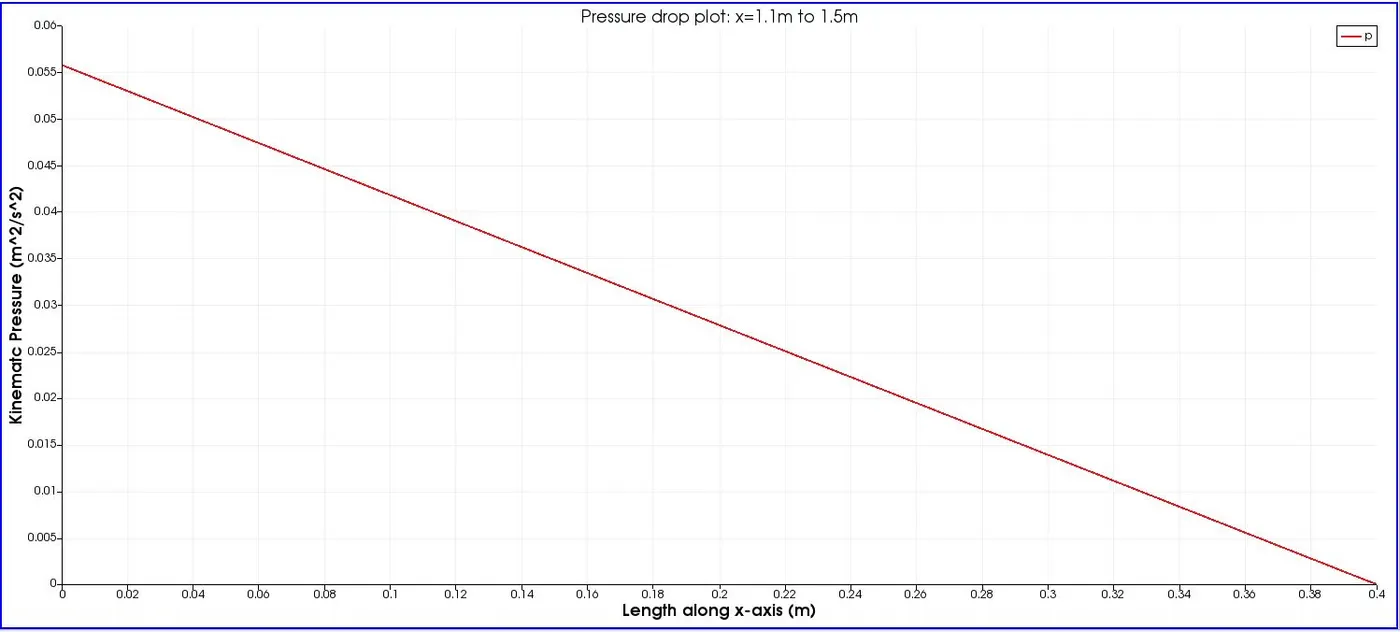

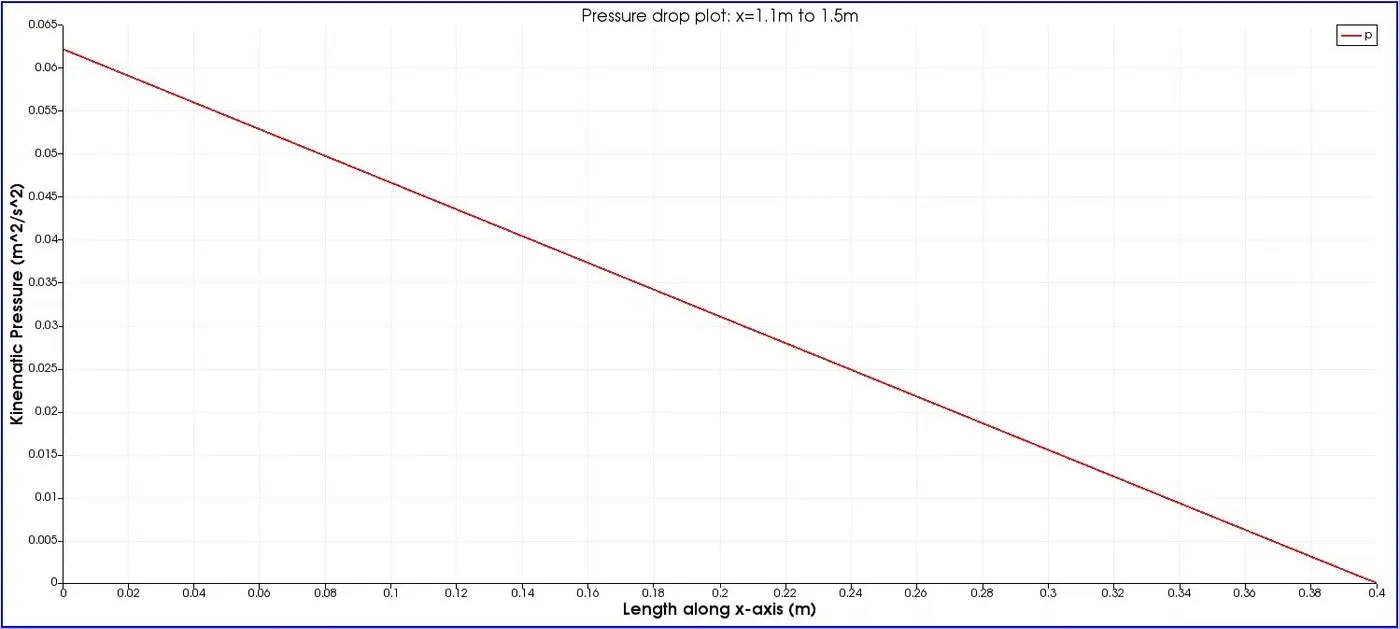

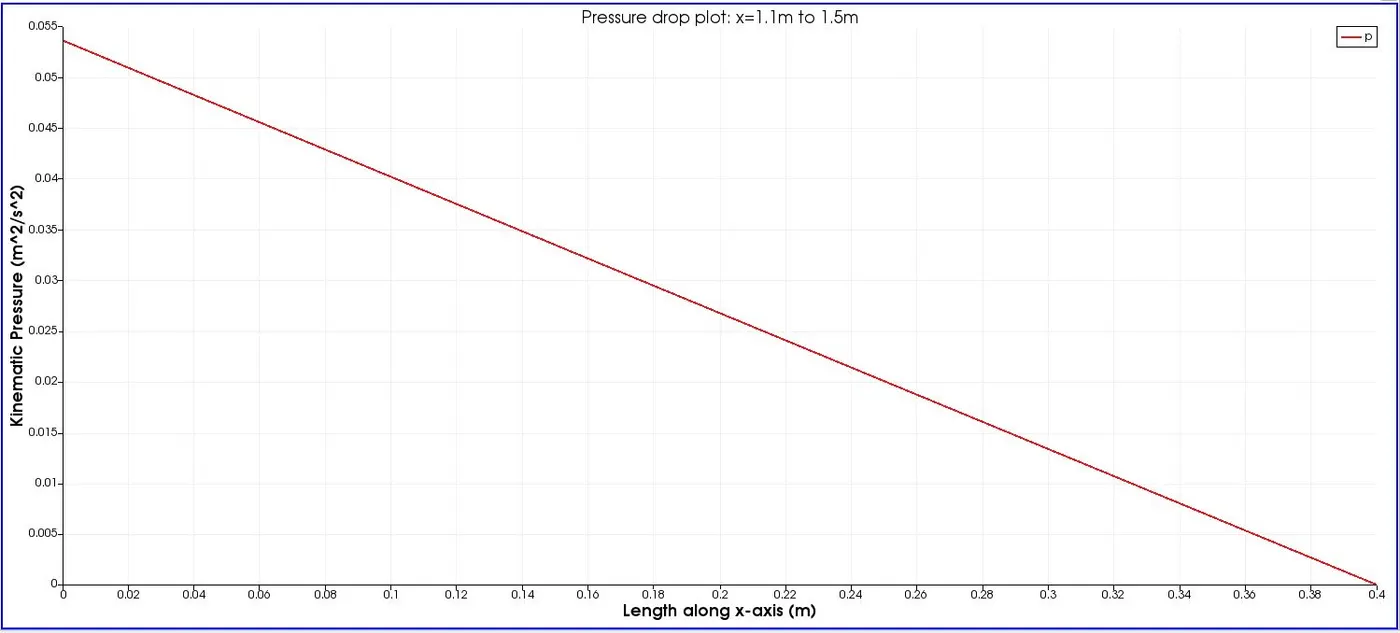

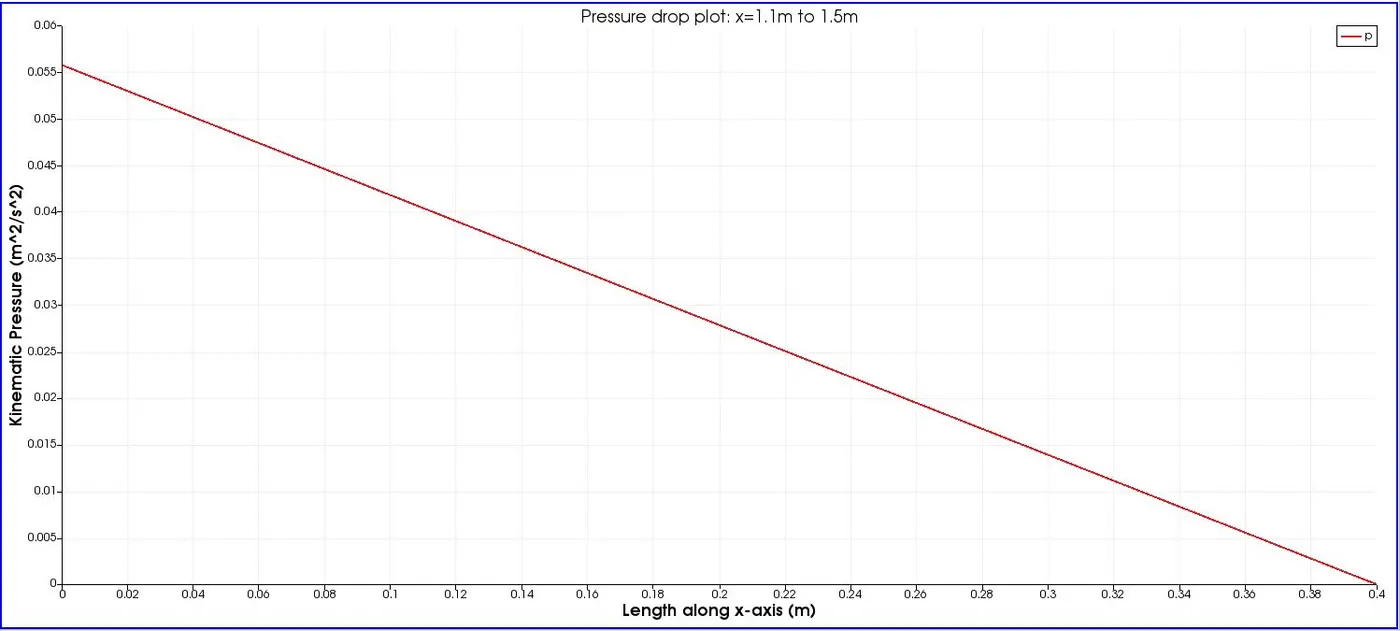

Hence pressure drop in the fully developed flow i.e., from 1.008 to 1.5 m = (32*0.001003*0.4*0.2637)/0.008^2

= 52.89 Pa

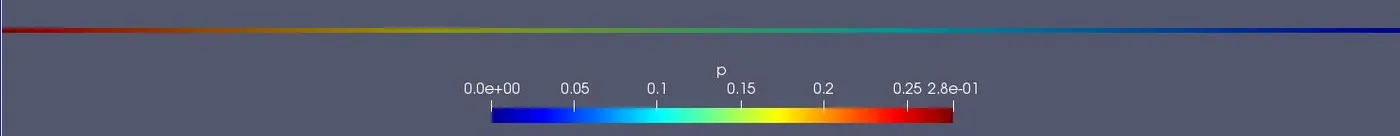

Note that the solver in the OpenFOAM uses kinematic pressure which is the ratio of Static pressure and density and hence we need to compute the kinematic pressure given by 52.89/998.2 = 0.053 m2/s2

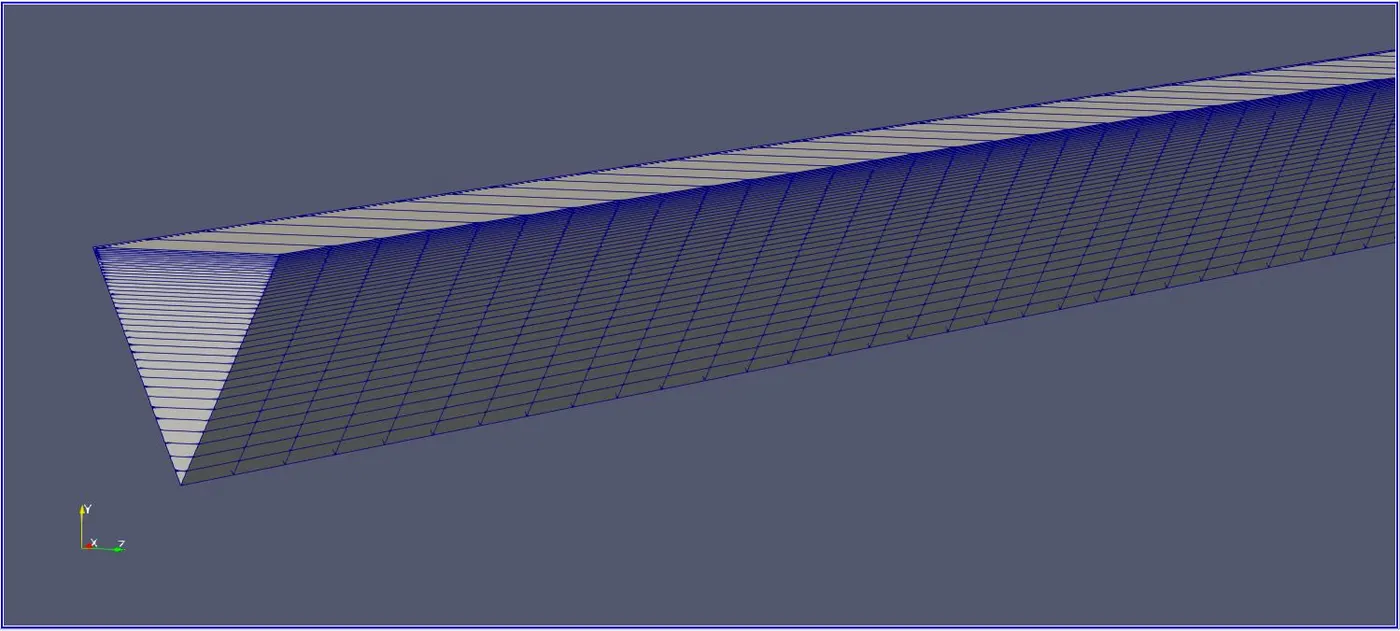

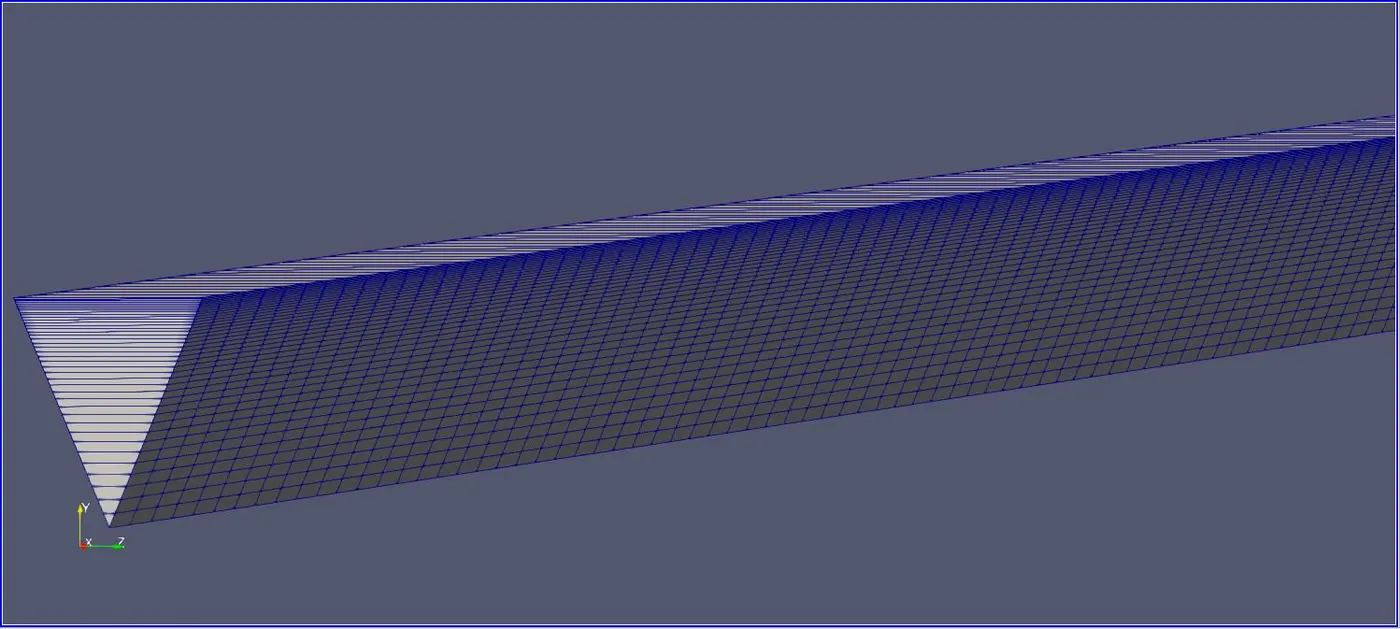

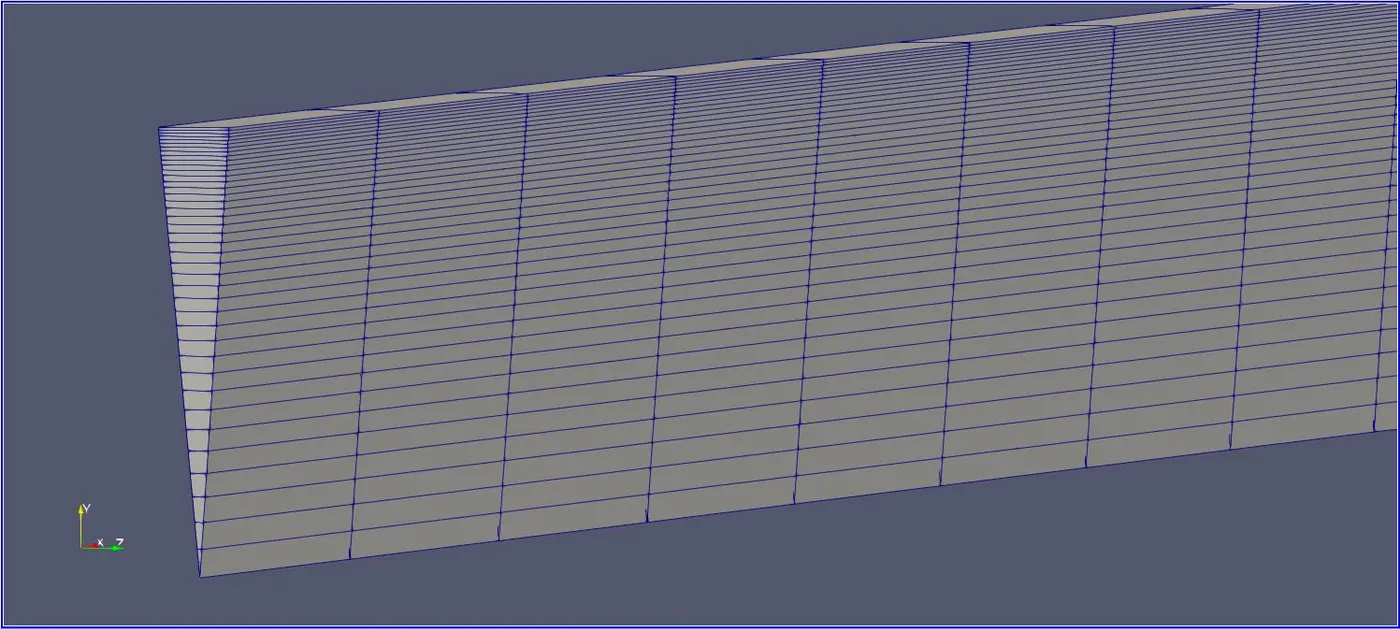

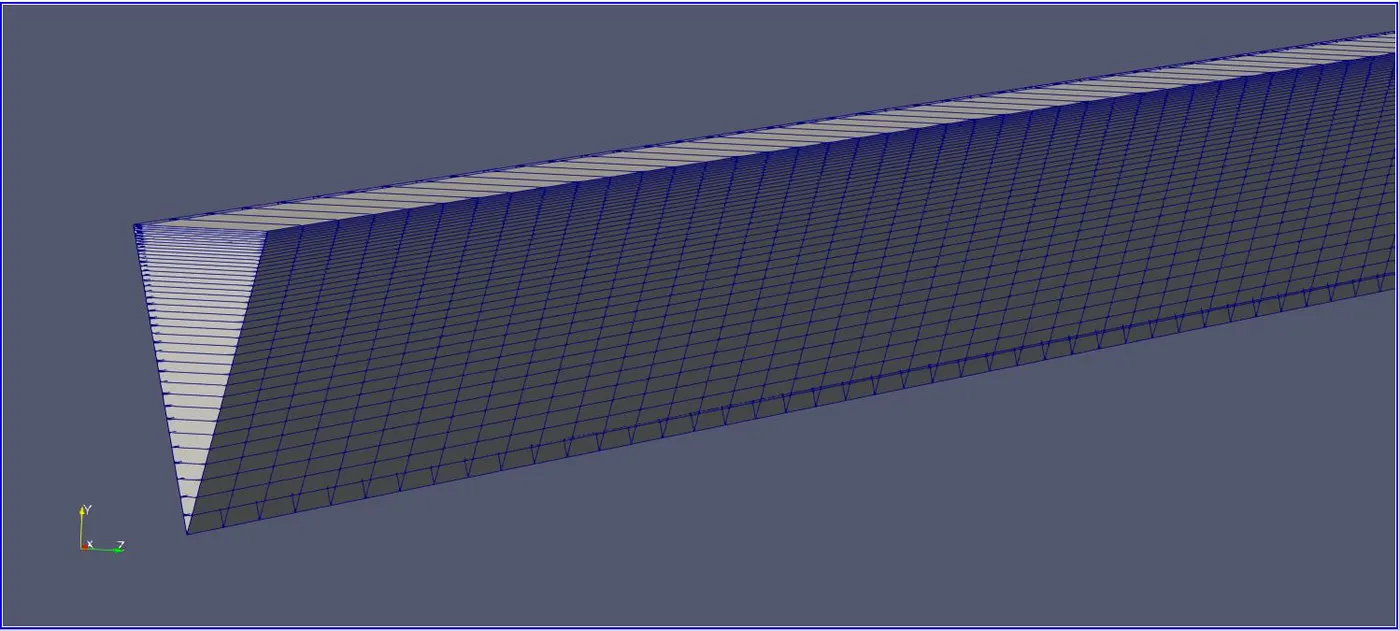

blockMeshDict file and generated geometry for Symmetry Boundary conditions with Wedge angle= 10deg

/*--------------------------------*- C++ -*----------------------------------*
| =========                 |                                                 |
| \      /  F ield         | OpenFOAM: The Open Source CFD Toolbox           |
|  \    /   O peration     | Website:  https://openfoam.org                  |
|   \  /    A nd           | Version:  8                                     |
|    \/     M anipulation  |                                                 |
*---------------------------------------------------------------------------*/
FoamFile
{
     version	 2.0;
     format	 ascii;
     class	 dictionary;
     object	 blockMeshDict;
}
// ************************************************************************* //

convertToMeters 1;

vertices
(
	 (0 0 0)
	 (0 3.984779e-03 3.486230e-04)
	 (0 3.984779e-03 -3.486230e-04)
	 (1.500000e+00 0 0)
	 (1.500000e+00 3.984779e-03 3.486230e-04)
	 (1.500000e+00 3.984779e-03 -3.486230e-04)
);

blocks
(
     hex (0 3 5 2 0 3 4 1) (500 40 1) simpleGrading (1 0.1 1)

);

edges
(
	 arc 1 2 (0 4.000000e-03 0)
	 arc 4 5 (1.500000e+00 4.000000e-03 0)
);

boundary
(
	 inlet
	{
		 type patch;
		 faces
		(
			 (0 1 2 0)
		 );
	}
	 outlet
	{
		 type patch;
		 faces
		 (
			 (3 5 4 3)
		 );
	}
	 Noslipwall
	{
		 type wall;
		 faces
		 (
			 (1 4 5 2)
		 );
	}
	 back
	{
		 type symmetry;
		 faces
		 (
			 (0 2 5 3)
		 );
	}
	 front
	{
		 type symmetry;
		 faces
		 (
			 (0 3 4 1)
		 );
	}
	 axis
	{
		 type empty;
		 faces
		 (
			 (0 3 3 0)
		 );
	}
);

mergePatchPairs
(
);
// ************************************************************************* //

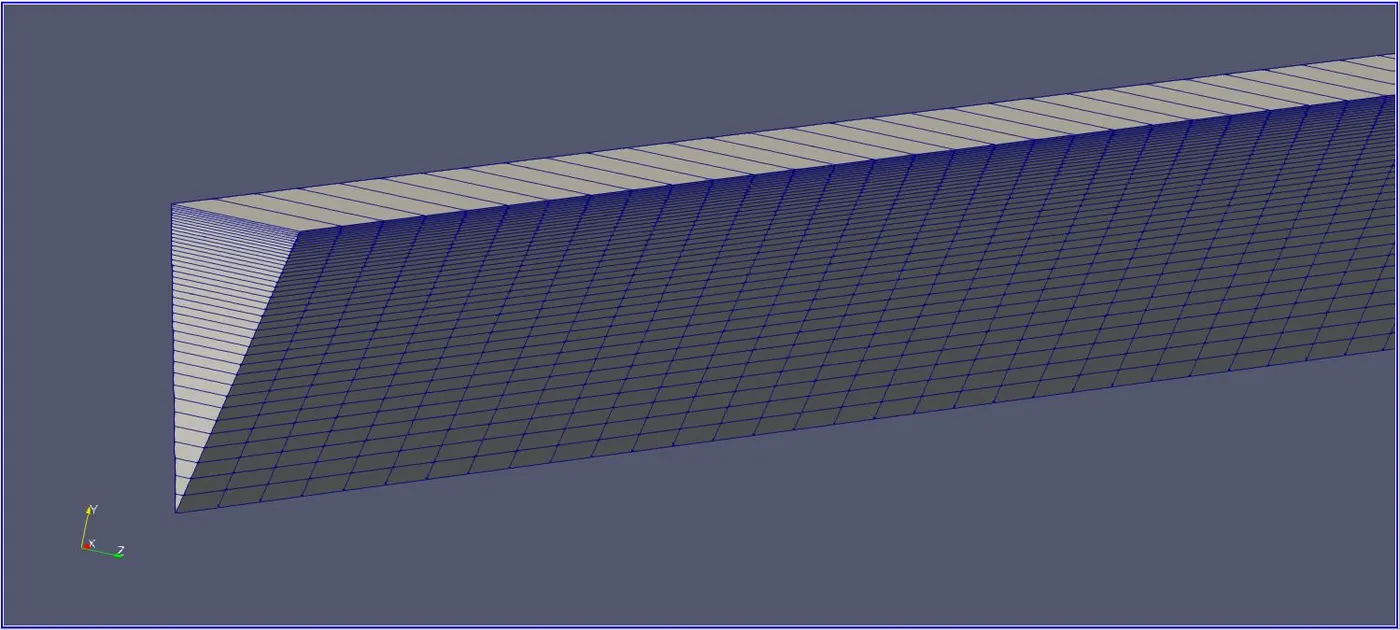

blockMeshDict file and generated geometry for Symmetry Boundary conditions with Wedge angle= 25 deg

/*--------------------------------*- C++ -*----------------------------------*
| =========                 |                                                 |
| \      /  F ield         | OpenFOAM: The Open Source CFD Toolbox           |
|  \    /   O peration     | Website:  https://openfoam.org                  |
|   \  /    A nd           | Version:  8                                     |
|    \/     M anipulation  |                                                 |
*---------------------------------------------------------------------------*/
FoamFile
{
     version	 2.0;
     format	 ascii;
     class	 dictionary;
     object	 blockMeshDict;
}
// ************************************************************************* //

convertToMeters 1;

vertices
(
	 (0 0 0)
	 (0 0.00390518 0.000865758)
	 (0 0.00390518 -0.000865758)
	 (1.5 0 0)
	 (1.5 0.00390518 0.000865758)
	 (1.5 0.00390518 -0.000865758)
);

blocks
(
     hex (0 3 5 2 0 3 4 1) (500 40 1) simpleGrading (1 0.1 1)

);

edges
(
	 arc 1 2 (0 0.004 0)
	 arc 4 5 (1.5 0.004 0)
);

boundary
(
	 inlet
	{
		 type patch;
		 faces
		(
			 (0 1 2 0)
		 );
	}
	 outlet
	{
		 type patch;
		 faces
		 (
			 (3 5 4 3)
		 );
	}
	 Noslipwall
	{
		 type wall;
		 faces
		 (
			 (1 4 5 2)
		 );
	}
	 back
	{
		 type symmetry;
		 faces
		 (
			 (0 2 5 3)
		 );
	}
	 front
	{
		 type symmetry;
		 faces
		 (
			 (0 3 4 1)
		 );
	}
	 axis
	{
		 type empty;
		 faces
		 (
			 (0 3 3 0)
		 );
	}
);

mergePatchPairs
(
);
// ************************************************************************* //

blockMeshDict file and generated geometry for Symmetry Boundary conditions with Wedge angle= 45 deg

/*--------------------------------*- C++ -*----------------------------------*
| =========                 |                                                 |
| \      /  F ield         | OpenFOAM: The Open Source CFD Toolbox           |
|  \    /   O peration     | Website:  https://openfoam.org                  |
|   \  /    A nd           | Version:  8                                     |
|    \/     M anipulation  |                                                 |
*---------------------------------------------------------------------------*/
FoamFile
{
     version	 2.0;
     format	 ascii;
     class	 dictionary;
     object	 blockMeshDict;
}
// ************************************************************************* //

convertToMeters 1;

vertices
(
	 (0 0 0)
	 (0 0.00369552 0.00153073)
	 (0 0.00369552 -0.00153073)
	 (1.5 0 0)
	 (1.5 0.00369552 0.00153073)
	 (1.5 0.00369552 -0.00153073)
);

blocks
(
     hex (0 3 5 2 0 3 4 1) (500 40 1) simpleGrading (1 0.1 1)

);

edges
(
	 arc 1 2 (0 0.004 0)
	 arc 4 5 (1.5 0.004 0)
);

boundary
(
	 inlet
	{
		 type patch;
		 faces
		(
			 (0 1 2 0)
		 );
	}
	 outlet
	{
		 type patch;
		 faces
		 (
			 (3 5 4 3)
		 );
	}
	 Noslipwall
	{
		 type wall;
		 faces
		 (
			 (1 4 5 2)
		 );
	}
	 back
	{
		 type symmetry;
		 faces
		 (
			 (0 2 5 3)
		 );
	}
	 front
	{
		 type symmetry;
		 faces
		 (
			 (0 3 4 1)
		 );
	}
	 axis
	{
		 type empty;
		 faces
		 (
			 (0 3 3 0)
		 );
	}
);

mergePatchPairs
(
);
// ************************************************************************* //

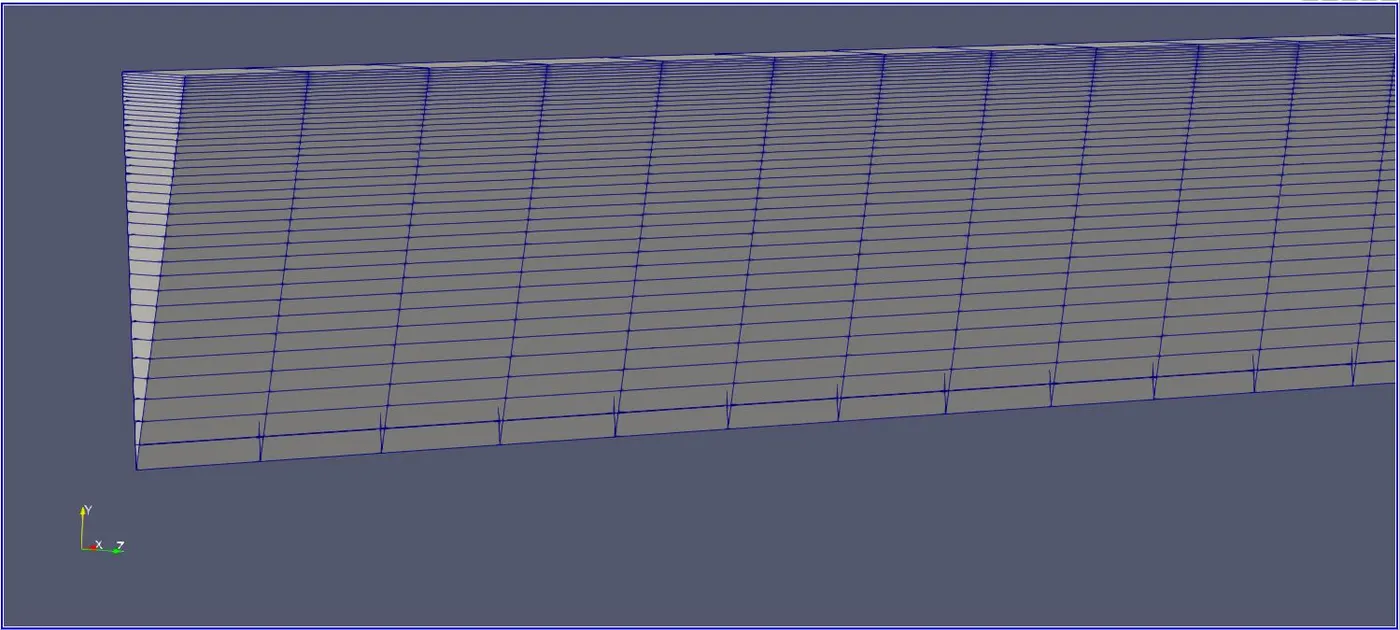

blockMeshDict file and generated geometry for Wedge Boundary conditions with Wedge angle= 10deg

/*--------------------------------*- C++ -*----------------------------------*
| =========                 |                                                 |
| \      /  F ield         | OpenFOAM: The Open Source CFD Toolbox           |
|  \    /   O peration     | Website:  https://openfoam.org                  |
|   \  /    A nd           | Version:  8                                     |
|    \/     M anipulation  |                                                 |
*---------------------------------------------------------------------------*/
FoamFile
{
     version	 2.0;
     format	 ascii;
     class	 dictionary;
     object	 blockMeshDict;
}
// ************************************************************************* //

convertToMeters 1;

vertices
(
	 (0 0 0)
	 (0 3.984779e-03 3.486230e-04)
	 (0 3.984779e-03 -3.486230e-04)
	 (1.500000e+00 0 0)
	 (1.500000e+00 3.984779e-03 3.486230e-04)
	 (1.500000e+00 3.984779e-03 -3.486230e-04)
);

blocks
(
     hex (0 3 5 2 0 3 4 1) (500 40 1) simpleGrading (1 0.1 1)

);

edges
(
	 arc 1 2 (0 4.000000e-03 0)
	 arc 4 5 (1.500000e+00 4.000000e-03 0)
);

boundary
(
	 inlet
	{
		 type patch;
		 faces
		(
			 (0 1 2 0)
		 );
	}
	 outlet
	{
		 type patch;
		 faces
		 (
			 (3 5 4 3)
		 );
	}
	 Noslipwall
	{
		 type wall;
		 faces
		 (
			 (1 4 5 2)
		 );
	}
	 back
	{
		 type wedge;
		 faces
		 (
			 (0 2 5 3)
		 );
	}
	 front
	{
		 type wedge;
		 faces
		 (
			 (0 3 4 1)
		 );
	}
	 axis
	{
		 type empty;
		 faces
		 (
			 (0 3 3 0)
		 );
	}
);

mergePatchPairs
(
);
// ************************************************************************* //

blockMeshDict file and generated geometry for Wedge Boundary conditions with Wedge angle= 25deg

/*--------------------------------*- C++ -*----------------------------------*
| =========                 |                                                 |
| \      /  F ield         | OpenFOAM: The Open Source CFD Toolbox           |
|  \    /   O peration     | Website:  https://openfoam.org                  |
|   \  /    A nd           | Version:  8                                     |
|    \/     M anipulation  |                                                 |
*---------------------------------------------------------------------------*/
FoamFile
{
     version	 2.0;
     format	 ascii;
     class	 dictionary;
     object	 blockMeshDict;
}
// ************************************************************************* //

convertToMeters 1;

vertices
(
	 (0 0 0)
	 (0 3.905184e-03 8.657585e-04)
	 (0 3.905184e-03 -8.657585e-04)
	 (1.500000e+00 0 0)
	 (1.500000e+00 3.905184e-03 8.657585e-04)
	 (1.500000e+00 3.905184e-03 -8.657585e-04)
);

blocks
(
     hex (0 3 5 2 0 3 4 1) (500 40 1) simpleGrading (1 0.1 1)

);

edges
(
	 arc 1 2 (0 4.000000e-03 0)
	 arc 4 5 (1.500000e+00 4.000000e-03 0)
);

boundary
(
	 inlet
	{
		 type patch;
		 faces
		(
			 (0 1 2 0)
		 );
	}
	 outlet
	{
		 type patch;
		 faces
		 (
			 (3 5 4 3)
		 );
	}
	 Noslipwall
	{
		 type wall;
		 faces
		 (
			 (1 4 5 2)
		 );
	}
	 back
	{
		 type wedge;
		 faces
		 (
			 (0 2 5 3)
		 );
	}
	 front
	{
		 type wedge;
		 faces
		 (
			 (0 3 4 1)
		 );
	}
	 axis
	{
		 type empty;
		 faces
		 (
			 (0 3 3 0)
		 );
	}
);

mergePatchPairs
(
);
// ************************************************************************* //

blockMeshDict file and generated geometry for Wedge Boundary conditions with Wedge angle= 45deg

/*--------------------------------*- C++ -*----------------------------------*
| =========                 |                                                 |
| \      /  F ield         | OpenFOAM: The Open Source CFD Toolbox           |
|  \    /   O peration     | Website:  https://openfoam.org                  |
|   \  /    A nd           | Version:  8                                     |
|    \/     M anipulation  |                                                 |
*---------------------------------------------------------------------------*/
FoamFile
{
     version	 2.0;
     format	 ascii;
     class	 dictionary;
     object	 blockMeshDict;
}
// ************************************************************************* //

convertToMeters 1;

vertices
(
	 (0 0 0)
	 (0 3.695518e-03 1.530734e-03)
	 (0 3.695518e-03 -1.530734e-03)
	 (1.500000e+00 0 0)
	 (1.500000e+00 3.695518e-03 1.530734e-03)
	 (1.500000e+00 3.695518e-03 -1.530734e-03)
);

blocks
(
     hex (0 3 5 2 0 3 4 1) (500 40 1) simpleGrading (1 0.1 1)

);

edges
(
	 arc 1 2 (0 4.000000e-03 0)
	 arc 4 5 (1.500000e+00 4.000000e-03 0)
);

boundary
(
	 inlet
	{
		 type patch;
		 faces
		(
			 (0 1 2 0)
		 );
	}
	 outlet
	{
		 type patch;
		 faces
		 (
			 (3 5 4 3)
		 );
	}
	 Noslipwall
	{
		 type wall;
		 faces
		 (
			 (1 4 5 2)
		 );
	}
	 back
	{
		 type wedge;
		 faces
		 (
			 (0 2 5 3)
		 );
	}
	 front
	{
		 type wedge;
		 faces
		 (
			 (0 3 4 1)
		 );
	}
	 axis
	{
		 type empty;
		 faces
		 (
			 (0 3 3 0)
		 );
	}
);

mergePatchPairs
(
);
// ************************************************************************* //

Initial and boundary conditions for symmetric BC.'s

/*--------------------------------*- C++ -*----------------------------------*
  =========                 |
  \      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \    /   O peration     | Website:  https://openfoam.org
    \  /    A nd           | Version:  8
     \/     M anipulation  |
*---------------------------------------------------------------------------*/
FoamFile
{
    version     2.0;
    format      ascii;
    class       volVectorField;
    object      U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

dimensions      [0 1 -1 0 0 0 0];

internalField   uniform (0.2637 0 0);

boundaryField
{
    inlet
    {
        type            fixedValue;
        value           uniform (0.2637 0 0);
    }

    outlet
    {
        type            zeroGradient;
    }

    Noslipwall
    {
        type            noSlip;
    }

    back
    {
        type            symmetry;
    }

    front
    {
        type            symmetry;
    }

    axis
    {
        type            empty;
    }
}

// ************************************************************************* //
/*--------------------------------*- C++ -*----------------------------------*
  =========                 |
  \      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \    /   O peration     | Website:  https://openfoam.org
    \  /    A nd           | Version:  8
     \/     M anipulation  |
*---------------------------------------------------------------------------*/
FoamFile
{
    version     2.0;
    format      ascii;
    class       volScalarField;
    object      p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

dimensions      [0 2 -2 0 0 0 0];

internalField   uniform 0;

boundaryField
{
    inlet
    {
        type            zeroGradient;
    }

    outlet
    {
        type            fixedValue;
        value           uniform 0;
    }

    Noslipwall
    {
        type            zeroGradient;
    }

    back
    {
        type            symmetry;
    }

    front
    {
        type            symmetry;
    }

    axis
    {
        type            empty;
    }
}

// ************************************************************************* //

Initial and boundary conditions for wedge BC.'s

/*--------------------------------*- C++ -*----------------------------------*
  =========                 |
  \      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \    /   O peration     | Website:  https://openfoam.org
    \  /    A nd           | Version:  8
     \/     M anipulation  |
*---------------------------------------------------------------------------*/
FoamFile
{
    version     2.0;
    format      ascii;
    class       volVectorField;
    object      U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

dimensions      [0 1 -1 0 0 0 0];

internalField   uniform (0.2637 0 0);

boundaryField
{
    inlet
    {
        type            fixedValue;
        value           uniform (0.2637 0 0);
    }

    outlet
    {
        type            zeroGradient;
    }

    Noslipwall
    {
        type            noSlip;
    }

    back
    {
        type            wedge;
    }

    front
    {
        type            wedge;
    }

    axis
    {
        type            empty;
    }
}

// ************************************************************************* //
/*--------------------------------*- C++ -*----------------------------------*
  =========                 |
  \      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \    /   O peration     | Website:  https://openfoam.org
    \  /    A nd           | Version:  8
     \/     M anipulation  |
*---------------------------------------------------------------------------*/
FoamFile
{
    version     2.0;
    format      ascii;
    class       volScalarField;
    object      p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

dimensions      [0 2 -2 0 0 0 0];

internalField   uniform 0;

boundaryField
{
    inlet
    {
        type            zeroGradient;
    }

    outlet
    {
        type            fixedValue;
        value           uniform 0;
    }

    Noslipwall
    {
        type            zeroGradient;
    }

    back
    {
        type            wedge;
    }

    front
    {
        type            wedge;
    }

    axis
    {
        type            empty;
    }
}

// ************************************************************************* //

controlDict file for both symmetry and wedge BC.'s

/*--------------------------------*- C++ -*----------------------------------*
  =========                 |
        /  F ield         | OpenFOAM: The Open Source CFD Toolbox
       /   O peration     | Website:  https://openfoam.org
      /    A nd           | Version:  8
     /     M anipulation  |
*---------------------------------------------------------------------------*/
FoamFile
{
    version     2.0;
    format      ascii;
    class       dictionary;
    location    "system";
    object      controlDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

application     icoFoam;

startFrom       startTime;

startTime       0;

stopAt          endTime;

endTime         20;

deltaT          0.001;

writeControl    timeStep;

writeInterval   20;

purgeWrite      0;

writeFormat     ascii;

writePrecision  6;

writeCompression off;

timeFormat      general;

timePrecision   6;

runTimeModifiable true;


// ************************************************************************* //

transportProperties for both types of BC.'s

/*--------------------------------*- C++ -*----------------------------------*
  =========                 |
        /  F ield         | OpenFOAM: The Open Source CFD Toolbox
       /   O peration     | Website:  https://openfoam.org
      /    A nd           | Version:  8
     /     M anipulation  |
*---------------------------------------------------------------------------*/
FoamFile
{
    version     2.0;
    format      ascii;
    class       dictionary;
    location    "constant";
    object      transportProperties;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

nu              [0 2 -1 0 0 0 0] 1.0048e-06;


// ************************************************************************* //

fvScheme file for both types of BC.'s

/*--------------------------------*- C++ -*----------------------------------*
  =========                 |
        /  F ield         | OpenFOAM: The Open Source CFD Toolbox
       /   O peration     | Website:  https://openfoam.org
      /    A nd           | Version:  8
     /     M anipulation  |
*---------------------------------------------------------------------------*/
FoamFile
{
    version     2.0;
    format      ascii;
    class       dictionary;
    location    "system";
    object      fvSchemes;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

ddtSchemes
{
    default         Euler;
}

gradSchemes
{
    default         Gauss linear;
    grad(p)         Gauss linear;
}

divSchemes
{
    default         none;
    div(phi,U)      Gauss linear;
}

laplacianSchemes
{
    default         Gauss linear orthogonal;
}

interpolationSchemes
{
    default         linear;
}

snGradSchemes
{
    default         orthogonal;
}


// ************************************************************************* //

fvSolution file for both types of BC.'s

/*--------------------------------*- C++ -*----------------------------------*
  =========                 |
        /  F ield         | OpenFOAM: The Open Source CFD Toolbox
       /   O peration     | Website:  https://openfoam.org
      /    A nd           | Version:  8
     /     M anipulation  |
*---------------------------------------------------------------------------*/
FoamFile
{
    version     2.0;
    format      ascii;
    class       dictionary;
    location    "system";
    object      fvSolution;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

solvers
{
    p
    {
        solver          PCG;
        preconditioner  DIC;
        tolerance       1e-06;
        relTol          0.05;
    }

    pFinal
    {
        $p;
        relTol          0;
    }

    U
    {
        solver          smoothSolver;
        smoother        symGaussSeidel;
        tolerance       1e-05;
        relTol          0;
    }
}

PISO
{
    nCorrectors     2;
    nNonOrthogonalCorrectors 0;
    pRefCell        0;
    pRefValue       0;
}


// ************************************************************************* //

POST PROCESSING RESULTS

Shear stress plot using analytical solution (`tau = mu(du)/(dy)`)

Shear stress plot using numerical solution in fully developed flow region

Symmetry BC with wedge angle = 10 deg

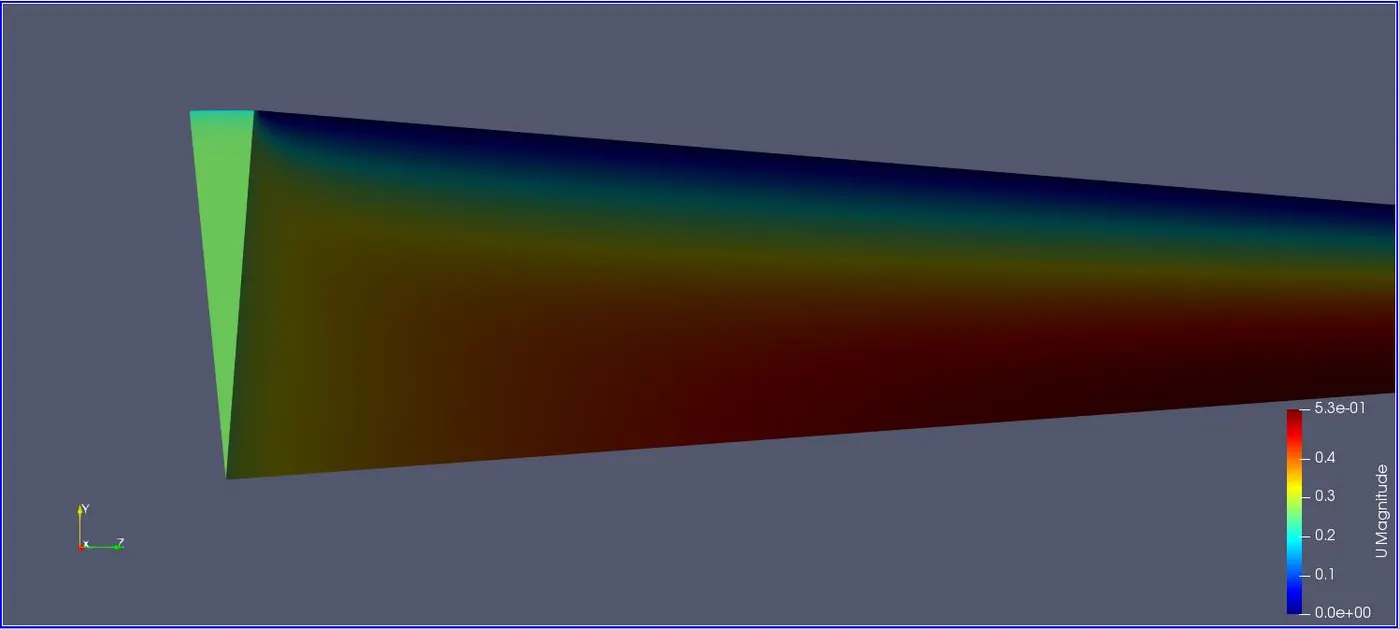

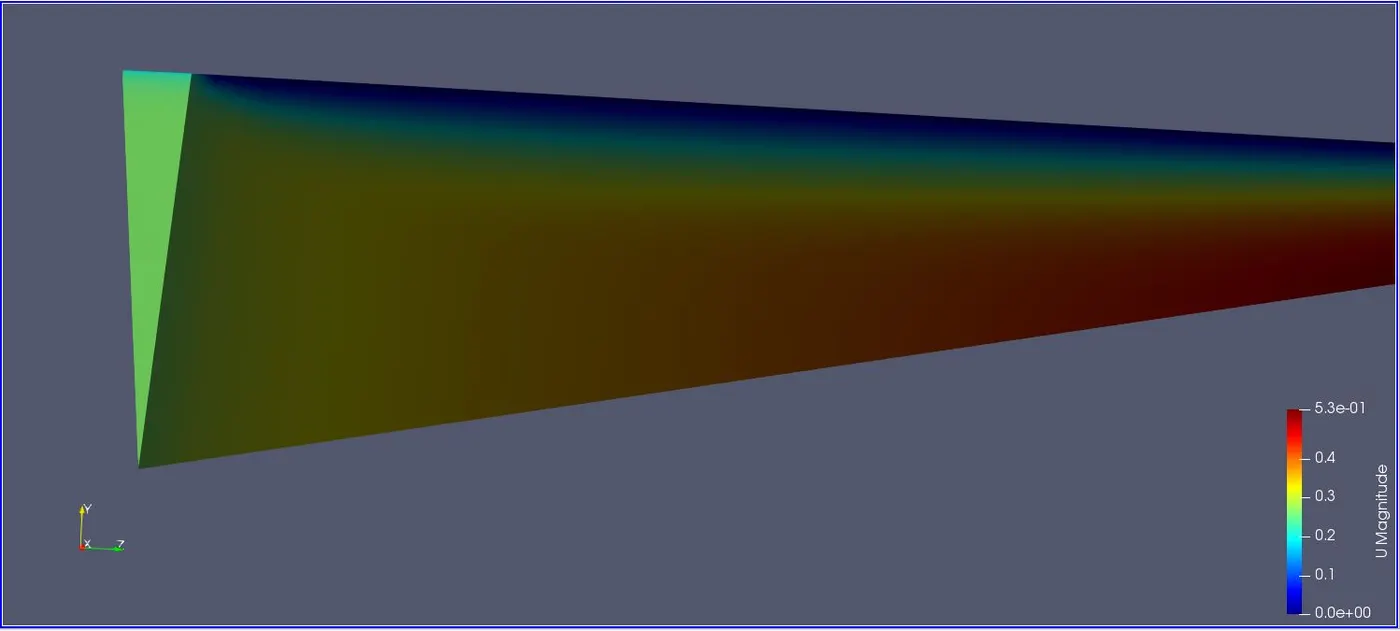

Velocity Contour for hydrodynamic entrace region

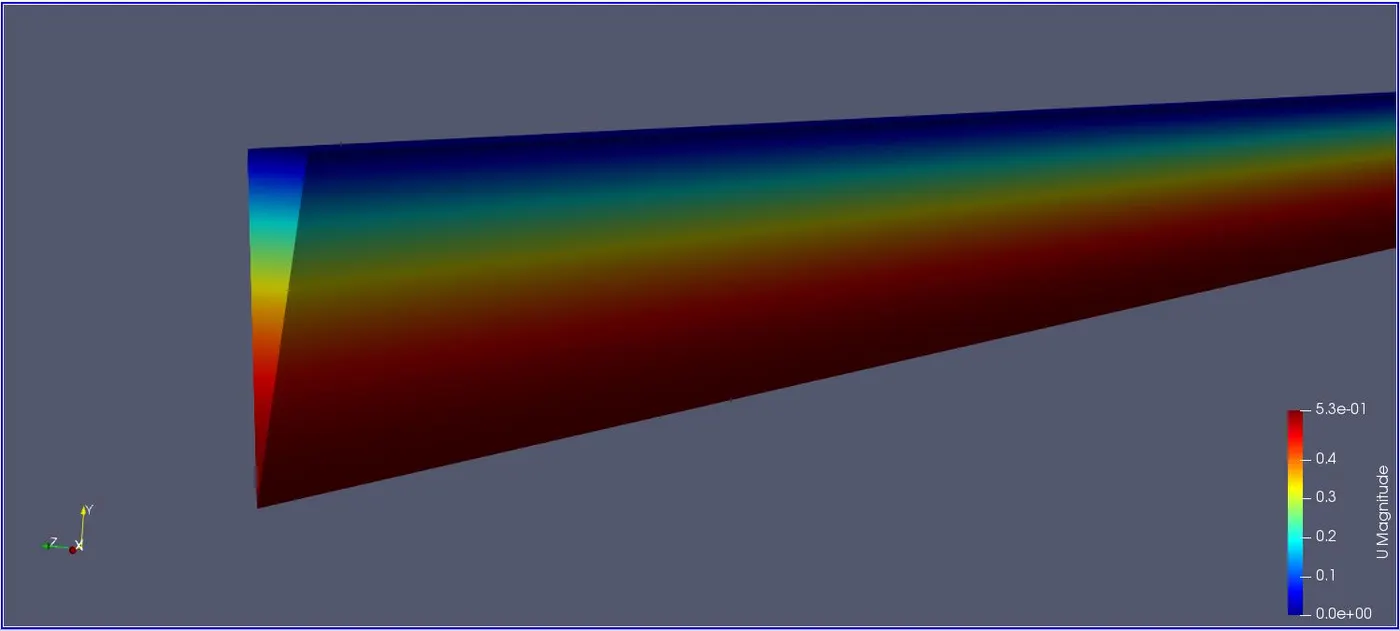

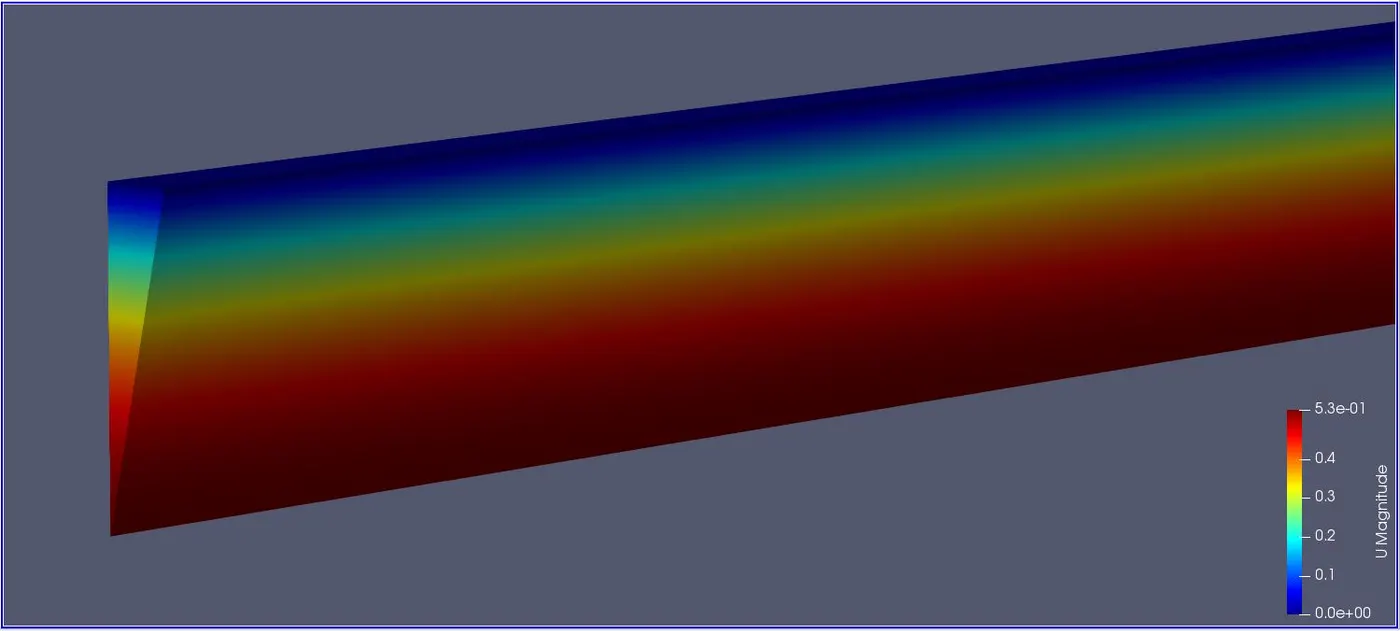

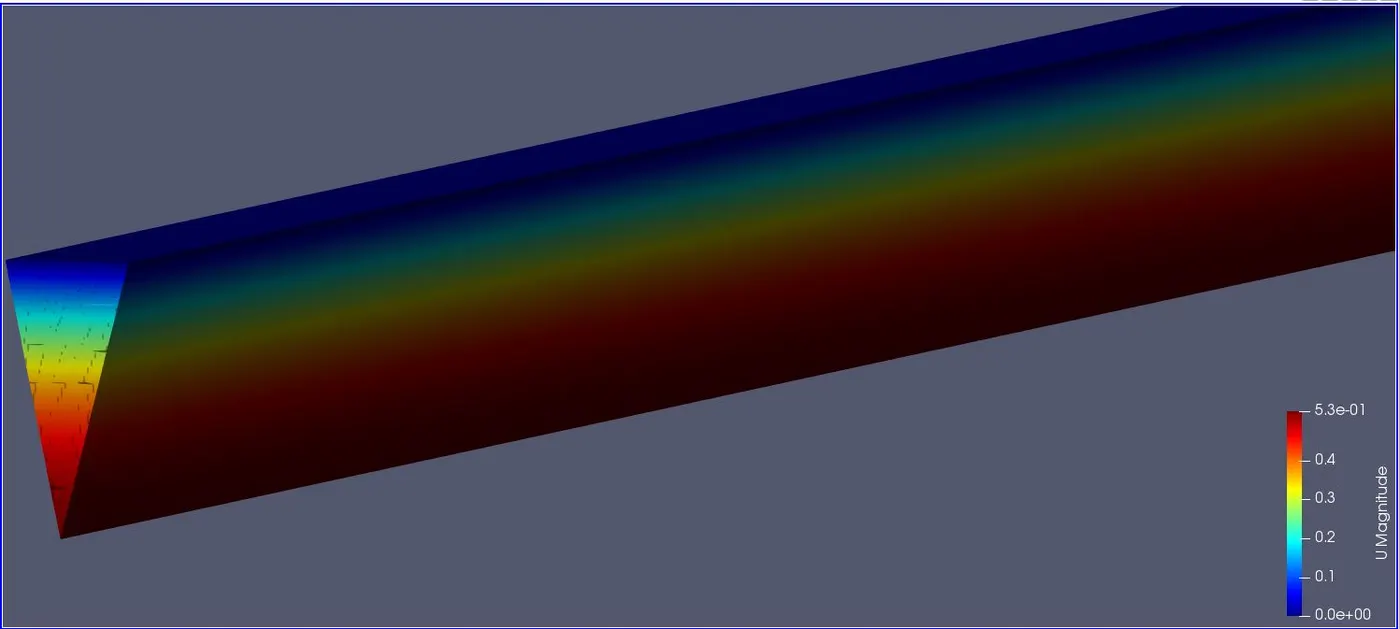

Velocity Contour for fully developed flow region

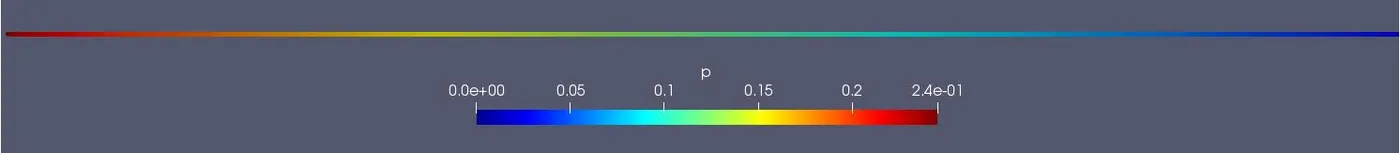

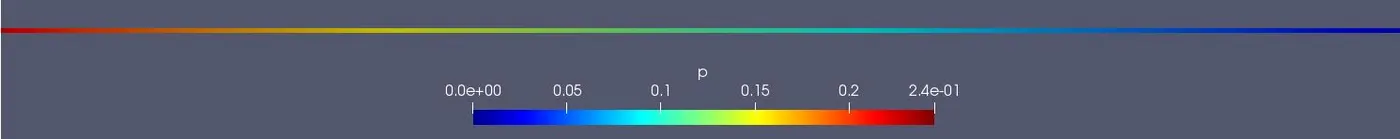

Pressure Contour for fully developed flow region

Velocity Plot at any point in fully developed flow region (say at x = 1.4 m)

Pressure Plot for fully developed flow region (between x = 1.1 m to x = 1.5 m)

Symmetry BC with wedge angle = 25 deg

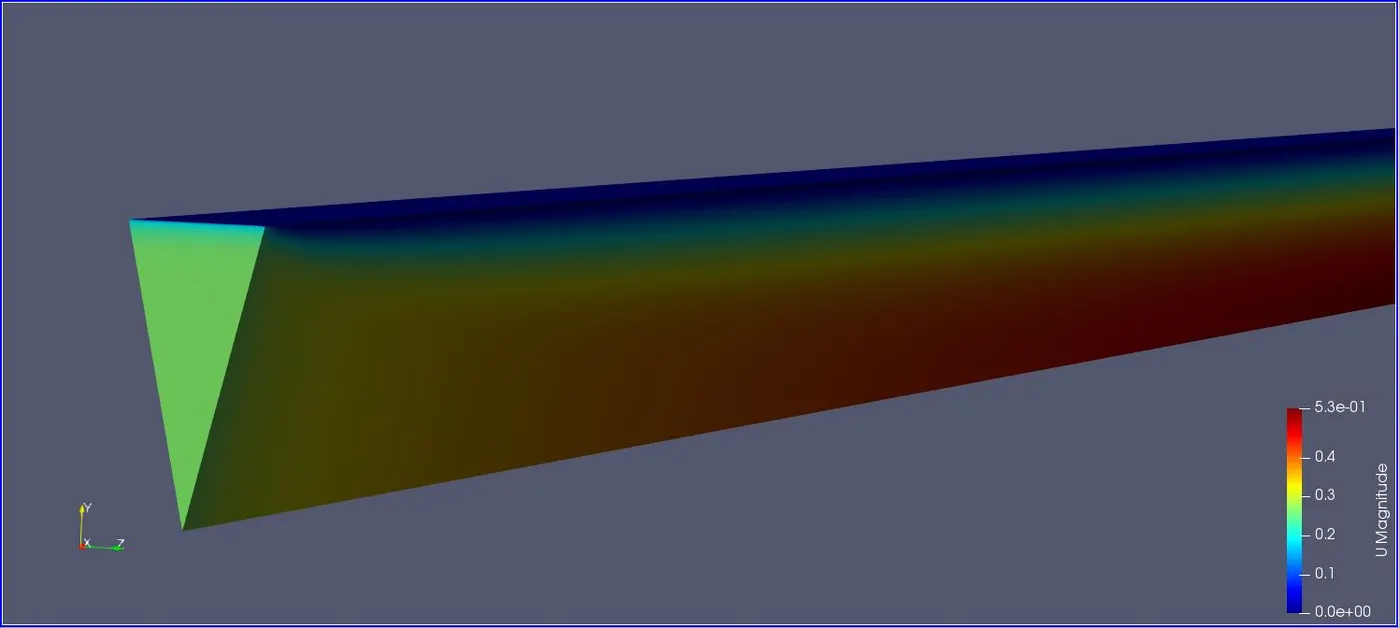

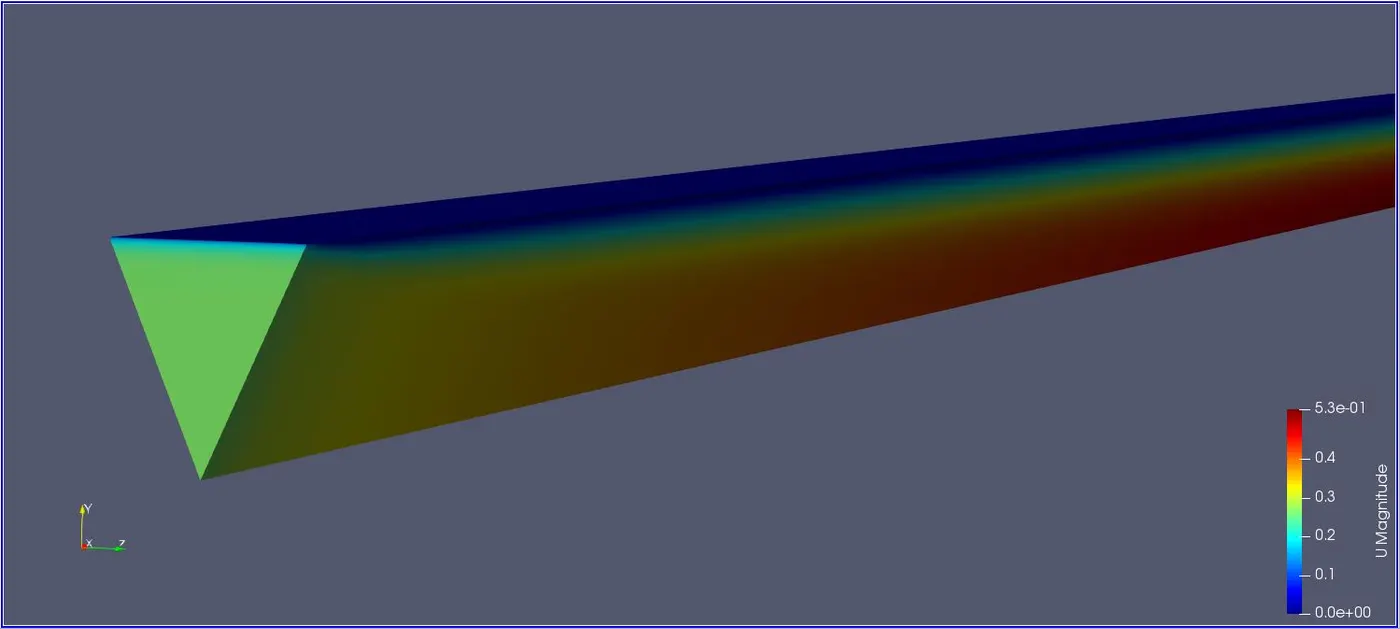

Velocity Contour for hydrodynamic entrace region

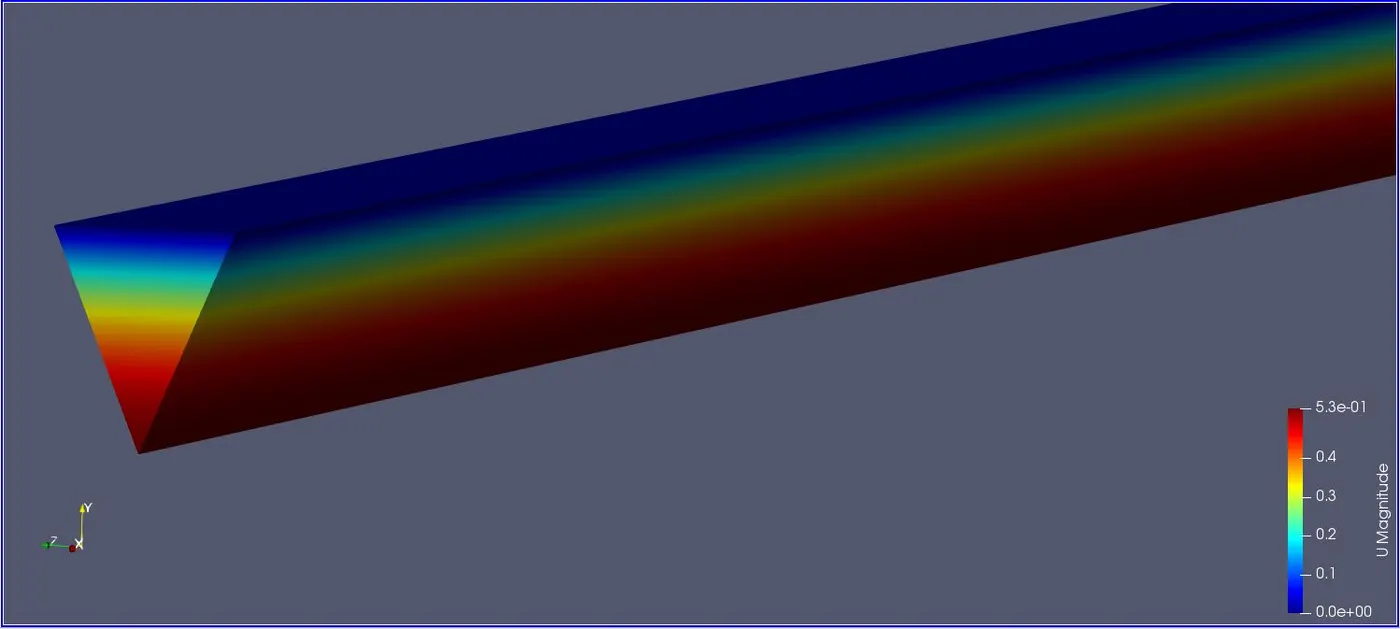

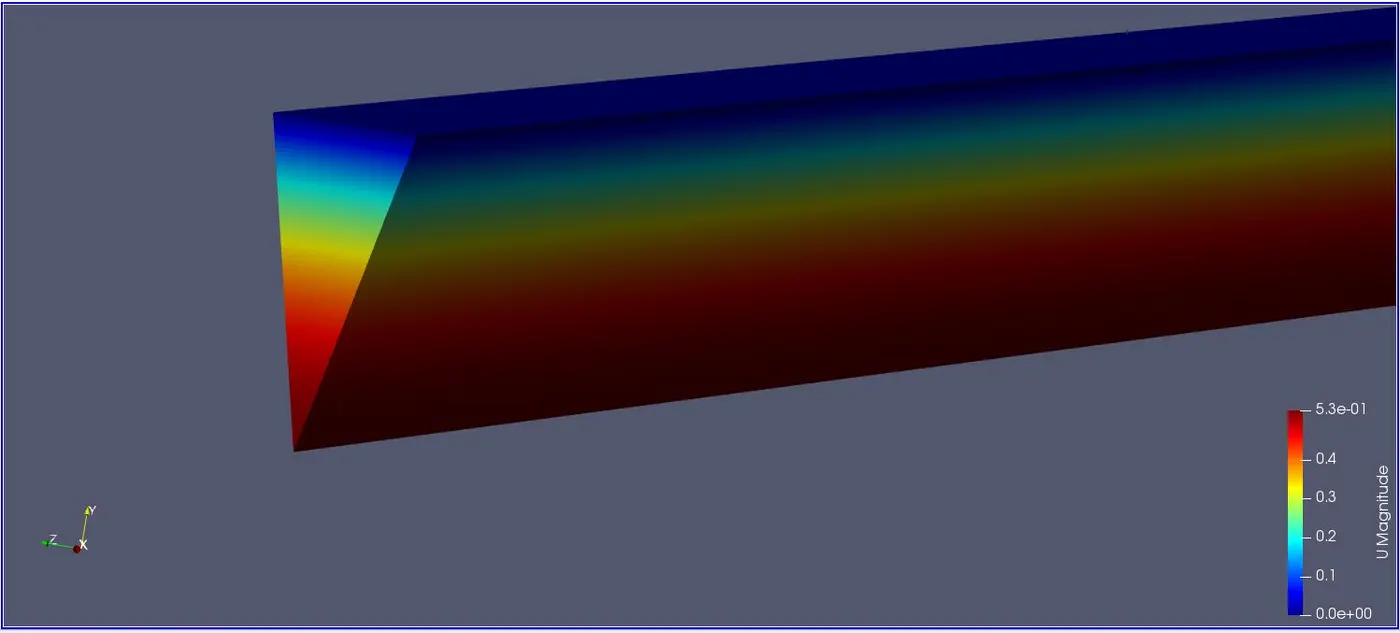

Velocity Contour for fully developed flow region

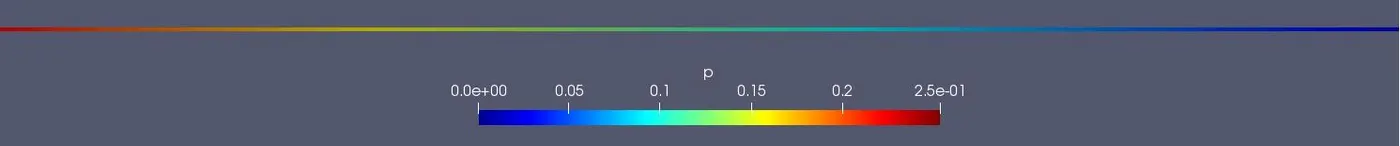

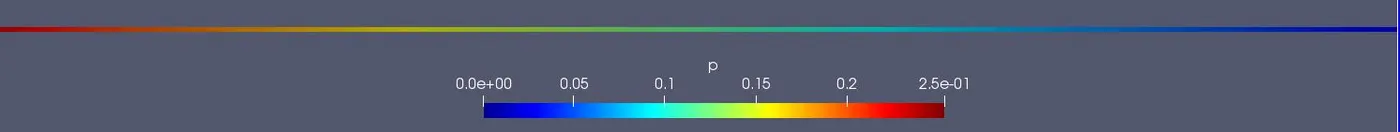

Pressure Contour for fully developed flow region

Velocity Plot at any point in fully developed flow region (say at x = 1.4 m)

Pressure Plot for fully developed flow region (between x = 1.1 m to x = 1.5 m)

Symmetry BC with wedge angle = 45 deg

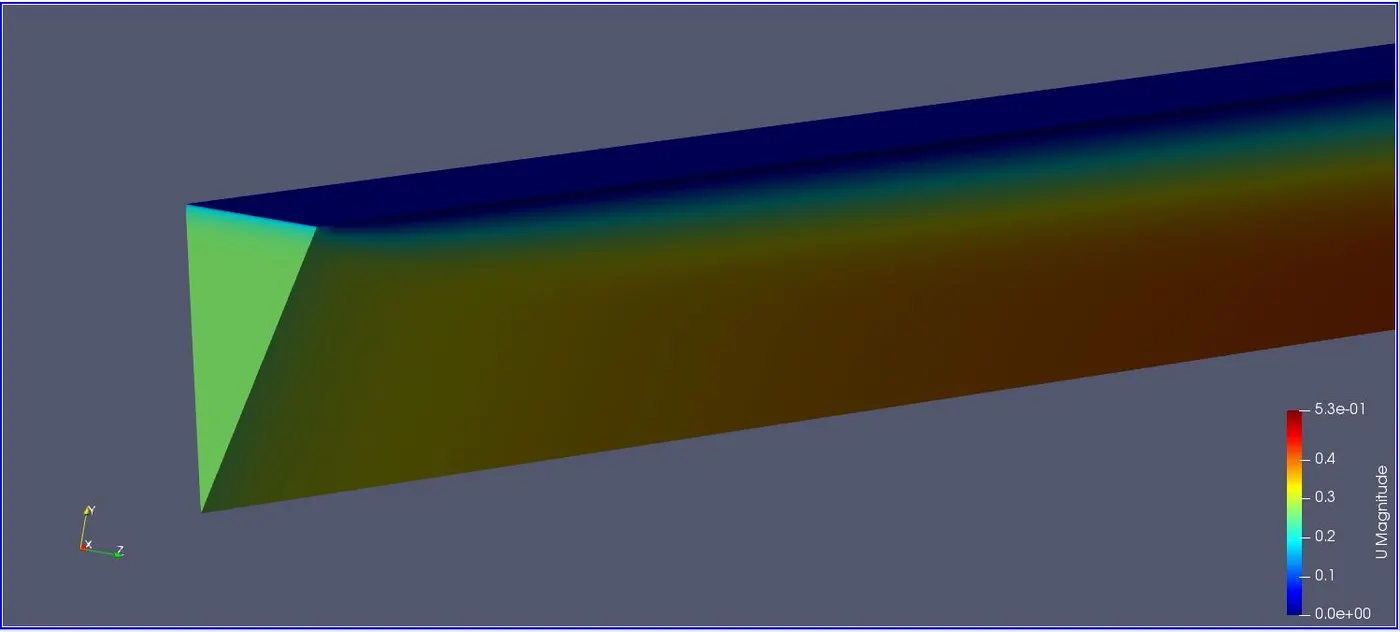

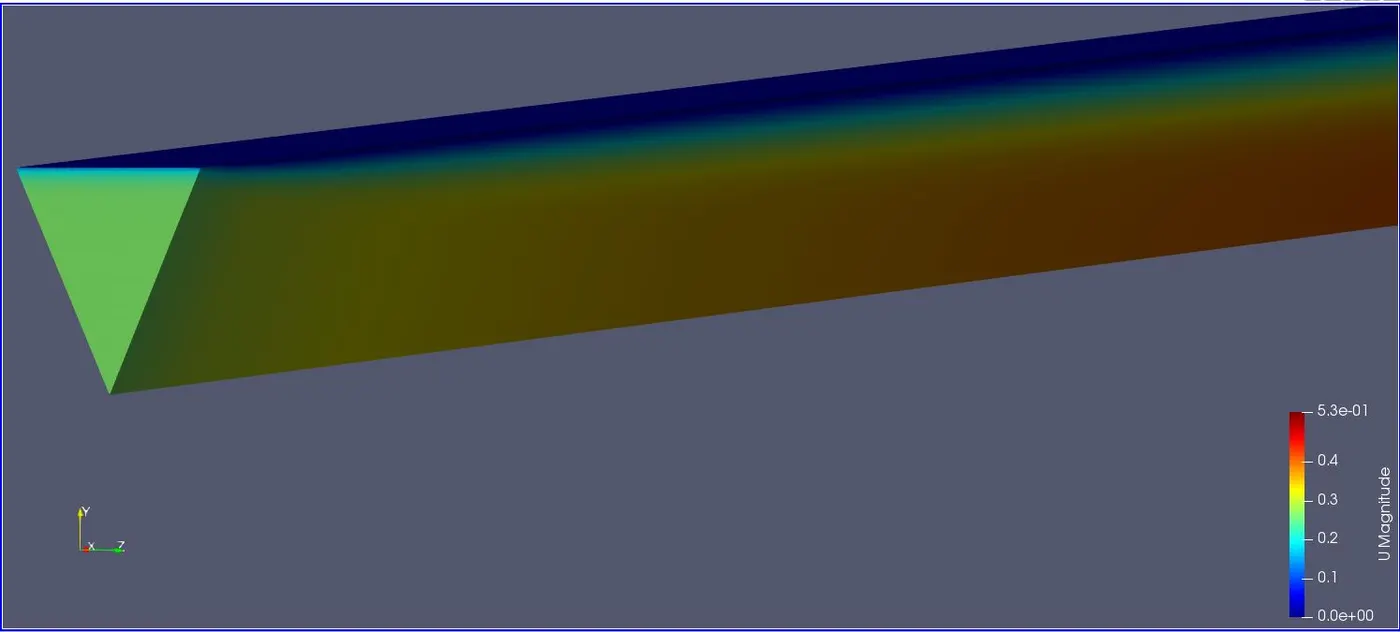

Velocity Contour for hydrodynamic entrace region

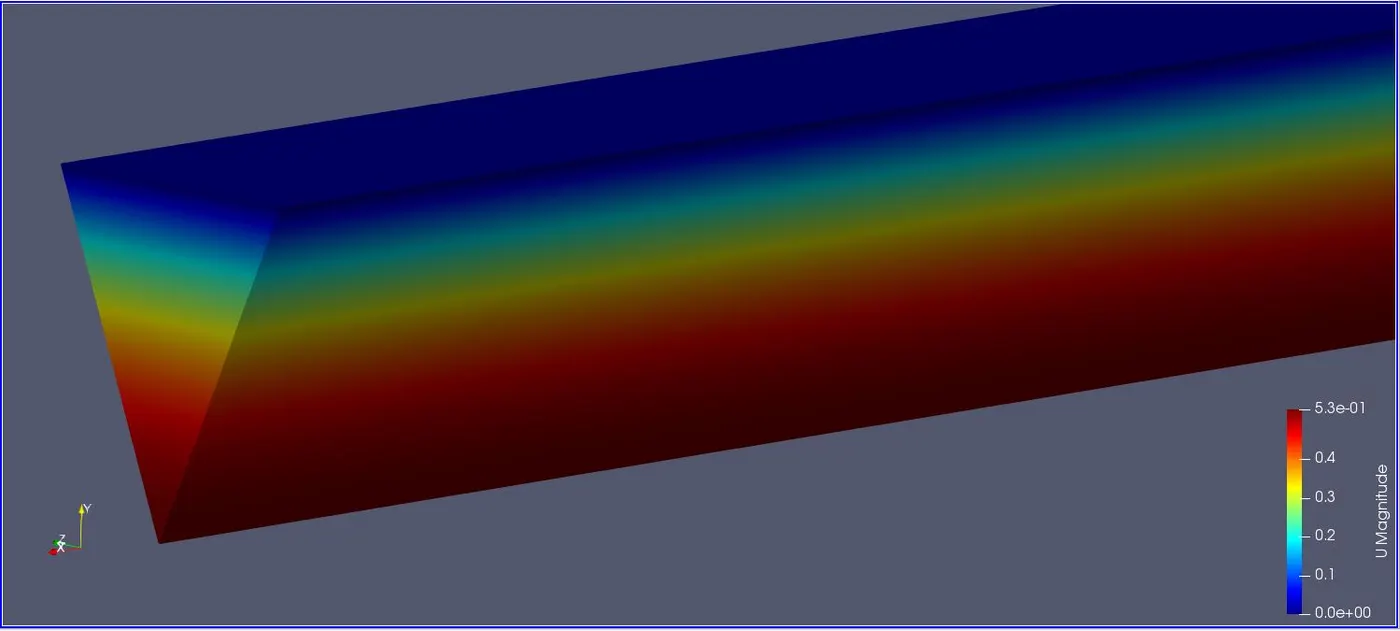

Velocity Contour for fully developed flow region

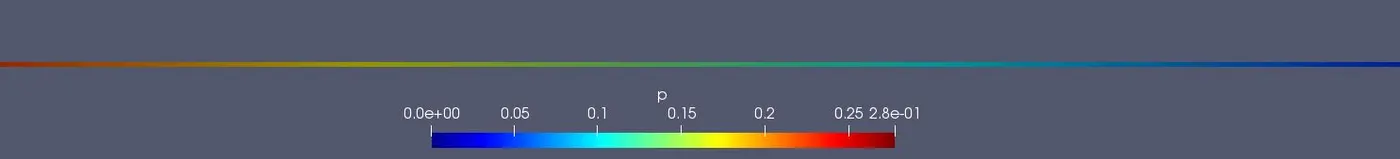

Pressure Contour for fully developed flow region

Velocity Plot at any point in fully developed flow region (say at x = 1.4 m)

Pressure Plot for fully developed flow region (between x = 1.1 m to x = 1.5 m)

Wedge BC with wedge angle = 10 deg

Velocity Contour for hydrodynamic entrace region

Velocity Contour for fully developed flow region

Pressure Contour for fully developed flow region

Velocity Plot at any point in fully developed flow region (say at x = 1.4 m)

Pressure Plot for fully developed flow region (between x = 1.1 m to x = 1.5 m)

Wedge BC with wedge angle = 25 deg

Velocity Contour for hydrodynamic entrace region

Velocity Contour for fully developed flow region

Pressure Contour for fully developed flow region

Velocity Plot at any point in fully developed flow region (say at x = 1.4 m)

Pressure Plot for fully developed flow region (between x = 1.1 m to x = 1.5 m)

Wedge BC with wedge angle = 45 deg

Velocity Contour for hydrodynamic entrace region

Velocity Contour for fully developed flow region

Pressure Contour for fully developed flow region

Velocity Plot at any point in fully developed flow region (say at x = 1.4 m)

Pressure Plot for fully developed flow region (between x = 1.1 m to x = 1.5 m)

Comparison of analytical and numerical results

Symmetric BC with wedge angle = 10 deg Symmetric BC with wedge angle = 25 deg Symmetric BC with wedge angle = 45 deg Wedge BC with wedge angle = 10 deg Wedge BC with wedge angle = 25 deg Wedge BC with wedge angle = 45 deg Analytical Solution reults
Max. vel. (m/s) 0.53 0.53 0.53 0.53 0.53 0.53 0.5274
Kinematic pre. (m2/s2) 0.05361 0.05577 0.06218 0.05361 0.05577 0.06218 0.0529
Shear stress (N/m2) 0.26189 0.26716 0.28249 0.26215 0.26743 0.28247 0.260

CONCLUSION

  • All the necessary contour and xy plots have been plotted for velocity, pressure and shear stress and also the numerical results are validated against the analytical results.
  • From the above plots we can conclude that the overall accuracy decreases with the increase in the wedge angle.
Your portfolio, next

Ship work like this
in your own course.

Talk to a career counsellor

Free 20-minute call. We'll map the right course to where you want to work.

By submitting you agree to our Terms and Privacy Policy.
