Week 12 - Validation studies of Symmetry BC vs Wedge BC in OpenFOAM vs Analytical H.P equation
Aim:
To simulate by applying Symmetry Boundary Condition. You will do the simulation for the below mentioned angles using both symmetry and wedge boundary conditions and validate them with HP equations.
Angles to test:
- 10o
- 25o
- 45o
Objective:
we have to find the below required results
- Validate Hydro-dynamic length with the numerical result

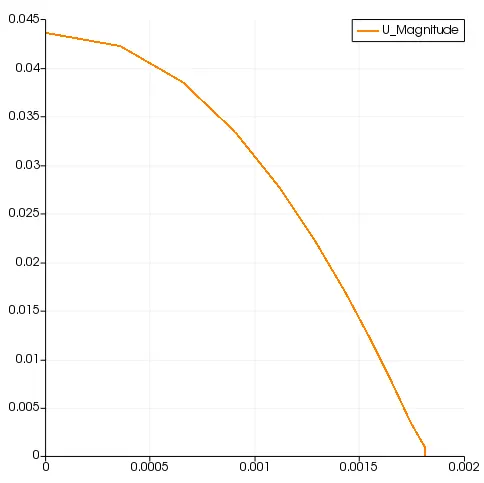

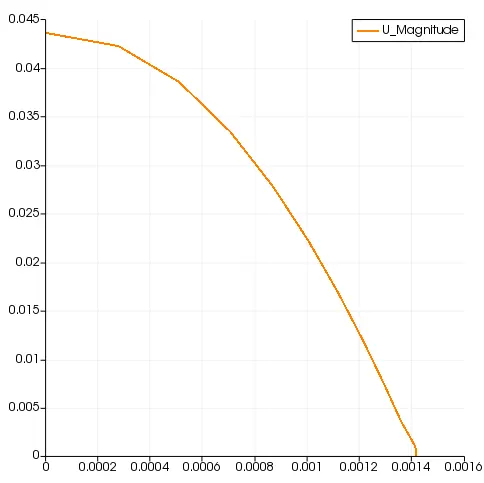

- Validate the fully developed flow velocity profile with its analytical profile

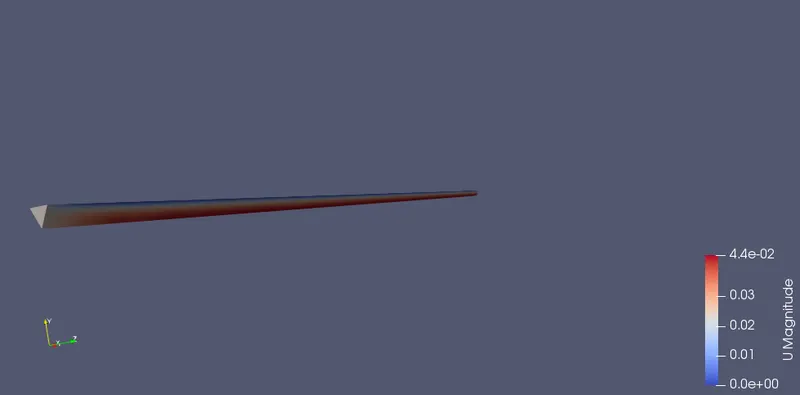

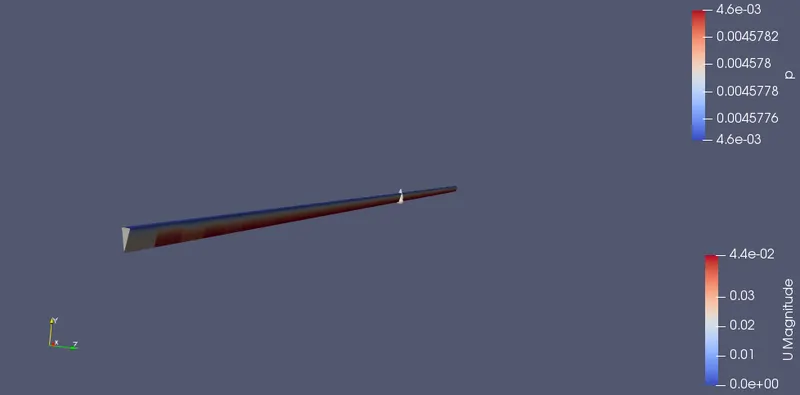

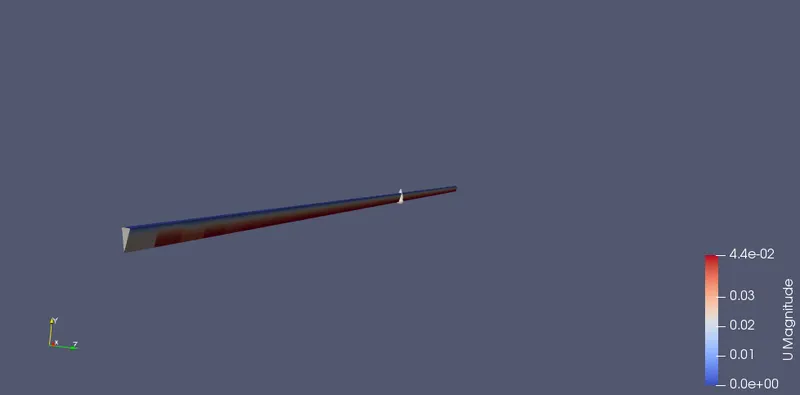

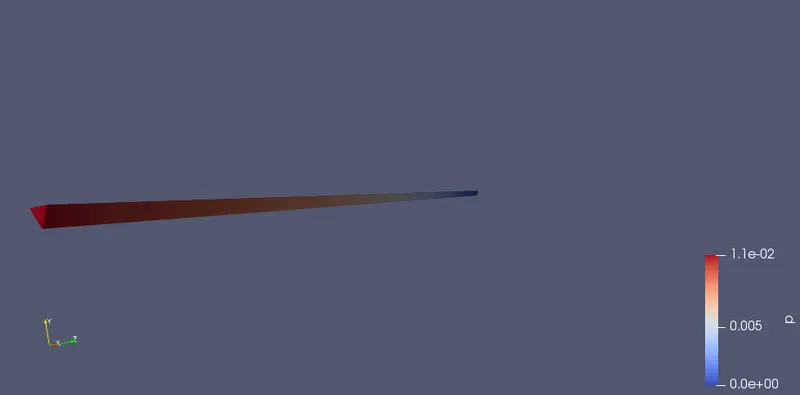

- Validate maximum velocity and pressured drop for fully developed flow

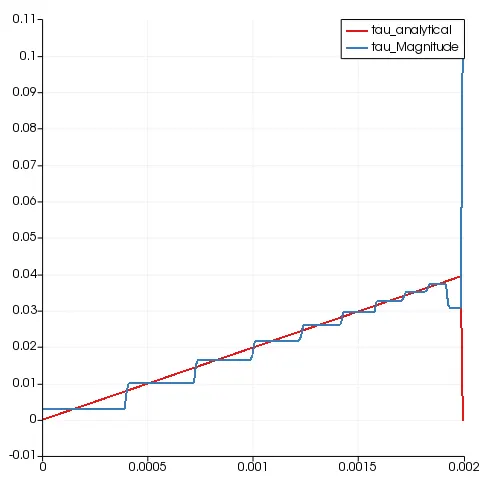

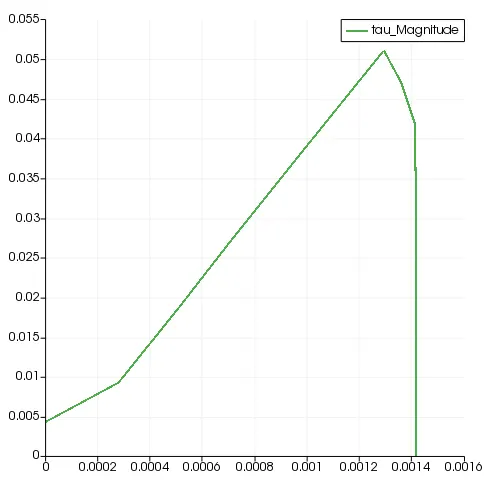

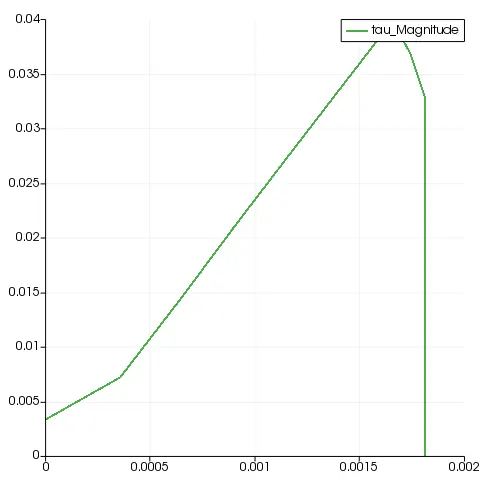

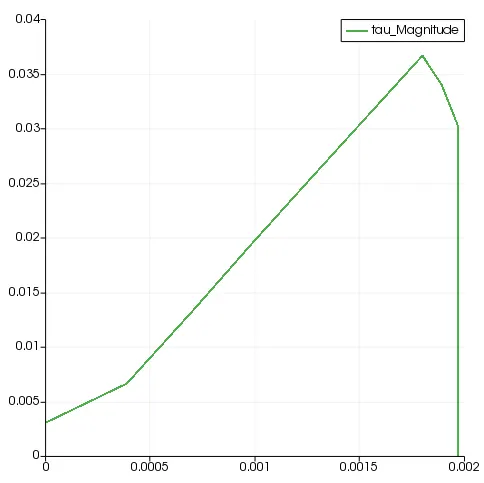

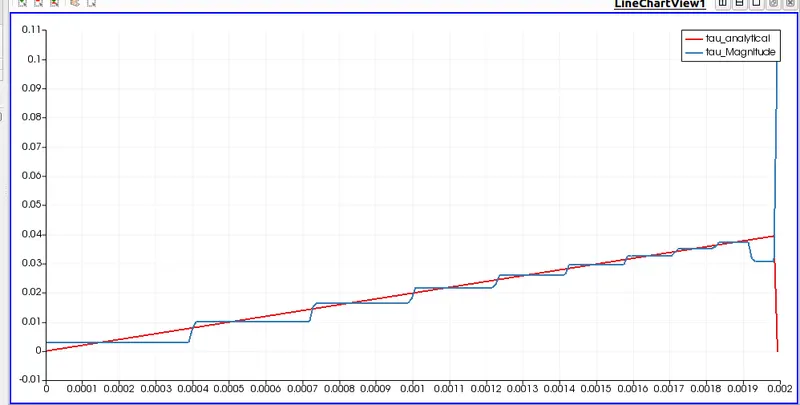

- Post-process Shear stress and validate wall shear stress for fully developed flow
- Highligh the differences in both boundary conditions in terms of their usage and aplication

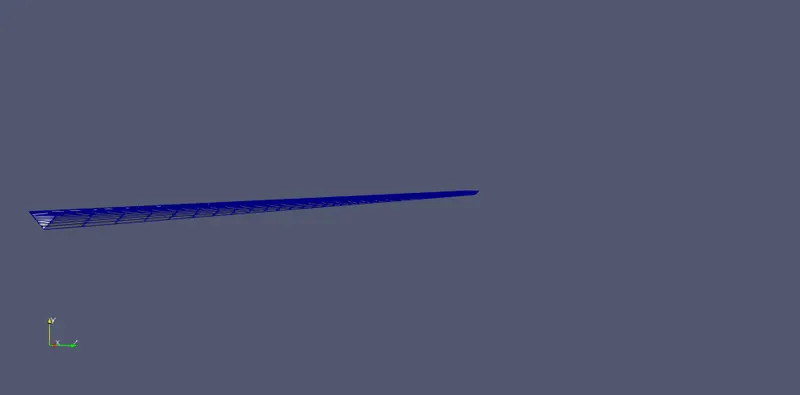

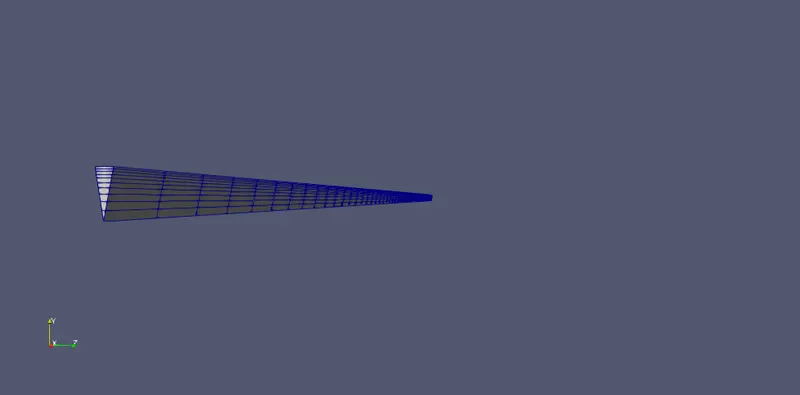

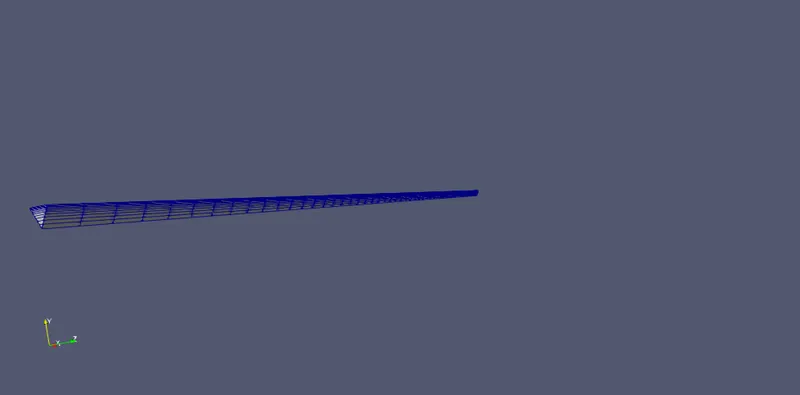

Symmetry 10 Blockmesh:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
object blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
// blockMesh parameterization
/* Geometrical Info */
D 0.004; // Diameter
r #calc "0.5*$D"; // Radius
angle 10; // Angle in degrees
theta #calc "degToRad($angle)"; // Angle in radians
Re 100; // Reynolds Number
Le #calc "0.06*$Re*$D"; // Entrance Length
L #calc "0.2 + $Le"; // Total length of pipe
/* Vertices Info */
xmin 0;
xmax $L;
ymax #calc "$r*cos($theta)";
zmax #calc "$r*sin($theta)";
zmin #calc "-$r*sin($theta)";
curve #calc "$r*cos($theta)+1e-4";
/* Mesh Info */
nx 10; // Cells along local X
ny 1; // Cells along local Y
nz 50; // Cells along local Z
gx 0.2; // SG along local X
gy 1; // SG along local Y
gz 1; // SG along local Z
convertToMeters 1;
vertices
(
($xmin 0 0) //0
($xmin $ymax $zmax) //1
($xmin $ymax $zmin) //2
($xmax 0 0) //3
($xmax $ymax $zmax) //4
($xmax $ymax $zmin) //5
);
blocks
(
hex (0 2 1 0 3 5 4 3) ($nx $ny $nz) simpleGrading ($gx $gy $gz)
);
edges
(
arc 1 2 ($xmin $curve 0)
arc 4 5 ($xmax $curve 0)
);
boundary
(
inlet
{
type patch;
faces
(
(0 1 2 0)
);
}
outlet
{
type patch;
faces
(
(3 5 4 3)
);
}
front
{
type symmetry;
faces
(
(0 3 4 1)
);
}
back
{
type symmetry; // symmetry
faces
(
(0 2 5 3)
);
}
wall
{
type wall; // symmetry
faces
(
(2 1 4 5)
);
}
axis
{
type empty;
faces
(
(0 3 3 0)
);
}
);
mergePatchPairs
(
);
// ************************************************************************* //Controldict symmetry 10:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
location "system";
object controlDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
application icoFoam;
startFrom startTime;
startTime 0;
stopAt endTime;
endTime 5;
deltaT 0.001;
writeControl timeStep;
writeInterval 500;
purgeWrite 0;
writeFormat ascii;
writePrecision 6;
writeCompression off;
timeFormat general;
timePrecision 6;
runTimeModifiable true;
// ************************************************************************* //symmetry 10 pressure:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class volScalarField;
object p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 2 -2 0 0 0 0];
internalField uniform 0;
boundaryField
{
inlet
{
type zeroGradient;
}
outlet
{
type fixedValue;
value uniform 0;
}
front
{
type symmetry; // symmetry
}
back
{
type symmetry; // symmetry
}
wall
{
type zeroGradient;
}
axis
{
type empty;
}
}
// ************************************************************************* //symmetry 10 velocity:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class volVectorField;
object U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 1 -1 0 0 0 0];
internalField uniform (0 0 0);
boundaryField
{
inlet
{
type fixedValue;
value uniform (0.0223169508525577 0 0);
}
outlet
{
type zeroGradient;
}
front
{
type symmetry; // symmetry
}
back
{
type symmetry; // symmetry
}
wall
{
type noSlip;
}
axis
{
type empty;
}
}
// ************************************************************************* //Transport properties:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
location "constant";
object transportProperties;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
nu [0 2 -1 0 0 0 0] 8.9267803410231e-07;
// ************************************************************************* //Symmetry 25 blockmesh:
Controldict symmetry 25:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
location "system";
object controlDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
application icoFoam;
startFrom startTime;
startTime 0;
stopAt endTime;
endTime 5;
deltaT 0.001;
writeControl timeStep;
writeInterval 500;
purgeWrite 0;
writeFormat ascii;
writePrecision 6;
writeCompression off;
timeFormat general;
timePrecision 6;
runTimeModifiable true;
// ************************************************************************* //Pressure symmetry 25:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class volScalarField;
object p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 2 -2 0 0 0 0];
internalField uniform 0;
boundaryField
{
inlet
{
type zeroGradient;
}
outlet
{
type fixedValue;
value uniform 0;
}
front
{
type symmetry; // symmetry
}
back
{
type symmetry; // symmetry
}
wall
{
type zeroGradient;
}
axis
{
type empty;
}
}
// ************************************************************************* //Velocity symmetry 25:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class volVectorField;
object U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 1 -1 0 0 0 0];
internalField uniform (0 0 0);
boundaryField
{
inlet
{
type fixedValue;
value uniform (0.0223169508525577 0 0);
}
outlet
{
type zeroGradient;
}
front
{
type symmetry; // symmetry
}
back
{
type symmetry; // symmetry
}
wall
{
type noSlip;
}
axis
{
type empty;
}
}
// ************************************************************************* //Symmetry 25 transport properties:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
location "constant";
object transportProperties;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
nu [0 2 -1 0 0 0 0] 8.9267803410231e-07;
// ************************************************************************* //Symmetry 45 blockmesh:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
object blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
// blockMesh parameterization
/* Geometrical Info */
D 0.004; // Diameter
r #calc "0.5*$D"; // Radius
angle 45; // Angle in degrees
theta #calc "degToRad($angle)"; // Angle in radians
Re 100; // Reynolds Number
Le #calc "0.06*$Re*$D"; // Entrance Length
L #calc "0.2 + $Le"; // Total length of pipe
/* Vertices Info */
xmin 0;
xmax $L;
ymax #calc "$r*cos($theta)";
zmax #calc "$r*sin($theta)";
zmin #calc "-$r*sin($theta)";
curve #calc "$r*cos($theta)+1e-4";
/* Mesh Info */
nx 10; // Cells along local X
ny 1; // Cells along local Y
nz 50; // Cells along local Z
gx 0.2; // SG along local X
gy 1; // SG along local Y
gz 1; // SG along local Z
convertToMeters 1;
vertices
(
($xmin 0 0) //0
($xmin $ymax $zmax) //1
($xmin $ymax $zmin) //2
($xmax 0 0) //3
($xmax $ymax $zmax) //4
($xmax $ymax $zmin) //5
);
blocks
(
hex (0 2 1 0 3 5 4 3) ($nx $ny $nz) simpleGrading ($gx $gy $gz)
);
edges
(
arc 1 2 ($xmin $curve 0)
arc 4 5 ($xmax $curve 0)
);
boundary
(
inlet
{
type patch;
faces
(
(0 1 2 0)
);
}
outlet
{
type patch;
faces
(
(3 5 4 3)
);
}
front
{
type symmetry;
faces
(
(0 3 4 1)
);
}
back
{
type symmetry; // symmetry
faces
(
(0 2 5 3)
);
}
wall
{
type wall; // symmetry
faces
(
(2 1 4 5)
);
}
axis
{
type empty;
faces
(
(0 3 3 0)
);
}
);
mergePatchPairs
(
);
// ************************************************************************* //Control dict symeetry 45:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
location "system";
object controlDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
application icoFoam;
startFrom startTime;
startTime 0;
stopAt endTime;
endTime 5;
deltaT 0.001;
writeControl timeStep;
writeInterval 500;
purgeWrite 0;
writeFormat ascii;
writePrecision 6;
writeCompression off;
timeFormat general;
timePrecision 6;
runTimeModifiable true;
// ************************************************************************* //Pressure symmetry 45:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class volScalarField;
object p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 2 -2 0 0 0 0];
internalField uniform 0;
boundaryField
{
inlet
{
type zeroGradient;
}
outlet
{
type fixedValue;
value uniform 0;
}
front
{
type symmetry; // symmetry
}
back
{
type symmetry; // symmetry
}
wall
{
type zeroGradient;
}
axis
{
type empty;
}
}
// ************************************************************************* //Velocity symmetry 45:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class volVectorField;
object U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 1 -1 0 0 0 0];
internalField uniform (0 0 0);
boundaryField
{
inlet
{
type fixedValue;
value uniform (0.0223169508525577 0 0);
}
outlet
{
type zeroGradient;
}
front
{
type symmetry; // symmetry
}
back
{
type symmetry; // symmetry
}
wall
{
type noSlip;
}
axis
{
type empty;
}
}
// ************************************************************************* //symmetry 45 transport properties:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
location "constant";
object transportProperties;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
nu [0 2 -1 0 0 0 0] 8.9267803410231e-07;
// ************************************************************************* //symmetry 10 image:
pressure symmetry image:
Mesh image:
symmetry 10 velocity plot:
symmetry 10 shear stress comparision:
pressure image:

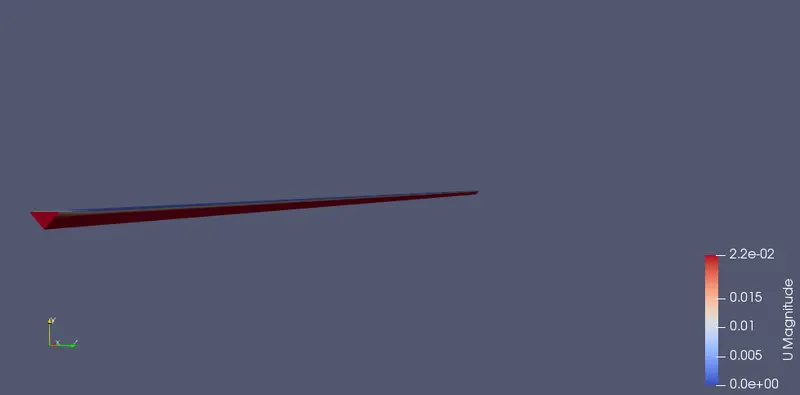

velocity symmetry 25:
symmetry 25 mesh image:

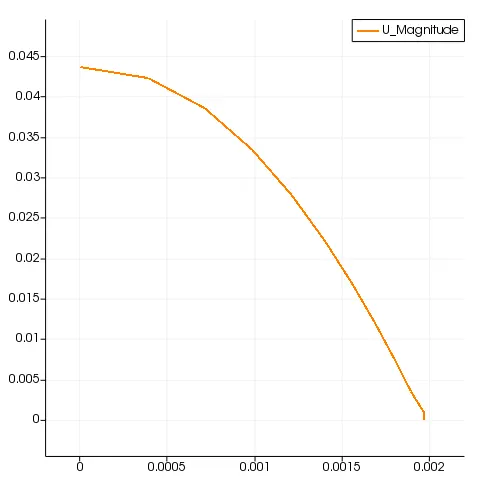

Velocity plot symmetry 25:
shear stress comparision plot:
symmetry 45 velocity:

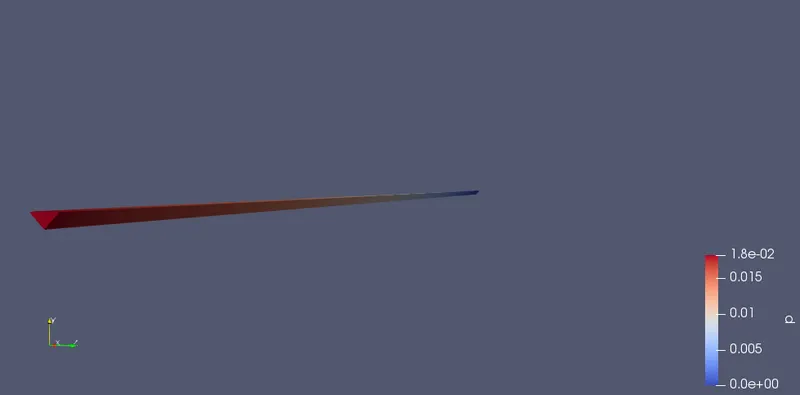

symmetry 45 pressure :
symmetry 45 mesh image:
symmetry 45 velocity plot:
symmetry 45 shear stress:
shear stress symmetry 45 comparision plot:
Conclution :
Finally we canclude the validate Hydro-dynamic length with the numerical result and validate the fully developed flow velocity profile with its analytical profile next validate maximum velocity and pressured drop for fully developed flow then post-process Shear stress and validate wall shear stress for fully developed flow and then highligh the differences in both boundary conditions in terms of their usage and aplication.
