Week 12 - Validation studies of Symmetry BC vs Wedge BC in OpenFOAM vs Analytical H.P equation

NNanthakumar P27 Jul 2022

CFD

AIM:

Validation studies of Symmetry BC vs Wedge BC in OpenFOAM vs Analytical H.P equation.

angles to test:

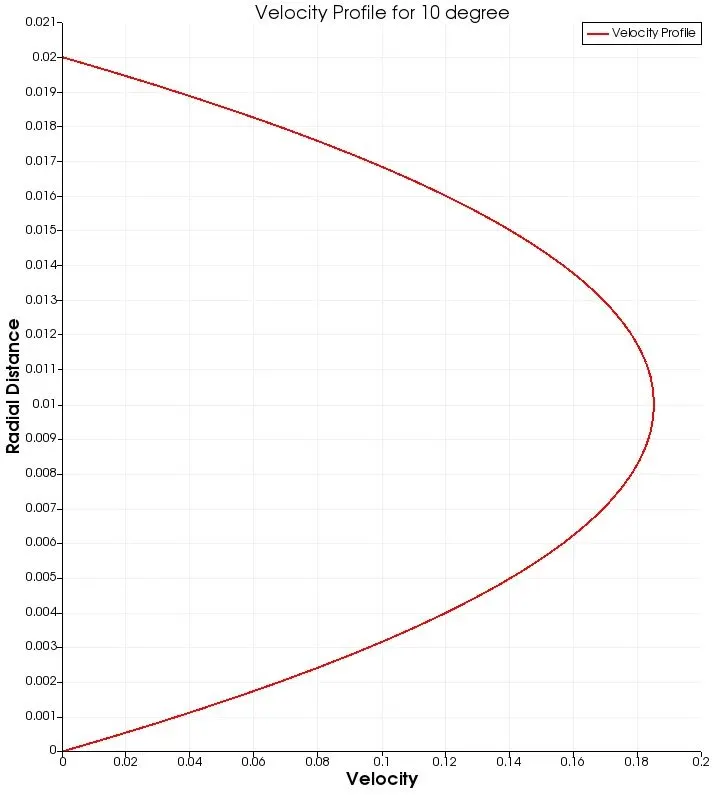

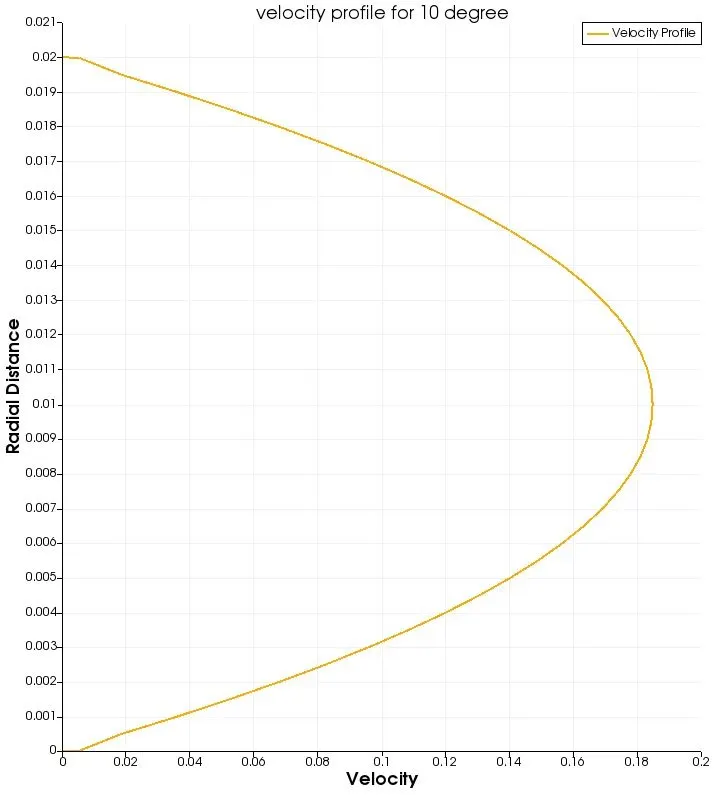

10°

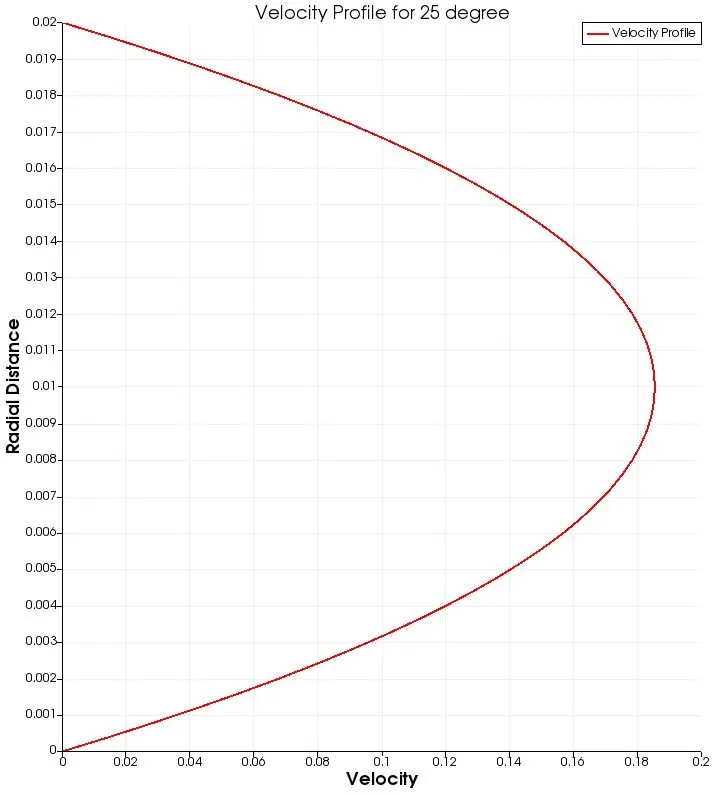

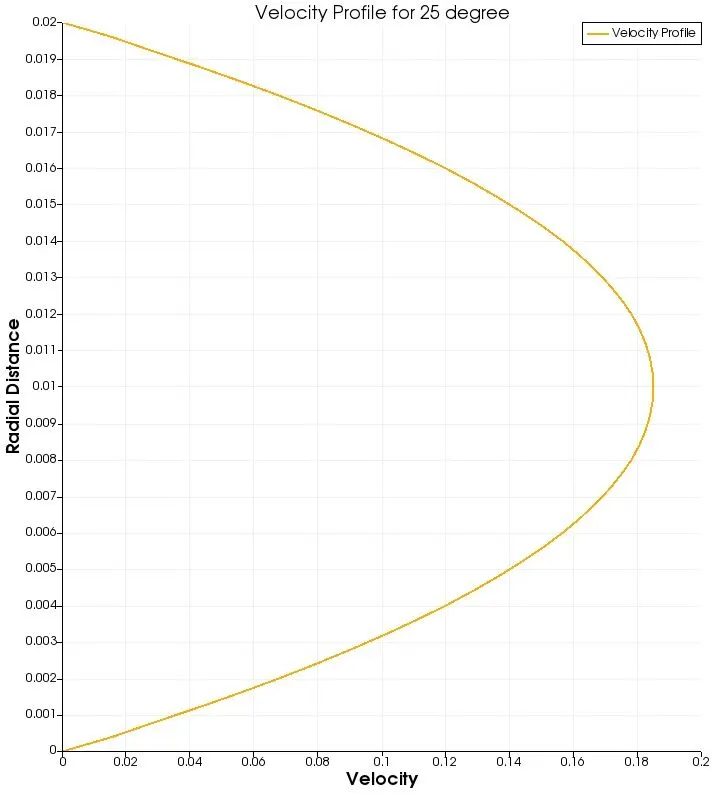

25°

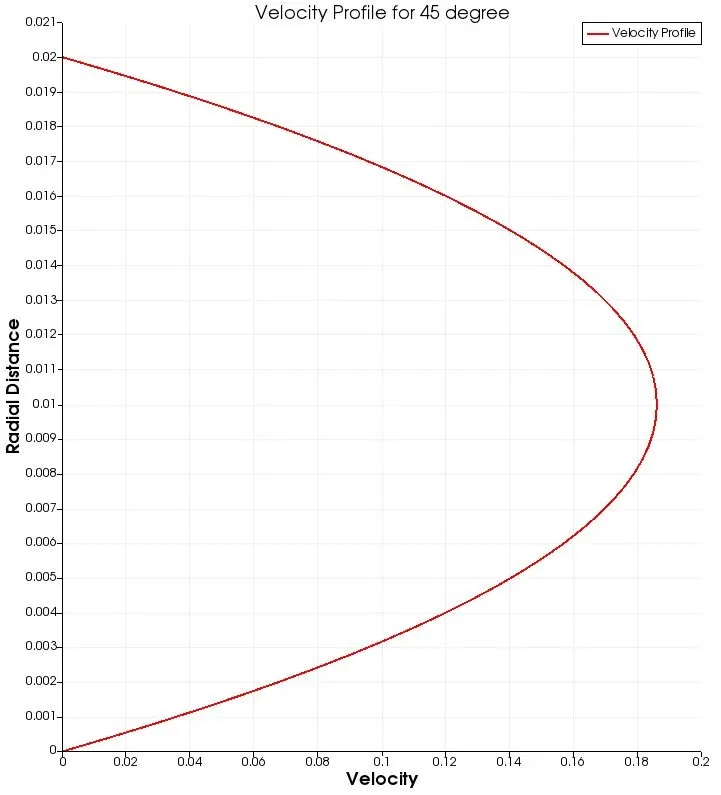

45°

Description:

Internal flow through a cylindrical pipe is a common thing that we come across in our daily life which includes the velocity profile, the shear stress, boundary layer.

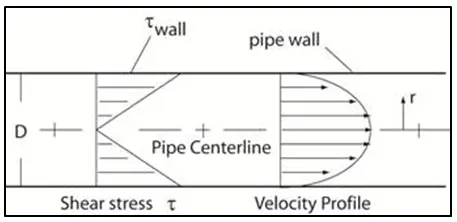

The fluid velocity changes from zero to wall and becomes maximum at the center. In fluid flow, it is preferred to take average velocity because it remains constant when the flow is incompressible and the cross-sectional area is constant.

If we consider flow of fluids in the form of layers, when fluid flows through a pipe the layers which are in contact with the walls of the pipe comes to complete rest and hence velocity of those layers becomes zero and this is called as no slip condition. So starting from the wall if we move in radial direction to the centre of pipe velocity of layers keeps on increasing, at the centre the velocity of the layer is free stream velocity.

Assumptions

The steady laminar incompressible flow of a fluid is taken.
There is no velocity in the radial direction.
There is no acceleration since the flow is steady.
Reynolds number for the laminar flow is 2100.

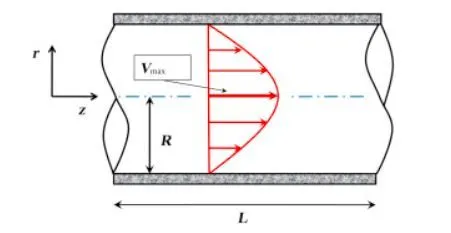

The equation governing the fluid flow is described by the Hagen-Poiseuille equation.

Hagen-Poiseuille equation:

The assumptions of the equations are that the fluid is incompressible and Newtonian, the flow is laminar through a pipe of the constant cross-section of length that is longer than the diameter, and there is no acceleration of the fluid in the pipe.

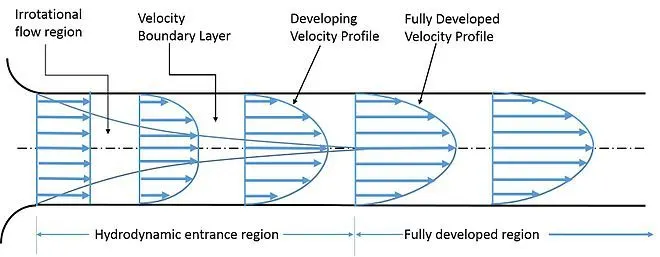

The velocity profile remains unchanged in the hydrodynamically fully developed region, the shear stress at the wall also remains unchanged.
Hydrodynamically fully developed region `∂u(r,x)/∂x=0`which means`u=u(r)`

Observations:

Diameter of pipe `D=0.02 m`
Hydrodynamic entrance length `=0.06*R_e*D=2.52 m`
Dynamic viscosity of water `μ=0.89e-3 Pa-sec`
Density of water `ρ=997 kg/m`
Kinematic viscosity `v=μ/ρ=(0.89e-3)/997=8.9268e-7 m^2/sec`
Average velocity `v_avg=(μ.R_e)/(ρ.D)=0.0937 m/sec`
Velocity profile `u(r)= 2.v_avg.(1-(r^2/R^2 ) )`
The velocity profile is maximum at the center of the pipe and becomes zero at the pipe wall due to the no-slip condition at the pipe wall.
`u_ max⁡=2.v_avg=0.1875 m/sec`
Pressure drop for the fluid in the laminar flow
`∆p=(32.μ.v_avg.L)/D^2 =0.0169 kPa`
Shear stress `τ=2.μ.u_max⁡ .r/R^2`

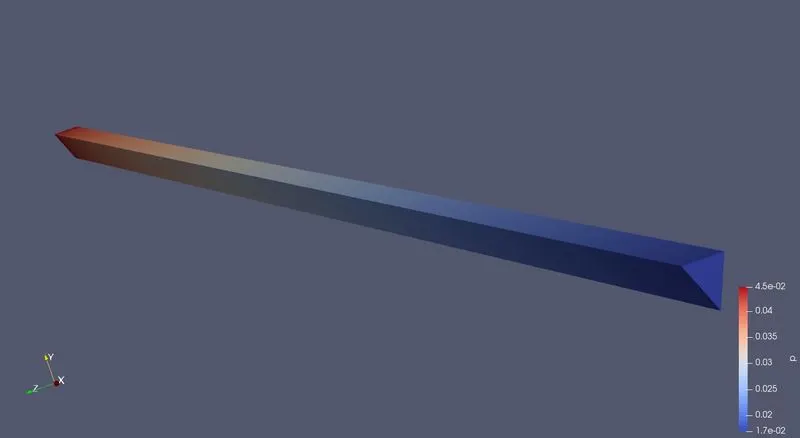

Geometry:

Matlab Code for Calculate the Shear Stress:

clear all
close all
clc

% defining input values from Hagen Poiseuille
% laminar flow
Re=2100;

% diameter of pipe
D=0.02;

% radius of pipe
R=D/2;

% wedge angle
theta=input('Enter the value of wedge angle =');

% hydrodynamic entry length L
L=0.06*Re*D;

% assumed characteristic length
L_c=L+0.3;

% dynamic viscosity of water
mu=0.89e-3;

% density of water
rho=997;

% kinematic viscosity
nu=mu/rho;

% calculating average velocity
v_avg=(mu*Re)/(rho*D);

% calculating maximum velocity at the centerline of pipe
u_max=2*v_avg;

% darcy friction factor
f=64/Re;

% pressure drop for the laminar flow
delta_p=(32*mu*v_avg*L)/D^2;

%Shear Stress
r=linspace(-0.01,0.01,100);
for i=1:length(r)
tau(i)=(2*mu*u_max*abs(r(i)))/R^2;
end
plot(tau,r ,'linewidth',3,'color','g')
grid on
ylabel('Radius of pipe in Meter')
xlabel('Shear stress in Pascal ')
title('Shear stress along the radius of pipe')
legend('Shear stress of the profile')

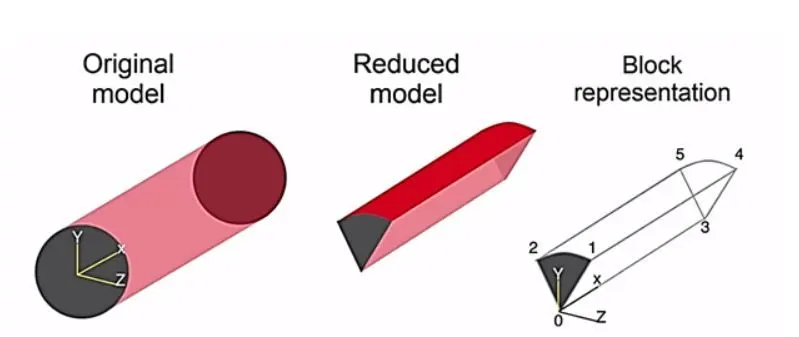

Matlab Code for create a blockMeshDict script File:(Wedge B.C)

clear all
close all
clc

% defining input values from Hagen Poiseuille
% laminar flow
Re=2100;

% diameter of pipe
D=0.02;

% radius of pipe
R=D/2;

% wedge angle
theta=input('Enter the value of wedge angle =');

% hydrodynamic entry length L
L=0.06*Re*D;

% assumed characteristic length
L_c=L+0.3;

% dynamic viscosity of water
mu=0.89e-3;

% density of water
rho=997;

% kinematic viscosity
nu=mu/rho;

% calculating average velocity
v_avg=(mu*Re)/(rho*D);

% calculating maximum velocity at the centerline of pipe
u_max=2*v_avg;

% darcy friction factor
f=64/Re;

% pressure drop for the laminar flow
delta_p=(32*mu*v_avg*L)/D^2;

% finding vertices

v0=[0 0 0 ];
v1=[0 R*cosd(0.5*theta) -R*sind(0.5*theta)];
v2=[0 R*cosd(0.5*theta) R*sind(0.5*theta)];
v3=[L 0 0 ];
v4=[L R*cosd(0.5*theta) -R*sind(0.5*theta)];
v5=[L R*cosd(0.5*theta) R*sind(0.5*theta)];

% writing the script for blockMeshDict file
f1=fopen('blockMeshDict.txt','w');
fprintf(f1,'%s','/*--------------------------------*- C++ -*----------------------------------*\');
fprintf(f1,'\n');
fprintf(f1,'%s','  =========                 |');
fprintf(f1,'\n');
fprintf(f1,'%s','  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox');
fprintf(f1,'\n');
fprintf(f1,'%s','   \\    /   O peration     | Website:  https://openfoam.org');
fprintf(f1,'\n');
fprintf(f1,'%s','    \\  /    A nd           | Version:  10');
fprintf(f1,'\n');
fprintf(f1,'%s','     \\/     M anipulation  |');
fprintf(f1,'\n');
fprintf(f1,'%s','\*---------------------------------------------------------------------------*/');
fprintf(f1,'\n')
fprintf(f1,'FoamFile');
fprintf(f1,'\n{\n');
fprintf(f1,'    format      ascii;\n');
fprintf(f1,'    class       dictionary;\n');
fprintf(f1,'    object      blockMeshDict;\n');
fprintf(f1,'}\n');
fprintf(f1,'%s','// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //');
fprintf(f1,'\n');
fprintf(f1,'convertToMeters 1;\n');
fprintf(f1,'\n');
fprintf(f1,'vertices\n');
fprintf(f1,'(\n');
fprintf(f1,'%s',blanks(4),'(');
fprintf(f1,'%f %f %f',v0(1),v0(2),v0(3));
fprintf(f1,')');
fprintf(f1,'%s',blanks(4),'// 0');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'(');
fprintf(f1,'%f %f %f',v1(1),v1(2),v1(3));
fprintf(f1,')');
fprintf(f1,'%s',blanks(3),'// 1');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'(');
fprintf(f1,'%f %f %f',v2(1),v2(2),v2(3));
fprintf(f1,')');
fprintf(f1,'%s',blanks(4),'// 2');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'(');
fprintf(f1,'%f %f %f',v3(1),v3(2),v3(3));
fprintf(f1,')');
fprintf(f1,'%s',blanks(4),'// 3');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'(');
fprintf(f1,'%f %f %f',v4(1),v4(2),v4(3));
fprintf(f1,')');
fprintf(f1,'%s',blanks(3),'// 4');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'(');
fprintf(f1,'%f %f %f',v5(1),v5(2),v5(3));
fprintf(f1,')');
fprintf(f1,'%s',blanks(4),'// 5');
fprintf(f1,'\n');
fprintf(f1,');\n');
fprintf(f1,'\n');
%blocks
fprintf(f1,'blocks\n');
fprintf(f1,'%s','(');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4));
fprintf(f1,'%s','hex (0 1 2 0 3 4 5 3)');
fprintf(f1,'%s',blanks(1));
fprintf(f1,'%s','(20 1 200)');
fprintf(f1,'%s',blanks(1));
fprintf(f1,'%s','simpleGrading (1 1 1)');
fprintf(f1,'\n');
fprintf(f1,');\n');
fprintf(f1,'\n');
%edges
fprintf(f1,'%s','edges');
fprintf(f1,'\n');
fprintf(f1,'%s','(');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4));
fprintf(f1,'%s','arc 1 2 (');
fprintf(f1,'%f %f %f',0,R,0);
fprintf(f1,'%s',')');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4));
fprintf(f1,'%s','arc 4 5 (');
fprintf(f1,'%f %f %f',L,R,0);
fprintf(f1,'%s',')');
fprintf(f1,'\n');
fprintf(f1,'%s',');');
fprintf(f1,'\n');
fprintf(f1,'\n');
%boundary conditions
fprintf(f1,'%s','boundary');
fprintf(f1,'\n');
fprintf(f1,'%s','(');
fprintf(f1,'\n');
%Inlet
fprintf(f1,'%s',blanks(4),'inlet');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'{');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'type patch;');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'faces');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'(');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(12),'(0 1 2 0)');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),');');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'}');
fprintf(f1,'\n');
%Outlet
fprintf(f1,'%s',blanks(4),'outlet');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'{');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'type patch;');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'faces');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'(');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(12),'(3 4 5 3)');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),');');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'}');
fprintf(f1,'\n');
%Axis
fprintf(f1,'%s',blanks(4),'axis');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'{');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'type empty;');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'faces');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'(');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(12),'(0 3 3 0)');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),');');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'}');
fprintf(f1,'\n');
%pipe surface
fprintf(f1,'%s',blanks(4),'pipe_surface');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'{');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'type wall;');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'faces');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'(');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(12),'(1 4 5 2)');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),');');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'}');
fprintf(f1,'\n');
%Front and back
fprintf(f1,'%s',blanks(4),'front');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'{');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'type wedge;');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'faces');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'(');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(12),'(0 3 5 2)');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),');');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'}');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'back');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'{');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'type wedge;');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'faces');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'(');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(12),'(0 1 4 3)');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),');');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'}');
fprintf(f1,'\n');
fprintf(f1,'%s',');');
fprintf(f1,'\n');
fprintf(f1,'\n');
fprintf(f1,'%s','mergePatchPairs');
fprintf(f1,'\n');
fprintf(f1,'%s','(');
fprintf(f1,'\n');
fprintf(f1,'\n');
fprintf(f1,'%s',');');
fprintf(f1,'\n');
fprintf(f1,'\n');
fprintf(f1,'%s','// ************************************************************************* //');
fclose(f1);

Matlab Code for create a blockMeshDict script File:(Symmetry B.C)

clear all
close all
clc

% defining input values from Hagen Poiseuille
% laminar flow
Re=2100;

% diameter of pipe
D=0.02;

% radius of pipe
R=D/2;

% wedge angle
theta=input('Enter the value of wedge angle =');

% hydrodynamic entry length L
L=0.06*Re*D;

% assumed characteristic length
L_c=L+0.3;

% dynamic viscosity of water
mu=0.89e-3;

% density of water
rho=997;

% kinematic viscosity
nu=mu/rho;

% calculating average velocity
v_avg=(mu*Re)/(rho*D);

% calculating maximum velocity at the centerline of pipe
u_max=2*v_avg;

% darcy friction factor
f=64/Re;

% pressure drop for the laminar flow
delta_p=(32*mu*v_avg*L)/D^2;

% finding vertices

v0=[0 0 0 ];
v1=[0 R*cosd(0.5*theta) -R*sind(0.5*theta)];
v2=[0 R*cosd(0.5*theta) R*sind(0.5*theta)];
v3=[L 0 0 ];
v4=[L R*cosd(0.5*theta) -R*sind(0.5*theta)];
v5=[L R*cosd(0.5*theta) R*sind(0.5*theta)];

% writing the script for blockMeshDict file
f1=fopen('blockMeshDict.txt','w');
fprintf(f1,'%s','/*--------------------------------*- C++ -*----------------------------------*\');
fprintf(f1,'\n');
fprintf(f1,'%s','  =========                 |');
fprintf(f1,'\n');
fprintf(f1,'%s','  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox');
fprintf(f1,'\n');
fprintf(f1,'%s','   \\    /   O peration     | Website:  https://openfoam.org');
fprintf(f1,'\n');
fprintf(f1,'%s','    \\  /    A nd           | Version:  10');
fprintf(f1,'\n');
fprintf(f1,'%s','     \\/     M anipulation  |');
fprintf(f1,'\n');
fprintf(f1,'%s','\*---------------------------------------------------------------------------*/');
fprintf(f1,'\n')
fprintf(f1,'FoamFile');
fprintf(f1,'\n{\n');
fprintf(f1,'    format      ascii;\n');
fprintf(f1,'    class       dictionary;\n');
fprintf(f1,'    object      blockMeshDict;\n');
fprintf(f1,'}\n');
fprintf(f1,'%s','// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //');
fprintf(f1,'\n');
fprintf(f1,'convertToMeters 1;\n');
fprintf(f1,'\n');
fprintf(f1,'vertices\n');
fprintf(f1,'(\n');
fprintf(f1,'%s',blanks(4),'(');
fprintf(f1,'%f %f %f',v0(1),v0(2),v0(3));
fprintf(f1,')');
fprintf(f1,'%s',blanks(4),'// 0');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'(');
fprintf(f1,'%f %f %f',v1(1),v1(2),v1(3));
fprintf(f1,')');
fprintf(f1,'%s',blanks(3),'// 1');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'(');
fprintf(f1,'%f %f %f',v2(1),v2(2),v2(3));
fprintf(f1,')');
fprintf(f1,'%s',blanks(4),'// 2');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'(');
fprintf(f1,'%f %f %f',v3(1),v3(2),v3(3));
fprintf(f1,')');
fprintf(f1,'%s',blanks(4),'// 3');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'(');
fprintf(f1,'%f %f %f',v4(1),v4(2),v4(3));
fprintf(f1,')');
fprintf(f1,'%s',blanks(3),'// 4');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'(');
fprintf(f1,'%f %f %f',v5(1),v5(2),v5(3));
fprintf(f1,')');
fprintf(f1,'%s',blanks(4),'// 5');
fprintf(f1,'\n');
fprintf(f1,');\n');
fprintf(f1,'\n');
%blocks
fprintf(f1,'blocks\n');
fprintf(f1,'%s','(');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4));
fprintf(f1,'%s','hex (0 1 2 0 3 4 5 3)');
fprintf(f1,'%s',blanks(1));
fprintf(f1,'%s','(40 1 500)');
fprintf(f1,'%s',blanks(1));
fprintf(f1,'%s','simpleGrading (1 1 1)');
fprintf(f1,'\n');
fprintf(f1,');\n');
fprintf(f1,'\n');
%edges
fprintf(f1,'%s','edges');
fprintf(f1,'\n');
fprintf(f1,'%s','(');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4));
fprintf(f1,'%s','arc 1 2 (');
fprintf(f1,'%f %f %f',0,R,0);
fprintf(f1,'%s',')');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4));
fprintf(f1,'%s','arc 4 5 (');
fprintf(f1,'%f %f %f',L,R,0);
fprintf(f1,'%s',')');
fprintf(f1,'\n');
fprintf(f1,'%s',');');
fprintf(f1,'\n');
fprintf(f1,'\n');
%boundary conditions
fprintf(f1,'%s','boundary');
fprintf(f1,'\n');
fprintf(f1,'%s','(');
fprintf(f1,'\n');
%Inlet
fprintf(f1,'%s',blanks(4),'inlet');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'{');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'type patch;');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'faces');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'(');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(12),'(0 1 2 0)');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),');');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'}');
fprintf(f1,'\n');
%Outlet
fprintf(f1,'%s',blanks(4),'outlet');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'{');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'type patch;');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'faces');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'(');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(12),'(3 4 5 3)');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),');');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'}');
fprintf(f1,'\n');
%Axis
fprintf(f1,'%s',blanks(4),'axis');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'{');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'type empty;');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'faces');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'(');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(12),'(0 3 3 0)');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),');');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'}');
fprintf(f1,'\n');
%pipe surface
fprintf(f1,'%s',blanks(4),'pipe_surface');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'{');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'type wall;');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'faces');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'(');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(12),'(1 4 5 2)');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),');');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'}');
fprintf(f1,'\n');
%Front and back
fprintf(f1,'%s',blanks(4),'front');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'{');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'type wedge;');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'faces');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'(');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(12),'(0 3 5 2)');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),');');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'}');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'back');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'{');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'type wedge;');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'faces');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),'(');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(12),'(0 1 4 3)');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(8),');');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(4),'}');
fprintf(f1,'\n');
fprintf(f1,'%s',');');
fprintf(f1,'\n');
fprintf(f1,'\n');
fprintf(f1,'%s','mergePatchPairs');
fprintf(f1,'\n');
fprintf(f1,'%s','(');
fprintf(f1,'\n');
fprintf(f1,'\n');
fprintf(f1,'%s',');');
fprintf(f1,'\n');
fprintf(f1,'\n');
fprintf(f1,'%s','// ************************************************************************* //');
fclose(f1);

By entering the required angle the required blockMeshDict file will be created for both boundary conditions.

Simulation Procedure:

Open openFoam tutorials and find the the solver to solve incompressible-laminar-viscous flow problem.
Next step is to copy required file in solver and paste it in OpenFOAM run folder so that the official file of OpenFoam remain same as constant.
Find out blockmeshDict script file edit the script file with the generated script file by Matlab.
Find ‘controlDict’ file to edit start and end time for simulation.
In initial folder ‘0’ edit initial parameter for velocity and pressure according to faces of the given domain.
Use blockMesh command to generate mesh and checkMesh to verify it.
Enter icoFoam command to start the simulation.
After Simulation use the command paraFoam to launch the paraview.
Repeat the same procedure for different angle and both boundary conditions.

Script Files:

The below script files are just an example for Wedge B.C with 10 degree angle. By changing the appropriate theta the script file will changed.

blockMeshDict File:

/*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  10
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    format      ascii;
    class       dictionary;
    object      blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
convertToMeters 1;

vertices
(
    (0.000000 0.000000 0.000000)    // 0
    (0.000000 0.009962 -0.000872)   // 1
    (0.000000 0.009962 0.000872)    // 2
    (2.520000 0.000000 0.000000)    // 3
    (2.520000 0.009962 -0.000872)   // 4
    (2.520000 0.009962 0.000872)    // 5
);

blocks
(
    hex (0 1 2 0 3 4 5 3) (20 1 200) simpleGrading (1 1 1)
);

edges
(
    arc 1 2 (0.000000 0.010000 0.000000)
    arc 4 5 (2.520000 0.010000 0.000000)
);

boundary
(
    inlet
    {
        type patch;
        faces
        (
            (0 1 2 0)
        );
    }
    outlet
    {
        type patch;
        faces
        (
            (3 4 5 3)
        );
    }
    axis
    {
        type empty;
        faces
        (
            (0 3 3 0)
        );
    }
    pipe_surface
    {
        type wall;
        faces
        (
            (1 4 5 2)
        );
    }
    front
    {
        type wedge;
        faces
        (
            (0 3 5 2)
        );
    }
    back
    {
        type wedge;
        faces
        (
            (0 1 4 3)
        );
    }
);

mergePatchPairs
(

);

// ************************************************************************* //

ControlDict File:

/*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  10
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    format      ascii;
    class       dictionary;
    location    "system";
    object      controlDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

application     icoFoam;

startFrom       startTime;

startTime       0;

stopAt          endTime;

endTime         20;

deltaT          0.005;

writeControl    timeStep;

writeInterval   20;

purgeWrite      0;

writeFormat     ascii;

writePrecision  6;

writeCompression off;

timeFormat      general;

timePrecision   6;

runTimeModifiable true;


// ************************************************************************* //

Physicalproperties File:

/*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  10
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    format      ascii;
    class       dictionary;
    location    "constant";
    object      physicalProperties;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

nu              [0 2 -1 0 0 0 0] 1e-6;


// ************************************************************************* //

Pressure File:

/*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \    /   O peration     | Website:  https://openfoam.org
    \  /    A nd           | Version:  10
     \/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    format      ascii;
    class       volScalarField;
    object      p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

dimensions      [0 2 -2 0 0 0 0];

internalField   uniform 0;

boundaryField
{
    axis
    {
        type            empty;
    }

    inlet
    {
        type            zeroGradient;
    }

    pipe_surface
    {
        type            zeroGradient;
    }
    outlet
    {
         type           fixedValue;
         value           uniform 0.0169;
    }
    front
    {
         type            wedge;
    }
    back
    {
         type            wedge;
    }

}

// ************************************************************************* //

Velocity File:

/*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \    /   O peration     | Website:  https://openfoam.org
    \  /    A nd           | Version:  8
     \/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    format      ascii;
    class       volVectorField;
    object      U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

dimensions      [0 1 -1 0 0 0 0];

internalField   uniform (0.0937 0 0);

boundaryField
{
    axis
    {
        type            empty;

    }
    inlet
    {
        type            fixedValue;
        value           uniform (0.0937 0 0);
    }
    pipe_surface
    {
        type            fixedValue;
        value           uniform (0 0 0);

    }

    outlet
    {
        type            zeroGradient;

    }
    front
    {
         type            wedge;
    }
    back
    {
         type            wedge;
    }

}

// ************************************************************************* //

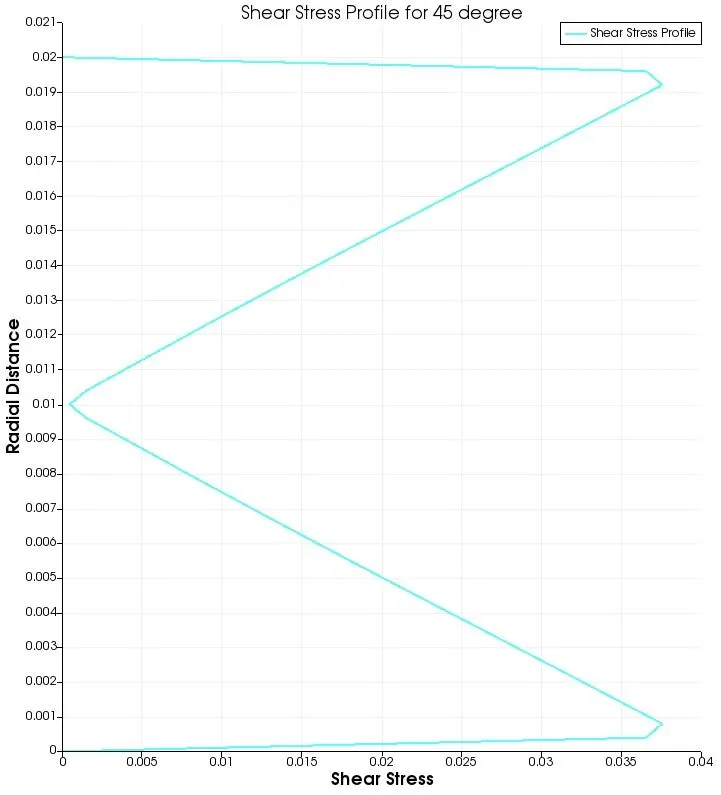

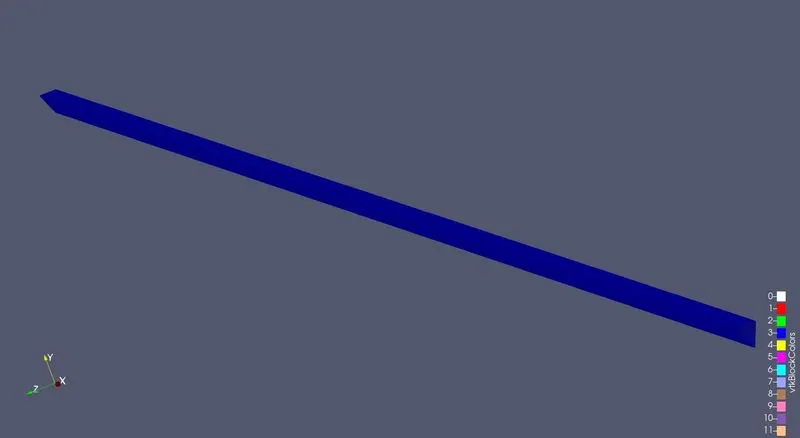

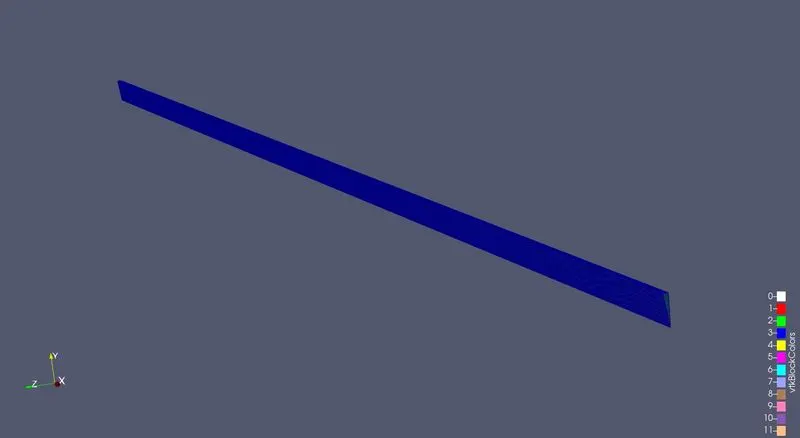

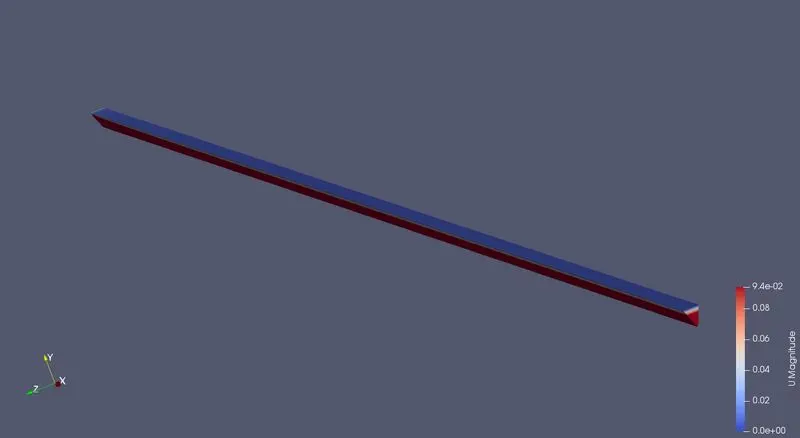

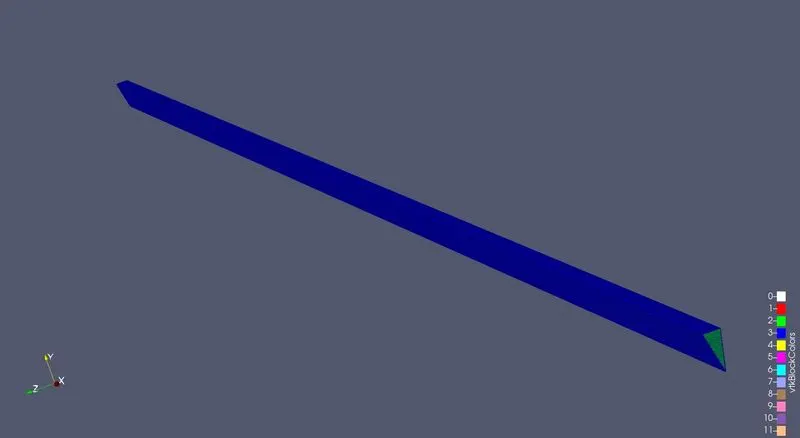

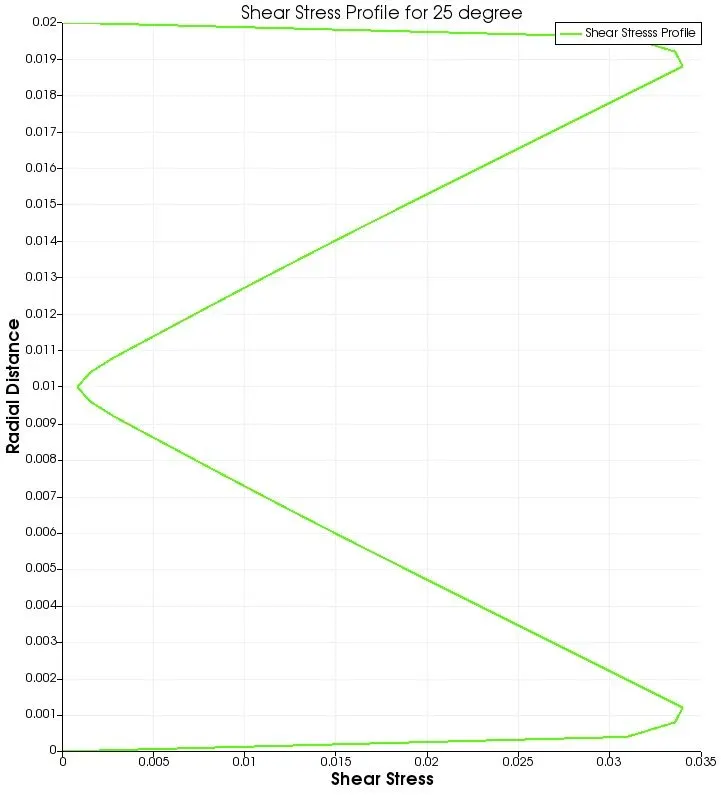

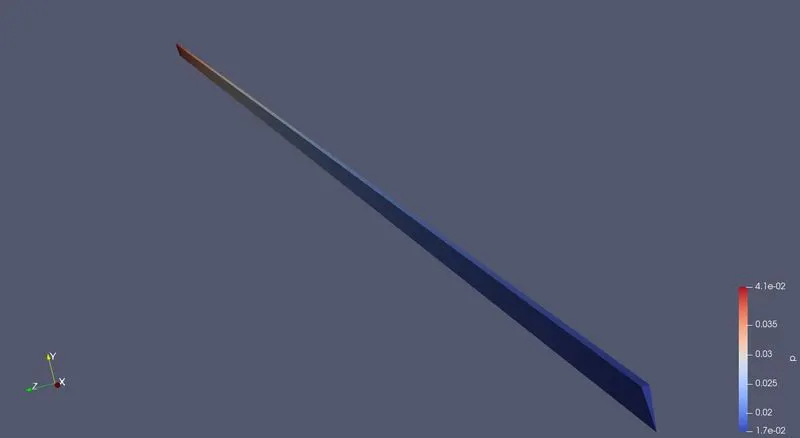

Simulation Results:

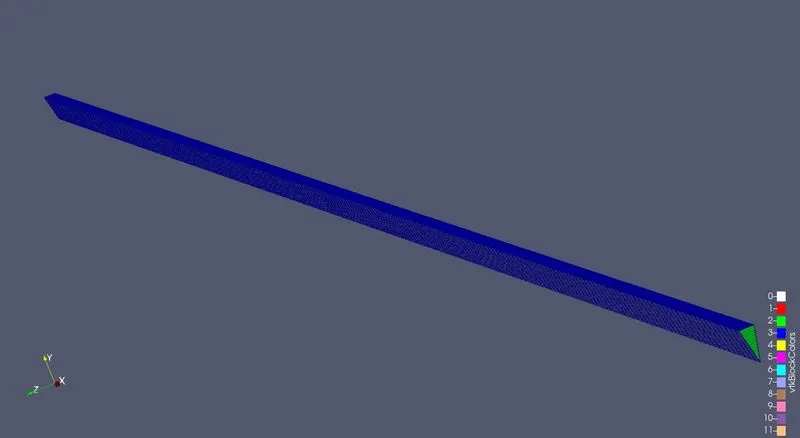

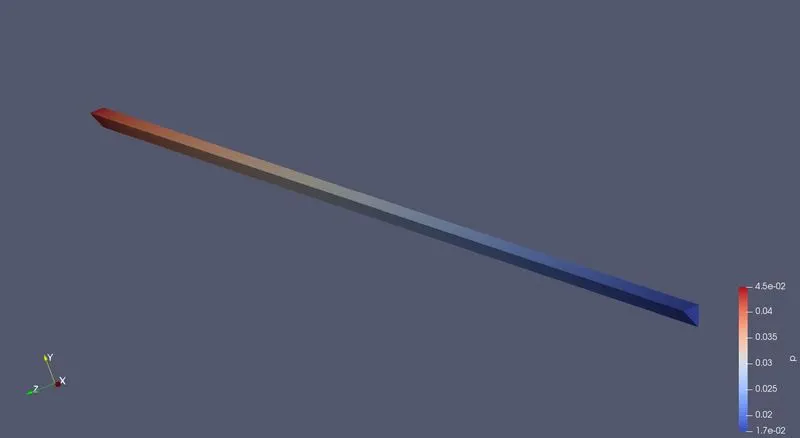

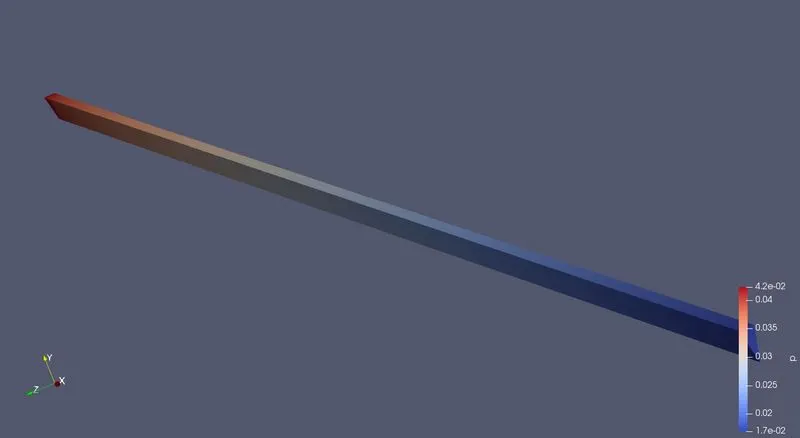

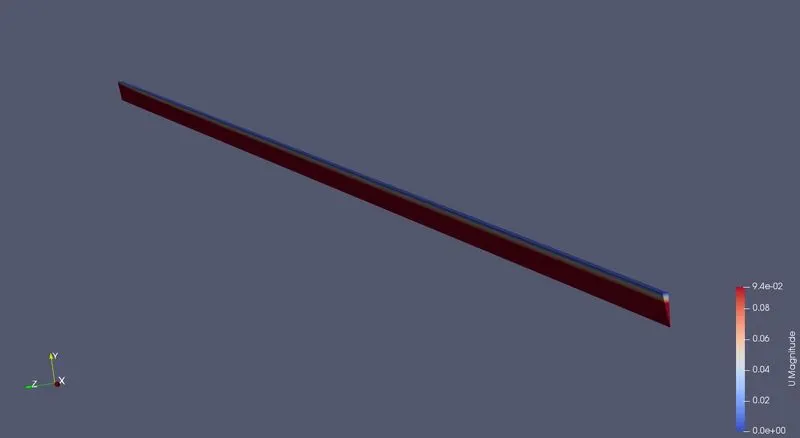

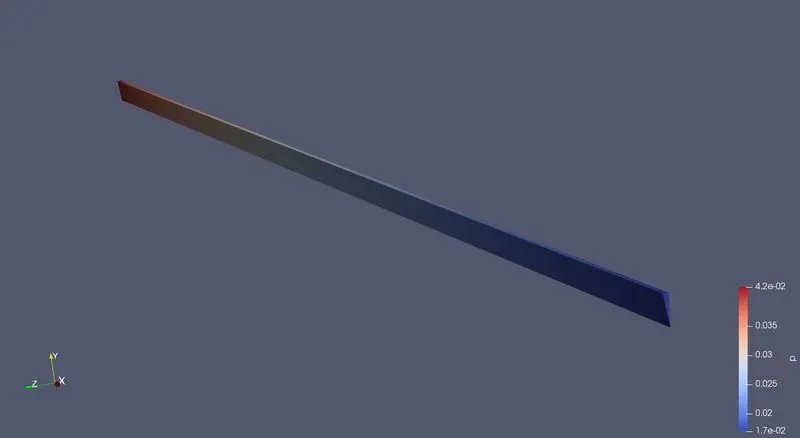

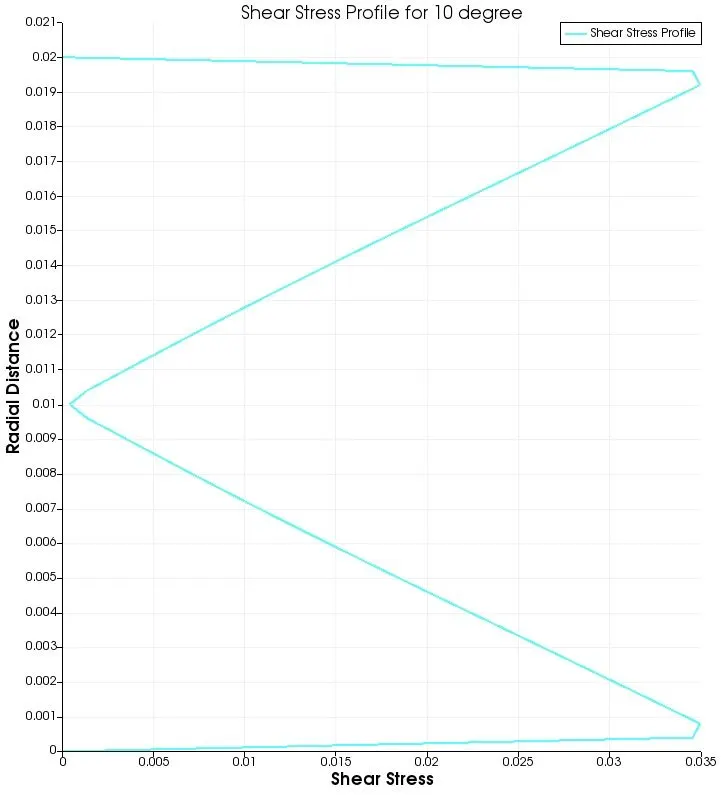

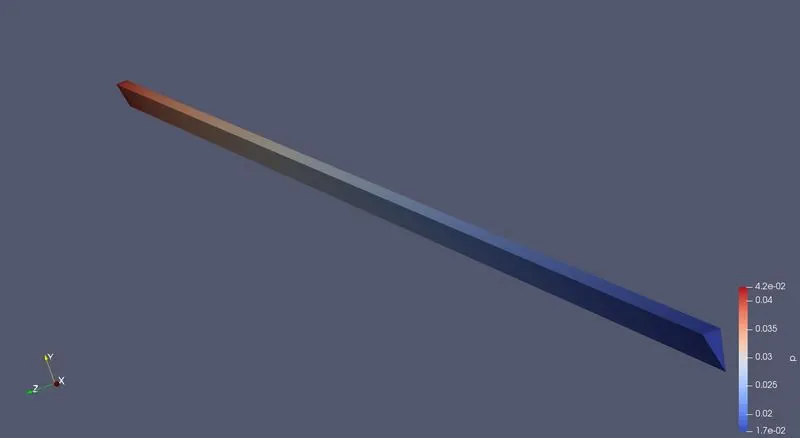

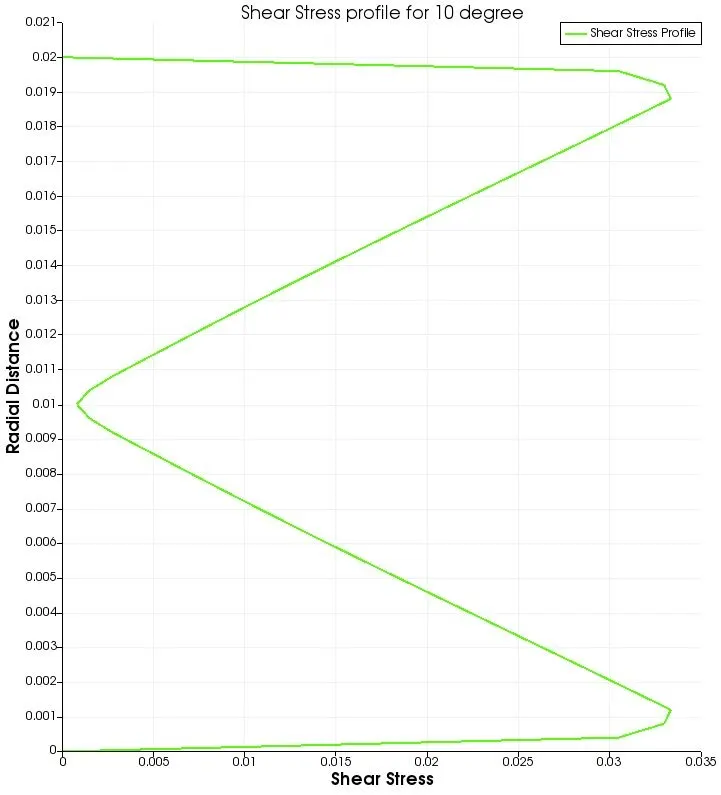

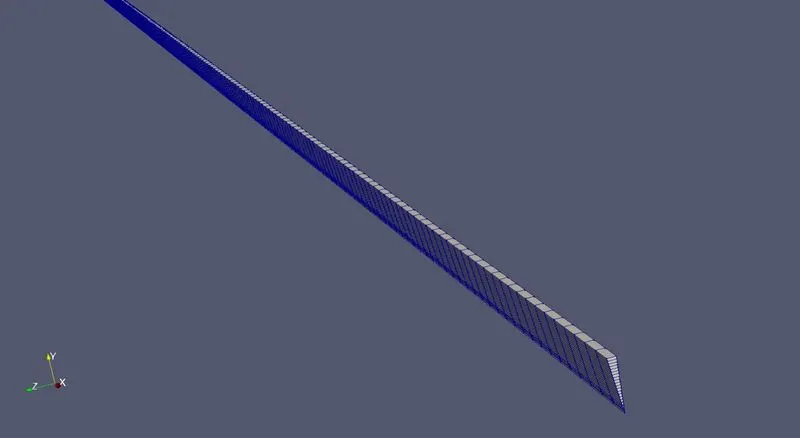

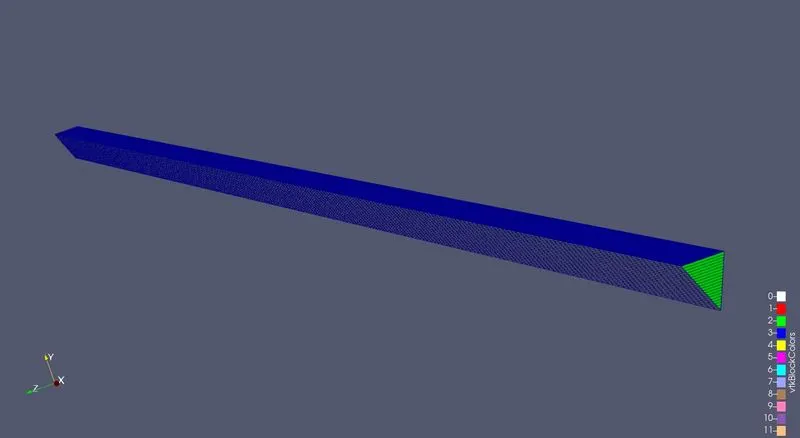

Grid View for 10°
