Week 12 - Validation studies of Symmetry BC vs Wedge BC in OpenFOAM vs Analytical H.P equation
Aim
In this challenge you will simulate the same problem as in week 1 but by applying Symmetry Boundary Condition. You will do the simulation for the below mentioned angles using both symmetry and wedge boundary conditions and validate them with HP equations like you did in week 11 challenge.
Angles to test
10 degree
25 degree
45 degree
***The matlab code for this is the same as the previous challenge (week 11). only the theta value is changing according to the condition.***
Given below is the BlockmeshDict code for a symmetry Boundary condition problem.
BlockMesh Dict Code for 10 degree
/*--------------------------------*- C++ -*----------------------------------*
========= |
\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\ / O peration | Website: https://openfoam.org
\ / A nd | Version: 9
\/ M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
object blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
convertToMeters 1;
vertices
(
(0.000000 0.000000 0.000000)
(0.000000 0.004981 0.000436)
(0.000000 0.004981 -0.000436)
(1.450000 0.000000 0.000000)
(1.450000 0.004981 0.000436)
(1.450000 0.004981 -0.000436)
);
blocks
(
hex (0 3 5 2 0 3 4 1) (200 50 1) simpleGrading (1 0.3 1)
);
edges
(
arc 1 2 (0.000000 0.005 0.000000)
arc 4 5 (1.450000 0.005 0.000000)
);
boundary
(
inlet
{
type patch;
faces
(
(0 1 2 0)
);
}
outlet
{
type patch;
faces
(
(3 4 5 3)
);
}
axis
{
type empty;
faces
(
(0 3 3 0)
);
}
front
{
type wedge;
faces
(
(0 2 5 3)
);
}
back
{
type wedge;
faces
(
(0 3 4 1)
);
}
top
{
type wall;
faces
(
(1 2 5 4)
);
}
)
mergePatchPairs
(
);

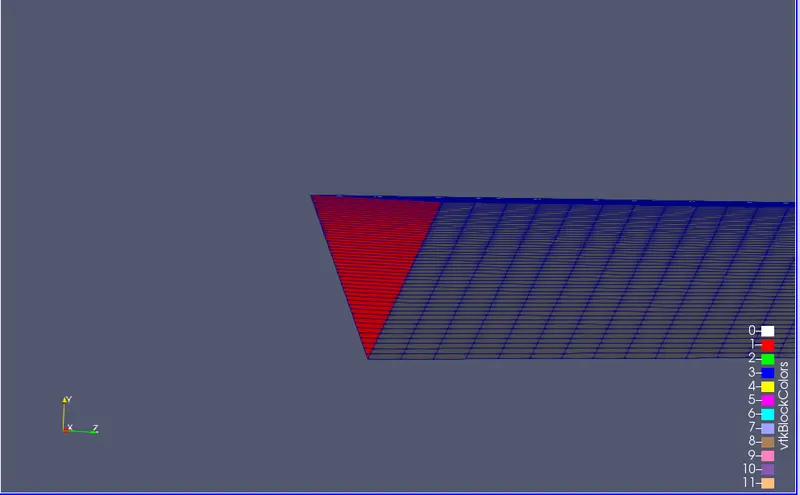

Wedge with angle 10 degree
BlockMesh Dict for 25 degree
/*--------------------------------*- C++ -*----------------------------------*
========= |
\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\ / O peration | Website: https://openfoam.org
\ / A nd | Version: 9
\/ M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
object blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
convertToMeters 1;
vertices
(
(0.000000 0.000000 0.000000)
(0.000000 0.004881 0.001082)
(0.000000 0.004881 -0.001082)
(1.450000 0.000000 0.000000)
(1.450000 0.004881 0.001082)
(1.450000 0.004881 -0.001082)
);
blocks
(
hex (0 3 5 2 0 3 4 1) (200 50 1) simpleGrading (1 0.3 1)
);
edges
(
arc 1 2 (0.000000 0.005 0.000000)
arc 4 5 (1.450000 0.005 0.000000)
);
boundary
(
inlet
{
type patch;
faces
(
(0 1 2 0)
);
}
outlet
{
type patch;
faces
(
(3 4 5 3)
);
}
axis
{
type empty;
faces
(
(0 3 3 0)
);
}
front
{
type wedge;
faces
(
(0 2 5 3)
);
}
back
{
type wedge;
faces
(
(0 3 4 1)
);
}
top
{
type wall;
faces
(
(1 2 5 4)
);
}
)
mergePatchPairs
(
);

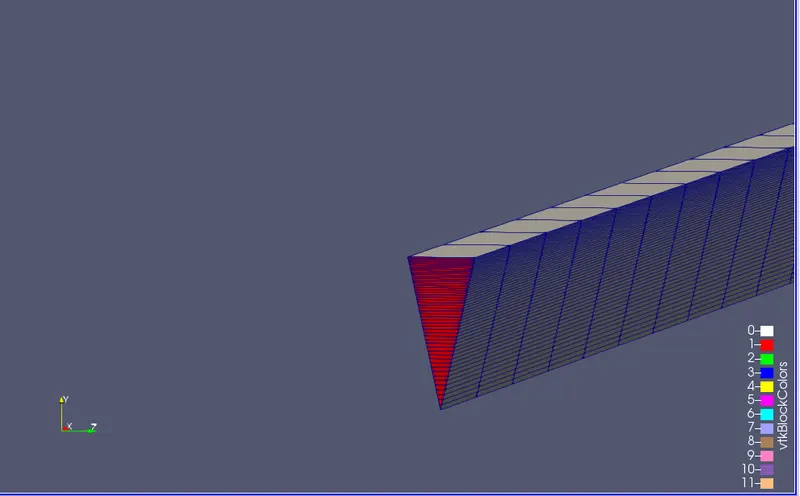

Wedge with angle 25 degree
BlockMeshDict code for 45 degree
/*--------------------------------*- C++ -*----------------------------------*
========= |
\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\ / O peration | Website: https://openfoam.org
\ / A nd | Version: 9
\/ M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
object blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
convertToMeters 1;
vertices
(
(0.000000 0.000000 0.000000)
(0.000000 0.004619 0.001913)
(0.000000 0.004619 -0.001913)
(1.450000 0.000000 0.000000)
(1.450000 0.004619 0.001913)
(1.450000 0.004619 -0.001913)
);
blocks
(
hex (0 3 5 2 0 3 4 1) (200 50 1) simpleGrading (1 0.3 1)
);
edges
(
arc 1 2 (0.000000 0.005 0.000000)
arc 4 5 (1.450000 0.005 0.000000)
);
boundary
(
inlet
{
type patch;
faces
(
(0 1 2 0)
);
}
outlet
{
type patch;
faces
(
(3 4 5 3)
);
}
axis
{
type empty;
faces
(
(0 3 3 0)
);
}
front
{
type wedge;
faces
(
(0 2 5 3)
);
}
back
{
type wedge;
faces
(
(0 3 4 1)
);
}
top
{
type wall;
faces
(
(1 2 5 4)
);
}
)
mergePatchPairs
(
);

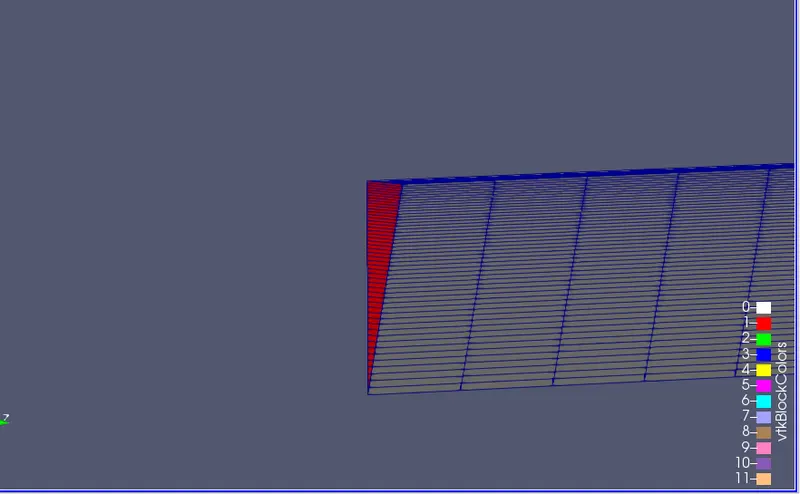

Wedge with angle 45 degree
Results (output) obtained
*****************************************************************************************
For the wedge angle 10 degree

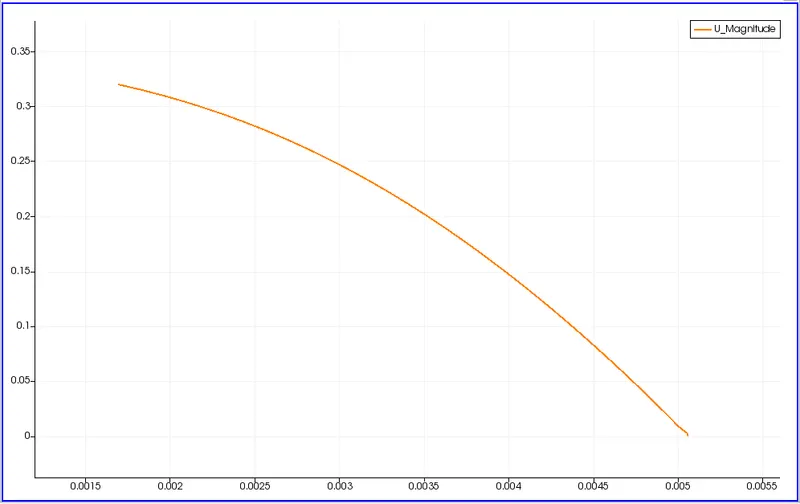

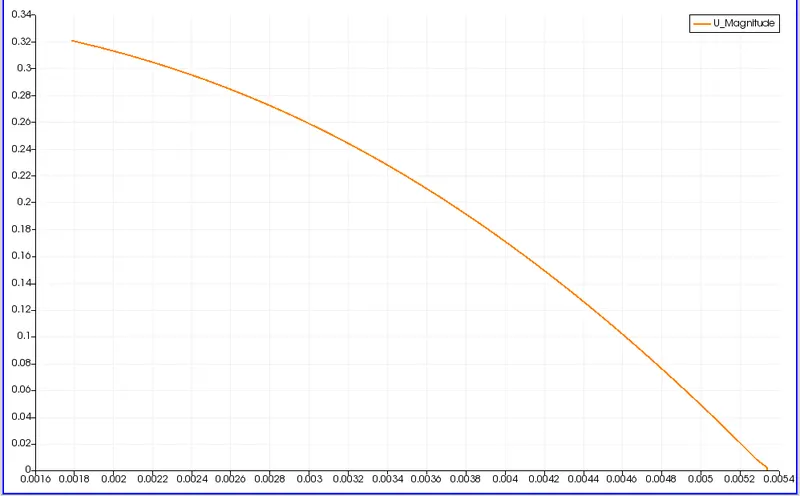

Velocity

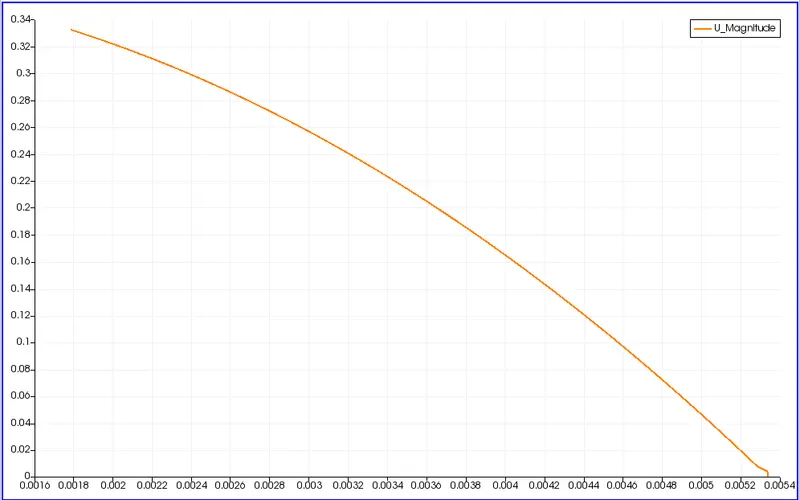

The velocity at 1.45 m from the inlet
The velocity at 0.5m from the inlet

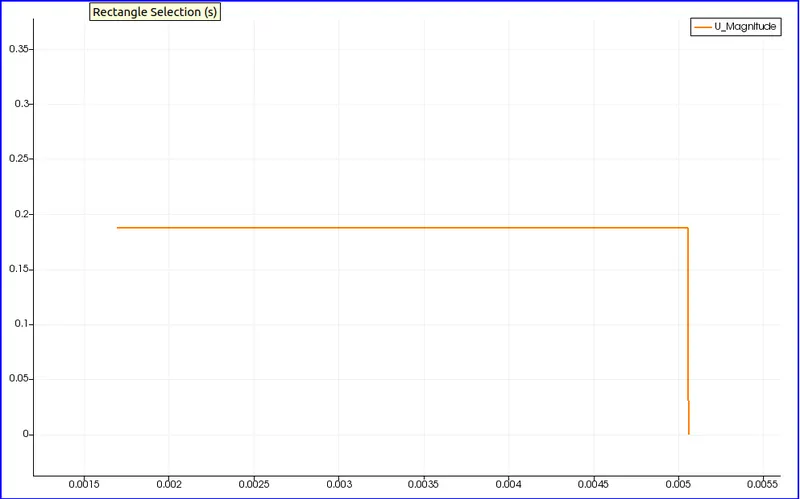

The velocity at the inlet

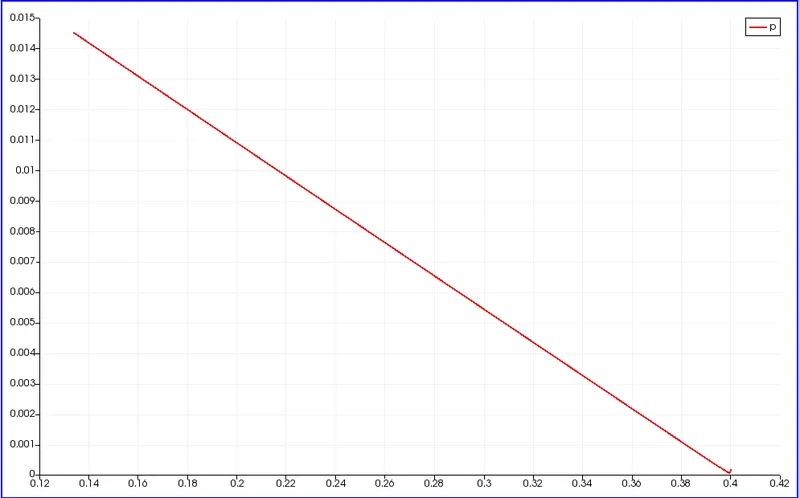

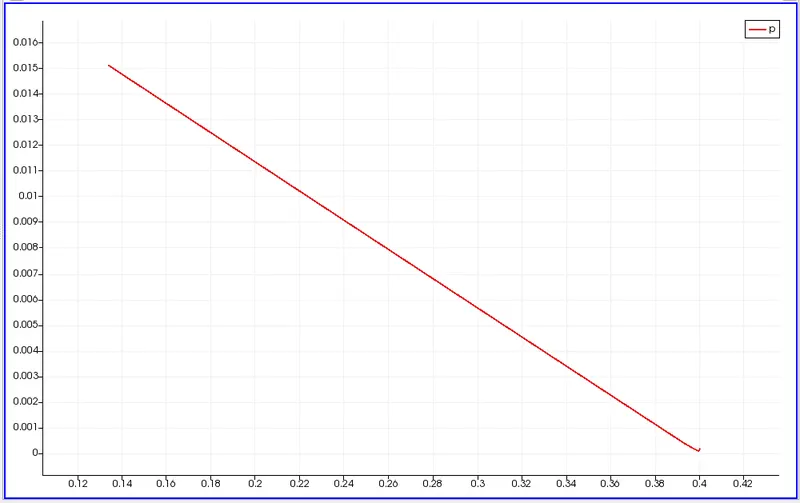

Pressure

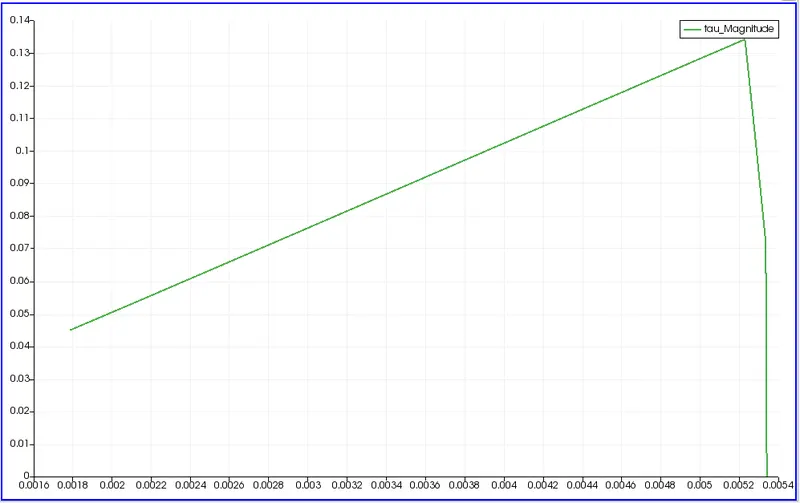

Shear stress
*************************************************************************************
For the wedge angle 25 degree

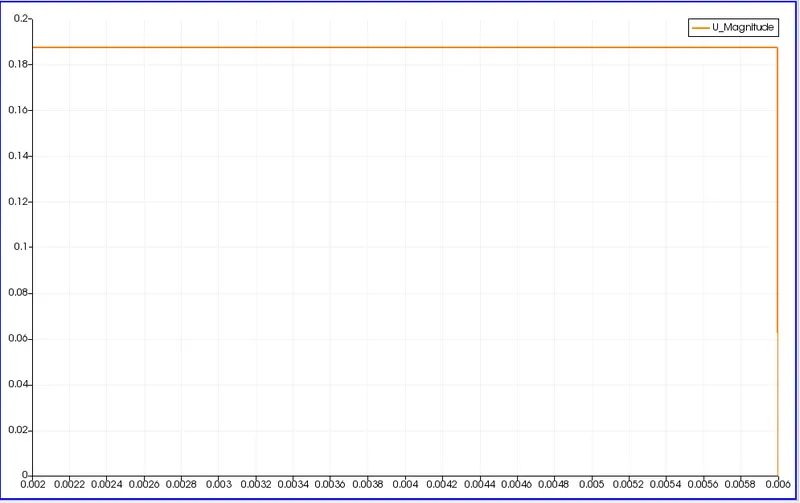

Velocity

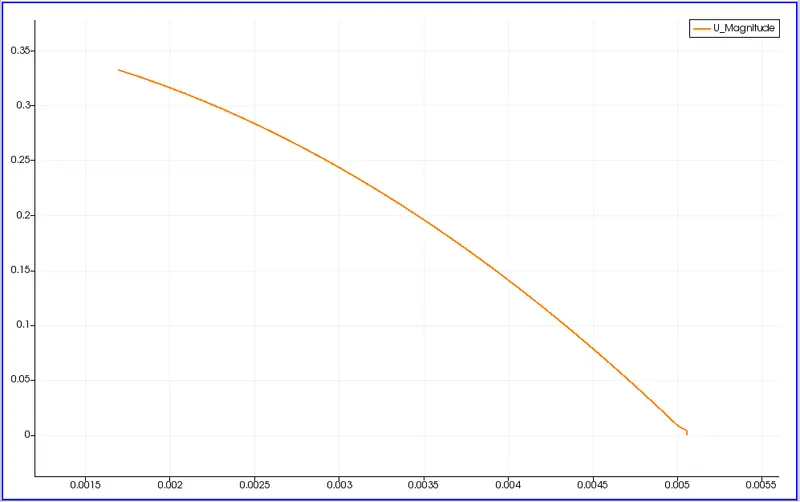

Velocity at 1.45 meters from the inlet
Velocity at 0.5 m from the inlet
Velocity at the inlet

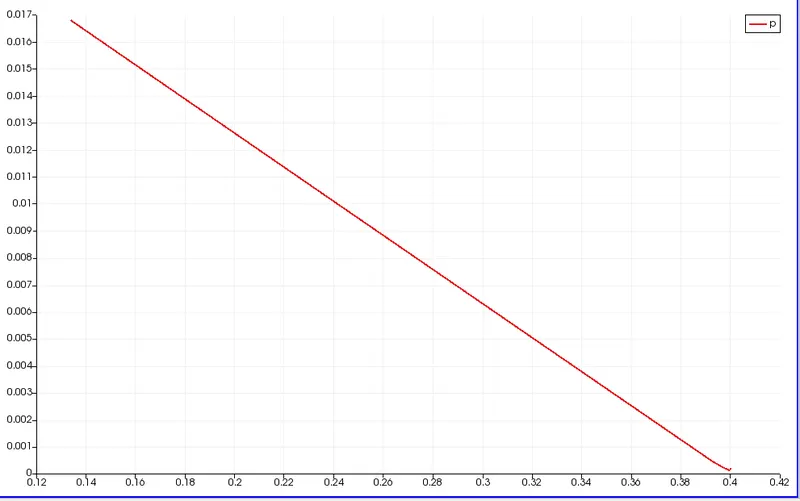

Pressure

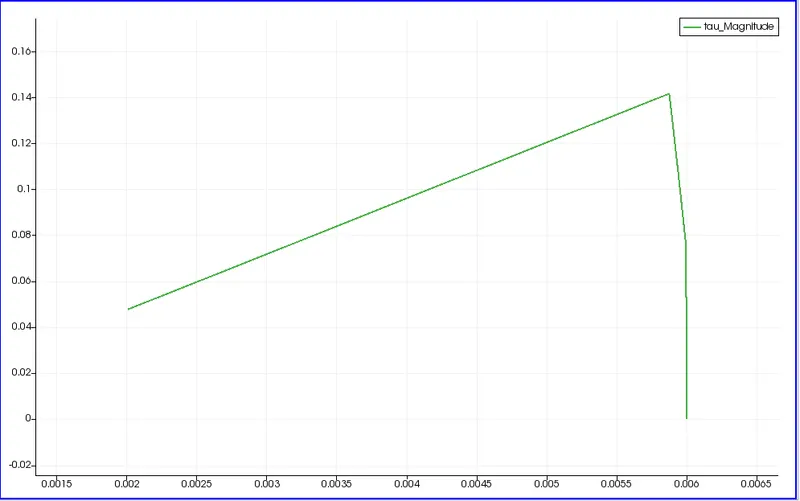

Shear stress
*****************************************************************************************
For the Wedge angle 45 degree
Velocity

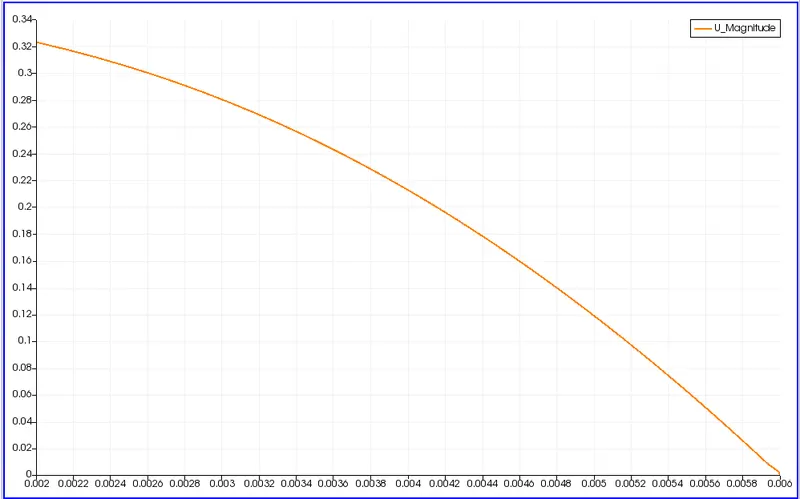

Velocity at 1.45 m from the inlet
Velocity at 0.5m from the inlet

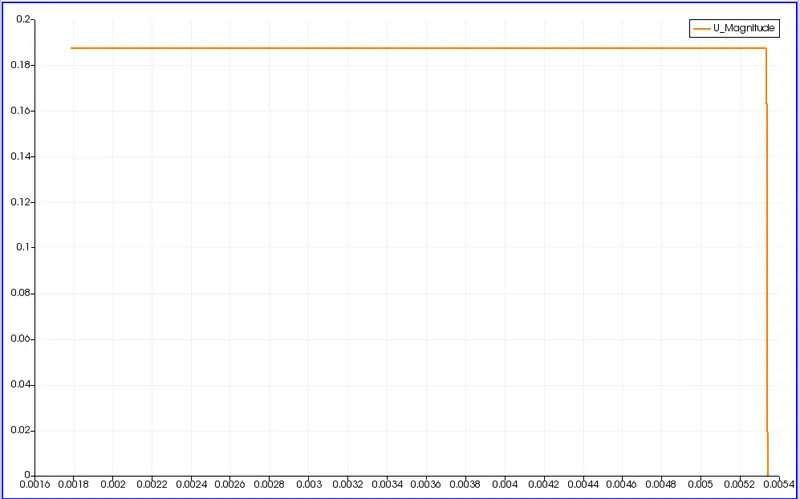

Velocity at the inlet
Pressure

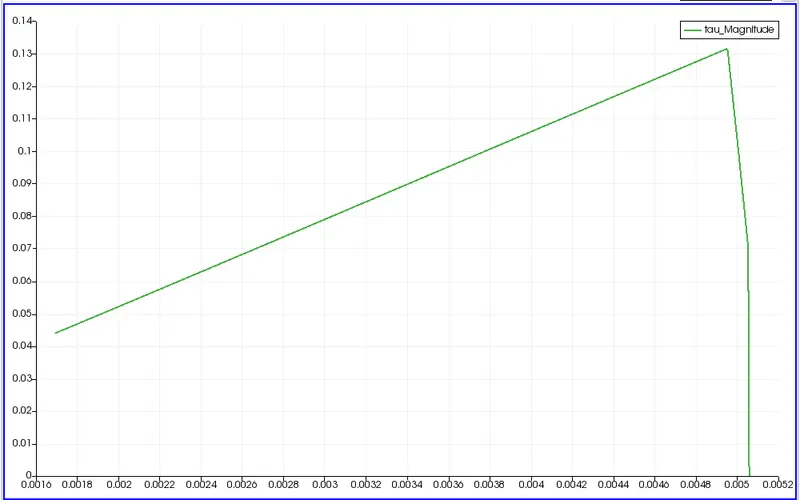

Shear stress
Conclusion
The computing time is higher for symmetry Boundary condition than for wedge Boundary condition.
