Week 12:Project 2-Meshing of Rear Wheel Holder challenge

VVoridi Nishanth26 Mar 2021

AIM: MESHING OF REAR WHEEL HOLDER

PROCEDURE :

>Firstly import the given model

>Exact the mid surface (with the option of automidsurface)

>While exact of midsurface ,-(automidsurface-offset+planes+sweeps)

>View mid surface and correct errors using the mid surface edits options such as of Geometry :(Quik Edit)(Shortcutkey f11)

Geometry cleanup :

View midsurface and correct errors using the mid surface edits options such as of Geometry :(Quik Edit)
Importing the geometry component
Generating midsurface
Simplifying geometry
Refining topology to achieve a quality mesh

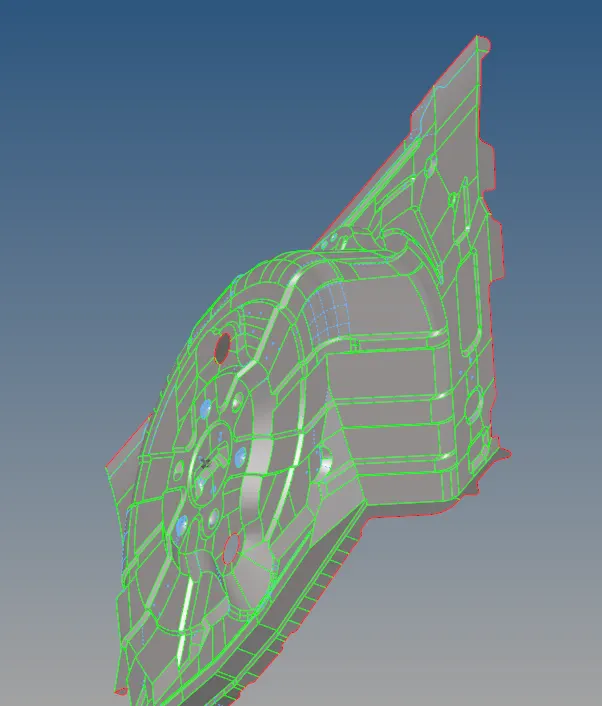

>Then given of model :

>While exact of midsurface :

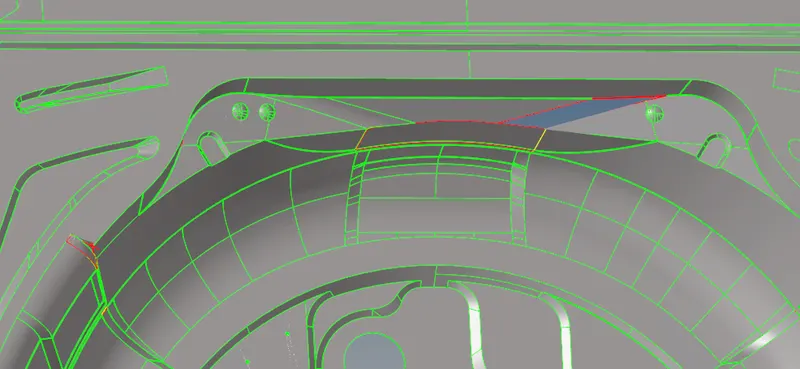

>The geometry cleanup :

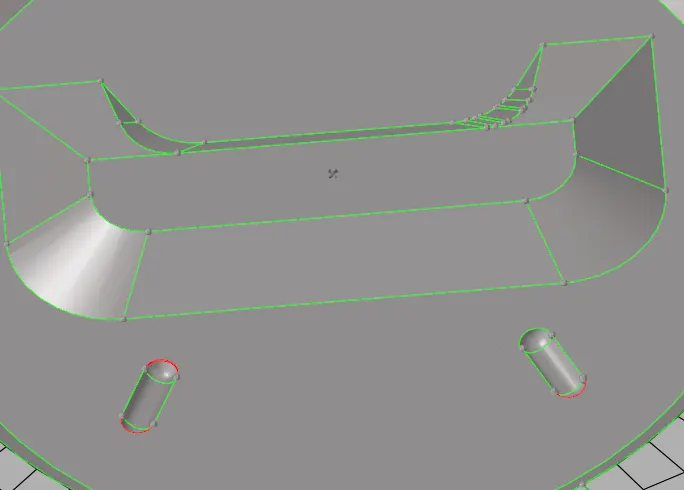

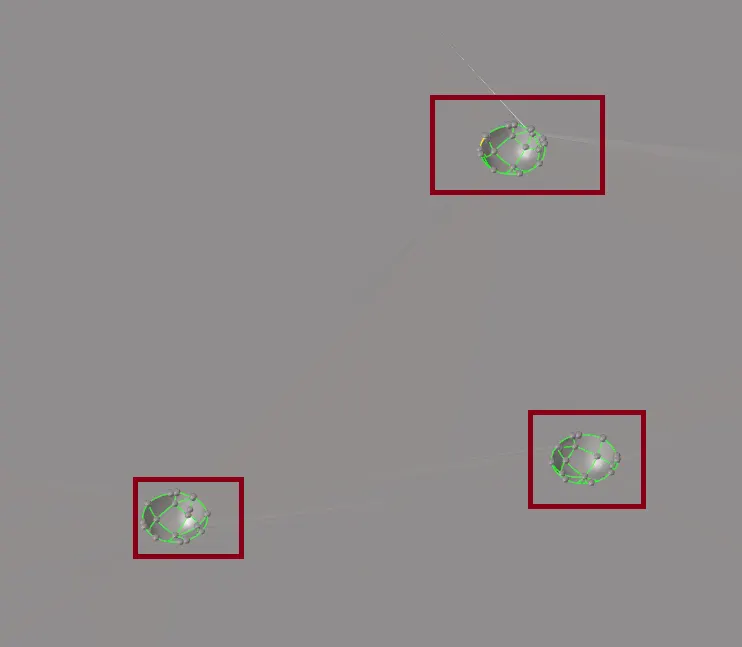

>The removing the buttons because it will be difficult to capture area as well mesh flow not proper :

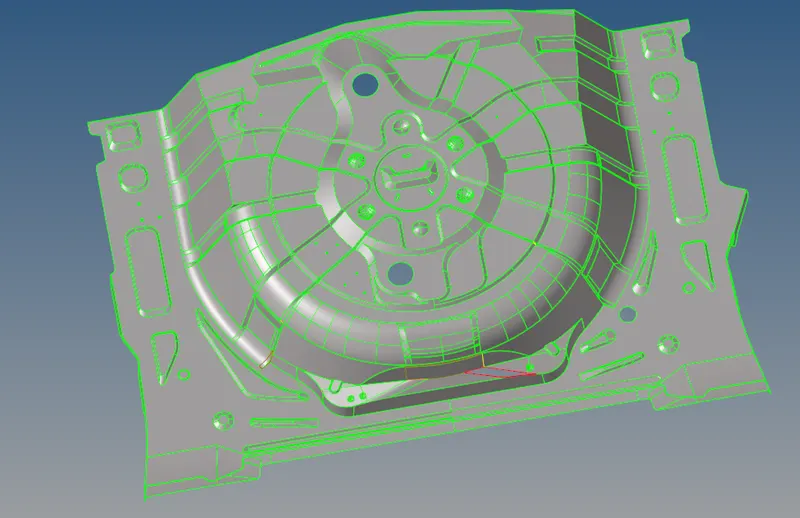

>After completing the generating midsurface and geometry cleanup

>GENERATING THE MESH :

>Then go with mesh the component (automesh - 2Dpanel )(shortcutkey f12)

>Mesh with mesh option type fixed

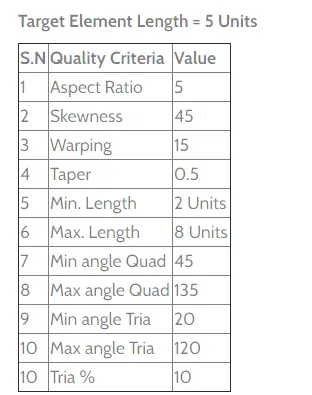

>The given values of required

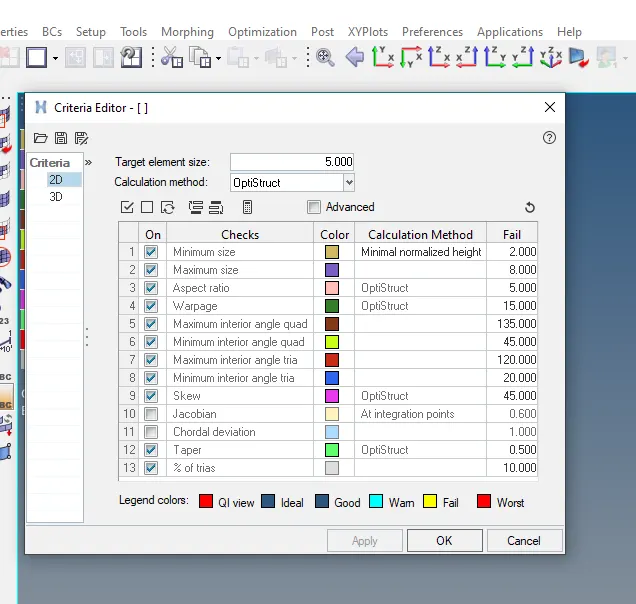

>Fitted into values in above of display (preference- criteria file setting) option

BY given of above values to meshing the components
After completing of mid surface exact ,then we go from the mesh the component
2D-automesh optionselested-then we go from while surf/elements option of doing the mesh
shortcut key f12 (mesh)
And selected of mesh type options

BY the given of parameters values in hyper mesh

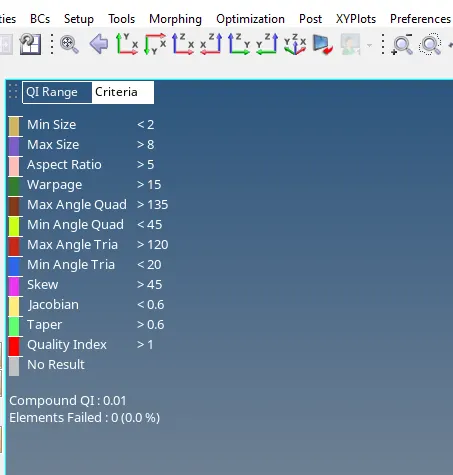

Then go with above of display screen option- preference selected-criteria file setting option
The option shows the failure of elements in the spot of doing the mesh

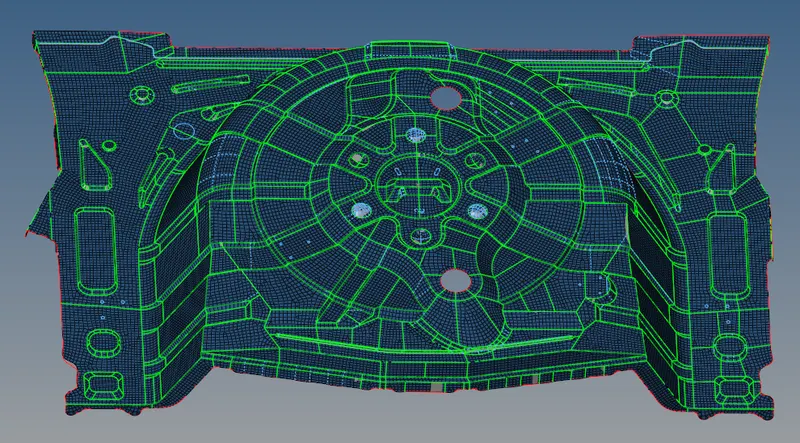

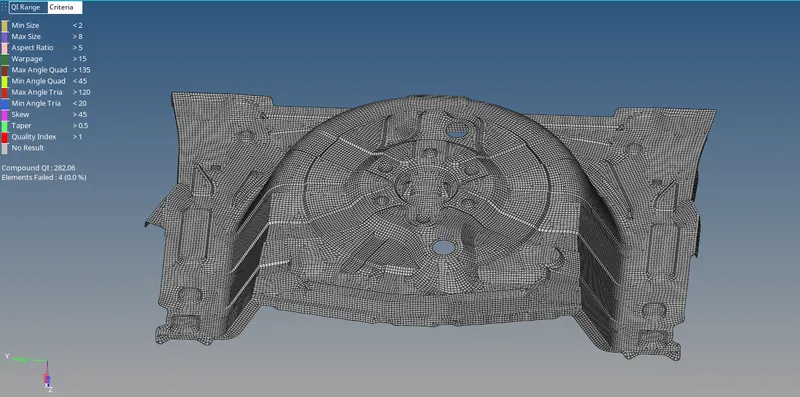

>After doing all setting vales and required and generated of a mesh of given component :

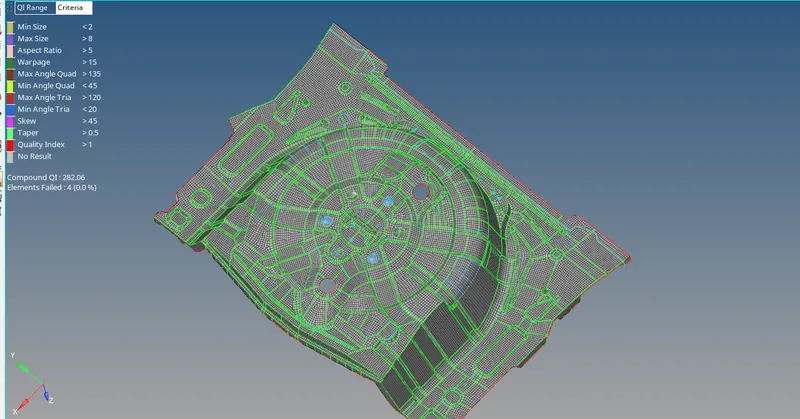

While another option of better of optimization elements (QUALITY INDEX)
select geometry 2D-quality index
There are several option are held

After completing of mesh flow then go further nodes conductive of each nodes to nodes
If further failer of nodes conductive ,selected of option to reduces the problem
2D-replace option selected

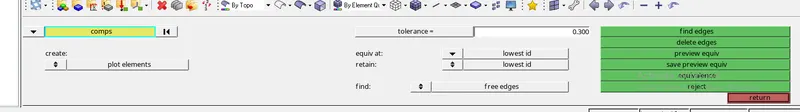

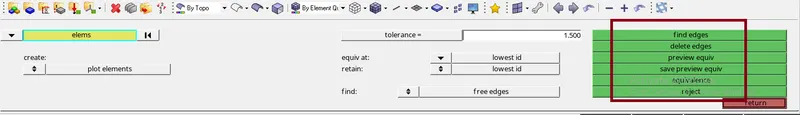

And completely the mesh model then go with nodes equivalence or not , find edges

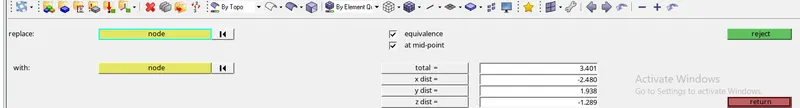

shortcut key f3 from replace the nodes
shift +f3, shows of finds edges

shift +f3, shows of finds edges

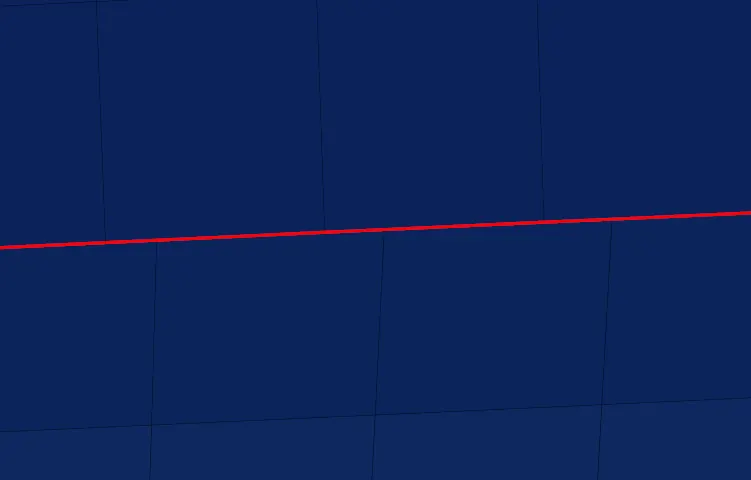

THe below of image showing find edges and replacing them nodes conductive

IMPORTANCE :

WARPAGE :

Warpage is the deformation thatr occurs when there is uneven shrinkage in the different parts of the molded component.warpage occurs when there are variations of internal stresses in the material.warped part may not be functional or visually acceptable

ROTATIONAL :

> Rotational quards are the elements that are avoided in the analysis like crash,drop and impact where the flow of energy

>This why the rotating quad elements are avoided in the model as they distract or divert the flow of the energy in the model

>when the energy flow is distracted with the rotating quards than the actual physics of the problem(energy flow) is being modeled wrongly and as a results,the simulational is aslo not accurted.

TOPOLOGY :
Topology repairs consist of correcting connectivity errors between adjacent surfaces
Possible error include unconnected adjacent surface,duplicted surface ,missing surface
The goal of topology repairs is restored surface data to a perfectly clean representation of the part

TOLERANCE :
The tolerance is the difference between the maximum limit of size and the minimum limit of size
ELEMENT QUALITY : The element options is shows the failure elements , while doing the mesh

SKWENESS ;
Skweness is the angular measure of element quality with respect to angles ideal element type. it is one of primary qualities measure of FE mesh.
Skweness determine how to close ideal (equliateral or equi-angular)
ASPECT RATIO :
Aspect ratio is a measure of a mesh elements derivations from having all sides of equally length
A high aspect ratio occurs with long ,thin elements

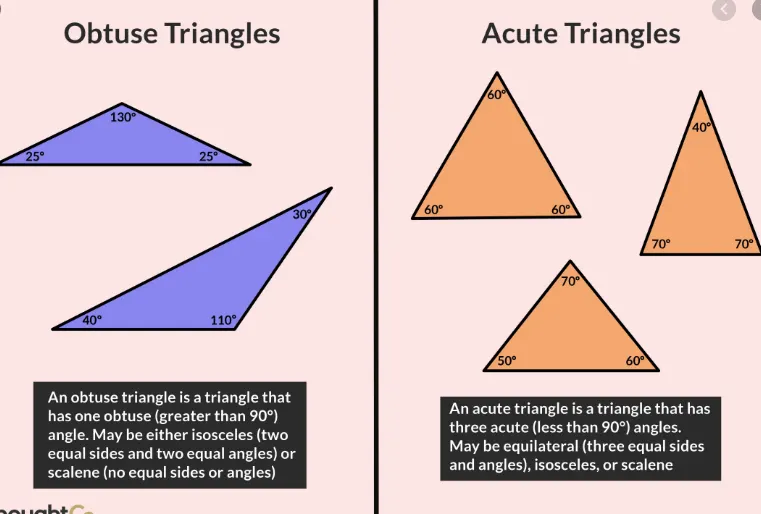

TO REDUCES THE MAX AND MIN QUAD ANGLE :
By using the triangle formule are
The less than 90 degree triangle is known as “ACUTE TRIANGLE”
The more than 90 degree triangle is known as “OBUSTE TRIANGLE”

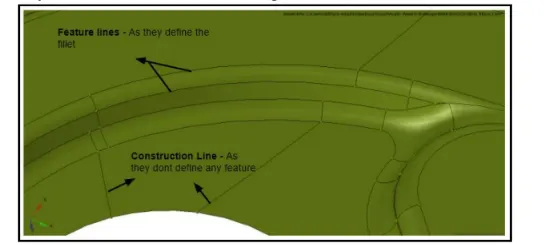

FEATURED LINES : Any line which helps or directly involves defining a feature is said to be a feature line . a line that is represented for a plane change is a well called a feature line
CONSTRUCTION LINE : any line which does not involve indefining the feature is said to be construction line

WHY IS GEOMETRY CLEAN UP : The geometry cleanup option allows you to 'cleanup' the model geometry by marking vertices which are very close to each other into a single vertex according to a definable spacing excitation

SPLIT:

In case of such an indefinitely nodes shape we can use of help split option of dividing the line in between element node

Splint element in hypermesh:

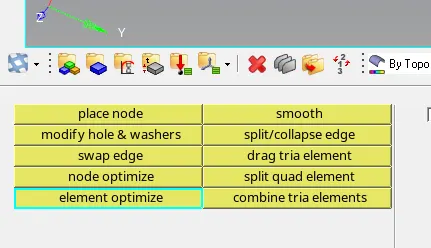

From the edit element, we can use the split tool, to split edges/quads, combine trias and swap edges ,

Edit element split tool keyboard short cuts and mouse control

To do this press Button

Split element or edge Left-click

Combine elements Shift+left click

Swap element edge Ctrl+left-click

Exit tool ESC or right-click

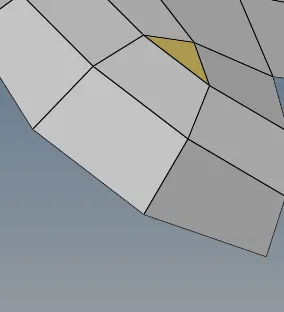

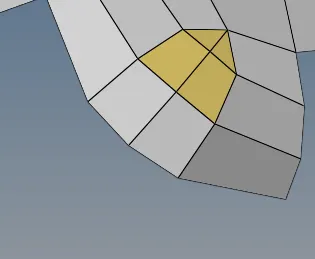

BEFORE SPILT AFTER SPLIT

TRIA ELEMENT :

A tria element is stiffer than quad elements .Because, A tria element will always in a plane because it take minimum of 3 nodes to specify the plane. A quad element can wrap if required depending on the applied force.

Triangular finite elements are stiffer in bendending problems because they have constant strain across the elements, this simply makes it impossible for an FE solver to calculate the bending response properly ,unless a lot of tria elements are used

When comes to tria elements ,there are few thumb rules to be followed
No tria elements should be opposite to each other
No tria elements should be connected back to back
No tria elements should be on the edges of the geometry
No tria elements should be near on the holes
No tria elements should be on the feature and the fillet
Finally, there should be less concentration

>THE DIFFERENCE BETWEEN THE MANUAL AND AUTO MID SURFACE: But whenever the complex plastic deal with different thicknesses,the auto mid surface algorithm is very high efficient,while exact of the mid surface then there of improper exact of mid surface , we can go with the manual mid surface. (MANUAL MID SURFACE WE HAVE TO FIX THE ERROR )

>MESH CONDUCTIVITY : If the force applied on the component,there of no conductivity,its will applies on the conductivity component

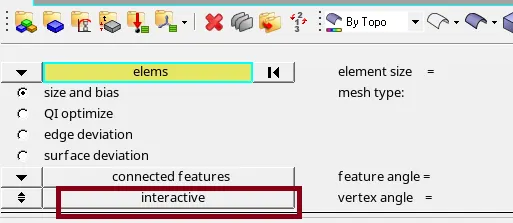

> ALways kept the option while doing the mesh ,because the interactive function of increasing and decreasing of nodes density while doing mesh
