Week 12:Project 2-Meshing of Rear Wheel Holder challenge

AIM:

Follow the below-mentioned quality criteria, mesh the component given below and assign thickness:

Target Element Length = 5 Units

S.N	Quality Criteria	Value
1	Aspect Ratio	5
2	Skewness	45
3	Warping	15
4	Taper	0.5
5	Min. Length	2 Units
6	Max. Length	8 Units
7	Min angle Quad	45
8	Max angle Quad	135
9	Min angle Tria	20
10	Max angle Tria	120
10	Tria %	10

Procedure:

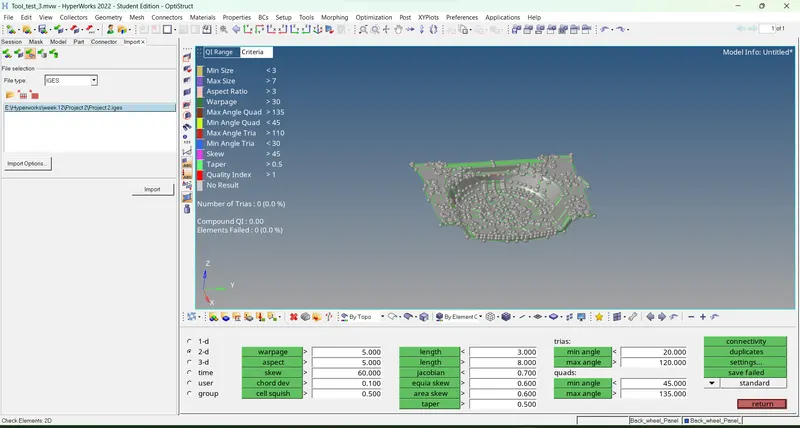

1. Insert the file into the solver deck

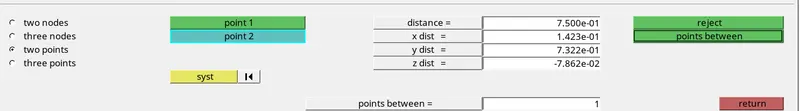

2. Measure the thickness and ensure that the part has a constant thickness

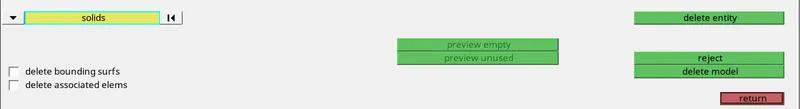

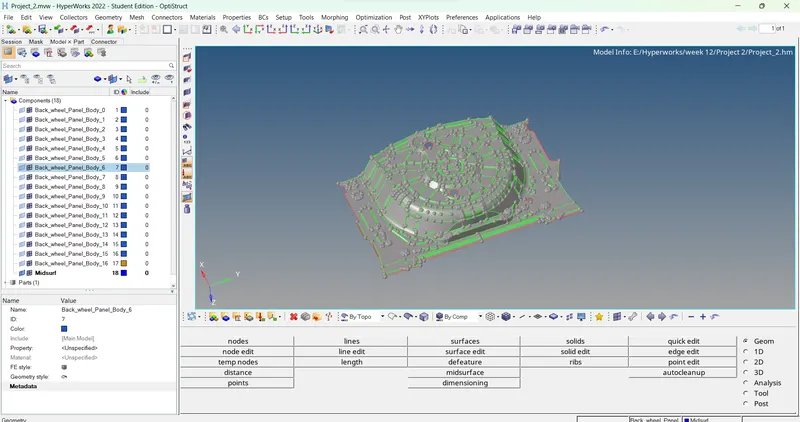

3. Convert the component into a surface only component by deleting the solids out of the model

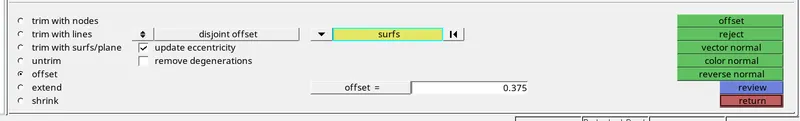

4. Fix any feature errors on the outer side of the model to make it ready for extraction and use duplicate offset command to generate a midsurface

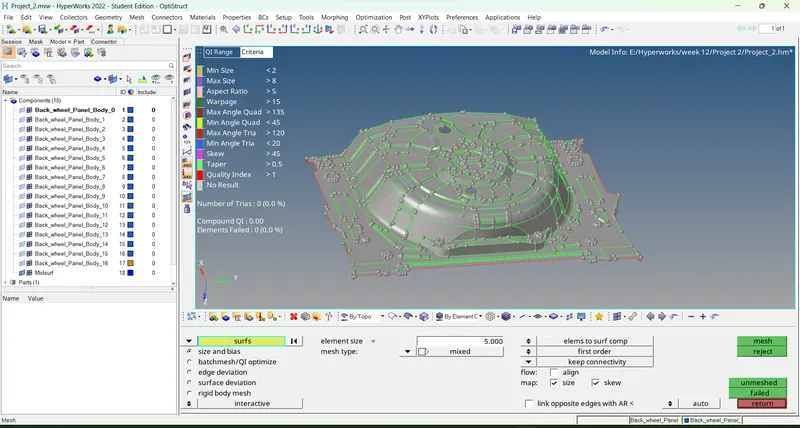

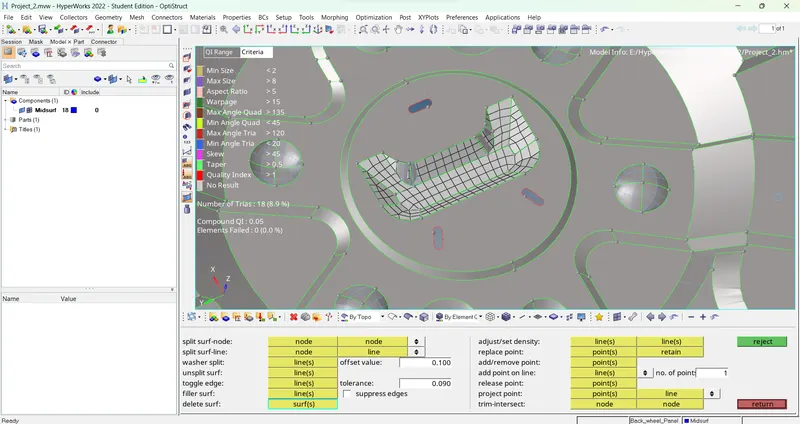

5. Start meshing from the centre taking judicious care of the feature lines and creating or defeaturing necessary cons for better mesh flow

6. Keep following certain methods to ensure the best mesh flow and certain failing elements such as min length can be ignored due to geometry constraint

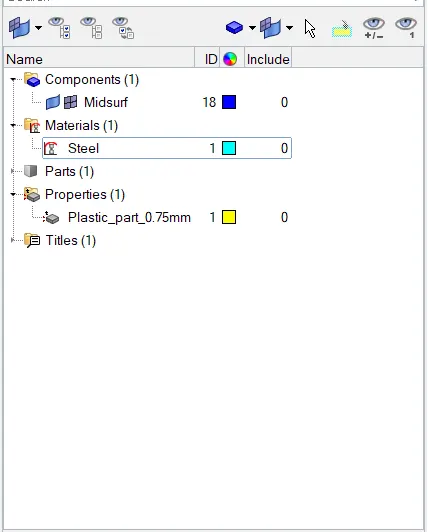

7. Assign the propert and material cards

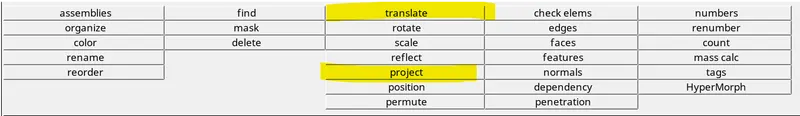

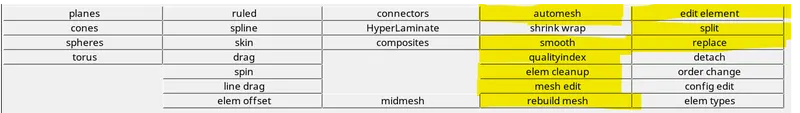

8. Finish the mesh using all tools available

Results:

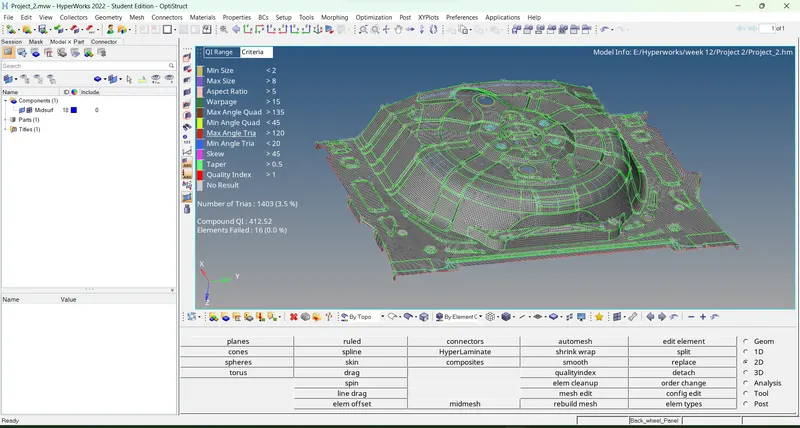

1. Required mesh is obtained

2. model ready for analysis

Learning outcomes:

1. Meshing of complex geometries

2. Manual midsurfacing of big geometries

3. Hands on experience of the tool
