Week 12:Project 2-Meshing of Rear Wheel Holder challenge

Project 2-Meshing of Rear Wheel Holder challenge:

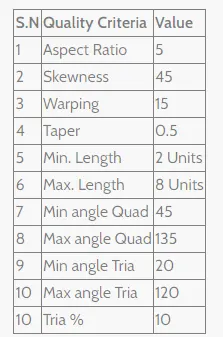

Follow the below-mentioned quality criteria, mesh the component given below and assign thickness:

Target Element Length = 5 Units

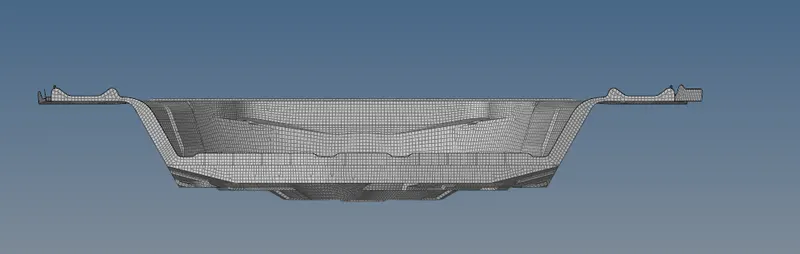

part body :

create the mid surface of the body:

by using the geom then go to midsurface.

select the mid surface .

adjust the command what you requied:

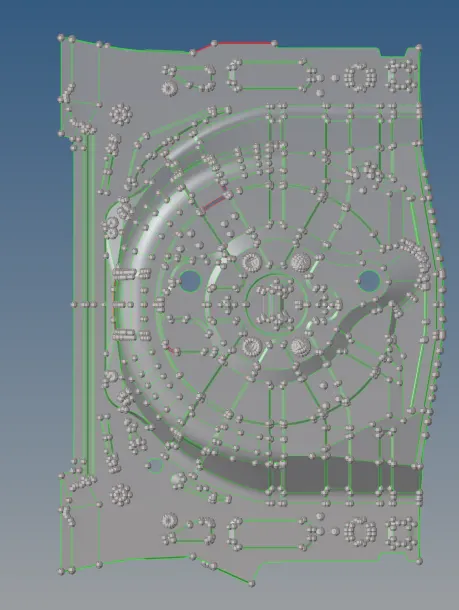

created the mid surface showed in the below.

clear the circles.

and clear the open surface also .

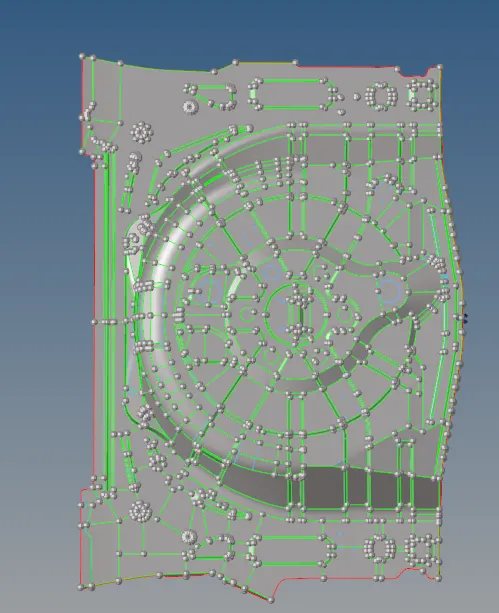

all showed in the figure.

by using the toggle command.

use the remove the lines.

after clear the lines.

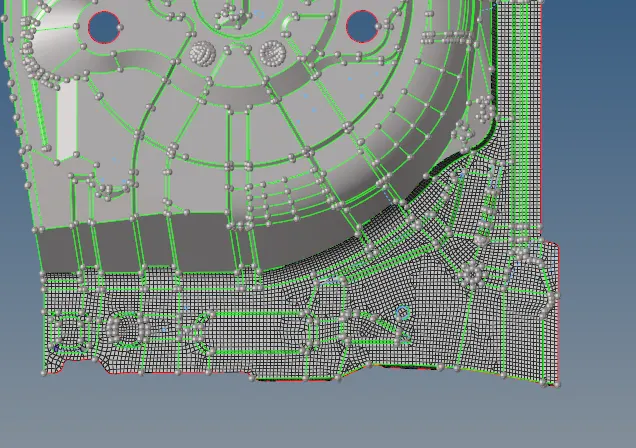

try to mesh them.

by dividing the line.

do the same to the another side.

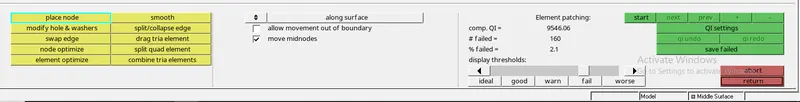

remove the opposite tries by using the quality element.

shows in the figure.

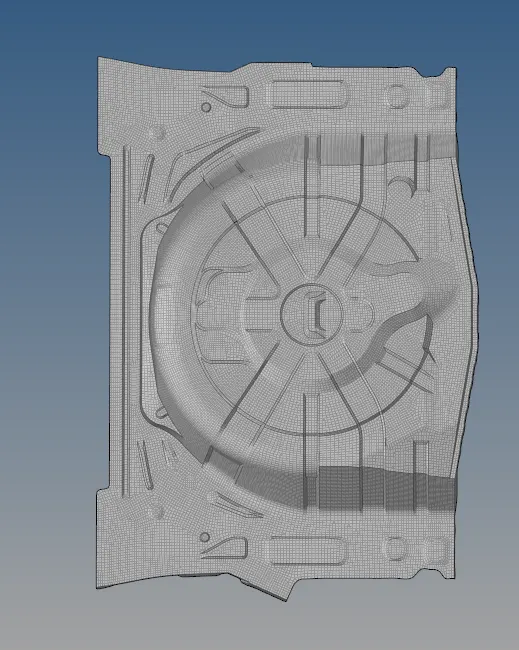

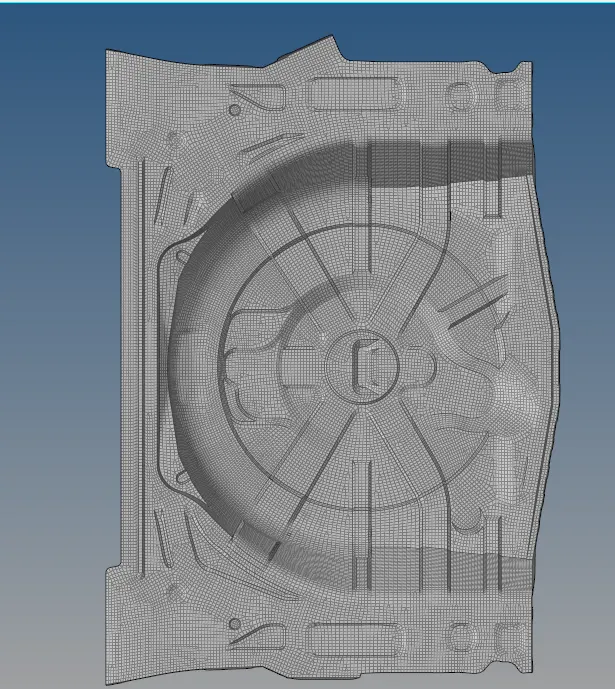

use the mirror for similar place on the surface.
