Week 12:Project-1-Meshing of Door Inner Panel Challenge

AIM :

• To extract mid-surface, geometry clean up and create the shell (two dimensional) mesh for the given side door inner panel according to the given quality criteria by using HYPERMESH.

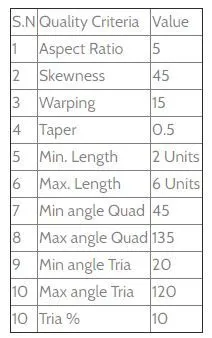

QUALITY CRITERIA REQUIREMENT:

PROCEDURE:

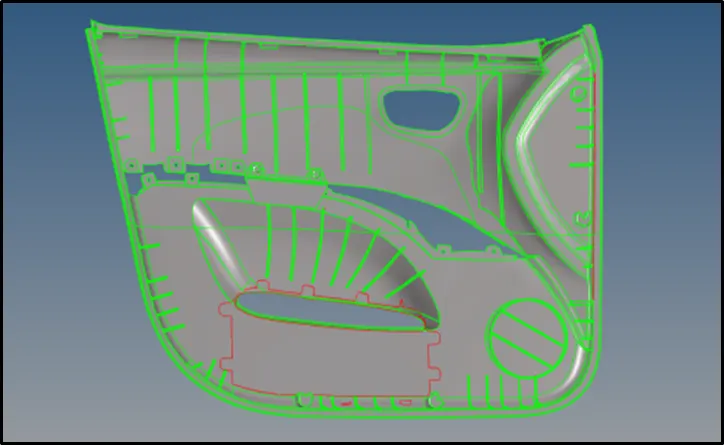

• First, import the side door inner panel model into HyperWorks.

• Since there are many ribs with surface fillets, it is difficult to create their mid-surfaces.

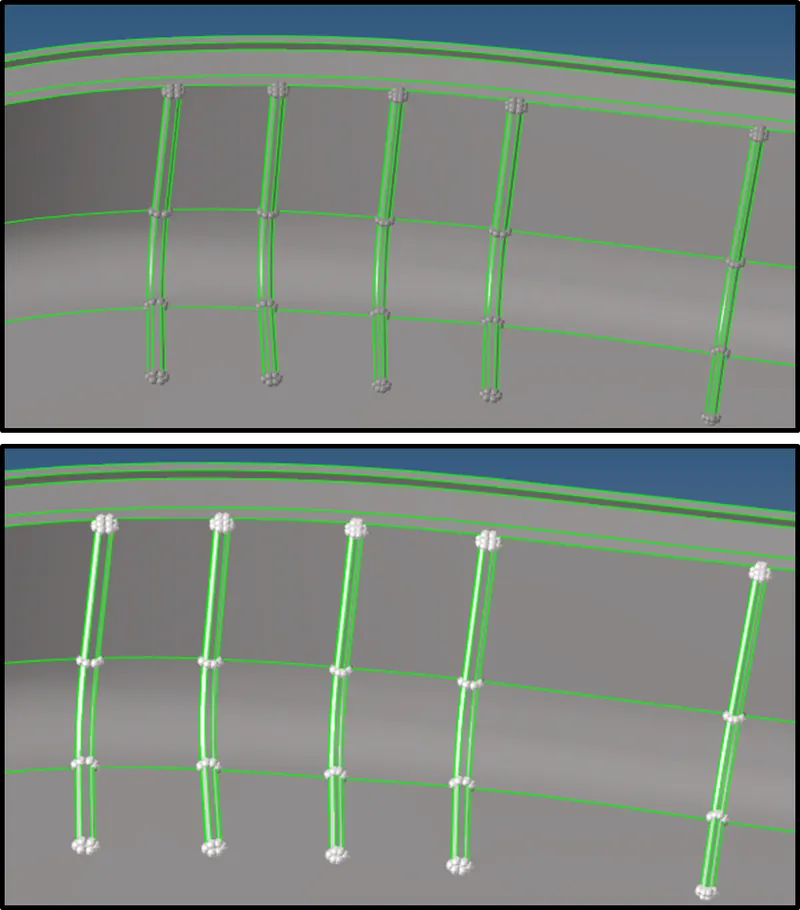

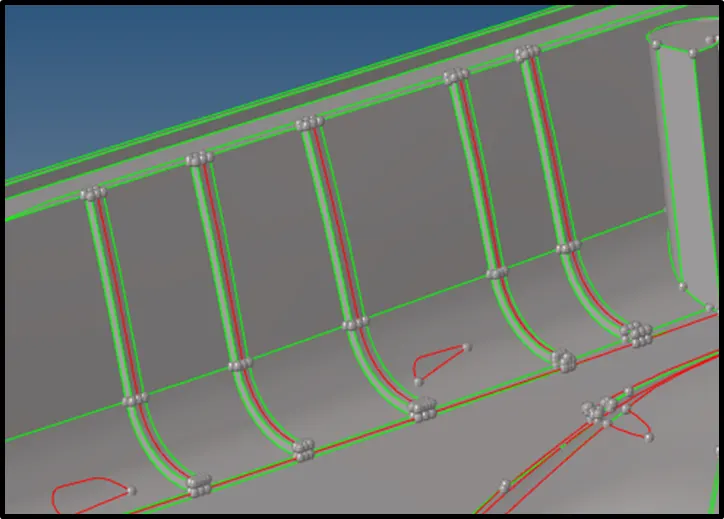

• So, these fillets are removed or defeated by going to Geometry > defeature >surf fillets.
• Then specify minimum radius, maximum radius, select surfaces and click find.
• The fillets are shown as highlighted, then click remove to remove the fillets.

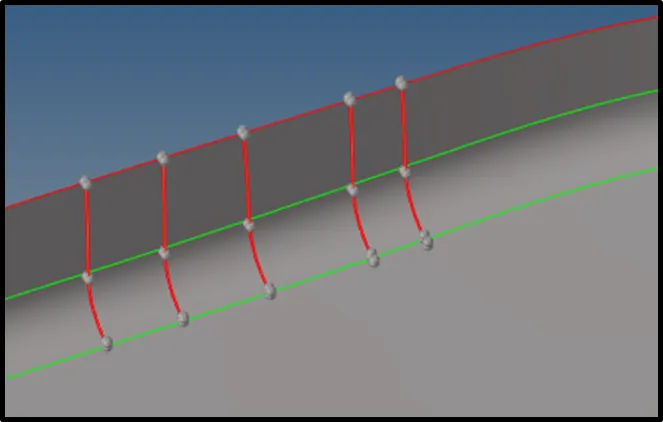

• Clean up the geometry of the components for obtaining better mid-surface.
• Now, after checking the thickness at various points of the components by Geometry > distance > two points, it is found that the component has varying thickness.

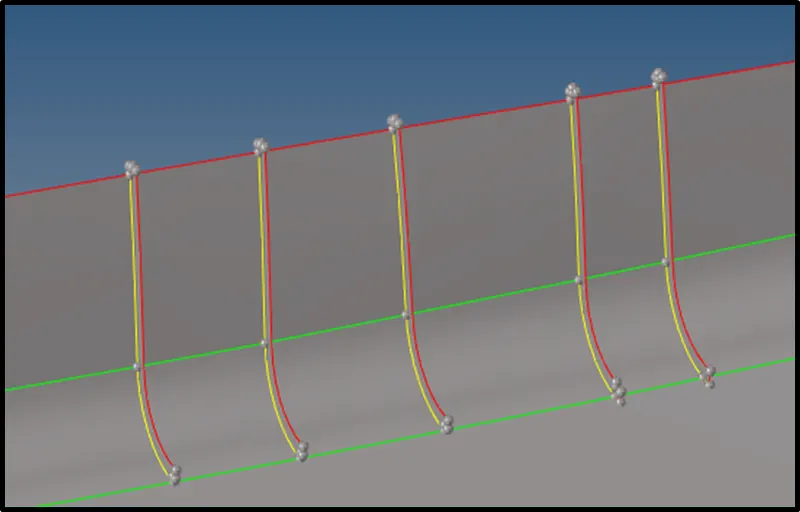

• So, manual mid-surfacing is done by going to Geometry > surface edit > offset.
• Then, select the surface and duplicate it, specify offset thickness and click offset and the mid surface is created.

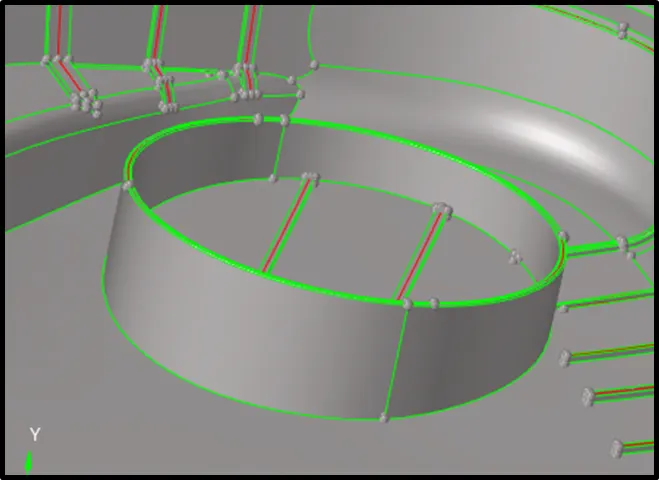

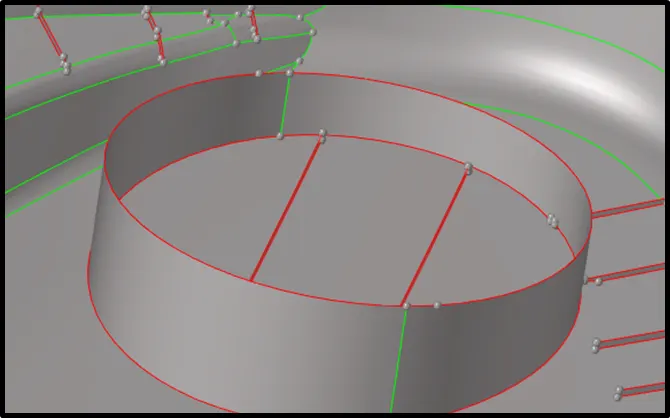

• There is also a cylindrical surface which can be done in the same procedure

• After extracting the mid-surface, perform the geometry clean up.

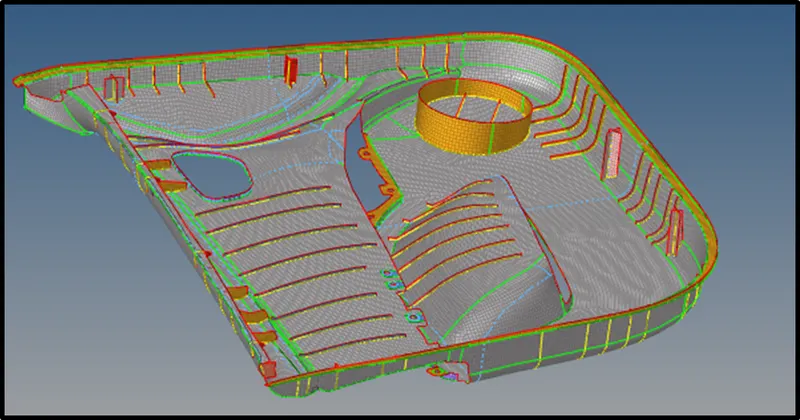

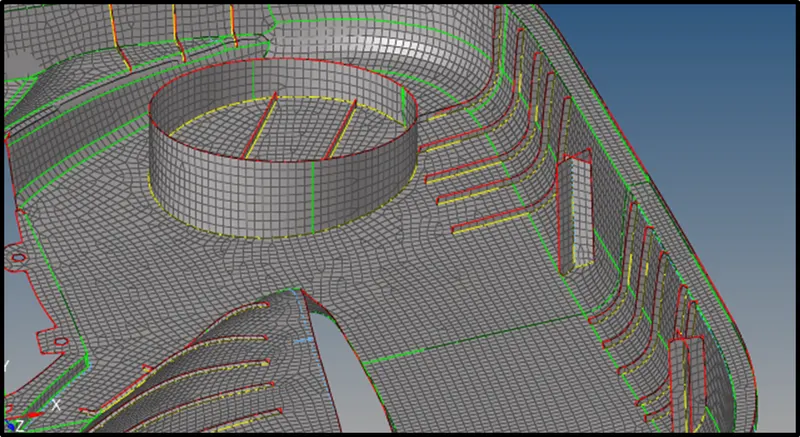

• Then, the mesh can be created by 2D > automesh > size and bias.
• Then, assign element size, mesh type , select surface and click mesh.

• The obtained mesh fails for quality criteria which can be corrected by remeshing with 2D > rebuild mesh ad select edit criteria.

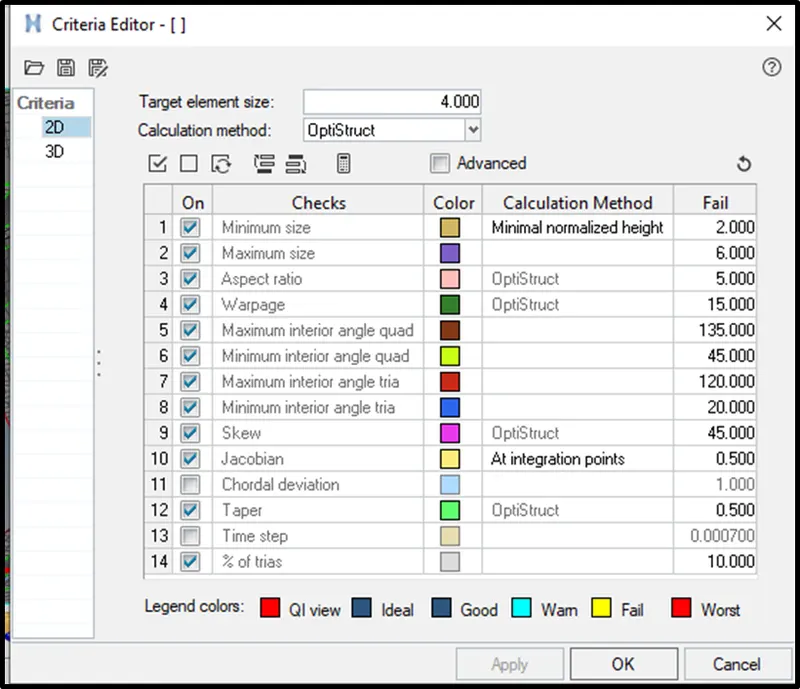

• A window is opened where quality criteria requirements can de given. Then, select the elements and click rebuild.
• If the mesh still fails select the elements and remesh it.

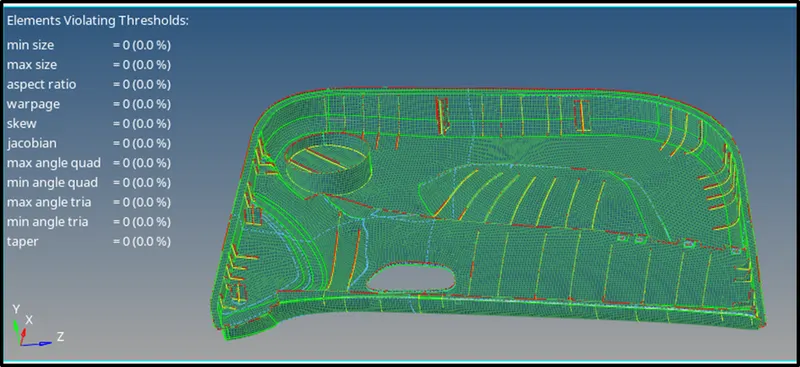

• Quality critiria result

Assign thickness:

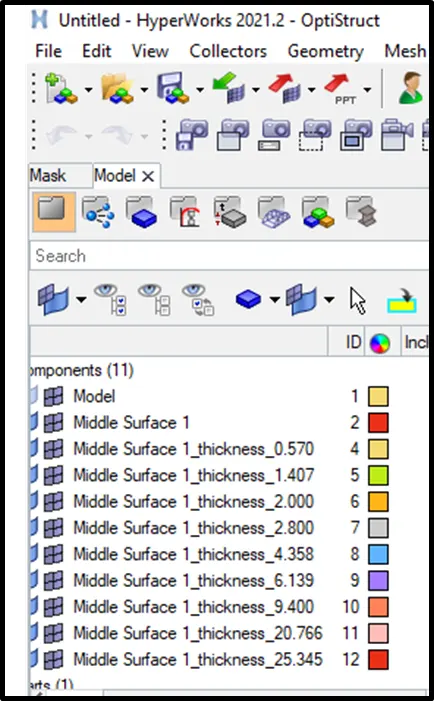

• Since there are surfaces and many ribs with varying thickness, arrange the elements with same thickness to the same component by Tool > organize,
• select the elements and click move.

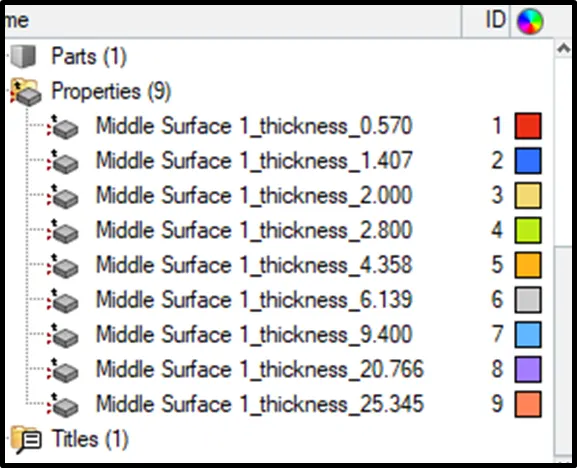

• Then create property cards for all the thickness and assign it to the respective components.

RESULT:

The given is meshed property with the given quality criteria requirements and the correct thickness is assigned the respective elements.

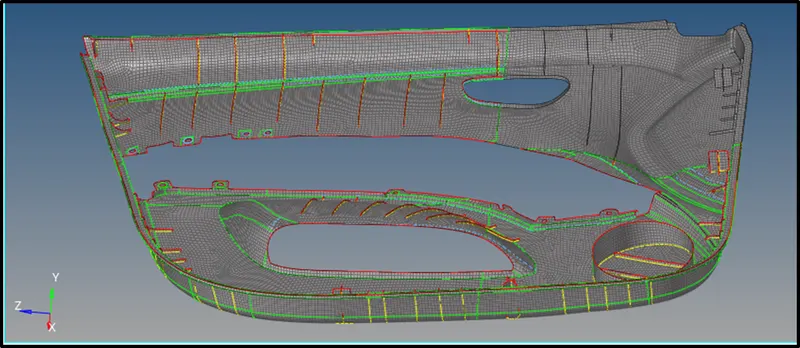

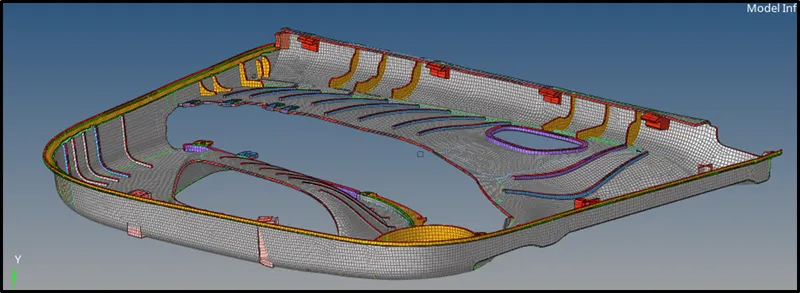

Final Result Image:

File Link :

https://drive.google.com/file/d/1b9Mab36FJr1Sd2Z9kJYGvjUVIngRvpVO/view?usp=share_link
