Week 12:Project-1-Meshing of Door Inner Panel Challenge
AIM:
Follow the Quality Criteria and mesh the following component and assign thickness:
Target Element Length = 4 Units
| S.N | Quality Criteria | Value |
| 1 | Aspect Ratio | 5 |
| 2 | Skewness | 45 |
| 3 | Warping | 15 |
| 4 | Taper | 0.5 |
| 5 | Min. Length | 2 Units |
| 6 | Max. Length | 6 Units |
| 7 | Min angle Quad | 45 |
| 8 | Max angle Quad | 135 |
| 9 | Min angle Tria | 20 |
| 10 | Max angle Tria | 120 |
| 10 | Tria % | 10 |
Procedure:

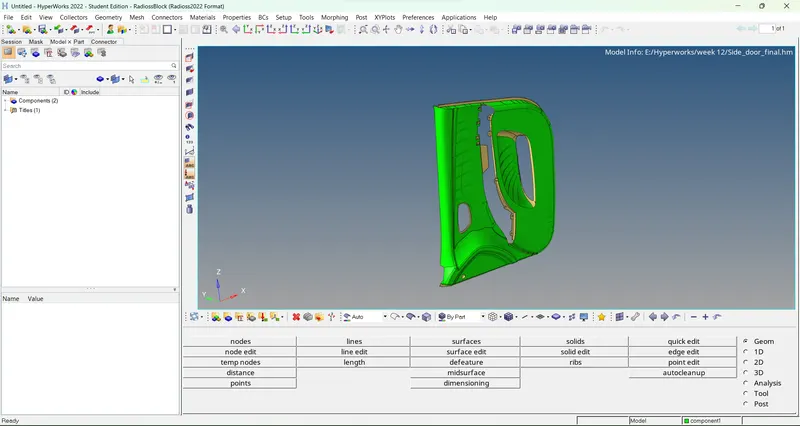

1. Import the file into the solver deck

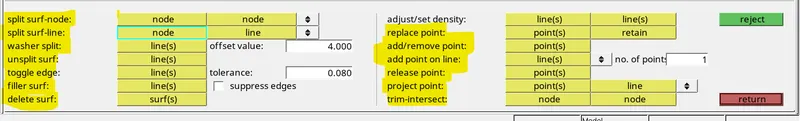

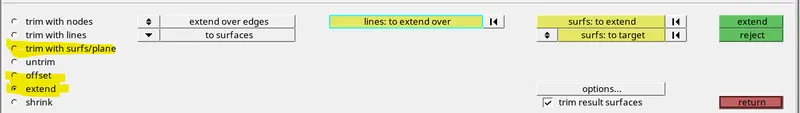

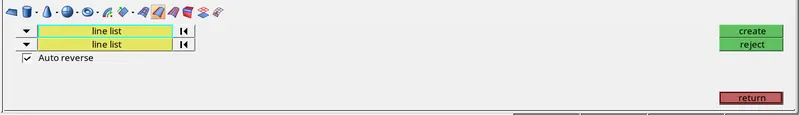

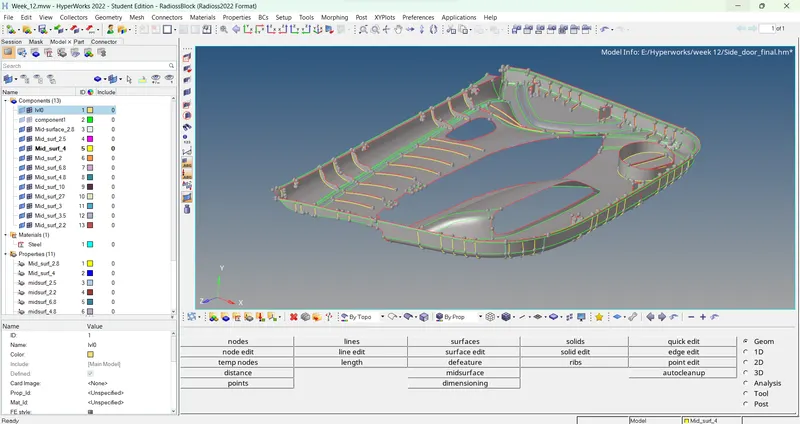

2. Extract midmesh using tools such as surface edit, surface creation, quick geometry edit etc, mak sure to extract the class A component as base and extract features from the class B component

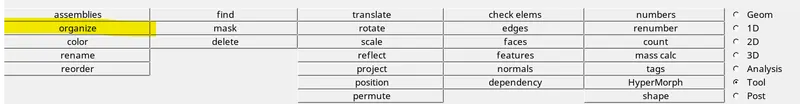

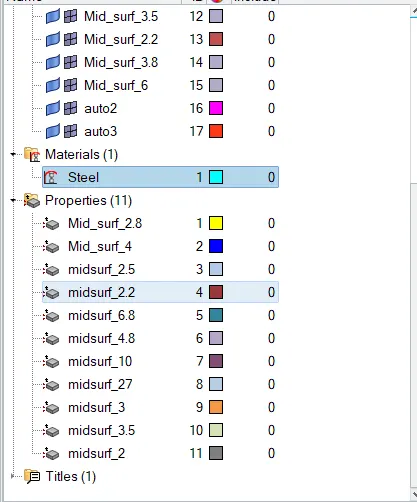

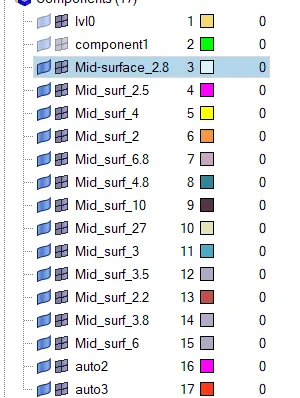

3. Create components and their respective components in the feature tree and assign the corresponding cards to the midsurfaces using organize option

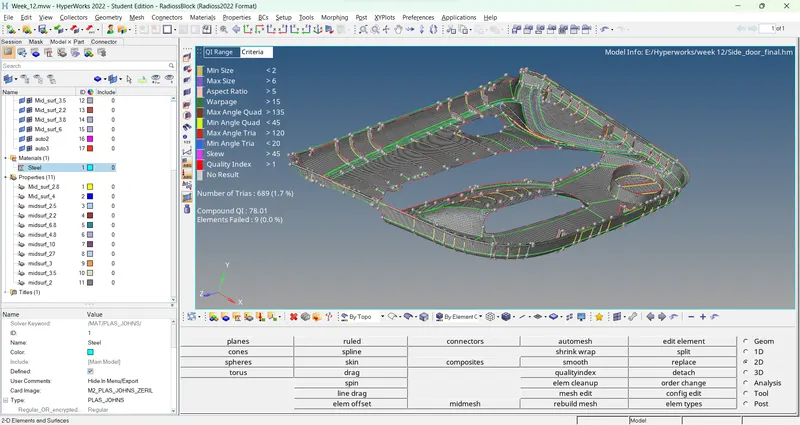

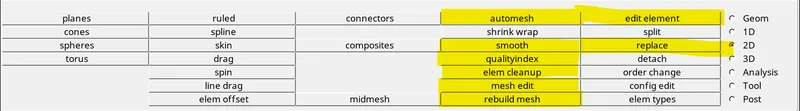

4. Start meshing the components and rebuilding them to take care of the mesh flow simultaneously
5. Some elements are failing due to geometry errors
Results:
The required mesh is obtained
Learning Outcomes:
1. Familiarization with the whole deck
2. Expertise with huge models
