Week 12:Project-1-Meshing of Door Inner Panel Challenge

Project - Manual Midsurfacing & Meshing of Door Inner Panel

AIM:

• To perform FE modelling of Door Inner Panel, component by considering the given element Quality criteria using 'HyperWorks'

OBJECTIVE:

• For the given component, check for the geometrical errors and take the Midsurface.
• Meshing the entire component with proper mesh flow.

2D element Quality criterias

S.N	Quality Criteria	Value
1	Aspect Ratio	5
2	Skewness	45
3	Warping	15
4	Taper	0.5
5	Min. Length	2 Units
6	Max. Length	6 Units
7	Min angle Quad	45
8	Max angle Quad	135
9	Min angle Tria	20
10	Max angle Tria	120
10	Tria %	10

#Target element length 4mm

PROPERTIES OF THE COMPONENTS:

• Materials which is having less than or equal to 6mm can be meshed with 2D Meshing.
• In 2D Meshing, we can classify the materials into two types.

  • Sheet Metal Component
  • Plastic Component
• The material which is having Linear Thickness throughout the Body is known as 'Sheet metal'
• The material which is having Non Linear Thickness is 'Plastic Material'

PROCEDURE:

• CAD SET UP
  • CAD Geometry
  • Model Clean Up
• CAD MODELING
  • Meshing
• BOUNDRY CONDITIONS SETUP
  • Load Cases
  • Final check for the Quality of elements

PREPERATION OF MODEL FOR MESHING:

IMPORTING THE MODEL TO GRAPHICAL WINDOW

• To open it, Go to --> Import file --> Import geometry --> file session window --> Choose file --> Import
• The file is imported to the Graphical window.

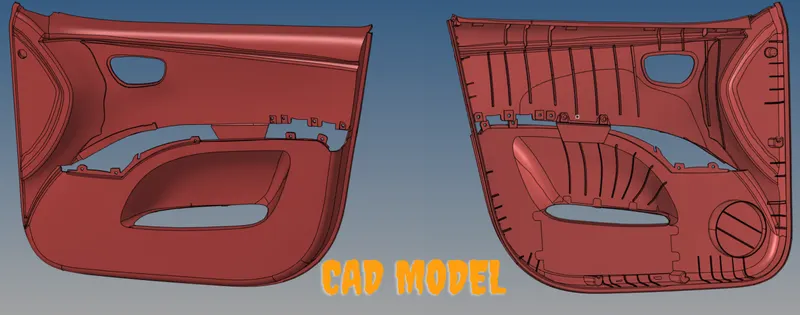

figure - Door Inner Panel

GEOMENTRY CLEAN UP:

• Now it is time to Geometry Cleanup, to generate FEM we clean up the geometry
• Before start meshing Geometry Check is necessary, because in Original CAD geometry there might be some errors like Surface patch up, creating new surfaces, converting the single edges into double, etc...

MID SURFACE CREATION:

• We have prepared geometry. Next step is creating the mid-planes

There are methods to create Mid plane

• Offset
• Mid surface/Skin offset

• This will be done once after the geometry cleanup & extraction of mid surface is an important step in CAE which has to be followed.
• Mid.surface is the neutral pahse which is been generated from the CAD which is imported or given to us.
• The conversion of 3D cad to 2D cad is happening in Skin offset generation.
• The mid surface is generated to reduce the complexity as by simplifying the cad model we get more accurate simulation results in shorter time.

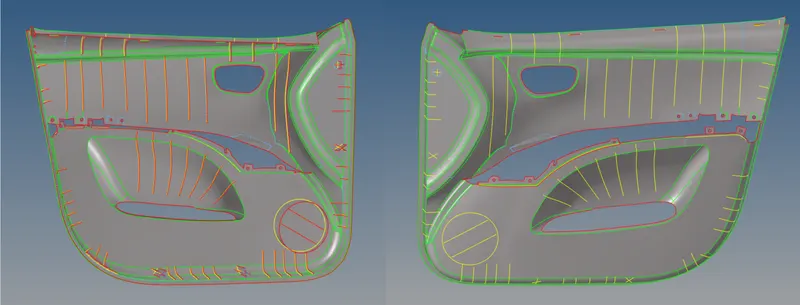

figure - Mid.surface of Inner Door panel

Steps to be followed before meshing

# Setting the Quality criteria

• Every product which is been produced will go through the set of quality check.
• If quality check fails other steps like Boundry Conditions and Applying loads will not be feasible, So element quality check will be performed.
• The given quality criteria colours are customizable and can be seen while meshing if the elements are being failed.
• These failed elements should be corrected and the elements should matches the quality criteria.
• We have to set the Quality criteria properly as per the given requirements using (Menu Bar --> Preferences --> Criteria File settings)
• Target element size is 4mm

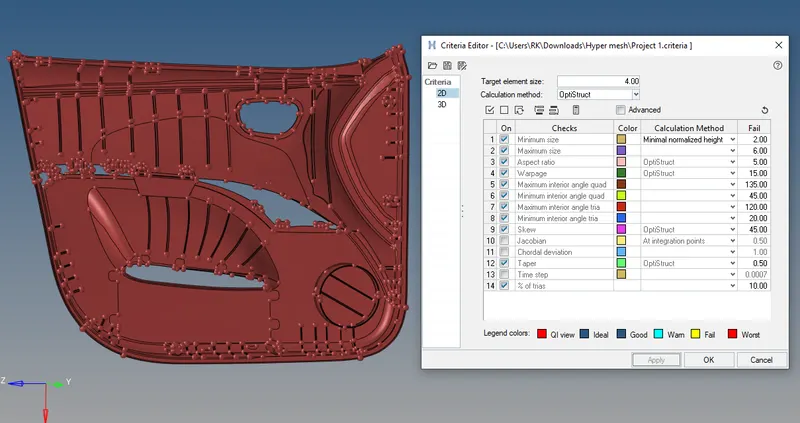

figure - Quality criteria tab

MESH CREATION: (Automated Net Generated)

• A mesh is a network that is formed of cells & points.

It can be classified into two types

• 2D - Structural mesh

  • shell mesh (Tria and Quad)
• 3D - Unstructured mesh as well as structured
  • solid mesh (Tetra and Hexa)
  • Tetra - Unstructured
  • Hexa - Structured

• Shell meshing is achieved after skin extraction but we do not mid surface all components based on requirements we should also be doing volumetric mesh.
• For casting & molding products we generally go with solid meshing.
• In this project, I have used a Batch mesh for meshing the given model eventhough it is a plastic component.

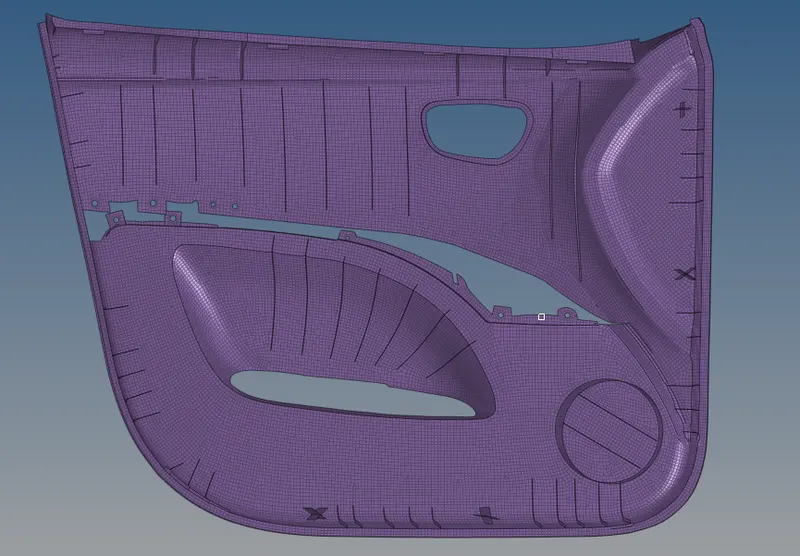

figure - Generation of mesh for given CAD geometry

Final Quality Check

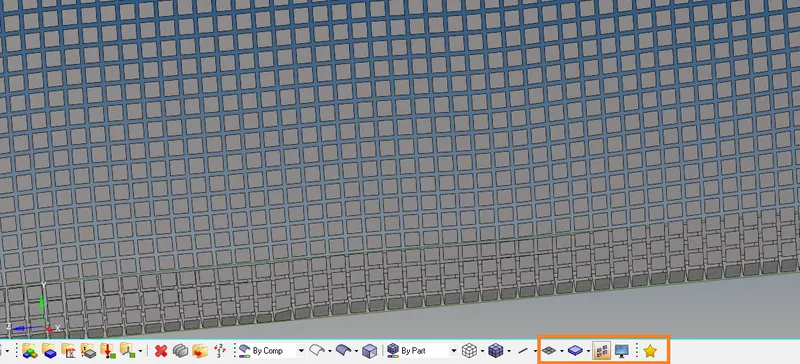

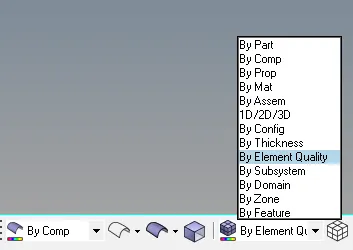

• To get visibility of quality failures, change the Element colour mode to 'By element quality' in Tool bar.

• If any element Fails for quality, make use of element cleanup tools like place node, swap, split trias, combine trias, drag trias, element optimize,etc.
• To remove element failure GO to --> 2D --> Quality Index --> Cleanup tools.
• If any element fails make use of element cleanup tools like place node, swap, split trias, combine trias, drag trias, element optimize,etc.
• Elimination of trias - Mostly the trias should be eliminated whereever possible.
  • Two opposite trias should be eliminated.
  • Tria element should not lies on perimeter line.
  • Nearer trias must carried out to some extent.
  • To achieve above three points in step 4. Split, swap, combie, replace, drag tria options can be used

• In this phase, the quality of FEM will be improved.
• After quality check any improvements that is been addressed that will be done in mesh improvement stage.

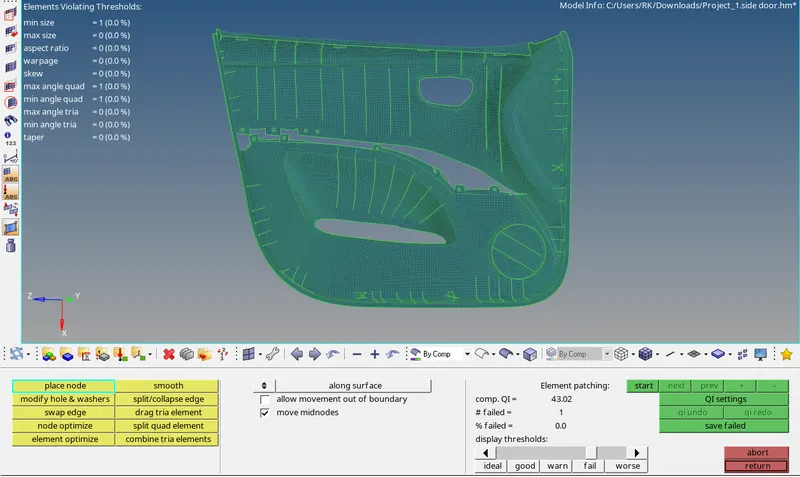

figure - Quality Index view

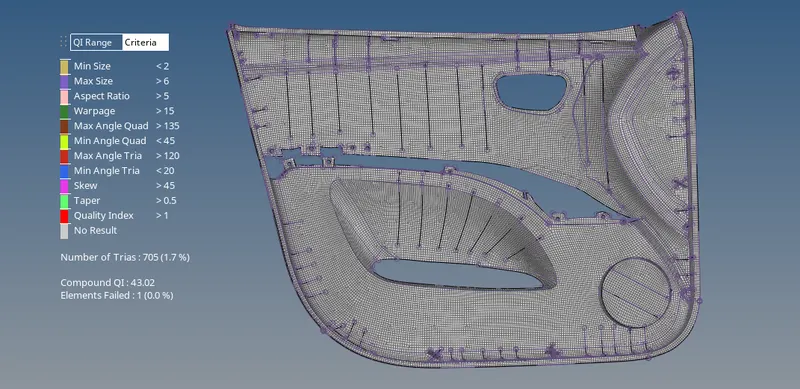

• In the above image we can see on the Top left corner, all the elements has meet the expected Quality criteria, there are 3 elements only fail for quality.
• We can see in the above image the rounded area is have failed. It is acceptable, because this region is geometrically small portion.

# CHECK LIST

After completing the meshing the below mentioned checks have to be performed.

• Check for free edges
  • Go to ---> Tool ---> Free edges.

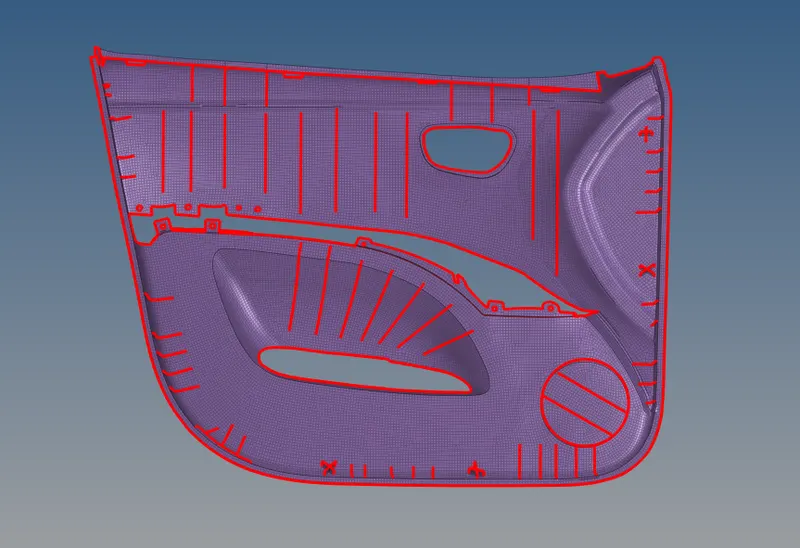

figure - Check for free edges - Door Inner Panel

• Check for Normals

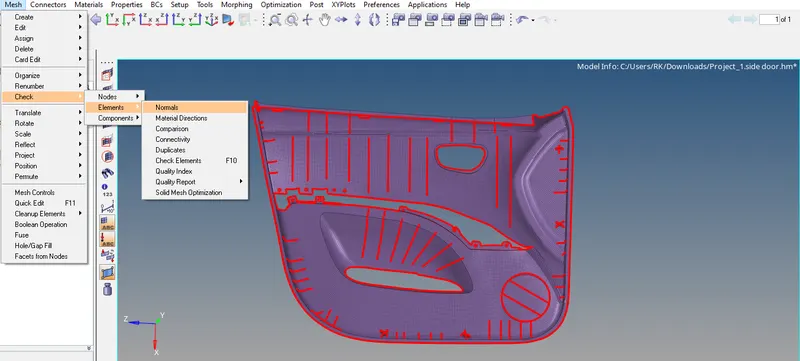

  • Go to ---> Tool ---> Normals

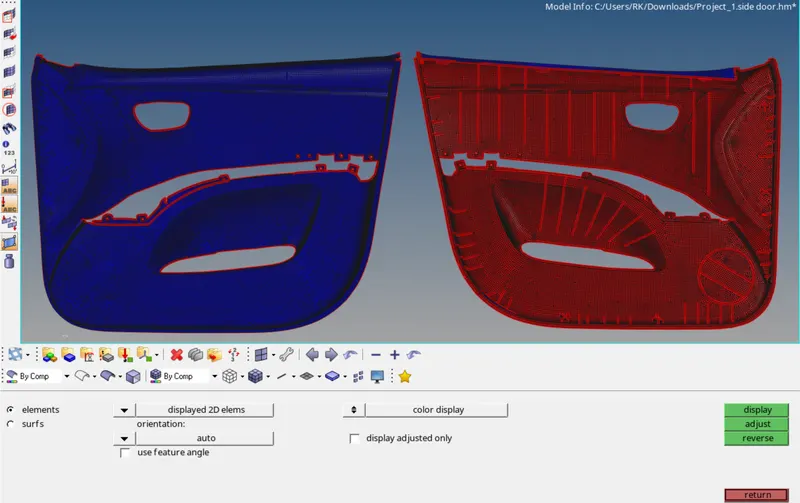

figure - Check for Normals - Door Inner Panel

• Check for duplicates

• with this option we can find out any duplicate elements present or not.

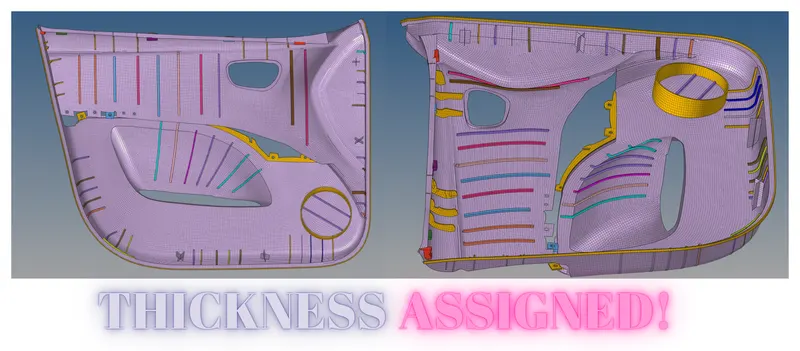

ASSIGNING THICKNESS TO FE MODEL:

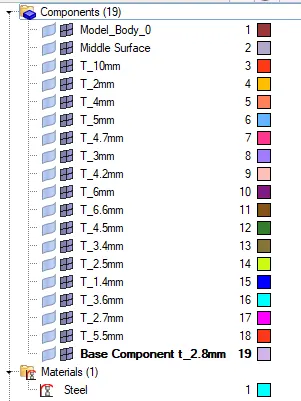

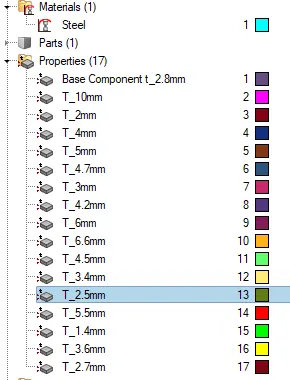

• Since it is a plastic part there will be a varrying thickness. For parts having varying thickness the average thickness can be given or multiple thickness can be given for a part by assigning seperate PID to the same parts.
• In this challenge, I have gone by taking average thickness for the ribs having varrying thickness.
• • • • Avg thickness = (Max. thickness + Min. thickness) / 2

FINAL RESULT:

• Finally achived Trias with 1.7% and One, OFF Elements in critical area
• Good Mesh flow, no trias touching on the Circle and no trias touching the Free end.
• No Rottating Quads keep maintained, No Opposite Trias are present in the FE model.
• No any other Feature Lines missed while meshing.

LEARNING OUTCOMES:

At the end of this challenge, I can able to

• Perform geometry cleanup for any complex sheet metal & BIW components.
• Generate midsurface for any complex sheet metal & BIW components.
• Generate shell mesh meeting the given quality criteria for any complex sheet metal & BIW components.
• Identify the quality failure and resolve the failure & improve the mesh quality.
• Work with HYPERMESH with a flow.

figure - Door Inner Panel

CONCLUSTION:

• Hence, the geometrical errors and mesh, with the given element Quality criteria has been performed successfuly.
• As per methodology, From import cad, geometry clean up to mesh improvement phases have been performed successfuly.
• The Applying load & Boundry condition phases will be performed on upcoming phases.
