Week 12:Project-1-Meshing of Door Inner Panel Challenge

OBJECTIVE: To generate mid surface and mesh the given plastic component (Car side door assembly)

PRE-REQUISITES:

1. Manual mid surfacing
2. Meshing with 2D shell elements
3. Disintegrating geometry into different collectors using:- Tools>>Organise
4. Creating Material cards
5. Creating Property cards

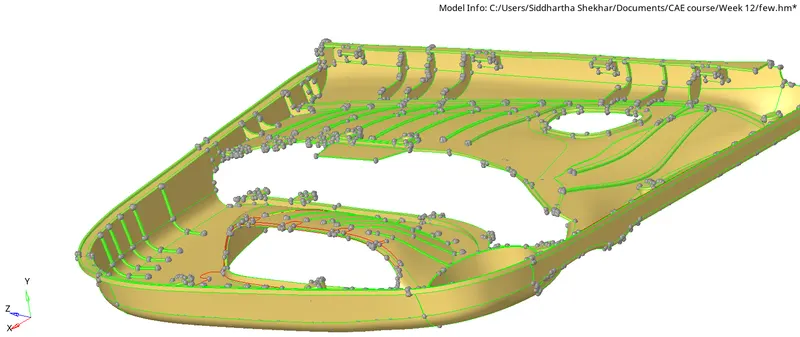

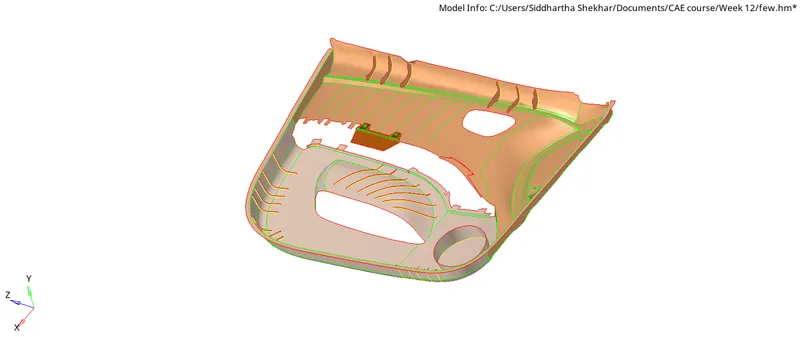

PARENT GEOMETRY

SEQUENCE OF OPERATIONS

1. Assesing the geomtry for thickness variation

2. Dis integrating the surfaces as per thickness in different collectors.

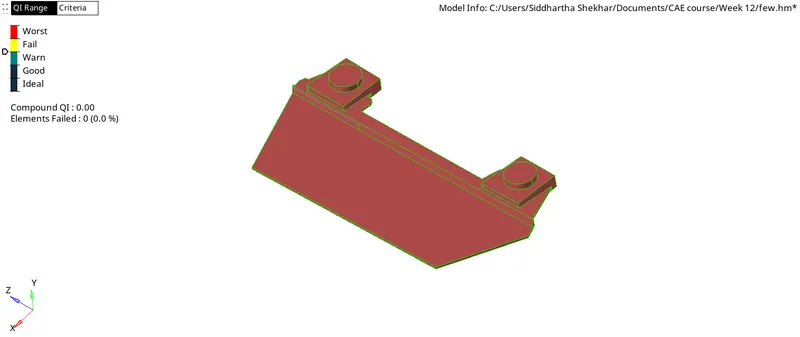

a. Upper panel

Thickness 2.8mm

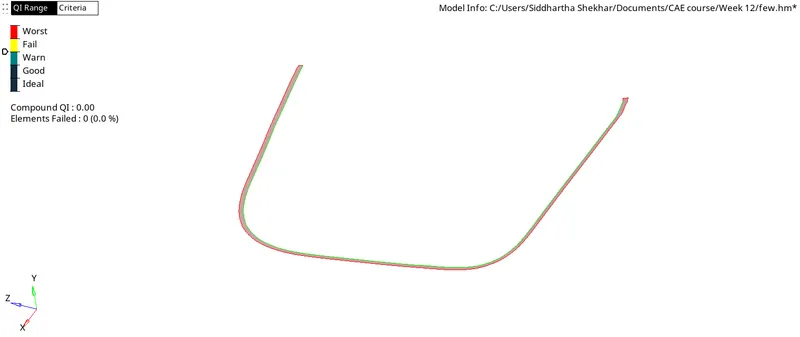

b. Bottom panel

Thickness 3mm

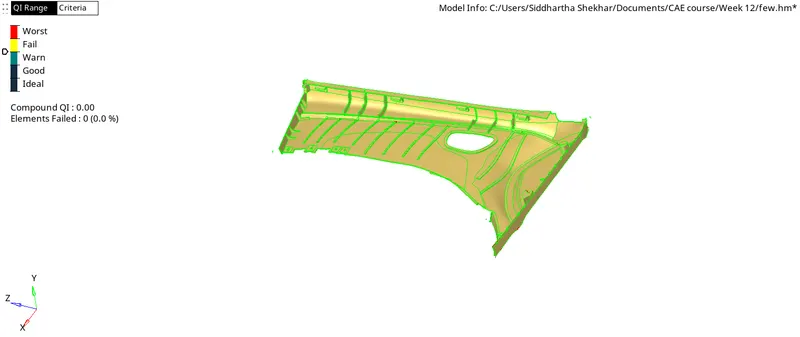

c. Outside panel

Thickness 2 mm

d. Panel

Thickness 1mm, 6mm

3. Generating mid surface for each collector

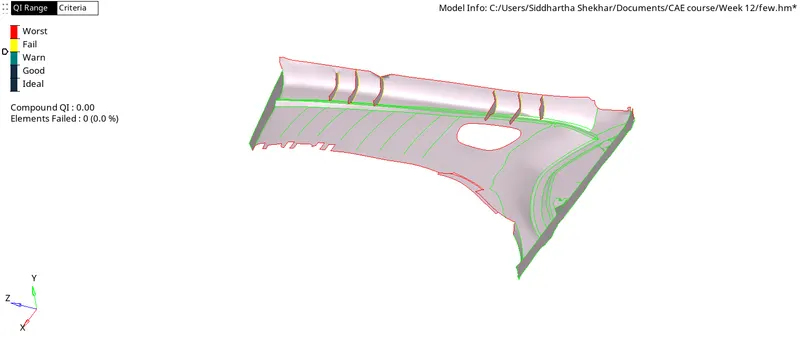

a. Upper panel

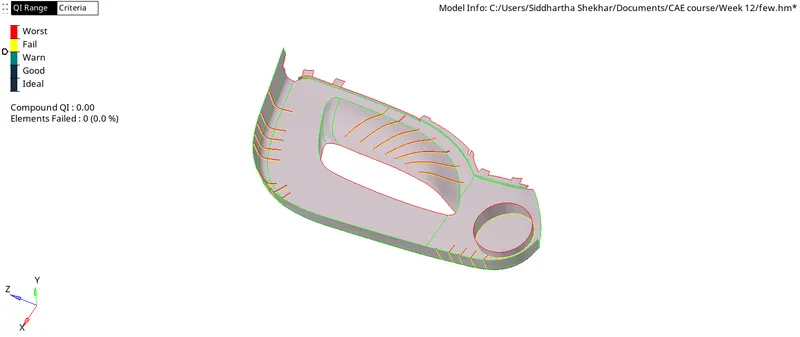

b. Bottom panel

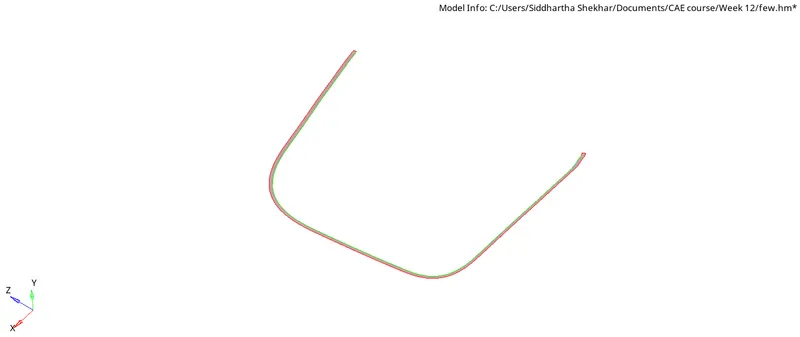

c. Outside panel

d. Panel

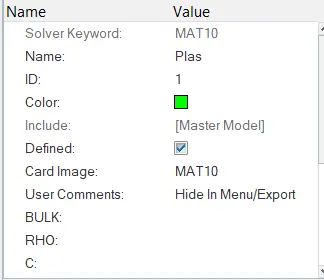

4. Generating Material card

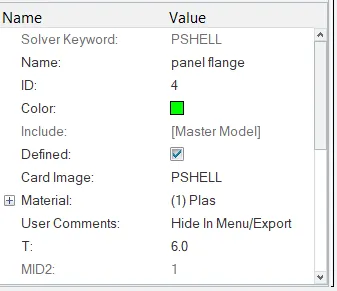

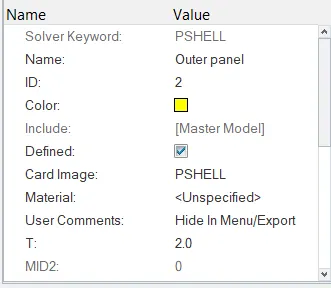

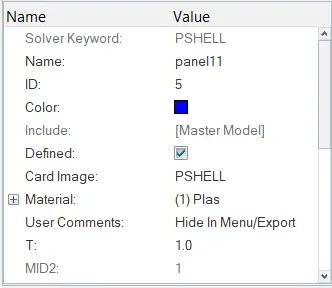

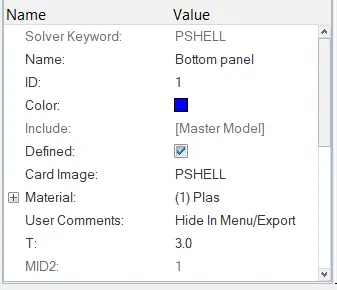

5. Generating Mesh and property cards with appropriate thickness

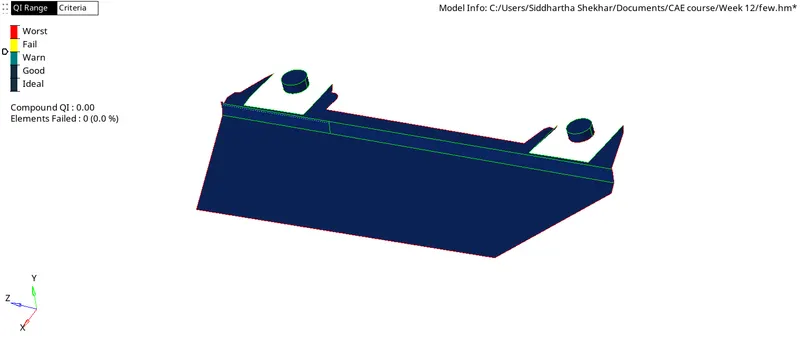

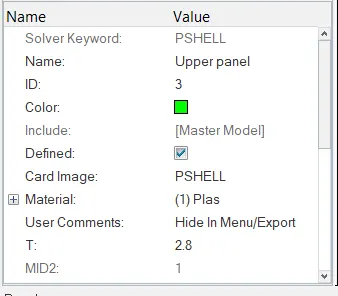

a. Upper panel

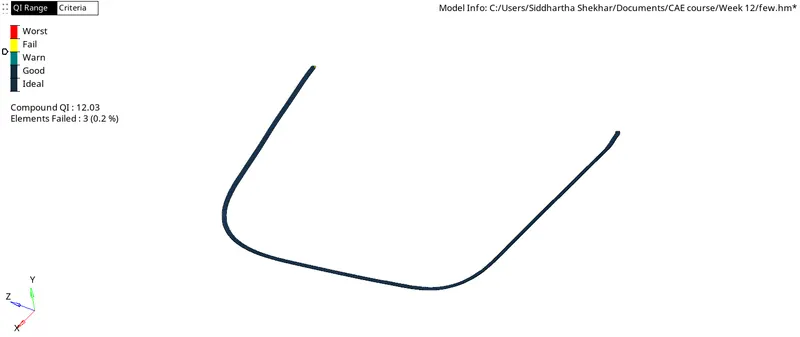

b. Bottom panel

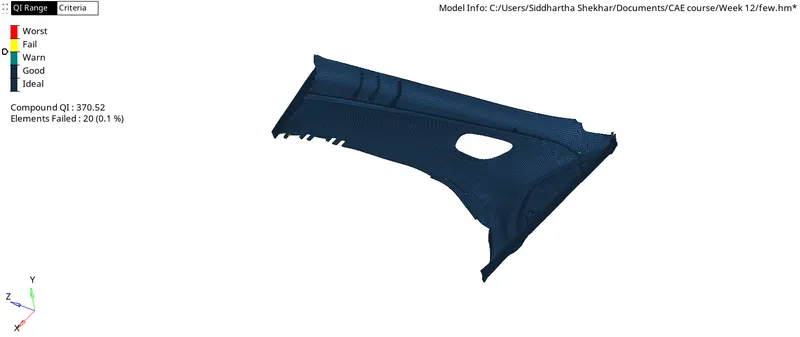

c. Outside panel

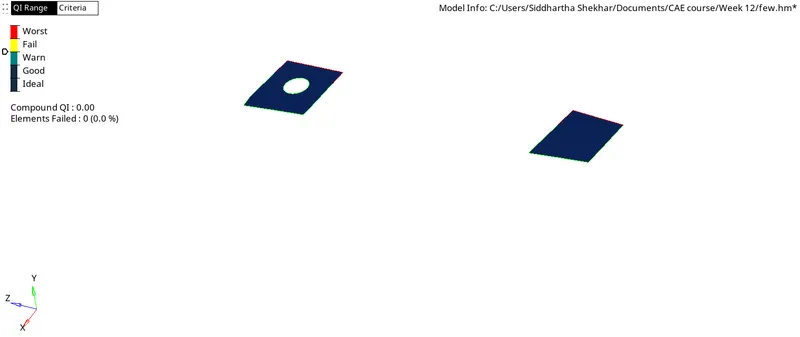

d. Panel

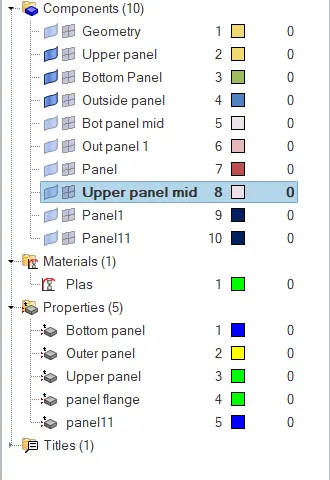

COMPONENT TREE

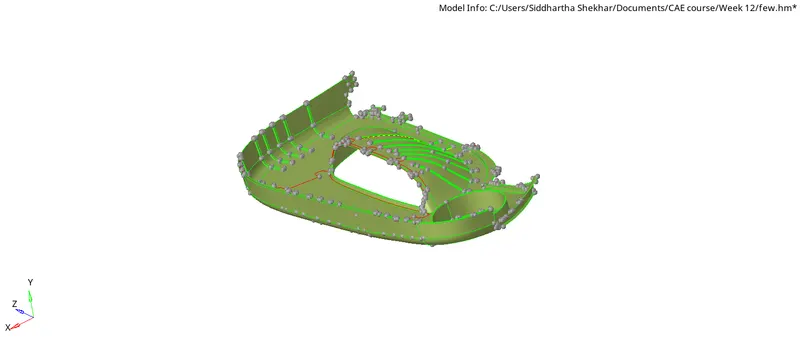

COMBINED MID SURFACE

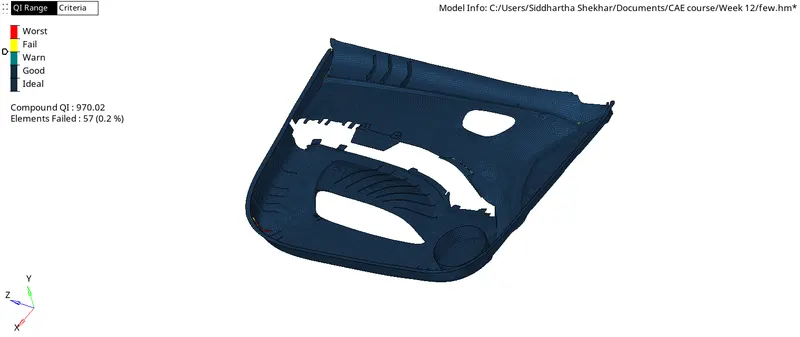

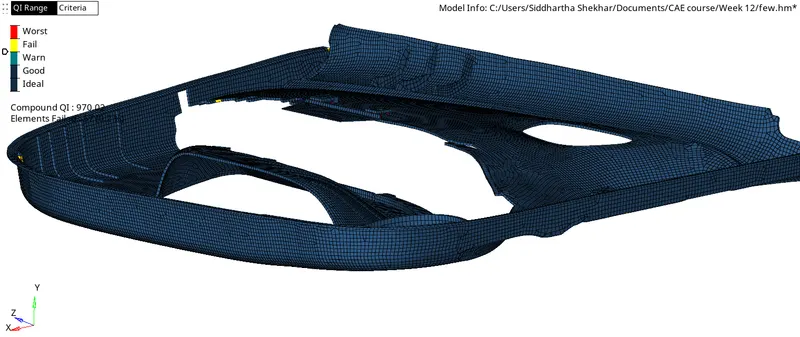

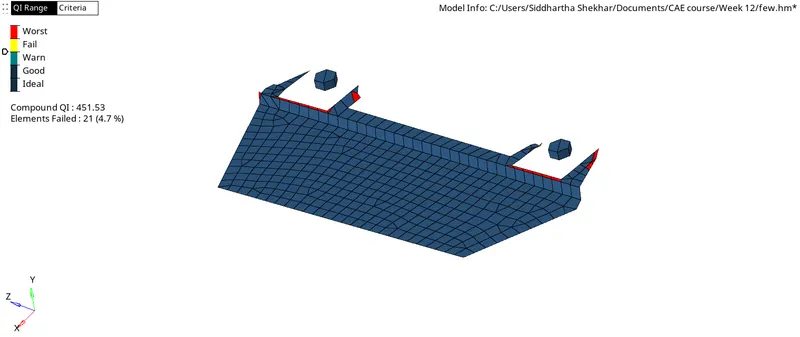

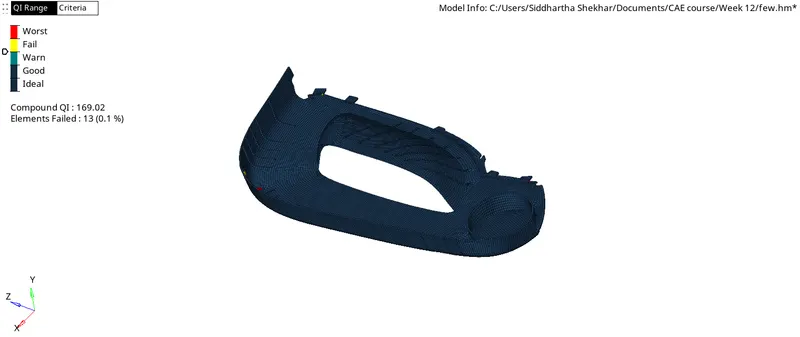

COMBINED MESH

with thickness

PROJECT1.hm is attached
