Week 12:Project-1-Meshing of Door Inner Panel Challenge

Objective:

• The objective of this project is to mesh the above model with the given criteria by following all the necessary constraints.
  •

Procedure:

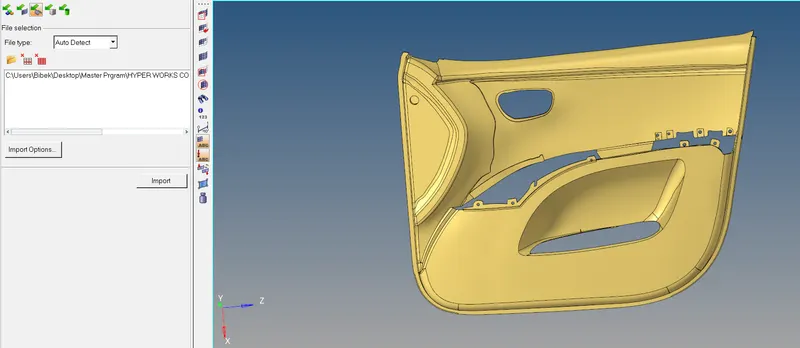

1. The first step is to import the geometry to the Hypermesh GUI,
   •

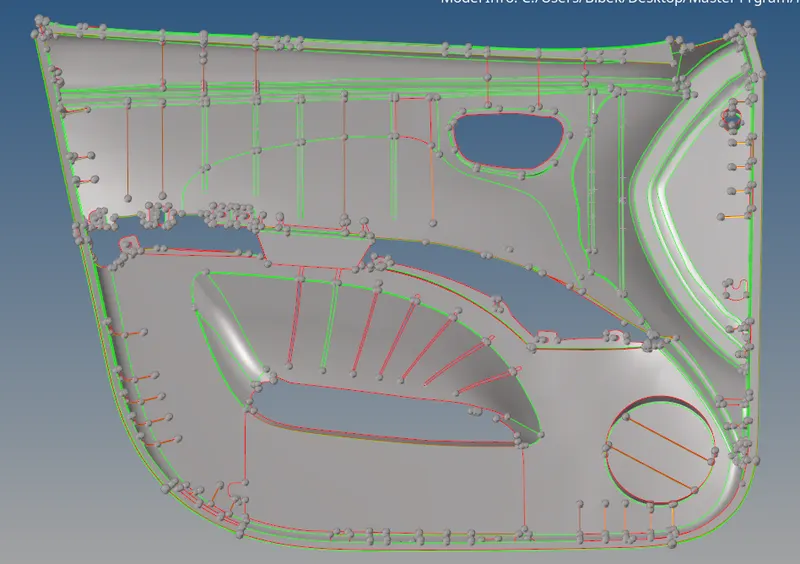

2. The next step is to defeature the small surface fillets and ensure proper topology cleanup.
   •

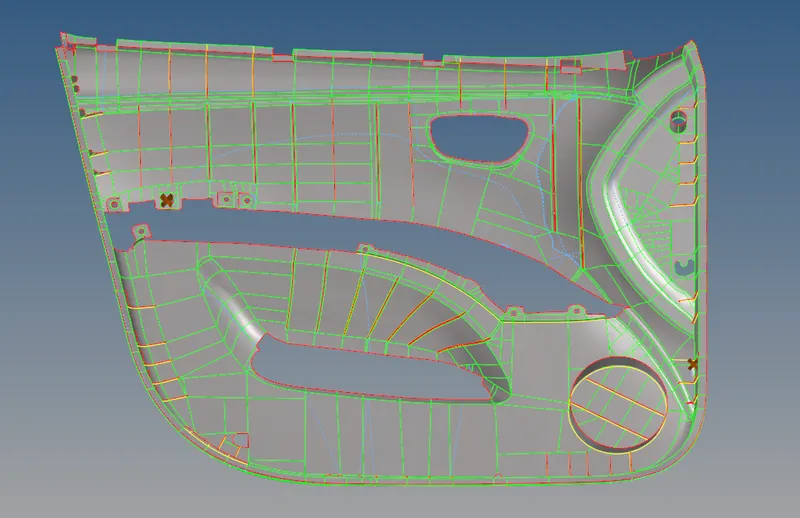

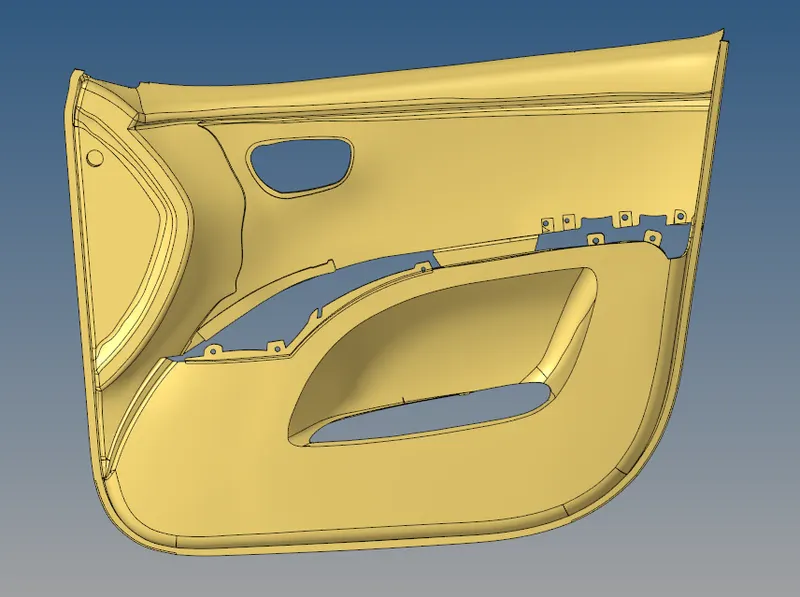

3. The next step is to extract a mid surface out of the geometry. The mid surface is given below
   •
4. Then clean the mid surface to get proper geometry and make the geometry mesh ready.
   •

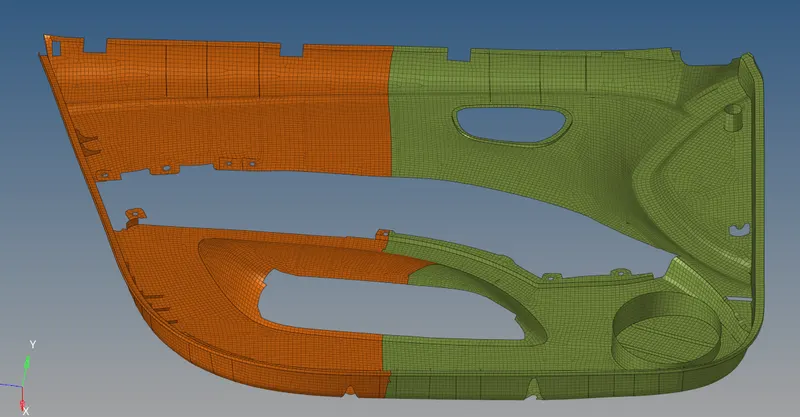

5. Then started meshing the surface then the complete mesh is given below.
   •

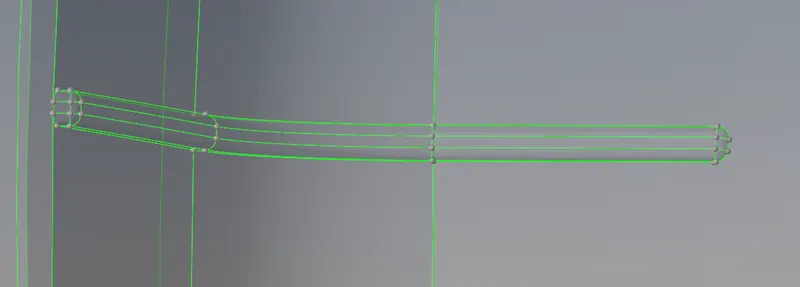

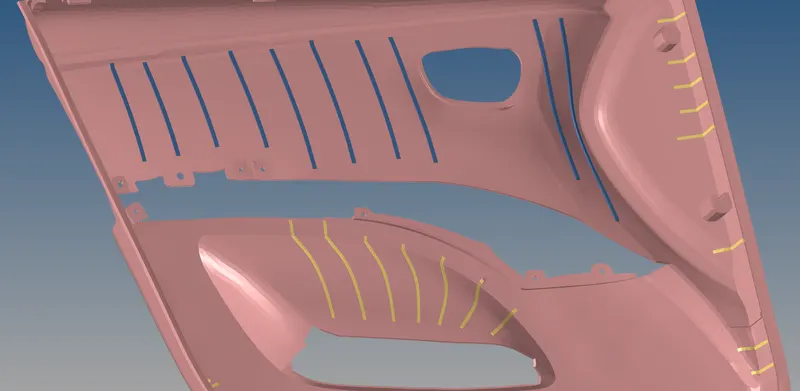

6. Some components need 3D meshing. The 3D mesh bodies are given below.
   •
7. Then different property has been created to encapsulate all the thickness of the whole component. I've considered the average thickness and created below properties collectors.
   •

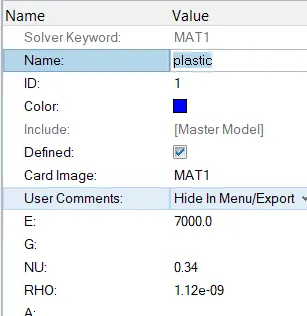

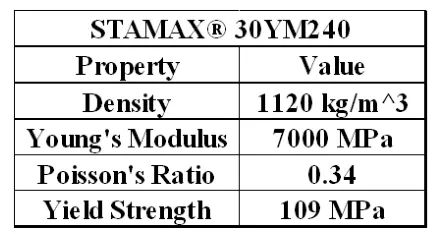

8. The considered material is plastic whose properties are given below
   •

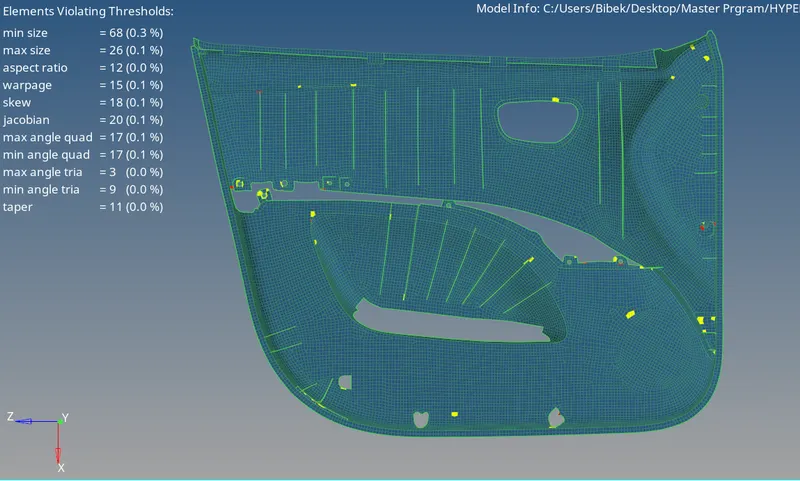

9. Now let's check the mesh connectivity and the proper flow of the mesh body according to the criteria mentioned.
   •

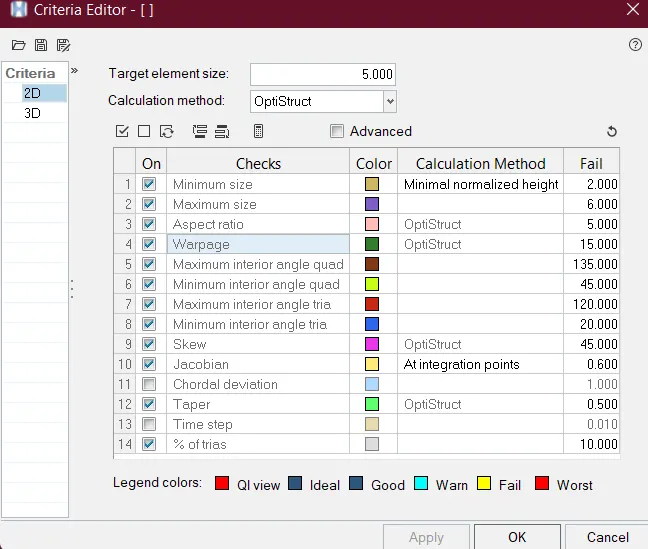

10. The criteria file is given below
    •

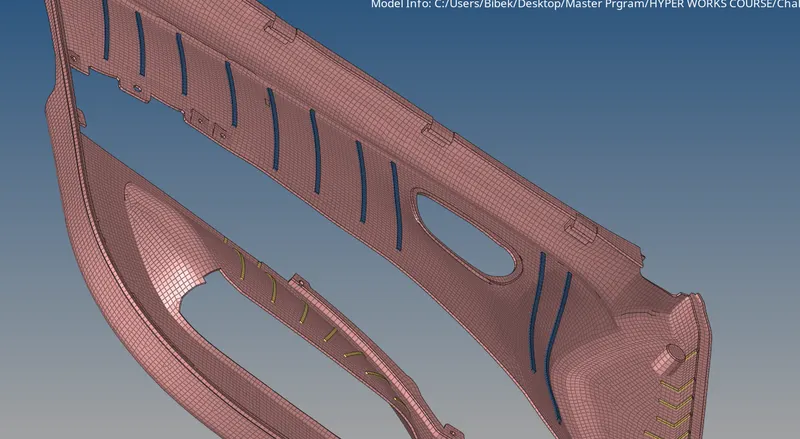

11. After applying the property to the respective collector the detailed view of the mesh body is given below.
    •
12. The shaded view is given below
    •

Conclusion:

• In this project, I've learned the plastic meshing of the sheet model. The plastics are a bit difficult to mesh also have a complex geometry.
• In the above model, I couldn't able to mesh the hollow part of the pin.
• Meshing the side door was tricky for most of the part.
