In this challenge, i am going to calculate how the fuel injector is working on a SCRAMJET engine.

This is the schematic diagram of the scramjet engine which we are going to deal today.

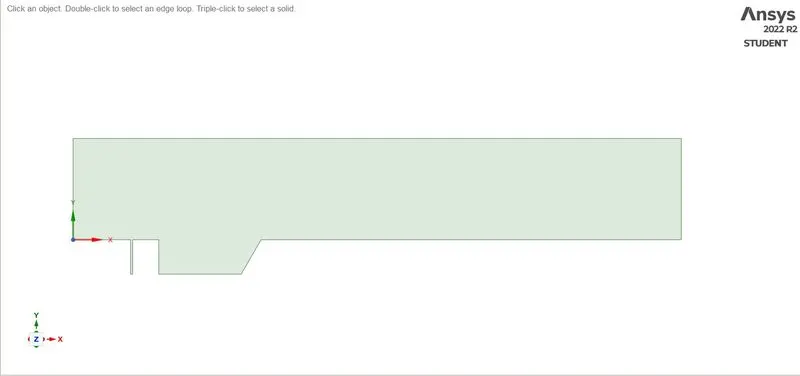

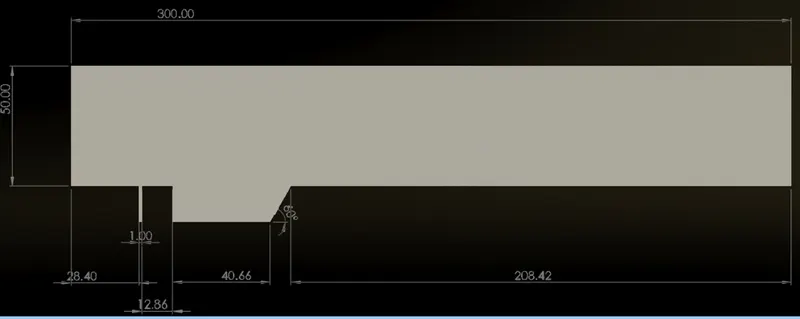

We made the geometry according to the dimensions on Spaceclaim.

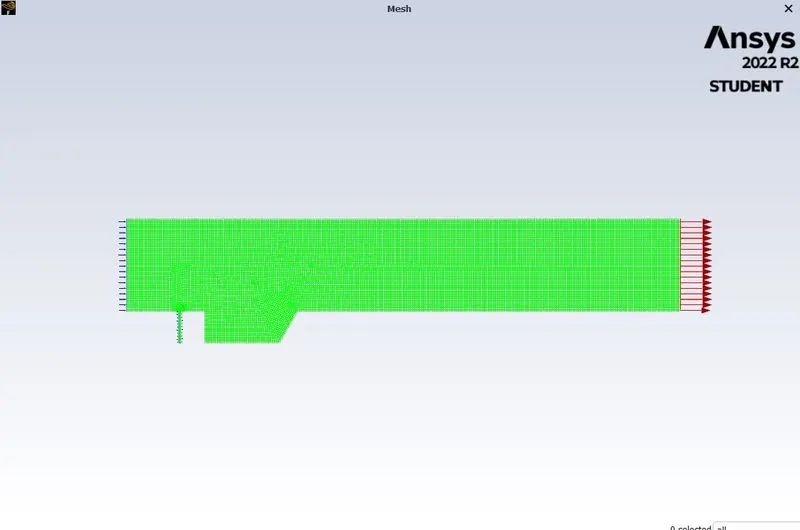

Meshing

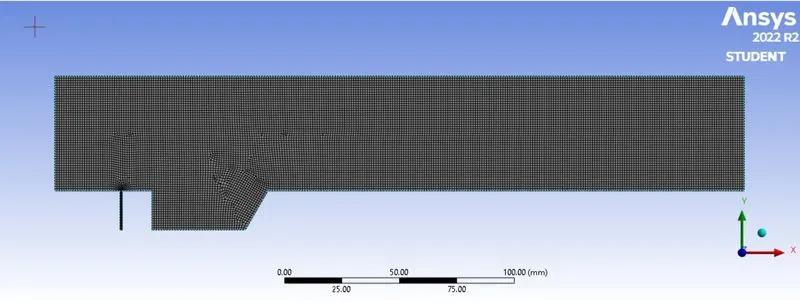

to get a refined mesh, we reduced the mesh size to about 1mm, thus giving around 15000 cells.

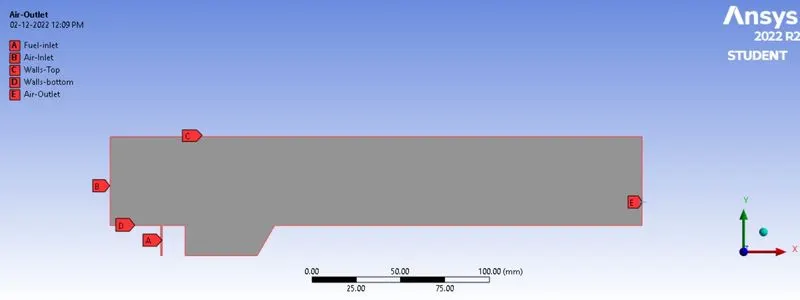

Named Selections

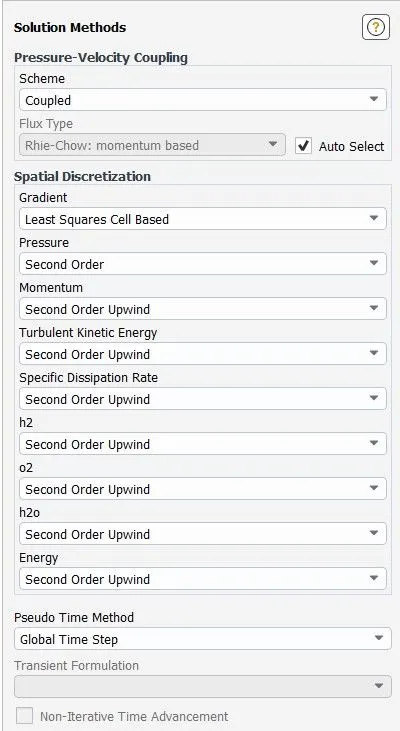

Case Setup

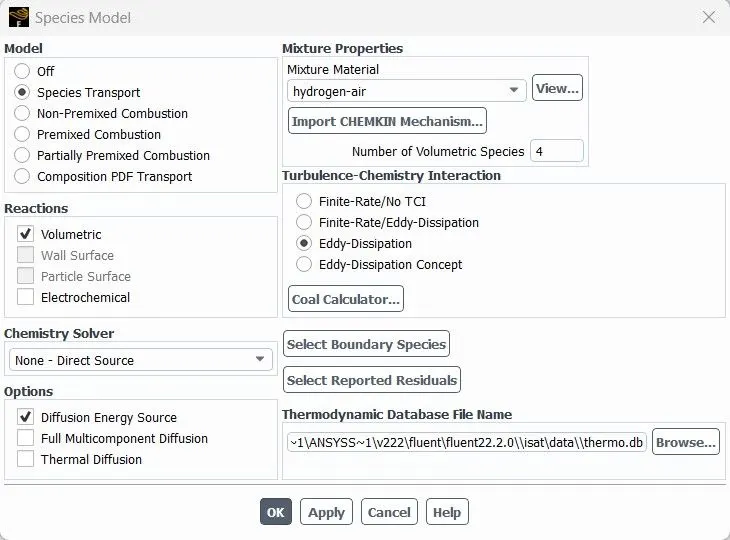

While doing literature review for this project, the two most commonly used models were: k-omega SST and k-epsilon. In the end, the model chosed was k-omega SST due to its flexibility in capturing boundary layers for any y+/velocity. [1]

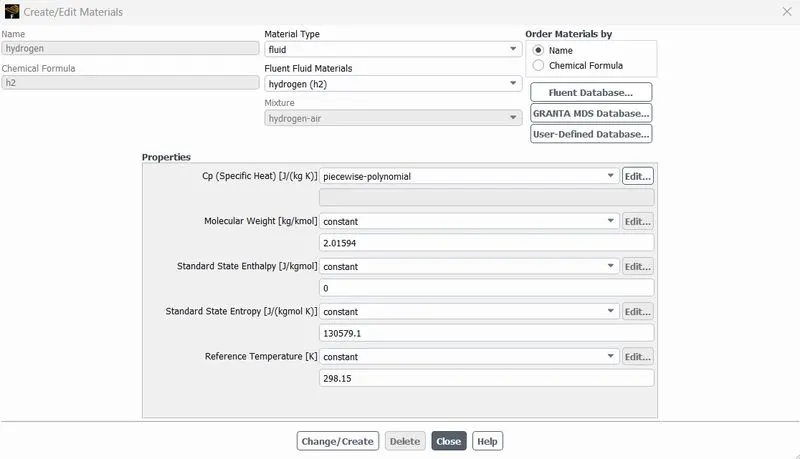

Adding Hydrogen as a new material

Boundary conditions

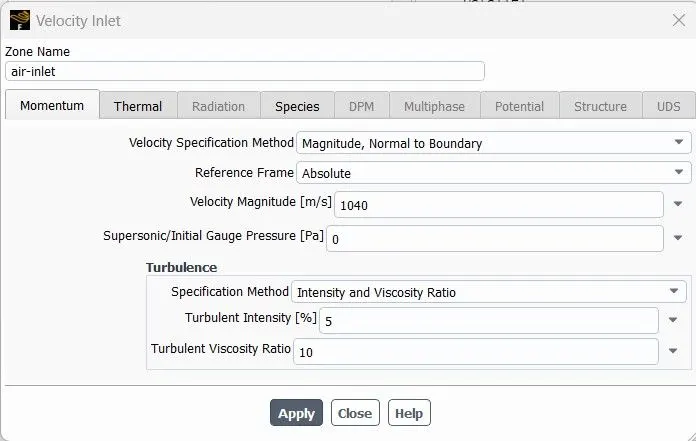

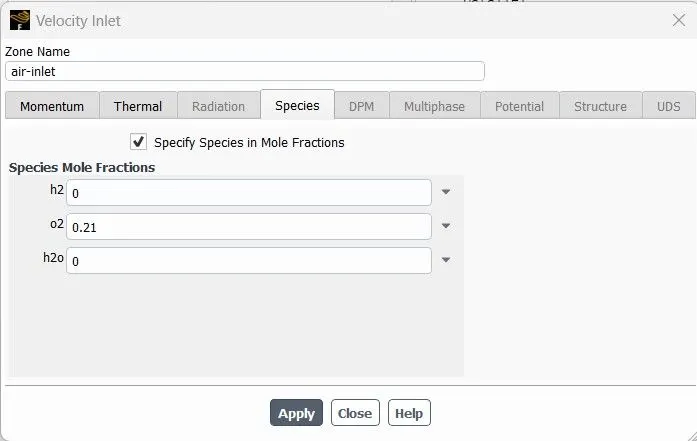

Air-Inlet

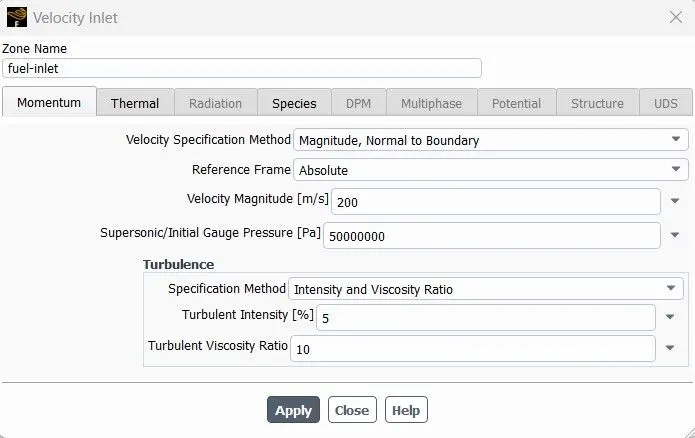

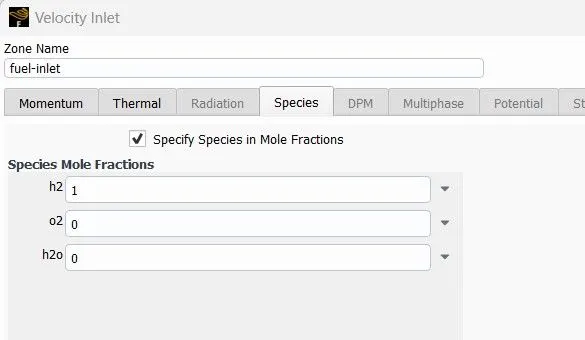

Fuel Inlet

Results

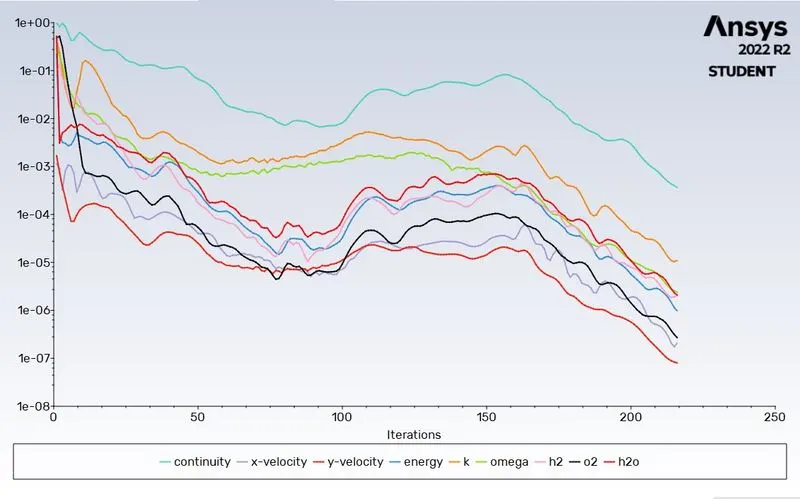

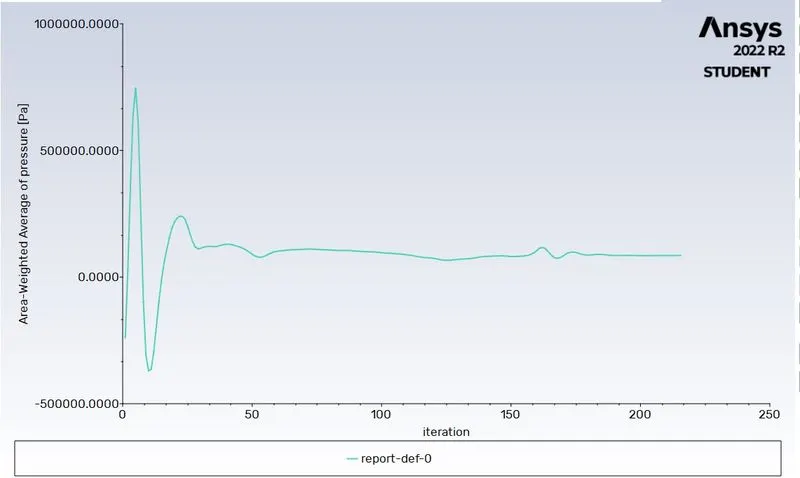

Converged Residuals

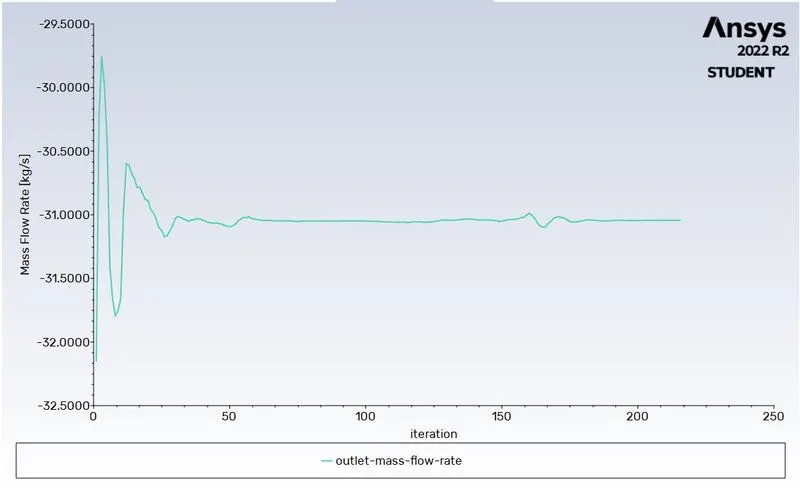

Mass Flow rate

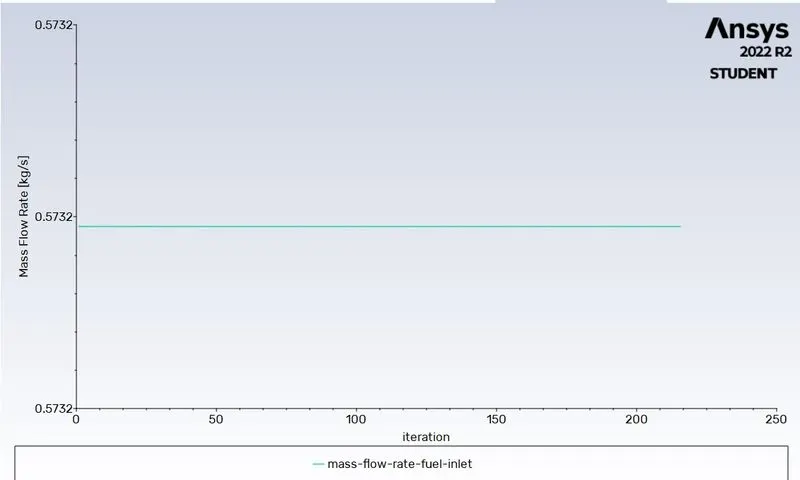

Mass flow rate for fuel inlet

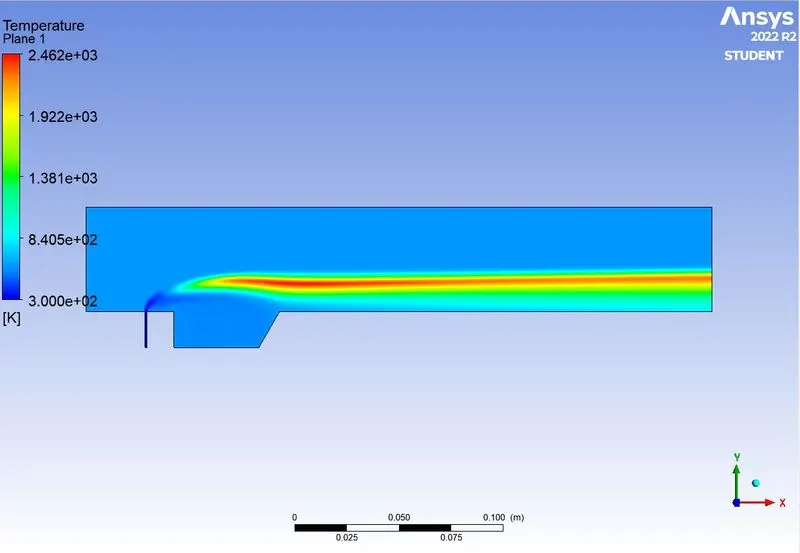

Contour showing Temperature variations

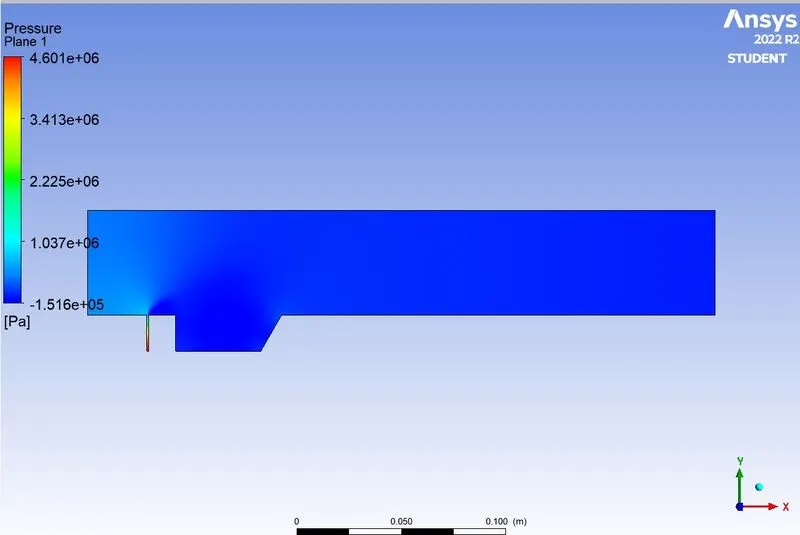

Pressure Contour

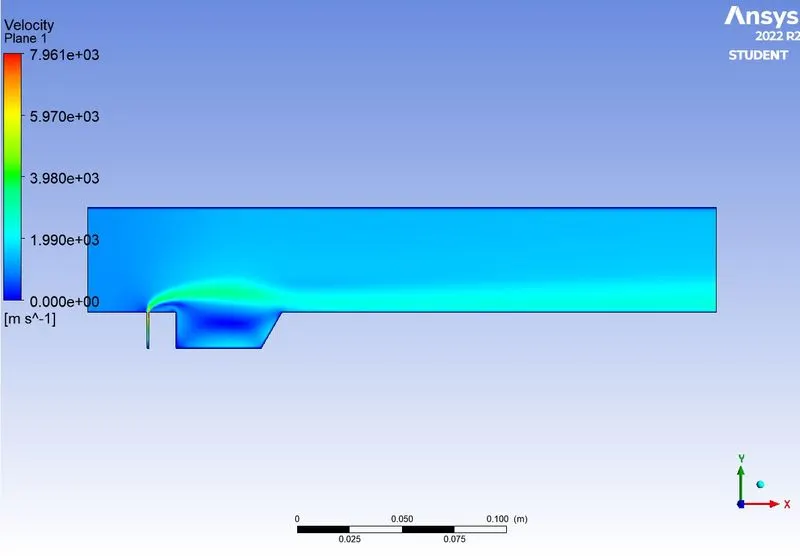

Velocity Contour
