FINAL PROJECT
DEVELOPMENT OF DOOR TRIM PANEL
Aim
In this project we create the door trim panel Components that is (Lower substract,Arm rest, Bottle holder, map pocket) with the necessary input surfaces provided and generating the necessary B side features ( heat stakes, 4 way locators, Dog houses, push clips, Ribs, screw bosses etc) thereby assemble the individual components of the door trim by providing proper constraints there by performing the proper draft analysis using catia V5 software
Objective R
The main objective is to create the individual components of the door trim with input class A surface provided and generate the class B and class C surface and produce the solid surface body out of it and perform the proper draft analysis with required draft angle of 3 degrees for the body and continue the procedure for the remaining components .Then start creating the B side features of the components by following the reference of the master sections provided and perform the draft analysis with an input draft angle of .5 degrees and assemble the components to for the final door trim panel on the assembly workbench by providing necessary constraints using catia V 5 software.
Procedure followed for the creation of the components
- Analyse the input surface provided
- Class A surface as input surface
- Tooling axis creation
- Draft analysis of class A surface
- Class B surface creation
- Class C surface creation
- Solid surface body generation
- Draft analysis of the solid body
- creating the B side features
- Draft analysis of the solid body along with the B side features .
- Class A surface:
Class A surface is an asthetic surface which is visible for the customer in the component
Class B surface:
Class B surface is an engineering surface where the B side features of the components like heat stakes, screw bosses, Ribs, doghouses are situated
Class C surface:
Class c surface lies as an intermediate surface between the class A and the class B surface thet means it generally accommodate the thickness of the whole plastic component

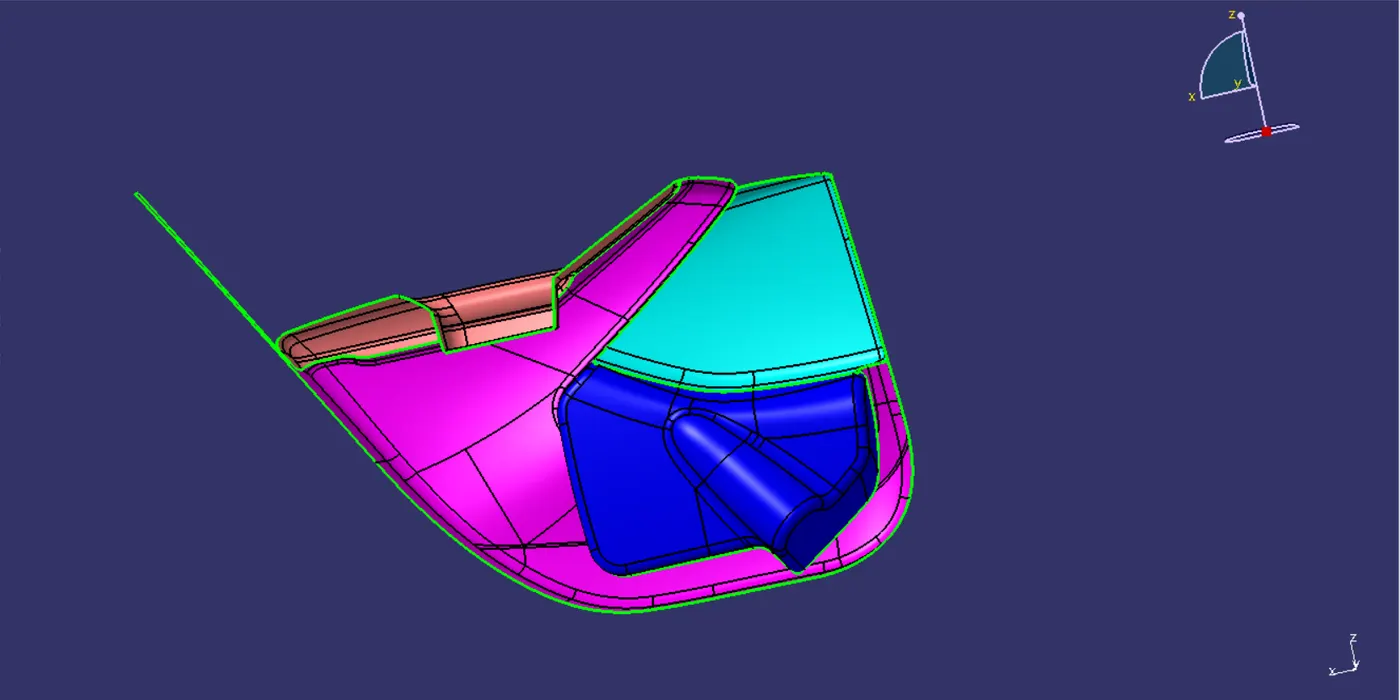

The input provided for the design is
Arm rest design
In the front of the car, a central armrest, which commonly folds away based on user preference, will also often include a storage compartment and sometimes even cup holders. Some also provide the location for controls for non-essential functions of the vehicle, such as climate control or window motors.

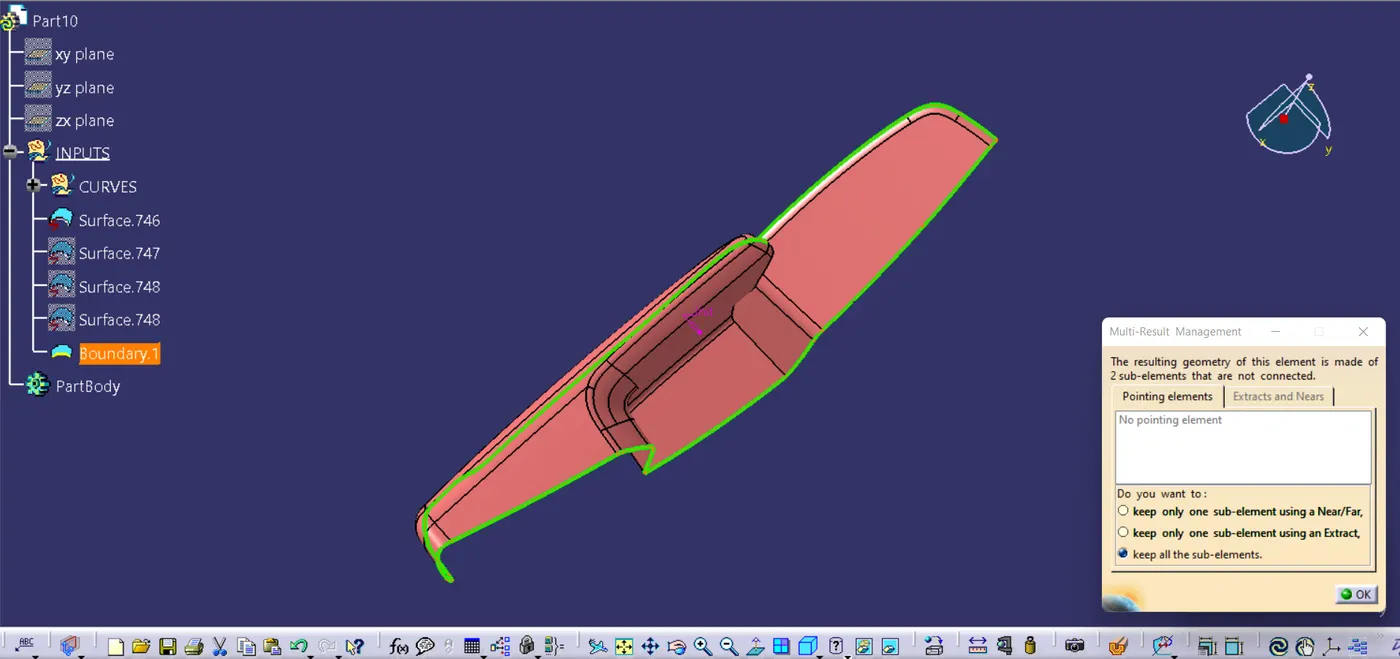

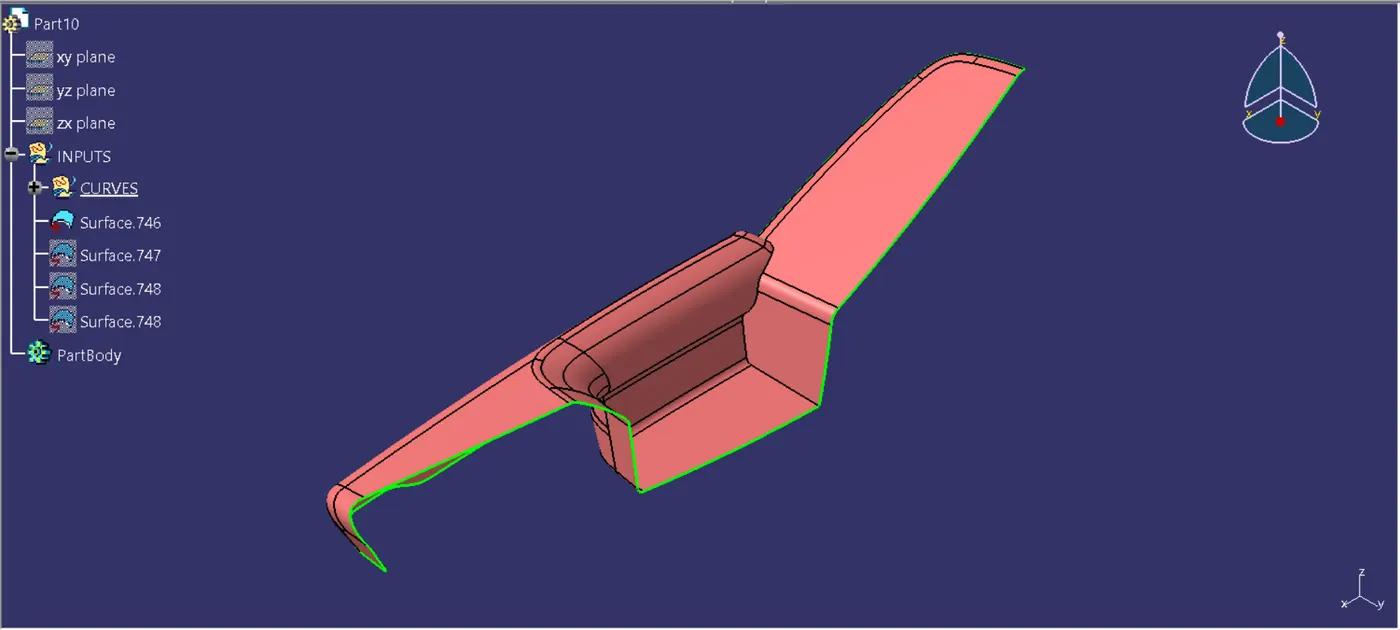

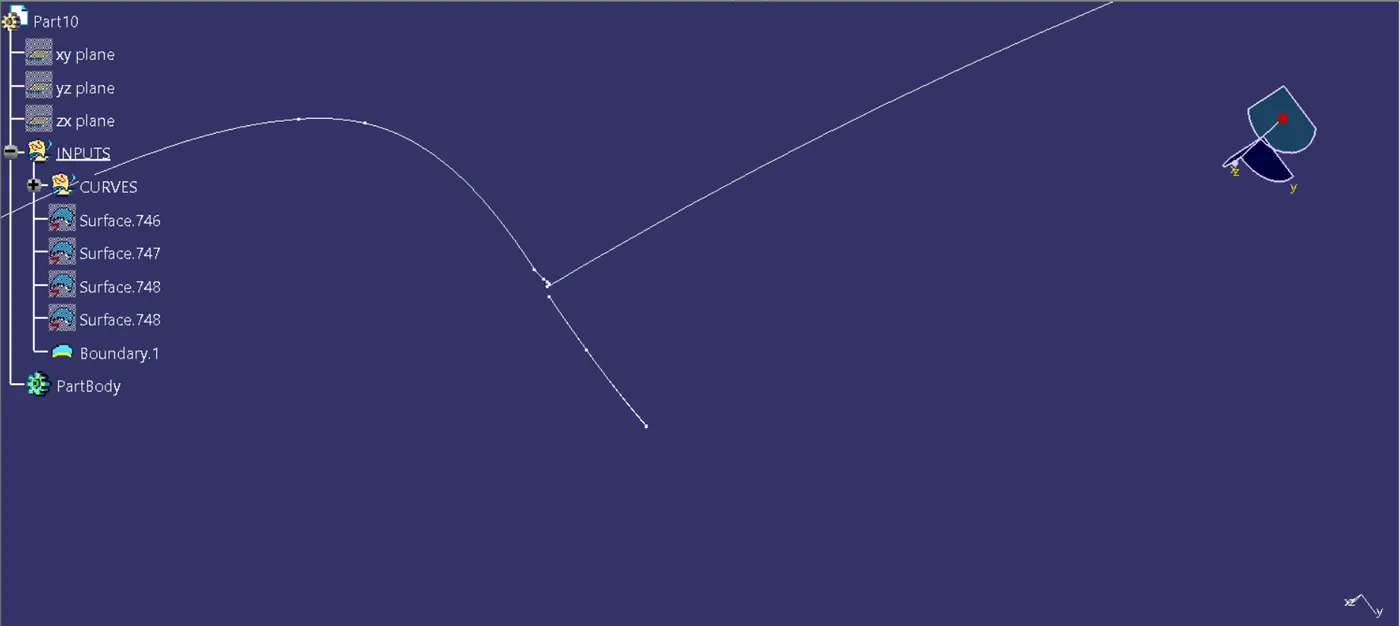

For the Arm rest design the input class a surface provided is

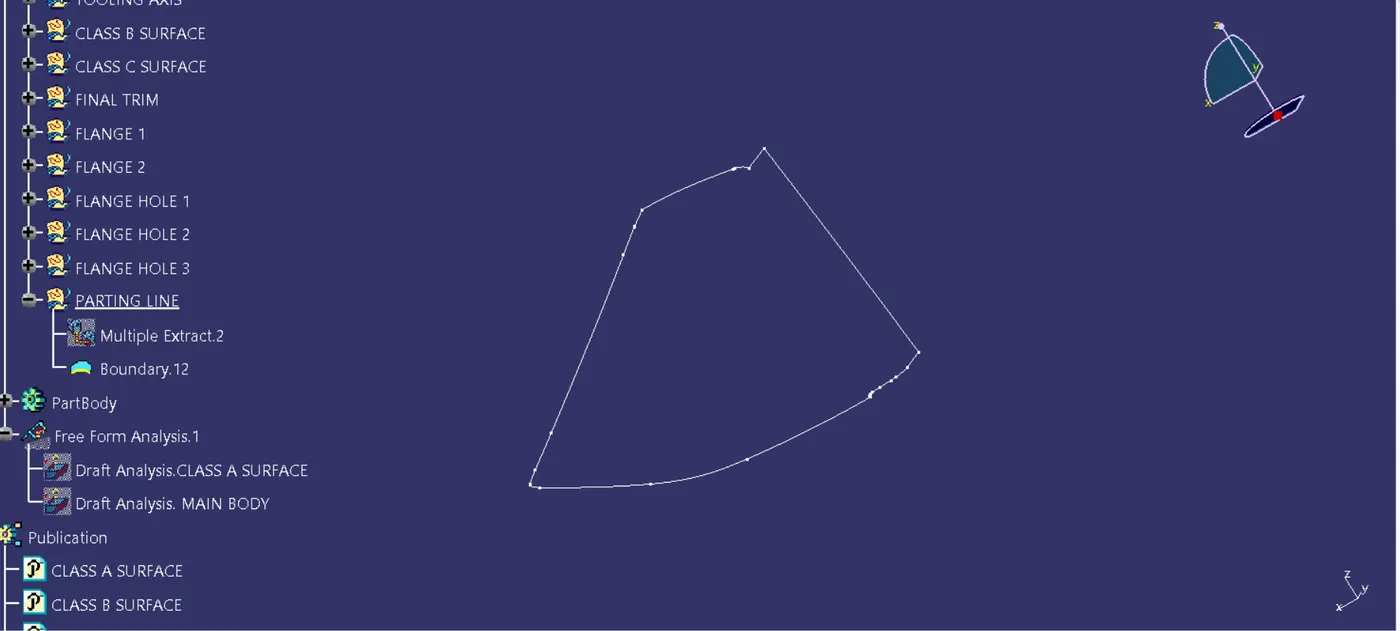

To check whether the surface has any oen boundaries use the boundary feature then we can identify that there is an open patch or the surface which we need to work on

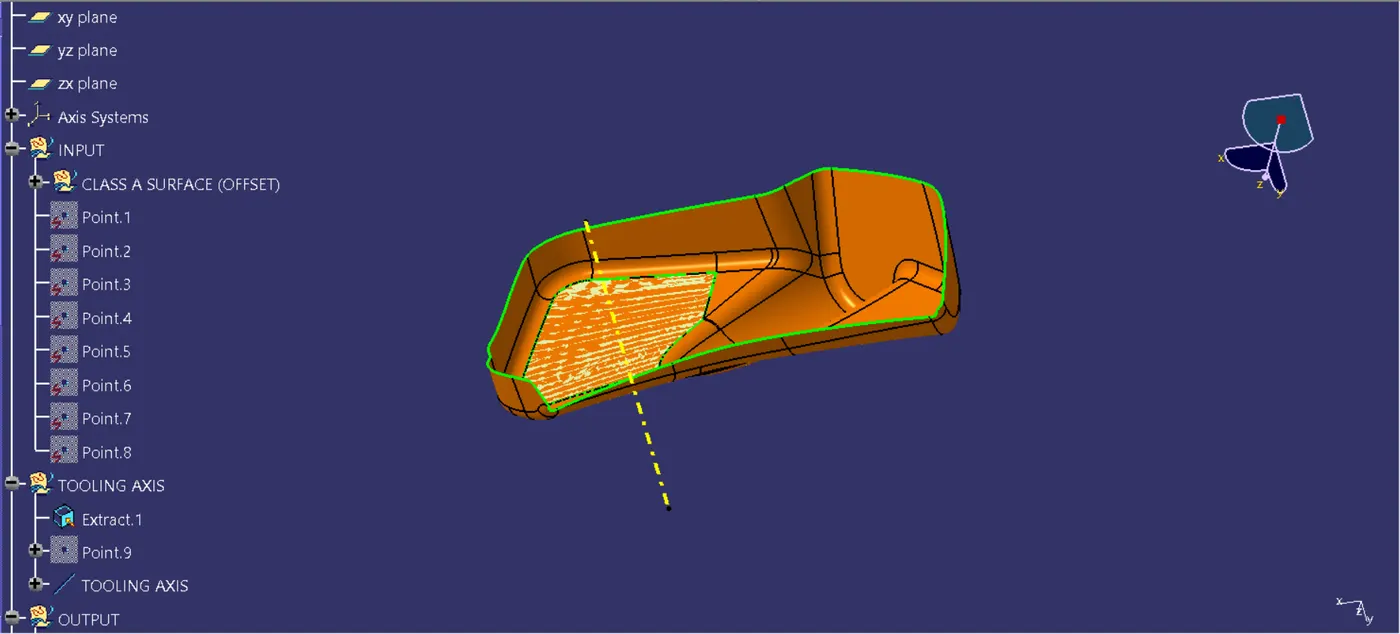

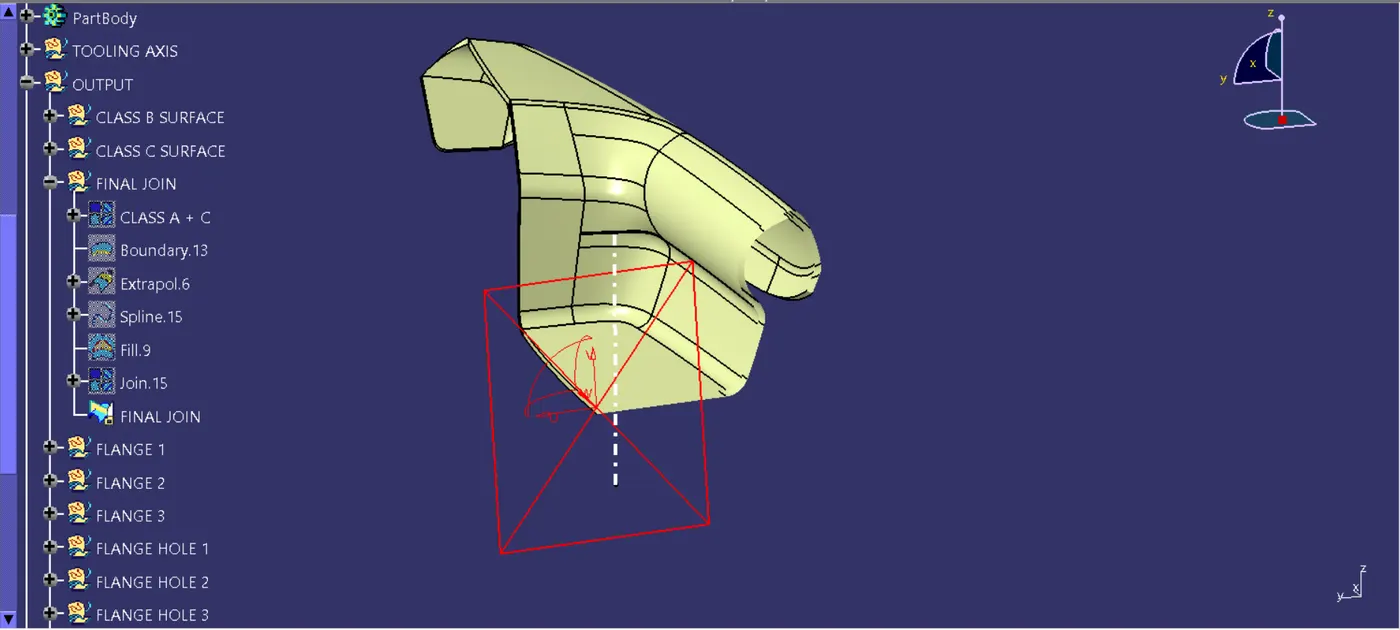

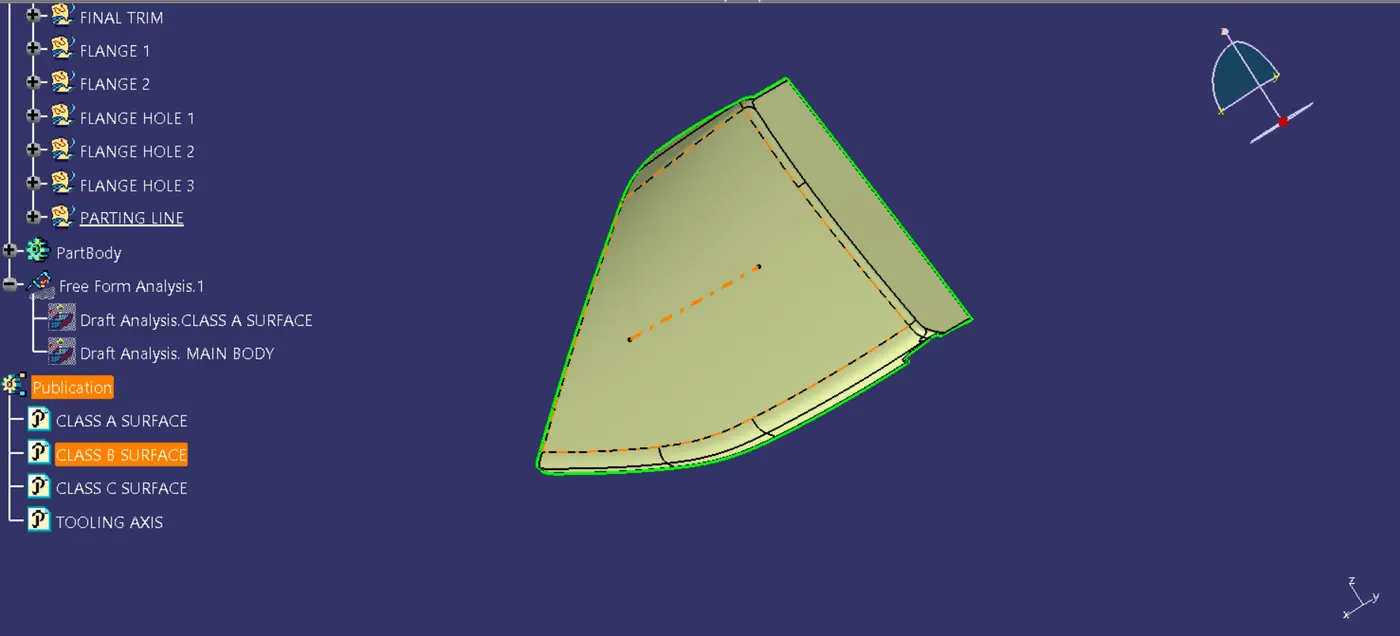

Tooling axis creation:

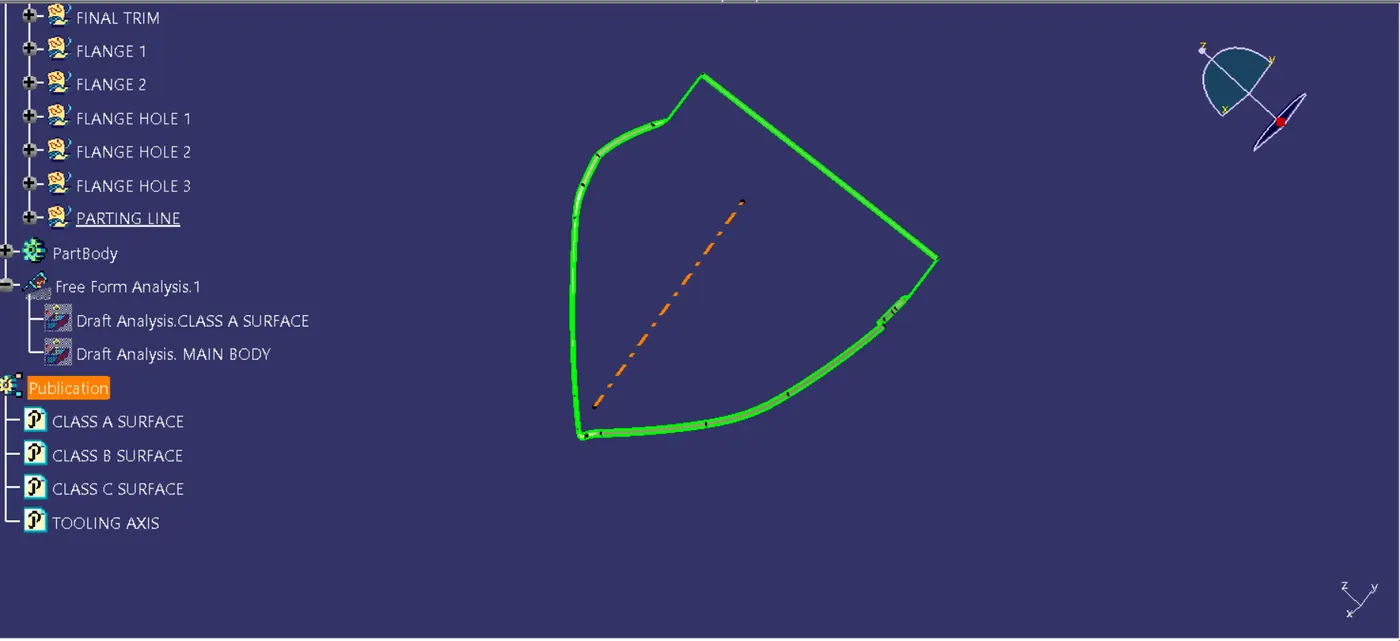

In case of the arm rest we generally deploy the bisection method for creating the tooling axis.

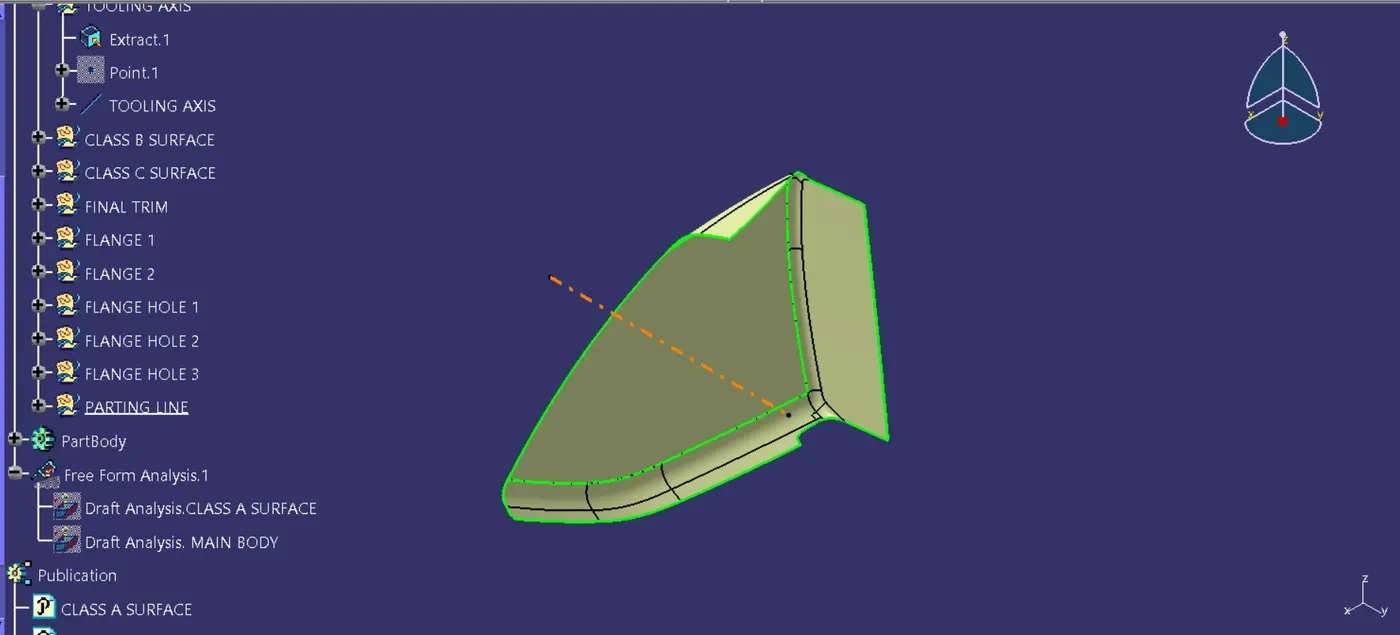

Draft analysis of the class A surface:
Once the creation of the tooling axis is done perform the draft analysis of the class A surf ae whether all the surfcaes of the clsss A is cleasring the draft analysis or not
General draft angle provided on the plastic engineerng componenet is 3 degrees
Generating of the class B surface
For the class B surface generation refer to the master section provided to measure the thickness of the plastic component then offset the class A surface to an extend of 2.5 mm thickness beneath the class A surface
Generating the class C surface:
For the class C surface generation we use the class A surface as an reference and follow the draft with respect to the reference surface and the main tooling axis
Then make the B surface trim with the class A & C join
It is the close surface of the plastic componenet with a thickness of 2.5mm
Then create a new body and use the solid body feature to create the solid surface body out of it

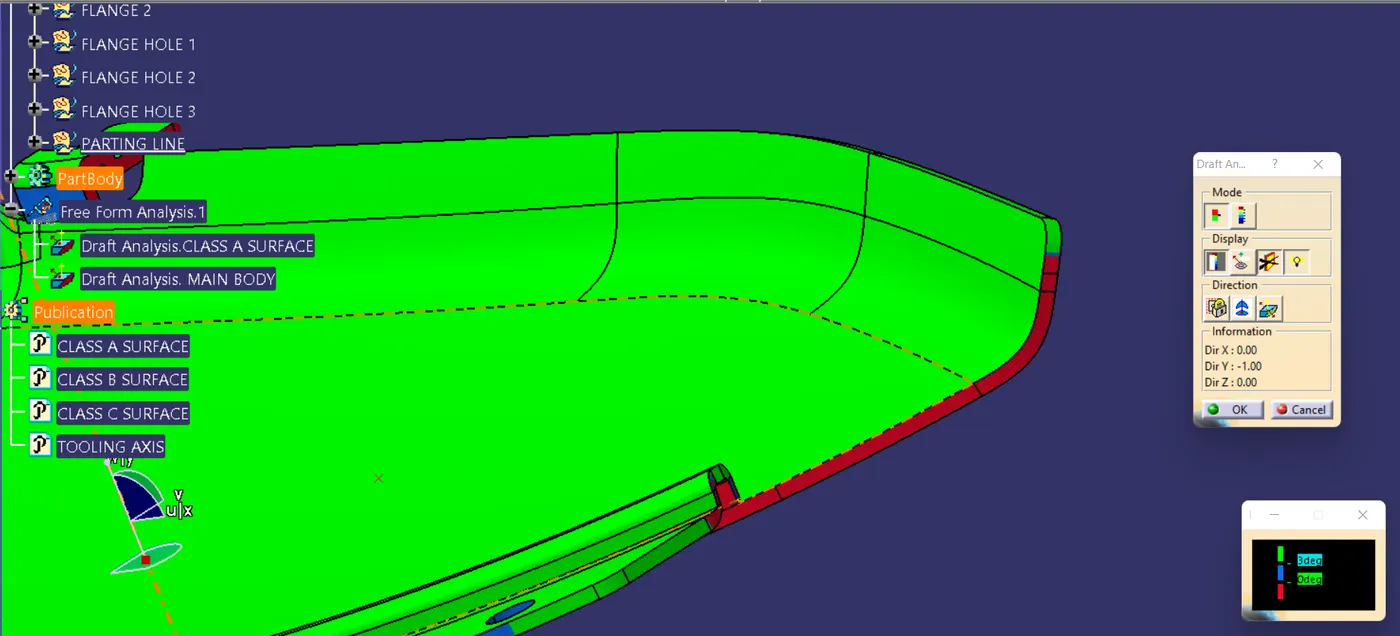

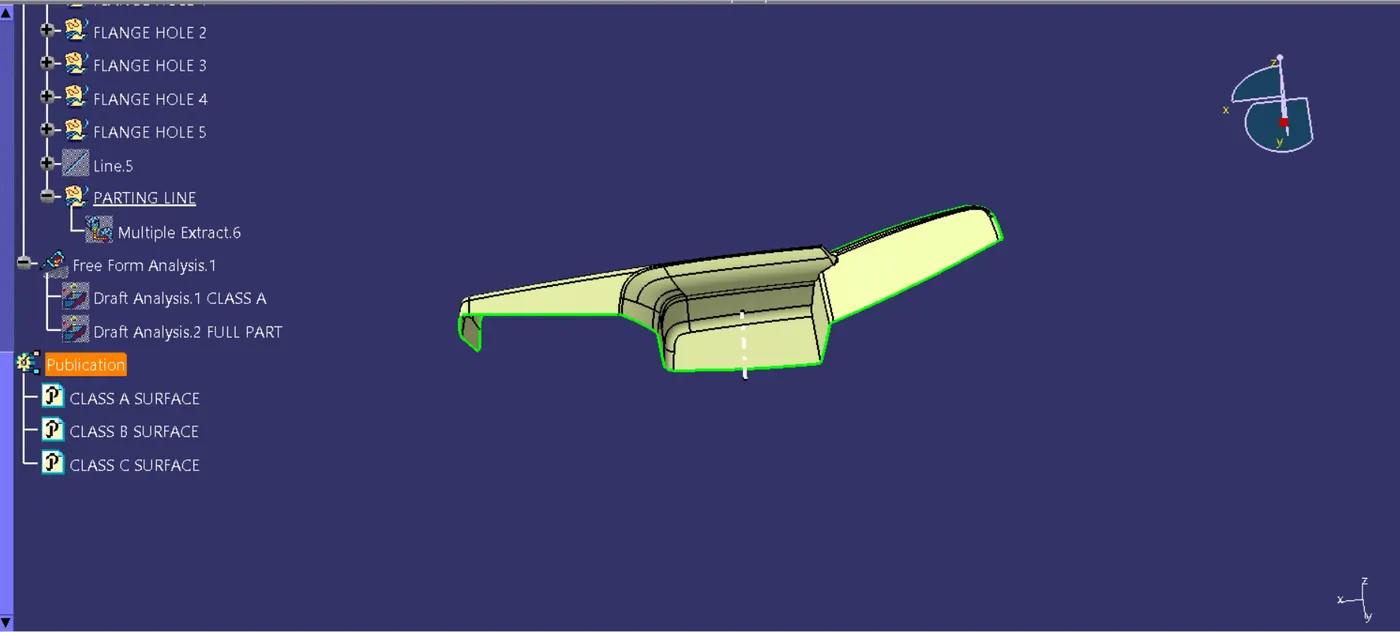

Draft analysis of the final solid body :
After generating the final closed body perform the draft analysis with a draft angle of 2.98 ~3 degrees
And examine whether all the required surfaces are clearing the draft with respect to the main tooling axis of any draft applied surfaces can’t be able to clear the draft analysis write a report mentioned what might be the reason for the surfaces not clear in the draft analysis and suggest the appropriate solution if else
Lower substract

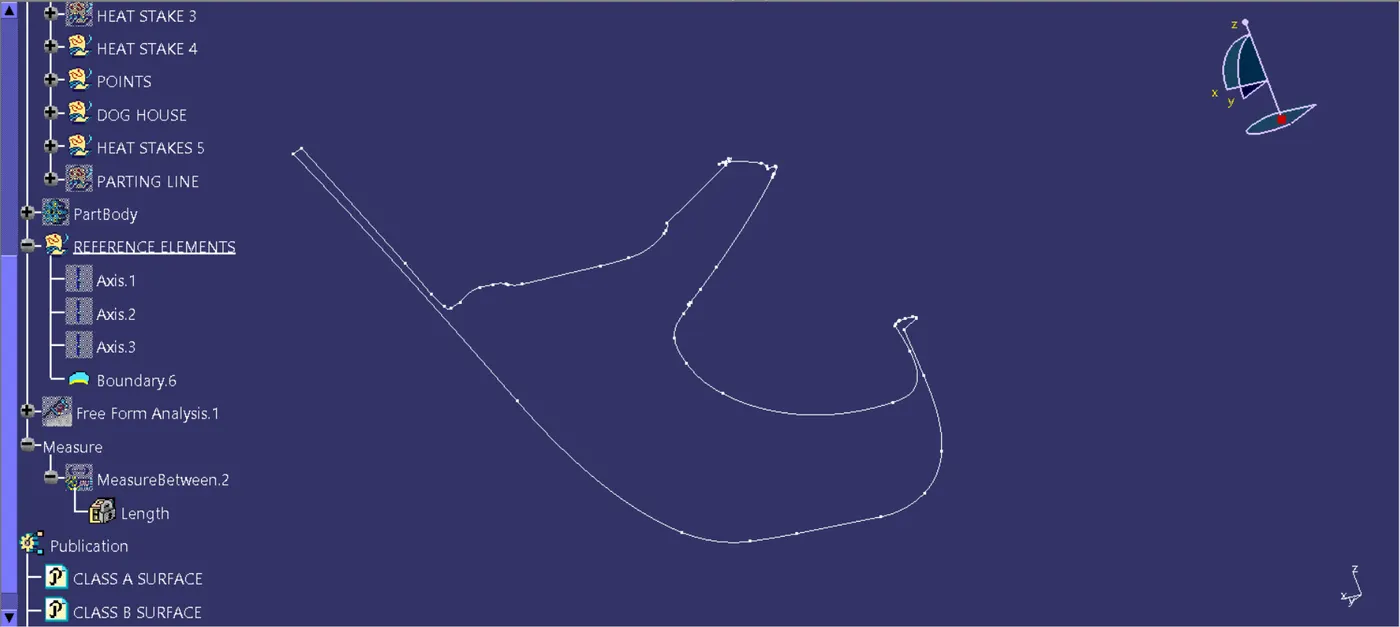

In case of the door lower substract after examining the provided input surface we can able to detect a projection or an extension so we don’t need it for any further so, create a line and split the unnecessary surface

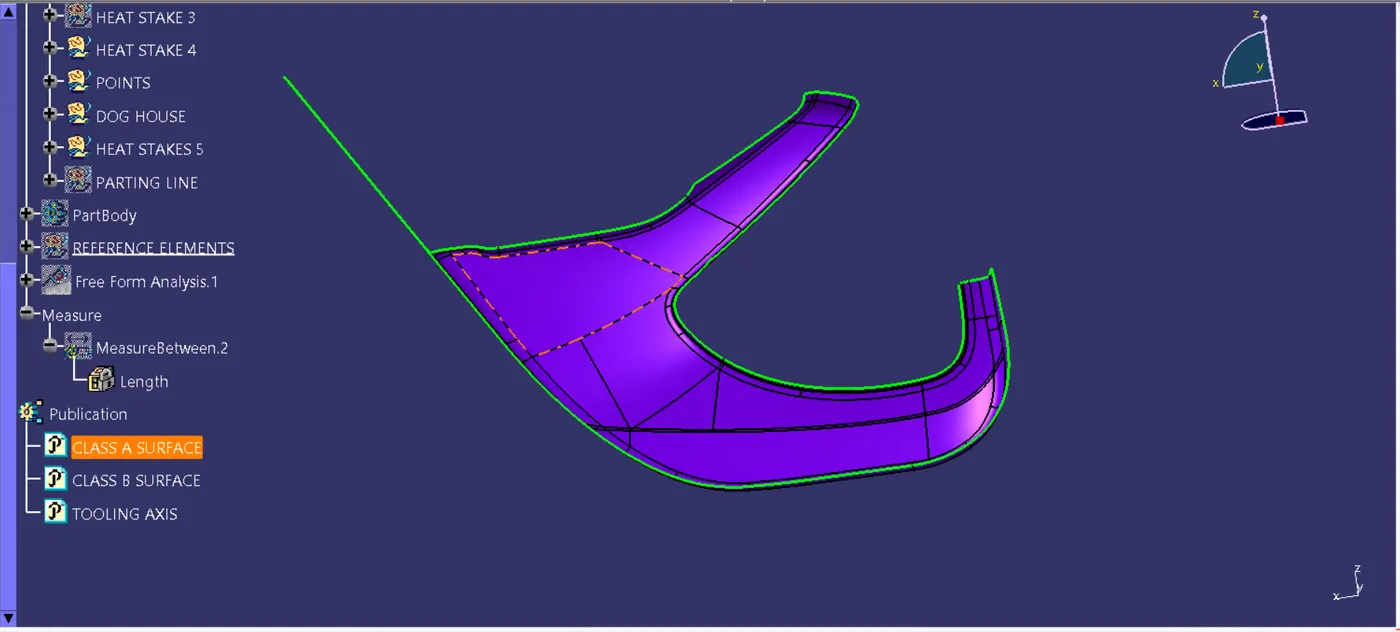

class A surface:
this is class A surface is ready with no open boundaries in the given input surface
Tooling axis creation:
Extract the surface from the class A where the surface is entirely visible and easy for the manufacturing by viewing the surface in different orientations
Now create a point at the middle At 0 coordinates and create a line in point and direction method and the create line is our main tooling axis
Draft analysis of the class A surface:
Perform the draft analysis on the class A surface to check whether all the surface are clearing the draft of 3 degrees with respect the tooling axis we create then continue with the model or if you notice any flaws notice them with the class A team to rectify or else continue with the class B surface creation
Creation of class B surface:

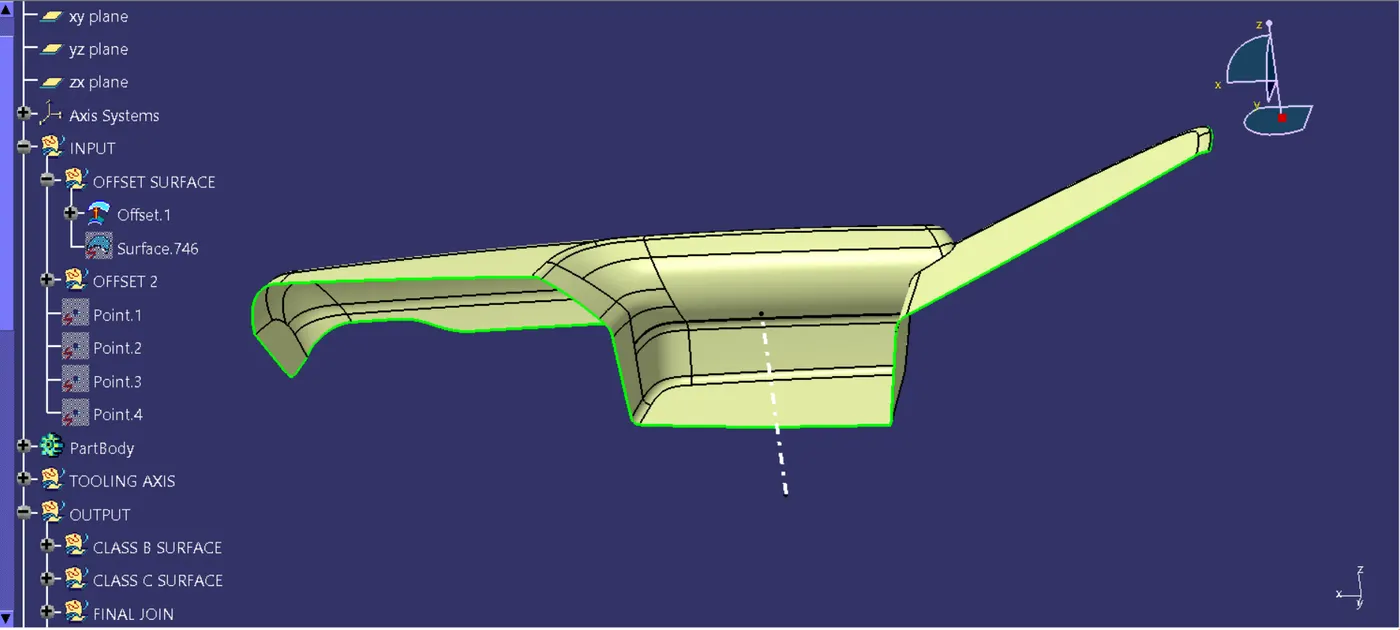

In case of the lower substract offset the class A surface to a value of 2.5 mm beneath the class A surface then extrapolate the class B surface which would help to make the final trim with the class A and C combined surface

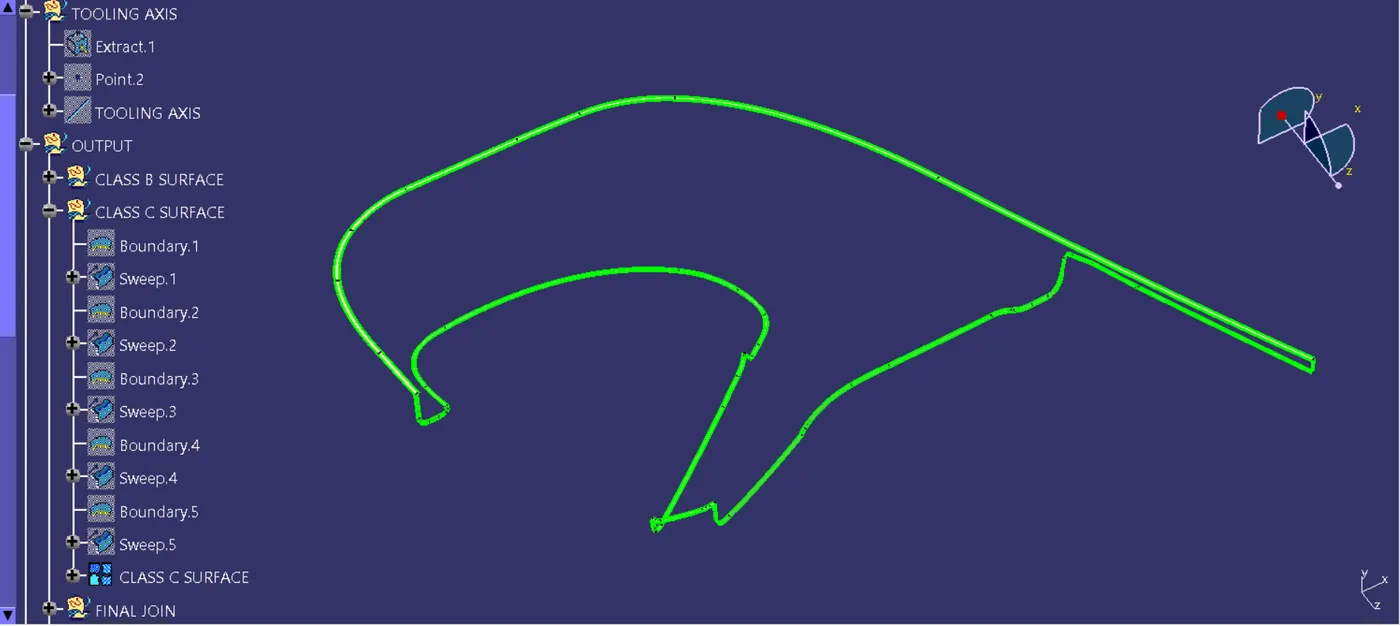

Creation of class C surface :
When the surface of the class C is parallel to the tooling axis then make use of the sweep with respect to the draft Direction to an angle of 3 degrees and the surface need to be outside the class A surface when seen from the normal direction with respect to the main tooling axis. And if the class C surface which need to create is perpendicular to the tooling axis then make the sweep with the reference surface With 90 degrees or with 87 degrees

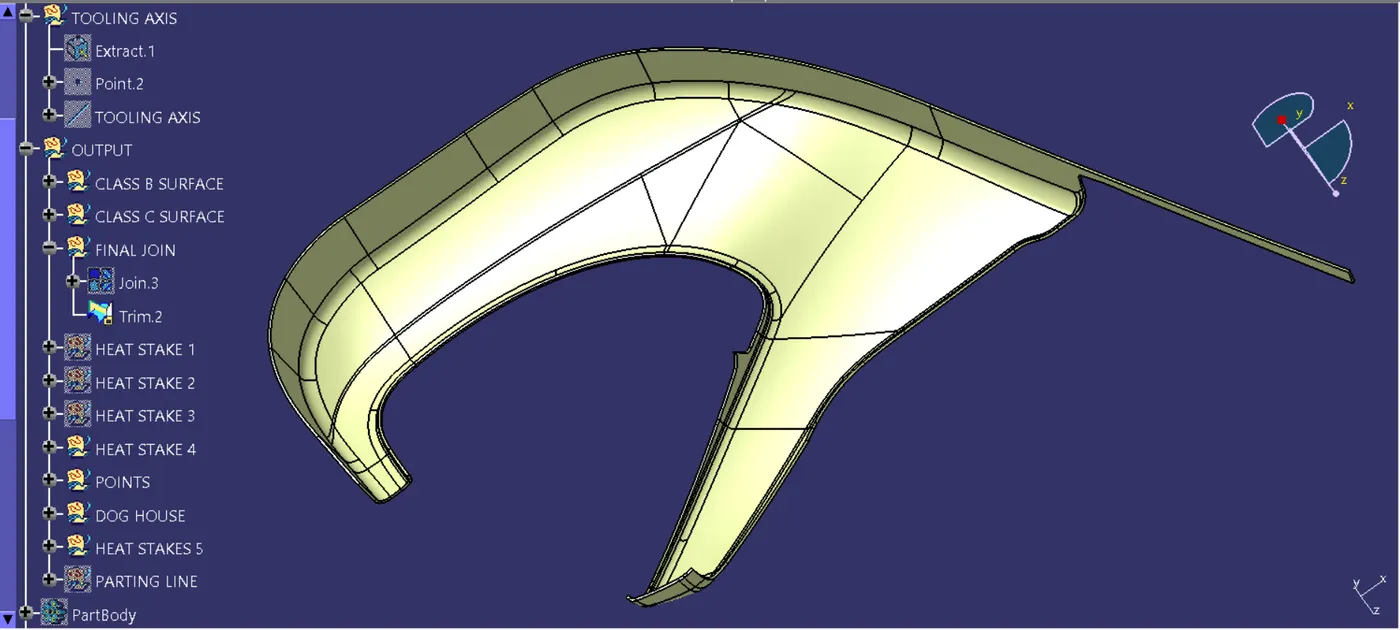

Final surface formation:
Now join the class A surface with the class C surface and trim the class B surface with the join A and C surface

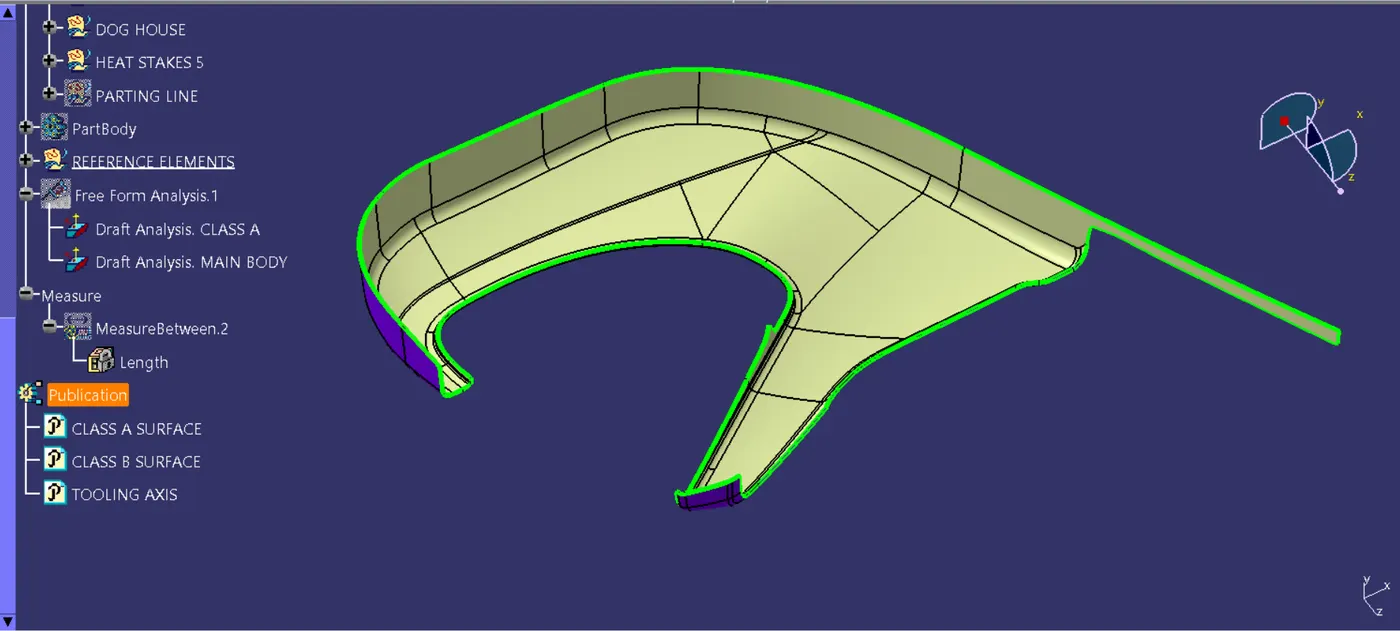

Solid surface body formation:
Now go to the part work bench and use the solid surface feature to create the solid surface body
Apply the suitable materuial to change the ambience of the solid body

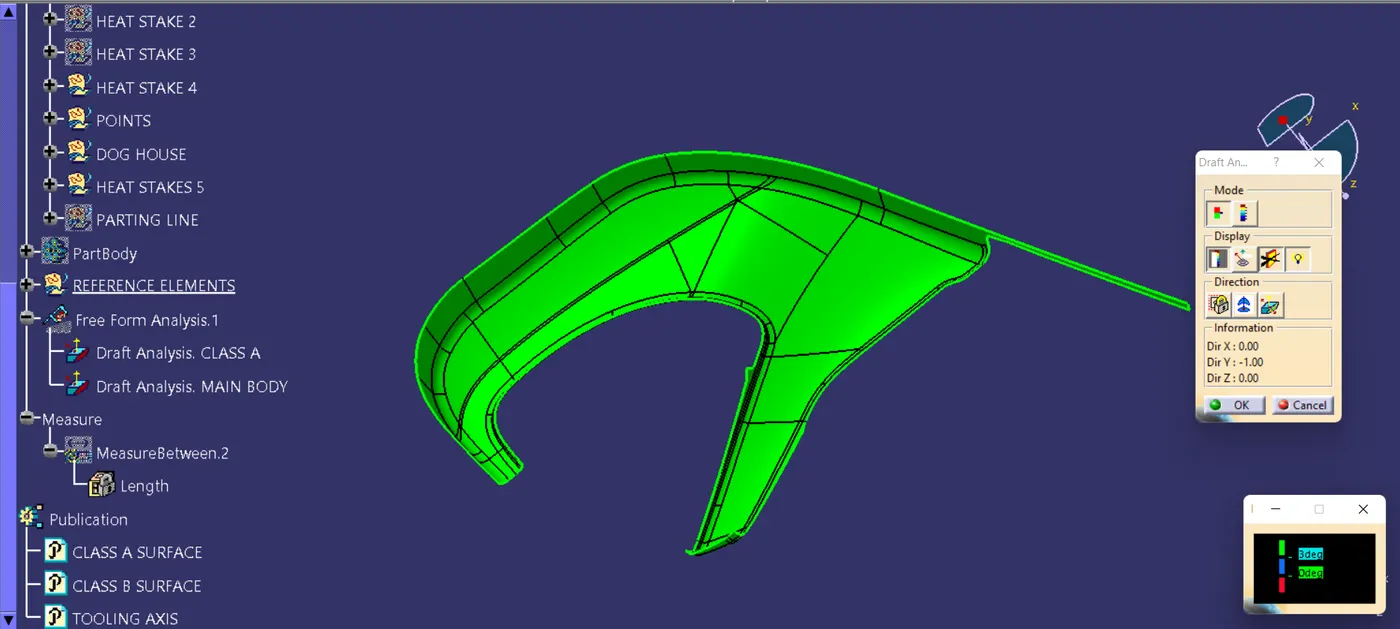

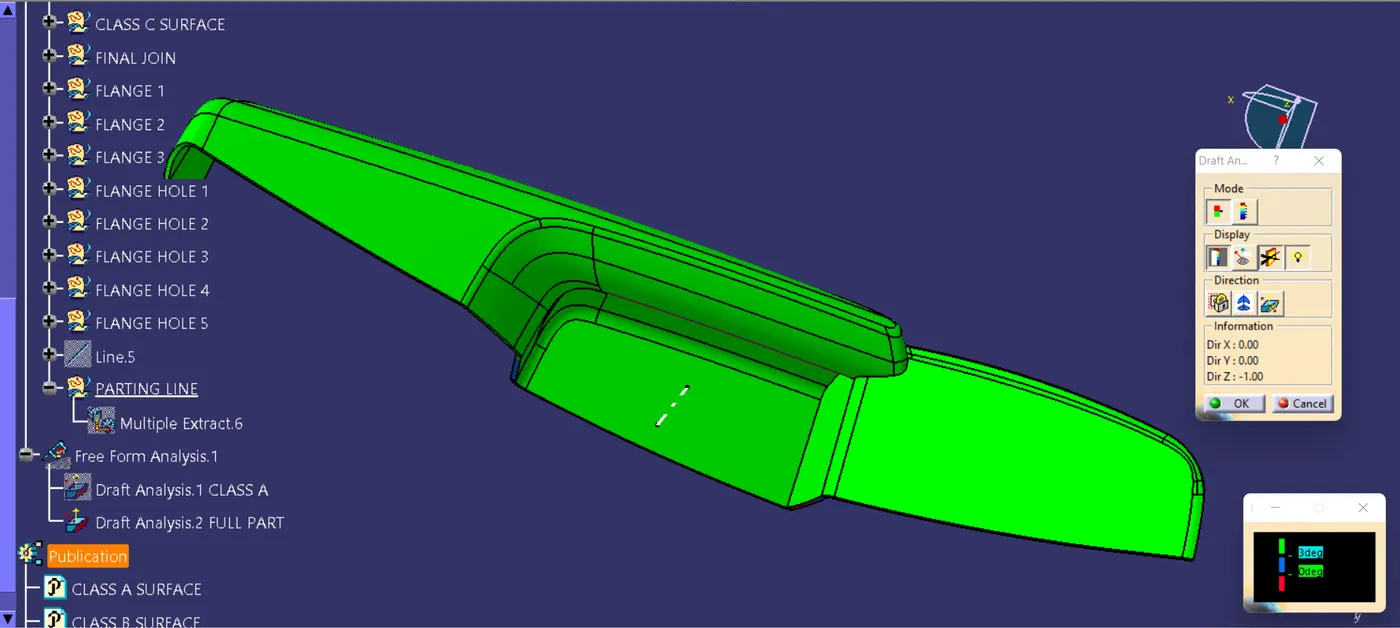

Draft analysis of the solid body:

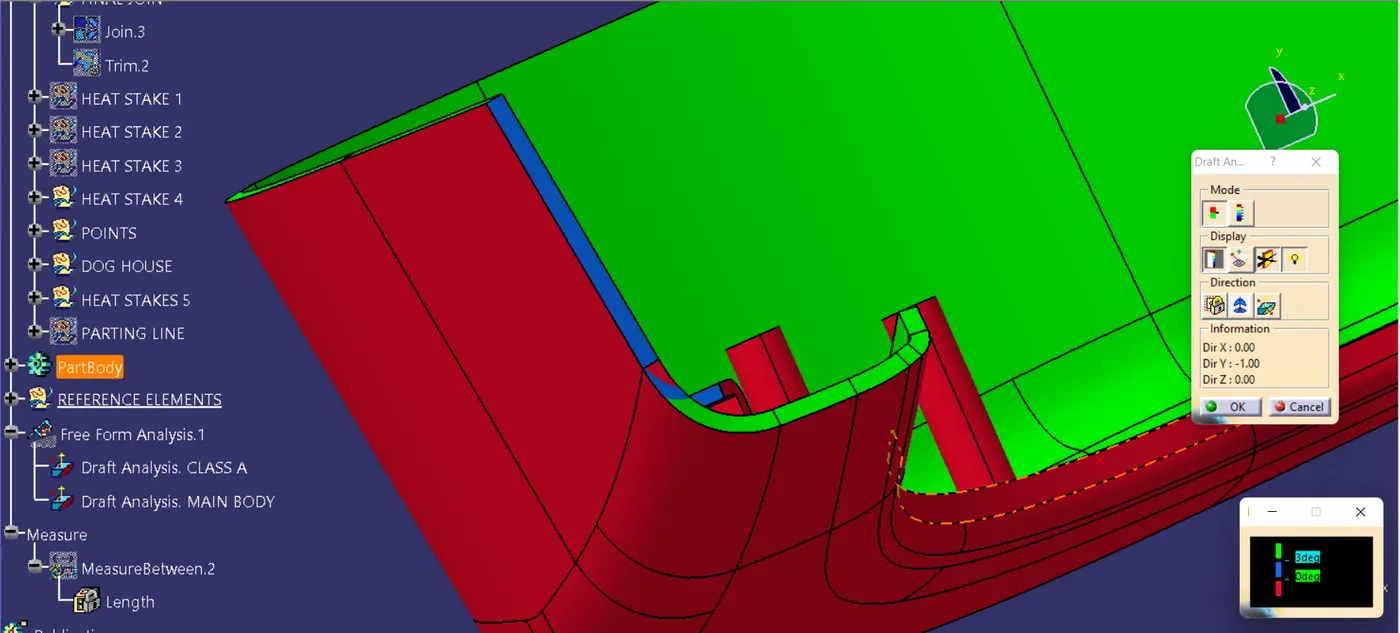

Preform the draft analysis on the solid body with a draft angle of 3 degrees and see the results
Almost all the surfaces are clearing the draft analysis in the B side direction.
Some of the surfaces are generating the negative draft or the draft angle less then the 3 degrees
These type of deviation in the draft angle on the surface is mainly due to the quality of the class A surface provided , if we manage to provide the correct draft it will lead to the distortion of the class c surface which leads to the difficulty in manufacturing the component so, report the above draft analysis of the solid body to adopt or alter the proper changes in the class A surface team.
Map pocket design:
Map pocket is the sub element situated right at the hub of the lower substract of the door trim panel . The processs illustrated is same as the prevous components first, we need to check the boundary of the given input surface whether there might have any open patches or else protrude the input surface as the required class A surface
The provided input surface is

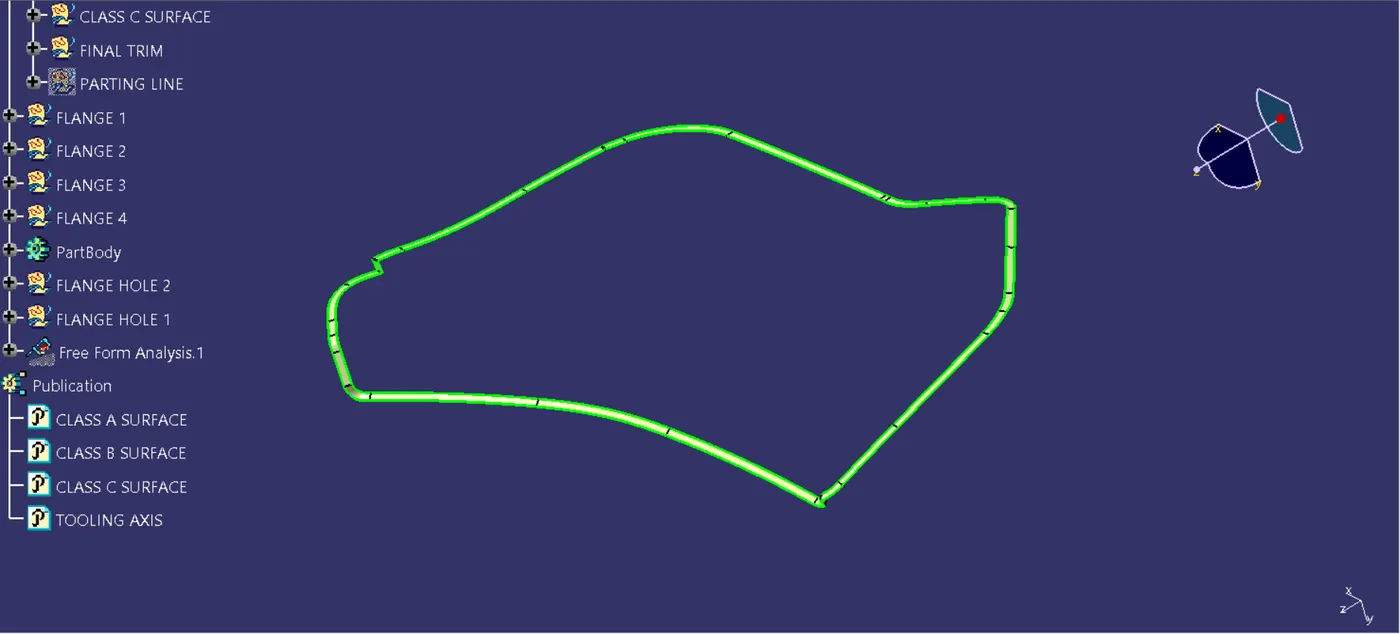

find out for any open patches by checking the boundary feature.
Tooling axis creation:
In case of the map pocket the we extract the surface in the Y direction orientation and use the point - direction to generte the tooling axis of the map pocket
Draft analysis of the class A surface:
Once the tooling axis is create analyze the draft for the class A surface with a draft angle of 3 degrees
So, its perfectly clearing the draft of 3 degrees with the generated tooling axis
Class B surface creation:.
Now step forward to create the class B surface deploy the 2.5mm offset of the class A surface to generate the class B surface beneath the class A surface
Extrapolate the class B surface edges to form the perfect trim with the class A & C join
Class C surface creation:
Now create the class C surfcae which is an intermediate surface between the class A and the class B surface generally like a fill between the two surfaces created with the help of the sweep feature with a draft of 3 degrees
along the tooling axis direction and with a draft of 90 degrees along the reference surfcae sweep
Final surface creation:
Once all the surfaces are created that is the class B and the class C surfacesthen join the class A & class C surfcaes and trim the join surface with the class B surfaceto form the final closed surface
solid body creation:
Go to the part workbench and use the close surface feature to form the solid body out from the close surface body and perform the draft analysis

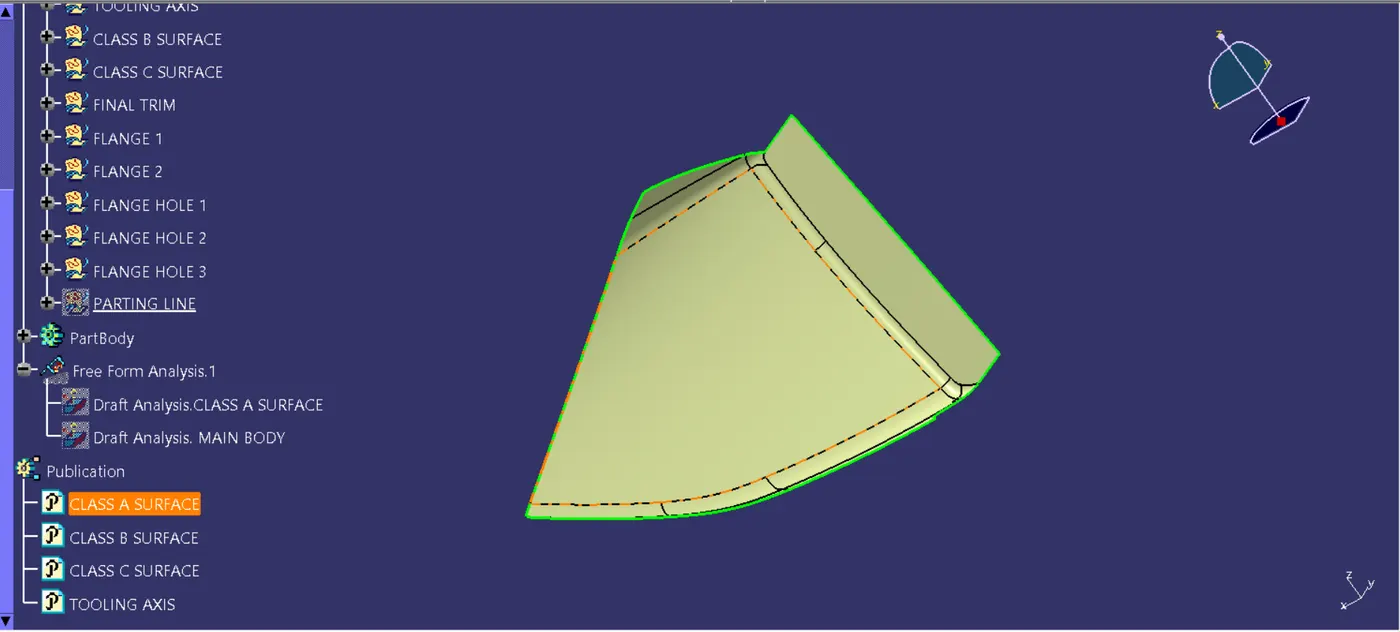

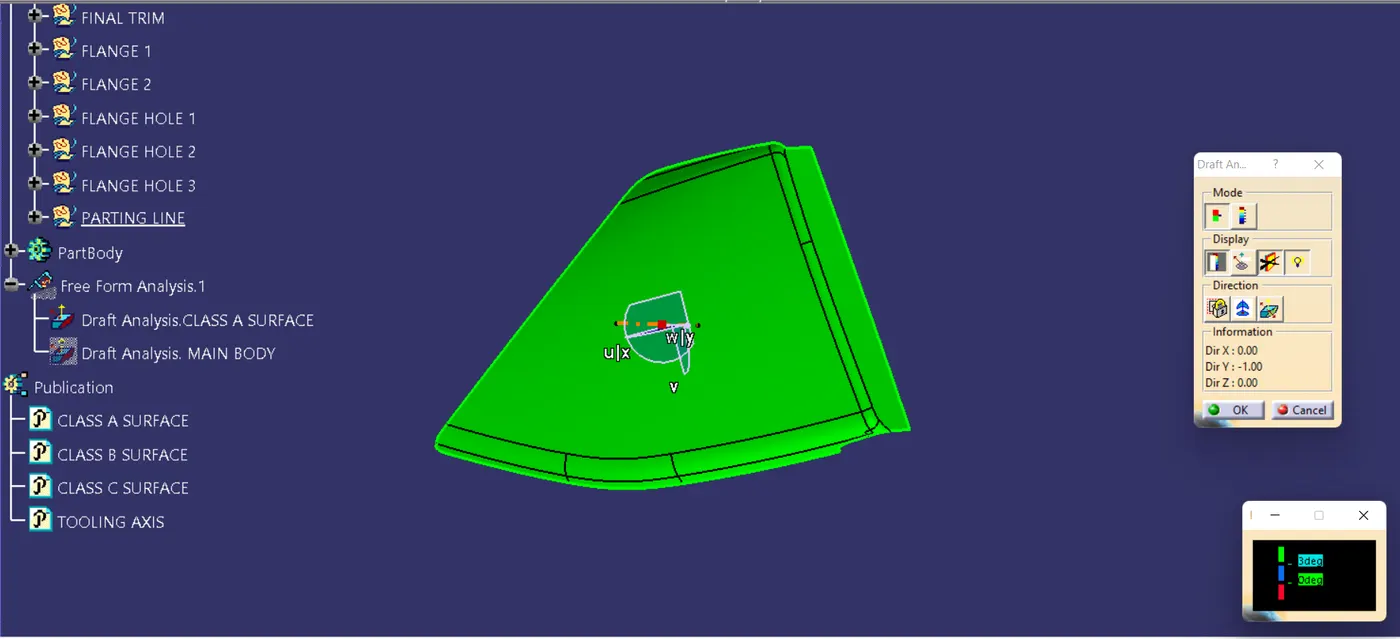

Draft analysis of the solid body:
Now perform the draft analysis with a draft angle of 3 degrees on the solid body
The results obtained are
Almost all the surfcaes are clearing the draft of 3 degrees along ther B side but some of the surfaces thet leads to a lower draft opr the negative draft mainly these issues rise when there is an issue with the class A surfcae .
Here the draft is nearly approach to the negative 1 degrees this is due to the curvature of the class A at the junction. From the results we obtain from the draft analysis of the solid body we could come to conclude that the quality of the surface provided in the input surface is not good that is the surface doesnot have any draft in the class A itself so we need to get a report to alter the changes in the class A surface from the team.
Bottle holder design:

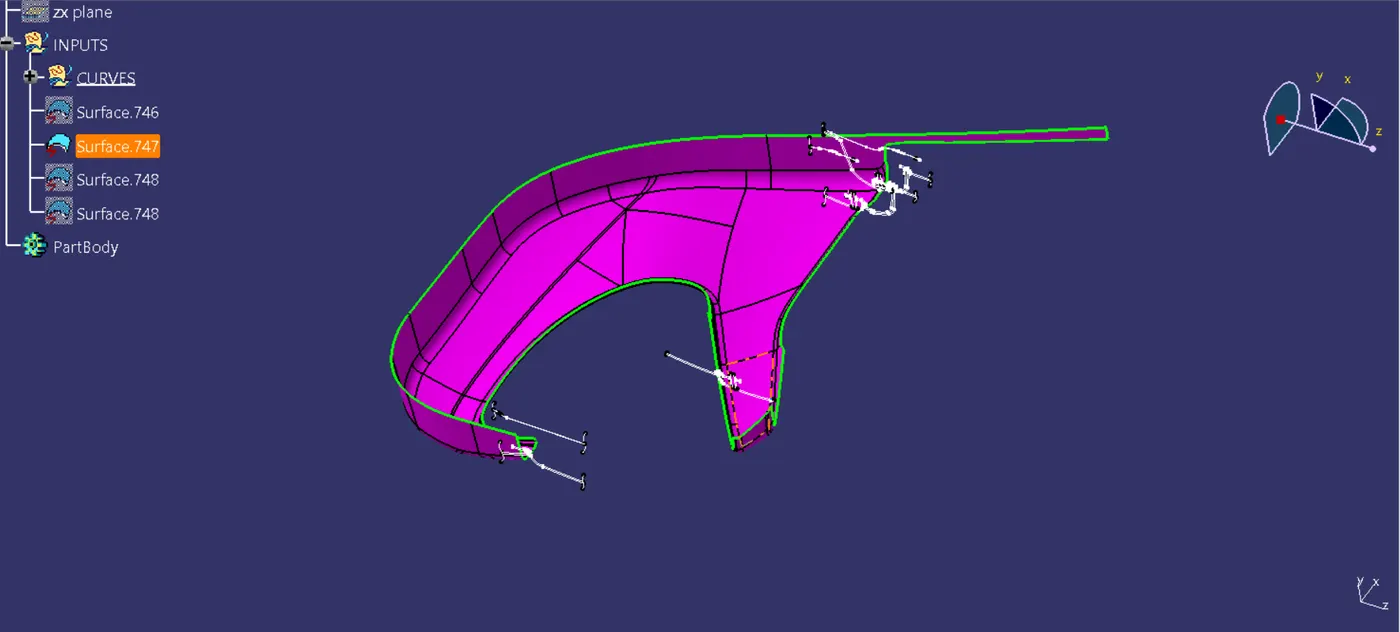

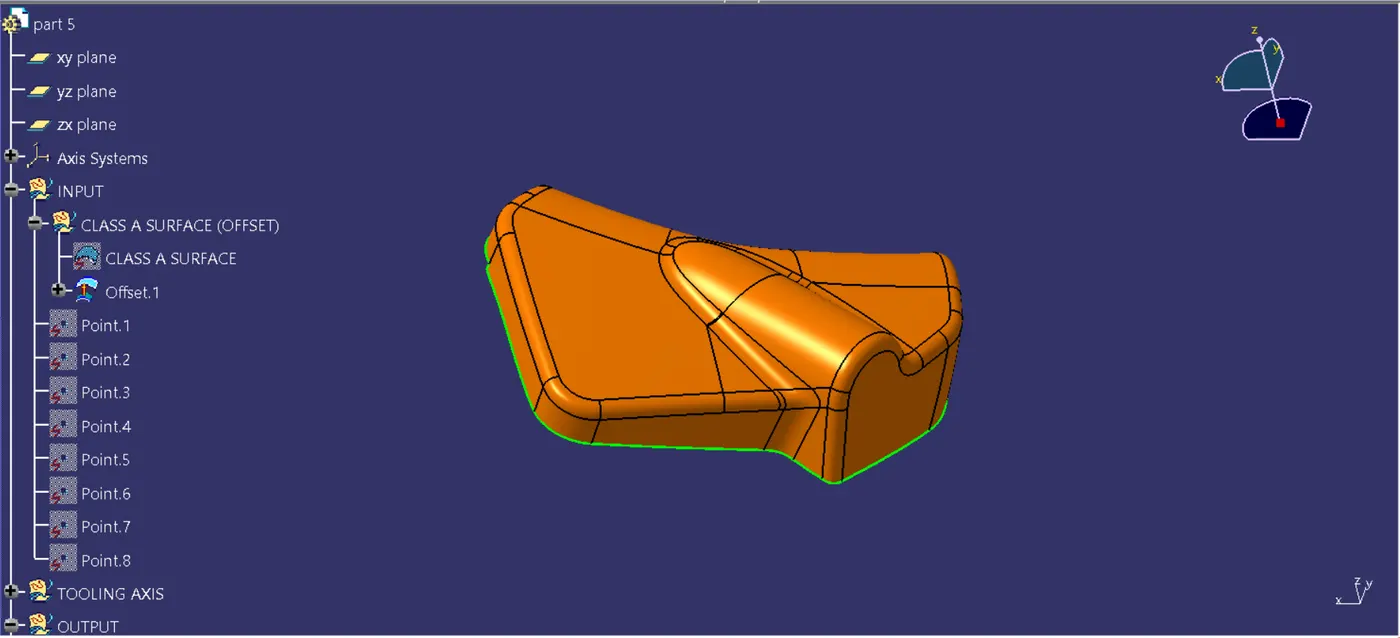

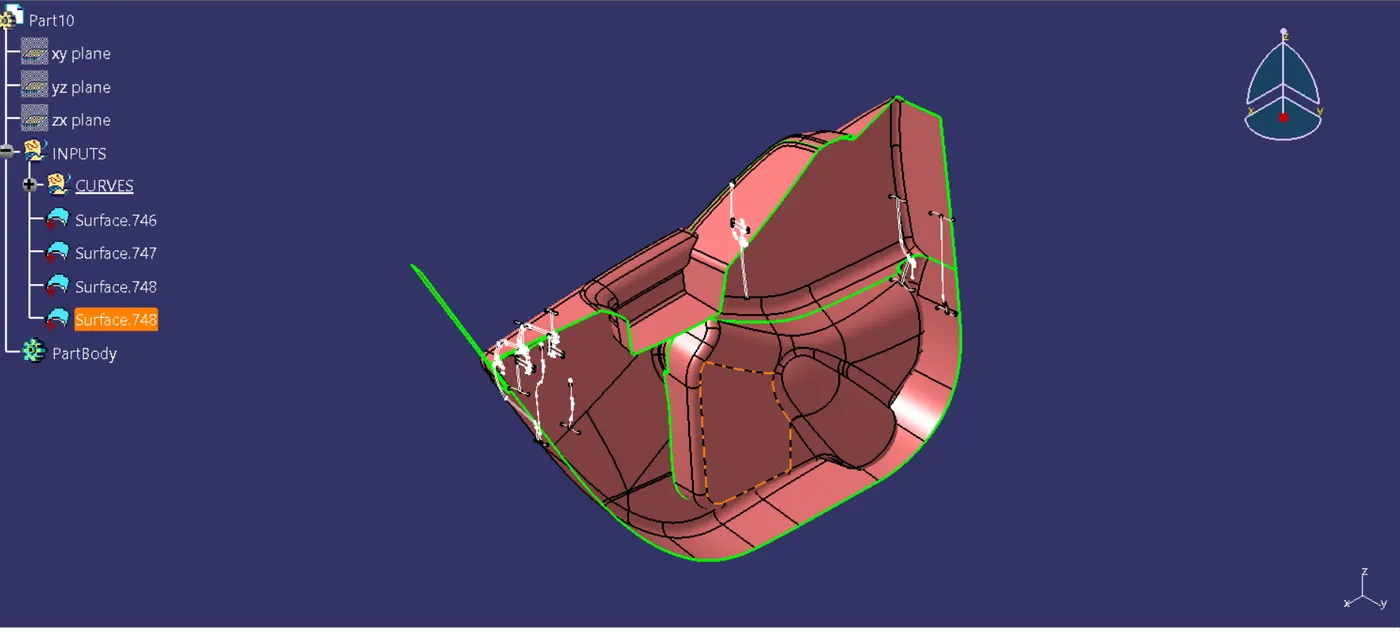

The input surface provide for the bottle holder is

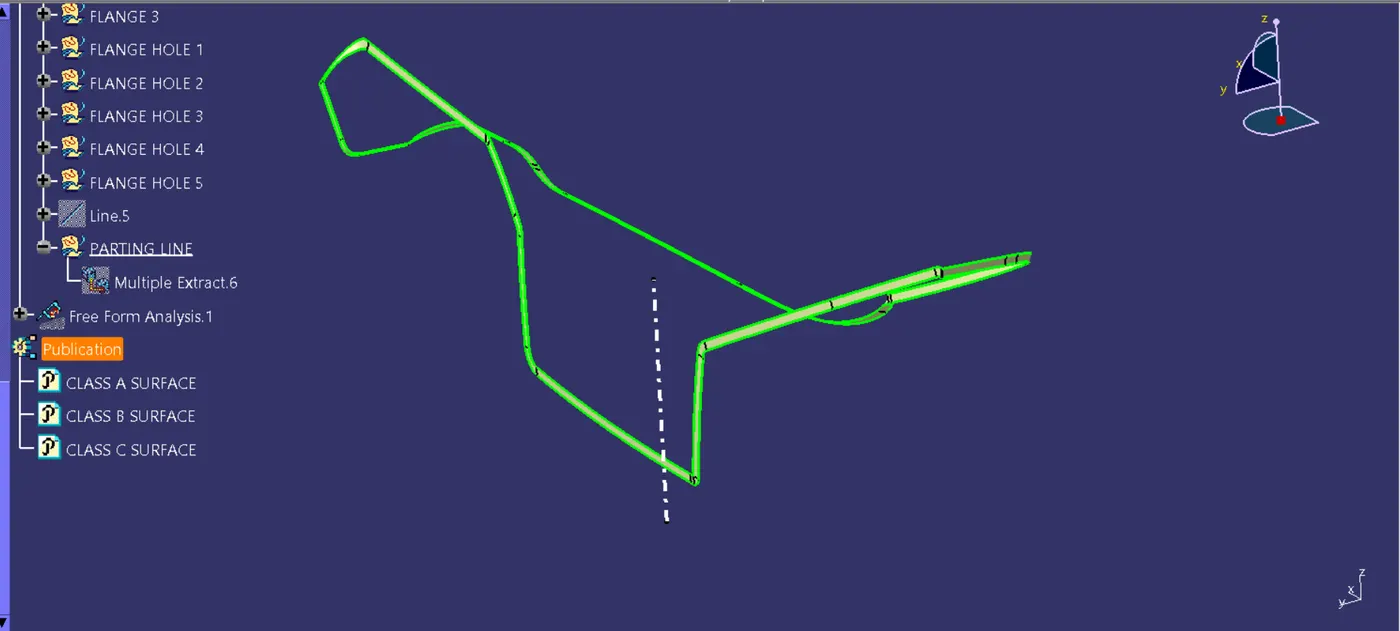

Check for the open patches if exists , here in case of the bottle holder the oe particular surface is creating a problem in the further solid body creation . So ,here we are offsetting the class A surface to clear the flaw in the surface.
Tooling axis creation:
In the case of the bottle holder use the flat surface and extract the surface and create a point at the 0 coordinates and use the point - direction to create the tooling axis

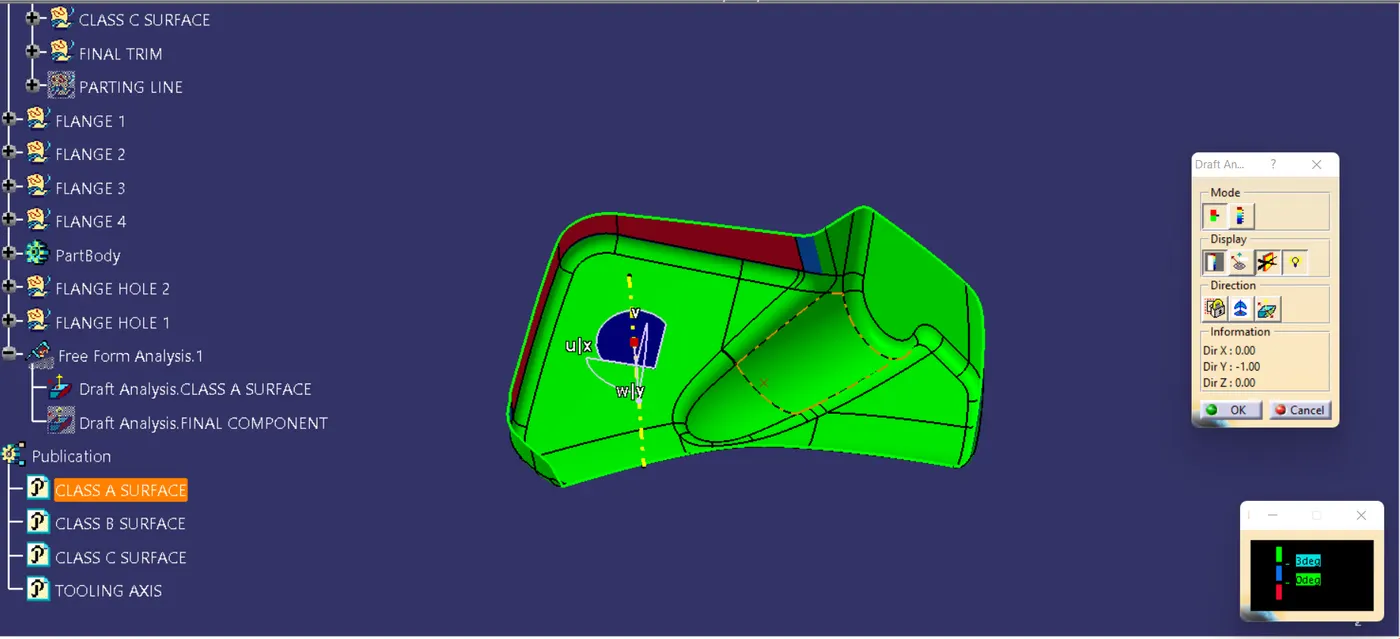

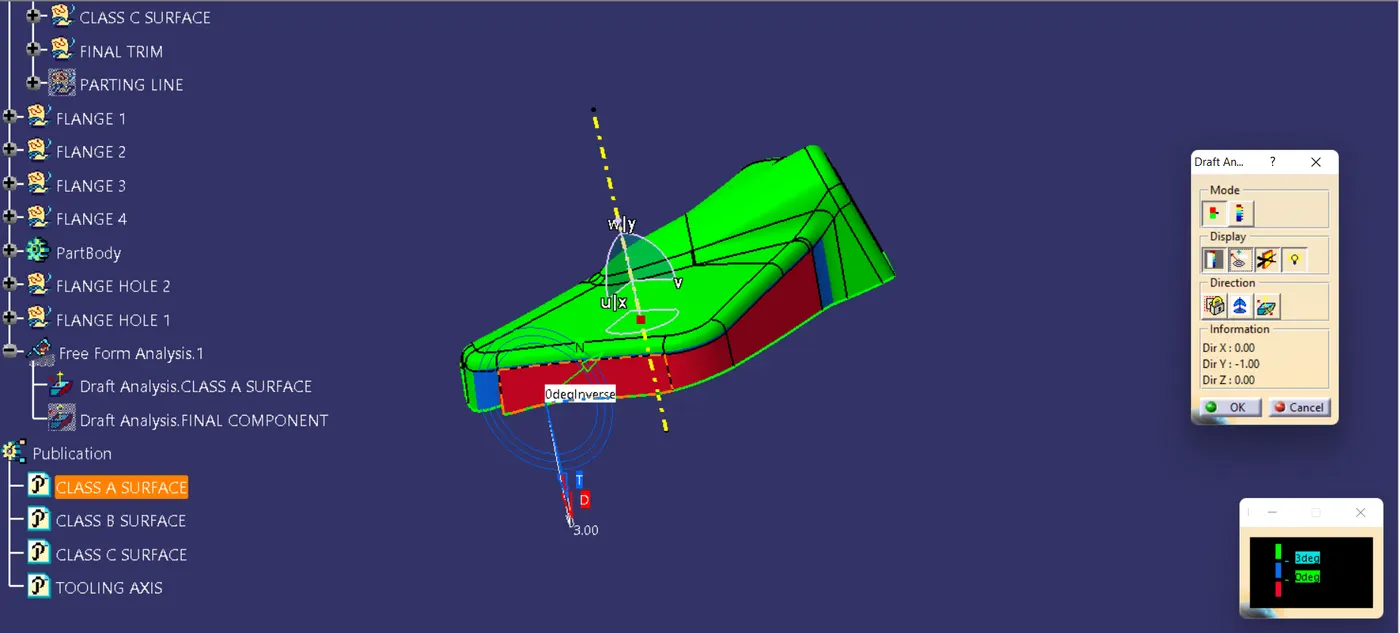

Draft analysis of the class A surface:
Perform the draft analysis of the class A surface with a draft angle of 3 degrees the result obtained is
In the draft analysis some of the patches are red ( the draft is 0 or below zero ) and some in blue region shows that the draft is ( greater than 0 and less than 3)
So we need to report to the class a team as te draft on the given input surface is not appropriate and need to get an update a class A surface So in this we need to continue forward with this draft analysis results for the further creation
Class B surface creation:
Now offset the class B surface to 2.5mm following the master section beneath the class a surface and extrapolate the class b edges to an extent to form the proper trim with the class A and C join Choose the correct direction for offsetting the surface
Class c surface creation:
Now create the class C surface with the aid of the class a surface and the sweep feature along the draft direction and the reference surface parameters . So provide adraft of 3 degrees along the draft direction making the direction of the draft as the main tooling axis and 90 degrees draft with rreespect to the reference surface

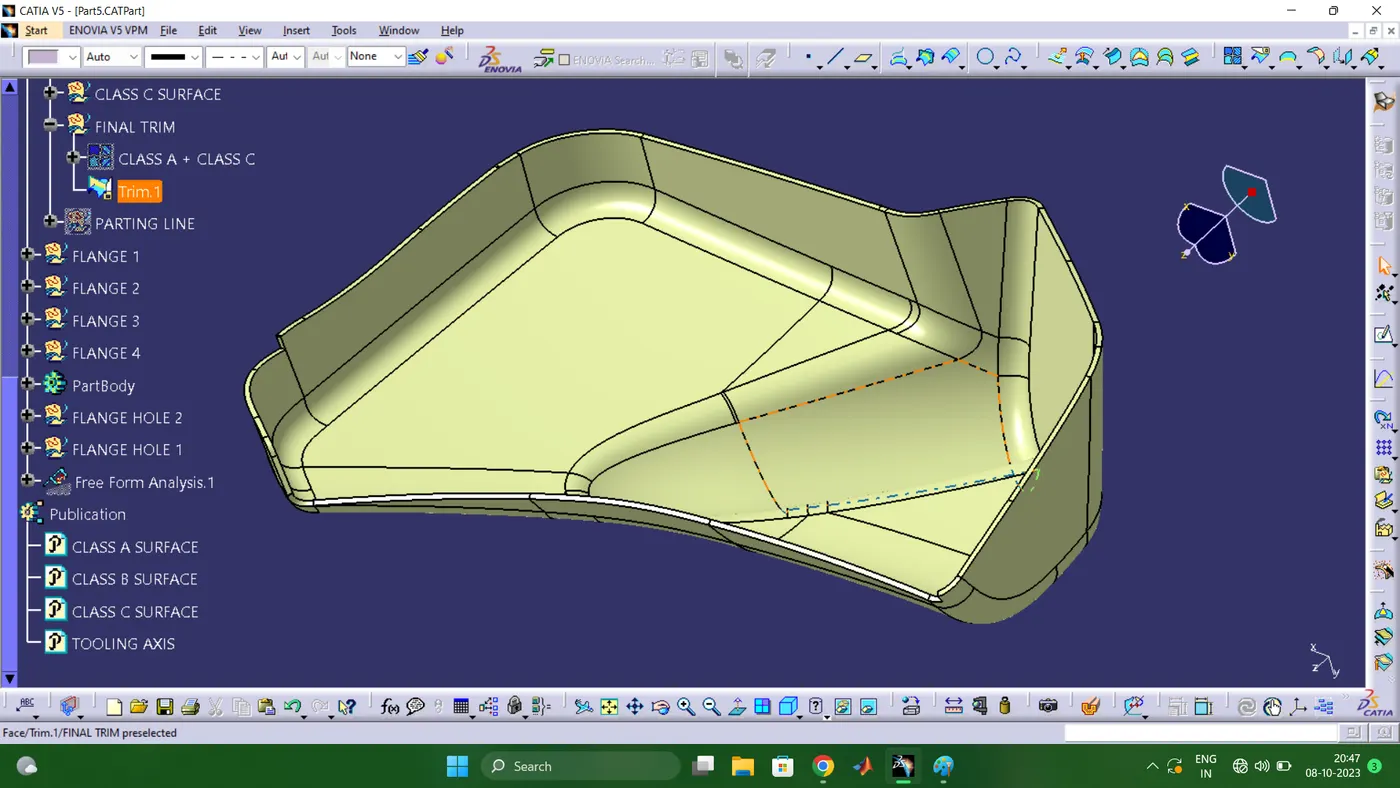

Final surface creation :
Once all the surfaces are created that is the class B and the class c surfaces join the class C surface with the classs A surface and trim the joined surface with the class b surface

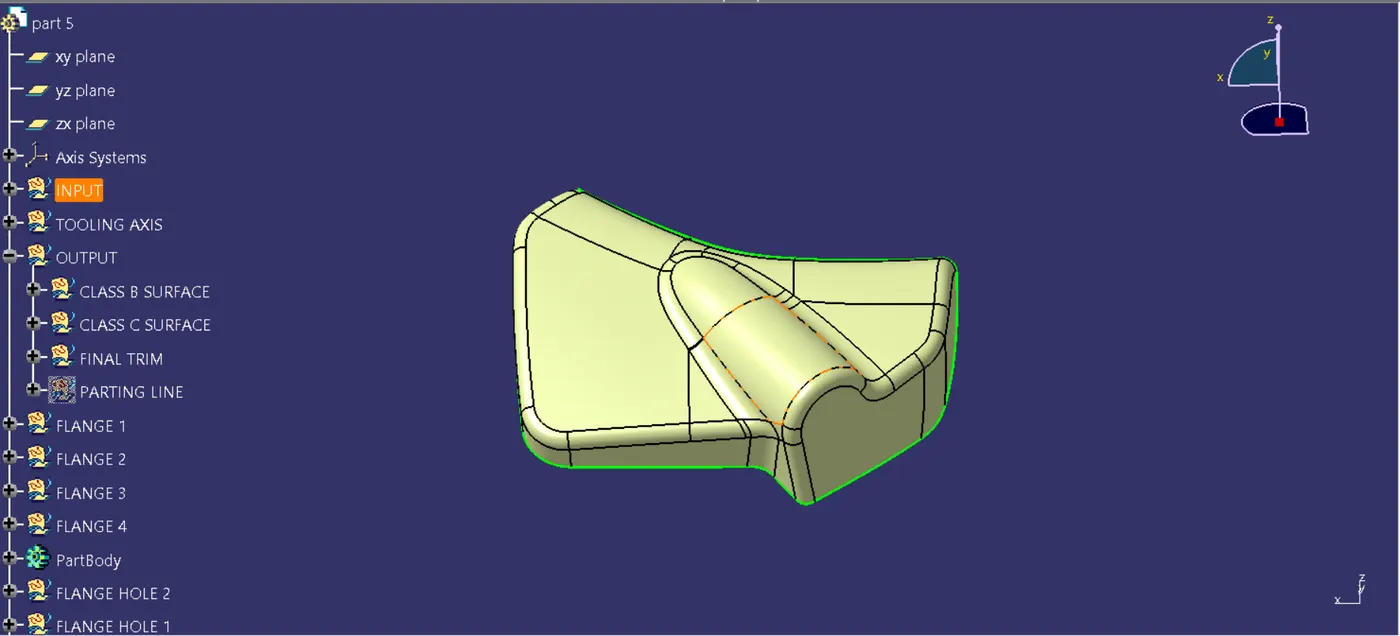

This is the final closed surface with the class B & C surfaces
Solid surface creation:
Once the closed surfae is created then go to the part workbench and use the solid surface feature to generate the solid body out of it

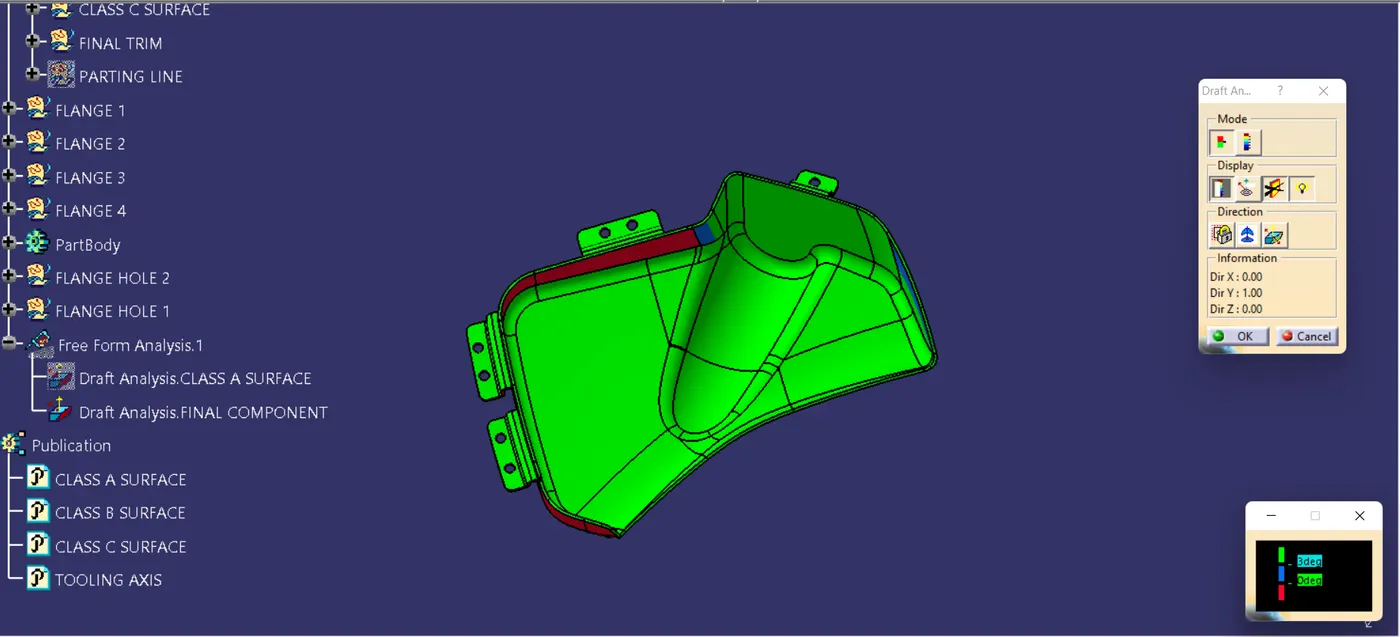

Draft analysis of the solid surfcae body:
perform then draft analysis of the solid body with a draft angle of 3 degrees
The obtained results are the
The entire surfaces of the solid body cannot be able to clear the draft analysis in then solid body because of the errors that spotted on the class A surface draft analysis so we need to make a report including the errors that spotted on the solid body too and submit to the respective team to alter then changes in the input surface to obtain a proper output
This negative draft is mainly due to the inclined curvature edges and the improper continution of the edges along the surfaces these are the changes that need to be updated and rectified by the class A surface input team
Once all the solid bodies of the components are generated we need to move onto the B sifde attachment features
The B side attachment features may include the
- Dog house
- Ribs
- Screw bosses
- Flanges
- Snap fits
- Heat stakes
B side attachment features:

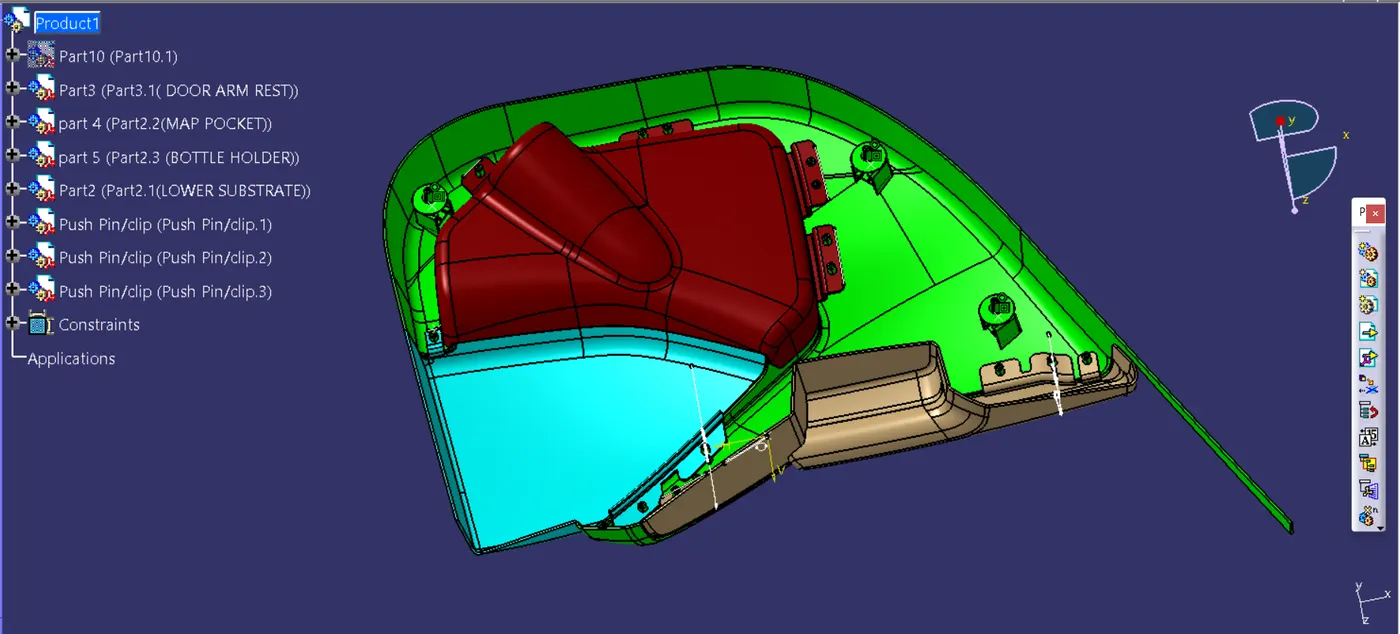

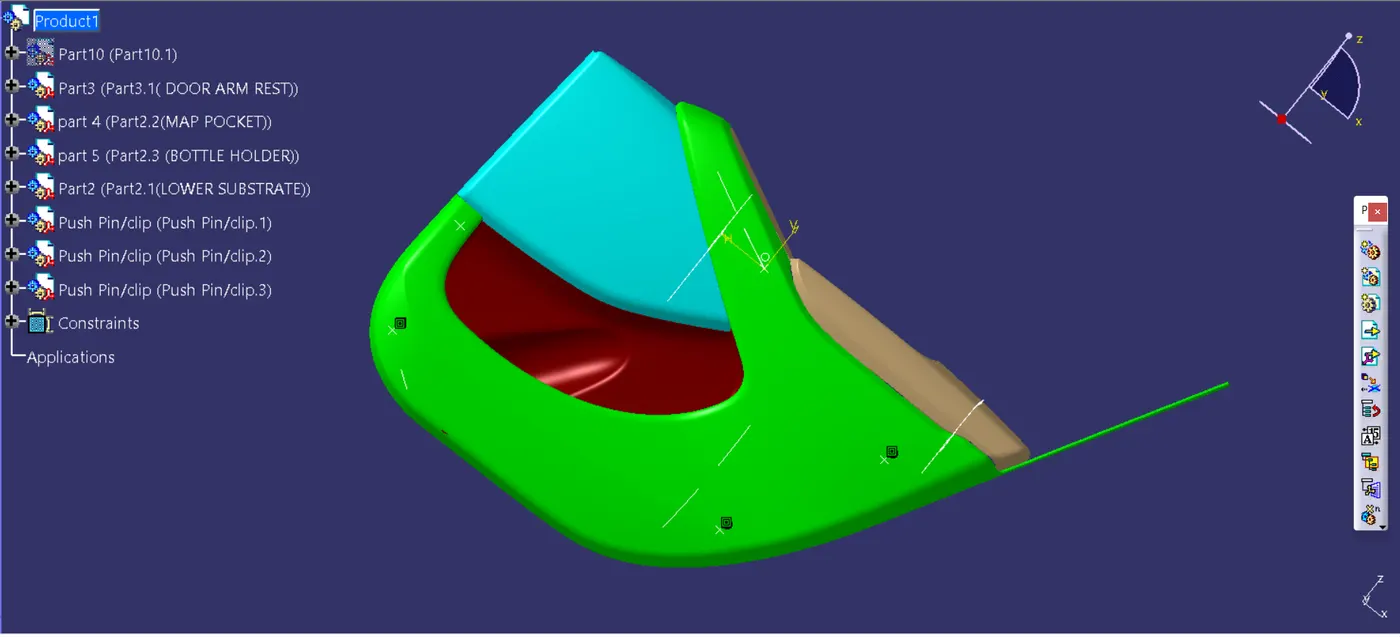

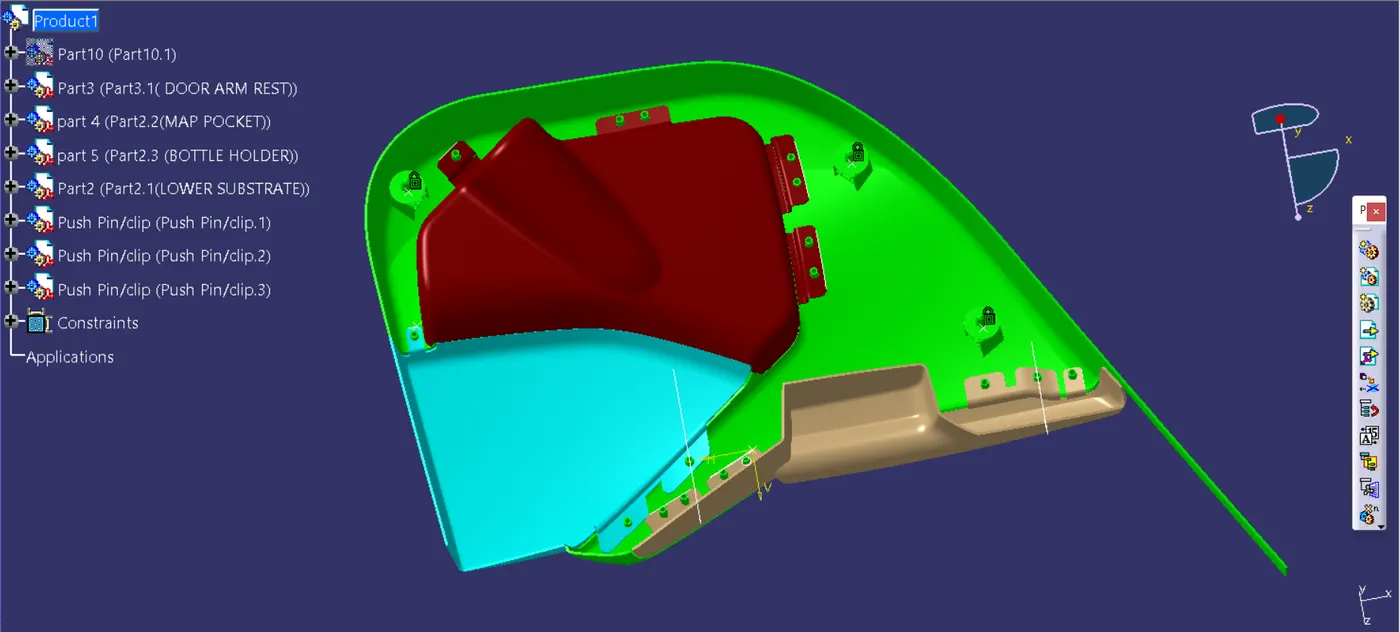

Once all the solid bodies are completed the assembly would be like
so for the final solid surface components we need to provide the proper attachment features by adopting the industry design standards and design parameters considerations
AS a design engineer we need to have an idea regarding how a component need to connect with the adjacent component either by the flanges and the heat stakes assembly or with the flange and the locator assembly or with the dog house and the push pin etc
Lower substract attachment features:

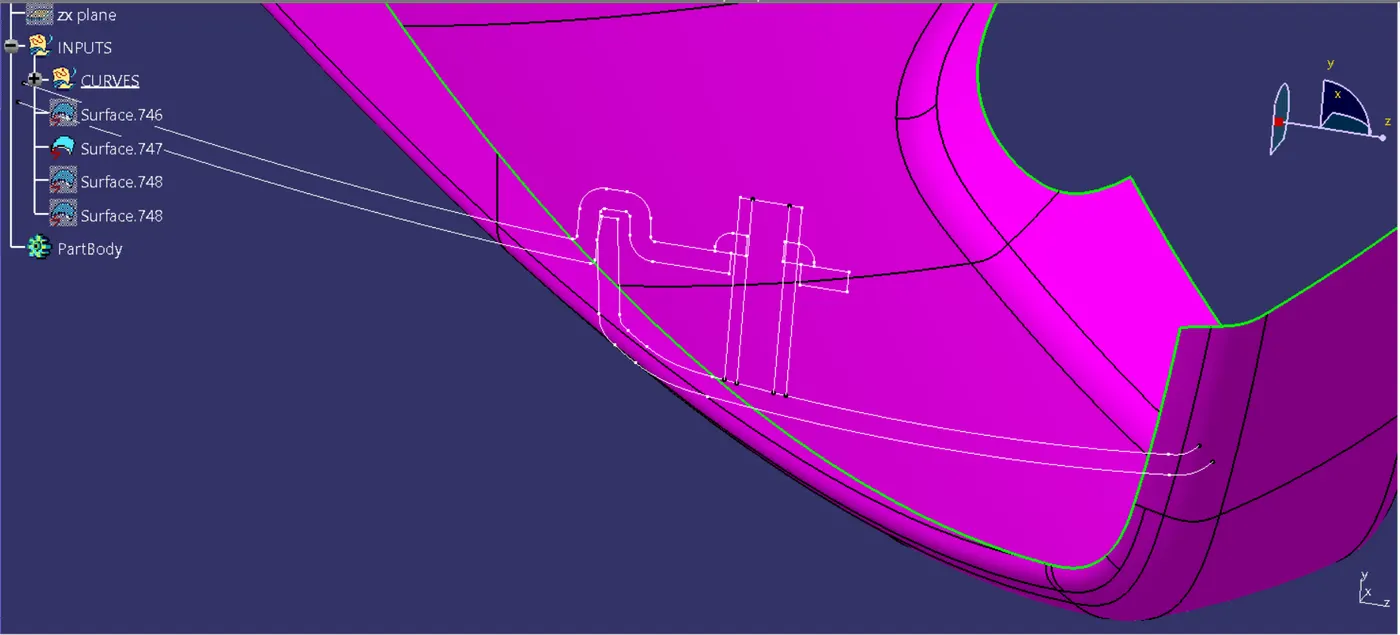

Based on the master sections provided for the for the input surface of the lower substrate it indicates theat the heat stakes are positioed on the surface

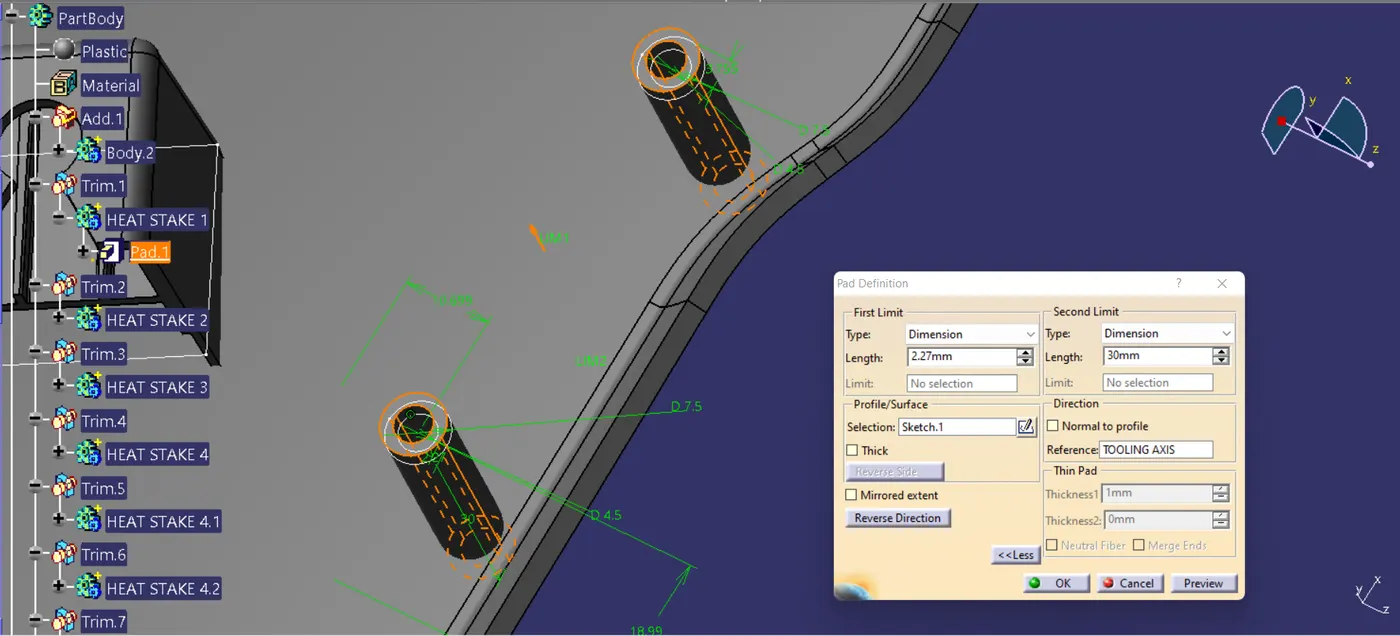

Following the master section wee need to create the heat stakes on the lower substract B side

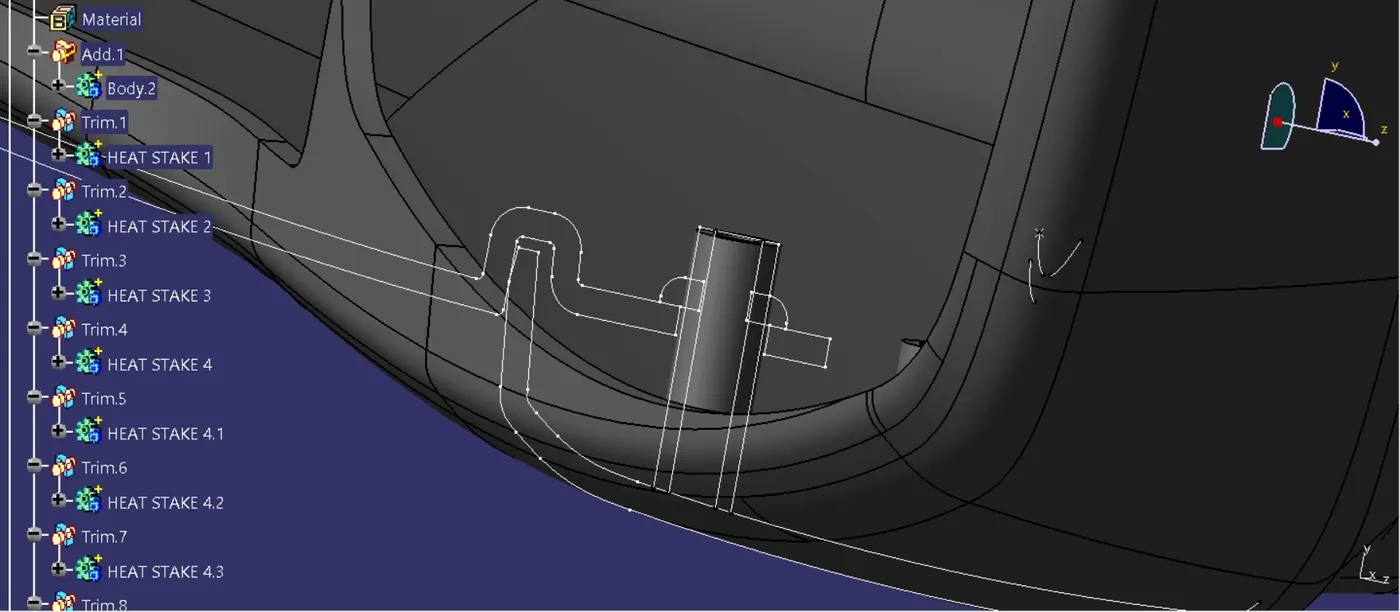

Heat stakes :
Process for heat stakes assembly:
In thermal staking, also referred to as “heading or riveting”, the controlled flow of the molten plastic is used to capture or retain another component, usually of a different material.Thermal staking provides an alternative to welding when the two parts consist of dissimilar materials which cannot be welded or when simple mechanical retention of one part relative to another is adequate .
Design parameters:
- Height we need to follow the master section
- Draft provided on the outer and the inner face with an angle of 0.5 degrees
Pad the sketch with a height represent in the master section taking reference as the tooling axis direction

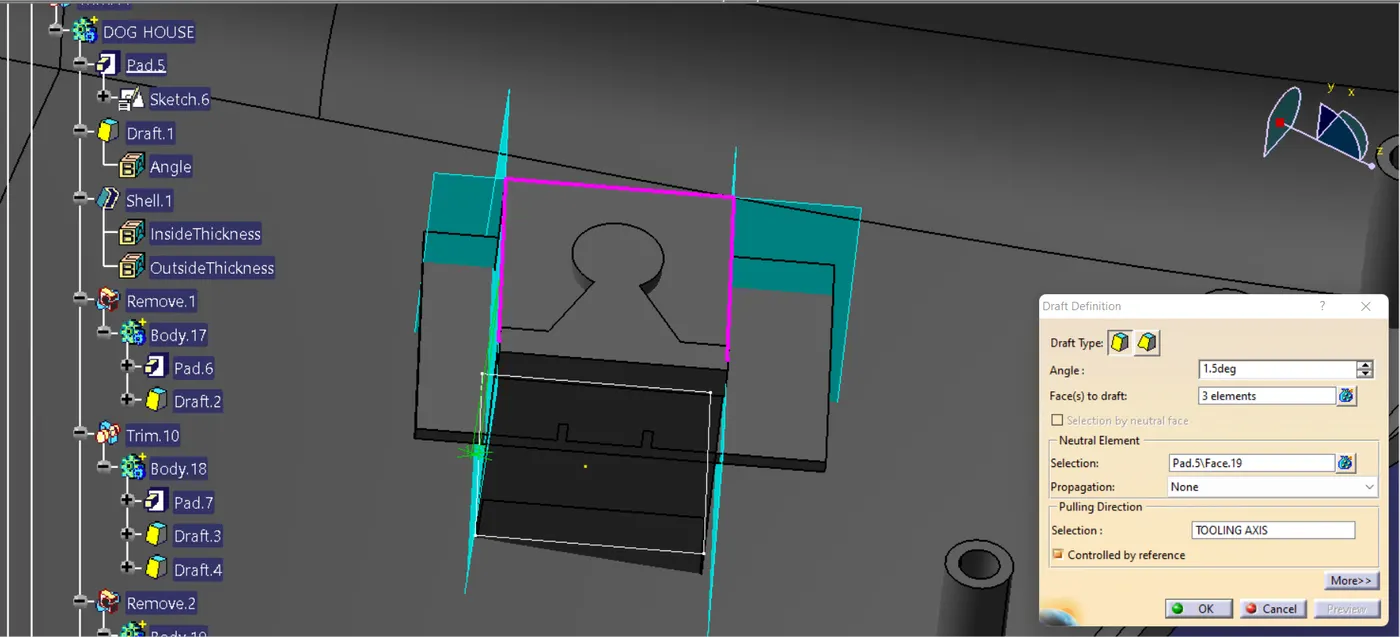

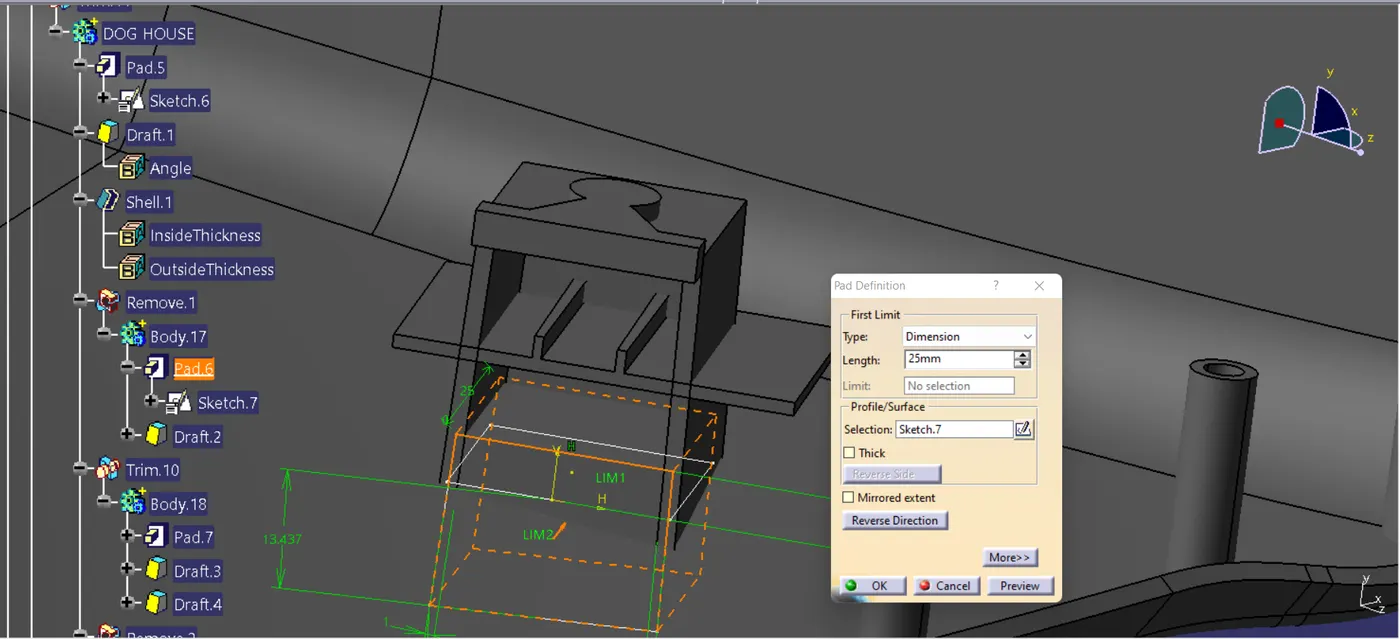

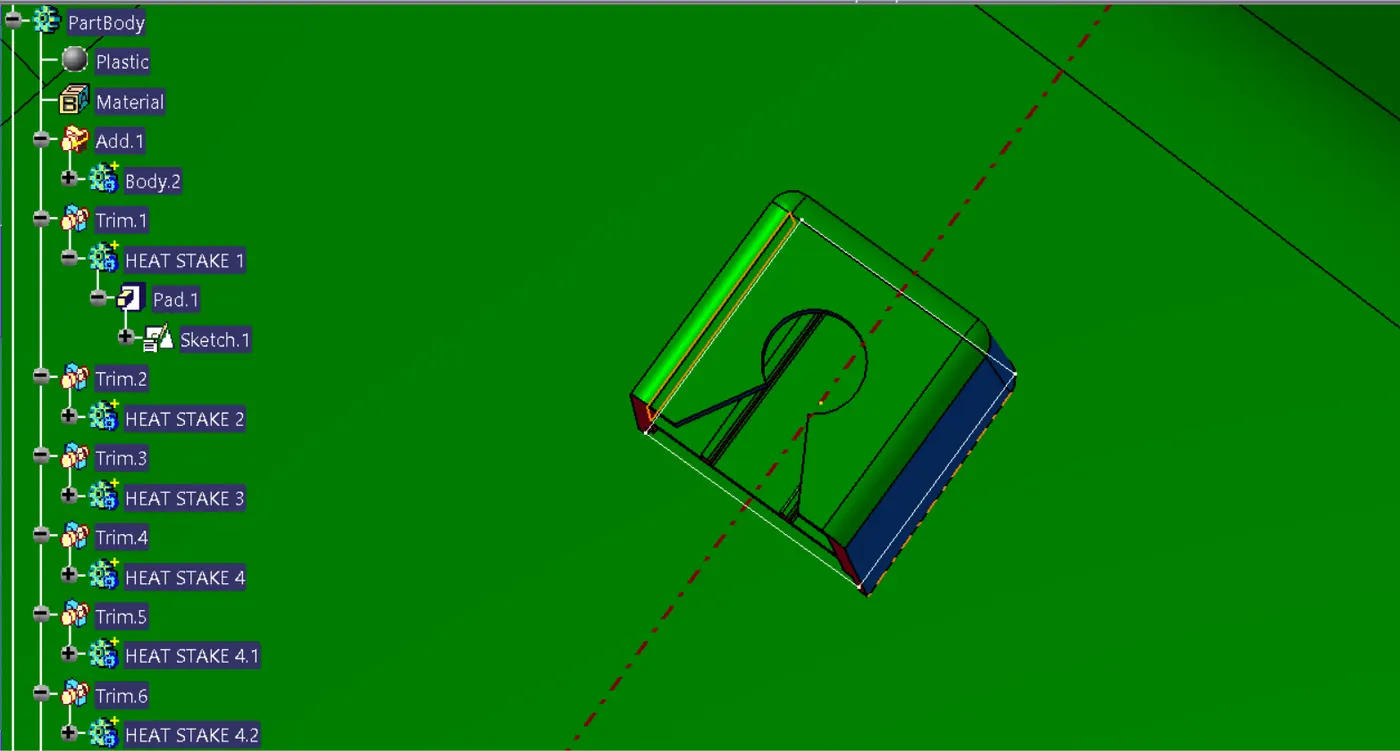

3. Dog house creation:
DOGHOUSE- Doghouse is an engineering feature used in the plastic trim design which helps to remove sink marks formed on Class-A surface while creating attachment feature on Class-B surface. Doghouse is a supporting feature, other features like locators, heat stakes, pushpins are mounted on top of doghouse for fixing and assembly purpose. Doghouses are subjected to draft analysis to prevent breakage of the component during ejection from the mould.

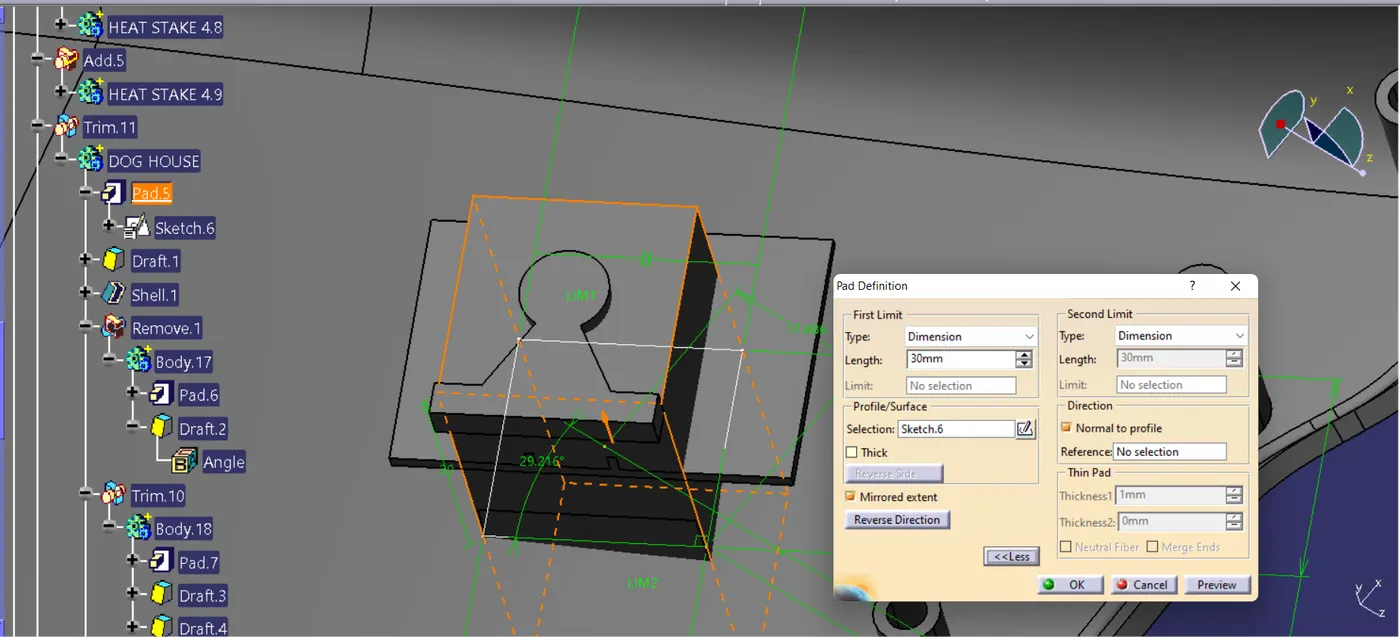

Here I has used a 25*25 dog house padded to a height of 30mm

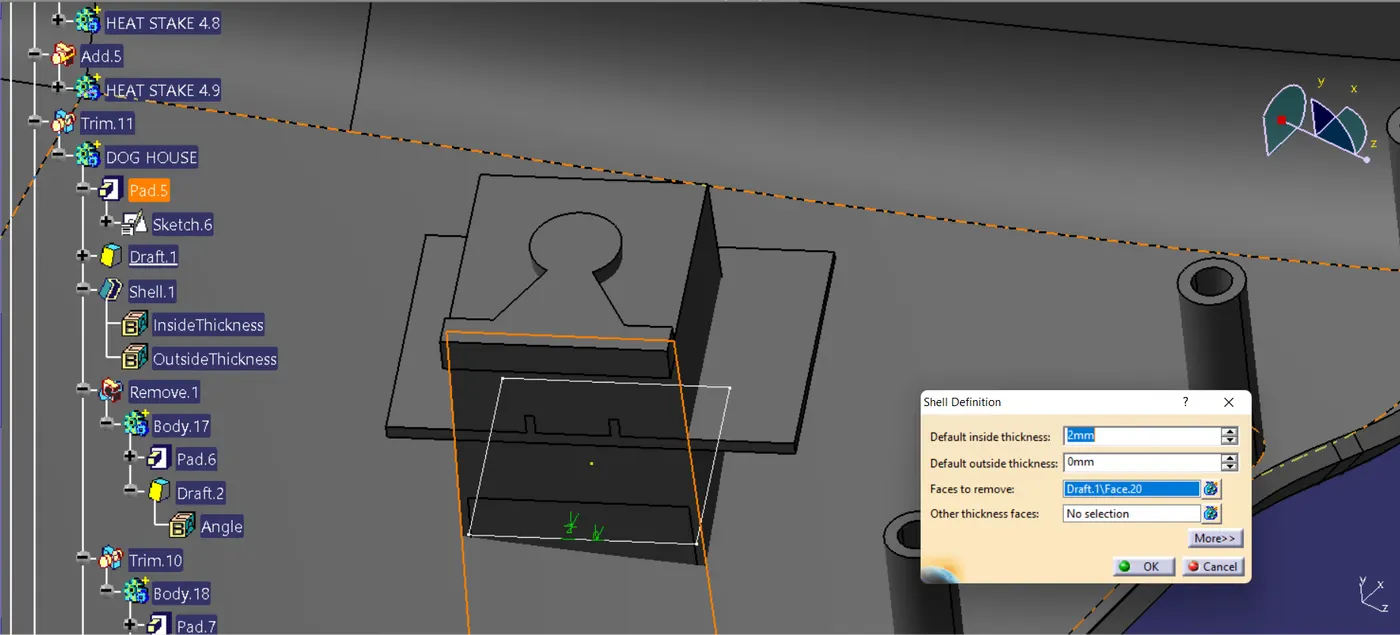

Apply the shell of 2 mm to make a cavity in the dog house

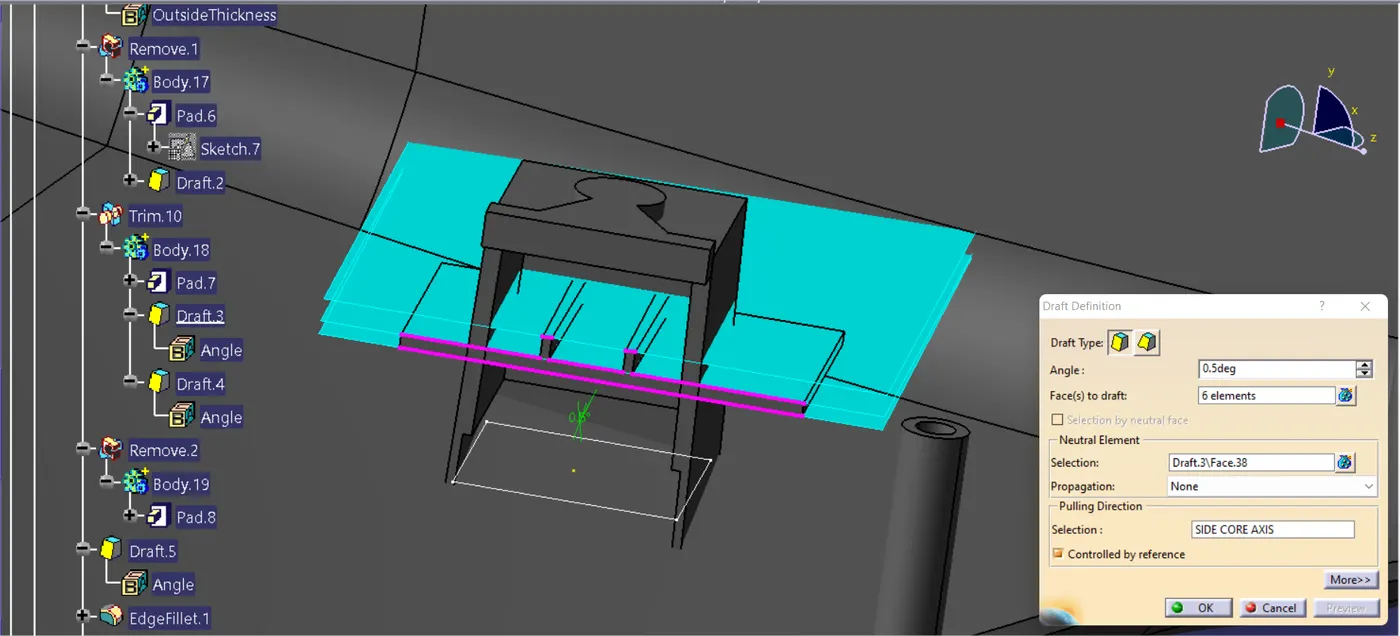

Now provide an ouside draft of 1.5 degrees on the outer walls taking the pulling direction as the main tooling axis
So generally the thickness of the component at the intersection of the dog house with the lower substract is 2.5 mm but with this thickness there may be possibility of plastic defects include the sink marks at the bottom So, the thickness at the contact is reduced to 1mm to 1.2mm as per the thickness of the plastic product.
For this we generally provide coring for the dog house at the bottom that means the thickness of the componennt would be 1 mm from ouside walls of then dog house
The thickness maintained should be 1 mm from the ouside walls of the dog house
The height of the coring provided is 3mm upto 6 mm
Rib cage:
For provoding the additional support for the dog house we create a rib cage with two ribs of 1 mm thickness and providing a draft of 0.5 deg with respect to the side core tooling axis
At the top surfcae provide a cutout to provide the room for the pushclip to positrion it in the top of the dog house

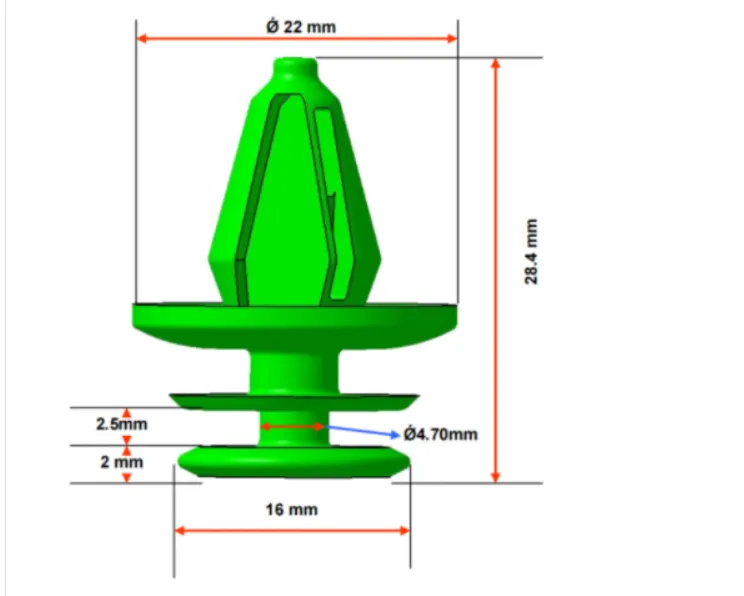

PUSH PINS- Push pins are used for joining one component to another . These are basically attached to the doghouse. For creating the push pins the following reference was taken for dimensions.

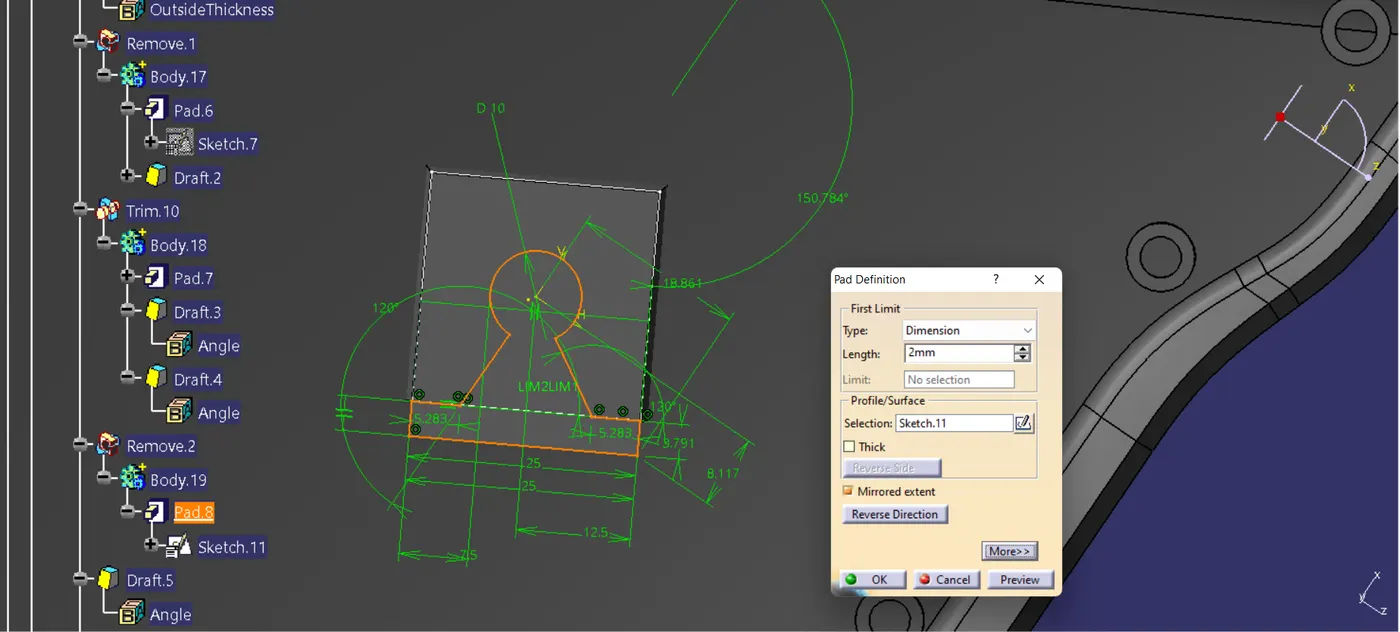

The cutout sketch is
Pad the sketch and make the boolean operation to remove the cutout from the dog house and apply a draft of 0.5 degrees on the edges of the cut out
Dog houase generally claer the draft analysis in two tooling axis directions one along the main tooling axis and other along the slider axis or the sude tooling axis
The draft analysis results are
Along the slider with a draft angle of 0.5 deg
SO on the lower substract we need to provide upto 3 dog house maintaining that there might not be any engineeering feature with in a direction of the slider movement upto 90mm (minimum distance )
We use the translate option from point to point translation to copy and paste the dog houses atb arious locations and use the rotate option to change the direction of the opening for the slider
These are the 3 dog houses along with their slider axis

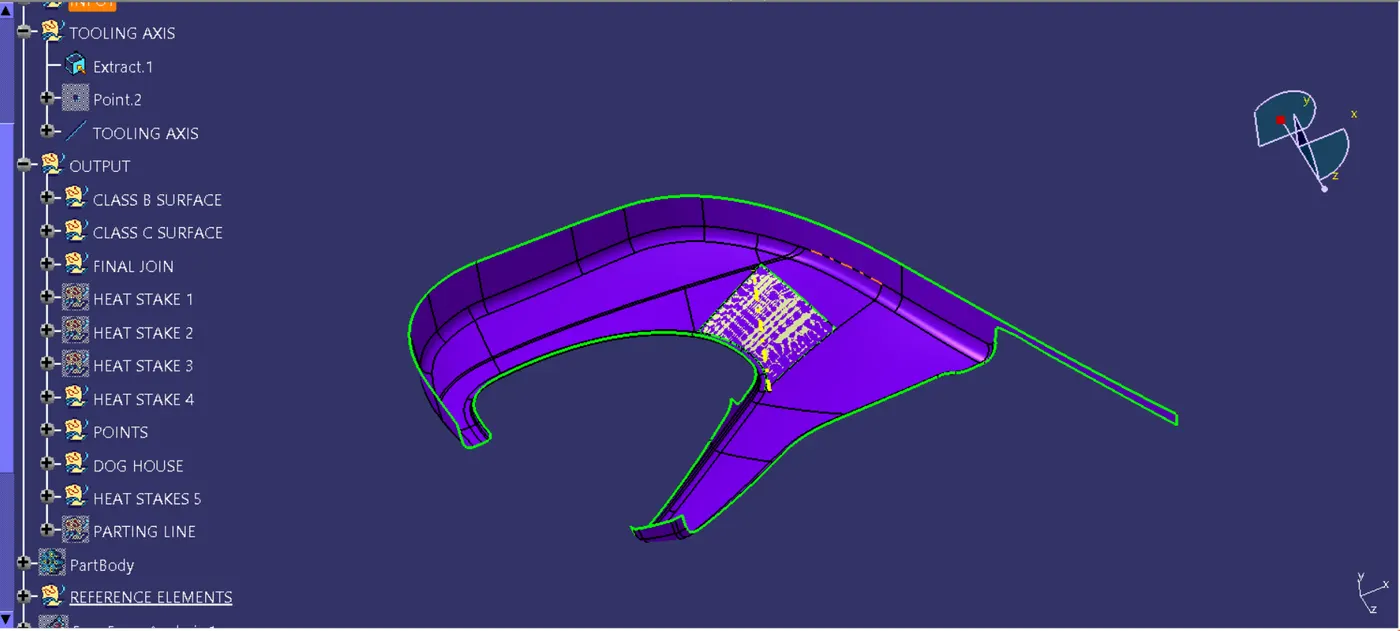

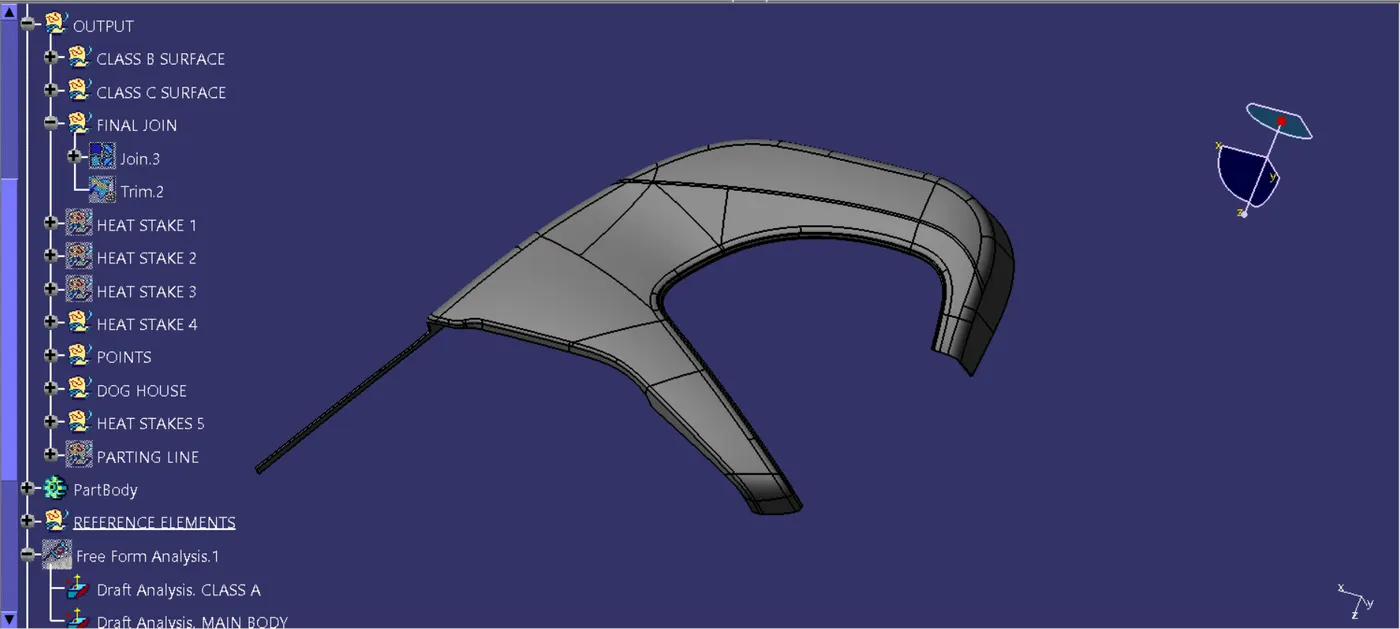

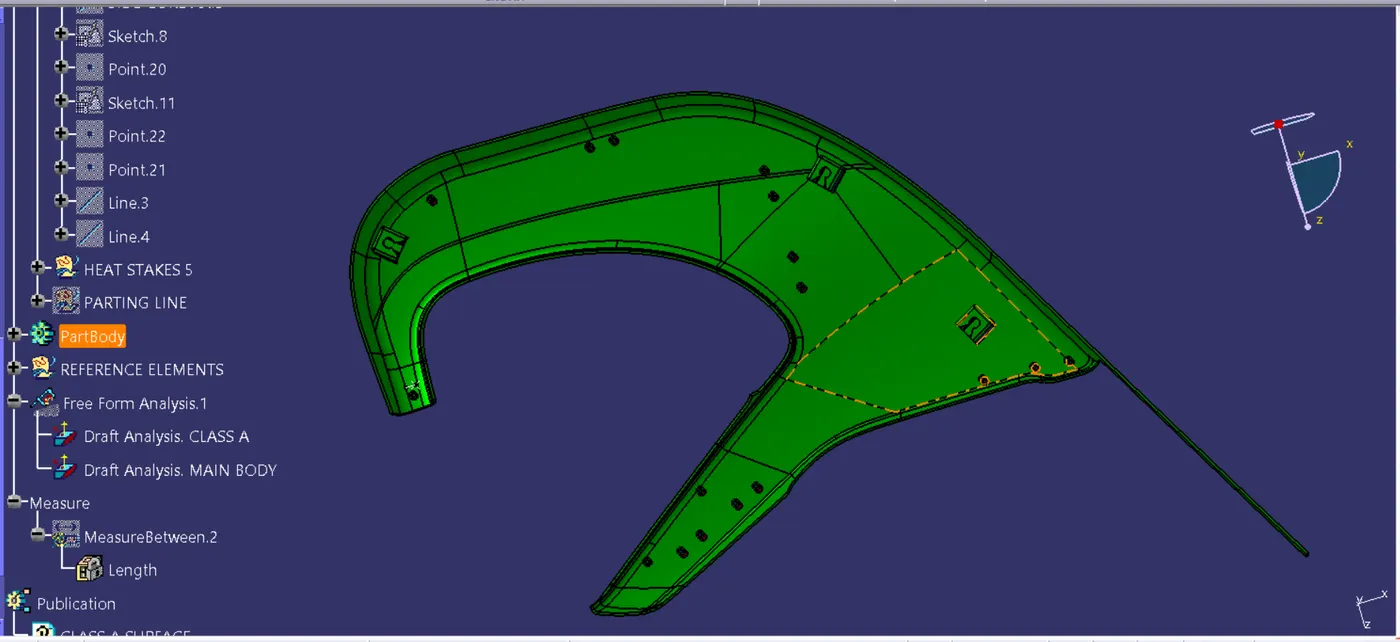

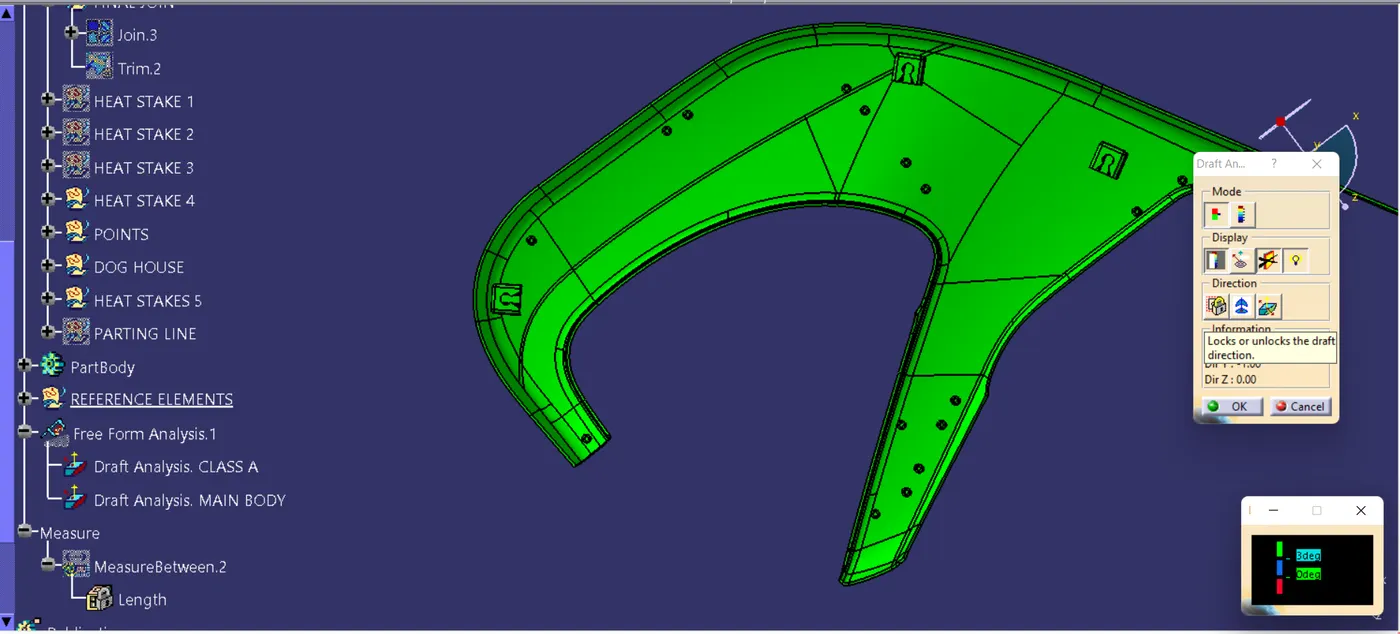

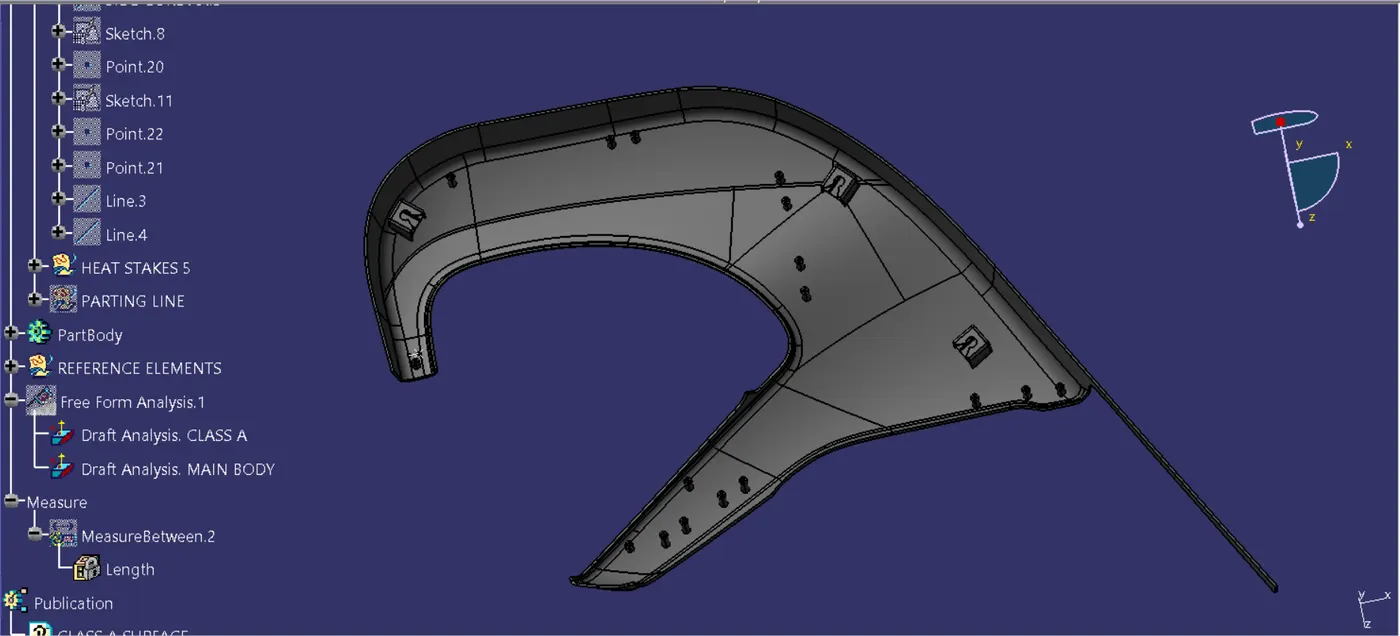

And the heat stakes & the locators on the lower substrat along with the draft analysis of 0.5 deg along the main tooling axis is

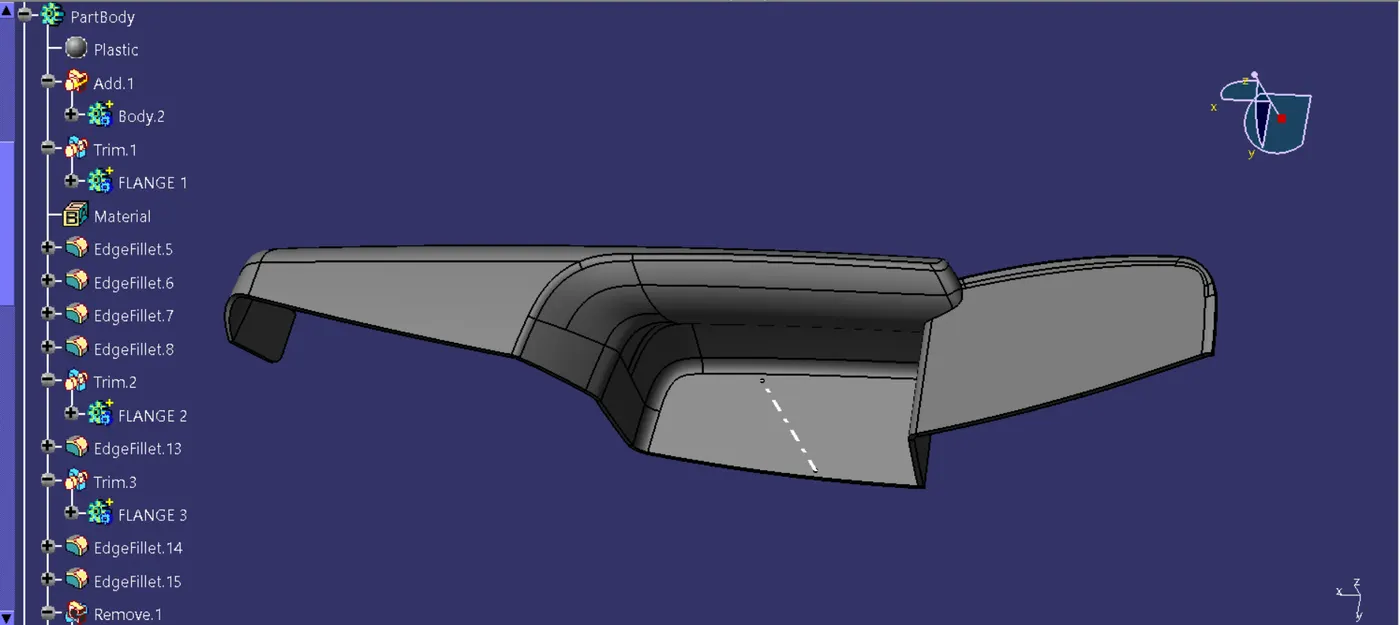

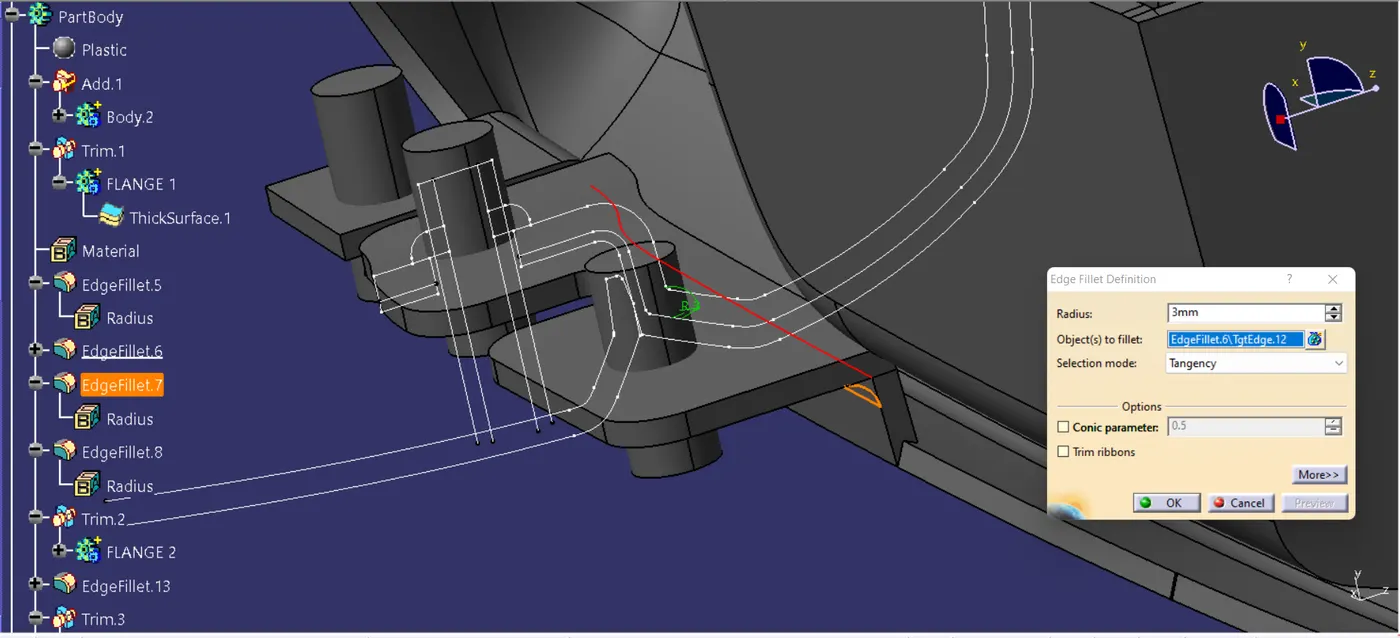

B side attachments on the Door arm rest:
Flanges are the joining features that help to assemble different components. The mastersection was used to make flanges. After creating one flange point to point translation is used to translate the flanges. We need to provide a draft of 0.5 degrees for the flanges . The gap between flanges should be 50-100 mm. Boolean operations were used to add attachment features into closed body
Design:
In case of te door arm rest we need to folow the master section provided for the flange creation
The thickness of the flange is equal to the thickness of the plastic component that is 2.5 mm
The draft provided is 0.5 deg
Apply requierd fillets on all the sharp edges

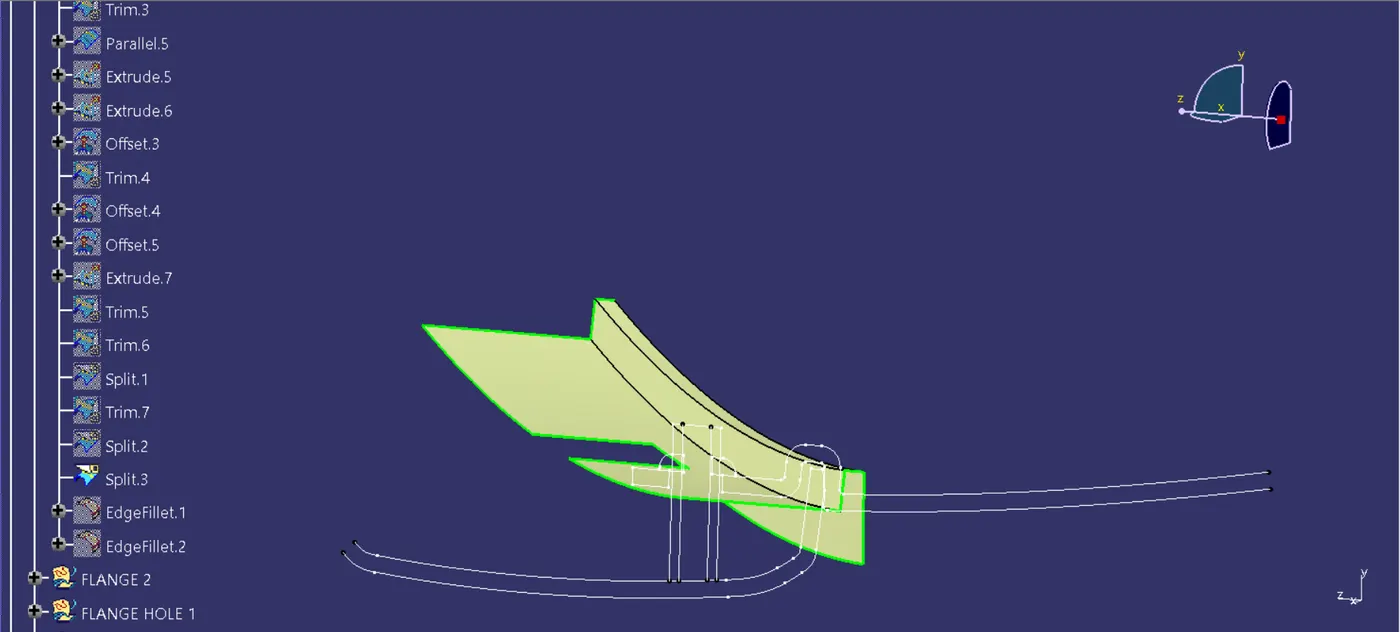

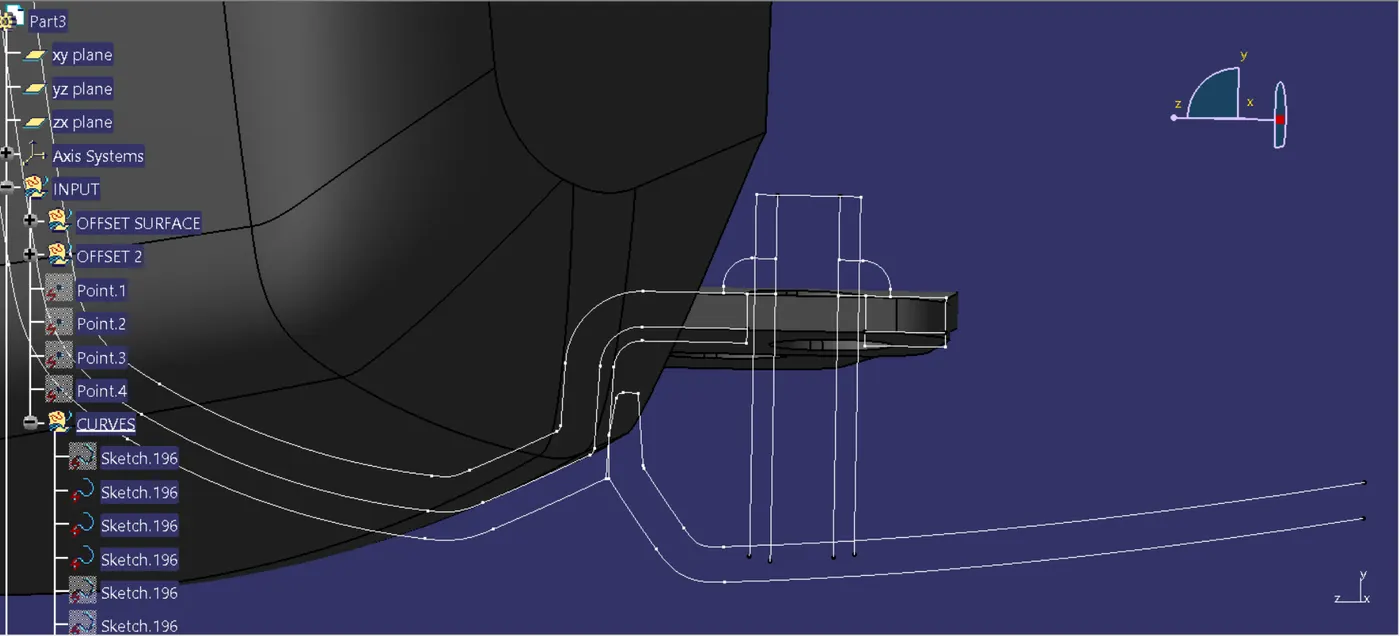

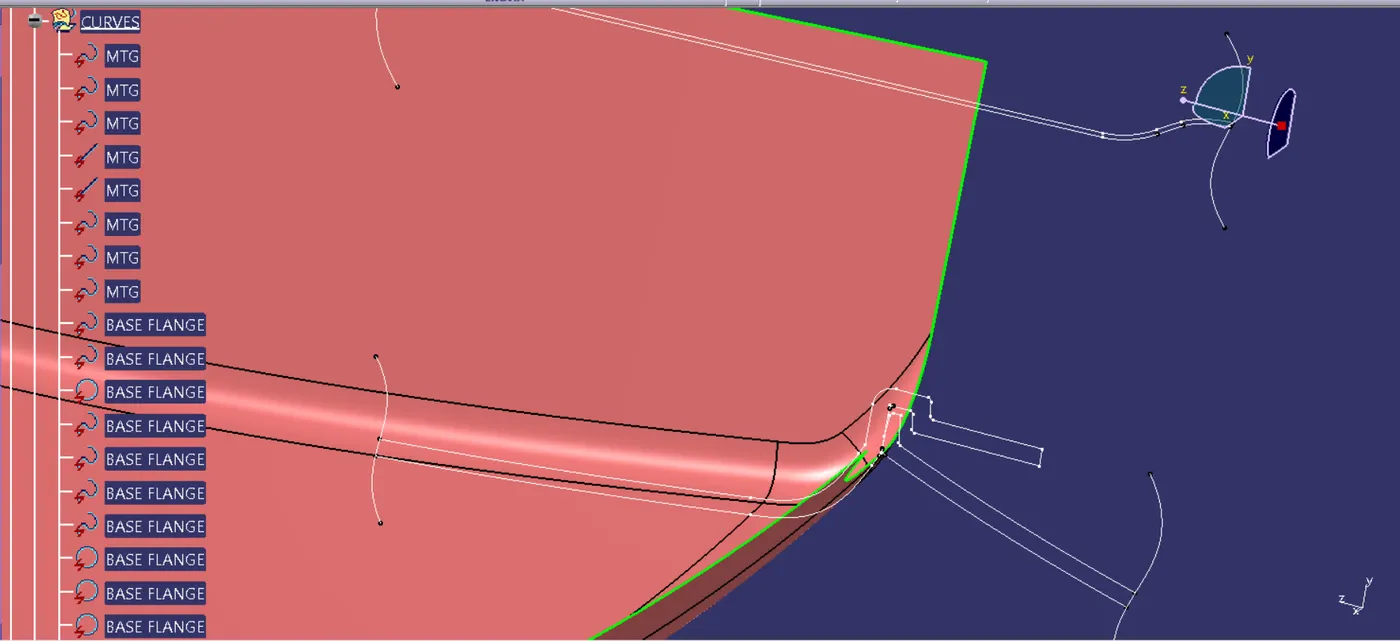

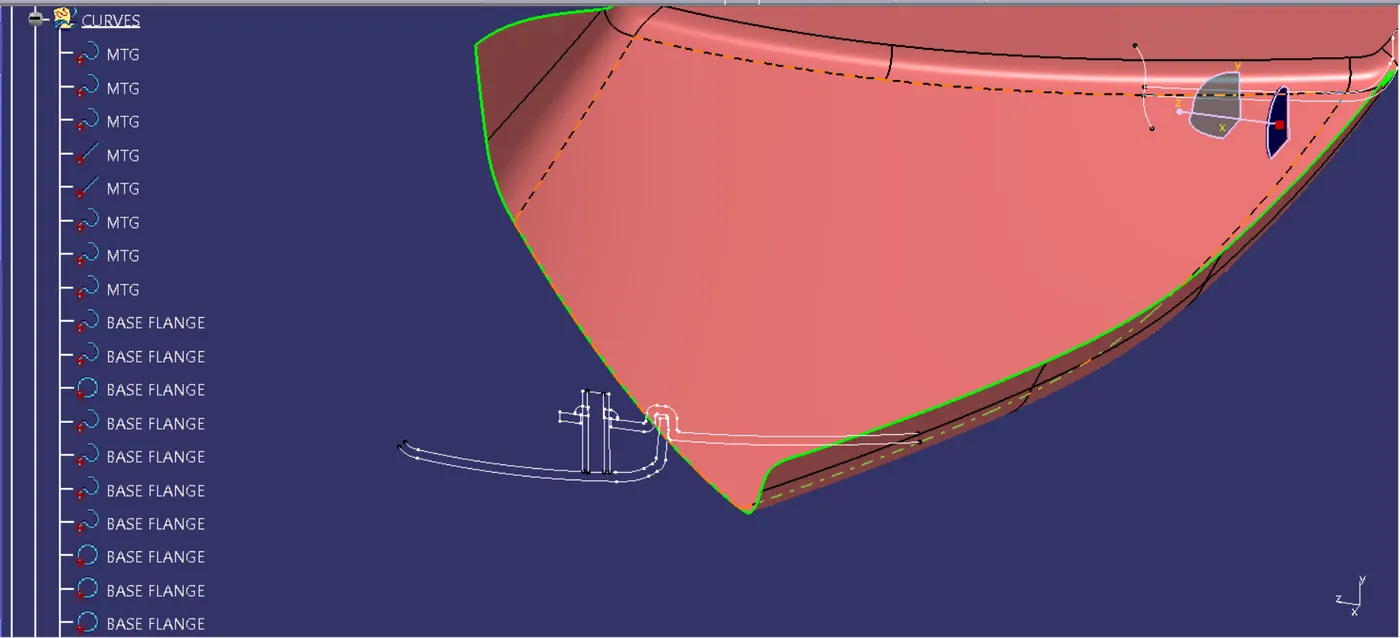

The sketches taking the references from the master section are
The surfcae of the flange formed is

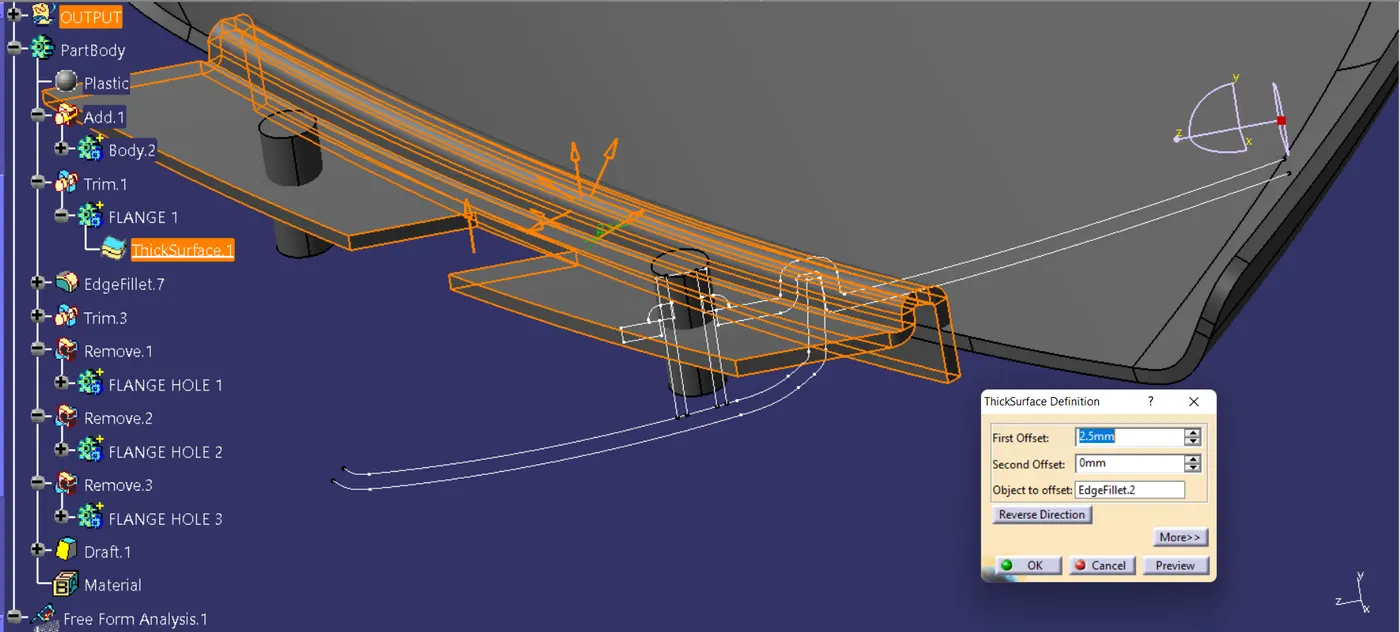

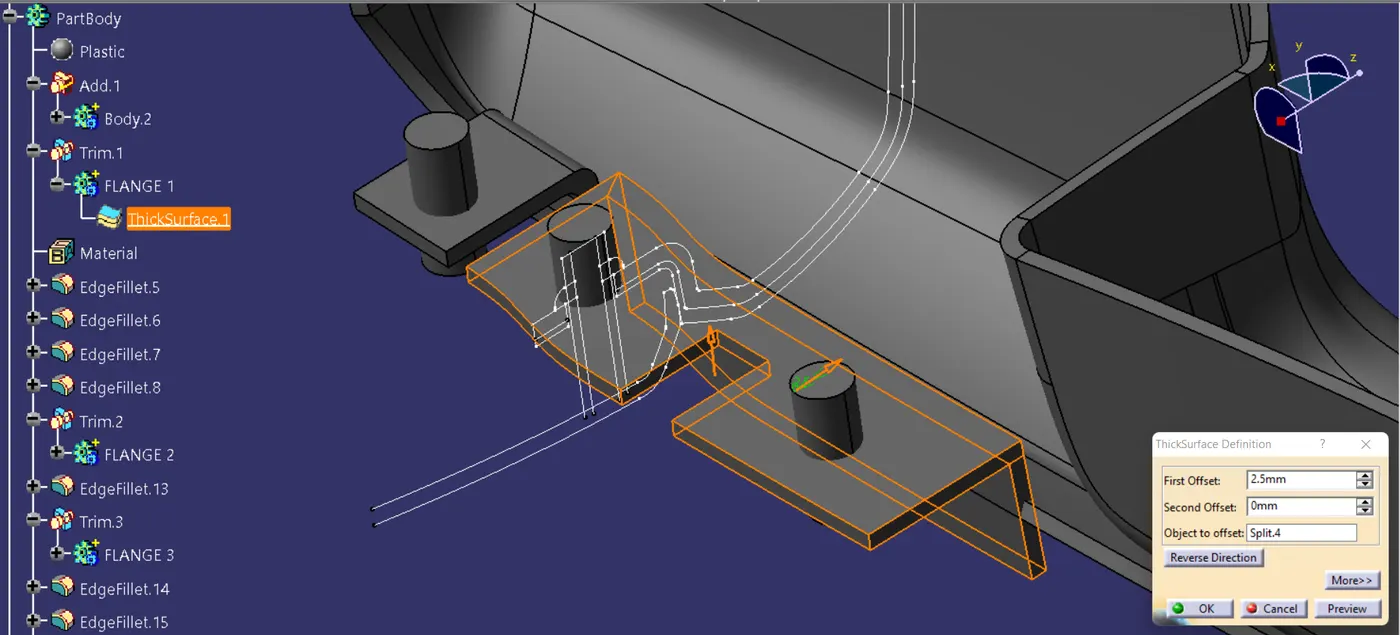

Thickenss the surface in the part workbench with a thickness of 2.5mm

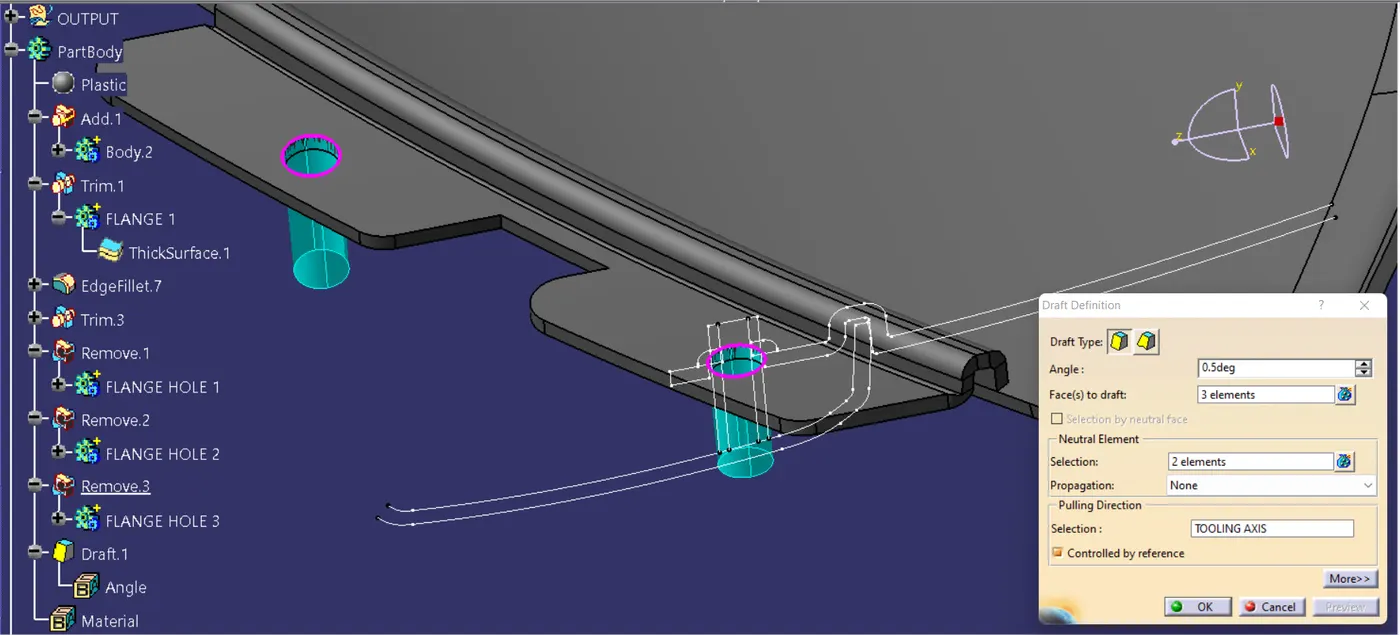

Pad the sketch and apply the draft of 0.5 deg with respect to then side tooling axis

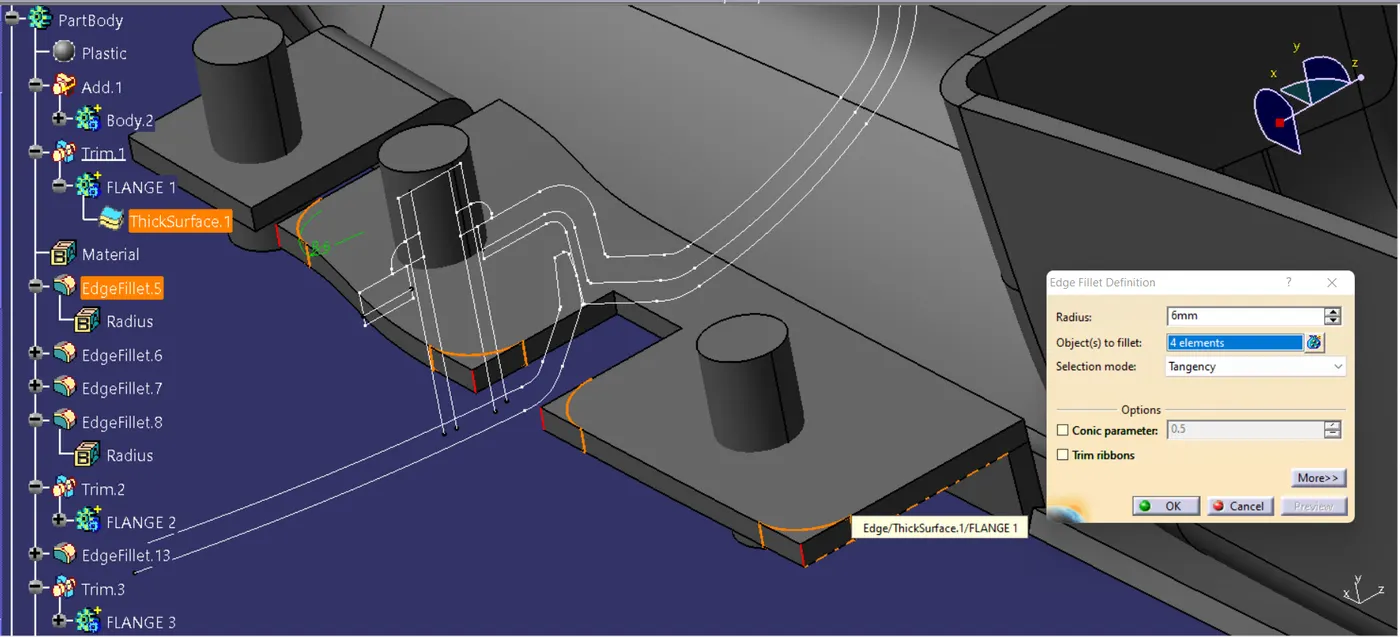

Now apply then proper fillets on the corner edges

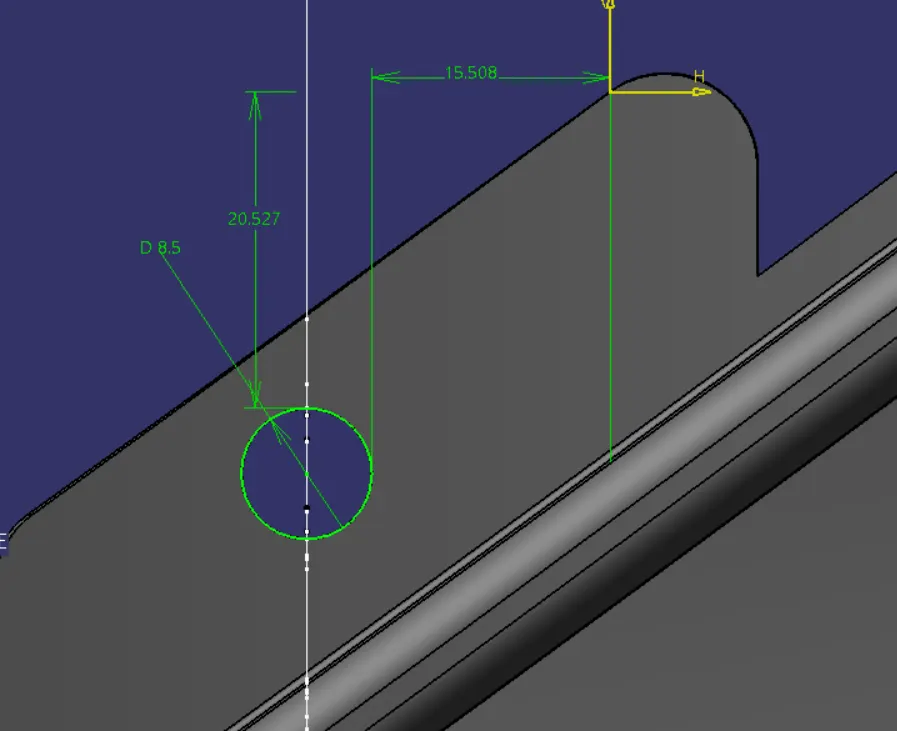

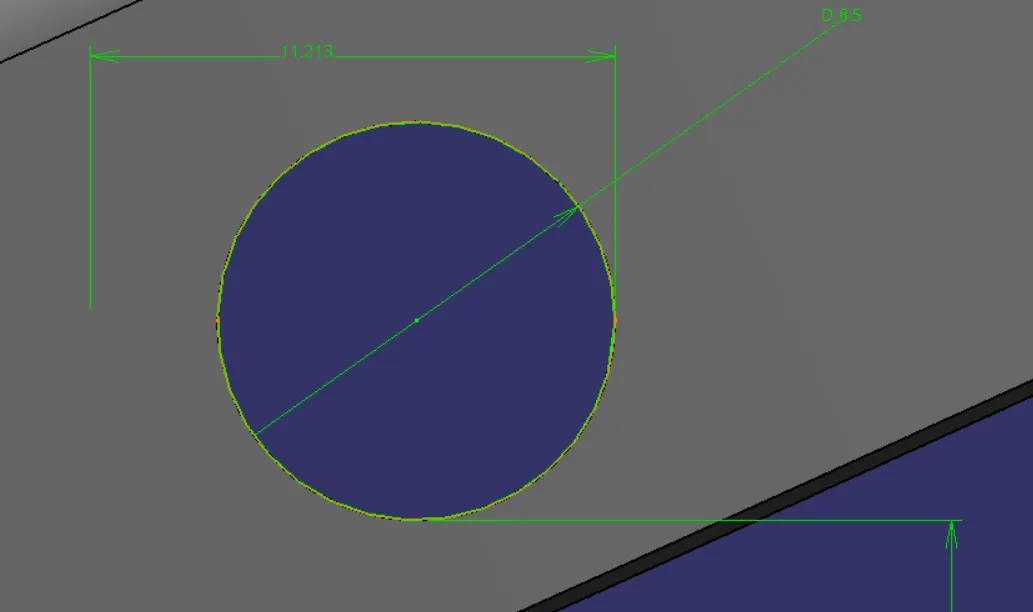

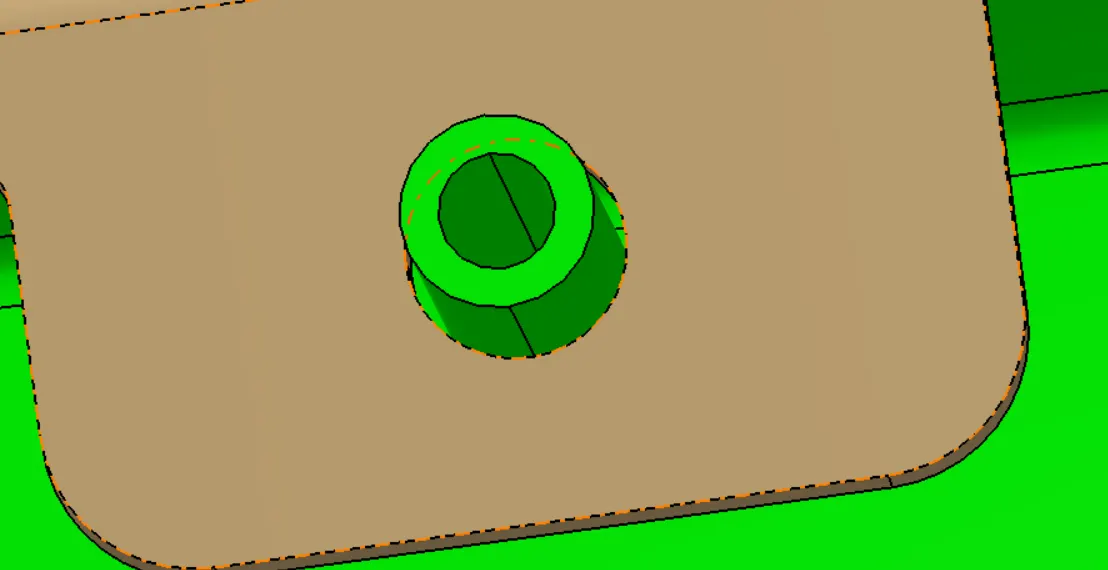

Now make a hole on the hole to position then heat stake or the locator with respect to the flange for proper assembly
The diameter of the hole should provide of claerance of 0.5 to 1 mm between the flange and the heat stake or with the flange and the locator

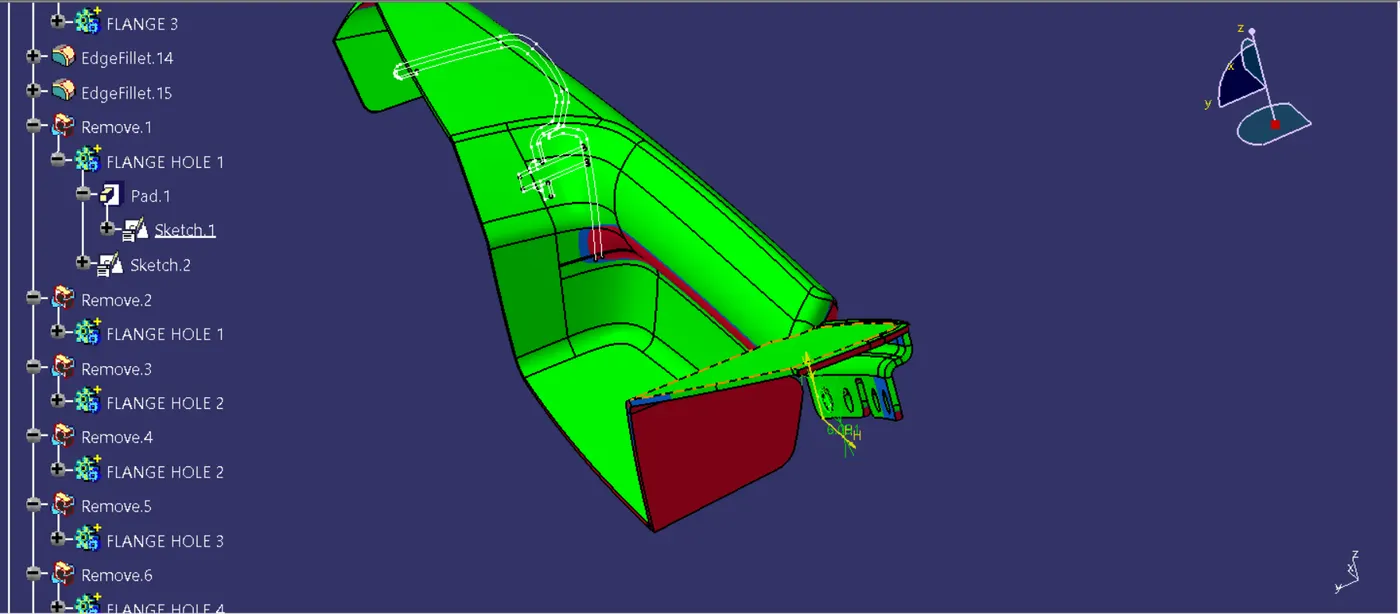

Use the boolean operation to form the perfect hole on the flage and the claerance thus obtained is

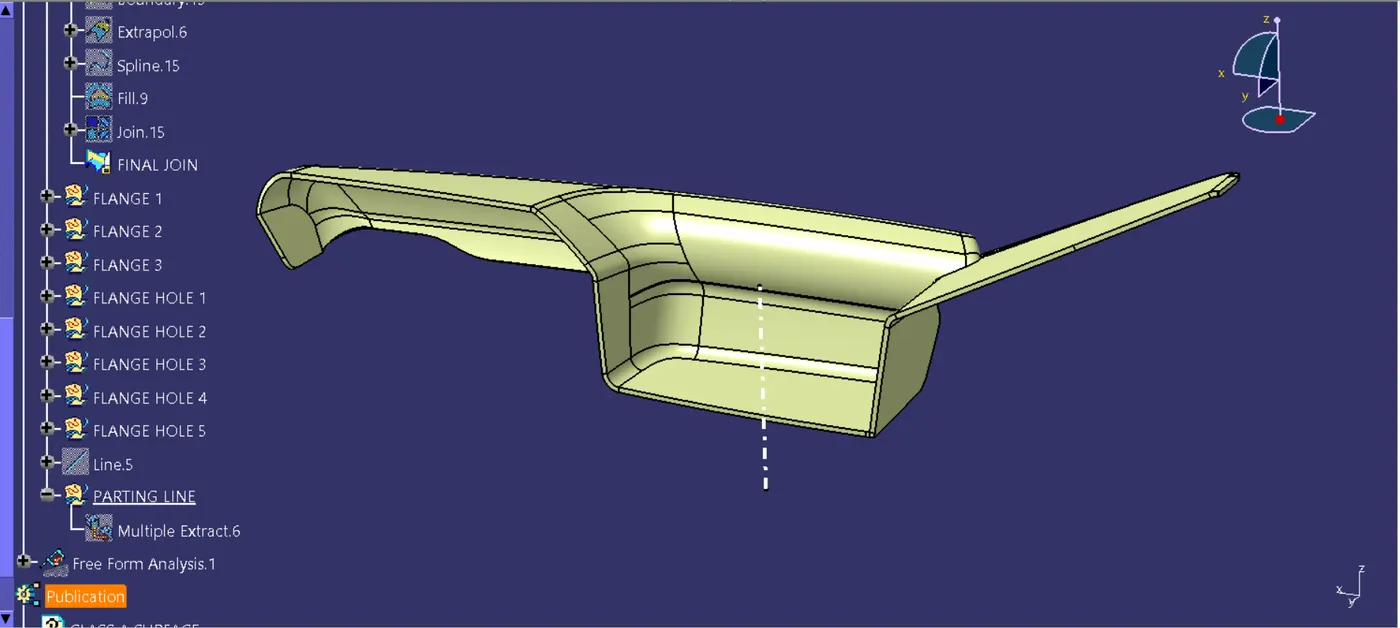

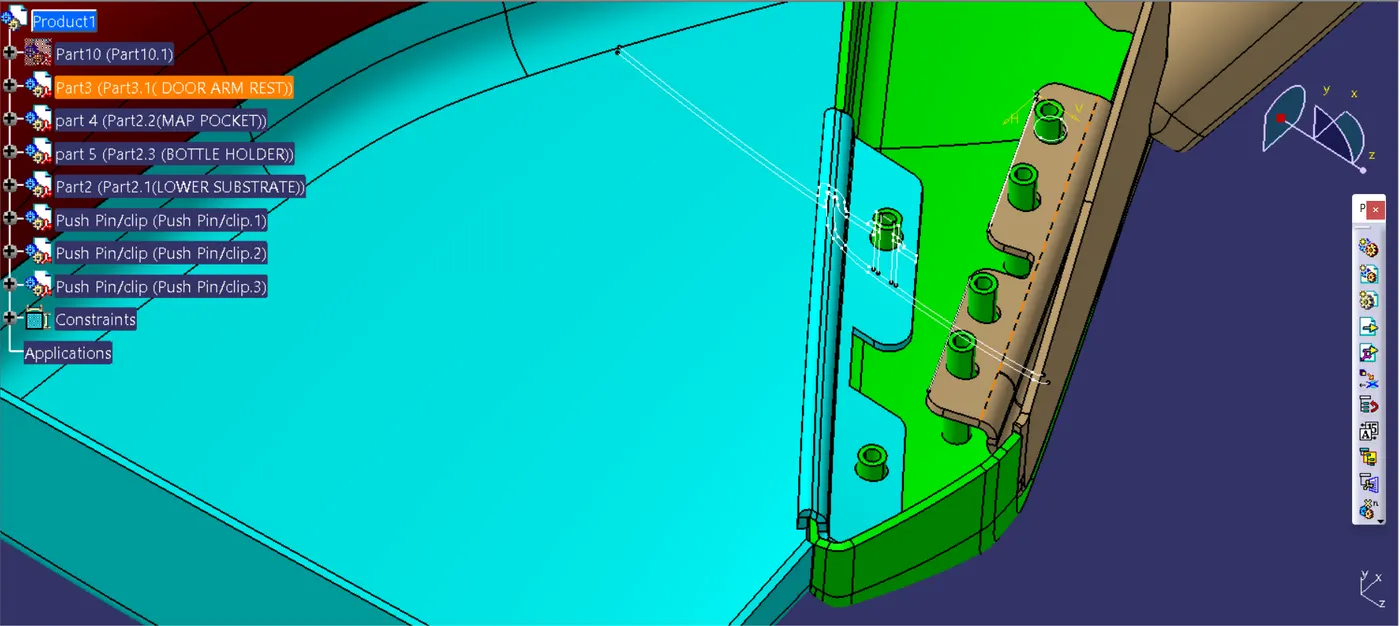

So we need to create the flanges on every position with respect to the heat stakes or the locator which are situated on the lower substract for the assembly

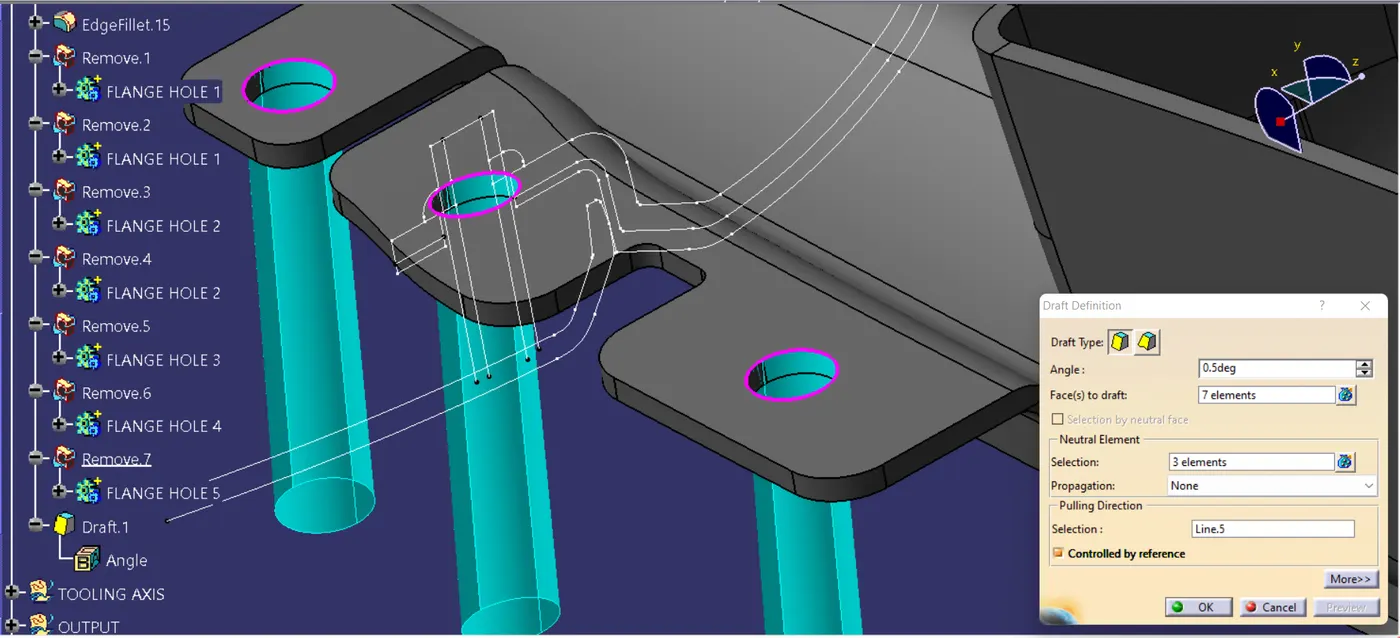

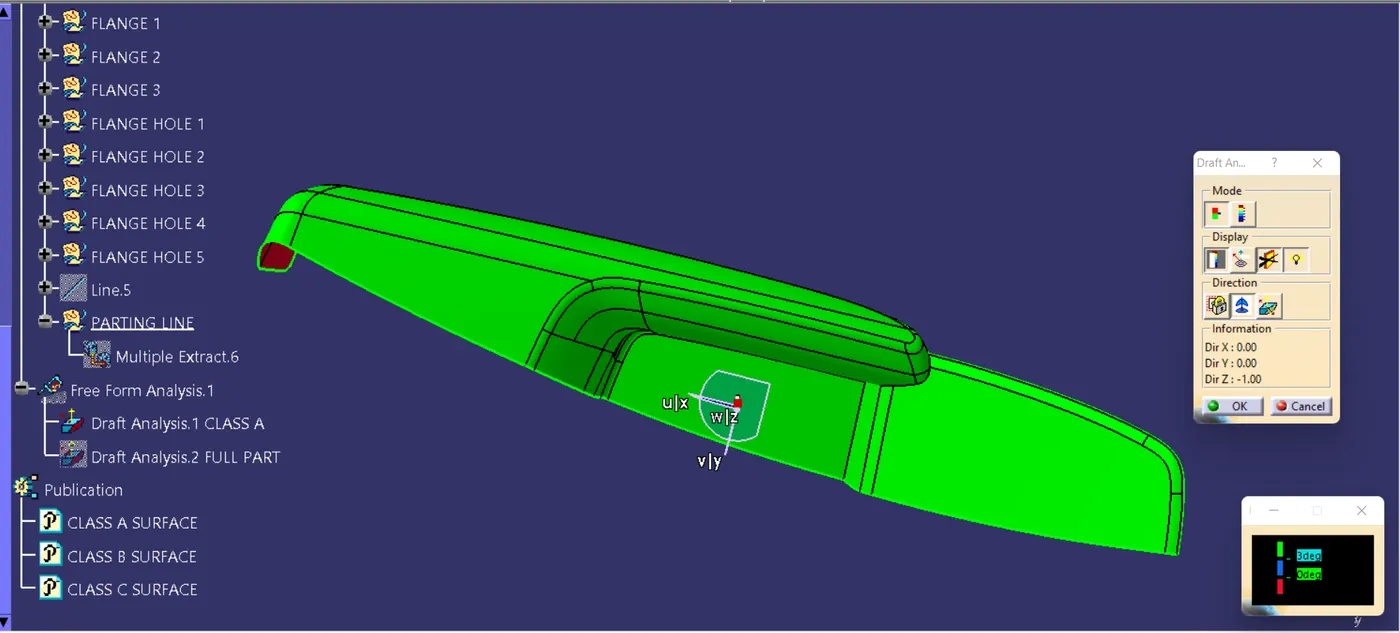

Now perform the draft analysis with a draft angle of 0.5 deg

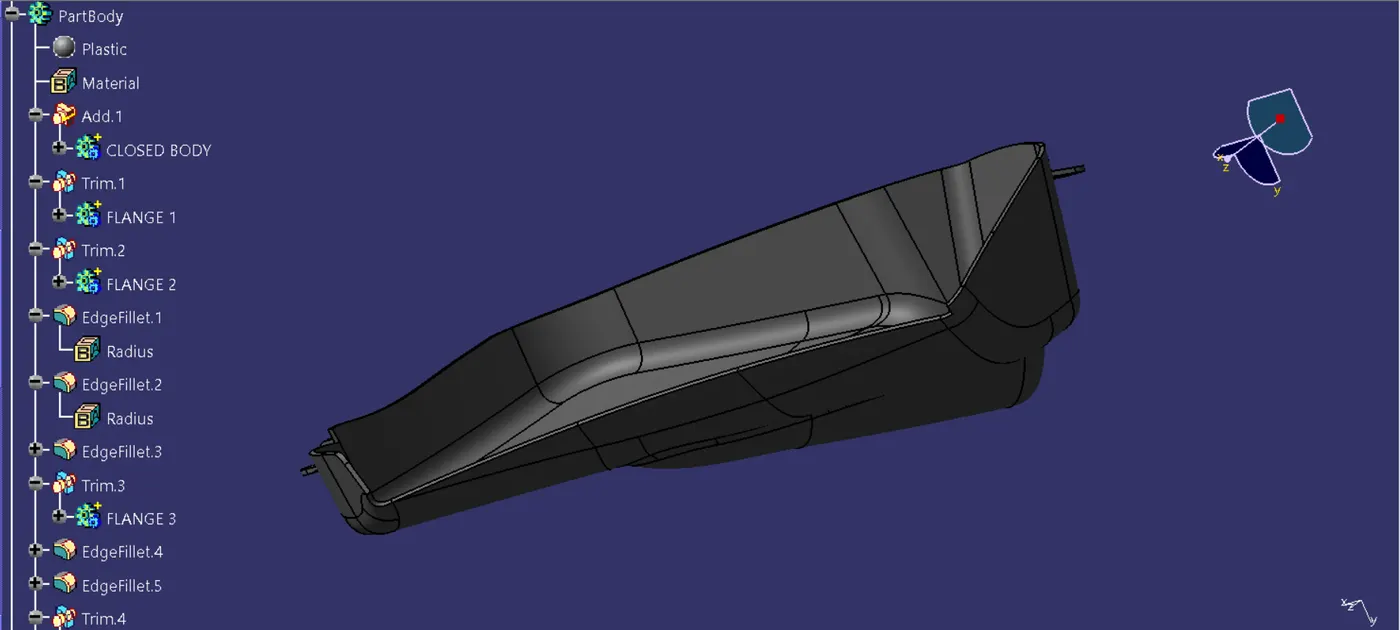

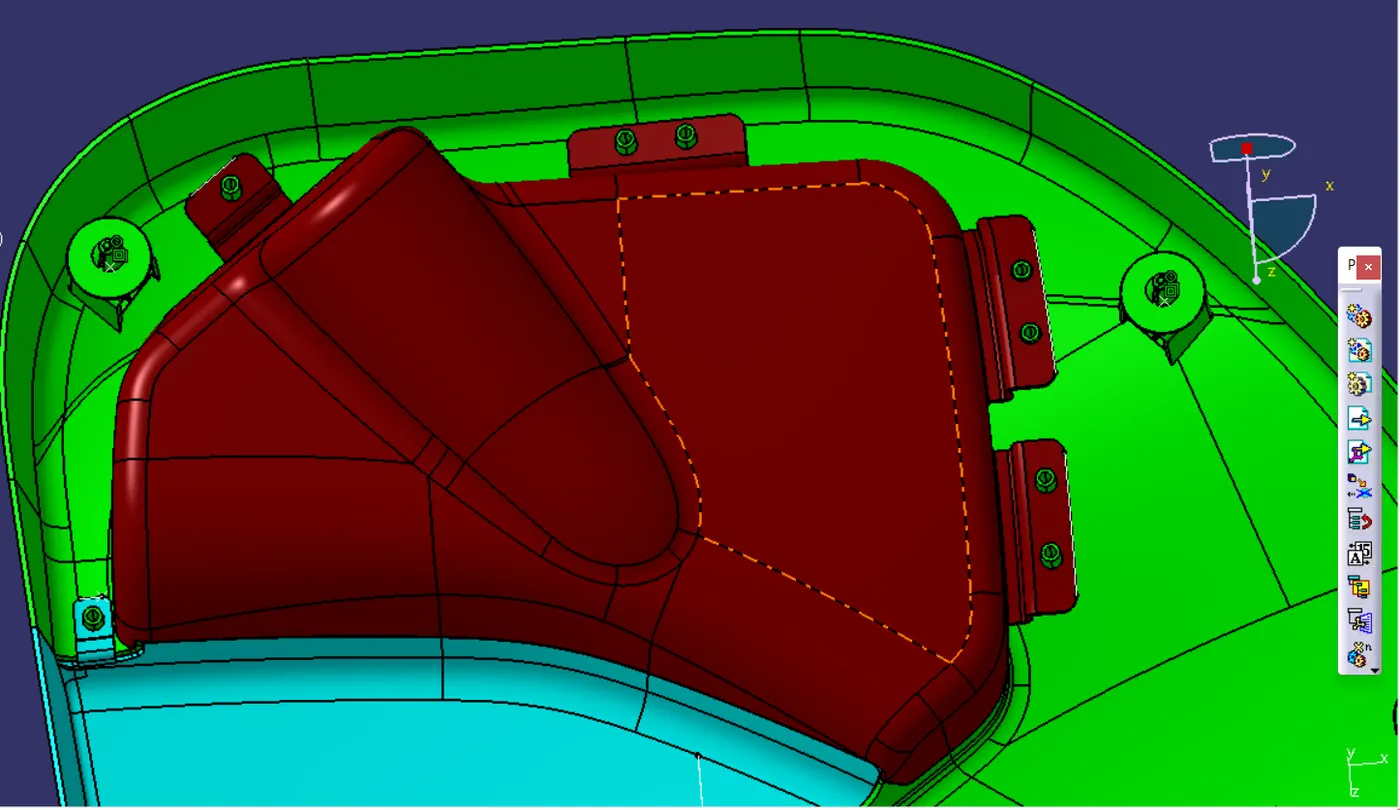

B side attachments on the map pocket :
In case of the map pocket we use tye master section references for creating the flanges for generating the proper assembly between the compoemts
Here we consider two master sections one with respect to the lower substract and other with the bottle holder
The flange surface formed is

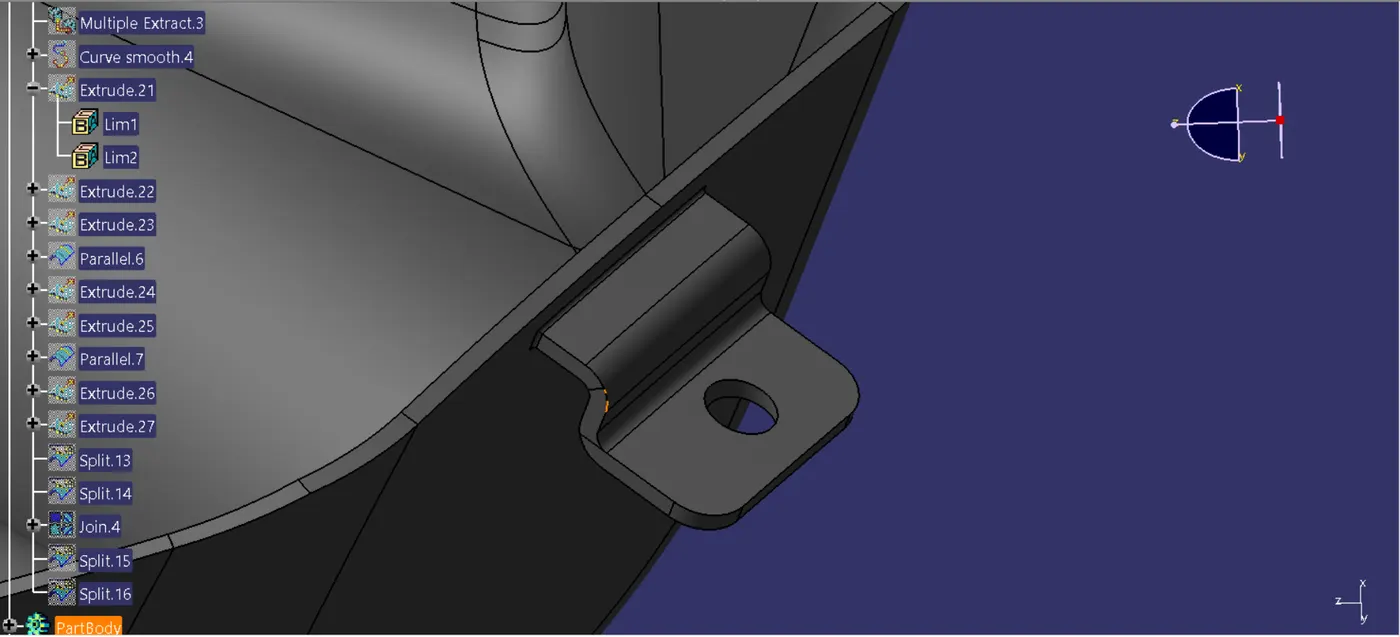

Thicken the surface to 2.5mm and apply a draft of 0.5 deg and apply the proper fillets
apply the proper fillets as we mention previously on the arm rest component.

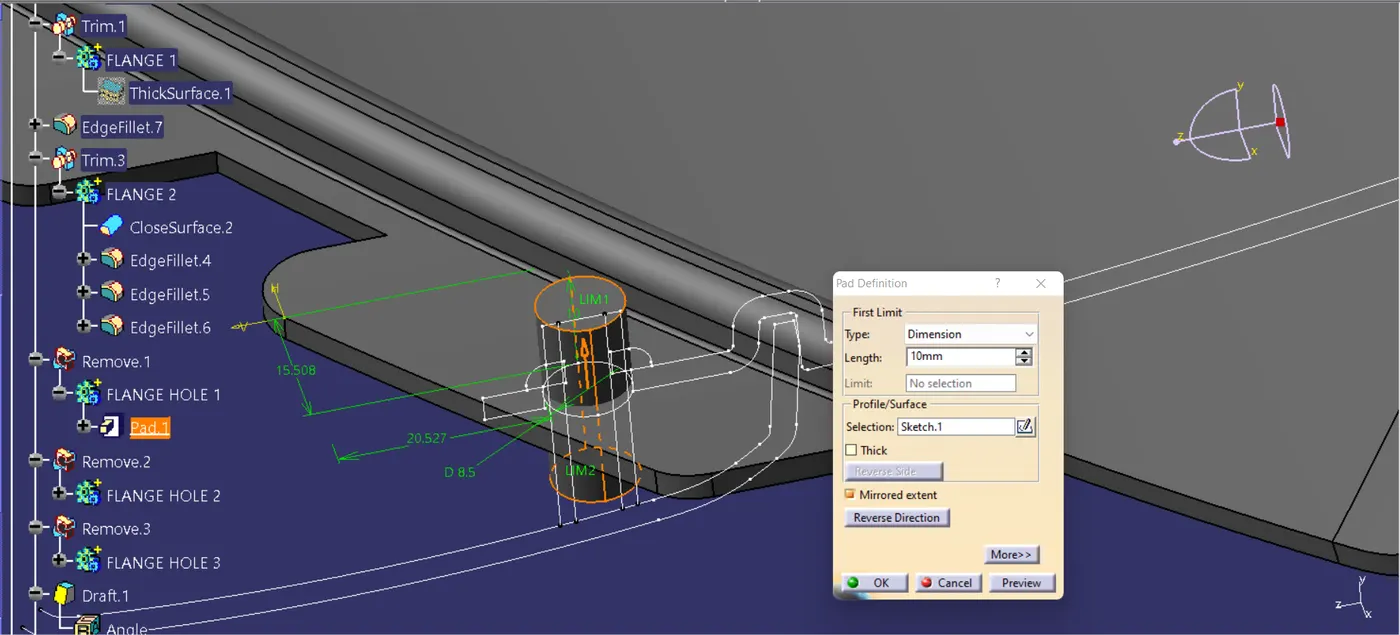

Now create a hole for the heat stake attachment in the flange
Now use the boolean operation to remove the padded hole part from the flange
Now create and position the flanges with respect to the attachment featues on the lower substract and the bottle holder

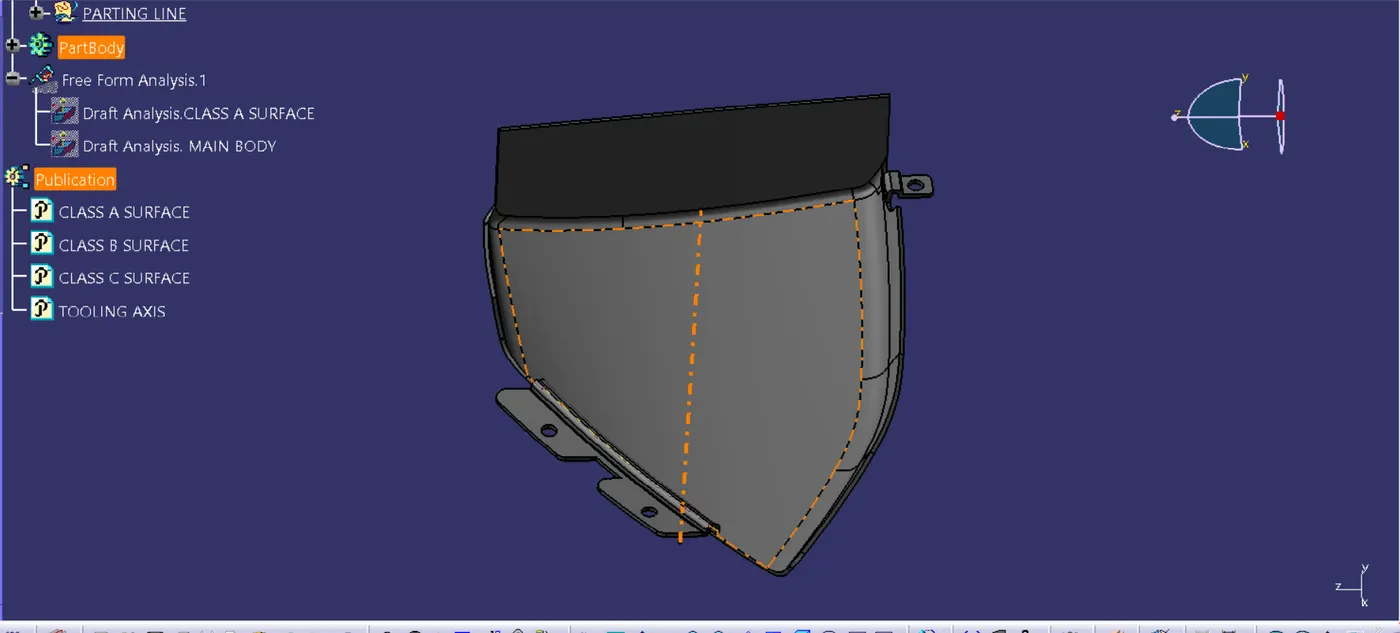

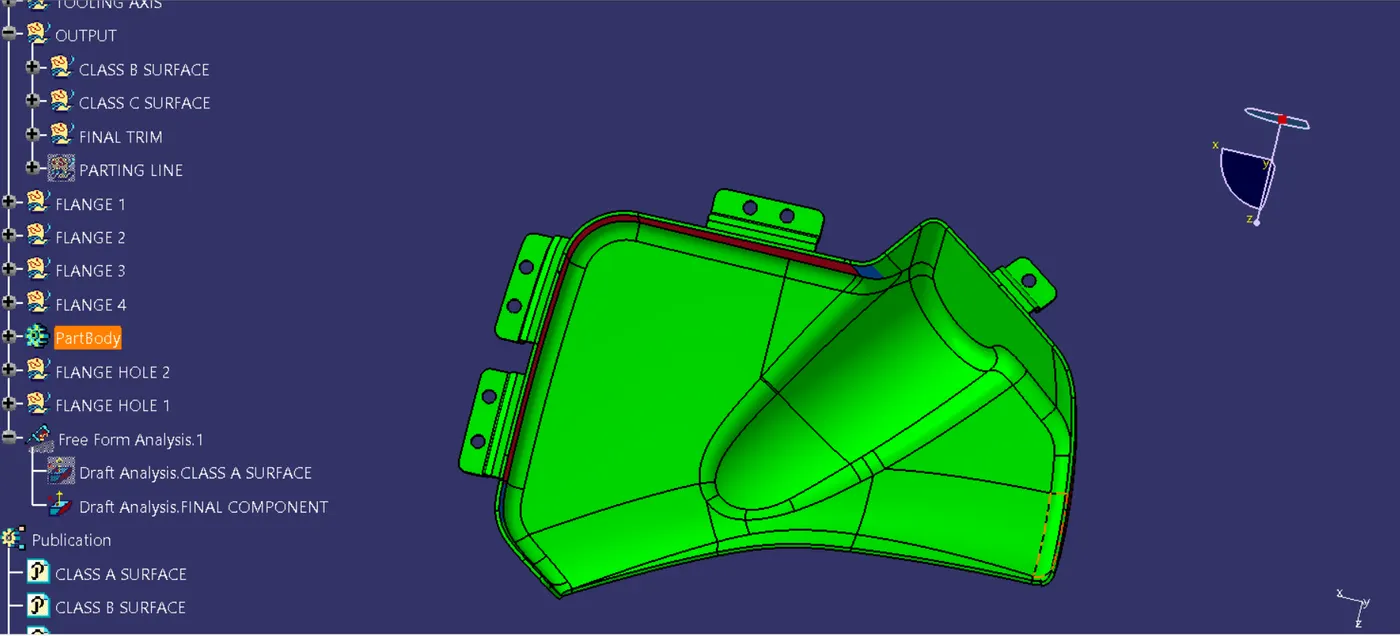

The draft analysis of the B side featues on the map pocket are

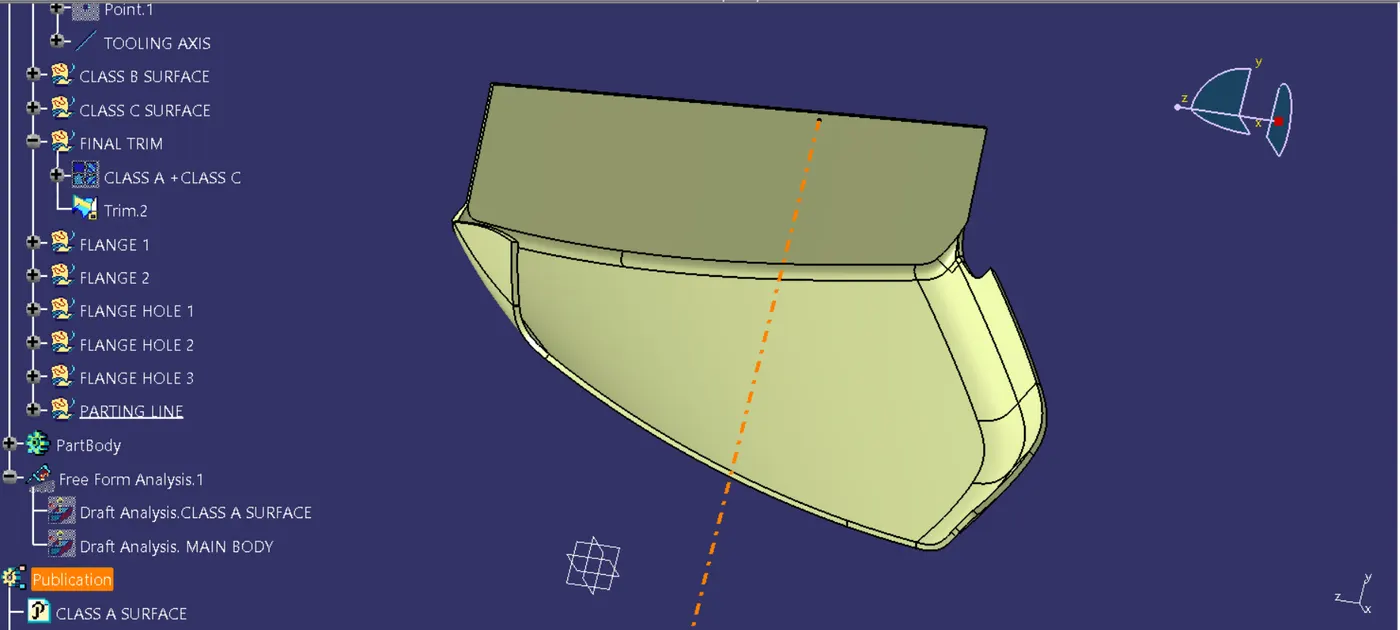

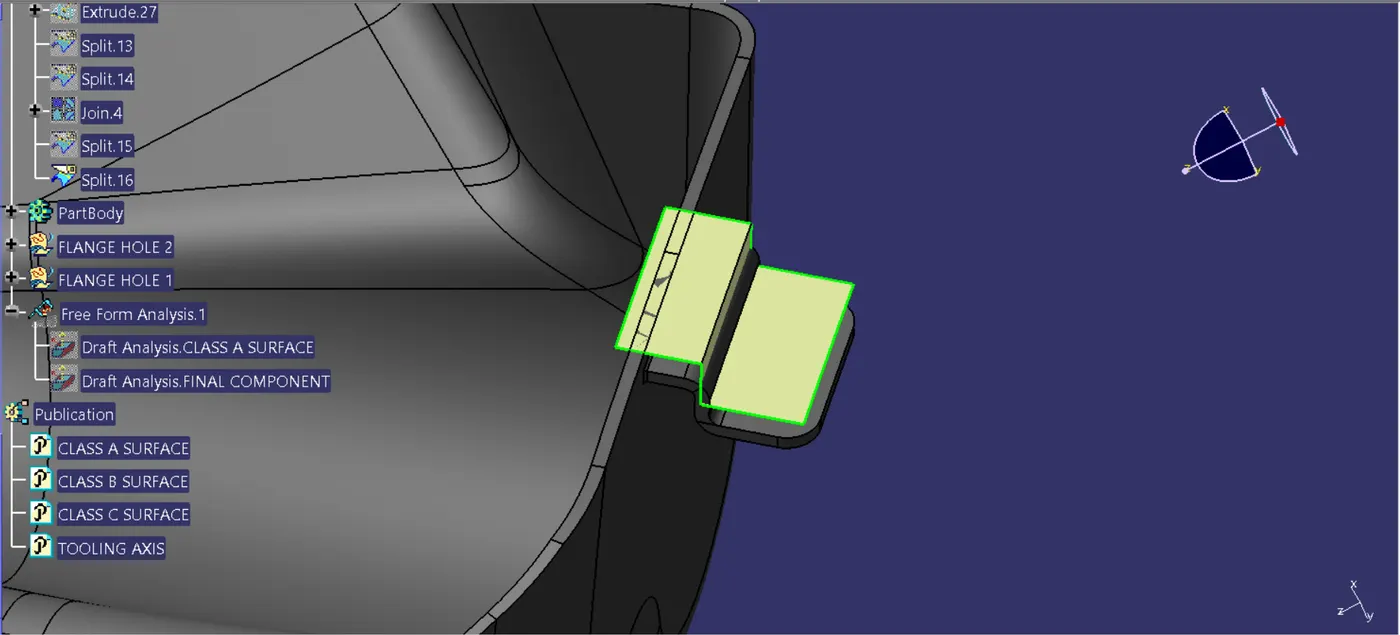

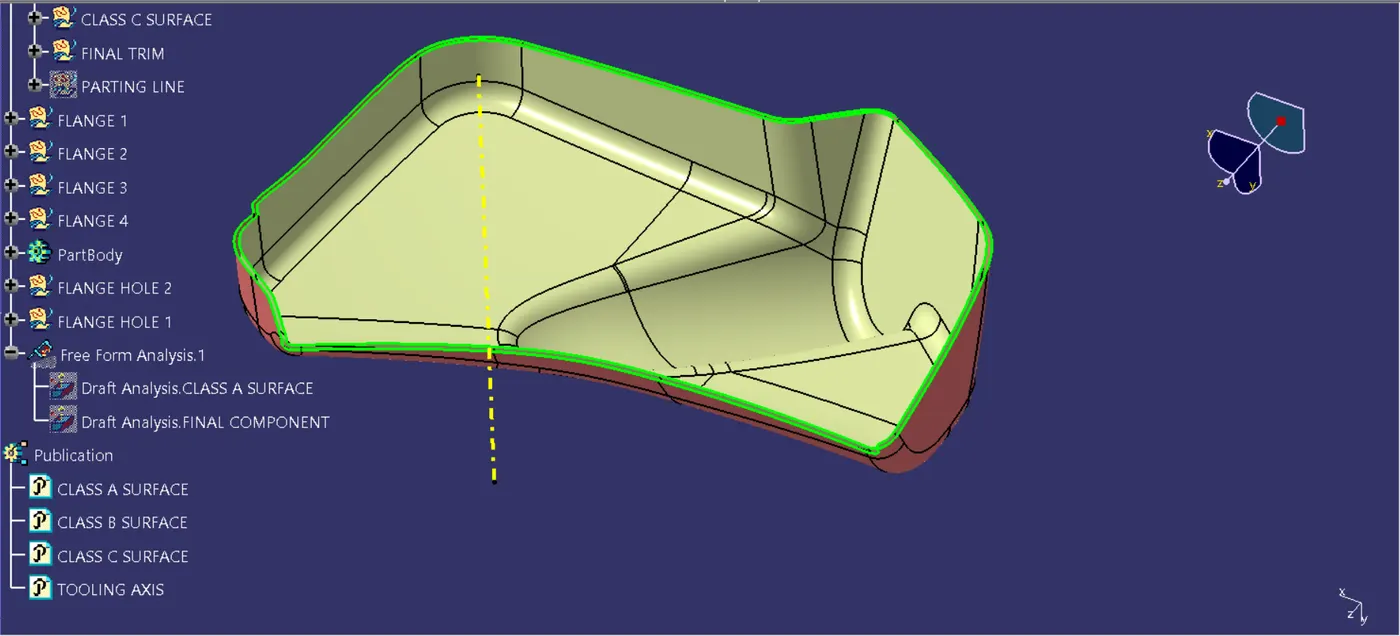

B side features on the Bottle holder:
In case of the bottle holder there didnot provide any master section for the B side attachment so we need to follow the design parametes and create the flanges with respect to the attachmnets on the lower substract and the map pocket

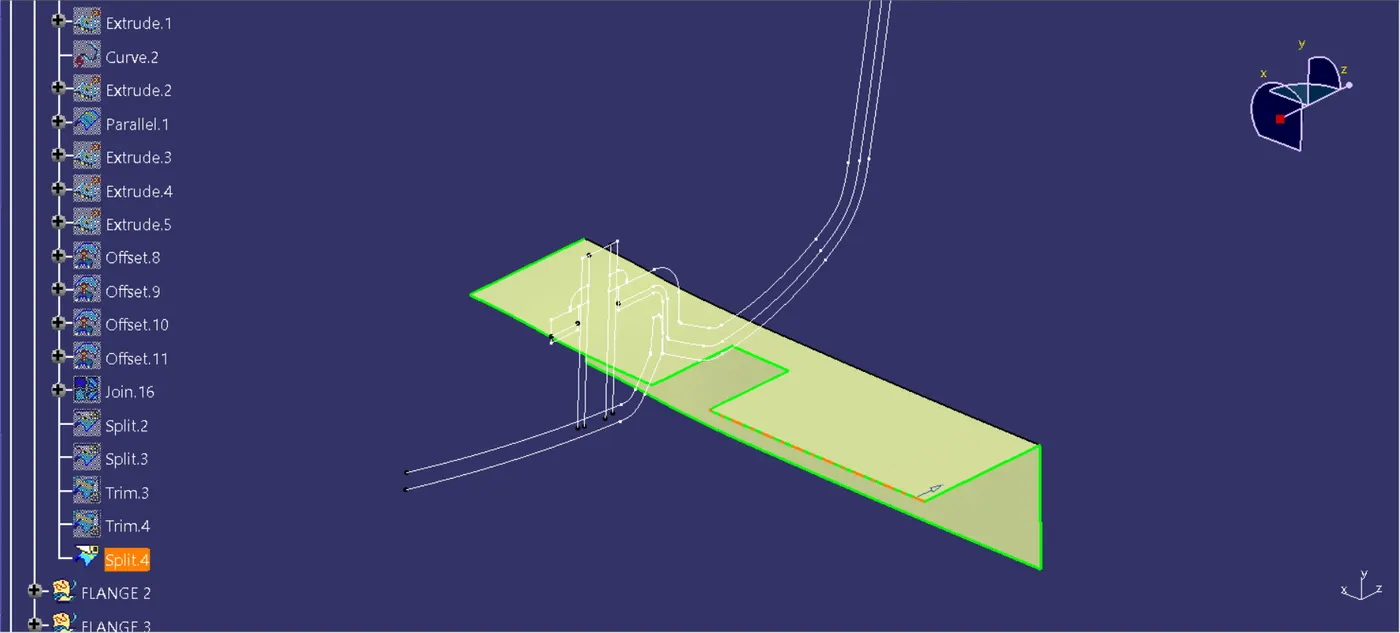

For creating the flanges to follow the class c surfcae we provide an inetersect and cpincide the sketch with it
Now thicken the surface to a value of 2.5 mm and provide theb draft of 0.5 deg along with the fillets and create a hole for the attachment to assemble on the flange.

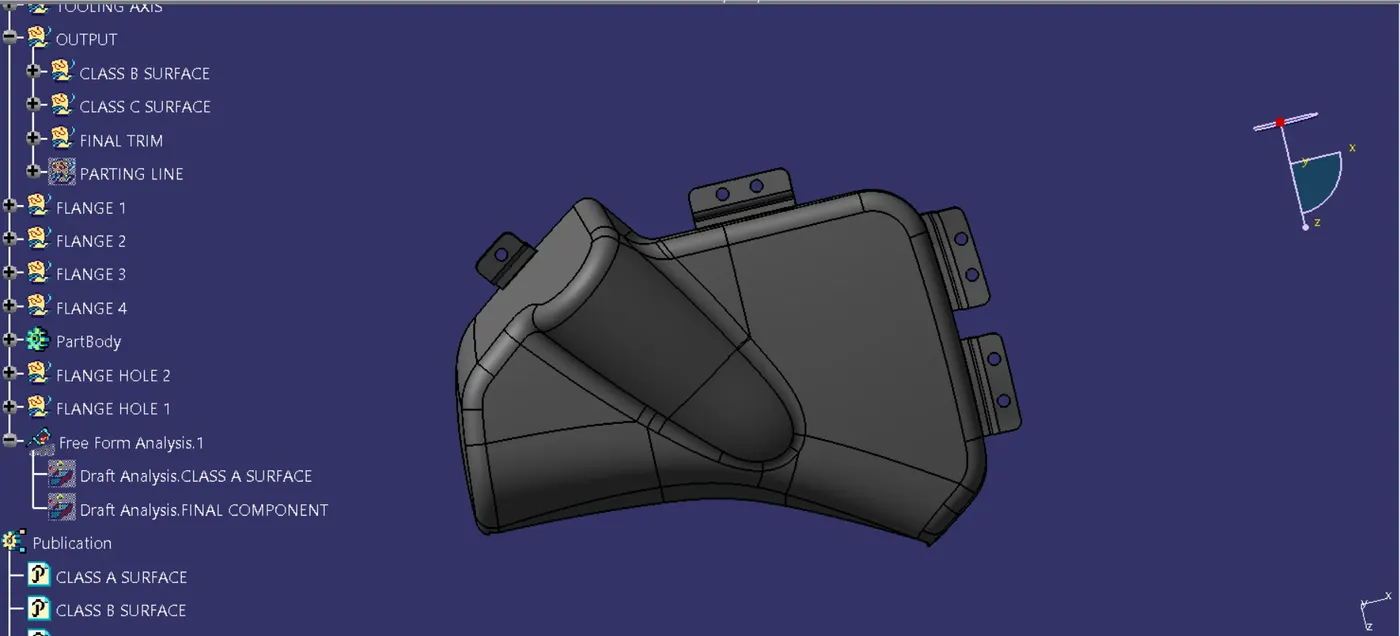

The total flangesc created with respect to the lower substrtract and the bottle holder is

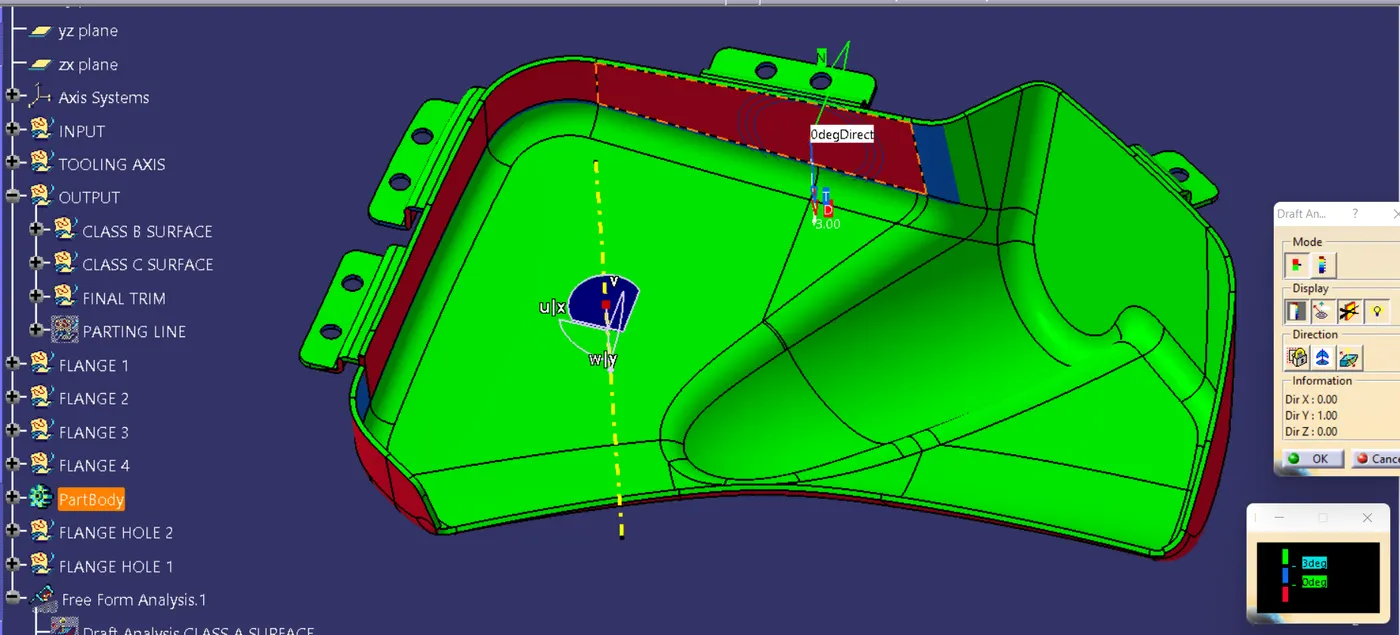

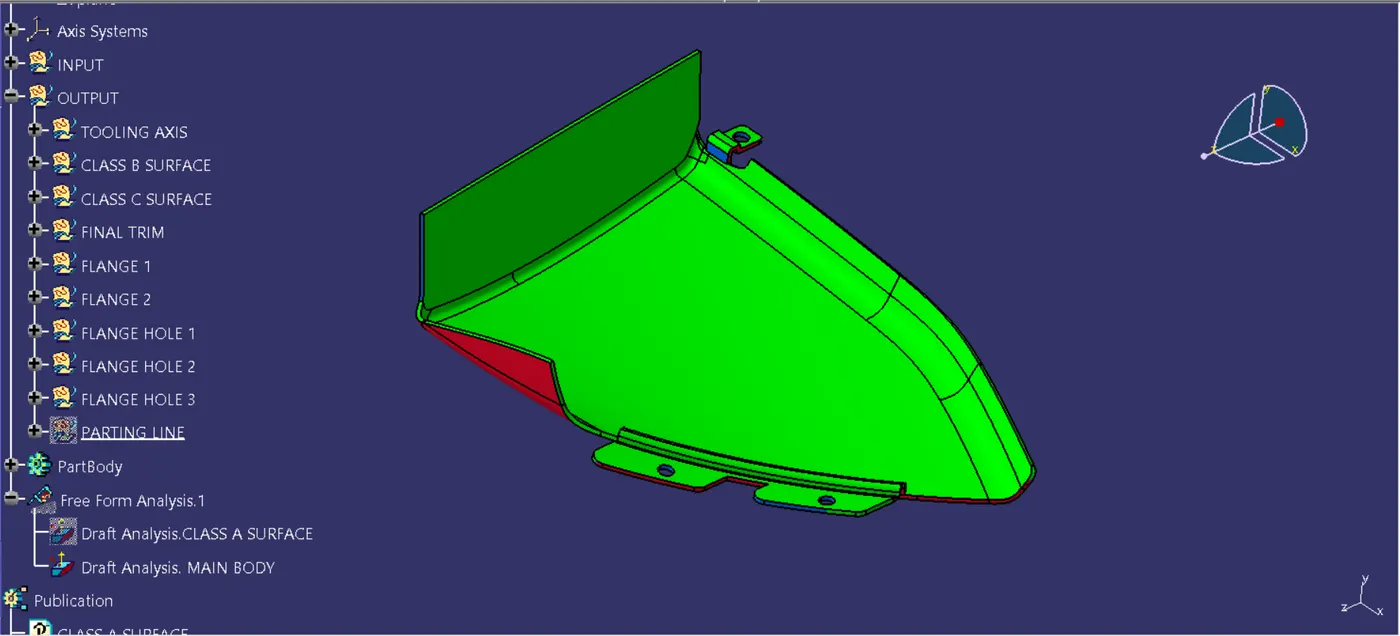

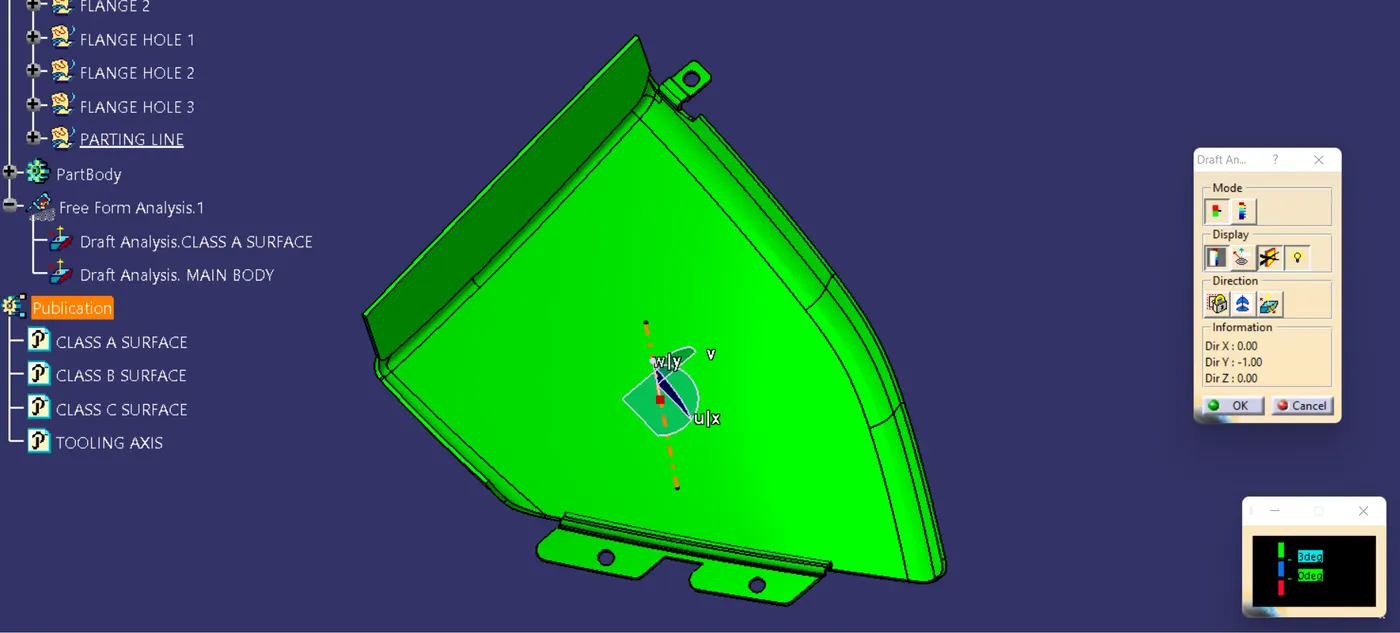

The draft analyis results of the B side attachments are

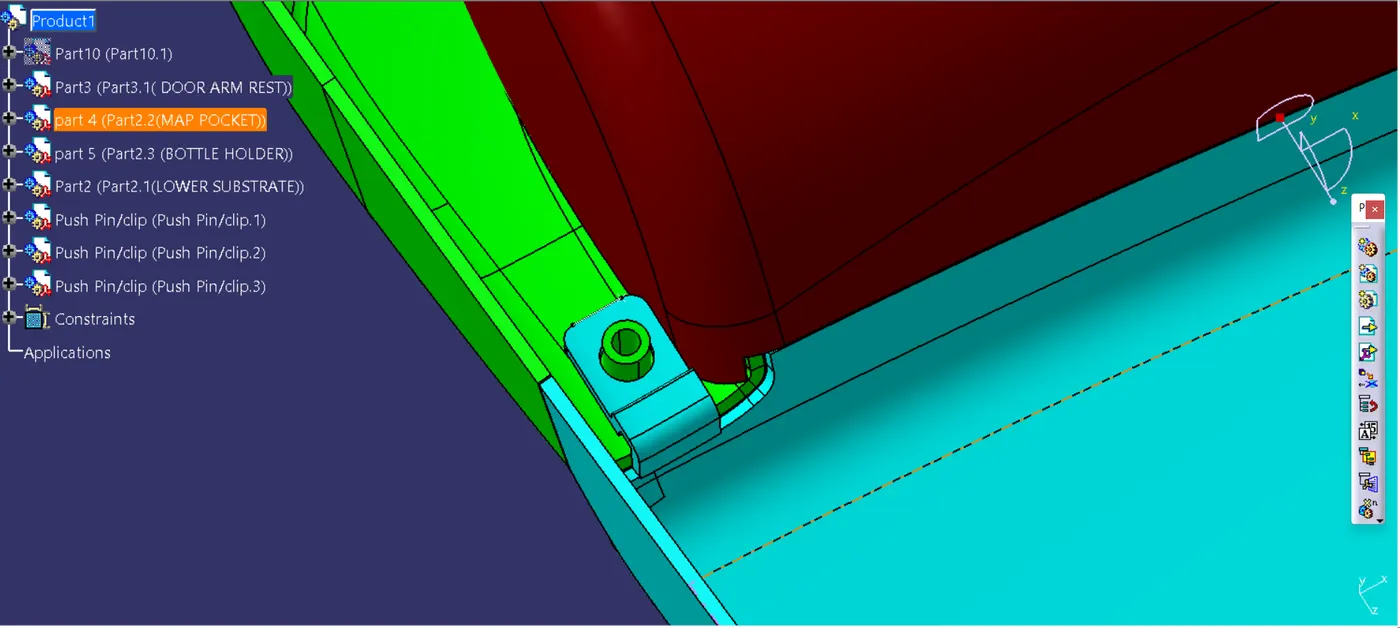

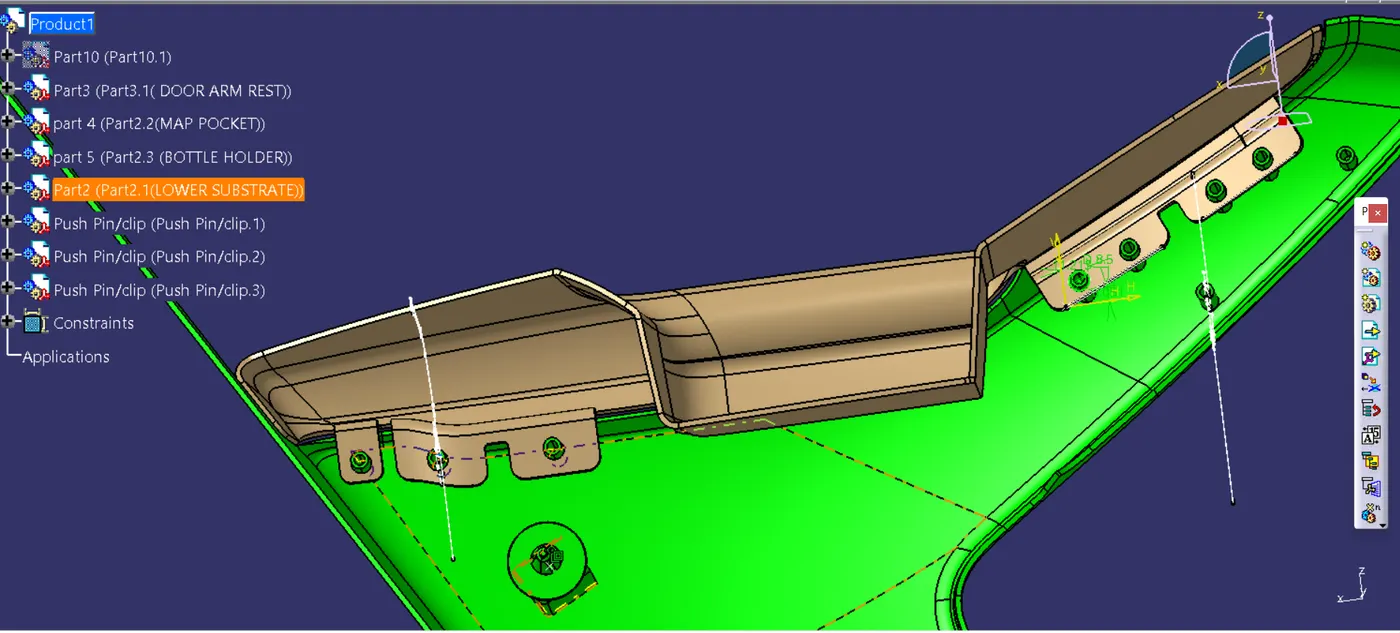

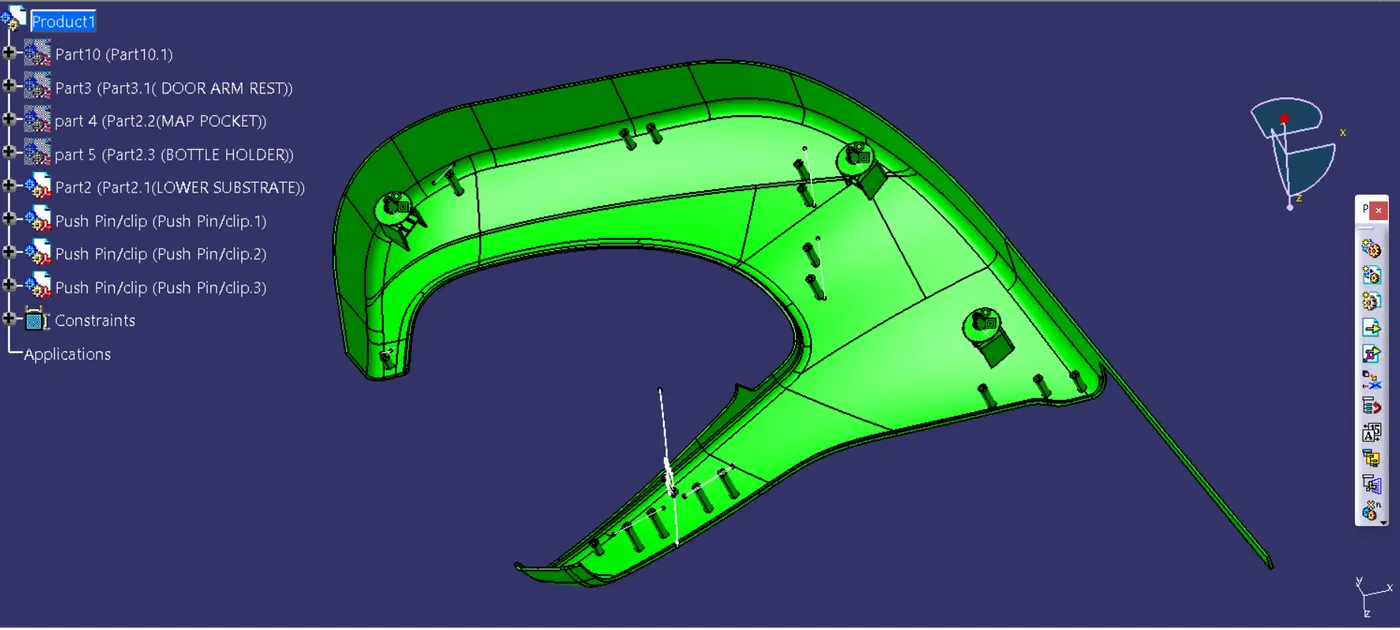

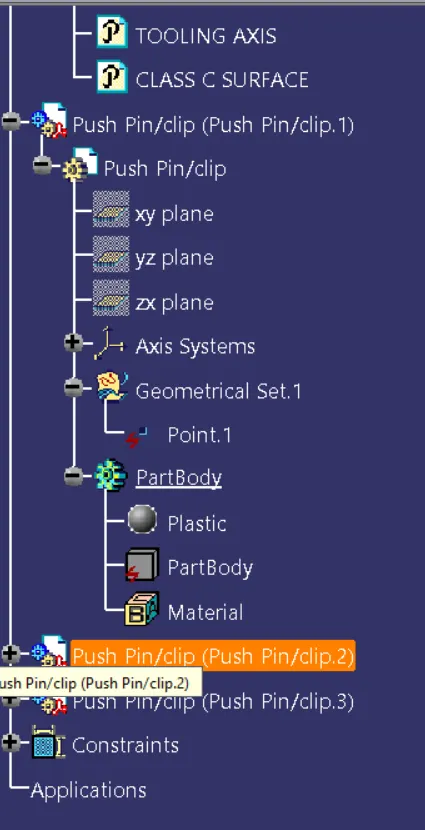

Assembling the push pins to the dog houses
For this create an axis on the push clops and create the axis on the top cut out on the dog house and apply the coincidence constraint
And apply the coincidence constraint fore the plane for proper sitting of the pushclip on the top of the dog house
conclusion:
The Design of The Automotive Door Trim Panel from a Class A surface to a Closed Part Body with all the necessary attachment features by following all the design rules using CATIA V5 is done Successfully and all the required CATPart and CATProduct files are attached.

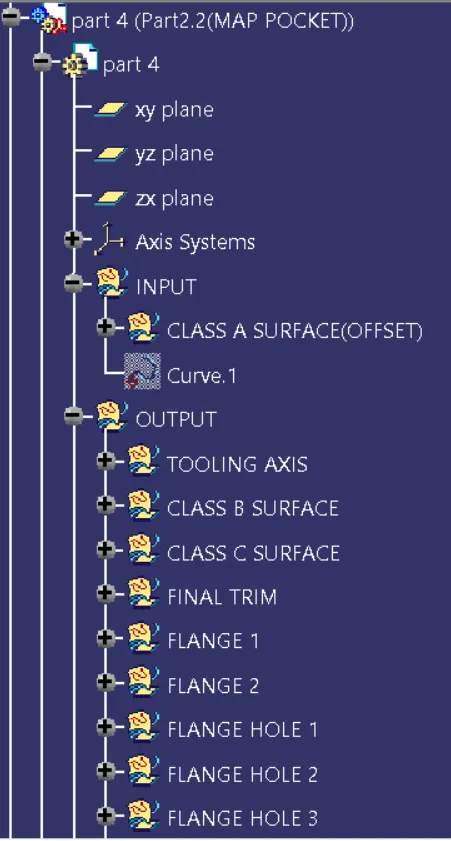

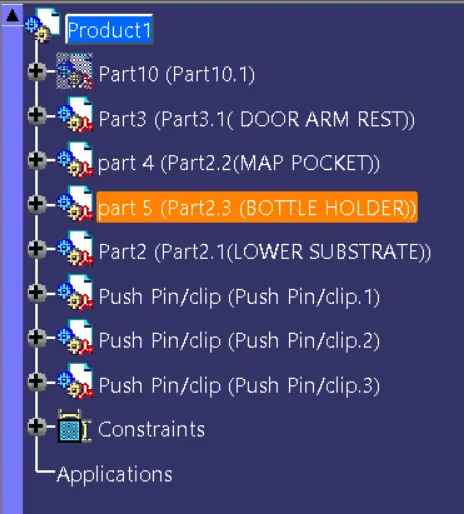

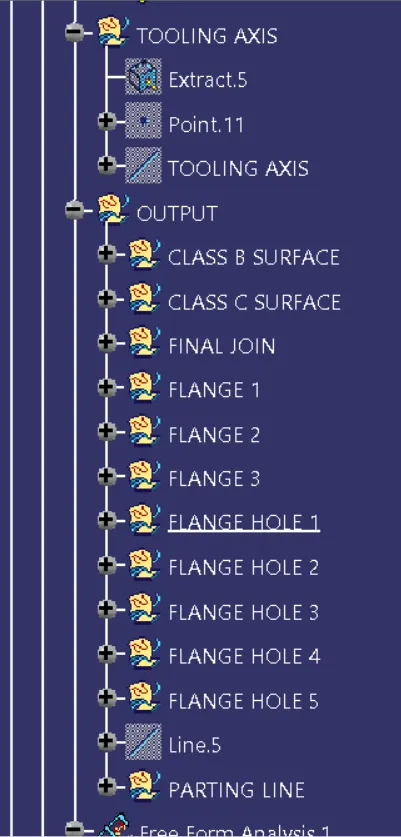

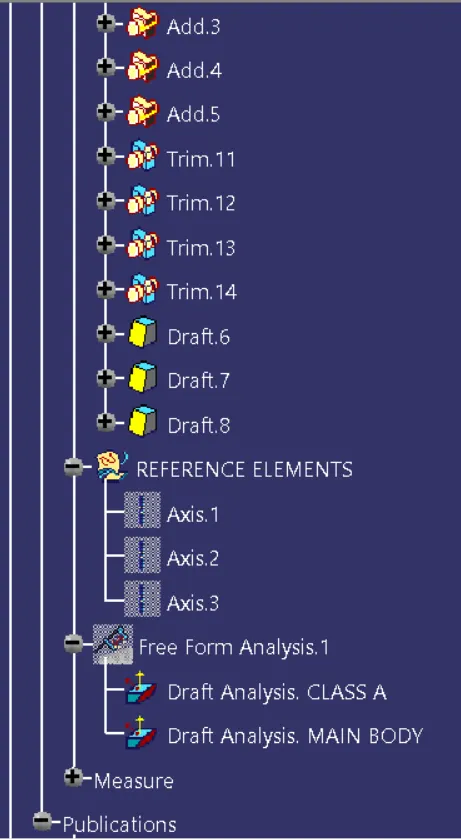

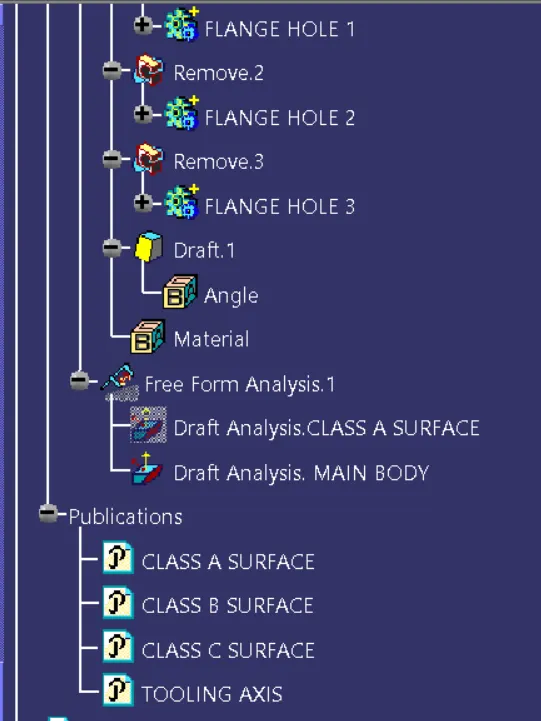

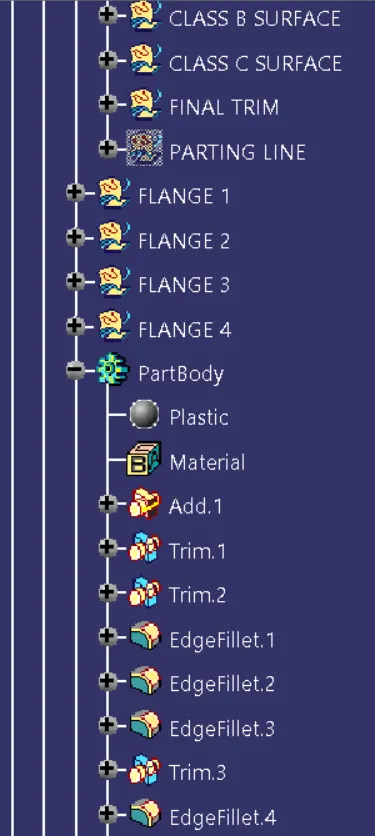

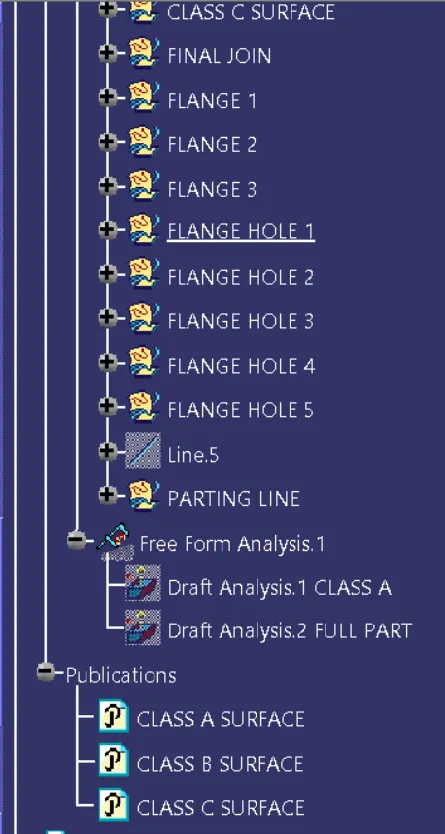

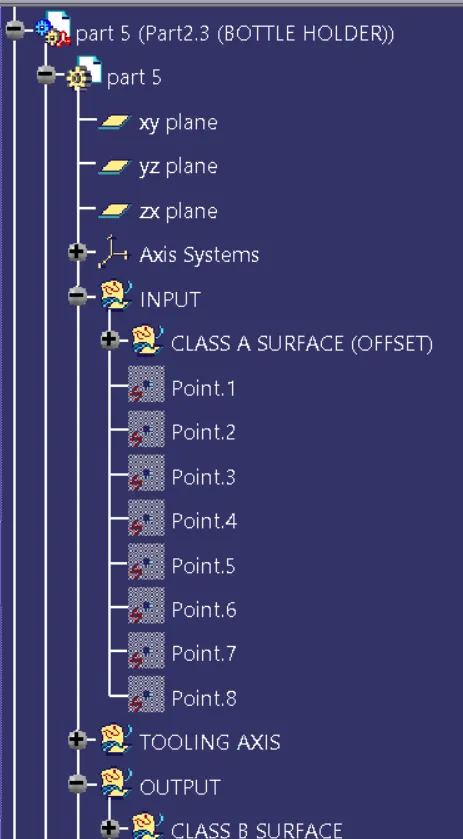

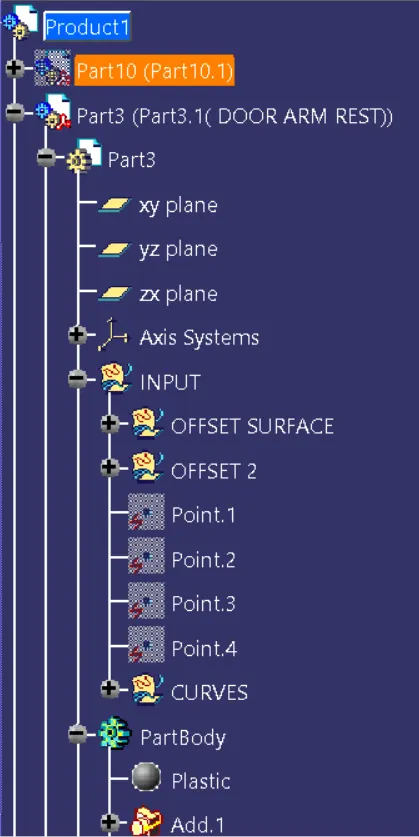

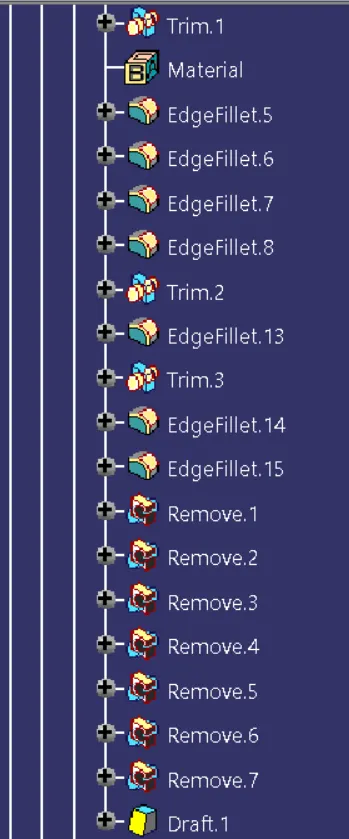

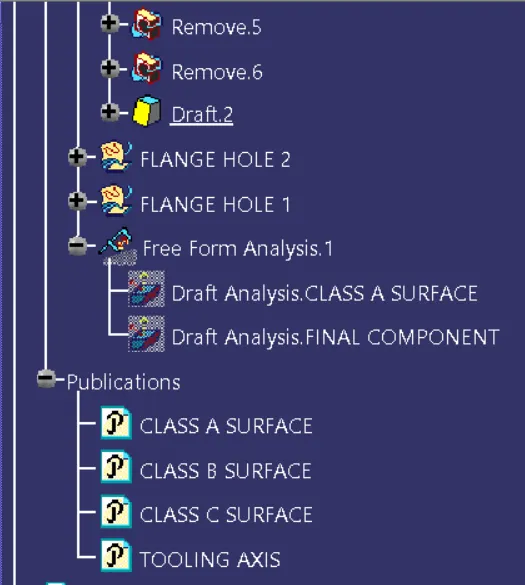

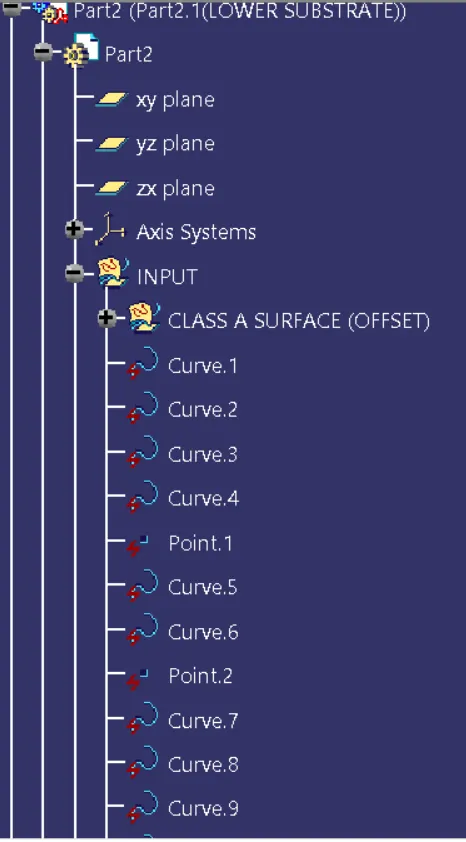

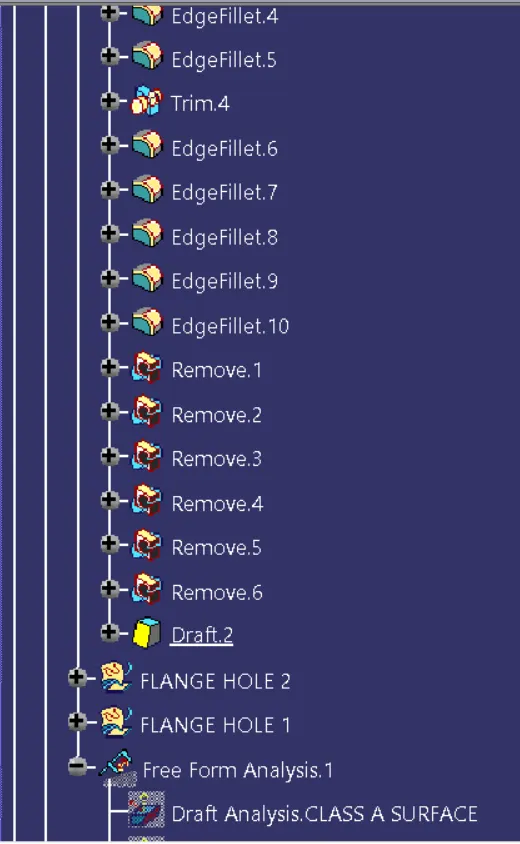

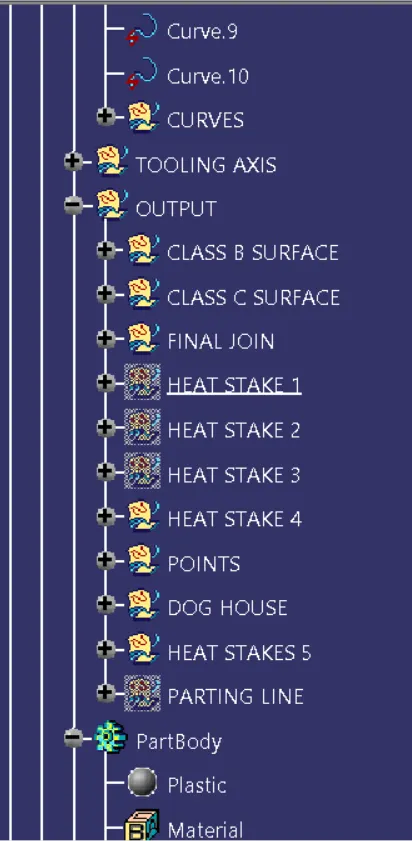

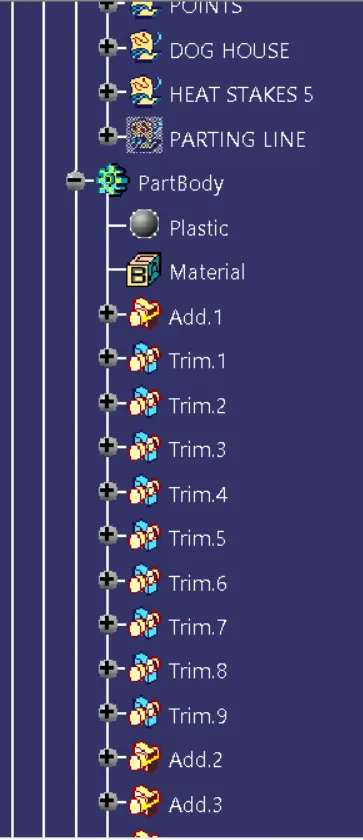

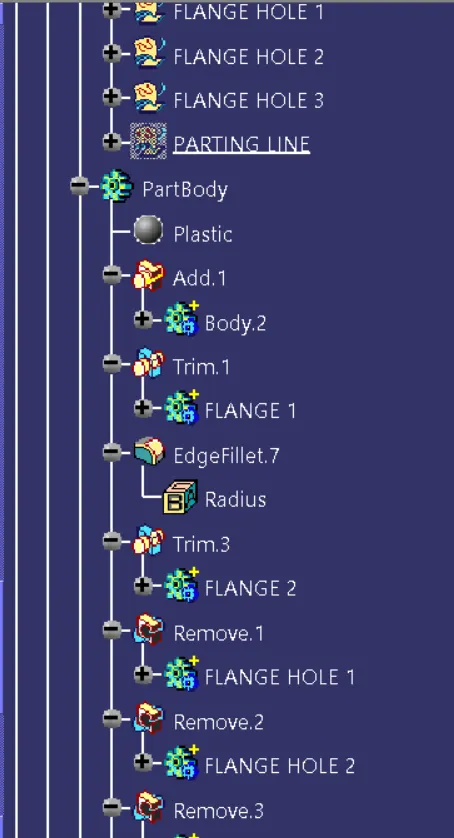

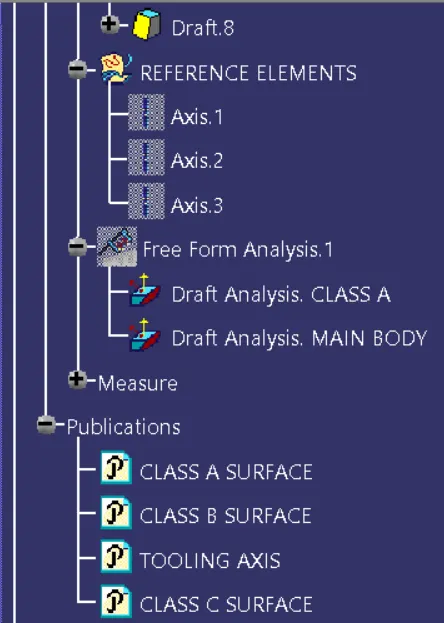

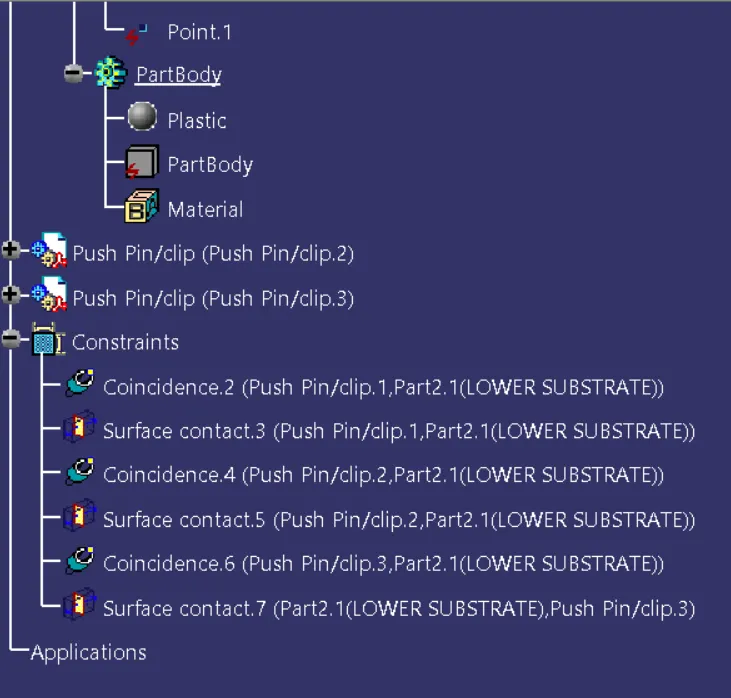

The tree structure is
