Week 12- Final project

FINAL PROJECT:-[DOOR TRIM PANEL]

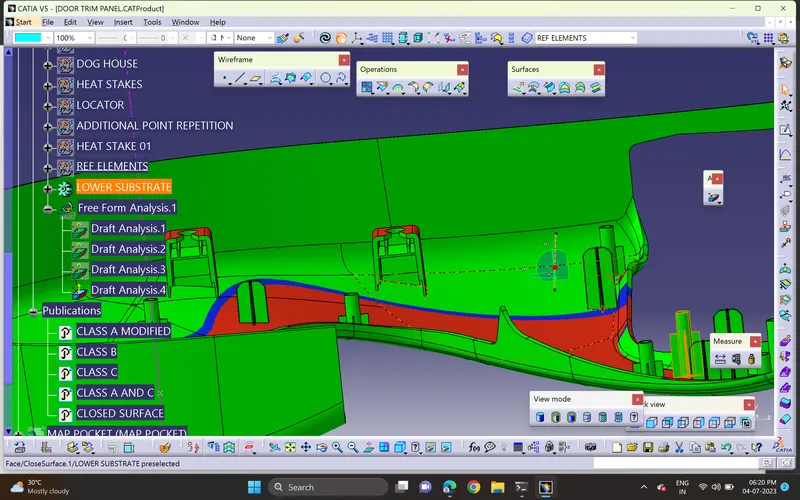

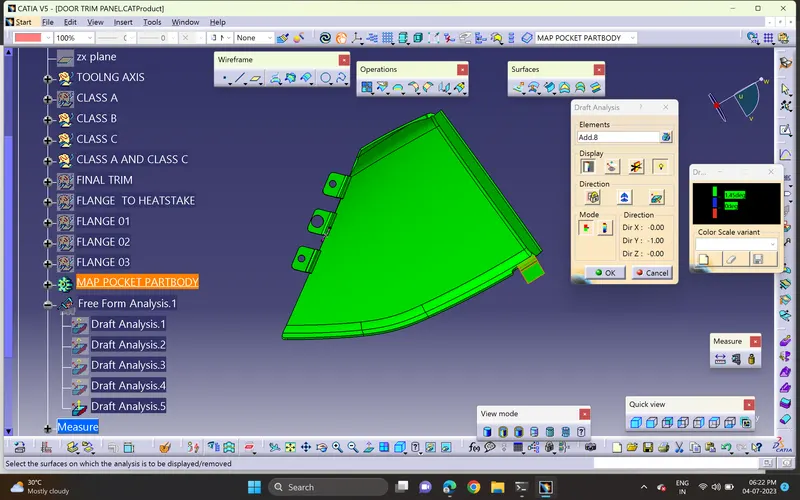

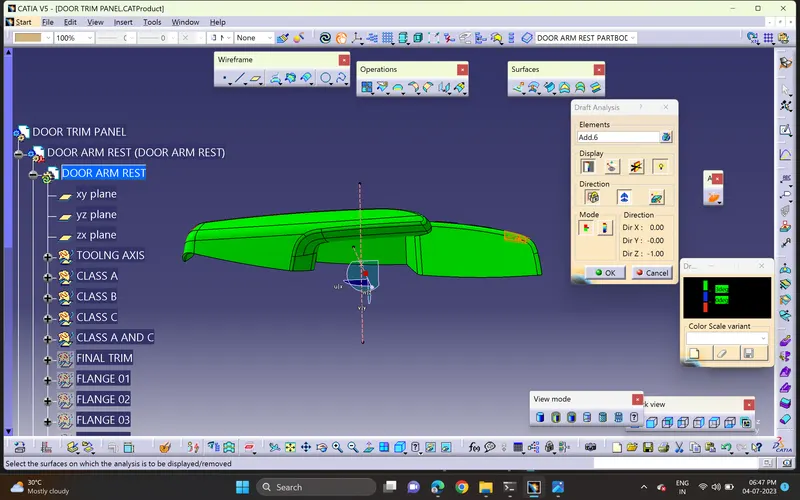

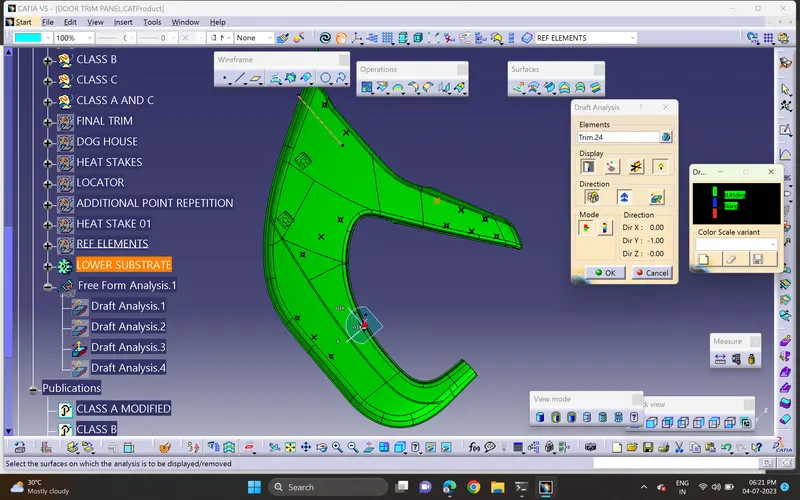

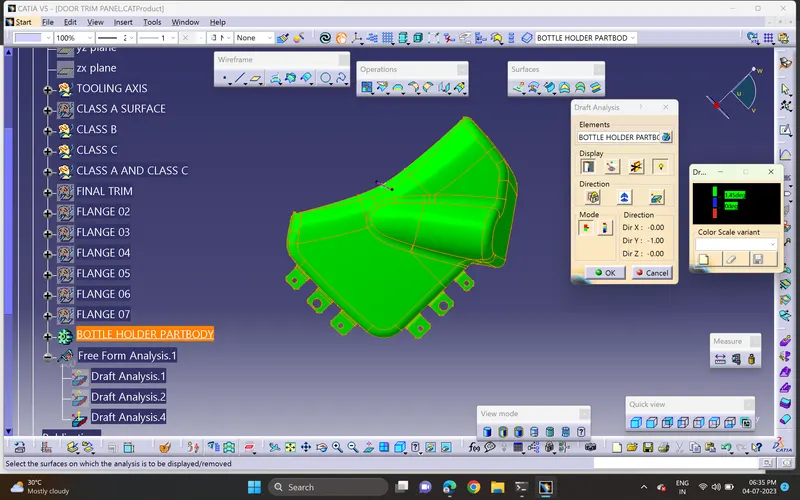

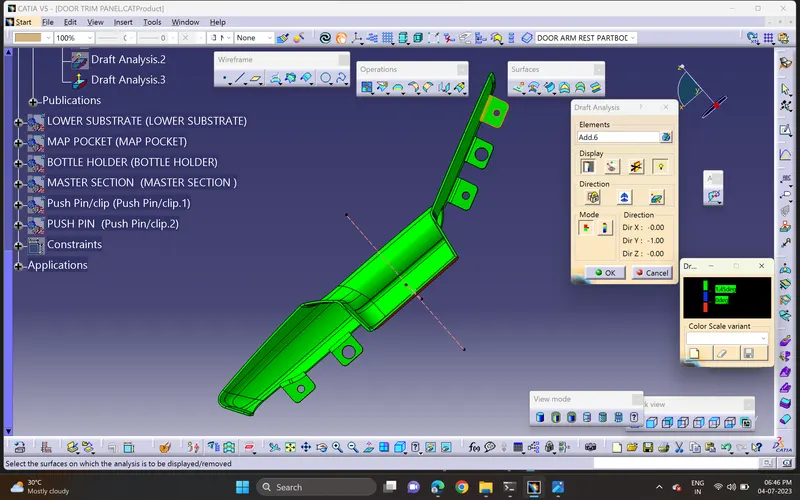

TOOLING AXIS:- IN THIS DOOR TRIM PANEL TWO ATTACHMENTS NAMED ASMAP POCKET,BOTTLE HOLDER ARE CLEAR WITH Y-DIRECTION TOOLING AXIS.BUT ONE OF THE SURFACE NAMED AS DOOR ARM REST IS NEEDS TWO DIRECTION OF TOOLING AXIS FIRST ONE[MAIN TOOLING AXIS] IN THE Y-DIRECTION AND SECOND ONE[SIDECORE AXIS] IN Z-DIRECTION [I:E SURFACE IS CLEAR IN THE TWO DIRECTIONS].LOWERSUBSTATE SURFACE ALSO NEED TWO TOOLING DIRECTION ONE IS IN THE Y-DIRECTION [MAIN TOOLING AXIS] AND ANOTHER ONE IS SIDECORE AXIS FOR CLEARING DOG HOUSE INNER FACES.

ENGNEERING FEATURES:-

IN THIS DOOR TRIM PANEL WE ARE USED FLANGES,LOCATORS,HEATSTAKES,DOG HOUSE AND PUSH PIN.

LOCATORS: LOCATORS ARE USED FOR LOCATING THE PART IN THE CORRECT POSITION.

PUSH PINS: PUSHPINS ARE HELPED TO LOCK THE PART .

FLANGE AND HEATSTAKES: THESE COMPONENTS ARE USED FOR JOIING THE ALL PARTS.

DOG HOUSE : DOGHOUSE USED TO AVOID THE SINKMARKS .

THESE ENGINEERING FEATURES ARE CREATED FROM THE GIVEN MASTERSECTION.
