Week 12- Final project

DOOR TRIM FINAL PROJECT

For the final catia project, I have submitted the CAD files and PPE report.

nots:

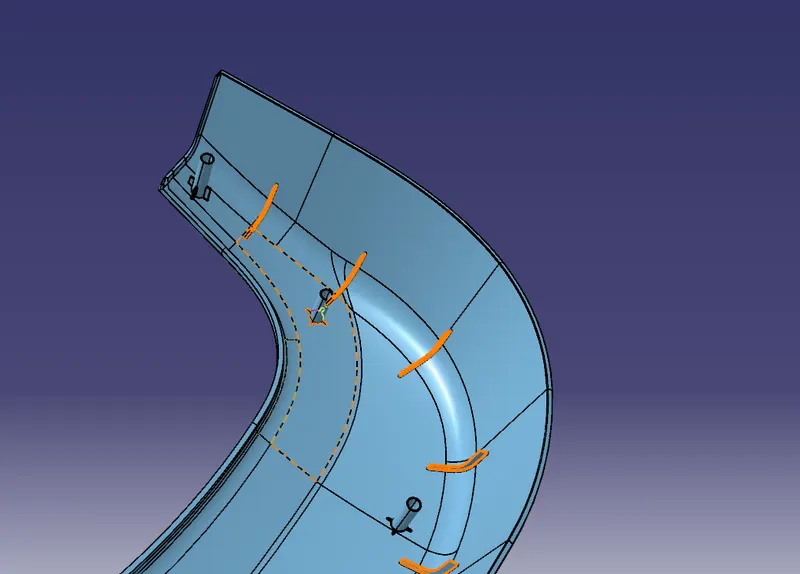

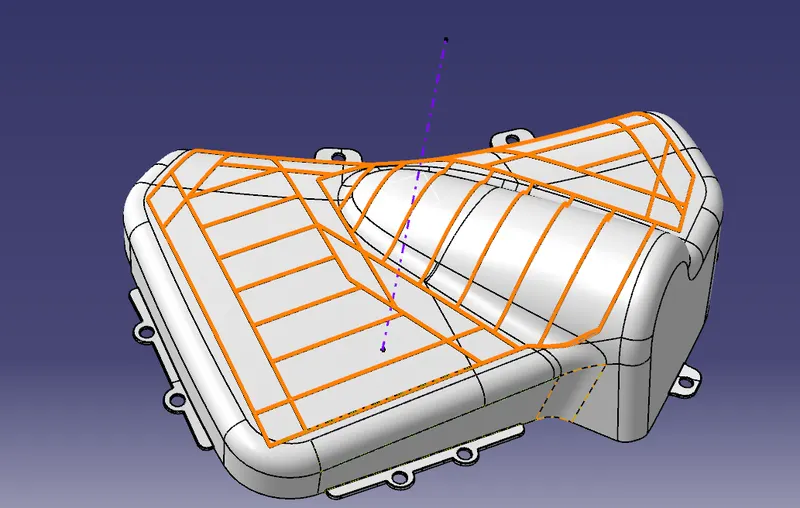

• i have tries to give ribs to all parts because i have seen it on a real time door trim.One of the mentors said it was unnecessary, and I already ran out of time. so i only keep the completed ribs and delelte and deactivate all the other ribs

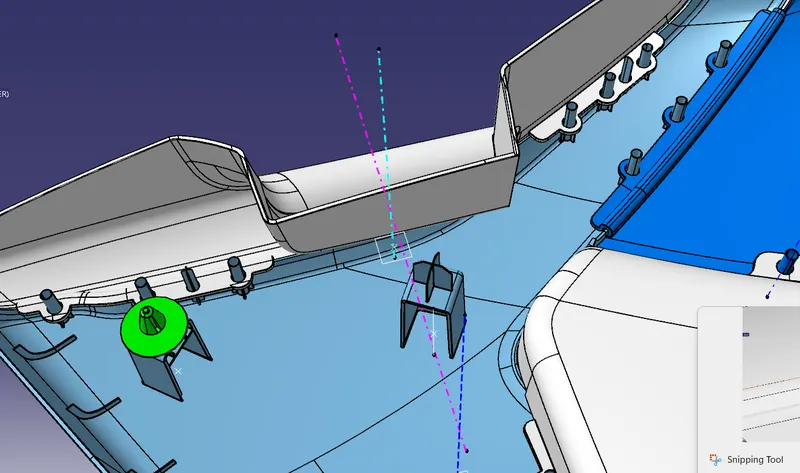

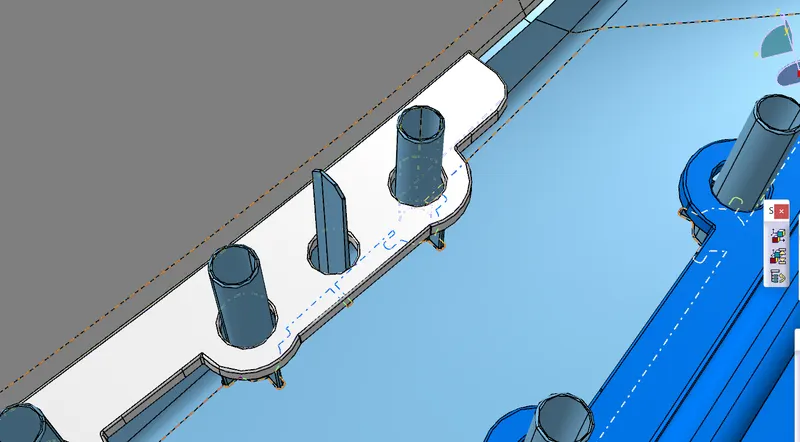

• and also one of the mentor told me to give locators for each part to part. but when i tried to do it i cant make by folloing the design rules
•
•

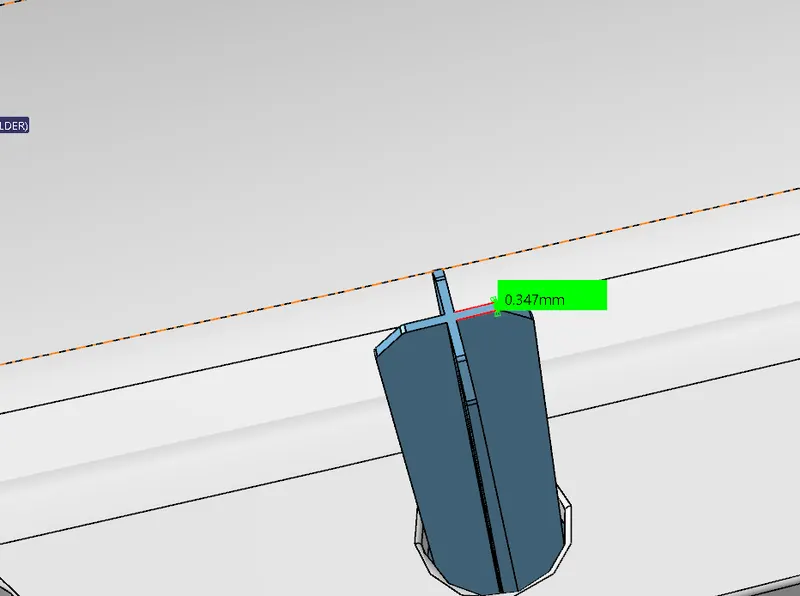

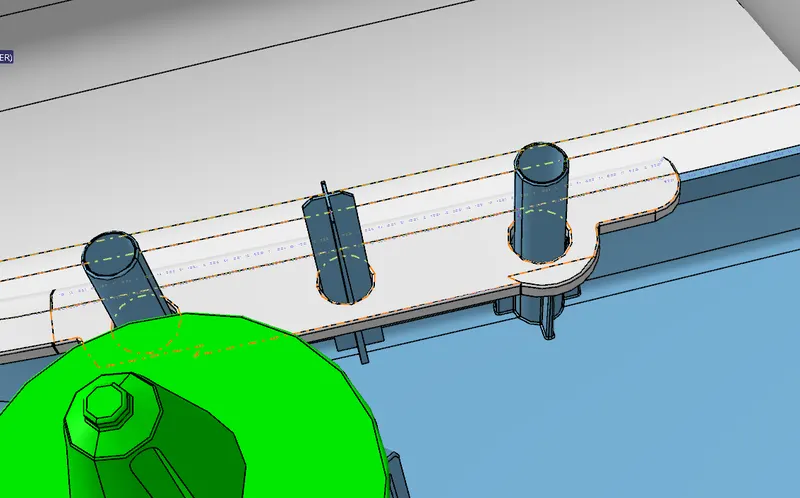

for the part to part the locator should have length more then the heatstakes. and after i give draft to the locator ribs the thickness at the top of rib is onlt .3mm and also i cant give the mimimum fillet of .25 mm
