Development of a Door Trim panel

OBJECTIVE:

• Creation of CAD model considering following inputs as like in OEM and tier1 companies

  1. a) Class A surface
  2. b) Nominal thickness : Refer master sections
  3. c) Attachment strategy :
• Find a attachment strategy for the door panel complete work.
• Use Push pin with Dog house for Lower substrate – Door panel attachment
• Use heat stakes for part to part attachment
• Draft analysis & Tooling analysis

REPORT:

INTRODUCTION

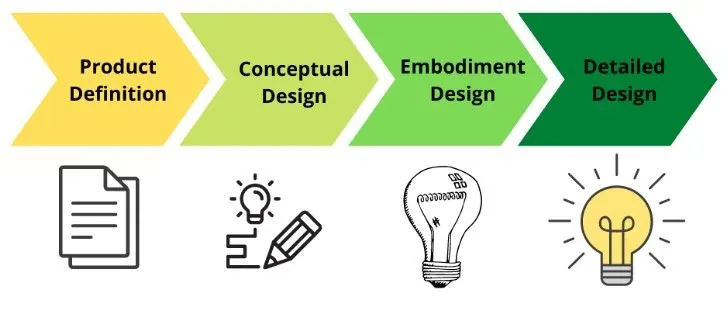

PRODUCT LIFE CYCLE

• 1. Concept sketch
• 2. Styling class A
• 3. Feasibility check
• 4. Concept validation
• 5. New Product Design
• 6. Product Development
• 7. Proto Build
• 8. Design Validation
• 9. Pilot Production
• 10. Mass production

NEW PRODUCT DESIGN

In this stage the major work of product design is done, by taking inputs  from the concept sketch to validate the product will go to design using design software such as Nx, catia, solidworks, solid edge etc. IN this stage through design all the surfaces are divided into sub parts from the class A surface and Ensuring product should be workable.

CREATION OF CAD MODEL

CAR DOOR TRIM

• MASTER SECTION DEVELOPMEN: browse file and select the given file (MASTER_SECTION_DEVELOPMENT.igs)

•  Class A surface  modification as per master section: From the given data we have to do cad model for

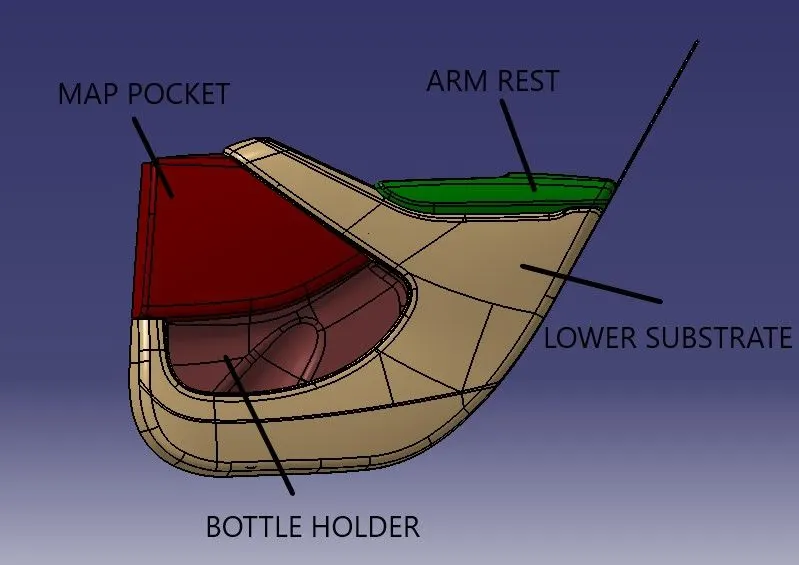

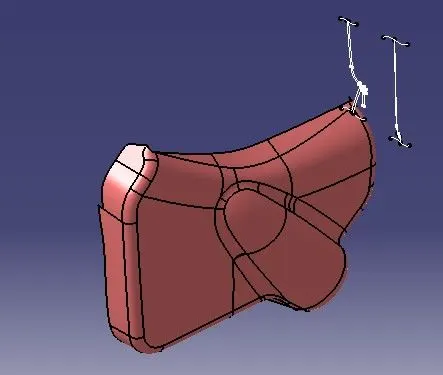

1. LOWER SUBSTRATE
2. ARM REST

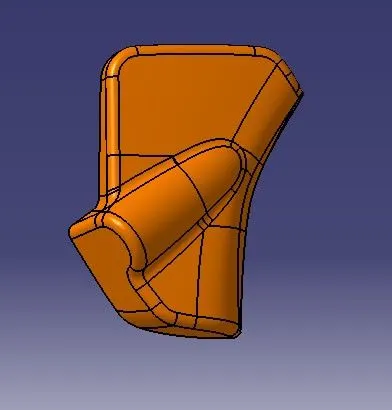

3. MAP POCKET
4. BOTTLE HOLDER

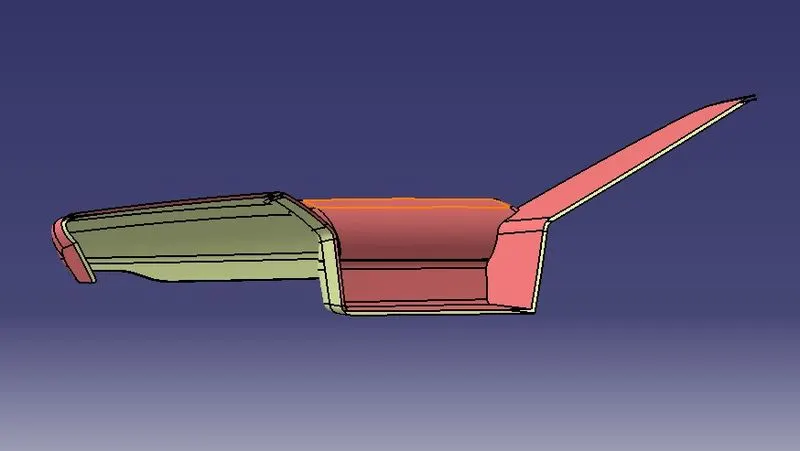

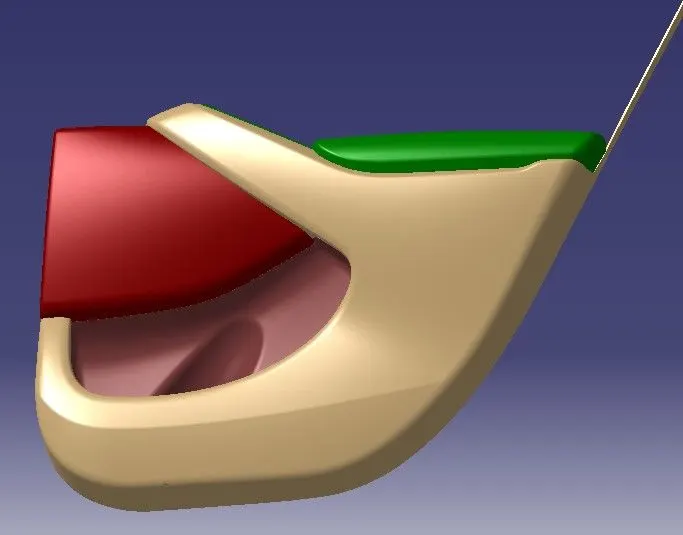

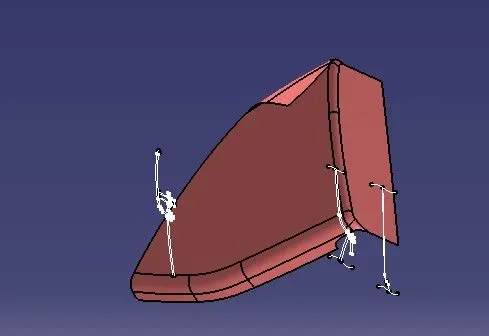

Given MASTER SECTION we need to add class A surface as shown in fig

CLASS B SURFACE

 Class B surface is created by direct offset and create a surface using mutlisection surface, extrapolate etc

 Class C surface: Class C surfaces are created based on the tooling direction as well surface reference.

tools used

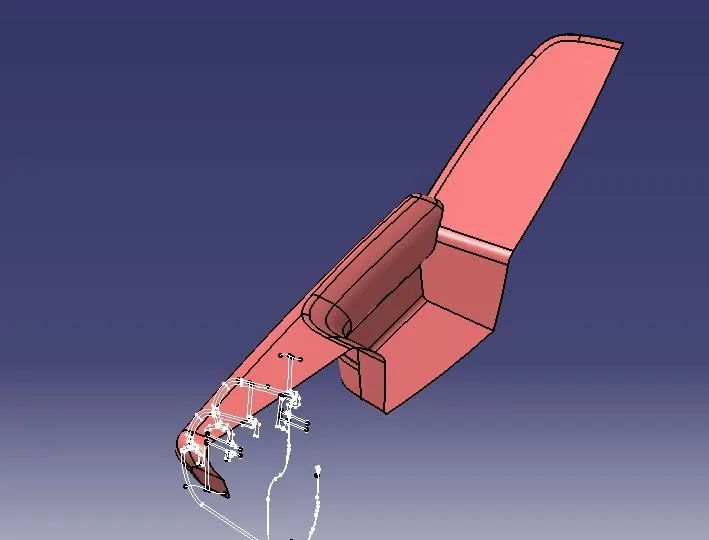

Creating Swept surfaces The swap tool is provided to create surfaces by sweeping a profile along a guide curve in the Wireframe and Surfaces Design workbench of CATIA V5. To create a swept surface, you first need to draw a profile and a guide curve as two separate sketches

Creating Swept surfaces with draft direction: similar to the Creating Swept surfaces but we have to select direction for draft.

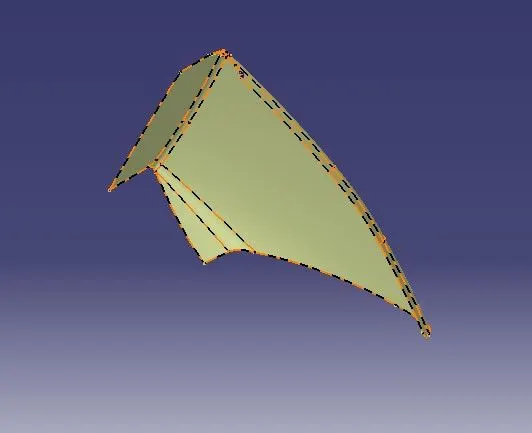

Creating Lofted Multi Section Surface: This tool allows you to create lofted multisection surfaces. The surface is created between the sections along the computed or user-defined spine. To create a multi section surface, you first need to create sections and guide curves. Next, choose the Multi Sections surface button from the Surface toolbar; the Multi-section

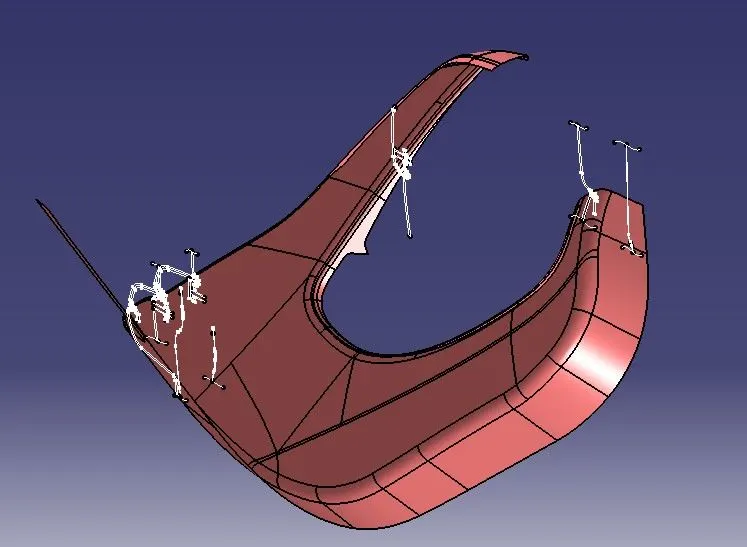

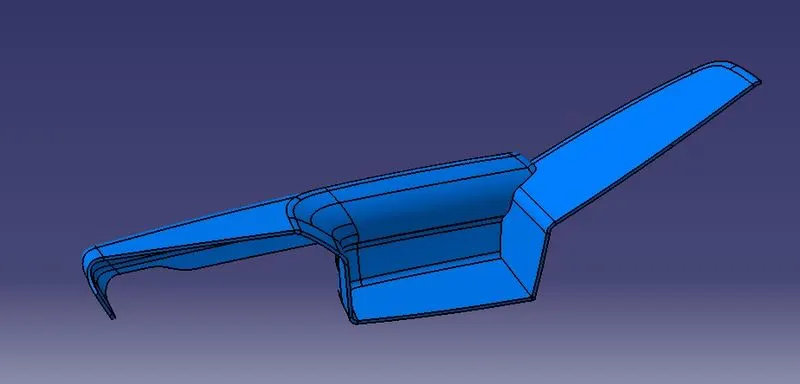

 Final trimming : Trimming class A , with class C and Class A + C with Class B. using Trimming Surfaces Insert > Operations > Trim

The Trim tool allows you to trim two intersecting surfaces or curves with respect to each other. When you invoke this tool, the Trim Definition dialog box will be displayed,  Choose a surface as the first element and the other surface as the second element. One side of each surface will be displayed as transparent. You can choose the Other side button to reverse the sides of surfaces to be trimmed.

DRAFT ANALYSIS

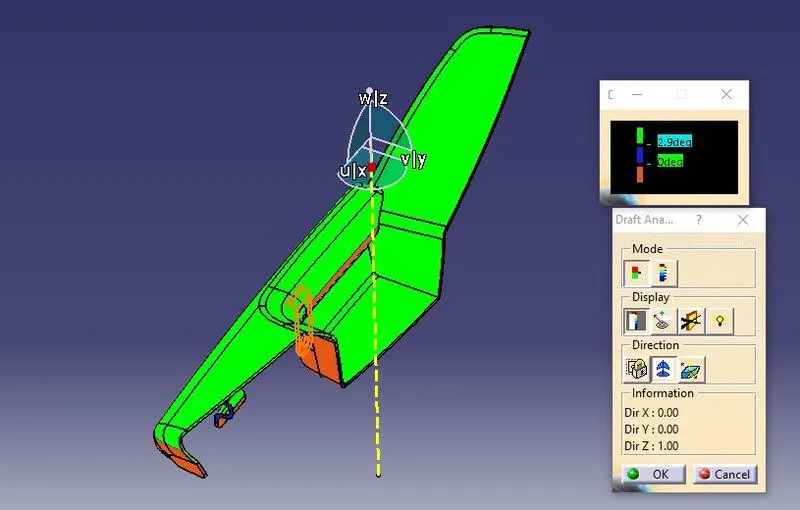

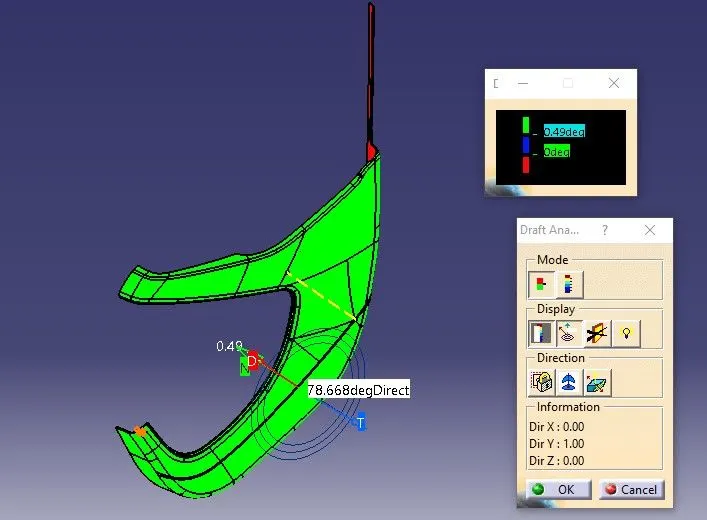

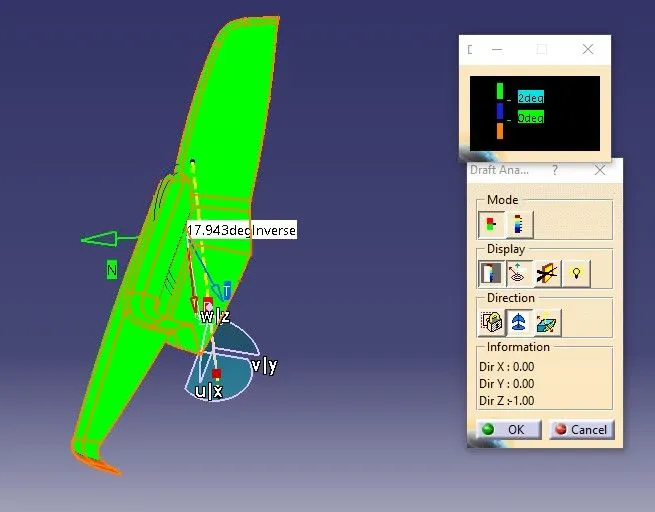

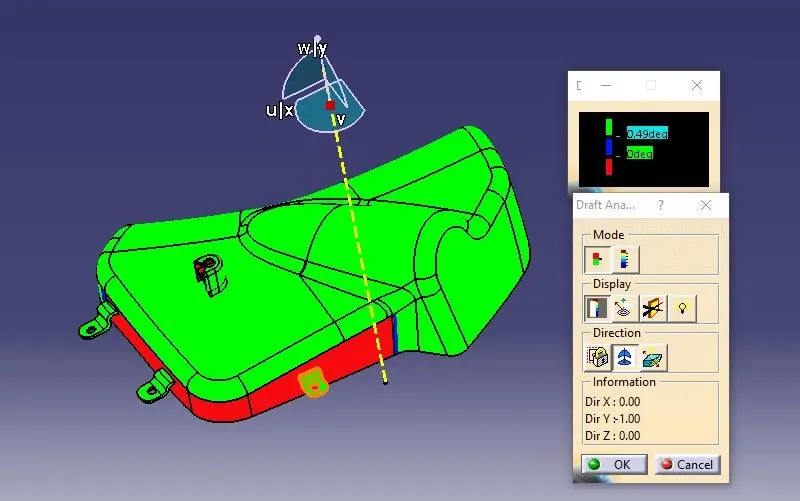

 Draft analysis is performed based on color ranges identifying zones on the analyzed element where the deviation from the draft direction at any point, corresponds to specified values. Minimum draft angle is considered as 3 degree.

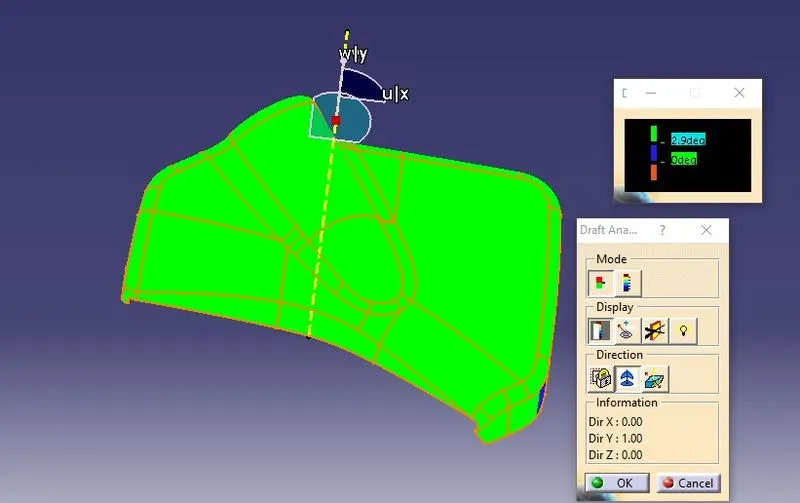

• Screenshots of the Draft analysis report for both the given Class-A surface and the final plastic component.



CREATION OF ATTACHMENT;

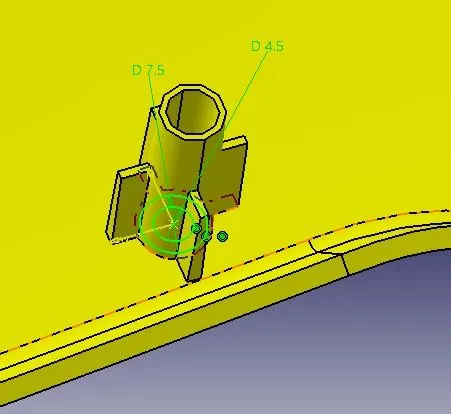

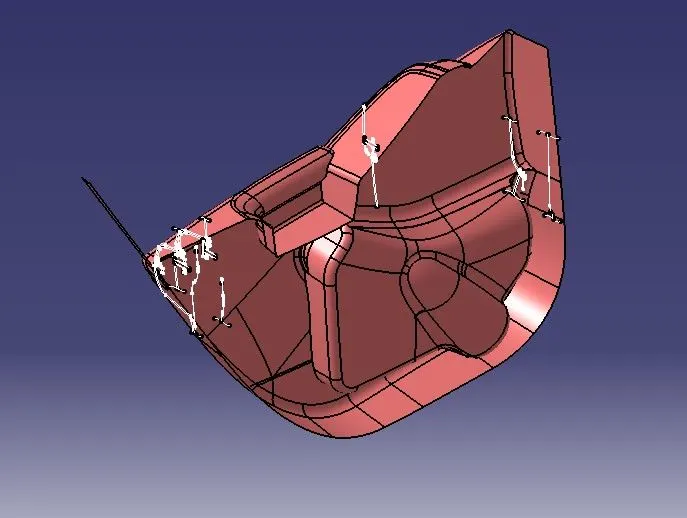

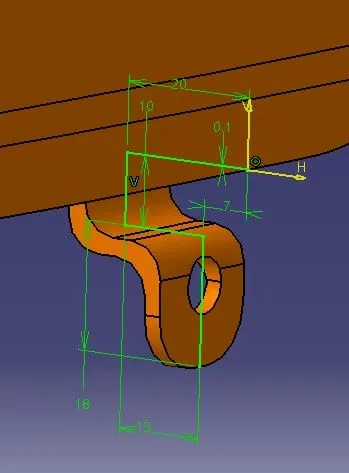

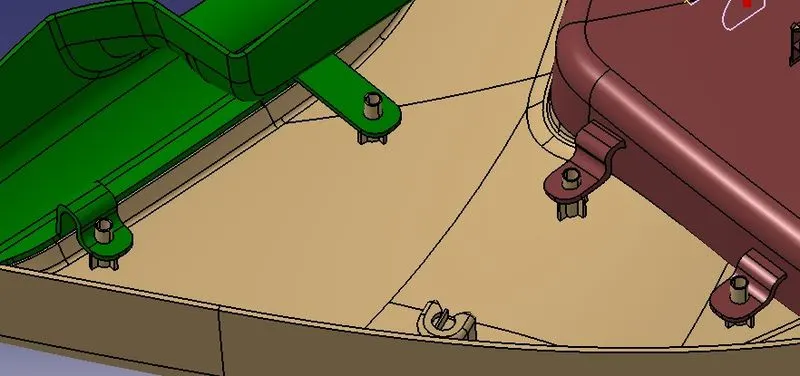

The heat stakes are created for part to part attachment as per master section, here some of the heat stakes are having ribs, because they have more then 1.6 of Dia, so in order to give strength we have ribs. all heat stakes are done on Lower Substrate.

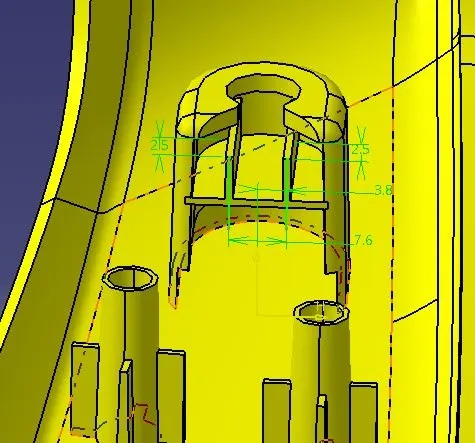

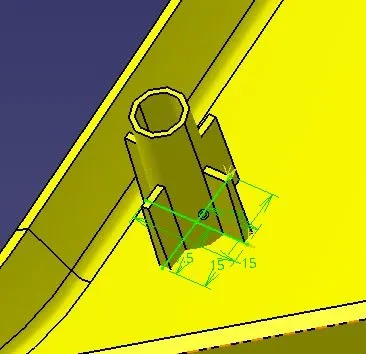

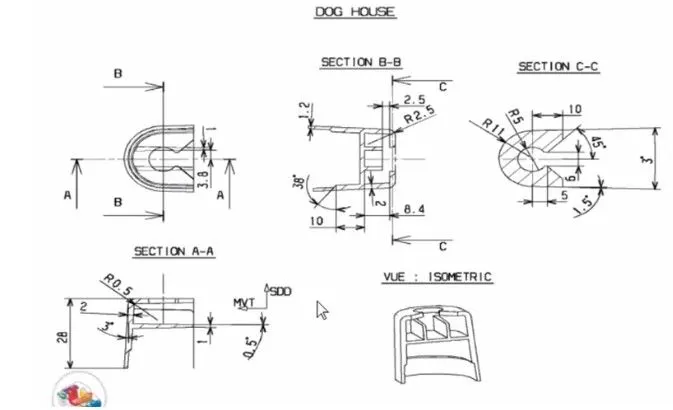

DOG HOUSE CREATION;

1. Doghouse are created by following the design rules.
2. For this, sketch is created from the master section provided.
3. It is then made to closed body and is made to part model.
4. Shell operation is performed to get hollow structure and then coring is done in order to avoid sink marks in the class A surface.
5. Drafts are given for the surfaces as per design rules and proper fillets are also provided.
6. As per the given master section, ribs and supporting features are also added in the doghouse.
7. Then, the doghouse is added to the main body.

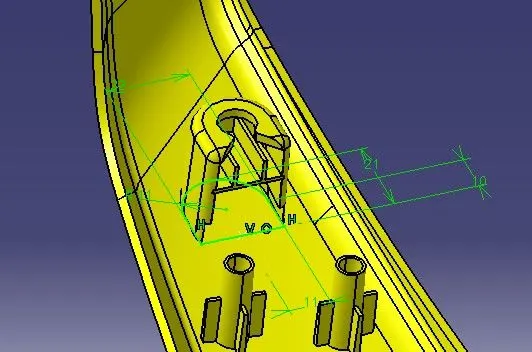

FLANGES AND HOLE CREATION

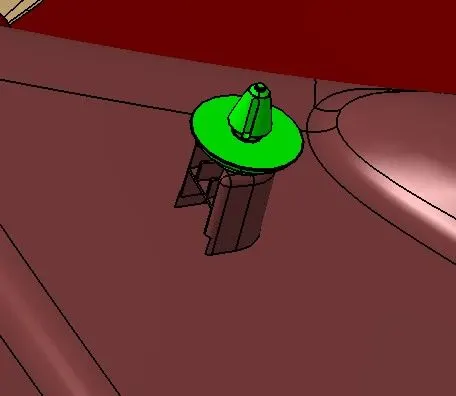

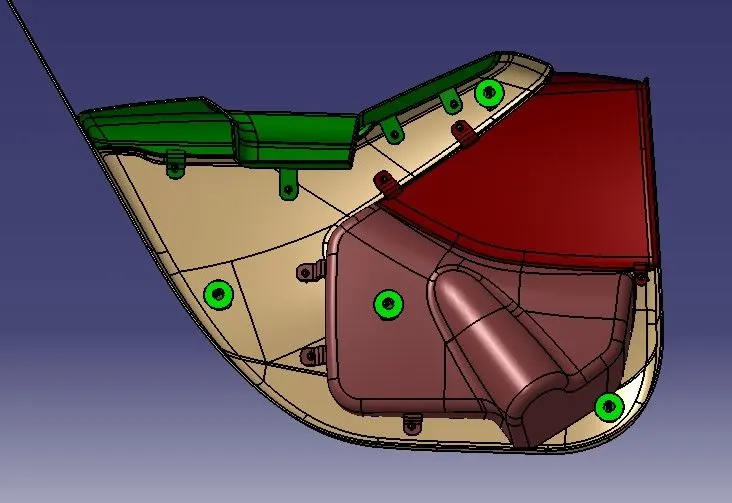

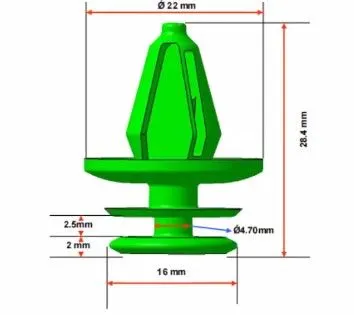

 Create Doghouse and push pin for assembly of panel with BIW part.

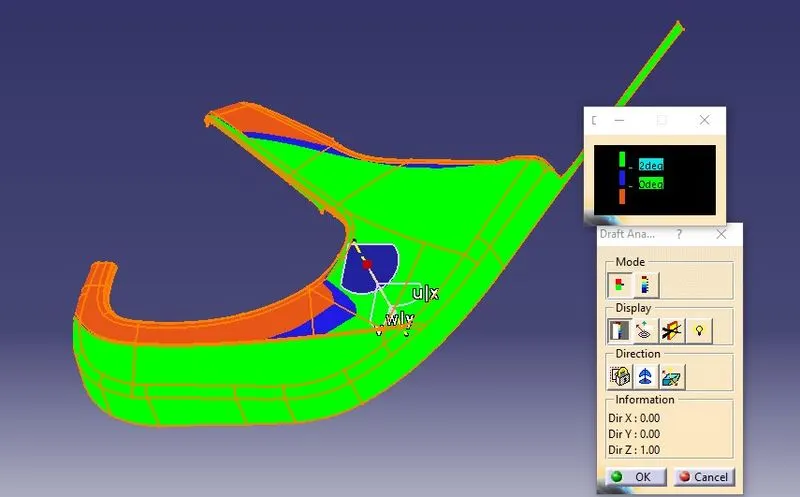

Draft analysis & Tooling analysis for final product:

In the injection molding process, plastic products are difficult to demold due to friction force between the cavity and products, thus, finished products might be deformed or damaged. Therefore, designers should add a draft angle to the geometric surface of products, which is parallel to the unloading direction, in order to help the products eject smoothly from the cavity. This study uses CAD software as the main architecture to develop the function of automatic draft angle recognition and construction. The study is divided into three stages. First, the geometric features of products are identified in the CAD model by induced algorithm, then the quilts to be added in the draft design are determined and classified. Finally, draft angles are created in different ways according to different surfaces

The draft analysis button within CATIA V5 will help you quickly gather the draft angle on multiple surfaces without the need for tedious manual measurements. Here is a quick rundown of how the icon works when you have a given die direction.

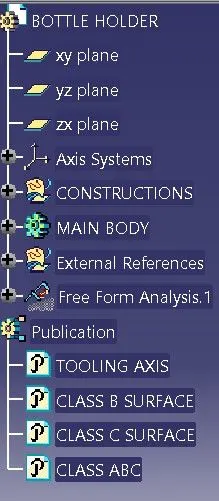

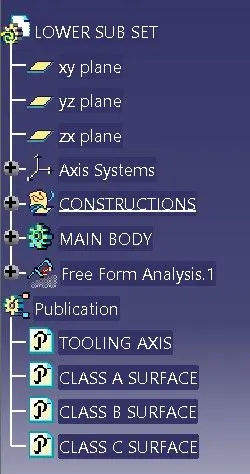

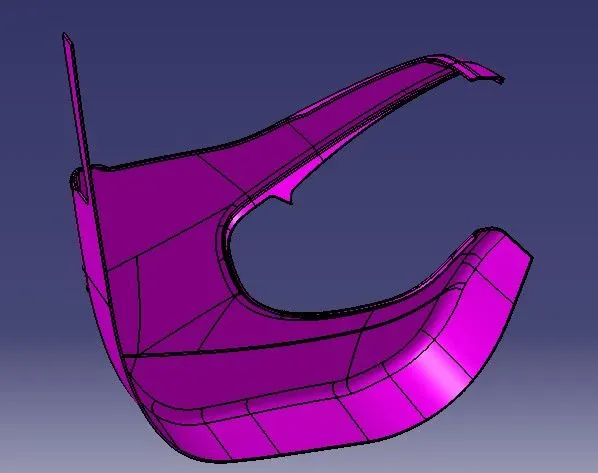

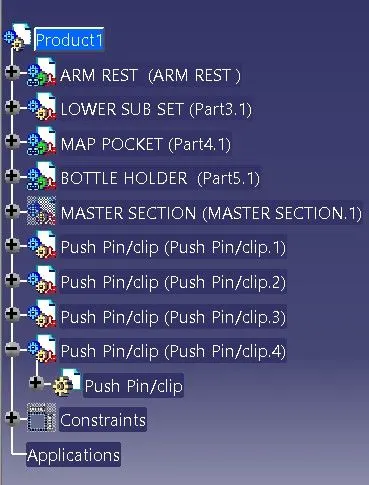

TREE STRUCTURE

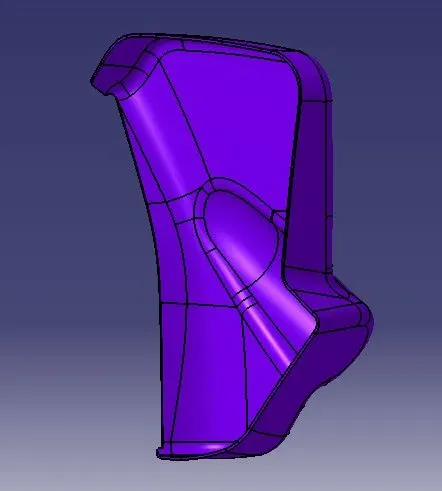

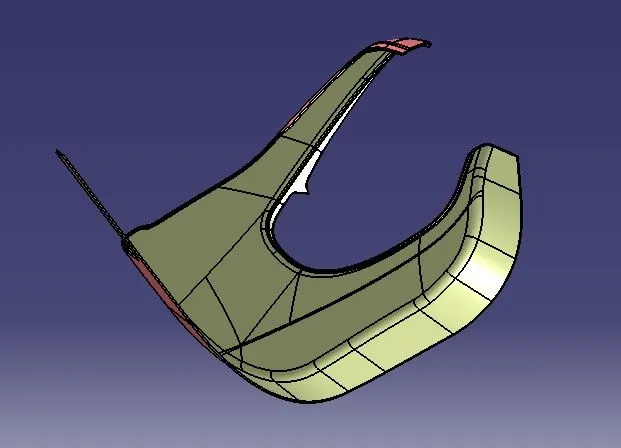

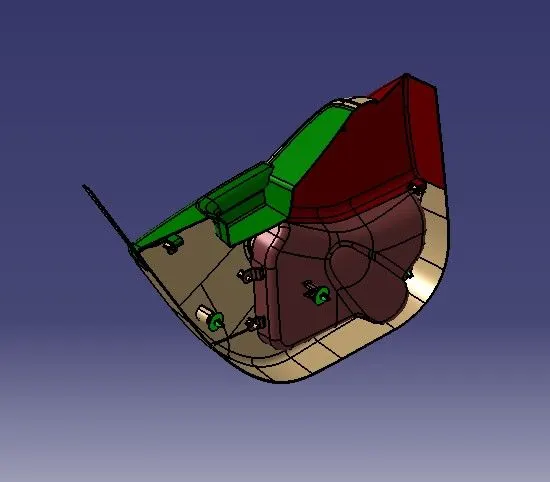

FINAL COMPONENT
