Week 12- Final project

Report :

1. Given CATProduct file is downloaded along with Push Pin file.

2. Each surface is opened in a separate window.

3. B Surface, C Surface and final trim are obtained.

4. Closed bodies are formed.

5. Then the process of adding Engineering features is taken up.

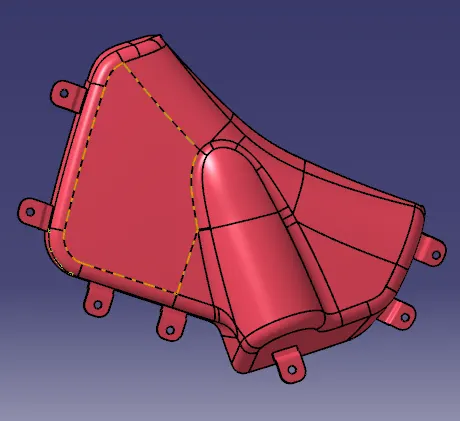

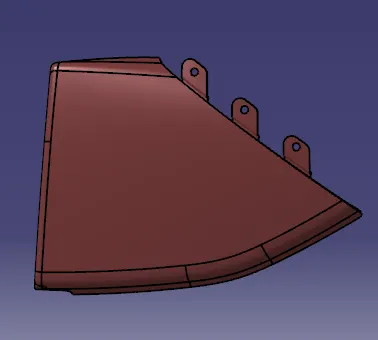

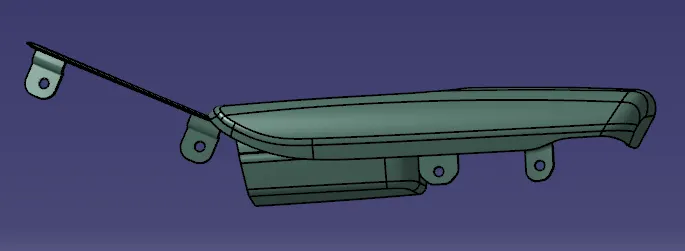

6. Heatstakes are made at certain points.

7. Dog houses are made.

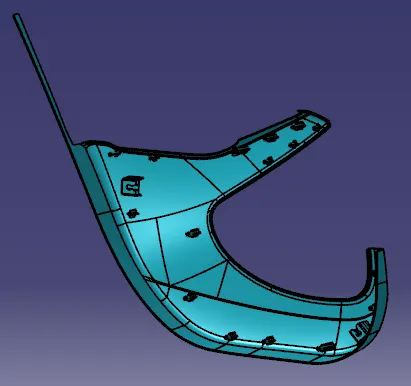

8. Locators are made only on Local Substrate so the other 3 bodies can be fixed.

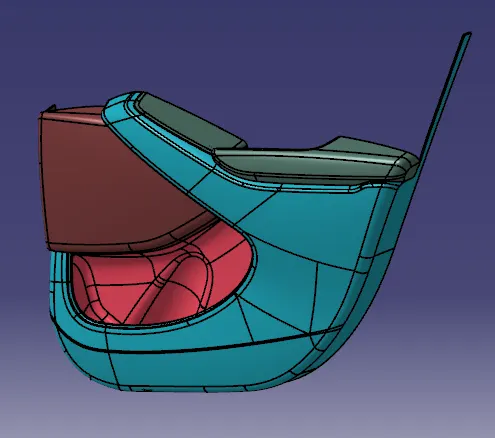

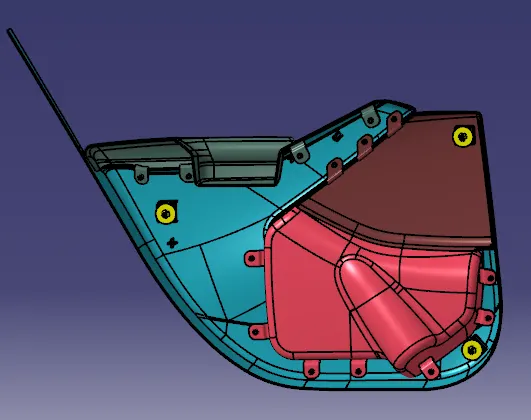

9. After obtaining all features on individual bodies, they are assembled in a new CATproduct window.

10. Relevant constraints are applied to keep all bodies fixed together.

11. Hence, the required Final Product of Door is optained.
