Week 12:- Documentation Challenge

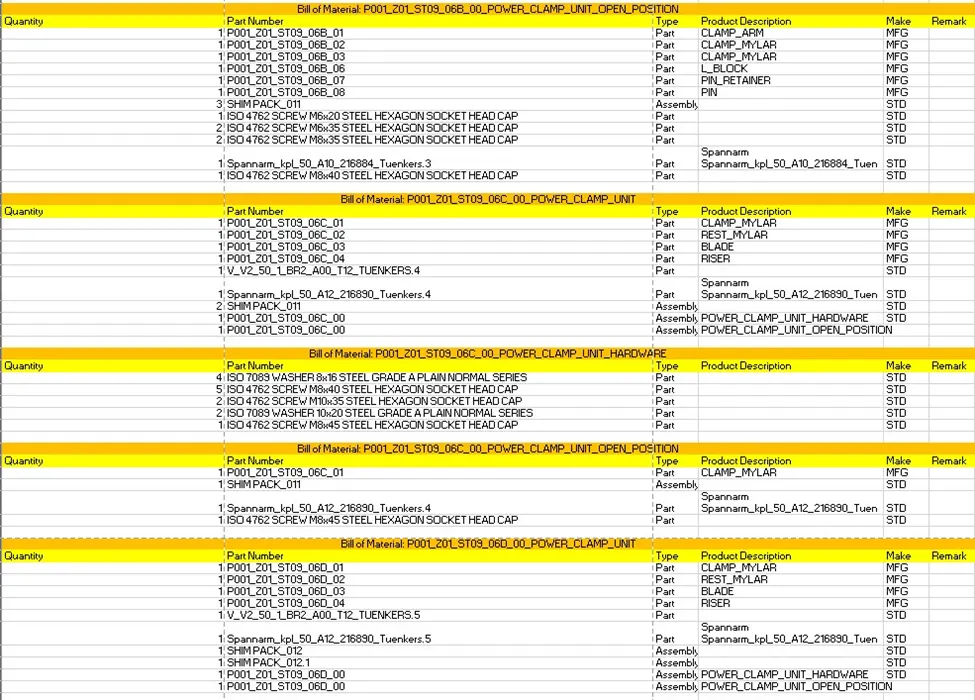

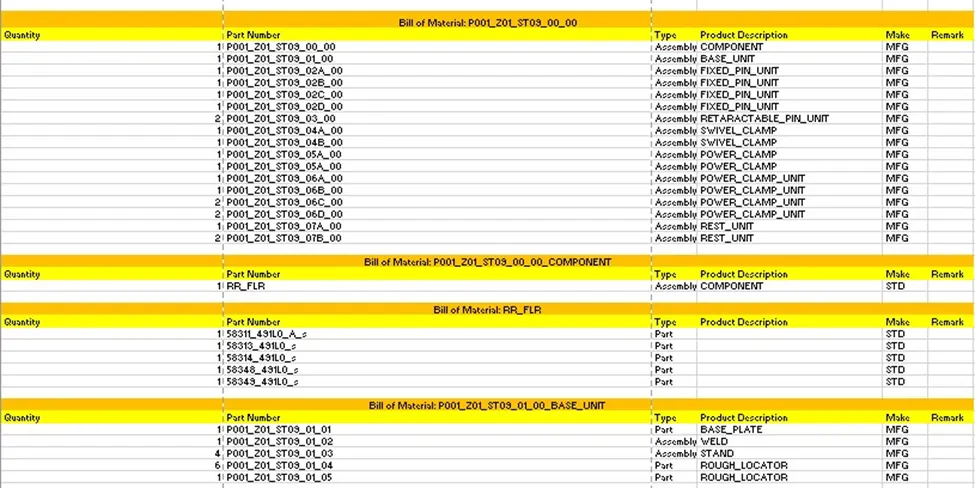

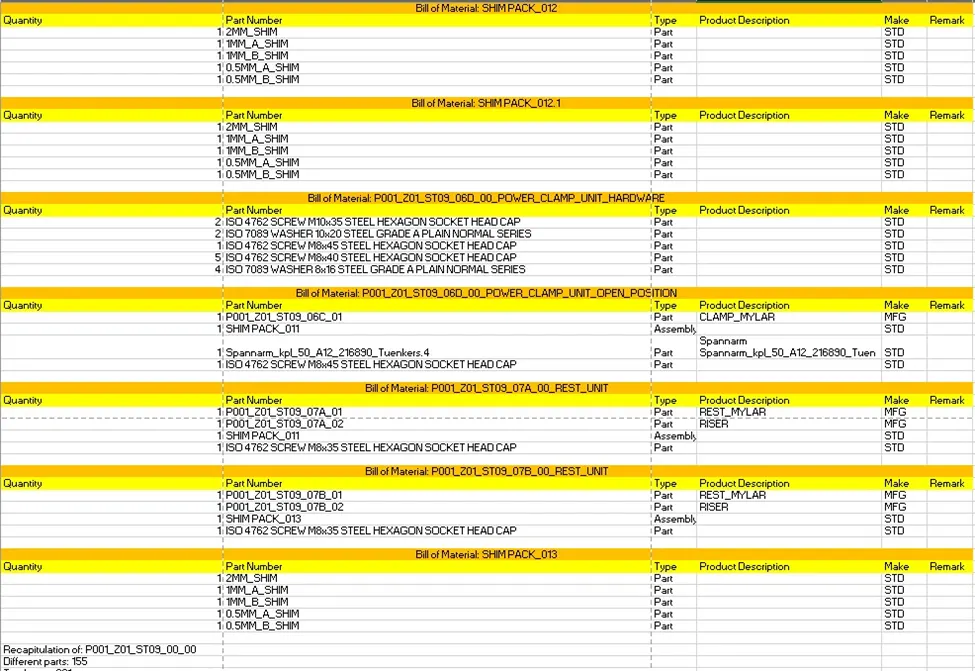

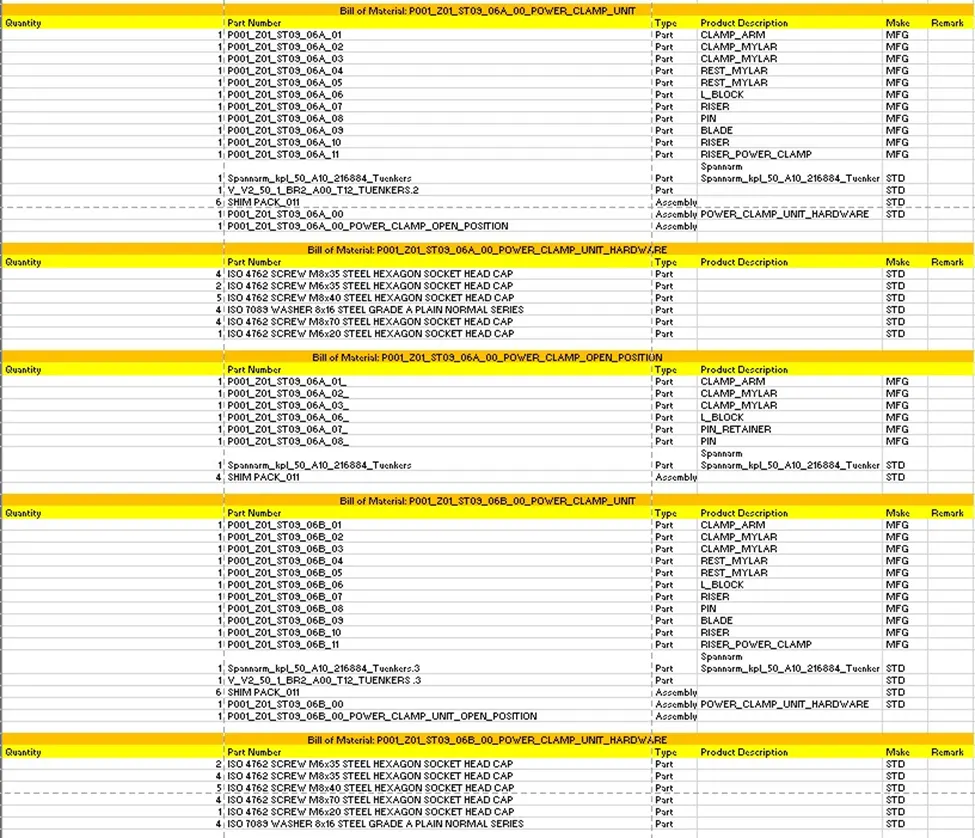

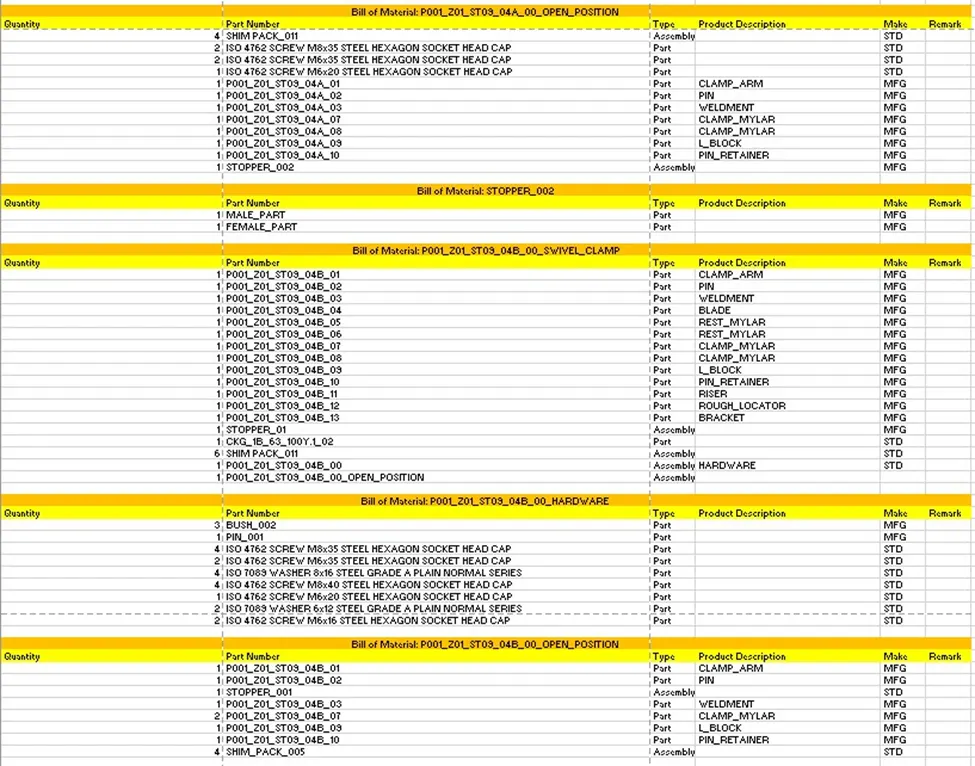

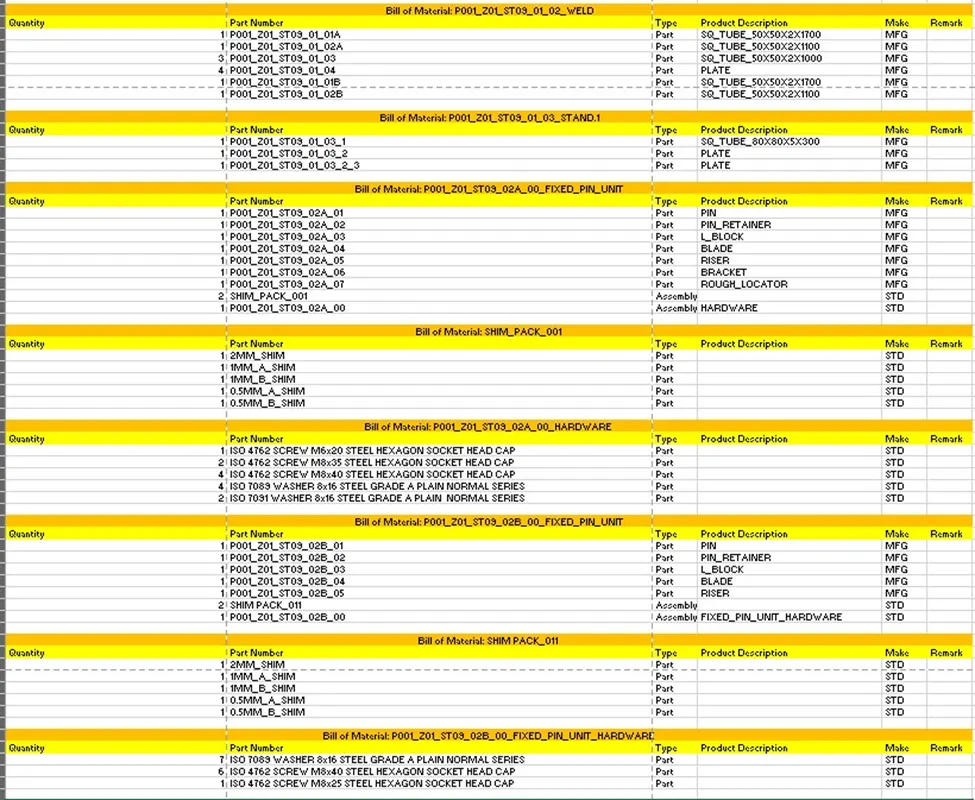

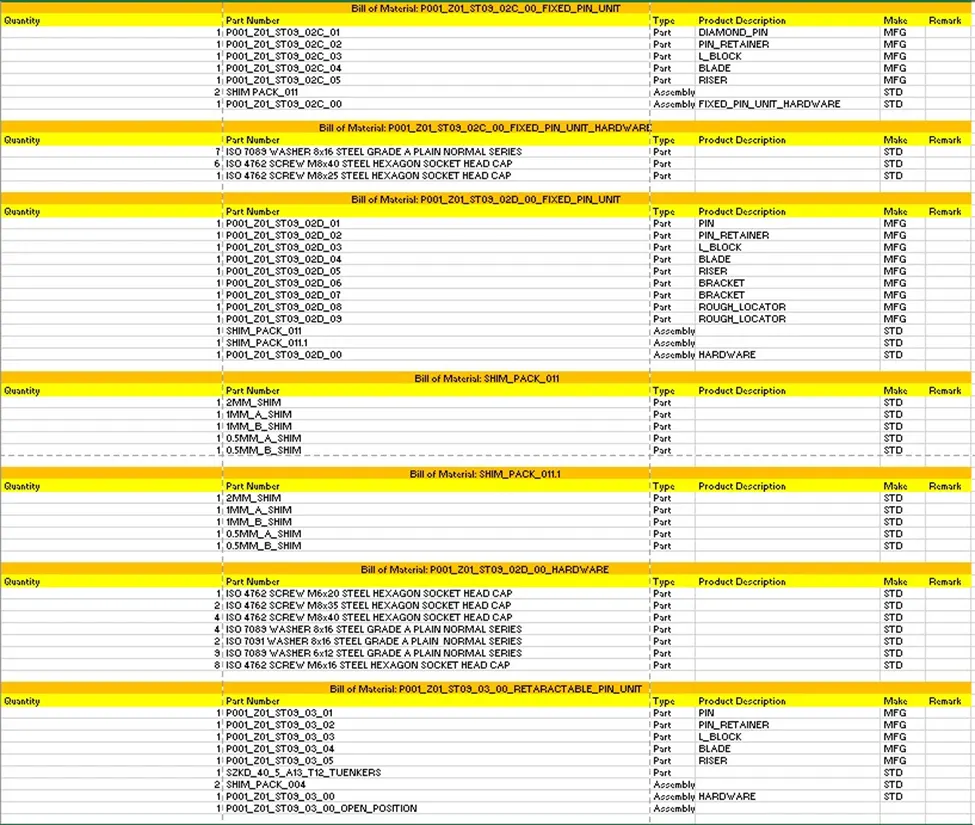

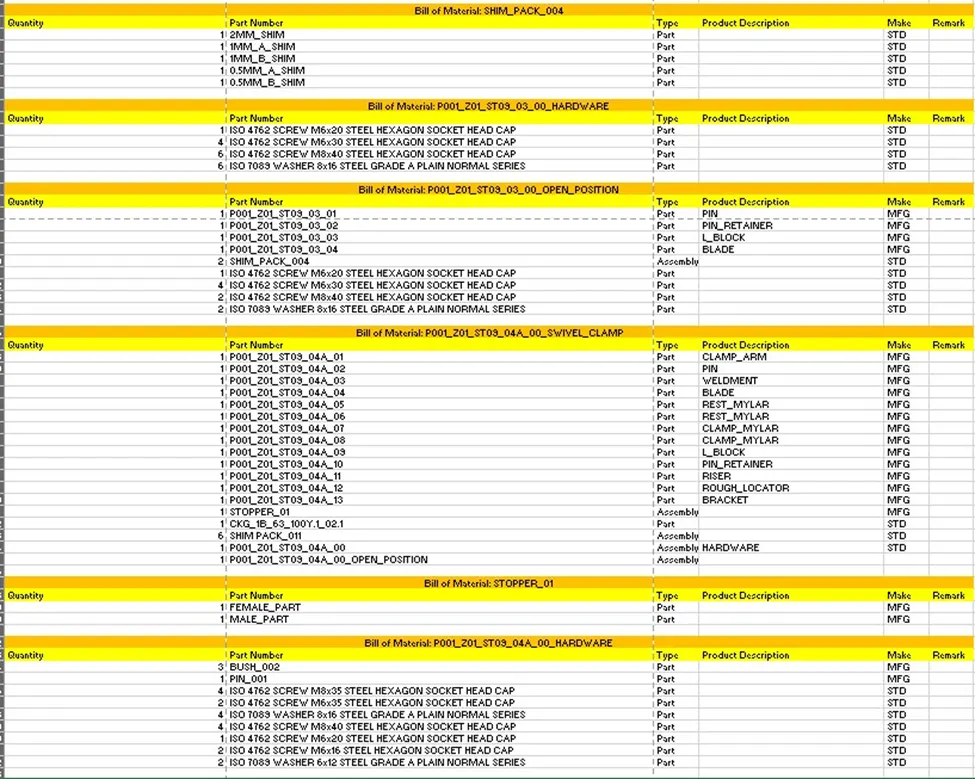

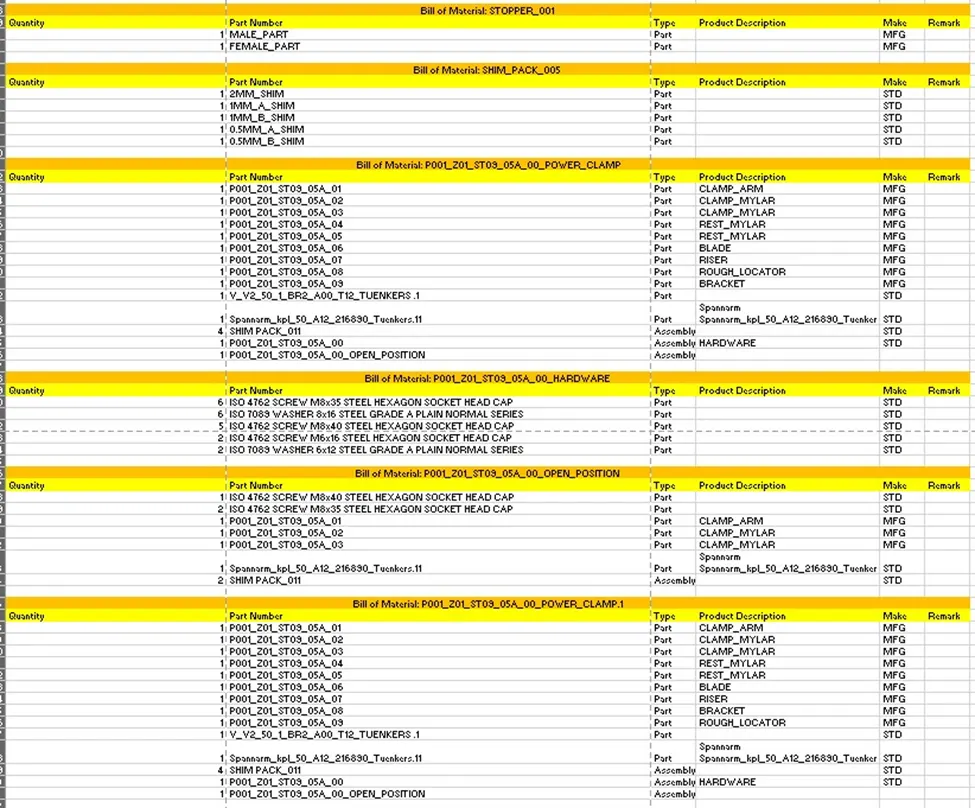

Aim: To create a BOM and Hardware list (BOP) for the complete fixture assembly from challenge 8.

Theory :

Bill of materials :

A bill of materials is a comprehensive inventory of raw materials, assemblies, subassemblies, parts and components as well as quantities of each, needed to manufacture a product.

A Bill of Materials (BOM) is a list of all the components and parts needed to manufacture a product or assembly. In a

drawing sheet, the BOM is typically included as a table or list of items, with information such as the part number,

description, quantity required, and other relevant details.

The BOM serves as a reference for designers, engineers, and manufacturers to ensure that all the necessary components

are accounted for and that the correct quantities are ordered or produced. It is also used to track changes and revisions

to the design, as well as to estimate the cost of manufacturing.

In summary, a Bill of Materials is a critical component of a drawing sheet that provides a detailed inventory of the

parts and components required to build or assemble a product.

Uses of BOM

The Bill of Materials (BOM) list is a vital document that is used throughout the product development cycle and is an

essential component of the drawing sheet. Here are some of the key uses of a BOM list:

1) Assembly and Manufacturing: The BOM list provides a complete inventory of all the parts and components required to

assemble a product. This ensures that manufacturers and production teams have all the necessary components on hand

to build the product and that the correct quantities are produced.

2) Cost Estimation: The BOM list is used to estimate the cost of manufacturing a product by tracking the cost of

each component. This information is critical in making decisions about pricing and profitability.

3) Quality Control: The BOM list helps ensure the quality of the finished product by ensuring that all components are

accounted for and that they meet the required specifications.

4) Design and Engineering: The BOM list is an essential tool for designers and engineers as it ensures that all the necessary

components are considered during the design process. It also allows for tracking design changes and revisions, and

provides a comprehensive reference document for future product development.

5) Inventory Management: The BOM list is used to track inventory levels and ensure that there are enough components

on hand to meet production demands.

6) Regulatory Compliance: The BOM list is used to ensure that all components used in the product meet regulatory

requirements, such as safety standards, environmental regulations, and material restrictions.

Characteristics of BOM

1) Part name: A BOM list will usually include the name of each part or component required for the product. This helps

ensure that everyone involved in the manufacturing process knows exactly what parts are needed.

2) Part number: Each part listed in the BOM should have a unique part number to help with identification and tracking. This

number is often used to cross-reference the part in inventory management and procurement systems.

3) Material type: The BOM should include the material type of each part or component. This helps ensure that the

correct materials are ordered and used in the manufacturing process.

4) Quantity: The BOM should list the quantity of each part needed to produce the product. This helps ensure that the

correct number of parts are ordered and that the correct number of parts are used during assembly.

5) Revision level: The BOM should also include the revision level of each part. This helps ensure that the correct version

of each part is used during assembly.

6) Reference designator: A reference designator is a code that identifies where each part or component should be placed in

the product. The BOM should include the reference designator for each part to ensure that it is placed in the correct location

during assembly.

7) Vendor information: The BOM may also include vendor information, such as the name and contact information of the

supplier for each part. This can be helpful in procurement and inventory management.
