Aim

Create a BOM and Hardware list (BOP) for the complete Fixture assembly from challenge 8.

The Bill of material or part or product can be obtained from catia in excell, corresponding to information used in designining. It consists of an itemized list of the parts of a structure shown on a drawing or on an assembly. It can also include BOM level, part number, part name, quantity required, unit of measure, Procurements type, and note.

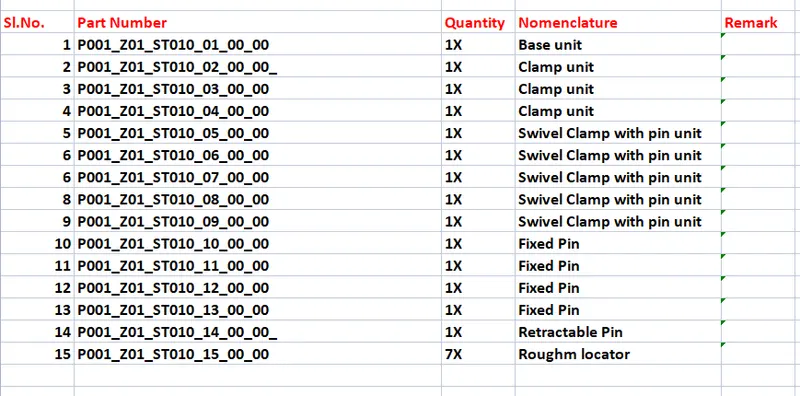

List of Units required for the assembly

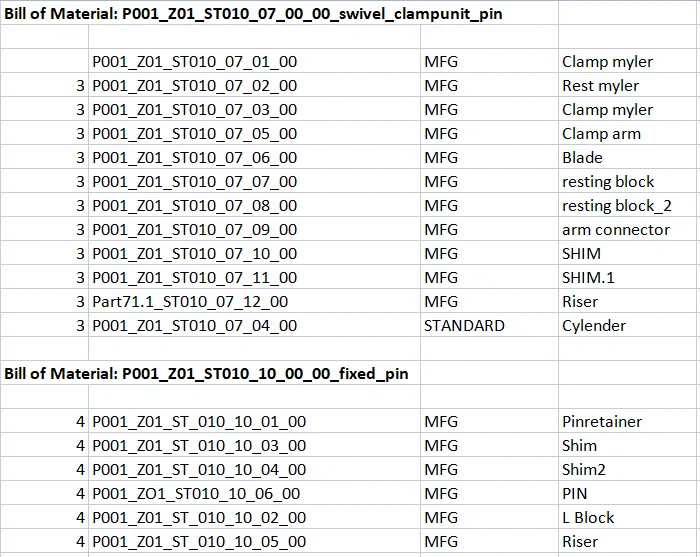

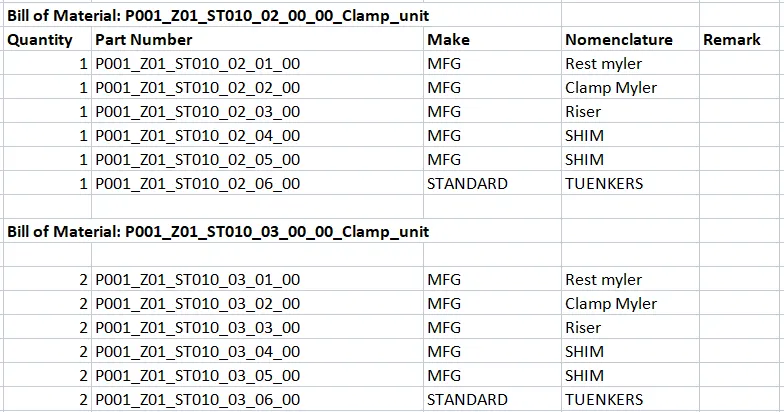

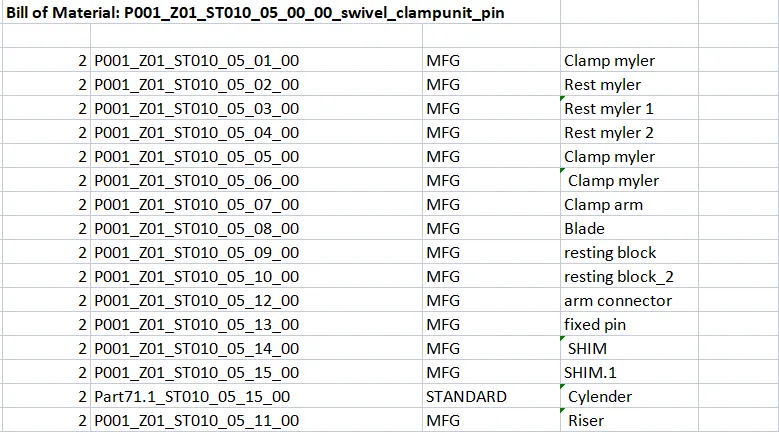

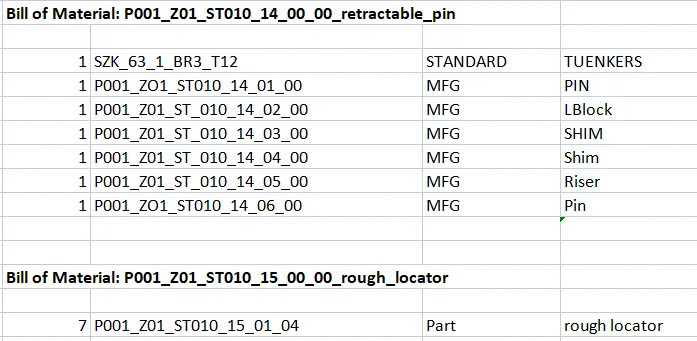

Different Units part requirement detailes
