Week 12:- Documentation Challenge

AIM:

To create a BOM & Hardware list (BOP) for the complete fixture assembly from challenge 8.

PROCEDURE:

Bill of materials is basically a file, which includes all the information all the required for the assembly of printed circuit boards. It is one of the most important things required while manufacturing PCBs. Failure in providing a bill of materials can lead to a lot of confusion . This can further result in problems at the time of assembly, & unnecessary revisions, which can cause delays. To avoid all this , it is always the best idea to provide a proper BOM. You can may ask what all things are included in all the bill of materials. This things us to next section.

In a nutshell, it is the complete list of all the items that are required to bulid a product . A BOM is sometimes also referred to as a product structure, assembly component list or production recipe ( in process manufacturing industries).

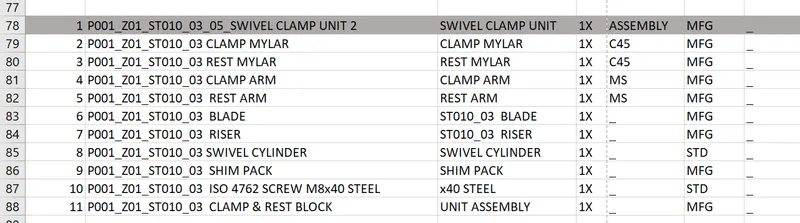

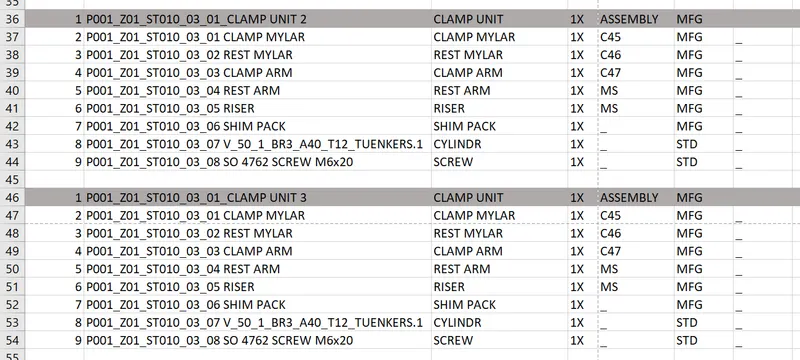

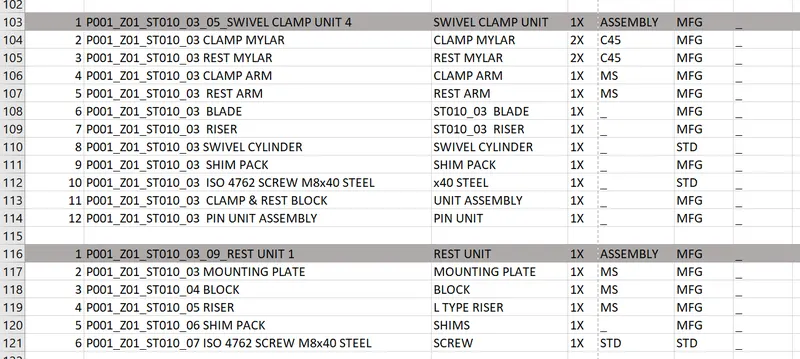

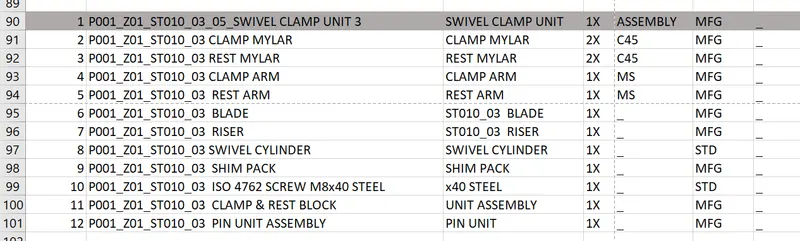

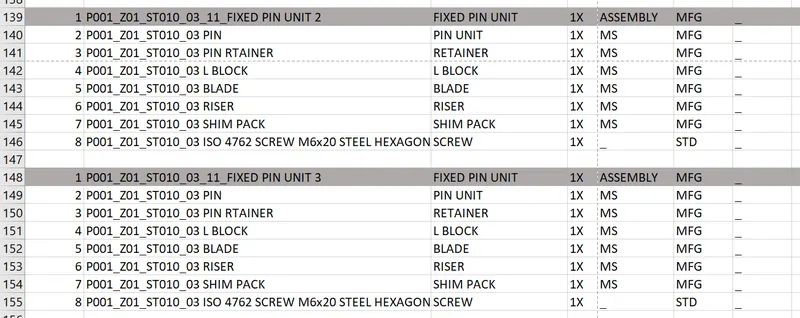

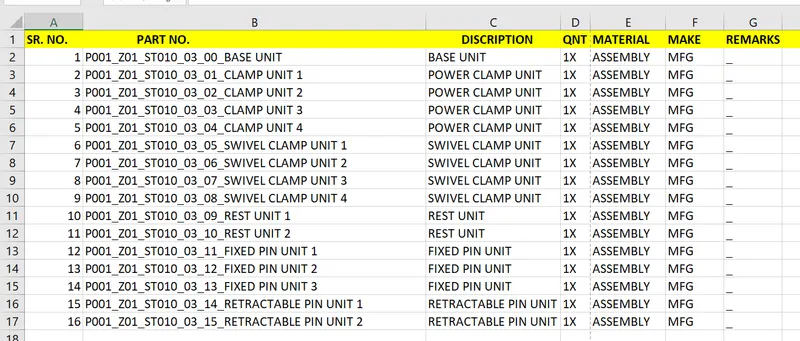

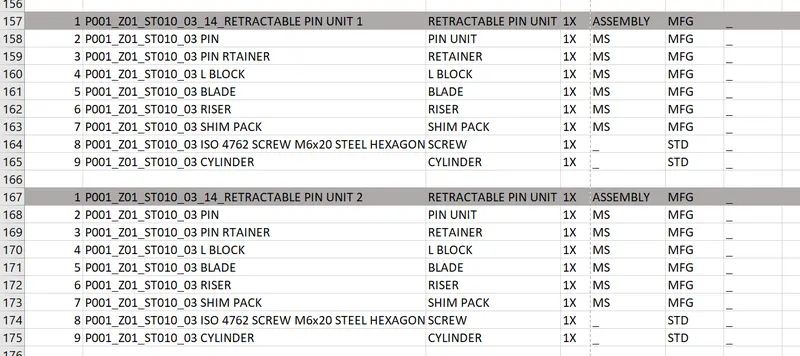

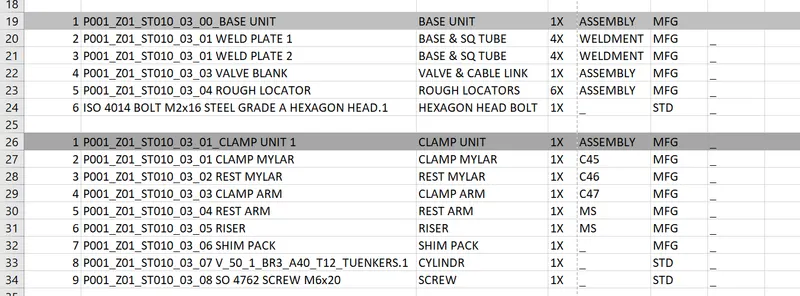

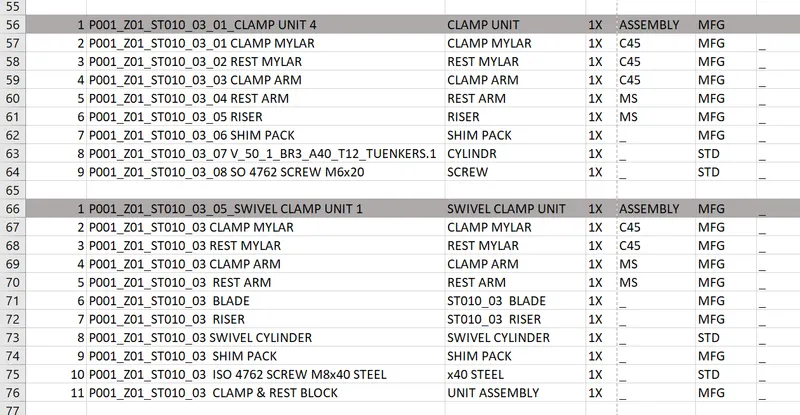

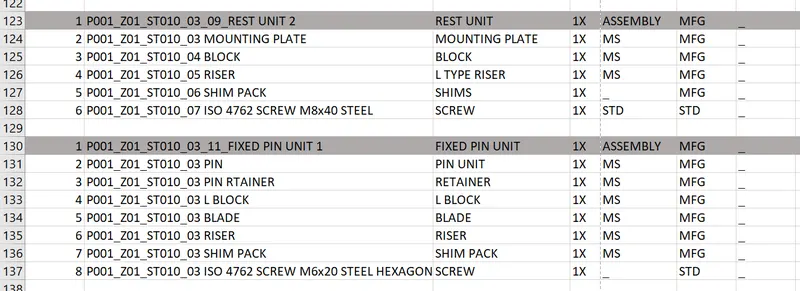

BILL OF MATERIALS FOR FIXTURE ASSEMBLY (P001_Z01_ST010_03_00)

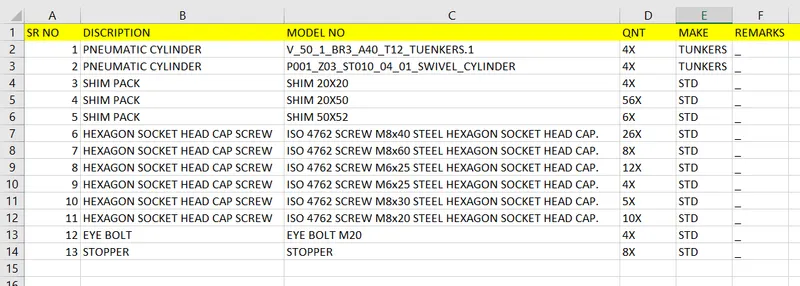

BOUGHT OUT PARTS (BOP) FOR THE FIXTURE ASSEMBLY (P001_Z01_ST010_03_00)

CONCLUSION : BOM and Hardware list (BOP) for the complete Fixture assembly from challenge 8. Has been complete.
