Week 12-Creation of 1D Connectors Challenge
CHALLENGE 15: CREATION OF 1D CONNECTORS
AIM:
To mesh and attach various parts of the given model using 1D connectors.

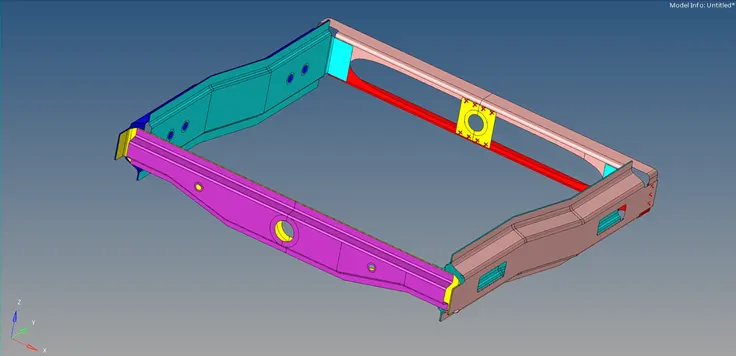

CAD MODEL:
PROCEDURE:

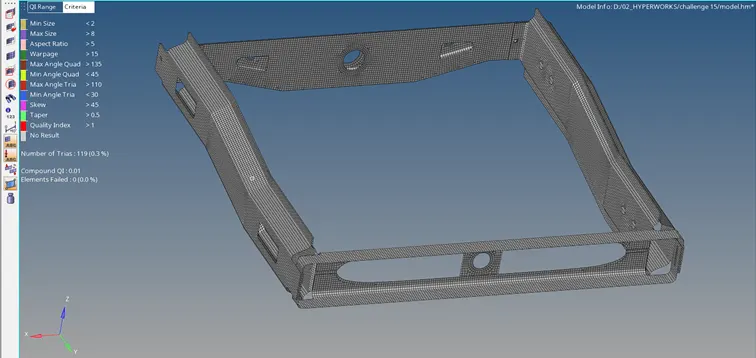

- Mesh the geometry by maintaining the given quality criteria.

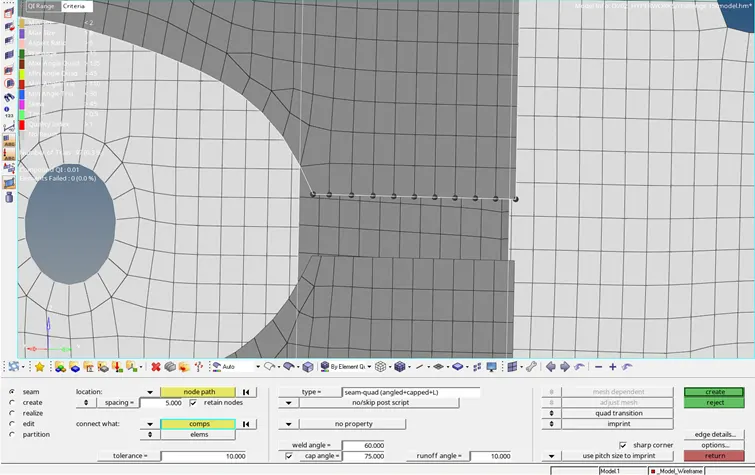

- Create a Seam quad(angles+capped+L) weld between front truss-1 and right rail-2 by selecting a node path and specifying the required parameters.

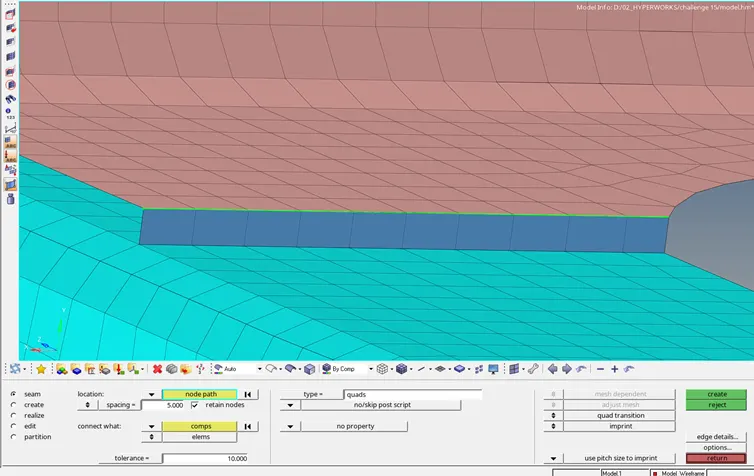

- Create a Quad(angles+capped+L) connector between front truss-1 and left rail-2 by selecting a node path and specifying the required parameters.

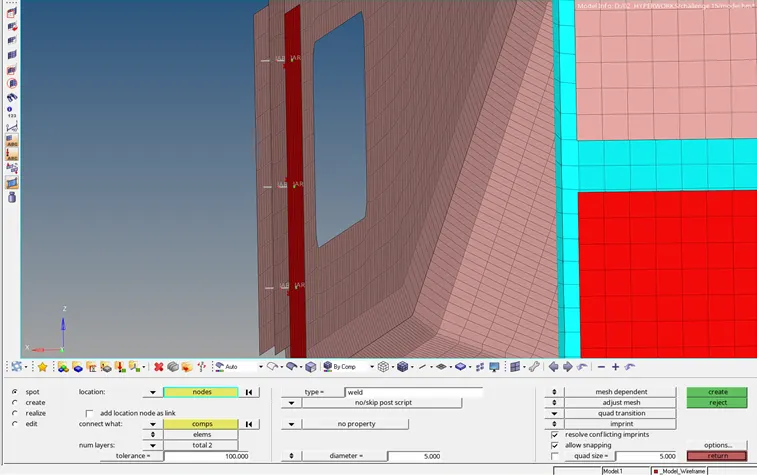

- Spotweld.

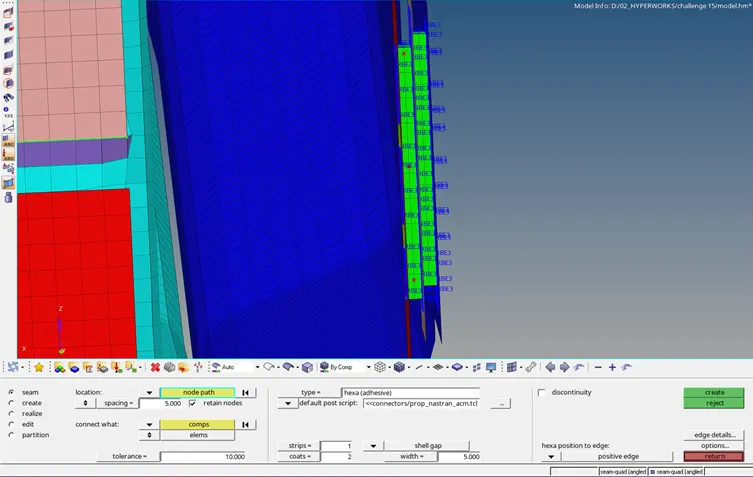

- Hexa (adhesive)

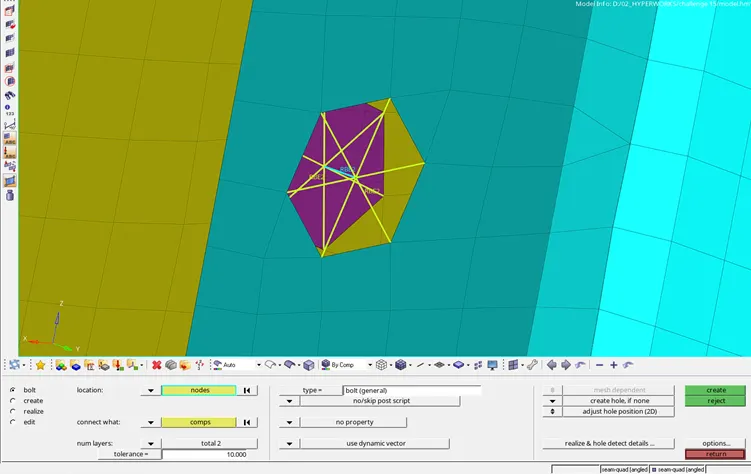

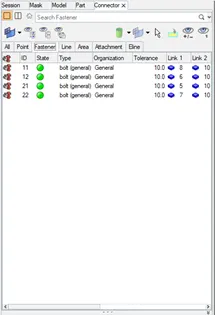

- Bolt connector.

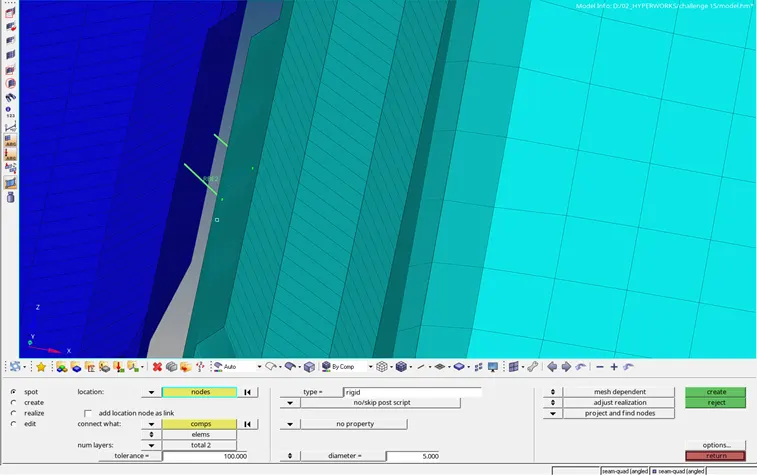

- Spotweld with rigid elements.

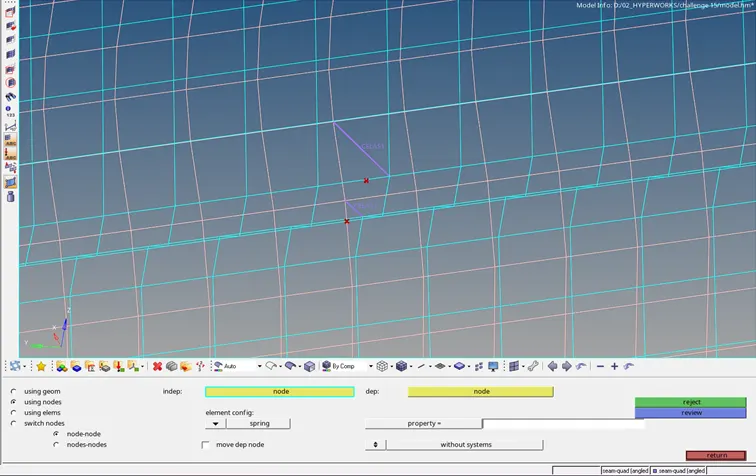

- Spotweld with spring elements.

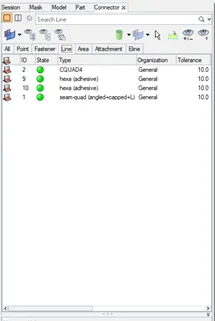

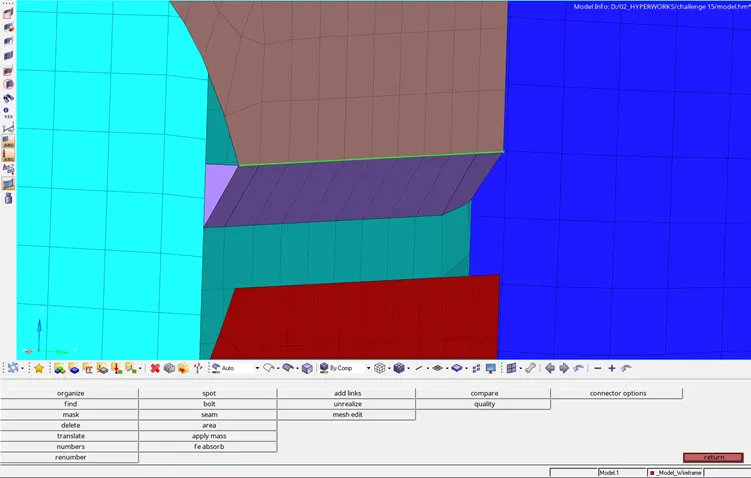

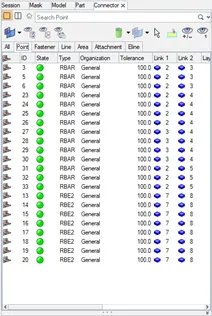

- Check and edit connectors using database.

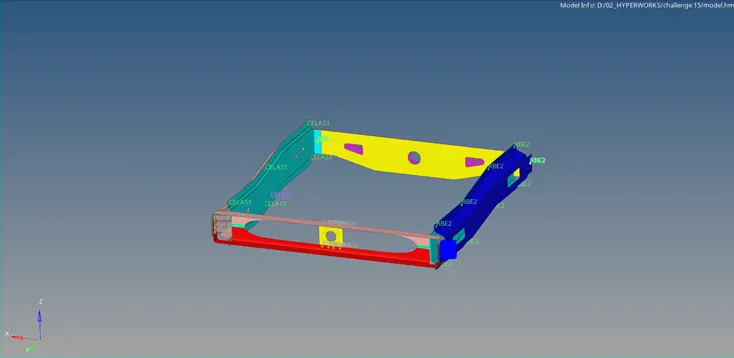

Final Model:
RESULT:
The given model is meshed and attached together using 1D connectors.
