Week - 12 - Creating the locator, writing and reading the node data

1. Connector :

Create a macro that builds a GUI containing 4 buttons. Component creator, weld, xloc, yloc, zloc. Upon pressing the buttons corresponding 1D

element must be created and moved to the desired collector.

2. Reading nodes from a file :

Create a macro that asks a .csv file as input and reads nodes from the file provided and also create tags for text in first column.

3. Identical comp identifier

Create a macro that accepts a geometric component as input from the user and shows potential duplicate geometries ( Geometries that match the

surface count)

For creating the various tcl to creating the connectors, reading nodes and checking identical components.

set a .window
catch {destroy $a}
toplevel $a -class toplevel
wm title $a "Connector"
wm geometry $a 190x240+100+200

button $a.01 -text "Create Comps" -command "CreateComps" -bg grey -font {times 12 bold}; place $a.01 -x 20 -y 30 -width 150 -height 30

button $a.02 -text "Welds" -command "weldcreation" -bg grey -font {times 12 bold}; place $a.02 -x 20 -y 70 -width 150 -height 30

button $a.03 -text "X-Loc" -command "xloc" -bg grey -font {times 12 bold}; place $a.03 -x 20 -y 110 -width 150 -height 30

button $a.04 -text "Y-Loc" -command "yloc" -bg grey -font {times 12 bold}; place $a.04 -x 20 -y 150 -width 150 -height 30

button $a.05 -text "Z-Loc" -command "zloc" -bg grey -font {times 12 bold}; place $a.05 -x 20 -y 190 -width 150 -height 30

proc CreateComps {} {
*clearmarkall 1;
*clearmarkall 2;
*createmark comps 1 "Welds"
set id [hm_marklength comps 1]
if {$id!=1} {
*createentity comps name=Welds
}
*clearmarkall 1;
*clearmarkall 2;
*createmark comps 1 "X_Loc"
set id [hm_marklength comps 1]
if {$id!=1} {
*createentity comps name=X_Loc
}
*clearmarkall 1;
*clearmarkall 2;
*createmark comps 1 "Y_Loc"
set id [hm_marklength comps 1]
if {$id!=1} {
*createentity comps name=Y_Loc
}
*clearmarkall 1;
*clearmarkall 2;
*createmark comps 1 "Z_Loc"
set id [hm_marklength comps 1]
if {$id!=1} {
*createentity comps name=Z_Loc
}
}

proc weldcreation {} {
*clearmarkall 1;
*clearmarkall 2;
*currentcollector components "Welds"
*createmarkpanel nodes 2 "Select Nodes"
*rigidlinkinodecalandcreate 2 0 0 123456
}

proc xloc {} {
*clearmarkall 1;
*clearmarkall 2;
*currentcollector components "X_Loc"
*createmarkpanel nodes 1 "Select First Node - Independent Node"
set first [hm_getmark nodes 1]
*createmarkpanel nodes 2 "Select Second Node - Dependent Node"
set second [hm_getmark nodes 2]
*rigid $first $second 156
}
proc yloc {} {
*clearmarkall 1;
*clearmarkall 2;
*currentcollector components "Y_Loc"
*createmarkpanel nodes 1 "Select First Node - Independent Node"
set first [hm_getmark nodes 1]
*createmarkpanel nodes 2 "Select Second Node - Dependent Node"
set second [hm_getmark nodes 2]
*rigid $first $second 246
}
proc zloc {} {
*clearmarkall 1;
*clearmarkall 2;
*currentcollector components "Z_Loc"
*createmarkpanel nodes 1 "Select First Node - Independent Node"
set first [hm_getmark nodes 1]
*createmarkpanel nodes 2 "Select Second Node - Dependent Node"
set second [hm_getmark nodes 2]
*rigid $first $second 345
}

proc read {} {
set filename [tk_getOpenFile -title "Select File"]
set fileid [open $filename r];
while {![eof $fileid]} {
set Coordinate [gets $fileid row]
if {$Coordinate > 0} {
set row [split $row ,];
set x [lindex $row 0]
set y [lindex $row 1]
set z [lindex $row 2]
*createnode $x $y $z
*createmark nodes 1 -1
set nid [hm_getmark nodes 1]
*tagcreate nodes $nid "$nid"
}
}
close $fileid;
}

read ;

Code 03

proc Cgeom {} {
*clearmarka11 1
*clearmarka11 2

*createmark comps 1 "a11"
set a11_comp [hm_getmark comps 1];

foreach i $a11_comp {
*createmark surfaces 1 "by co11ector" $i
lappend a11_comp_ surf [hm_marklength surfaces 1]
}

*createmarkpanel comps 2 "Select the geometric component of interest"
set target_comp [hm_getmark comp 2]
*isolateentitybymark 2
puts "Target comp id $target_comp"
*creatmark surfaces 2 "by collector" $target_comp
puts [set target_comp_surf [hm_marklength surfaces 2]]
set match_list_surf [1search -a1l $a11_comp_surf $target_comp_surf]
puts "Match list surface $match_list_surf"
foreach j $match_list_surf {
set compid [1index $a11_comp $j]
set comp_name [hm_entityinfo name components $compid]
*displaycollectorwithfilter components "on" "$comp_name" 0 1
}
}
Cgeom;

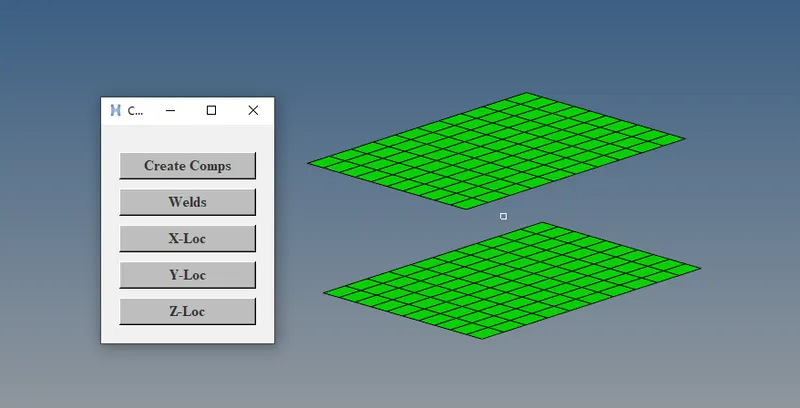

On entering the above given tcl code ino the hypermesh it will shows the buttons that we are created as shown in the below fig.

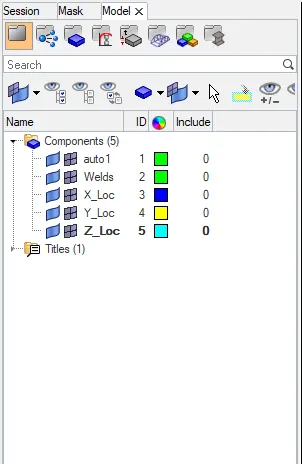

On clicking the create components button it will create the components in the tree filter as shown in below image.

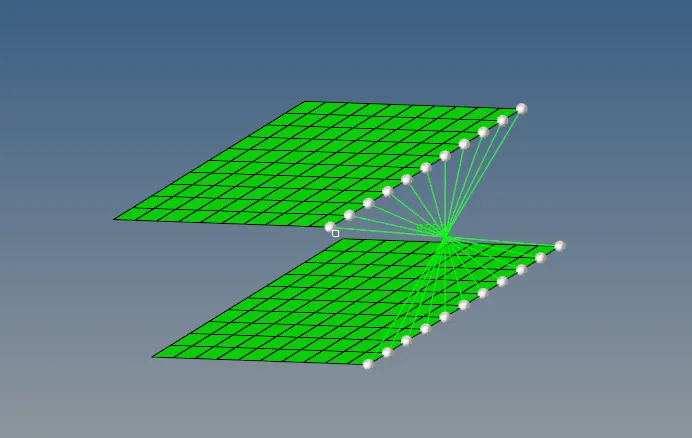

On clicking on the welds it will ask for the note set path.on selecting the node set path it will create the weld joint as shown in below fig.

Before

After

Conclusion:

Thus i created the macro that accepts the geometric component as input from the user and shows potential duplicate geometrices as shown in

below.
