Simulation of Flow through a pipe in OpenFoam
Objective:
- Writing a program in Matlab that can generate the computational mesh automatically for any wedge angle and grading schemes.
- Show that the velocity profile is fully developed
- Post process velocity and shear stress
Considering a cylinderical pipe with the working fluid water entering the pipe with the laminar flow. The aim is to simulate the plow through a section of pipe and compare the flow with the Hagen Poiseuille's. equation.
Hagen Poiseuuile's equation
In nonideal fluid dynamics, the Hagen–Poiseuille equation, also known as the Hagen–Poiseuille law, is a physical law that gives the pressure drop in an incompressible and Newtonian fluid in laminar flow flowing through a long cylindrical pipe of constant cross section. The pressur drop is given by:
`DeltaP=frac{32muLV}[D^2}`

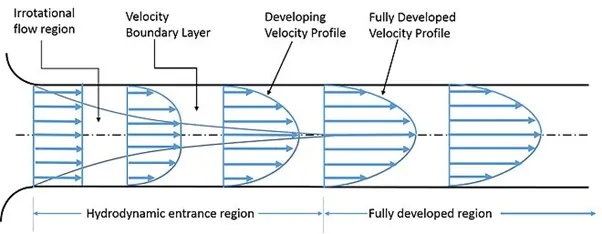

For a pipe with a laminar flow there are basically two regions. Enterance length developing region where the flow is not fully developed and the laminar flow layers are at equal velocity with respect to each other whereas in fully developed region the floww is fully developed and follows the Hagen–Poiseuille law.
Assumptions:
1) Geometry: Axi-symmetric
2) Reynolds number Re: 2100 (Laminar Flow)
3) Working fluid: water (Density =997 kg /m^`
4) Fluid temperature: 25 degree Celsius
5) Diameter of pipe = 0.02 m (R=0.01 m)
6) Dynamic viscosity(μ) = 0.890*10^-3 pa.s
6) Kinematic viscosity (`nu`) = 0.8927⋅10-6m2s-1
7) theta = 4
and calculate the length of the pipe using entry length formula
L = 0.06*Re*d
= 0.06*2100*0.02
=2.52 meters.
Analytical Solution
- Average Velocity: `Vunderset(avg)()=frac{Runderset(e)()mu}{rhoD}`=0.09373msec-1
- Maximum Velocity: `Vunderset(max)()=2.Vunderset(avg)()`=0.18746msec-1
- Pressure Drop:`DeltaP=frac{32muLVunderset(avg)()}[D^2}`=16.817pa
- `inematic Pressure Drop: `frac{DeltaP}{rho}`=0.01681`
Here for solving the problem numerically, we will use the icoFoam solver with the cavity tutorial make the geometry along with the mesh and make the blockmeshDict file with the help of matlab as shown below:
% Matlab script for generating the blockMeshDict file for a wedge angle
clear all
close all
clc
% Given Inputs
% wedge angle
theta = input('Enter the value of wedge angle = ');
Re = 2100;
D=0.02; %Diameter of the pipe
L = 0.06*Re*D; % Length of the pipe
R=D/2;
mu = 0.89e-3; %Viscosity of water at 25 deg C
rho = 997.0; % Densiy of water at 25 deg C
nu = mu/rho; % Kinematic viscosity of water at 25 deg C
% Calculation of pressure ans velocity
v_avg = Re*mu/(D*rho); %Average Velocity
v_max = 2*v_avg ; %Max Velocity
del_P = (32*mu*v_avg*L)/(D^2); % Pressure drop
kin_P = del_P/rho; % Kinematic Pressure drop
n1 = 50; % Number of cells along the pipe
n2 = 1; % Number of cells radially
n3 = 300; % Number of cells on the curve
gfactor=0.5;
% Vertices of the wedge
V0 = [0 0 0];
V1 = [0 R*cosd(theta/2) -R*sind(theta/2)];
V2 = [0 R*cosd(theta/2) R*sind(theta/2)];
V3 = [L 0 0];
V4 = [L R*cosd(theta/2) -R*sind(theta/2)];
V5 = [L R*cosd(theta/2) R*sind(theta/2)];
% Printing the file
text1='/*-----------------------------*- C++ -*----------------------------*';
text2=' ========= | ';
text3=' / F ield | OPENFOAM: The Open Source CFD Toolbox ';
text4=' / O peration | Version: 7 ';
text5=' / A nd | Web: www.OpenFOAM.ORG ';
text6=' / M anipulation | ';
text7='*------------------------------------------------------------------*/';
text8=' FoamFile';
text9='{';
text10=' version 2.0;';
text11=' format ascii;';
text12=' class dictionary;';
text13=' object blockMeshDict;';
text14='}';
text15='// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //';
text16='//*****************************************************************//';
% Creating file
f1 = fopen('blockMeshDict.txt','wt');
fprintf(f1,'%sn',text1);
fprintf(f1,'%sn',text2);
fprintf(f1,'%sn',text3);
fprintf(f1,'%sn',text4);
fprintf(f1,'%sn',text5);
fprintf(f1,'%sn',text6);
fprintf(f1,'%sn',text7);
fprintf(f1,'%sn',text8);
fprintf(f1,'%sn',text9);
fprintf(f1,'%sn',text10);
fprintf(f1,'%sn',text11);
fprintf(f1,'%sn',text12);
fprintf(f1,'%sn',text13);
fprintf(f1,'%sn',text14);
fprintf(f1,'%sn',text15);
fprintf(f1,'n');
fprintf(f1,'%sn','convertToMeters 1;');
fprintf(f1,'%sn','vertices');
fprintf(f1,'%sn','(');
fprintf(f1,'%s (%f %f %f) n',blanks(5),V0(1),V0(2),V0(3));
fprintf(f1,'%s (%f %f %f) n',blanks(5),V1(1),V1(2),V1(3));
fprintf(f1,'%s (%f %f %f) n',blanks(5),V2(1),V2(2),V2(3));
fprintf(f1,'%s (%f %f %f) n',blanks(5),V3(1),V3(2),V3(3));
fprintf(f1,'%s (%f %f %f) n',blanks(5),V4(1),V4(2),V4(3));
fprintf(f1,'%s (%f %f %f) n',blanks(5),V5(1),V5(2),V5(3));
fprintf(f1,'%sn',');');
fprintf(f1,'n');
fprintf(f1,'%sn','blocks');
fprintf(f1,'%sn','(');
fprintf(f1,'%s %sn',blanks(5),'hex (0 1 2 0 3 4 5 3) (50 1 200) simpleGrading (0.5 1 1)');
fprintf(f1,'%sn',');');
fprintf(f1,'n');
fprintf(f1,'%sn','edges');
fprintf(f1,'%sn','(');
fprintf(f1,'%s arc 1 2 (%f %f %f) n',blanks(5),0,R,0);
fprintf(f1,'%s arc 4 5 (%f %f %f) n',blanks(5),L,R,0);
fprintf(f1,'%s n',');');
fprintf(f1,'n');
fprintf(f1,'%sn','boundary');
fprintf(f1,'%sn','(');
fprintf(f1,'%s %s n',blanks(5),'inlet');
fprintf(f1,'%s %s n',blanks(5),'{');
fprintf(f1,'%s %s n',blanks(10),'type patch;');
fprintf(f1,'%s %s n',blanks(10),'faces');
fprintf(f1,'%s %s n',blanks(10),'(');
fprintf(f1,'%s %s n',blanks(15),'(0 1 2 0)');
fprintf(f1,'%s %s n',blanks(10),');');
fprintf(f1,'%s %s n',blanks(5),'}');
fprintf(f1,'%s %s n',blanks(5),'outlet');
fprintf(f1,'%s %s n',blanks(5),'{');
fprintf(f1,'%s %s n',blanks(10),'type patch;');
fprintf(f1,'%s %s n',blanks(10),'faces');
fprintf(f1,'%s %s n',blanks(10),'(');
fprintf(f1,'%s %s n',blanks(15),'(3 4 5 3)');
fprintf(f1,'%s %s n',blanks(10),');');
fprintf(f1,'%s %s n',blanks(5),'}');
fprintf(f1,'%s %s n',blanks(5),'front');
fprintf(f1,'%s %s n',blanks(5),'{');
fprintf(f1,'%s %s n',blanks(10),'type wedge;');
fprintf(f1,'%s %s n',blanks(10),'faces');
fprintf(f1,'%s %s n',blanks(10),'(');
fprintf(f1,'%s %s n',blanks(15),'(0 3 5 2)');
fprintf(f1,'%s %s n',blanks(10),');');
fprintf(f1,'%s %s n',blanks(5),'}');
fprintf(f1,'%s %s n',blanks(5),'back');
fprintf(f1,'%s %s n',blanks(5),'{');
fprintf(f1,'%s %s n',blanks(10),'type wedge;');
fprintf(f1,'%s %s n',blanks(10),'faces');
fprintf(f1,'%s %s n',blanks(10),'(');
fprintf(f1,'%s %s n',blanks(15),'(0 1 4 3)');
fprintf(f1,'%s %s n',blanks(10),');');
fprintf(f1,'%s %s n',blanks(5),'}');
fprintf(f1,'%s %s n',blanks(5),'pipe');
fprintf(f1,'%s %s n',blanks(5),'{');
fprintf(f1,'%s %s n',blanks(10),'type wall;');
fprintf(f1,'%s %s n',blanks(10),'faces');
fprintf(f1,'%s %s n',blanks(10),'(');
fprintf(f1,'%s %s n',blanks(15),'(1 4 5 2)');
fprintf(f1,'%s %s n',blanks(10),');');
fprintf(f1,'%s %s n',blanks(5),'}');
fprintf(f1,'%s %s n',blanks(5),'axis');
fprintf(f1,'%s %s n',blanks(5),'{');
fprintf(f1,'%s %s n',blanks(10),'type empty;');
fprintf(f1,'%s %s n',blanks(10),'faces');
fprintf(f1,'%s %s n',blanks(10),'(');
fprintf(f1,'%s %s n',blanks(15),'(0 3 3 0)');
fprintf(f1,'%s %s n',blanks(10),');');
fprintf(f1,'%s %s n',blanks(5),'}');
fprintf(f1,'%s n',');');
fprintf(f1,'n');
fprintf(f1,'%s n','mergePatchPairs');
fprintf(f1,'%s n','(');
fprintf(f1,'%s n',');');
fprintf(f1,'n');
fprintf(f1,'%s n',text16);
fclose(f1);
The blockmesh Dict File is thus created and is then replaced with the original block mesh file in the system folder. The created block mesh dict file can be seen below:
/*-----------------------------*- C++ -*----------------------------*
========= |
/ F ield | OPENFOAM: The Open Source CFD Toolbox
/ O peration | Version: 7
/ A nd | Web: www.OpenFOAM.ORG
/ M anipulation |
*------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
object blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
convertToMeters 1;
vertices
(
(0.000000 0.000000 0.000000)
(0.000000 0.009994 -0.000349)
(0.000000 0.009994 0.000349)
(2.520000 0.000000 0.000000)
(2.520000 0.009994 -0.000349)
(2.520000 0.009994 0.000349)
);
blocks
(
hex (0 1 2 0 3 4 5 3) (50 1 200) simpleGrading (0.5 1 1)
);
edges
(
arc 1 2 (0.000000 0.010000 0.000000)
arc 4 5 (2.520000 0.010000 0.000000)
);
boundary
(
inlet
{
type patch;
faces
(
(0 1 2 0)
);
}
outlet
{
type patch;
faces
(
(3 4 5 3)
);
}
front
{
type wedge;
faces
(
(0 3 5 2)
);
}
back
{
type wedge;
faces
(
(0 1 4 3)
);
}
pipe
{
type wall;
faces
(
(1 4 5 2)
);
}
axis
{
type empty;
faces
(
(0 3 3 0)
);
}
);
mergePatchPairs
(
);
//*****************************************************************//

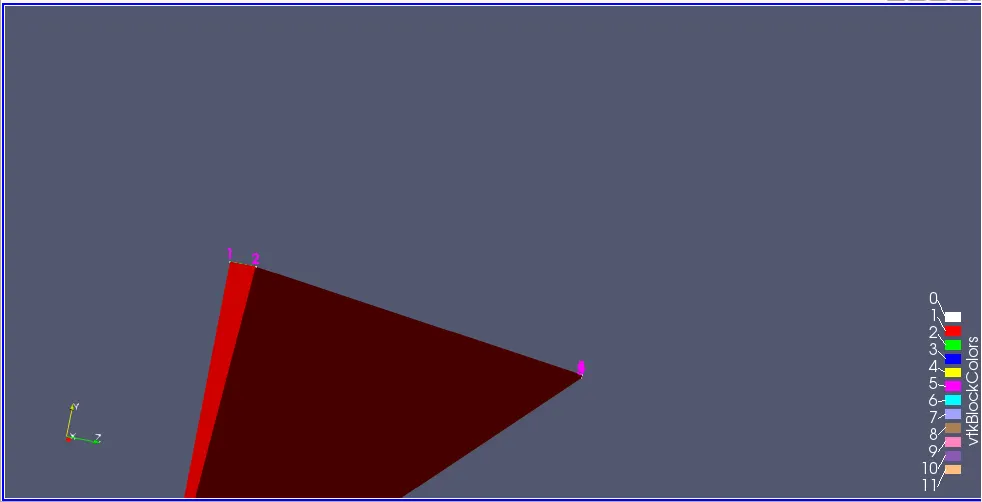

The created geometry can thus be seen in the figure below for the wedge angle of 4 degrees.
The axi-symmetric mesh generated can be seen below:
Further the initial and boundary conditions were further put in the problem as disscussed above.
The velocity Boundary condition can be seen below:
/*--------------------------------*- C++ -*----------------------------------*
========= |
/ F ield | OpenFOAM: The Open Source CFD Toolbox
/ O peration | Website: https://openfoam.org
/ A nd | Version: 6
/ M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class volVectorField;
object U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 1 -1 0 0 0 0];
internalField uniform (0 0 0);
boundaryField
{
inlet
{
type fixedValue;
value uniform (0.0937312 0 0);
}
outlet
{
type zeroGradient;
}
pipe
{
type noSlip;
}
axis
{
type empty;
}
front
{
type wedge;
}
back
{
type wedge;
}
}
// ************************************************************************* //The pressure boundary conditions:-
Put accourding to the pressure drop along the pipe as calculated above and can be seen below:
/*--------------------------------*- C++ -*----------------------------------*
========= |
/ F ield | OpenFOAM: The Open Source CFD Toolbox
/ O peration | Website: https://openfoam.org
/ A nd | Version: 6
/ M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class volScalarField;
object p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 2 -2 0 0 0 0];
internalField uniform 0;
boundaryField
{
axis
{
type empty;
}
pipe
{
type zeroGradient;
}
inlet
{
type zeroGradient;
}
outlet
{
type fixedValue;
value uniform 0.0168682;
}
front
{
type wedge;
}
back
{
type wedge;
}
}
// ************************************************************************* //The kinematic viscosity Values
Put in the transproperties and can be seen below:
/*--------------------------------*- C++ -*----------------------------------*
========= |
/ F ield | OpenFOAM: The Open Source CFD Toolbox
/ O peration | Website: https://openfoam.org
/ A nd | Version: 6
/ M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
location "constant";
object transportProperties;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
nu [0 2 -1 0 0 0 0] 0.0000008927;
// ************************************************************************* //Further the end time of the simulation was set to be 10 seconds and the time step .i.e. Delta t was set to be 0.001 seconds as shown below:
/*--------------------------------*- C++ -*----------------------------------*
========= |
/ F ield | OpenFOAM: The Open Source CFD Toolbox
/ O peration | Website: https://openfoam.org
/ A nd | Version: 6
/ M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
location "system";
object controlDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
application icoFoam;
startFrom startTime;
startTime 0;
stopAt endTime;
endTime 10;
deltaT 0.001;
writeControl timeStep;
writeInterval 20;
purgeWrite 0;
writeFormat ascii;
writePrecision 6;
writeCompression off;
timeFormat general;
timePrecision 6;
runTimeModifiable true;
// ************************************************************************* //After putting all these value the simulation was run and the velocity contour at the last time step can be seen below:

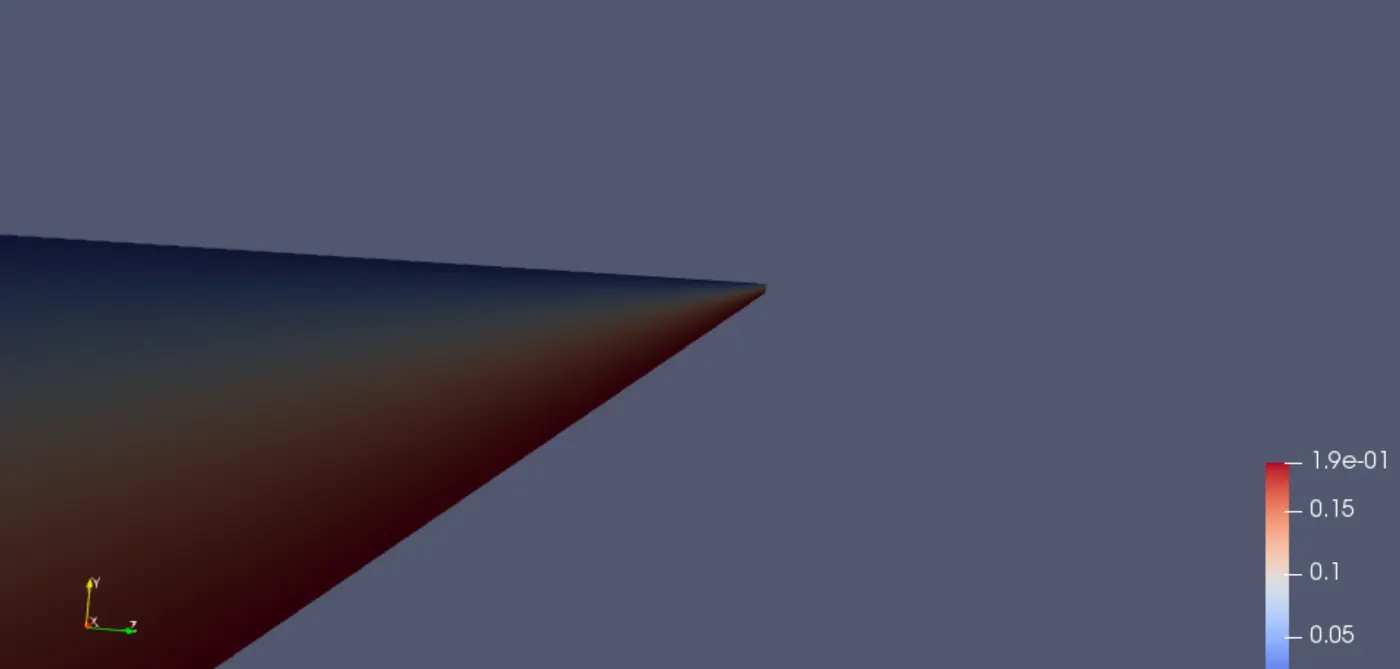

As this contour plot is not explanatory.

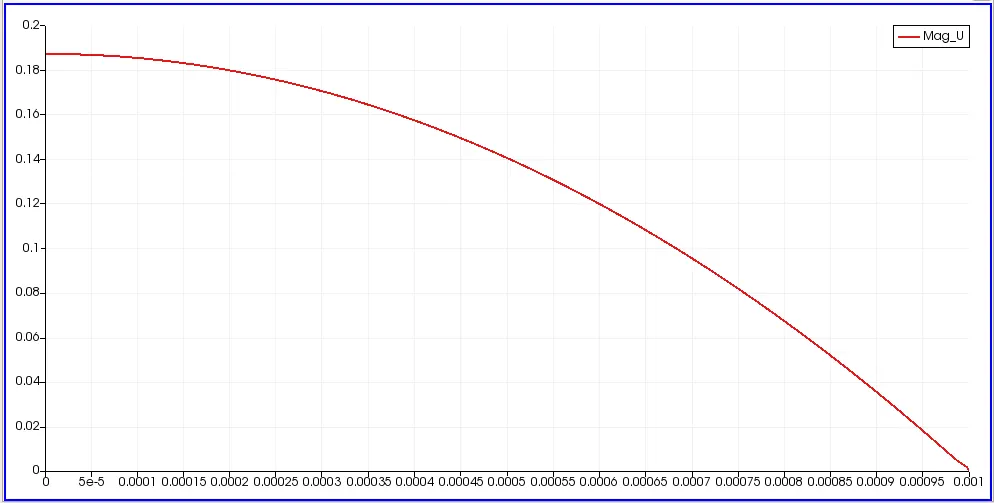

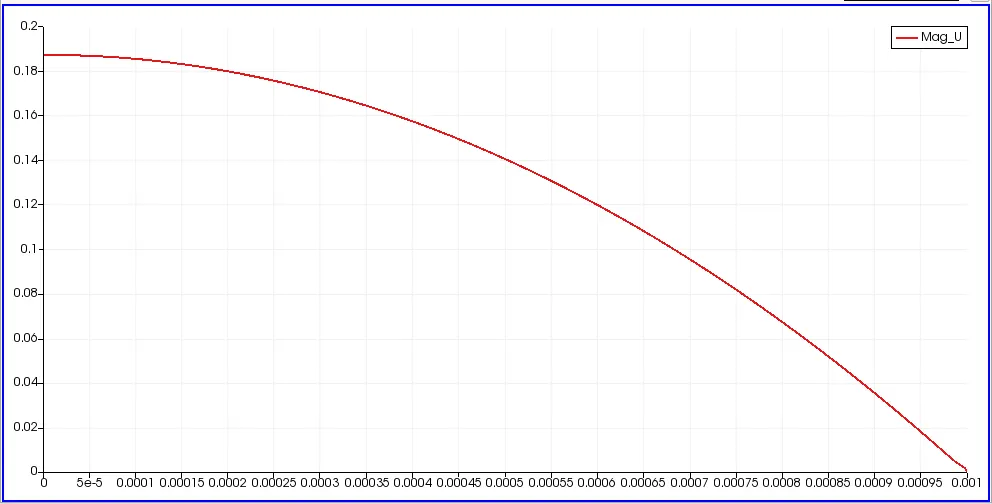

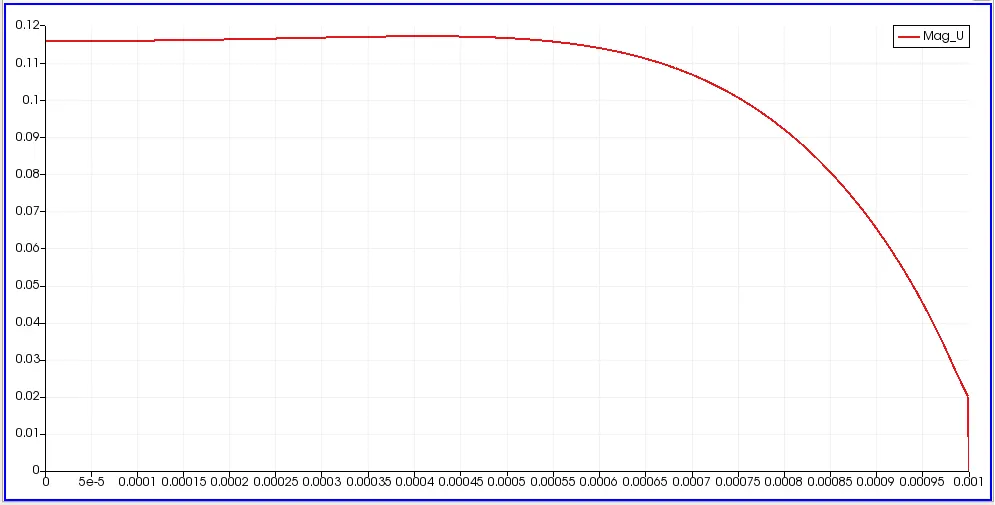

The lines plots were used to get more precise and accurate results. The velocity plot was plotted at three different regions along the x and the velocity profile has been studied and can be seen below:
1. At a distance of 0.001m from inlet
2. At a distance of 0.05m from inlet
3. At a distance of 0.15m from inlet
4. At outlet
where y axis represents the velocity and x axis represents the length along the radius of the pipe. Here one thing can be noticed that near the walls of the pipe the velocity suddenly drops, this can be explained due to the noslip boundary contions provided at the walls.

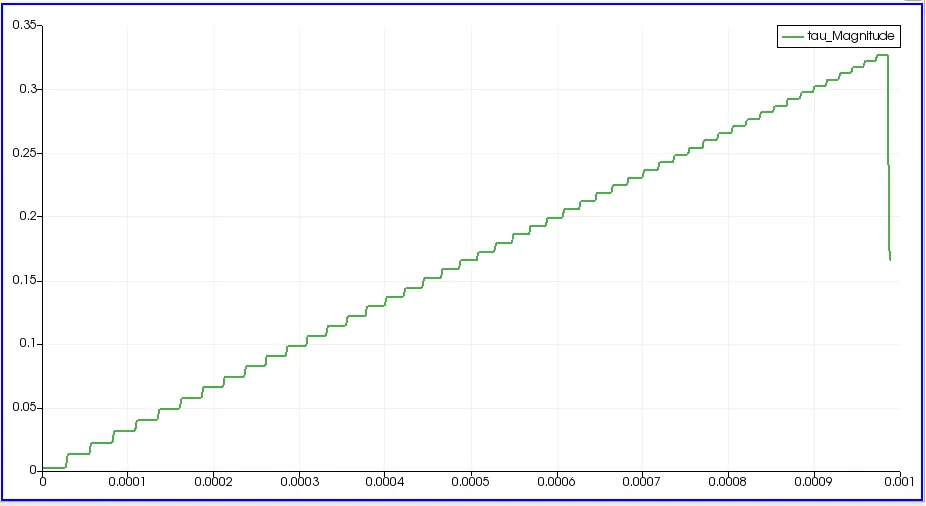

Further the shear stress was found out and the shear stress can be given as shown below:

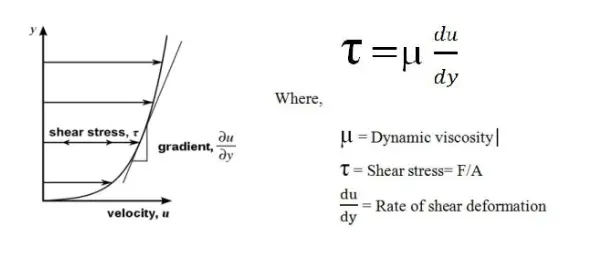

Here the formula suggests to multiply the dynamic viscosity with the gradient of velocity to find the shear stress thus it was done and the shear stress was plotted as shown below:
Conclusions:
1. The HP equation was duly testified in this challenge as it can be seen in the velocity plots of the pipe at the end of the pipe near the outlet.
2. At x=0.001 the velocity was seen slow and stable near the centre of the pipe this can be explained by the enterace length developing flow as explained above.
3. Further it can be seen that the flow stats to develop wth increase in length the profile becomes parabolic and fully developed flow can be seen in th end.
4. At around x=0.15m the flow can be seen similar to that at the end of the flow, this shows that the fully developed region started almost at x=0.15m.
5. The matlab program was sucessfully developed for BlockMesh file and was successfully executed and the dataprocessing between the matlab and openfoam was developed.
6.In velocity plots it could be seen that the velocity dipped to the zero this is due to the no slip boundary condition.
7. The shear stress plot also testifies the HP equation and law for the fully developed region.
8. In shear stress plot ireegularities can be obsereved along the plot this is due to the meshing because in FVM the values are measured along the surface and thus at the intesection of two nodes the value of the shear stress increases. Thus this could be diminished by choosing the finer mesh, but it will also increase the computational time.
