Week 11 - Simulation of Flow through a pipe in OpenFoam
SIMULATION OF FLOW THROUGH A PIPE IN OPENFOAM
ABSTRACT:
- The flow through a pipe is the case of internal flow.
- Their major application is in the refrigeration and air conditioning industries.
- The fluid velocity is zero at the walls and maximum at the center.
- In fluid flow, it is preferred to take average velocity because it remains constant when the flow is incompressible Laminar and the cross-sectional area of the pipe is constant.
Assumptions:
- The steady laminar incompressible flow of a fluid is taken.
- There is no velocity in the radial direction.
- There is no acceleration since the flow is steady.
- Reynolds number for the laminar flow is 2100.
- Only the wedge shape of the pipe is considered because the flow is axis-symmetric.
- The equation governing the fluid flow is described by the Hagen-Poiseuille equation.
Entrance length:
The length of the entrance is the distance that fluid travels after entering a pipe before the full development of the flow. Entrance length refers to the length of the entry region, where effects from the pipe's interior wall spread as an expanding boundary layer into the flow.

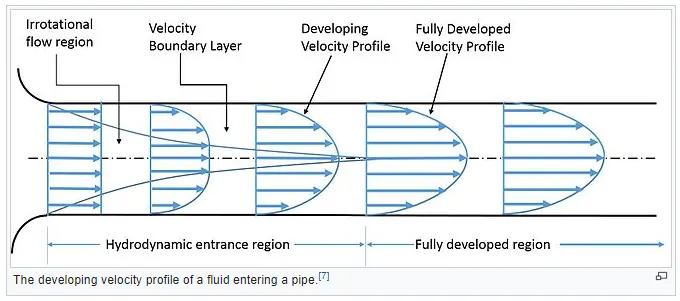

Hydrodynamic entrance length (L_h):
The hydrodynamic entrance region refers to the area of a pipe where fluid entering a pipe develops a velocity profile due to viscous forces spreading from a pipe's interior wall. This region has a non-uniform flow. The fluid enters a pipe at a constant speed, so fluid particles in the layer in contact with the pipe's surface come to a complete stop because of the no-slip rule. The layer in contact with the pipe surface is resistant to the acceleration of neighboring layers due to viscous forces within the fluid and slowly slows down adjacent layers of fluid, creating a velocity profile.
To keep the mass true, the speed of the fluid layers in the center of the pipe increases to compensate for the reduced speed of the fluid layers near the surface of the pipe. It creates a gradient of velocity across the pipe cross-section. Hydrodynamically fully developed region means u = u(r). The length of the hydrodynamic entry region along the pipe is called the hydrodynamic entry length. It is a function of the Reynolds Number of the flow. In the case of laminar flow, this length is given by:
Where,
Re - is the Reynolds number
D - is the diameter of the pipe.

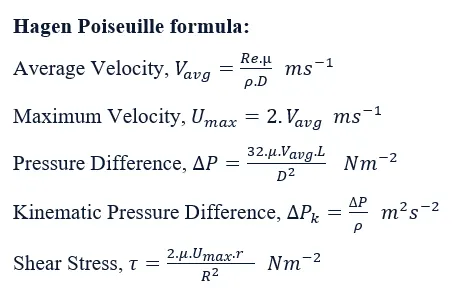

Hagen-Poiseuille Equation:
The assumptions of the equations are that the fluid is incompressible and Newtonian, the flow is laminar through a pipe of a constant cross-section of length that is longer than the diameter, and there is no acceleration of the fluid in the pipe. The velocity profile remains unchanged in the hydrodynamically fully developed region, and the shear stress at the wall also remains unchanged.

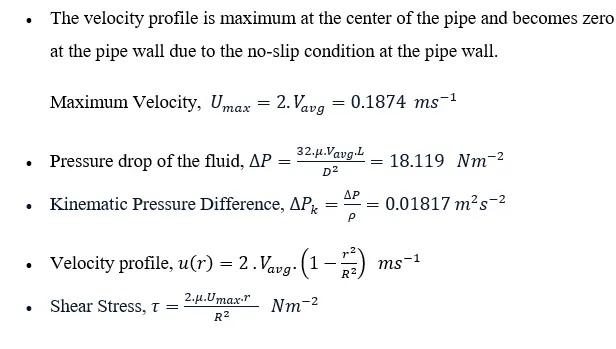

Observations based on the Hagen-Poiseuille equation
MATLAB Code:
Below MATLAB code will generate the mesh file (blockMeshDict file) for OpenFOAM. The geometry used is a wedge made out of a single block and for different wedge angles our MATLAB program creates the required blockMeshDict file.
% simulation of a flow in a pipe
clear all
close all
clc
% defining input values from Hagen Poiseuille
% Reynolds number for laminar flow
Re = 2100;
% diameter of pipe (m)
D = 0.02;
% radius of pipe (m)
R = D/2;
% wedge angle
thetha = 4;
% dynamic viscosity of water (pa.s)
mu = 0.89e-3;
% density of water (kg/m^3)
rho = 997;
% kinematic viscosity (m^2/s)
nu = mu/rho;
% hydrodynamic entry length (m)
L_h = 0.0575*Re*D;
fprintf("hydrodynamic entrance length, L_h = %.4f m \n",L_h);
% assumed characteristic length (m)
L = L_h+0.3;
fprintf("\nAssumed length of pipe, L = %.4f m \n",L);
% calculating average velocity (m/s)
v_avg = (Re*nu)/D;
% calculating maximum velocity at the centerline of pipe (m/s)
u_max = 2*v_avg;
% darcy friction factor
f = 4/Re;
% pressure drop for the laminar flow (N/m^2)
% the pressure drop is for fully developed profile as taken L > L_h
delta_p = (32*mu*v_avg*L)/D^2;
fprintf("\nStatic Pressure Drop for fully developed flow, p_s = %.4f n/m^2\n",delta_p);
%% Vertices co-ordinate
v0 = [0 0 0]; %point 0
v1 = [0 R*cosd(thetha/2) -R*sind(thetha/2)]; %point 1
v2 = [0 R*cosd(thetha/2) R*sind(thetha/2)]; %point 2
v3 = [L 0 0]; %point 3
v4 = [L R*cosd(thetha/2) -R*sind(thetha/2)]; %point 4
v5 = [L R*cosd(thetha/2) R*sind(thetha/2)]; %point 5
%% writing the script for blockMeshDict file
% creating file with permission to write
f1 = fopen('blockMeshDict.txt','w');
%headers
h1 = ("/*--------------------------------*- C++ -*----------------------------------*\");
h2 = (" ========= |");
h3 = (" \\ / F ield | OpenFOAM: The Open Source CFD Toolbox");
h4 = (" \\ / O peration | Website: https://openfoam.org");
h5 = (" \\ / A nd | Version: 10");
h6 = (" \\/ M anipulation |");
h7 = ("\*---------------------------------------------------------------------------*/");
h8 = ("FoamFile");
h9 = ("{");
h10 = (" format ascii;");
h11 = (" class dictionary;");
h12 = (" object blockMeshDict;");
h13 = ("}");
h14 = ("// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //");
h16 = ("convertToMeters 1;");
%comment lines
fprintf(f1,"%s\n",h1);
fprintf(f1,"%s\n",h2);
fprintf(f1,"%s\n",h3);
fprintf(f1,"%s\n",h4);
fprintf(f1,"%s\n",h5);
fprintf(f1,"%s\n",h6);
fprintf(f1,"%s\n",h7);
%file identifiers
fprintf(f1,"%s\n",h8);
fprintf(f1,"%s\n",h9);
fprintf(f1,"%s\n",h10);
fprintf(f1,"%s\n",h11);
fprintf(f1,"%s\n",h12);
fprintf(f1,"%s\n",h13);
fprintf(f1,"%s\n\n",h14);
%scaling factor
fprintf(f1,"%s\n\n",h16);
%vertices
fprintf(f1,"vertices\n");
fprintf(f1,"(\n");
fprintf(f1,"\t(%d %d %d)\n",v0);
fprintf(f1,"\t(%d %d %d)\n",v1);
fprintf(f1,"\t(%d %d %d)\n",v2);
fprintf(f1,"\t(%d %d %d)\n",v3);
fprintf(f1,"\t(%d %d %d)\n",v4);
fprintf(f1,"\t(%d %d %d)\n",v5);
fprintf(f1,");\n\n");
%blocks
fprintf(f1,"blocks\n");
fprintf(f1,"(\n");
%number of mesh points and grading factor can be varied using below line
fprintf(f1,"\thex (0 1 2 0 3 4 5 3) (50 1 200) simpleGrading (0.4 1 1)\n");
fprintf(f1,");\n\n");
%edges
fprintf(f1,"edges\n");
fprintf(f1,"(\n");
fprintf(f1,"\tarc 1 2 (0 %4.2f 0)\n",R);
fprintf(f1,"\tarc 4 5 (%4.2f %4.2f 0)\n",L,R);
fprintf(f1,");\n\n");
%boundary
fprintf(f1,"boundary\n");
fprintf(f1,"(\n");
fprintf(f1,"\taxis \n");
fprintf(f1,"\t{ \n");
fprintf(f1,"\t type empty; \n");
fprintf(f1,"\t faces \n");
fprintf(f1,"\t ( \n");
fprintf(f1,"\t\t(0 3 3 0)\n");
fprintf(f1,"\t );\n");
fprintf(f1,"\t}\n");
fprintf(f1,"\tinlet \n");
fprintf(f1,"\t{ \n");
fprintf(f1,"\t type patch; \n");
fprintf(f1,"\t faces \n");
fprintf(f1,"\t ( \n");
fprintf(f1,"\t\t(0 0 2 1)\n");
fprintf(f1,"\t );\n");
fprintf(f1,"\t}\n");
fprintf(f1,"\tpipe_surface \n");
fprintf(f1,"\t{ \n");
fprintf(f1,"\t type wall; \n");
fprintf(f1,"\t faces \n");
fprintf(f1,"\t ( \n");
fprintf(f1,"\t\t(1 4 5 2)\n");
fprintf(f1,"\t );\n");
fprintf(f1,"\t}\n");
fprintf(f1,"\toutlet \n");
fprintf(f1,"\t{ \n");
fprintf(f1,"\t type patch; \n");
fprintf(f1,"\t faces \n");
fprintf(f1,"\t ( \n");
fprintf(f1,"\t\t(3 4 5 3)\n");
fprintf(f1,"\t );\n");
fprintf(f1,"\t}\n");
fprintf(f1,"\tfront \n");
fprintf(f1,"\t{ \n");
fprintf(f1,"\t type wedge; \n");
fprintf(f1,"\t faces \n");
fprintf(f1,"\t ( \n");
fprintf(f1,"\t\t(0 3 5 2)\n");
fprintf(f1,"\t );\n");
fprintf(f1,"\t}\n");
fprintf(f1,"\tback \n");
fprintf(f1,"\t{ \n");
fprintf(f1,"\t type wedge; \n");
fprintf(f1,"\t faces \n");
fprintf(f1,"\t ( \n");
fprintf(f1,"\t\t(0 1 4 3)\n");
fprintf(f1,"\t );\n");
fprintf(f1,"\t}\n");
fprintf(f1,");\n\n");
fprintf(f1,"mergePatchPairs\n");
fprintf(f1,"(\n");
fprintf(f1,");\n\n");
fprintf(f1,"// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //\n");

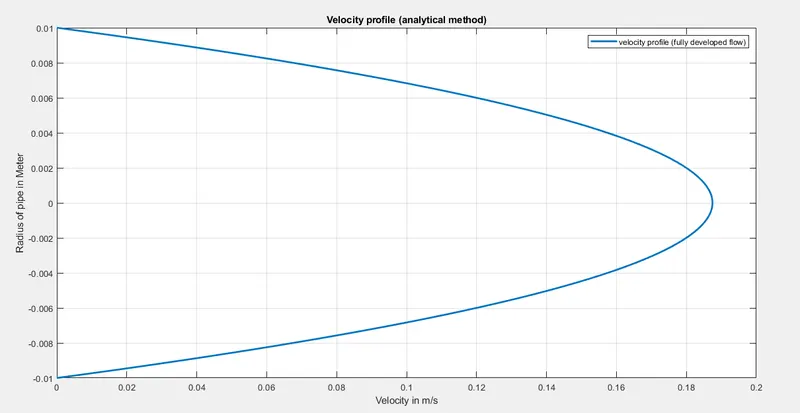

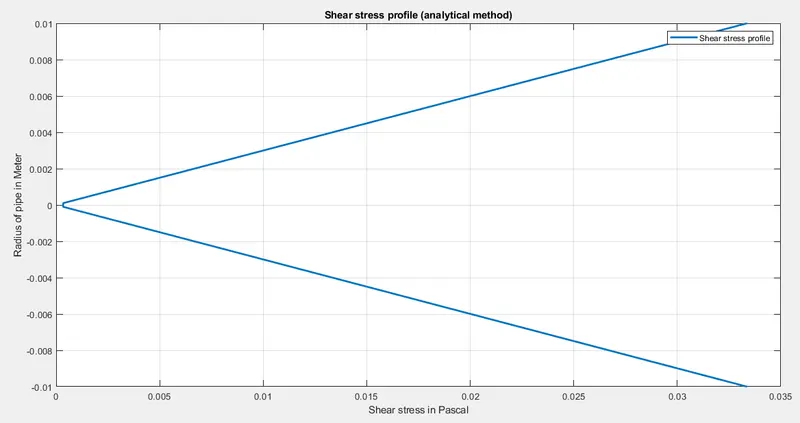

%% shear stress and velocity profile
% diameter of the pipe is 0.02 m
%radius of the pipe is 0.01 m
r = linspace(-0.01,0.01,100);
for i=1:length(r)
tau(i)=(2*mu*u_max*abs(r(i))) / R^2;
u(i) = 2*v_avg*(1-(r(i)^2/R^2));
end
%plots
%Shear stress plot
figure(1)
plot(tau,r ,'linewidth',2)
grid on
xlabel('Shear stress in Pascal')
ylabel('Radius of pipe in Meter')
title('Shear stress profile (analytical method)')
legend('Shear stress profile')
%veloctiy profile
figure(2)
plot(u,r ,'linewidth',2)
grid on
xlabel('Velocity in m/s')
ylabel('Radius of pipe in Meter')
title('Velocity profile (analytical method)')
legend('velocity profile (fully developed flow)')
%values to be displayed
v_max_analytic = max(u);
p_k = delta_p / rho; %kinematic pressure m^2/s^2
fprintf("\nKinematic Pressure Drop for fully developed flow, p_k = %.4f m^2/s^2\n",p_k);
fprintf("\nMaximum velocity using HP equation, u_max = %.4f m/s \n",u_max);
fprintf("\nMaximum velocity using analytic method, u_max = %.4f m/s \n",v_max_analytic);

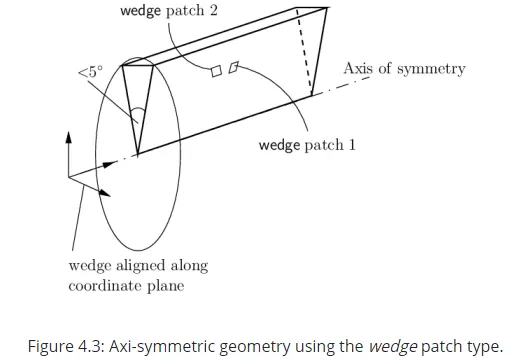

To reduce simulation time, for an axis-symmetric geometry (like a pipe), a wedge geometry is of angle less than 5 degree is considered.
The following BlockMeshDict file is a generated file for wedge angle 4 using the above MATLAB code. This file is used in place of the existing blockMeshDict file which is in the incompressible solver file from OpenFOAM software. The solver used here is icoFoam.
BlockMeshDict:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 10
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
object blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
convertToMeters 1;
vertices
(
(0 0 0)
(0 9.993908e-03 -3.489950e-04)
(0 9.993908e-03 3.489950e-04)
(2.715000e+00 0 0)
(2.715000e+00 9.993908e-03 -3.489950e-04)
(2.715000e+00 9.993908e-03 3.489950e-04)
);
blocks
(
hex (0 1 2 0 3 4 5 3) (50 1 200) simpleGrading (0.4 1 1)
);
edges
(
arc 1 2 (0 0.01 0)
arc 4 5 (2.71 0.01 0)
);
boundary
(
axis
{
type empty;
faces
(
(0 3 3 0)
);
}
inlet
{
type patch;
faces
(
(0 0 2 1)
);
}
pipe_surface
{
type wall;
faces
(
(1 4 5 2)
);
}
outlet
{
type patch;
faces
(
(3 4 5 3)
);
}
front
{
type wedge;
faces
(
(0 3 5 2)
);
}
back
{
type wedge;
faces
(
(0 1 4 3)
);
}
);
mergePatchPairs
(
);
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
ControlDict:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 10
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
location "system";
object controlDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
application icoFoam;
startFrom startTime;
startTime 0;
stopAt endTime;
endTime 10;
deltaT 0.01;
writeControl timeStep;
writeInterval 10;
purgeWrite 0;
writeFormat ascii;
writePrecision 6;
writeCompression off;
timeFormat general;
timePrecision 6;
runTimeModifiable true;
// ************************************************************************* //
Initial conditions - Kinematic pressure drop:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 10
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class volScalarField;
object p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 2 -2 0 0 0 0];
internalField uniform 0;
boundaryField
{
axis
{
type empty;
}
inlet
{
type zeroGradient;
}
pipe_surface
{
type zeroGradient;
}
outlet
{
type fixedValue;
value uniform 0.0182;
}
front
{
type wedge;
}
back
{
type wedge;
}
}
// ************************************************************************* //
Initial conditions -Inlet Average velocity:
/*--------------------------------*- C++ -*----------------------------------*
========= |
\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\ / O peration | Website: https://openfoam.org
\ / A nd | Version: 8
\/ M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class volVectorField;
object U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 1 -1 0 0 0 0];
internalField uniform (0.0937 0 0);
boundaryField
{
axis
{
type empty;
}
inlet
{
type fixedValue;
value uniform (0.0937 0 0);
}
pipe_surface
{
type fixedValue;
value uniform (0 0 0);
}
outlet
{
type zeroGradient;
}
front
{
type wedge;
}
back
{
type wedge;
}
}
// ************************************************************************* // Transport Properties- Kinematic viscosity:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 10
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
location "constant";
object physicalProperties;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
nu [0 2 -1 0 0 0 0] 0.01;
// ************************************************************************* //
OUTPUTS:

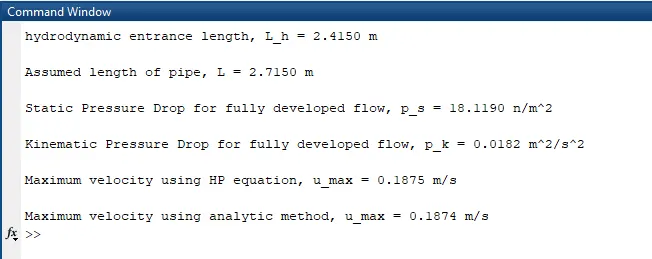

1) some of the MATLAB values which are useful for OpenFOAM simulation,

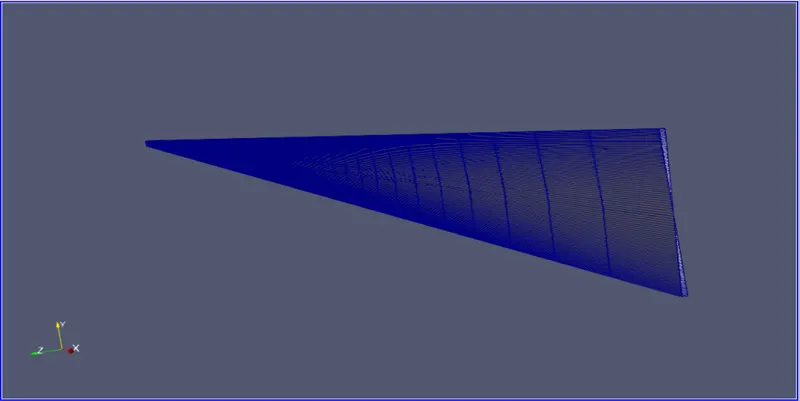

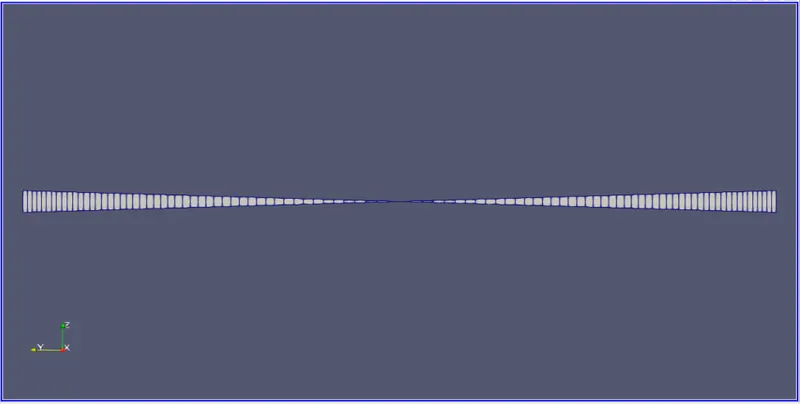

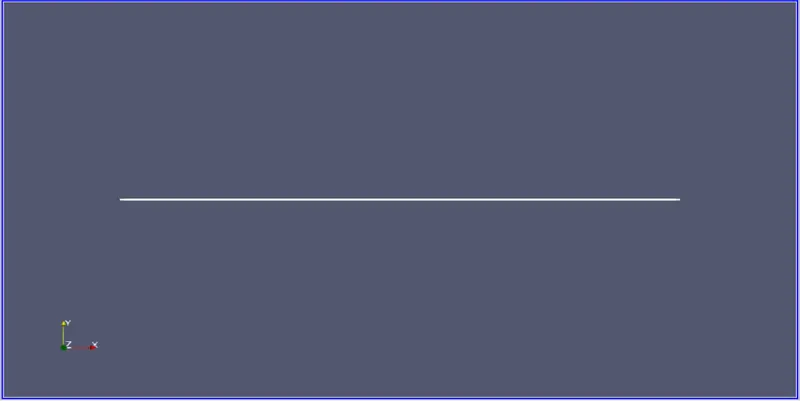

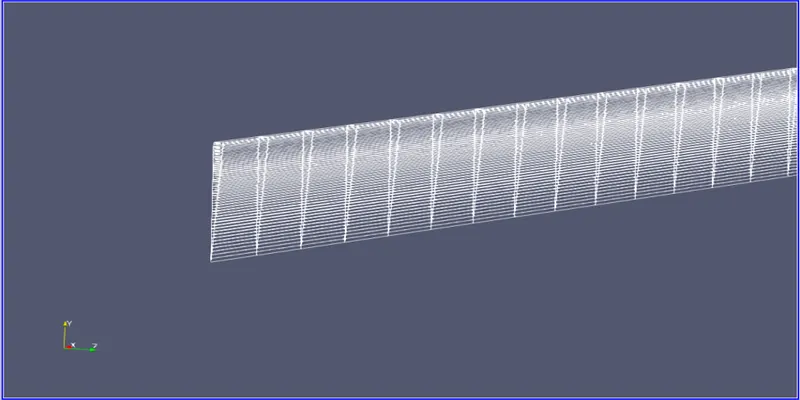

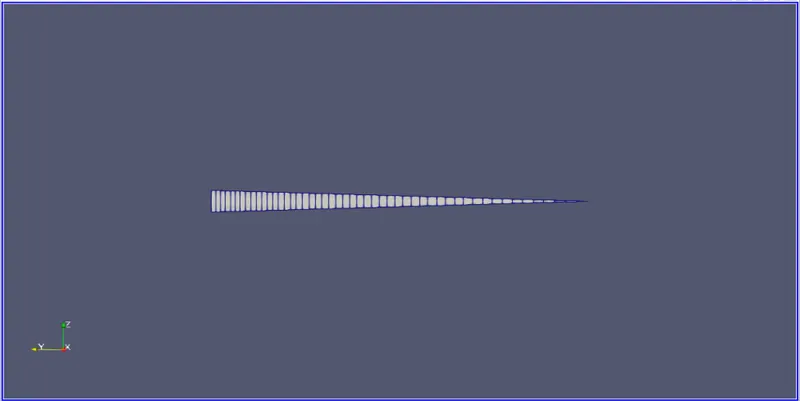

2) The wedge generated using MATLAB and OpenFOAM,
3) The Reflected 3d model for plot generation,
- For further plot generations, As the geometry is axis-symmetric, The wedge is reflected along the Y-axis using Reflect command.
- The path to reflect command is as follows, Filter-> Alphabetical-> Reflect-> Along Y-axis.
4) The Pressure profile at the final timestep of the laminar incompressible flow of fluid through a pipe of a constant cross-section,

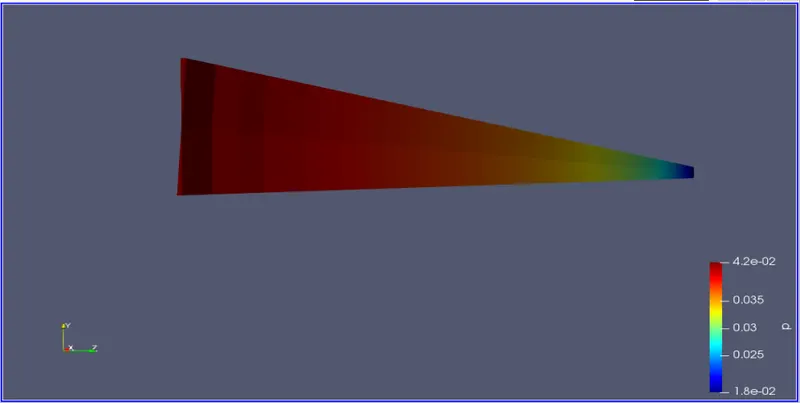

a) Pressure flow color map viewed from the pipe inlet side,

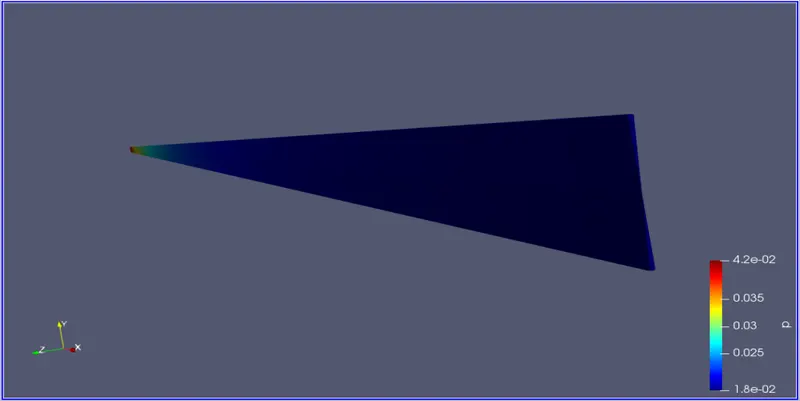

b) Pressure flow color map viewed from the pipe outlet side,

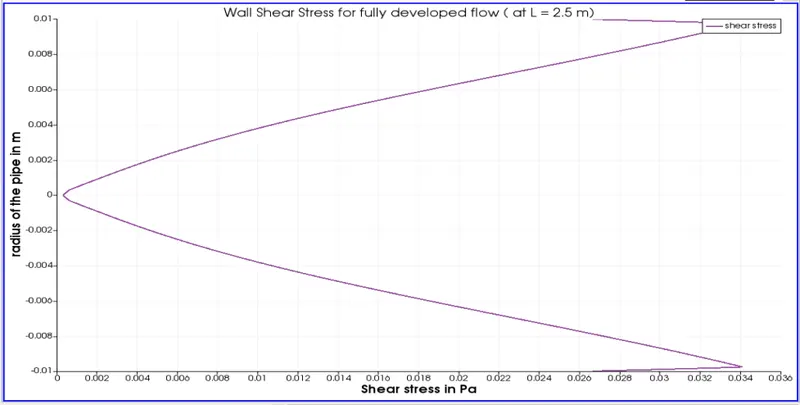

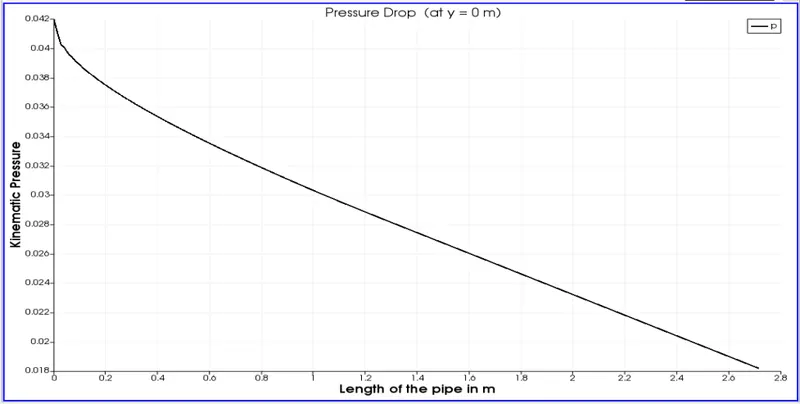

c)ParaView plot representing Pressure flow through the length of the pipe,

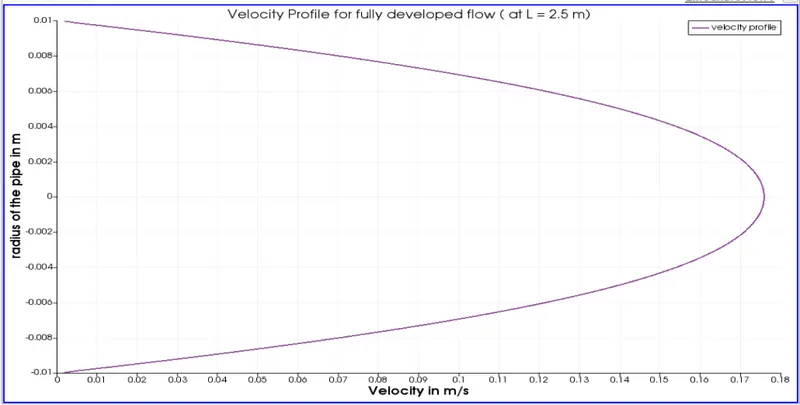

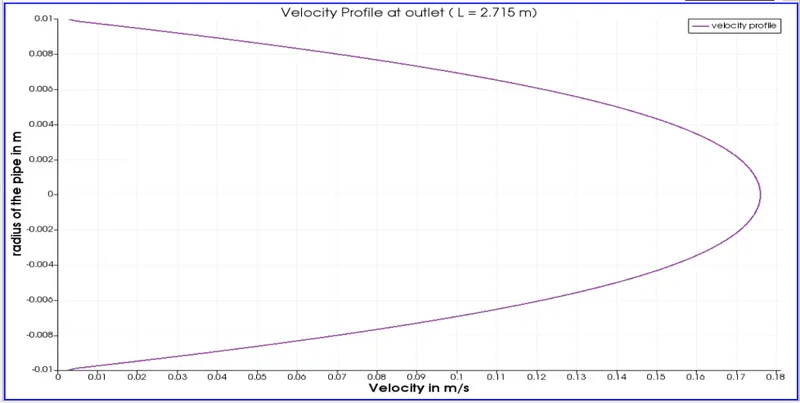

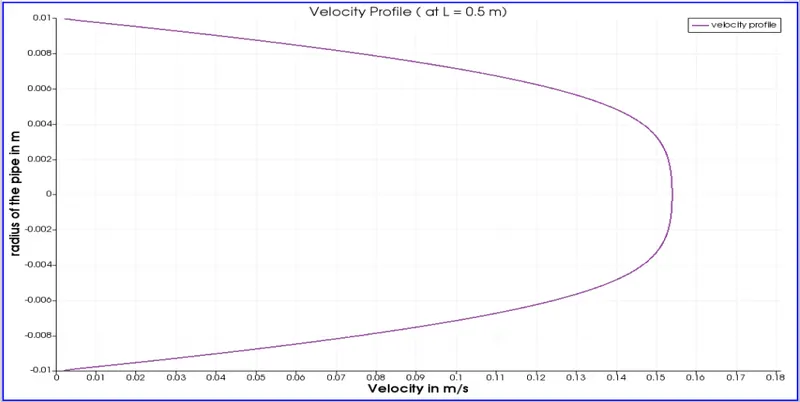

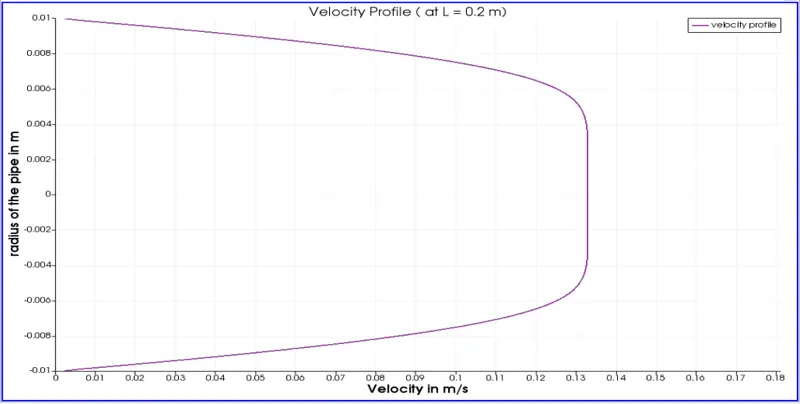

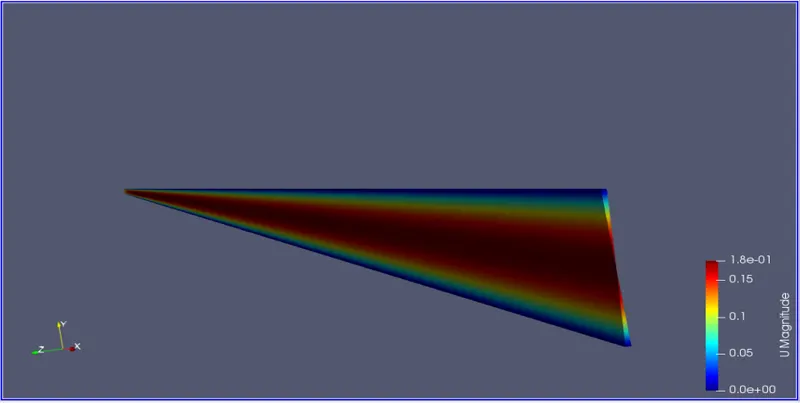

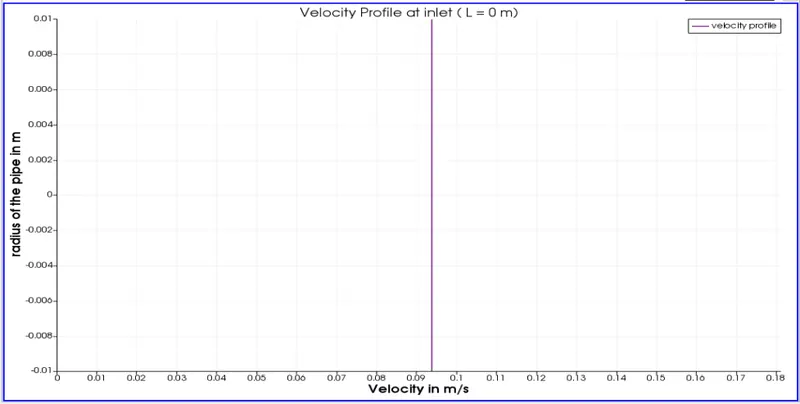

5) The velocity profile at the final timestep of the laminar incompressible flow of fluid through a pipe of a constant cross-section,

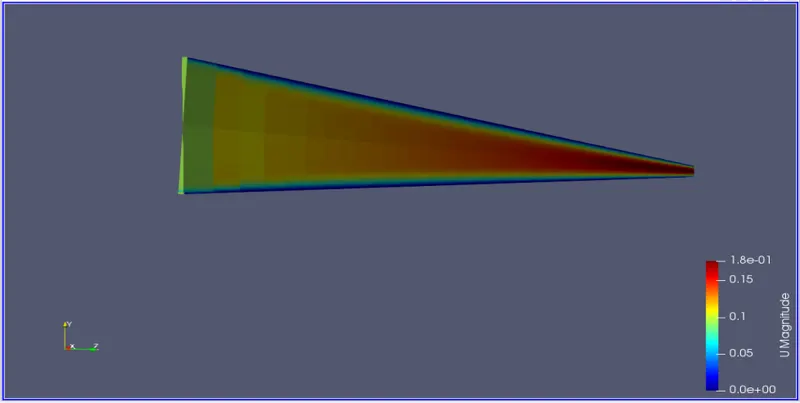

a) Velocity flow color map viewed from the pipe inlet side,
b) Velocity flow color map viewed from the pipe outlet side,
c)ParaView plots representing the velocity profile development measured through the length of the pipe,
d) The MATLAB velocity profile for fully developed flow,
6) The Shear Stress Plots,
a)Shear stress plot generated in ParaFOAM,
b)Shear stress plot generated using MATLAB code,
OBSERVATION:
1) Pressure:
- The pressure drop can be observed from the plot.
- As the fluid travels through the pipe from the inlet to the outlet, its pressure starts to drop gradually.
2) Velocity:
- The velocity profile is plotted at varying distances from the inlet (L=0 m) of the pipe.
- At the inlet (L=0 m), the velocity remains uniform as there is no disturbance.
- The velocity at a distance L = 0.2 m and L = 0.5 m, from the inlet seems to be slow and stable around the center of the pipe which shows that the velocity is gradually developing. It suddenly becomes zero at the wall because of the no-slip condition. This region is called the hydrodynamic entrance region.
- The velocity profile at a distance of L = 2.5 m and L = 2.715 m is parabolic in nature because the velocity profile moves to the hydrodynamically fully developed region.
3)Shear stress:
- Shear Force is normally present because the adjacent layer of the fluid move with different velocities compared to each other.
- The irregularities can be observed in the shear stress profile because of the "finite volume method". At nodes intersection the value of shear stress increases, this can be reduced by increasing the number of grid points at the center of the pipe.
- The shear stress is maximum at the walls and is zero at the center of the pipe.
RESULT:
- The Hydrodynamic length (L_h) was found using MATLAB code and a fully developed flow velocity profile was obtained at the same length in the numerical method. Thus the hydrodynamic length is similar for both methods.
- The fully developed flow velocity profile was found to be similar for both analytical and numerical methods.
- The pressure drop for the fully developed flow is plotted and the maximum velocity of the fully developed flow,
for the analytical method, U_max = 0.1875 m/s
for the numerical method, U_max ~ 0.1765 m/s (from the plot)
- The above stats show that the velocity profile calculated numerically was equal to the HP equation with an error of 0.011 m/s.
- The post-process Shear stress was found and plotted using MATLAB.
- The wall shear stress for fully developed flow was plotted using ParaFOAM.
REFERENCE:
