Challenge

Week 11 - Simulation of Flow through a pipe in OpenFoam

SSree Krishna Balan14 Nov 2021
CFD

Objective :

  • To simulate an axi-symmetric flow by applying the wedge boundary condition.
  • The flow is laminar and flows through a constant cross-section pipe at an inlet Reynold's number of 2100.
  • The flow can be transient or steady state simulation and to validate your results with the Hagen- Poiseuille's equations for the fully developed flow.
  • To write code in Matlab to automate the generation of blockMeshDict file. The code should take inputs like pipe length, diameter, wedge angle, etc and output a fully functional blockMeshDict file.

Expected Results :

  1. Validate Hydro-dynamic length with the numerical result.
  2. Validate the fully developed flow velocity profile with its analytical profile.

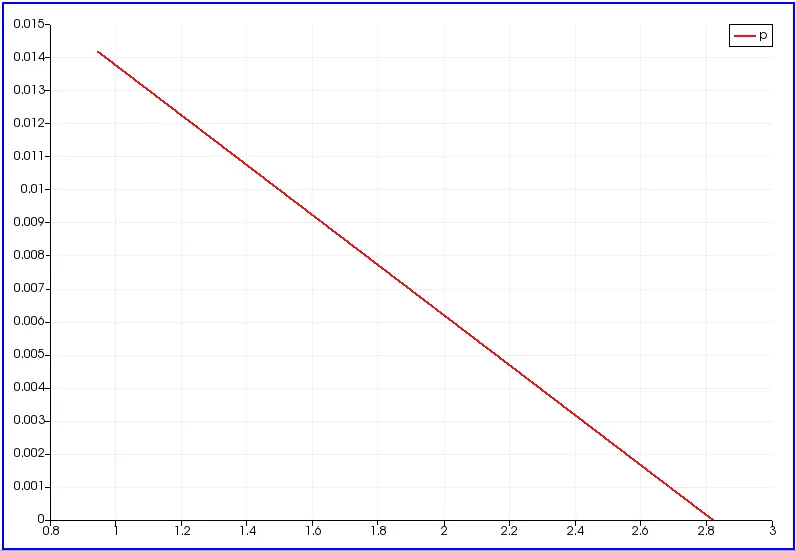

  3. Validate maximum velocity and pressured drop for fully developed flow.

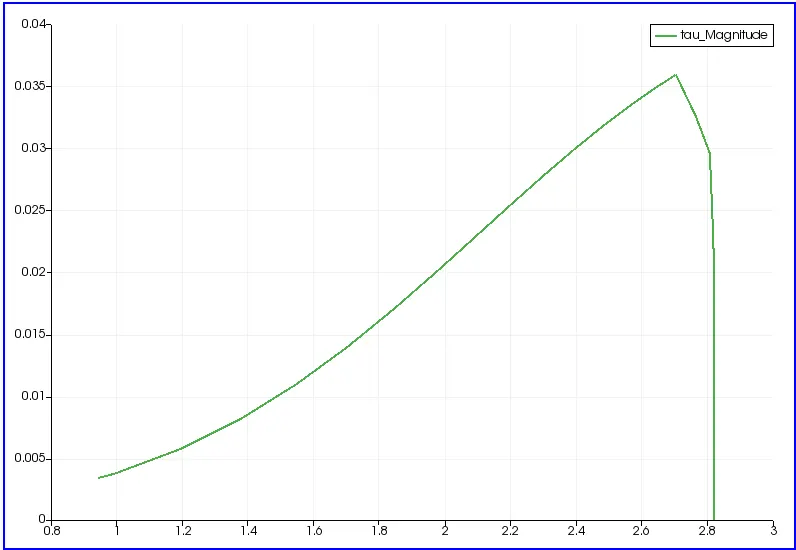

  4. Post-process Shear stress and validate wall shear stress for fully developed flow.

Specification :

Working fluid = water

Wedge angle = 4 degree

Reynolds number = 2100

Diameter D = 0.02m

Radius R = 0.01m

Dynamic viscosity of water at 25 degree celcius - mu = 0.0008900`(Ns)/(m^2)`

Water density at 25 deg celcius = 997`(kg)/(m^3)`

Temperature of water = 25 degree celcius.

Theory :

The hagen -poiseuille equation describes the parabolic velocity profile of frictional, laminar pipe flows of in compressible, Newtonian fluids.When a fluid is moving through a pipe velocity will be varying in the radial direction in a particular manner. This is because of the pressence of fluid boundary friction, which may be otherwise stated as no-slip condition. We know that as the fluid moves downstream boundary layer gets thickened and finally, at a particuar location, it fills the entire pipe. Downstream of this point velocity profile will be parabolic. The entrance length can be defined as the distance between the above-mentioned point and the inlet of pipe.

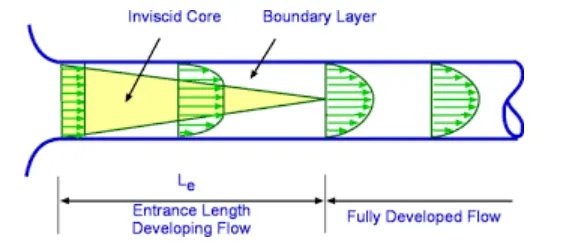

In the above figure, it is clear that the flow is developing in the entrance region and after the entrance region the flow is fully developed and thereafter there are no charges in the velocity profile. Viscous forces are responsible for the velocity profiles.

Calculations :

Entrance Length of Laminar flow pipe is calculated vy th equation `(L_e/D)` = 0.06 .Re

Entrance length = `L_e = 0.06. R_e . D`

                          = 2.52 m

Total length `L_t`= `L_e`+0.3

Total length `L_t` = 2.82m

Mean velocity `V_(mean)` = `(R_e. mu)/(rho.D)`

                                          = 0.09373m/s.

Maximum Velocity `V_(max) = 2.V_(mean)`

                                             = 0.18746 m/s

Pressure Drop`triangleP` = `(32. mu . V_(mean) . (L_t - L_e))/D^2`

                                        = 2 pa

Kinematic pressure `(P_k)` = `(triangleP)/rho`

                                            = 2.008e-03`m^2 / sec^2`

Velocity profile u(r) = 2.`V_(mean)``(1-(r^2)/(R^2))``m^2 / sec^2`

The velocity is maximum at the center of the pipe and zero at the walls due to the no slip condition near walls.

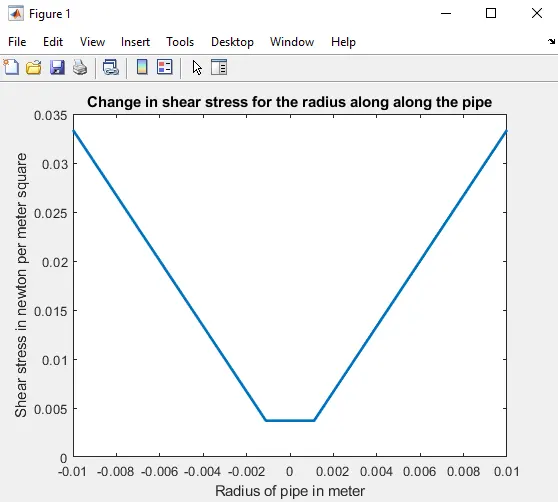

Shear stress `tau = (2*mu*V_max*r)/(R^2)` `N/m^2`

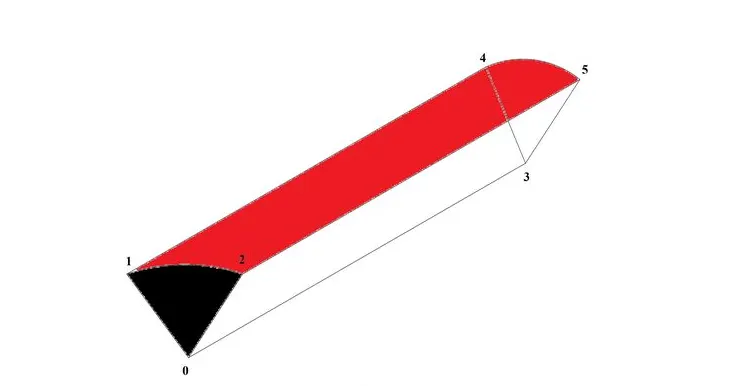

Wedge diagram :

Procedure :

  • Firstly open the terminal in linux operating system by simply right clicking and selecting open terminal option or else we can use a short cut key Ctrl+Alt+t.
  • Then in that type 'tut' which directs to the tutorial folder.
  • Then type 'ls' which shows the list of options available in the tutorial folder, In that select 'incompressible' flow which is our objective.
  • Then again type 'ls' then select 'icoFoam' which is actually suitable for laminar nonviscous flows.
  • Then again type 'ls' then select the 'cavity' folder in cavity folder again we are going to see another 'cavity' folder there we define fluid domain and generate block mesh. But we are not going to make changes in the tutorial section first of all open foam doesn't allow to makes changes directly in the tutorial folder because it will corrupt the openfoam we need to reinstall it again in order to rectify that issue.
  • so we are going to copy this cavity folder using 'cp -r cavity' command and paste it in openfoam run folder by typing 'cp -r cavity $FOAM_RUN/ cavity_test'. And then open run folder by typing 'cd  $FOAM_RUN'. Where we can see cavity_test file.
  • Now we can make any changes to the cavity_test file, which will never affect the openfoam official files. open cavity-test folder. Here we can provide specification for our block mesh in the sytem folder.
  • Then provide starting time and ending time and the value of deltat in the controldict folder in order to calculate the cfl number. Note we need to choose the value of deltat which satisfies the CFL stability criteria which is it should be less than 1 in order to provide a stable solution. If it doesn't satisfy the solution will get blowedup at any stage. Instead  of converging the solution got diverged.
  • Then provide initial and boundary condition for velocity and pressure in '0' folder which is present inside the cavity test folder.
  • A matlab code is generated which will recieve the wedge angle and mesh parameters from the user and give a blockMeshDict for the same as output which can be used for simulation in open foam.

 Program :

 Matlab file :

clear all
close all
clc

%Input
Re = 2100;
D = 0.02;
R = D/2;
theta = input('Enter the wedge angle :\n');
mu = 0.89e-3;
rho = 997;
nu = mu/rho;

% Analytical velocity, pressure

L_e = 0.06*Re*D;
L_t = L_e + 0.3;
Vavg = (Re*mu)/(rho*D);
Vmax = 2*Vavg;
Del_P = (32*mu*Vavg*L_t)/D^2;
kin_P = Del_P/rho;

% Finding vertices
v0 = [0 0 0];
v1 = [0 R*cosd(theta/2) R*sind(theta/2)];
v2 = [0 R*cosd(theta/2) -R*sind(theta/2)];
v3 = [L_t 0 0];
v4 = [L_t R*cosd(theta/2) R*sind(theta/2)];
v5 = [L_t R*cosd(theta/2) -R*sind(theta/2)];


% BlocMeshDict file

f1 = fopen('blockMeshDict.txt','w');

fprintf(f1,'%s \n','/*--------------------------------*- C++ -*----------------------------------*\');
fprintf(f1,'%s \n','  =========                 |');
fprintf(f1,'%s \n','  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox');
fprintf(f1,'%s \n','   \\    /   O peration     | Website:  https://openfoam.org');
fprintf(f1,'%s \n','    \\  /    A nd           | Version:  9');
fprintf(f1,'%s \n','     \\/     M anipulation  |');
fprintf(f1,'%s \n','\*---------------------------------------------------------------------------*/');
fprintf(f1,'%s \n','FoamFile');
fprintf(f1,'%s \n','{');
fprintf(f1,'%s \n','    format      ascii;');
fprintf(f1,'%s \n','    class       dictionary;');
fprintf(f1,'%s \n','    object      blockMeshDict;');
fprintf(f1,'%s \n','}');
fprintf(f1,'%s \n','// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //');
fprintf(f1,'\n');
fprintf(f1,'%s \n','convertToMeters 1;');
fprintf(f1,'\n');

% vertices
fprintf(f1,'vertices \n');
fprintf(f1,'(\n');
fprintf(f1,blanks(4),'%s \n','(');
v0 = fprintf(f1,'(%f %f %f) \n',v0(1),v0(2),v0(3));
fprintf(f1,blanks(4),'%s','(');
v1 = fprintf(f1,'(%f %f %f) \n',v1(1),v1(2),v1(3));
fprintf(f1,blanks(4),'%s','(');
v2 = fprintf(f1,'(%f %f %f) \n',v2(1),v2(2),v2(3));
fprintf(f1,blanks(4),'%s','(');
v3 = fprintf(f1,'(%f %f %f) \n',v3(1),v3(2),v3(3));
fprintf(f1,blanks(4),'%s','(');
v4 = fprintf(f1,'(%f %f %f) \n',v4(1),v4(2),v4(3));
fprintf(f1,blanks(4),'%s','(');
v5 = fprintf(f1,'(%f %f %f) \n',v5(1),v5(2),v5(3));
fprintf(f1,'\n);\n');

% block creation

fprintf(f1,'\nblocks\n');

fprintf(f1,'(\n');
fprintf(f1,blanks(4),'%s','(');
fprintf(f1,'%s','hex (0 3 5 2 0 3 4 1)');

% Mesh generation
m1 = input('Enter the number of mesh along x-axis :\n');
m2 = input('Enter the number of mesh along y-axis :\n');
m3 = input('Enter the number of mesh along z-axis :\n');

fprintf(f1,blanks(1),'%s \n','(');
fprintf(f1, '(%d %d %d)',m1,m2,m3);
fprintf(f1,'%s',' simpleGrading (1 0.2 1)');
fprintf(f1,'\n);');

% edge creation

fprintf(f1,'\n\nedges\n');
fprintf(f1,'(\n');
fprintf(f1,'%s\n arc 1 2 (0 %f 0)',blanks(1),R);
fprintf(f1,'%s\n arc 4 5 (%f %f 0)',blanks(1),L_t,R);
fprintf(f1,'\n\n);');

% Apply boundary conditions

% inlet

fprintf(f1,'\n\nboundary\n(\n');
fprintf(f1,'%s',' inlet');
fprintf(f1, '\n {\n');
fprintf(f1,'%s',blanks(10),'type patch;');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),'faces');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),'(');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(13),'(0 1 2 0)');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),');');
fprintf(f1,'\n  }\n');

% outlet
fprintf(f1,'\n');
fprintf(f1,'%s',' outlet');
fprintf(f1, '\n {\n');
fprintf(f1,'%s',blanks(10),'type patch;');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),'faces');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),'(');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(13),'(3 5 4 3)');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),');');
fprintf(f1,'\n  }\n');

% Topwall
fprintf(f1,'\n');
fprintf(f1,'%s',' topwall');
fprintf(f1, '\n {\n');
fprintf(f1,'%s',blanks(10),'type wall;');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),'faces');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),'(');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(13),'(1 4 5 2)');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),');');
fprintf(f1,'\n  }\n\n');

% front
fprintf(f1,'\n');
fprintf(f1,'%s',' front');
fprintf(f1, '\n {\n');
fprintf(f1,'%s',blanks(10),'type wedge;');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),'faces');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),'(');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(13),'(0 3 4 1)');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),');');
fprintf(f1,'\n  }\n');

% back
fprintf(f1,'\n');
fprintf(f1,'%s',' back');
fprintf(f1, '\n {\n');
fprintf(f1,'%s',blanks(10),'type wedge;');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),'faces');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),'(');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(13),'(0 2 5 3)');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),');');
fprintf(f1,'\n  }\n');



% axis
fprintf(f1,'\n');
fprintf(f1,'%s',' axis');
fprintf(f1, '\n {\n');
fprintf(f1,'%s',blanks(10),'type empty;');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),'faces');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),'(');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(13),'(0 3 3 0)');
fprintf(f1,'\n');
fprintf(f1,'%s',blanks(10),');');
fprintf(f1,'\n  }\n\n');

fprintf(f1,'\n);\n');

fprintf(f1,'\nmergePatchPairs');
fprintf(f1,'\n(\n);\n\n');

fprintf(f1,'%s','// ************************************************************************* //');
fclose(f1);

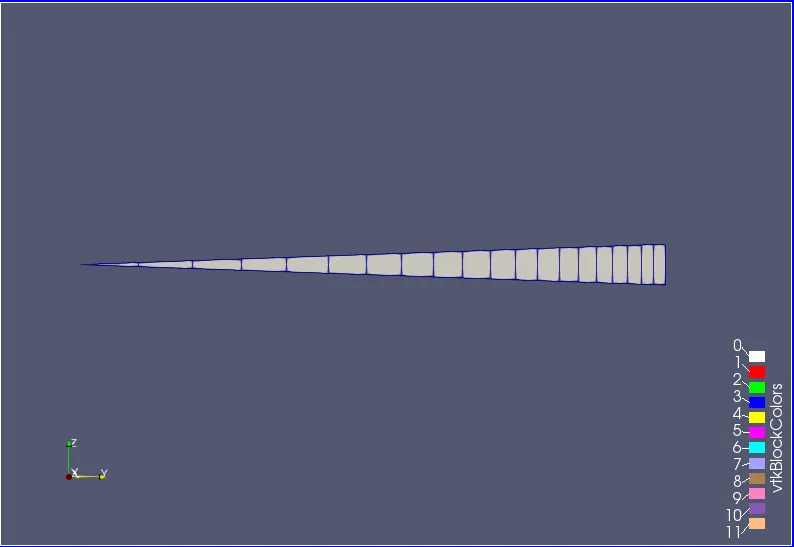

 BlockMeshDict file :

/*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  9
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    format      ascii;
    class       dictionary;
    object      blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

convertToMeters 1;

vertices
(
    (0.000000 0.000000 0.000000)
    (0.000000 0.009994 0.000349)
    (0.000000 0.009994 -0.000349)
    (2.820000 0.000000 0.000000)
    (2.820000 0.009994 0.000349)
    (2.820000 0.009994 -0.000349)

);

blocks
(
    hex (0 3 5 2 0 3 4 1) (200 20 1) simpleGrading (1 0.2 1)
);

edges
(

 arc 1 2 (0 0.010000 0)
 arc 4 5 (2.820000 0.010000 0)

);

boundary
(
 inlet
 {
          type patch;
          faces
          (
             (0 1 2 0)
          );
  }

 outlet
 {
          type patch;
          faces
          (
             (3 5 4 3)
          );
  }

 topwall
 {
          type wall;
          faces
          (
             (1 4 5 2)
          );
  }


 front
 {
          type wedge;
          faces
          (
             (0 3 4 1)
          );
  }

 back
 {
          type wedge;
          faces
          (
             (0 2 5 3)
          );
  }

 axis
 {
          type empty;
          faces
          (
             (0 3 3 0)
          );
  }


);

mergePatchPairs
(
);

// ************************************************************************* //

ControlDict file :

/*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  9
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    format      ascii;
    class       dictionary;
    location    "system";
    object      controlDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

application     icoFoam;

startFrom       startTime;

startTime       0;

stopAt          endTime;

endTime         5;

deltaT          0.01;

writeControl    timeStep;

writeInterval   20;

purgeWrite      0;

writeFormat     ascii;

writePrecision  6;

writeCompression off;

timeFormat      general;

timePrecision   6;

runTimeModifiable true;


// ************************************************************************* //

Boundary and initial conditions :

Pressure file :

/*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  9
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    format      ascii;
    class       volScalarField;
    object      p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

dimensions      [0 2 -2 0 0 0 0];

internalField   uniform 0;

boundaryField
{
    inlet
    {
        type            zeroGradient;
    }

    outlet
    {
        type            fixedValue;
        value           uniform 0;
    }

    topwall
    {
        type            zeroGradient;
    }

    front
    {
        type            wedge;
    }

    back
    {
        type            wedge;
    }

    axis
    {
        type            empty;
    }
}

// ************************************************************************* //

Velocity file :

/*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  9
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    format      ascii;
    class       volVectorField;
    object      U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

dimensions      [0 1 -1 0 0 0 0];

internalField   uniform (0 0 0);

boundaryField
{
    inlet
    {
        type            fixedValue;
        value           uniform (0.09 0 0);
    }

    outlet
    {
        type            zeroGradient;
    }

    topwall
    {
        type            noSlip;
    }

    front
    {
        type            wedge;
    }

    back
    {
        type            wedge;
    }

    axis
    {
        type            empty;
    }
}

// ************************************************************************* //

Transportproperties file :

/*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  9
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    format      ascii;
    class       dictionary;
    location    "constant";
    object      transportProperties;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

nu              [0 2 -1 0 0 0 0] 0.892e-6;


// ************************************************************************* //

Output :



                                                                     fig(a)



                                                                               fig(b)

                                                                           fig(c)

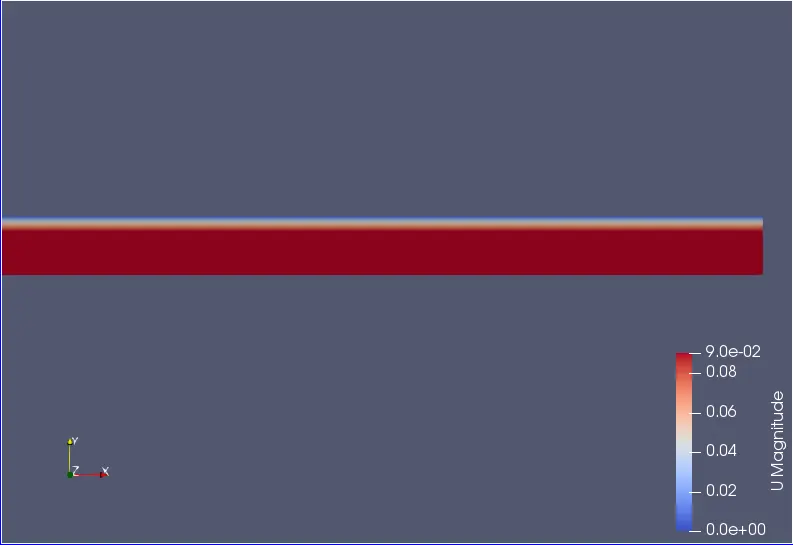

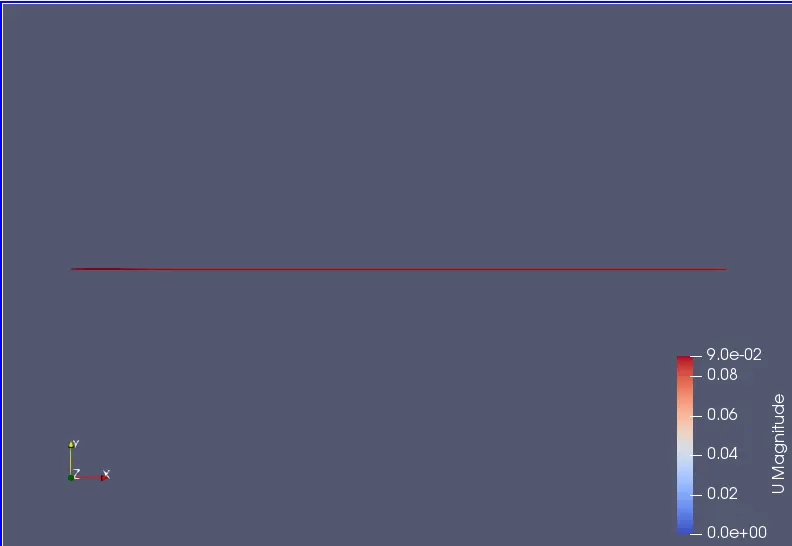

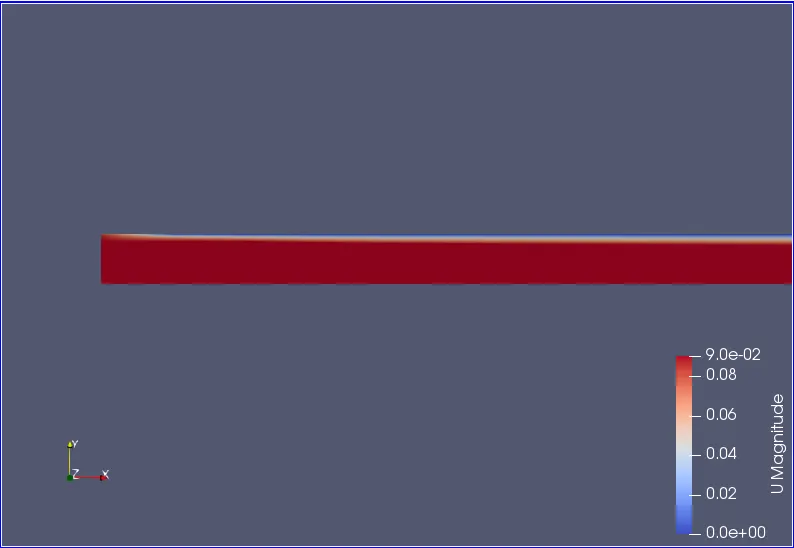

fig(a),fib(b) and fig(c) shows the simulation of change in velocity with respect to the time step for the given length of pipe.

Mesh structure :

                                                                fig(d)

                                                                             fig(e)

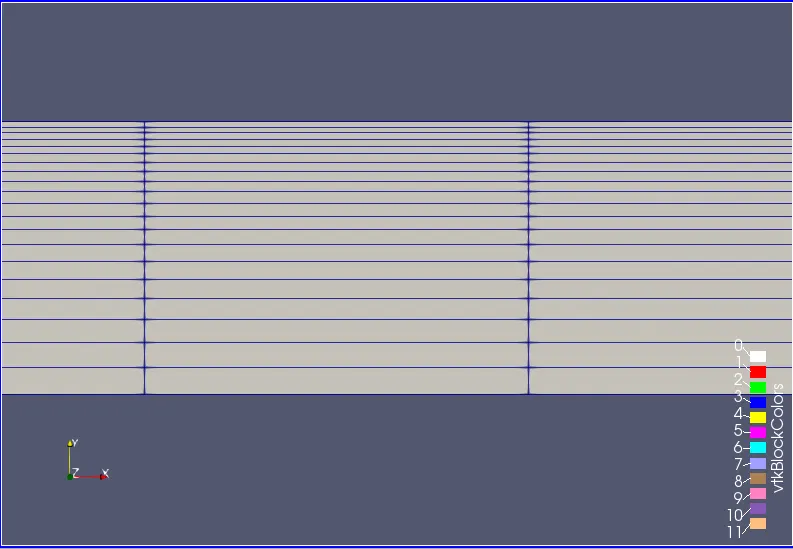

fig(d) and fig(e) shows the mesh structure of wedge for a pipe.

Change in velocity :

                                                                           fig(f)

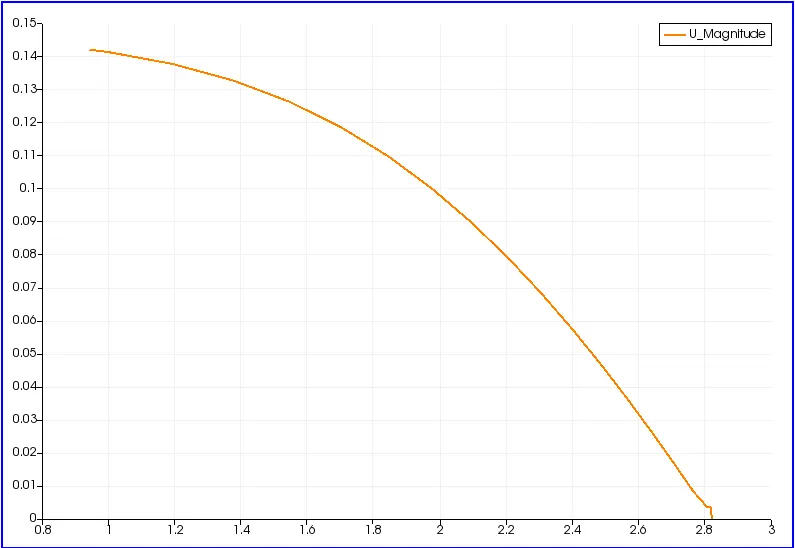

The above plot shows the change in velocity with respect to time step for the given length of the pipe which is for x=2.82m.

Change in pressure :

                                                                        fig(g)

The above plot shows the change in pressure with respect to time step for the given length of the pipe which is for x=2.82m.

Change in shear stress :

                                                                            fig(h)

The above plot shows the change in shear stress with respect to time step for the given length of the pipe which is for x=2.82.

                                                        fig(i)

The above figure fig(i) shows that the change in shear stress along the radius of a pipe which is calculated analytically.

Analytically calculated value of shear stress = 0.0334 `N/m^2`

Numerically calculated value of shear stress = 0.036`N/m^2`

 Error = Numerical value - analytical value

         = 0.036 - 0.0334

         = 0.0026

This error will get reduced by reducing the grid size or by increasing the number of mesh which will leads to increase in number of steps and computational time.

Conclusion :

The simulate of an axi-symmetric flow by applying the wedge boundary condition is successfully compiled and ran successfully, the results are discussed at the output.

Your portfolio, next

Ship work like this
in your own course.

Talk to a career counsellor

Free 20-minute call. We'll map the right course to where you want to work.

By submitting you agree to our Terms and Privacy Policy.

Talk to a career counsellor

Free 20-minute call. We'll map the right course to where you want to work.

By submitting you agree to our Terms and Privacy Policy.
