Simulation of Flow through a pipe in OpenFoam

In nonideal fluid dynamics, the Hagen–Poiseuille equation, also known as the Hagen–Poiseuille law, is a physical law that gives the pressure drop in an incompressible and Newtonian fluid in laminar flow flowing through a long cylindrical pipe of constant cross section.

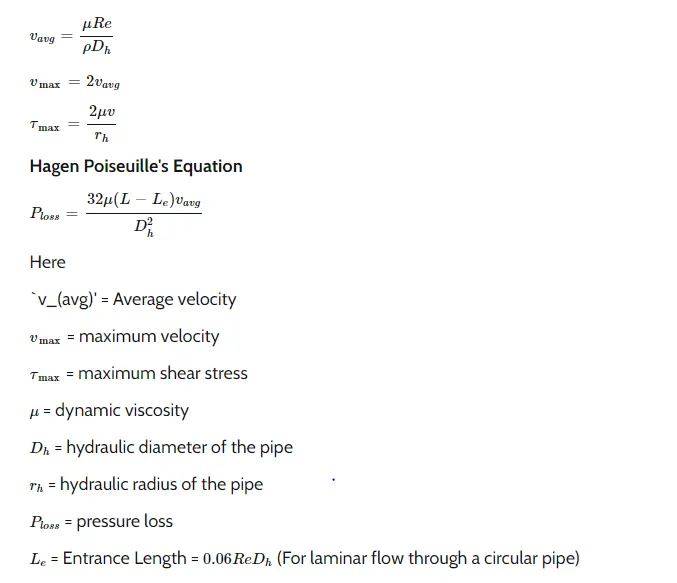

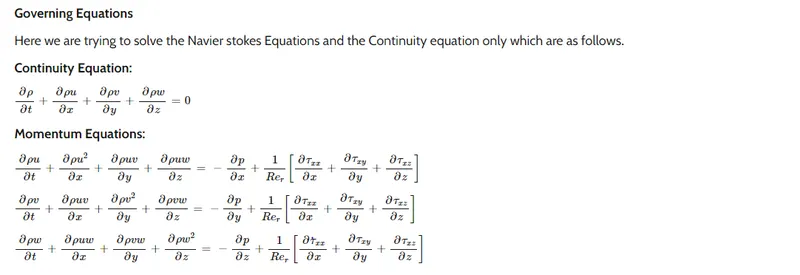

EQUATION:

In standard fluid-kinetics notation.

Given parameters.

1. Wedge angle less than 5 degrees,
2. Flow is axi symetrical.
3. Fluid is incompressible and the flow is laminar.

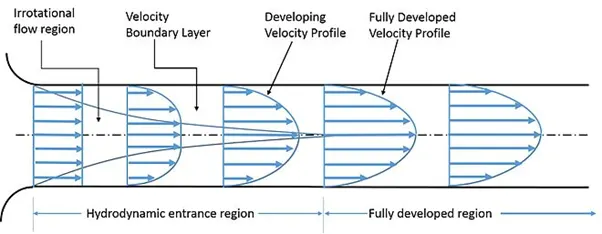

Expected Velocity Profile.

Assuming the following:

1. The distance the fluid has to travel to become fully developed is given by the Entry Length formula.
2. Given Reynolds number is 2100. This implies flow is laminar.
3. Hence Entry length formula for Laminar is given by:Ld=0.06.ReLd=0.06.Re
4. where L is effective length; d is dia of pipe and Re is reyonolds number.
5. Assuming the dia of pipe as 10mm; substituting the values, we get L = 1.2m.

Steps to follow

1. First, the geometry is created in the blockmesh Dict file, this is done by creating the file through the matlab code.
2. The mesh is generated according to requirement.
3. The velocity and preassure bc are applied
4. The controlDict file is edited for Simulation run time and timestep;
5. After the geometry is input, the simulation can be started by calling 'icoFoam' command in the terminal.
6. 'paraFoam' command helps to open paraView
7. The shear stress diagram is obtained by post-processing the velocity results obtained from Openfoam.

Matlab programm for automatically generate blockmeshDict file for a wedge angle

 clc
 clear all
 close all

 % variable values
 D = 0.01;
 r = D/2;
 L = 1.2;
 theta = input(' input the value of wedge angle=');

 % String for header,
 h1 =' /*---------------------------------*- C++ -*-------------------------------------------------* ';
 h2 =' | ==========      |                                                                           |';
 h3 =' | \        /  F ield        | OpenFOAM: The Open Source CFD Toolbox                          |';
 h4 =' |  \      /   O peration    | Version:  7                                                    |';
 h5 =' |   \    /    A nd          | Web:      www.OpenFOAM.org                                     |';
 h6 =' |    \  /     M anipulation |                                                                |';
 h7 ='  *------------------------------------------------------------------------------------------*/ ';
 h8 =' FoamFile';
 h9 ='{';
 h10 ='     version        2.0;';
 h11 ='     format         ascii;';
 h12 ='     class          dictionary;';
 h13 ='     object         blockMeshDict;';
 h14 ='}';
 h15 =' // * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *  \';

 conv ='convertToMeters 1;';

 sp1 = blanks(5);   %sp = space
 sp2 = blanks(10);
 sp3 = blanks(15);

 v_0 = [0 0 0];
 v_1 = [r*sind(theta/2) r*cosd(theta/2) 0];
 v_2 = [-r*sind(theta/2) r*cosd(theta/2) 0];
 v_3 = [0 0 L];
 v_4 = [r*sind(theta/2) r*cosd(theta/2) L];
 v_5 = [-r*sind(theta/2) r*cosd(theta/2) L];

 block ='hex (0 0 1 2 3 3 4 5) (1 50 200) simpleGrading (1 0.5 1)';
 edge1 ='arc 1 2';
 edge2 ='arc 4 5';

 e1 = [0 r 0];
 e2 = [0 r L];

 inlet = '(0 0 2 1)';
 outlet = '(3 4 5 3)';
 wedge1 = '(0 1 4 3)';
 wedge2 = '(3 5 2 0)';
 wall =' (4 1 2 5)';
 axis =' (0 3 3 0)';

 final = '// ************************************************************************************************************************************************** //';



 f1 = fopen('blockMeshDict','wt');

 fprintf(f1,'%sn',h1);
 fprintf(f1,'%sn',h2);
 fprintf(f1,'%sn',h3);
 fprintf(f1,'%sn',h4);
 fprintf(f1,'%sn',h5);
 fprintf(f1,'%sn',h6);
 fprintf(f1,'%sn',h7);
 fprintf(f1,'%sn',h8);
 fprintf(f1,'%sn',h9);
 fprintf(f1,'%sn',h10);
 fprintf(f1,'%sn',h11);
 fprintf(f1,'%sn',h12);
 fprintf(f1,'%sn',h13);
 fprintf(f1,'%sn',h14);
 fprintf(f1,'%sn',h15);
 fprintf(f1,'n');

 fprintf(f1,'%sn',conv);
 fprintf(f1,'n');


 fprintf(f1,'%sn','vertices');
 fprintf(f1,'%sn','(');
 fprintf(f1,'%s (%f %f %f) n',sp1,v_0(1),v_0(2),v_0(3));
 fprintf(f1,'%s (%f %f %f) n',sp1,v_1(1),v_1(2),v_1(3));
 fprintf(f1,'%s (%f %f %f) n',sp1,v_2(1),v_2(2),v_2(3));
 fprintf(f1,'%s (%f %f %f) n',sp1,v_3(1),v_3(2),v_3(3));
 fprintf(f1,'%s (%f %f %f) n',sp1,v_4(1),v_4(2),v_4(3));
 fprintf(f1,'%s (%f %f %f) n',sp1,v_5(1),v_5(2),v_5(3));
 fprintf(f1,'%s n',');');
 fprintf(f1,'n');



 fprintf(f1,'%sn','blocks');
 fprintf(f1,'%sn','(');
 fprintf(f1,'%s %s n',sp1,block);
 fprintf(f1,'%s n',');');
 fprintf(f1,'n');

  fprintf(f1,'%s n','edges');
  fprintf(f1,'%s n','(');
  fprintf(f1,'%s %s (%f %f %f) n',sp1,edge1,e1(1),e1(2),e1(3));
  fprintf(f1,'%s %s (%f %f %f) n',sp1,edge2,e2(1),e2(2),e2(3));
  fprintf(f1,'%s n',');');
  fprintf(f1,'n');

   fprintf(f1,'%s n','boundary');
   fprintf(f1,'%s n','(');

  fprintf(f1,'%s %s n',sp1,'inflow');
  fprintf(f1,'%s %s n',sp1,'{');
  fprintf(f1,'%s %s n',sp2,'type patch;');
  fprintf(f1,'%s %s n',sp2,'faces');
  fprintf(f1,'%s %s n',sp2,'(');
  fprintf(f1,'%s %s n',sp3,inlet);
  fprintf(f1,'%s %s n',sp2,');');
  fprintf(f1,'%s %s n',sp1,'}');

   fprintf(f1,'%s %s n',sp1,'outflow');
  fprintf(f1,'%s %s n',sp1,'{');
  fprintf(f1,'%s %s n',sp2,'type patch;');
  fprintf(f1,'%s %s n',sp2,'faces');
  fprintf(f1,'%s %s n',sp2,'(');
  fprintf(f1,'%s %s n',sp3,outlet);
  fprintf(f1,'%s %s n',sp2,');');
  fprintf(f1,'%s %s n',sp1,'}');

   fprintf(f1,'%s %s n',sp1,'front');
  fprintf(f1,'%s %s n',sp1,'{');
  fprintf(f1,'%s %s n',sp2,'type wedge;');
  fprintf(f1,'%s %s n',sp2,'faces');
  fprintf(f1,'%s %s n',sp2,'(');
  fprintf(f1,'%s %s n',sp3,wedge1);
  fprintf(f1,'%s %s n',sp2,');');
  fprintf(f1,'%s %s n',sp1,'}');

   fprintf(f1,'%s %s n',sp1,'back');
  fprintf(f1,'%s %s n',sp1,'{');
  fprintf(f1,'%s %s n',sp2,'type wedge;');
  fprintf(f1,'%s %s n',sp2,'faces');
  fprintf(f1,'%s %s n',sp2,'(');
  fprintf(f1,'%s %s n',sp3,wedge2);
  fprintf(f1,'%s %s n',sp2,');');
  fprintf(f1,'%s %s n',sp1,'}');

   fprintf(f1,'%s %s n',sp1,'wall');
  fprintf(f1,'%s %s n',sp1,'{');
  fprintf(f1,'%s %s n',sp2,'type wall;');
  fprintf(f1,'%s %s n',sp2,'faces');
  fprintf(f1,'%s %s n',sp2,'(');
  fprintf(f1,'%s %s n',sp3,wall);
  fprintf(f1,'%s %s n',sp2,');');
  fprintf(f1,'%s %s n',sp1,'}');

   fprintf(f1,'%s %s n',sp1,'axis');
  fprintf(f1,'%s %s n',sp1,'{');
  fprintf(f1,'%s %s n',sp2,'type empty;');
  fprintf(f1,'%s %s n',sp2,'faces');
  fprintf(f1,'%s %s n',sp2,'(');
  fprintf(f1,'%s %s n',sp3,axis);
  fprintf(f1,'%s %s n',sp2,');');
  fprintf(f1,'%s %s n',sp1,'}');

  fprintf(f1,'%s n',');');
  fprintf(f1,'n');

  fprintf(f1,'%s n','mergePatchPairs');
  fprintf(f1,'%s n','(');
  fprintf(f1,'%s n',');');
  fprintf(f1,'n');
  fprintf(f1,'%s n',final);

  fclose(f1);


• VELOCITY BOUNDARY CONDITIONS.

/*--------------------------------*- C++ -*----------------------------------*
  =========                 |
  \      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \    /   O peration     | Website:  https://openfoam.org
    \  /    A nd           | Version:  7
     \/     M anipulation  |
*---------------------------------------------------------------------------*/
FoamFile
{
    version     2.0;
    format      ascii;
    class       volVectorField;
    object      U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

dimensions      [0 1 -1 0 0 0 0];

internalField   uniform (0 0 0);

boundaryField
{
    inflow
    {
        type            fixedValue;
        value           uniform (0 0 0.1869);
    }

    outflow
   {
        type            zeroGradient;
   }

    wall
    {
        type            noSlip;
    }

    front
    {
        type            wedge;
    }

    back
    {
        type            wedge;
    }

    axis
    {
        type            empty;
    }


}

// ************************************************************************* //

• PRESSURE BOUNDARY CONDITIONS.

/*--------------------------------*- C++ -*----------------------------------*
  =========                 |
  \      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \    /   O peration     | Website:  https://openfoam.org
    \  /    A nd           | Version:  7
     \/     M anipulation  |
*---------------------------------------------------------------------------*/
FoamFile
{
    version     2.0;
    format      ascii;
    class       volScalarField;
    object      p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

dimensions      [0 2 -2 0 0 0 0];

internalField   uniform 0;

boundaryField
{
    inflow
    {
        type            zeroGradient;
    }

    outflow
    {
        type            fixedValue;
        value           uniform 0.0638749;
    }

   wall
    {
        type          zeroGradient;
    }

   front
    {
        type            wedge;
    }

   back
    {
        type            wedge;
    }

   axis
    {
        type            empty;
    }
}

// ************************************************************************* //

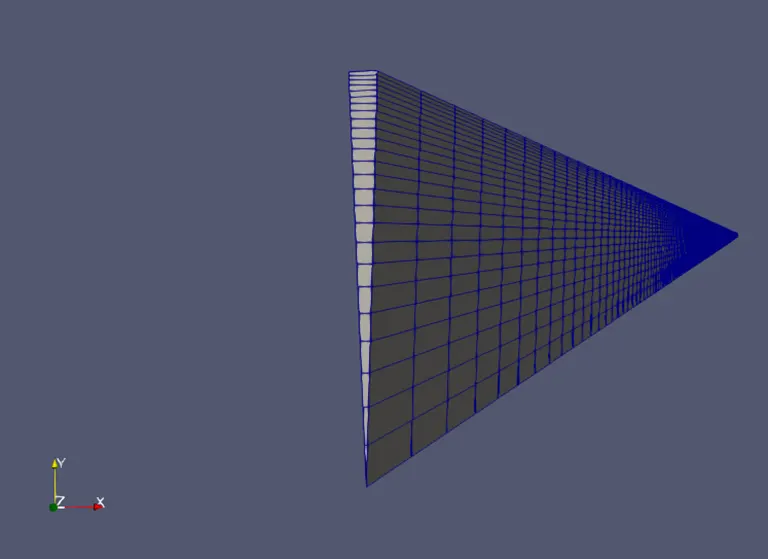

Meshed Geometry:

The isometric view of the mesh is shown. Mesh grading is given only for the walls.

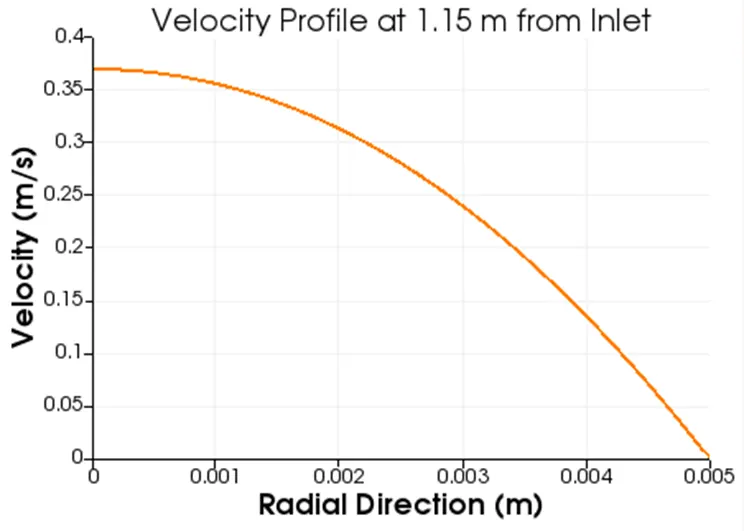

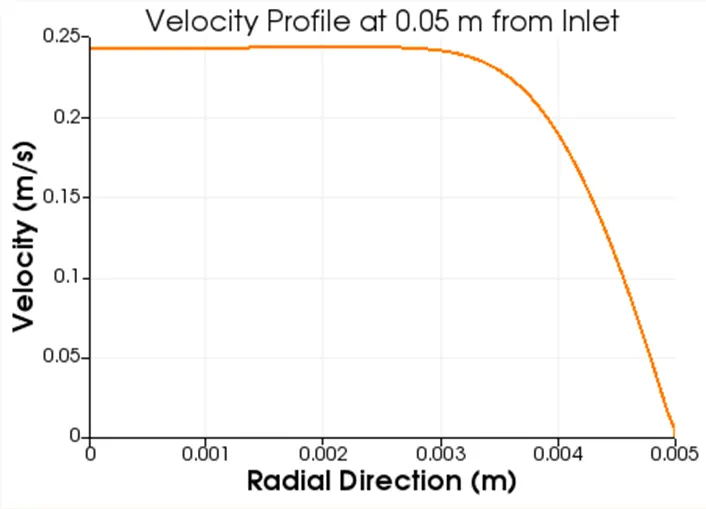

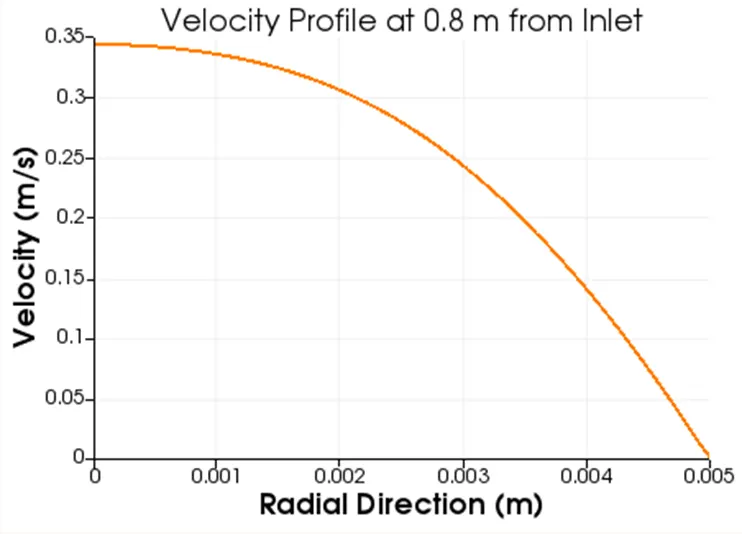

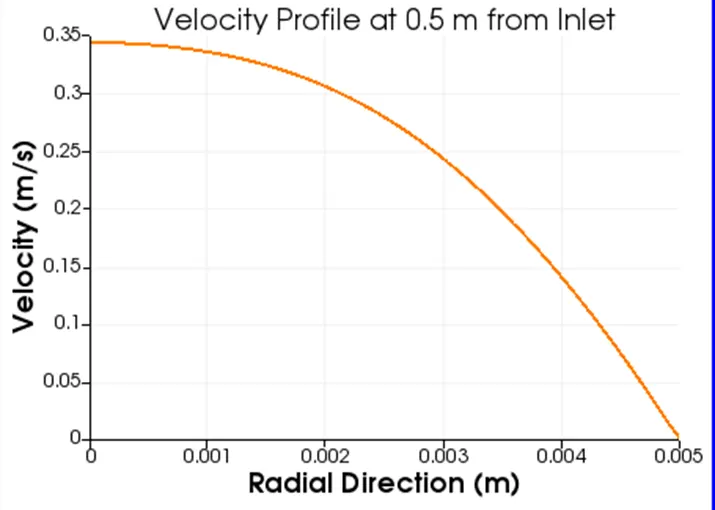

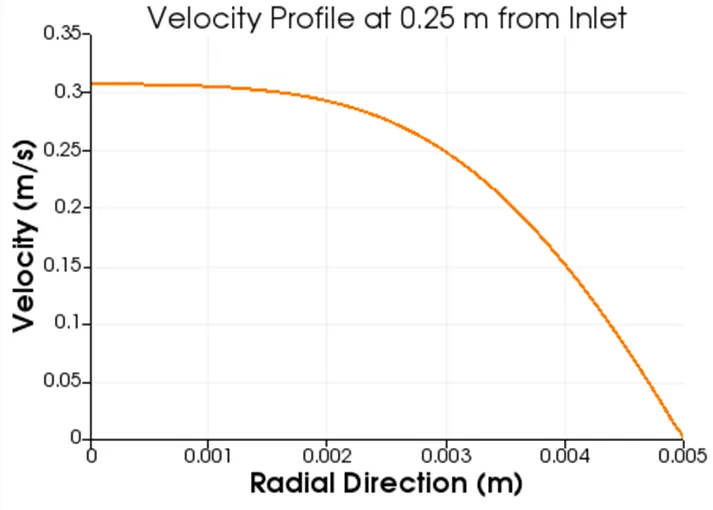

Velocity profiles:

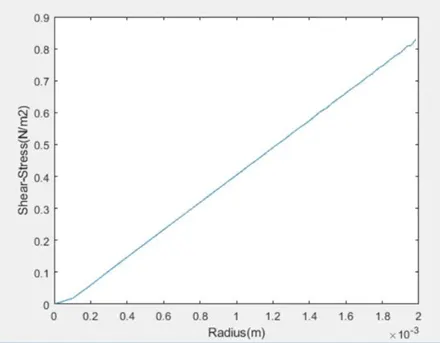

Shear Stress :-

shear stress = (dynamic Viscosity)*(du/dy)

Observations and Conclusions:

1. We simulate a axi symetrical wedge as the simulation of the whole pipe requires high processing.
2. The velocity profiles changes until the flow is fully developed. In this project, the entry length for the flow is 1.2m.After this distance from inlet, the velocity attains its characteristic parabola type shape and does not change any further.
3. The velocity profile obtained is parabolic in nature with max velocity attained at the centre of the pipe.
4. Shear Stress increases the friction on the walls of the pipe because of the which the velocity is maximum at the center of the pipe.
5. The Shear stress plot is obtained after post processing and it is found that the shear stress is maximum at the walls and zero at the centre of the pipe.
