Week 11 - Project - A pillar Design with Master Section

TOOLING AXIS

• Created the tooling axis byy using the bisecting method
• Here am used the two edges of the a pillar trim to get the tooling axis

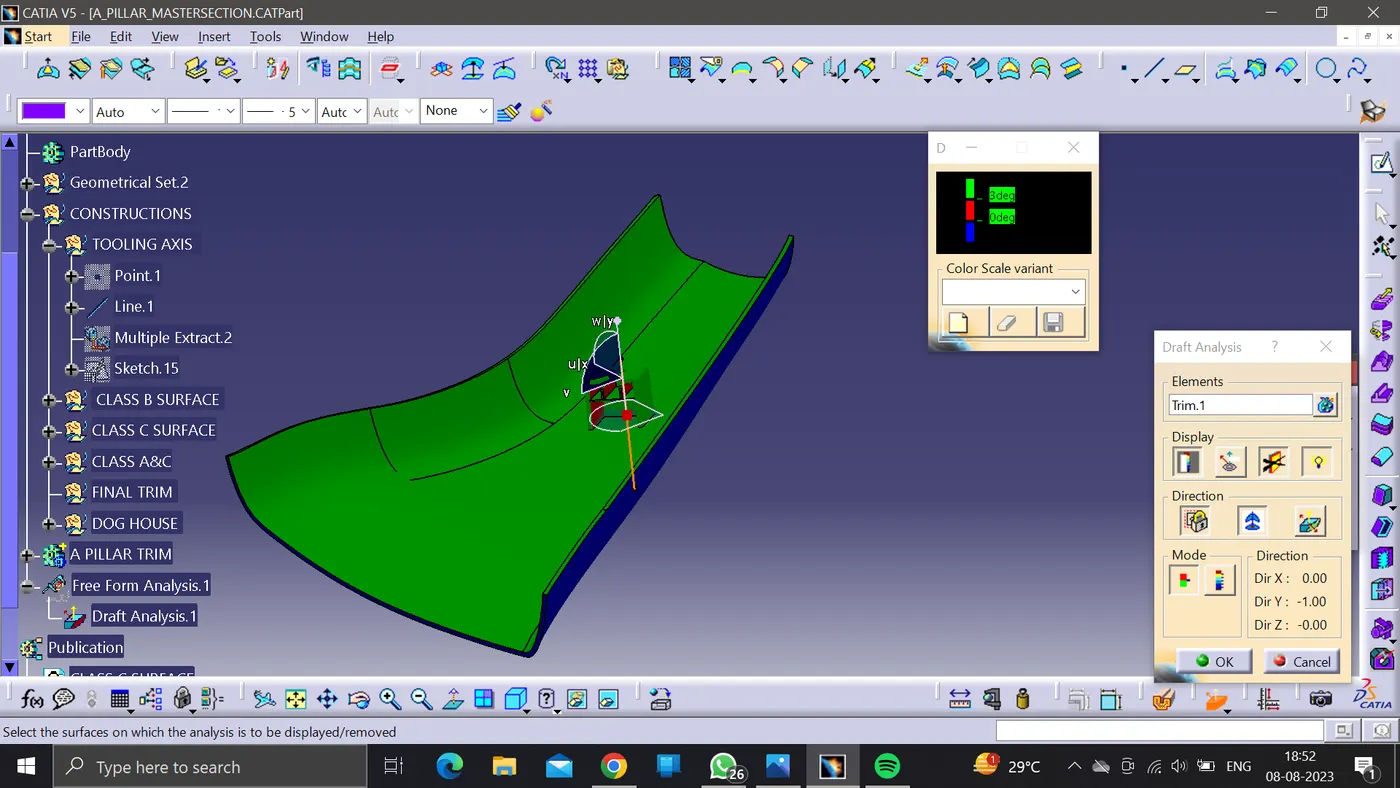

• Checked it with draft analysis and it was okey for drafting

CREATION OF 3D

• BY using the join command checked that if any problem in given a class surface
• And crated B class with direct offset method and found some patches and cleared it out by using the sweep method
• Then created a C class surface

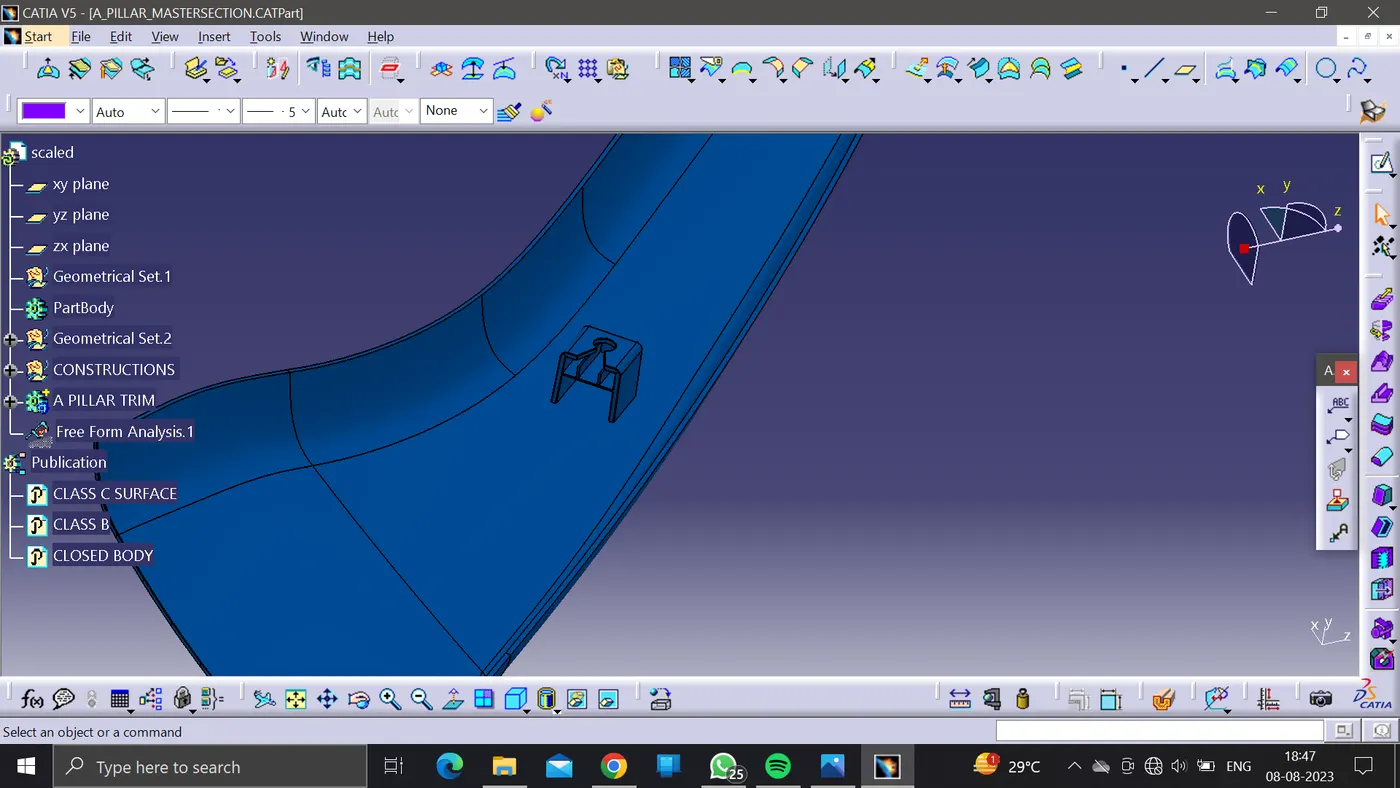

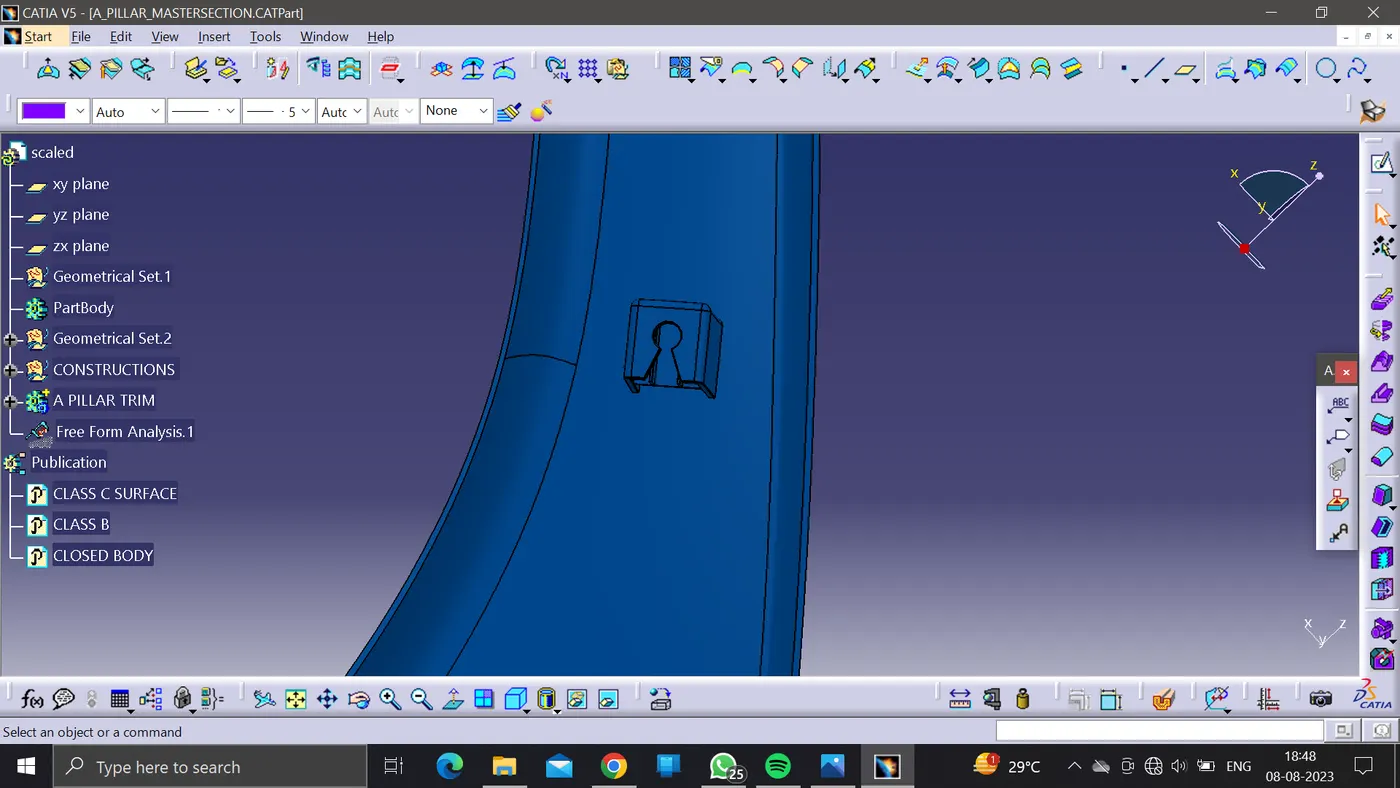

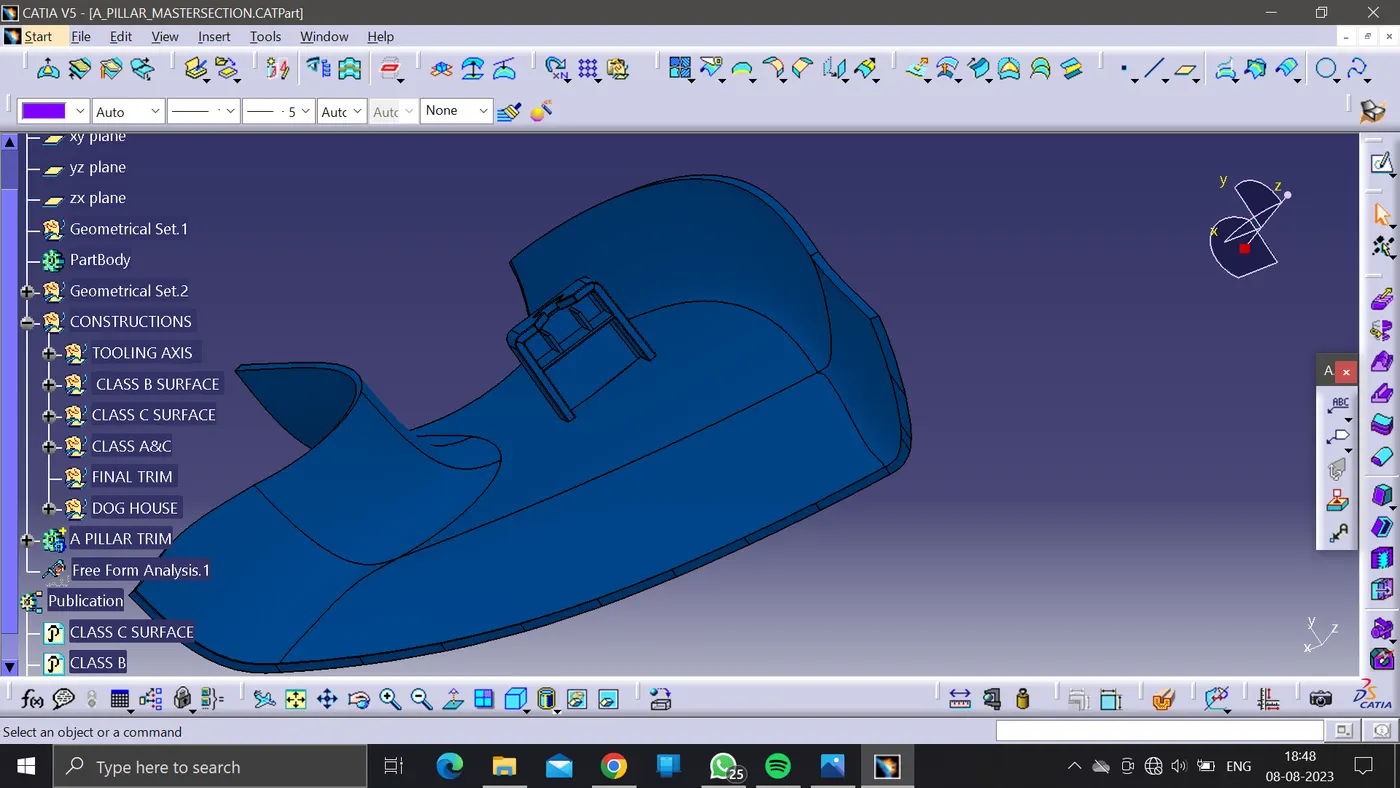

• For creating the doghouse used the mastersection derawing and given thickness.also created the inner suppporting portions

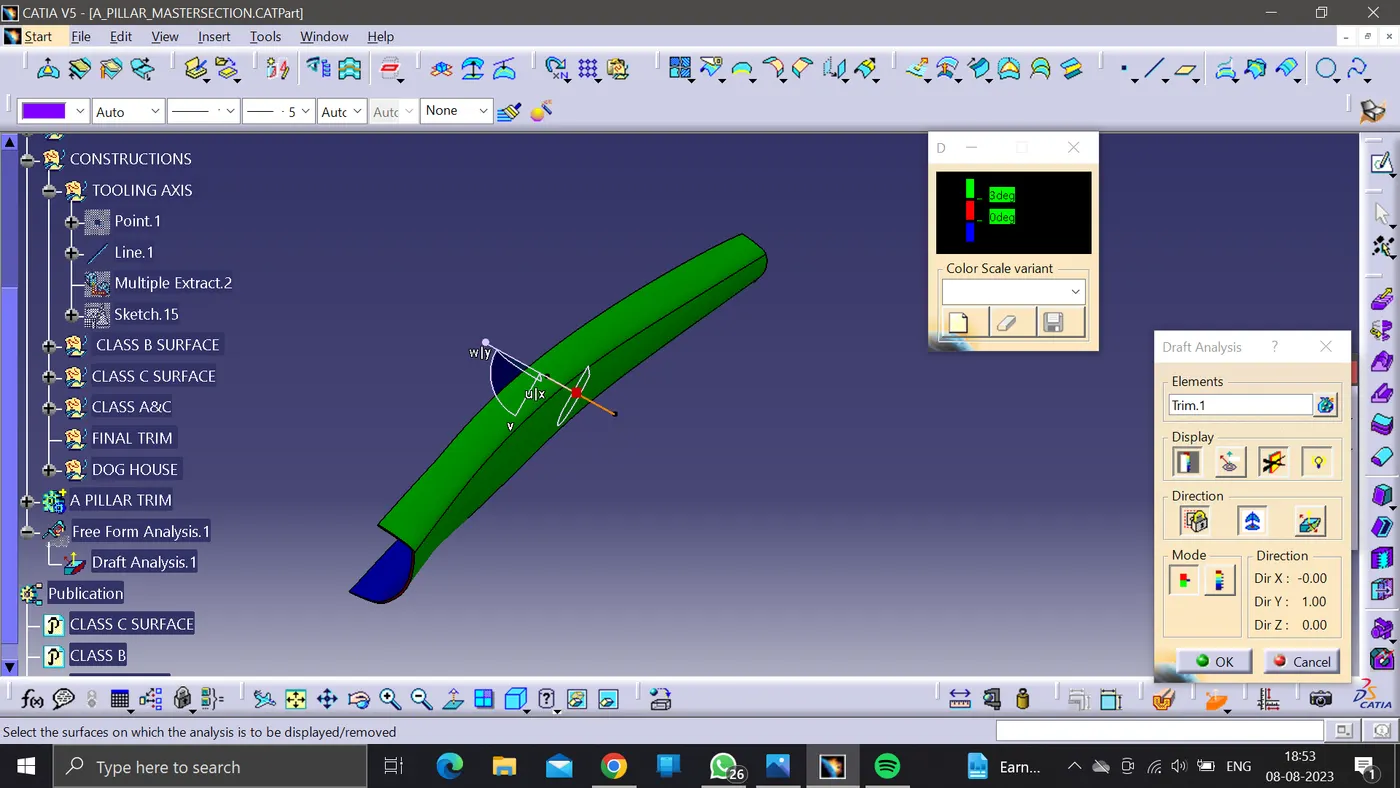

• Finally done the draft analysis.
