Week 11 - Project - A pillar Design with Master Section

Tooling Axis

• Tooling Axis was created by extending two lines from the mastersection perpendicular to the surface and bisecting the two lines
•

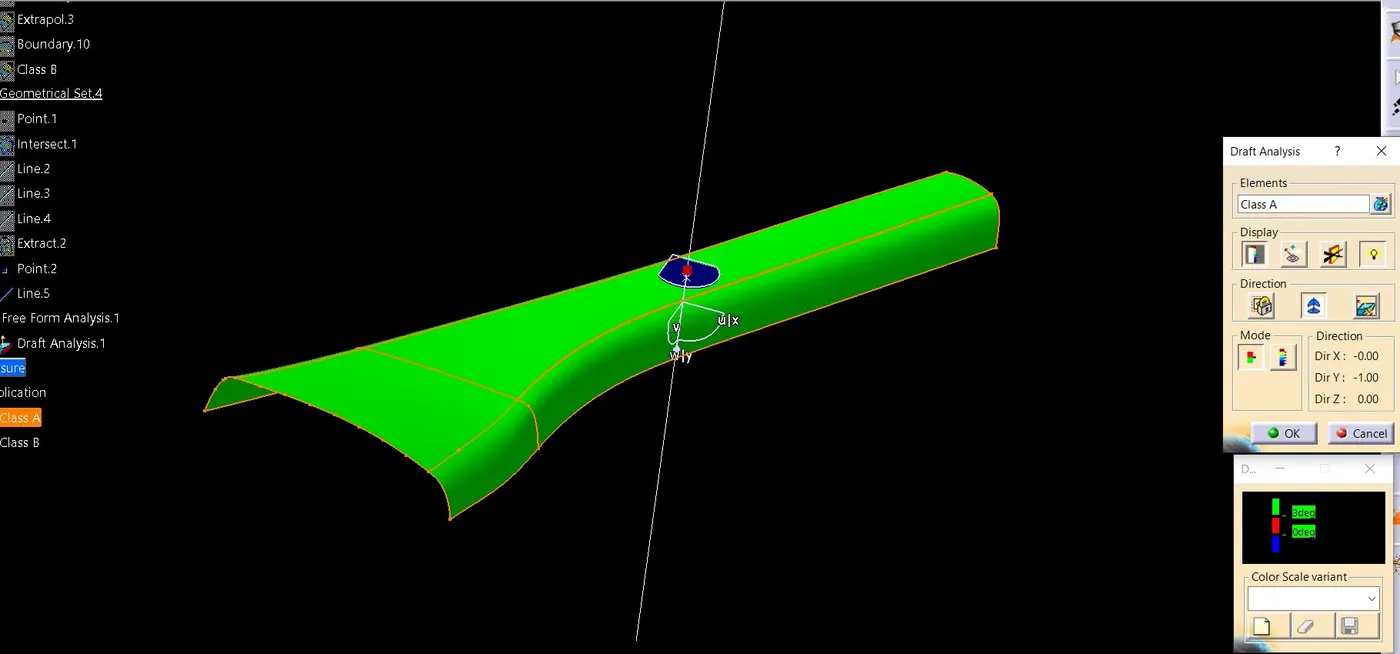

Draft Analysis

• Draft analysis was done on the surface wrt to the tooling axis created and found to be drafting well by an angle of 3 degrees
