Week 11 - Project - A pillar Design with Master Section

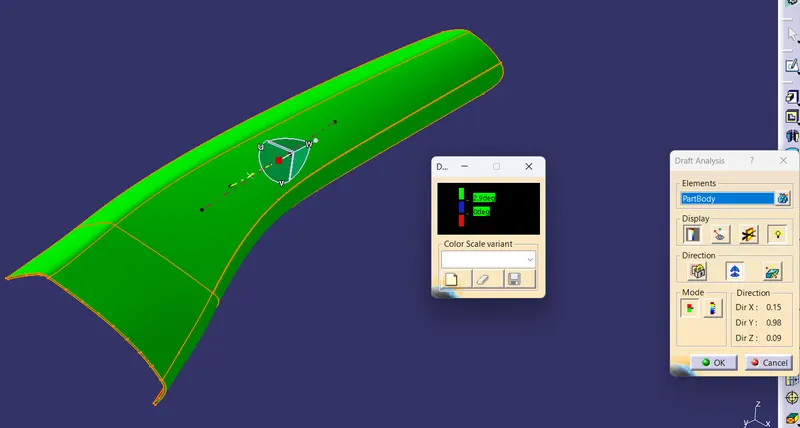

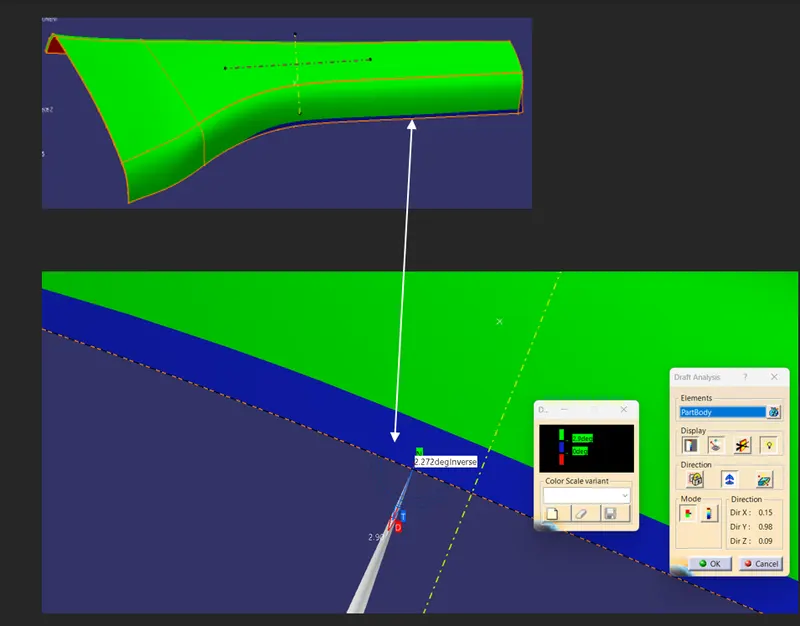

DRAFT ANALYSIS OF CLASS A

DRAFT 2.9 DEGREES

HERE FOR CLASS A THE MINIMUM IS 2.2

REMAINING DRAFT IS 3 DEGREES

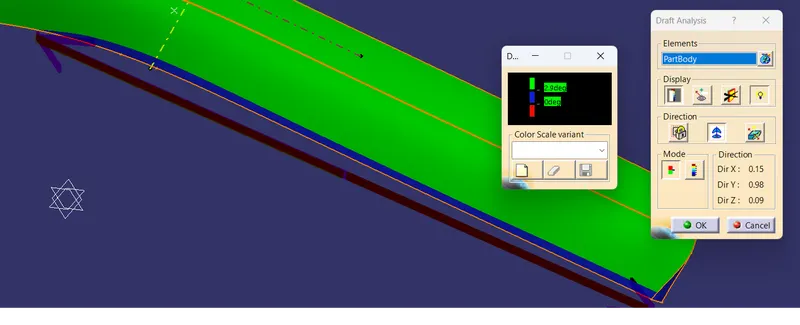

CLASS B ANALYSIS

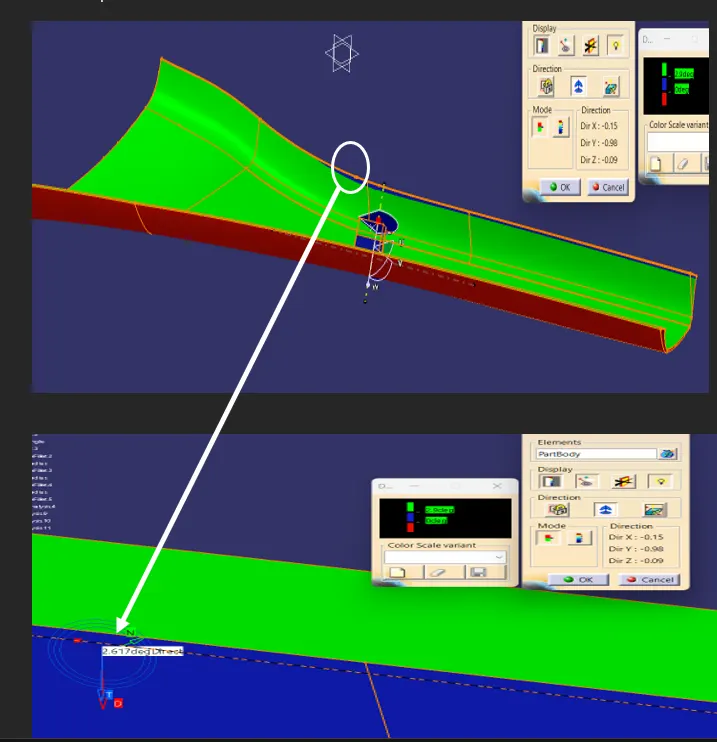

Hear the entire B surfaces clearing except the portion which is in the image the least draft angle is 2.6 DEGREES

The maximum draft angle is 3 degrees

Analysis of Class C

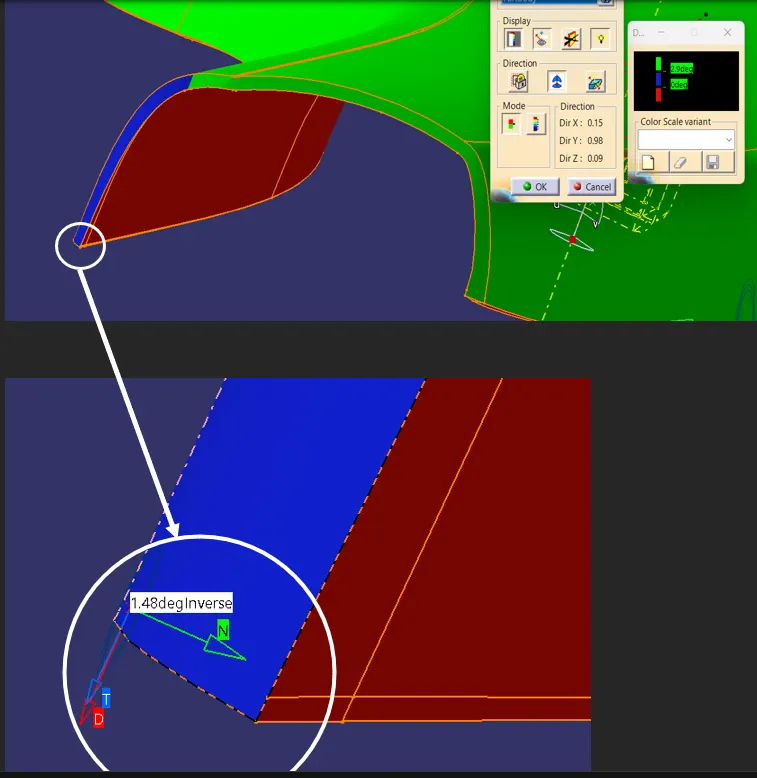

1. Here this portion is not cleared the minimum draft is 1.48 degrees

2. The maximum draft is3 degrees

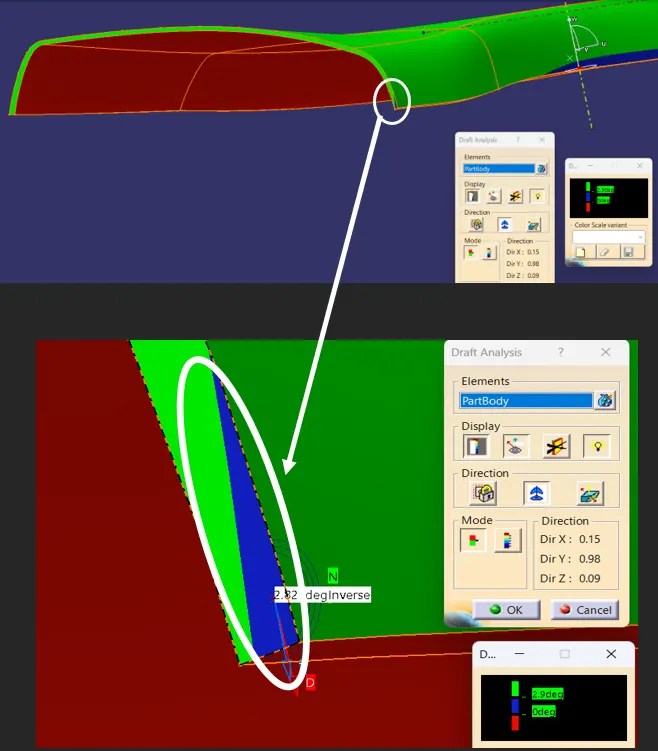

4. The other portion which is not cleared is in the image above and the minimum draft is 2.8 DIGREES

Maximum draft is 3degrees

And all the remaining portions which are to be drafted are clearing for this c surface

Draft analysis of doghouse

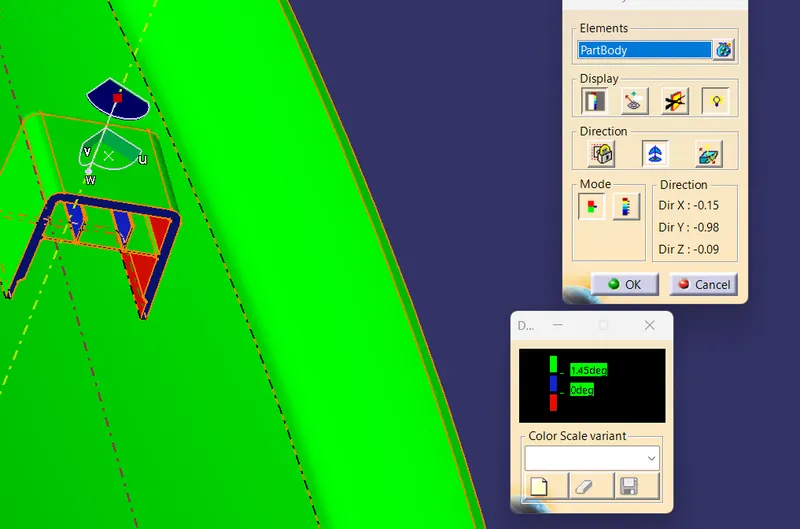

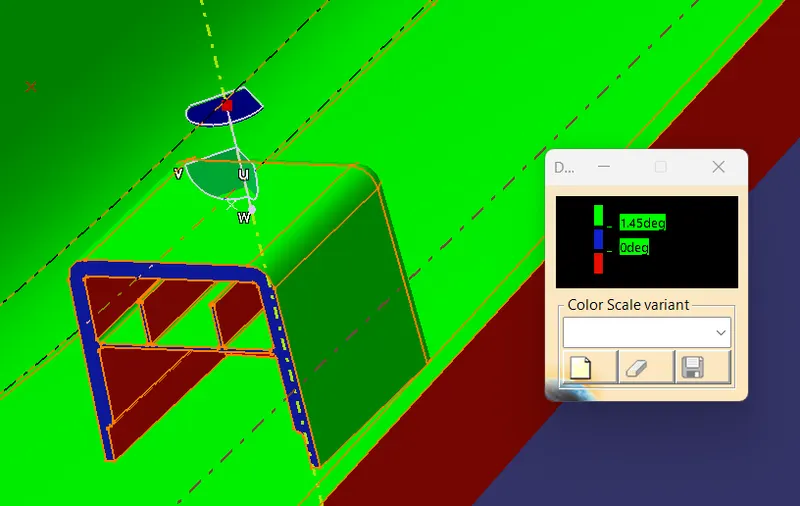

1. Main tooling axis

The outer faces are drafted with 1.5 degrees with main tolling axis

The draft of 1.5 is clear for the dog house Perfectly

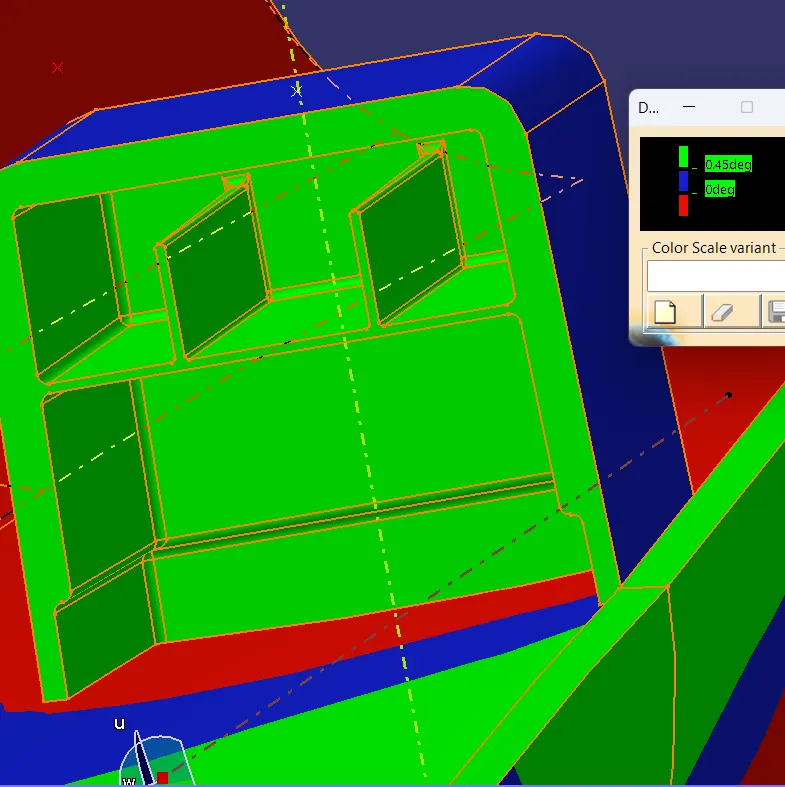

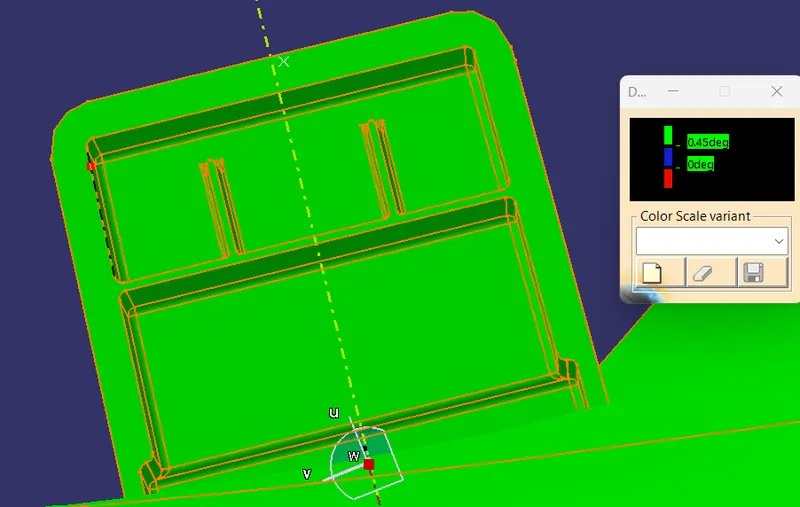

2.Draft analysis With side core axis

The draft of 0.5 is given for lifter or side core

All the All the faces are clearing with 0.5 degree draft by side core axis perfectly

Maximum angle 0.5 degrees

tooling axis creation

To create the main tooling axis the following procedure is used

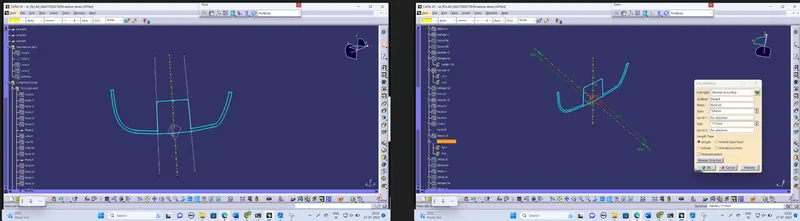

As shown in the pillow figure 1 I have taken points two points from the master section of either side of the dog house then I have selected line with two points I have drawn two lines from the two edges of the master section which are Inclined A bisecting line is created this line is mentoring axis

figure 1 figure 2

To create a side core axis I used the plane with the help of the master section and created a line using the normal to plane As shown in the figure 2.

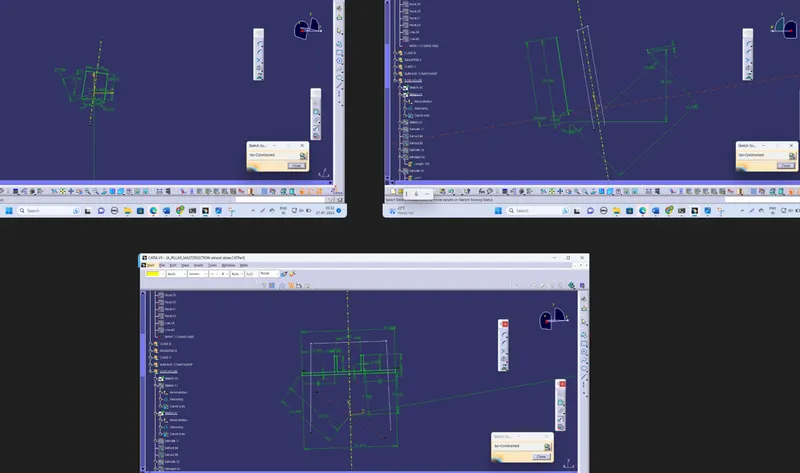

Sketches with sketch solving status

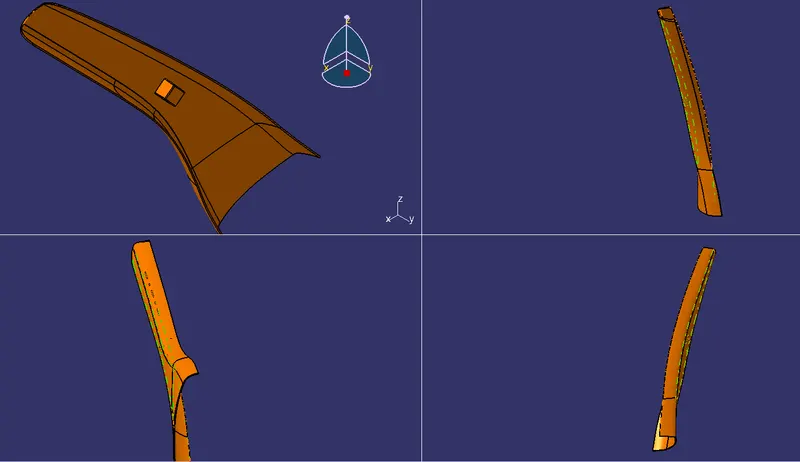

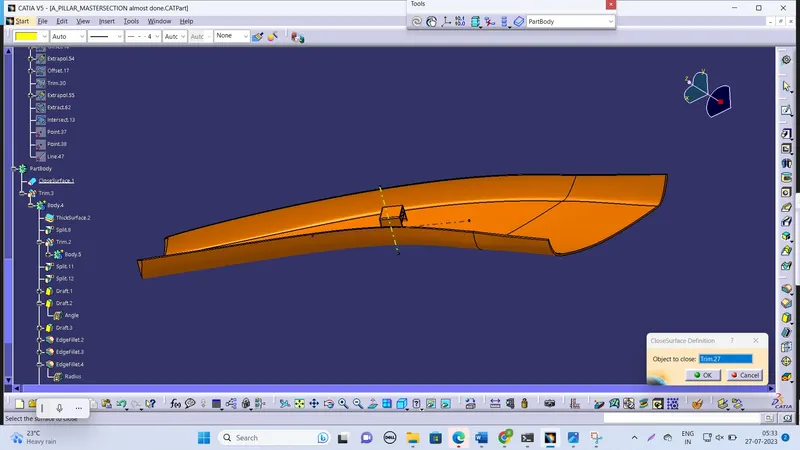

Closed body

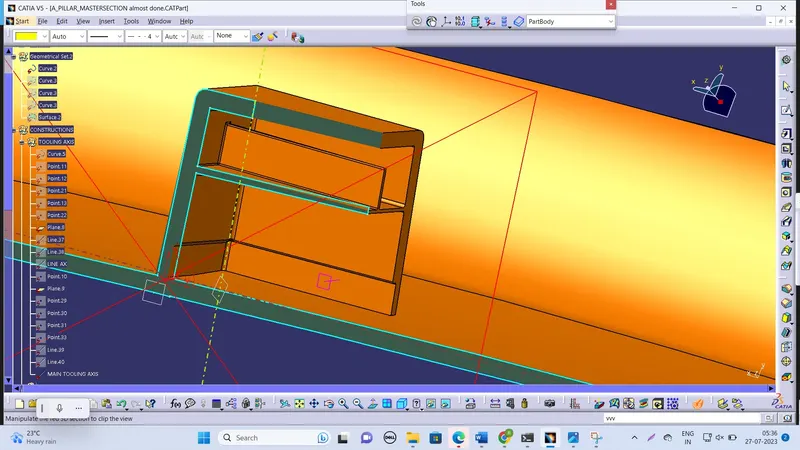

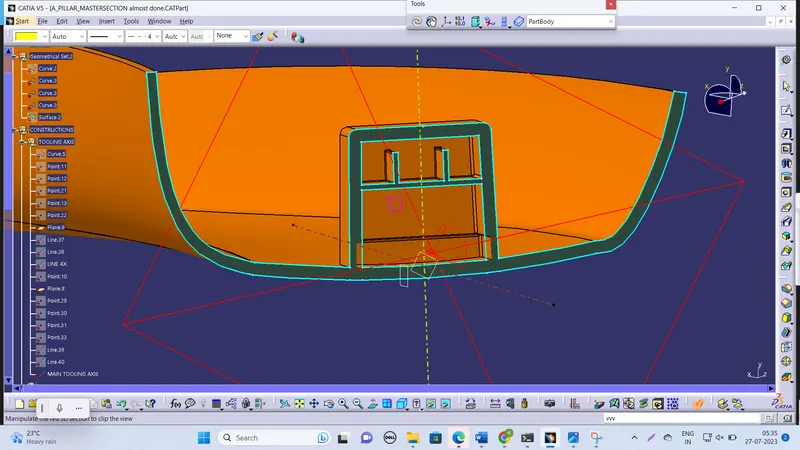

Following the master section

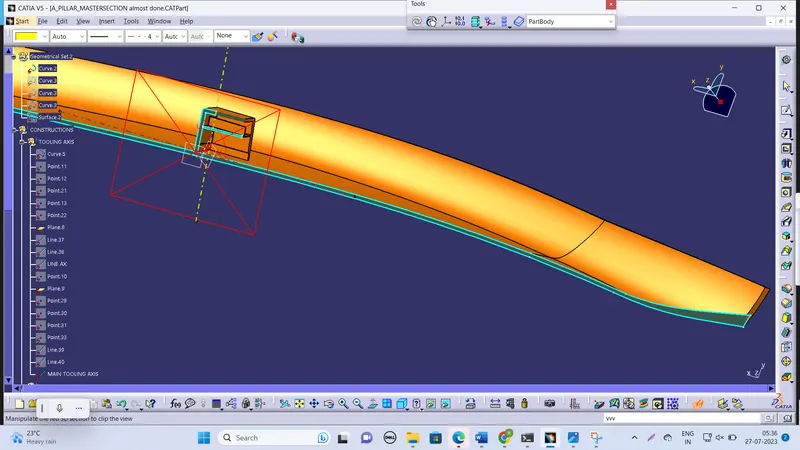

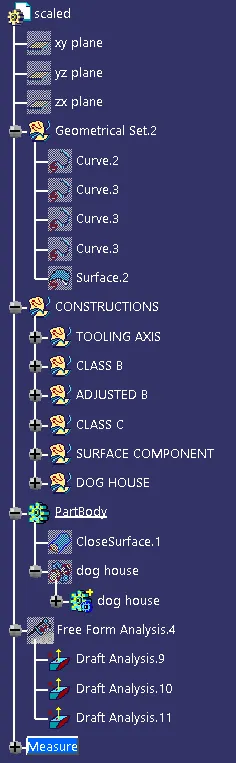

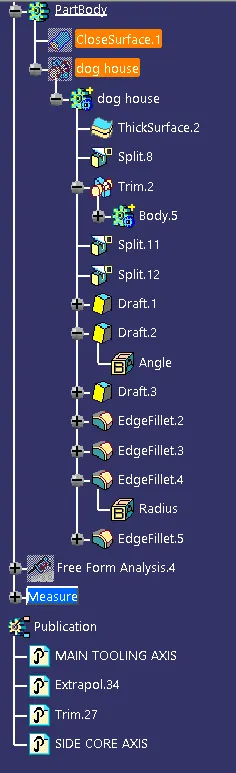

tree Structure
