Week 11 - Project - A pillar Design with Master Section

A PILLAR DESIGN WITH MASTER SECTION

AIM

To create the A PILLAR DESIGN WITH MASTER SECTION from the given Class A Surface as an input.

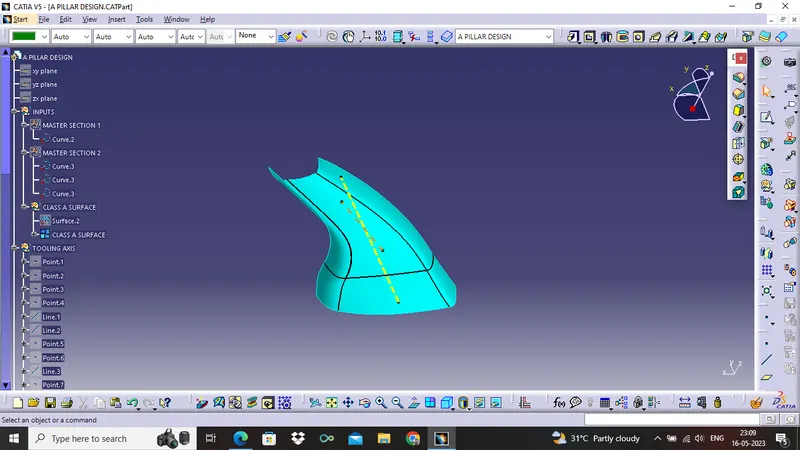

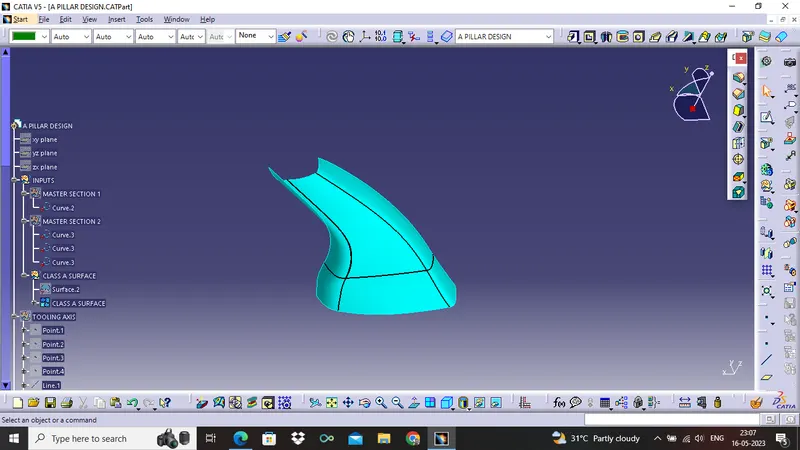

CLASS A SURFACE GIVEN AS INPUT

There are following steps, which have to perform by using Class A Surface:-

First understanding the CLASS A SURFACE.
Than creating the TOOLING AXIS AND SIDE CORE TOOLING AXIS.
Draft analysis 1 for CLASS A SURFACE.
Creating geometrical sets for CLASS B SURFACE.
Creating CLASS C SURFACE using boundary and sweep command.
FINAL TRIM to get Final Surface.
Than go to PART DESIGN to get Close Surface Body.
Draft analysis 2 for CLOSE SURFACE BODY.
CREATE DOG HOUSE DESIGN WITH MASTER SECTION
DRAFT ANALYSIS FOR DOG HOUSE.
Than go to PART DESIGN to get FINAL Close Surface Body WITH DOG HOUSE CREATION
SKETCH OF A PILLAR DESIGN
TREE STRUCTURE

1. First understanding the CLASS A SURFACE.

Class A Surface is given as an input for product design.
Class A Surface is thickened by using engineering features.
The part which is obtaining after Class A Surface get thickened are use for manufacturing in real time application.
The Boundary Condition of Class A Surface must be checked.

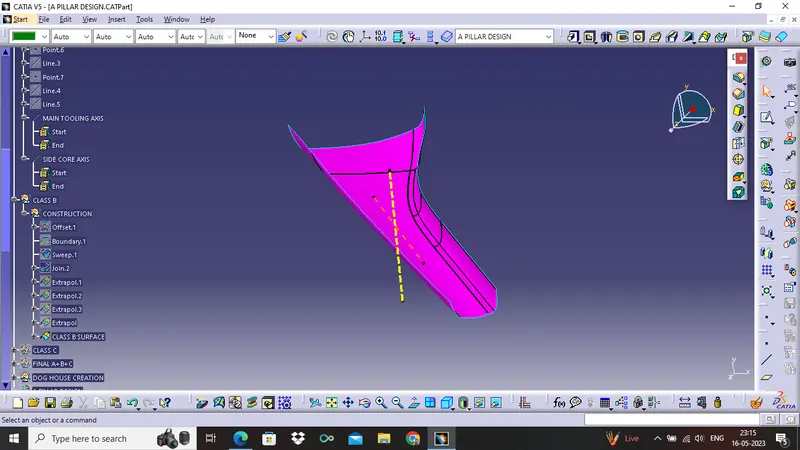

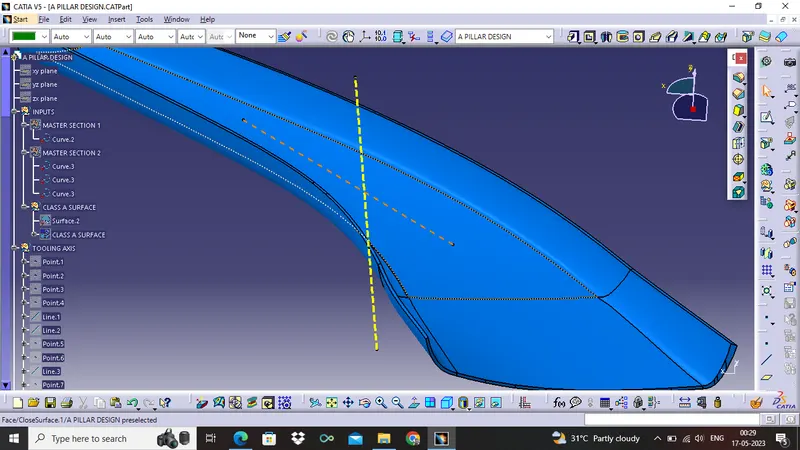

2. CREATING THE TOOLING AXIS

YELLOW LINE SHOWS MAIN TOOLING AXIS

ORANGE LINE SHOWS SIDE CORE TOOLING AXIS

3. DRAFT ANALYSIS 1 FOR CLASS A SURFACE

Draft Analysis technique is used to analyse the product which we design is manufacturable and prevent the part being parallel to the direction of mold opening.
The product can not be manufacturable, if it has 90° profile, which is parallel to the TOOLING AXIS.
A small draft angle is applied in order to remove the component from the mold.
No part is manufacture without the draft angle.

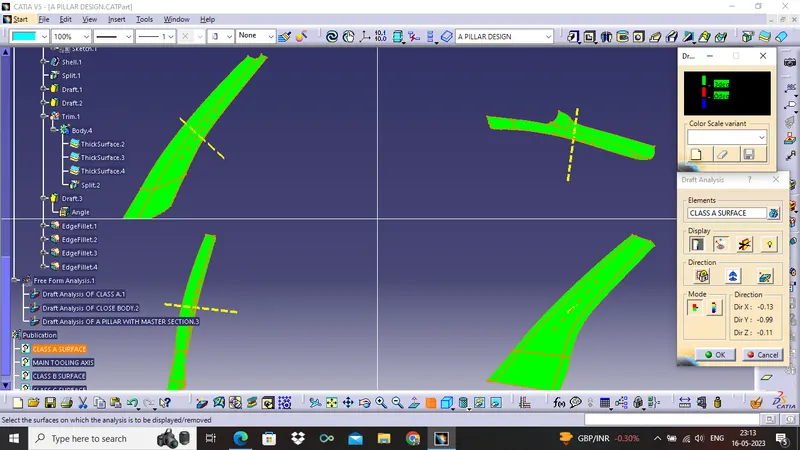

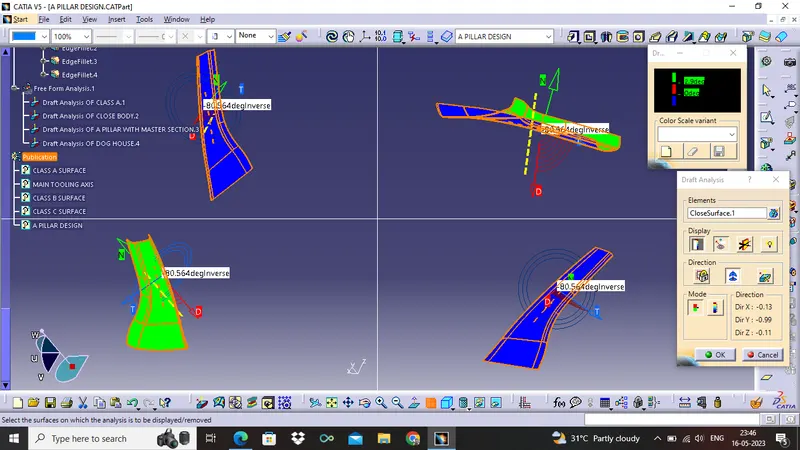

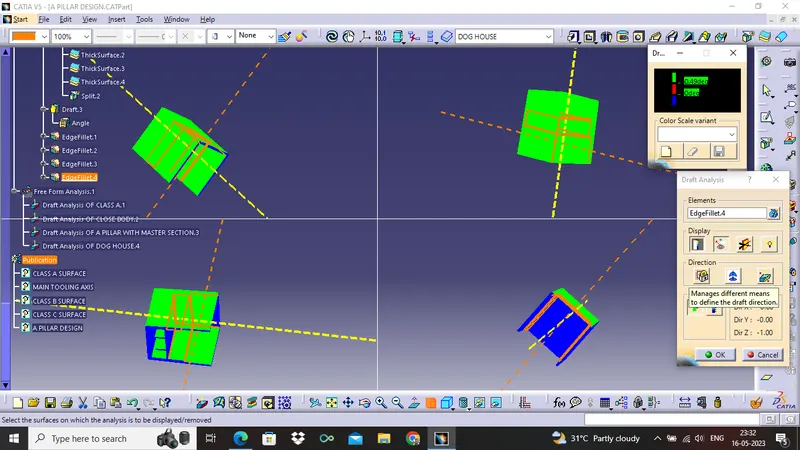

DRAFT ANALYSIS FOR CLASS A SURFACE (isometric , side view , top view, bottom view)

4. Creating geometrical sets for CLASS B SURFACE

THICKNESS 2.5 mm is given as input.
The CLASS B SURFACE is obtained from CLASS A SURFACE on giving offset with thickness 2.5 mm.
During offset, some flaws shows so this flaws are now recreated by using BOUNDARY AND SWEEP COMMAND .
Than join to create CLASS B SURFACE
ALSO Extrapolate boundary by 2 mm to get proper trim during CLASS C SURFACE.

5. CREATING CLASS C COMPONENT

The CLASS C SURFACE is the final output obtained from the CLASS A and CLASS B Surface.
Using boundary of CLASS A SURFACE and sweep the boundary with draft value 3° AND reference surface with 90°
The CLASS C SURFACE has the thickness 2.5 mm and draft value as per requirement provided.
The CLASS A and CLASS C SURFACE are JOIN and TRIM with CLASS B SURFACE.

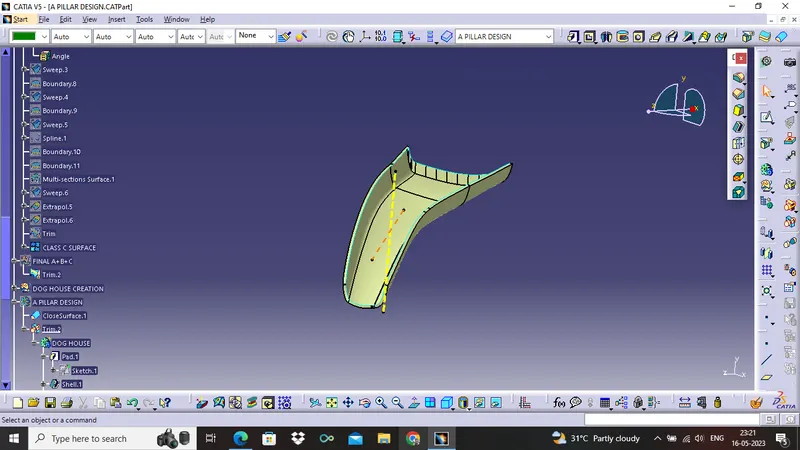

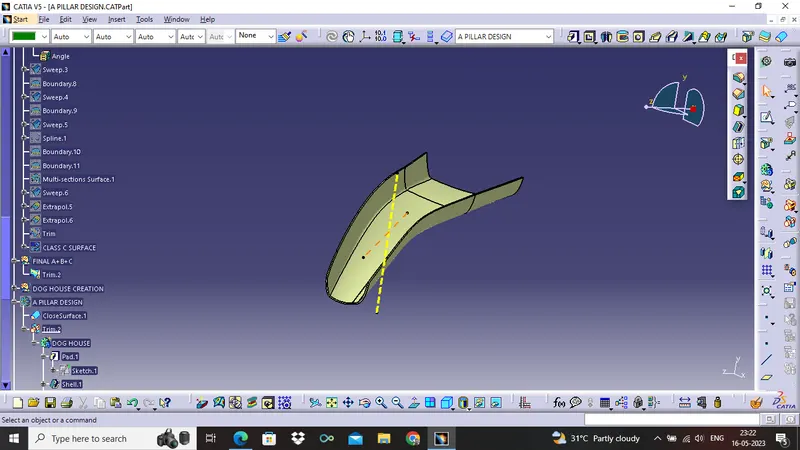

6. FINAL TRIM to get Final Surface.

CLASS A + CLASS B + CLASS C = FINAL DOOR TRIM

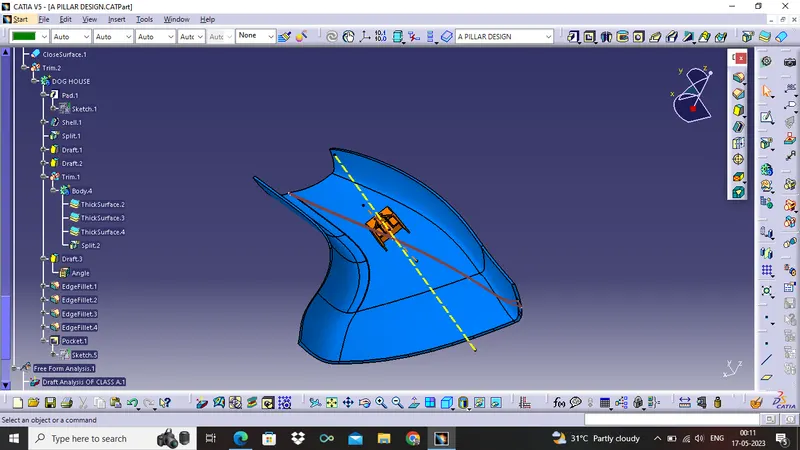

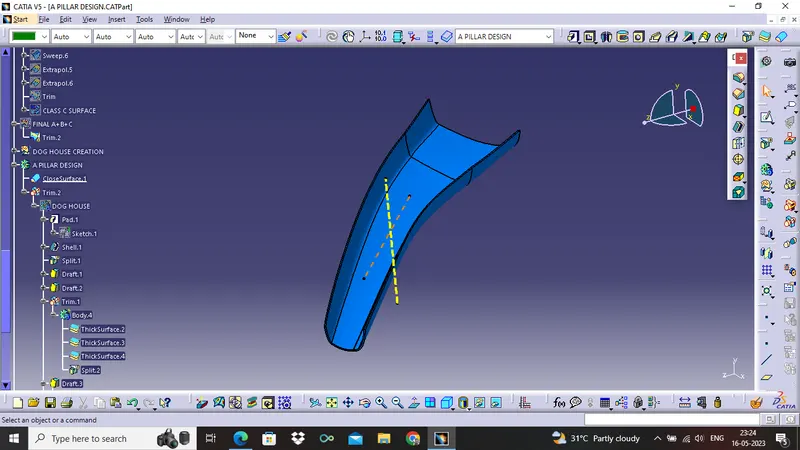

7. FINAL CLOSE BODY

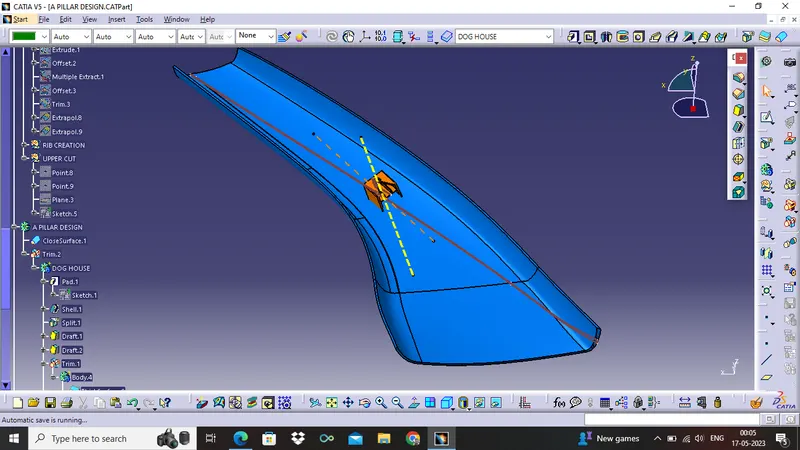

MULTISECTION VIEW

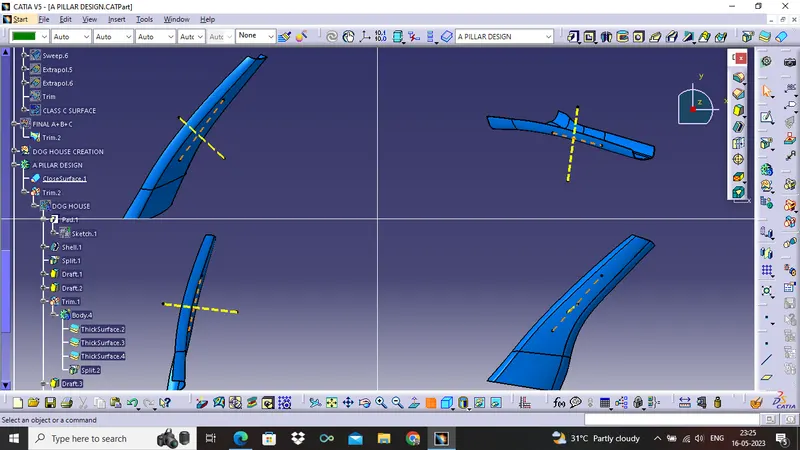

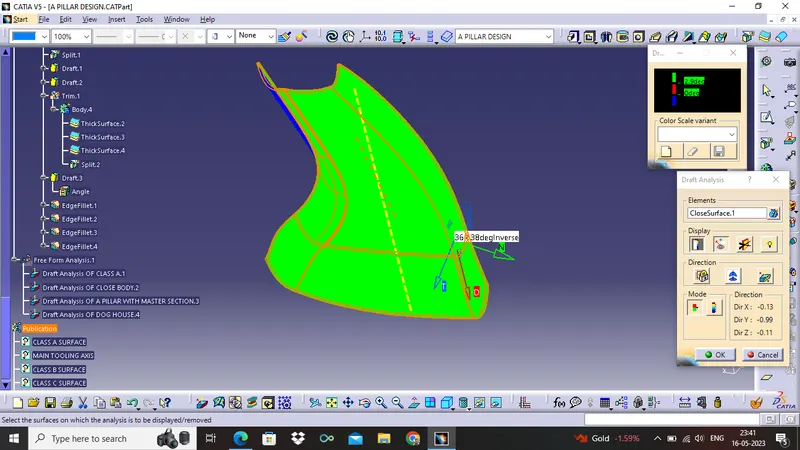

8. DRAFT ANALYSIS OF CLOSE SURFACE BODY

9. CREATE DOG HOUSE DESIGN

Create the Dog House for the Door Trim considering the design rules mentioned in the video. Consider the thickness of the part to be 2.5 mm.

"C" is where the doghouse contacts the backside of the surface

Doghouse wall thickness at the intersection of the part wall ( C ) should be 40% or less than the main wall stock ( T ).
The height of ( B ) should be between 3.0 – 6.0 mm

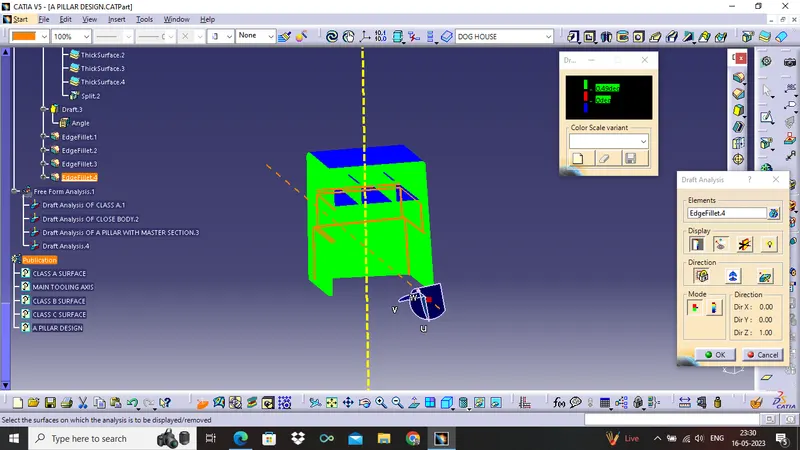

10. DRAFT ANALYSIS OF DOG HOUSE

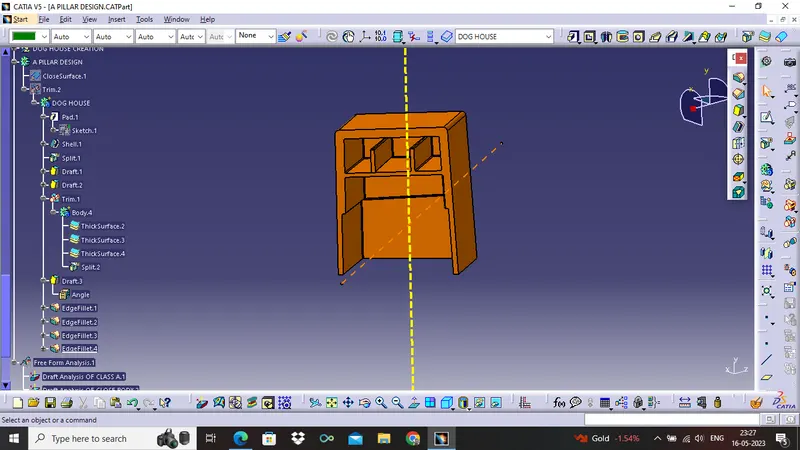

11. Than go to PART DESIGN to get FINAL Close Surface Body WITH DOG HOUSE CREATION

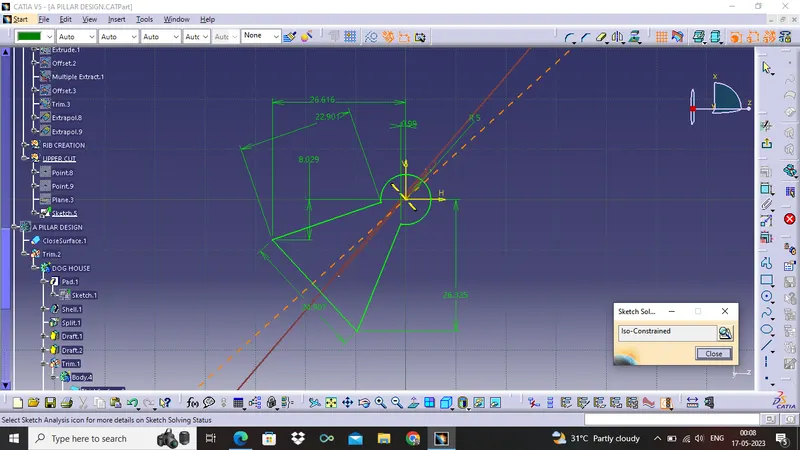

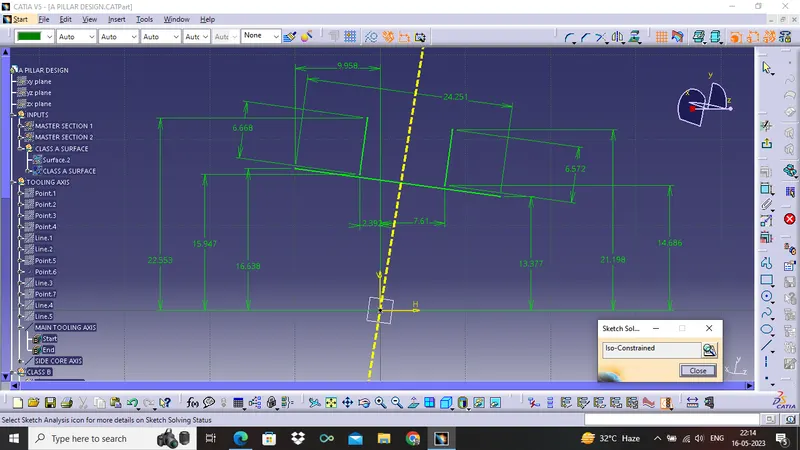

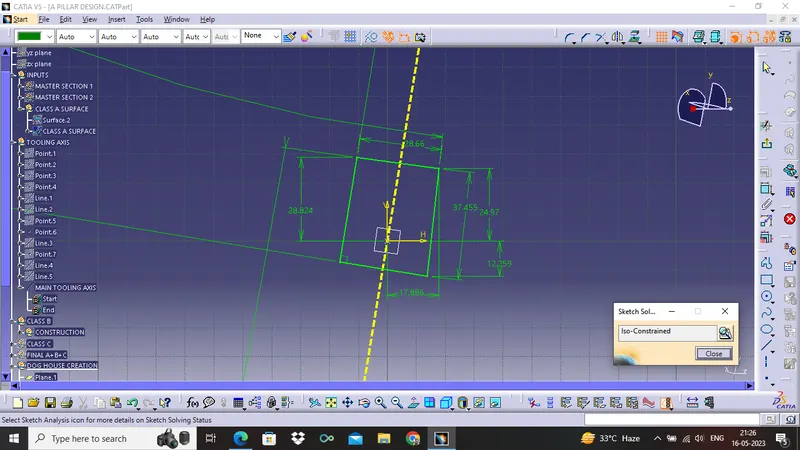

12. SKETCHS OF A PILLAR DESIGN WITH MASTER SECTION

SKETCH 1

SKETCH 2

SKETCH 3

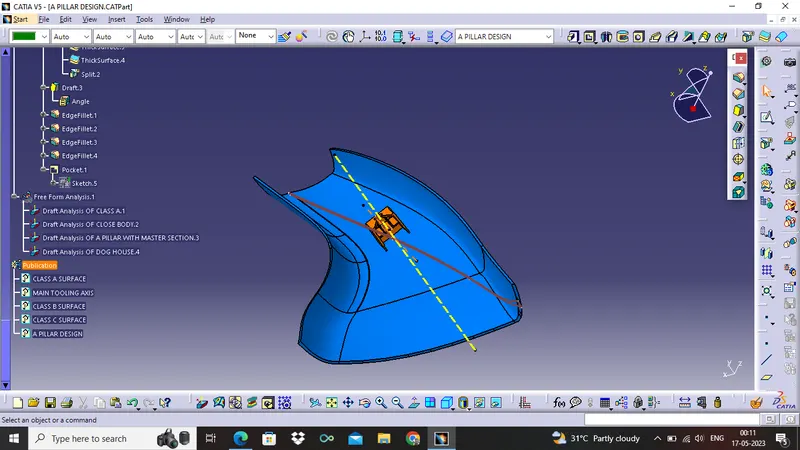

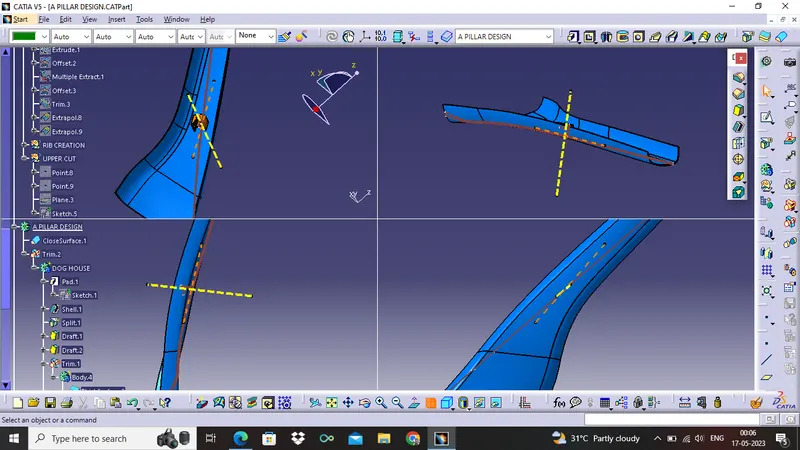

TREE STRUCTURE OF A PILLAR DESIGN
