AIM: To design and development of vehicle interior door trim using Catia V5 with given class A surface along with Master section. Also
create the Side Attachment features as per design rules.
OBJECTIVE:
To create thickened part using master section for reference.
To create the mounting features as per design guidelines in the industry and with master sections.
To perform Draft analysis & Tooling analysis.
INTRODUCTION:
The door panel is the interface between the interior of the car and the inner workings of the door. Generally the door panel is divided
into parts for easy designing like arm rest, map pocket, lower substrate. These require one of the toughest requirement among the
interior parts of the car. This should be designed to with stand the load while being less than 2mm in thickness and also to protect the
occupants during collisions.
Door currently have an inner full width panel consisting of electronic windows, central locking system and speakers. These panels
typically consists of a foamed core covered with either textiles or plastics.
GIVEN INPUT SURFACE
REFERENCE SURFACE
REFERNCE MASTER SECTION
PROCESS
1.TOOLING AXIS CREATION
The tooling direction is used to find the direction in which the part is removed from the core and cavity. The draft angle should be positive to the tooling axis to manufacture the component easily. The step by step procedure of creating the tooling axis is given
below.
Step: 1
Creating the tooling axis for Map Pocket by create a point on surfaces respectively to the 0 value. It automatically create at mid surface and generate the line to the direction of y axis.
Step: 2
Creating the tooling axis for Lower Map Pocket by create a point on surfaces respectively to the 0 value. It automatically create at mid surface and generate the line to the direction of y axis.
Step: 3
Creating the tooling axis for Lower Substrate by create a point on surfaces respectively to the 0 value. It automatically create at mid surface and generate the line to the direction of y axis.
Step: 4

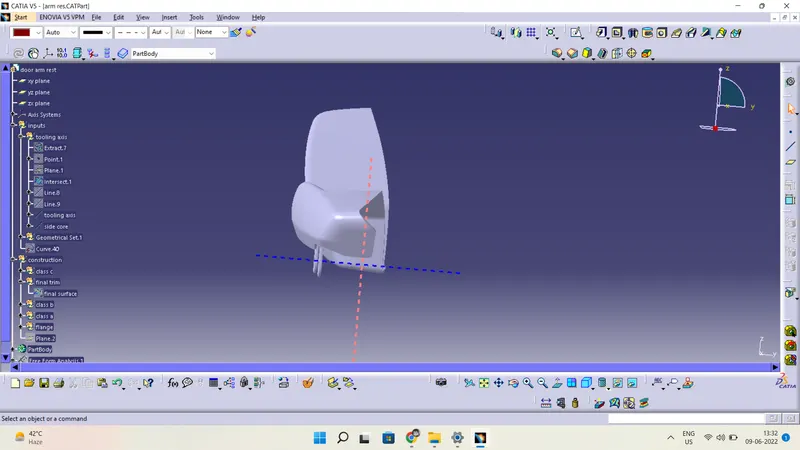

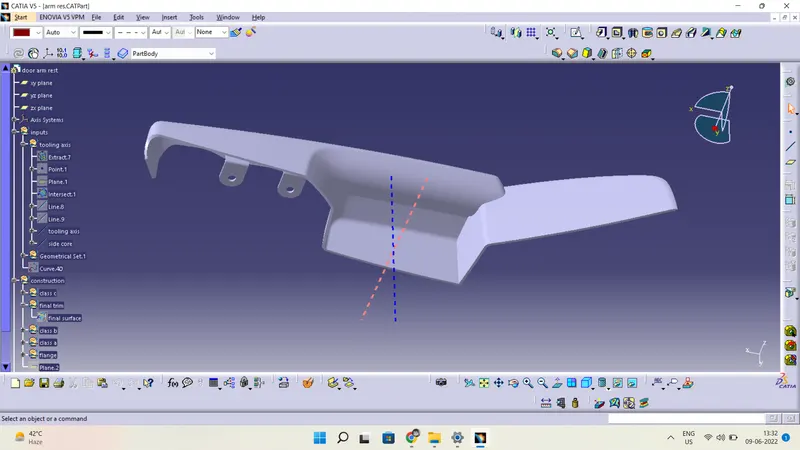

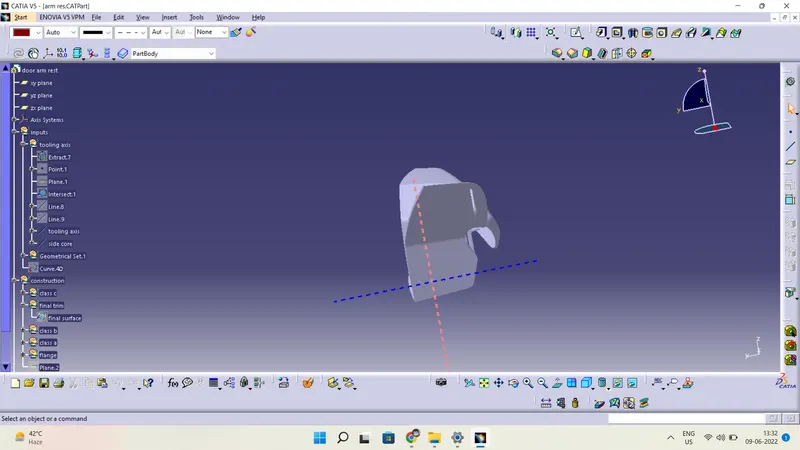

Creating the tooling axis for Arm Rest by create a point on surfaces respectively with Axis system. Now create the intersection for Z-Y AND Z-X axis respectively based on the point.
Creating the bisecting line to the both intersection and create bisect for that lines. Hence we get final tooling axis for the Arm rest.
Step: 5

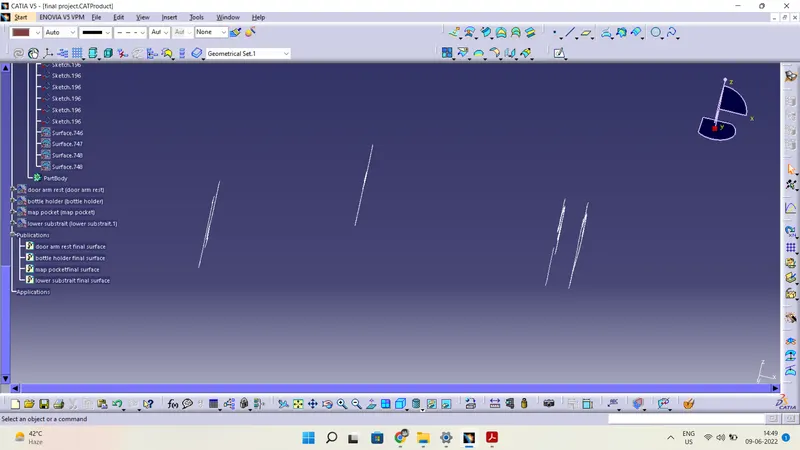

Creating the sliding tooling axis for the arm rest by extracting the side walls of the surface. Creating the point on the surface with axis system, here y axis is considered as removal direction, hence line is created to the y axis as shown below

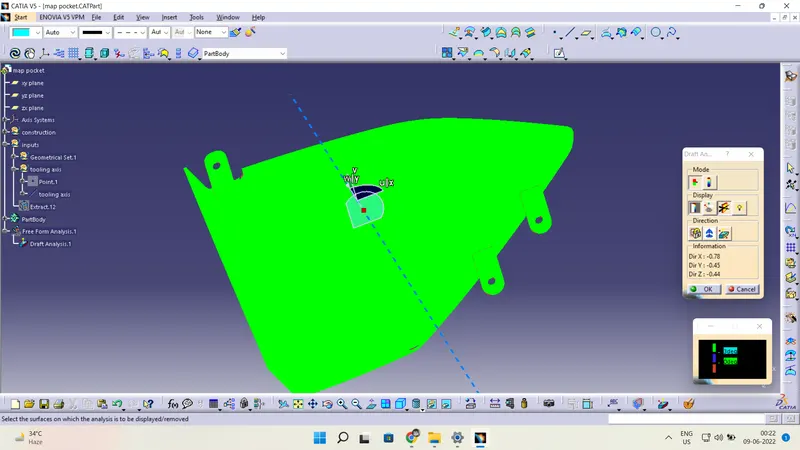

2.Performing Draft Analysis:
The Draft Analysis command enables you to detect if the part you drafted will be easily removed. This type of analysis is performed
based on colour ranges identifying zones on the analysed component where the deviation from the draft direction at any point,
corresponds to specified values. This rule of thumb applies to parts with mold depths of up to 2 inches. At this size, draft as low as 1½
degrees will allow for an easy, non-damaging release from the mold when the expected shrinkage of the thermoplastic material
occurs.
It’s also important to remember that draft angles are just one component of an effectively designed injection molded piece. Design
for manufacture is one of the easiest ways to improve the quality and efficiency of your injection molding process, and it never hurts
to stay up to speed on all injection molding best practices.

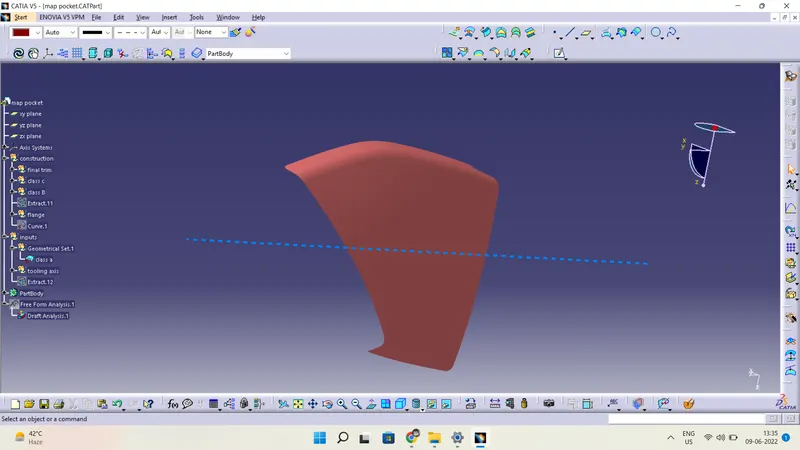

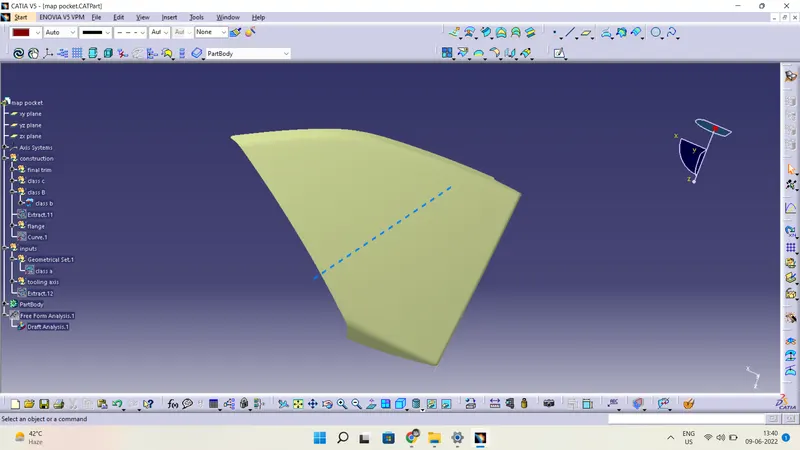

Step: 1
Initially we perform the draft analysis to the class a surface to ensure that we have good quality of surface to make Class B and C
surface to achieve the same kind of quality surface. First we have to set the compass on the main tooling axis to get the direction of
core and part moves along as shown below.
Step: 2

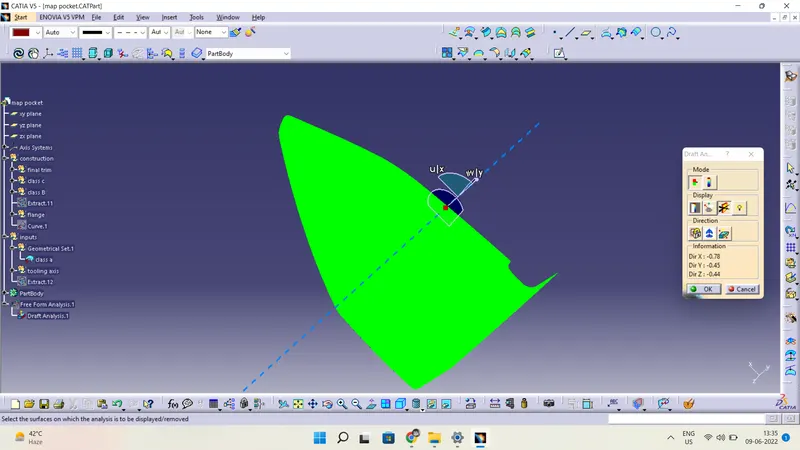

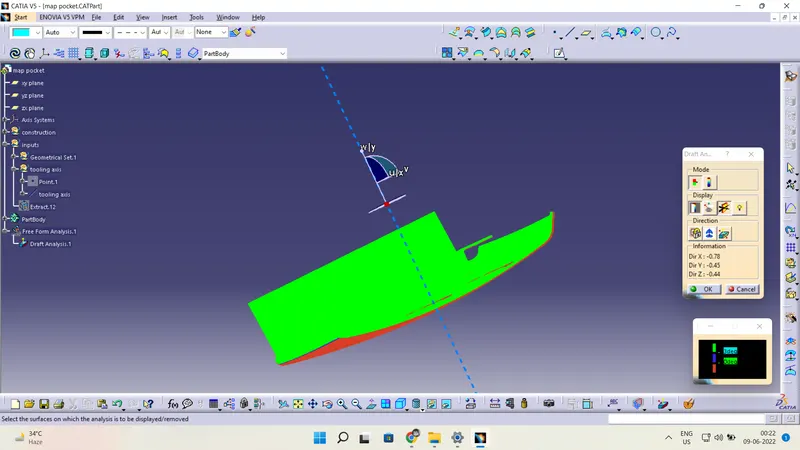

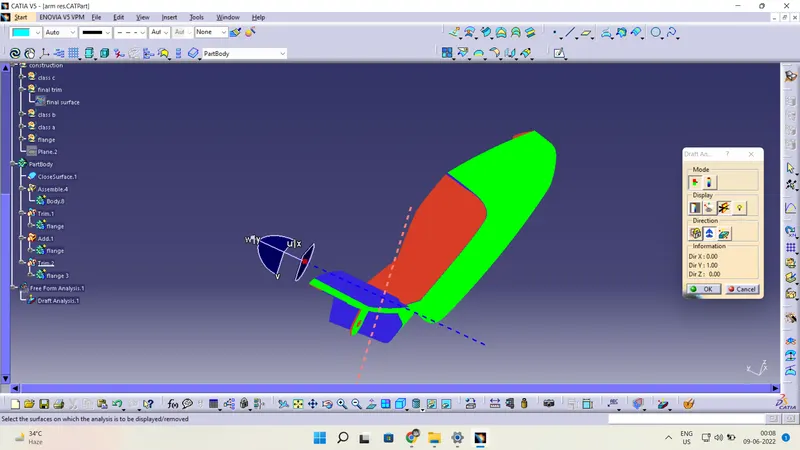

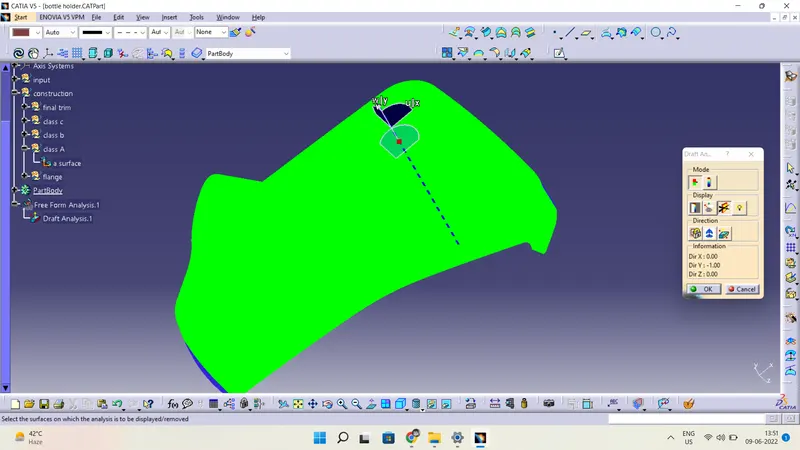

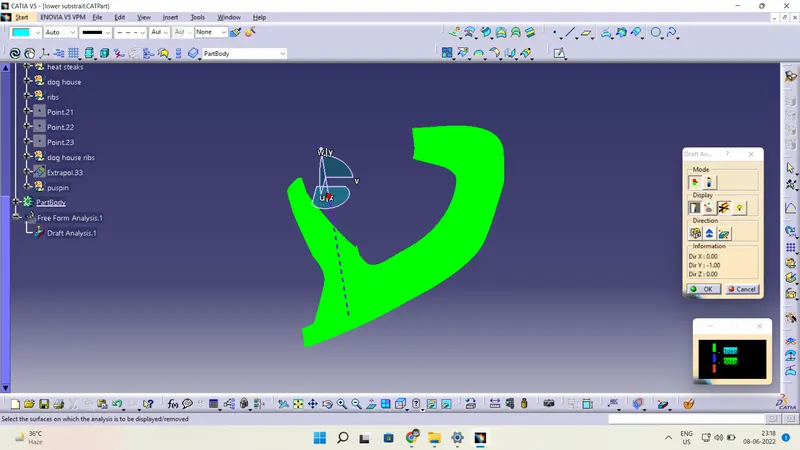

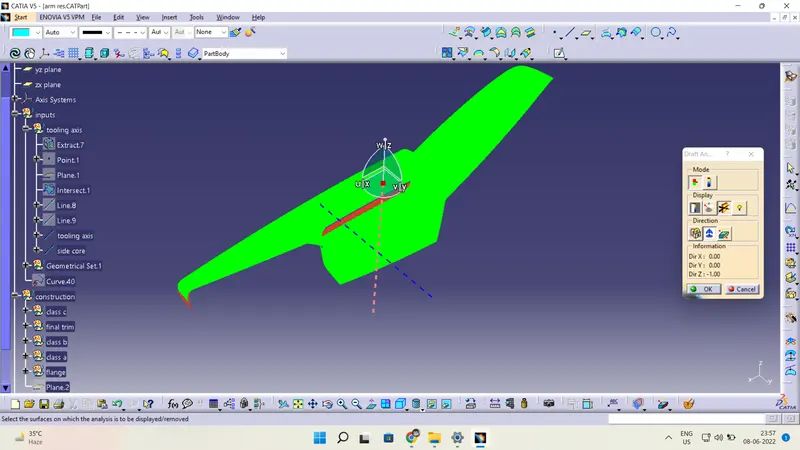

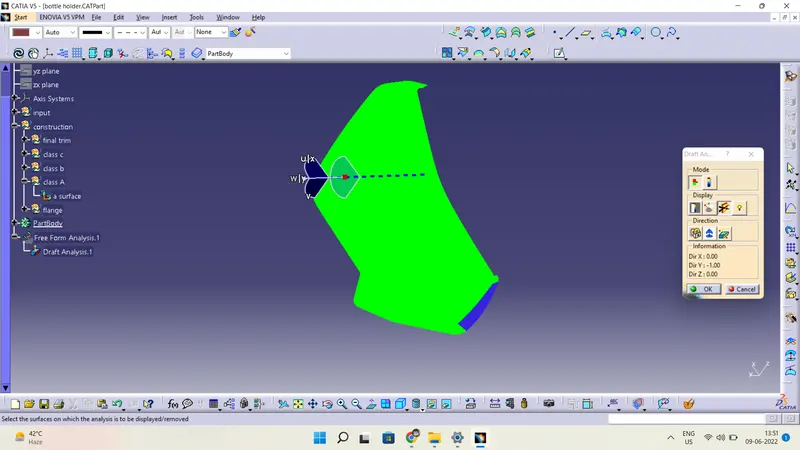

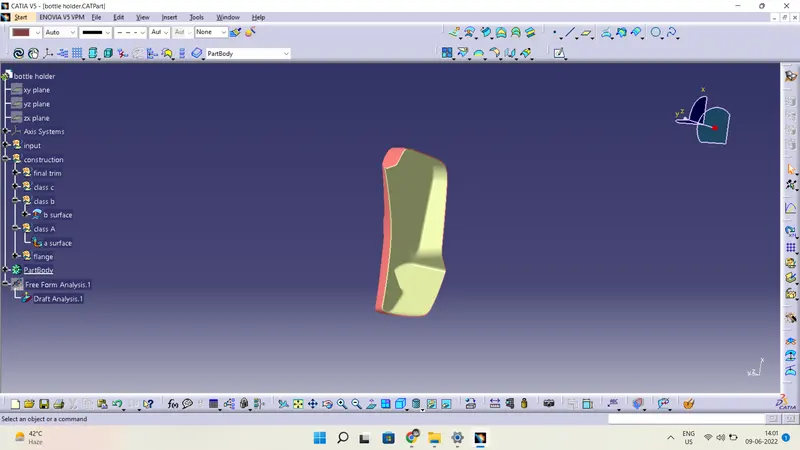

Once compass is locked in the axis, directly click on the surface it will appear quality of draft surface whether, it is pass or failed. Here
the draft angle is given as 3 degree. Hence we achieved green colour on top surface. Hence it accepts the draft angle for the surface,
so we build good quality component.
Step: 3
Now we check colour variant scale to ensure the maximum and minimum area draft angle is achieved by displaying by green, red
and blue colour respectively. If the surface appears red in colour while analysing it is not accepted.
Step: 4
We can check the angle of draft given to surface by using draft tool analysis just point the over the surface where we have check
angle of given draft to the component as shown below.
3. Creating the B surface.

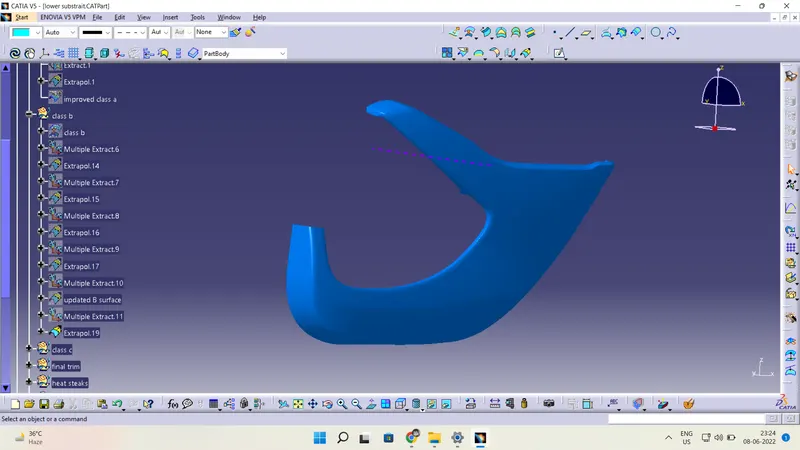

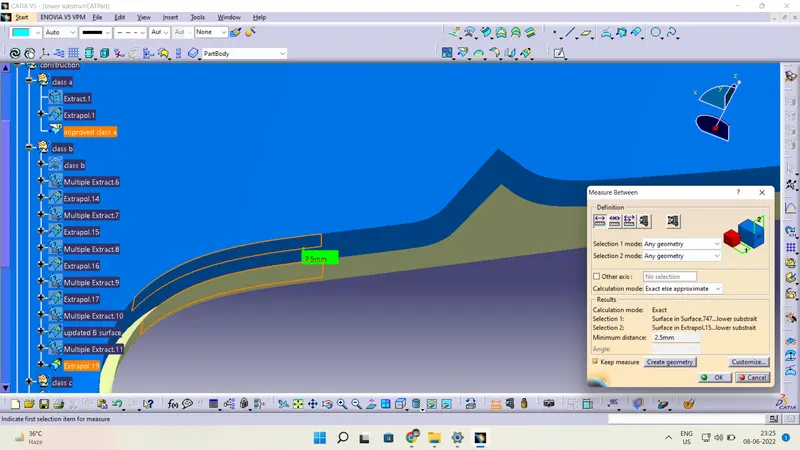

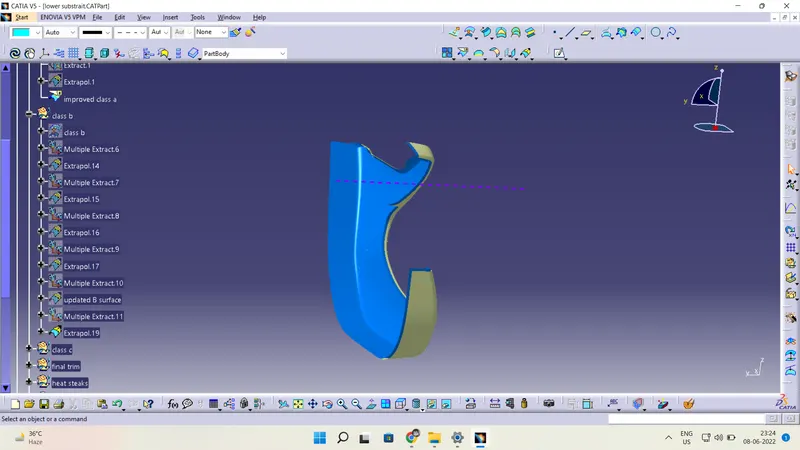

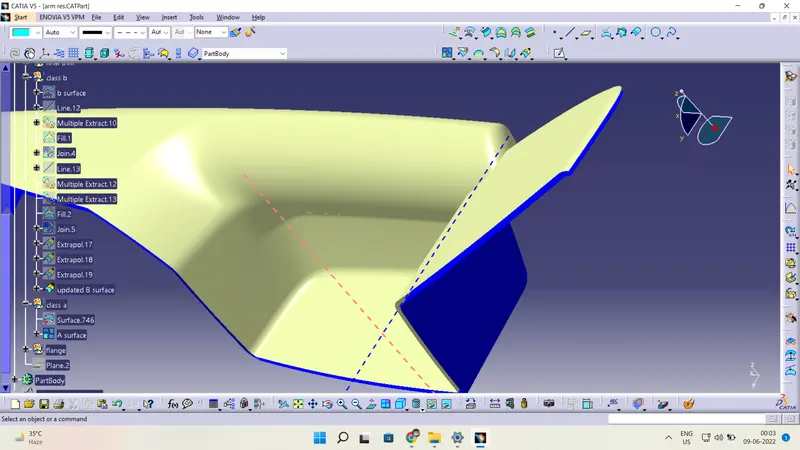

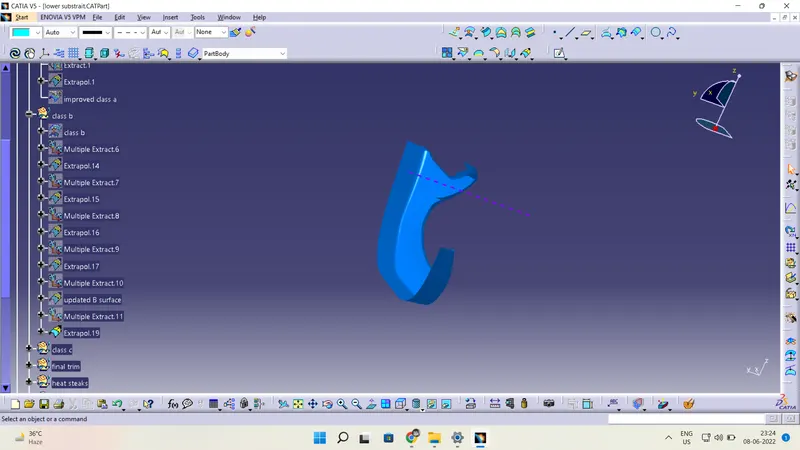

Creating the B-SURFACE by extracting the class A surface, by each surfaces separately, it is offset to certain distance, making point on the master section to get the intersection as shown below.

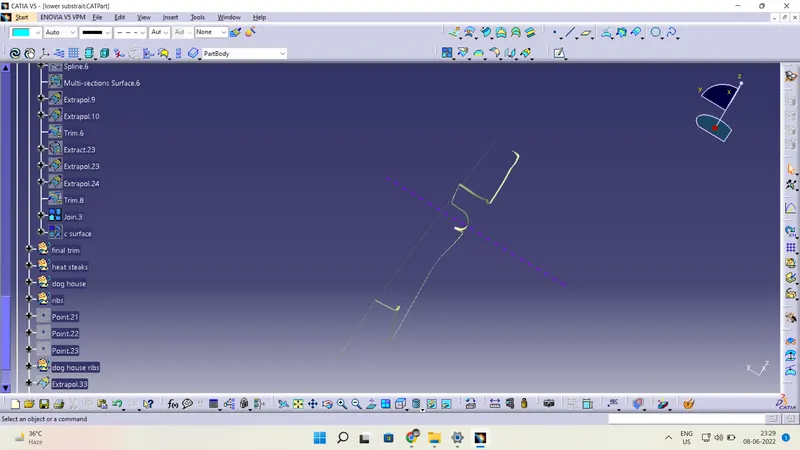

4. Creation of C Surfaces
Step: 1

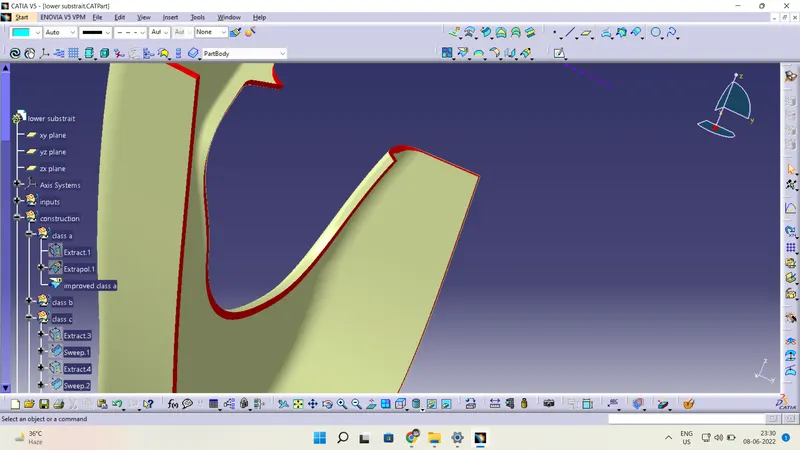

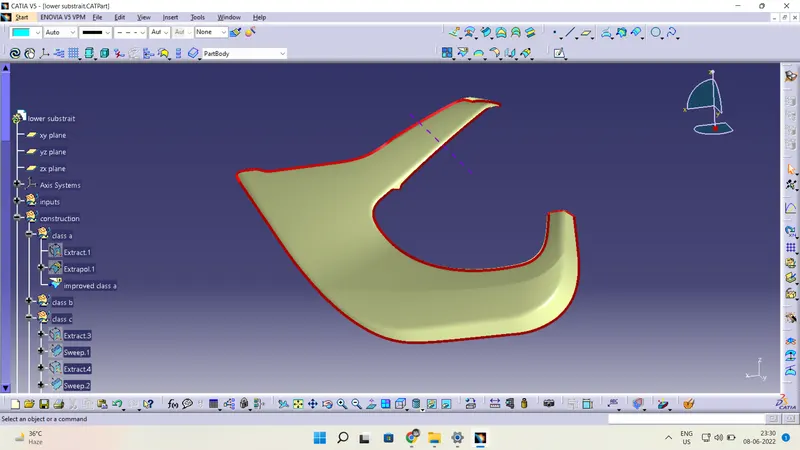

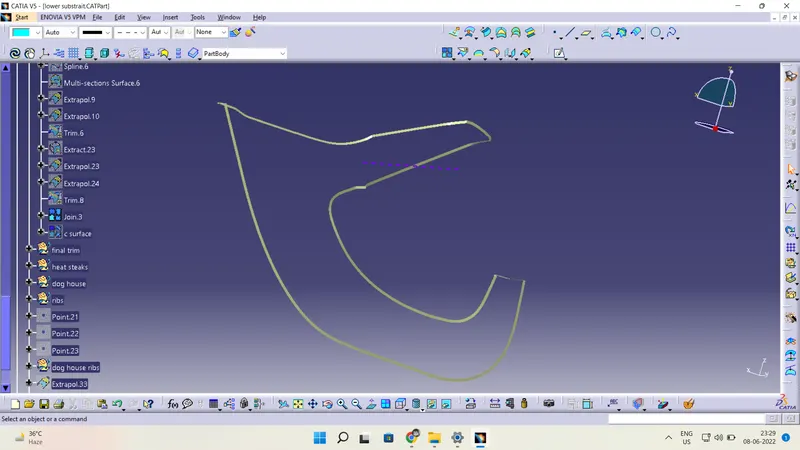

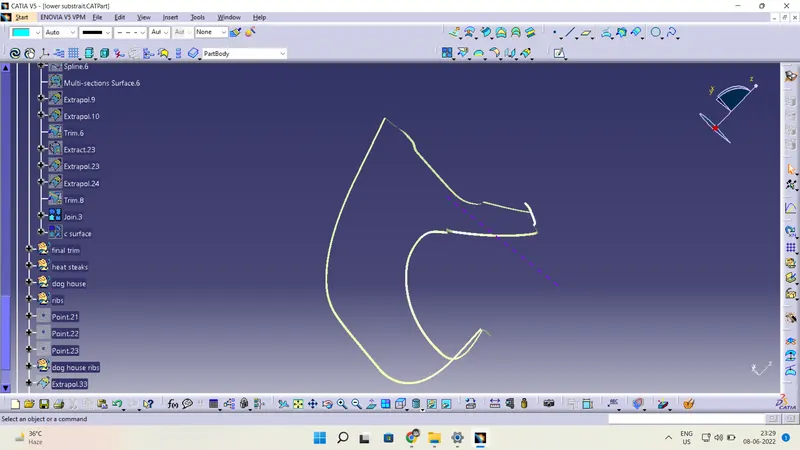

Extracting the boundary of Class A surface and it is make into smooth curves to sweep the curves by using support surface to the 90,87 and 3 degree respectively.
Step: 2
Once the all surface joined together it extrapolated to certain distance to trim with A Class surface to C surface. Finally we createdN Class C surface.
5.Making the Final plastic Component:
To make the final component the Class C surface is trimmed with Class B surface, the output will get the component with 2 mm thickness of surface and it is converted into solid body using insert body option in part design as shown below.

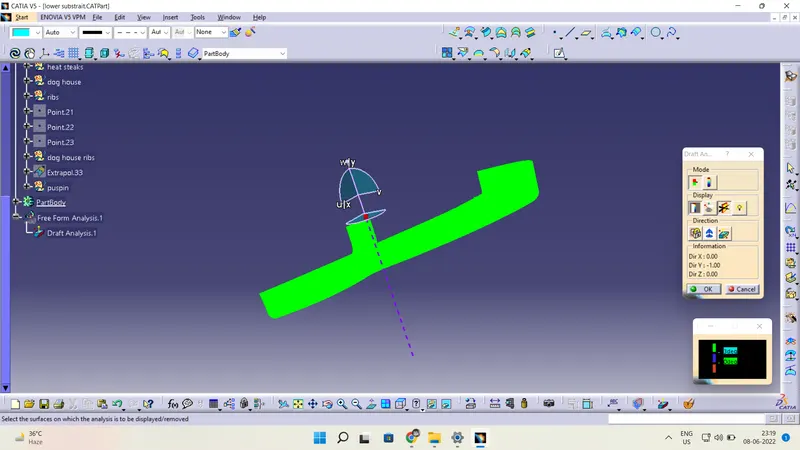

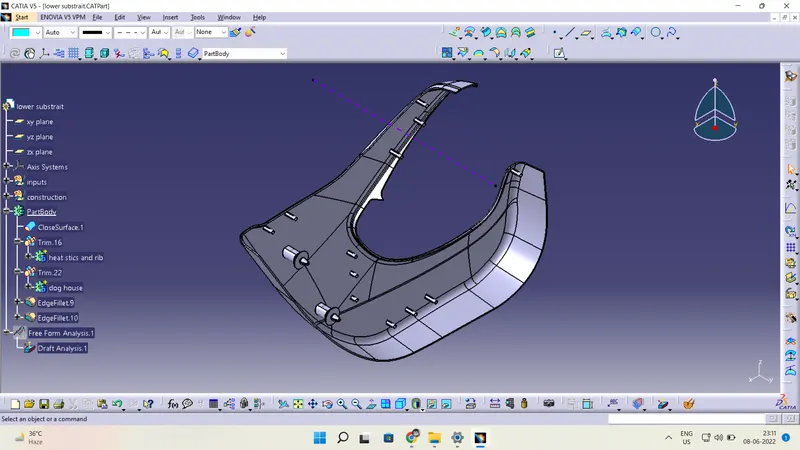

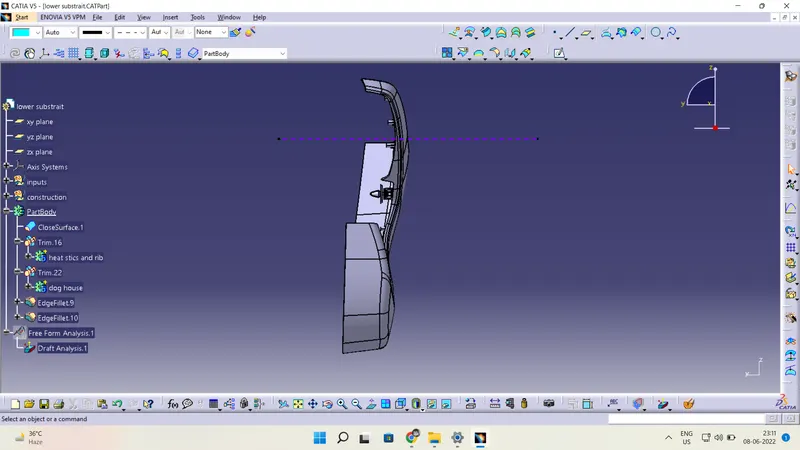

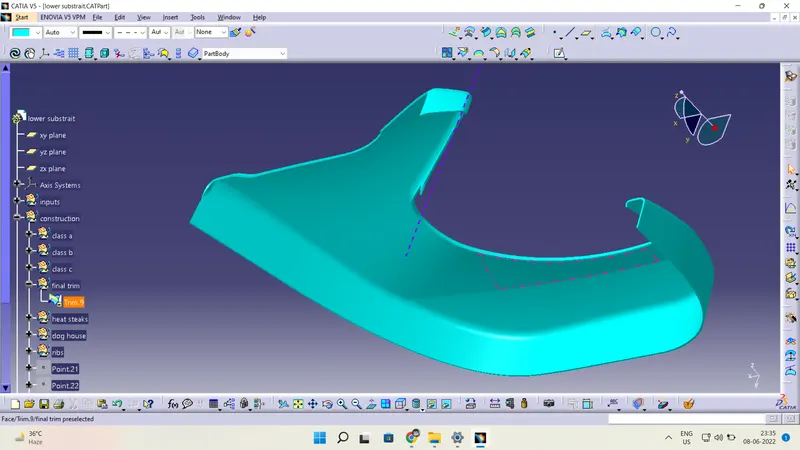

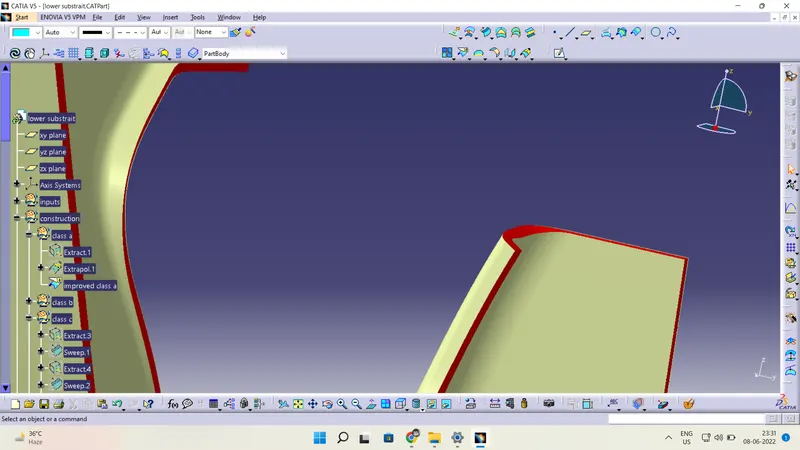

LOWE SUBSTRAIT
SURFACE CREATION
A SURFACE

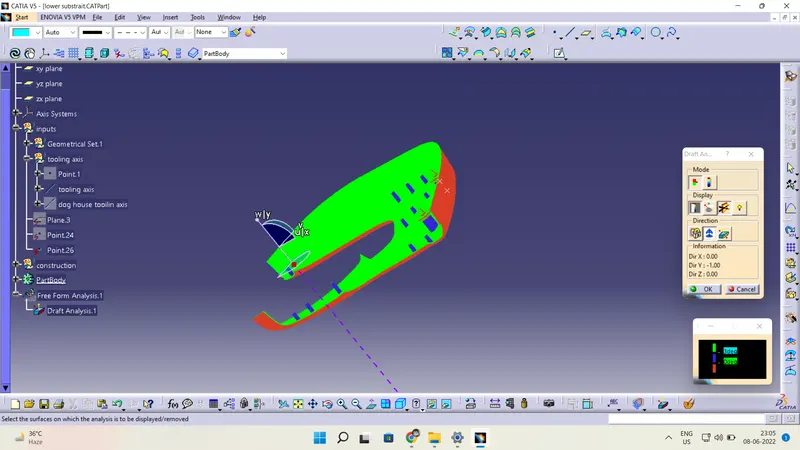

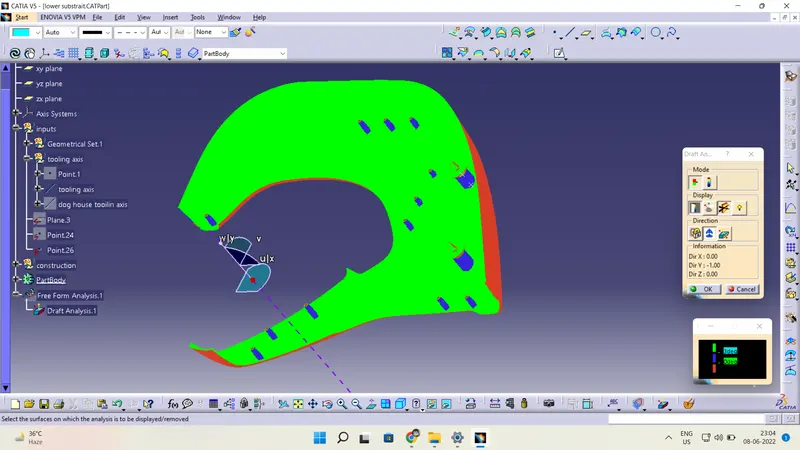

DRAFT ANALYSIS OF A SURFACE
B SURCACE
C SURFACE
A JOINING WITH C

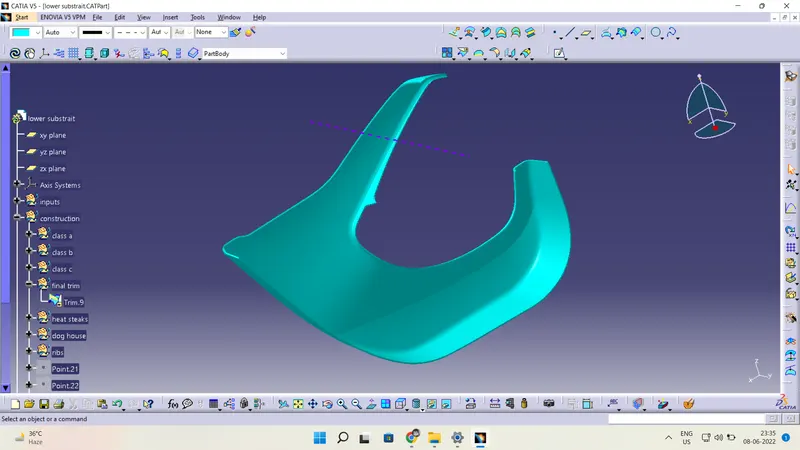

FINAL SURFACE

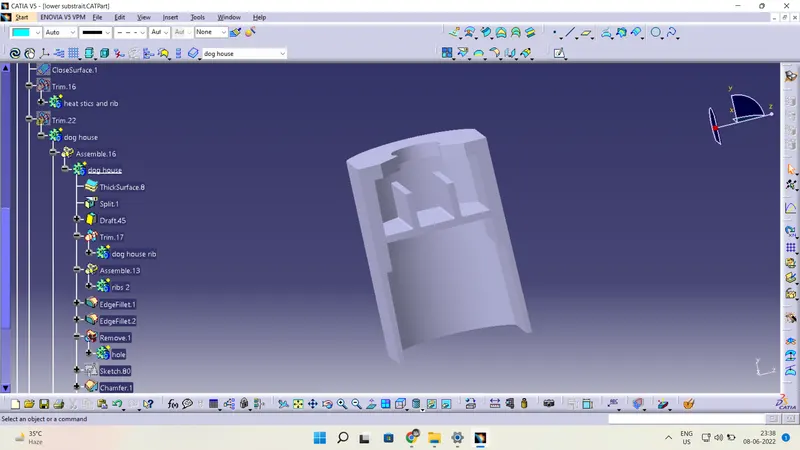

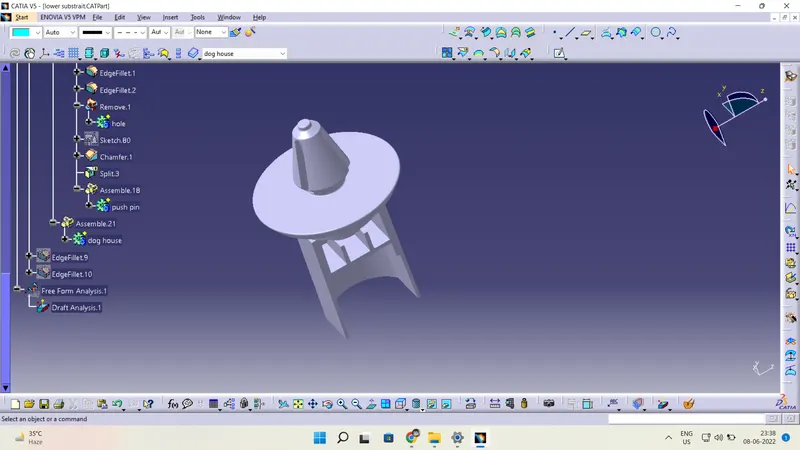

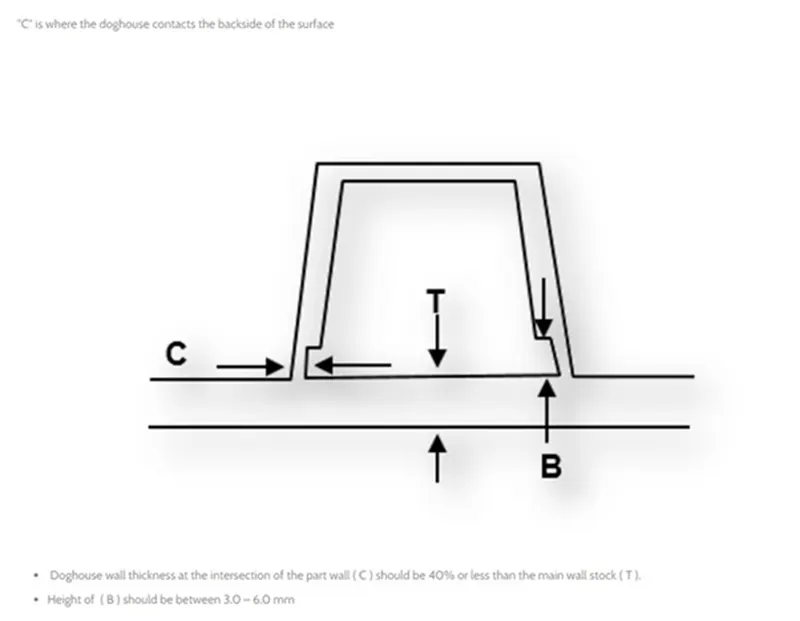

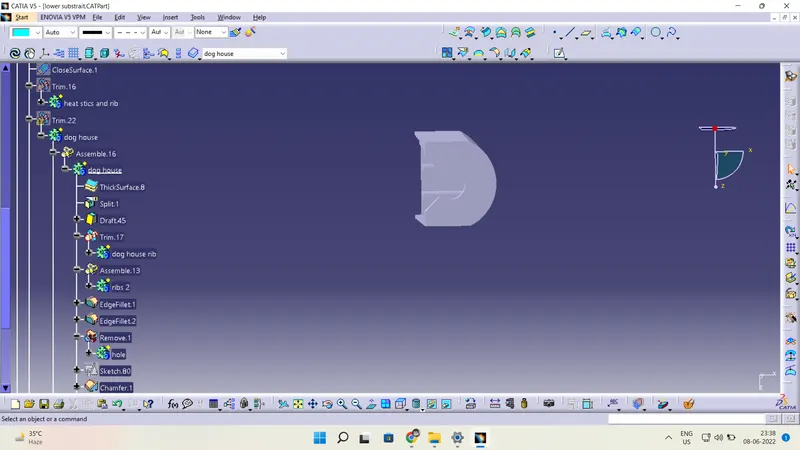

Dog house is an engineering feature used in plastic trim design. Dog houses are used as supporting feature. Sometimes other
engineering features like snaps; locators etc. are mounded on them to increase their strength. Dog houses are subjected to draft
analysis to prevent breakage of the component during ejection from mould cavity. Dog house and other engineering components
are built on B-surface.
Step: 1
Creating the sketch by extracting the class A surface, by each surfaces separately, point and axis . Using positioned sketch making as shown below.
Step: 2
sweep the surface with 1.5 degree and the extract surface from Class A has been offset to make side trimming it.
Step: 3
The extruded surface is converted into solid by thickening the surface for 2mm and it is extrapolated and to make close body it is split
into equal distance has shown below.
Step: 3
The extruded surface is converted into solid by thickening the surface for 2mm and it is extrapolate.
It is drafted for 0.5 deg to perpendicular to the sidling axis as shown below. The edges where chamfer

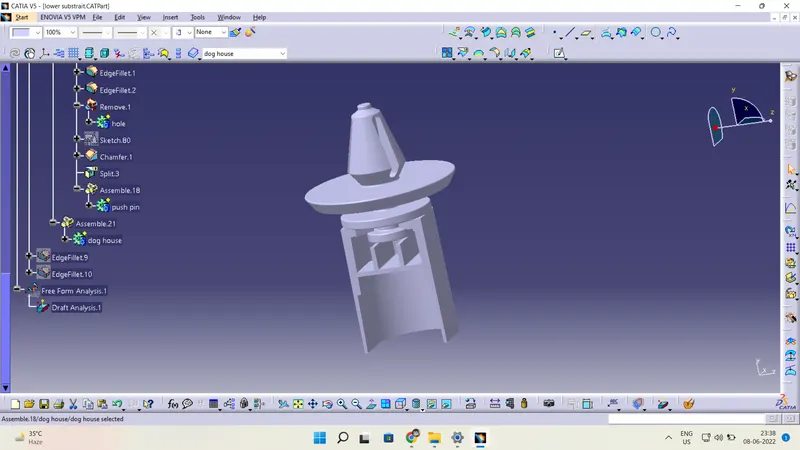

DOG HOUSE

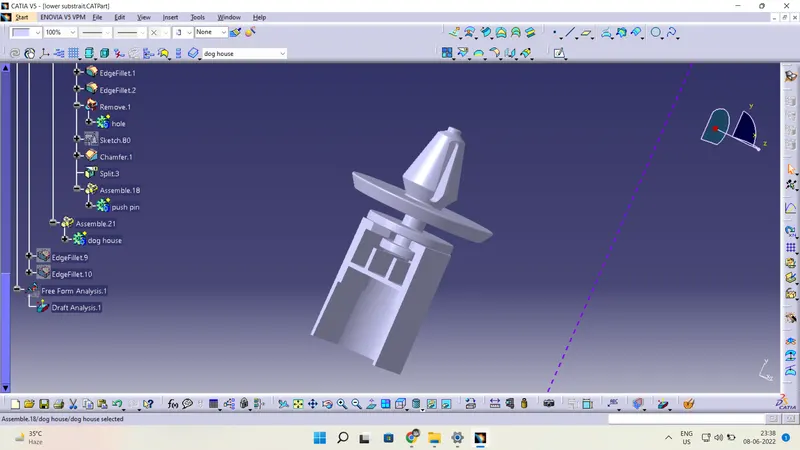

Creating the Push Pin Clip:
Step: 1
The push pin clip has been sketched for the required dimension. It is revolved to make solid component as shown below.
It is mounted on the top of Dog House to the lower substrate assembled body as shown below.

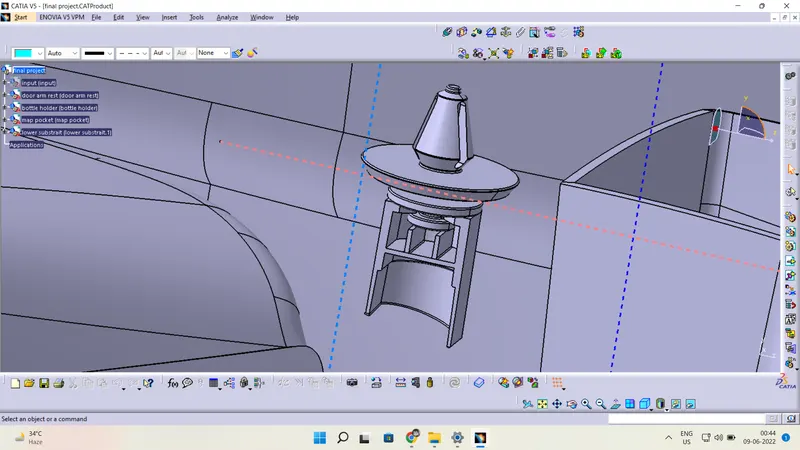

DOG HOUSE WITH PUSH PIN

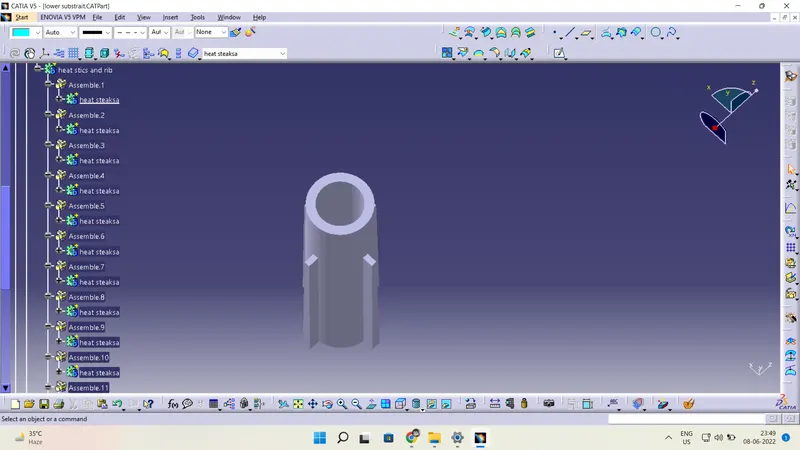

Creating the Heat Stake:

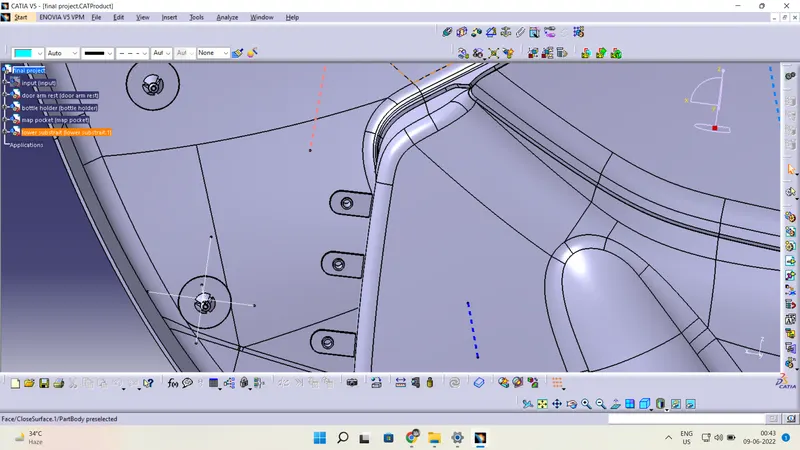

Heat stalking is a pulsed- heat process to join two or more parts out of which one at least is madeof plastic .the plastic material using the heat and foam at a set process time. The bond is made by partially deforming the plastic part in order to fix the other. Heat stakes makes it easily to bond metal to plastic is commonly used in high volume and low cost application such as Automotive, IT and consumer appliances.
Step: 1
Creating the sketch by extracting the class A surface, by each surfaces separately, point and axis system created simultaneously on
the surface. Using positioned sketch.
Step: 2
The sketch feature is then extracted to the required dimension. And it is drafted for the 0.5 deg to the sliding tooling axis, it is filleted for
radius 0.25 of smooth edges as shown below.
The support rib as created, where the flange will come and sits to get arrested to the heat stake.

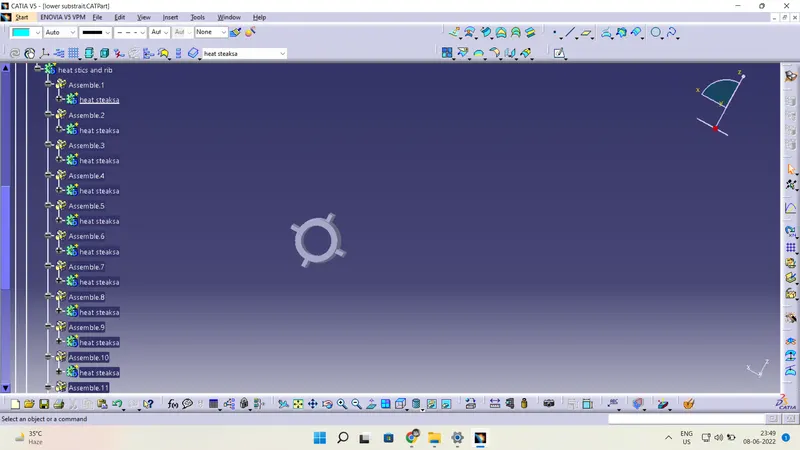

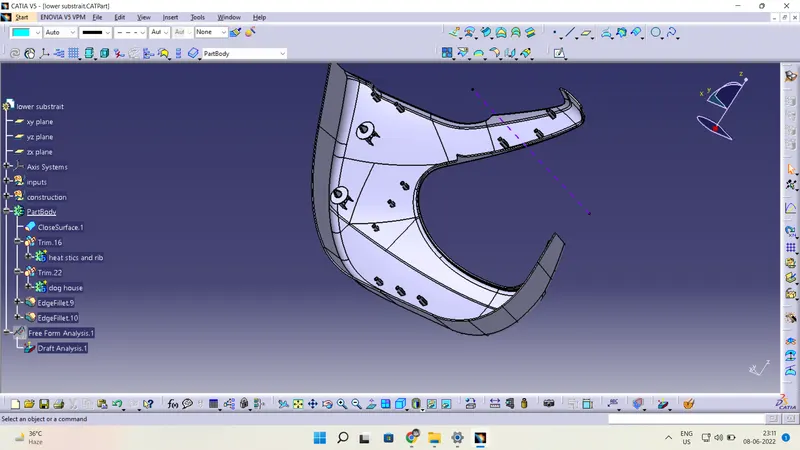

HEAT STEAKS AND RIBS

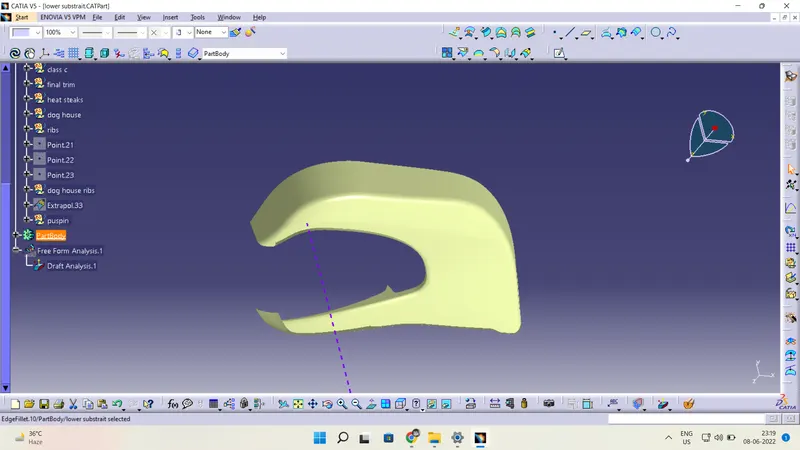

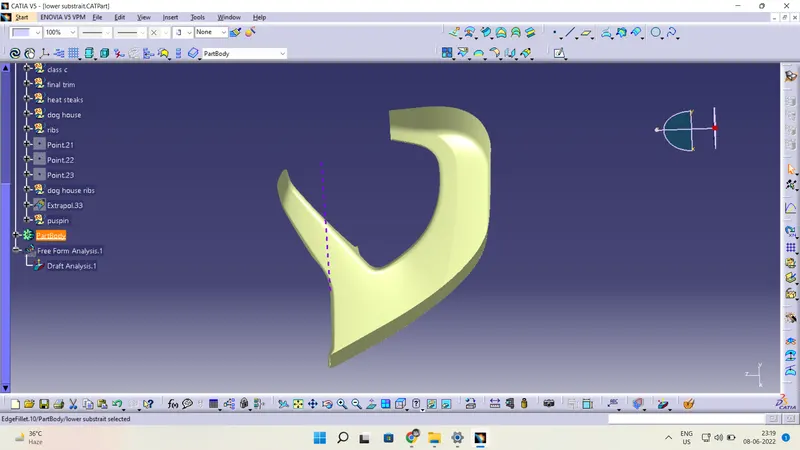

FINAL SOLID BODY

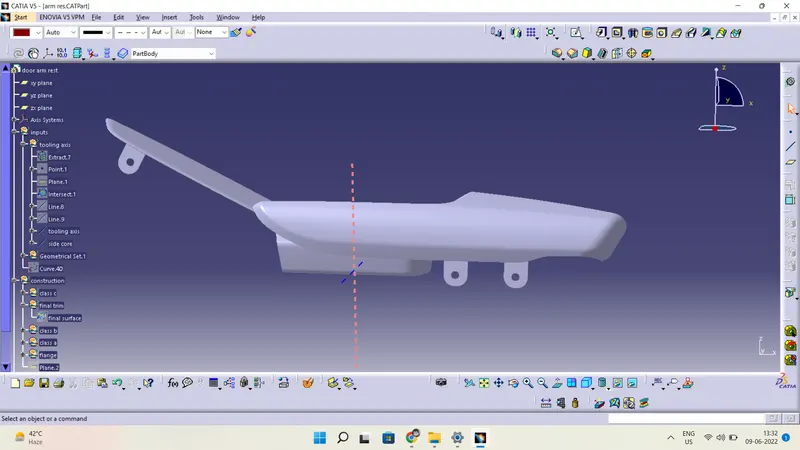

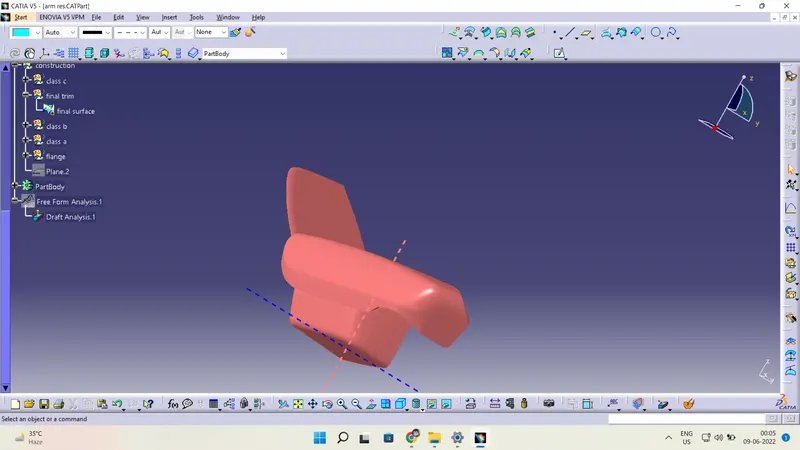

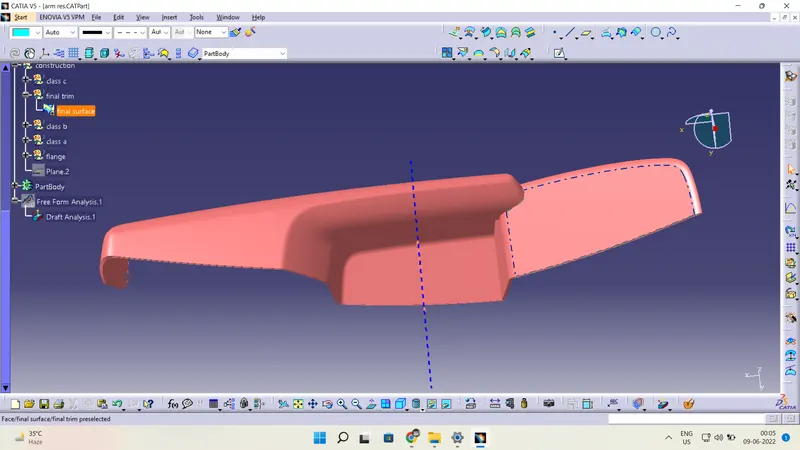

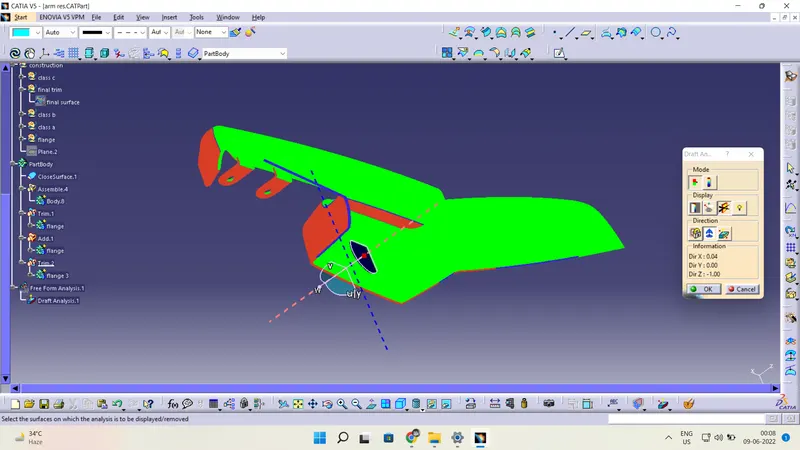

ARM REST
A SURFACE

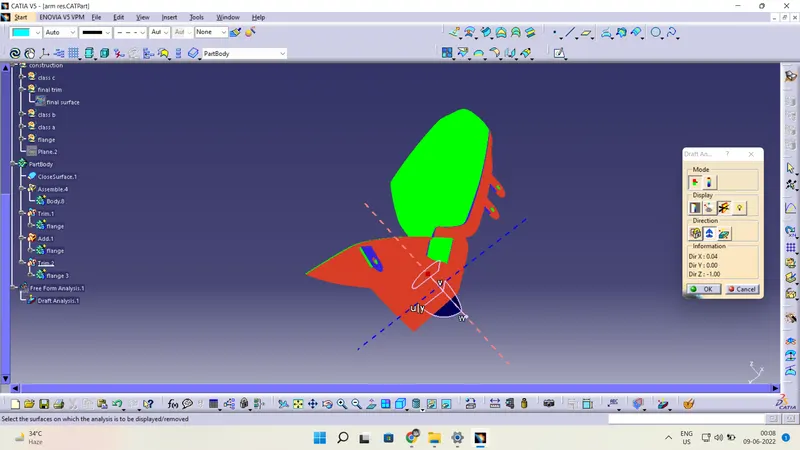

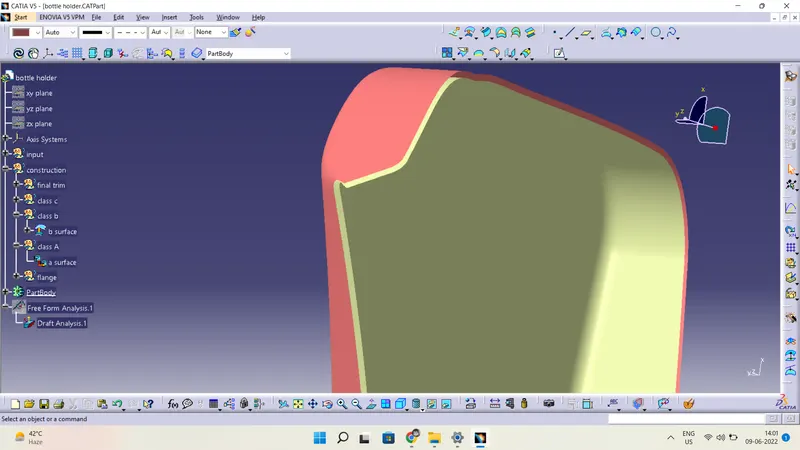

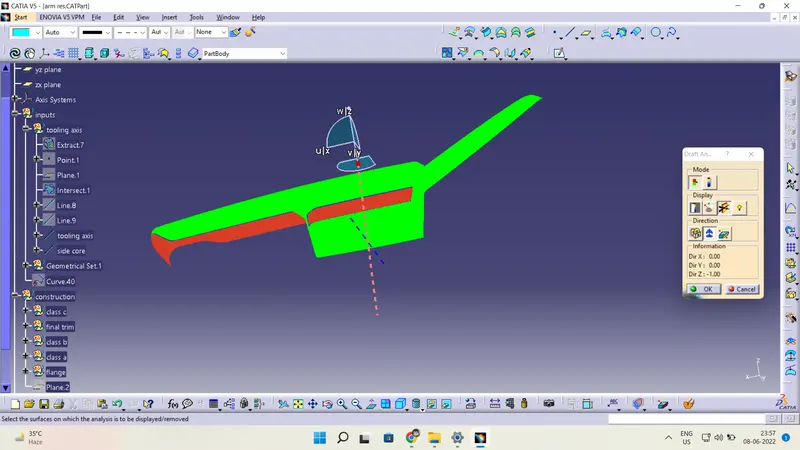

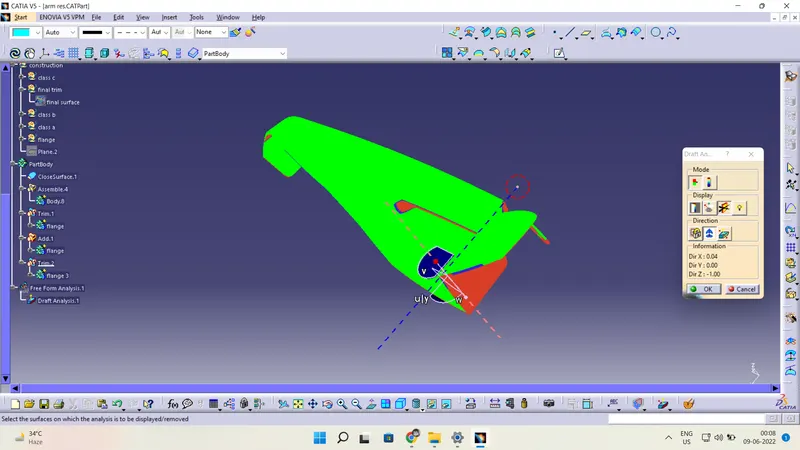

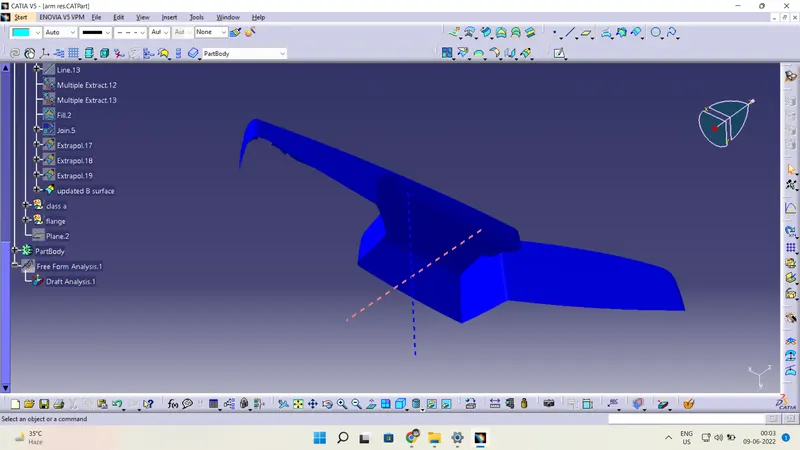

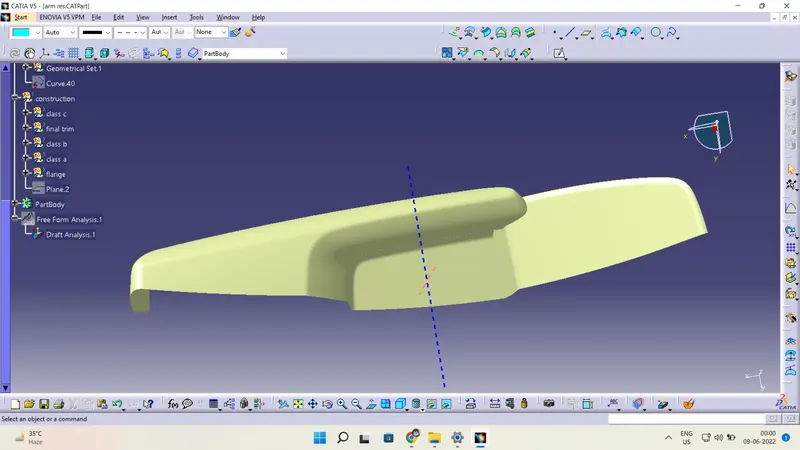

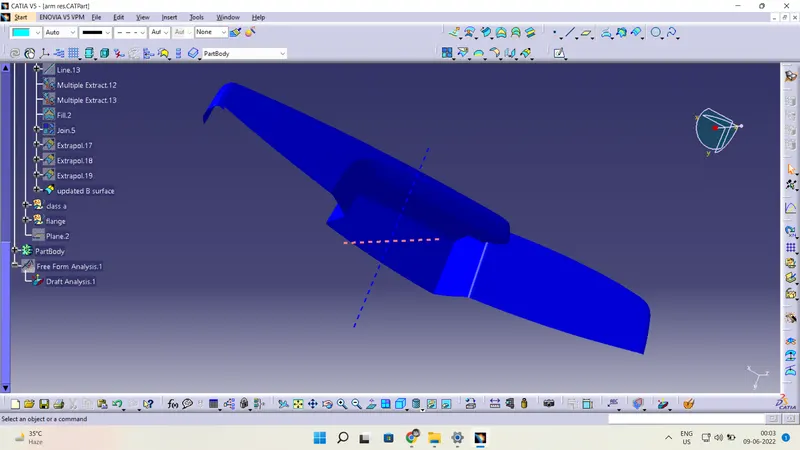

Draft Analysis

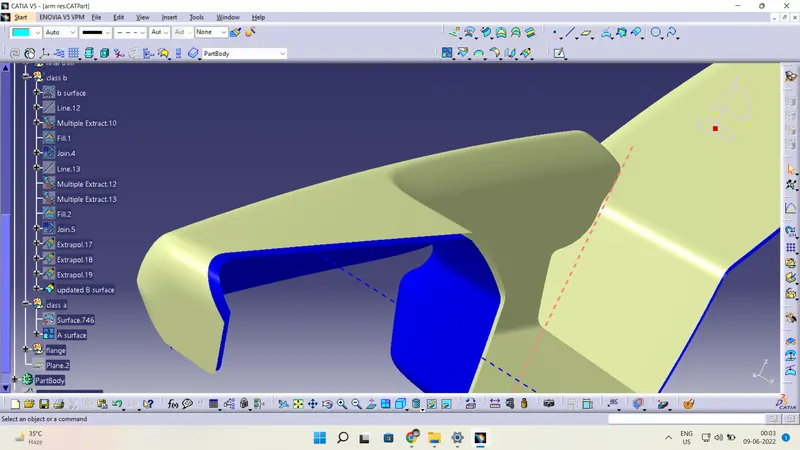

B Surface

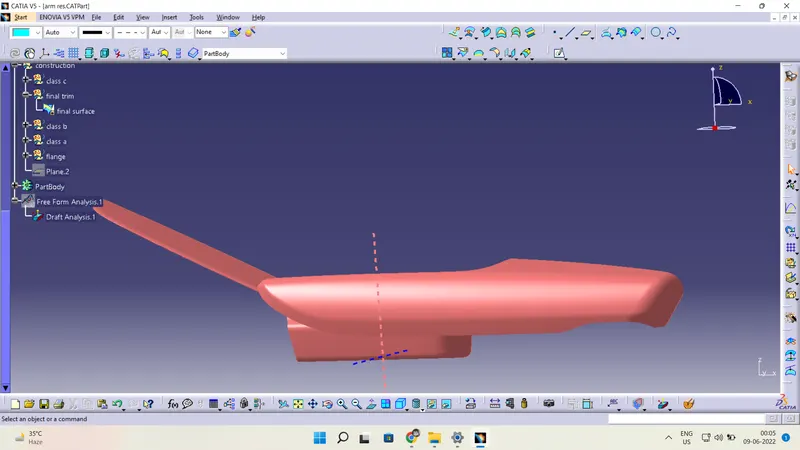

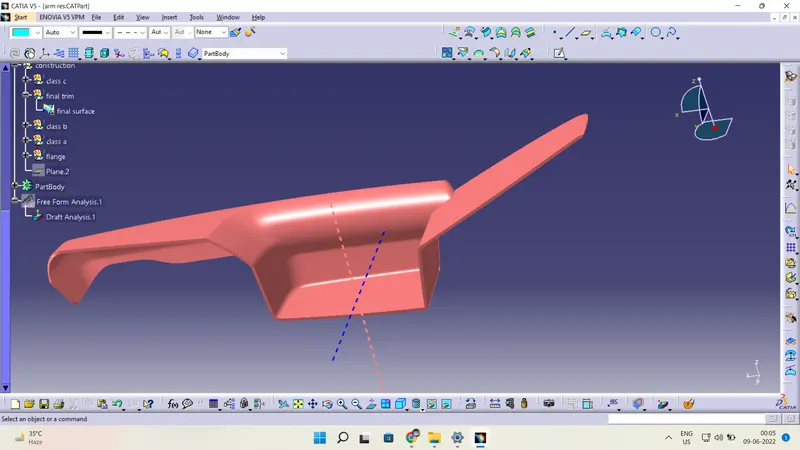

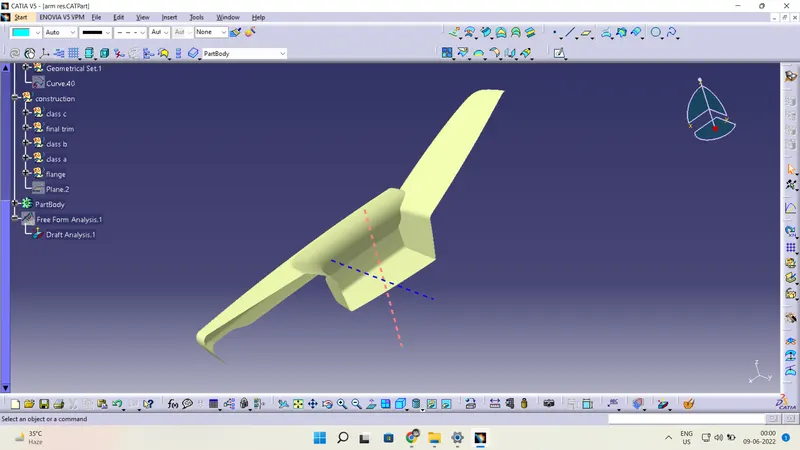

final surface
solid surface with flange

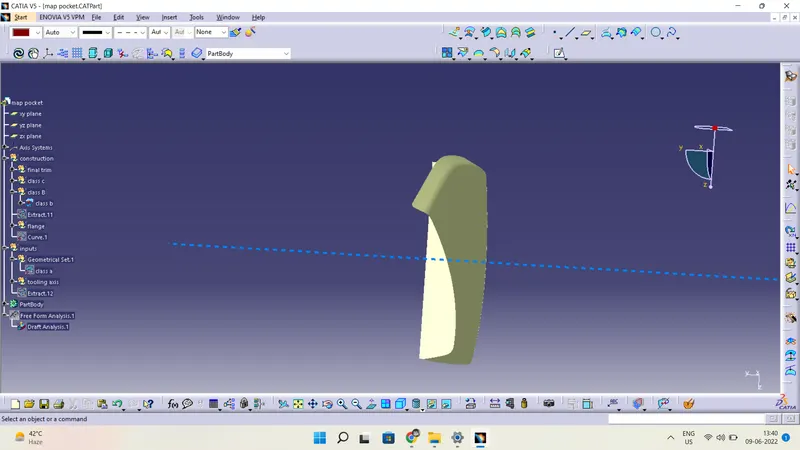

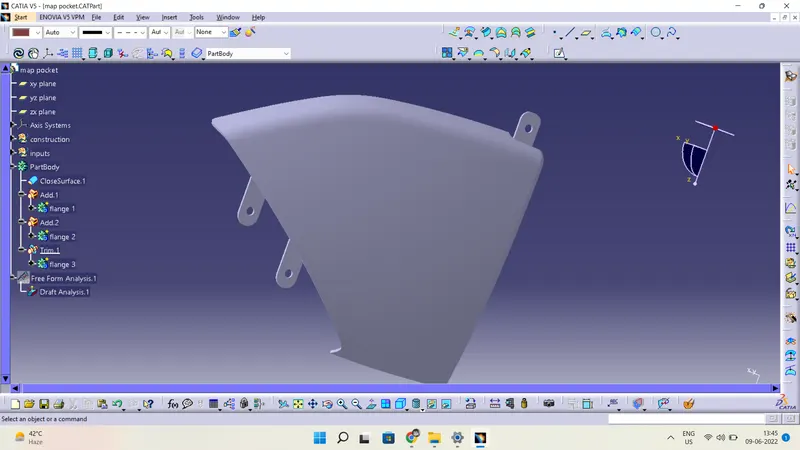

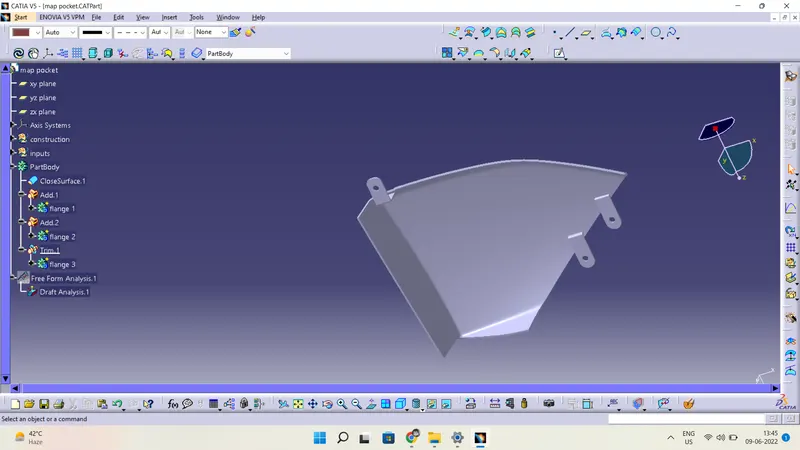

MAP POCKET
A surface

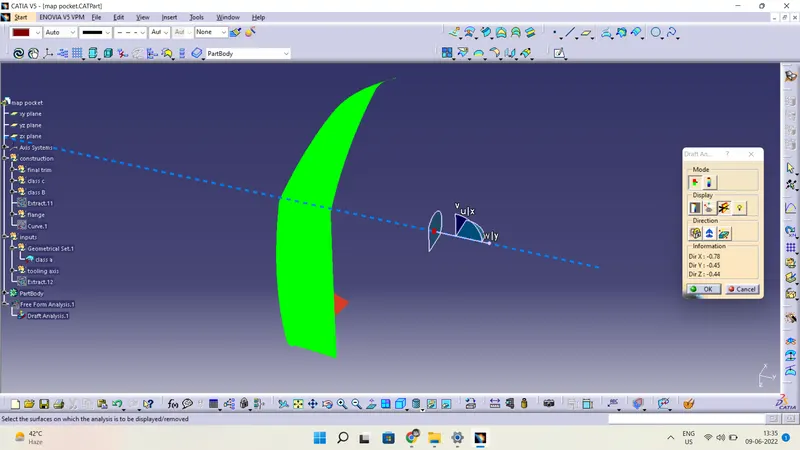

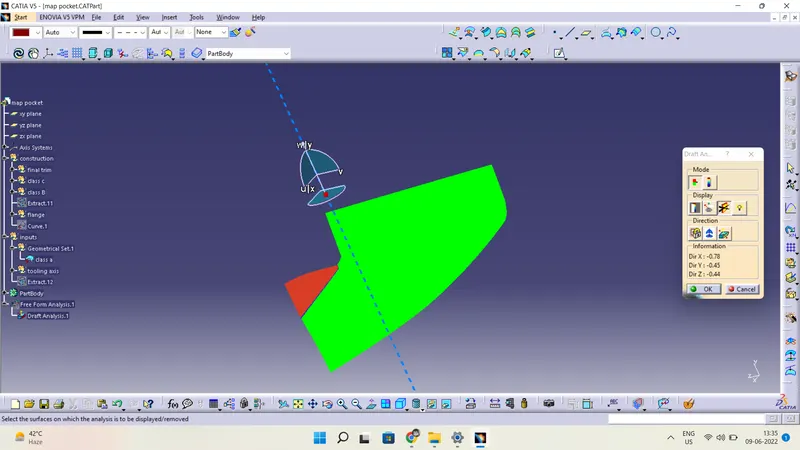

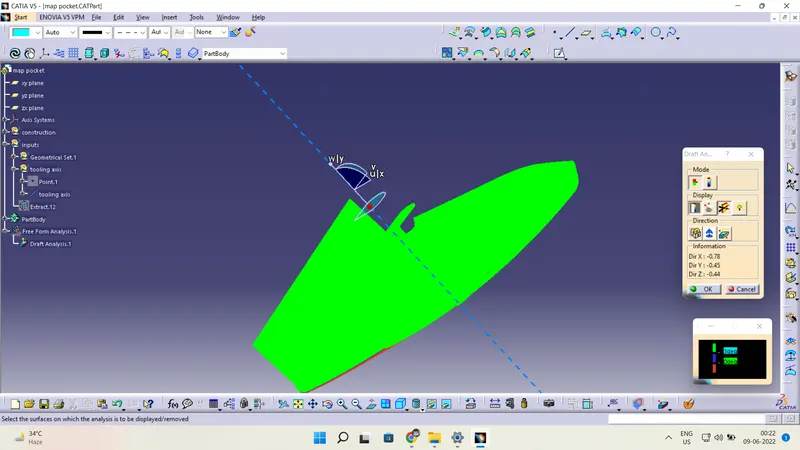

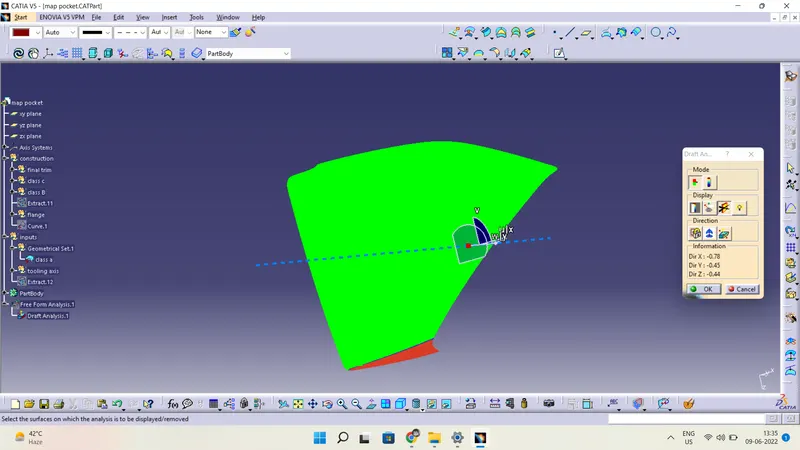

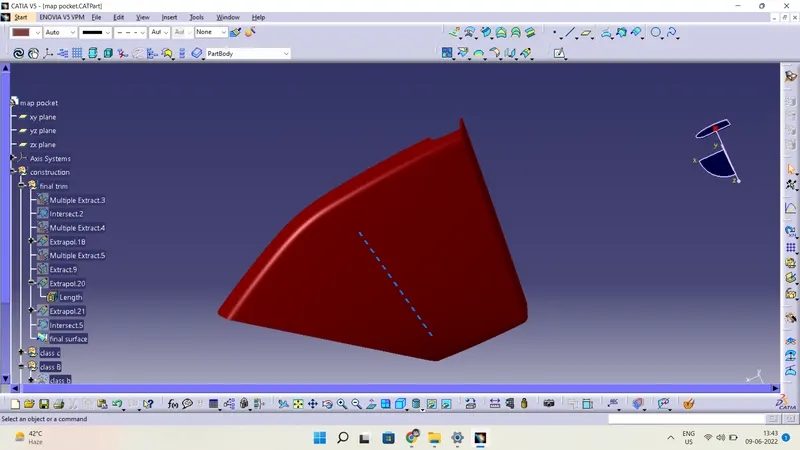

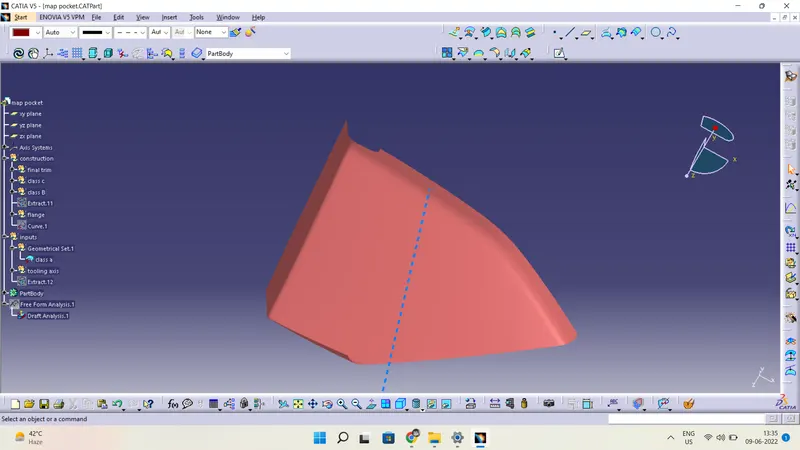

Draft analysis of A Surface

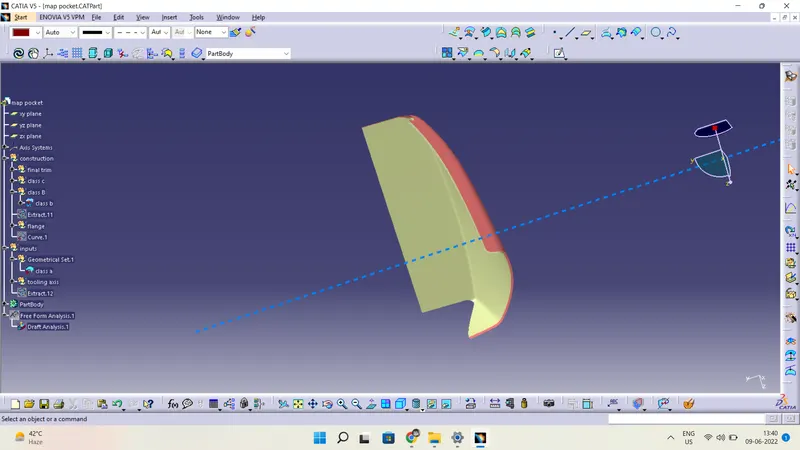

B surface

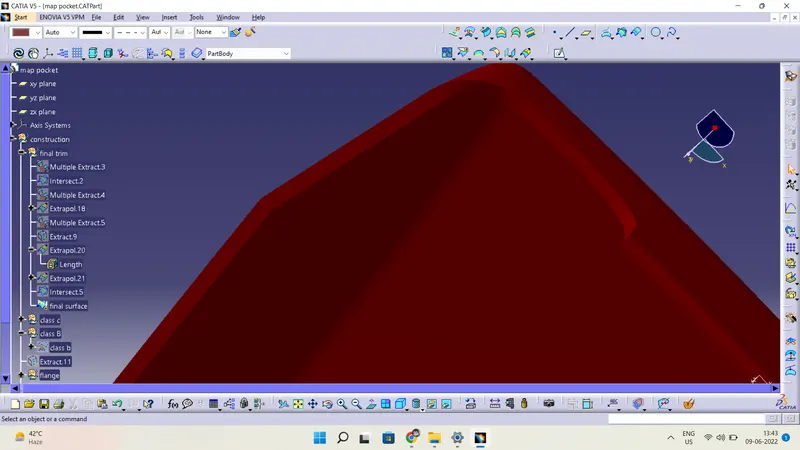

final surface

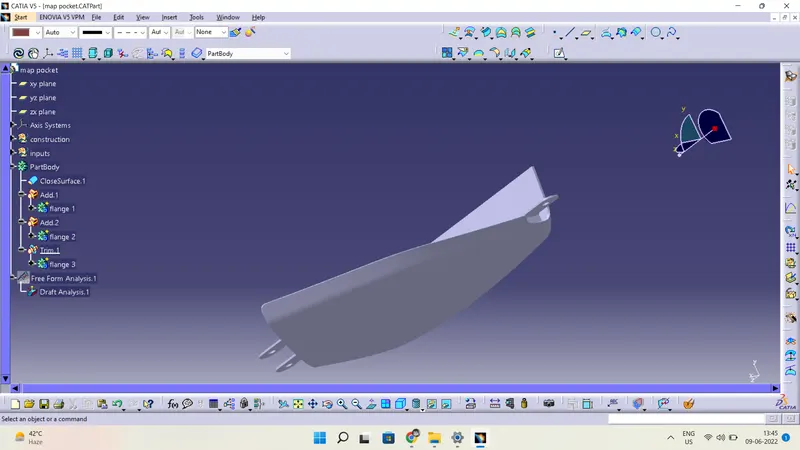

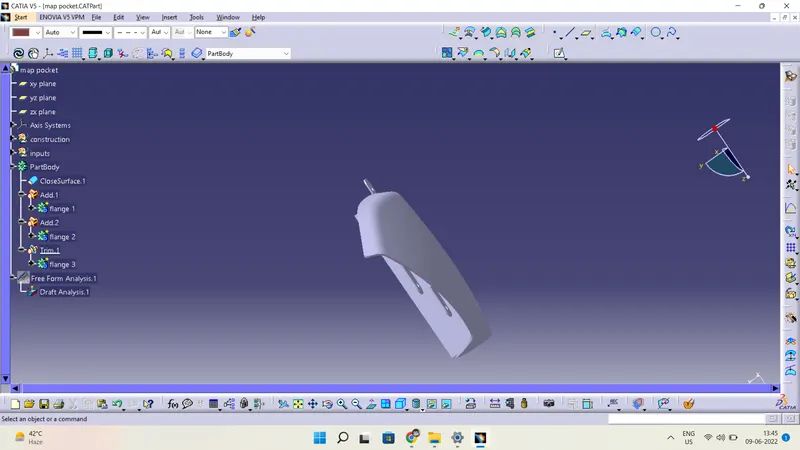

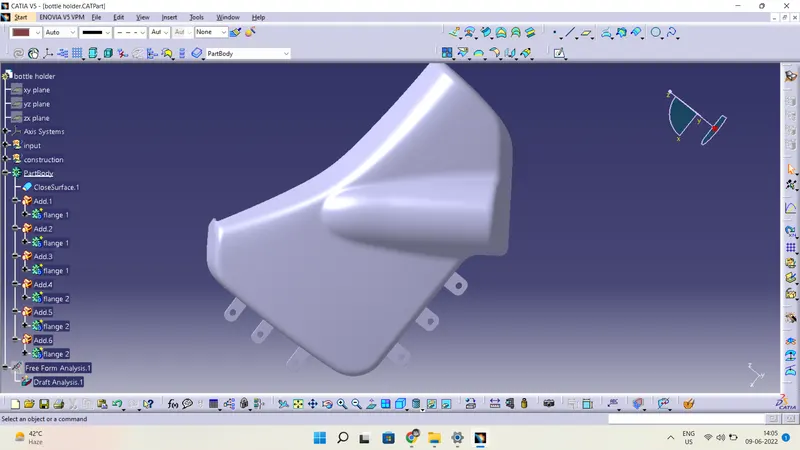

SOLID BODY WITH FLANGE

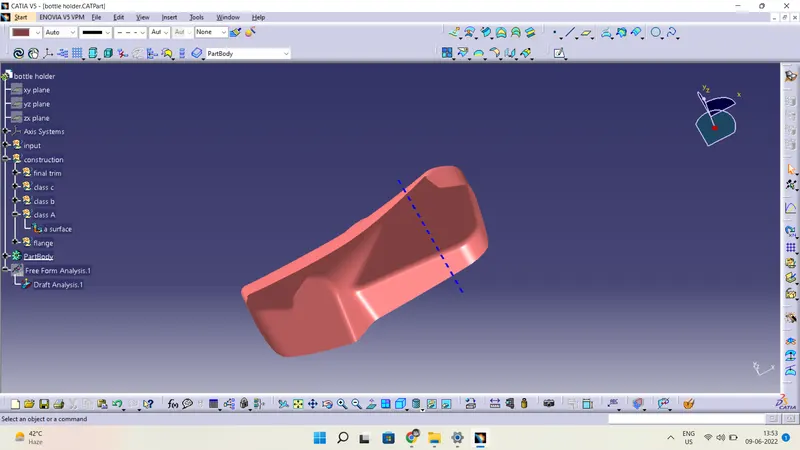

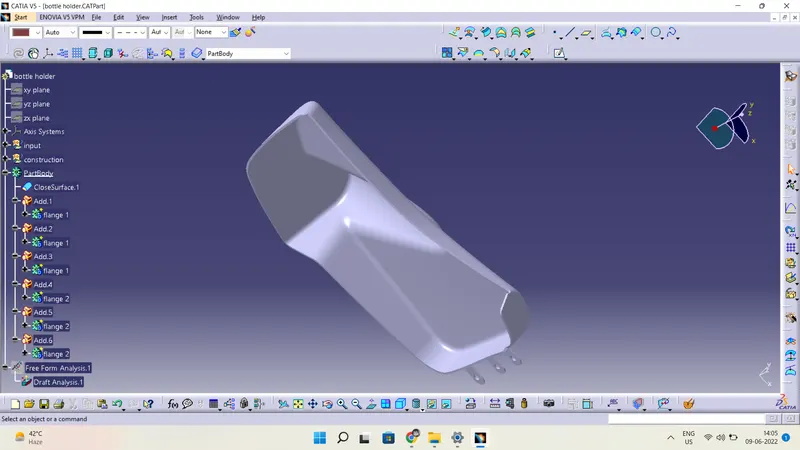

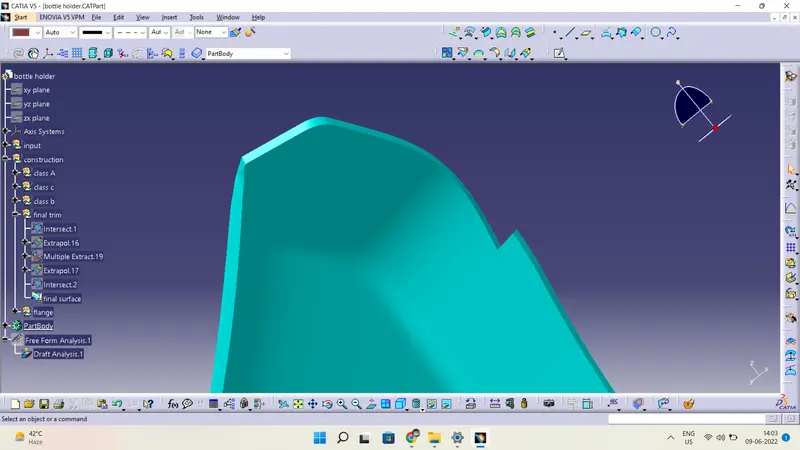

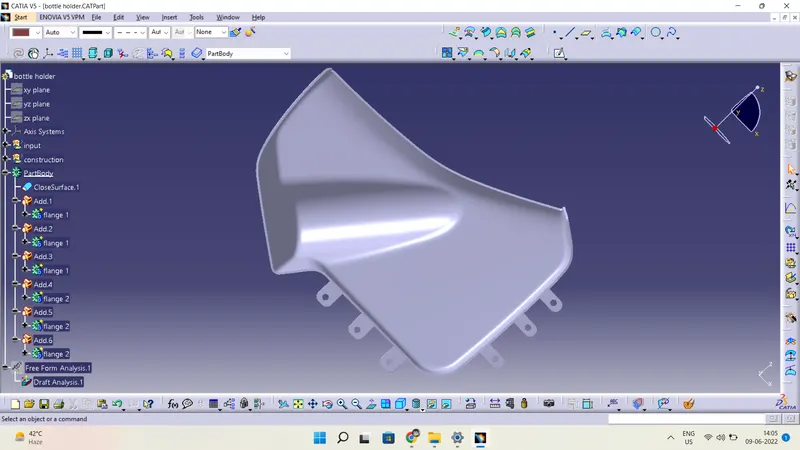

BOTTLE HOLDER
A SURFACE

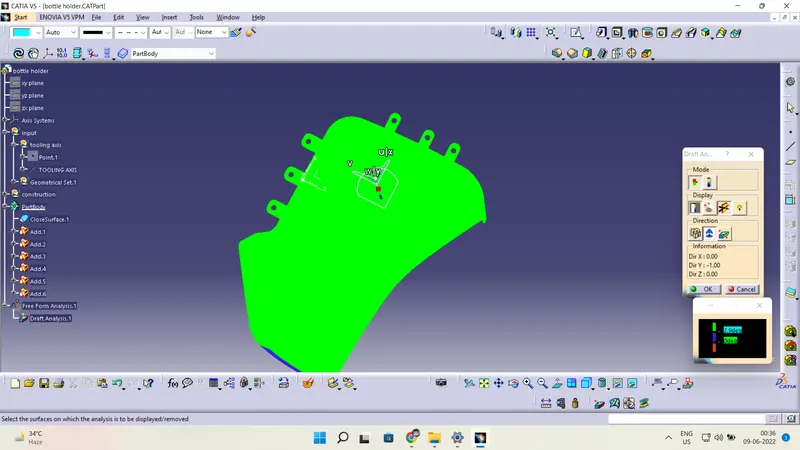

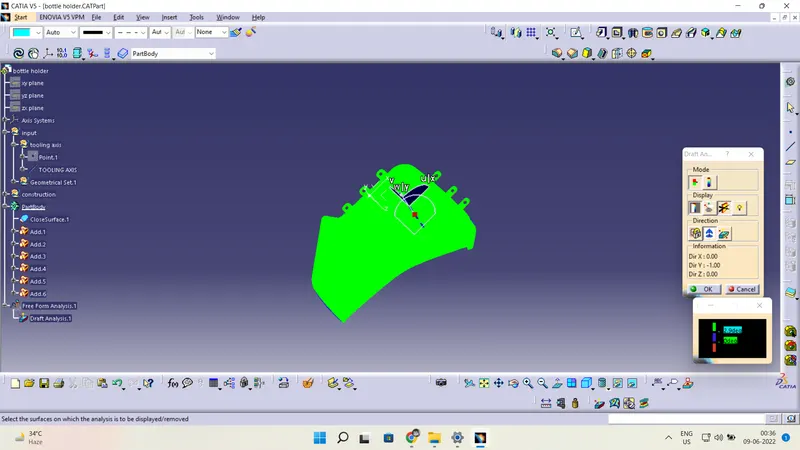

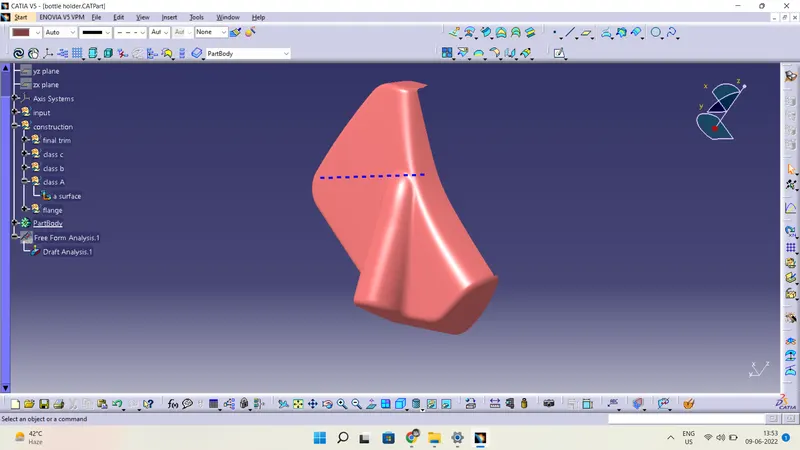

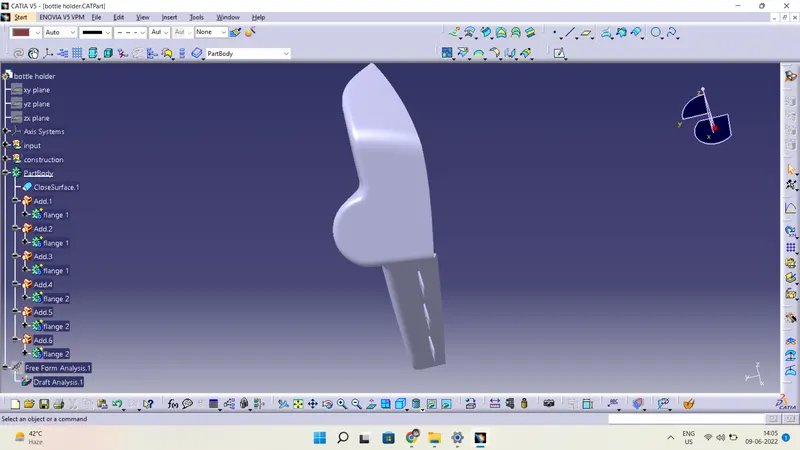

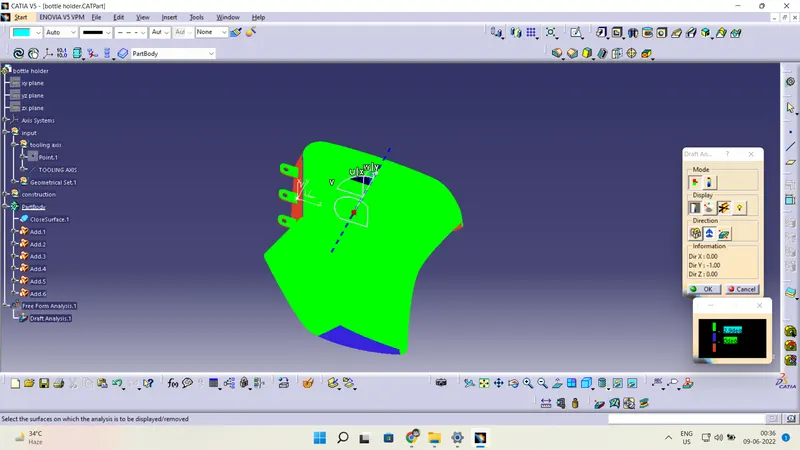

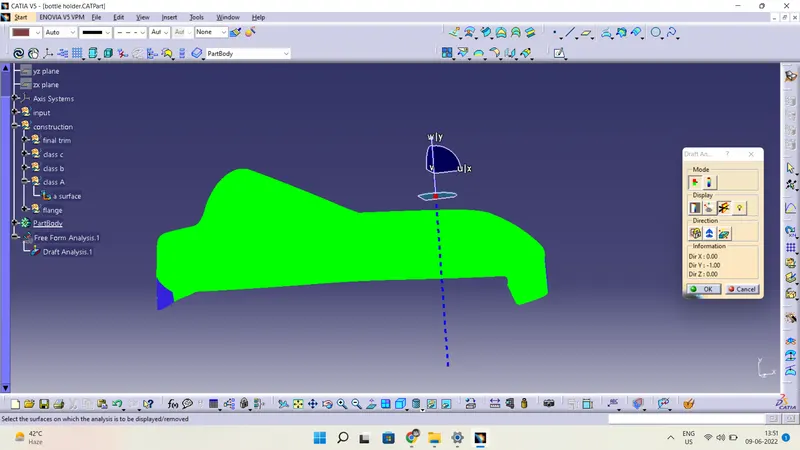

DRAFT ANALYSIS OF A SURFACE

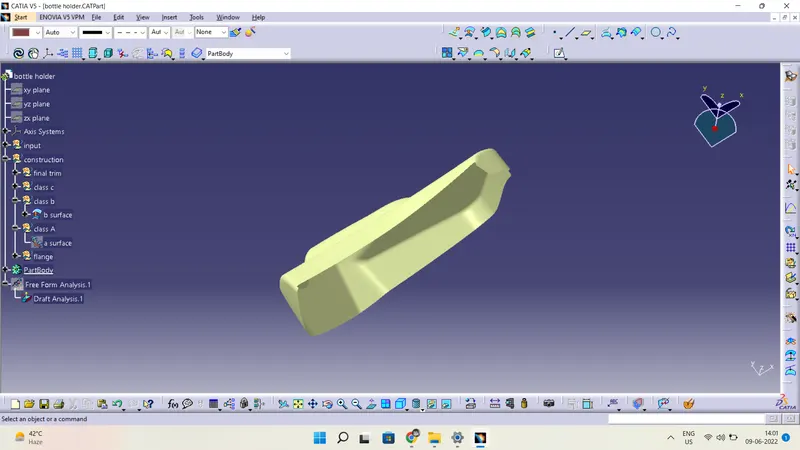

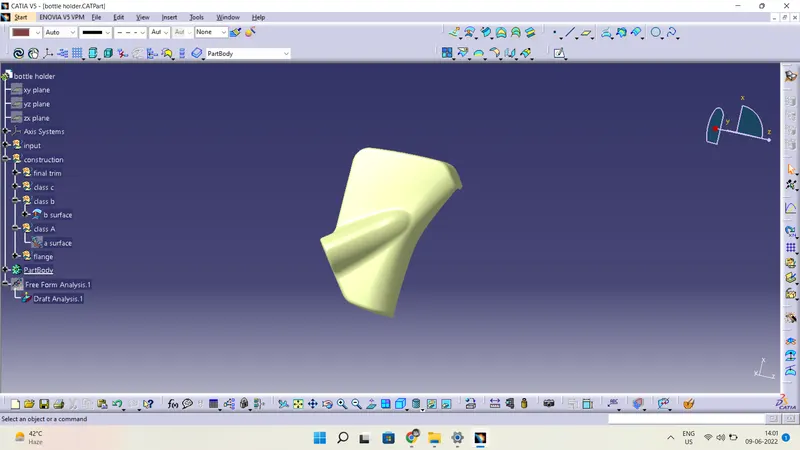

B SURFACE

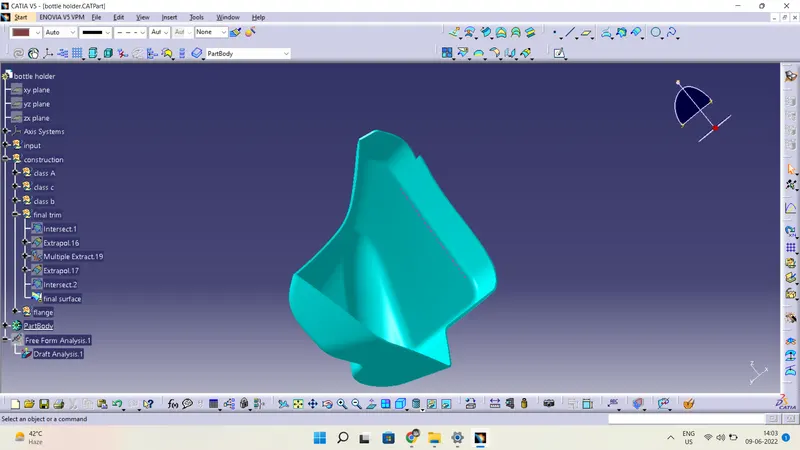

FINAL SURFACE
SOLID BODY WITH FLANGE

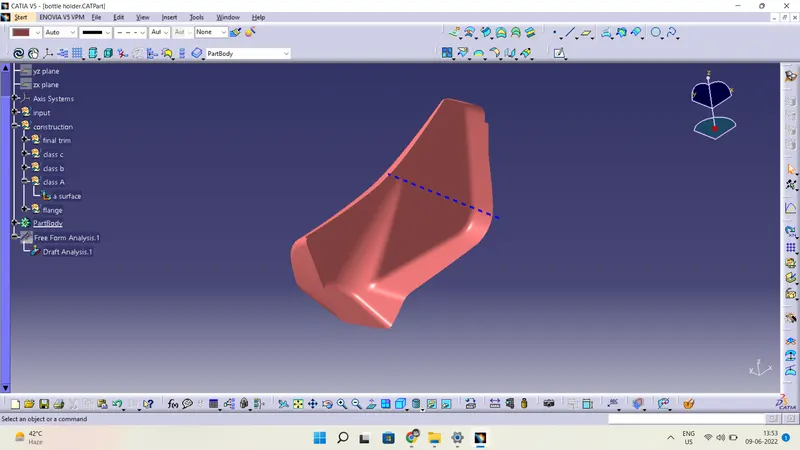

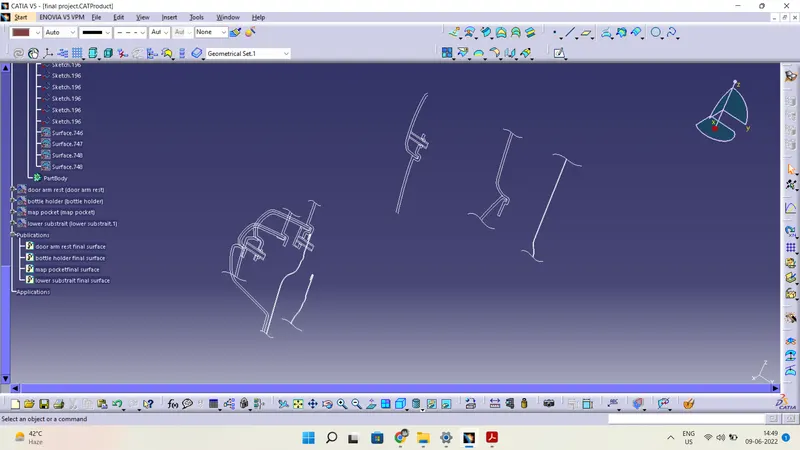

DRAFT ANALISIS FINAL SURFACES
LOWER SUBSTRAIT
ARM REST
MAP POCKET
BOTTLE HOLDER

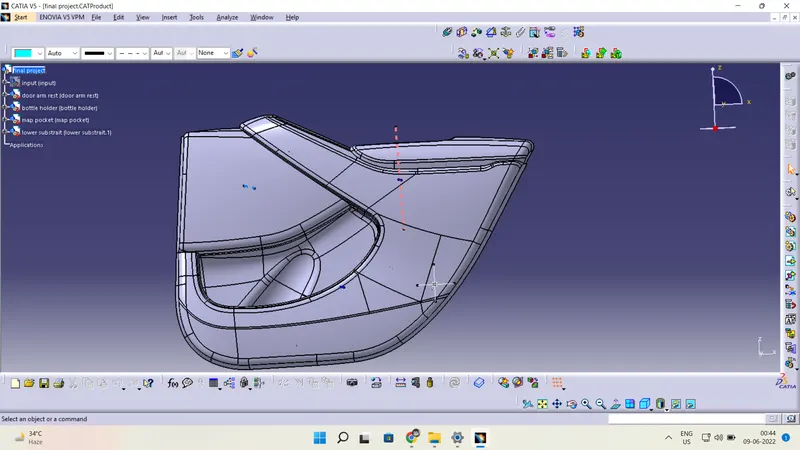

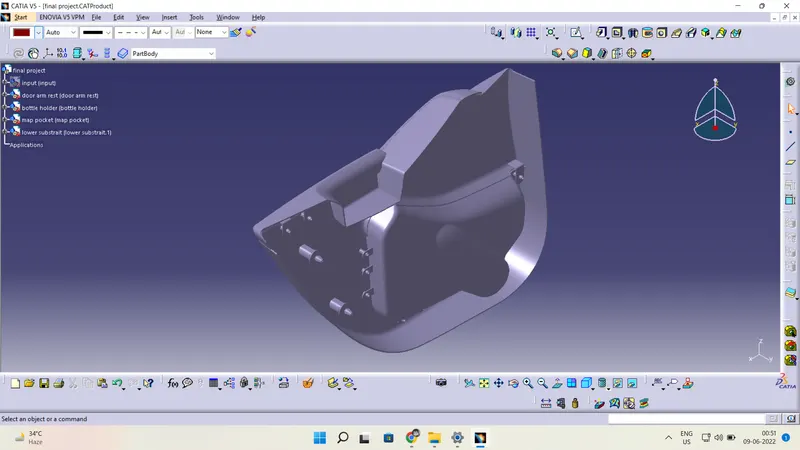

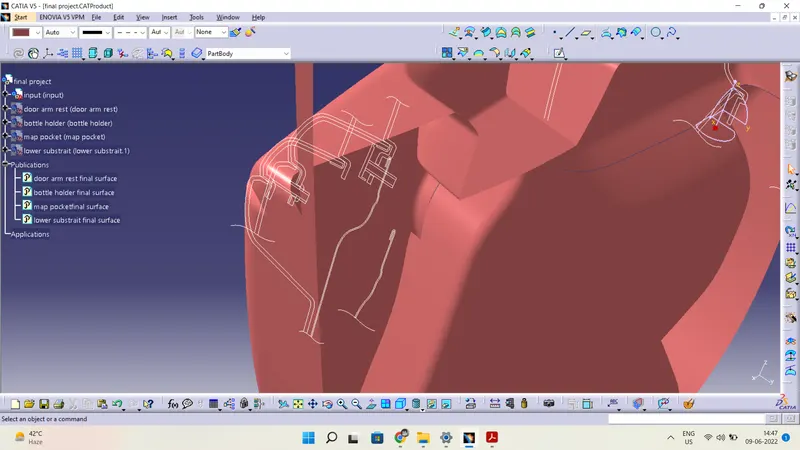

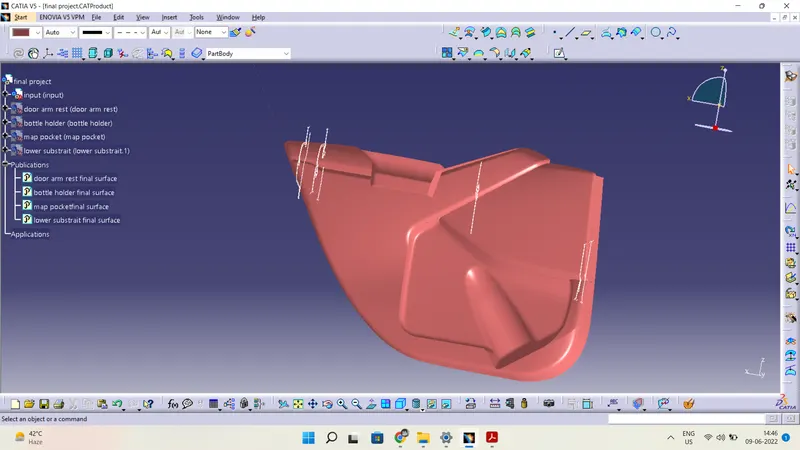

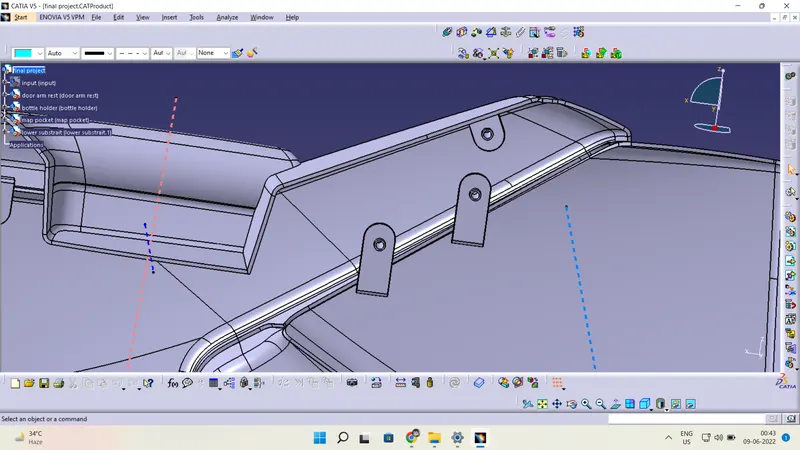

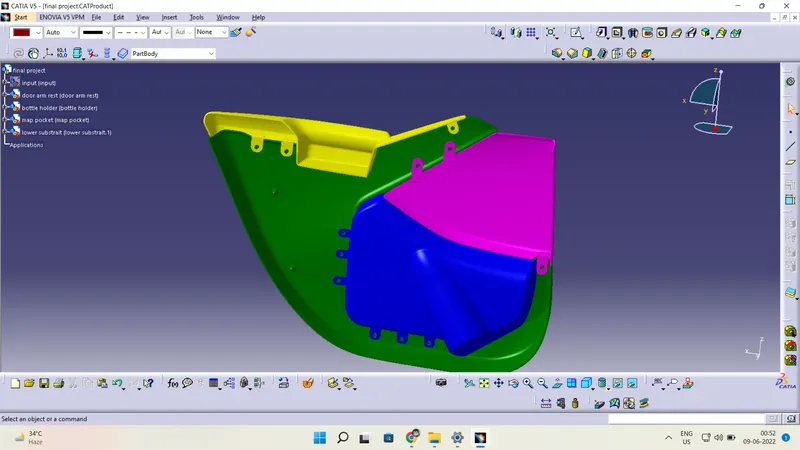

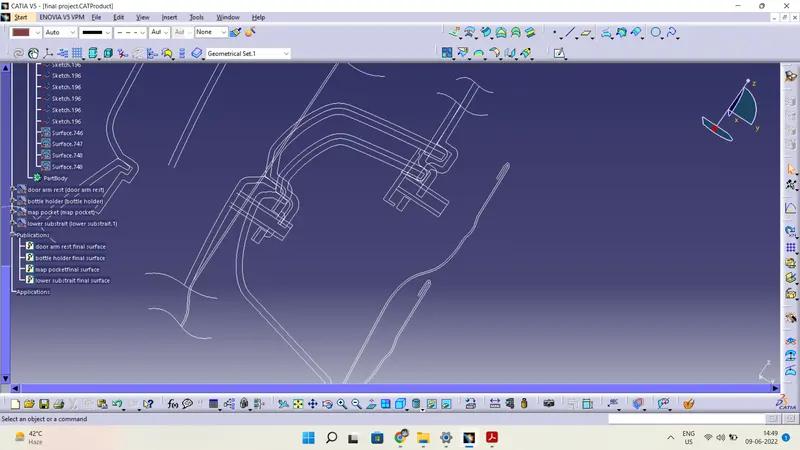

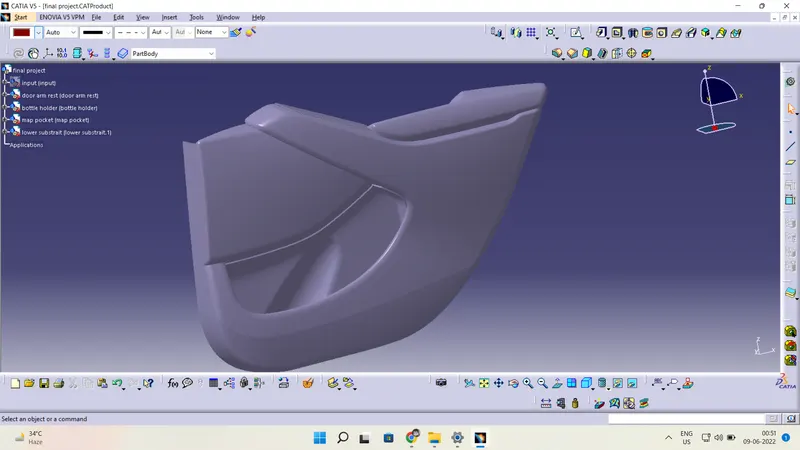

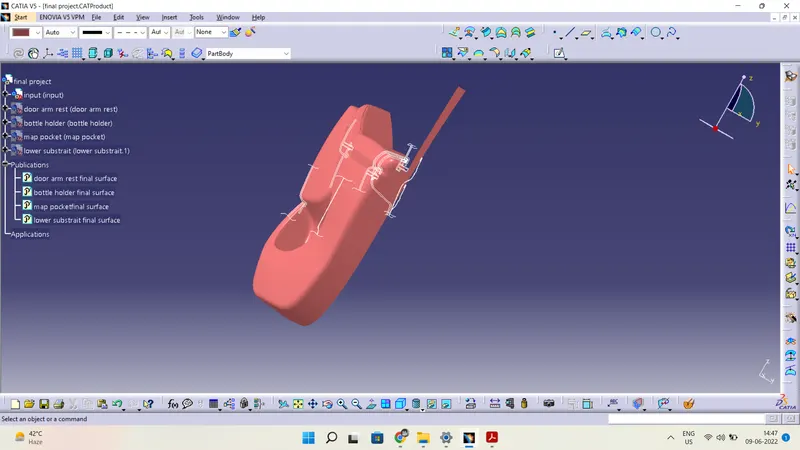

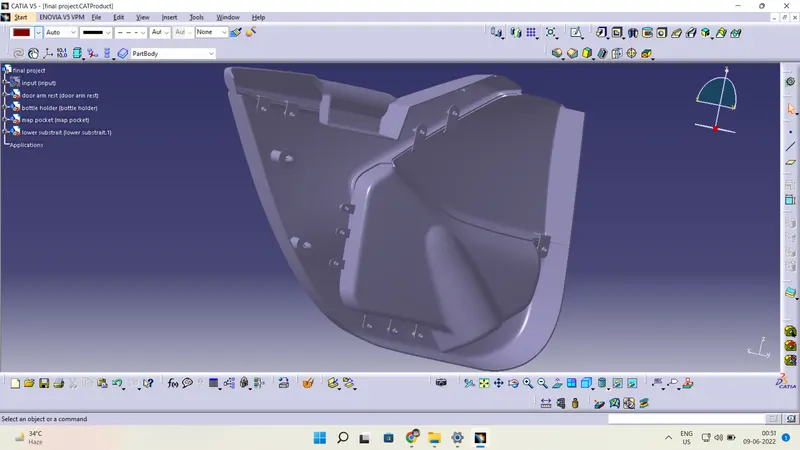

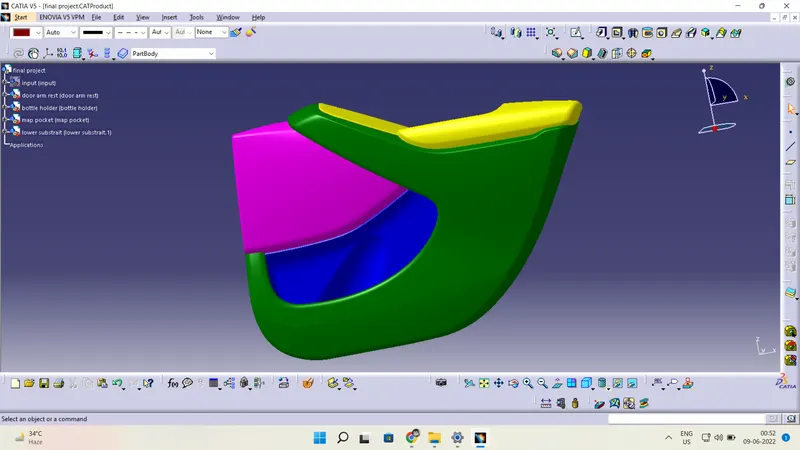

ASSEMBLY
