Week 11 Challenge

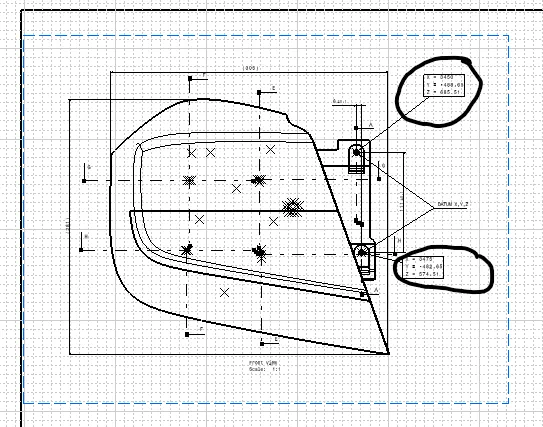

1.Mounting coordinates

Ans:- It show the coordinates of positive mounting and stud mounting area with it's distance between them.

********************************************************************************************************************************************2.Focal coordinates

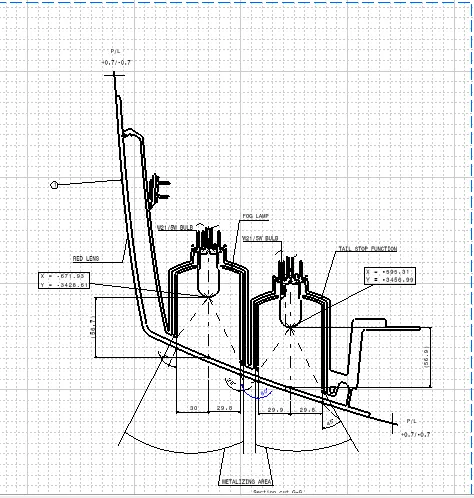

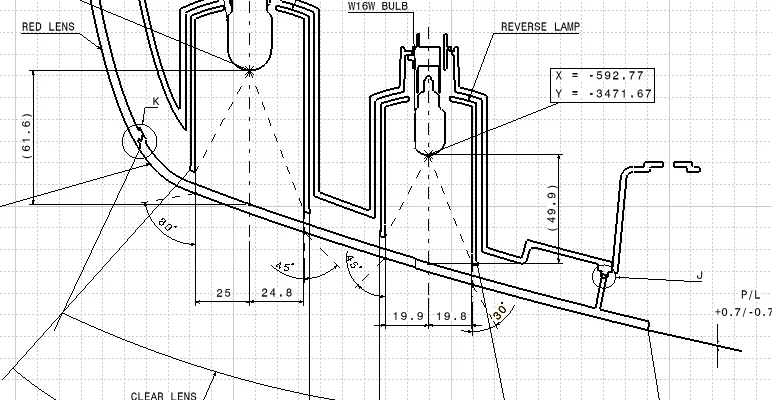

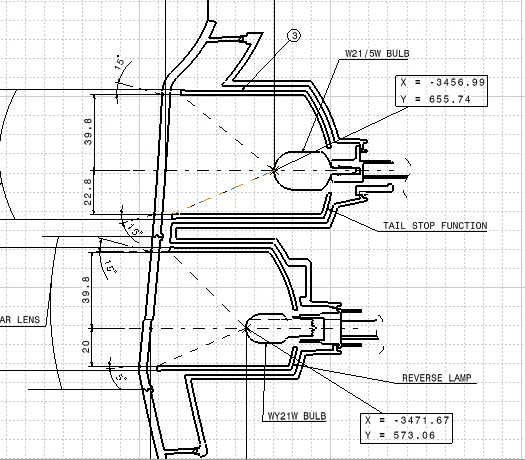

Ans:- It shows the coordinates of focal point of the bulb.As shown in the image below

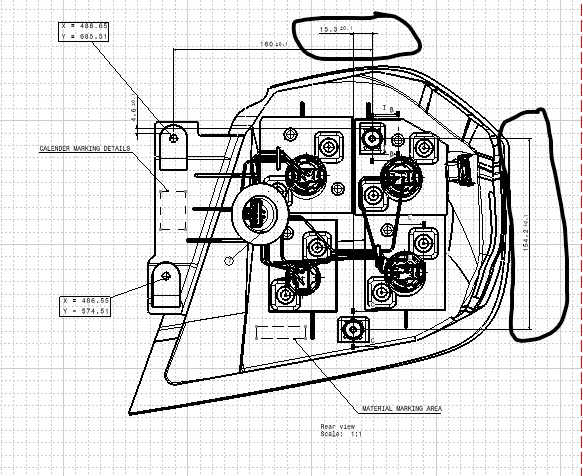

********************************************************************************************************************************************3.Pivot to pivot distance

Ans:-

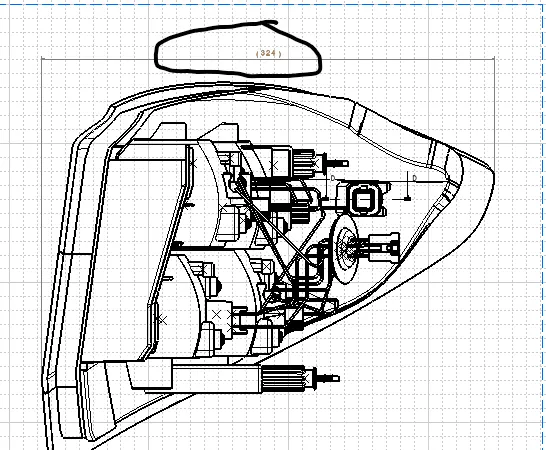

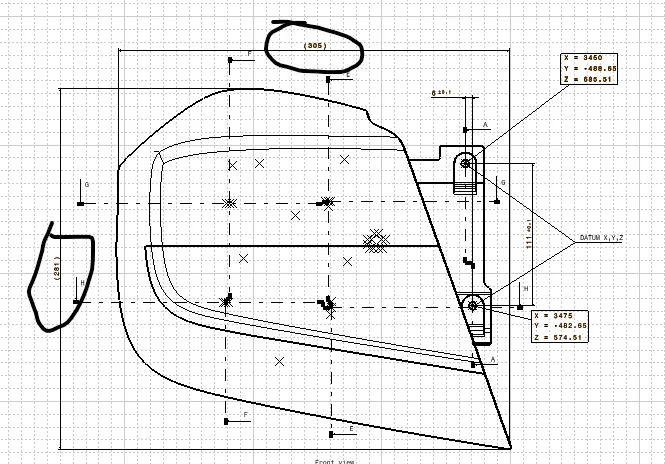

********************************************************************************************************************************************4.Packaging distance

Ans:-

It shows the overall lenth of the lens, housing

********************************************************************************************************************************************5.Regulation angles

Ans:-it is defined by the regulatory bodies and every oem has to follow it.

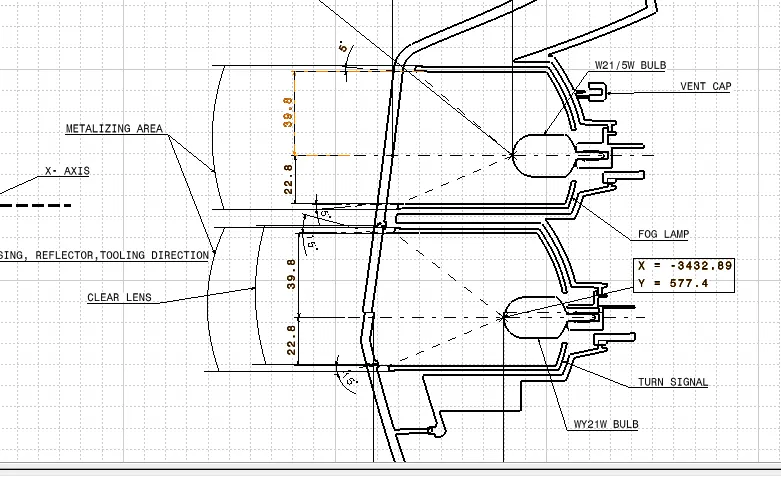

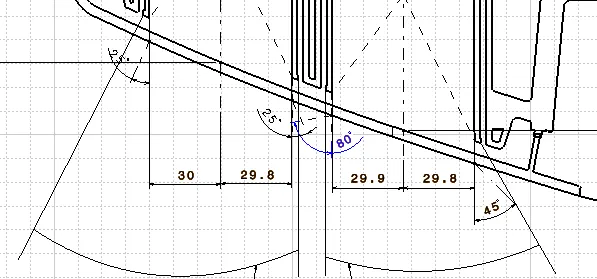

FOG LAMP and TAIL STOP FUNCTION HORIZINTAL REGULATION

TURN SIGNAL AND REVERSE FUNCTION HORIZONTAL REGULATION

TAIL STOP AND REVERSE FUNCTION VERTICAL REGULATION

FOG LAP AND TURN SIGNAL VERTICAL FUNCTION

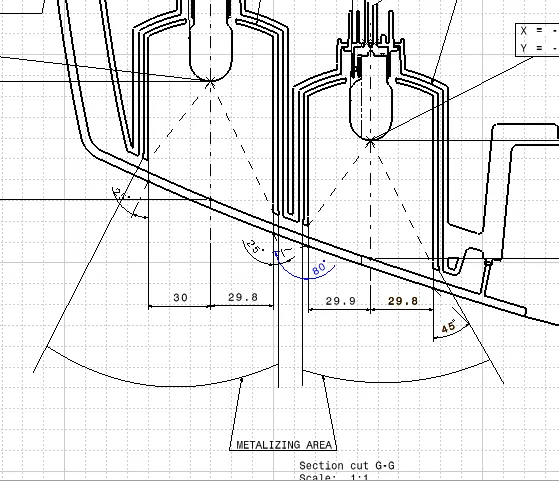

********************************************************************************************************************************************6.Metalizing area’s

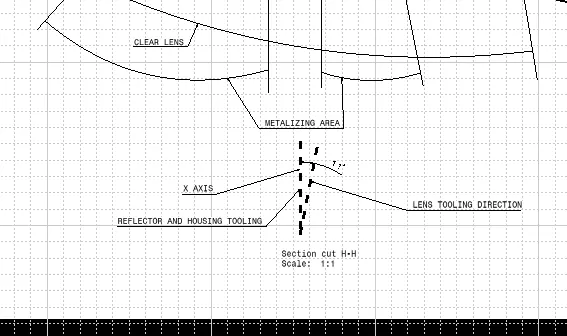

Ans:- It is the area where the aluminium coating will be applied

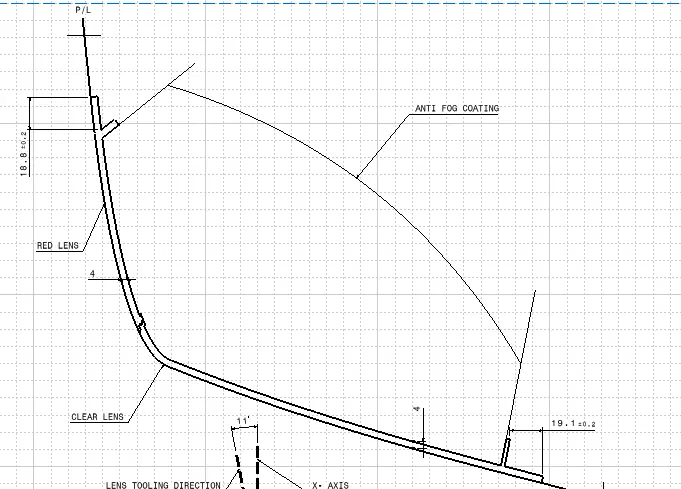

********************************************************************************************************************************************7.Anti fog coating area’s

Ans:- It helps the lens to resist fog and give customer a clear vision

********************************************************************************************************************************************8.BOM

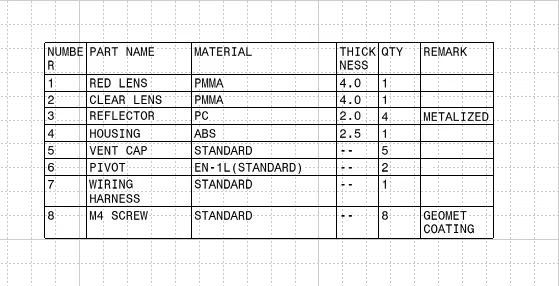

Ans;- It is known as bill of material it show al the element used in the design of the product in a table for manufacturing

********************************************************************************************************************************************9.Slider lines

Ans:- It shows the movement of the tool and if there is an angle of at which tool has to move as shown in the image below

********************************************************************************************************************************************10.Parting line for all parts

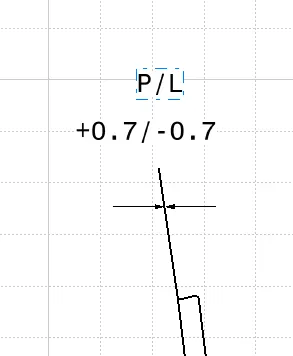

Ans:- Parting line is a line which divide the core and cavity part from each other.It is the most critical area to find sometimes the parting line turns out to be pannel gap in interior parts like IP, Door trims

IP of XUV7OO

********************************************************************************************************************************************
