Week 11- Broadband Noise modelling over Ahmed body

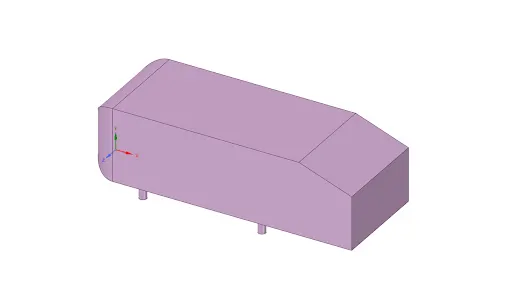

Ahmed body model

In the automobile industry, Ahmed Car Body is the standard wind tunnel model that can be used as a validating case, in CFD simulation. Ahmed Body is a generic car-type bluff body with a slant back that has different angles from 0 – 40 degree. Ahmed body is a generic car body (a simplified car model) i.e It is usually used as a benchmark test case for simulating the external aerodynamic flow characteristics over a car model. The flow of air around the Ahmed body captures the essential flow features around an automobile.

Ahmed body is a simplified car model created by Ahmed et in 1980’s to investigate the behaviour of newly developed turbulence models for complex geometry cases. It’s body is made up of a round front part, a moveable slant plane placed at back part of the body to study the coefficient of drag and separation phenomena at different angles, and a rectangular box, which connects the front part and the rear slant plane. As the wake separation flow behind the Ahmed body is the main contributor to the drag force, accurate prediction of the separation process and the wake flow are the key to the successful modelling of this case.

Ahmed body is a simplified model of a car body, but it demonstrates all the flow features involved in an actual case of a moving car.

Reasons for negative pressure in wake region

Before we discuss why there is a negative pressure region we need to understand the following terms:

1. Wake
2. Flow separation
3. Adverse pressure gradient

Setup:

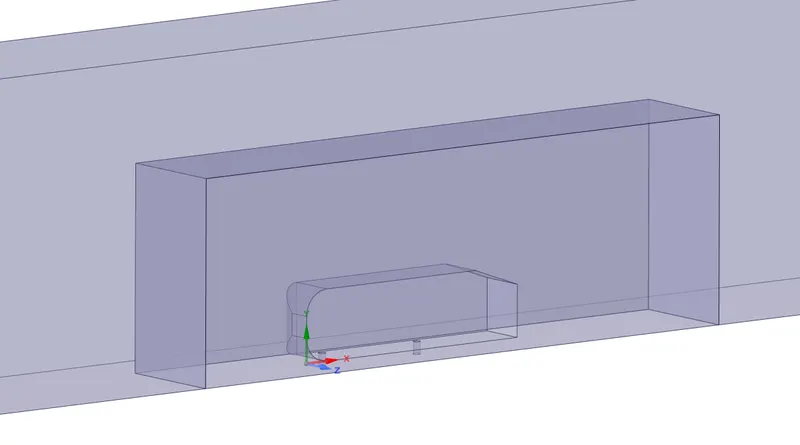

Step-1 import geometry in space claim and make repairs if necessary

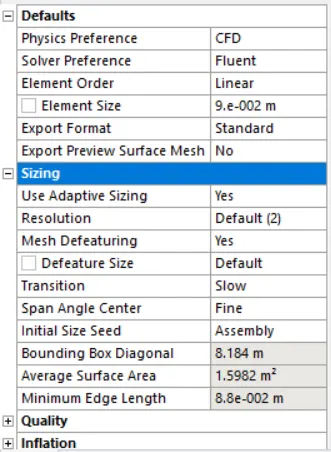

Step-2 open ansys mesh and follow the mesh settings

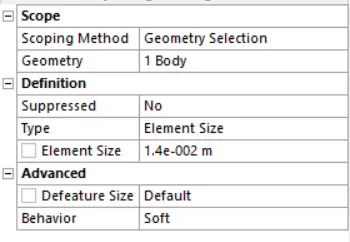

Step-3 body sizing settings

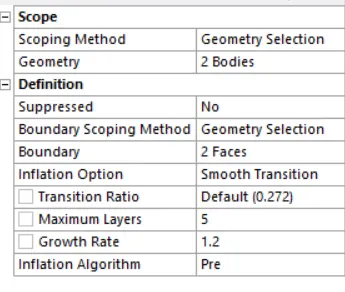

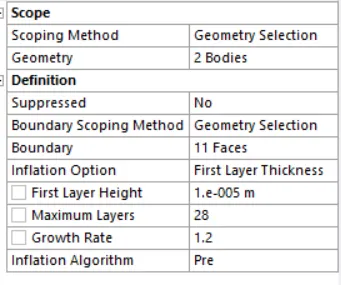

Step-4 inflation layer 1 setting

Step-5 inflation layer 2 setting

Step-6 Named selections

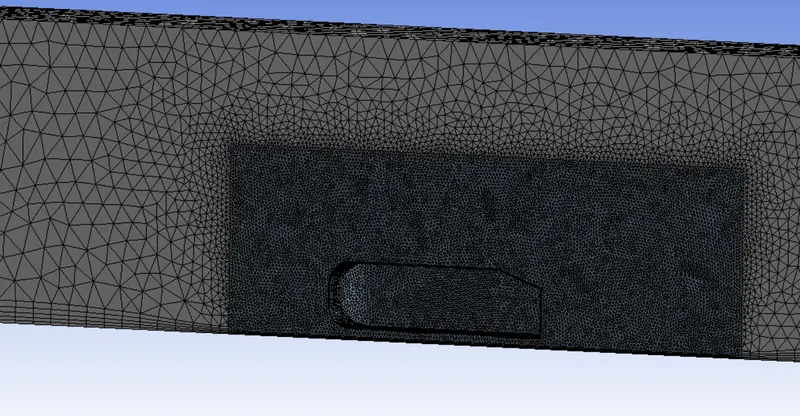

Step-7 Final mesh

Step-8 import mesh in ansys fluent

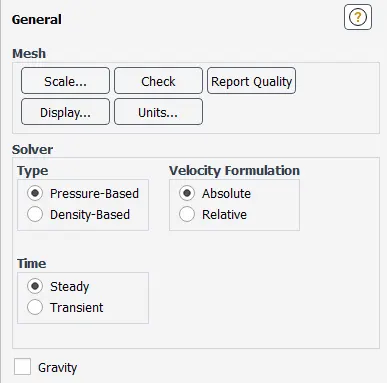

Step-9 general settings

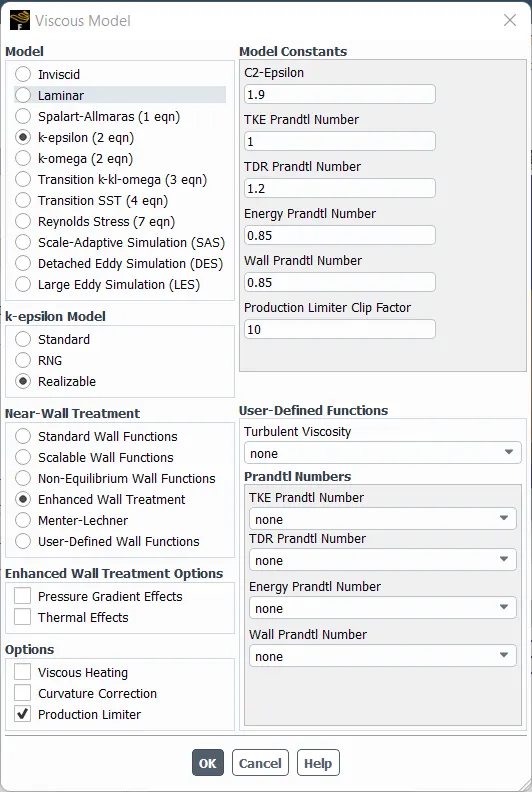

Step-10 Viscous model

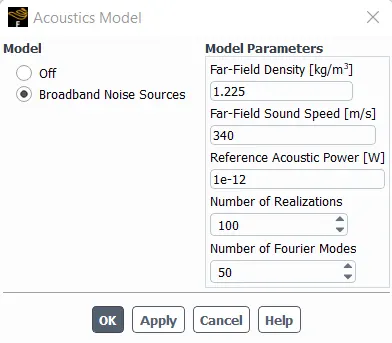

Step-11 Acoustics on

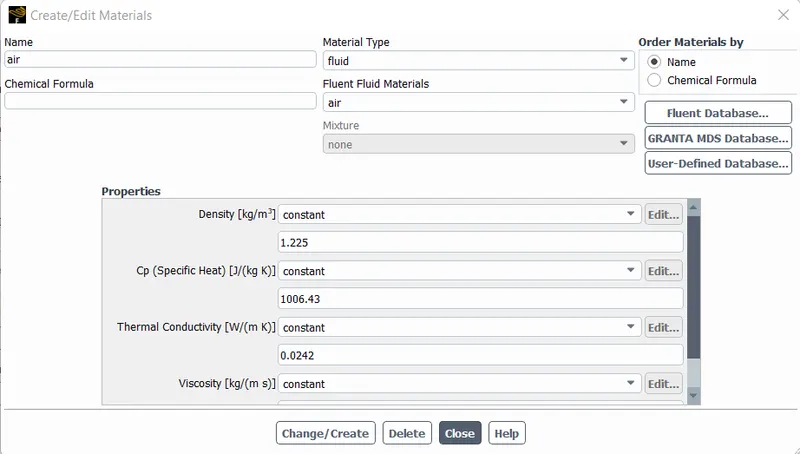

Step-12 Material selection

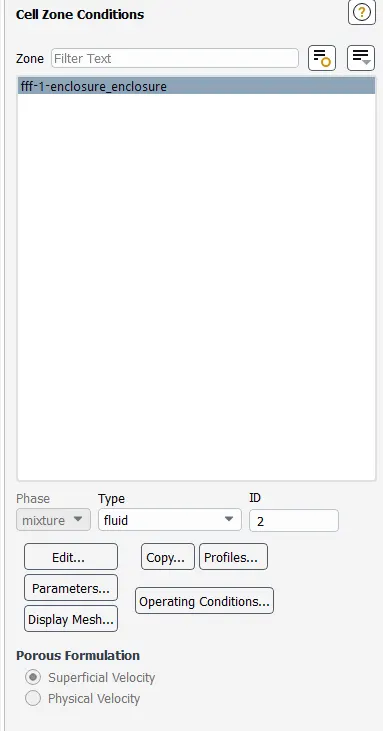

Step-13 Cell zones

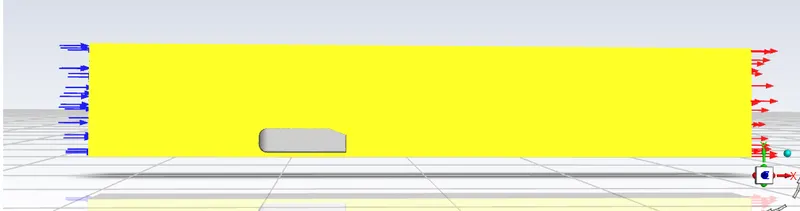

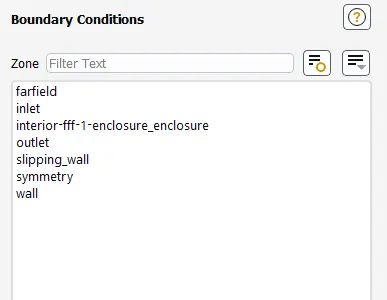

Step-14 Boundaries

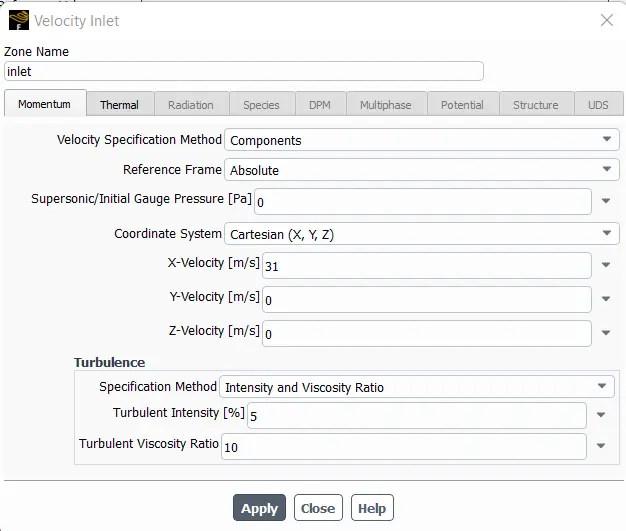

Step-15 inlet BC

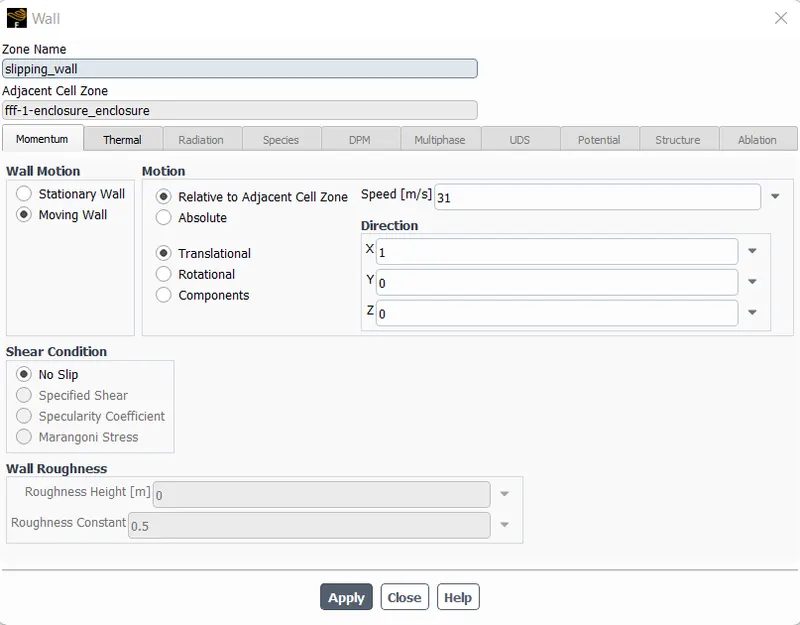

Step-16 Slipping wall BC

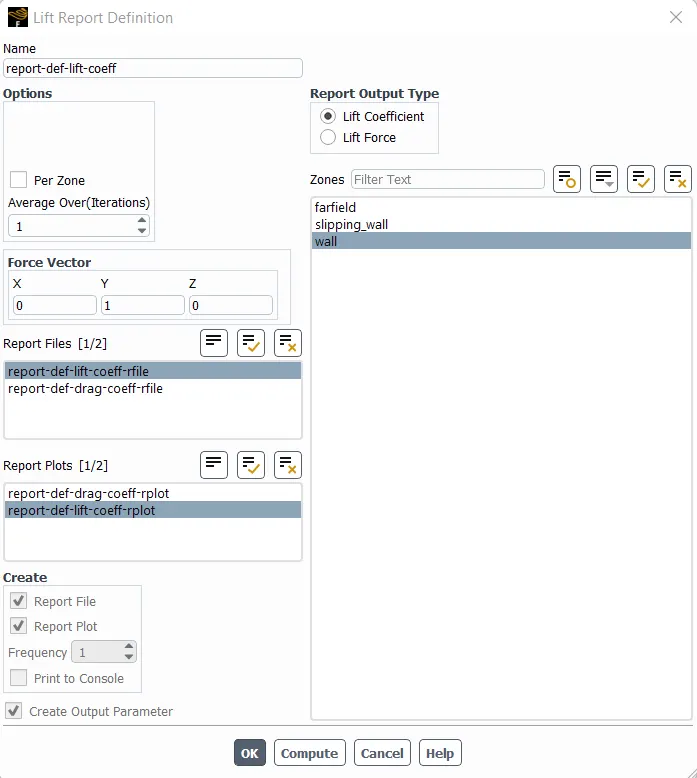

Step-17 Lift report definitions

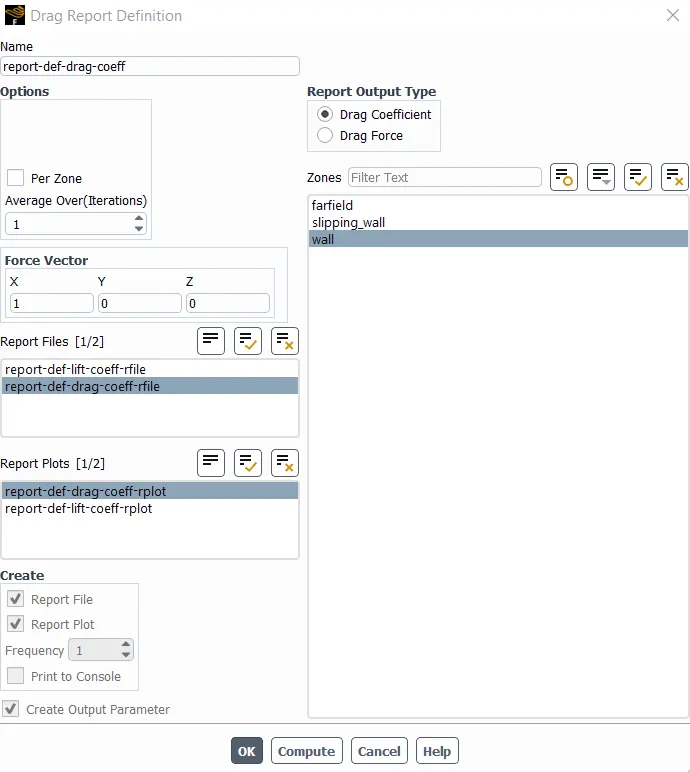

Step-18 Drag report definitions

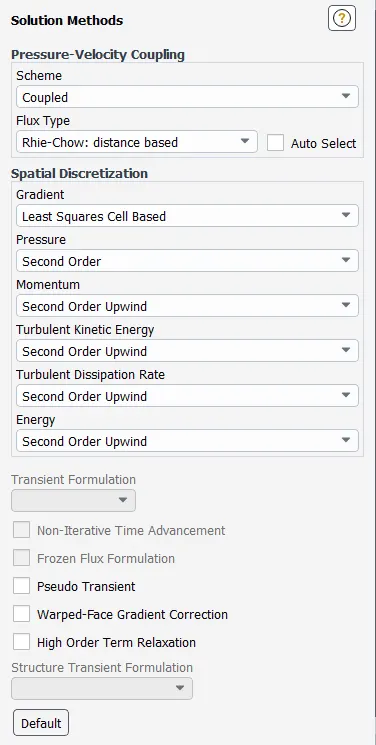

Step-19 Solution methods

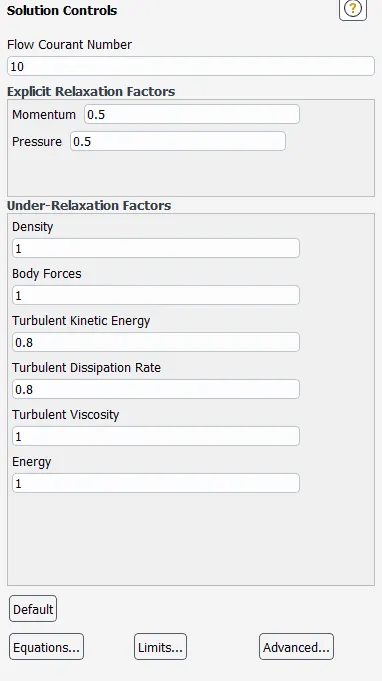

Step-20 Solution controls

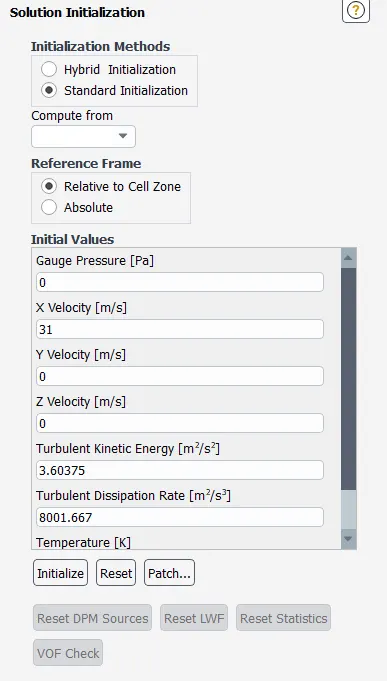

Step-21 initialization

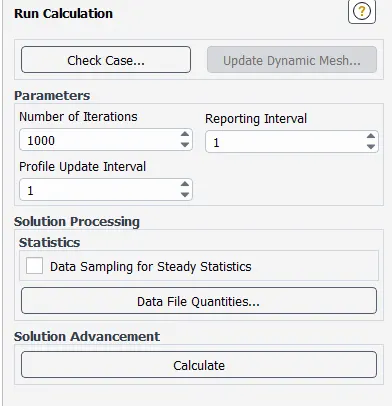

Step-22 run calculations

Results:

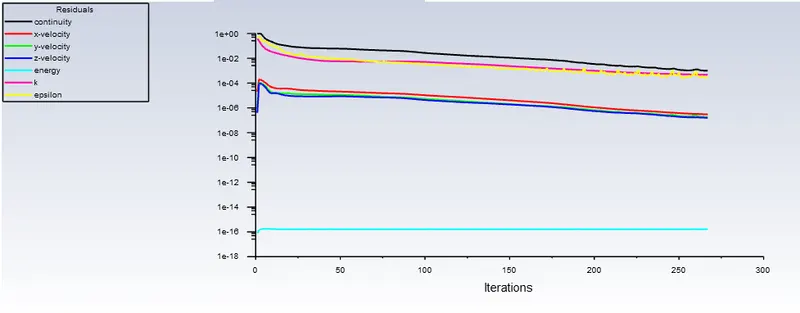

Residuals:

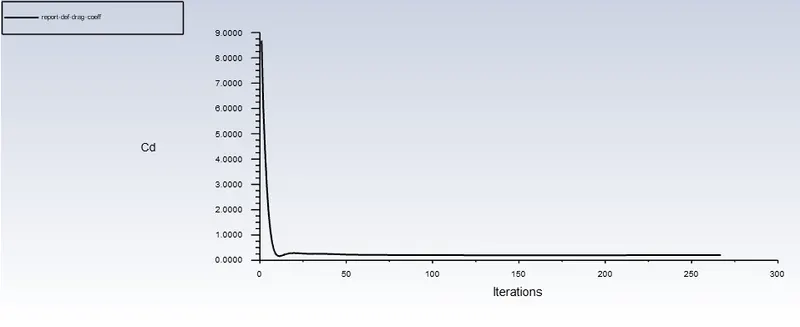

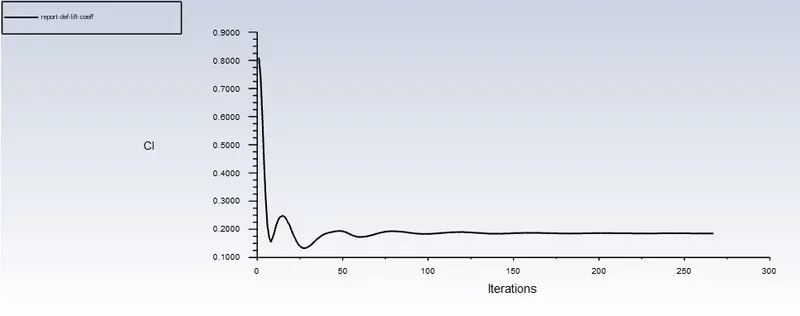

Cd and Cl plots:

Contour Plots:

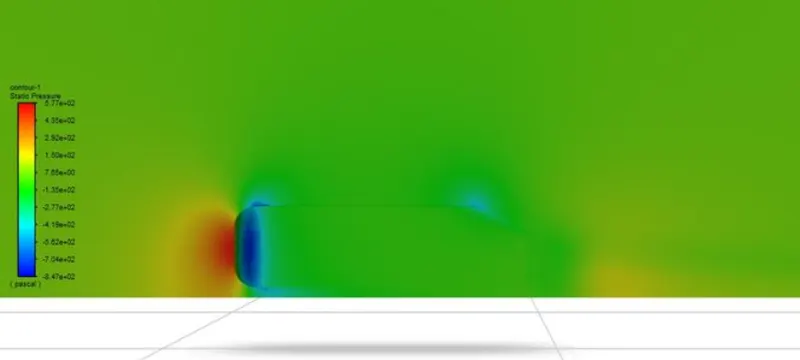

Pressure Contour

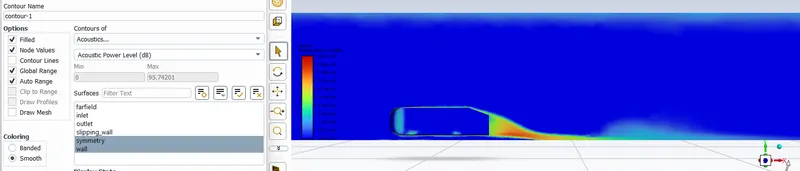

Acoustic Power level (dB)

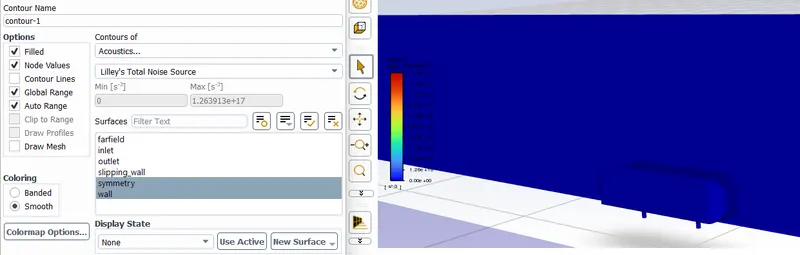

Lilley's total noise source

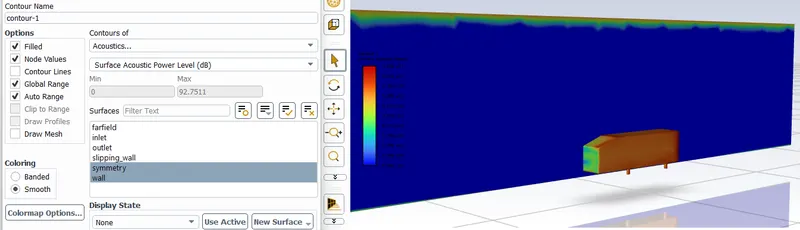

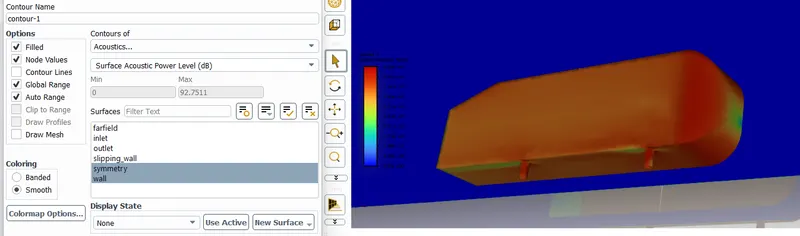

surface acoustic power level (dB)

Conclusion:

A simulation of Broadband Noise modelling over Ahmed body was conducted.
