Week 11-3D Tetra Meshing Challenge

AIM: 3D tetra mesh for the components given
PROCEDURE:
Model 1:

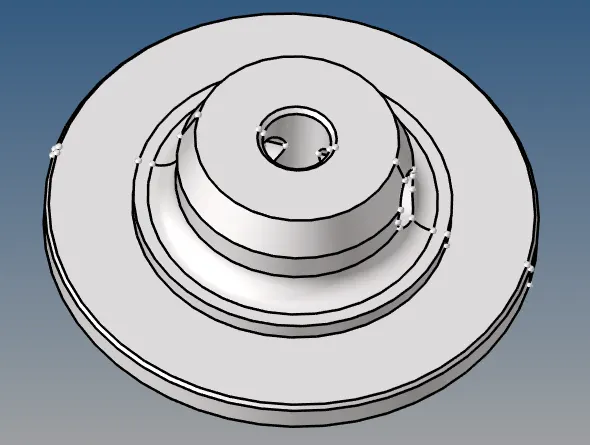

1. Study the housing component and check for solid component as shown in the Figure.

2. Mesh using automesh for target element size 5.

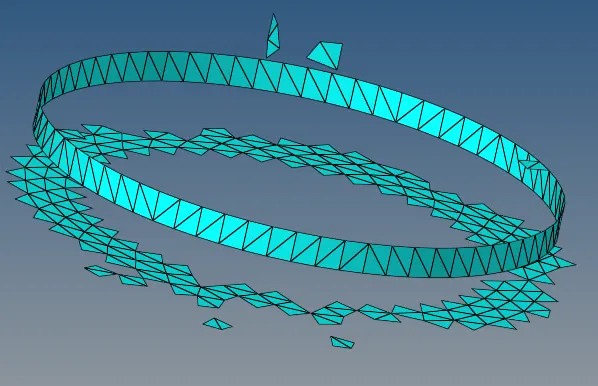

3. Check for element for the length range 2 to 7 and mask the failed elements and remesh.

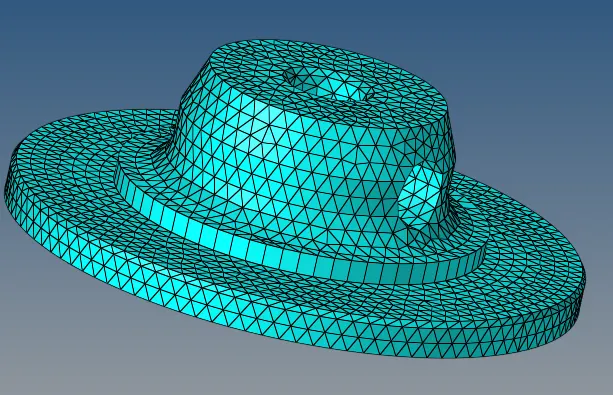

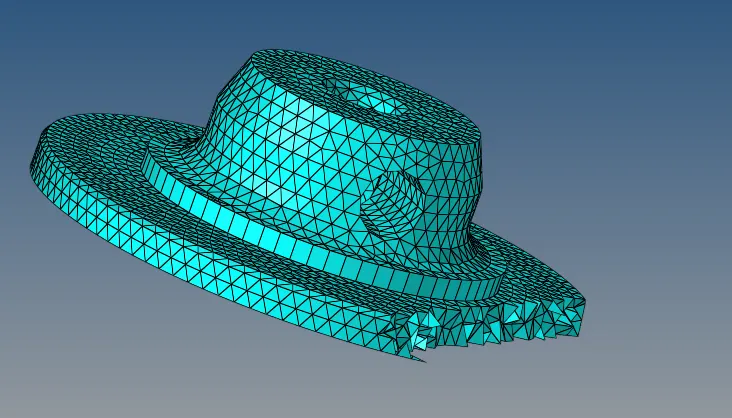

4. Check again for element and perform 3D tetramesh and save hypermesh.

Model 2:

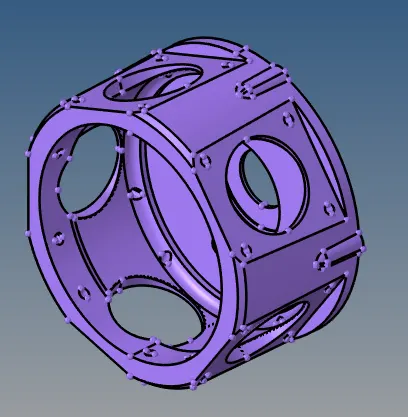

1. After Import study the geometry for distance of fillet which is 2.8 and perform defeature.

2. Use Quick edit toolbar to correct the points and lines.

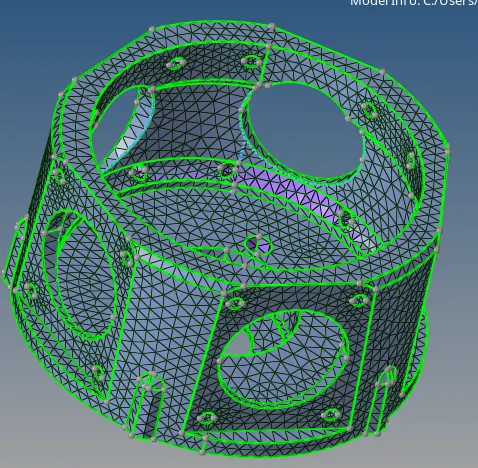

3. Perform automesh for the target size 3 mm and check the number of nodes on each edges.

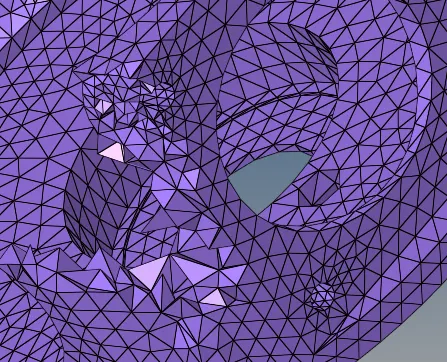

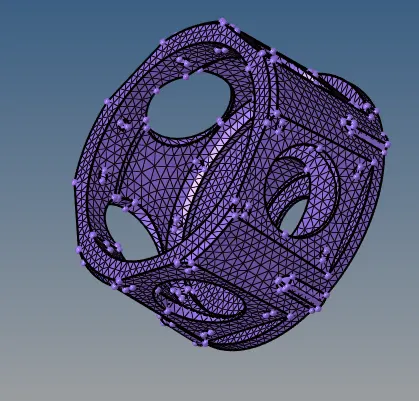

4. Perform 3D tetramesh and check for tet collapse.
