Week 11-3D Tetra Meshing Challenge

Model-1:

Aim: For the given MODEL 1, Create a Teramesh for Housing component with the given quality criteria.

Procedure:

1)Initially geometry cleanup is performed to avoid the minimum size failures.

2)2D surface mesh is generated using the tria elements with average element size of 5 units.

3)The 3D tetra mesh is generated using the tetramesh command in 3D panel. Tet collapse criteria has been satisfied.

Conclusion: The tetra mesh is perfomed on the given geometry by converting the 2D surface mesh into 3D tetra mesh.

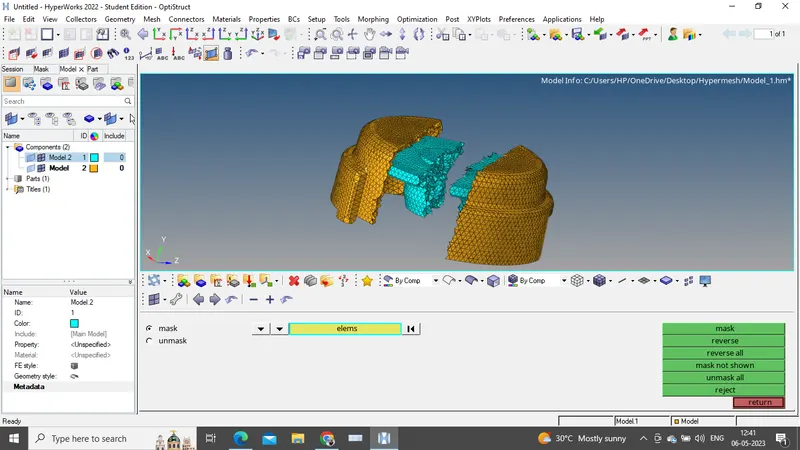

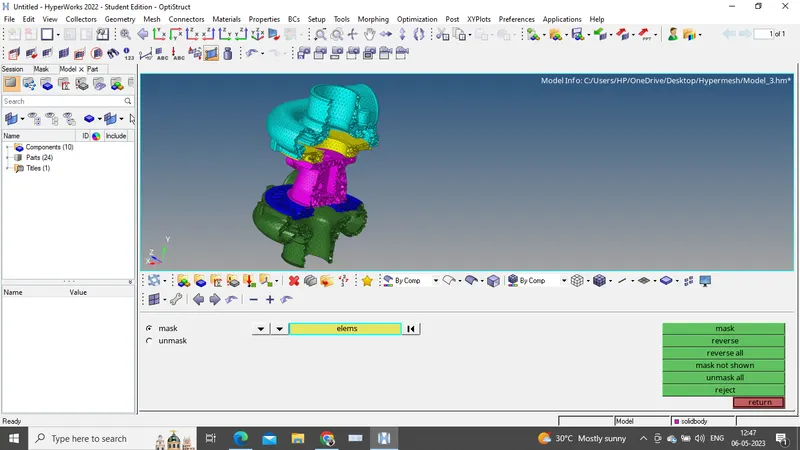

Model 2 and Model 3:

Aim: The given MODEL 2 and MODEL 3, Create a 3D Tetramesh with the given quality criteria.

Procedure:

1)Direct tetra mesh is generated on the given model, using volume mesh command.

2)Tetra Remesh command is used to correct the tet collapse failures.

conclusion: 3D tetra mesh is created for the given model using Volume tetra command.
