Week 11:- 2D Detailing Challenge 2

AIM

To Create 2D Drawing for each Clamp Units with all child parts and also create Child pard drawing for the same for the Fixture assembly and to Create 2D Drawing for each Pin Units drawings with all child parts and also create Child pard drawing for the same for the Fixture assembly created in challenge 8.

INTRODUCTION

 The fixture design after the 3D finishing process has to be done with 2D finishing before it is sent for manufacturing. All the dimensions of the fixture units and their child parts have to clearly mentioned in the drawing sheets. The detailing can be changed as per the requirement of the customer and company standards. GD&T must be used in order to reduce the cost of manufacturing.All the views must be clearly visible and provided with dimensions in the drawing sheets.

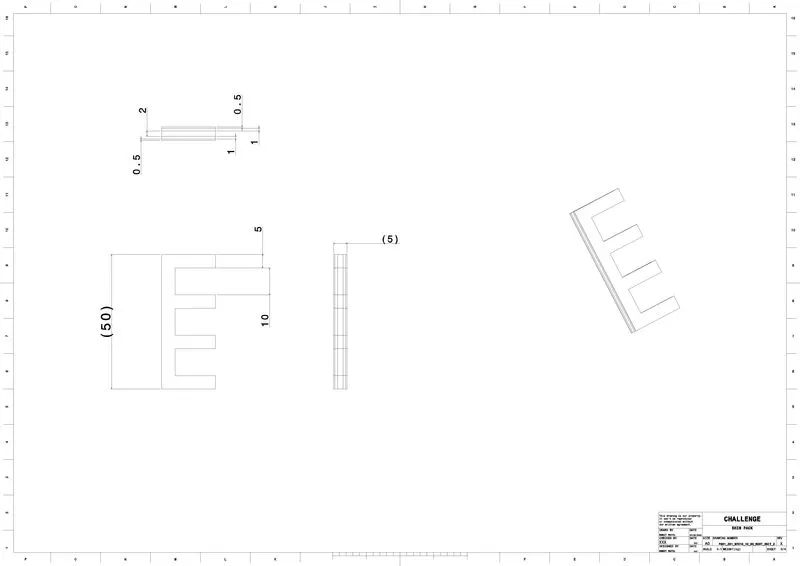

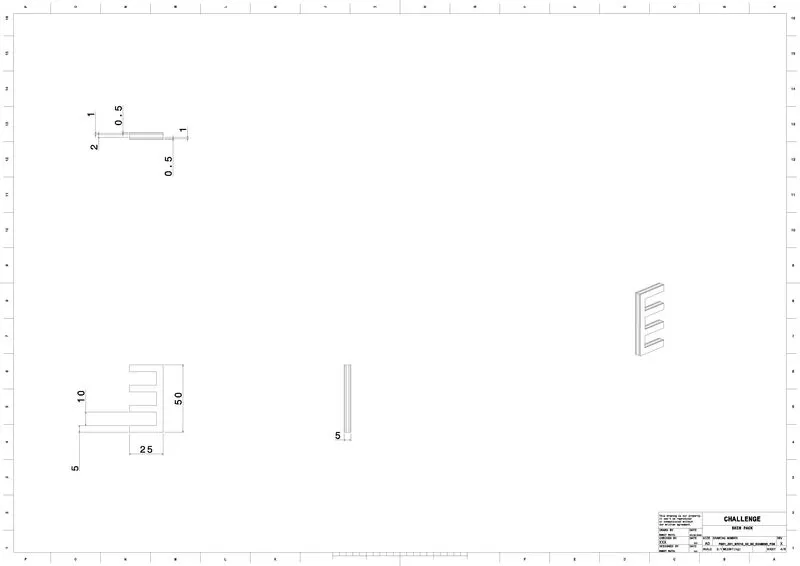

2D DETAILING OF PIN UNIT:-

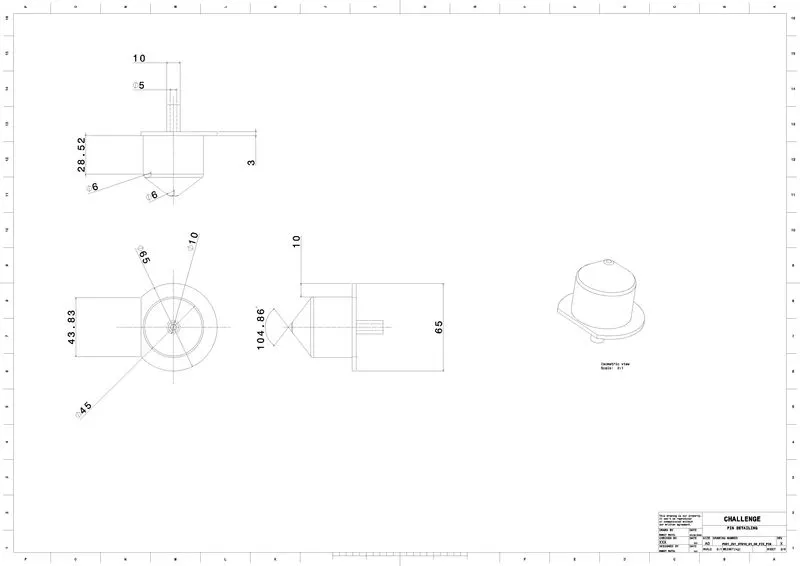

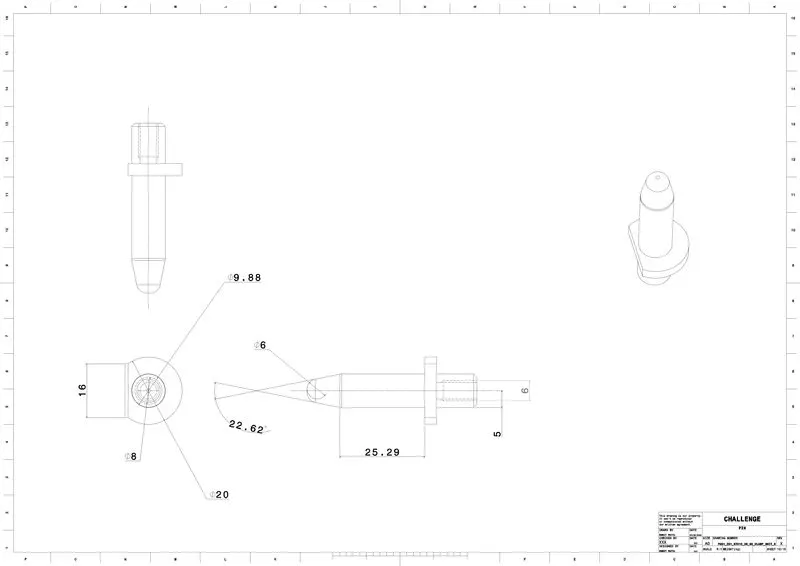

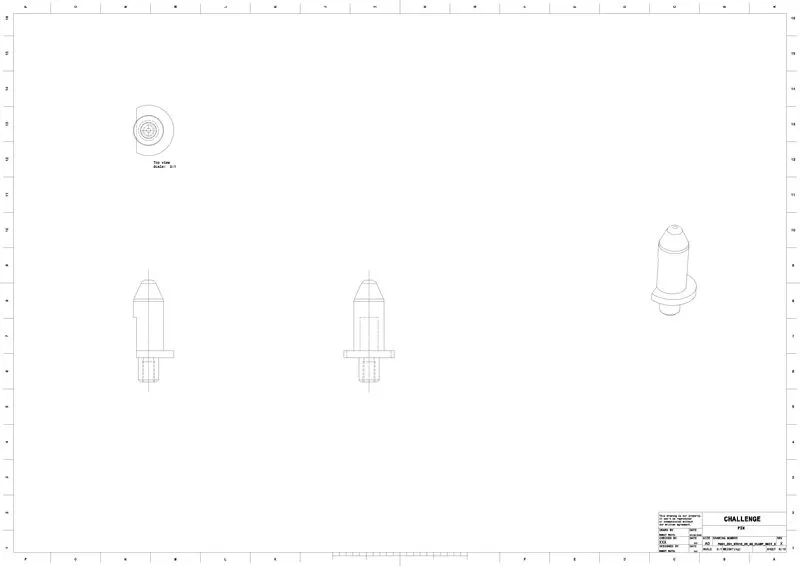

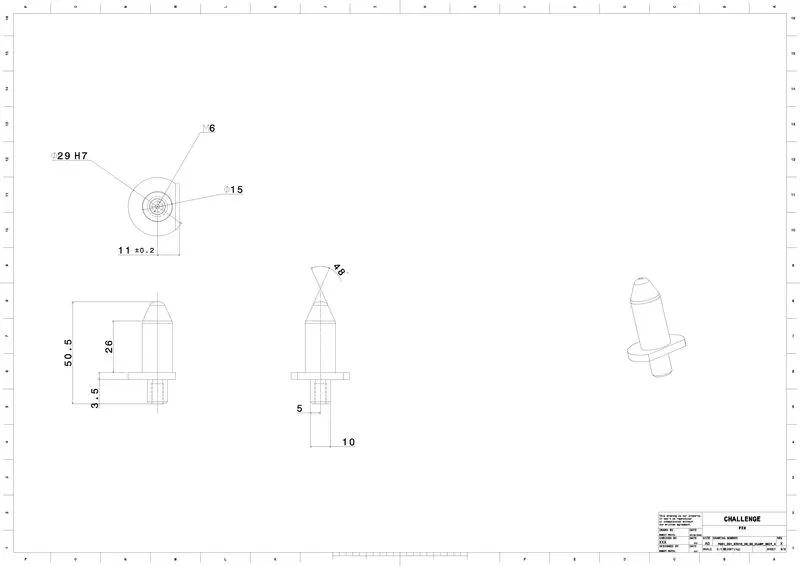

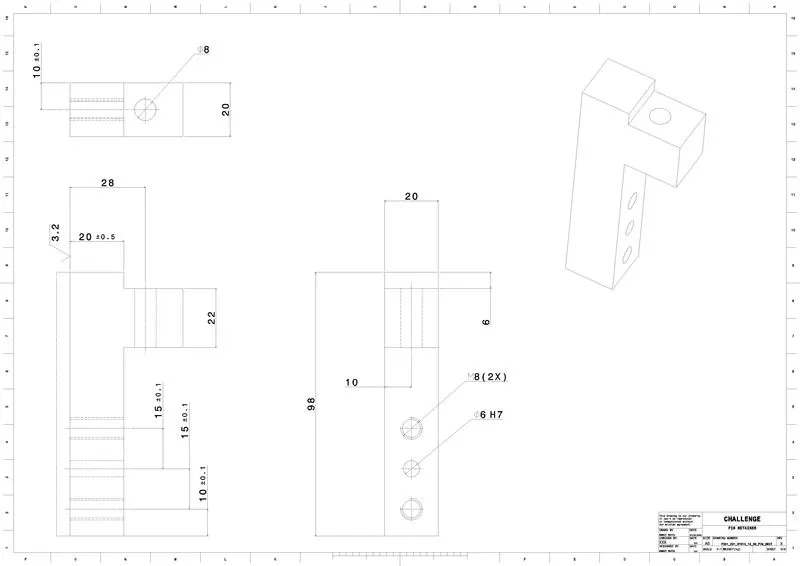

     P001_Z01_STO10_01_00_FIX_PIN:-

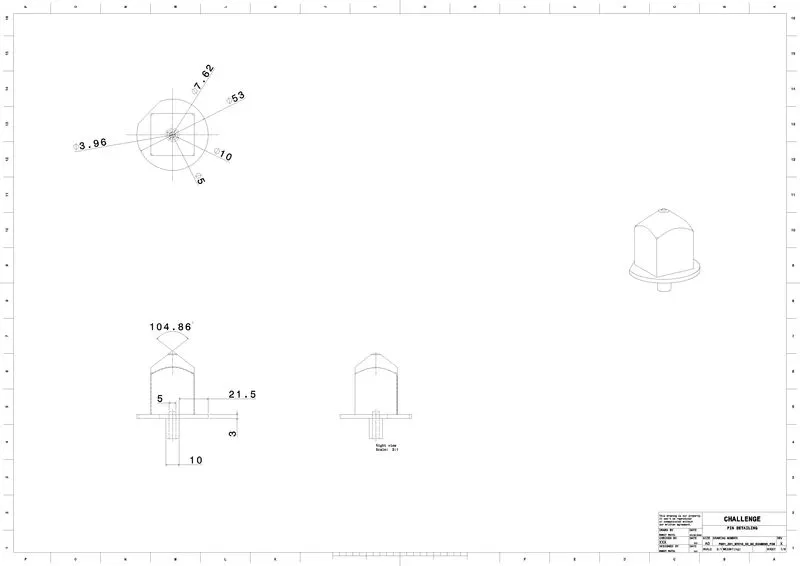

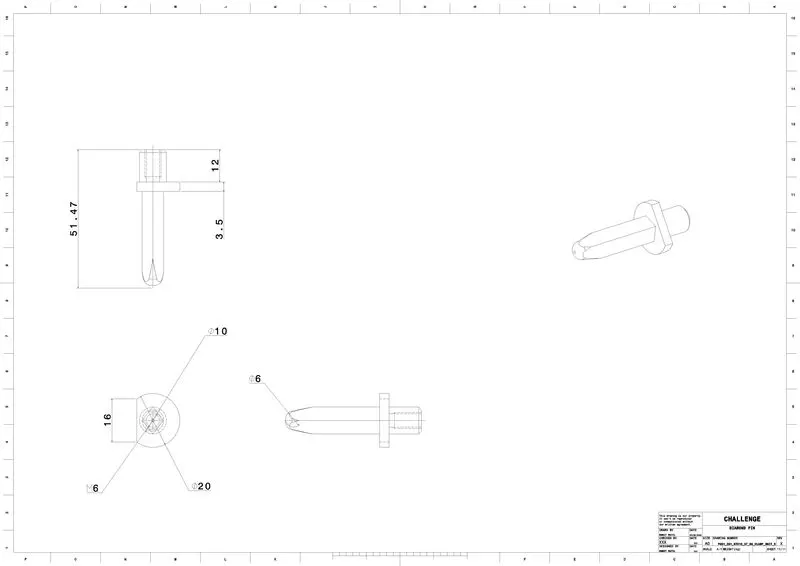

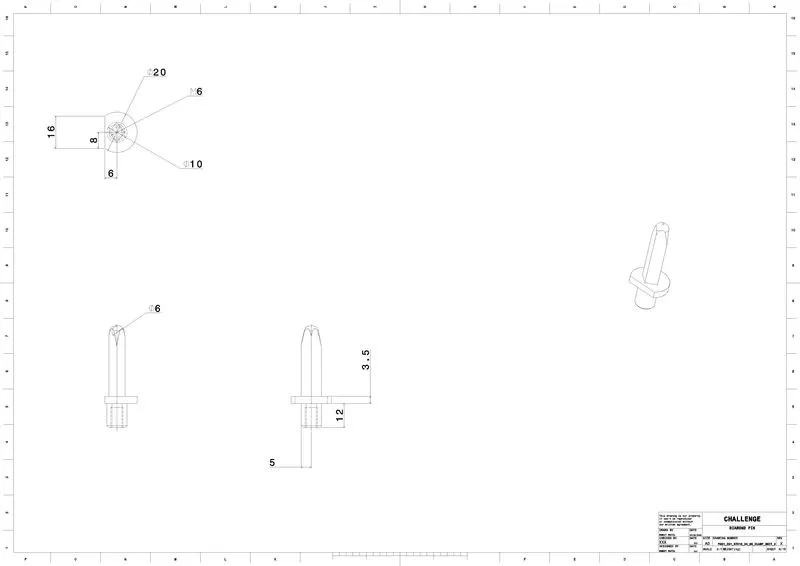

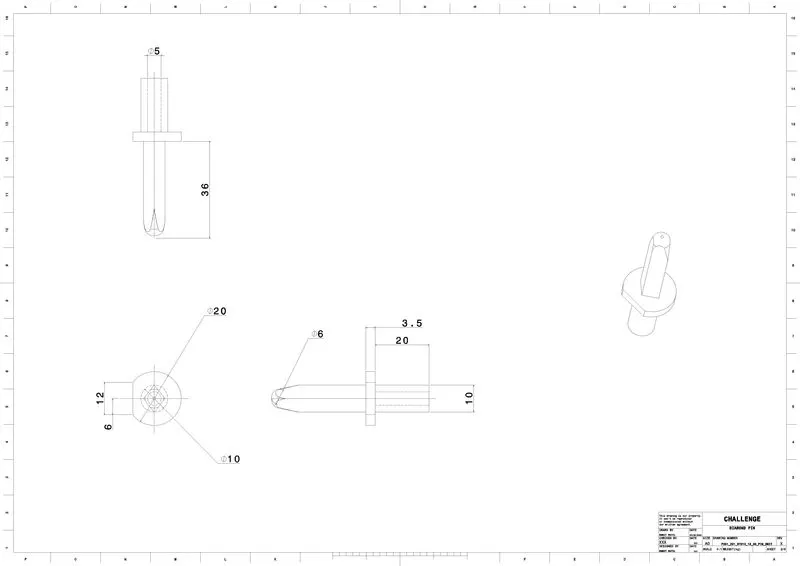

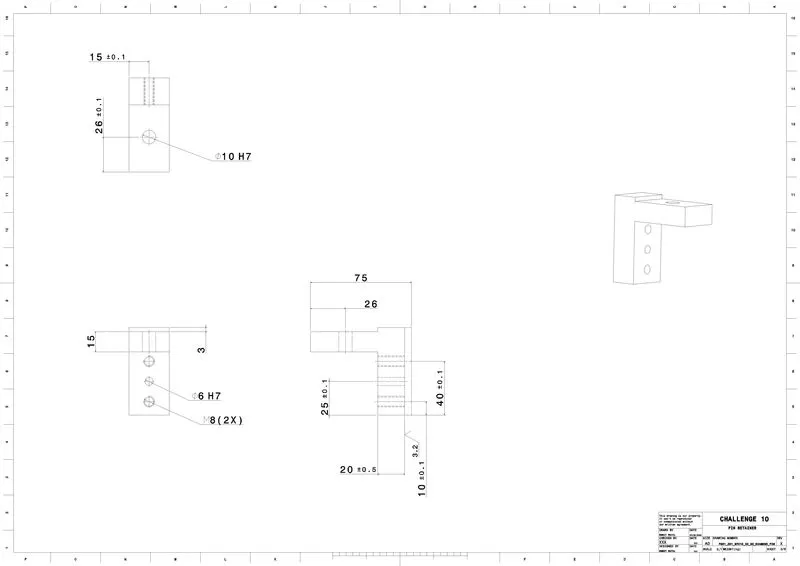

        P001_Z01_STO10_02_00_DIAMOND_PIN:-

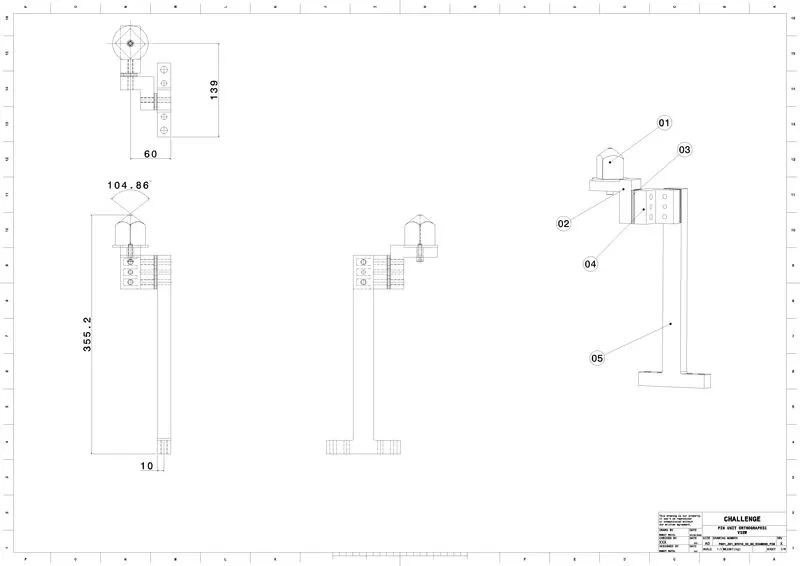

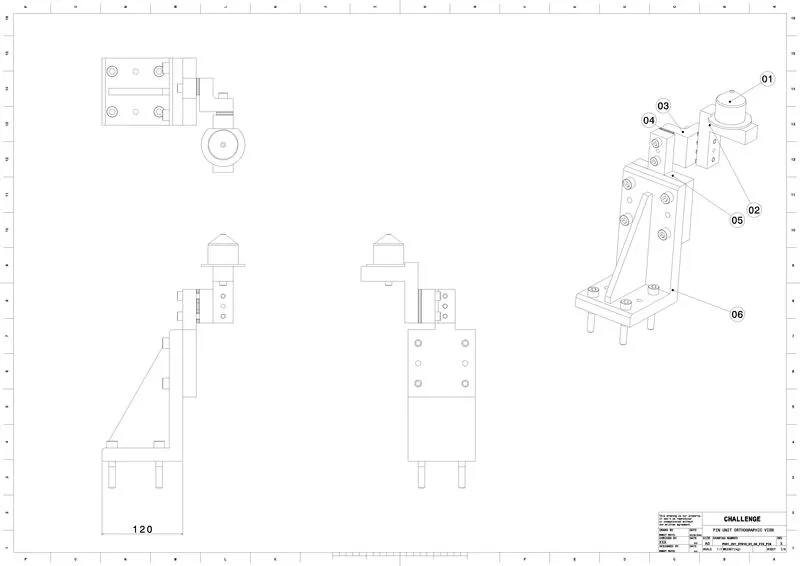

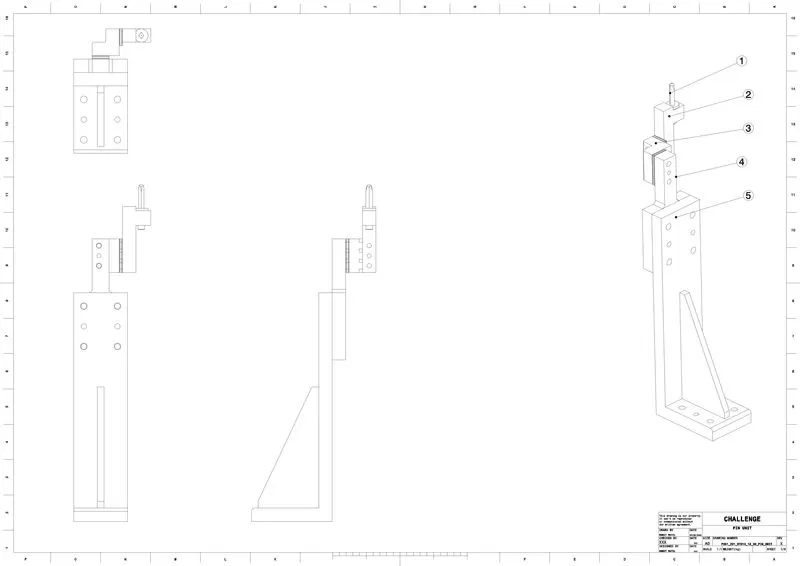

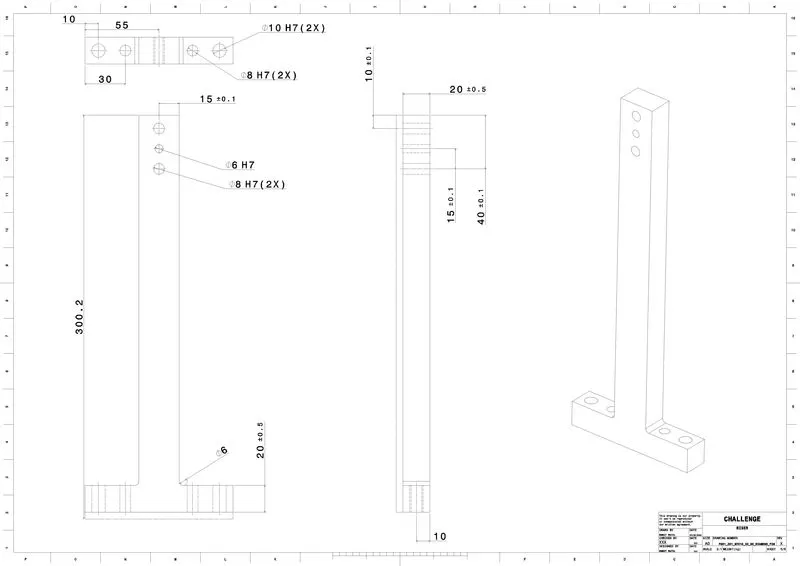

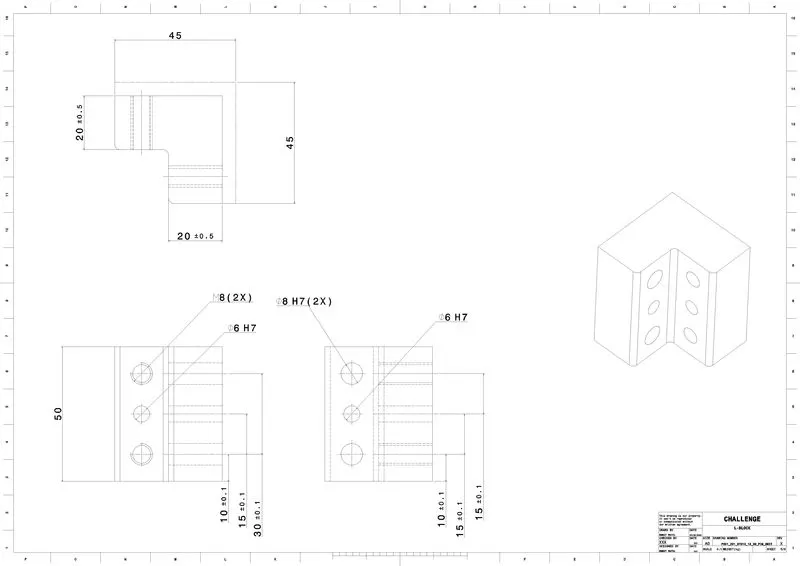

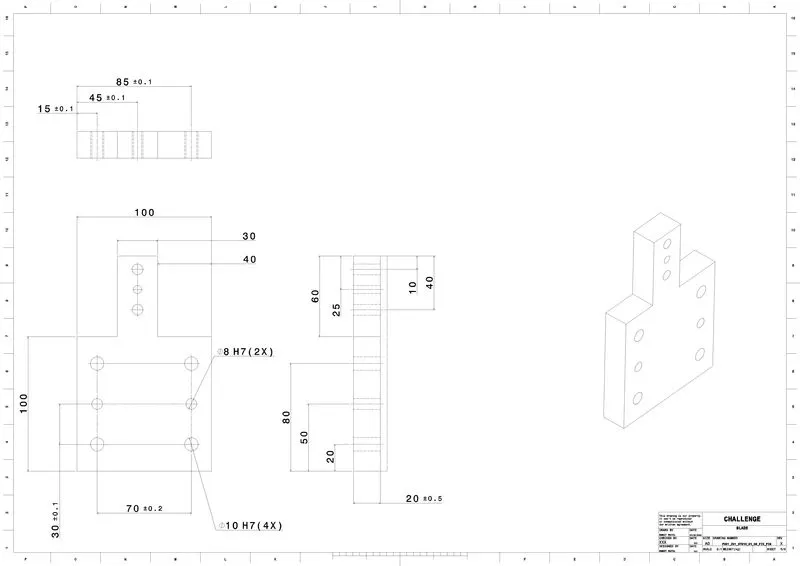

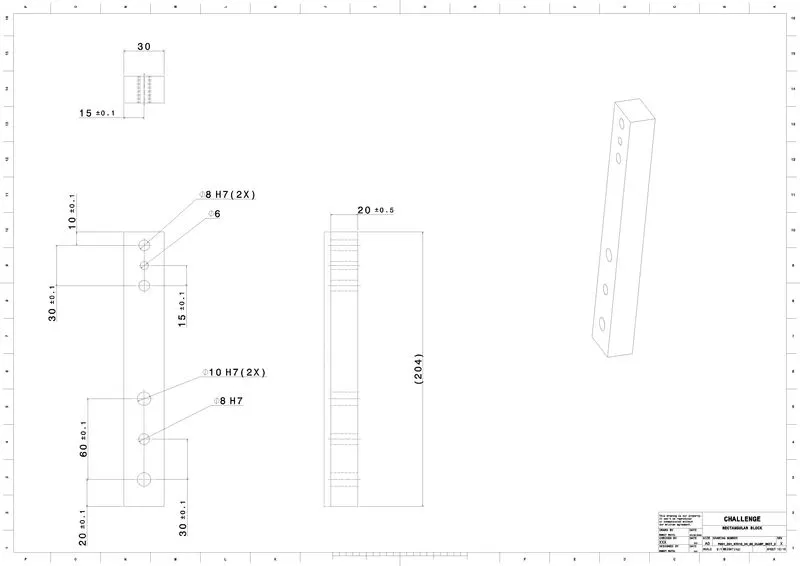

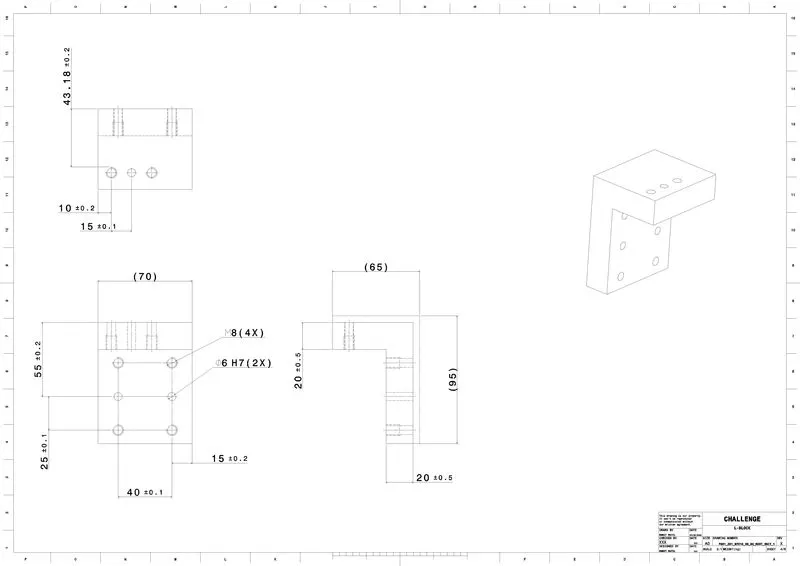

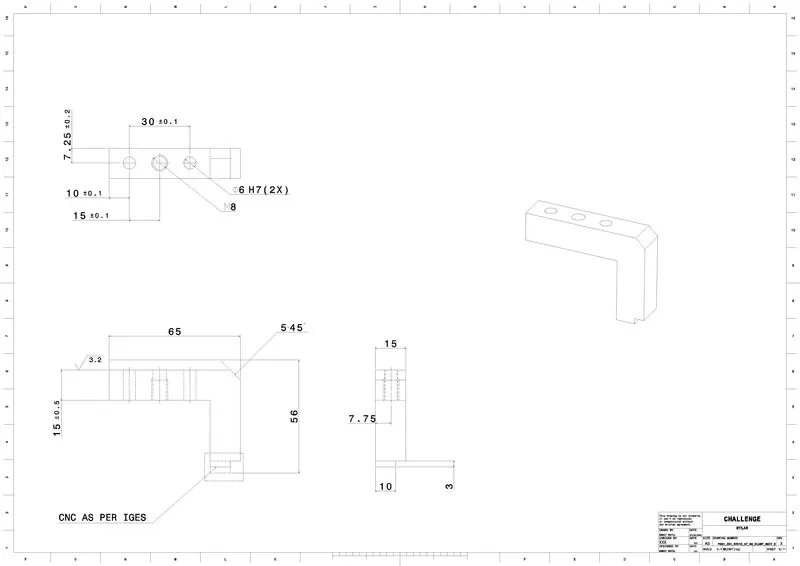

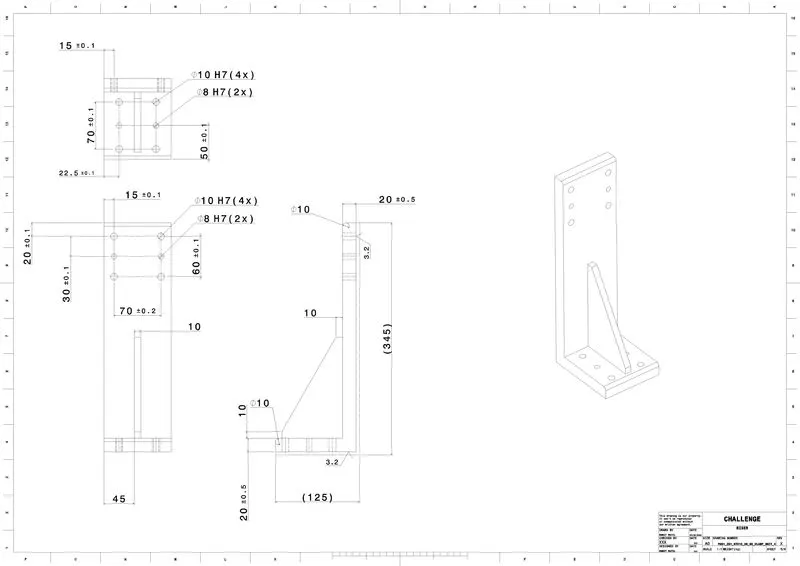

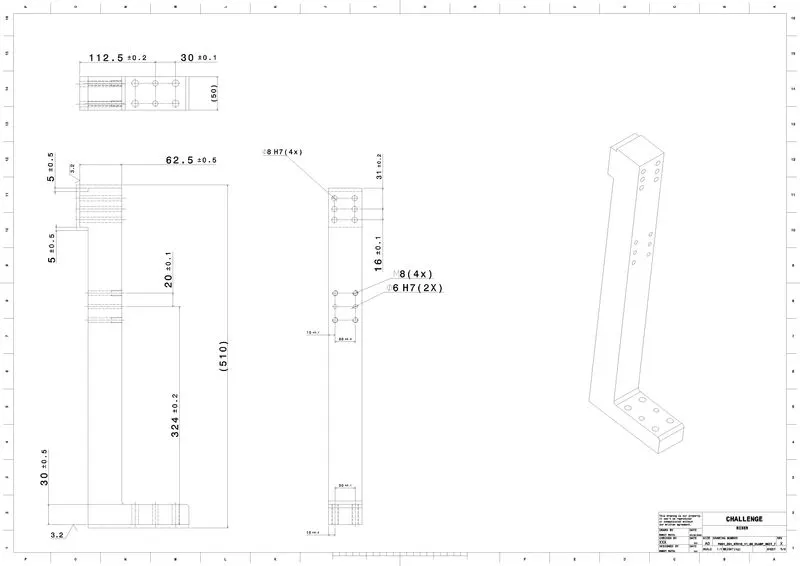

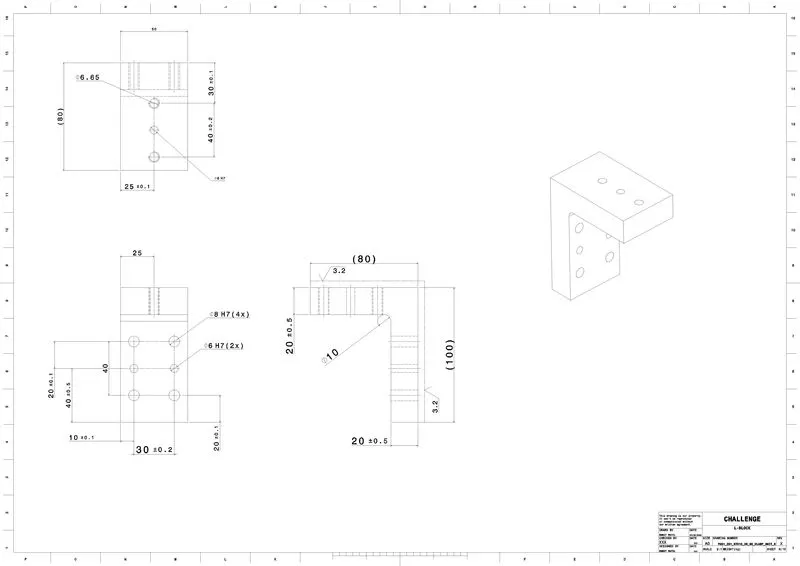

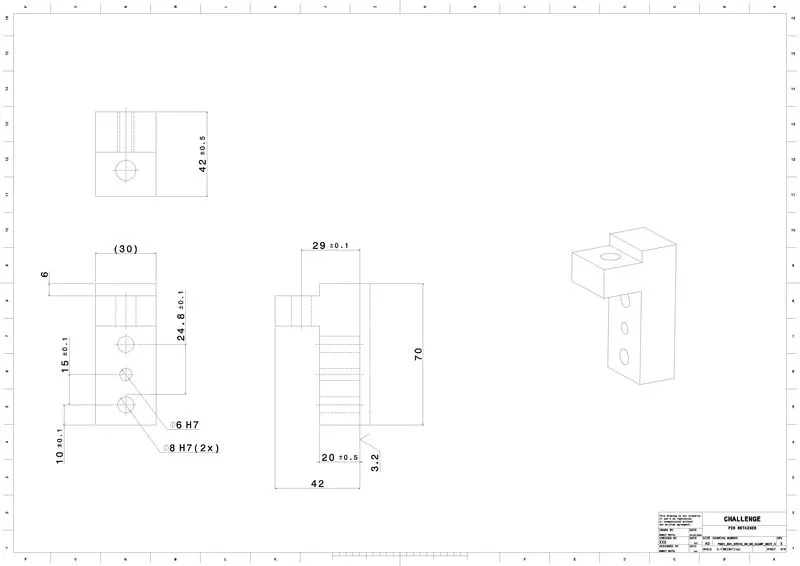

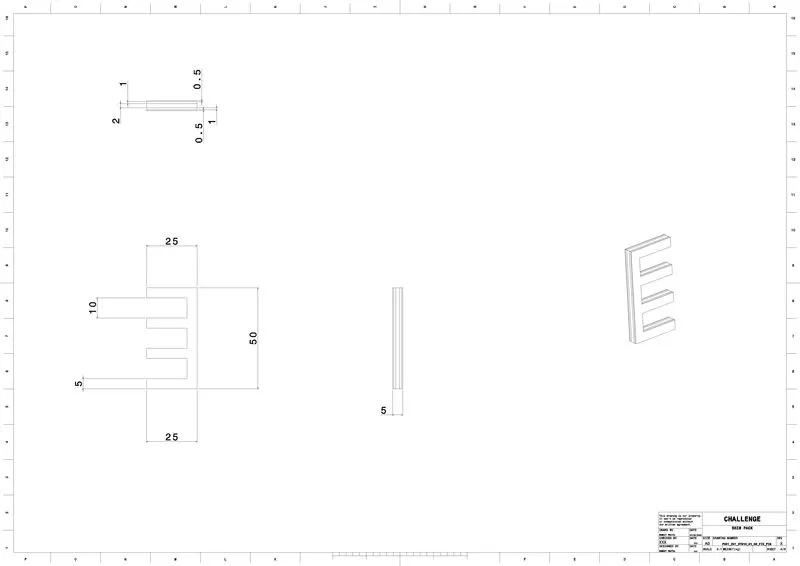

P001_Z01_STO10_12_00_PIN_UNIT:-

         The quantity of this Pin unit is 2, i.e it is used in two places in the fixture assembly, and below is the detailing.

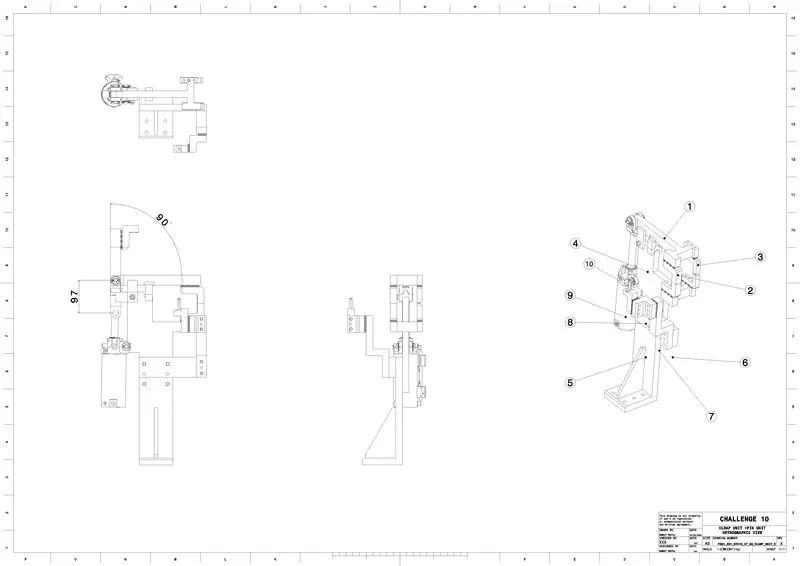

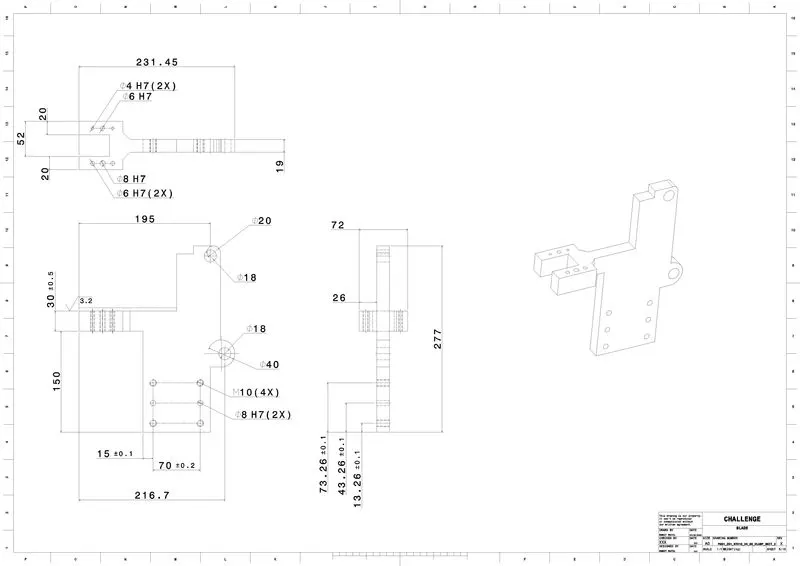

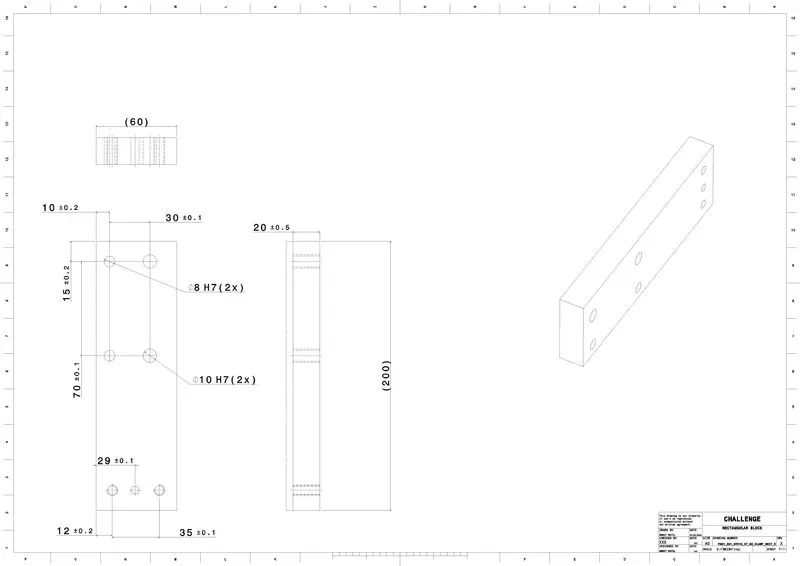

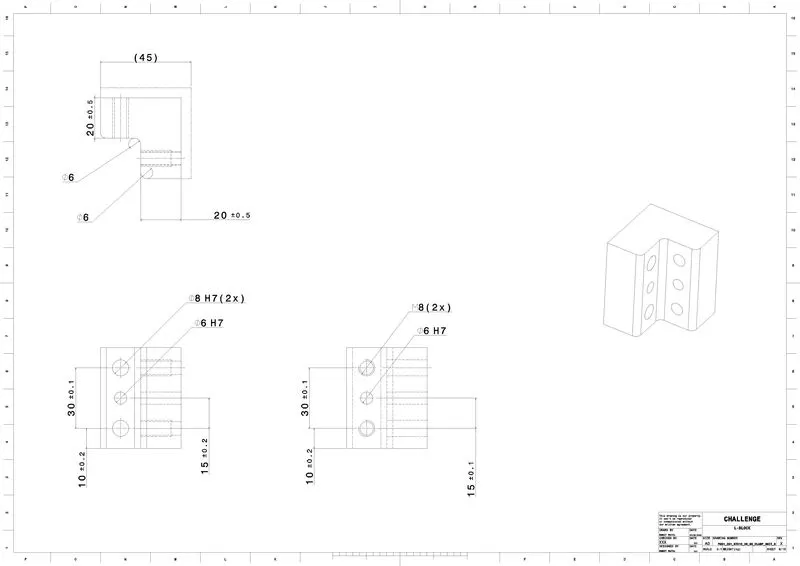

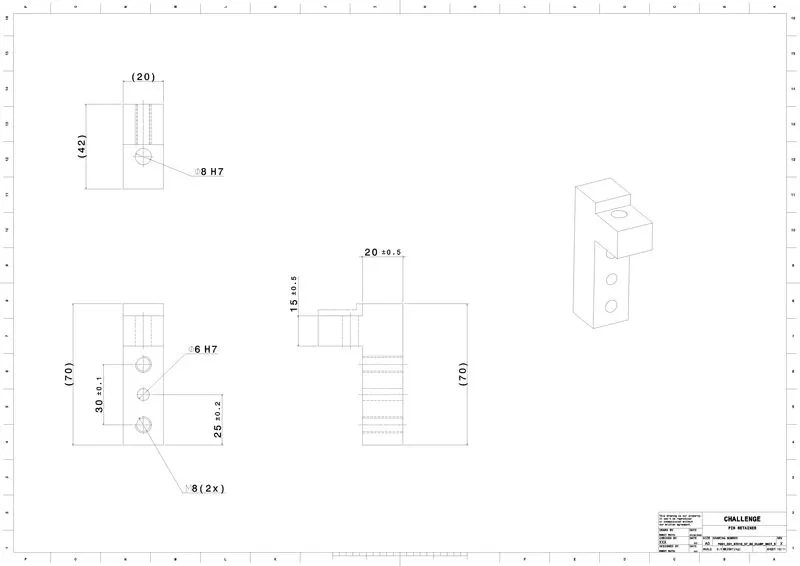

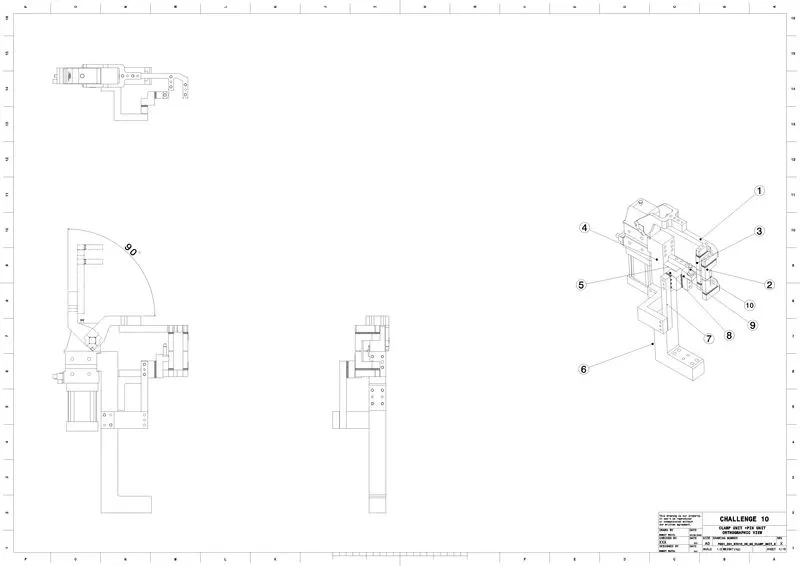

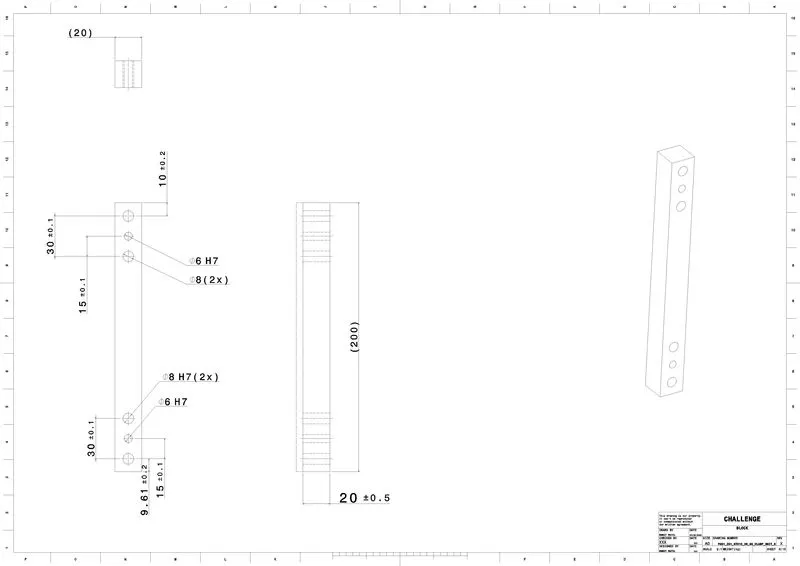

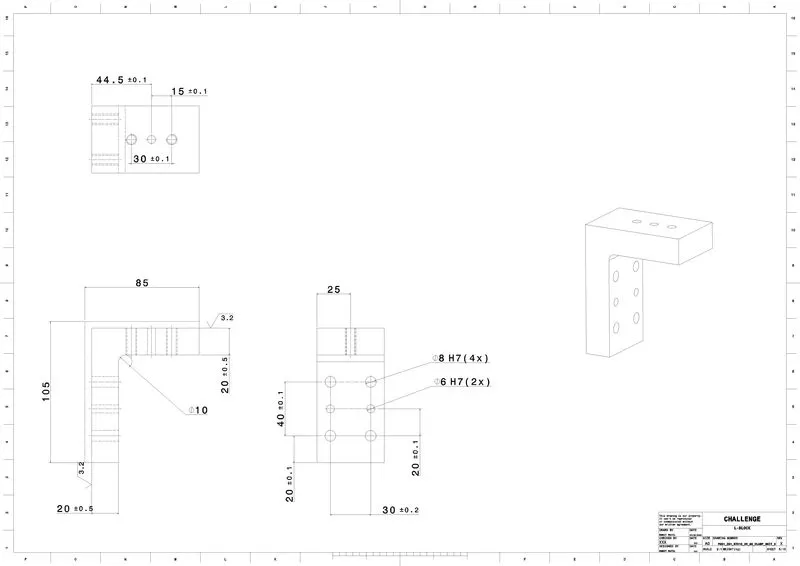

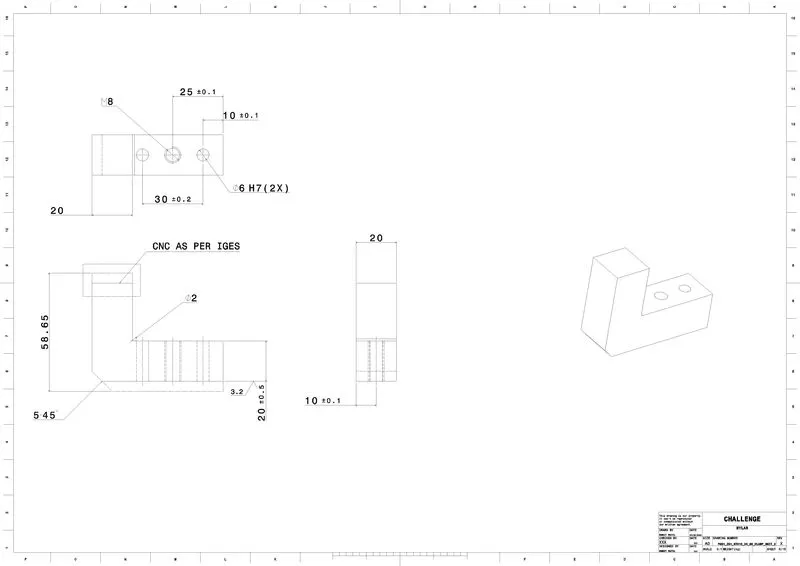

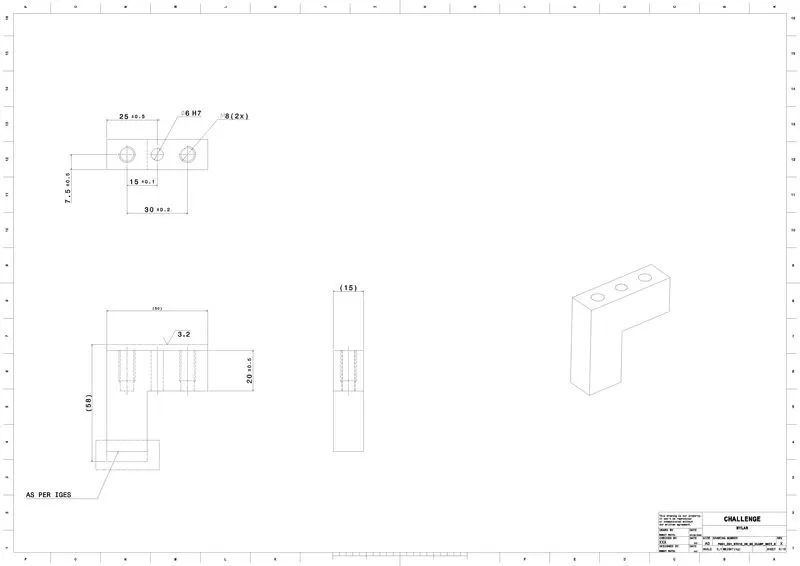

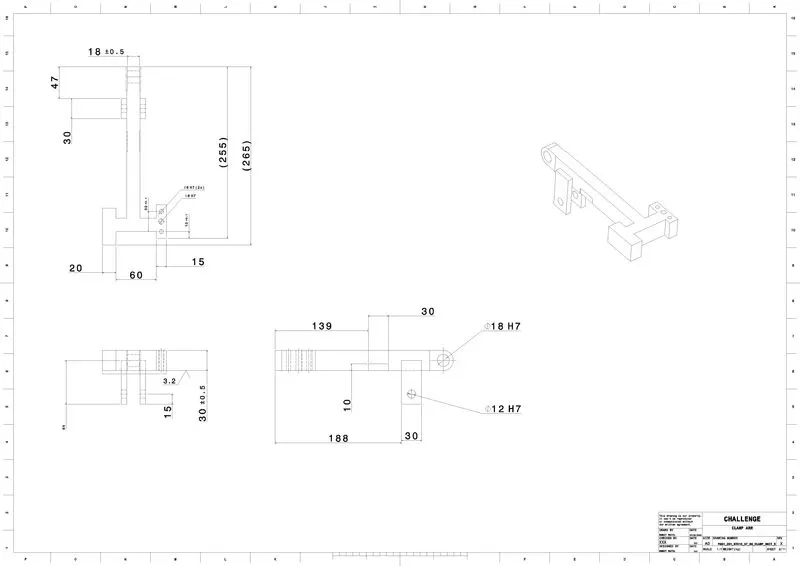

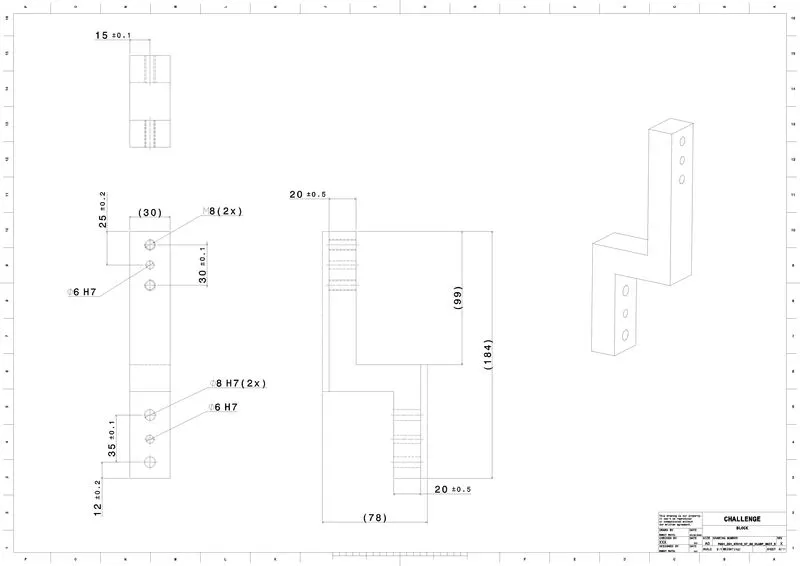

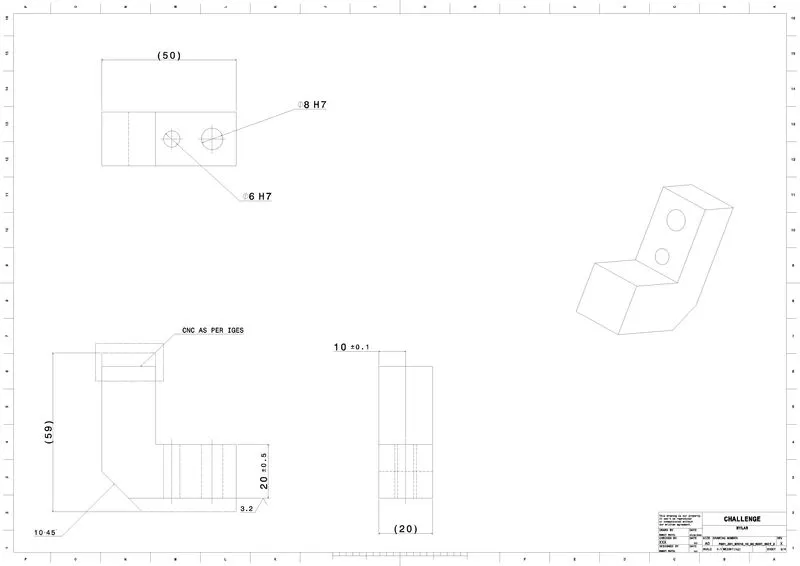

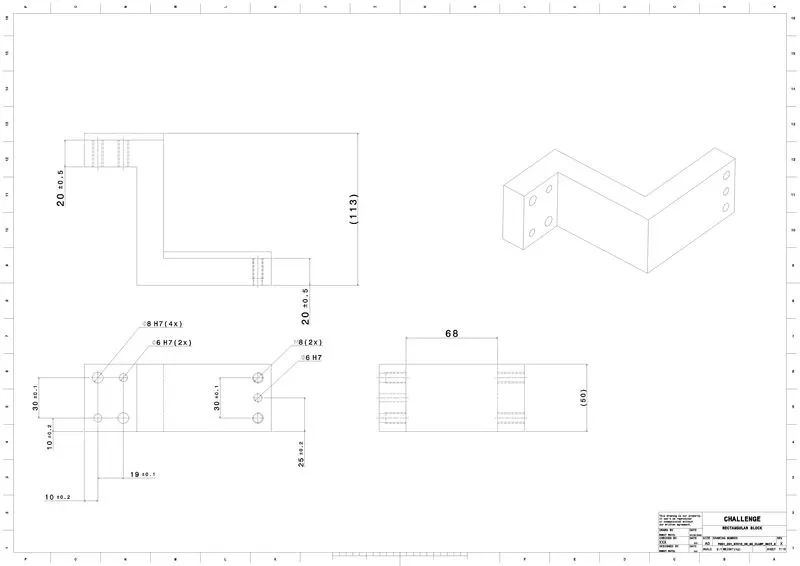

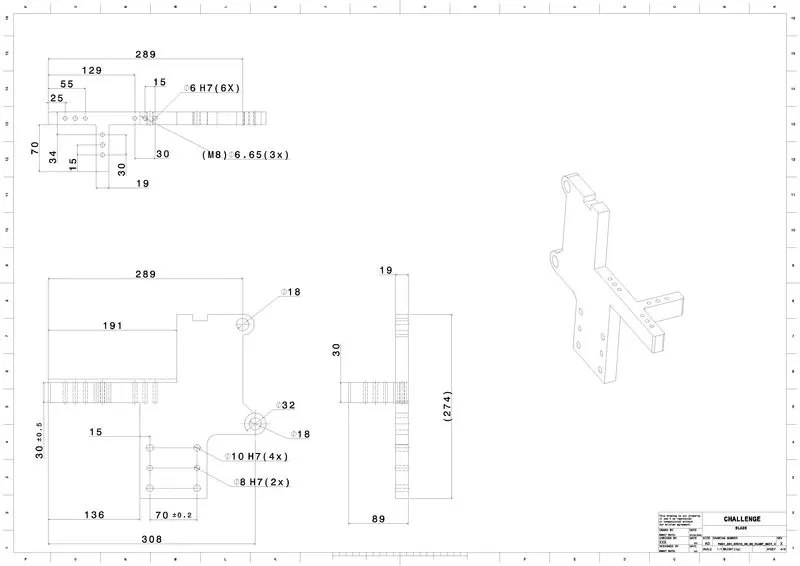

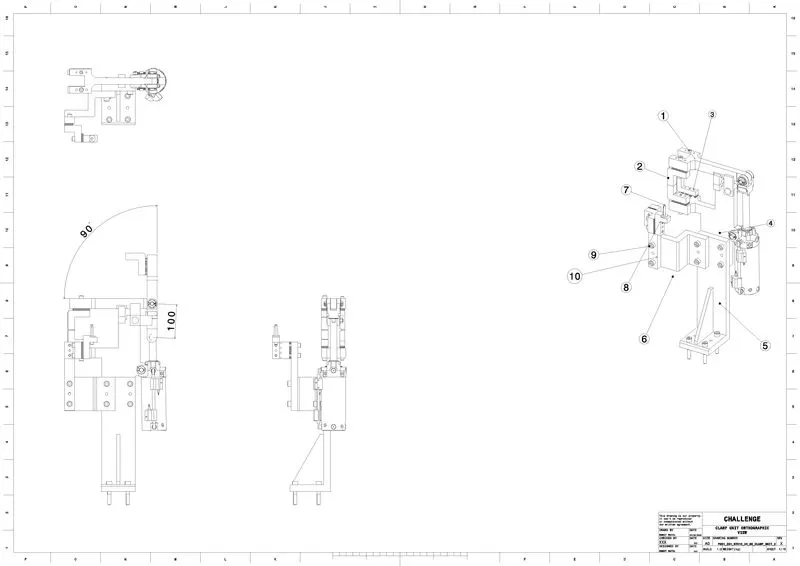

2D Detailing of the Clamp unit:-

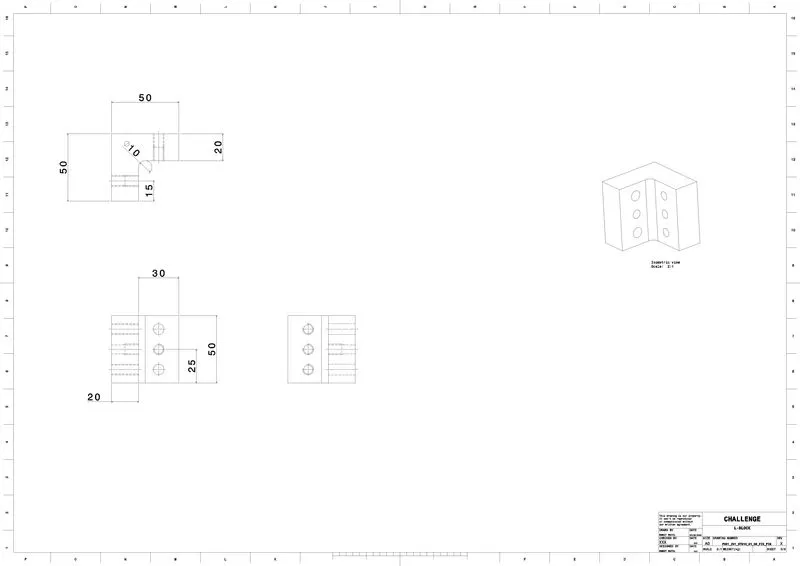

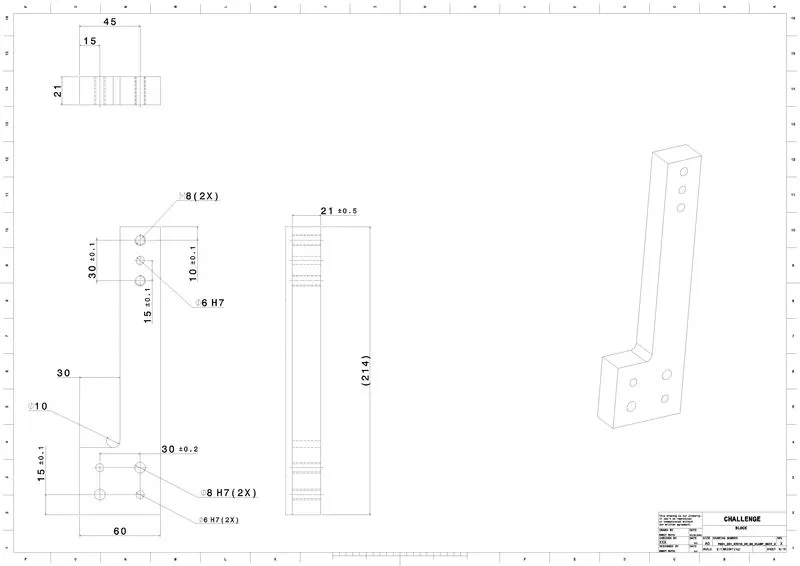

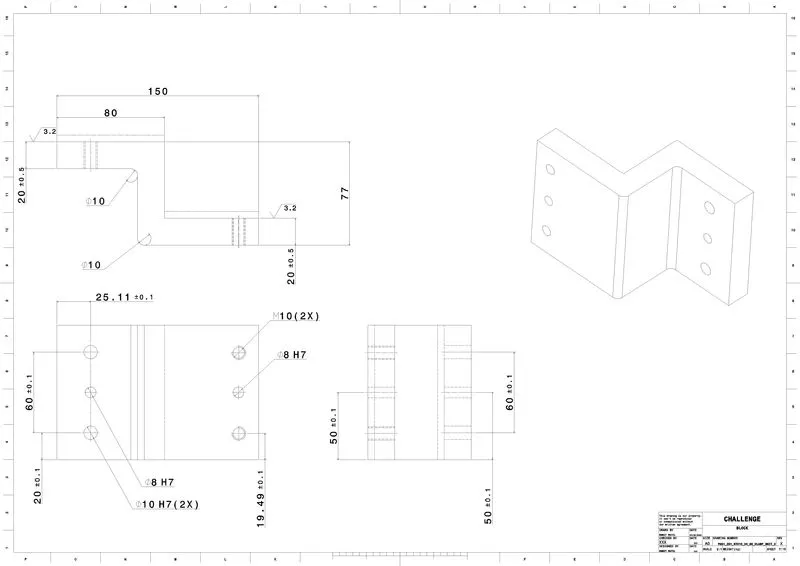

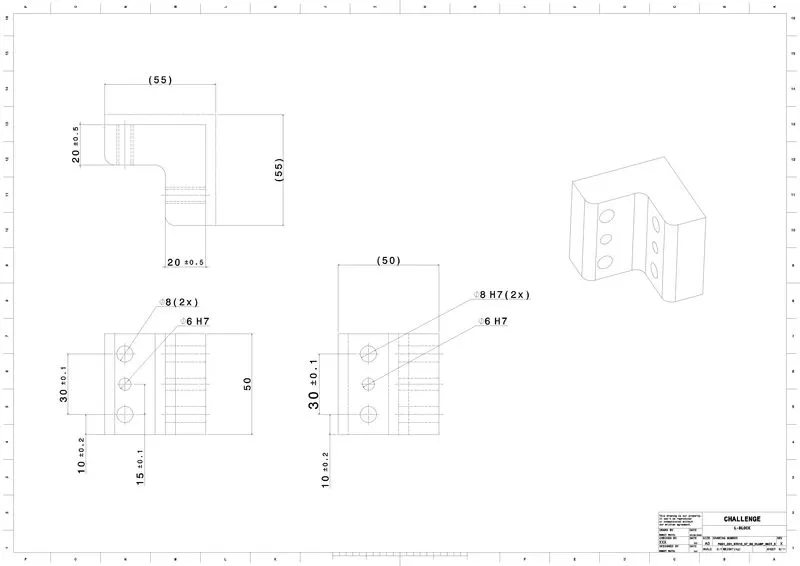

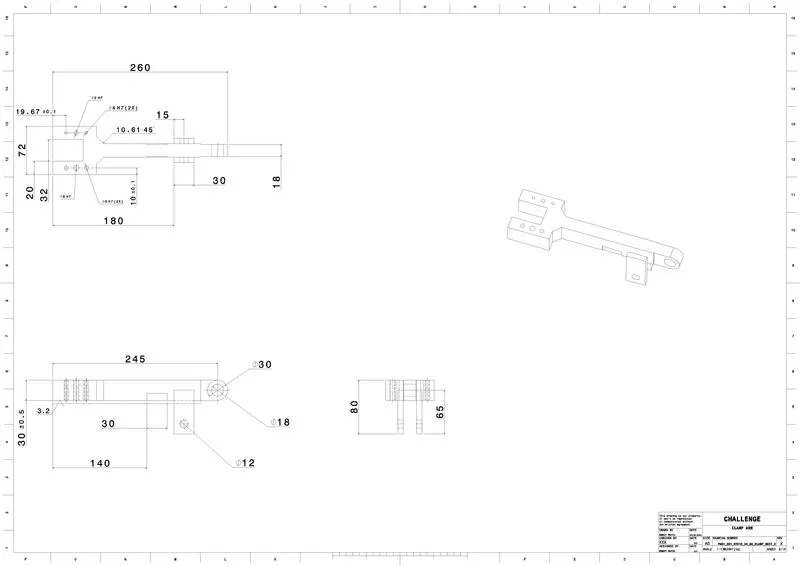

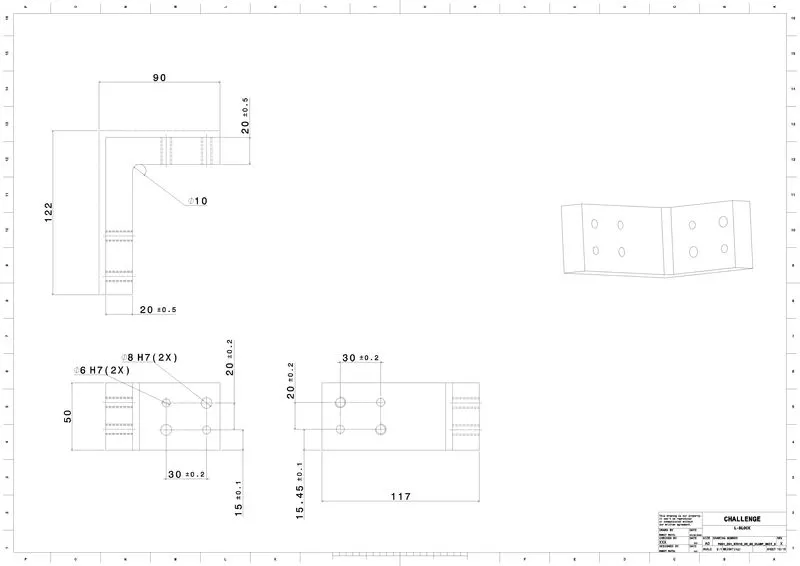

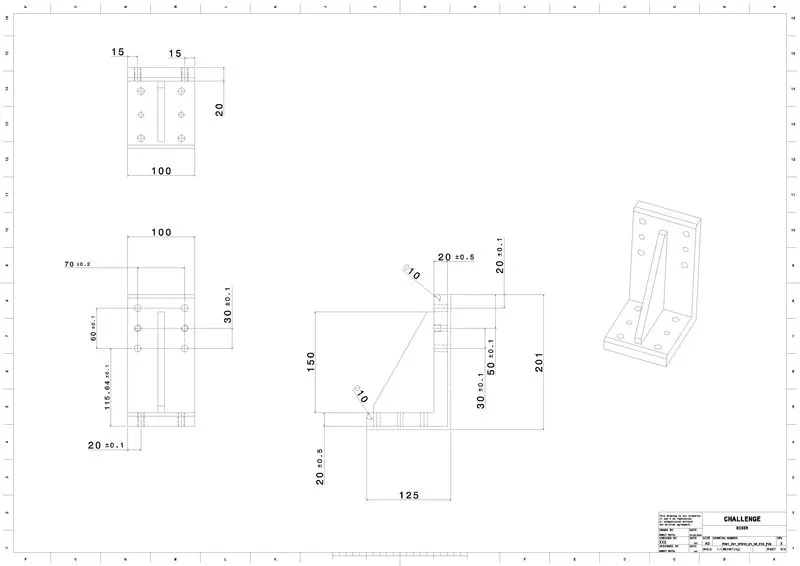

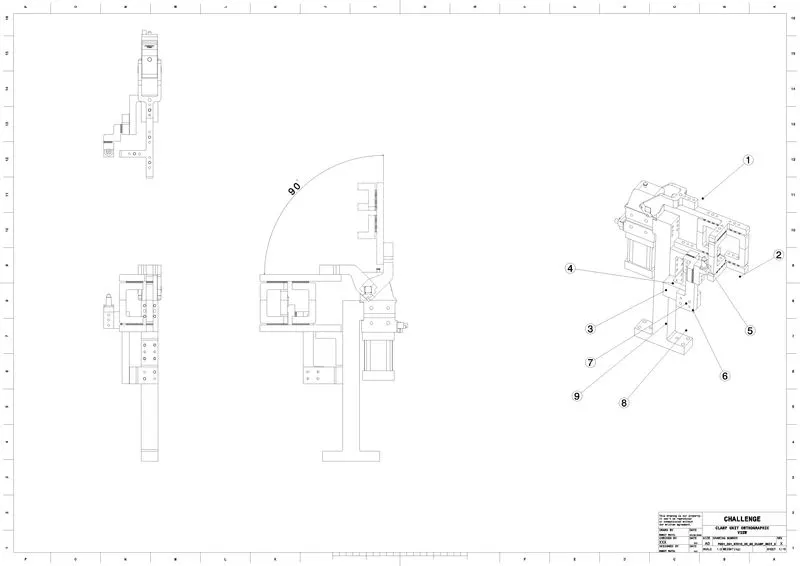

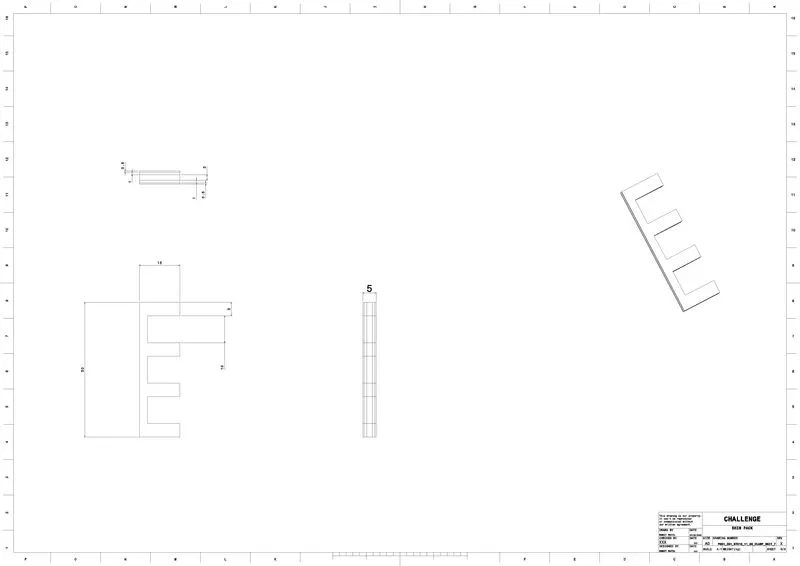

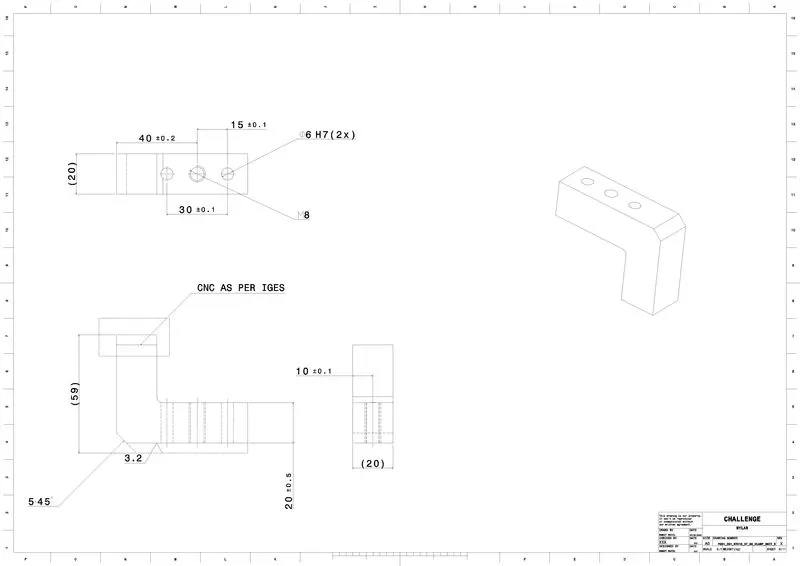

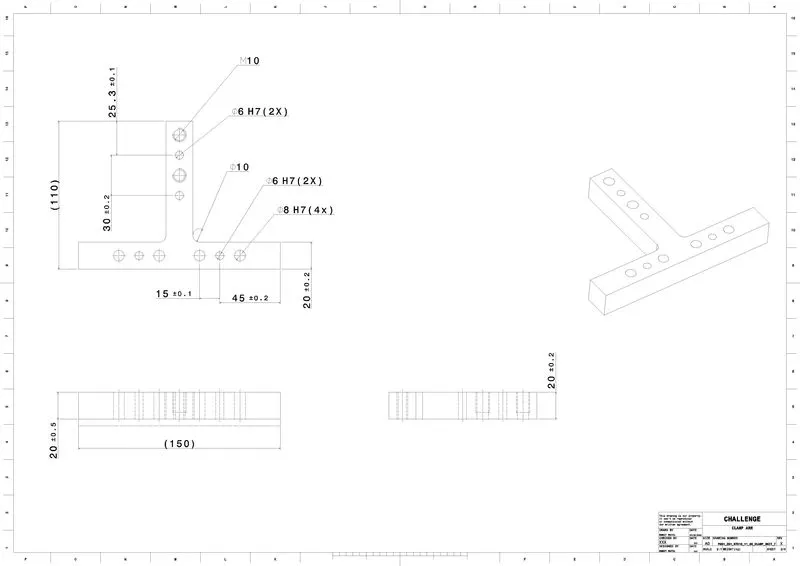

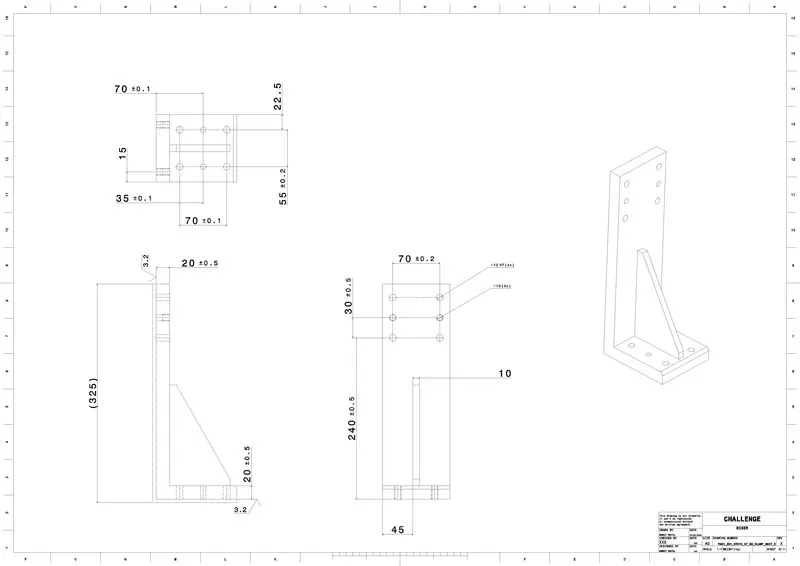

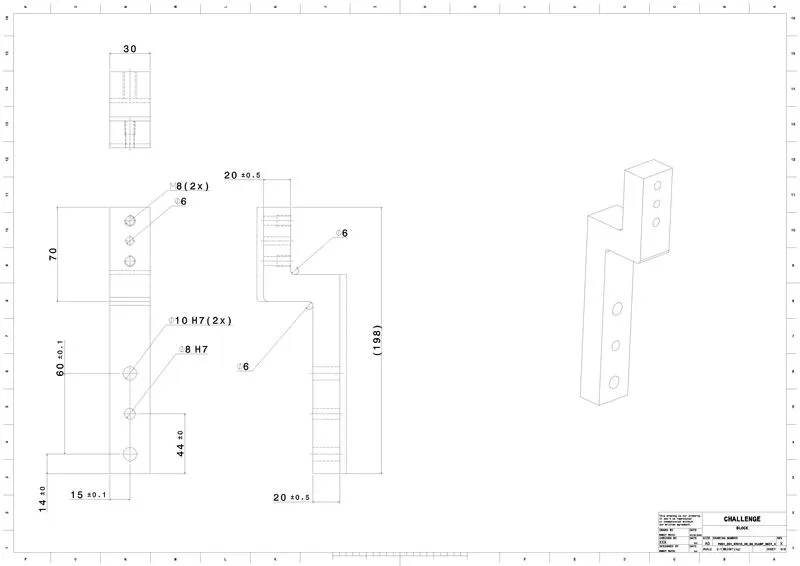

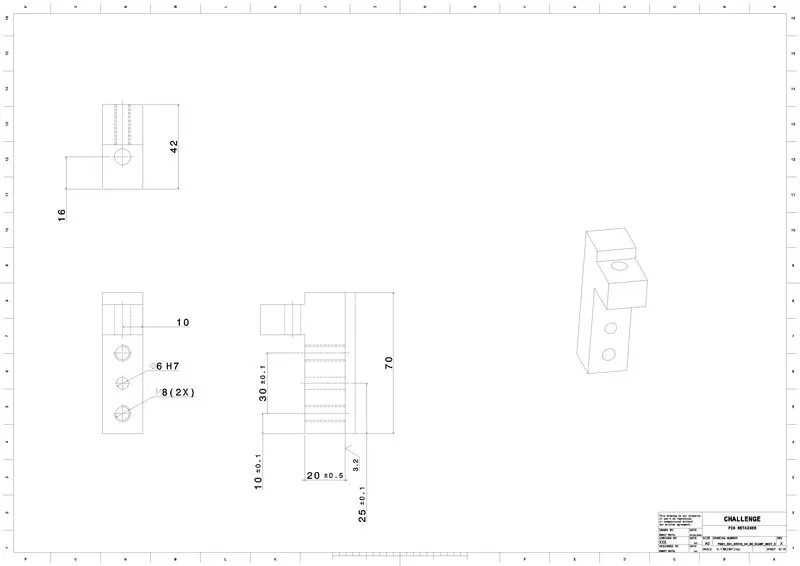

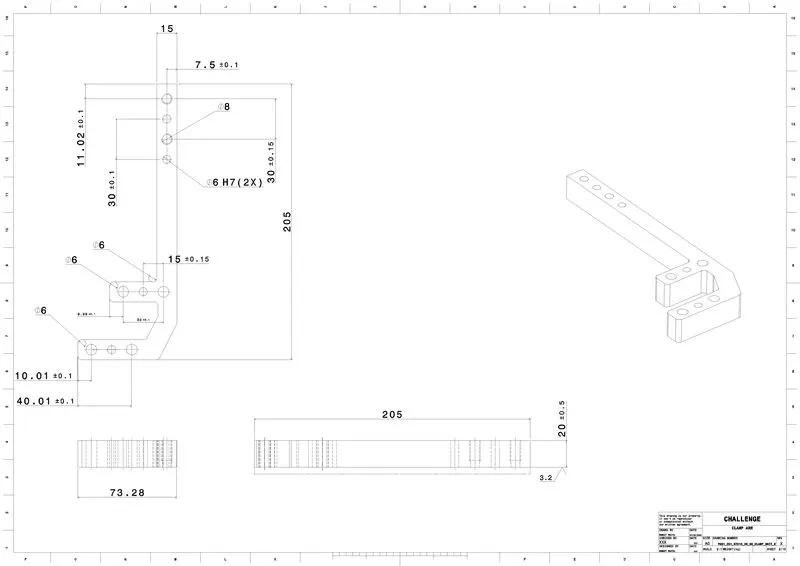

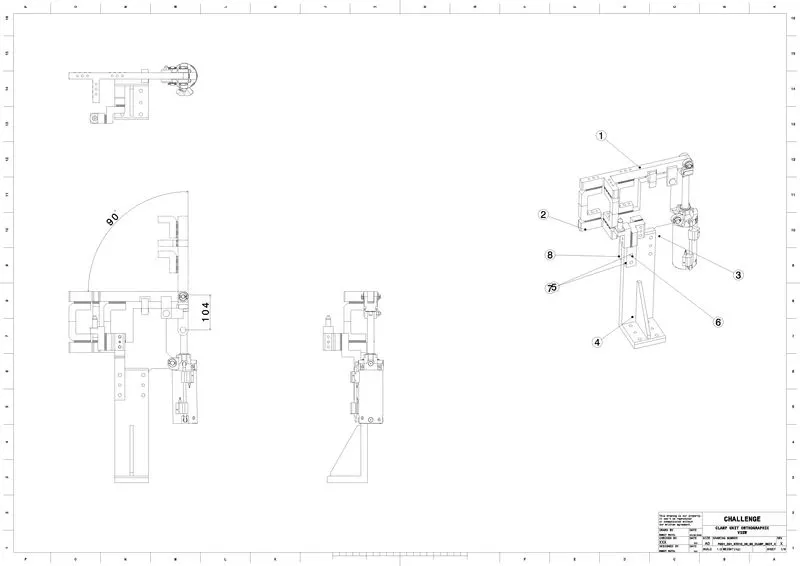

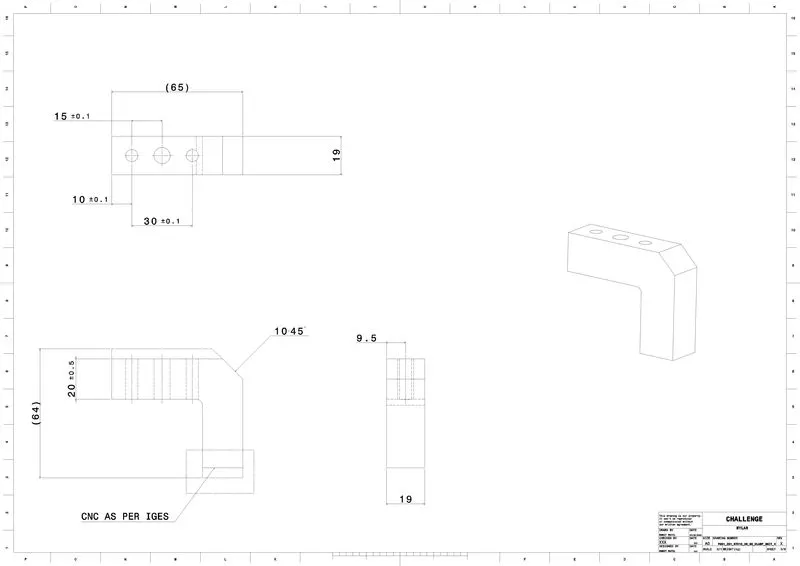

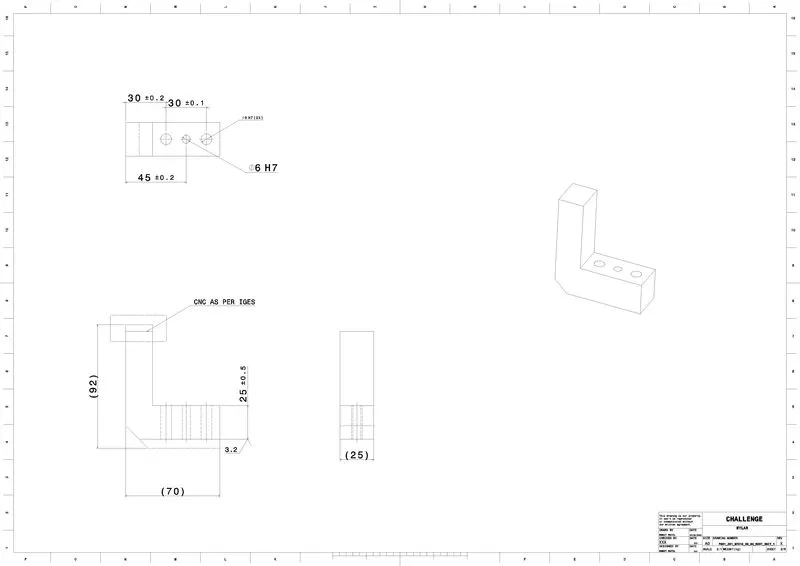

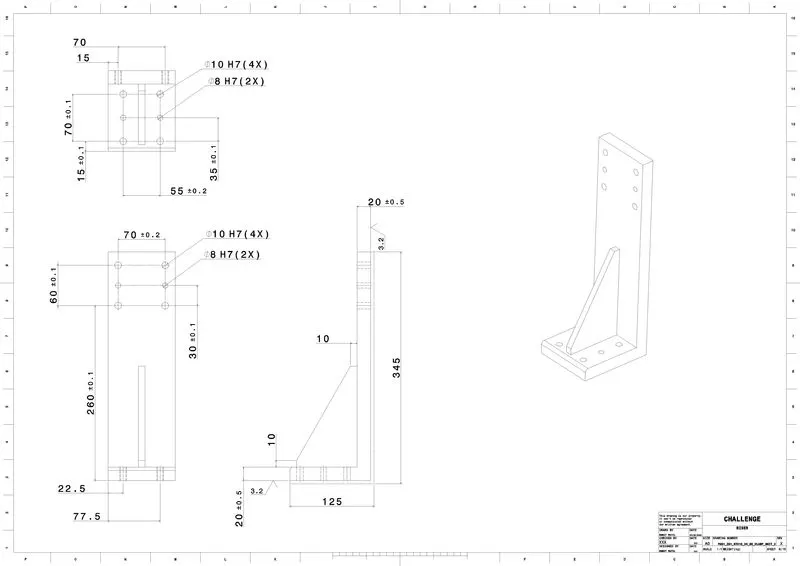

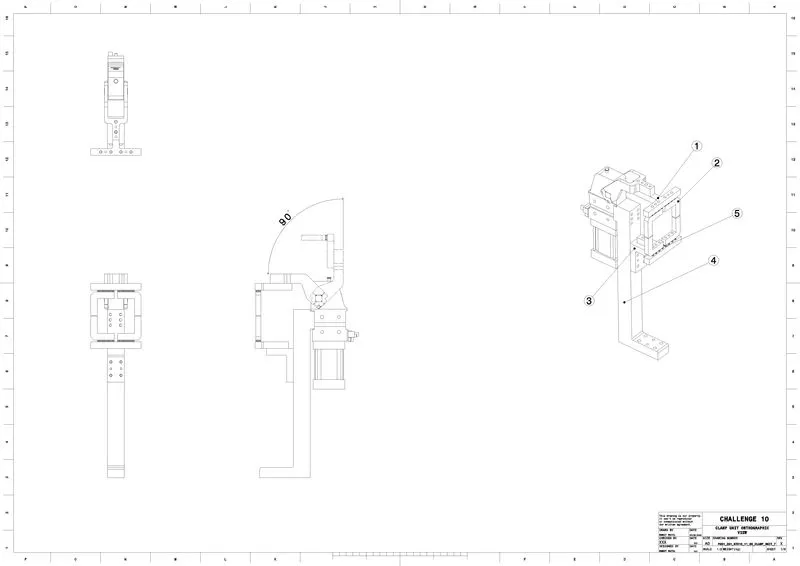

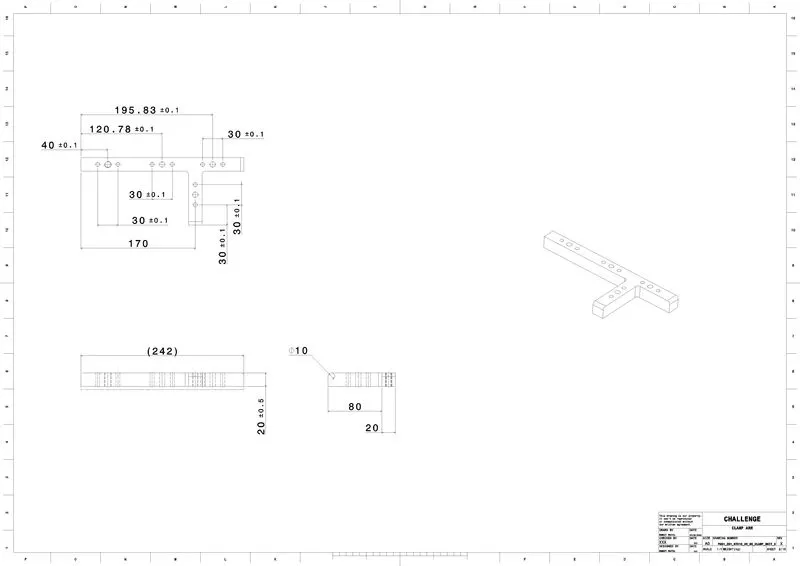

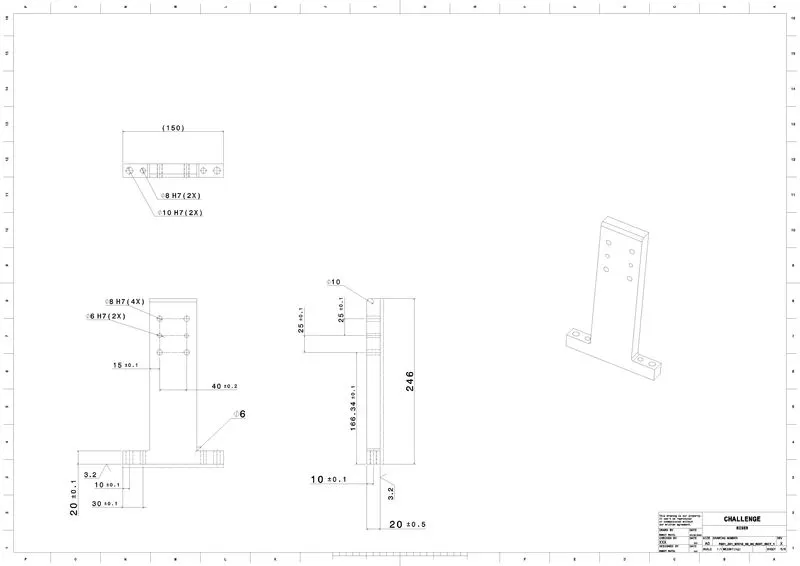

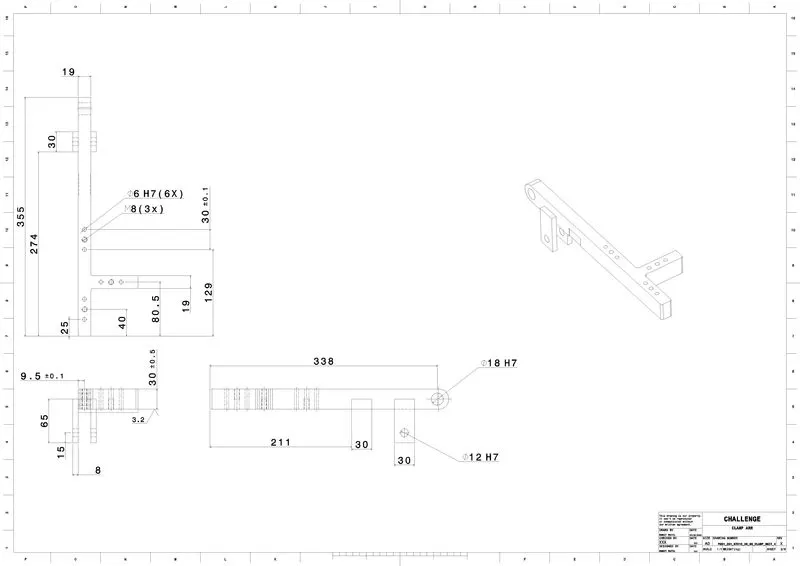

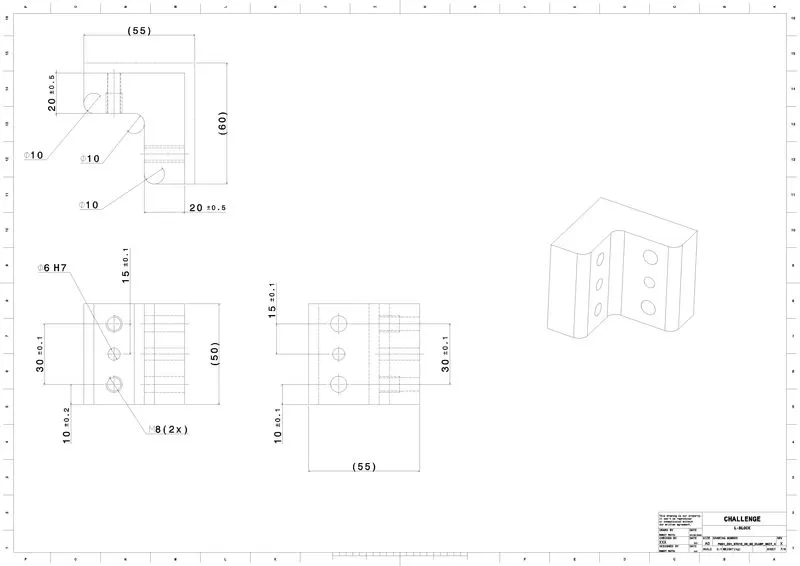

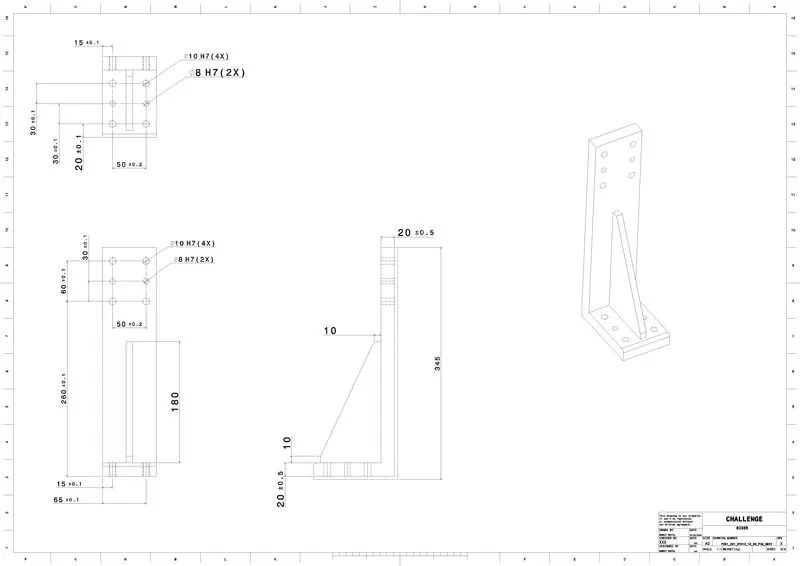

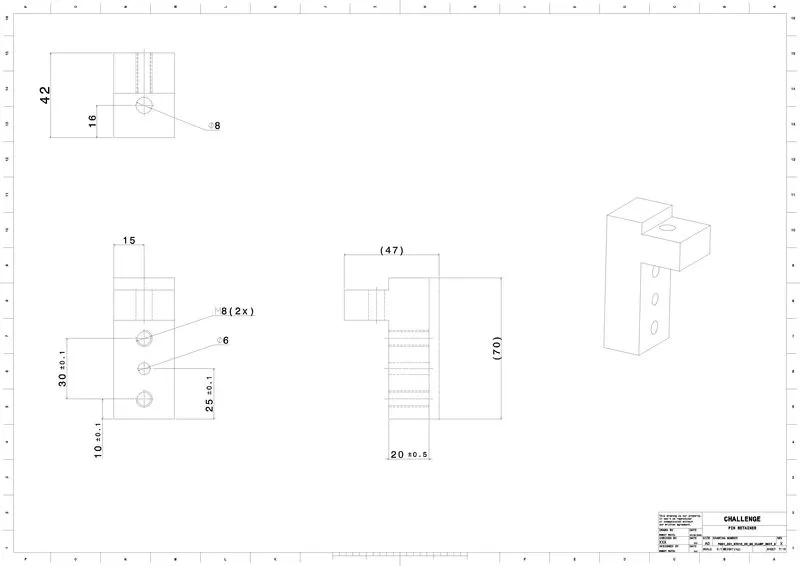

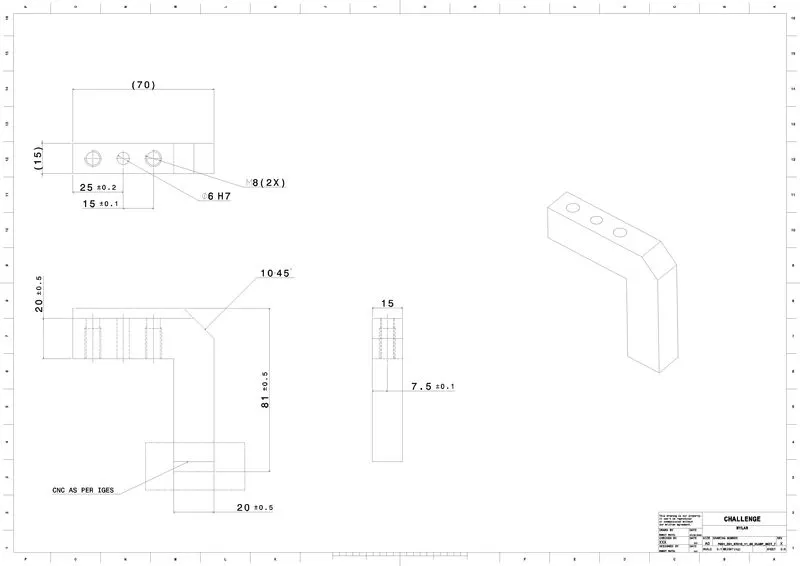

             P001_Z01_STO10_04_00_CLAMP_UNIT_2:-



















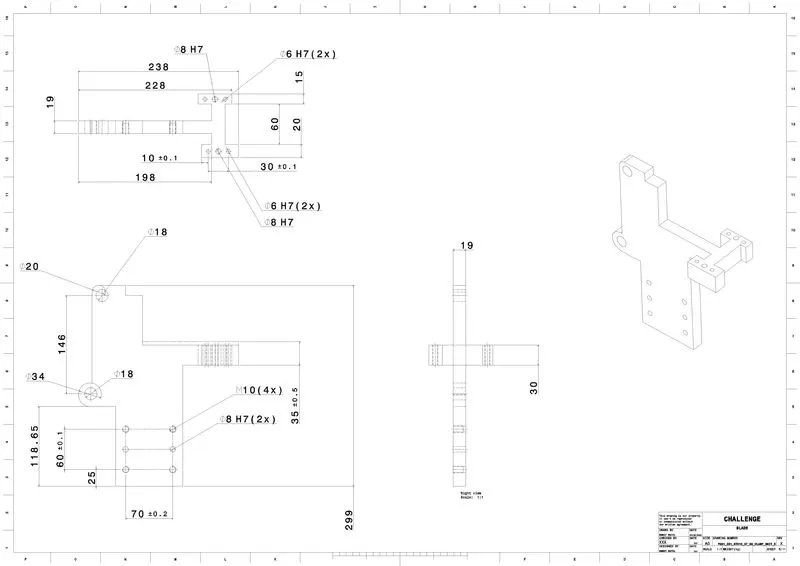

P001_Z01_STO10_05_00_CLAMP_UNIT_3:-

















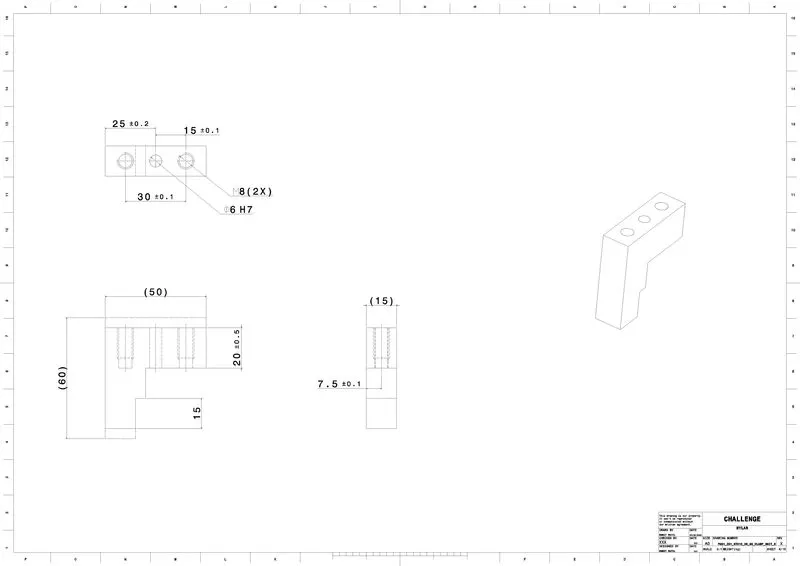

P001_Z01_STO10_06_00_CLAMP_UNIT_4:-



















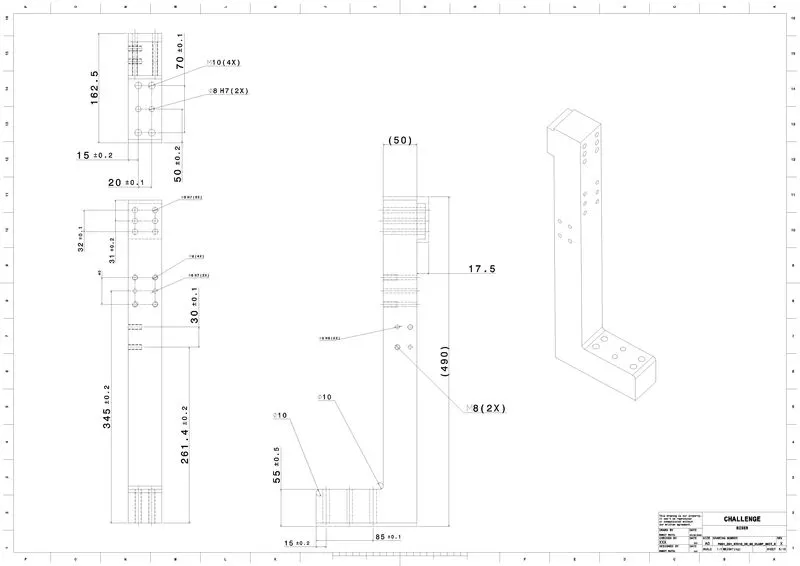

P001_Z01_STO10_07_00_CLAMP_UNIT_5:-























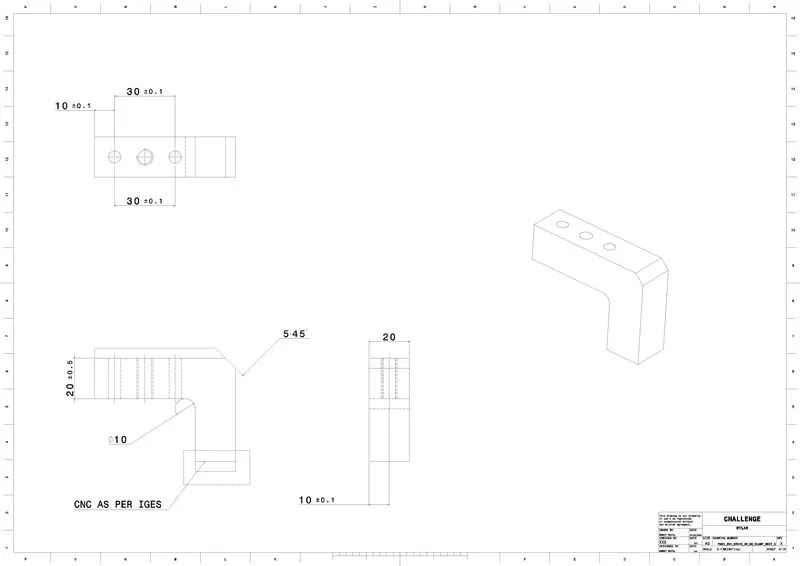

P001_Z01_STO10_08_00_CLAMP_UNIT_6:-

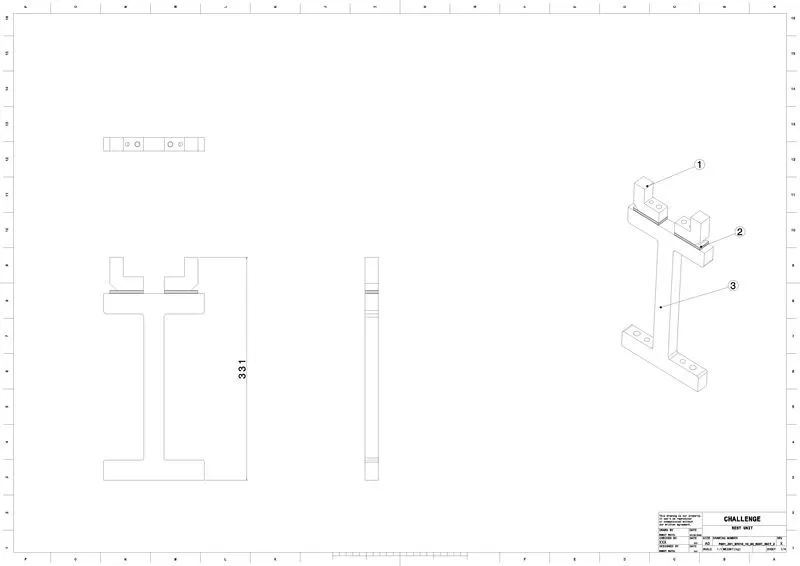

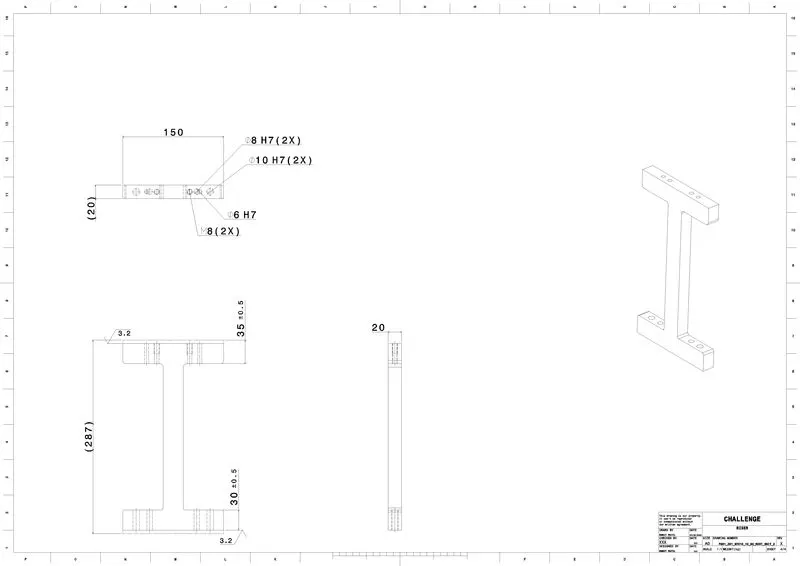

2D DETAILING OF REST UNIT:-

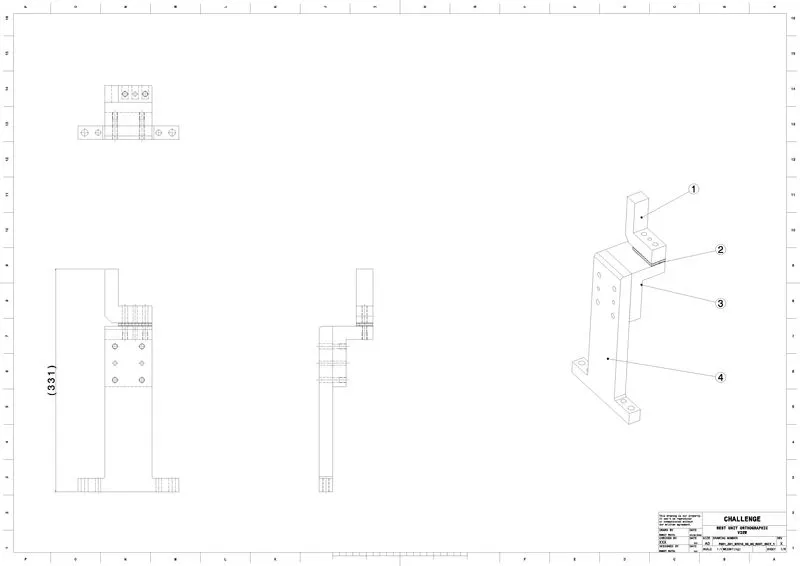

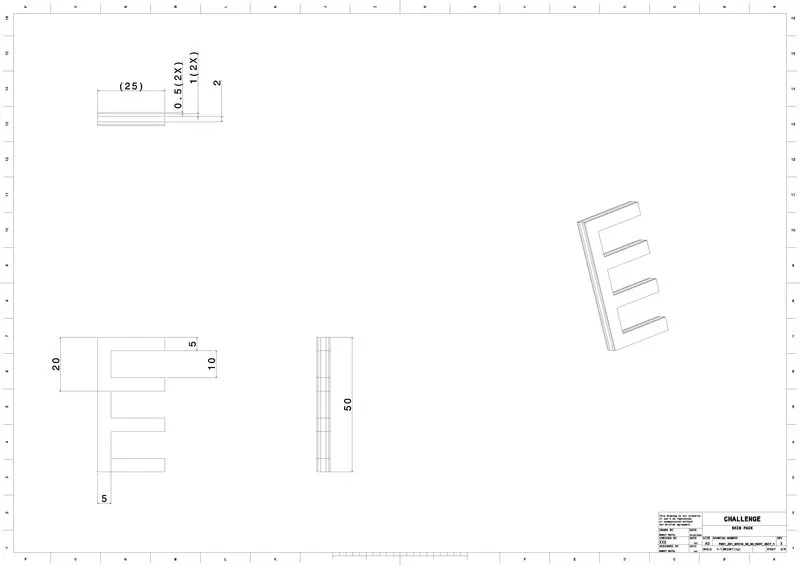

   P001_Z01_STO10_09_00_REST_UNIT_1











P001_Z01_STO10_11_00_CLAMP_UNIT_7:-











P001_Z01_STO10_10_00_REST_UNIT_2:-
