Week 11:- 2D Detailing Challenge 2
1. Create 2D Drawing for each Clamp Units with all child parts and also create Child pard drawing for the same for the Fixture assembly created in challenge 8.
2. Create 2D Drawing for each Pin Units drawings with all child parts and also create Child pard drawing for the same for the Fixture assembly created in challenge 8.

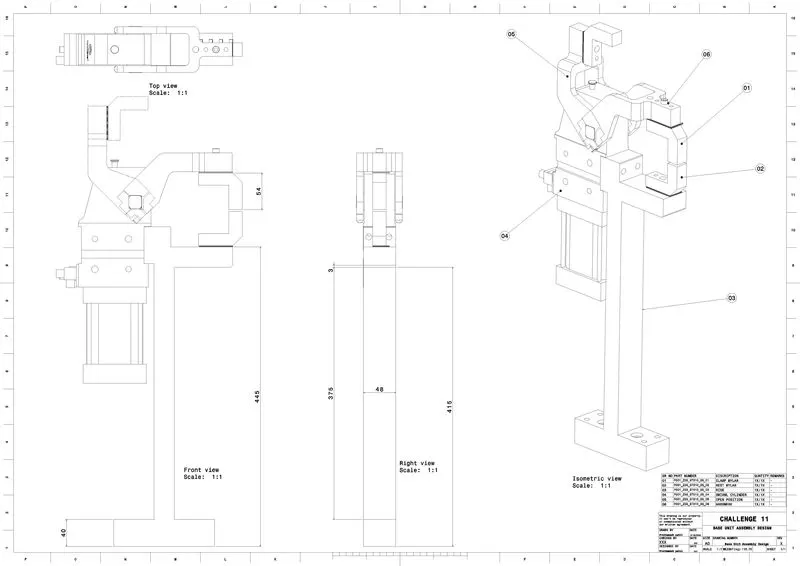

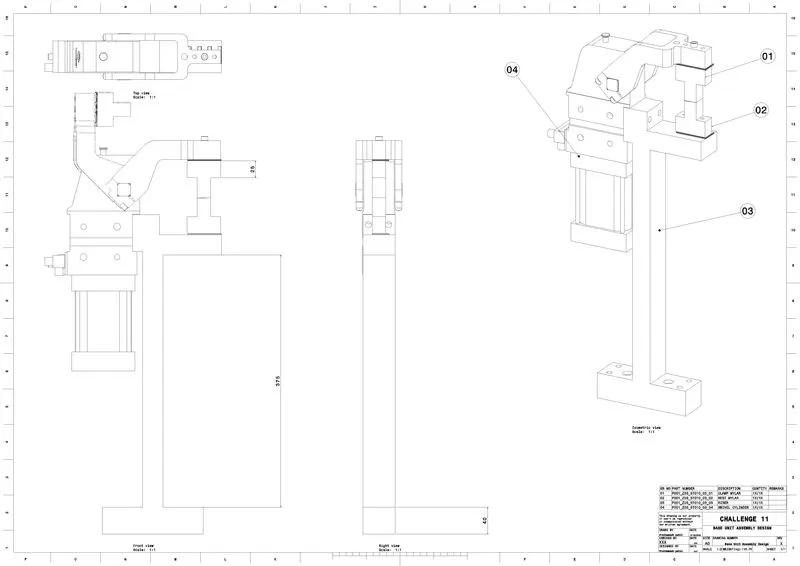

- 2D detailing For clamp unit 1.
- All chiled parts for clamp unit 1.
NOTE : Rest mylar is same to clamp mylar. only opposite direction placed dimenssions are same.
NOTE : The shims are standard parts & thus are same in all clamp unit & Swivel clamp units used in the fixture assembly.
- 2D detailing For clamp unit 2.
NOTE : Rest mylar is same to clamp mylar. only opposite direction placed dimenssions are same.

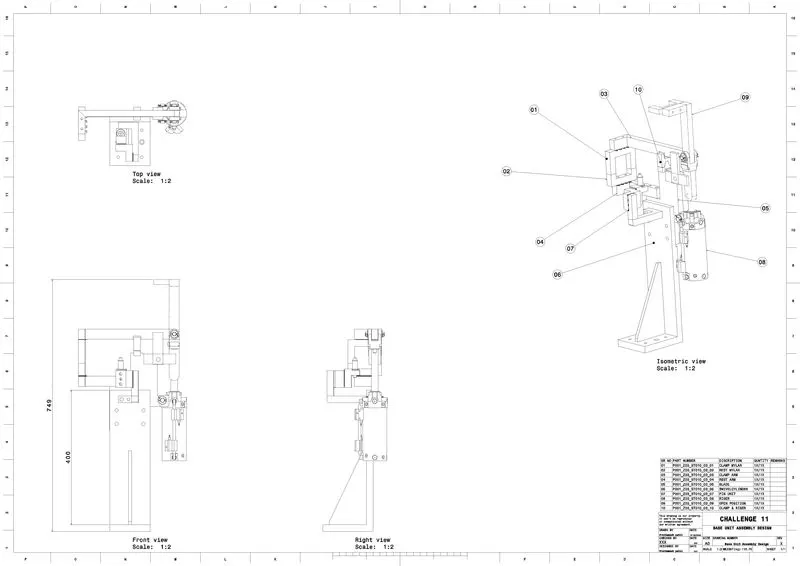

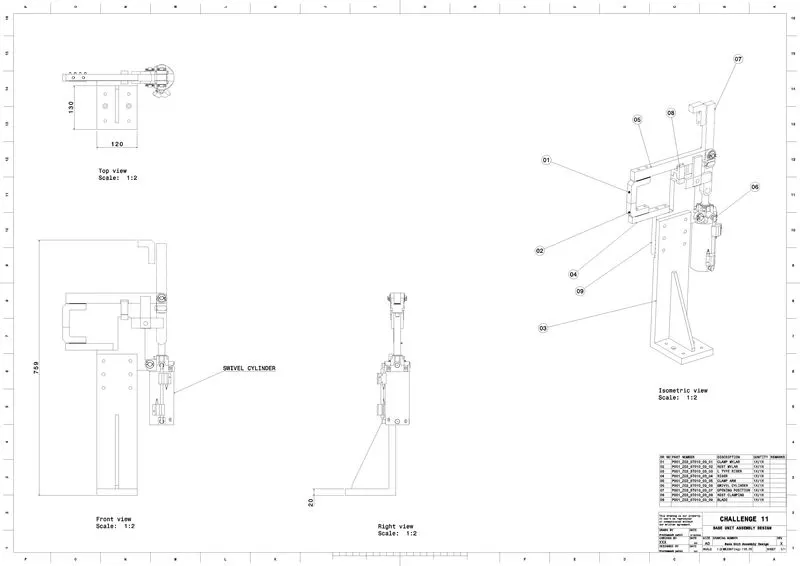

- 2D detailing for Swivel Clamp Unit 1 :
- BLADE
- CLAMP MYLAR

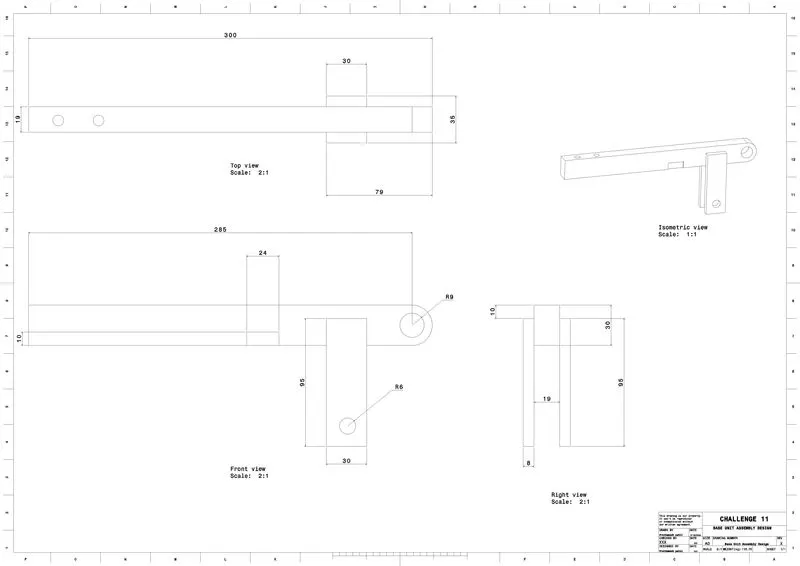

- CLAMP ARM
- REST ARM

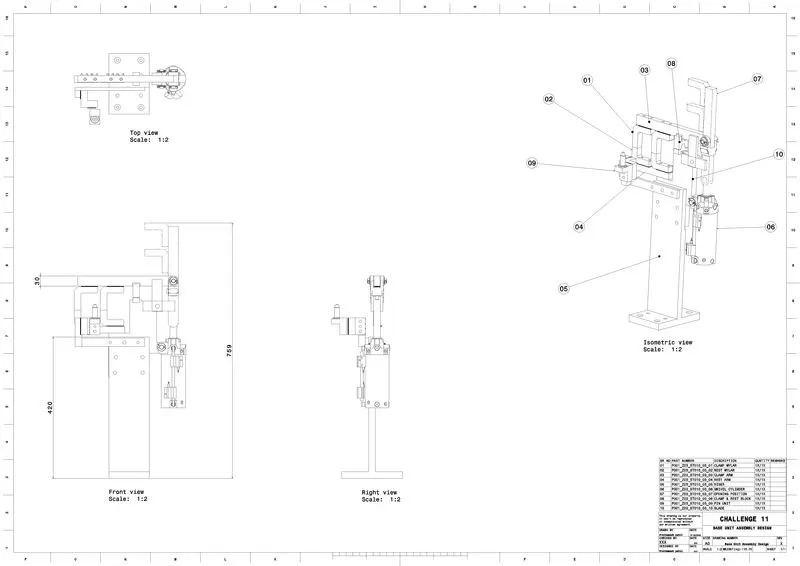

- CLAMP & REST UNIT

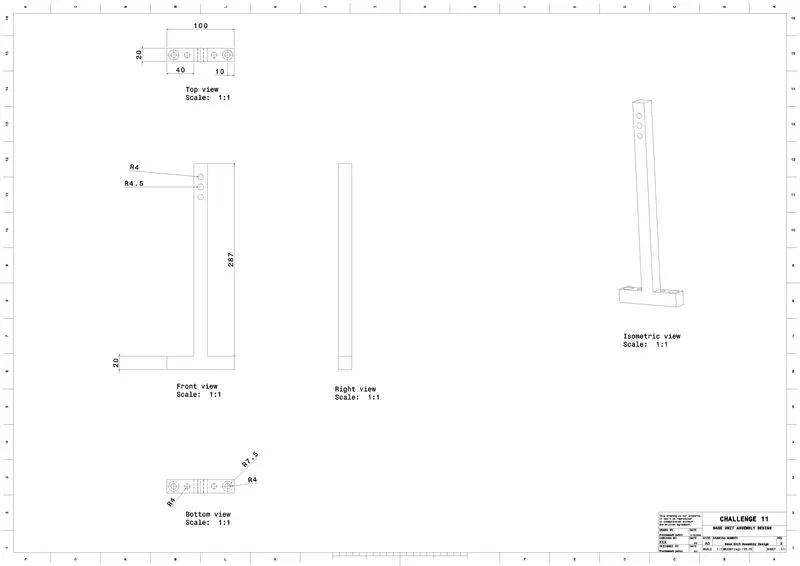

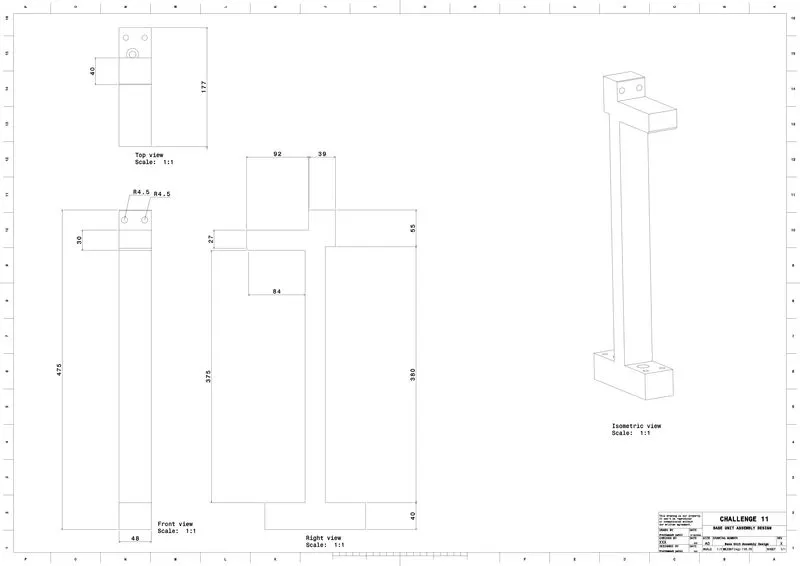

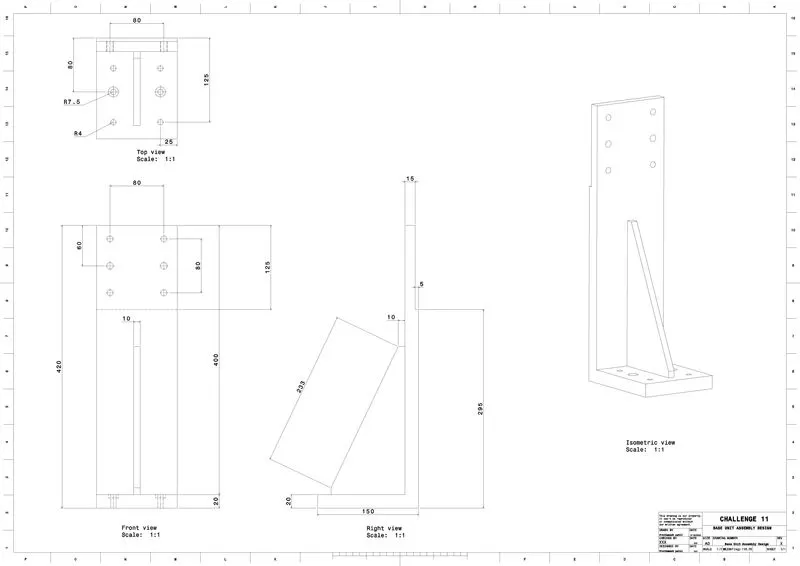

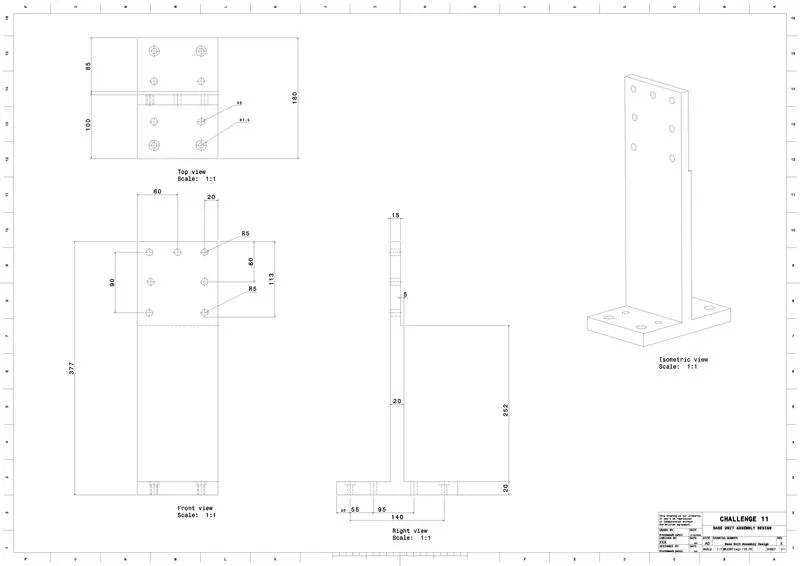

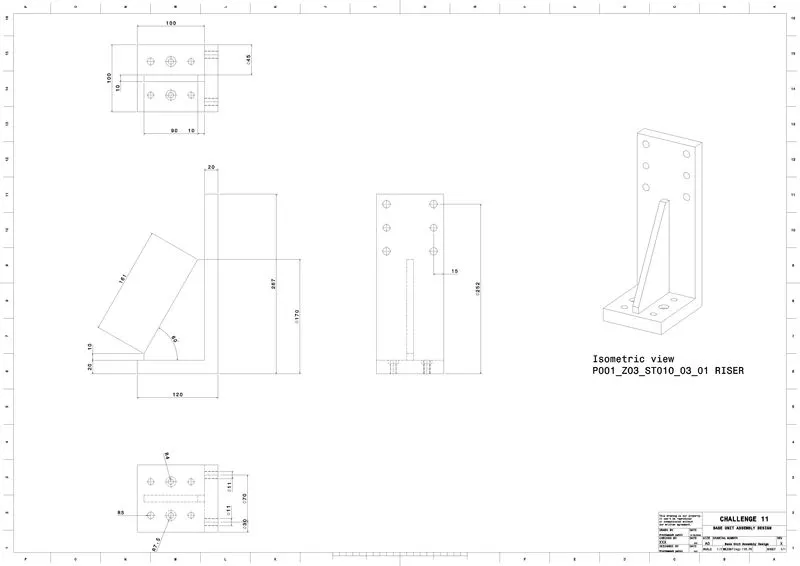

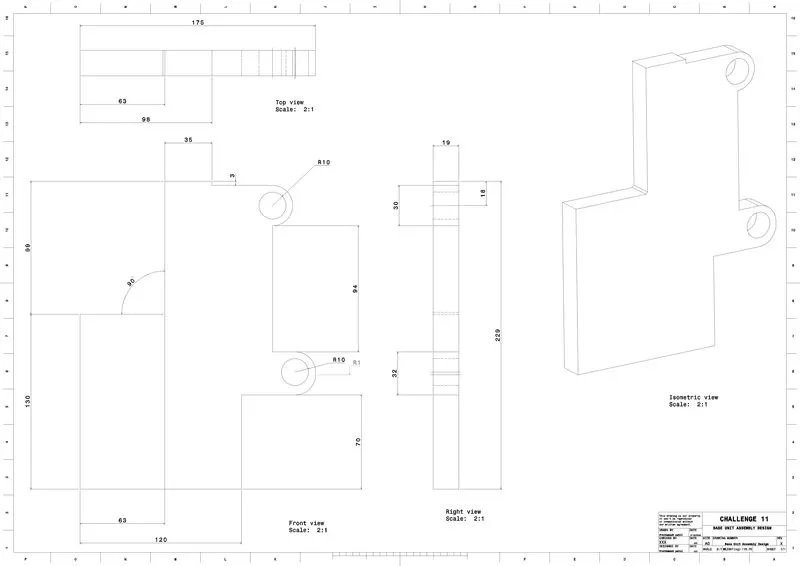

- RISER
NOTE : Rest mylar is same to clamp mylar. only opposite direction placed dimenssions are same. Riser is same for all unit
2D Detailed for clamp unit 2 :
NOTE : Rest mylar, arms & all other units same dimenssions are used in this units.
- 2D Detailing for Swivel clamp unit 3
2. Create 2D Drawing for each Pin Units drawings with all child parts and also create Child pard drawing for the same for the Fixture assembly created in challenge 8.

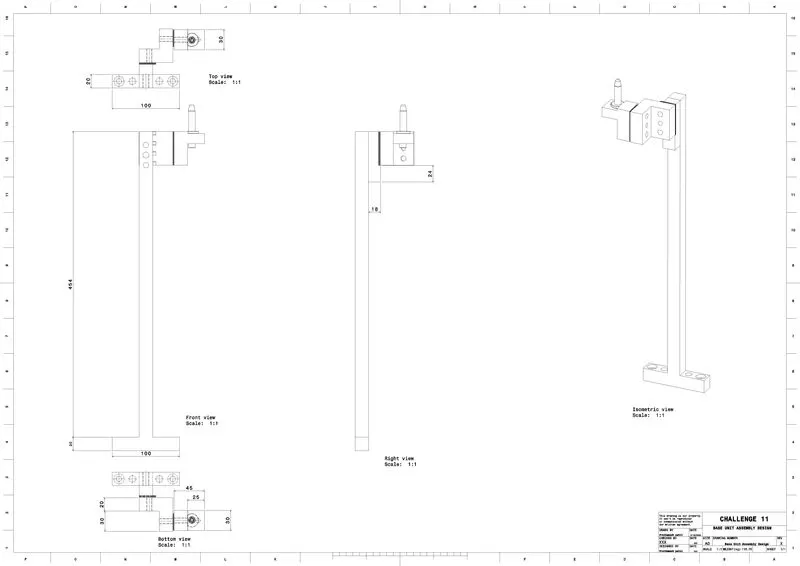

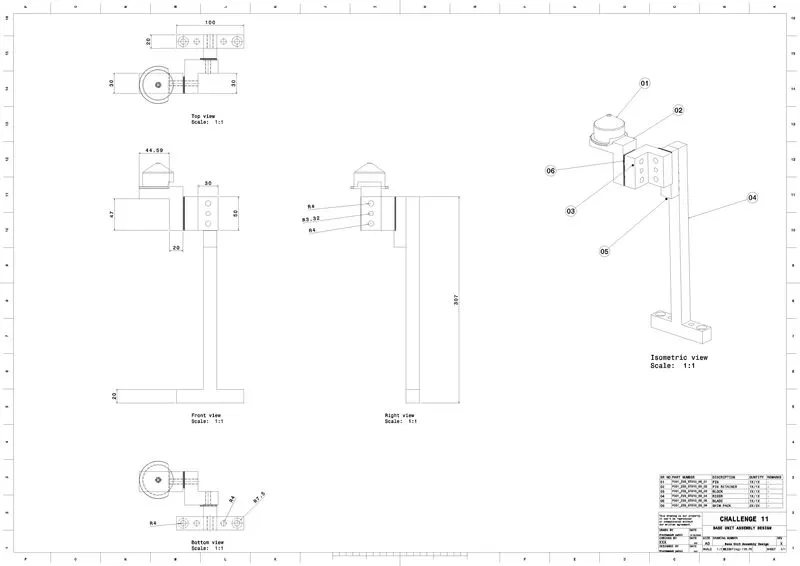

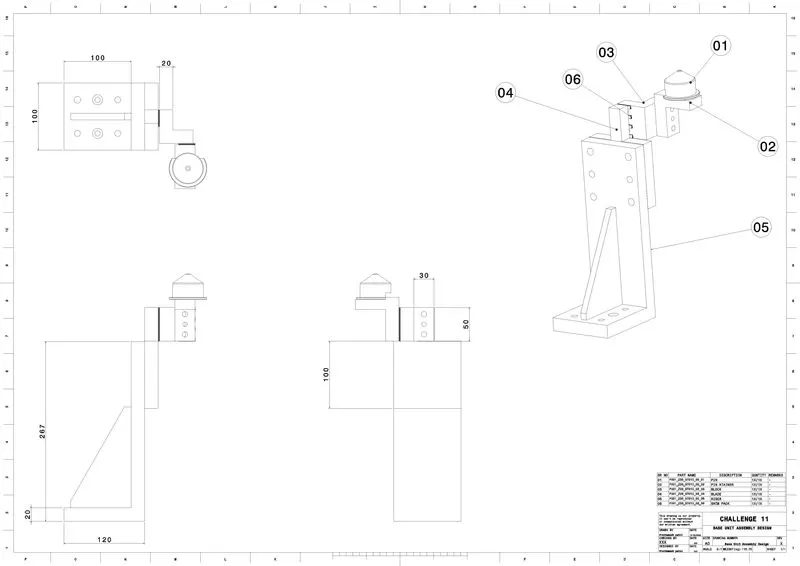

- FIXED PIN UNIT 1

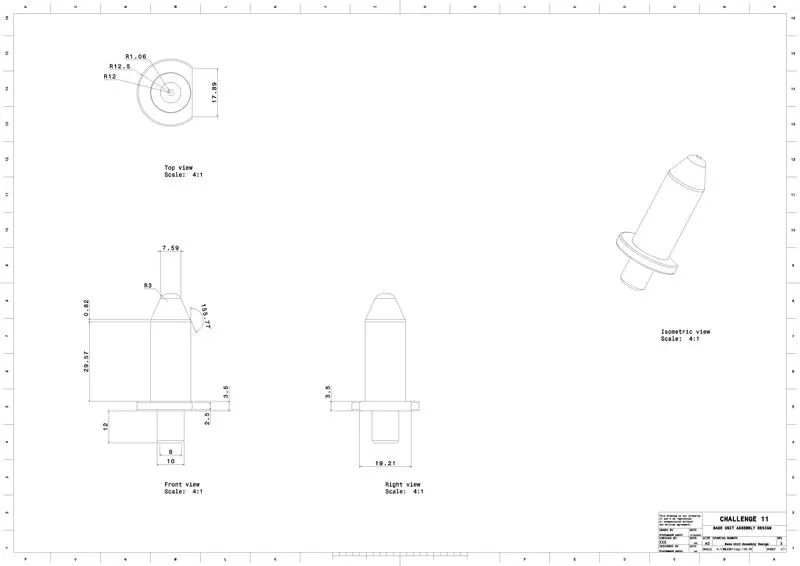

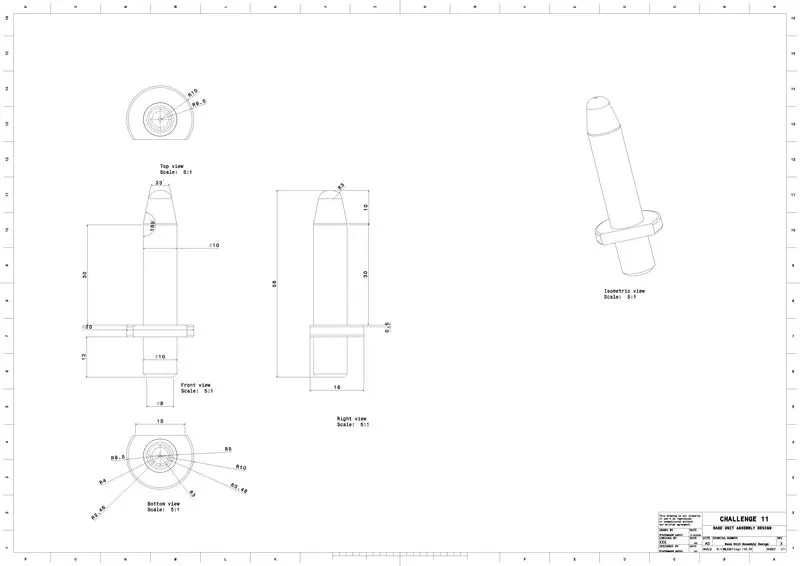

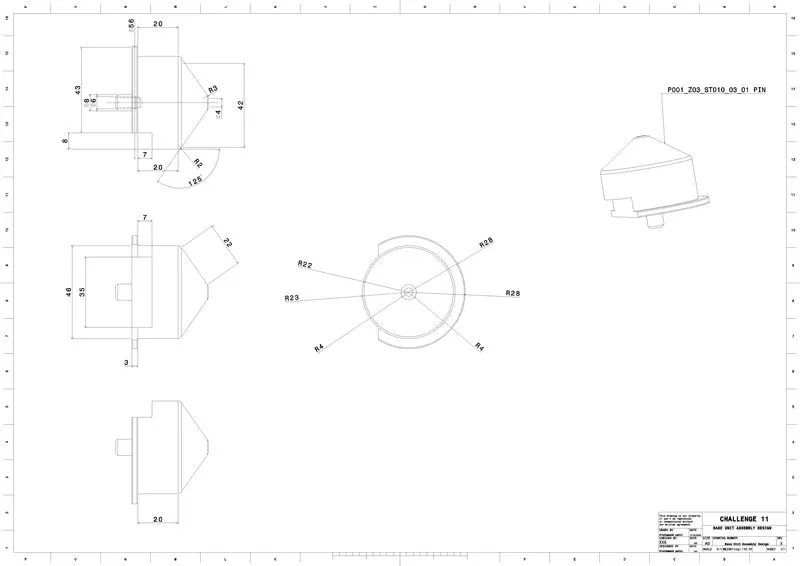

- PIN :

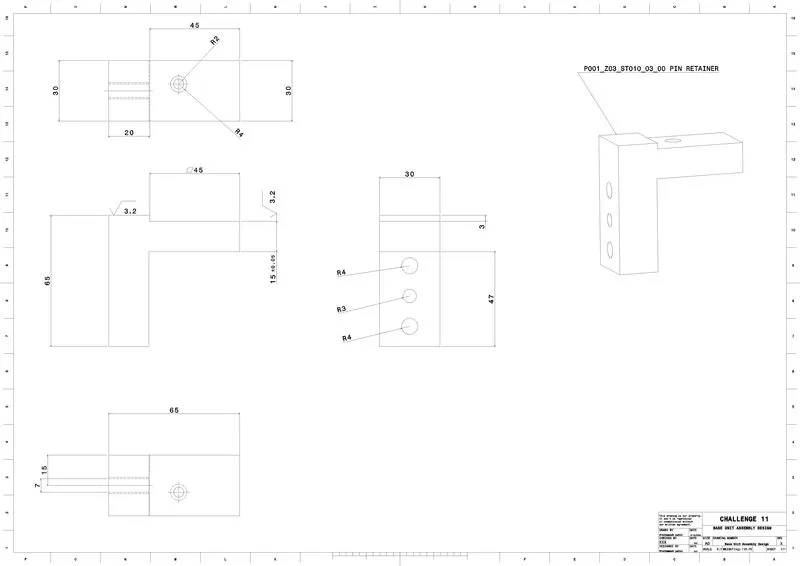

- PIN RETAINER

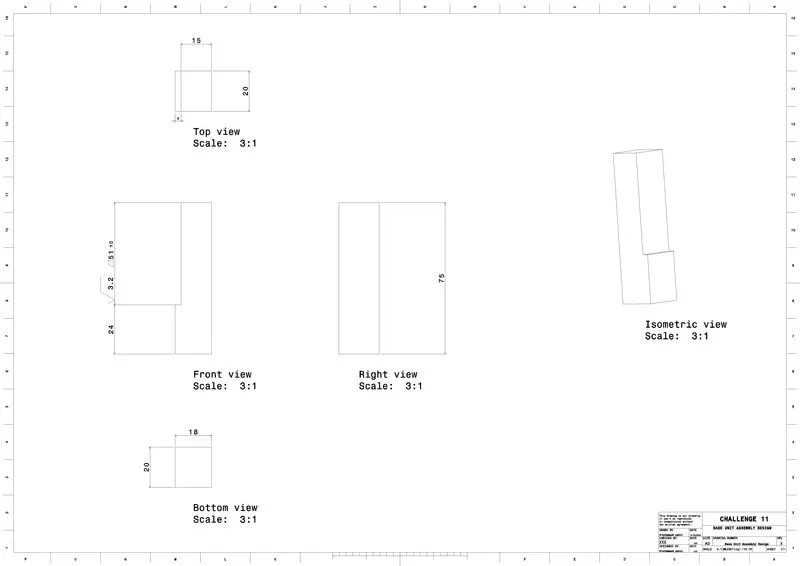

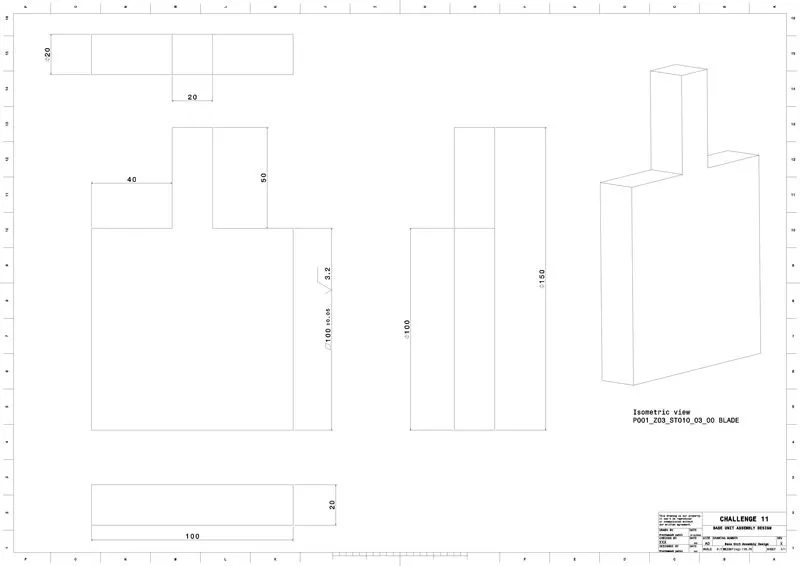

- BLADE

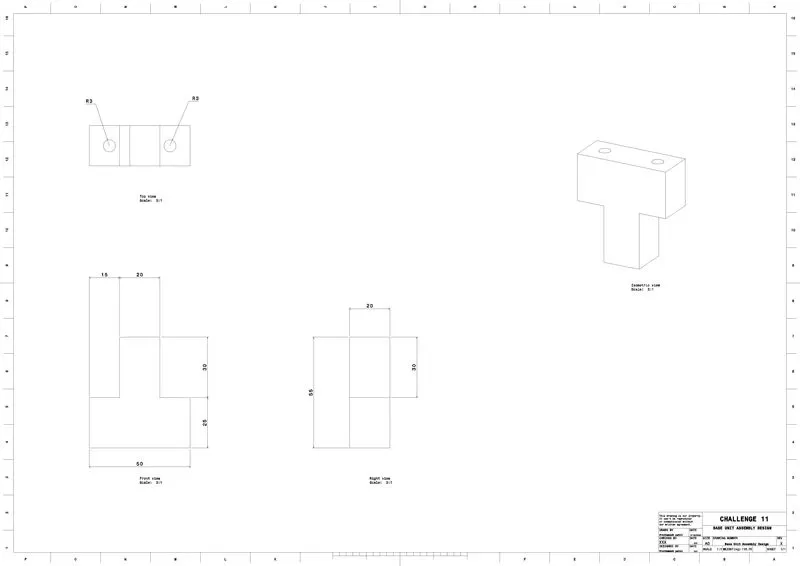

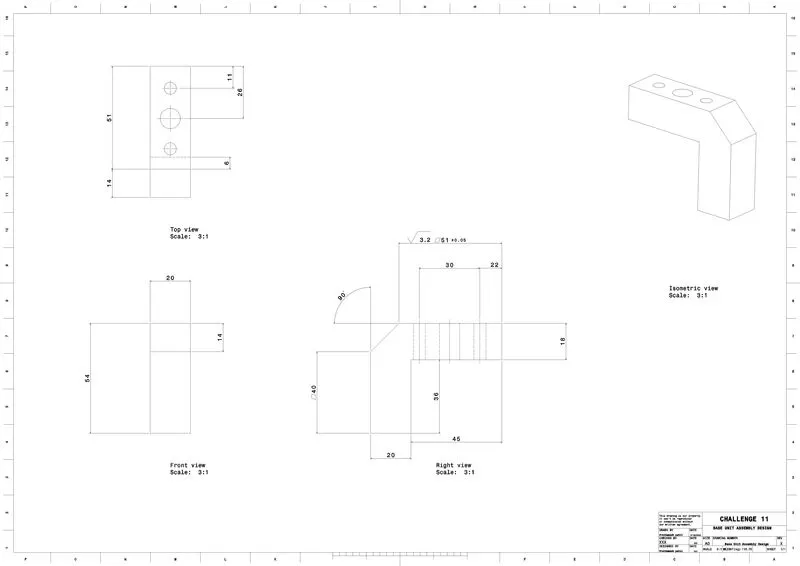

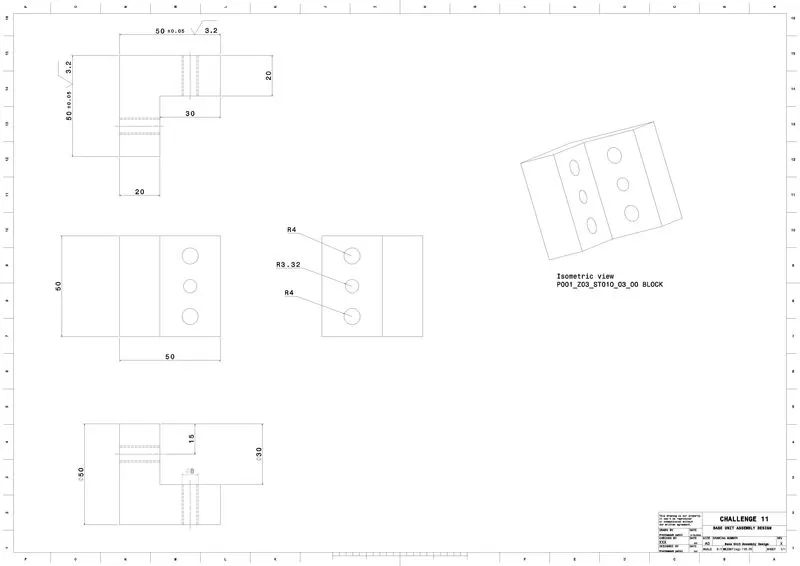

- BLOCK

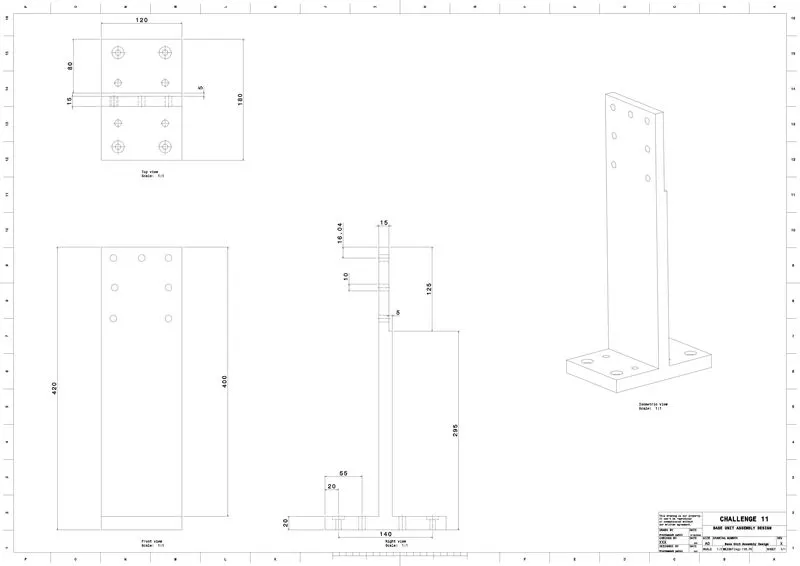

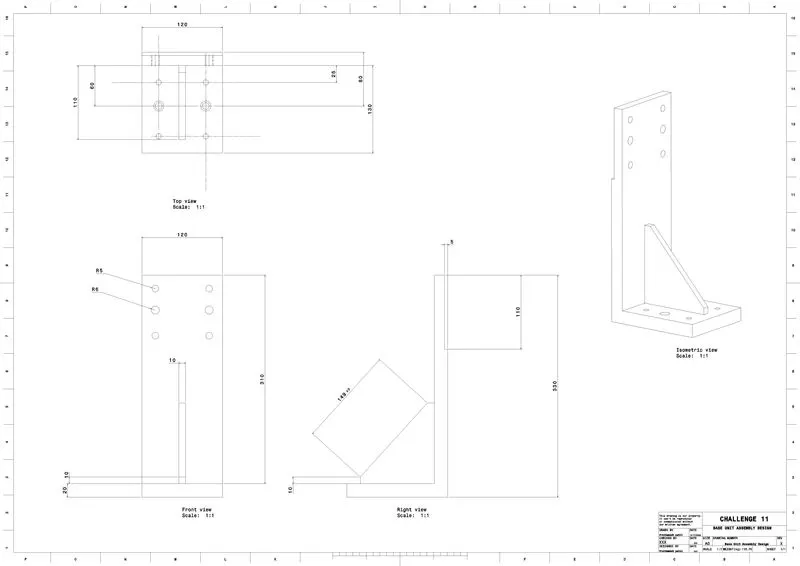

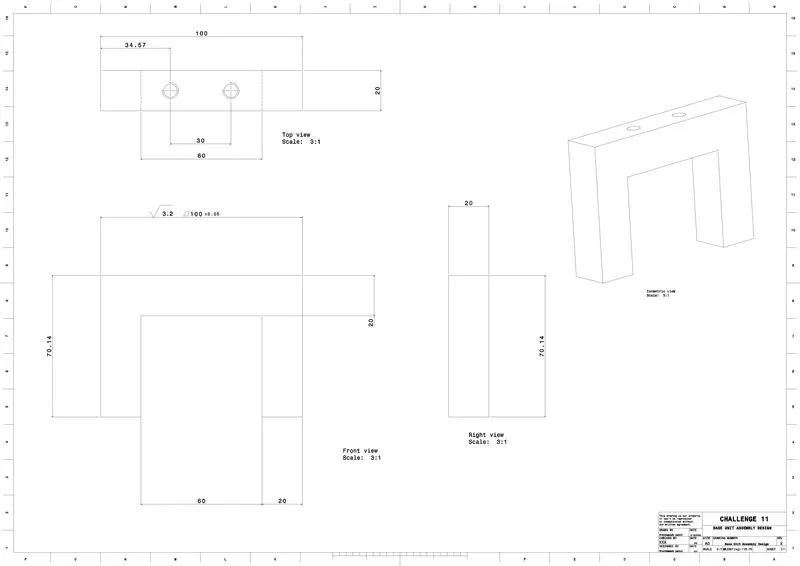

- L TYPE RISER

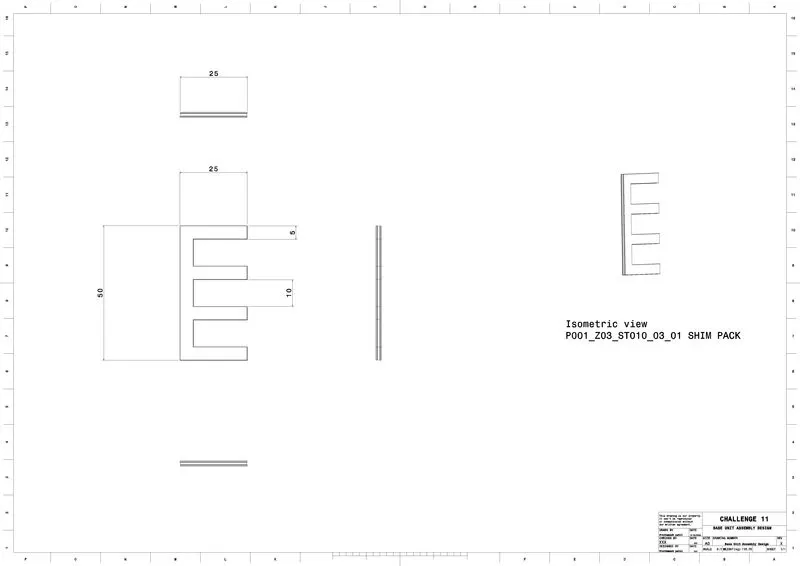

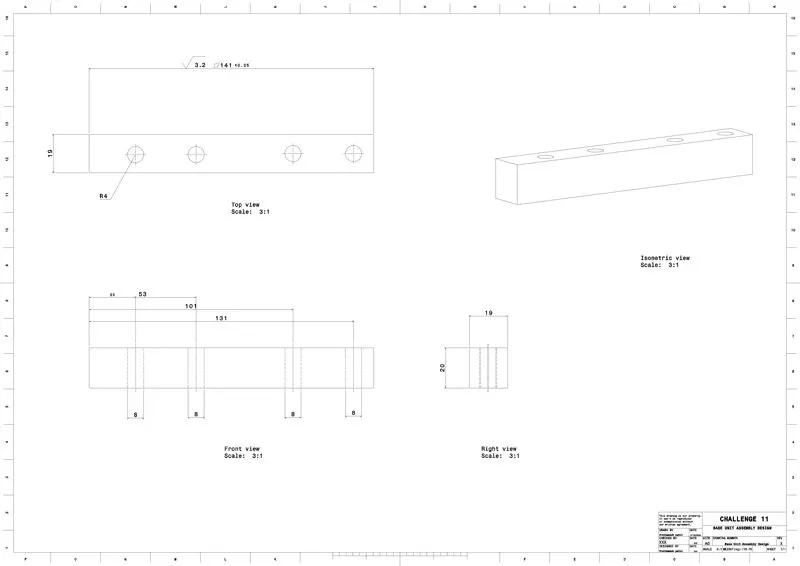

- SHIM PACK
- FIXED PIN UNIT 2
NOTE : All other units are same in fixed pin unit 1
- FIXED PIN UNIT 3

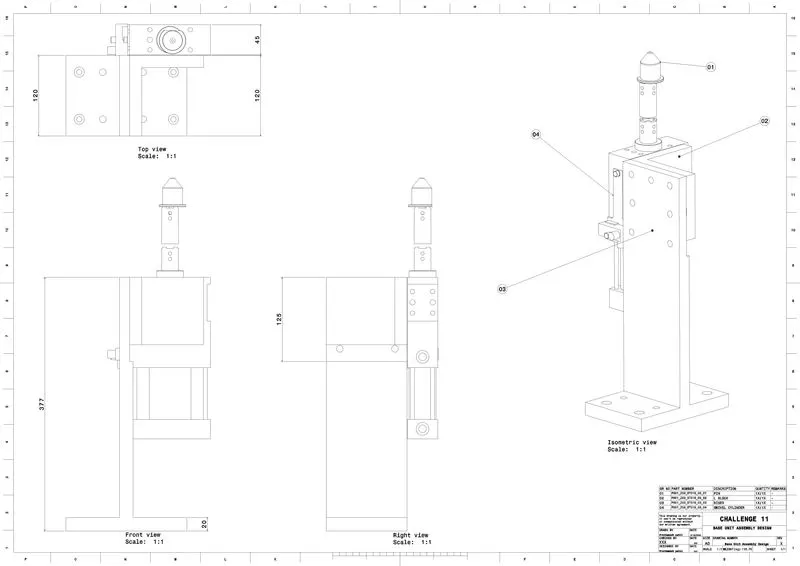

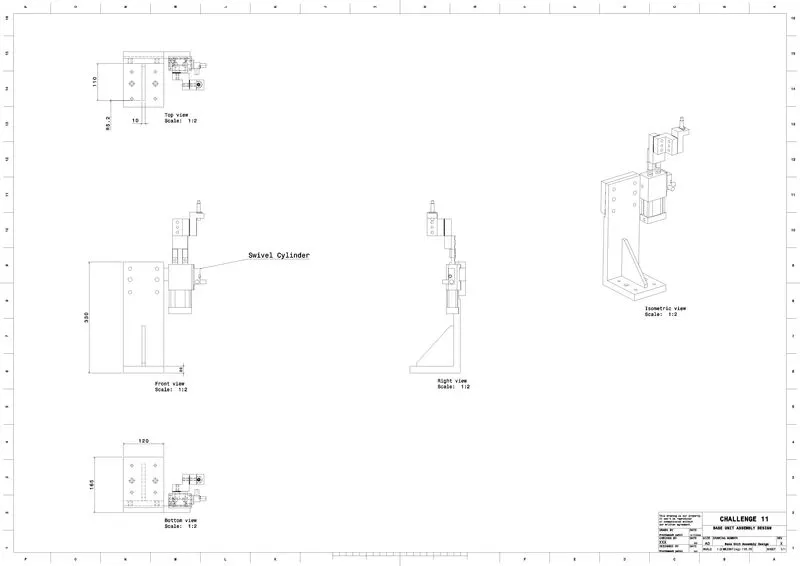

- RETRACTABLE PIN UNIT 1
NOTE : OTHER PARTS ARE SAME IN ABOVE ASSEMBLY
- RETRACTABLE PIN UNIT 2
CONCLUSION :
Hence, clamp unit drawings with all the chiled parts & the fixed pin unit drwaing with all chiled parts for the completae fixture assembly was completed.
