Week 11:- 2D Detailing Challenge 2
AIM:
- To create 2D Drawing for each Clamp Units with all child parts and also create Child part drawing for the same for the Fixture assembly.
- To create 2D Drawing for each Pin Units drawings with all child parts and also create Child part drawing for the same for the Fixture assembly.
Answer:
Clamp units and Clamp-Pin units:

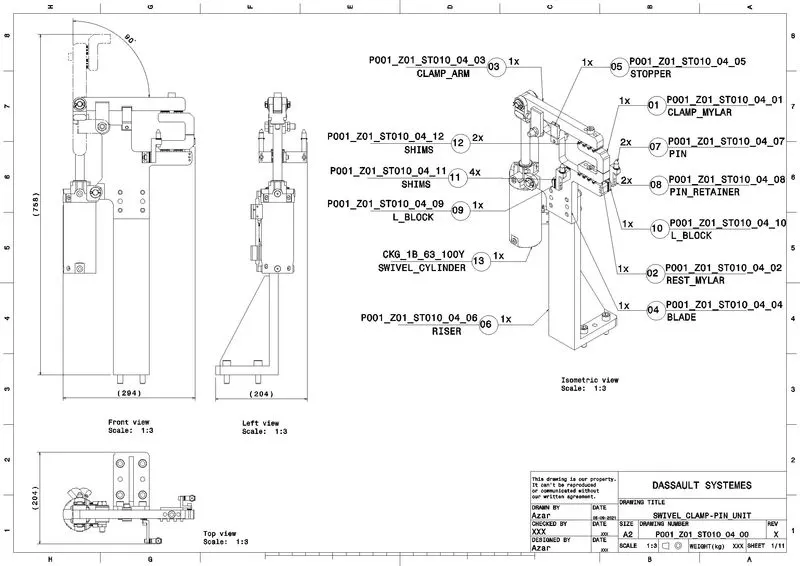

1.Detailing of swivel clamp-pin unit- P001_Z01_ST010_04_00
Detailed drawing of all the child parts:

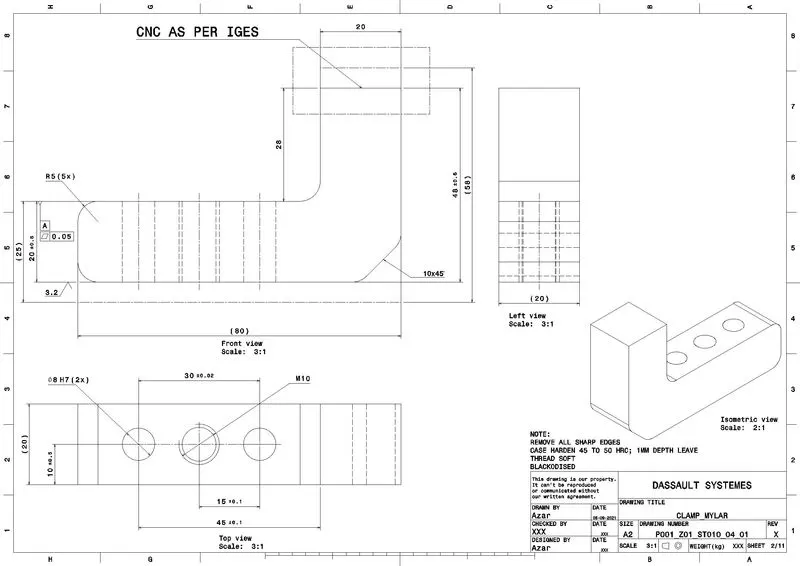

CLAMP MYLAR- P001_Z01_ST010_04_01

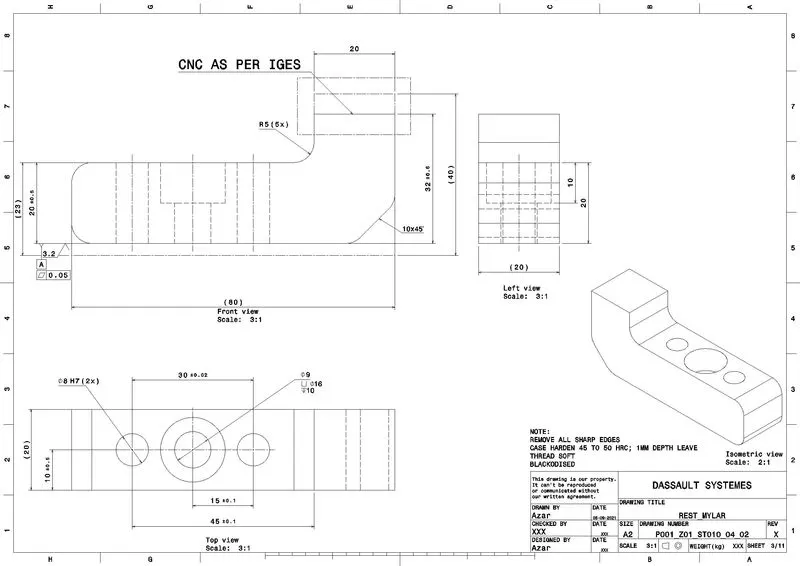

REST MYLAR- P001_Z01_ST010_04_02

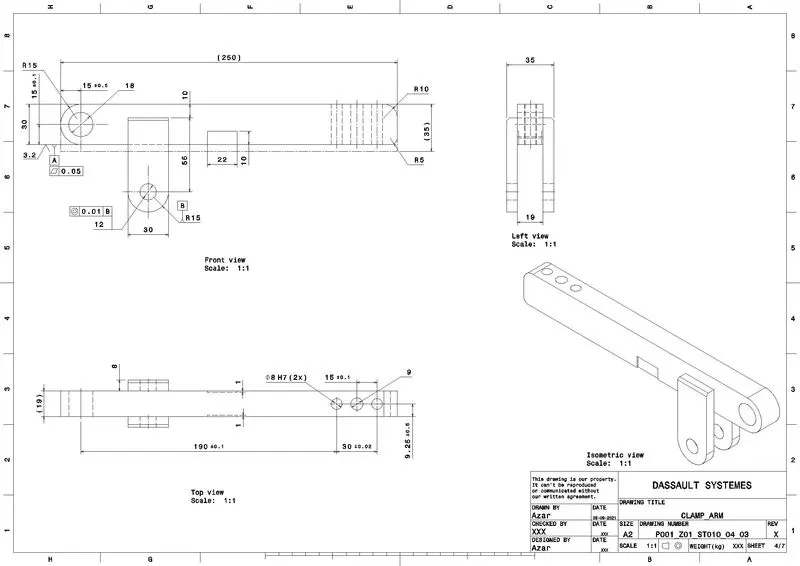

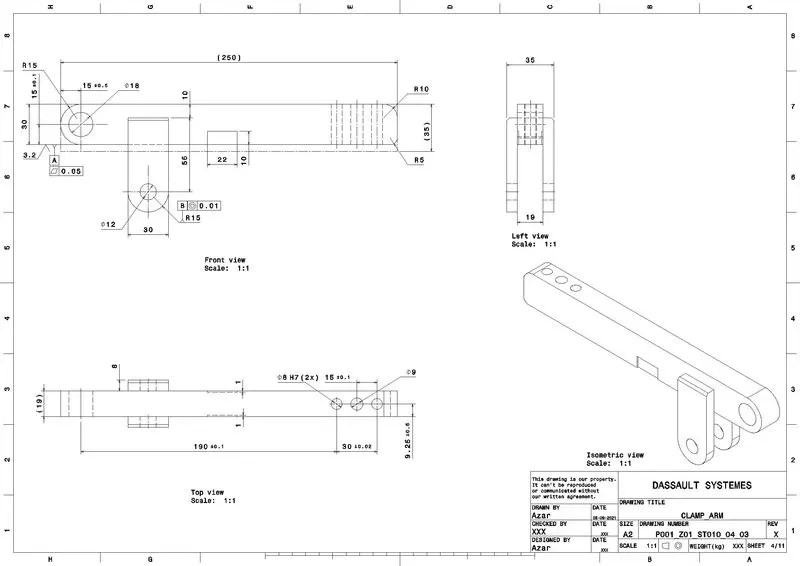

CLAMP ARM- P001_Z01_ST010_04_03

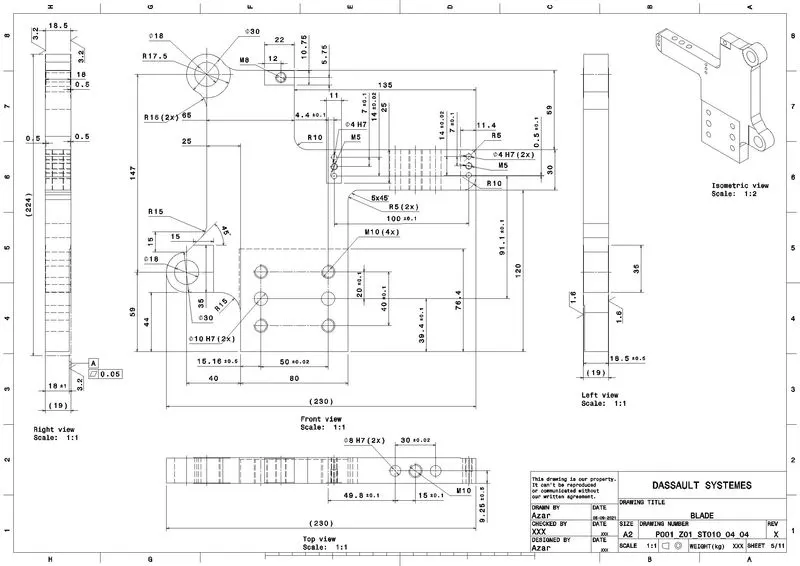

BLADE- P001_Z01_ST010_04_04

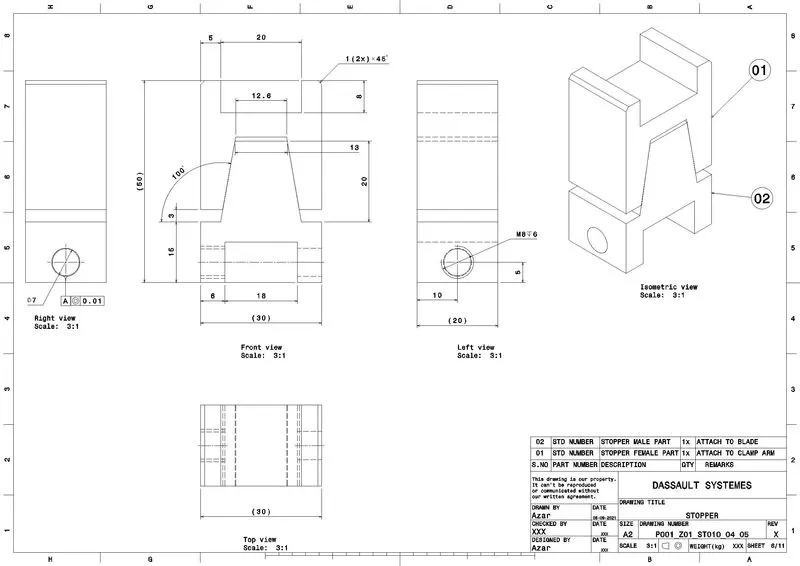

STOPPER- P001_Z01_ST010_04_05

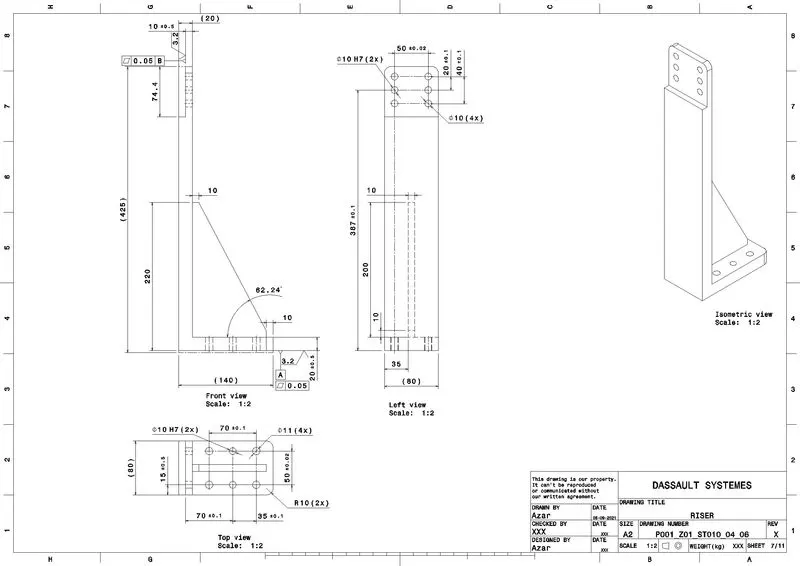

RISER- P001_Z01_ST010_04_06

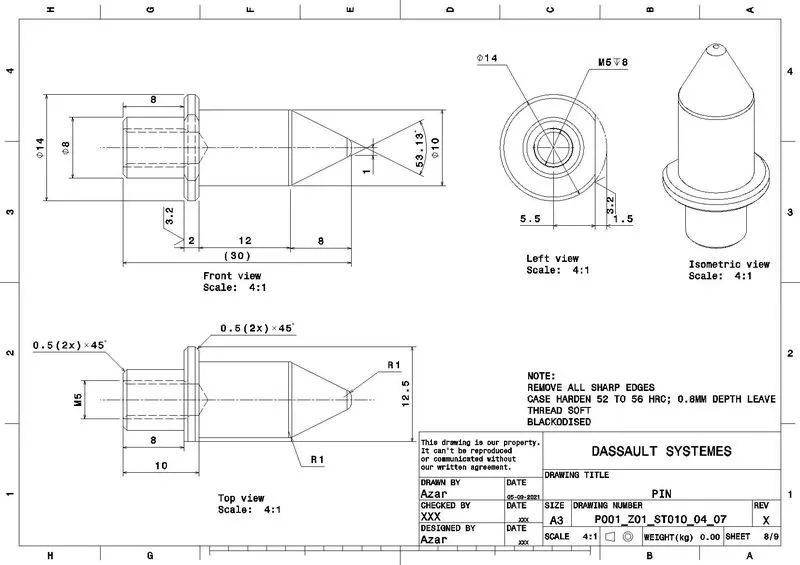

PIN- P001_Z01_ST010_04_07

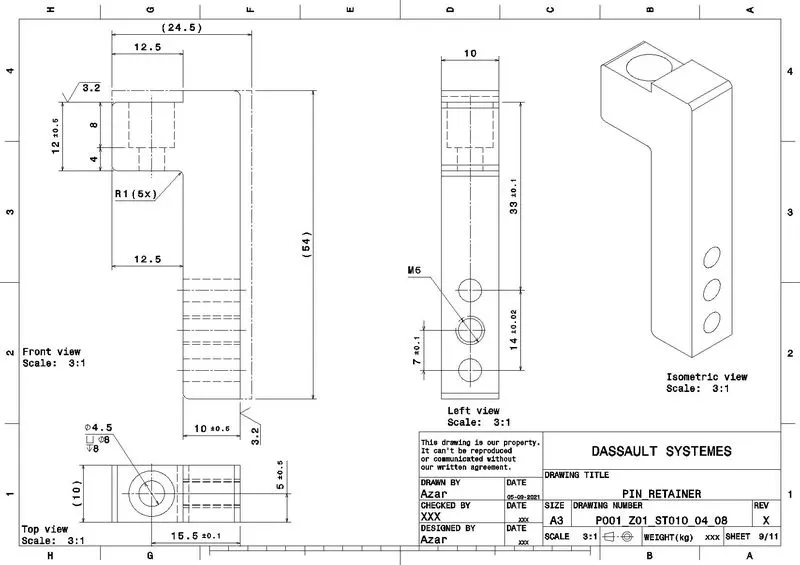

PIN RETAINER- P001_Z01_ST010_04_08
L_BLOCK- P001_Z01_ST010_04_09

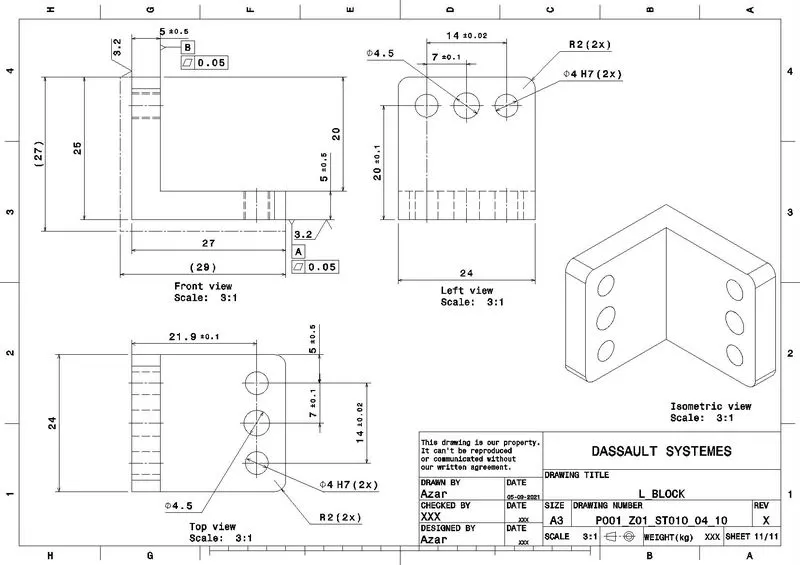

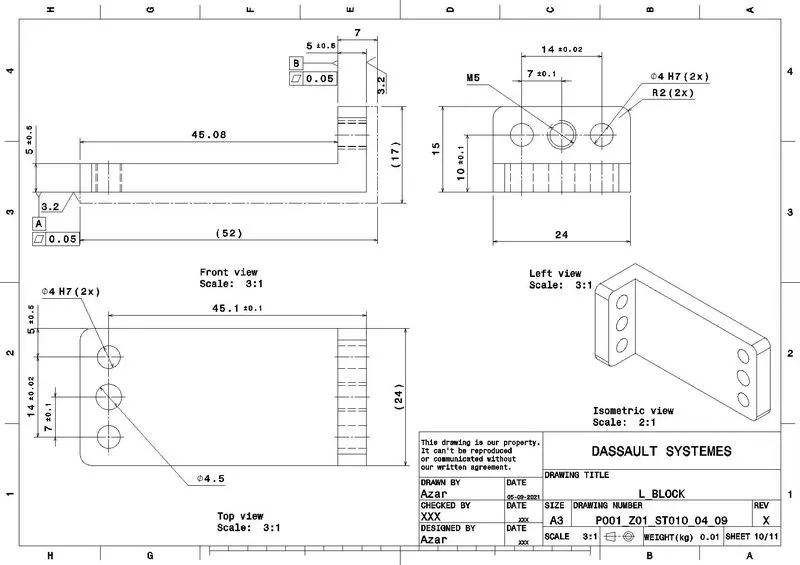

L_BLOCK- P001_Z01_ST010_04_10

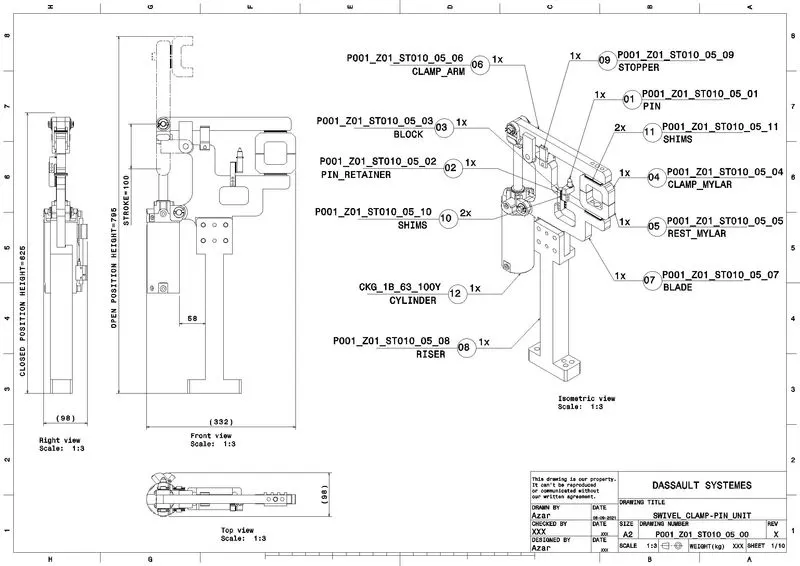

2. Detailing of Swivel Clamp-Pin Unit- P001_Z01_ST010_05_00

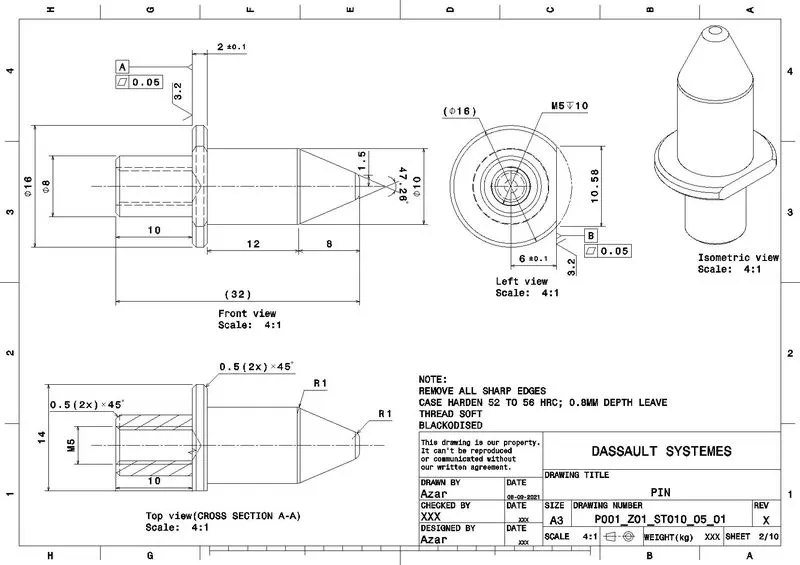

PIN- P001_Z01_ST010_05_01

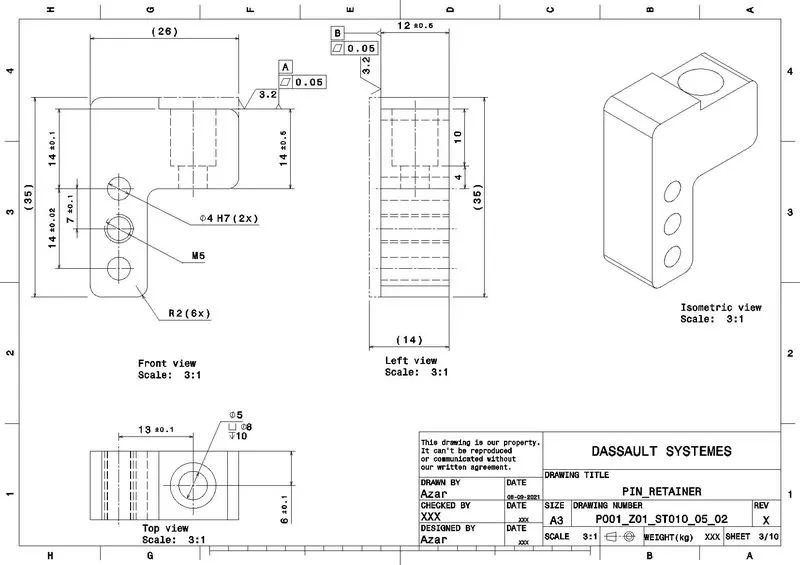

PIN RETAINER- P001_Z01_ST010_05_02

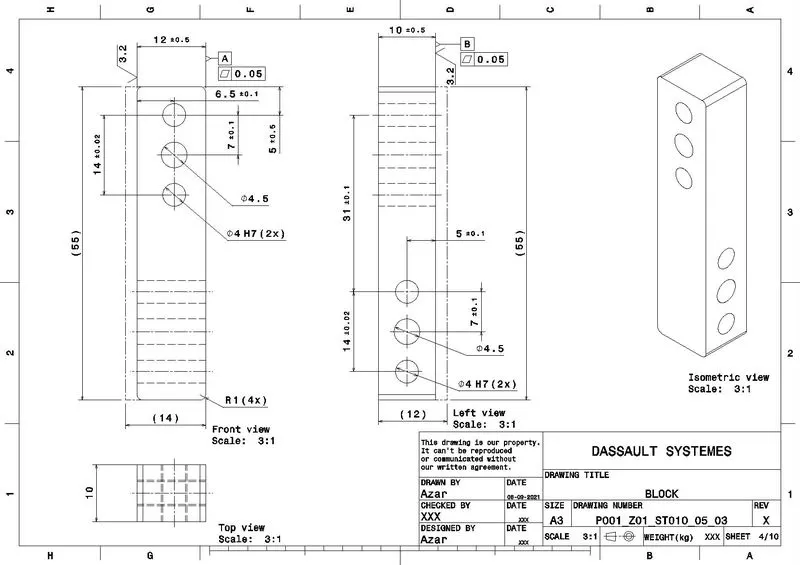

BLOCK- P001_Z01_ST010_05_03

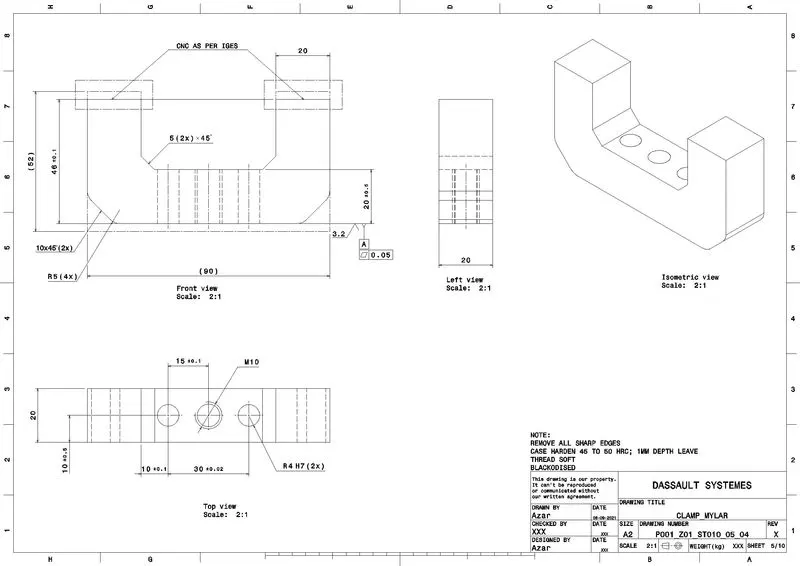

CLAMP MYLAR- P001_Z01_ST010_05_04

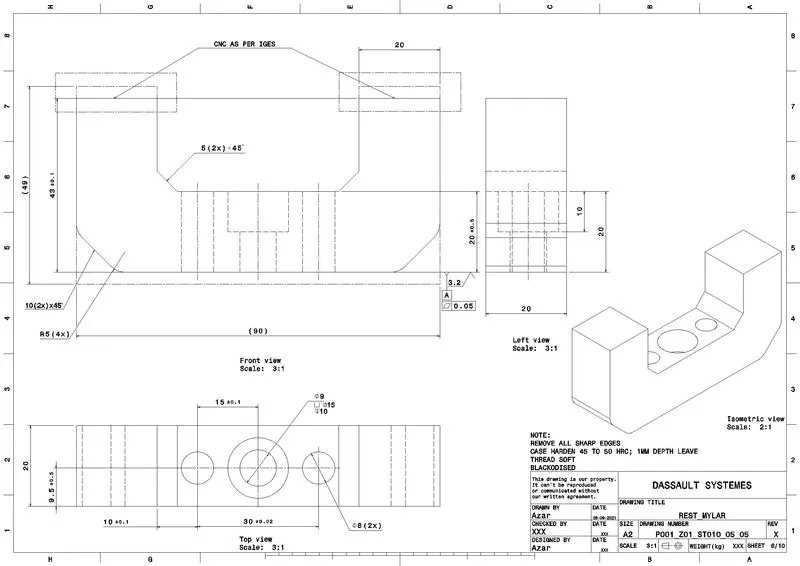

REST MYLAR- P001_Z01_ST010_05_05

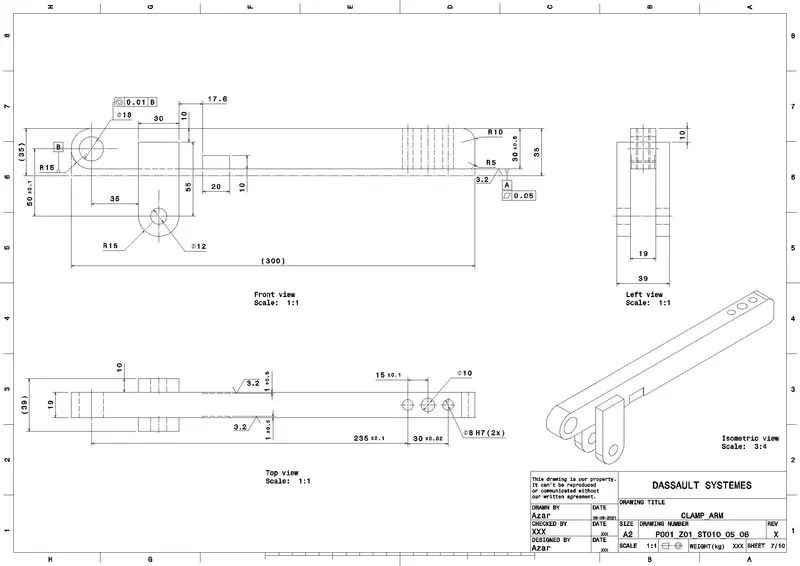

CLAMP ARM- P001_Z01_ST010_05_06

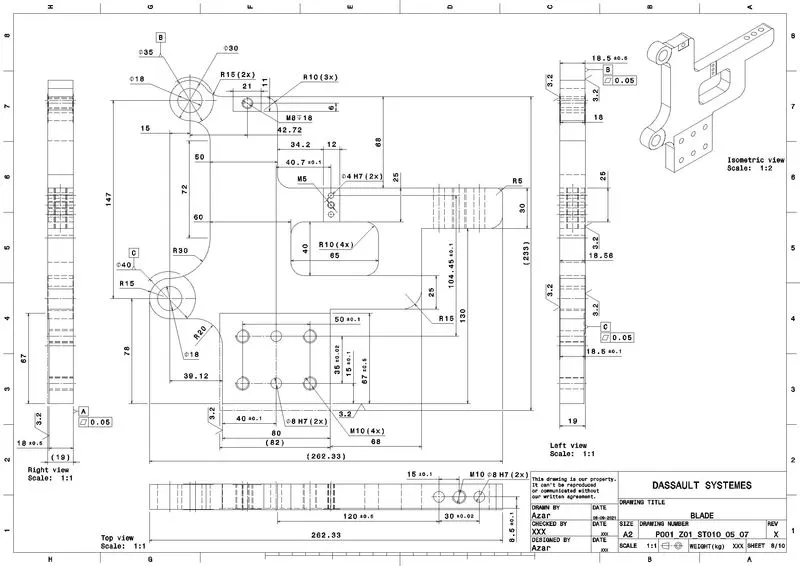

BLADE- P001_Z01_ST010_05_07

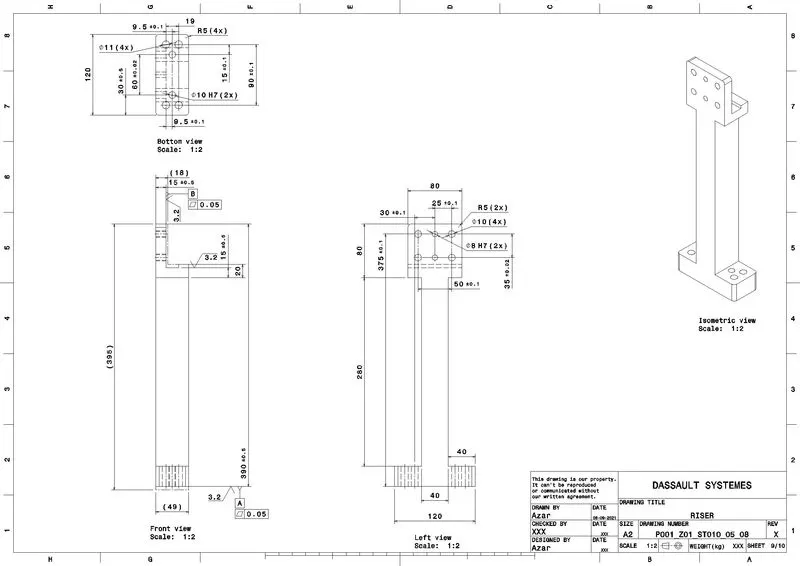

RISER- P001_Z01_ST010_05_08
STOPPER
The stopper is the same as used in Swivel clamp-pin unit (P001_Z01_ST010_04_00).
Part number: P001_Z01_ST010_04_05

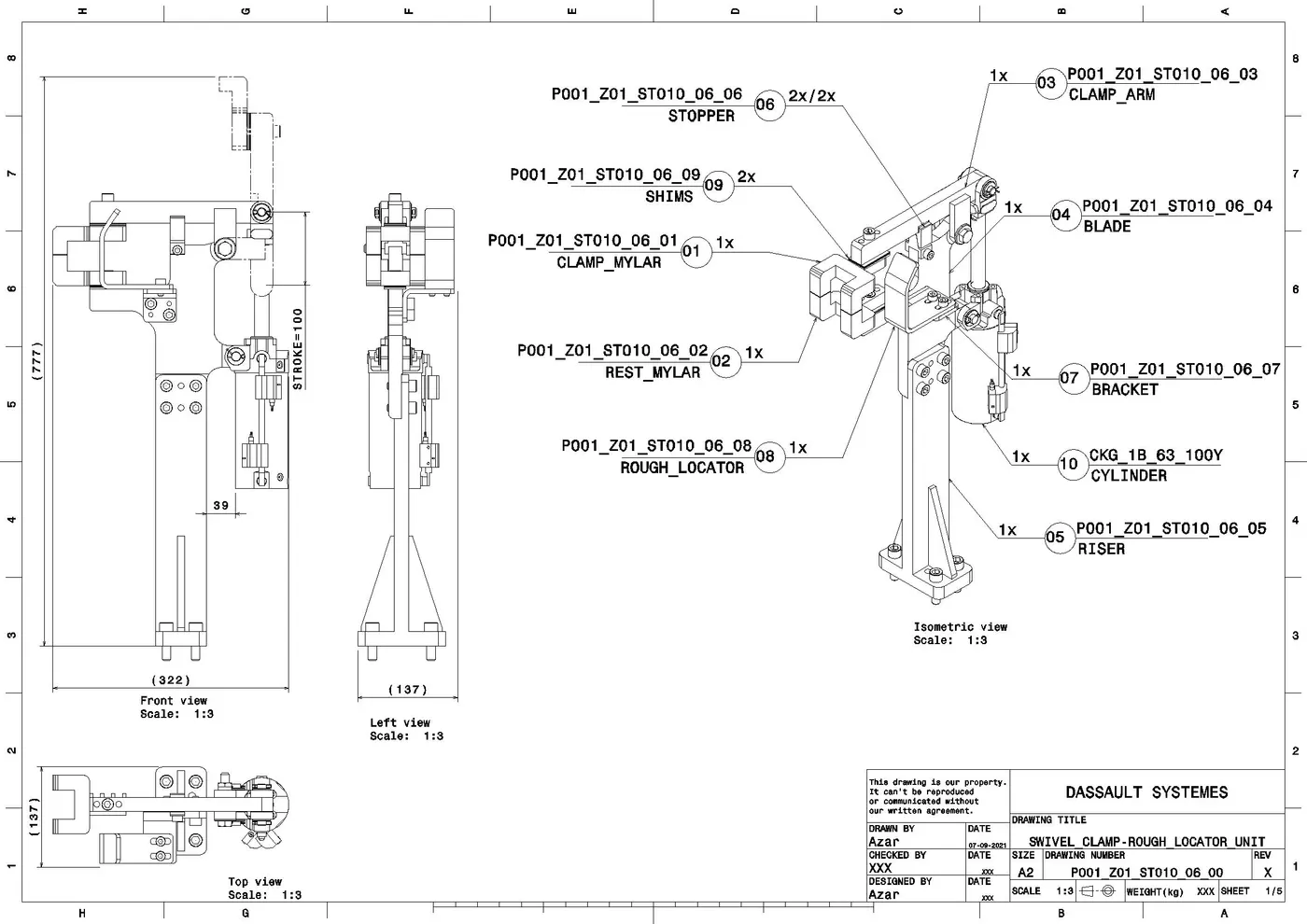

3. Detailing of Swivel Clamp Unit- P001_Z01_ST010_06_00

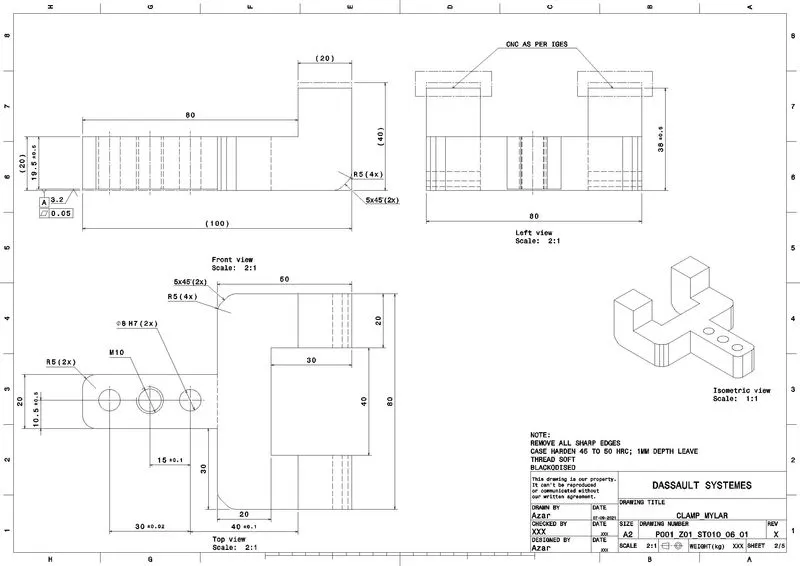

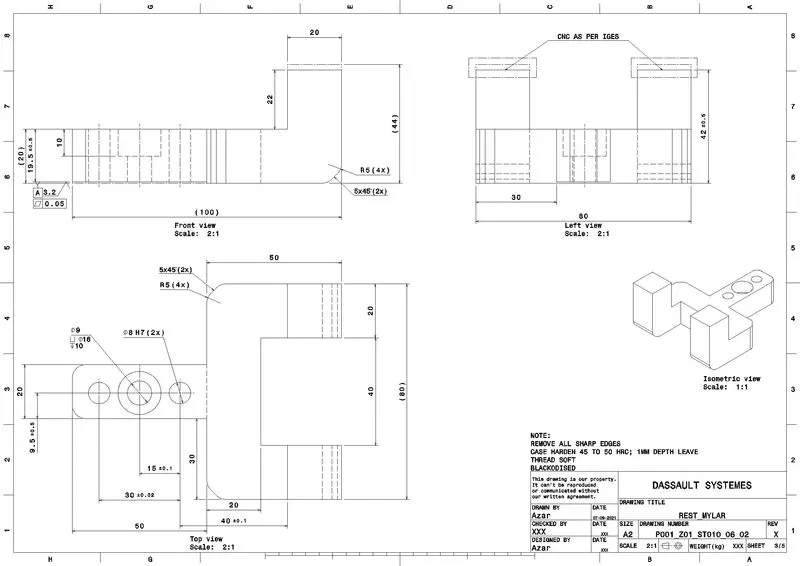

CLAMP MYLAR - P001_Z01_ST010_06_01
REST MYLAR - P001_Z01_ST010_06_02

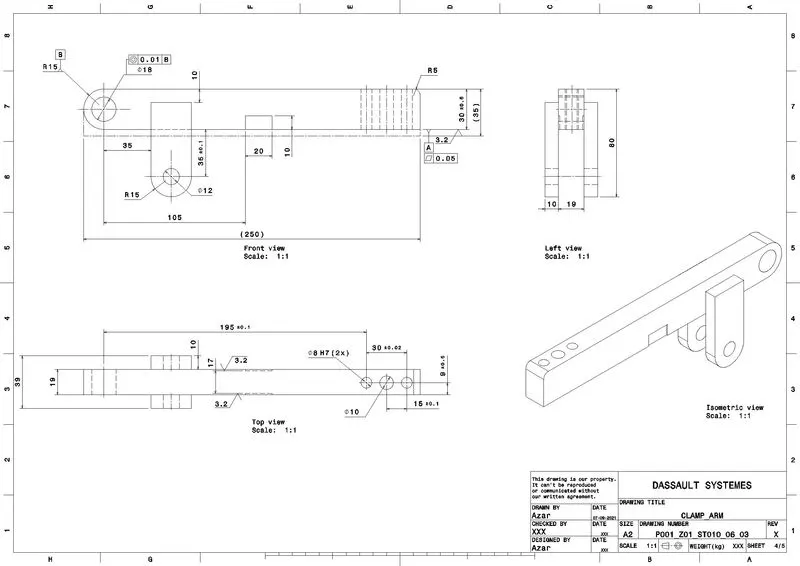

CLAMP ARM - P001_Z01_ST010_06_03

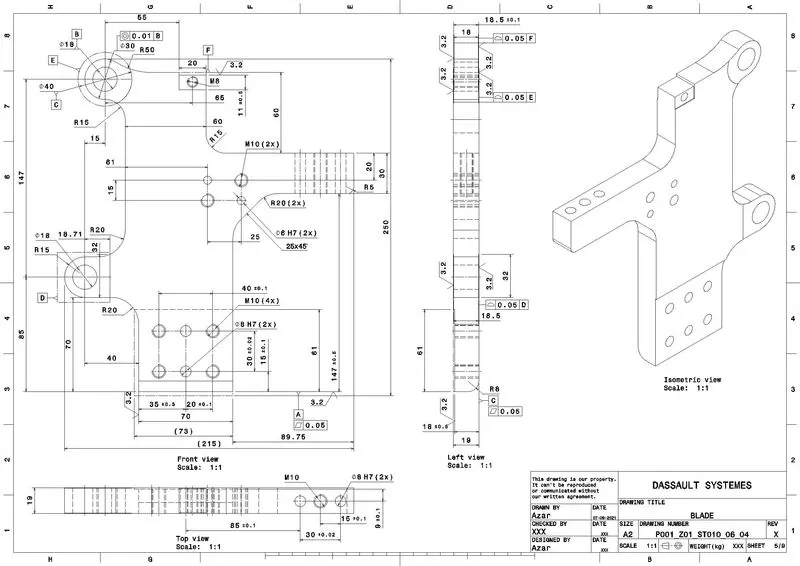

BLADE - P001_Z01_ST010_06_04

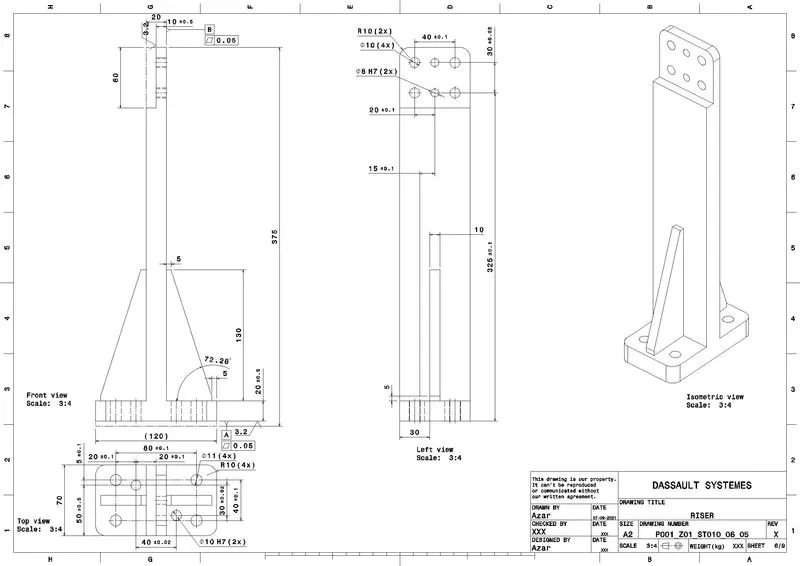

RISER - P001_Z01_ST010_06_05
STOPPER
The stopper is the same as used in Swivel clamp-pin unit (P001_Z01_ST010_04_00).
Part number: P001_Z01_ST010_04_05

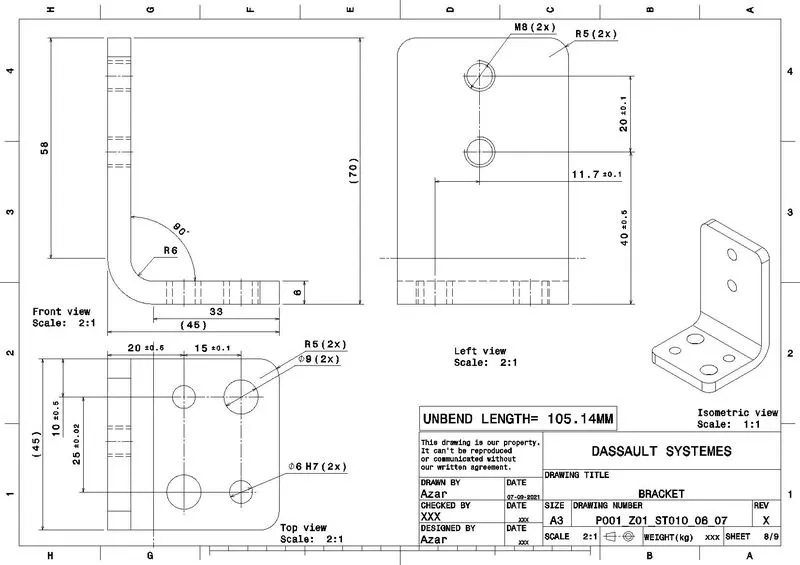

BRACKET - P001_Z01_ST010_06_07
ROUGH LOCATOR - P001_Z01_ST010_06_08

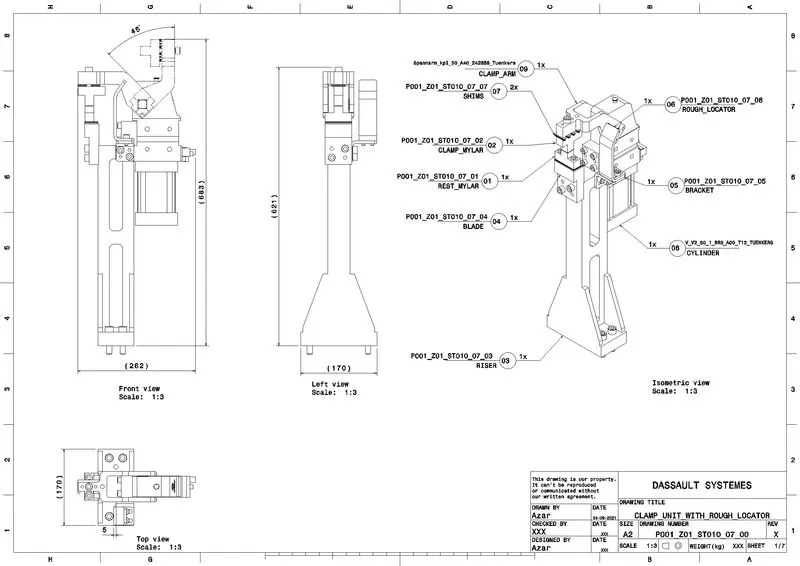

4. Detailing of Clamp Unit- P001_Z01_ST010_07_00

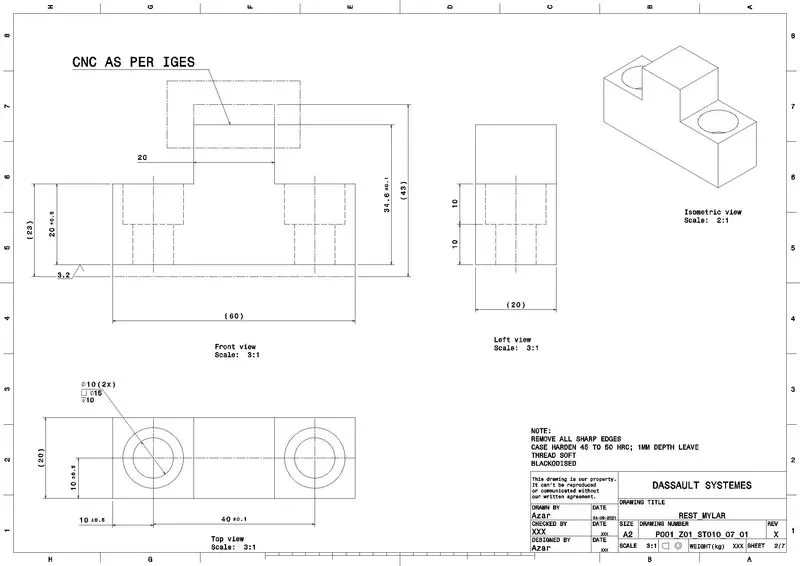

REST MYLAR - P001_Z01_ST010_07_01

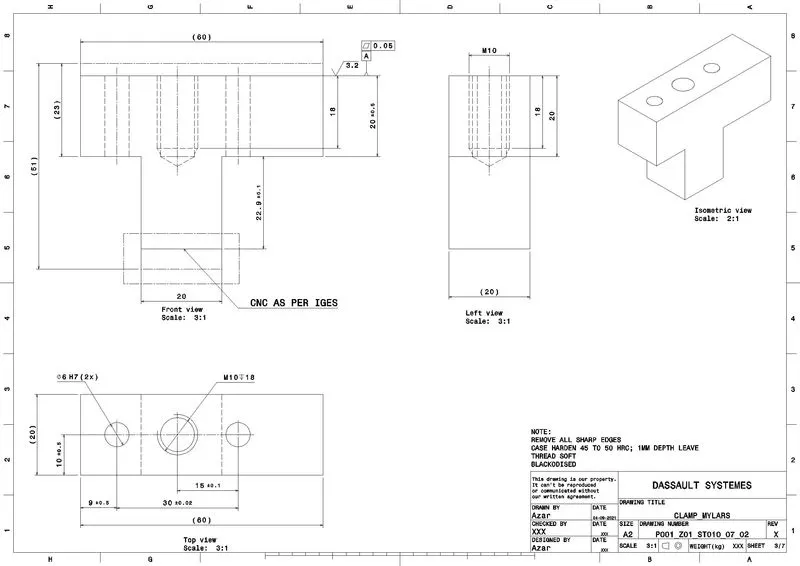

CLAMP MYLAR - P001_Z01_ST010_07_02

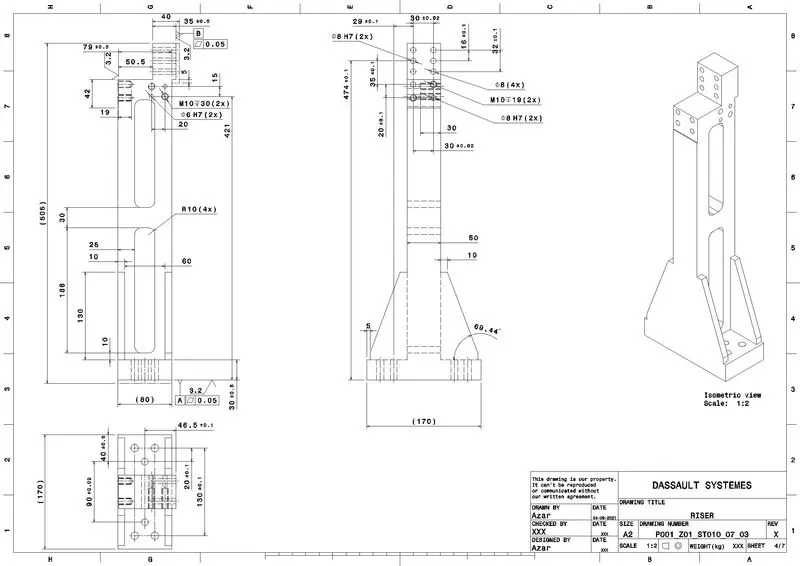

RISER - P001_Z01_ST010_07_03

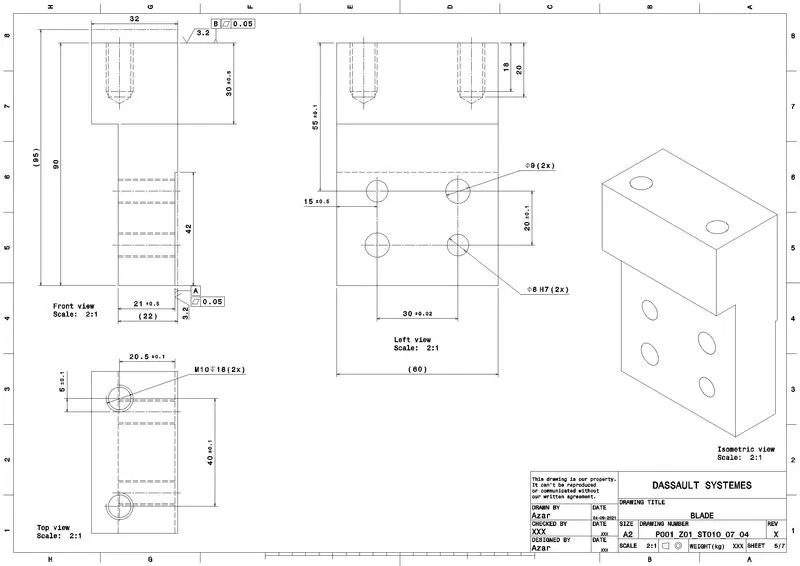

BLADE - P001_Z01_ST010_07_04

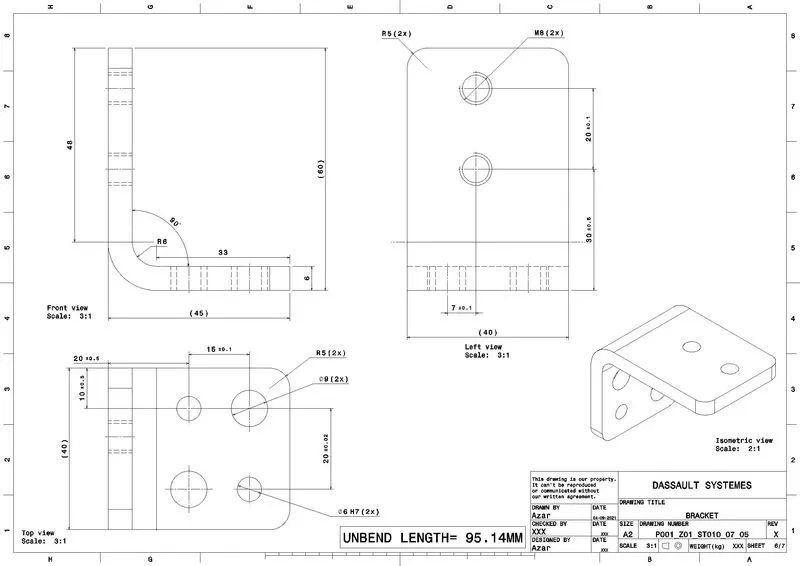

BRACKET - P001_Z01_ST010_07_05

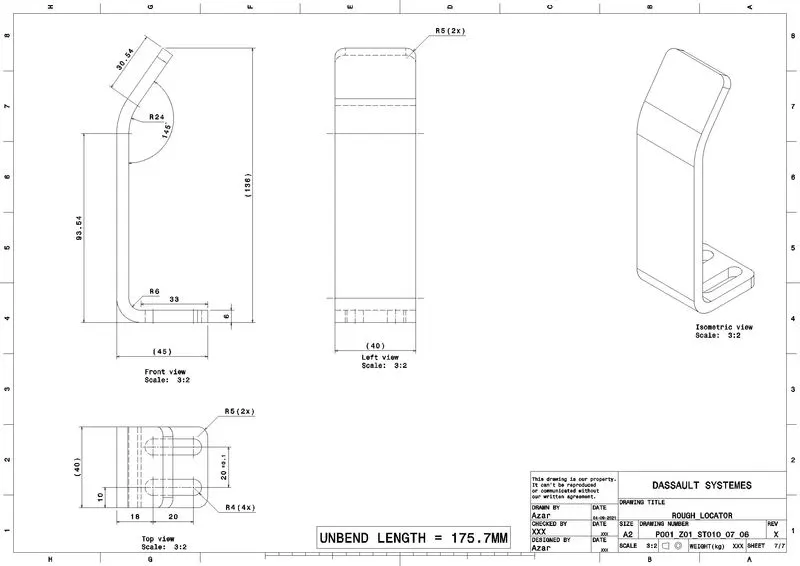

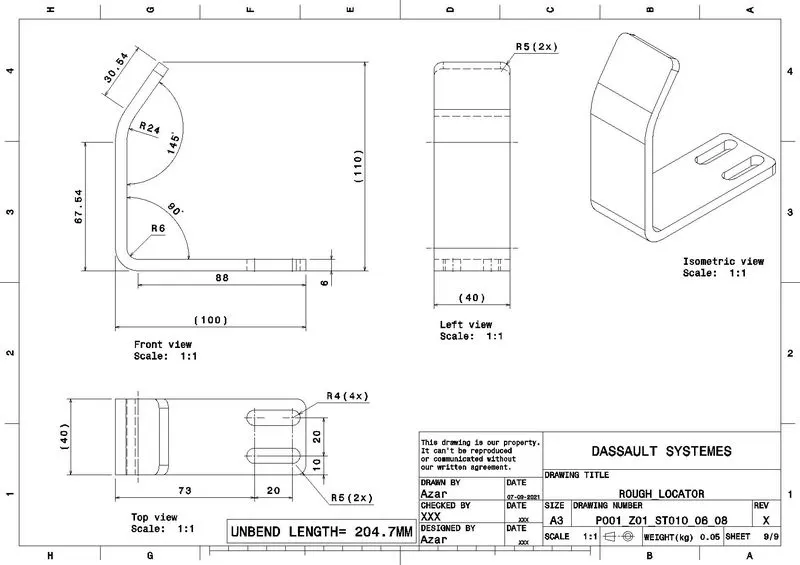

ROUGH LOCATOR - P001_Z01_ST010_07_06

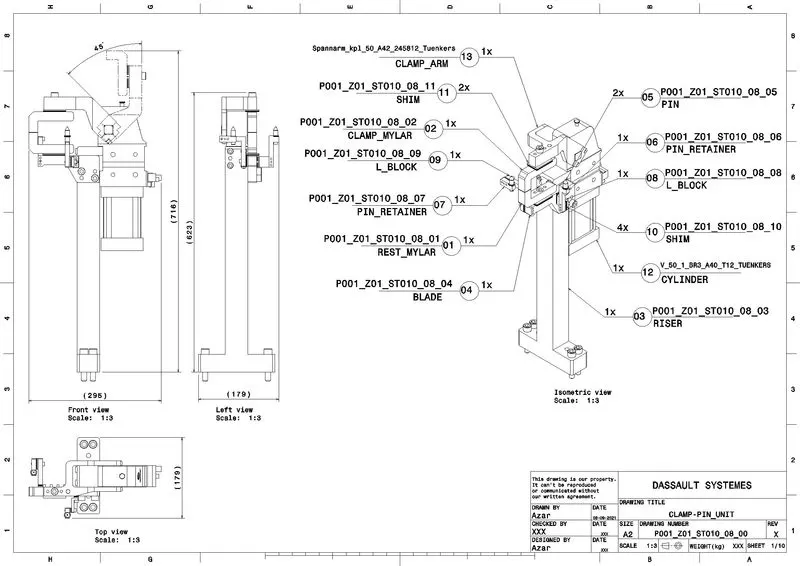

5. Detailing of Clamp-Pin Unit- P001_Z01_ST010_08_00

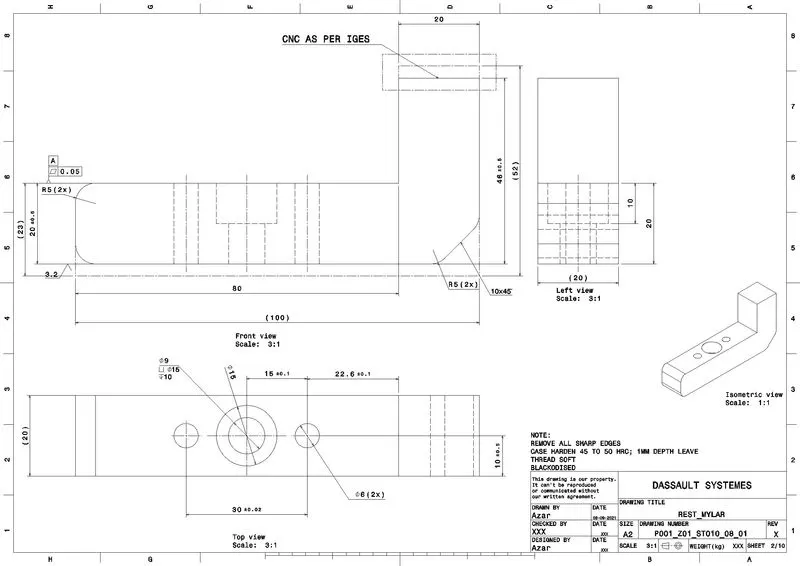

REST MYLAR - P001_Z01_ST010_08_01

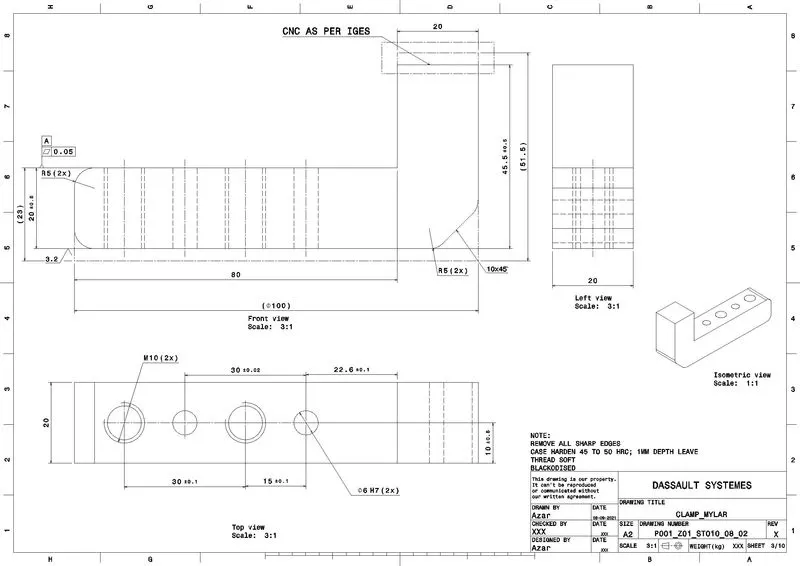

CLAMP MYLAR - P001_Z01_ST010_08_02

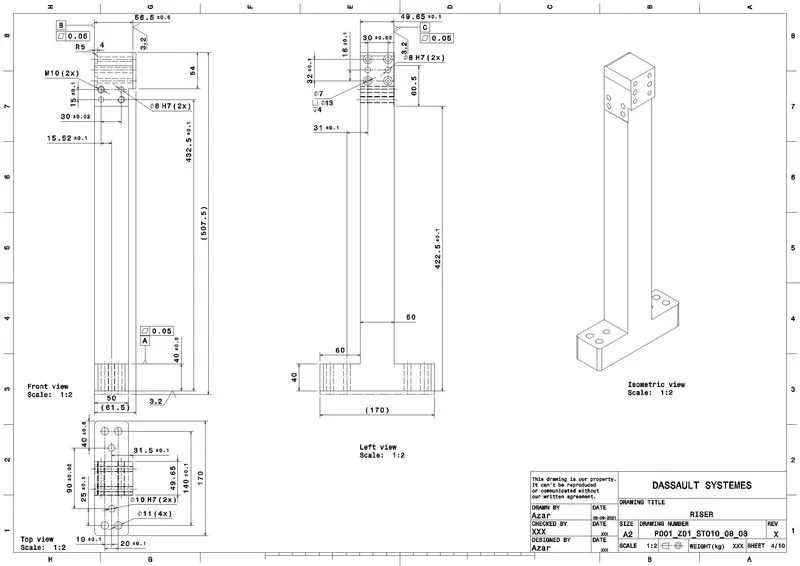

RISER - P001_Z01_ST010_08_03

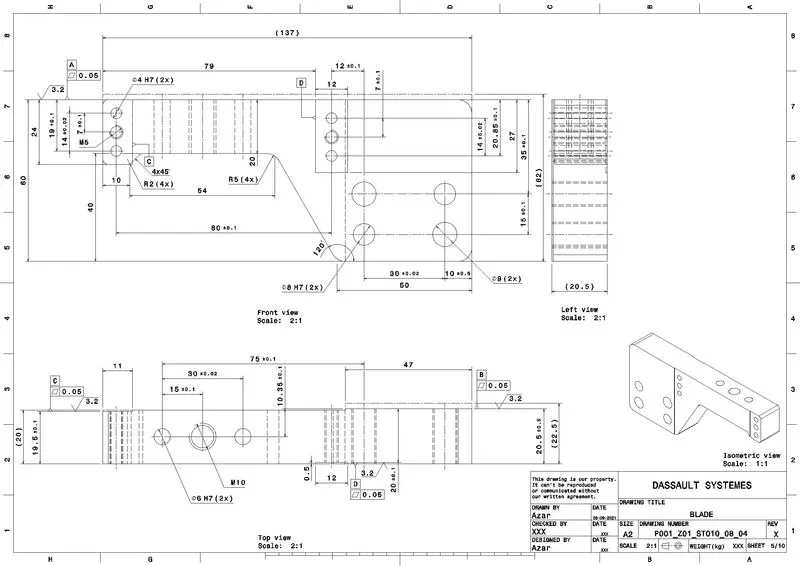

BLADE - P001_Z01_ST010_08_04

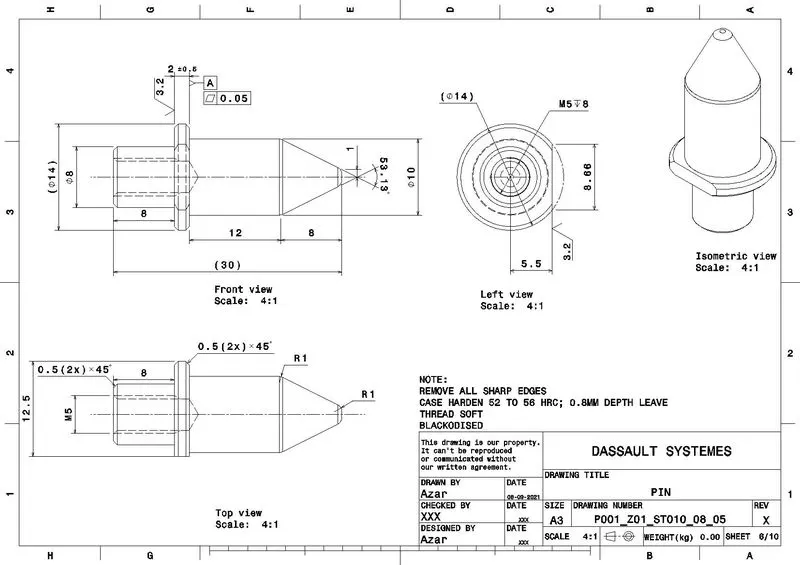

PIN - P001_Z01_ST010_08_05
PIN RETAINER - P001_Z01_ST010_08_06

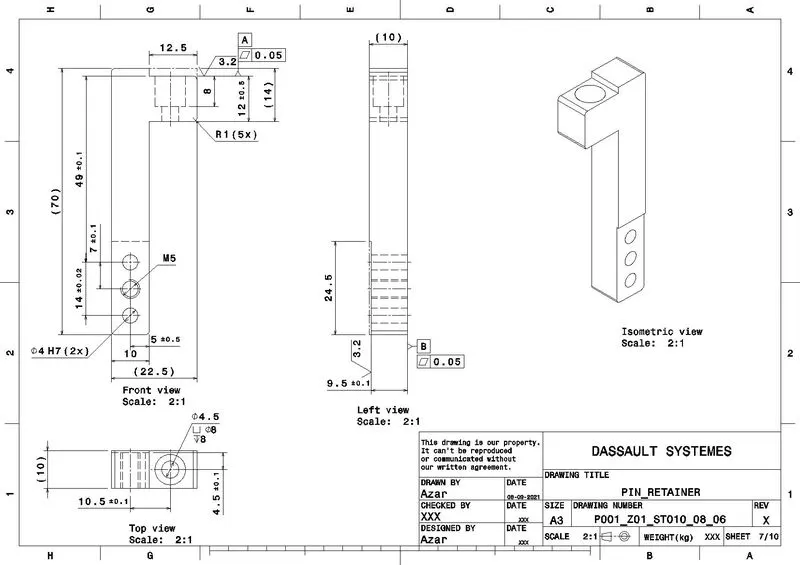

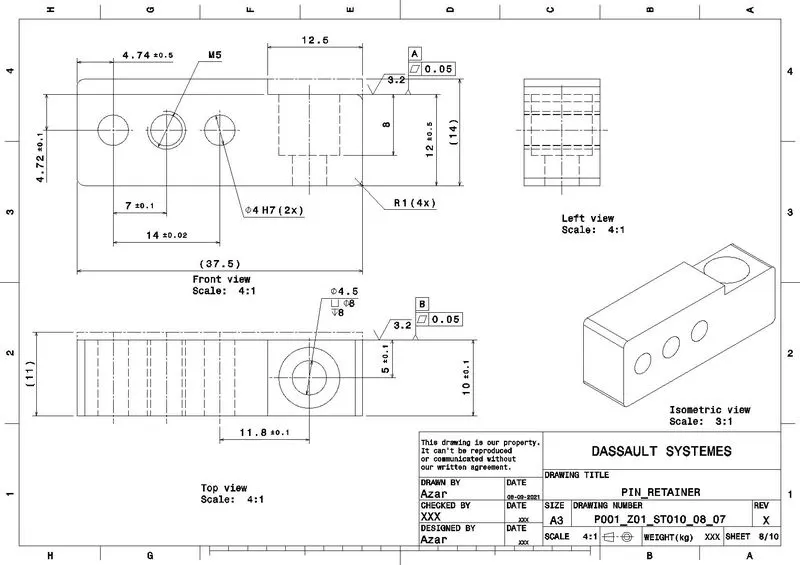

PIN RETAINER - P001_Z01_ST010_08_07

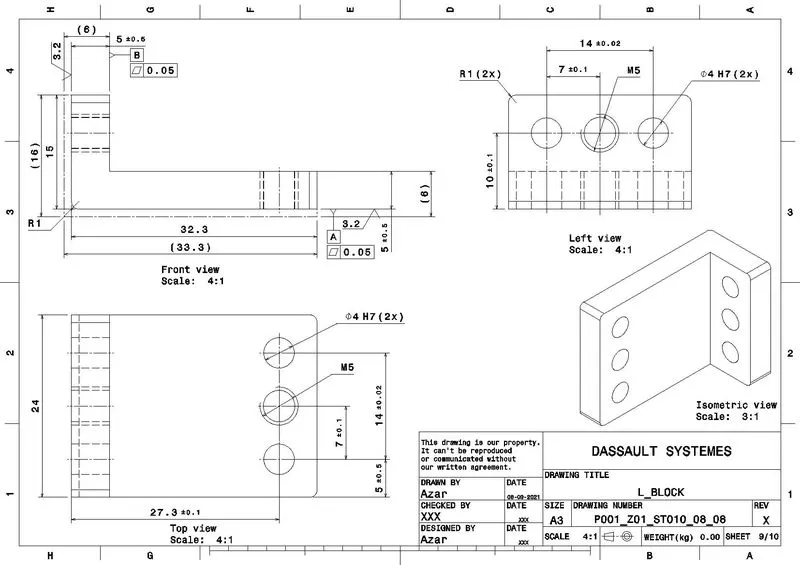

L_BLOCK - P001_Z01_ST010_08_08

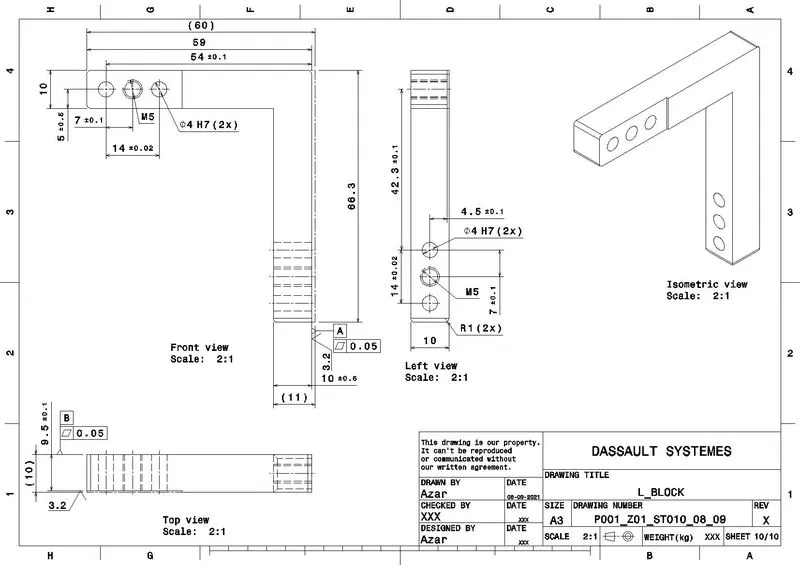

L_BLOCK - P001_Z01_ST010_08_09

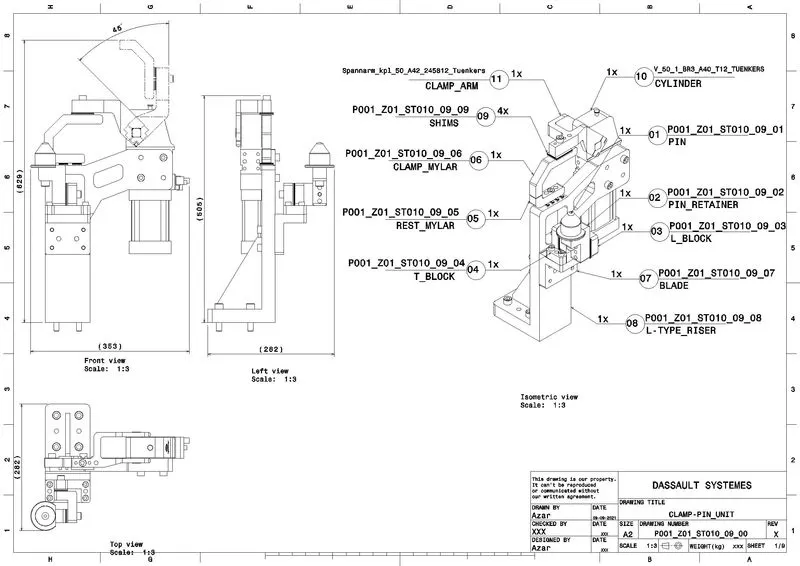

6. Detailing of Combined Clamp unit and Fixed Pin unit- P001_Z01_ST010_09_00

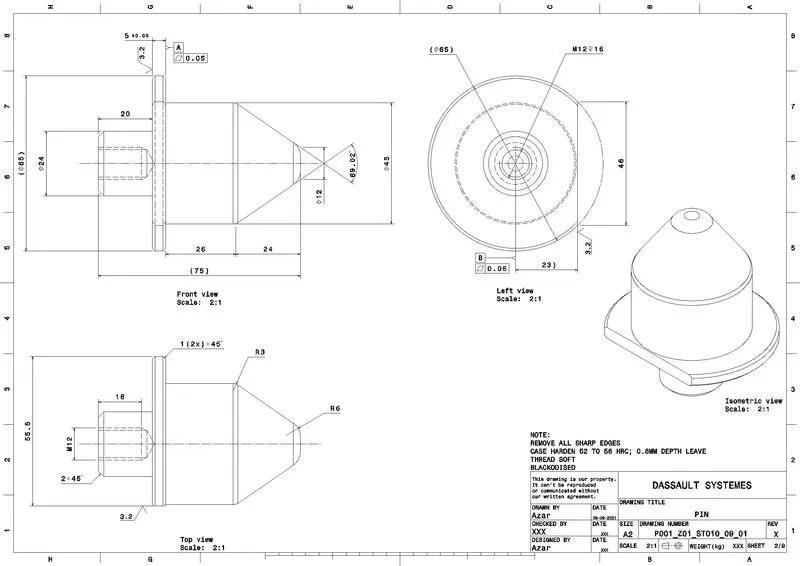

PIN - P001_Z01_ST010_09_01

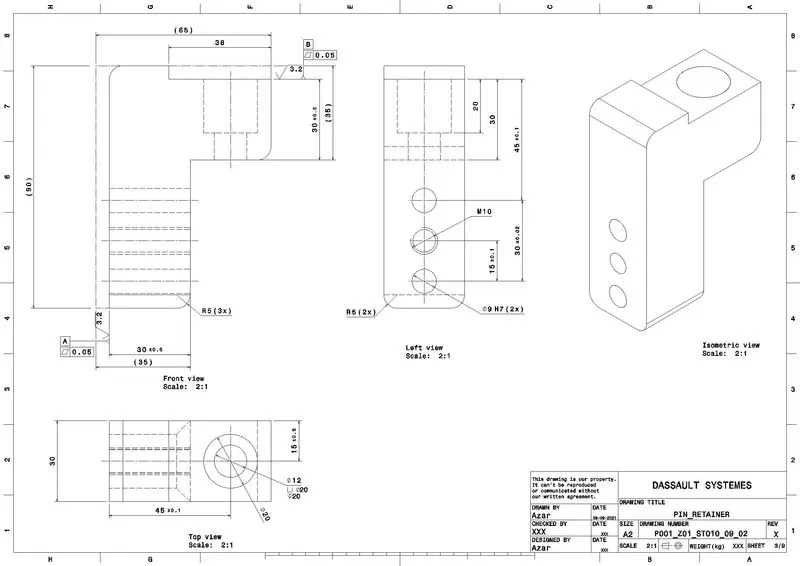

PIN RETAINER - P001_Z01_ST010_09_02

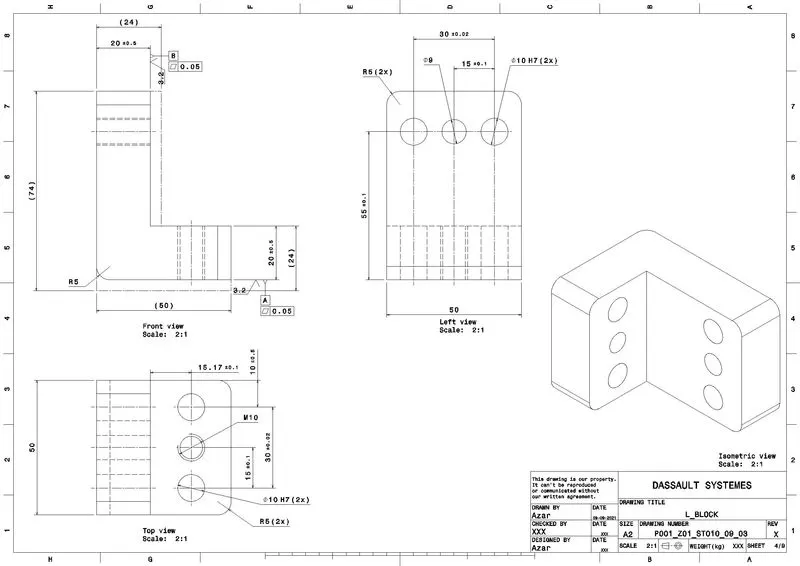

L_BLOCK - P001_Z01_ST010_09_03

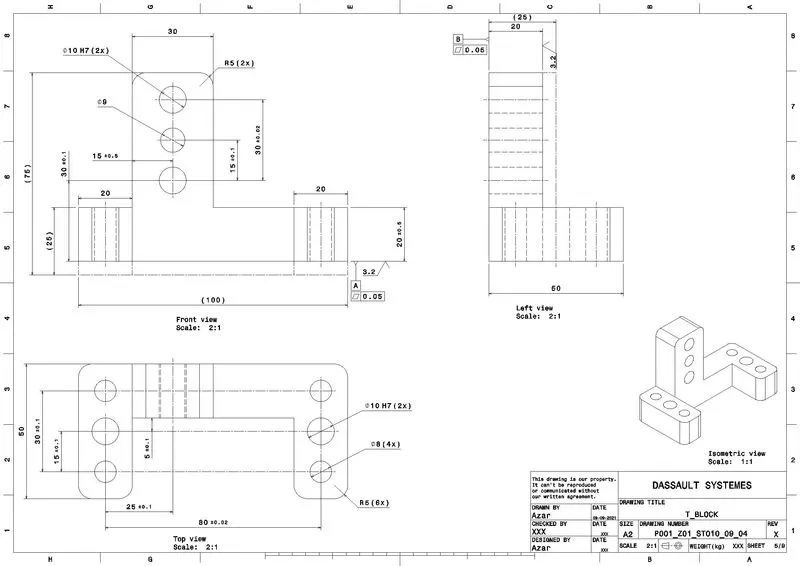

T_BLOCK - P001_Z01_ST010_09_04

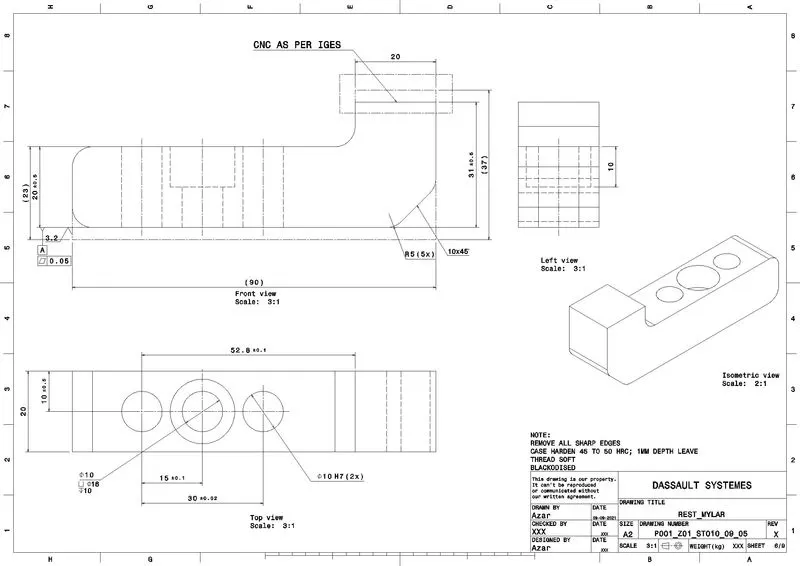

REST MYLAR - P001_Z01_ST010_09_05

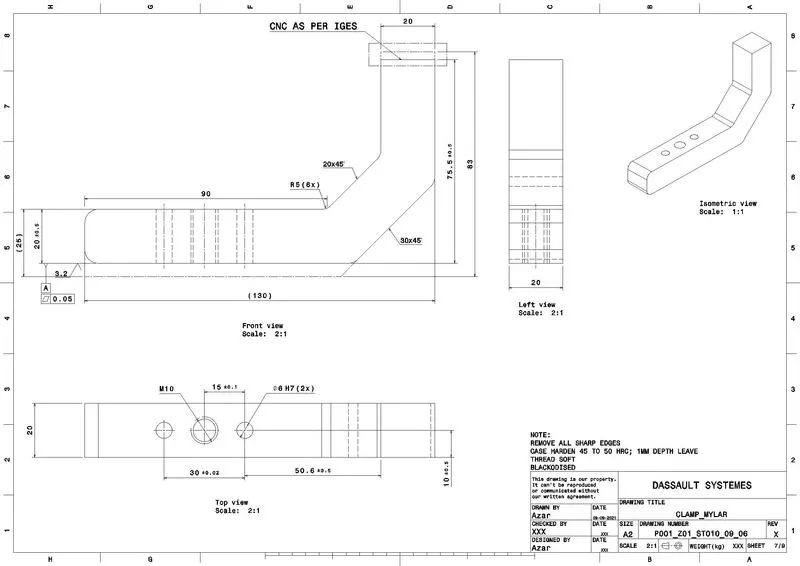

CLAMP MYLAR - P001_Z01_ST010_09_06

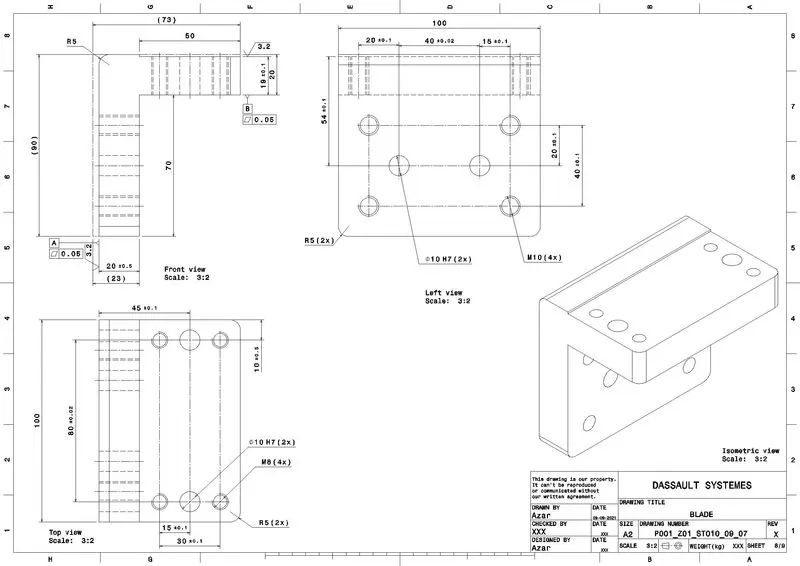

BLADE - P001_Z01_ST010_09_07

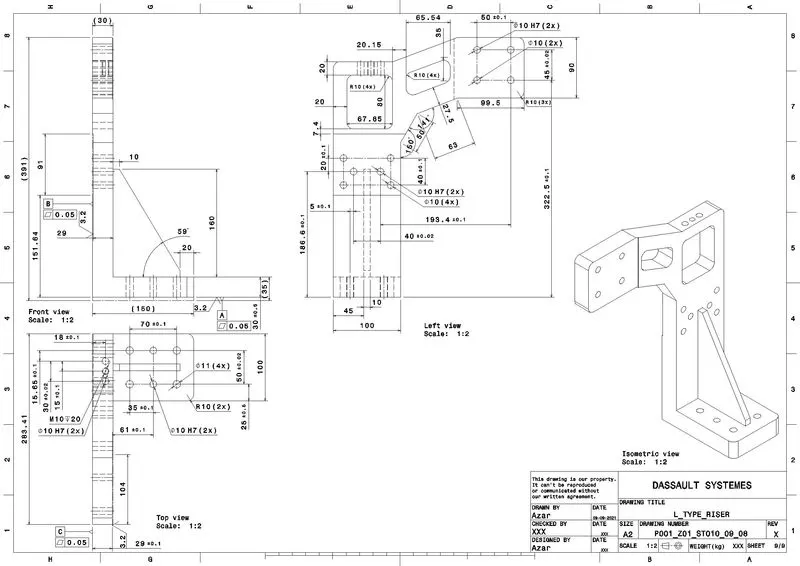

L_TYPE RISER - P001_Z01_ST010_09_08

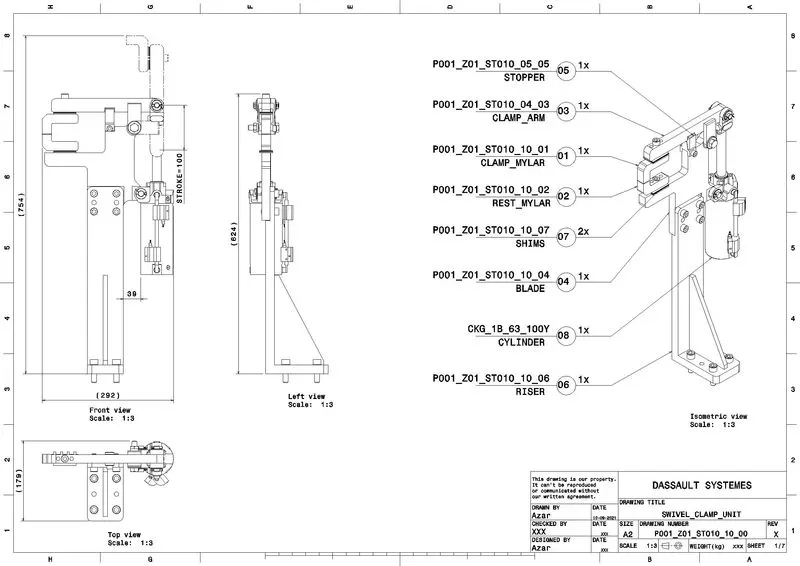

7. Detailing of Swivel Clamp Unit- P001_Z01_ST010_10_00

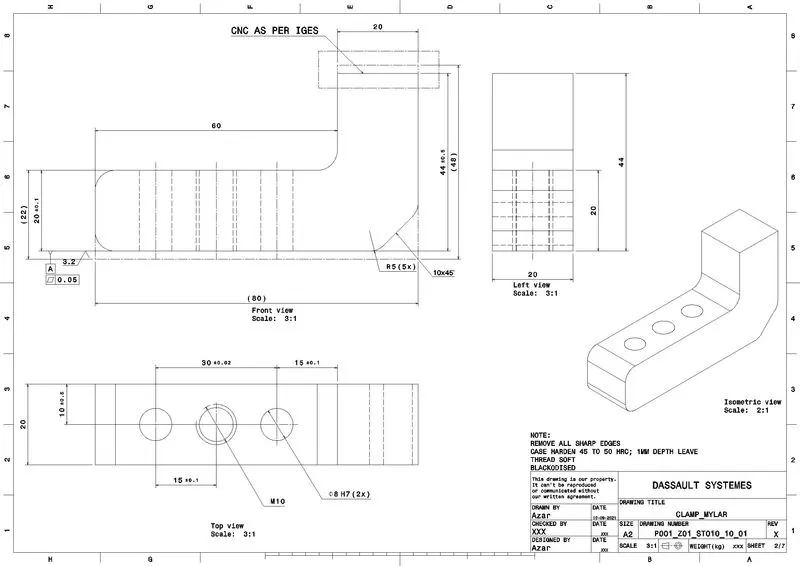

CLAMP MYLAR - P001_Z01_ST010_10_01

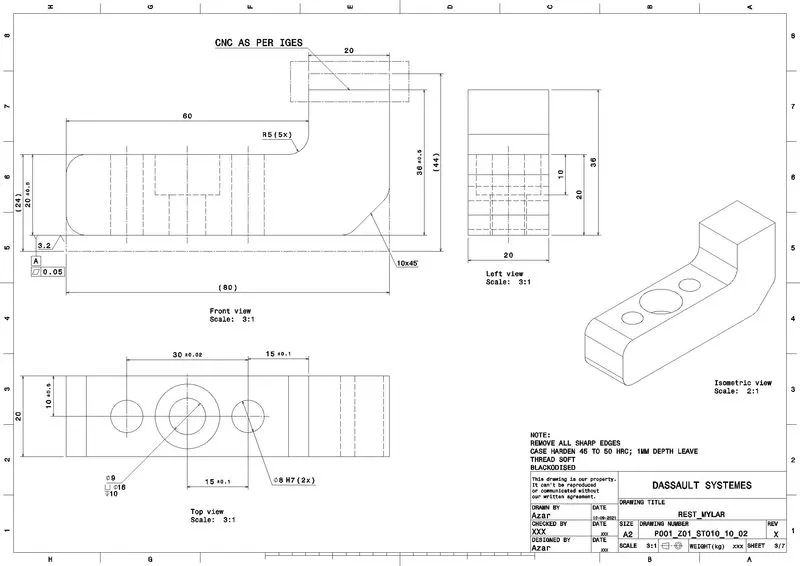

REST MYLAR - P001_Z01_ST010_10_02
CLAMP ARM
The clamp arm is the same as used in Swivel clamp-pin unit (P001_Z01_ST010_04_00).
Part number: P001_Z01_ST010_04_03

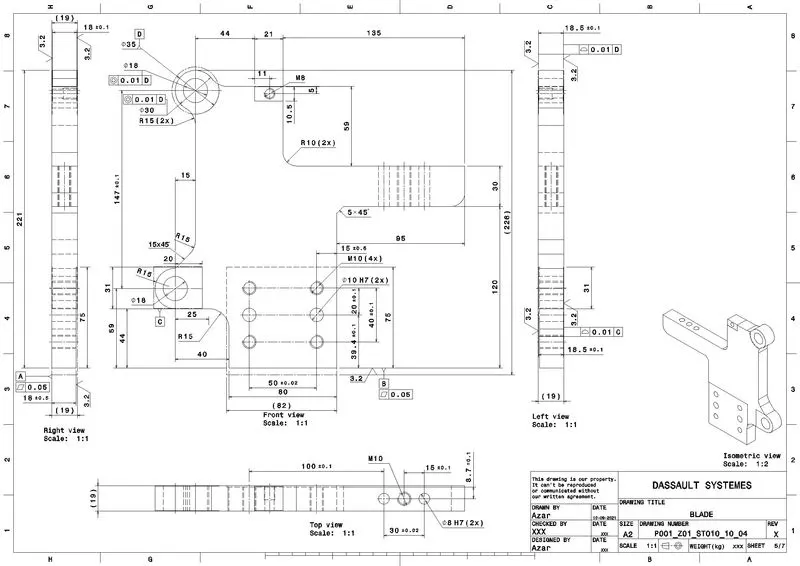

BLADE - P001_Z01_ST010_10_04
STOPPER
The stopper is the same as used in Swivel clamp-pin unit (P001_Z01_ST010_04_00).
Part number: P001_Z01_ST010_04_05

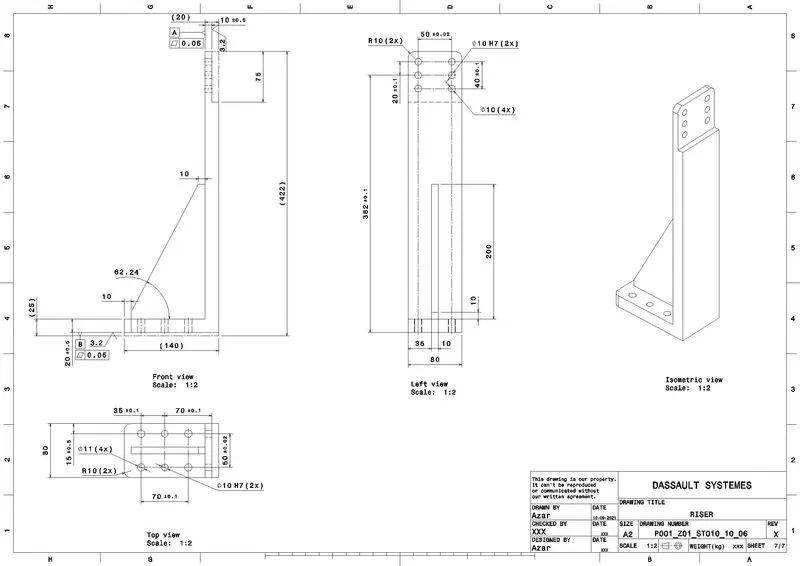

RISER - P001_Z01_ST010_10_06
PIN UNIT:
1. FIXED PIN UNIT
Detailing of Fixed Pin Unit: (P001_Z01_ST010_02_00)
- The fixture assembly has only one fixed pin unit to which the detailed drawings are given below:

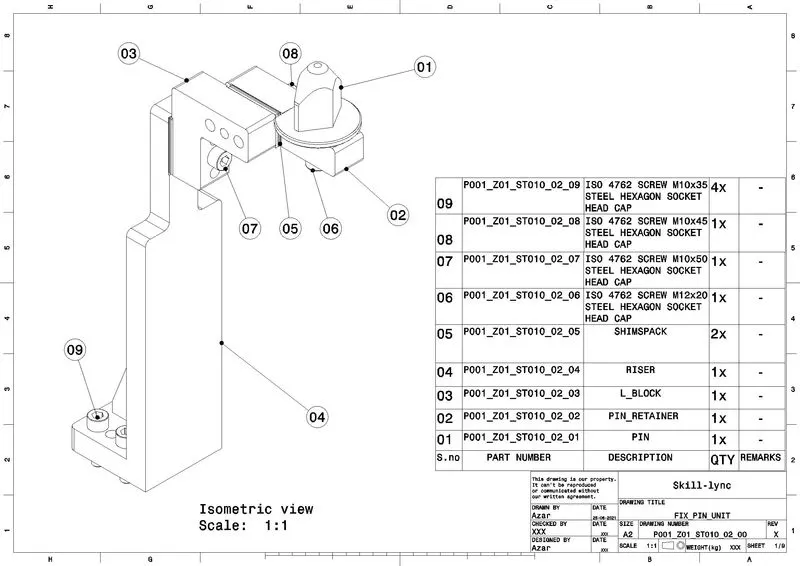

Isometric view of Fixed pin unit: (Sheet.No: 1/7)

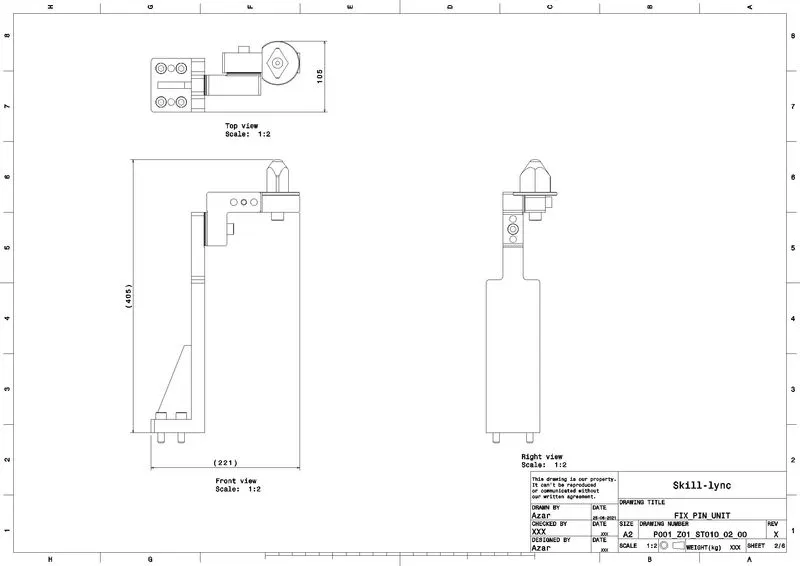

Orthographic projection view of Fixed pin unit: (Sheet.No: 2/7)

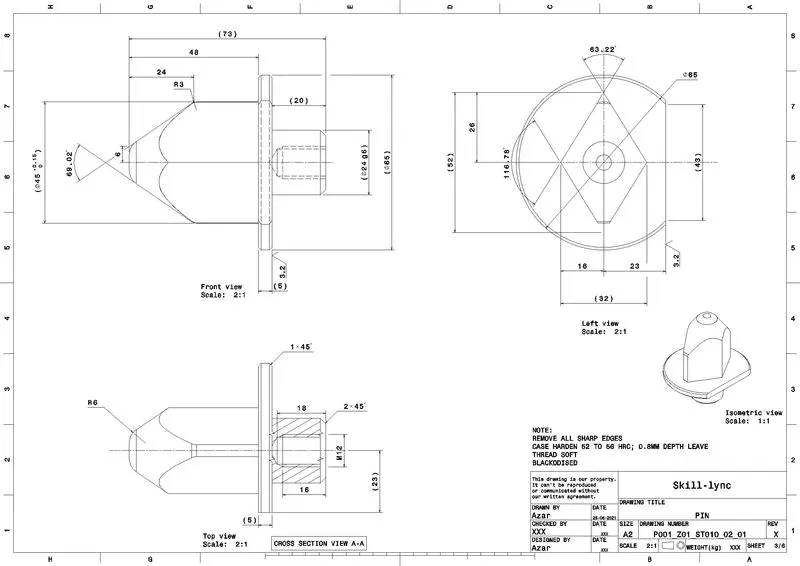

Detailing of Pin: (P001_Z01_ST010_02_01)
Ortho & Iso- view of Pin: (Sheet.No: 3/7)

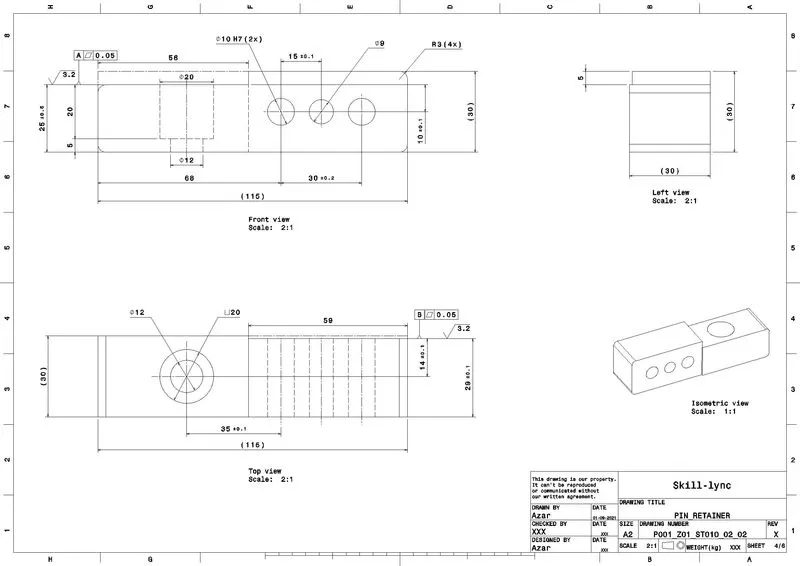

Detailing of Pin_Retainer: (P001_Z01_ST010_02_02)
Ortho & Iso- view of Pin retainer: (Sheet.No: 4/7)

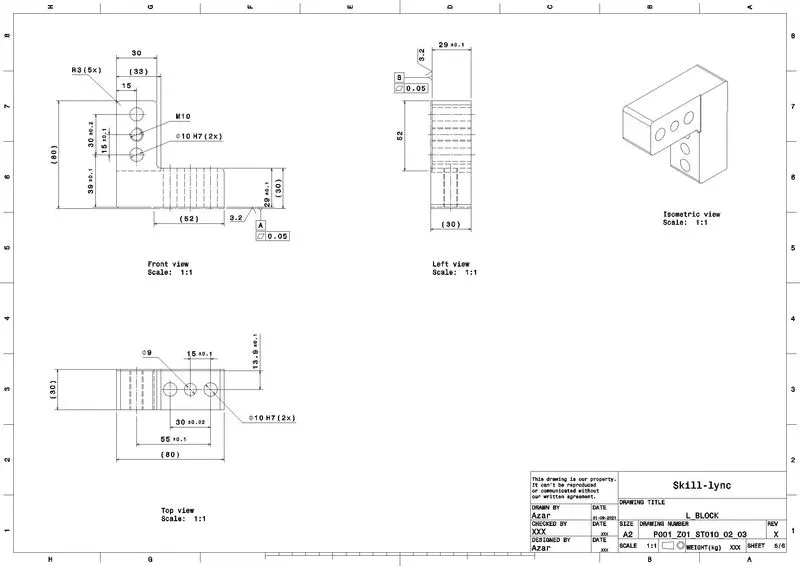

Detailing of L-Block: (P001_Z01_ST010_02_03)
Ortho & Iso- view of L-Block: (Sheet.No: 5/7)

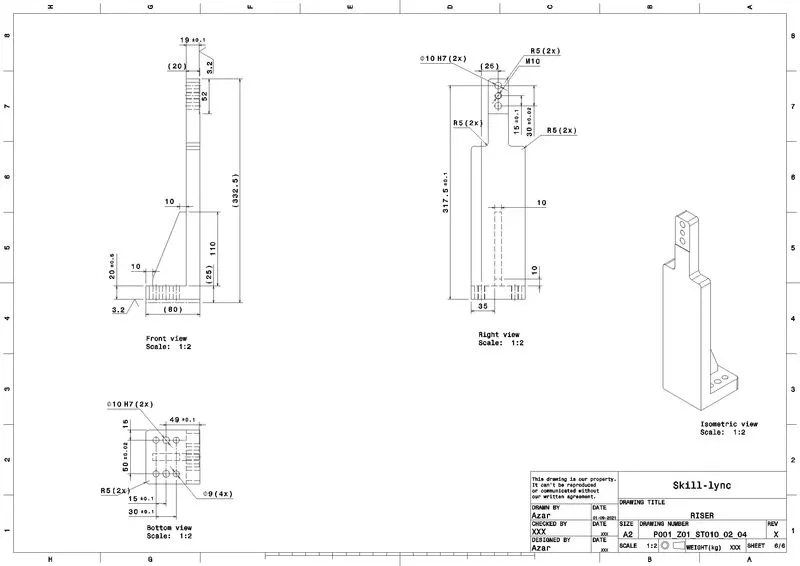

Detailing of Riser: (P001_Z01_ST010_02_04)
Ortho & Iso- view of Riser: (Sheet.No: 6/7)

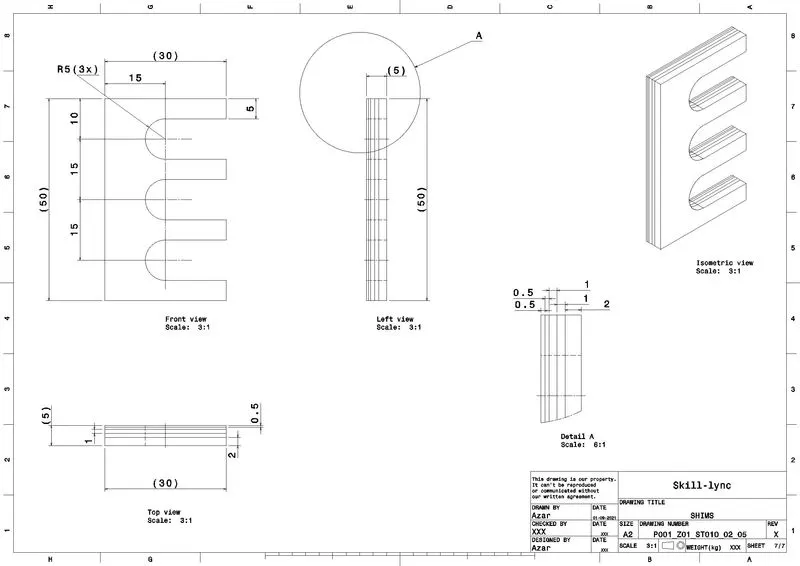

Detailing of Shims: (P001_Z01_ST010_02_05)
Ortho & Iso- view of Shims: (Sheet.No: 7/7)

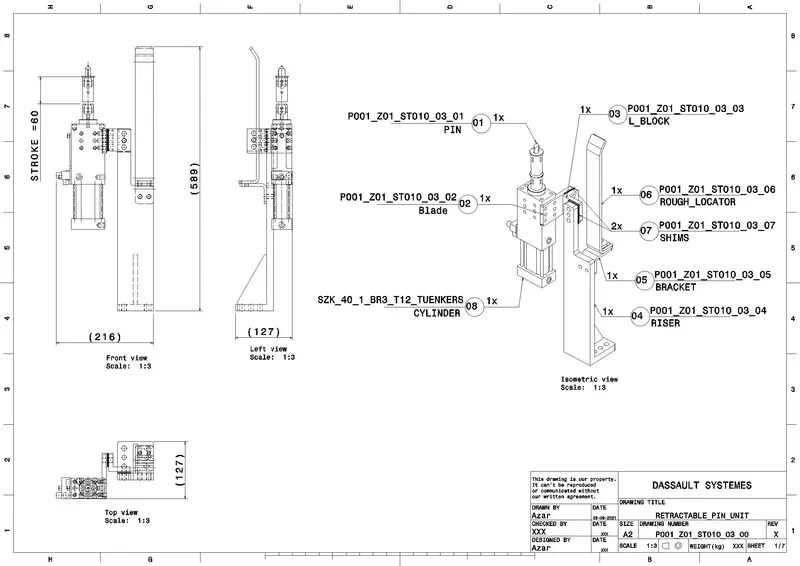

2. RETRACTABLE PIN UNIT: P001_Z01_ST010_03_00

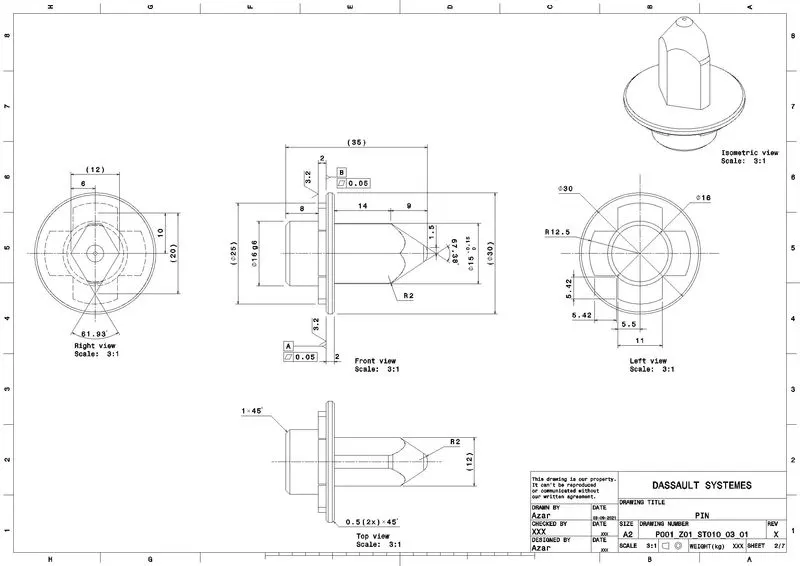

PIN - P001_Z01_ST010_03_01

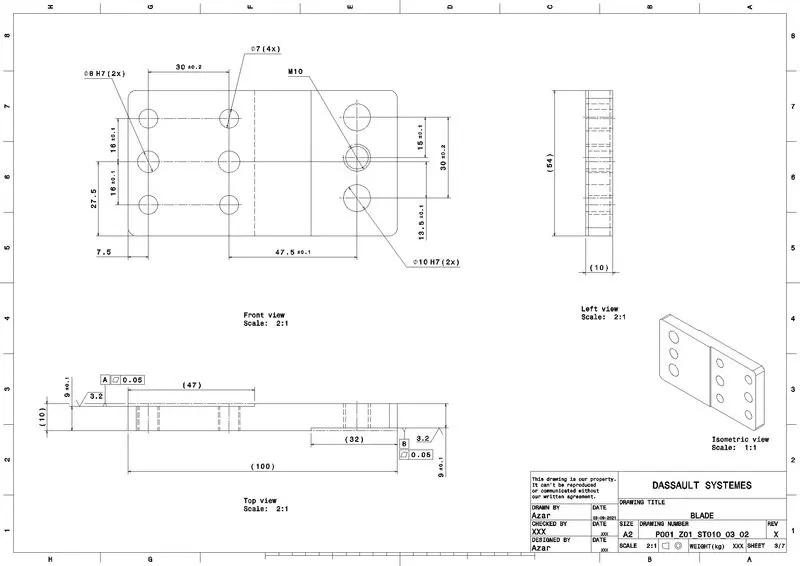

BLADE - P001_Z01_ST010_03_02

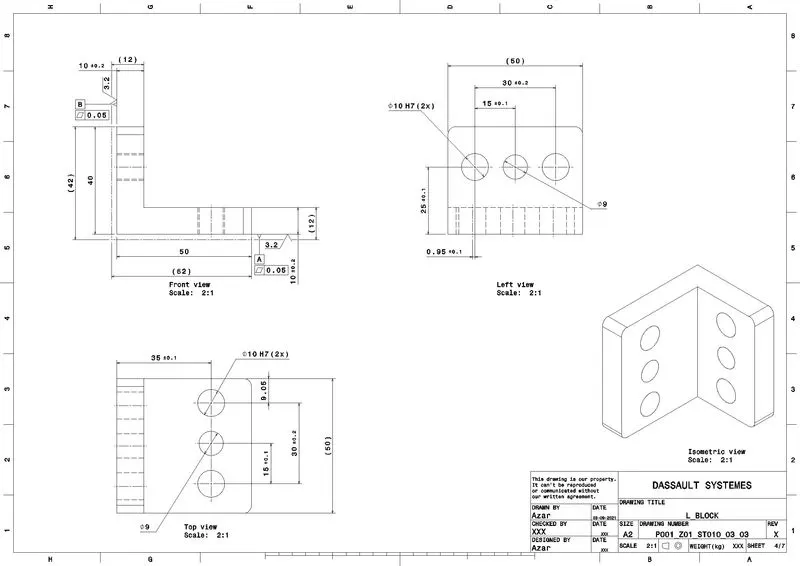

L_BLOCK - P001_Z01_ST010_03_03

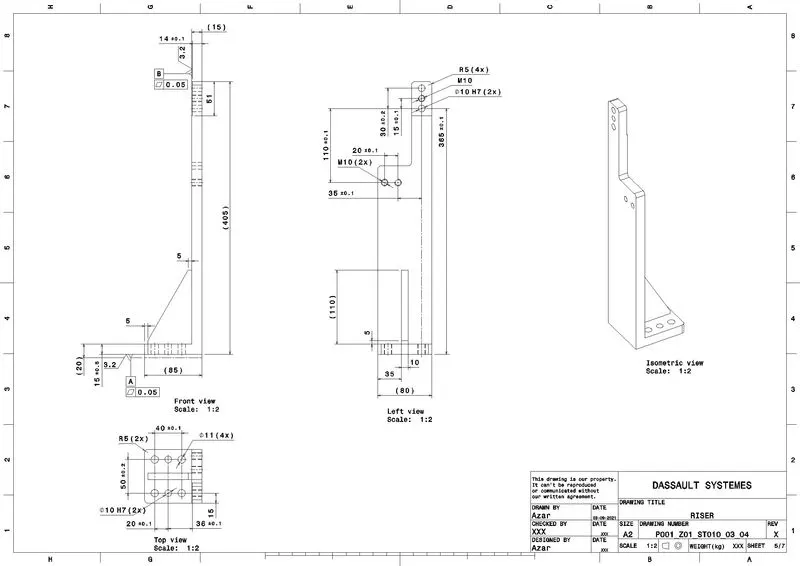

RISER - P001_Z01_ST010_03_04

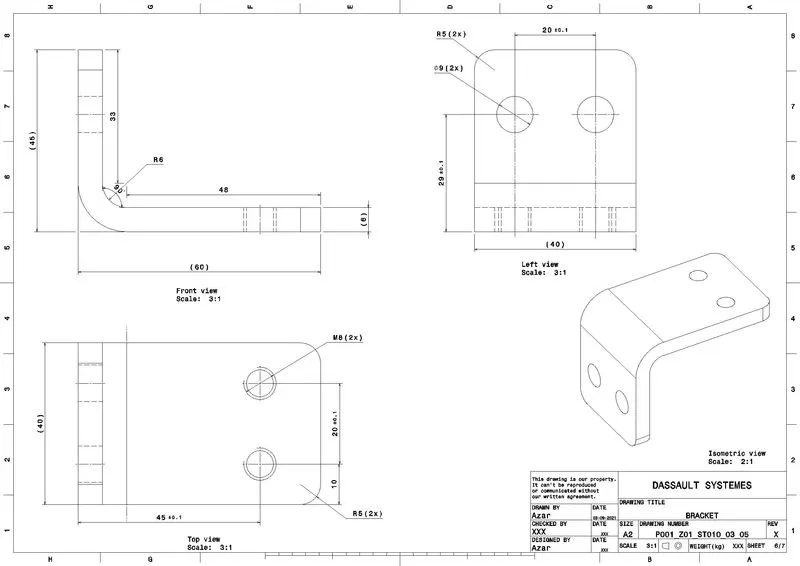

BRACKET - P001_Z01_ST010_03_05

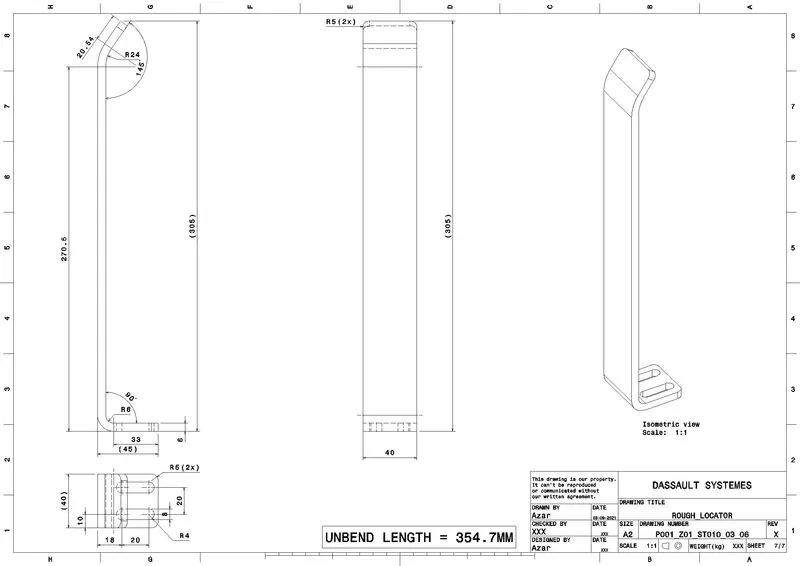

ROUGH LOCATOR - P001_Z01_ST010_03_06
Conclusion:
Hence the 2D drawings for all the clamp units and pin units are created along with the child parts for the fixture assembly.
