Week 10 - Simulating Combustion of Natural Gas.

Aim: Perform a combustion simulation of Natural Gas in ANSYS Fluent.

Objectives:

Part I

Perform a combustion simulation on the combustor model and plot the variation of the mass fraction of the different species’ in the simulation using line probes at different locations of the combustor as shown in Fig. You need to plot for CO2, H2O, CH4, N2, O2, NOx emissions & Soot formation.

Part II

As you must have observed from the above simulation, the Nox and soot are getting formed at the outlet of the combustor. Such formation has harmful effects on the environment and humans. The stringent government norms also demand the least formation of Nox and soot and to satisfy those requirements, you need to check the effect of adding the water in the fuel.

In this part, you need to add the water content in the fuel from 5% to 30% by mole and observe the effect of it on the results. It is necessary to provide line plots and contours to prove your claim.

Theory:

1. Combustion:

Combustion, or burning, is a high-temperature exothermic redox chemical reaction between a fuel (the reductant) and an oxidant, usually, atmospheric oxygen, that produces oxidized, often gaseous products, in a mixture termed as smoke. Combustion does not always result in fire, because a flame is only visible when substances undergoing combustion vapourise, but when it does, a flame is a characteristic indicator of the reaction. While the activation energy must be overcome to initiate combustion (e.g., using a lit match to light a fire), the heat from a flame may provide enough energy to make the reaction self-sustaining. Combustion is often a complicated sequence of elementary radical reactions. Solid fuels, such as wood and coal, first undergo endothermic pyrolysis to produce gaseous fuels whose combustion then supplies the heat required to produce more of them. Combustion is often hot enough that incandescent light in the form of either glowing or a flame is produced. A simple example can be seen in the combustion of hydrogen and oxygen into water vapour, a reaction commonly used to fuel rocket engines. This reaction releases 242 kJ/mol of heat and reduces the enthalpy accordingly (at constant temperature and pressure):

2H₂(g) + O₂(g) → 2H2O(g)

Combustion of an organic fuel in air is always exothermic because the double bond in O₂ is much weaker than other double bonds or pairs of single bonds, and therefore the formation of the stronger bonds in the combustion products CO
2 and H2O results in the release of energy.

Stoichiometric combustion of a hydrocarbon in oxygen:

Generally, the chemical equation for stoichiometric combustion of a hydrocarbon in oxygen is:

Where,

For example, the stoichiometric burning of propane in oxygen is

2. Chemical kinetics:

Chemical kinetics, also known as reaction kinetics, is the branch of physical chemistry that is concerned with understanding the rates of chemical reactions. It is to be contrasted with thermodynamics, which deals with the direction in which a process occurs but in itself tells nothing about its rate. Chemical kinetics includes investigations of how experimental conditions influence the speed of a chemical reaction and yield information about the reaction's mechanism and transition states, as well as the construction of mathematical models that also can describe the characteristics of a chemical reaction.

3. Chemical reaction model:

Chemical reaction models transform physical knowledge into a mathematical formulation that can be utilized in computational simulation of practical problems in chemical engineering. Computer simulation provides the flexibility to study chemical processes under a wide range of conditions. Modelling a chemical reaction involves solving conservation equations describing convection, diffusion, and reaction source for each component species.

Series transport equation-

R_i is the net rate of production of species i by chemical reaction and S_i is the rate of creation by addition from the dispersed phase and the user-defined source. J_i is the diffusion flux of species i, which arises due to concentration gradients and differs in both laminar and turbulent flows. In turbulent flows, computational fluid dynamics also considers the effects of turbulent diffusivity. The net source of chemical species i due to reaction, R_i which appeared as the source term in the species transport equation is computed as the sum of the reaction sources over the N_R reactions among the species.

Reaction rate models:

a. Laminar finite rate model:

The laminar finite rate model computes the chemical source terms using the Arrhenius expressions and ignores turbulence fluctuations. This model provides the exact solution for laminar flames but gives inaccurate solution for turbulent flames, in which turbulence highly affects the chemistry reaction rates, due to highly non-linear Arrhenius chemical kinetics. However, this model may be accurate for combustion with small turbulence fluctuations, for example, supersonic flames.

b. Eddy dissipation model:

The eddy dissipation model, based on the work of Magnussen and Hjertager, is a turbulent-chemistry reaction model. Most fuels are fast burning and the overall rate of reaction is controlled by turbulence mixing. In the non-premixed flames, turbulence slowly mixes the fuel and oxidizer into the reaction zones where they burn quickly. In premixed flames, the turbulence slowly mixes cold reactants and hot products into the reaction zones where the reaction occurs rapidly. In such cases, the combustion is said to be mixing-limited, and the complex and often unknown chemical kinetics can be safely neglected. In this model, the chemical reaction is governed by large-eddy mixing time scale. Combustion initiates whenever there is turbulence present in the flow. It does not need an ignition source to initiate the combustion. This type of model is valid for the non-premixed combustion, but for the premixed flames the reactant is assumed to burn at the moment it enters the computation model, which is a shortcoming of this model as in practice the reactant needs some time to get to the ignition temperature to initiate the combustion.

Factors affecting reaction rate:

1. Nature of reactants

2. Physical state

3. Surface area of solid-state

4. Concentration

5. Temperature

6. Catalysts

7. Pressure

8. Absorption of light

Applications:

The mathematical models that describe chemical reaction kinetics provide chemists and chemical engineers with tools to better understand and describe chemical processes such as food decomposition, microorganism growth, stratospheric ozone decomposition, and the chemistry of biological systems. These models can also be used in the design or modification of chemical reactors to optimize product yield, more efficiently separate products, and eliminate environmentally harmful by-products. When performing catalytic cracking of heavy hydrocarbons into gasoline and light gas, for example, kinetic models can be used to find the temperature and pressure at which the highest yield of heavy hydrocarbons into gasoline will occur.

Chemical Kinetics is frequently validated and explored through modelling in specialized packages as a function of ordinary differential equation-solving (ODE-solving) and curve-fitting.

4. Mass fraction:

A mass fraction can also be expressed, with a denominator of 100, as a percentage by mass. It is one way of expressing the composition of a mixture in a dimensionless size; mole fraction (percentage by moles, mol%) and volume fraction (percentage by volume, vol%) are others.

When the prevalences of interest are those of individual chemical elements, rather than of compounds or other substances, the term mass fraction can also refer to the ratio of the mass of an element to the total mass of a sample. In these contexts, an alternative term is a mass per cent composition. The mass fraction of an element in a compound can be calculated from the compound's empirical formula or its chemical formula.

5. Nitrogen Oxide (NOx) emissions:

Nitrogen dioxide is an irritant gas, which at high concentrations causes inflammation of the airways. When nitrogen is released during fuel combustion it combines with oxygen atoms to create nitric oxide (NO). This further combines with oxygen to create nitrogen dioxide (NO2). Nitric oxide is not considered to be hazardous to health at typical ambient concentrations, but nitrogen dioxide can be. Nitrogen dioxide and nitric oxide are referred to together as oxides of nitrogen (NOx).

NOx gases react to form smog and acid rain as well as being central to the formation of fine particles (PM) and ground-level ozone, both of which are associated with adverse health effects.

6. Soot formations:

Soot forms when hydrocarbon fuels such as oil, natural gas, and wood are burned. Soot particles form when gaseous molecules are heated to high temperatures, and they don't easily turn back into gaseous molecules the way water droplets do when they are heated. Soot as an airborne contaminant in the environment has many different sources, all of which are results of some form of pyrolysis. They include soot from coal-burning, internal-combustion engines, power-plant boilers, hog-fuel boilers, ship boilers, central steam-heat boilers, waste incineration, local field burning, house fires, forest fires, fireplaces, and furnaces. These exterior sources also contribute to the indoor environment sources such as smoking of plant matter, cooking, oil lamps, candles, quartz/halogen bulbs with settled dust, fireplaces, exhaust emissions from vehicles, and defective furnaces.

1. Geometry:

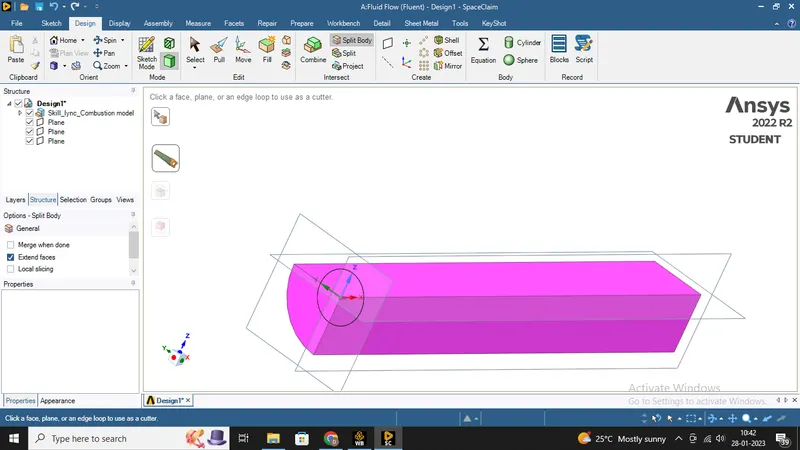

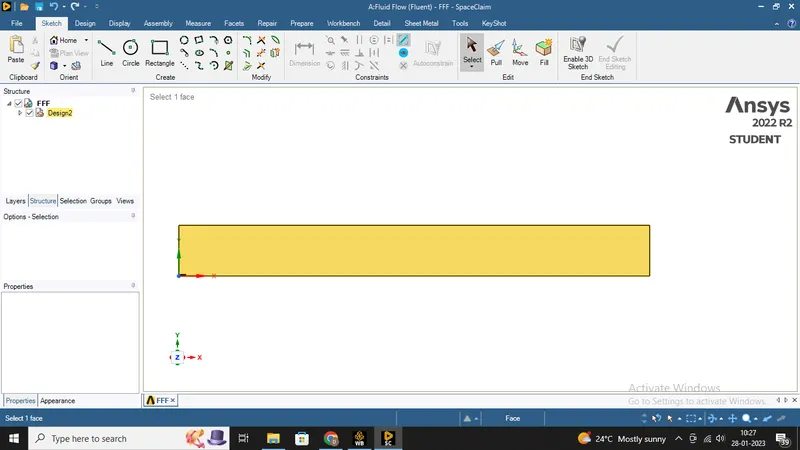

a. Upload the combustor model onto SpaceClaim, since it is a 3D model and we are only interested in the 2D geometry of the combustor. Therefore, we need to split the body by 3/4th and select the plane XY plane region of geometry since we are using the axisymmetric condition.

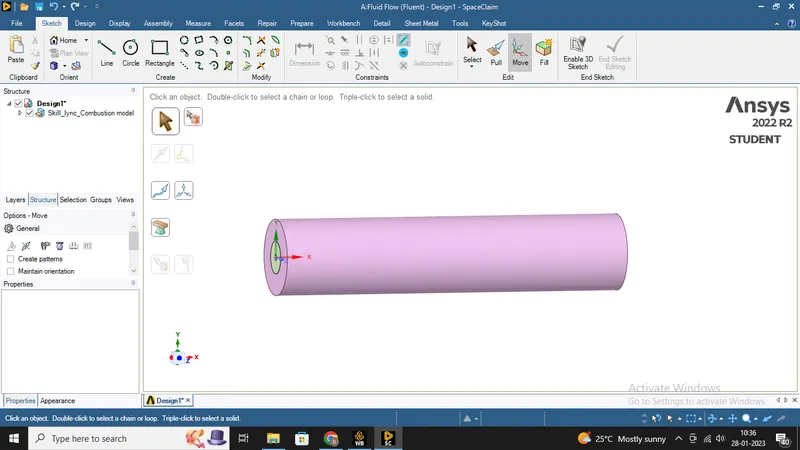

3D model of the combustor:

• This is 3D model, we can't run simulation for entire 3D model, it will cost a lot interms of time.
• So instead of 3D, We will perform simulation on 2D geometry, which is Axis-symmetric.

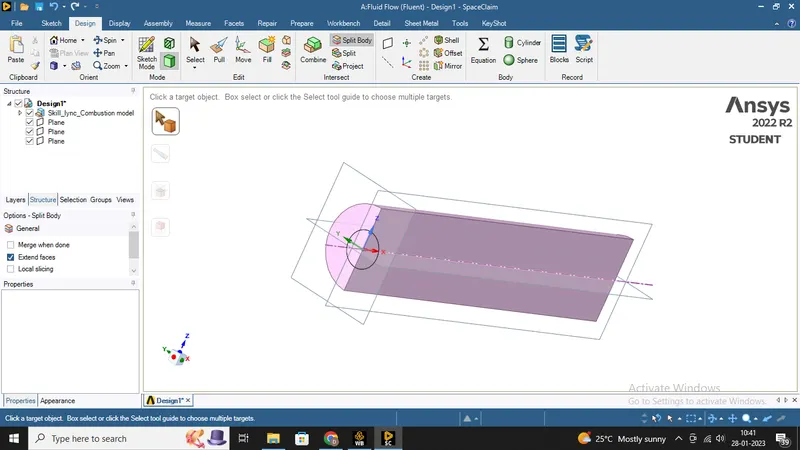

• For 2D geomerty we have to cut 3D model in two parts, and extract 2D geometry of the quadrant portion.
• we merge all faces by using 'combine' command and can make it a single object.

• Then we copy all faces from X-Y plane and paste it in New Design
• Then we paste it only in X-Y plane.
• So the 2D geometry can be ready for further process

2. Mesh setup:

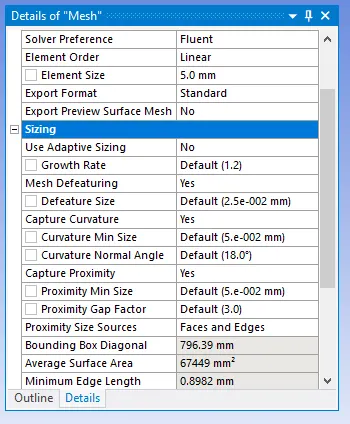

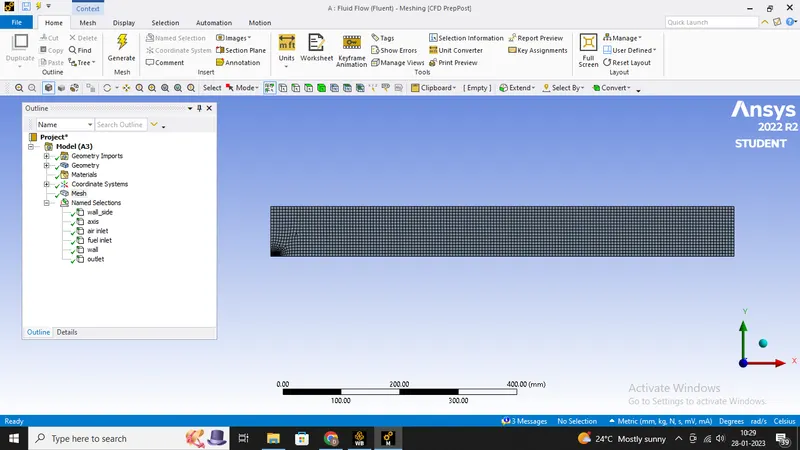

a. Generate base mesh with capture proximity settings and set the cell gap to 3 cells or as per your requirement.

Mesh settings:

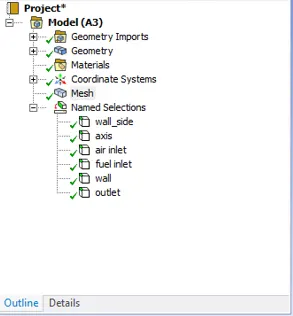

b. Provide name selections for the necessary inlets, outlet and walls.

3. Fluent setup:

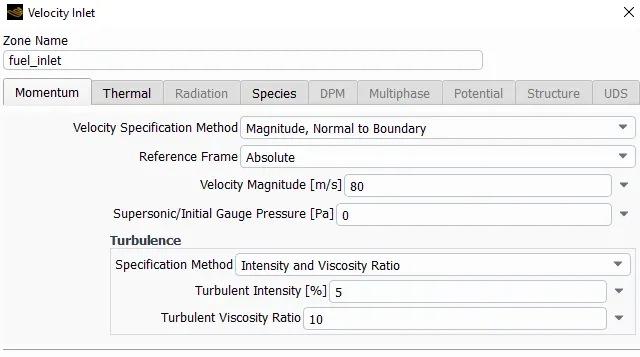

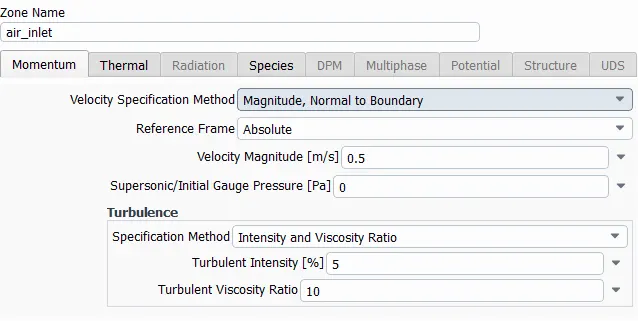

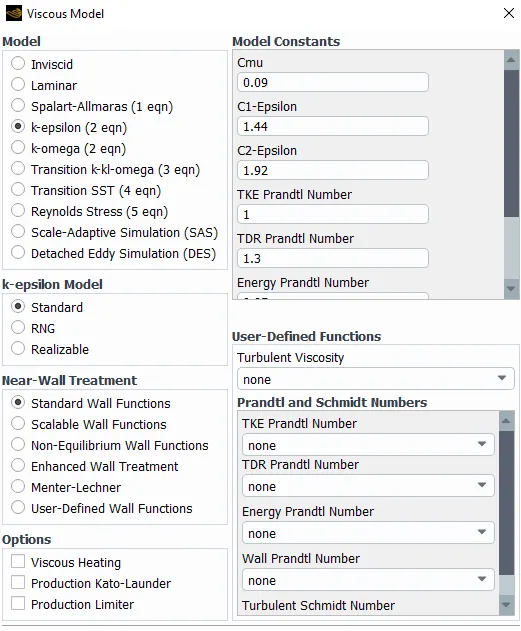

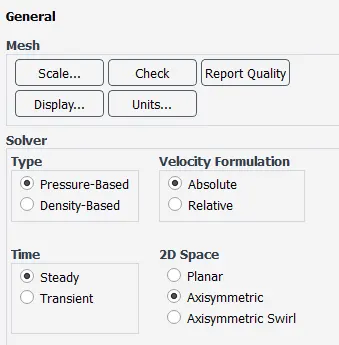

General settings:

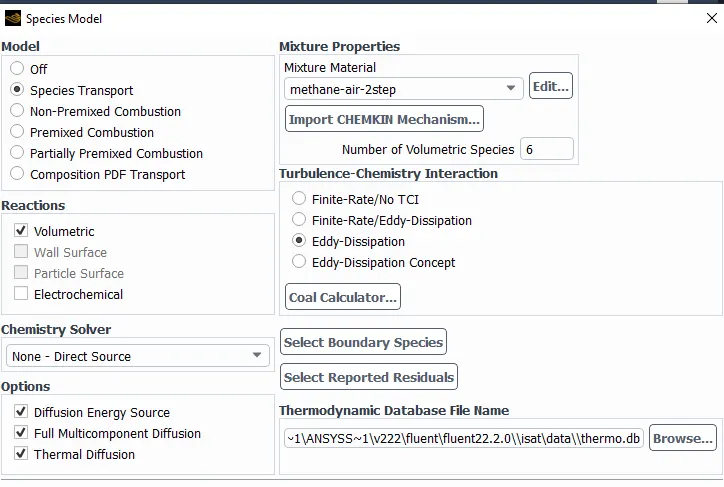

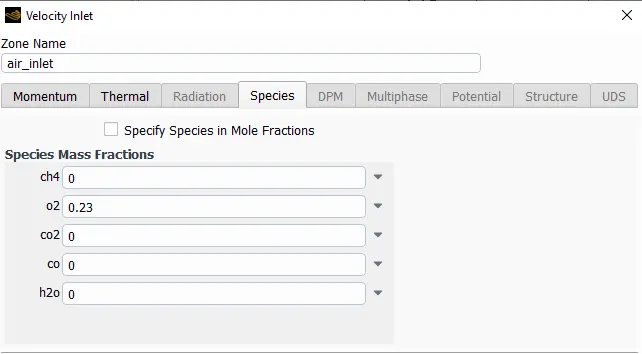

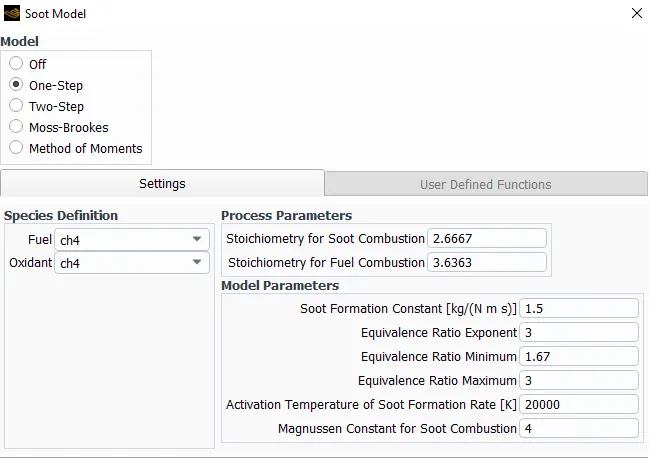

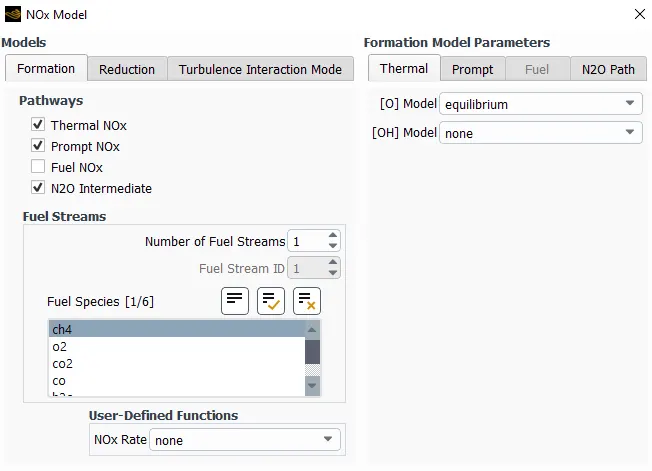

Activate NOx and Soot model:

Results and discussion:

With help of line probes, we can plot the variation of Mass fraction at different locations.

For that we have to create line probe at different locations.

Line probes at different location can be created as given below:

Particular	Point 1	Point 2
Line 1	0.1, 0.085,0	0.1,0,0
Line 2	0.3,0.085,0	0.3,0,0
Line 3	0.5,0.085,0	0.5,0,0
Line 4	0.7,0.085,0	0.7,0,0

Part I:

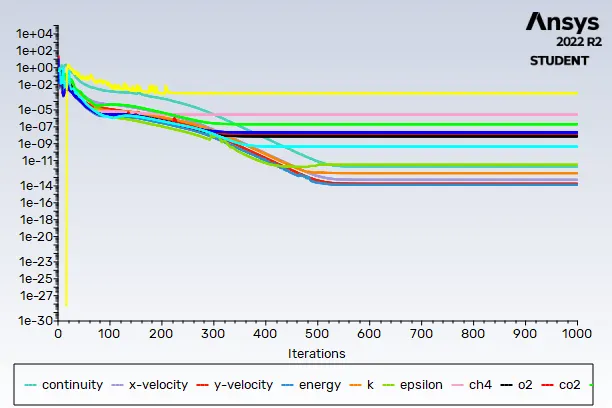

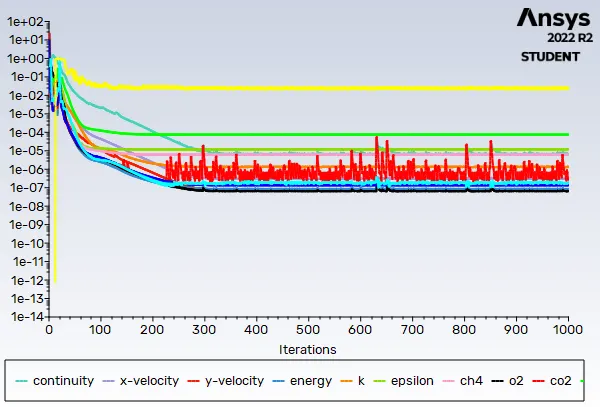

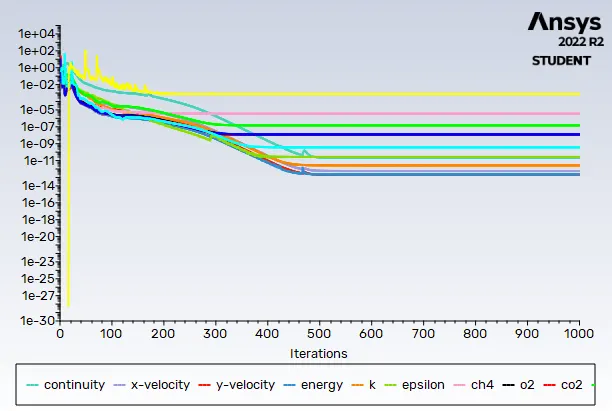

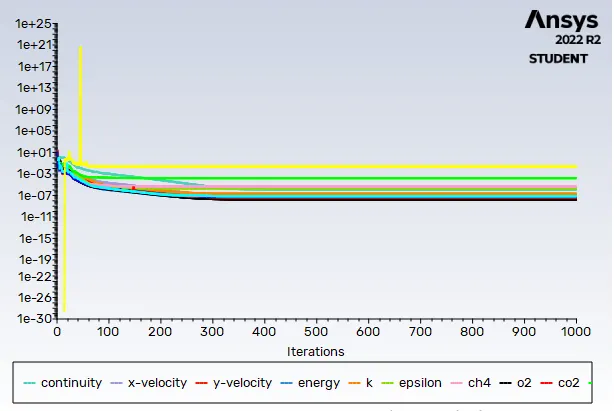

Residuals

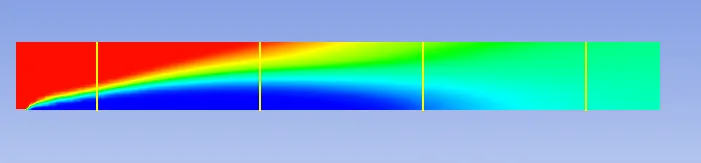

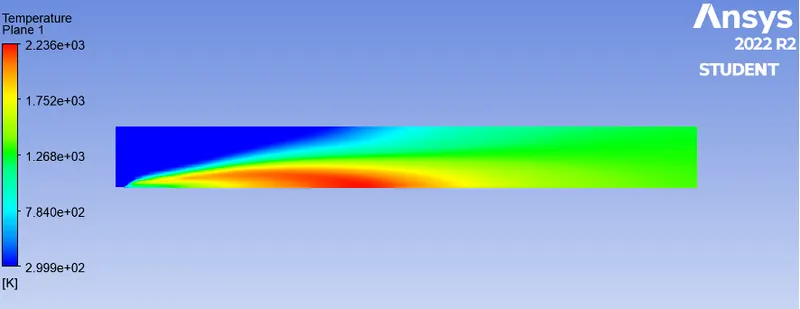

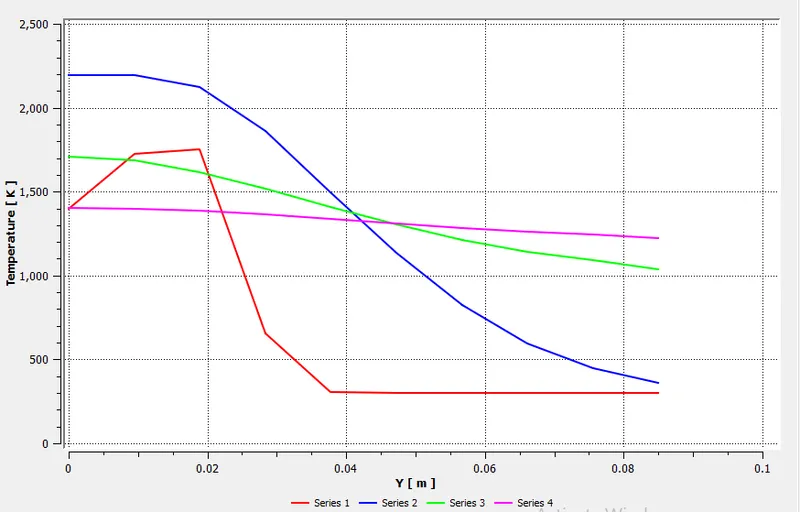

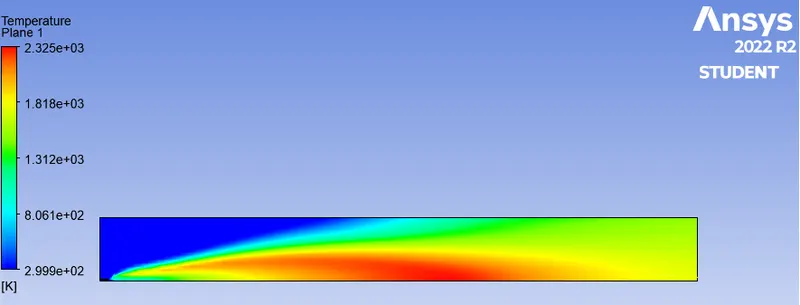

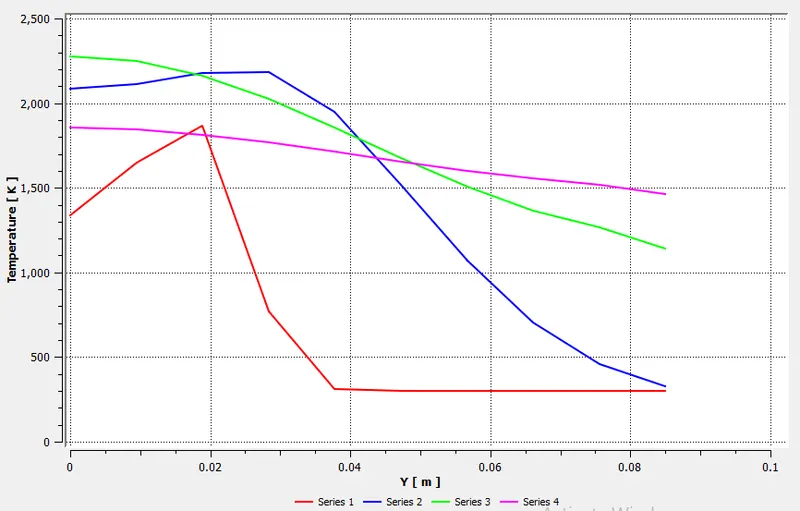

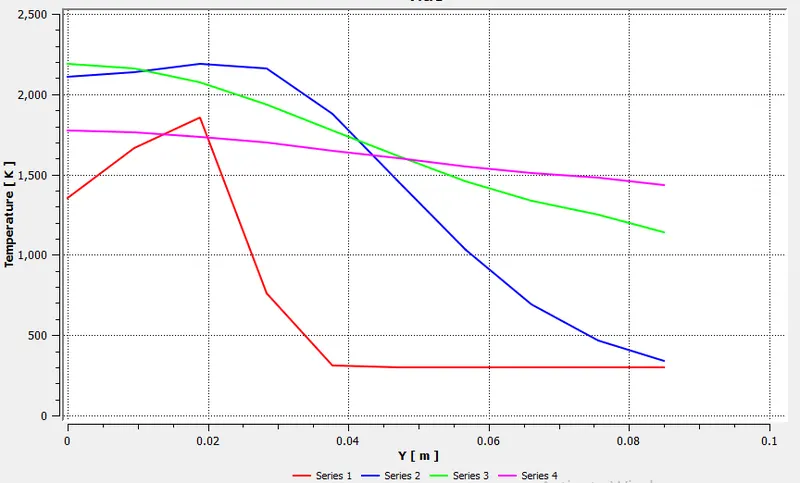

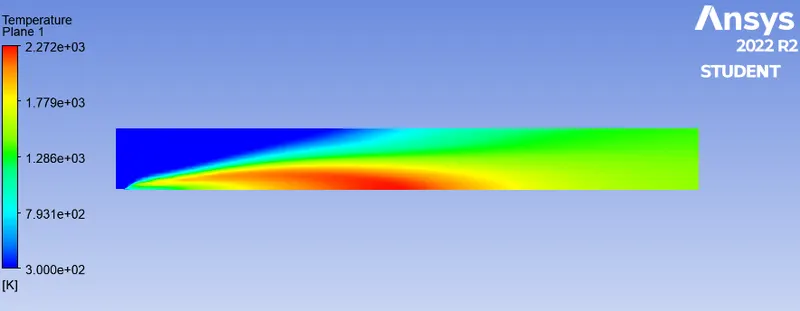

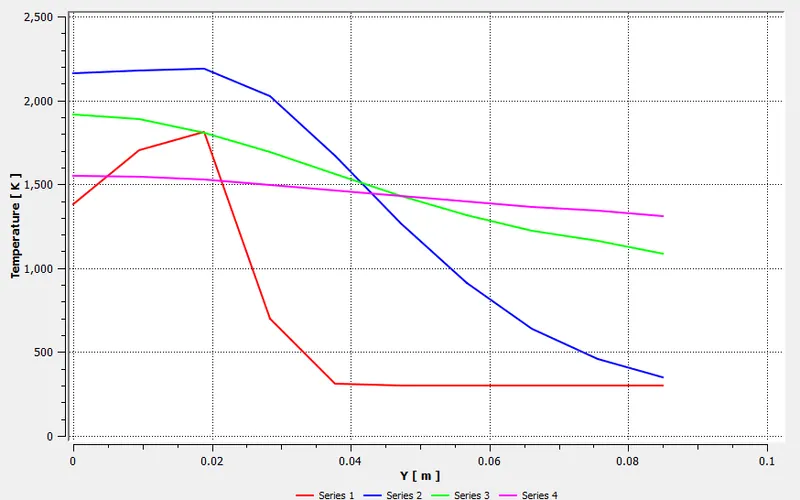

Temperature

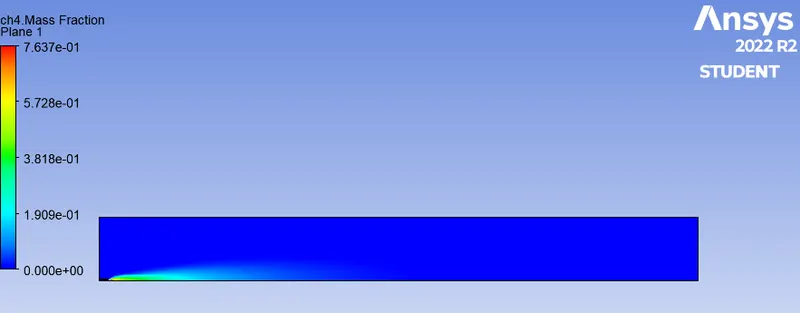

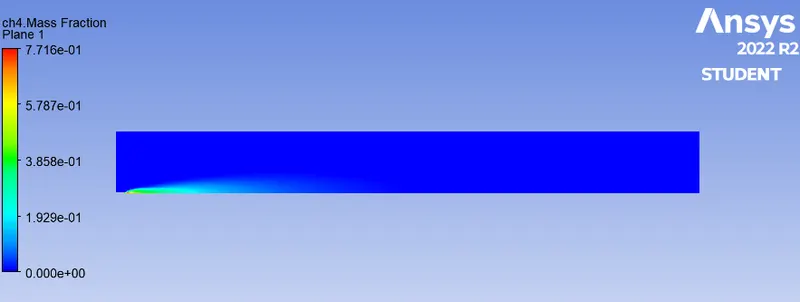

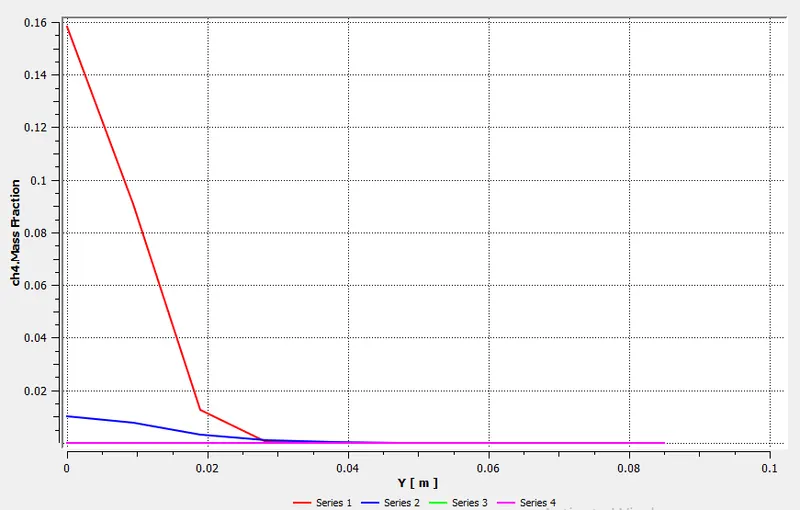

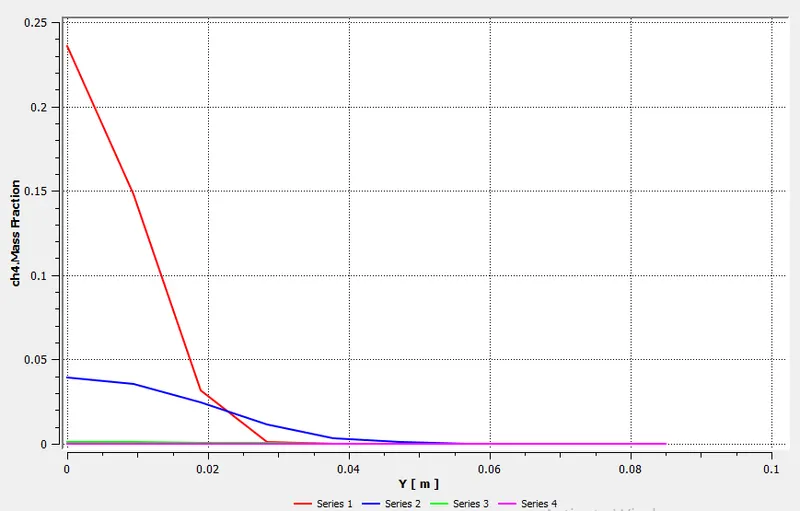

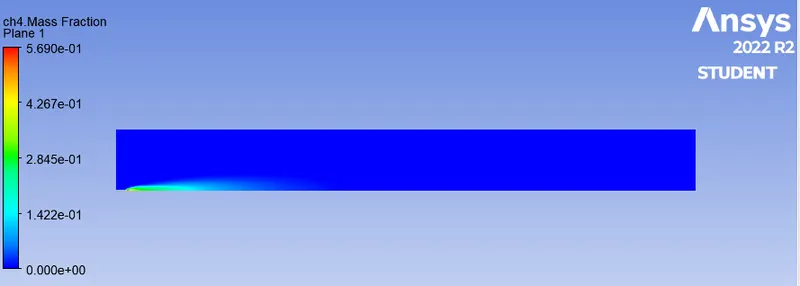

CH4 mass fraction

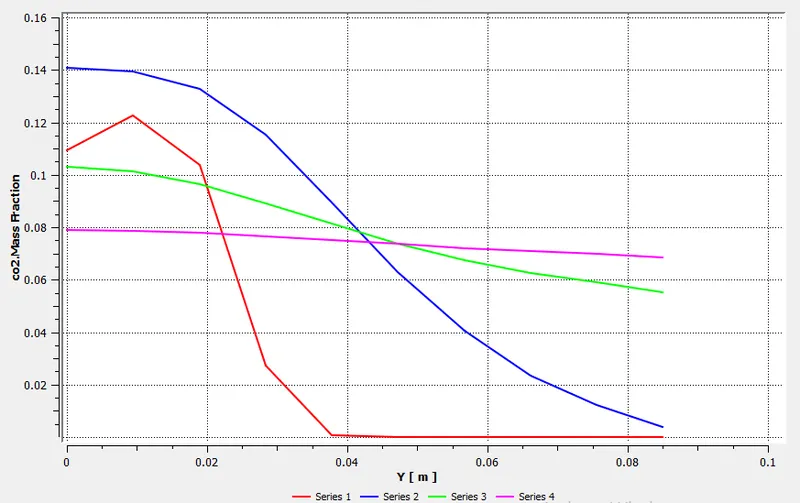

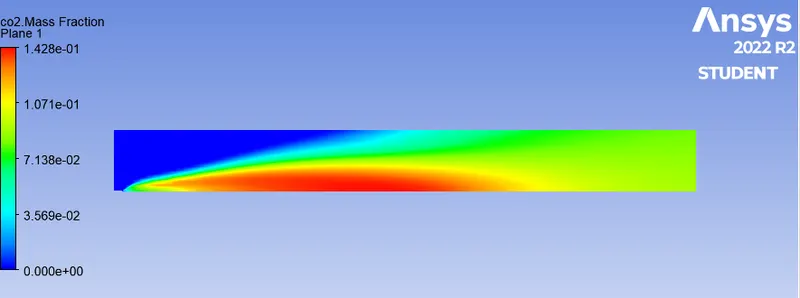

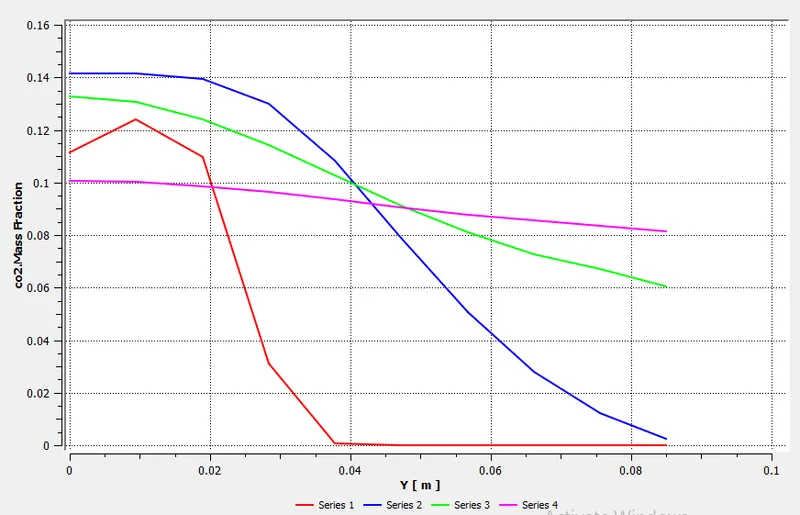

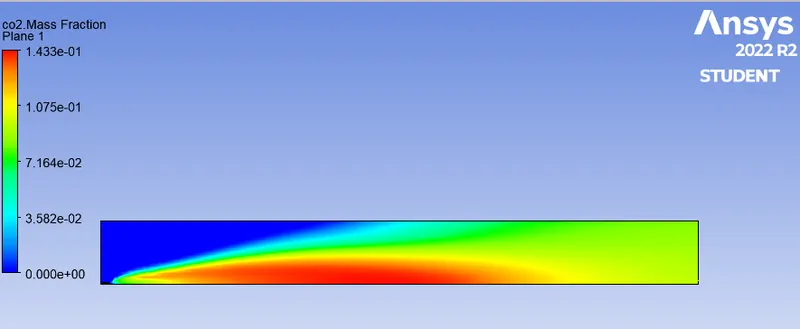

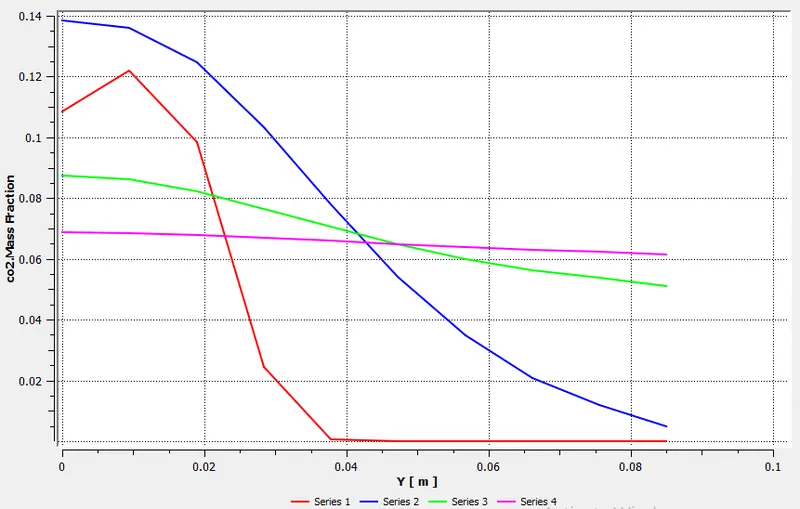

CO2 mass fraction

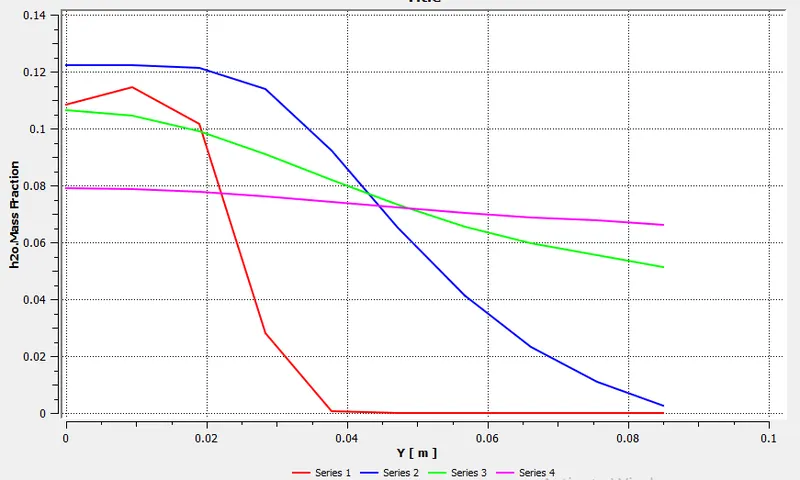

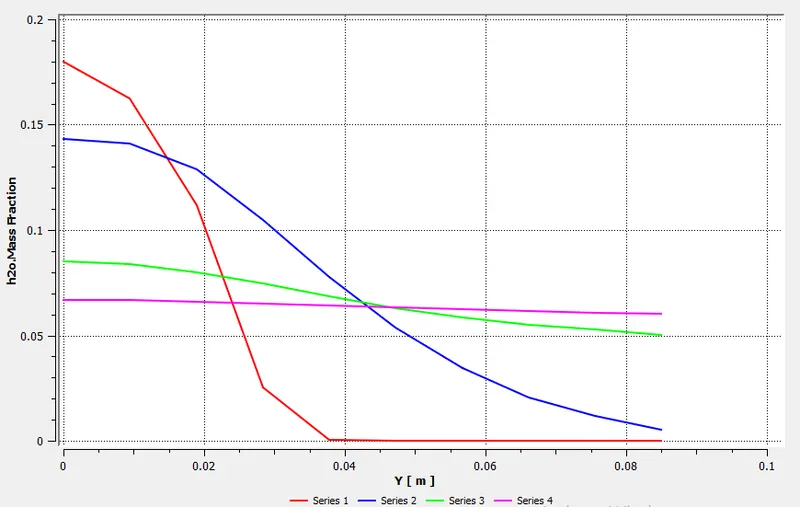

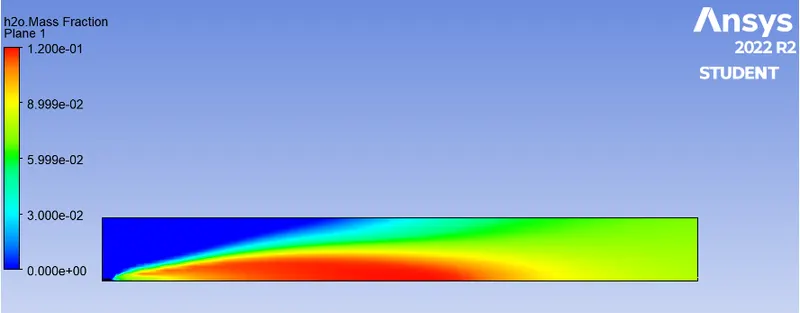

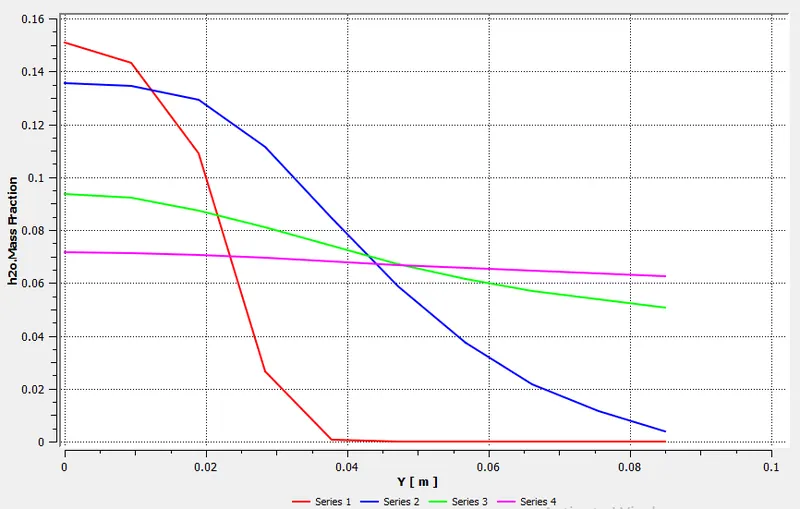

H2O mass fraction

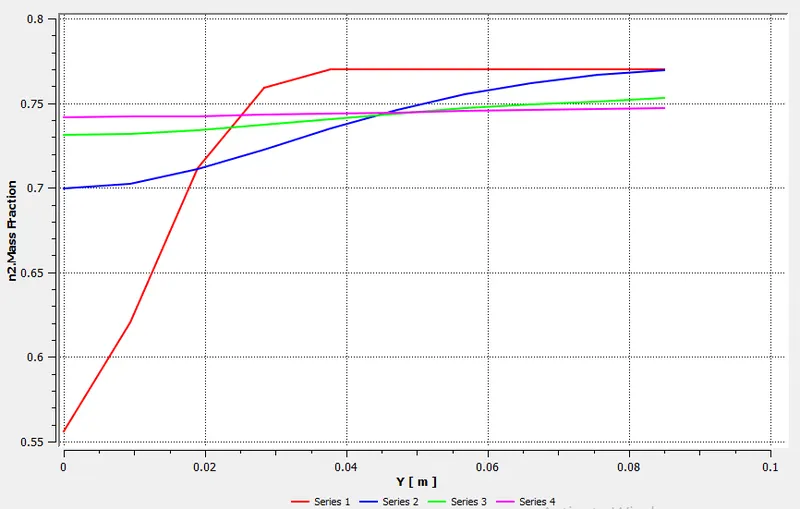

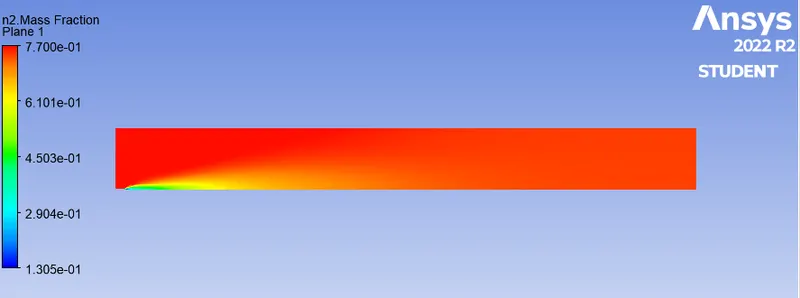

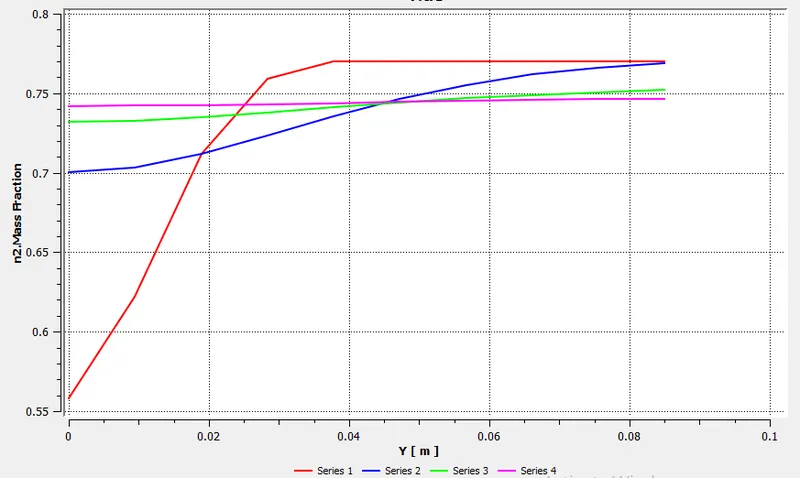

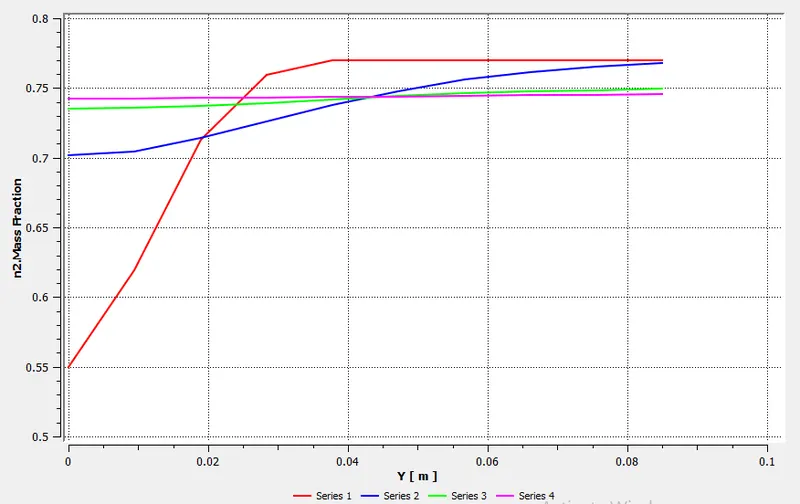

N2 mass fraction

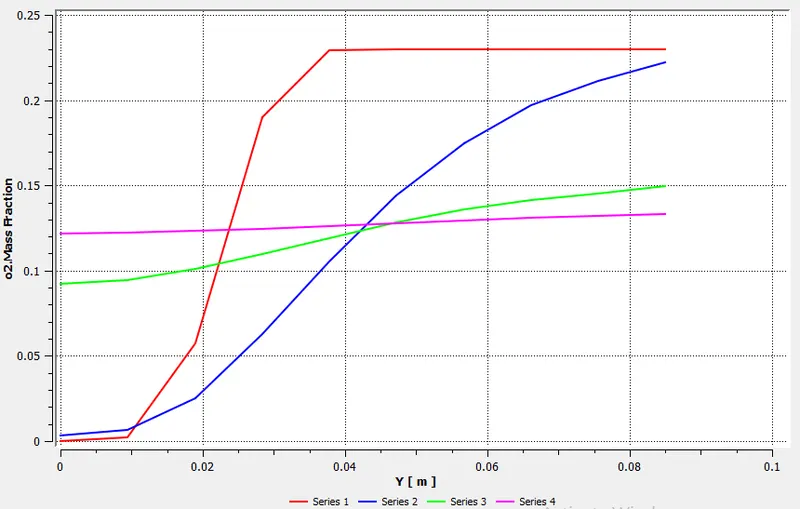

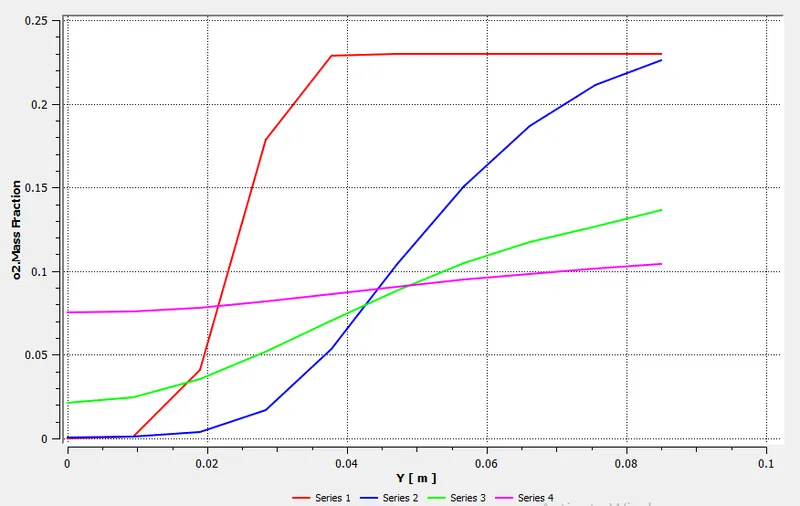

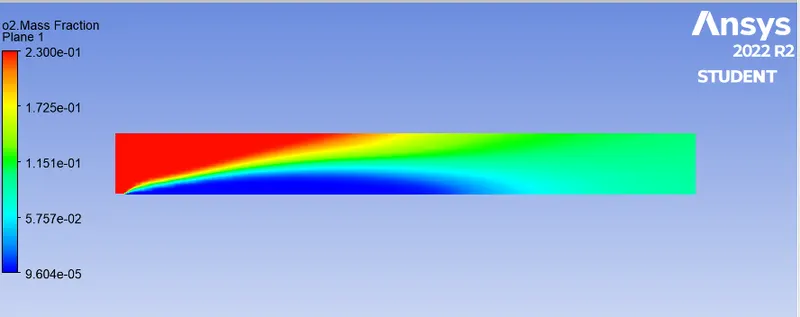

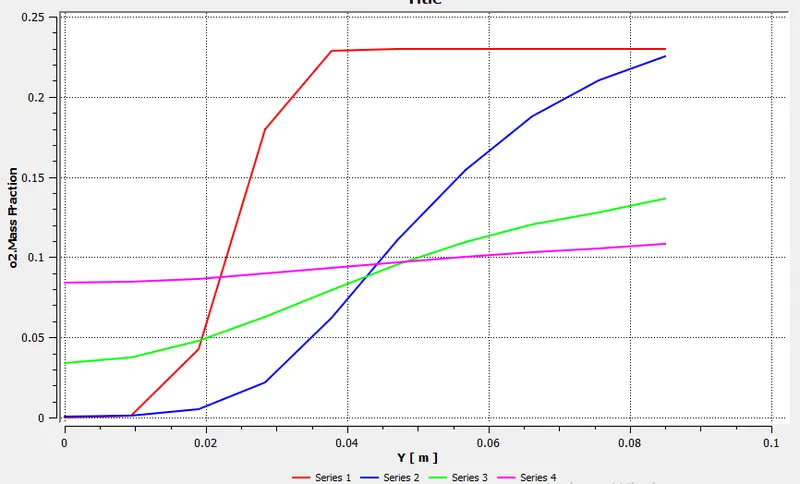

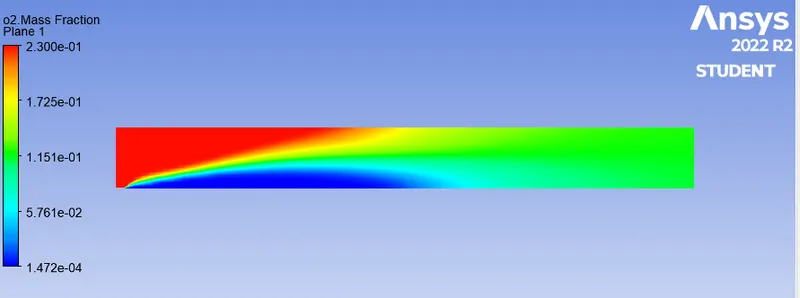

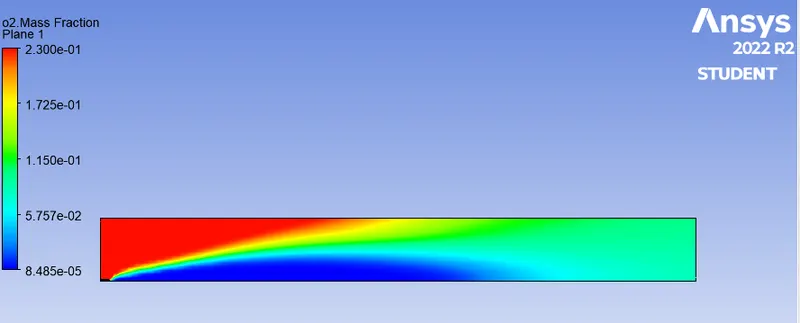

O2 mass fraction

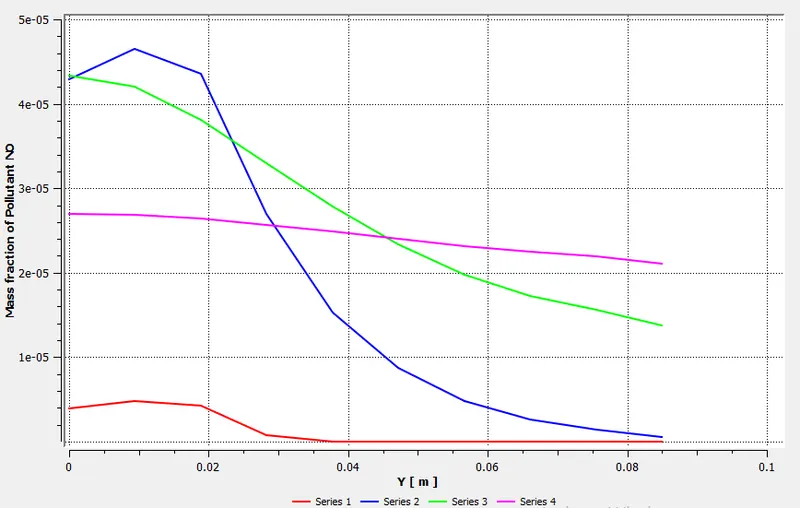

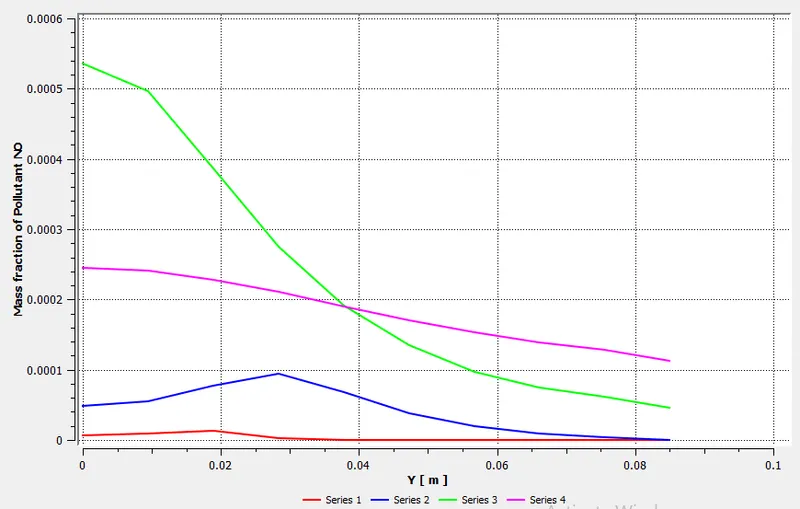

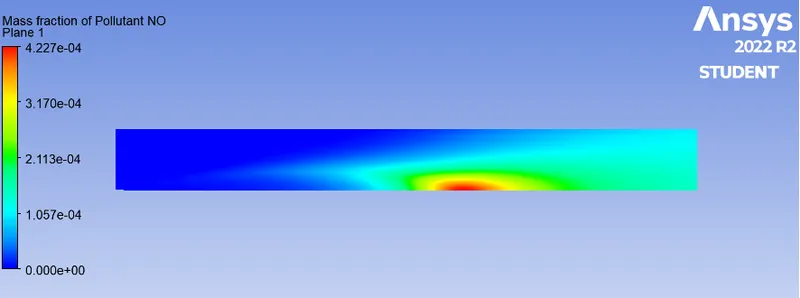

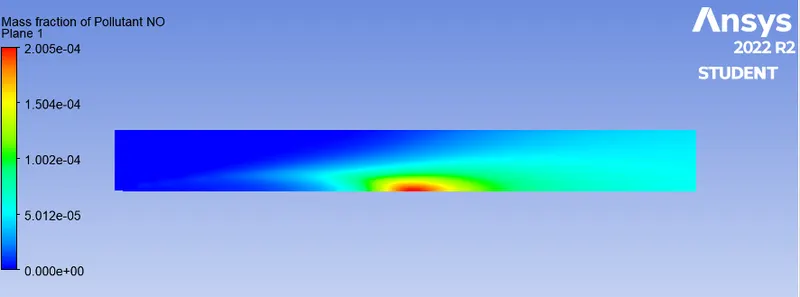

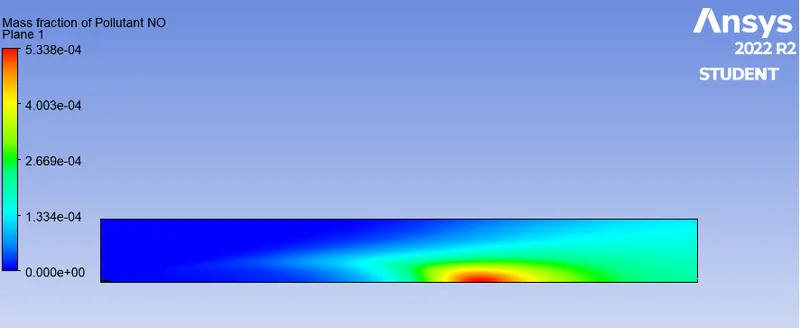

Mass fraction of NO

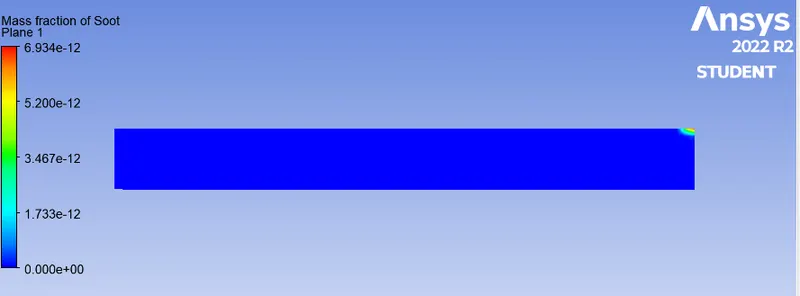

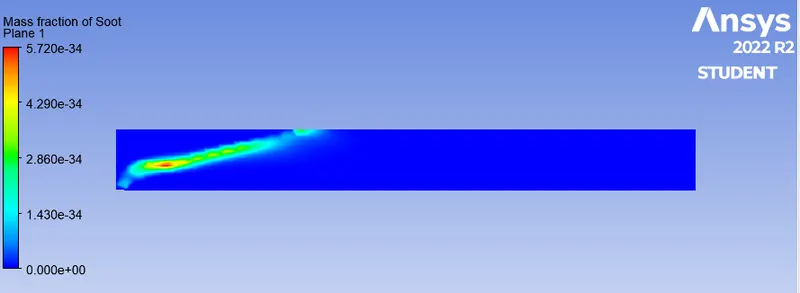

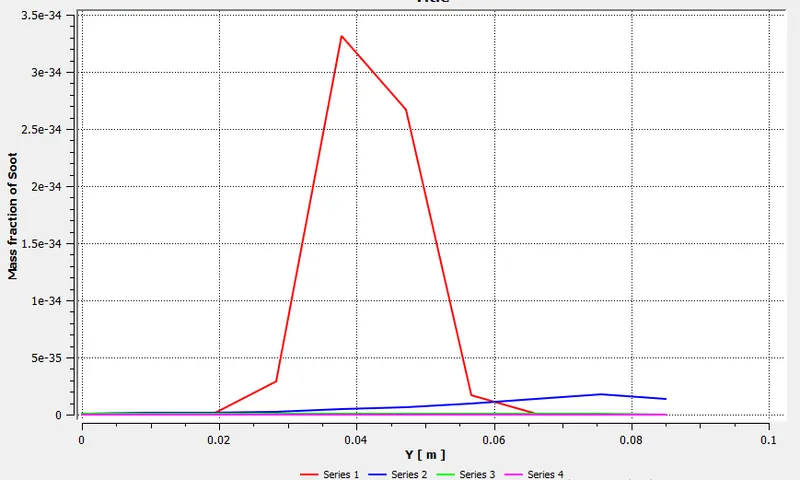

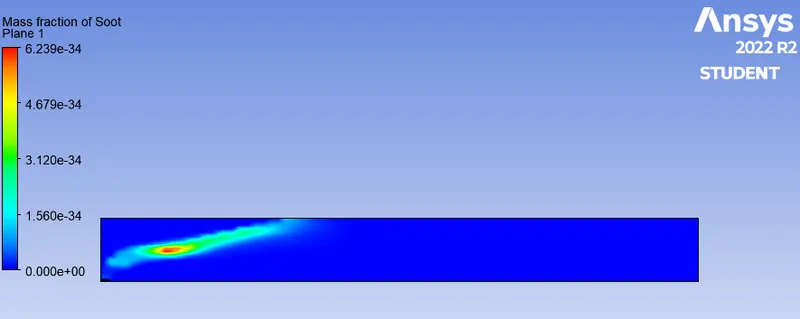

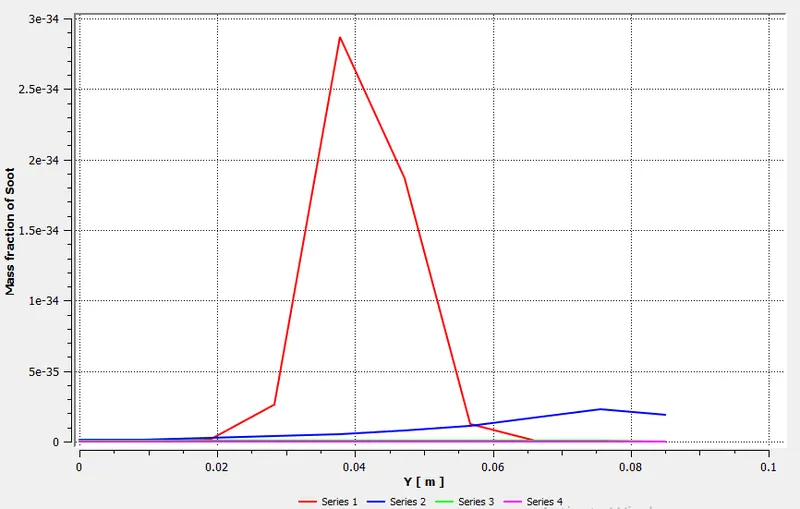

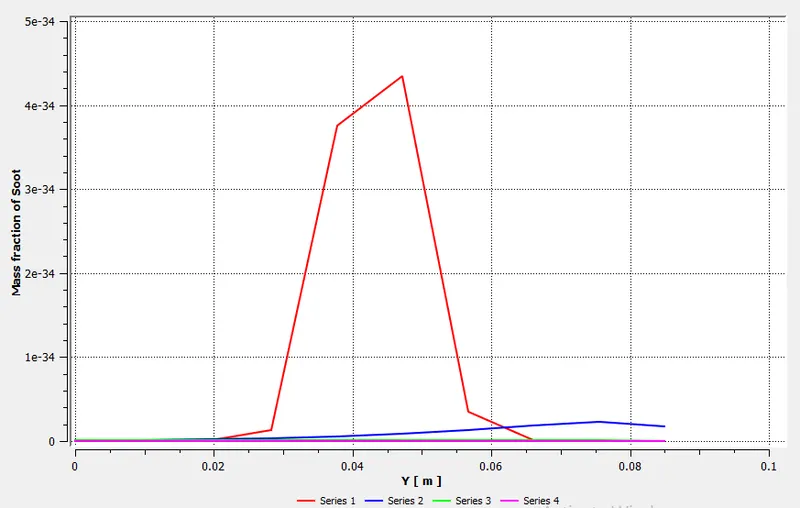

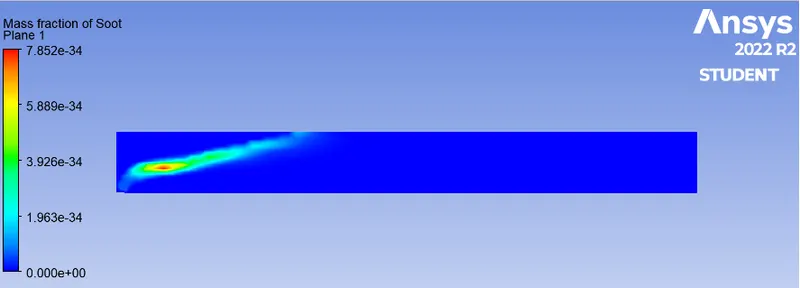

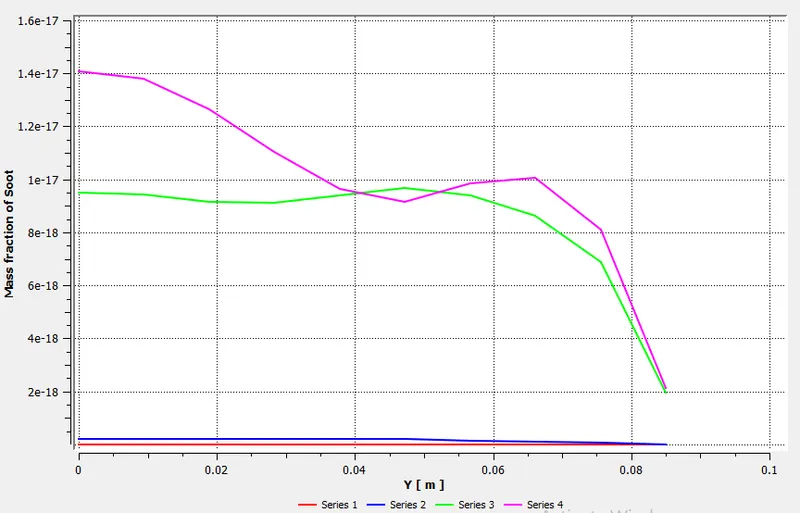

Mass fraction of soot

Part II

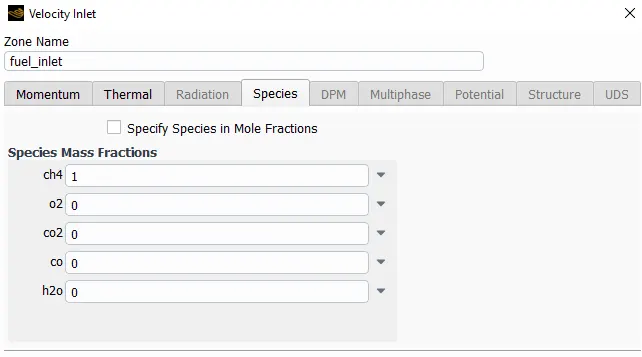

Case I: 5% H2O and 95% CH4

Residuals

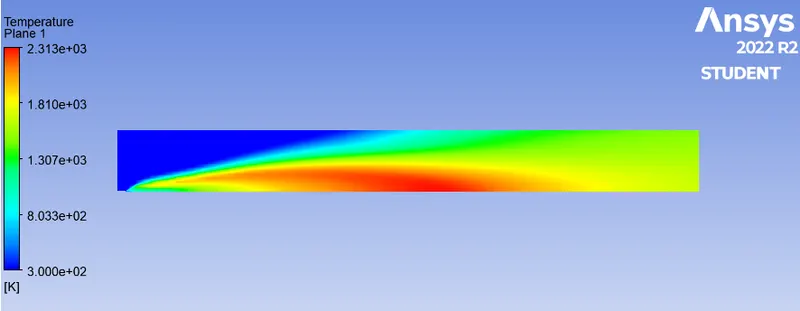

Temperature

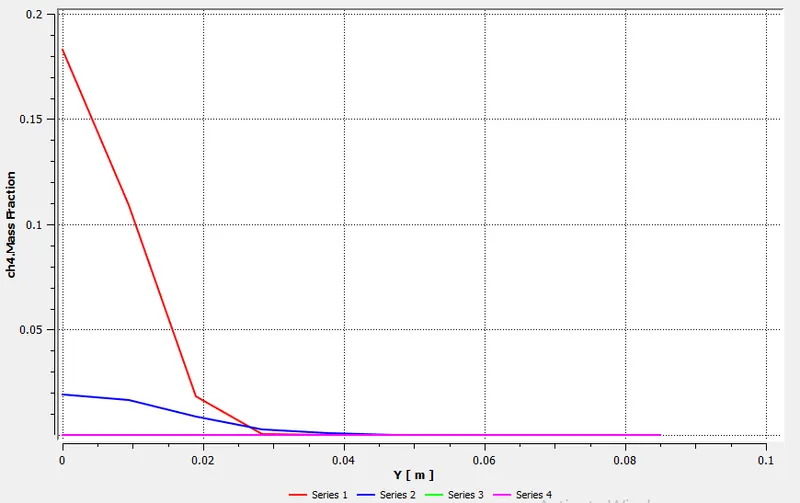

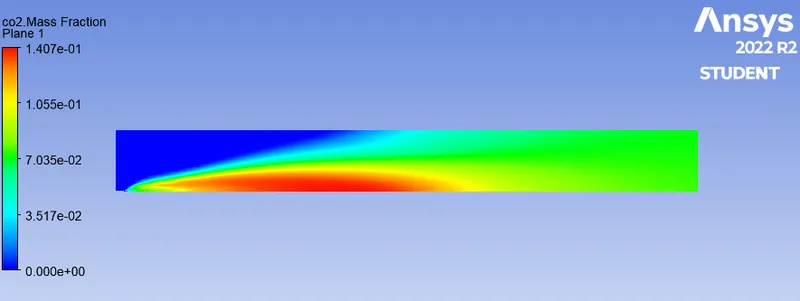

CH4 mass fraction

CO2 mass fraction

H2O mass fraction

N2 mass fraction

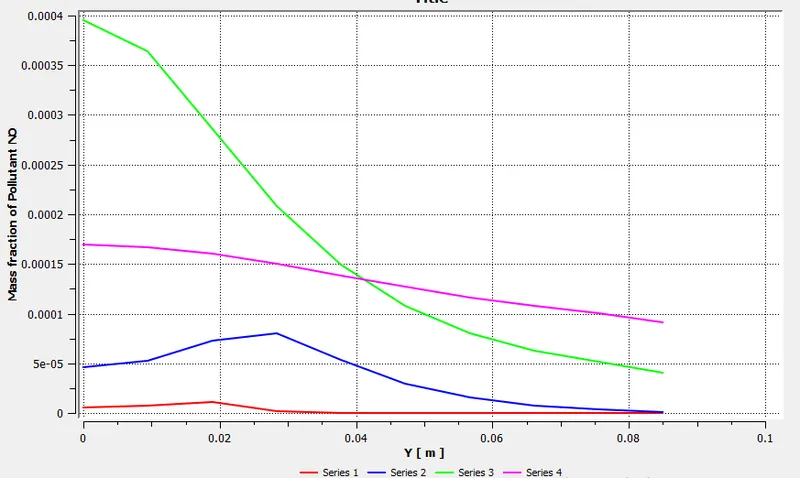

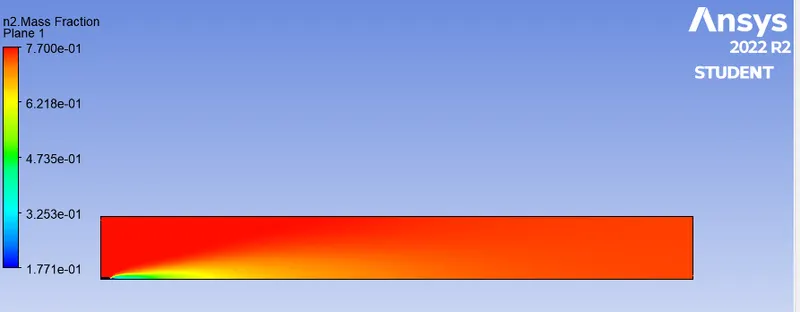

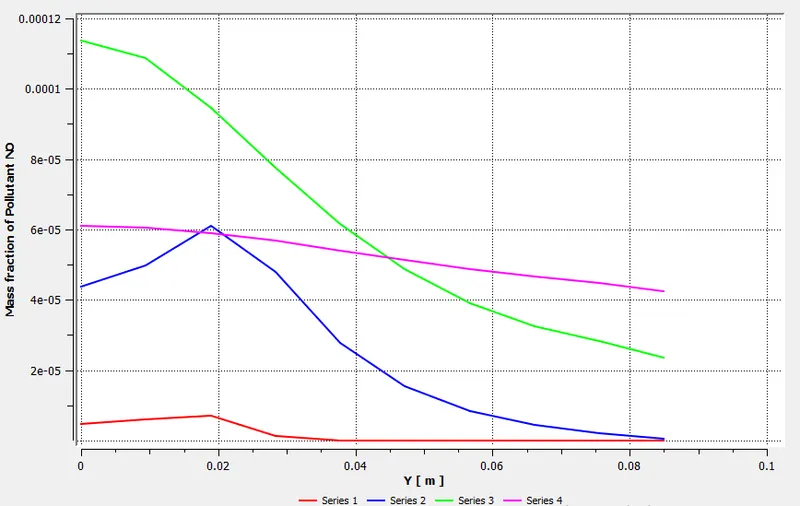

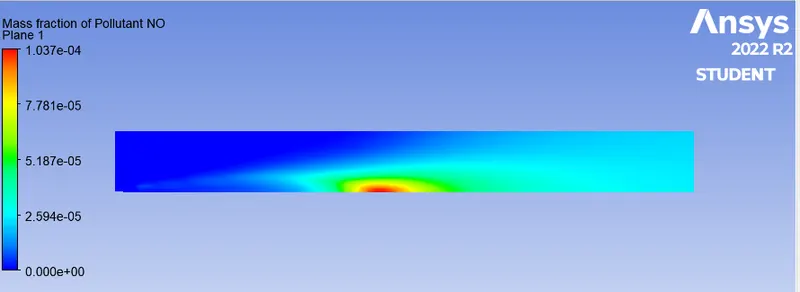

NO mass fraction

O2 mass fraction

Soot mass fraction

Part II

Case II: 20% H2O and 80% CH4

Residuals

Temperature

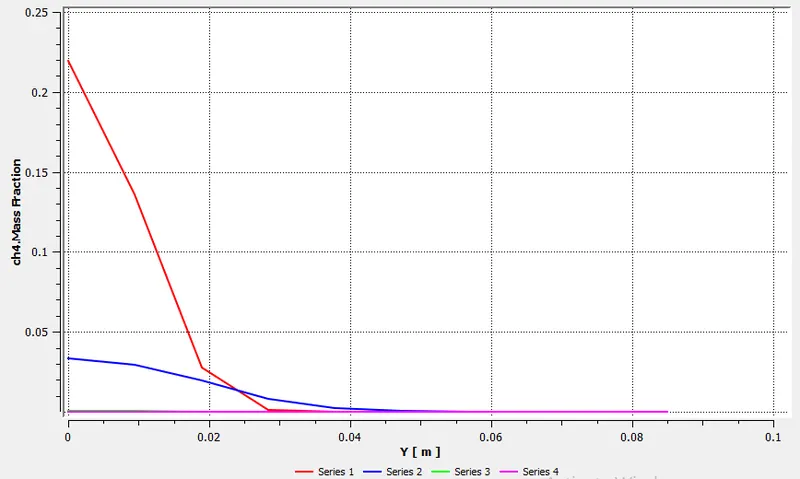

CH4 mass fraction

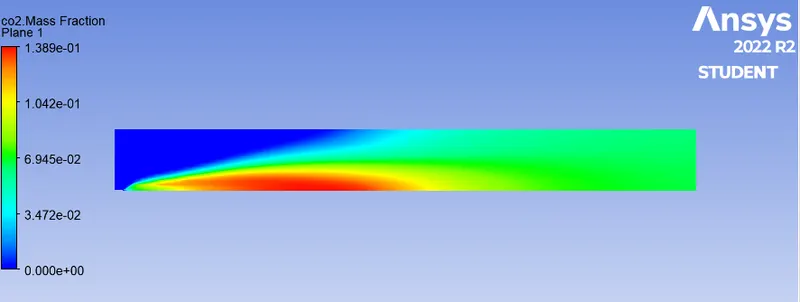

CO2 mass fraction

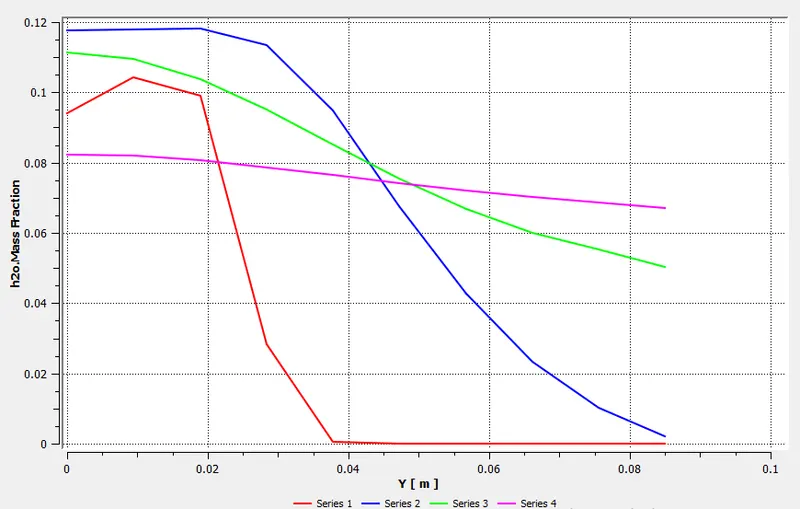

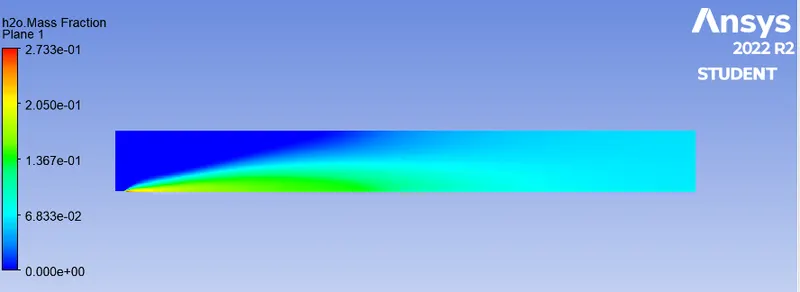

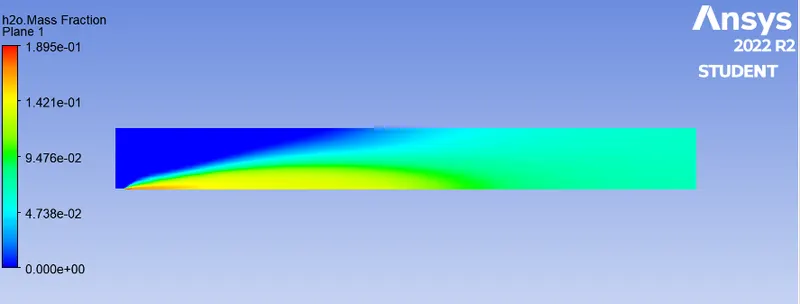

H2O mass fraction

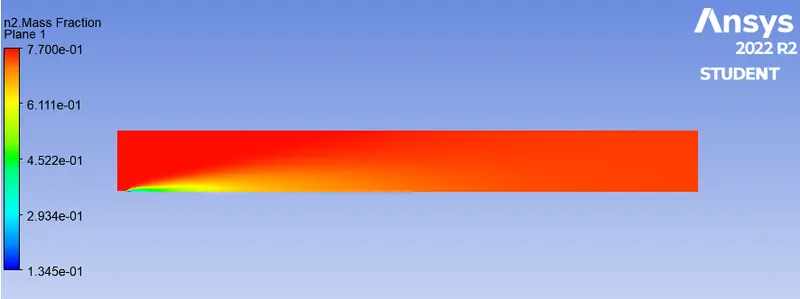

N2 mass fraction

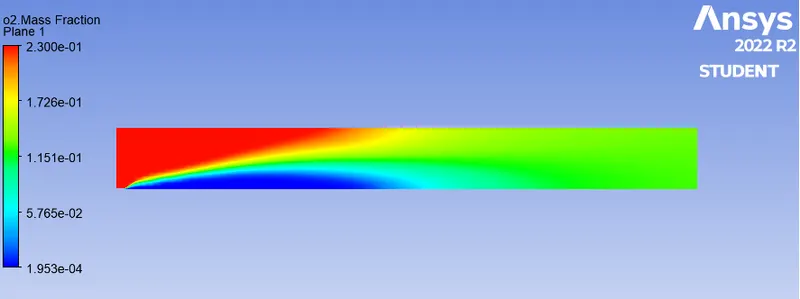

O2 mass fraction

Soot mass fraction

NO mass fraction

Part II

Case III: 30% H2O and 70% CH4

Residuals

Temperature

CH4 mass fraction

CO2 mass fraction

H2O mass fraction

N2 mass fraction

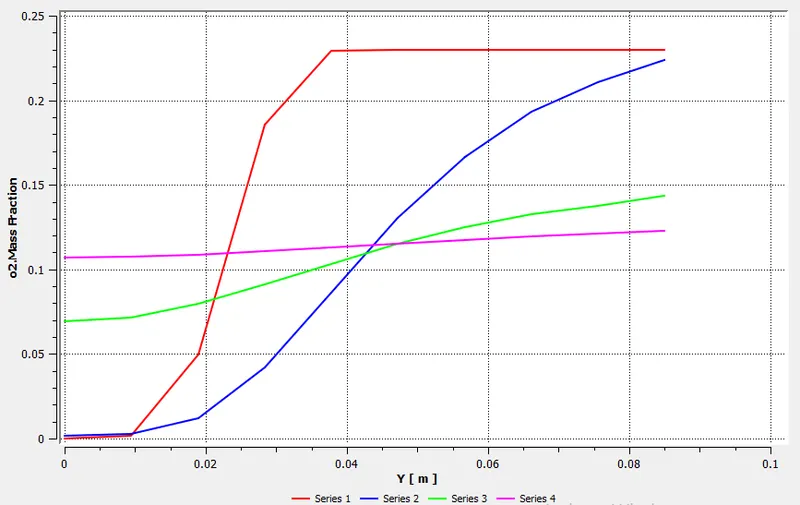

O2 mass fraction

NO mass fraction

Soot mass fraction

Observations:

CH4 (mole fraction)	H2O (mole fraction)	Area weighted avg mass fraction of NOx at outlet	Area weighted avg mass fraction of soot at outlet
1	0	0.00015936425	1.1580138e-37
0.95	0.05	0.00011984979	8.3935862e-38
0.8	0.2	4.9547214e-05	6.8592176e-38
0.7	0.3	2.3404115e-05	3.2527941e-38

From the results following observations can be made-

1. We can see that from the begining, CH4 is burning from high at 1 to near 0. But in real there are some unburnt carbon particles always remains.
2. Due to this incomplete combustion of hydrocarbons, generation of SOOT or Fly Ash happens.
3. We can see there are NOx emissions, which are due to the combustion of nitrogen present in the air, which is 78% and it is directly related to the maximum temperature generated inside the burner.

Conclusion:-

• Adding water from 5% to 30% decreases the emission of Nox and Soot pollutants.
• Adding water also decreases the highest temperature.
• Highest temperature is achieved in the proximity of the Inlet.
• Low combustion temperature provides a number of advanced combustion strategies, including homogeneous charge compression ignition (HCCI) or premixed charge compression ignition (PCCI). LTC combustion can produce very low emissions of NOx and PM but often results in increased CO and HC.
