Week 10: Modeling and Simulation of flow around an Ahmed Body

Aim

• Run an external flow simulation on Ahmed body
• Create the geometry file
• Extract coefficient of drag values from the paraview
• Extract the x component of velocity along a line
• Compare the experimental data and simulation data for validation

Ahmed body

Ahmed's body is a generic form of the car body that resembles all the essential flow features around a vehicle. This generic form was first defined and characterized in the experimental work of S.R.Ahmed. This body allows us to capture all the characteristics features that are relevant to bodies in the vehicle industry. This body can be used for a lot of experiments like calculating the drag and lift which are essential nowadays in the design of car bodies. Also this can be used to capture the wake regions, Flow seperation, vortices etc.. Different slant angles provide different values for Coeffecient of drag.

The reason for the negative pressure in the wake region

Wake region is formed behind the ahmed body as a result of viscous forces.The layer over the ahmed body get detatched at the rear end and a wake region is created. The velocity gradient is negetive here and the shear stresses in the flow creates a turbulent flow in wake region As the velocity of flow near to wall is almost zero due to no-slip condition the flow near to boundary layer end up in the rear side of the body through top and lower part of the body a region of low pressure relative to the pressure just outside the wake region, since there is a low pressure, the fluid has to work against adverse pressure gradient

Significance of point of seperation

The flow seperation takes place where the dv/dx or velocity gradient is zero along with pressure gradient along x-axis = 0 for the specific point.The flow seperation can be detected by a single contour and it can also be detected by ploting the velocity aliong y-axis at that region.

Flow separation or boundary layer separation is the detachment of a boundary layer from a surface into a wake. Separation occurs in flow that is slowing down, with pressure increasing, after passing the thickest part of a streamline body or passing through a widening passage, for example.

Flowing against an increasing pressure is known as flowing in anadverse pressure gradient. The boundary layer separates when it has travelled far enough in an adverse pressure gradient that the speed of the boundary layer relative to the surface has stopped and reversed direction. The flow becomes detached from the surface, and instead takes the forms of eddies and vortces. The fluid exerts a constant pressure on the surface once it has separated instead of a continually increasing pressure if still attached.In aerodynamics, flow separation results in reduced lift and increased aerodynamic, caused by the pressure differential between the front and rear surfaces of the object.

Since after the separation point the flow no longer adheres the surface of the body, the skin friction drag is almost zero. At the same time, however, the pressure drops considerably due to the energy dissipation in the turbulent wake. This leads to a significant increase in pressure drag, which is far greater than the reduction in skin friction drag. In total, the parasitic drag (air resistance) thus increases very strongly in the event of a flow separation.

Geometry

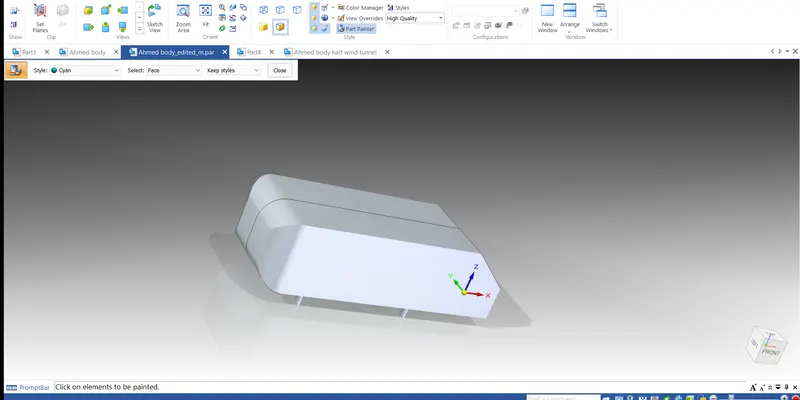

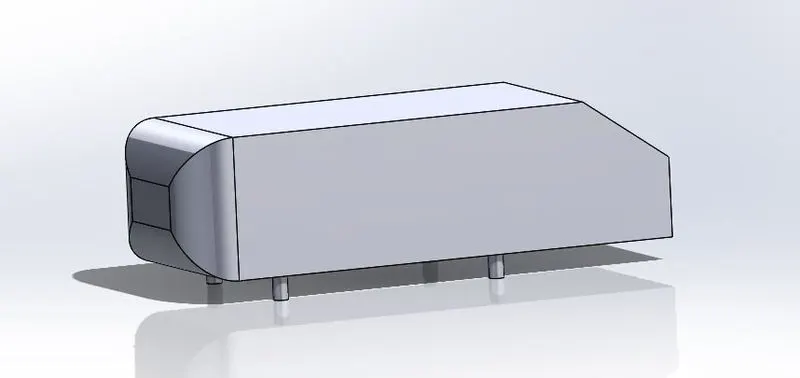

• Geometry was created from Siemens solid edge
• The geometry was cut into half to reduce the amount of cells
• Then it was saved as STL file which is then opened through Converge
• Then wind tunnel is created in the converge using creating Vertices and then patching it
• To get the dimensions for the wind tunnel the following calculations were done

Formula for Boundary layer thickness on a flat plat, `delta = 0.382*x/(Re_x)^(1/5)`

Here it is given that `delta = 0.03`

`Re_x = u*x/(nu)`

`= (40x)/(1.552e-5)`

`=> 0.03 = 0.382x/((40x)/(1.552e-5))^(1/5)`

`0.274 = 0.382x/(40x^-5)`

`0.717 = x/((40x) ^(1/5))`

`0.717*(40)^(1/5) = x/(x^(1/5)`

`x^4 = 7.579`

x = 1.3 metres

• The above value is for boundary layer at the front hence with additional 0.5 metres at the front an Inlet is to be created
• This value also an additonal 0.5 is also added to the front distance from the Inlet to avoid boundary layer formation in this area hence this will be a seperate boundary (where Free slip condition is given)
• Hence a total distance of 2.3 metres is added from the front face of the geometry to the inlet
• The distance between Rear sinde of the geometry and outlet is set 5 times the length of geometry which is 5 metres itself. THe typical values industries use for this is in Between 5 times to 10 times to capture the physics effectively by avoiding the interferance of Outlet wall conditions. Since the current resources are low I will stick with the least (5 times)
• The Height is set to two times the length of the geometry
• The width is set to 0.5 metres

Setup

• A transient simualtion is set

End time calculation ,

Length of the Wind tunnel = 8.3

Velocity of air = 40 m/s

Time required by air to travel through the wind tunnel = 8.3/40 = 0.2075 seconds

Hence End time is set to 0.36 to avoid any complications

• Energy solver is turned off
• In regions and initialisation the Velocity is set to 40 m/s and and Initial pressure is set to 101325 pascals

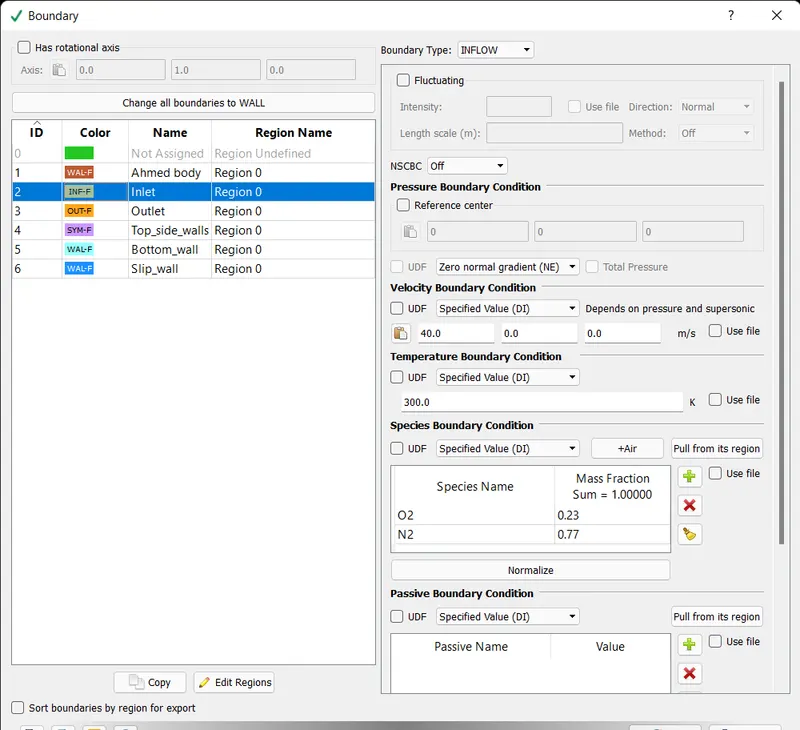

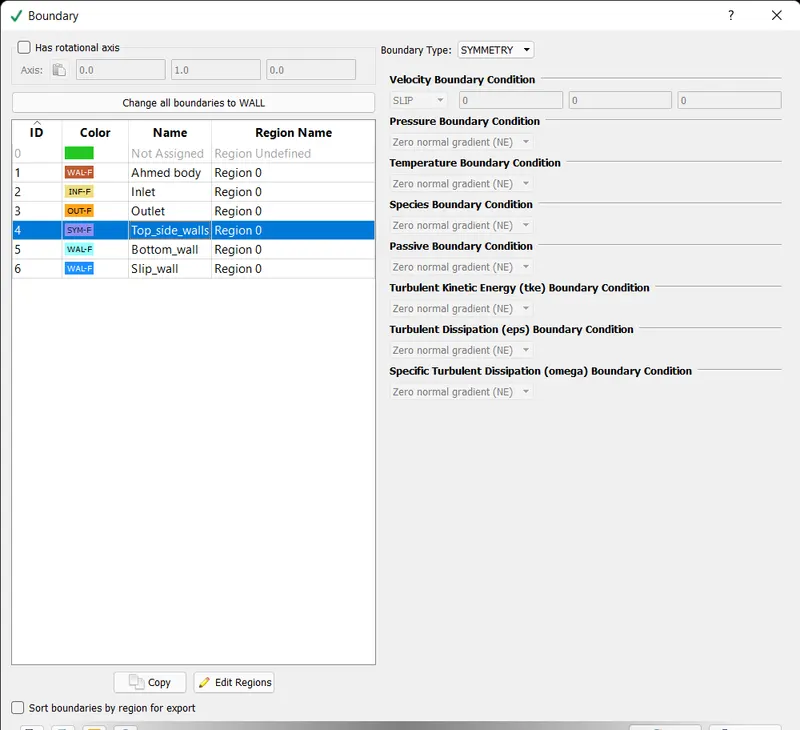

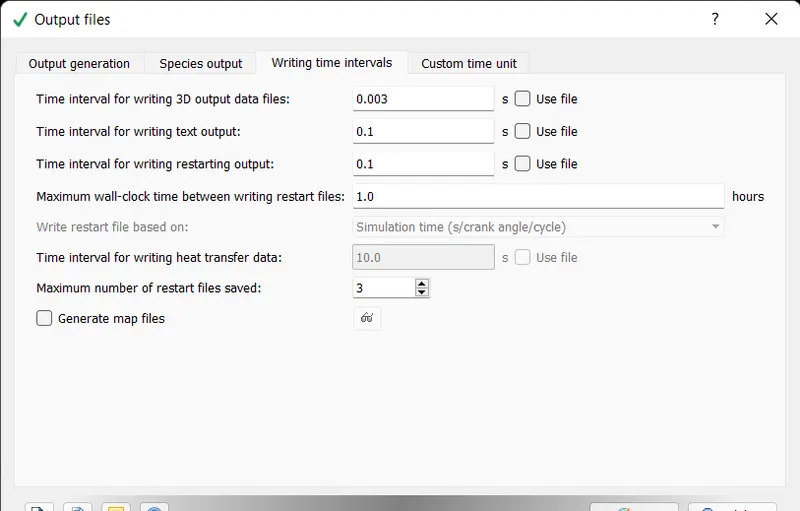

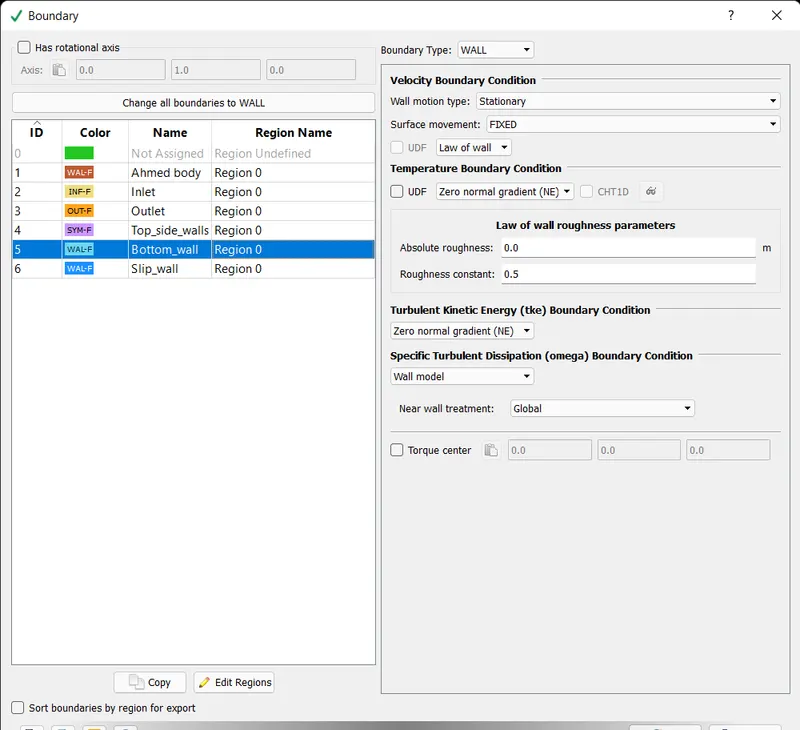

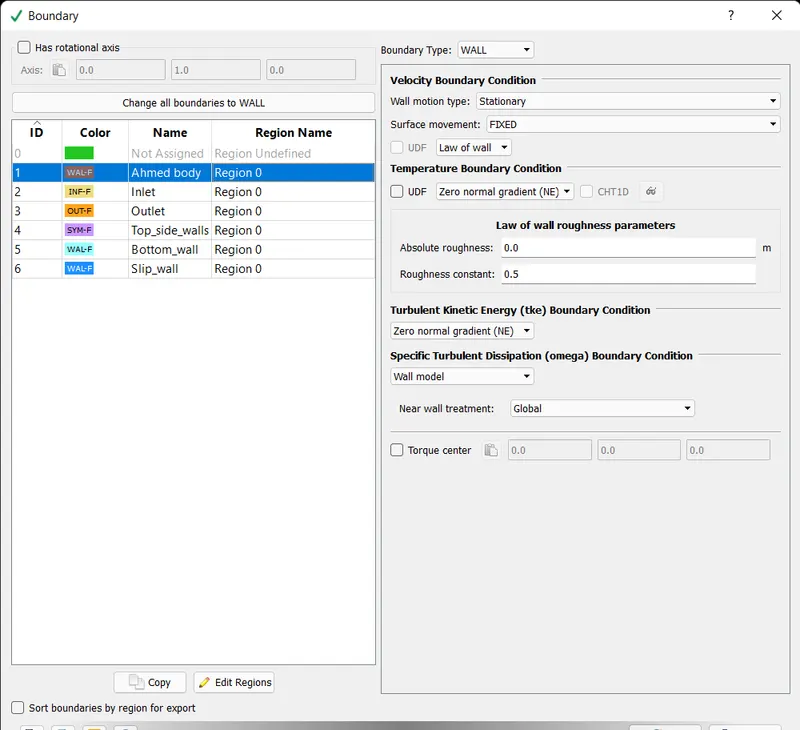

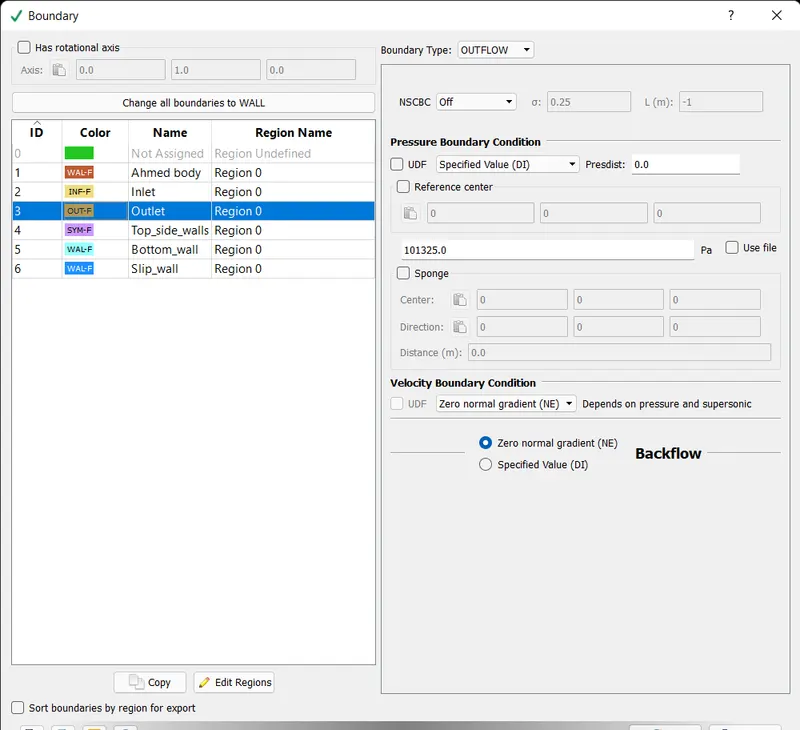

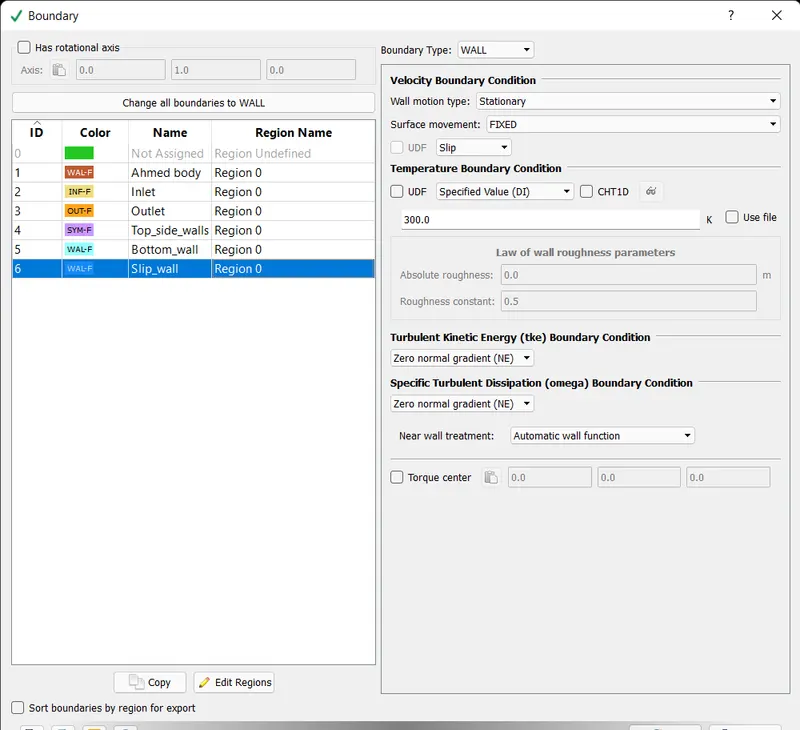

• Boundary conditions are shown in snap shots
• Under turbulance model K-w SST is set with enhanced wall treatment so to capture Viscous sub layer , However we need to use lower values of y+

Cell thickeness calculation at the boundary

For K-w the typical range of y+ is 0 - 10

So If y+ = 10 then the cell thickness would be 0.00009 m

Also we know that

Refined mesh = Base mesh /(2^n)

where n is the scale , for which in our case possible maximum scale is 6

`=> 9e-5 = (Base mesh) /(2^6)`

Base mesh = 64 * 9e-5 = 0.00576 m, the value cant be used in our case due to less computational resources

After some trials it was found that the allowable Base mesh size 0.5

• Hence base mesh size is set to 0.5 m

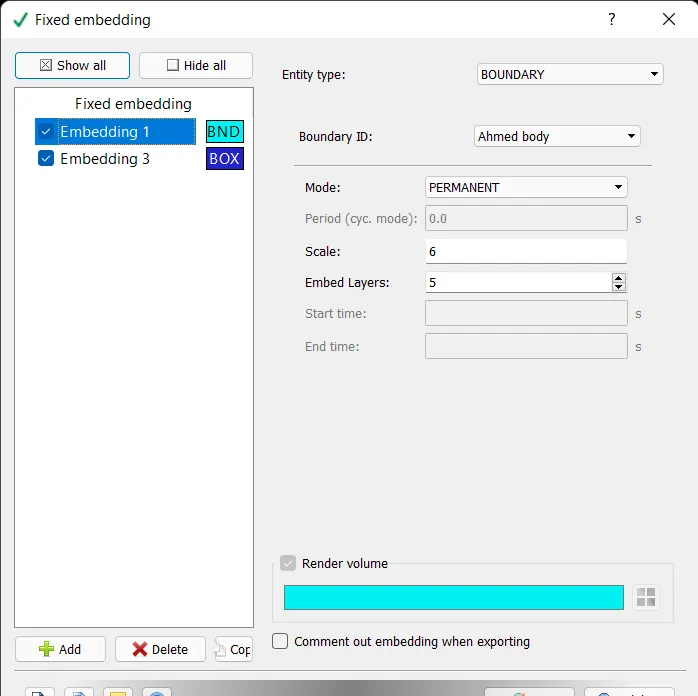

• Fixed embedding is enabled on ahmed body boundary with a scale of 6 and 5 layers
• Also rear side of the geometry is also refined using fixed embedding in order to make the values there more accurate so that it can be compared with the experimental data

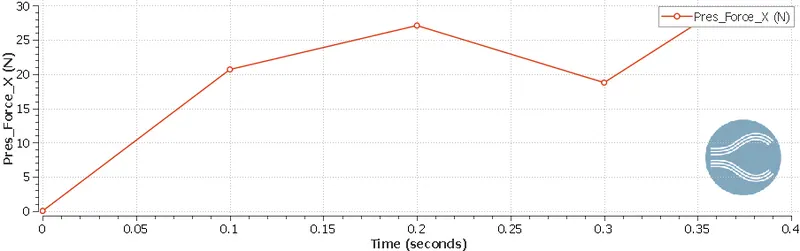

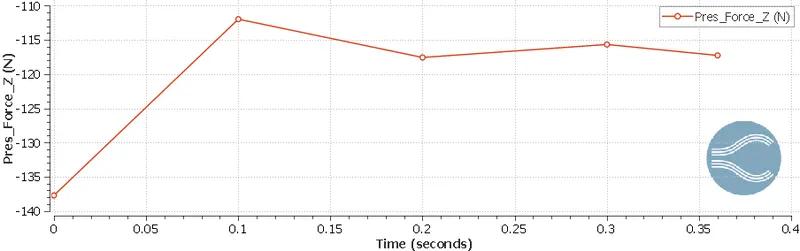

• Wall output is selected to extract the lift and drag values

Outputs

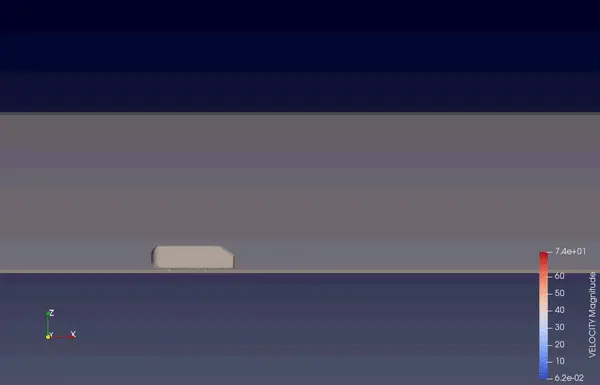

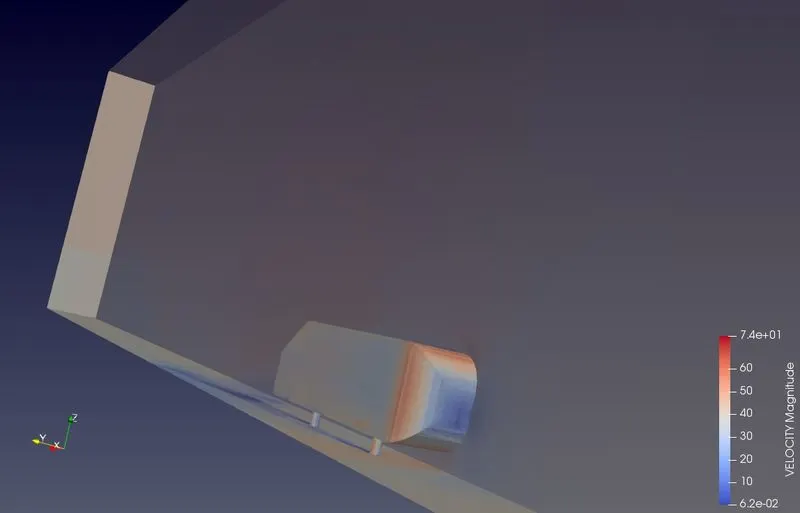

• Velocity contour

https://youtu.be/IaHhx1ytzFw

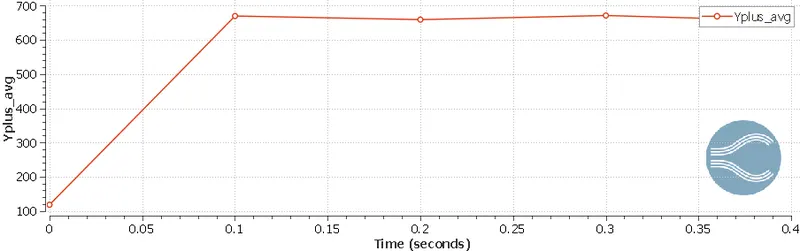

• Y-plus

Observations

• The y-plus average values higher and hence the solutions are less accurate
• Inorder to obtain high accuracy the values must be smaller so as to capture the viscous sublayer
• The velocity contours defines the wake regions at the rear

Calculations using paraview

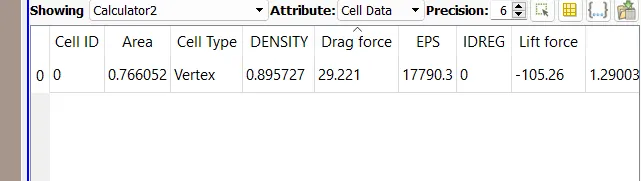

• Drag force and lift forces can be extracted from the paraview and Coefficient of drag and lift can be found using the calculator in paraview
• For extracting these forces firstly ahmbed body block is extracted and then the surface is extratcted following generating surface normals
• Calculator is turned on and then in scalars pressure and normals x is multiplied inorder to get drag force, For lift force pressure is multiplied with normals z

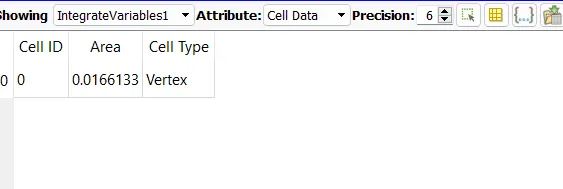

• Now inorder to find the Coefficient of drag we need to have frontal area which is opposing the flow, This area can be extracet from paraview.

Fd = 29.221 N

Cd = 2*29.221/(1.225*0.0166133*40^2) = 1.8

For coefficient of lift,

L = -105.26

S = 1.044*0.389 = 0.406

`C_L` = (2*-105.26)/(1.225*0.406*40^2) = -0.264

Validation

• For validation an experimental data is used to compare the extracted simulation data
• Datas are the variation of velocity at x-direction at different locations of z-directions
• eight points were used and these eight points lie at different locations of x

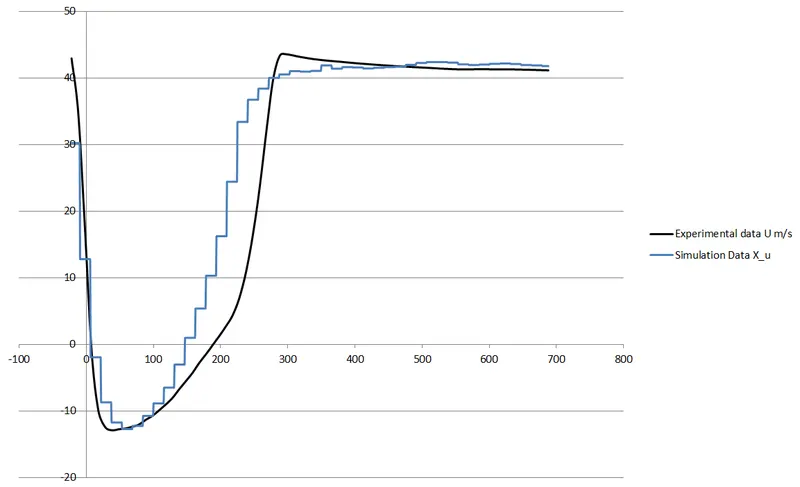

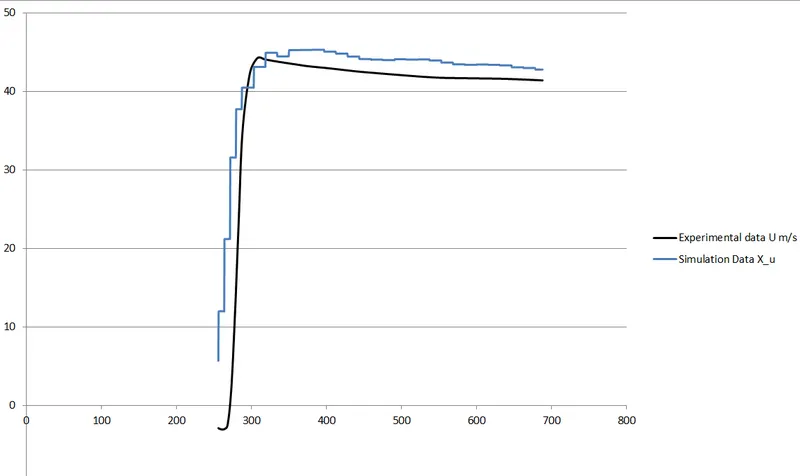

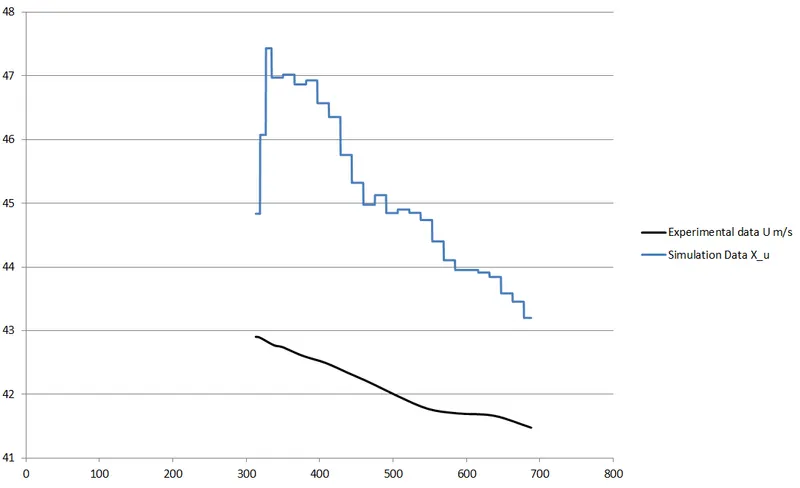

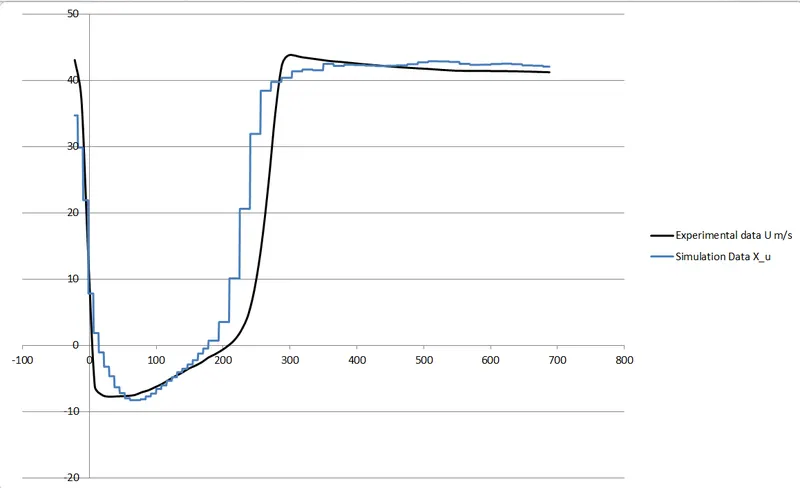

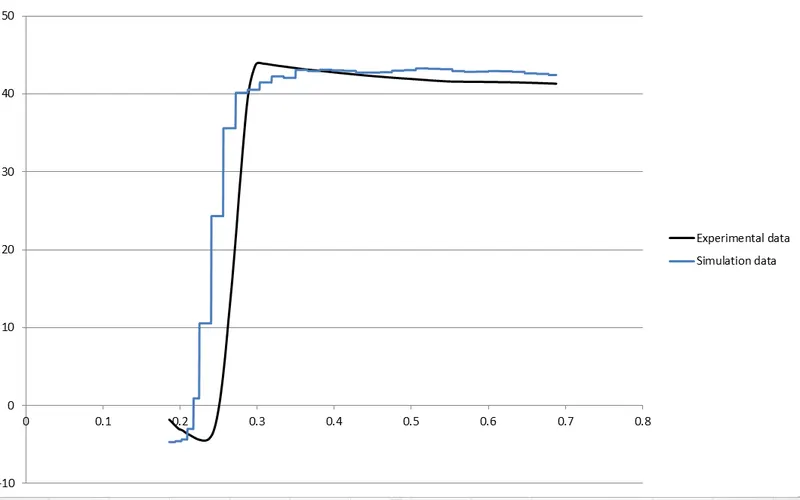

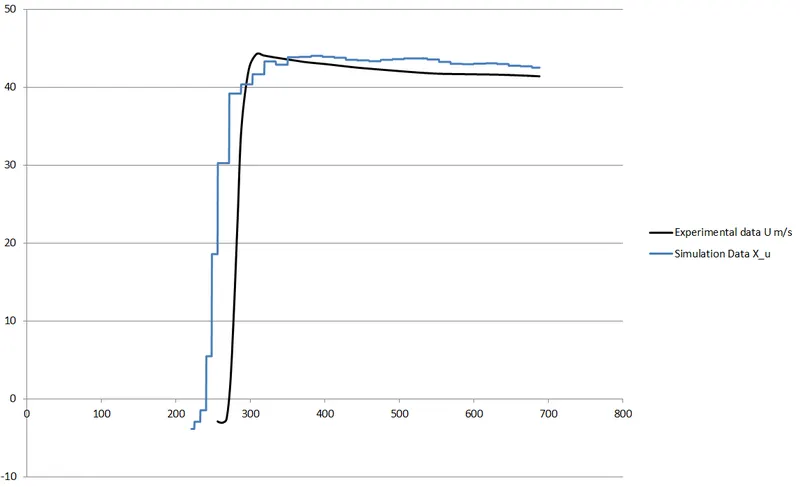

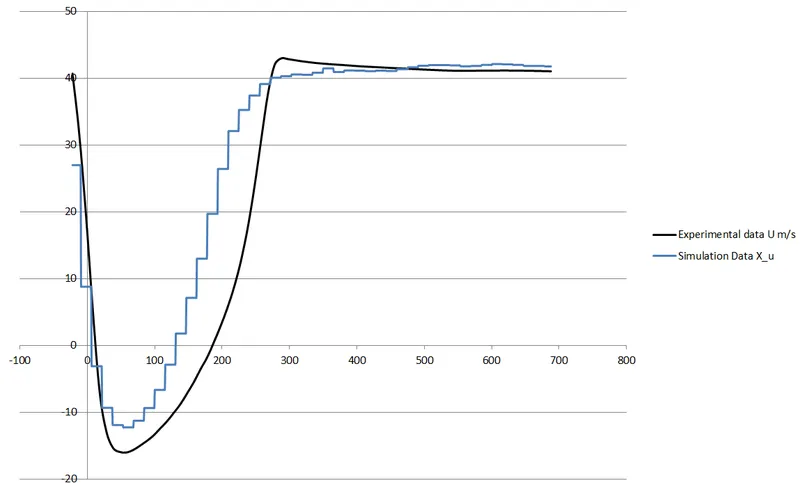

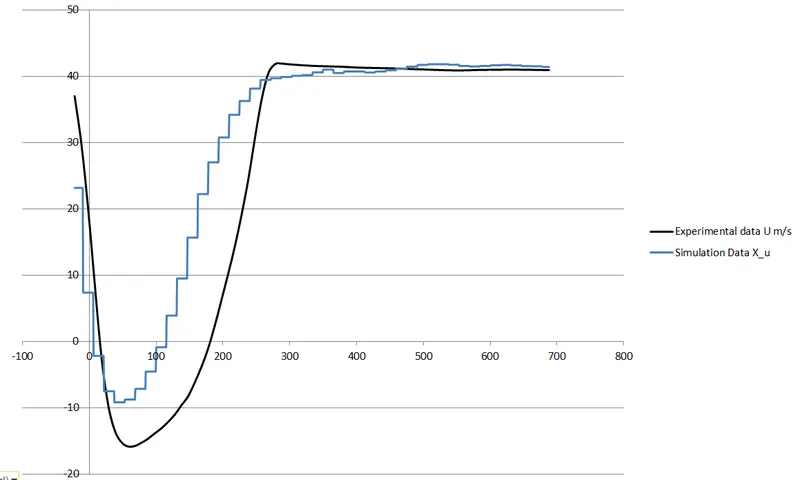

• The experimantal and simulated values are put together in the same excel sheet and is plotted both in the same graph

Point 1 , X = -13 mm

Point 2 , X = -263 mm

Point 3 , X = 37 mm

Point 4 , X = 87 mm

Point 5 , X = -113 mm

Point 6 , X = 63 mm

Point 7 , X = 187 mm

Point 8 , X = 137 mm

Observations

• As stated earlier the simulation data and experimented data does not match at some points and this is mainly due the coarse mesh provided
• Although the results look pretty good and the curves almost follows the same slope
• For validation we need the difference between the experimental values and the simulated values under 5% but in my case due the low computational resources the solutions are less accurate

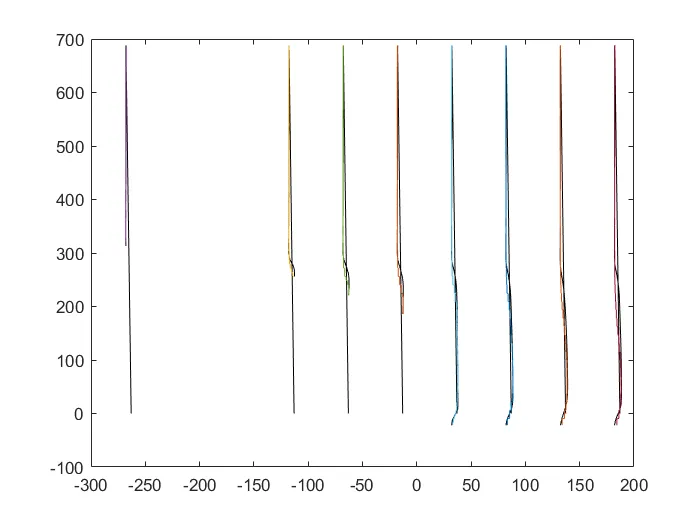

Normalisation

• Done to visualise the change in simulation data and experimental data
• The data is calculated using the datas from each x locationscand then the differences are observed
• It is first normalised and the multiplied with an amplification factor
• It helps in determining the deviations of the simulated data from the experimented data
• The experimental data curve is coloured in black

% 1st point
x_13 = [186	-1.805	186	-4.6827
188	-1.98	186.5	-4.6827
193	-2.496	187	-4.6827
198	-2.972	187.51	-4.6827
203	-3.171	188.01	-4.6827
208	-3.537	188.51	-4.6827
213	-3.793	189.01	-4.6827
218	-4.082	189.51	-4.6827
223	-4.328	190.02	-4.6827
228	-4.455	190.52	-4.6827
233	-4.489	191.02	-4.6827
238	-4.213	191.52	-4.6827
243	-3.4	192.02	-4.6827
248	-1.505	192.53	-4.6827
253	1.595	193.03	-4.6827
258	5.916	193.53	-4.6827
263	11.234	194.03	-4.5647
268	16.528	194.53	-4.5647
273	22.544	195.04	-4.5647
278	28.866	195.54	-4.5647
288	39.688	196.04	-4.5647
298	43.742	196.54	-4.5647
308	43.892	197.04	-4.5647
318	43.753	197.55	-4.5647
328	43.61	198.05	-4.5647
338	43.484	198.55	-4.5647
358	43.212	199.05	-4.5647
378	43.004	199.55	-4.5647
408	42.692	200.06	-4.5647
438	42.398	200.56	-4.5647
468	42.15	201.06	-4.5647
508	41.865	201.56	-4.5647
548	41.606	202.06	-4.357
588	41.553	202.57	-4.357
638	41.482	203.07	-4.357
688	41.316	203.57	-4.357
0	0	204.07	-4.357
0	0	204.57	-4.357
0	0	205.08	-4.357
0	0	205.58	-4.357
0	0	206.08	-4.357
0	0	206.58	-4.357
0	0	207.08	-4.357
0	0	207.59	-4.357
0	0	208.09	-4.357
0	0	208.59	-4.357
0	0	209.09	-4.357
0	0	209.59	-3.0035
0	0	210.1	-3.0035
0	0	210.6	-3.0035
0	0	211.1	-3.0035
0	0	211.6	-3.0035
0	0	212.1	-3.0035
0	0	212.61	-3.0035
0	0	213.11	-3.0035
0	0	213.61	-3.0035
0	0	214.11	-3.0035
0	0	214.61	-3.0035
0	0	215.12	-3.0035
0	0	215.62	-3.0035
0	0	216.12	-3.0035
0	0	216.62	-3.0035
0	0	217.12	-3.0035
0	0	217.63	0.93588
0	0	218.13	0.93588
0	0	218.63	0.93588
0	0	219.13	0.93588
0	0	219.63	0.93588
0	0	220.14	0.93588
0	0	220.64	0.93588
0	0	221.14	0.93588
0	0	221.64	0.93588
0	0	222.14	0.93588
0	0	222.65	0.93588
0	0	223.15	0.93588
0	0	223.65	0.93588
0	0	224.15	0.93588
0	0	224.65	0.93588
0	0	225.16	10.553
0	0	225.66	10.553
0	0	226.16	10.553
0	0	226.66	10.553
0	0	227.16	10.553
0	0	227.67	10.553
0	0	228.17	10.553
0	0	228.67	10.553
0	0	229.17	10.553
0	0	229.67	10.553
0	0	230.18	10.553
0	0	230.68	10.553
0	0	231.18	10.553
0	0	231.68	10.553
0	0	232.18	10.553
0	0	232.69	10.553
0	0	233.19	10.553
0	0	233.69	10.553
0	0	234.19	10.553
0	0	234.69	10.553
0	0	235.2	10.553
0	0	235.7	10.553
0	0	236.2	10.553
0	0	236.7	10.553
0	0	237.2	10.553
0	0	237.71	10.553
0	0	238.21	10.553
0	0	238.71	10.553
0	0	239.21	10.553
0	0	239.71	10.553
0	0	240.22	10.553
0	0	240.72	24.318
0	0	241.22	24.318
0	0	241.72	24.318
0	0	242.22	24.318
0	0	242.73	24.318
0	0	243.23	24.318
0	0	243.73	24.318
0	0	244.23	24.318
0	0	244.73	24.318
0	0	245.24	24.318
0	0	245.74	24.318
0	0	246.24	24.318
0	0	246.74	24.318
0	0	247.24	24.318
0	0	247.75	24.318
0	0	248.25	24.318
0	0	248.75	24.318
0	0	249.25	24.318
0	0	249.75	24.318
0	0	250.26	24.318
0	0	250.76	24.318
0	0	251.26	24.318
0	0	251.76	24.318
0	0	252.26	24.318
0	0	252.77	24.318
0	0	253.27	24.318
0	0	253.77	24.318
0	0	254.27	24.318
0	0	254.77	24.318
0	0	255.28	24.318
0	0	255.78	24.318
0	0	256.28	35.607
0	0	256.78	35.607
0	0	257.28	35.607
0	0	257.79	35.607
0	0	258.29	35.607
0	0	258.79	35.607
0	0	259.29	35.607
0	0	259.79	35.607
0	0	260.3	35.607
0	0	260.8	35.607
0	0	261.3	35.607
0	0	261.8	35.607
0	0	262.3	35.607
0	0	262.81	35.607
0	0	263.31	35.607
0	0	263.81	35.607
0	0	264.31	35.607
0	0	264.81	35.607
0	0	265.32	35.607
0	0	265.82	35.607
0	0	266.32	35.607
0	0	266.82	35.607
0	0	267.32	35.607
0	0	267.83	35.607
0	0	268.33	35.607
0	0	268.83	35.607
0	0	269.33	35.607
0	0	269.83	35.607
0	0	270.34	35.607
0	0	270.84	35.607
0	0	271.34	35.607
0	0	271.84	35.607
0	0	272.34	40.157
0	0	272.85	40.157
0	0	273.35	40.157
0	0	273.85	40.157
0	0	274.35	40.157
0	0	274.85	40.157
0	0	275.36	40.157
0	0	275.86	40.157
0	0	276.36	40.157
0	0	276.86	40.157
0	0	277.36	40.157
0	0	277.87	40.157
0	0	278.37	40.157
0	0	278.87	40.157
0	0	279.37	40.157
0	0	279.87	40.157
0	0	280.38	40.157
0	0	280.88	40.157
0	0	281.38	40.157
0	0	281.88	40.157
0	0	282.38	40.157
0	0	282.89	40.157
0	0	283.39	40.157
0	0	283.89	40.157
0	0	284.39	40.157
0	0	284.89	40.157
0	0	285.4	40.157
0	0	285.9	40.157
0	0	286.4	40.157
0	0	286.9	40.157
0	0	287.4	40.157
0	0	287.91	40.548
0	0	288.41	40.548
0	0	288.91	40.548
0	0	289.41	40.548
0	0	289.91	40.548
0	0	290.42	40.548
0	0	290.92	40.548
0	0	291.42	40.548
0	0	291.92	40.548
0	0	292.42	40.548
0	0	292.93	40.548
0	0	293.43	40.548
0	0	293.93	40.548
0	0	294.43	40.548
0	0	294.93	40.548
0	0	295.44	40.548
0	0	295.94	40.548
0	0	296.44	40.548
0	0	296.94	40.548
0	0	297.44	40.548
0	0	297.95	40.548
0	0	298.45	40.548
0	0	298.95	40.548
0	0	299.45	40.548
0	0	299.95	40.548
0	0	300.46	40.548
0	0	300.96	40.548
0	0	301.46	40.548
0	0	301.96	40.548
0	0	302.46	40.548
0	0	302.97	40.548
0	0	303.47	41.472
0	0	303.97	41.472
0	0	304.47	41.472
0	0	304.97	41.472
0	0	305.48	41.472
0	0	305.98	41.472
0	0	306.48	41.472
0	0	306.98	41.472
0	0	307.48	41.472
0	0	307.99	41.472
0	0	308.49	41.472
0	0	308.99	41.472
0	0	309.49	41.472
0	0	309.99	41.472
0	0	310.5	41.472
0	0	311	41.472
0	0	311.5	41.472
0	0	312	41.472
0	0	312.5	41.472
0	0	313.01	41.472
0	0	313.51	41.472
0	0	314.01	41.472
0	0	314.51	41.472
0	0	315.01	41.472
0	0	315.52	41.472
0	0	316.02	41.472
0	0	316.52	41.472
0	0	317.02	41.472
0	0	317.52	41.472
0	0	318.03	41.472
0	0	318.53	41.472
0	0	319.03	42.246
0	0	319.53	42.246
0	0	320.03	42.246
0	0	320.54	42.246
0	0	321.04	42.246
0	0	321.54	42.246
0	0	322.04	42.246
0	0	322.54	42.246
0	0	323.05	42.246
0	0	323.55	42.246
0	0	324.05	42.246
0	0	324.55	42.246
0	0	325.05	42.246
0	0	325.56	42.246
0	0	326.06	42.246
0	0	326.56	42.246
0	0	327.06	42.246
0	0	327.56	42.246
0	0	328.07	42.246
0	0	328.57	42.246
0	0	329.07	42.246
0	0	329.57	42.246
0	0	330.07	42.246
0	0	330.58	42.246
0	0	331.08	42.246
0	0	331.58	42.246
0	0	332.08	42.246
0	0	332.58	42.246
0	0	333.09	42.246
0	0	333.59	42.246
0	0	334.09	42.246
0	0	334.59	42.064
0	0	335.09	42.064
0	0	335.6	42.064
0	0	336.1	42.064
0	0	336.6	42.064
0	0	337.1	42.064
0	0	337.6	42.064
0	0	338.11	42.064
0	0	338.61	42.064
0	0	339.11	42.064
0	0	339.61	42.064
0	0	340.11	42.064
0	0	340.62	42.064
0	0	341.12	42.064
0	0	341.62	42.064
0	0	342.12	42.064
0	0	342.62	42.064
0	0	343.13	42.064
0	0	343.63	42.064
0	0	344.13	42.064
0	0	344.63	42.064
0	0	345.13	42.064
0	0	345.64	42.064
0	0	346.14	42.064
0	0	346.64	42.064
0	0	347.14	42.064
0	0	347.64	42.064
0	0	348.15	42.064
0	0	348.65	42.064
0	0	349.15	42.064
0	0	349.65	42.064
0	0	350.15	43.076
0	0	350.66	43.076
0	0	351.16	43.076
0	0	351.66	43.076
0	0	352.16	43.076
0	0	352.66	43.076
0	0	353.17	43.076
0	0	353.67	43.076
0	0	354.17	43.076
0	0	354.67	43.076
0	0	355.17	43.076
0	0	355.68	43.076
0	0	356.18	43.076
0	0	356.68	43.076
0	0	357.18	43.076
0	0	357.68	43.076
0	0	358.19	43.076
0	0	358.69	43.076
0	0	359.19	43.076
0	0	359.69	43.076
0	0	360.19	43.076
0	0	360.7	43.076
0	0	361.2	43.076
0	0	361.7	43.076
0	0	362.2	43.076
0	0	362.7	43.076
0	0	363.21	43.076
0	0	363.71	43.076
0	0	364.21	43.076
0	0	364.71	43.076
0	0	365.21	43.076
0	0	365.72	42.943
0	0	366.22	42.943
0	0	366.72	42.943
0	0	367.22	42.943
0	0	367.72	42.943
0	0	368.23	42.943
0	0	368.73	42.943
0	0	369.23	42.943
0	0	369.73	42.943
0	0	370.23	42.943
0	0	370.74	42.943
0	0	371.24	42.943
0	0	371.74	42.943
0	0	372.24	42.943
0	0	372.74	42.943
0	0	373.25	42.943
0	0	373.75	42.943
0	0	374.25	42.943
0	0	374.75	42.943
0	0	375.25	42.943
0	0	375.76	42.943
0	0	376.26	42.943
0	0	376.76	42.943
0	0	377.26	42.943
0	0	377.76	42.943
0	0	378.27	42.943
0	0	378.77	42.943
0	0	379.27	42.943
0	0	379.77	42.943
0	0	380.27	42.943
0	0	380.78	42.943
0	0	381.28	43.093
0	0	381.78	43.093
0	0	382.28	43.093
0	0	382.78	43.093
0	0	383.29	43.093
0	0	383.79	43.093
0	0	384.29	43.093
0	0	384.79	43.093
0	0	385.29	43.093
0	0	385.8	43.093
0	0	386.3	43.093
0	0	386.8	43.093
0	0	387.3	43.093
0	0	387.8	43.093
0	0	388.31	43.093
0	0	388.81	43.093
0	0	389.31	43.093
0	0	389.81	43.093
0	0	390.31	43.093
0	0	390.82	43.093
0	0	391.32	43.093
0	0	391.82	43.093
0	0	392.32	43.093
0	0	392.82	43.093
0	0	393.33	43.093
0	0	393.83	43.093
0	0	394.33	43.093
0	0	394.83	43.093
0	0	395.33	43.093
0	0	395.84	43.093
0	0	396.34	43.093
0	0	396.84	43.093
0	0	397.34	43.042
0	0	397.84	43.042
0	0	398.35	43.042
0	0	398.85	43.042
0	0	399.35	43.042
0	0	399.85	43.042
0	0	400.35	43.042
0	0	400.86	43.042
0	0	401.36	43.042
0	0	401.86	43.042
0	0	402.36	43.042
0	0	402.86	43.042
0	0	403.37	43.042
0	0	403.87	43.042
0	0	404.37	43.042
0	0	404.87	43.042
0	0	405.37	43.042
0	0	405.88	43.042
0	0	406.38	43.042
0	0	406.88	43.042
0	0	407.38	43.042
0	0	407.88	43.042
0	0	408.39	43.042
0	0	408.89	43.042
0	0	409.39	43.042
0	0	409.89	43.042
0	0	410.39	43.042
0	0	410.9	43.042
0	0	411.4	43.042
0	0	411.9	43.042
0	0	412.4	43.042
0	0	412.9	42.962
0	0	413.41	42.962
0	0	413.91	42.962
0	0	414.41	42.962
0	0	414.91	42.962
0	0	415.41	42.962
0	0	415.92	42.962
0	0	416.42	42.962
0	0	416.92	42.962
0	0	417.42	42.962
0	0	417.92	42.962
0	0	418.43	42.962
0	0	418.93	42.962
0	0	419.43	42.962
0	0	419.93	42.962
0	0	420.43	42.962
0	0	420.94	42.962
0	0	421.44	42.962
0	0	421.94	42.962
0	0	422.44	42.962
0	0	422.94	42.962
0	0	423.45	42.962
0	0	423.95	42.962
0	0	424.45	42.962
0	0	424.95	42.962
0	0	425.45	42.962
0	0	425.96	42.962
0	0	426.46	42.962
0	0	426.96	42.962
0	0	427.46	42.962
0	0	427.96	42.962
0	0	428.47	42.732
0	0	428.97	42.732
0	0	429.47	42.732
0	0	429.97	42.732
0	0	430.47	42.732
0	0	430.98	42.732
0	0	431.48	42.732
0	0	431.98	42.732
0	0	432.48	42.732
0	0	432.98	42.732
0	0	433.49	42.732
0	0	433.99	42.732
0	0	434.49	42.732
0	0	434.99	42.732
0	0	435.49	42.732
0	0	436	42.732
0	0	436.5	42.732
0	0	437	42.732
0	0	437.5	42.732
0	0	438	42.732
0	0	438.51	42.732
0	0	439.01	42.732
0	0	439.51	42.732
0	0	440.01	42.732
0	0	440.51	42.732
0	0	441.02	42.732
0	0	441.52	42.732
0	0	442.02	42.732
0	0	442.52	42.732
0	0	443.02	42.732
0	0	443.53	42.732
0	0	444.03	42.74
0	0	444.53	42.74
0	0	445.03	42.74
0	0	445.53	42.74
0	0	446.04	42.74
0	0	446.54	42.74
0	0	447.04	42.74
0	0	447.54	42.74
0	0	448.04	42.74
0	0	448.55	42.74
0	0	449.05	42.74
0	0	449.55	42.74
0	0	450.05	42.74
0	0	450.55	42.74
0	0	451.06	42.74
0	0	451.56	42.74
0	0	452.06	42.74
0	0	452.56	42.74
0	0	453.06	42.74
0	0	453.57	42.74
0	0	454.07	42.74
0	0	454.57	42.74
0	0	455.07	42.74
0	0	455.57	42.74
0	0	456.08	42.74
0	0	456.58	42.74
0	0	457.08	42.74
0	0	457.58	42.74
0	0	458.08	42.74
0	0	458.59	42.74
0	0	459.09	42.74
0	0	459.59	42.782
0	0	460.09	42.782
0	0	460.59	42.782
0	0	461.1	42.782
0	0	461.6	42.782
0	0	462.1	42.782
0	0	462.6	42.782
0	0	463.1	42.782
0	0	463.61	42.782
0	0	464.11	42.782
0	0	464.61	42.782
0	0	465.11	42.782
0	0	465.61	42.782
0	0	466.12	42.782
0	0	466.62	42.782
0	0	467.12	42.782
0	0	467.62	42.782
0	0	468.12	42.782
0	0	468.63	42.782
0	0	469.13	42.782
0	0	469.63	42.782
0	0	470.13	42.782
0	0	470.63	42.782
0	0	471.14	42.782
0	0	471.64	42.782
0	0	472.14	42.782
0	0	472.64	42.782
0	0	473.14	42.782
0	0	473.65	42.782
0	0	474.15	42.782
0	0	474.65	42.782
0	0	475.15	42.988
0	0	475.65	42.988
0	0	476.16	42.988
0	0	476.66	42.988
0	0	477.16	42.988
0	0	477.66	42.988
0	0	478.16	42.988
0	0	478.67	42.988
0	0	479.17	42.988
0	0	479.67	42.988
0	0	480.17	42.988
0	0	480.67	42.988
0	0	481.18	42.988
0	0	481.68	42.988
0	0	482.18	42.988
0	0	482.68	42.988
0	0	483.18	42.988
0	0	483.69	42.988
0	0	484.19	42.988
0	0	484.69	42.988
0	0	485.19	42.988
0	0	485.69	42.988
0	0	486.2	42.988
0	0	486.7	42.988
0	0	487.2	42.988
0	0	487.7	42.988
0	0	488.2	42.988
0	0	488.71	42.988
0	0	489.21	42.988
0	0	489.71	42.988
0	0	490.21	42.988
0	0	490.71	43.056
0	0	491.22	43.056
0	0	491.72	43.056
0	0	492.22	43.056
0	0	492.72	43.056
0	0	493.22	43.056
0	0	493.73	43.056
0	0	494.23	43.056
0	0	494.73	43.056
0	0	495.23	43.056
0	0	495.73	43.056
0	0	496.24	43.056
0	0	496.74	43.056
0	0	497.24	43.056
0	0	497.74	43.056
0	0	498.24	43.056
0	0	498.75	43.056
0	0	499.25	43.056
0	0	499.75	43.056
0	0	500.25	43.056
0	0	500.75	43.056
0	0	501.26	43.056
0	0	501.76	43.056
0	0	502.26	43.056
0	0	502.76	43.056
0	0	503.26	43.056
0	0	503.77	43.056
0	0	504.27	43.056
0	0	504.77	43.056
0	0	505.27	43.056
0	0	505.77	43.056
0	0	506.28	43.283
0	0	506.78	43.283
0	0	507.28	43.283
0	0	507.78	43.283
0	0	508.28	43.283
0	0	508.79	43.283
0	0	509.29	43.283
0	0	509.79	43.283
0	0	510.29	43.283
0	0	510.79	43.283
0	0	511.3	43.283
0	0	511.8	43.283
0	0	512.3	43.283
0	0	512.8	43.283
0	0	513.3	43.283
0	0	513.81	43.283
0	0	514.31	43.283
0	0	514.81	43.283
0	0	515.31	43.283
0	0	515.81	43.283
0	0	516.32	43.283
0	0	516.82	43.283
0	0	517.32	43.283
0	0	517.82	43.283
0	0	518.32	43.283
0	0	518.83	43.283
0	0	519.33	43.283
0	0	519.83	43.283
0	0	520.33	43.283
0	0	520.83	43.283
0	0	521.34	43.283
0	0	521.84	43.283
0	0	522.34	43.22
0	0	522.84	43.22
0	0	523.34	43.22
0	0	523.85	43.22
0	0	524.35	43.22
0	0	524.85	43.22
0	0	525.35	43.22
0	0	525.85	43.22
0	0	526.36	43.22
0	0	526.86	43.22
0	0	527.36	43.22
0	0	527.86	43.22
0	0	528.36	43.22
0	0	528.87	43.22
0	0	529.37	43.22
0	0	529.87	43.22
0	0	530.37	43.22
0	0	530.87	43.22
0	0	531.38	43.22
0	0	531.88	43.22
0	0	532.38	43.22
0	0	532.88	43.22
0	0	533.38	43.22
0	0	533.89	43.22
0	0	534.39	43.22
0	0	534.89	43.22
0	0	535.39	43.22
0	0	535.89	43.22
0	0	536.4	43.22
0	0	536.9	43.22
0	0	537.4	43.22
0	0	537.9	43.178
0	0	538.4	43.178
0	0	538.91	43.178
0	0	539.41	43.178
0	0	539.91	43.178
0	0	540.41	43.178
0	0	540.91	43.178
0	0	541.42	43.178
0	0	541.92	43.178
0	0	542.42	43.178
0	0	542.92	43.178
0	0	543.42	43.178
0	0	543.93	43.178
0	0	544.43	43.178
0	0	544.93	43.178
0	0	545.43	43.178
0	0	545.93	43.178
0	0	546.44	43.178
0	0	546.94	43.178
0	0	547.44	43.178
0	0	547.94	43.178
0	0	548.44	43.178
0	0	548.95	43.178
0	0	549.45	43.178
0	0	549.95	43.178
0	0	550.45	43.178
0	0	550.95	43.178
0	0	551.46	43.178
0	0	551.96	43.178
0	0	552.46	43.178
0	0	552.96	43.178
0	0	553.46	42.939
0	0	553.97	42.939
0	0	554.47	42.939
0	0	554.97	42.939
0	0	555.47	42.939
0	0	555.97	42.939
0	0	556.48	42.939
0	0	556.98	42.939
0	0	557.48	42.939
0	0	557.98	42.939
0	0	558.48	42.939
0	0	558.99	42.939
0	0	559.49	42.939
0	0	559.99	42.939
0	0	560.49	42.939
0	0	560.99	42.939
0	0	561.5	42.939
0	0	562	42.939
0	0	562.5	42.939
0	0	563	42.939
0	0	563.5	42.939
0	0	564.01	42.939
0	0	564.51	42.939
0	0	565.01	42.939
0	0	565.51	42.939
0	0	566.01	42.939
0	0	566.52	42.939
0	0	567.02	42.939
0	0	567.52	42.939
0	0	568.02	42.939
0	0	568.52	42.939
0	0	569.03	42.832
0	0	569.53	42.832
0	0	570.03	42.832
0	0	570.53	42.832
0	0	571.03	42.832
0	0	571.54	42.832
0	0	572.04	42.832
0	0	572.54	42.832
0	0	573.04	42.832
0	0	573.54	42.832
0	0	574.05	42.832
0	0	574.55	42.832
0	0	575.05	42.832
0	0	575.55	42.832
0	0	576.05	42.832
0	0	576.56	42.832
0	0	577.06	42.832
0	0	577.56	42.832
0	0	578.06	42.832
0	0	578.56	42.832
0	0	579.07	42.832
0	0	579.57	42.832
0	0	580.07	42.832
0	0	580.57	42.832
0	0	581.07	42.832
0	0	581.58	42.832
0	0	582.08	42.832
0	0	582.58	42.832
0	0	583.08	42.832
0	0	583.58	42.832
0	0	584.09	42.832
0	0	584.59	42.851
0	0	585.09	42.851
0	0	585.59	42.851
0	0	586.09	42.851
0	0	586.6	42.851
0	0	587.1	42.851
0	0	587.6	42.851
0	0	588.1	42.851
0	0	588.6	42.851
0	0	589.11	42.851
0	0	589.61	42.851
0	0	590.11	42.851
0	0	590.61	42.851
0	0	591.11	42.851
0	0	591.62	42.851
0	0	592.12	42.851
0	0	592.62	42.851
0	0	593.12	42.851
0	0	593.62	42.851
0	0	594.13	42.851
0	0	594.63	42.851
0	0	595.13	42.851
0	0	595.63	42.851
0	0	596.13	42.851
0	0	596.64	42.851
0	0	597.14	42.851
0	0	597.64	42.851
0	0	598.14	42.851
0	0	598.64	42.851
0	0	599.15	42.851
0	0	599.65	42.851
0	0	600.15	42.939
0	0	600.65	42.939
0	0	601.15	42.939
0	0	601.66	42.939
0	0	602.16	42.939
0	0	602.66	42.939
0	0	603.16	42.939
0	0	603.66	42.939
0	0	604.17	42.939
0	0	604.67	42.939
0	0	605.17	42.939
0	0	605.67	42.939
0	0	606.17	42.939
0	0	606.68	42.939
0	0	607.18	42.939
0	0	607.68	42.939
0	0	608.18	42.939
0	0	608.68	42.939
0	0	609.19	42.939
0	0	609.69	42.939
0	0	610.19	42.939
0	0	610.69	42.939
0	0	611.19	42.939
0	0	611.7	42.939
0	0	612.2	42.939
0	0	612.7	42.939
0	0	613.2	42.939
0	0	613.7	42.939
0	0	614.21	42.939
0	0	614.71	42.939
0	0	615.21	42.939
0	0	615.71	42.92
0	0	616.21	42.92
0	0	616.72	42.92
0	0	617.22	42.92
0	0	617.72	42.92
0	0	618.22	42.92
0	0	618.72	42.92
0	0	619.23	42.92
0	0	619.73	42.92
0	0	620.23	42.92
0	0	620.73	42.92
0	0	621.23	42.92
0	0	621.74	42.92
0	0	622.24	42.92
0	0	622.74	42.92
0	0	623.24	42.92
0	0	623.74	42.92
0	0	624.25	42.92
0	0	624.75	42.92
0	0	625.25	42.92
0	0	625.75	42.92
0	0	626.25	42.92
0	0	626.76	42.92
0	0	627.26	42.92
0	0	627.76	42.92
0	0	628.26	42.92
0	0	628.76	42.92
0	0	629.27	42.92
0	0	629.77	42.92
0	0	630.27	42.92
0	0	630.77	42.92
0	0	631.27	42.834
0	0	631.78	42.834
0	0	632.28	42.834
0	0	632.78	42.834
0	0	633.28	42.834
0	0	633.78	42.834
0	0	634.29	42.834
0	0	634.79	42.834
0	0	635.29	42.834
0	0	635.79	42.834
0	0	636.29	42.834
0	0	636.8	42.834
0	0	637.3	42.834
0	0	637.8	42.834
0	0	638.3	42.834
0	0	638.8	42.834
0	0	639.31	42.834
0	0	639.81	42.834
0	0	640.31	42.834
0	0	640.81	42.834
0	0	641.31	42.834
0	0	641.82	42.834
0	0	642.32	42.834
0	0	642.82	42.834
0	0	643.32	42.834
0	0	643.82	42.834
0	0	644.33	42.834
0	0	644.83	42.834
0	0	645.33	42.834
0	0	645.83	42.834
0	0	646.33	42.834
0	0	646.84	42.834
0	0	647.34	42.641
0	0	647.84	42.641
0	0	648.34	42.641
0	0	648.84	42.641
0	0	649.35	42.641
0	0	649.85	42.641
0	0	650.35	42.641
0	0	650.85	42.641
0	0	651.35	42.641
0	0	651.86	42.641
0	0	652.36	42.641
0	0	652.86	42.641
0	0	653.36	42.641
0	0	653.86	42.641
0	0	654.37	42.641
0	0	654.87	42.641
0	0	655.37	42.641
0	0	655.87	42.641
0	0	656.37	42.641
0	0	656.88	42.641
0	0	657.38	42.641
0	0	657.88	42.641
0	0	658.38	42.641
0	0	658.88	42.641
0	0	659.39	42.641
0	0	659.89	42.641
0	0	660.39	42.641
0	0	660.89	42.641
0	0	661.39	42.641
0	0	661.9	42.641
0	0	662.4	42.641
0	0	662.9	42.574
0	0	663.4	42.574
0	0	663.9	42.574
0	0	664.41	42.574
0	0	664.91	42.574
0	0	665.41	42.574
0	0	665.91	42.574
0	0	666.41	42.574
0	0	666.92	42.574
0	0	667.42	42.574
0	0	667.92	42.574
0	0	668.42	42.574
0	0	668.92	42.574
0	0	669.43	42.574
0	0	669.93	42.574
0	0	670.43	42.574
0	0	670.93	42.574
0	0	671.43	42.574
0	0	671.94	42.574
0	0	672.44	42.574
0	0	672.94	42.574
0	0	673.44	42.574
0	0	673.94	42.574
0	0	674.45	42.574
0	0	674.95	42.574
0	0	675.45	42.574
0	0	675.95	42.574
0	0	676.45	42.574
0	0	676.96	42.574
0	0	677.46	42.574
0	0	677.96	42.574
0	0	678.46	42.432
0	0	678.96	42.432
0	0	679.47	42.432
0	0	679.97	42.432
0	0	680.47	42.432
0	0	680.97	42.432
0	0	681.47	42.432
0	0	681.98	42.432
0	0	682.48	42.432
0	0	682.98	42.432
0	0	683.48	42.432
0	0	683.98	42.432
0	0	684.49	42.432
0	0	684.99	42.432
0	0	685.49	42.432
0	0	685.99	42.432
0	0	686.49	42.432
0	0	687	42.432
0	0	687.5	42.432
0	0	688	42.432
]
% 2nd point
x_263 = [313	42.904	313	44.836
318	42.894	313.37	44.836
328	42.831	313.75	44.836
338	42.77	314.13	44.836
348	42.747	314.5	44.836
358	42.699	314.88	44.836
378	42.601	315.25	44.836
408	42.494	315.63	44.836
438	42.34	316	44.836
468	42.187	316.37	44.836
508	41.964	316.75	44.836
548	41.771	317.12	44.836
588	41.701	317.5	44.836
638	41.663	317.87	44.836
688	41.477	318.25	44.836
0	0	318.63	44.836
0	0	319	46.074
0	0	319.38	46.074
0	0	319.75	46.074
0	0	320.13	46.074
0	0	320.5	46.074
0	0	320.87	46.074
0	0	321.25	46.074
0	0	321.62	46.074
0	0	322	46.074
0	0	322.37	46.074
0	0	322.75	46.074
0	0	323.13	46.074
0	0	323.5	46.074
0	0	323.88	46.074
0	0	324.25	46.074
0	0	324.62	46.074
0	0	325	46.074
0	0	325.37	46.074
0	0	325.75	46.074
0	0	326.12	46.074
0	0	326.5	46.074
0	0	326.88	47.435
0	0	327.25	47.435
0	0	327.63	47.435
0	0	328	47.435
0	0	328.38	47.435
0	0	328.75	47.435
0	0	329.12	47.435
0	0	329.5	47.435
0	0	329.87	47.435
0	0	330.25	47.435
0	0	330.62	47.435
0	0	331	47.435
0	0	331.38	47.435
0	0	331.75	47.435
0	0	332.13	47.435
0	0	332.5	47.435
0	0	332.88	47.435
0	0	333.25	47.435
0	0	333.62	47.435
0	0	334	47.435
0	0	334.37	47.435
0	0	334.75	46.974
0	0	335.12	46.974
0	0	335.5	46.974
0	0	335.88	46.974
0	0	336.25	46.974
0	0	336.63	46.974
0	0	337	46.974
0	0	337.37	46.974
0	0	337.75	46.974
0	0	338.12	46.974
0	0	338.5	46.974
0	0	338.87	46.974
0	0	339.25	46.974
0	0	339.63	46.974
0	0	340	46.974
0	0	340.38	46.974
0	0	340.75	46.974
0	0	341.13	46.974
0	0	341.5	46.974
0	0	341.87	46.974
0	0	342.25	46.974
0	0	342.62	46.974
0	0	343	46.974
0	0	343.37	46.974
0	0	343.75	46.974
0	0	344.13	46.974
0	0	344.5	46.974
0	0	344.88	46.974
0	0	345.25	46.974
0	0	345.63	46.974
0	0	346	46.974
0	0	346.37	46.974
0	0	346.75	46.974
0	0	347.12	46.974
0	0	347.5	46.974
0	0	347.87	46.974
0	0	348.25	46.974
0	0	348.63	46.974
0	0	349	46.974
0	0	349.38	46.974
0	0	349.75	46.974
0	0	350.13	47.021
0	0	350.5	47.021
0	0	350.87	47.021
0	0	351.25	47.021
0	0	351.62	47.021
0	0	352	47.021
0	0	352.38	47.021
0	0	352.75	47.021
0	0	353.13	47.021
0	0	353.5	47.021
0	0	353.88	47.021
0	0	354.25	47.021
0	0	354.62	47.021
0	0	355	47.021
0	0	355.37	47.021
0	0	355.75	47.021
0	0	356.12	47.021
0	0	356.5	47.021
0	0	356.88	47.021
0	0	357.25	47.021
0	0	357.63	47.021
0	0	358	47.021
0	0	358.38	47.021
0	0	358.75	47.021
0	0	359.12	47.021
0	0	359.5	47.021
0	0	359.87	47.021
0	0	360.25	47.021
0	0	360.62	47.021
0	0	361	47.021
0	0	361.38	47.021
0	0	361.75	47.021
0	0	362.13	47.021
0	0	362.5	47.021
0	0	362.88	47.021
0	0	363.25	47.021
0	0	363.62	47.021
0	0	364	47.021
0	0	364.37	47.021
0	0	364.75	47.021
0	0	365.13	47.021
0	0	365.5	47.021
0	0	365.88	46.866
0	0	366.25	46.866
0	0	366.63	46.866
0	0	367	46.866
0	0	367.37	46.866
0	0	367.75	46.866
0	0	368.12	46.866
0	0	368.5	46.866
0	0	368.87	46.866
0	0	369.25	46.866
0	0	369.63	46.866
0	0	370	46.866
0	0	370.38	46.866
0	0	370.75	46.866
0	0	371.13	46.866
0	0	371.5	46.866
0	0	371.87	46.866
0	0	372.25	46.866
0	0	372.62	46.866
0	0	373	46.866
0	0	373.37	46.866
0	0	373.75	46.866
0	0	374.13	46.866
0	0	374.5	46.866
0	0	374.88	46.866
0	0	375.25	46.866
0	0	375.63	46.866
0	0	376	46.866
0	0	376.37	46.866
0	0	376.75	46.866
0	0	377.12	46.866
0	0	377.5	46.866
0	0	377.88	46.866
0	0	378.25	46.866
0	0	378.63	46.866
0	0	379	46.866
0	0	379.38	46.866
0	0	379.75	46.866
0	0	380.12	46.866
0	0	380.5	46.866
0	0	380.87	46.866
0	0	381.25	46.866
0	0	381.62	46.93
0	0	382	46.93
0	0	382.38	46.93
0	0	382.75	46.93
0	0	383.13	46.93
0	0	383.5	46.93
0	0	383.88	46.93
0	0	384.25	46.93
0	0	384.62	46.93
0	0	385	46.93
0	0	385.37	46.93
0	0	385.75	46.93
0	0	386.12	46.93
0	0	386.5	46.93
0	0	386.88	46.93
0	0	387.25	46.93
0	0	387.63	46.93
0	0	388	46.93
0	0	388.38	46.93
0	0	388.75	46.93
0	0	389.12	46.93
0	0	389.5	46.93
0	0	389.87	46.93
0	0	390.25	46.93
0	0	390.63	46.93
0	0	391	46.93
0	0	391.38	46.93
0	0	391.75	46.93
0	0	392.13	46.93
0	0	392.5	46.93
0	0	392.87	46.93
0	0	393.25	46.93
0	0	393.62	46.93
0	0	394	46.93
0	0	394.37	46.93
0	0	394.75	46.93
0	0	395.13	46.93
0	0	395.5	46.93
0	0	395.88	46.93
0	0	396.25	46.93
0	0	396.63	46.93
0	0	397	46.573
0	0	397.37	46.573
0	0	397.75	46.573
0	0	398.12	46.573
0	0	398.5	46.573
0	0	398.87	46.573
0	0	399.25	46.573
0	0	399.63	46.573
0	0	400	46.573
0	0	400.38	46.573
0	0	400.75	46.573
0	0	401.13	46.573
0	0	401.5	46.573
0	0	401.87	46.573
0	0	402.25	46.573
0	0	402.62	46.573
0	0	403	46.573
0	0	403.37	46.573
0	0	403.75	46.573
0	0	404.13	46.573
0	0	404.5	46.573
0	0	404.88	46.573
0	0	405.25	46.573
0	0	405.62	46.573
0	0	406	46.573
0	0	406.37	46.573
0	0	406.75	46.573
0	0	407.12	46.573
0	0	407.5	46.573
0	0	407.88	46.573
0	0	408.25	46.573
0	0	408.63	46.573
0	0	409	46.573
0	0	409.38	46.573
0	0	409.75	46.573
0	0	410.12	46.573
0	0	410.5	46.573
0	0	410.87	46.573
0	0	411.25	46.573
0	0	411.62	46.573
0	0	412	46.573
0	0	412.38	46.573
0	0	412.75	46.355
0	0	413.13	46.355
0	0	413.5	46.355
0	0	413.88	46.355
0	0	414.25	46.355
0	0	414.62	46.355
0	0	415	46.355
0	0	415.37	46.355
0	0	415.75	46.355
0	0	416.12	46.355
0	0	416.5	46.355
0	0	416.88	46.355
0	0	417.25	46.355
0	0	417.63	46.355
0	0	418	46.355
0	0	418.37	46.355
0	0	418.75	46.355
0	0	419.12	46.355
0	0	419.5	46.355
0	0	419.87	46.355
0	0	420.25	46.355
0	0	420.63	46.355
0	0	421	46.355
0	0	421.38	46.355
0	0	421.75	46.355
0	0	422.13	46.355
0	0	422.5	46.355
0	0	422.87	46.355
0	0	423.25	46.355
0	0	423.62	46.355
0	0	424	46.355
0	0	424.37	46.355
0	0	424.75	46.355
0	0	425.13	46.355
0	0	425.5	46.355
0	0	425.88	46.355
0	0	426.25	46.355
0	0	426.63	46.355
0	0	427	46.355
0	0	427.37	46.355
0	0	427.75	46.355
0	0	428.12	46.355
0	0	428.5	45.76
0	0	428.87	45.76
0	0	429.25	45.76
0	0	429.63	45.76
0	0	430	45.76
0	0	430.38	45.76
0	0	430.75	45.76
0	0	431.12	45.76
0	0	431.5	45.76
0	0	431.87	45.76
0	0	432.25	45.76
0	0	432.62	45.76
0	0	433	45.76
0	0	433.38	45.76
0	0	433.75	45.76
0	0	434.13	45.76
0	0	434.5	45.76
0	0	434.88	45.76
0	0	435.25	45.76
0	0	435.62	45.76
0	0	436	45.76
0	0	436.37	45.76
0	0	436.75	45.76
0	0	437.12	45.76
0	0	437.5	45.76
0	0	437.88	45.76
0	0	438.25	45.76
0	0	438.63	45.76
0	0	439	45.76
0	0	439.38	45.76
0	0	439.75	45.76
0	0	440.12	45.76
0	0	440.5	45.76
0	0	440.87	45.76
0	0	441.25	45.76
0	0	441.62	45.76
0	0	442	45.76
0	0	442.38	45.76
0	0	442.75	45.76
0	0	443.13	45.76
0	0	443.5	45.76
0	0	443.88	45.322
0	0	444.25	45.322
0	0	444.62	45.322
0	0	445	45.322
0	0	445.37	45.322
0	0	445.75	45.322
0	0	446.13	45.322
0	0	446.5	45.322
0	0	446.88	45.322
0	0	447.25	45.322
0	0	447.63	45.322
0	0	448	45.322
0	0	448.37	45.322
0	0	448.75	45.322
0	0	449.12	45.322
0	0	449.5	45.322
0	0	449.87	45.322
0	0	450.25	45.322
0	0	450.63	45.322
0	0	451	45.322
0	0	451.38	45.322
0	0	451.75	45.322
0	0	452.13	45.322
0	0	452.5	45.322
0	0	452.87	45.322
0	0	453.25	45.322
0	0	453.62	45.322
0	0	454	45.322
0	0	454.37	45.322
0	0	454.75	45.322
0	0	455.13	45.322
0	0	455.5	45.322
0	0	455.88	45.322
0	0	456.25	45.322
0	0	456.63	45.322
0	0	457	45.322
0	0	457.37	45.322
0	0	457.75	45.322
0	0	458.12	45.322
0	0	458.5	45.322
0	0	458.88	45.322
0	0	459.25	45.322
0	0	459.63	44.977
0	0	460	44.977
0	0	460.38	44.977
0	0	460.75	44.977
0	0	461.12	44.977
0	0	461.5	44.977
0	0	461.87	44.977
0	0	462.25	44.977
0	0	462.62	44.977
0	0	463	44.977
0	0	463.38	44.977
0	0	463.75	44.977
0	0	464.13	44.977
0	0	464.5	44.977
0	0	464.88	44.977
0	0	465.25	44.977
0	0	465.62	44.977
0	0	466	44.977
0	0	466.37	44.977
0	0	466.75	44.977
0	0	467.12	44.977
0	0	467.5	44.977
0	0	467.88	44.977
0	0	468.25	44.977
0	0	468.63	44.977
0	0	469	44.977
0	0	469.38	44.977
0	0	469.75	44.977
0	0	470.12	44.977
0	0	470.5	44.977
0	0	470.87	44.977
0	0	471.25	44.977
0	0	471.63	44.977
0	0	472	44.977
0	0	472.38	44.977
0	0	472.75	44.977
0	0	473.13	44.977
0	0	473.5	44.977
0	0	473.87	44.977
0	0	474.25	44.977
0	0	474.62	44.977
0	0	475	44.977
0	0	475.37	45.129
0	0	475.75	45.129
0	0	476.13	45.129
0	0	476.5	45.129
0	0	476.88	45.129
0	0	477.25	45.129
0	0	477.63	45.129
0	0	478	45.129
0	0	478.37	45.129
0	0	478.75	45.129
0	0	479.12	45.129
0	0	479.5	45.129
0	0	479.87	45.129
0	0	480.25	45.129
0	0	480.63	45.129
0	0	481	45.129
0	0	481.38	45.129
0	0	481.75	45.129
0	0	482.13	45.129
0	0	482.5	45.129
0	0	482.87	45.129
0	0	483.25	45.129
0	0	483.62	45.129
0	0	484	45.129
0	0	484.38	45.129
0	0	484.75	45.129
0	0	485.13	45.129
0	0	485.5	45.129
0	0	485.88	45.129
0	0	486.25	45.129
0	0	486.62	45.129
0	0	487	45.129
0	0	487.37	45.129
0	0	487.75	45.129
0	0	488.12	45.129
0	0	488.5	45.129
0	0	488.88	45.129
0	0	489.25	45.129
0	0	489.63	45.129
0	0	490	45.129
0	0	490.38	45.129
0	0	490.75	44.846
0	0	491.12	44.846
0	0	491.5	44.846
0	0	491.87	44.846
0	0	492.25	44.846
0	0	492.62	44.846
0	0	493	44.846
0	0	493.38	44.846
0	0	493.75	44.846
0	0	494.13	44.846
0	0	494.5	44.846
0	0	494.88	44.846
0	0	495.25	44.846
0	0	495.62	44.846
0	0	496	44.846
0	0	496.37	44.846
0	0	496.75	44.846
0	0	497.12	44.846
0	0	497.5	44.846
0	0	497.88	44.846
0	0	498.25	44.846
0	0	498.63	44.846
0	0	499	44.846
0	0	499.37	44.846
0	0	499.75	44.846
0	0	500.12	44.846
0	0	500.5	44.846
0	0	500.87	44.846
0	0	501.25	44.846
0	0	501.63	44.846
0	0	502	44.846
0	0	502.38	44.846
0	0	502.75	44.846
0	0	503.13	44.846
0	0	503.5	44.846
0	0	503.88	44.846
0	0	504.25	44.846
0	0	504.63	44.846
0	0	505	44.846
0	0	505.38	44.846
0	0	505.75	44.846
0	0	506.12	44.846
0	0	506.5	44.903
0	0	506.87	44.903
0	0	507.25	44.903
0	0	507.62	44.903
0	0	508	44.903
0	0	508.37	44.903
0	0	508.75	44.903
0	0	509.12	44.903
0	0	509.5	44.903
0	0	509.87	44.903
0	0	510.25	44.903
0	0	510.63	44.903
0	0	511	44.903
0	0	511.38	44.903
0	0	511.75	44.903
0	0	512.13	44.903
0	0	512.5	44.903
0	0	512.88	44.903
0	0	513.25	44.903
0	0	513.63	44.903
0	0	514	44.903
0	0	514.37	44.903
0	0	514.75	44.903
0	0	515.12	44.903
0	0	515.5	44.903
0	0	515.87	44.903
0	0	516.25	44.903
0	0	516.62	44.903
0	0	517	44.903
0	0	517.37	44.903
0	0	517.75	44.903
0	0	518.12	44.903
0	0	518.5	44.903
0	0	518.88	44.903
0	0	519.25	44.903
0	0	519.63	44.903
0	0	520	44.903
0	0	520.38	44.903
0	0	520.75	44.903
0	0	521.13	44.903
0	0	521.5	44.903
0	0	521.88	44.903
0	0	522.25	44.851
0	0	522.63	44.851
0	0	523	44.851
0	0	523.37	44.851
0	0	523.75	44.851
0	0	524.12	44.851
0	0	524.5	44.851
0	0	524.87	44.851
0	0	525.25	44.851
0	0	525.62	44.851
0	0	526	44.851
0	0	526.37	44.851
0	0	526.75	44.851
0	0	527.13	44.851
0	0	527.5	44.851
0	0	527.88	44.851
0	0	528.25	44.851
0	0	528.63	44.851
0	0	529	44.851
0	0	529.38	44.851
0	0	529.75	44.851
0	0	530.13	44.851
0	0	530.5	44.851
0	0	530.88	44.851
0	0	531.25	44.851
0	0	531.62	44.851
0	0	532	44.851
0	0	532.37	44.851
0	0	532.75	44.851
0	0	533.12	44.851
0	0	533.5	44.851
0	0	533.87	44.851
0	0	534.25	44.851
0	0	534.62	44.851
0	0	535	44.851
0	0	535.37	44.851
0	0	535.75	44.851
0	0	536.13	44.851
0	0	536.5	44.851
0	0	536.88	44.851
0	0	537.25	44.851
0	0	537.63	44.738
0	0	538	44.738
0	0	538.38	44.738
0	0	538.75	44.738
0	0	539.13	44.738
0	0	539.5	44.738
0	0	539.87	44.738
0	0	540.25	44.738
0	0	540.62	44.738
0	0	541	44.738
0	0	541.37	44.738
0	0	541.75	44.738
0	0	542.12	44.738
0	0	542.5	44.738
0	0	542.87	44.738
0	0	543.25	44.738
0	0	543.62	44.738
0	0	544	44.738
0	0	544.38	44.738
0	0	544.75	44.738
0	0	545.13	44.738
0	0	545.5	44.738
0	0	545.88	44.738
0	0	546.25	44.738
0	0	546.63	44.738
0	0	547	44.738
0	0	547.38	44.738
0	0	547.75	44.738
0	0	548.13	44.738
0	0	548.5	44.738
0	0	548.87	44.738
0	0	549.25	44.738
0	0	549.62	44.738
0	0	550	44.738
0	0	550.37	44.738
0	0	550.75	44.738
0	0	551.12	44.738
0	0	551.5	44.738
0	0	551.87	44.738
0	0	552.25	44.738
0	0	552.63	44.738
0	0	553	44.738
0	0	553.38	44.402
0	0	553.75	44.402
0	0	554.13	44.402
0	0	554.5	44.402
0	0	554.88	44.402
0	0	555.25	44.402
0	0	555.63	44.402
0	0	556	44.402
0	0	556.38	44.402
0	0	556.75	44.402
0	0	557.12	44.402
0	0	557.5	44.402
0	0	557.87	44.402
0	0	558.25	44.402
0	0	558.62	44.402
0	0	559	44.402
0	0	559.37	44.402
0	0	559.75	44.402
0	0	560.12	44.402
0	0	560.5	44.402
0	0	560.87	44.402
0	0	561.25	44.402
0	0	561.63	44.402
0	0	562	44.402
0	0	562.38	44.402
0	0	562.75	44.402
0	0	563.13	44.402
0	0	563.5	44.402
0	0	563.88	44.402
0	0	564.25	44.402
0	0	564.63	44.402
0	0	565	44.402
0	0	565.37	44.402
0	0	565.75	44.402
0	0	566.12	44.402
0	0	566.5	44.402
0	0	566.87	44.402
0	0	567.25	44.402
0	0	567.62	44.402
0	0	568	44.402
0	0	568.37	44.402
0	0	568.75	44.402
0	0	569.12	44.106
0	0	569.5	44.106
0	0	569.88	44.106
0	0	570.25	44.106
0	0	570.63	44.106
0	0	571	44.106
0	0	571.38	44.106
0	0	571.75	44.106
0	0	572.13	44.106
0	0	572.5	44.106
0	0	572.88	44.106
0	0	573.25	44.106
0	0	573.63	44.106
0	0	574	44.106
0	0	574.37	44.106
0	0	574.75	44.106
0	0	575.12	44.106
0	0	575.5	44.106
0	0	575.87	44.106
0	0	576.25	44.106
0	0	576.62	44.106
0	0	577	44.106
0	0	577.37	44.106
0	0	577.75	44.106
0	0	578.13	44.106
0	0	578.5	44.106
0	0	578.88	44.106
0	0	579.25	44.106
0	0	579.63	44.106
0	0	580	44.106
0	0	580.38	44.106
0	0	580.75	44.106
0	0	581.13	44.106
0	0	581.5	44.106
0	0	581.88	44.106
0	0	582.25	44.106
0	0	582.62	44.106
0	0	583	44.106
0	0	583.37	44.106
0	0	583.75	44.106
0	0	584.12	44.106
0	0	584.5	43.954
0	0	584.87	43.954
0	0	585.25	43.954
0	0	585.62	43.954
0	0	586	43.954
0	0	586.37	43.954
0	0	586.75	43.954
0	0	587.13	43.954
0	0	587.5	43.954
0	0	587.88	43.954
0	0	588.25	43.954
0	0	588.63	43.954
0	0	589	43.954
0	0	589.38	43.954
0	0	589.75	43.954
0	0	590.13	43.954
0	0	590.5	43.954
0	0	590.88	43.954
0	0	591.25	43.954
0	0	591.62	43.954
0	0	592	43.954
0	0	592.37	43.954
0	0	592.75	43.954
0	0	593.12	43.954
0	0	593.5	43.954
0	0	593.87	43.954
0	0	594.25	43.954
0	0	594.62	43.954
0	0	595	43.954
0	0	595.38	43.954
0	0	595.75	43.954
0	0	596.13	43.954
0	0	596.5	43.954
0	0	596.88	43.954
0	0	597.25	43.954
0	0	597.63	43.954
0	0	598	43.954
0	0	598.38	43.954
0	0	598.75	43.954
0	0	599.13	43.954
0	0	599.5	43.954
0	0	599.87	43.954
0	0	600.25	43.953
0	0	600.62	43.953
0	0	601	43.953
0	0	601.37	43.953
0	0	601.75	43.953
0	0	602.12	43.953
0	0	602.5	43.953
0	0	602.87	43.953
0	0	603.25	43.953
0	0	603.62	43.953
0	0	604	43.953
0	0	604.38	43.953
0	0	604.75	43.953
0	0	605.13	43.953
0	0	605.5	43.953
0	0	605.88	43.953
0	0	606.25	43.953
0	0	606.63	43.953
0	0	607	43.953
0	0	607.38	43.953
0	0	607.75	43.953
0	0	608.12	43.953
0	0	608.5	43.953
0	0	608.87	43.953
0	0	609.25	43.953
0	0	609.62	43.953
0	0	610	43.953
0	0	610.37	43.953
0	0	610.75	43.953
0	0	611.12	43.953
0	0	611.5	43.953
0	0	611.87	43.953
0	0	612.25	43.953
0	0	612.63	43.953
0	0	613	43.953
0	0	613.38	43.953
0	0	613.75	43.953
0	0	614.13	43.953
0	0	614.5	43.953
0	0	614.88	43.953
0	0	615.25	43.953
0	0	615.63	43.953
0	0	616	43.913
0	0	616.38	43.913
0	0	616.75	43.913
0	0	617.12	43.913
0	0	617.5	43.913
0	0	617.87	43.913
0	0	618.25	43.913
0	0	618.62	43.913
0	0	619	43.913
0	0	619.37	43.913
0	0	619.75	43.913
0	0	620.12	43.913
0	0	620.5	43.913
0	0	620.88	43.913
0	0	621.25	43.913
0	0	621.63	43.913
0	0	622	43.913
0	0	622.38	43.913
0	0	622.75	43.913
0	0	623.13	43.913
0	0	623.5	43.913
0	0	623.88	43.913
0	0	624.25	43.913
0	0	624.63	43.913
0	0	625	43.913
0	0	625.37	43.913
0	0	625.75	43.913
0	0	626.12	43.913
0	0	626.5	43.913
0	0	626.87	43.913
0	0	627.25	43.913
0	0	627.62	43.913
0	0	628	43.913
0	0	628.37	43.913
0	0	628.75	43.913
0	0	629.12	43.913
0	0	629.5	43.913
0	0	629.88	43.913
0	0	630.25	43.913
0	0	630.63	43.913
0	0	631	43.913
0	0	631.38	43.844
0	0	631.75	43.844
0	0	632.13	43.844
0	0	632.5	43.844
0	0	632.88	43.844
0	0	633.25	43.844
0	0	633.62	43.844
0	0	634	43.844
0	0	634.37	43.844
0	0	634.75	43.844
0	0	635.12	43.844
0	0	635.5	43.844
0	0	635.87	43.844
0	0	636.25	43.844
0	0	636.62	43.844
0	0	637	43.844
0	0	637.37	43.844
0	0	637.75	43.844
0	0	638.13	43.844
0	0	638.5	43.844
0	0	638.88	43.844
0	0	639.25	43.844
0	0	639.63	43.844
0	0	640	43.844
0	0	640.38	43.844
0	0	640.75	43.844
0	0	641.13	43.844
0	0	641.5	43.844
0	0	641.88	43.844
0	0	642.25	43.844
0	0	642.62	43.844
0	0	643	43.844
0	0	643.37	43.844
0	0	643.75	43.844
0	0	644.12	43.844
0	0	644.5	43.844
0	0	644.87	43.844
0	0	645.25	43.844
0	0	645.62	43.844
0	0	646	43.844
0	0	646.38	43.844
0	0	646.75	43.844
0	0	647.13	43.585
0	0	647.5	43.585
0	0	647.88	43.585
0	0	648.25	43.585
0	0	648.63	43.585
0	0	649	43.585
0	0	649.38	43.585
0	0	649.75	43.585
0	0	650.13	43.585
0	0	650.5	43.585
0	0	650.87	43.585
0	0	651.25	43.585
0	0	651.62	43.585
0	0	652	43.585
0	0	652.37	43.585
0	0	652.75	43.585
0	0	653.12	43.585
0	0	653.5	43.585
0	0	653.87	43.585
0	0	654.25	43.585
0	0	654.62	43.585
0	0	655	43.585
0	0	655.38	43.585
0	0	655.75	43.585
0	0	656.13	43.585
0	0	656.5	43.585
0	0	656.88	43.585
0	0	657.25	43.585
0	0	657.63	43.585
0	0	658	43.585
0	0	658.38	43.585
0	0	658.75	43.585
0	0	659.12	43.585
0	0	659.5	43.585
0	0	659.87	43.585
0	0	660.25	43.585
0	0	660.62	43.585
0	0	661	43.585
0	0	661.37	43.585
0	0	661.75	43.585
0	0	662.12	43.585
0	0	662.5	43.585
0	0	662.87	43.454
0	0	663.25	43.454
0	0	663.63	43.454
0	0	664	43.454
0	0	664.38	43.454
0	0	664.75	43.454
0	0	665.13	43.454
0	0	665.5	43.454
0	0	665.88	43.454
0	0	666.25	43.454
0	0	666.63	43.454
0	0	667	43.454
0	0	667.38	43.454
0	0	667.75	43.454
0	0	668.12	43.454
0	0	668.5	43.454
0	0	668.87	43.454
0	0	669.25	43.454
0	0	669.62	43.454
0	0	670	43.454
0	0	670.37	43.454
0	0	670.75	43.454
0	0	671.12	43.454
0	0	671.5	43.454
0	0	671.88	43.454
0	0	672.25	43.454
0	0	672.63	43.454
0	0	673	43.454
0	0	673.38	43.454
0	0	673.75	43.454
0	0	674.13	43.454
0	0	674.5	43.454
0	0	674.88	43.454
0	0	675.25	43.454
0	0	675.63	43.454
0	0	676	43.454
0	0	676.37	43.454
0	0	676.75	43.454
0	0	677.12	43.454
0	0	677.5	43.454
0	0	677.87	43.454
0	0	678.25	43.201
0	0	678.62	43.201
0	0	679	43.201
0	0	679.37	43.201
0	0	679.75	43.201
0	0	680.12	43.201
0	0	680.5	43.201
0	0	680.88	43.201
0	0	681.25	43.201
0	0	681.63	43.201
0	0	682	43.201
0	0	682.38	43.201
0	0	682.75	43.201
0	0	683.13	43.201
0	0	683.5	43.201
0	0	683.88	43.201
0	0	684.25	43.201
0	0	684.63	43.201
0	0	685	43.201
0	0	685.37	43.201
0	0	685.75	43.201
0	0	686.12	43.201
0	0	686.5	43.201
0	0	686.87	43.201
0	0	687.25	43.201
0	0	687.62	43.201
0	0	688	43.201
]
% 3rd point
x_37 = [-22	43.102	-22	34.738
-12	37.219	-21.29	34.738
-2	14.176	-20.58	34.738
8	-6.139	-19.87	34.738
18	-7.4	-19.16	34.738
28	-7.706	-18.45	34.738
38	-7.687	-17.74	34.738
48	-7.641	-17.03	29.875
58	-7.589	-16.32	29.875
68	-7.457	-15.61	29.875
78	-7.055	-14.9	29.875
88	-6.755	-14.19	29.875
98	-6.284	-13.48	29.875
108	-5.819	-12.77	29.875
118	-5.221	-12.06	29.875
128	-4.637	-11.35	29.875
138	-4.117	-10.64	29.875
148	-3.497	-9.93	29.875
158	-3.048	-9.22	21.95
168	-2.515	-8.51	21.95
178	-1.802	-7.8	21.95
188	-1.303	-7.09	21.95
198	-0.709	-6.38	21.95
208	0.022	-5.67	21.95
218	0.967	-4.96	21.95
228	2.458	-4.25	21.95
238	4.802	-3.54	21.95
248	9.118	-2.83	21.95
258	15.708	-2.12	21.95
268	24.639	-1.41	7.8537
278	35.061	-0.7	7.8537
288	42.402	1.00E-02	7.8537
298	43.812	0.72	7.8537
318	43.514	1.43	7.8537
338	43.237	2.14	7.8537
358	42.96	2.85	7.8537
378	42.791	3.56	7.8537
408	42.481	4.27	7.8537
438	42.216	4.98	7.8537
468	41.985	5.69	7.8537
508	41.739	6.4	1.8851
548	41.482	7.11	1.8851
588	41.451	7.82	1.8851
638	41.389	8.53	1.8851
688	41.244	9.24	1.8851
0	0	9.95	1.8851
0	0	10.66	1.8851
0	0	11.37	1.8851
0	0	12.08	1.8851
0	0	12.79	1.8851
0	0	13.5	1.8851
0	0	14.21	-1.02
0	0	14.92	-1.02
0	0	15.63	-1.02
0	0	16.34	-1.02
0	0	17.05	-1.02
0	0	17.76	-1.02
0	0	18.47	-1.02
0	0	19.18	-1.02
0	0	19.89	-1.02
0	0	20.6	-1.02
0	0	21.31	-1.02
0	0	22.02	-3.1931
0	0	22.73	-3.1931
0	0	23.44	-3.1931
0	0	24.15	-3.1931
0	0	24.86	-3.1931
0	0	25.57	-3.1931
0	0	26.28	-3.1931
0	0	26.99	-3.1931
0	0	27.7	-3.1931
0	0	28.41	-3.1931
0	0	29.12	-3.1931
0	0	29.83	-4.6358
0	0	30.54	-4.6358
0	0	31.25	-4.6358
0	0	31.96	-4.6358
0	0	32.67	-4.6358
0	0	33.38	-4.6358
0	0	34.09	-4.6358
0	0	34.8	-4.6358
0	0	35.51	-4.6358
0	0	36.22	-4.6358
0	0	36.93	-4.6358
0	0	37.64	-6.2941
0	0	38.35	-6.2941
0	0	39.06	-6.2941
0	0	39.77	-6.2941
0	0	40.48	-6.2941
0	0	41.19	-6.2941
0	0	41.9	-6.2941
0	0	42.61	-6.2941
0	0	43.32	-6.2941
0	0	44.03	-6.2941
0	0	44.74	-6.2941
0	0	45.45	-7.1771
0	0	46.16	-7.1771
0	0	46.87	-7.1771
0	0	47.58	-7.1771
0	0	48.29	-7.1771
0	0	49	-7.1771
0	0	49.71	-7.1771
0	0	50.42	-7.1771
0	0	51.13	-7.1771
0	0	51.84	-7.1771
0	0	52.55	-7.1771
0	0	53.26	-7.9615
0	0	53.97	-7.9615
0	0	54.68	-7.9615
0	0	55.39	-7.9615
0	0	56.1	-7.9615
0	0	56.81	-7.9615
0	0	57.52	-7.9615
0	0	58.23	-7.9615
0	0	58.94	-7.9615
0	0	59.65	-7.9615
0	0	60.36	-7.9615
0	0	61.07	-8.241
0	0	61.78	-8.241
0	0	62.49	-8.241
0	0	63.2	-8.241
0	0	63.91	-8.241
0	0	64.62	-8.241
0	0	65.33	-8.241
0	0	66.04	-8.241
0	0	66.75	-8.241
0	0	67.46	-8.241
0	0	68.17	-8.241
0	0	68.88	-8.2477
0	0	69.59	-8.2477
0	0	70.3	-8.2477
0	0	71.01	-8.2477
0	0	71.72	-8.2477
0	0	72.43	-8.2477
0	0	73.14	-8.2477
0	0	73.85	-8.2477
0	0	74.56	-8.2477
0	0	75.27	-8.2477
0	0	75.98	-8.2477
0	0	76.69	-8.1131
0	0	77.4	-8.1131
0	0	78.11	-8.1131
0	0	78.82	-8.1131
0	0	79.53	-8.1131
0	0	80.24	-8.1131
0	0	80.95	-8.1131
0	0	81.66	-8.1131
0	0	82.37	-8.1131
0	0	83.08	-8.1131
0	0	83.79	-8.1131
0	0	84.5	-7.6624
0	0	85.21	-7.6624
0	0	85.92	-7.6624
0	0	86.63	-7.6624
0	0	87.34	-7.6624
0	0	88.05	-7.6624
0	0	88.76	-7.6624
0	0	89.47	-7.6624
0	0	90.18	-7.6624
0	0	90.89	-7.6624
0	0	91.6	-7.6624
0	0	92.31	-7.2588
0	0	93.02	-7.2588
0	0	93.73	-7.2588
0	0	94.44	-7.2588
0	0	95.15	-7.2588
0	0	95.86	-7.2588
0	0	96.57	-7.2588
0	0	97.28	-7.2588
0	0	97.99	-7.2588
0	0	98.7	-7.2588
0	0	99.41	-7.2588
0	0	100.12	-6.5545
0	0	100.83	-6.5545
0	0	101.54	-6.5545
0	0	102.25	-6.5545
0	0	102.96	-6.5545
0	0	103.67	-6.5545
0	0	104.38	-6.5545
0	0	105.09	-6.5545
0	0	105.8	-6.5545
0	0	106.51	-6.5545
0	0	107.22	-6.5545
0	0	107.93	-6.0126
0	0	108.64	-6.0126
0	0	109.35	-6.0126
0	0	110.06	-6.0126
0	0	110.77	-6.0126
0	0	111.48	-6.0126
0	0	112.19	-6.0126
0	0	112.9	-6.0126
0	0	113.61	-6.0126
0	0	114.32	-6.0126
0	0	115.03	-6.0126
0	0	115.74	-5.3171
0	0	116.45	-5.3171
0	0	117.16	-5.3171
0	0	117.87	-5.3171
0	0	118.58	-5.3171
0	0	119.29	-5.3171
0	0	120	-5.3171
0	0	120.71	-5.3171
0	0	121.42	-5.3171
0	0	122.13	-5.3171
0	0	122.84	-5.3171
0	0	123.55	-4.7754
0	0	124.26	-4.7754
0	0	124.97	-4.7754
0	0	125.68	-4.7754
0	0	126.39	-4.7754
0	0	127.1	-4.7754
0	0	127.81	-4.7754
0	0	128.52	-4.7754
0	0	129.23	-4.7754
0	0	129.94	-4.7754
0	0	130.65	-4.7754
0	0	131.36	-4.0297
0	0	132.07	-4.0297
0	0	132.78	-4.0297
0	0	133.49	-4.0297
0	0	134.2	-4.0297
0	0	134.91	-4.0297
0	0	135.62	-4.0297
0	0	136.33	-4.0297
0	0	137.04	-4.0297
0	0	137.75	-4.0297
0	0	138.46	-4.0297
0	0	139.17	-3.4911
0	0	139.88	-3.4911
0	0	140.59	-3.4911
0	0	141.3	-3.4911
0	0	142.01	-3.4911
0	0	142.72	-3.4911
0	0	143.43	-3.4911
0	0	144.14	-3.4911
0	0	144.85	-3.4911
0	0	145.56	-3.4911
0	0	146.27	-3.4911
0	0	146.98	-2.8453
0	0	147.69	-2.8453
0	0	148.4	-2.8453
0	0	149.11	-2.8453
0	0	149.82	-2.8453
0	0	150.53	-2.8453
0	0	151.24	-2.8453
0	0	151.95	-2.8453
0	0	152.66	-2.8453
0	0	153.37	-2.8453
0	0	154.08	-2.8453
0	0	154.79	-2.1901
0	0	155.5	-2.1901
0	0	156.21	-2.1901
0	0	156.92	-2.1901
0	0	157.63	-2.1901
0	0	158.34	-2.1901
0	0	159.05	-2.1901
0	0	159.76	-2.1901
0	0	160.47	-2.1901
0	0	161.18	-2.1901
0	0	161.89	-2.1901
0	0	162.6	-1.2048
0	0	163.31	-1.2048
0	0	164.02	-1.2048
0	0	164.73	-1.2048
0	0	165.44	-1.2048
0	0	166.15	-1.2048
0	0	166.86	-1.2048
0	0	167.57	-1.2048
0	0	168.28	-1.2048
0	0	168.99	-1.2048
0	0	169.7	-1.2048
0	0	170.41	-0.44493
0	0	171.12	-0.44493
0	0	171.83	-0.44493
0	0	172.54	-0.44493
0	0	173.25	-0.44493
0	0	173.96	-0.44493
0	0	174.67	-0.44493
0	0	175.38	-0.44493
0	0	176.09	-0.44493
0	0	176.8	-0.44493
0	0	177.51	-0.44493
0	0	178.22	0.7467
0	0	178.93	0.7467
0	0	179.64	0.7467
0	0	180.35	0.7467
0	0	181.06	0.7467
0	0	181.77	0.7467
0	0	182.48	0.7467
0	0	183.19	0.7467
0	0	183.9	0.7467
0	0	184.61	0.7467
0	0	185.32	0.7467
0	0	186.03	0.7467
0	0	186.74	0.7467
0	0	187.45	0.7467
0	0	188.16	0.7467
0	0	188.87	0.7467
0	0	189.58	0.7467
0	0	190.29	0.7467
0	0	191	0.7467
0	0	191.71	0.7467
0	0	192.42	0.7467
0	0	193.13	0.7467
0	0	193.84	3.546
0	0	194.55	3.546
0	0	195.26	3.546
0	0	195.97	3.546
0	0	196.68	3.546
0	0	197.39	3.546
0	0	198.1	3.546
0	0	198.81	3.546
0	0	199.52	3.546
0	0	200.23	3.546
0	0	200.94	3.546
0	0	201.65	3.546
0	0	202.36	3.546
0	0	203.07	3.546
0	0	203.78	3.546
0	0	204.49	3.546
0	0	205.2	3.546
0	0	205.91	3.546
0	0	206.62	3.546
0	0	207.33	3.546
0	0	208.04	3.546
0	0	208.75	3.546
0	0	209.46	10.145
0	0	210.17	10.145
0	0	210.88	10.145
0	0	211.59	10.145
0	0	212.3	10.145
0	0	213.01	10.145
0	0	213.72	10.145
0	0	214.43	10.145
0	0	215.14	10.145
0	0	215.85	10.145
0	0	216.56	10.145
0	0	217.27	10.145
0	0	217.98	10.145
0	0	218.69	10.145
0	0	219.4	10.145
0	0	220.11	10.145
0	0	220.82	10.145
0	0	221.53	10.145
0	0	222.24	10.145
0	0	222.95	10.145
0	0	223.66	10.145
0	0	224.37	10.145
0	0	225.08	20.634
0	0	225.79	20.634
0	0	226.5	20.634
0	0	227.21	20.634
0	0	227.92	20.634
0	0	228.63	20.634
0	0	229.34	20.634
0	0	230.05	20.634
0	0	230.76	20.634
0	0	231.47	20.634
0	0	232.18	20.634
0	0	232.89	20.634
0	0	233.6	20.634
0	0	234.31	20.634
0	0	235.02	20.634
0	0	235.73	20.634
0	0	236.44	20.634
0	0	237.15	20.634
0	0	237.86	20.634
0	0	238.57	20.634
0	0	239.28	20.634
0	0	239.99	20.634
0	0	240.7	31.939
0	0	241.41	31.939
0	0	242.12	31.939
0	0	242.83	31.939
0	0	243.54	31.939
0	0	244.25	31.939
0	0	244.96	31.939
0	0	245.67	31.939
0	0	246.38	31.939
0	0	247.09	31.939
0	0	247.8	31.939
0	0	248.51	31.939
0	0	249.22	31.939
0	0	249.93	31.939
0	0	250.64	31.939
0	0	251.35	31.939
0	0	252.06	31.939
0	0	252.77	31.939
0	0	253.48	31.939
0	0	254.19	31.939
0	0	254.9	31.939
0	0	255.61	31.939
0	0	256.32	38.46
0	0	257.03	38.46
0	0	257.74	38.46
0	0	258.45	38.46
0	0	259.16	38.46
0	0	259.87	38.46
0	0	260.58	38.46
0	0	261.29	38.46
0	0	262	38.46
0	0	262.71	38.46
0	0	263.42	38.46
0	0	264.13	38.46
0	0	264.84	38.46
0	0	265.55	38.46
0	0	266.26	38.46
0	0	266.97	38.46
0	0	267.68	38.46
0	0	268.39	38.46
0	0	269.1	38.46
0	0	269.81	38.46
0	0	270.52	38.46
0	0	271.23	38.46
0	0	271.94	39.784
0	0	272.65	39.784
0	0	273.36	39.784
0	0	274.07	39.784
0	0	274.78	39.784
0	0	275.49	39.784
0	0	276.2	39.784
0	0	276.91	39.784
0	0	277.62	39.784
0	0	278.33	39.784
0	0	279.04	39.784
0	0	279.75	39.784
0	0	280.46	39.784
0	0	281.17	39.784
0	0	281.88	39.784
0	0	282.59	39.784
0	0	283.3	39.784
0	0	284.01	39.784
0	0	284.72	39.784
0	0	285.43	39.784
0	0	286.14	39.784
0	0	286.85	39.784
0	0	287.56	40.414
0	0	288.27	40.414
0	0	288.98	40.414
0	0	289.69	40.414
0	0	290.4	40.414
0	0	291.11	40.414
0	0	291.82	40.414
0	0	292.53	40.414
0	0	293.24	40.414
0	0	293.95	40.414
0	0	294.66	40.414
0	0	295.37	40.414
0	0	296.08	40.414
0	0	296.79	40.414
0	0	297.5	40.414
0	0	298.21	40.414
0	0	298.92	40.414
0	0	299.63	40.414
0	0	300.34	40.414
0	0	301.05	40.414
0	0	301.76	40.414
0	0	302.47	40.414
0	0	303.18	41.394
0	0	303.89	41.394
0	0	304.6	41.394
0	0	305.31	41.394
0	0	306.02	41.394
0	0	306.73	41.394
0	0	307.44	41.394
0	0	308.15	41.394
0	0	308.86	41.394
0	0	309.57	41.394
0	0	310.28	41.394
0	0	310.99	41.394
0	0	311.7	41.394
0	0	312.41	41.394
0	0	313.12	41.394
0	0	313.83	41.394
0	0	314.54	41.394
0	0	315.25	41.394
0	0	315.96	41.394
0	0	316.67	41.394
0	0	317.38	41.394
0	0	318.09	41.394
0	0	318.8	41.652
0	0	319.51	41.652
0	0	320.22	41.652
0	0	320.93	41.652
0	0	321.64	41.652
0	0	322.35	41.652
0	0	323.06	41.652
0	0	323.77	41.652
0	0	324.48	41.652
0	0	325.19	41.652
0	0	325.9	41.652
0	0	326.61	41.652
0	0	327.32	41.652
0	0	328.03	41.652
0	0	328.74	41.652
0	0	329.45	41.652
0	0	330.16	41.652
0	0	330.87	41.652
0	0	331.58	41.652
0	0	332.29	41.652
0	0	333	41.652
0	0	333.71	41.652
0	0	334.42	41.545
0	0	335.13	41.545
0	0	335.84	41.545
0	0	336.55	41.545
0	0	337.26	41.545
0	0	337.97	41.545
0	0	338.68	41.545
0	0	339.39	41.545
0	0	340.1	41.545
0	0	340.81	41.545
0	0	341.52	41.545
0	0	342.23	41.545
0	0	342.94	41.545
0	0	343.65	41.545
0	0	344.36	41.545
0	0	345.07	41.545
0	0	345.78	41.545
0	0	346.49	41.545
0	0	347.2	41.545
0	0	347.91	41.545
0	0	348.62	41.545
0	0	349.33	41.545
0	0	350.04	42.515
0	0	350.75	42.515
0	0	351.46	42.515
0	0	352.17	42.515
0	0	352.88	42.515
0	0	353.59	42.515
0	0	354.3	42.515
0	0	355.01	42.515
0	0	355.72	42.515
0	0	356.43	42.515
0	0	357.14	42.515
0	0	357.85	42.515
0	0	358.56	42.515
0	0	359.27	42.515
0	0	359.98	42.515
0	0	360.69	42.515
0	0	361.4	42.515
0	0	362.11	42.515
0	0	362.82	42.515
0	0	363.53	42.515
0	0	364.24	42.515
0	0	364.95	42.515
0	0	365.66	42.202
0	0	366.37	42.202
0	0	367.08	42.202
0	0	367.79	42.202
0	0	368.5	42.202
0	0	369.21	42.202
0	0	369.92	42.202
0	0	370.63	42.202
0	0	371.34	42.202
0	0	372.05	42.202
0	0	372.76	42.202
0	0	373.47	42.202
0	0	374.18	42.202
0	0	374.89	42.202
0	0	375.6	42.202
0	0	376.31	42.202
0	0	377.02	42.202
0	0	377.73	42.202
0	0	378.44	42.202
0	0	379.15	42.202
0	0	379.86	42.202
0	0	380.57	42.202
0	0	381.28	42.379
0	0	381.99	42.379
0	0	382.7	42.379
0	0	383.41	42.379
0	0	384.12	42.379
0	0	384.83	42.379
0	0	385.54	42.379
0	0	386.25	42.379
0	0	386.96	42.379
0	0	387.67	42.379
0	0	388.38	42.379
0	0	389.09	42.379
0	0	389.8	42.379
0	0	390.51	42.379
0	0	391.22	42.379
0	0	391.93	42.379
0	0	392.64	42.379
0	0	393.35	42.379
0	0	394.06	42.379
0	0	394.77	42.379
0	0	395.48	42.379
0	0	396.19	42.379
0	0	396.9	42.333
0	0	397.61	42.333
0	0	398.32	42.333
0	0	399.03	42.333
0	0	399.74	42.333
0	0	400.45	42.333
0	0	401.16	42.333
0	0	401.87	42.333
0	0	402.58	42.333
0	0	403.29	42.333
0	0	404	42.333
0	0	404.71	42.333
0	0	405.42	42.333
0	0	406.13	42.333
0	0	406.84	42.333
0	0	407.55	42.333
0	0	408.26	42.333
0	0	408.97	42.333
0	0	409.68	42.333
0	0	410.39	42.333
0	0	411.1	42.333
0	0	411.81	42.333
0	0	412.52	42.252
0	0	413.23	42.252
0	0	413.94	42.252
0	0	414.65	42.252
0	0	415.36	42.252
0	0	416.07	42.252
0	0	416.78	42.252
0	0	417.49	42.252
0	0	418.2	42.252
0	0	418.91	42.252
0	0	419.62	42.252
0	0	420.33	42.252
0	0	421.04	42.252
0	0	421.75	42.252
0	0	422.46	42.252
0	0	423.17	42.252
0	0	423.88	42.252
0	0	424.59	42.252
0	0	425.3	42.252
0	0	426.01	42.252
0	0	426.72	42.252
0	0	427.43	42.252
0	0	428.14	42.167
0	0	428.85	42.167
0	0	429.56	42.167
0	0	430.27	42.167
0	0	430.98	42.167
0	0	431.69	42.167
0	0	432.4	42.167
0	0	433.11	42.167
0	0	433.82	42.167
0	0	434.53	42.167
0	0	435.24	42.167
0	0	435.95	42.167
0	0	436.66	42.167
0	0	437.37	42.167
0	0	438.08	42.167
0	0	438.79	42.167
0	0	439.5	42.167
0	0	440.21	42.167
0	0	440.92	42.167
0	0	441.63	42.167
0	0	442.34	42.167
0	0	443.05	42.167
0	0	443.76	42.22
0	0	444.47	42.22
0	0	445.18	42.22
0	0	445.89	42.22
0	0	446.6	42.22
0	0	447.31	42.22
0	0	448.02	42.22
0	0	448.73	42.22
0	0	449.44	42.22
0	0	450.15	42.22
0	0	450.86	42.22
0	0	451.57	42.22
0	0	452.28	42.22
0	0	452.99	42.22
0	0	453.7	42.22
0	0	454.41	42.22
0	0	455.12	42.22
0	0	455.83	42.22
0	0	456.54	42.22
0	0	457.25	42.22
0	0	457.96	42.22
0	0	458.67	42.22
0	0	459.38	42.278
0	0	460.09	42.278
0	0	460.8	42.278
0	0	461.51	42.278
0	0	462.22	42.278
0	0	462.93	42.278
0	0	463.64	42.278
0	0	464.35	42.278
0	0	465.06	42.278
0	0	465.77	42.278
0	0	466.48	42.278
0	0	467.19	42.278
0	0	467.9	42.278
0	0	468.61	42.278
0	0	469.32	42.278
0	0	470.03	42.278
0	0	470.74	42.278
0	0	471.45	42.278
0	0	472.16	42.278
0	0	472.87	42.278
0	0	473.58	42.278
0	0	474.29	42.278
0	0	475	42.278
0	0	475.71	42.466
0	0	476.42	42.466
0	0	477.13	42.466
0	0	477.84	42.466
0	0	478.55	42.466
0	0	479.26	42.466
0	0	479.97	42.466
0	0	480.68	42.466
0	0	481.39	42.466
0	0	482.1	42.466
0	0	482.81	42.466
0	0	483.52	42.466
0	0	484.23	42.466
0	0	484.94	42.466
0	0	485.65	42.466
0	0	486.36	42.466
0	0	487.07	42.466
0	0	487.78	42.466
0	0	488.49	42.466
0	0	489.2	42.466
0	0	489.91	42.466
0	0	490.62	42.466
0	0	491.33	42.744
0	0	492.04	42.744
0	0	492.75	42.744
0	0	493.46	42.744
0	0	494.17	42.744
0	0	494.88	42.744
0	0	495.59	42.744
0	0	496.3	42.744
0	0	497.01	42.744
0	0	497.72	42.744
0	0	498.43	42.744
0	0	499.14	42.744
0	0	499.85	42.744
0	0	500.56	42.744
0	0	501.27	42.744
0	0	501.98	42.744
0	0	502.69	42.744
0	0	503.4	42.744
0	0	504.11	42.744
0	0	504.82	42.744
0	0	505.53	42.744
0	0	506.24	42.744
0	0	506.95	42.891
0	0	507.66	42.891
0	0	508.37	42.891
0	0	509.08	42.891
0	0	509.79	42.891
0	0	510.5	42.891
0	0	511.21	42.891
0	0	511.92	42.891
0	0	512.63	42.891
0	0	513.34	42.891
0	0	514.05	42.891
0	0	514.76	42.891
0	0	515.47	42.891
0	0	516.18	42.891
0	0	516.89	42.891
0	0	517.6	42.891
0	0	518.31	42.891
0	0	519.02	42.891
0	0	519.73	42.891
0	0	520.44	42.891
0	0	521.15	42.891
0	0	521.86	42.891
0	0	522.57	42.888
0	0	523.28	42.888
0	0	523.99	42.888
0	0	524.7	42.888
0	0	525.41	42.888
0	0	526.12	42.888
0	0	526.83	42.888
0	0	527.54	42.888
0	0	528.25	42.888
0	0	528.96	42.888
0	0	529.67	42.888
0	0	530.38	42.888
0	0	531.09	42.888
0	0	531.8	42.888
0	0	532.51	42.888
0	0	533.22	42.888
0	0	533.93	42.888
0	0	534.64	42.888
0	0	535.35	42.888
0	0	536.06	42.888
0	0	536.77	42.888
0	0	537.48	42.888
0	0	538.19	42.809
0	0	538.9	42.809
0	0	539.61	42.809
0	0	540.32	42.809
0	0	541.03	42.809
0	0	541.74	42.809
0	0	542.45	42.809
0	0	543.16	42.809
0	0	543.87	42.809
0	0	544.58	42.809
0	0	545.29	42.809
0	0	546	42.809
0	0	546.71	42.809
0	0	547.42	42.809
0	0	548.13	42.809
0	0	548.84	42.809
0	0	549.55	42.809
0	0	550.26	42.809
0	0	550.97	42.809
0	0	551.68	42.809
0	0	552.39	42.809
0	0	553.1	42.809
0	0	553.81	42.513
0	0	554.52	42.513
0	0	555.23	42.513
0	0	555.94	42.513
0	0	556.65	42.513
0	0	557.36	42.513
0	0	558.07	42.513
0	0	558.78	42.513
0	0	559.49	42.513
0	0	560.2	42.513
0	0	560.91	42.513
0	0	561.62	42.513
0	0	562.33	42.513
0	0	563.04	42.513
0	0	563.75	42.513
0	0	564.46	42.513
0	0	565.17	42.513
0	0	565.88	42.513
0	0	566.59	42.513
0	0	567.3	42.513
0	0	568.01	42.513
0	0	568.72	42.513
0	0	569.43	42.362
0	0	570.14	42.362
0	0	570.85	42.362
0	0	571.56	42.362
0	0	572.27	42.362
0	0	572.98	42.362
0	0	573.69	42.362
0	0	574.4	42.362
0	0	575.11	42.362
0	0	575.82	42.362
0	0	576.53	42.362
0	0	577.24	42.362
0	0	577.95	42.362
0	0	578.66	42.362
0	0	579.37	42.362
0	0	580.08	42.362
0	0	580.79	42.362
0	0	581.5	42.362
0	0	582.21	42.362
0	0	582.92	42.362
0	0	583.63	42.362
0	0	584.34	42.362
0	0	585.05	42.392
0	0	585.76	42.392
0	0	586.47	42.392
0	0	587.18	42.392
0	0	587.89	42.392
0	0	588.6	42.392
0	0	589.31	42.392
0	0	590.02	42.392
0	0	590.73	42.392
0	0	591.44	42.392
0	0	592.15	42.392
0	0	592.86	42.392
0	0	593.57	42.392
0	0	594.28	42.392
0	0	594.99	42.392
0	0	595.7	42.392
0	0	596.41	42.392
0	0	597.12	42.392
0	0	597.83	42.392
0	0	598.54	42.392
0	0	599.25	42.392
0	0	599.96	42.392
0	0	600.67	42.491
0	0	601.38	42.491
0	0	602.09	42.491
0	0	602.8	42.491
0	0	603.51	42.491
0	0	604.22	42.491
0	0	604.93	42.491
0	0	605.64	42.491
0	0	606.35	42.491
0	0	607.06	42.491
0	0	607.77	42.491
0	0	608.48	42.491
0	0	609.19	42.491
0	0	609.9	42.491
0	0	610.61	42.491
0	0	611.32	42.491
0	0	612.03	42.491
0	0	612.74	42.491
0	0	613.45	42.491
0	0	614.16	42.491
0	0	614.87	42.491
0	0	615.58	42.491
0	0	616.29	42.543
0	0	617	42.543
0	0	617.71	42.543
0	0	618.42	42.543
0	0	619.13	42.543
0	0	619.84	42.543
0	0	620.55	42.543
0	0	621.26	42.543
0	0	621.97	42.543
0	0	622.68	42.543
0	0	623.39	42.543
0	0	624.1	42.543
0	0	624.81	42.543
0	0	625.52	42.543
0	0	626.23	42.543
0	0	626.94	42.543
0	0	627.65	42.543
0	0	628.36	42.543
0	0	629.07	42.543
0	0	629.78	42.543
0	0	630.49	42.543
0	0	631.2	42.543
0	0	631.91	42.455
0	0	632.62	42.455
0	0	633.33	42.455
0	0	634.04	42.455
0	0	634.75	42.455
0	0	635.46	42.455
0	0	636.17	42.455
0	0	636.88	42.455
0	0	637.59	42.455
0	0	638.3	42.455
0	0	639.01	42.455
0	0	639.72	42.455
0	0	640.43	42.455
0	0	641.14	42.455
0	0	641.85	42.455
0	0	642.56	42.455
0	0	643.27	42.455
0	0	643.98	42.455
0	0	644.69	42.455
0	0	645.4	42.455
0	0	646.11	42.455
0	0	646.82	42.455
0	0	647.53	42.286
0	0	648.24	42.286
0	0	648.95	42.286
0	0	649.66	42.286
0	0	650.37	42.286
0	0	651.08	42.286
0	0	651.79	42.286
0	0	652.5	42.286
0	0	653.21	42.286
0	0	653.92	42.286
0	0	654.63	42.286
0	0	655.34	42.286
0	0	656.05	42.286
0	0	656.76	42.286
0	0	657.47	42.286
0	0	658.18	42.286
0	0	658.89	42.286
0	0	659.6	42.286
0	0	660.31	42.286
0	0	661.02	42.286
0	0	661.73	42.286
0	0	662.44	42.286
0	0	663.15	42.231
0	0	663.86	42.231
0	0	664.57	42.231
0	0	665.28	42.231
0	0	665.99	42.231
0	0	666.7	42.231
0	0	667.41	42.231
0	0	668.12	42.231
0	0	668.83	42.231
0	0	669.54	42.231
0	0	670.25	42.231
0	0	670.96	42.231
0	0	671.67	42.231
0	0	672.38	42.231
0	0	673.09	42.231
0	0	673.8	42.231
0	0	674.51	42.231
0	0	675.22	42.231
0	0	675.93	42.231
0	0	676.64	42.231
0	0	677.35	42.231
0	0	678.06	42.231
0	0	678.77	42.094
0	0	679.48	42.094
0	0	680.19	42.094
0	0	680.9	42.094
0	0	681.61	42.094
0	0	682.32	42.094
0	0	683.03	42.094
0	0	683.74	42.094
0	0	684.45	42.094
0	0	685.16	42.094
0	0	685.87	42.094
0	0	686.58	42.094
0	0	687.29	42.094
0	0	688	42.094
]
% 4th point
x_87 = [-22	42.97	-22	30.24
-12	34.672	-21.29	30.24
-2	17.315	-20.58	30.24
8	-1.22	-19.87	30.24
18	-9.983	-19.16	30.24
28	-12.393	-18.45	30.24
38	-12.867	-17.74	30.24
48	-12.725	-17.03	30.24
58	-12.605	-16.32	30.24
68	-12.35	-15.61	30.24
78	-12.033	-14.9	30.24
88	-11.333	-14.19	30.24
98	-10.733	-13.48	30.24
108	-9.913	-12.77	30.24
118	-9.025	-12.06	30.24
128	-8.052	-11.35	30.24
138	-6.746	-10.64	30.24
148	-5.519	-9.93	30.24
158	-4.275	-9.22	12.817
168	-2.768	-8.51	12.817
178	-1.481	-7.8	12.817
188	-0.099	-7.09	12.817
198	1.288	-6.38	12.817
208	2.766	-5.67	12.817
218	4.418	-4.96	12.817
228	7.048	-4.25	12.817
238	11.003	-3.54	12.817
248	16.489	-2.83	12.817
258	23.495	-2.12	12.817
268	31.954	-1.41	12.817
278	39.721	-0.7	12.817
288	43.366	1.00E-02	12.817
298	43.581	0.72	12.817
318	43.201	1.43	12.817
338	42.865	2.14	12.817
358	42.639	2.85	12.817
378	42.463	3.56	12.817
408	42.188	4.27	12.817
438	41.964	4.98	12.817
468	41.767	5.69	12.817
508	41.552	6.4	-1.9097
548	41.338	7.11	-1.9097
588	41.33	7.82	-1.9097
638	41.305	8.53	-1.9097
688	41.169	9.24	-1.9097
0	0	9.95	-1.9097
0	0	10.66	-1.9097
0	0	11.37	-1.9097
0	0	12.08	-1.9097
0	0	12.79	-1.9097
0	0	13.5	-1.9097
0	0	14.21	-1.9097
0	0	14.92	-1.9097
0	0	15.63	-1.9097
0	0	16.34	-1.9097
0	0	17.05	-1.9097
0	0	17.76	-1.9097
0	0	18.47	-1.9097
0	0	19.18	-1.9097
0	0	19.89	-1.9097
0	0	20.6	-1.9097
0	0	21.31	-1.9097
0	0	22.02	-8.6768
0	0	22.73	-8.6768
0	0	23.44	-8.6768
0	0	24.15	-8.6768
0	0	24.86	-8.6768
0	0	25.57	-8.6768
0	0	26.28	-8.6768
0	0	26.99	-8.6768
0	0	27.7	-8.6768
0	0	28.41	-8.6768
0	0	29.12	-8.6768
0	0	29.83	-8.6768
0	0	30.54	-8.6768
0	0	31.25	-8.6768
0	0	31.96	-8.6768
0	0	32.67	-8.6768
0	0	33.38	-8.6768
0	0	34.09	-8.6768
0	0	34.8	-8.6768
0	0	35.51	-8.6768
0	0	36.22	-8.6768
0	0	36.93	-8.6768
0	0	37.64	-11.698
0	0	38.35	-11.698
0	0	39.06	-11.698
0	0	39.77	-11.698
0	0	40.48	-11.698
0	0	41.19	-11.698
0	0	41.9	-11.698
0	0	42.61	-11.698
0	0	43.32	-11.698
0	0	44.03	-11.698
0	0	44.74	-11.698
0	0	45.45	-11.698
0	0	46.16	-11.698
0	0	46.87	-11.698
0	0	47.58	-11.698
0	0	48.29	-11.698
0	0	49	-11.698
0	0	49.71	-11.698
0	0	50.42	-11.698
0	0	51.13	-11.698
0	0	51.84	-11.698
0	0	52.55	-11.698
0	0	53.26	-12.699
0	0	53.97	-12.699
0	0	54.68	-12.699
0	0	55.39	-12.699
0	0	56.1	-12.699
0	0	56.81	-12.699
0	0	57.52	-12.699
0	0	58.23	-12.699
0	0	58.94	-12.699
0	0	59.65	-12.699
0	0	60.36	-12.699
0	0	61.07	-12.699
0	0	61.78	-12.699
0	0	62.49	-12.699
0	0	63.2	-12.699
0	0	63.91	-12.699
0	0	64.62	-12.699
0	0	65.33	-12.699
0	0	66.04	-12.699
0	0	66.75	-12.699
0	0	67.46	-12.699
0	0	68.17	-12.699
0	0	68.88	-12.217
0	0	69.59	-12.217
0	0	70.3	-12.217
0	0	71.01	-12.217
0	0	71.72	-12.217
0	0	72.43	-12.217
0	0	73.14	-12.217
0	0	73.85	-12.217
0	0	74.56	-12.217
0	0	75.27	-12.217
0	0	75.98	-12.217
0	0	76.69	-12.217
0	0	77.4	-12.217
0	0	78.11	-12.217
0	0	78.82	-12.217
0	0	79.53	-12.217
0	0	80.24	-12.217
0	0	80.95	-12.217
0	0	81.66	-12.217
0	0	82.37	-12.217
0	0	83.08	-12.217
0	0	83.79	-12.217
0	0	84.5	-10.723
0	0	85.21	-10.723
0	0	85.92	-10.723
0	0	86.63	-10.723
0	0	87.34	-10.723
0	0	88.05	-10.723
0	0	88.76	-10.723
0	0	89.47	-10.723
0	0	90.18	-10.723
0	0	90.89	-10.723
0	0	91.6	-10.723
0	0	92.31	-10.723
0	0	93.02	-10.723
0	0	93.73	-10.723
0	0	94.44	-10.723
0	0	95.15	-10.723
0	0	95.86	-10.723
0	0	96.57	-10.723
0	0	97.28	-10.723
0	0	97.99	-10.723
0	0	98.7	-10.723
0	0	99.41	-10.723
0	0	100.12	-8.8315
0	0	100.83	-8.8315
0	0	101.54	-8.8315
0	0	102.25	-8.8315
0	0	102.96	-8.8315
0	0	103.67	-8.8315
0	0	104.38	-8.8315
0	0	105.09	-8.8315
0	0	105.8	-8.8315
0	0	106.51	-8.8315
0	0	107.22	-8.8315
0	0	107.93	-8.8315
0	0	108.64	-8.8315
0	0	109.35	-8.8315
0	0	110.06	-8.8315
0	0	110.77	-8.8315
0	0	111.48	-8.8315
0	0	112.19	-8.8315
0	0	112.9	-8.8315
0	0	113.61	-8.8315
0	0	114.32	-8.8315
0	0	115.03	-8.8315
0	0	115.74	-6.4804
0	0	116.45	-6.4804
0	0	117.16	-6.4804
0	0	117.87	-6.4804
0	0	118.58	-6.4804
0	0	119.29	-6.4804
0	0	120	-6.4804
0	0	120.71	-6.4804
0	0	121.42	-6.4804
0	0	122.13	-6.4804
0	0	122.84	-6.4804
0	0	123.55	-6.4804
0	0	124.26	-6.4804
0	0	124.97	-6.4804
0	0	125.68	-6.4804
0	0	126.39	-6.4804
0	0	127.1	-6.4804
0	0	127.81	-6.4804
0	0	128.52	-6.4804
0	0	129.23	-6.4804
0	0	129.94	-6.4804
0	0	130.65	-6.4804
0	0	131.36	-3.0068
0	0	132.07	-3.0068
0	0	132.78	-3.0068
0	0	133.49	-3.0068
0	0	134.2	-3.0068
0	0	134.91	-3.0068
0	0	135.62	-3.0068
0	0	136.33	-3.0068
0	0	137.04	-3.0068
0	0	137.75	-3.0068
0	0	138.46	-3.0068
0	0	139.17	-3.0068
0	0	139.88	-3.0068
0	0	140.59	-3.0068
0	0	141.3	-3.0068
0	0	142.01	-3.0068
0	0	142.72	-3.0068
0	0	143.43	-3.0068
0	0	144.14	-3.0068
0	0	144.85	-3.0068
0	0	145.56	-3.0068
0	0	146.27	-3.0068
0	0	146.98	1.0084
0	0	147.69	1.0084
0	0	148.4	1.0084
0	0	149.11	1.0084
0	0	149.82	1.0084
0	0	150.53	1.0084
0	0	151.24	1.0084
0	0	151.95	1.0084
0	0	152.66	1.0084
0	0	153.37	1.0084
0	0	154.08	1.0084
0	0	154.79	1.0084
0	0	155.5	1.0084
0	0	156.21	1.0084
0	0	156.92	1.0084
0	0	157.63	1.0084
0	0	158.34	1.0084
0	0	159.05	1.0084
0	0	159.76	1.0084
0	0	160.47	1.0084
0	0	161.18	1.0084
0	0	161.89	1.0084
0	0	162.6	5.4051
0	0	163.31	5.4051
0	0	164.02	5.4051
0	0	164.73	5.4051
0	0	165.44	5.4051
0	0	166.15	5.4051
0	0	166.86	5.4051
0	0	167.57	5.4051
0	0	168.28	5.4051
0	0	168.99	5.4051
0	0	169.7	5.4051
0	0	170.41	5.4051
0	0	171.12	5.4051
0	0	171.83	5.4051
0	0	172.54	5.4051
0	0	173.25	5.4051
0	0	173.96	5.4051
0	0	174.67	5.4051
0	0	175.38	5.4051
0	0	176.09	5.4051
0	0	176.8	5.4051
0	0	177.51	5.4051
0	0	178.22	10.327
0	0	178.93	10.327
0	0	179.64	10.327
0	0	180.35	10.327
0	0	181.06	10.327
0	0	181.77	10.327
0	0	182.48	10.327
0	0	183.19	10.327
0	0	183.9	10.327
0	0	184.61	10.327
0	0	185.32	10.327
0	0	186.03	10.327
0	0	186.74	10.327
0	0	187.45	10.327
0	0	188.16	10.327
0	0	188.87	10.327
0	0	189.58	10.327
0	0	190.29	10.327
0	0	191	10.327
0	0	191.71	10.327
0	0	192.42	10.327
0	0	193.13	10.327
0	0	193.84	16.264
0	0	194.55	16.264
0	0	195.26	16.264
0	0	195.97	16.264
0	0	196.68	16.264
0	0	197.39	16.264
0	0	198.1	16.264
0	0	198.81	16.264
0	0	199.52	16.264
0	0	200.23	16.264
0	0	200.94	16.264
0	0	201.65	16.264
0	0	202.36	16.264
0	0	203.07	16.264
0	0	203.78	16.264
0	0	204.49	16.264
0	0	205.2	16.264
0	0	205.91	16.264
0	0	206.62	16.264
0	0	207.33	16.264
0	0	208.04	16.264
0	0	208.75	16.264
0	0	209.46	24.447
0	0	210.17	24.447
0	0	210.88	24.447
0	0	211.59	24.447
0	0	212.3	24.447
0	0	213.01	24.447
0	0	213.72	24.447
0	0	214.43	24.447
0	0	215.14	24.447
0	0	215.85	24.447
0	0	216.56	24.447
0	0	217.27	24.447
0	0	217.98	24.447
0	0	218.69	24.447
0	0	219.4	24.447
0	0	220.11	24.447
0	0	220.82	24.447
0	0	221.53	24.447
0	0	222.24	24.447
0	0	222.95	24.447
0	0	223.66	24.447
0	0	224.37	24.447
0	0	225.08	33.414
0	0	225.79	33.414
0	0	226.5	33.414
0	0	227.21	33.414
0	0	227.92	33.414
0	0	228.63	33.414
0	0	229.34	33.414
0	0	230.05	33.414
0	0	230.76	33.414
0	0	231.47	33.414
0	0	232.18	33.414
0	0	232.89	33.414
0	0	233.6	33.414
0	0	234.31	33.414
0	0	235.02	33.414
0	0	235.73	33.414
0	0	236.44	33.414
0	0	237.15	33.414
0	0	237.86	33.414
0	0	238.57	33.414
0	0	239.28	33.414
0	0	239.99	33.414
0	0	240.7	36.753
0	0	241.41	36.753
0	0	242.12	36.753
0	0	242.83	36.753
0	0	243.54	36.753
0	0	244.25	36.753
0	0	244.96	36.753
0	0	245.67	36.753
0	0	246.38	36.753
0	0	247.09	36.753
0	0	247.8	36.753
0	0	248.51	36.753
0	0	249.22	36.753
0	0	249.93	36.753
0	0	250.64	36.753
0	0	251.35	36.753
0	0	252.06	36.753
0	0	252.77	36.753
0	0	253.48	36.753
0	0	254.19	36.753
0	0	254.9	36.753
0	0	255.61	36.753
0	0	256.32	38.437
0	0	257.03	38.437
0	0	257.74	38.437
0	0	258.45	38.437
0	0	259.16	38.437
0	0	259.87	38.437
0	0	260.58	38.437
0	0	261.29	38.437
0	0	262	38.437
0	0	262.71	38.437
0	0	263.42	38.437
0	0	264.13	38.437
0	0	264.84	38.437
0	0	265.55	38.437
0	0	266.26	38.437
0	0	266.97	38.437
0	0	267.68	38.437
0	0	268.39	38.437
0	0	269.1	38.437
0	0	269.81	38.437
0	0	270.52	38.437
0	0	271.23	38.437
0	0	271.94	40.029
0	0	272.65	40.029
0	0	273.36	40.029
0	0	274.07	40.029
0	0	274.78	40.029
0	0	275.49	40.029
0	0	276.2	40.029
0	0	276.91	40.029
0	0	277.62	40.029
0	0	278.33	40.029
0	0	279.04	40.029
0	0	279.75	40.029
0	0	280.46	40.029
0	0	281.17	40.029
0	0	281.88	40.029
0	0	282.59	40.029
0	0	283.3	40.029
0	0	284.01	40.029
0	0	284.72	40.029
0	0	285.43	40.029
0	0	286.14	40.029
0	0	286.85	40.029
0	0	287.56	40.566
0	0	288.27	40.566
0	0	288.98	40.566
0	0	289.69	40.566
0	0	290.4	40.566
0	0	291.11	40.566
0	0	291.82	40.566
0	0	292.53	40.566
0	0	293.24	40.566
0	0	293.95	40.566
0	0	294.66	40.566
0	0	295.37	40.566
0	0	296.08	40.566
0	0	296.79	40.566
0	0	297.5	40.566
0	0	298.21	40.566
0	0	298.92	40.566
0	0	299.63	40.566
0	0	300.34	40.566
0	0	301.05	40.566
0	0	301.76	40.566
0	0	302.47	40.566
0	0	303.18	41.054
0	0	303.89	41.054
0	0	304.6	41.054
0	0	305.31	41.054
0	0	306.02	41.054
0	0	306.73	41.054
0	0	307.44	41.054
0	0	308.15	41.054
0	0	308.86	41.054
0	0	309.57	41.054
0	0	310.28	41.054
0	0	310.99	41.054
0	0	311.7	41.054
0	0	312.41	41.054
0	0	313.12	41.054
0	0	313.83	41.054
0	0	314.54	41.054
0	0	315.25	41.054
0	0	315.96	41.054
0	0	316.67	41.054
0	0	317.38	41.054
0	0	318.09	41.054
0	0	318.8	40.989
0	0	319.51	40.989
0	0	320.22	40.989
0	0	320.93	40.989
0	0	321.64	40.989
0	0	322.35	40.989
0	0	323.06	40.989
0	0	323.77	40.989
0	0	324.48	40.989
0	0	325.19	40.989
0	0	325.9	40.989
0	0	326.61	40.989
0	0	327.32	40.989
0	0	328.03	40.989
0	0	328.74	40.989
0	0	329.45	40.989
0	0	330.16	40.989
0	0	330.87	40.989
0	0	331.58	40.989
0	0	332.29	40.989
0	0	333	40.989
0	0	333.71	40.989
0	0	334.42	41.089
0	0	335.13	41.089
0	0	335.84	41.089
0	0	336.55	41.089
0	0	337.26	41.089
0	0	337.97	41.089
0	0	338.68	41.089
0	0	339.39	41.089
0	0	340.1	41.089
0	0	340.81	41.089
0	0	341.52	41.089
0	0	342.23	41.089
0	0	342.94	41.089
0	0	343.65	41.089
0	0	344.36	41.089
0	0	345.07	41.089
0	0	345.78	41.089
0	0	346.49	41.089
0	0	347.2	41.089
0	0	347.91	41.089
0	0	348.62	41.089
0	0	349.33	41.089
0	0	350.04	41.913
0	0	350.75	41.913
0	0	351.46	41.913
0	0	352.17	41.913
0	0	352.88	41.913
0	0	353.59	41.913
0	0	354.3	41.913
0	0	355.01	41.913
0	0	355.72	41.913
0	0	356.43	41.913
0	0	357.14	41.913
0	0	357.85	41.913
0	0	358.56	41.913
0	0	359.27	41.913
0	0	359.98	41.913
0	0	360.69	41.913
0	0	361.4	41.913
0	0	362.11	41.913
0	0	362.82	41.913
0	0	363.53	41.913
0	0	364.24	41.913
0	0	364.95	41.913
0	0	365.66	41.424
0	0	366.37	41.424
0	0	367.08	41.424
0	0	367.79	41.424
0	0	368.5	41.424
0	0	369.21	41.424
0	0	369.92	41.424
0	0	370.63	41.424
0	0	371.34	41.424
0	0	372.05	41.424
0	0	372.76	41.424
0	0	373.47	41.424
0	0	374.18	41.424
0	0	374.89	41.424
0	0	375.6	41.424
0	0	376.31	41.424
0	0	377.02	41.424
0	0	377.73	41.424
0	0	378.44	41.424
0	0	379.15	41.424
0	0	379.86	41.424
0	0	380.57	41.424
0	0	381.28	41.661
0	0	381.99	41.661
0	0	382.7	41.661
0	0	383.41	41.661
0	0	384.12	41.661
0	0	384.83	41.661
0	0	385.54	41.661
0	0	386.25	41.661
0	0	386.96	41.661
0	0	387.67	41.661
0	0	388.38	41.661
0	0	389.09	41.661
0	0	389.8	41.661
0	0	390.51	41.661
0	0	391.22	41.661
0	0	391.93	41.661
0	0	392.64	41.661
0	0	393.35	41.661
0	0	394.06	41.661
0	0	394.77	41.661
0	0	395.48	41.661
0	0	396.19	41.661
0	0	396.9	41.598
0	0	397.61	41.598
0	0	398.32	41.598
0	0	399.03	41.598
0	0	399.74	41.598
0	0	400.45	41.598
0	0	401.16	41.598
0	0	401.87	41.598
0	0	402.58	41.598
0	0	403.29	41.598
0	0	404	41.598
0	0	404.71	41.598
0	0	405.42	41.598
0	0	406.13	41.598
0	0	406.84	41.598
0	0	407.55	41.598
0	0	408.26	41.598
0	0	408.97	41.598
0	0	409.68	41.598
0	0	410.39	41.598
0	0	411.1	41.598
0	0	411.81	41.598
0	0	412.52	41.446
0	0	413.23	41.446
0	0	413.94	41.446
0	0	414.65	41.446
0	0	415.36	41.446
0	0	416.07	41.446
0	0	416.78	41.446
0	0	417.49	41.446
0	0	418.2	41.446
0	0	418.91	41.446
0	0	419.62	41.446
0	0	420.33	41.446
0	0	421.04	41.446
0	0	421.75	41.446
0	0	422.46	41.446
0	0	423.17	41.446
0	0	423.88	41.446
0	0	424.59	41.446
0	0	425.3	41.446
0	0	426.01	41.446
0	0	426.72	41.446
0	0	427.43	41.446
0	0	428.14	41.557
0	0	428.85	41.557
0	0	429.56	41.557
0	0	430.27	41.557
0	0	430.98	41.557
0	0	431.69	41.557
0	0	432.4	41.557
0	0	433.11	41.557
0	0	433.82	41.557
0	0	434.53	41.557
0	0	435.24	41.557
0	0	435.95	41.557
0	0	436.66	41.557
0	0	437.37	41.557
0	0	438.08	41.557
0	0	438.79	41.557
0	0	439.5	41.557
0	0	440.21	41.557
0	0	440.92	41.557
0	0	441.63	41.557
0	0	442.34	41.557
0	0	443.05	41.557
0	0	443.76	41.651
0	0	444.47	41.651
0	0	445.18	41.651
0	0	445.89	41.651
0	0	446.6	41.651
0	0	447.31	41.651
0	0	448.02	41.651
0	0	448.73	41.651
0	0	449.44	41.651
0	0	450.15	41.651
0	0	450.86	41.651
0	0	451.57	41.651
0	0	452.28	41.651
0	0	452.99	41.651
0	0	453.7	41.651
0	0	454.41	41.651
0	0	455.12	41.651
0	0	455.83	41.651
0	0	456.54	41.651
0	0	457.25	41.651
0	0	457.96	41.651
0	0	458.67	41.651
0	0	459.38	41.716
0	0	460.09	41.716
0	0	460.8	41.716
0	0	461.51	41.716
0	0	462.22	41.716
0	0	462.93	41.716
0	0	463.64	41.716
0	0	464.35	41.716
0	0	465.06	41.716
0	0	465.77	41.716
0	0	466.48	41.716
0	0	467.19	41.716
0	0	467.9	41.716
0	0	468.61	41.716
0	0	469.32	41.716
0	0	470.03	41.716
0	0	470.74	41.716
0	0	471.45	41.716
0	0	472.16	41.716
0	0	472.87	41.716
0	0	473.58	41.716
0	0	474.29	41.716
0	0	475	41.716
0	0	475.71	41.989
0	0	476.42	41.989
0	0	477.13	41.989
0	0	477.84	41.989
0	0	478.55	41.989
0	0	479.26	41.989
0	0	479.97	41.989
0	0	480.68	41.989
0	0	481.39	41.989
0	0	482.1	41.989
0	0	482.81	41.989
0	0	483.52	41.989
0	0	484.23	41.989
0	0	484.94	41.989
0	0	485.65	41.989
0	0	486.36	41.989
0	0	487.07	41.989
0	0	487.78	41.989
0	0	488.49	41.989
0	0	489.2	41.989
0	0	489.91	41.989
0	0	490.62	41.989
0	0	491.33	42.275
0	0	492.04	42.275
0	0	492.75	42.275
0	0	493.46	42.275
0	0	494.17	42.275
0	0	494.88	42.275
0	0	495.59	42.275
0	0	496.3	42.275
0	0	497.01	42.275
0	0	497.72	42.275
0	0	498.43	42.275
0	0	499.14	42.275
0	0	499.85	42.275
0	0	500.56	42.275
0	0	501.27	42.275
0	0	501.98	42.275
0	0	502.69	42.275
0	0	503.4	42.275
0	0	504.11	42.275
0	0	504.82	42.275
0	0	505.53	42.275
0	0	506.24	42.275
0	0	506.95	42.399
0	0	507.66	42.399
0	0	508.37	42.399
0	0	509.08	42.399
0	0	509.79	42.399
0	0	510.5	42.399
0	0	511.21	42.399
0	0	511.92	42.399
0	0	512.63	42.399
0	0	513.34	42.399
0	0	514.05	42.399
0	0	514.76	42.399
0	0	515.47	42.399
0	0	516.18	42.399
0	0	516.89	42.399
0	0	517.6	42.399
0	0	518.31	42.399
0	0	519.02	42.399
0	0	519.73	42.399
0	0	520.44	42.399
0	0	521.15	42.399
0	0	521.86	42.399
0	0	522.57	42.414
0	0	523.28	42.414
0	0	523.99	42.414
0	0	524.7	42.414
0	0	525.41	42.414
0	0	526.12	42.414
0	0	526.83	42.414
0	0	527.54	42.414
0	0	528.25	42.414
0	0	528.96	42.414
0	0	529.67	42.414
0	0	530.38	42.414
0	0	531.09	42.414
0	0	531.8	42.414
0	0	532.51	42.414
0	0	533.22	42.414
0	0	533.93	42.414
0	0	534.64	42.414
0	0	535.35	42.414
0	0	536.06	42.414
0	0	536.77	42.414
0	0	537.48	42.414
0	0	538.19	42.336
0	0	538.9	42.336
0	0	539.61	42.336
0	0	540.32	42.336
0	0	541.03	42.336
0	0	541.74	42.336
0	0	542.45	42.336
0	0	543.16	42.336
0	0	543.87	42.336
0	0	544.58	42.336
0	0	545.29	42.336
0	0	546	42.336
0	0	546.71	42.336
0	0	547.42	42.336
0	0	548.13	42.336
0	0	548.84	42.336
0	0	549.55	42.336
0	0	550.26	42.336
0	0	550.97	42.336
0	0	551.68	42.336
0	0	552.39	42.336
0	0	553.1	42.336
0	0	553.81	42.08
0	0	554.52	42.08
0	0	555.23	42.08
0	0	555.94	42.08
0	0	556.65	42.08
0	0	557.36	42.08
0	0	558.07	42.08
0	0	558.78	42.08
0	0	559.49	42.08
0	0	560.2	42.08
0	0	560.91	42.08
0	0	561.62	42.08
0	0	562.33	42.08
0	0	563.04	42.08
0	0	563.75	42.08
0	0	564.46	42.08
0	0	565.17	42.08
0	0	565.88	42.08
0	0	566.59	42.08
0	0	567.3	42.08
0	0	568.01	42.08
0	0	568.72	42.08
0	0	569.43	41.973
0	0	570.14	41.973
0	0	570.85	41.973
0	0	571.56	41.973
0	0	572.27	41.973
0	0	572.98	41.973
0	0	573.69	41.973
0	0	574.4	41.973
0	0	575.11	41.973
0	0	575.82	41.973
0	0	576.53	41.973
0	0	577.24	41.973
0	0	577.95	41.973
0	0	578.66	41.973
0	0	579.37	41.973
0	0	580.08	41.973
0	0	580.79	41.973
0	0	581.5	41.973
0	0	582.21	41.973
0	0	582.92	41.973
0	0	583.63	41.973
0	0	584.34	41.973
0	0	585.05	42.033
0	0	585.76	42.033
0	0	586.47	42.033
0	0	587.18	42.033
0	0	587.89	42.033
0	0	588.6	42.033
0	0	589.31	42.033
0	0	590.02	42.033
0	0	590.73	42.033
0	0	591.44	42.033
0	0	592.15	42.033
0	0	592.86	42.033
0	0	593.57	42.033
0	0	594.28	42.033
0	0	594.99	42.033
0	0	595.7	42.033
0	0	596.41	42.033
0	0	597.12	42.033
0	0	597.83	42.033
0	0	598.54	42.033
0	0	599.25	42.033
0	0	599.96	42.033
0	0	600.67	42.139
0	0	601.38	42.139
0	0	602.09	42.139
0	0	602.8	42.139
0	0	603.51	42.139
0	0	604.22	42.139
0	0	604.93	42.139
0	0	605.64	42.139
0	0	606.35	42.139
0	0	607.06	42.139
0	0	607.77	42.139
0	0	608.48	42.139
0	0	609.19	42.139
0	0	609.9	42.139
0	0	610.61	42.139
0	0	611.32	42.139
0	0	612.03	42.139
0	0	612.74	42.139
0	0	613.45	42.139
0	0	614.16	42.139
0	0	614.87	42.139
0	0	615.58	42.139
0	0	616.29	42.196
0	0	617	42.196
0	0	617.71	42.196
0	0	618.42	42.196
0	0	619.13	42.196
0	0	619.84	42.196
0	0	620.55	42.196
0	0	621.26	42.196
0	0	621.97	42.196
0	0	622.68	42.196
0	0	623.39	42.196
0	0	624.1	42.196
0	0	624.81	42.196
0	0	625.52	42.196
0	0	626.23	42.196
0	0	626.94	42.196
0	0	627.65	42.196
0	0	628.36	42.196
0	0	629.07	42.196
0	0	629.78	42.196
0	0	630.49	42.196
0	0	631.2	42.196
0	0	631.91	42.111
0	0	632.62	42.111
0	0	633.33	42.111
0	0	634.04	42.111
0	0	634.75	42.111
0	0	635.46	42.111
0	0	636.17	42.111
0	0	636.88	42.111
0	0	637.59	42.111
0	0	638.3	42.111
0	0	639.01	42.111
0	0	639.72	42.111
0	0	640.43	42.111
0	0	641.14	42.111
0	0	641.85	42.111
0	0	642.56	42.111
0	0	643.27	42.111
0	0	643.98	42.111
0	0	644.69	42.111
0	0	645.4	42.111
0	0	646.11	42.111
0	0	646.82	42.111
0	0	647.53	41.968
0	0	648.24	41.968
0	0	648.95	41.968
0	0	649.66	41.968
0	0	650.37	41.968
0	0	651.08	41.968
0	0	651.79	41.968
0	0	652.5	41.968
0	0	653.21	41.968
0	0	653.92	41.968
0	0	654.63	41.968
0	0	655.34	41.968
0	0	656.05	41.968
0	0	656.76	41.968
0	0	657.47	41.968
0	0	658.18	41.968
0	0	658.89	41.968
0	0	659.6	41.968
0	0	660.31	41.968
0	0	661.02	41.968
0	0	661.73	41.968
0	0	662.44	41.968
0	0	663.15	41.926
0	0	663.86	41.926
0	0	664.57	41.926
0	0	665.28	41.926
0	0	665.99	41.926
0	0	666.7	41.926
0	0	667.41	41.926
0	0	668.12	41.926
0	0	668.83	41.926
0	0	669.54	41.926
0	0	670.25	41.926
0	0	670.96	41.926
0	0	671.67	41.926
0	0	672.38	41.926
0	0	673.09	41.926
0	0	673.8	41.926
0	0	674.51	41.926
0	0	675.22	41.926
0	0	675.93	41.926
0	0	676.64	41.926
0	0	677.35	41.926
0	0	678.06	41.926
0	0	678.77	41.807
0	0	679.48	41.807
0	0	680.19	41.807
0	0	680.9	41.807
0	0	681.61	41.807
0	0	682.32	41.807
0	0	683.03	41.807
0	0	683.74	41.807
0	0	684.45	41.807
0	0	685.16	41.807
0	0	685.87	41.807
0	0	686.58	41.807
0	0	687.29	41.807
0	0	688	41.807
]
% 5th point
x_113 = [256	-2.858	256	5.7163
258	-2.967	256.43	12.012
263	-3.021	256.86	12.012
268	-2.596	257.3	12.012
273	1.796	257.73	12.012
278	11.262	258.16	12.012
283	23.088	258.59	12.012
288	34.692	259.02	12.012
298	42.333	259.46	12.012
308	44.254	259.89	12.012
318	44.098	260.32	12.012
328	43.928	260.75	12.012
338	43.771	261.18	12.012
358	43.481	261.62	12.012
378	43.208	262.05	12.012
408	42.924	262.48	12.012
438	42.593	262.91	12.012
468	42.343	263.34	12.012
508	42.032	263.78	12.012
548	41.776	264.21	21.221
588	41.698	264.64	21.221
638	41.621	265.07	21.221
688	41.425	265.5	21.221
0	0	265.94	21.221
0	0	266.37	21.221
0	0	266.8	21.221
0	0	267.23	21.221
0	0	267.66	21.221
0	0	268.1	21.221
0	0	268.53	21.221
0	0	268.96	21.221
0	0	269.39	21.221
0	0	269.82	21.221
0	0	270.26	21.221
0	0	270.69	21.221
0	0	271.12	21.221
0	0	271.55	21.221
0	0	271.98	31.593
0	0	272.42	31.593
0	0	272.85	31.593
0	0	273.28	31.593
0	0	273.71	31.593
0	0	274.14	31.593
0	0	274.58	31.593
0	0	275.01	31.593
0	0	275.44	31.593
0	0	275.87	31.593
0	0	276.3	31.593
0	0	276.74	31.593
0	0	277.17	31.593
0	0	277.6	31.593
0	0	278.03	31.593
0	0	278.46	31.593
0	0	278.9	31.593
0	0	279.33	31.593
0	0	279.76	37.765
0	0	280.19	37.765
0	0	280.62	37.765
0	0	281.06	37.765
0	0	281.49	37.765
0	0	281.92	37.765
0	0	282.35	37.765
0	0	282.78	37.765
0	0	283.22	37.765
0	0	283.65	37.765
0	0	284.08	37.765
0	0	284.51	37.765
0	0	284.94	37.765
0	0	285.38	37.765
0	0	285.81	37.765
0	0	286.24	37.765
0	0	286.67	37.765
0	0	287.1	37.765
0	0	287.54	40.493
0	0	287.97	40.493
0	0	288.4	40.493
0	0	288.83	40.493
0	0	289.26	40.493
0	0	289.7	40.493
0	0	290.13	40.493
0	0	290.56	40.493
0	0	290.99	40.493
0	0	291.42	40.493
0	0	291.86	40.493
0	0	292.29	40.493
0	0	292.72	40.493
0	0	293.15	40.493
0	0	293.58	40.493
0	0	294.02	40.493
0	0	294.45	40.493
0	0	294.88	40.493
0	0	295.31	40.493
0	0	295.74	40.493
0	0	296.18	40.493
0	0	296.61	40.493
0	0	297.04	40.493
0	0	297.47	40.493
0	0	297.9	40.493
0	0	298.34	40.493
0	0	298.77	40.493
0	0	299.2	40.493
0	0	299.63	40.493
0	0	300.06	40.493
0	0	300.5	40.493
0	0	300.93	40.493
0	0	301.36	40.493
0	0	301.79	40.493
0	0	302.22	40.493
0	0	302.66	40.493
0	0	303.09	40.493
0	0	303.52	43.137
0	0	303.95	43.137
0	0	304.38	43.137
0	0	304.82	43.137
0	0	305.25	43.137
0	0	305.68	43.137
0	0	306.11	43.137
0	0	306.54	43.137
0	0	306.98	43.137
0	0	307.41	43.137
0	0	307.84	43.137
0	0	308.27	43.137
0	0	308.7	43.137
0	0	309.14	43.137
0	0	309.57	43.137
0	0	310	43.137
0	0	310.43	43.137
0	0	310.86	43.137
0	0	311.3	43.137
0	0	311.73	43.137
0	0	312.16	43.137
0	0	312.59	43.137
0	0	313.02	43.137
0	0	313.46	43.137
0	0	313.89	43.137
0	0	314.32	43.137
0	0	314.75	43.137
0	0	315.18	43.137
0	0	315.62	43.137
0	0	316.05	43.137
0	0	316.48	43.137
0	0	316.91	43.137
0	0	317.34	43.137
0	0	317.78	43.137
0	0	318.21	43.137
0	0	318.64	43.137
0	0	319.07	44.943
0	0	319.5	44.943
0	0	319.94	44.943
0	0	320.37	44.943
0	0	320.8	44.943
0	0	321.23	44.943
0	0	321.66	44.943
0	0	322.1	44.943
0	0	322.53	44.943
0	0	322.96	44.943
0	0	323.39	44.943
0	0	323.82	44.943
0	0	324.26	44.943
0	0	324.69	44.943
0	0	325.12	44.943
0	0	325.55	44.943
0	0	325.98	44.943
0	0	326.42	44.943
0	0	326.85	44.943
0	0	327.28	44.943
0	0	327.71	44.943
0	0	328.14	44.943
0	0	328.58	44.943
0	0	329.01	44.943
0	0	329.44	44.943
0	0	329.87	44.943
0	0	330.3	44.943
0	0	330.74	44.943
0	0	331.17	44.943
0	0	331.6	44.943
0	0	332.03	44.943
0	0	332.46	44.943
0	0	332.9	44.943
0	0	333.33	44.943
0	0	333.76	44.943
0	0	334.19	44.943
0	0	334.62	44.483
0	0	335.06	44.483
0	0	335.49	44.483
0	0	335.92	44.483
0	0	336.35	44.483
0	0	336.78	44.483
0	0	337.22	44.483
0	0	337.65	44.483
0	0	338.08	44.483
0	0	338.51	44.483
0	0	338.94	44.483
0	0	339.38	44.483
0	0	339.81	44.483
0	0	340.24	44.483
0	0	340.67	44.483
0	0	341.1	44.483
0	0	341.54	44.483
0	0	341.97	44.483
0	0	342.4	44.483
0	0	342.83	44.483
0	0	343.26	44.483
0	0	343.7	44.483
0	0	344.13	44.483
0	0	344.56	44.483
0	0	344.99	44.483
0	0	345.42	44.483
0	0	345.86	44.483
0	0	346.29	44.483
0	0	346.72	44.483
0	0	347.15	44.483
0	0	347.58	44.483
0	0	348.02	44.483
0	0	348.45	44.483
0	0	348.88	44.483
0	0	349.31	44.483
0	0	349.74	44.483
0	0	350.18	45.27
0	0	350.61	45.27
0	0	351.04	45.27
0	0	351.47	45.27
0	0	351.9	45.27
0	0	352.34	45.27
0	0	352.77	45.27
0	0	353.2	45.27
0	0	353.63	45.27
0	0	354.06	45.27
0	0	354.5	45.27
0	0	354.93	45.27
0	0	355.36	45.27
0	0	355.79	45.27
0	0	356.22	45.27
0	0	356.66	45.27
0	0	357.09	45.27
0	0	357.52	45.27
0	0	357.95	45.27
0	0	358.38	45.27
0	0	358.82	45.27
0	0	359.25	45.27
0	0	359.68	45.27
0	0	360.11	45.27
0	0	360.54	45.27
0	0	360.98	45.27
0	0	361.41	45.27
0	0	361.84	45.27
0	0	362.27	45.27
0	0	362.7	45.27
0	0	363.14	45.27
0	0	363.57	45.27
0	0	364	45.27
0	0	364.43	45.27
0	0	364.86	45.27
0	0	365.3	45.27
0	0	365.73	45.308
0	0	366.16	45.308
0	0	366.59	45.308
0	0	367.02	45.308
0	0	367.46	45.308
0	0	367.89	45.308
0	0	368.32	45.308
0	0	368.75	45.308
0	0	369.18	45.308
0	0	369.62	45.308
0	0	370.05	45.308
0	0	370.48	45.308
0	0	370.91	45.308
0	0	371.34	45.308
0	0	371.78	45.308
0	0	372.21	45.308
0	0	372.64	45.308
0	0	373.07	45.308
0	0	373.5	45.308
0	0	373.94	45.308
0	0	374.37	45.308
0	0	374.8	45.308
0	0	375.23	45.308
0	0	375.66	45.308
0	0	376.1	45.308
0	0	376.53	45.308
0	0	376.96	45.308
0	0	377.39	45.308
0	0	377.82	45.308
0	0	378.26	45.308
0	0	378.69	45.308
0	0	379.12	45.308
0	0	379.55	45.308
0	0	379.98	45.308
0	0	380.42	45.308
0	0	380.85	45.308
0	0	381.28	45.33
0	0	381.71	45.33
0	0	382.14	45.33
0	0	382.58	45.33
0	0	383.01	45.33
0	0	383.44	45.33
0	0	383.87	45.33
0	0	384.3	45.33
0	0	384.74	45.33
0	0	385.17	45.33
0	0	385.6	45.33
0	0	386.03	45.33
0	0	386.46	45.33
0	0	386.9	45.33
0	0	387.33	45.33
0	0	387.76	45.33
0	0	388.19	45.33
0	0	388.62	45.33
0	0	389.06	45.33
0	0	389.49	45.33
0	0	389.92	45.33
0	0	390.35	45.33
0	0	390.78	45.33
0	0	391.22	45.33
0	0	391.65	45.33
0	0	392.08	45.33
0	0	392.51	45.33
0	0	392.94	45.33
0	0	393.38	45.33
0	0	393.81	45.33
0	0	394.24	45.33
0	0	394.67	45.33
0	0	395.1	45.33
0	0	395.54	45.33
0	0	395.97	45.33
0	0	396.4	45.33
0	0	396.83	45.33
0	0	397.26	45.078
0	0	397.7	45.078
0	0	398.13	45.078
0	0	398.56	45.078
0	0	398.99	45.078
0	0	399.42	45.078
0	0	399.86	45.078
0	0	400.29	45.078
0	0	400.72	45.078
0	0	401.15	45.078
0	0	401.58	45.078
0	0	402.02	45.078
0	0	402.45	45.078
0	0	402.88	45.078
0	0	403.31	45.078
0	0	403.74	45.078
0	0	404.18	45.078
0	0	404.61	45.078
0	0	405.04	45.078
0	0	405.47	45.078
0	0	405.9	45.078
0	0	406.34	45.078
0	0	406.77	45.078
0	0	407.2	45.078
0	0	407.63	45.078
0	0	408.06	45.078
0	0	408.5	45.078
0	0	408.93	45.078
0	0	409.36	45.078
0	0	409.79	45.078
0	0	410.22	45.078
0	0	410.66	45.078
0	0	411.09	45.078
0	0	411.52	45.078
0	0	411.95	45.078
0	0	412.38	45.078
0	0	412.82	44.839
0	0	413.25	44.839
0	0	413.68	44.839
0	0	414.11	44.839
0	0	414.54	44.839
0	0	414.98	44.839
0	0	415.41	44.839
0	0	415.84	44.839
0	0	416.27	44.839
0	0	416.7	44.839
0	0	417.14	44.839
0	0	417.57	44.839
0	0	418	44.839
0	0	418.43	44.839
0	0	418.86	44.839
0	0	419.3	44.839
0	0	419.73	44.839
0	0	420.16	44.839
0	0	420.59	44.839
0	0	421.02	44.839
0	0	421.46	44.839
0	0	421.89	44.839
0	0	422.32	44.839
0	0	422.75	44.839
0	0	423.18	44.839
0	0	423.62	44.839
0	0	424.05	44.839
0	0	424.48	44.839
0	0	424.91	44.839
0	0	425.34	44.839
0	0	425.78	44.839
0	0	426.21	44.839
0	0	426.64	44.839
0	0	427.07	44.839
0	0	427.5	44.839
0	0	427.94	44.839
0	0	428.37	44.456
0	0	428.8	44.456
0	0	429.23	44.456
0	0	429.66	44.456
0	0	430.1	44.456
0	0	430.53	44.456
0	0	430.96	44.456
0	0	431.39	44.456
0	0	431.82	44.456
0	0	432.26	44.456
0	0	432.69	44.456
0	0	433.12	44.456
0	0	433.55	44.456
0	0	433.98	44.456
0	0	434.42	44.456
0	0	434.85	44.456
0	0	435.28	44.456
0	0	435.71	44.456
0	0	436.14	44.456
0	0	436.58	44.456
0	0	437.01	44.456
0	0	437.44	44.456
0	0	437.87	44.456
0	0	438.3	44.456
0	0	438.74	44.456
0	0	439.17	44.456
0	0	439.6	44.456
0	0	440.03	44.456
0	0	440.46	44.456
0	0	440.9	44.456
0	0	441.33	44.456
0	0	441.76	44.456
0	0	442.19	44.456
0	0	442.62	44.456
0	0	443.06	44.456
0	0	443.49	44.456
0	0	443.92	44.147
0	0	444.35	44.147
0	0	444.78	44.147
0	0	445.22	44.147
0	0	445.65	44.147
0	0	446.08	44.147
0	0	446.51	44.147
0	0	446.94	44.147
0	0	447.38	44.147
0	0	447.81	44.147
0	0	448.24	44.147
0	0	448.67	44.147
0	0	449.1	44.147
0	0	449.54	44.147
0	0	449.97	44.147
0	0	450.4	44.147
0	0	450.83	44.147
0	0	451.26	44.147
0	0	451.7	44.147
0	0	452.13	44.147
0	0	452.56	44.147
0	0	452.99	44.147
0	0	453.42	44.147
0	0	453.86	44.147
0	0	454.29	44.147
0	0	454.72	44.147
0	0	455.15	44.147
0	0	455.58	44.147
0	0	456.02	44.147
0	0	456.45	44.147
0	0	456.88	44.147
0	0	457.31	44.147
0	0	457.74	44.147
0	0	458.18	44.147
0	0	458.61	44.147
0	0	459.04	44.147
0	0	459.47	44.065
0	0	459.9	44.065
0	0	460.34	44.065
0	0	460.77	44.065
0	0	461.2	44.065
0	0	461.63	44.065
0	0	462.06	44.065
0	0	462.5	44.065
0	0	462.93	44.065
0	0	463.36	44.065
0	0	463.79	44.065
0	0	464.22	44.065
0	0	464.66	44.065
0	0	465.09	44.065
0	0	465.52	44.065
0	0	465.95	44.065
0	0	466.38	44.065
0	0	466.82	44.065
0	0	467.25	44.065
0	0	467.68	44.065
0	0	468.11	44.065
0	0	468.54	44.065
0	0	468.98	44.065
0	0	469.41	44.065
0	0	469.84	44.065
0	0	470.27	44.065
0	0	470.7	44.065
0	0	471.14	44.065
0	0	471.57	44.065
0	0	472	44.065
0	0	472.43	44.065
0	0	472.86	44.065
0	0	473.3	44.065
0	0	473.73	44.065
0	0	474.16	44.065
0	0	474.59	44.065
0	0	475.02	43.999
0	0	475.46	43.999
0	0	475.89	43.999
0	0	476.32	43.999
0	0	476.75	43.999
0	0	477.18	43.999
0	0	477.62	43.999
0	0	478.05	43.999
0	0	478.48	43.999
0	0	478.91	43.999
0	0	479.34	43.999
0	0	479.78	43.999
0	0	480.21	43.999
0	0	480.64	43.999
0	0	481.07	43.999
0	0	481.5	43.999
0	0	481.94	43.999
0	0	482.37	43.999
0	0	482.8	43.999
0	0	483.23	43.999
0	0	483.66	43.999
0	0	484.1	43.999
0	0	484.53	43.999
0	0	484.96	43.999
0	0	485.39	43.999
0	0	485.82	43.999
0	0	486.26	43.999
0	0	486.69	43.999
0	0	487.12	43.999
0	0	487.55	43.999
0	0	487.98	43.999
0	0	488.42	43.999
0	0	488.85	43.999
0	0	489.28	43.999
0	0	489.71	43.999
0	0	490.14	43.999
0	0	490.58	43.999
0	0	491.01	44.118
0	0	491.44	44.118
0	0	491.87	44.118
0	0	492.3	44.118
0	0	492.74	44.118
0	0	493.17	44.118
0	0	493.6	44.118
0	0	494.03	44.118
0	0	494.46	44.118
0	0	494.9	44.118
0	0	495.33	44.118
0	0	495.76	44.118
0	0	496.19	44.118
0	0	496.62	44.118
0	0	497.06	44.118
0	0	497.49	44.118
0	0	497.92	44.118
0	0	498.35	44.118
0	0	498.78	44.118
0	0	499.22	44.118
0	0	499.65	44.118
0	0	500.08	44.118
0	0	500.51	44.118
0	0	500.94	44.118
0	0	501.38	44.118
0	0	501.81	44.118
0	0	502.24	44.118
0	0	502.67	44.118
0	0	503.1	44.118
0	0	503.54	44.118
0	0	503.97	44.118
0	0	504.4	44.118
0	0	504.83	44.118
0	0	505.26	44.118
0	0	505.7	44.118
0	0	506.13	44.118
0	0	506.56	44.077
0	0	506.99	44.077
0	0	507.42	44.077
0	0	507.86	44.077
0	0	508.29	44.077
0	0	508.72	44.077
0	0	509.15	44.077
0	0	509.58	44.077
0	0	510.02	44.077
0	0	510.45	44.077
0	0	510.88	44.077
0	0	511.31	44.077
0	0	511.74	44.077
0	0	512.18	44.077
0	0	512.61	44.077
0	0	513.04	44.077
0	0	513.47	44.077
0	0	513.9	44.077
0	0	514.34	44.077
0	0	514.77	44.077
0	0	515.2	44.077
0	0	515.63	44.077
0	0	516.06	44.077
0	0	516.5	44.077
0	0	516.93	44.077
0	0	517.36	44.077
0	0	517.79	44.077
0	0	518.22	44.077
0	0	518.66	44.077
0	0	519.09	44.077
0	0	519.52	44.077
0	0	519.95	44.077
0	0	520.38	44.077
0	0	520.82	44.077
0	0	521.25	44.077
0	0	521.68	44.077
0	0	522.11	44.102
0	0	522.54	44.102
0	0	522.98	44.102
0	0	523.41	44.102
0	0	523.84	44.102
0	0	524.27	44.102
0	0	524.7	44.102
0	0	525.14	44.102
0	0	525.57	44.102
0	0	526	44.102
0	0	526.43	44.102
0	0	526.86	44.102
0	0	527.3	44.102
0	0	527.73	44.102
0	0	528.16	44.102
0	0	528.59	44.102
0	0	529.02	44.102
0	0	529.46	44.102
0	0	529.89	44.102
0	0	530.32	44.102
0	0	530.75	44.102
0	0	531.18	44.102
0	0	531.62	44.102
0	0	532.05	44.102
0	0	532.48	44.102
0	0	532.91	44.102
0	0	533.34	44.102
0	0	533.78	44.102
0	0	534.21	44.102
0	0	534.64	44.102
0	0	535.07	44.102
0	0	535.5	44.102
0	0	535.94	44.102
0	0	536.37	44.102
0	0	536.8	44.102
0	0	537.23	44.102
0	0	537.66	43.962
0	0	538.1	43.962
0	0	538.53	43.962
0	0	538.96	43.962
0	0	539.39	43.962
0	0	539.82	43.962
0	0	540.26	43.962
0	0	540.69	43.962
0	0	541.12	43.962
0	0	541.55	43.962
0	0	541.98	43.962
0	0	542.42	43.962
0	0	542.85	43.962
0	0	543.28	43.962
0	0	543.71	43.962
0	0	544.14	43.962
0	0	544.58	43.962
0	0	545.01	43.962
0	0	545.44	43.962
0	0	545.87	43.962
0	0	546.3	43.962
0	0	546.74	43.962
0	0	547.17	43.962
0	0	547.6	43.962
0	0	548.03	43.962
0	0	548.46	43.962
0	0	548.9	43.962
0	0	549.33	43.962
0	0	549.76	43.962
0	0	550.19	43.962
0	0	550.62	43.962
0	0	551.06	43.962
0	0	551.49	43.962
0	0	551.92	43.962
0	0	552.35	43.962
0	0	552.78	43.962
0	0	553.22	43.689
0	0	553.65	43.689
0	0	554.08	43.689
0	0	554.51	43.689
0	0	554.94	43.689
0	0	555.38	43.689
0	0	555.81	43.689
0	0	556.24	43.689
0	0	556.67	43.689
0	0	557.1	43.689
0	0	557.54	43.689
0	0	557.97	43.689
0	0	558.4	43.689
0	0	558.83	43.689
0	0	559.26	43.689
0	0	559.7	43.689
0	0	560.13	43.689
0	0	560.56	43.689
0	0	560.99	43.689
0	0	561.42	43.689
0	0	561.86	43.689
0	0	562.29	43.689
0	0	562.72	43.689
0	0	563.15	43.689
0	0	563.58	43.689
0	0	564.02	43.689
0	0	564.45	43.689
0	0	564.88	43.689
0	0	565.31	43.689
0	0	565.74	43.689
0	0	566.18	43.689
0	0	566.61	43.689
0	0	567.04	43.689
0	0	567.47	43.689
0	0	567.9	43.689
0	0	568.34	43.689
0	0	568.77	43.476
0	0	569.2	43.476
0	0	569.63	43.476
0	0	570.06	43.476
0	0	570.5	43.476
0	0	570.93	43.476
0	0	571.36	43.476
0	0	571.79	43.476
0	0	572.22	43.476
0	0	572.66	43.476
0	0	573.09	43.476
0	0	573.52	43.476
0	0	573.95	43.476
0	0	574.38	43.476
0	0	574.82	43.476
0	0	575.25	43.476
0	0	575.68	43.476
0	0	576.11	43.476
0	0	576.54	43.476
0	0	576.98	43.476
0	0	577.41	43.476
0	0	577.84	43.476
0	0	578.27	43.476
0	0	578.7	43.476
0	0	579.14	43.476
0	0	579.57	43.476
0	0	580	43.476
0	0	580.43	43.476
0	0	580.86	43.476
0	0	581.3	43.476
0	0	581.73	43.476
0	0	582.16	43.476
0	0	582.59	43.476
0	0	583.02	43.476
0	0	583.46	43.476
0	0	583.89	43.476
0	0	584.32	43.476
0	0	584.75	43.402
0	0	585.18	43.402
0	0	585.62	43.402
0	0	586.05	43.402
0	0	586.48	43.402
0	0	586.91	43.402
0	0	587.34	43.402
0	0	587.78	43.402
0	0	588.21	43.402
0	0	588.64	43.402
0	0	589.07	43.402
0	0	589.5	43.402
0	0	589.94	43.402
0	0	590.37	43.402
0	0	590.8	43.402
0	0	591.23	43.402
0	0	591.66	43.402
0	0	592.1	43.402
0	0	592.53	43.402
0	0	592.96	43.402
0	0	593.39	43.402
0	0	593.82	43.402
0	0	594.26	43.402
0	0	594.69	43.402
0	0	595.12	43.402
0	0	595.55	43.402
0	0	595.98	43.402
0	0	596.42	43.402
0	0	596.85	43.402
0	0	597.28	43.402
0	0	597.71	43.402
0	0	598.14	43.402
0	0	598.58	43.402
0	0	599.01	43.402
0	0	599.44	43.402
0	0	599.87	43.402
0	0	600.3	43.44
0	0	600.74	43.44
0	0	601.17	43.44
0	0	601.6	43.44
0	0	602.03	43.44
0	0	602.46	43.44
0	0	602.9	43.44
0	0	603.33	43.44
0	0	603.76	43.44
0	0	604.19	43.44
0	0	604.62	43.44
0	0	605.06	43.44
0	0	605.49	43.44
0	0	605.92	43.44
0	0	606.35	43.44
0	0	606.78	43.44
0	0	607.22	43.44
0	0	607.65	43.44
0	0	608.08	43.44
0	0	608.51	43.44
0	0	608.94	43.44
0	0	609.38	43.44
0	0	609.81	43.44
0	0	610.24	43.44
0	0	610.67	43.44
0	0	611.1	43.44
0	0	611.54	43.44
0	0	611.97	43.44
0	0	612.4	43.44
0	0	612.83	43.44
0	0	613.26	43.44
0	0	613.7	43.44
0	0	614.13	43.44
0	0	614.56	43.44
0	0	614.99	43.44
0	0	615.42	43.44
0	0	615.86	43.409
0	0	616.29	43.409
0	0	616.72	43.409
0	0	617.15	43.409
0	0	617.58	43.409
0	0	618.02	43.409
0	0	618.45	43.409
0	0	618.88	43.409
0	0	619.31	43.409
0	0	619.74	43.409
0	0	620.18	43.409
0	0	620.61	43.409
0	0	621.04	43.409
0	0	621.47	43.409
0	0	621.9	43.409
0	0	622.34	43.409
0	0	622.77	43.409
0	0	623.2	43.409
0	0	623.63	43.409
0	0	624.06	43.409
0	0	624.5	43.409
0	0	624.93	43.409
0	0	625.36	43.409
0	0	625.79	43.409
0	0	626.22	43.409
0	0	626.66	43.409
0	0	627.09	43.409
0	0	627.52	43.409
0	0	627.95	43.409
0	0	628.38	43.409
0	0	628.82	43.409
0	0	629.25	43.409
0	0	629.68	43.409
0	0	630.11	43.409
0	0	630.54	43.409
0	0	630.98	43.409
0	0	631.41	43.327
0	0	631.84	43.327
0	0	632.27	43.327
0	0	632.7	43.327
0	0	633.14	43.327
0	0	633.57	43.327
0	0	634	43.327
0	0	634.43	43.327
0	0	634.86	43.327
0	0	635.3	43.327
0	0	635.73	43.327
0	0	636.16	43.327
0	0	636.59	43.327
0	0	637.02	43.327
0	0	637.46	43.327
0	0	637.89	43.327
0	0	638.32	43.327
0	0	638.75	43.327
0	0	639.18	43.327
0	0	639.62	43.327
0	0	640.05	43.327
0	0	640.48	43.327
0	0	640.91	43.327
0	0	641.34	43.327
0	0	641.78	43.327
0	0	642.21	43.327
0	0	642.64	43.327
0	0	643.07	43.327
0	0	643.5	43.327
0	0	643.94	43.327
0	0	644.37	43.327
0	0	644.8	43.327
0	0	645.23	43.327
0	0	645.66	43.327
0	0	646.1	43.327
0	0	646.53	43.327
0	0	646.96	43.099
0	0	647.39	43.099
0	0	647.82	43.099
0	0	648.26	43.099
0	0	648.69	43.099
0	0	649.12	43.099
0	0	649.55	43.099
0	0	649.98	43.099
0	0	650.42	43.099
0	0	650.85	43.099
0	0	651.28	43.099
0	0	651.71	43.099
0	0	652.14	43.099
0	0	652.58	43.099
0	0	653.01	43.099
0	0	653.44	43.099
0	0	653.87	43.099
0	0	654.3	43.099
0	0	654.74	43.099
0	0	655.17	43.099
0	0	655.6	43.099
0	0	656.03	43.099
0	0	656.46	43.099
0	0	656.9	43.099
0	0	657.33	43.099
0	0	657.76	43.099
0	0	658.19	43.099
0	0	658.62	43.099
0	0	659.06	43.099
0	0	659.49	43.099
0	0	659.92	43.099
0	0	660.35	43.099
0	0	660.78	43.099
0	0	661.22	43.099
0	0	661.65	43.099
0	0	662.08	43.099
0	0	662.51	42.999
0	0	662.94	42.999
0	0	663.38	42.999
0	0	663.81	42.999
0	0	664.24	42.999
0	0	664.67	42.999
0	0	665.1	42.999
0	0	665.54	42.999
0	0	665.97	42.999
0	0	666.4	42.999
0	0	666.83	42.999
0	0	667.26	42.999
0	0	667.7	42.999
0	0	668.13	42.999
0	0	668.56	42.999
0	0	668.99	42.999
0	0	669.42	42.999
0	0	669.86	42.999
0	0	670.29	42.999
0	0	670.72	42.999
0	0	671.15	42.999
0	0	671.58	42.999
0	0	672.02	42.999
0	0	672.45	42.999
0	0	672.88	42.999
0	0	673.31	42.999
0	0	673.74	42.999
0	0	674.18	42.999
0	0	674.61	42.999
0	0	675.04	42.999
0	0	675.47	42.999
0	0	675.9	42.999
0	0	676.34	42.999
0	0	676.77	42.999
0	0	677.2	42.999
0	0	677.63	42.999
0	0	678.06	42.999
0	0	678.5	42.805
0	0	678.93	42.805
0	0	679.36	42.805
0	0	679.79	42.805
0	0	680.22	42.805
0	0	680.66	42.805
0	0	681.09	42.805
0	0	681.52	42.805
0	0	681.95	42.805
0	0	682.38	42.805
0	0	682.82	42.805
0	0	683.25	42.805
0	0	683.68	42.805
0	0	684.11	42.805
0	0	684.54	42.805
0	0	684.98	42.805
0	0	685.41	42.805
0	0	685.84	42.805
0	0	686.27	42.805
0	0	686.7	42.805
0	0	687.14	42.805
0	0	687.57	42.805
0	0	688	42.805
]
% 6th point
x_63 = [221	-1.897	221	-3.8234
223	-2.396	221.47	-3.8234
228	-3.507	221.93	-3.8234
233	-4.319	222.4	-3.8234
238	-4.957	222.87	-3.8234
243	-5.287	223.33	-3.8234
248	-5.313	223.8	-3.8234
253	-4.575	224.27	-3.8234
258	-2.771	224.74	-3.8234
263	1.409	225.2	-2.9233
268	7.689	225.67	-2.9233
273	14.498	226.14	-2.9233
278	21.978	226.6	-2.9233
288	37.297	227.07	-2.9233
298	43.33	227.54	-2.9233
308	44.19	228.01	-2.9233
318	44.005	228.47	-2.9233
328	43.857	228.94	-2.9233
338	43.702	229.41	-2.9233
358	43.404	229.87	-2.9233
378	43.183	230.34	-2.9233
408	42.868	230.81	-2.9233
438	42.532	231.27	-2.9233
468	42.283	231.74	-2.9233
508	41.989	232.21	-2.9233
548	41.718	232.68	-2.9233
588	41.642	233.14	-1.4334
638	41.569	233.61	-1.4334
688	41.385	234.08	-1.4334
0	0	234.54	-1.4334
0	0	235.01	-1.4334
0	0	235.48	-1.4334
0	0	235.94	-1.4334
0	0	236.41	-1.4334
0	0	236.88	-1.4334
0	0	237.34	-1.4334
0	0	237.81	-1.4334
0	0	238.28	-1.4334
0	0	238.75	-1.4334
0	0	239.21	-1.4334
0	0	239.68	-1.4334
0	0	240.15	-1.4334
0	0	240.61	-1.4334
0	0	241.08	5.4918
0	0	241.55	5.4918
0	0	242.02	5.4918
0	0	242.48	5.4918
0	0	242.95	5.4918
0	0	243.42	5.4918
0	0	243.88	5.4918
0	0	244.35	5.4918
0	0	244.82	5.4918
0	0	245.28	5.4918
0	0	245.75	5.4918
0	0	246.22	5.4918
0	0	246.68	5.4918
0	0	247.15	5.4918
0	0	247.62	5.4918
0	0	248.09	5.4918
0	0	248.55	18.613
0	0	249.02	18.613
0	0	249.49	18.613
0	0	249.95	18.613
0	0	250.42	18.613
0	0	250.89	18.613
0	0	251.35	18.613
0	0	251.82	18.613
0	0	252.29	18.613
0	0	252.76	18.613
0	0	253.22	18.613
0	0	253.69	18.613
0	0	254.16	18.613
0	0	254.62	18.613
0	0	255.09	18.613
0	0	255.56	18.613
0	0	256.02	18.613
0	0	256.49	30.288
0	0	256.96	30.288
0	0	257.43	30.288
0	0	257.89	30.288
0	0	258.36	30.288
0	0	258.83	30.288
0	0	259.29	30.288
0	0	259.76	30.288
0	0	260.23	30.288
0	0	260.7	30.288
0	0	261.16	30.288
0	0	261.63	30.288
0	0	262.1	30.288
0	0	262.56	30.288
0	0	263.03	30.288
0	0	263.5	30.288
0	0	263.96	30.288
0	0	264.43	30.288
0	0	264.9	30.288
0	0	265.37	30.288
0	0	265.83	30.288
0	0	266.3	30.288
0	0	266.77	30.288
0	0	267.23	30.288
0	0	267.7	30.288
0	0	268.17	30.288
0	0	268.63	30.288
0	0	269.1	30.288
0	0	269.57	30.288
0	0	270.03	30.288
0	0	270.5	30.288
0	0	270.97	30.288
0	0	271.44	30.288
0	0	271.9	39.215
0	0	272.37	39.215
0	0	272.84	39.215
0	0	273.3	39.215
0	0	273.77	39.215
0	0	274.24	39.215
0	0	274.7	39.215
0	0	275.17	39.215
0	0	275.64	39.215
0	0	276.11	39.215
0	0	276.57	39.215
0	0	277.04	39.215
0	0	277.51	39.215
0	0	277.97	39.215
0	0	278.44	39.215
0	0	278.91	39.215
0	0	279.37	39.215
0	0	279.84	39.215
0	0	280.31	39.215
0	0	280.78	39.215
0	0	281.24	39.215
0	0	281.71	39.215
0	0	282.18	39.215
0	0	282.64	39.215
0	0	283.11	39.215
0	0	283.58	39.215
0	0	284.05	39.215
0	0	284.51	39.215
0	0	284.98	39.215
0	0	285.45	39.215
0	0	285.91	39.215
0	0	286.38	39.215
0	0	286.85	39.215
0	0	287.31	39.215
0	0	287.78	40.399
0	0	288.25	40.399
0	0	288.72	40.399
0	0	289.18	40.399
0	0	289.65	40.399
0	0	290.12	40.399
0	0	290.58	40.399
0	0	291.05	40.399
0	0	291.52	40.399
0	0	291.98	40.399
0	0	292.45	40.399
0	0	292.92	40.399
0	0	293.38	40.399
0	0	293.85	40.399
0	0	294.32	40.399
0	0	294.79	40.399
0	0	295.25	40.399
0	0	295.72	40.399
0	0	296.19	40.399
0	0	296.65	40.399
0	0	297.12	40.399
0	0	297.59	40.399
0	0	298.05	40.399
0	0	298.52	40.399
0	0	298.99	40.399
0	0	299.46	40.399
0	0	299.92	40.399
0	0	300.39	40.399
0	0	300.86	40.399
0	0	301.32	40.399
0	0	301.79	40.399
0	0	302.26	40.399
0	0	302.72	40.399
0	0	303.19	41.695
0	0	303.66	41.695
0	0	304.13	41.695
0	0	304.59	41.695
0	0	305.06	41.695
0	0	305.53	41.695
0	0	305.99	41.695
0	0	306.46	41.695
0	0	306.93	41.695
0	0	307.4	41.695
0	0	307.86	41.695
0	0	308.33	41.695
0	0	308.8	41.695
0	0	309.26	41.695
0	0	309.73	41.695
0	0	310.2	41.695
0	0	310.66	41.695
0	0	311.13	41.695
0	0	311.6	41.695
0	0	312.07	41.695
0	0	312.53	41.695
0	0	313	41.695
0	0	313.47	41.695
0	0	313.93	41.695
0	0	314.4	41.695
0	0	314.87	41.695
0	0	315.33	41.695
0	0	315.8	41.695
0	0	316.27	41.695
0	0	316.73	41.695
0	0	317.2	41.695
0	0	317.67	41.695
0	0	318.14	41.695
0	0	318.6	41.695
0	0	319.07	43.328
0	0	319.54	43.328
0	0	320	43.328
0	0	320.47	43.328
0	0	320.94	43.328
0	0	321.4	43.328
0	0	321.87	43.328
0	0	322.34	43.328
0	0	322.81	43.328
0	0	323.27	43.328
0	0	323.74	43.328
0	0	324.21	43.328
0	0	324.67	43.328
0	0	325.14	43.328
0	0	325.61	43.328
0	0	326.07	43.328
0	0	326.54	43.328
0	0	327.01	43.328
0	0	327.48	43.328
0	0	327.94	43.328
0	0	328.41	43.328
0	0	328.88	43.328
0	0	329.34	43.328
0	0	329.81	43.328
0	0	330.28	43.328
0	0	330.75	43.328
0	0	331.21	43.328
0	0	331.68	43.328
0	0	332.15	43.328
0	0	332.61	43.328
0	0	333.08	43.328
0	0	333.55	43.328
0	0	334.01	43.328
0	0	334.48	42.912
0	0	334.95	42.912
0	0	335.42	42.912
0	0	335.88	42.912
0	0	336.35	42.912
0	0	336.82	42.912
0	0	337.28	42.912
0	0	337.75	42.912
0	0	338.22	42.912
0	0	338.68	42.912
0	0	339.15	42.912
0	0	339.62	42.912
0	0	340.08	42.912
0	0	340.55	42.912
0	0	341.02	42.912
0	0	341.49	42.912
0	0	341.95	42.912
0	0	342.42	42.912
0	0	342.89	42.912
0	0	343.35	42.912
0	0	343.82	42.912
0	0	344.29	42.912
0	0	344.75	42.912
0	0	345.22	42.912
0	0	345.69	42.912
0	0	346.16	42.912
0	0	346.62	42.912
0	0	347.09	42.912
0	0	347.56	42.912
0	0	348.02	42.912
0	0	348.49	42.912
0	0	348.96	42.912
0	0	349.42	42.912
0	0	349.89	42.912
0	0	350.36	43.873
0	0	350.83	43.873
0	0	351.29	43.873
0	0	351.76	43.873
0	0	352.23	43.873
0	0	352.69	43.873
0	0	353.16	43.873
0	0	353.63	43.873
0	0	354.1	43.873
0	0	354.56	43.873
0	0	355.03	43.873
0	0	355.5	43.873
0	0	355.96	43.873
0	0	356.43	43.873
0	0	356.9	43.873
0	0	357.36	43.873
0	0	357.83	43.873
0	0	358.3	43.873
0	0	358.77	43.873
0	0	359.23	43.873
0	0	359.7	43.873
0	0	360.17	43.873
0	0	360.63	43.873
0	0	361.1	43.873
0	0	361.57	43.873
0	0	362.03	43.873
0	0	362.5	43.873
0	0	362.97	43.873
0	0	363.44	43.873
0	0	363.9	43.873
0	0	364.37	43.873
0	0	364.84	43.873
0	0	365.3	43.873
0	0	365.77	43.921
0	0	366.24	43.921
0	0	366.7	43.921
0	0	367.17	43.921
0	0	367.64	43.921
0	0	368.1	43.921
0	0	368.57	43.921
0	0	369.04	43.921
0	0	369.51	43.921
0	0	369.97	43.921
0	0	370.44	43.921
0	0	370.91	43.921
0	0	371.37	43.921
0	0	371.84	43.921
0	0	372.31	43.921
0	0	372.77	43.921
0	0	373.24	43.921
0	0	373.71	43.921
0	0	374.18	43.921
0	0	374.64	43.921
0	0	375.11	43.921
0	0	375.58	43.921
0	0	376.04	43.921
0	0	376.51	43.921
0	0	376.98	43.921
0	0	377.45	43.921
0	0	377.91	43.921
0	0	378.38	43.921
0	0	378.85	43.921
0	0	379.31	43.921
0	0	379.78	43.921
0	0	380.25	43.921
0	0	380.71	43.921
0	0	381.18	43.921
0	0	381.65	44.05
0	0	382.12	44.05
0	0	382.58	44.05
0	0	383.05	44.05
0	0	383.52	44.05
0	0	383.98	44.05
0	0	384.45	44.05
0	0	384.92	44.05
0	0	385.38	44.05
0	0	385.85	44.05
0	0	386.32	44.05
0	0	386.79	44.05
0	0	387.25	44.05
0	0	387.72	44.05
0	0	388.19	44.05
0	0	388.65	44.05
0	0	389.12	44.05
0	0	389.59	44.05
0	0	390.05	44.05
0	0	390.52	44.05
0	0	390.99	44.05
0	0	391.45	44.05
0	0	391.92	44.05
0	0	392.39	44.05
0	0	392.86	44.05
0	0	393.32	44.05
0	0	393.79	44.05
0	0	394.26	44.05
0	0	394.72	44.05
0	0	395.19	44.05
0	0	395.66	44.05
0	0	396.12	44.05
0	0	396.59	44.05
0	0	397.06	43.927
0	0	397.53	43.927
0	0	397.99	43.927
0	0	398.46	43.927
0	0	398.93	43.927
0	0	399.39	43.927
0	0	399.86	43.927
0	0	400.33	43.927
0	0	400.8	43.927
0	0	401.26	43.927
0	0	401.73	43.927
0	0	402.2	43.927
0	0	402.66	43.927
0	0	403.13	43.927
0	0	403.6	43.927
0	0	404.06	43.927
0	0	404.53	43.927
0	0	405	43.927
0	0	405.47	43.927
0	0	405.93	43.927
0	0	406.4	43.927
0	0	406.87	43.927
0	0	407.33	43.927
0	0	407.8	43.927
0	0	408.27	43.927
0	0	408.73	43.927
0	0	409.2	43.927
0	0	409.67	43.927
0	0	410.14	43.927
0	0	410.6	43.927
0	0	411.07	43.927
0	0	411.54	43.927
0	0	412	43.927
0	0	412.47	43.927
0	0	412.94	43.81
0	0	413.4	43.81
0	0	413.87	43.81
0	0	414.34	43.81
0	0	414.8	43.81
0	0	415.27	43.81
0	0	415.74	43.81
0	0	416.21	43.81
0	0	416.67	43.81
0	0	417.14	43.81
0	0	417.61	43.81
0	0	418.07	43.81
0	0	418.54	43.81
0	0	419.01	43.81
0	0	419.47	43.81
0	0	419.94	43.81
0	0	420.41	43.81
0	0	420.88	43.81
0	0	421.34	43.81
0	0	421.81	43.81
0	0	422.28	43.81
0	0	422.74	43.81
0	0	423.21	43.81
0	0	423.68	43.81
0	0	424.15	43.81
0	0	424.61	43.81
0	0	425.08	43.81
0	0	425.55	43.81
0	0	426.01	43.81
0	0	426.48	43.81
0	0	426.95	43.81
0	0	427.41	43.81
0	0	427.88	43.81
0	0	428.35	43.547
0	0	428.82	43.547
0	0	429.28	43.547
0	0	429.75	43.547
0	0	430.22	43.547
0	0	430.68	43.547
0	0	431.15	43.547
0	0	431.62	43.547
0	0	432.08	43.547
0	0	432.55	43.547
0	0	433.02	43.547
0	0	433.49	43.547
0	0	433.95	43.547
0	0	434.42	43.547
0	0	434.89	43.547
0	0	435.35	43.547
0	0	435.82	43.547
0	0	436.29	43.547
0	0	436.75	43.547
0	0	437.22	43.547
0	0	437.69	43.547
0	0	438.15	43.547
0	0	438.62	43.547
0	0	439.09	43.547
0	0	439.56	43.547
0	0	440.02	43.547
0	0	440.49	43.547
0	0	440.96	43.547
0	0	441.42	43.547
0	0	441.89	43.547
0	0	442.36	43.547
0	0	442.82	43.547
0	0	443.29	43.547
0	0	443.76	43.463
0	0	444.23	43.463
0	0	444.69	43.463
0	0	445.16	43.463
0	0	445.63	43.463
0	0	446.09	43.463
0	0	446.56	43.463
0	0	447.03	43.463
0	0	447.5	43.463
0	0	447.96	43.463
0	0	448.43	43.463
0	0	448.9	43.463
0	0	449.36	43.463
0	0	449.83	43.463
0	0	450.3	43.463
0	0	450.76	43.463
0	0	451.23	43.463
0	0	451.7	43.463
0	0	452.17	43.463
0	0	452.63	43.463
0	0	453.1	43.463
0	0	453.57	43.463
0	0	454.03	43.463
0	0	454.5	43.463
0	0	454.97	43.463
0	0	455.43	43.463
0	0	455.9	43.463
0	0	456.37	43.463
0	0	456.84	43.463
0	0	457.3	43.463
0	0	457.77	43.463
0	0	458.24	43.463
0	0	458.7	43.463
0	0	459.17	43.463
0	0	459.64	43.362
0	0	460.1	43.362
0	0	460.57	43.362
0	0	461.04	43.362
0	0	461.5	43.362
0	0	461.97	43.362
0	0	462.44	43.362
0	0	462.91	43.362
0	0	463.37	43.362
0	0	463.84	43.362
0	0	464.31	43.362
0	0	464.77	43.362
0	0	465.24	43.362
0	0	465.71	43.362
0	0	466.17	43.362
0	0	466.64	43.362
0	0	467.11	43.362
0	0	467.58	43.362
0	0	468.04	43.362
0	0	468.51	43.362
0	0	468.98	43.362
0	0	469.44	43.362
0	0	469.91	43.362
0	0	470.38	43.362
0	0	470.85	43.362
0	0	471.31	43.362
0	0	471.78	43.362
0	0	472.25	43.362
0	0	472.71	43.362
0	0	473.18	43.362
0	0	473.65	43.362
0	0	474.11	43.362
0	0	474.58	43.362
0	0	475.05	43.531
0	0	475.52	43.531
0	0	475.98	43.531
0	0	476.45	43.531
0	0	476.92	43.531
0	0	477.38	43.531
0	0	477.85	43.531
0	0	478.32	43.531
0	0	478.78	43.531
0	0	479.25	43.531
0	0	479.72	43.531
0	0	480.19	43.531
0	0	480.65	43.531
0	0	481.12	43.531
0	0	481.59	43.531
0	0	482.05	43.531
0	0	482.52	43.531
0	0	482.99	43.531
0	0	483.45	43.531
0	0	483.92	43.531
0	0	484.39	43.531
0	0	484.85	43.531
0	0	485.32	43.531
0	0	485.79	43.531
0	0	486.26	43.531
0	0	486.72	43.531
0	0	487.19	43.531
0	0	487.66	43.531
0	0	488.12	43.531
0	0	488.59	43.531
0	0	489.06	43.531
0	0	489.52	43.531
0	0	489.99	43.531
0	0	490.46	43.531
0	0	490.93	43.638
0	0	491.39	43.638
0	0	491.86	43.638
0	0	492.33	43.638
0	0	492.79	43.638
0	0	493.26	43.638
0	0	493.73	43.638
0	0	494.2	43.638
0	0	494.66	43.638
0	0	495.13	43.638
0	0	495.6	43.638
0	0	496.06	43.638
0	0	496.53	43.638
0	0	497	43.638
0	0	497.46	43.638
0	0	497.93	43.638
0	0	498.4	43.638
0	0	498.87	43.638
0	0	499.33	43.638
0	0	499.8	43.638
0	0	500.27	43.638
0	0	500.73	43.638
0	0	501.2	43.638
0	0	501.67	43.638
0	0	502.13	43.638
0	0	502.6	43.638
0	0	503.07	43.638
0	0	503.53	43.638
0	0	504	43.638
0	0	504.47	43.638
0	0	504.94	43.638
0	0	505.4	43.638
0	0	505.87	43.638
0	0	506.34	43.724
0	0	506.8	43.724
0	0	507.27	43.724
0	0	507.74	43.724
0	0	508.2	43.724
0	0	508.67	43.724
0	0	509.14	43.724
0	0	509.61	43.724
0	0	510.07	43.724
0	0	510.54	43.724
0	0	511.01	43.724
0	0	511.47	43.724
0	0	511.94	43.724
0	0	512.41	43.724
0	0	512.88	43.724
0	0	513.34	43.724
0	0	513.81	43.724
0	0	514.28	43.724
0	0	514.74	43.724
0	0	515.21	43.724
0	0	515.68	43.724
0	0	516.14	43.724
0	0	516.61	43.724
0	0	517.08	43.724
0	0	517.54	43.724
0	0	518.01	43.724
0	0	518.48	43.724
0	0	518.95	43.724
0	0	519.41	43.724
0	0	519.88	43.724
0	0	520.35	43.724
0	0	520.81	43.724
0	0	521.28	43.724
0	0	521.75	43.724
0	0	522.22	43.724
0	0	522.68	43.724
0	0	523.15	43.724
0	0	523.62	43.724
0	0	524.08	43.724
0	0	524.55	43.724
0	0	525.02	43.724
0	0	525.48	43.724
0	0	525.95	43.724
0	0	526.42	43.724
0	0	526.88	43.724
0	0	527.35	43.724
0	0	527.82	43.724
0	0	528.29	43.724
0	0	528.75	43.724
0	0	529.22	43.724
0	0	529.69	43.724
0	0	530.15	43.724
0	0	530.62	43.724
0	0	531.09	43.724
0	0	531.55	43.724
0	0	532.02	43.724
0	0	532.49	43.724
0	0	532.96	43.724
0	0	533.42	43.724
0	0	533.89	43.724
0	0	534.36	43.724
0	0	534.82	43.724
0	0	535.29	43.724
0	0	535.76	43.724
0	0	536.23	43.724
0	0	536.69	43.724
0	0	537.16	43.724
0	0	537.63	43.582
0	0	538.09	43.582
0	0	538.56	43.582
0	0	539.03	43.582
0	0	539.49	43.582
0	0	539.96	43.582
0	0	540.43	43.582
0	0	540.89	43.582
0	0	541.36	43.582
0	0	541.83	43.582
0	0	542.3	43.582
0	0	542.76	43.582
0	0	543.23	43.582
0	0	543.7	43.582
0	0	544.16	43.582
0	0	544.63	43.582
0	0	545.1	43.582
0	0	545.57	43.582
0	0	546.03	43.582
0	0	546.5	43.582
0	0	546.97	43.582
0	0	547.43	43.582
0	0	547.9	43.582
0	0	548.37	43.582
0	0	548.83	43.582
0	0	549.3	43.582
0	0	549.77	43.582
0	0	550.23	43.582
0	0	550.7	43.582
0	0	551.17	43.582
0	0	551.64	43.582
0	0	552.1	43.582
0	0	552.57	43.582
0	0	553.04	43.582
0	0	553.5	43.265
0	0	553.97	43.265
0	0	554.44	43.265
0	0	554.9	43.265
0	0	555.37	43.265
0	0	555.84	43.265
0	0	556.31	43.265
0	0	556.77	43.265
0	0	557.24	43.265
0	0	557.71	43.265
0	0	558.17	43.265
0	0	558.64	43.265
0	0	559.11	43.265
0	0	559.58	43.265
0	0	560.04	43.265
0	0	560.51	43.265
0	0	560.98	43.265
0	0	561.44	43.265
0	0	561.91	43.265
0	0	562.38	43.265
0	0	562.84	43.265
0	0	563.31	43.265
0	0	563.78	43.265
0	0	564.24	43.265
0	0	564.71	43.265
0	0	565.18	43.265
0	0	565.65	43.265
0	0	566.11	43.265
0	0	566.58	43.265
0	0	567.05	43.265
0	0	567.51	43.265
0	0	567.98	43.265
0	0	568.45	43.265
0	0	568.92	43.024
0	0	569.38	43.024
0	0	569.85	43.024
0	0	570.32	43.024
0	0	570.78	43.024
0	0	571.25	43.024
0	0	571.72	43.024
0	0	572.18	43.024
0	0	572.65	43.024
0	0	573.12	43.024
0	0	573.58	43.024
0	0	574.05	43.024
0	0	574.52	43.024
0	0	574.99	43.024
0	0	575.45	43.024
0	0	575.92	43.024
0	0	576.39	43.024
0	0	576.85	43.024
0	0	577.32	43.024
0	0	577.79	43.024
0	0	578.25	43.024
0	0	578.72	43.024
0	0	579.19	43.024
0	0	579.66	43.024
0	0	580.12	43.024
0	0	580.59	43.024
0	0	581.06	43.024
0	0	581.52	43.024
0	0	581.99	43.024
0	0	582.46	43.024
0	0	582.93	43.024
0	0	583.39	43.024
0	0	583.86	43.024
0	0	584.33	43.024
0	0	584.79	42.987
0	0	585.26	42.987
0	0	585.73	42.987
0	0	586.19	42.987
0	0	586.66	42.987
0	0	587.13	42.987
0	0	587.59	42.987
0	0	588.06	42.987
0	0	588.53	42.987
0	0	589	42.987
0	0	589.46	42.987
0	0	589.93	42.987
0	0	590.4	42.987
0	0	590.86	42.987
0	0	591.33	42.987
0	0	591.8	42.987
0	0	592.27	42.987
0	0	592.73	42.987
0	0	593.2	42.987
0	0	593.67	42.987
0	0	594.13	42.987
0	0	594.6	42.987
0	0	595.07	42.987
0	0	595.53	42.987
0	0	596	42.987
0	0	596.47	42.987
0	0	596.93	42.987
0	0	597.4	42.987
0	0	597.87	42.987
0	0	598.34	42.987
0	0	598.8	42.987
0	0	599.27	42.987
0	0	599.74	42.987
0	0	600.2	43.057
0	0	600.67	43.057
0	0	601.14	43.057
0	0	601.6	43.057
0	0	602.07	43.057
0	0	602.54	43.057
0	0	603.01	43.057
0	0	603.47	43.057
0	0	603.94	43.057
0	0	604.41	43.057
0	0	604.87	43.057
0	0	605.34	43.057
0	0	605.81	43.057
0	0	606.28	43.057
0	0	606.74	43.057
0	0	607.21	43.057
0	0	607.68	43.057
0	0	608.14	43.057
0	0	608.61	43.057
0	0	609.08	43.057
0	0	609.54	43.057
0	0	610.01	43.057
0	0	610.48	43.057
0	0	610.94	43.057
0	0	611.41	43.057
0	0	611.88	43.057
0	0	612.35	43.057
0	0	612.81	43.057
0	0	613.28	43.057
0	0	613.75	43.057
0	0	614.21	43.057
0	0	614.68	43.057
0	0	615.15	43.057
0	0	615.62	43.057
0	0	616.08	43.091
0	0	616.55	43.091
0	0	617.02	43.091
0	0	617.48	43.091
0	0	617.95	43.091
0	0	618.42	43.091
0	0	618.88	43.091
0	0	619.35	43.091
0	0	619.82	43.091
0	0	620.28	43.091
0	0	620.75	43.091
0	0	621.22	43.091
0	0	621.69	43.091
0	0	622.15	43.091
0	0	622.62	43.091
0	0	623.09	43.091
0	0	623.55	43.091
0	0	624.02	43.091
0	0	624.49	43.091
0	0	624.95	43.091
0	0	625.42	43.091
0	0	625.89	43.091
0	0	626.36	43.091
0	0	626.82	43.091
0	0	627.29	43.091
0	0	627.76	43.091
0	0	628.22	43.091
0	0	628.69	43.091
0	0	629.16	43.091
0	0	629.63	43.091
0	0	630.09	43.091
0	0	630.56	43.091
0	0	631.03	43.091
0	0	631.49	42.992
0	0	631.96	42.992
0	0	632.43	42.992
0	0	632.89	42.992
0	0	633.36	42.992
0	0	633.83	42.992
0	0	634.29	42.992
0	0	634.76	42.992
0	0	635.23	42.992
0	0	635.7	42.992
0	0	636.16	42.992
0	0	636.63	42.992
0	0	637.1	42.992
0	0	637.56	42.992
0	0	638.03	42.992
0	0	638.5	42.992
0	0	638.97	42.992
0	0	639.43	42.992
0	0	639.9	42.992
0	0	640.37	42.992
0	0	640.83	42.992
0	0	641.3	42.992
0	0	641.77	42.992
0	0	642.23	42.992
0	0	642.7	42.992
0	0	643.17	42.992
0	0	643.63	42.992
0	0	644.1	42.992
0	0	644.57	42.992
0	0	645.04	42.992
0	0	645.5	42.992
0	0	645.97	42.992
0	0	646.44	42.992
0	0	646.9	42.777
0	0	647.37	42.777
0	0	647.84	42.777
0	0	648.3	42.777
0	0	648.77	42.777
0	0	649.24	42.777
0	0	649.71	42.777
0	0	650.17	42.777
0	0	650.64	42.777
0	0	651.11	42.777
0	0	651.57	42.777
0	0	652.04	42.777
0	0	652.51	42.777
0	0	652.98	42.777
0	0	653.44	42.777
0	0	653.91	42.777
0	0	654.38	42.777
0	0	654.84	42.777
0	0	655.31	42.777
0	0	655.78	42.777
0	0	656.24	42.777
0	0	656.71	42.777
0	0	657.18	42.777
0	0	657.64	42.777
0	0	658.11	42.777
0	0	658.58	42.777
0	0	659.05	42.777
0	0	659.51	42.777
0	0	659.98	42.777
0	0	660.45	42.777
0	0	660.91	42.777
0	0	661.38	42.777
0	0	661.85	42.777
0	0	662.32	42.777
0	0	662.78	42.703
0	0	663.25	42.703
0	0	663.72	42.703
0	0	664.18	42.703
0	0	664.65	42.703
0	0	665.12	42.703
0	0	665.58	42.703
0	0	666.05	42.703
0	0	666.52	42.703
0	0	666.98	42.703
0	0	667.45	42.703
0	0	667.92	42.703
0	0	668.39	42.703
0	0	668.85	42.703
0	0	669.32	42.703
0	0	669.79	42.703
0	0	670.25	42.703
0	0	670.72	42.703
0	0	671.19	42.703
0	0	671.65	42.703
0	0	672.12	42.703
0	0	672.59	42.703
0	0	673.06	42.703
0	0	673.52	42.703
0	0	673.99	42.703
0	0	674.46	42.703
0	0	674.92	42.703
0	0	675.39	42.703
0	0	675.86	42.703
0	0	676.33	42.703
0	0	676.79	42.703
0	0	677.26	42.703
0	0	677.73	42.703
0	0	678.19	42.536
0	0	678.66	42.536
0	0	679.13	42.536
0	0	679.59	42.536
0	0	680.06	42.536
0	0	680.53	42.536
0	0	680.99	42.536
0	0	681.46	42.536
0	0	681.93	42.536
0	0	682.4	42.536
0	0	682.86	42.536
0	0	683.33	42.536
0	0	683.8	42.536
0	0	684.26	42.536
0	0	684.73	42.536
0	0	685.2	42.536
0	0	685.67	42.536
0	0	686.13	42.536
0	0	686.6	42.536
0	0	687.07	42.536
0	0	687.53	42.536
0	0	688	42.536
]
% 7th point
x_187 = [-22	37.022	-22	23.177
-12	29.874	-21.29	23.177
-2	20.221	-20.58	23.177
8	8.782	-19.87	23.177
18	-2.225	-19.16	23.177
28	-9.452	-18.45	23.177
38	-13.398	-17.74	23.177
48	-15.168	-17.03	23.177
58	-15.816	-16.32	23.177
68	-15.745	-15.61	23.177
78	-15.253	-14.9	23.177
88	-14.631	-14.19	23.177
98	-13.824	-13.48	23.177
108	-13.062	-12.77	23.177
118	-12.096	-12.06	23.177
128	-10.998	-11.35	23.177
138	-9.582	-10.64	23.177
148	-8.212	-9.93	23.177
158	-6.119	-9.22	7.3885
168	-3.764	-8.51	7.3885
178	-0.967	-7.8	7.3885
188	2.5	-7.09	7.3885
198	6.386	-6.38	7.3885
208	10.315	-5.67	7.3885
218	14.456	-4.96	7.3885
228	19.212	-4.25	7.3885
238	24.513	-3.54	7.3885
248	30.788	-2.83	7.3885
258	36.566	-2.12	7.3885
268	40.494	-1.41	7.3885
278	41.856	-0.7	7.3885
288	41.939	1.00E-02	7.3885
298	41.839	0.72	7.3885
318	41.69	1.43	7.3885
338	41.581	2.14	7.3885
358	41.515	2.85	7.3885
378	41.452	3.56	7.3885
408	41.314	4.27	7.3885
438	41.25	4.98	7.3885
468	41.161	5.69	7.3885
508	41.02	6.4	-2.1513
548	40.904	7.11	-2.1513
588	40.983	7.82	-2.1513
638	41.025	8.53	-2.1513
688	40.95	9.24	-2.1513
0	0	9.95	-2.1513
0	0	10.66	-2.1513
0	0	11.37	-2.1513
0	0	12.08	-2.1513
0	0	12.79	-2.1513
0	0	13.5	-2.1513
0	0	14.21	-2.1513
0	0	14.92	-2.1513
0	0	15.63	-2.1513
0	0	16.34	-2.1513
0	0	17.05	-2.1513
0	0	17.76	-2.1513
0	0	18.47	-2.1513
0	0	19.18	-2.1513
0	0	19.89	-2.1513
0	0	20.6	-2.1513
0	0	21.31	-2.1513
0	0	22.02	-7.4886
0	0	22.73	-7.4886
0	0	23.44	-7.4886
0	0	24.15	-7.4886
0	0	24.86	-7.4886
0	0	25.57	-7.4886
0	0	26.28	-7.4886
0	0	26.99	-7.4886
0	0	27.7	-7.4886
0	0	28.41	-7.4886
0	0	29.12	-7.4886
0	0	29.83	-7.4886
0	0	30.54	-7.4886
0	0	31.25	-7.4886
0	0	31.96	-7.4886
0	0	32.67	-7.4886
0	0	33.38	-7.4886
0	0	34.09	-7.4886
0	0	34.8	-7.4886
0	0	35.51	-7.4886
0	0	36.22	-7.4886
0	0	36.93	-7.4886
0	0	37.64	-9.156
0	0	38.35	-9.156
0	0	39.06	-9.156
0	0	39.77	-9.156
0	0	40.48	-9.156
0	0	41.19	-9.156
0	0	41.9	-9.156
0	0	42.61	-9.156
0	0	43.32	-9.156
0	0	44.03	-9.156
0	0	44.74	-9.156
0	0	45.45	-9.156
0	0	46.16	-9.156
0	0	46.87	-9.156
0	0	47.58	-9.156
0	0	48.29	-9.156
0	0	49	-9.156
0	0	49.71	-9.156
0	0	50.42	-9.156
0	0	51.13	-9.156
0	0	51.84	-9.156
0	0	52.55	-9.156
0	0	53.26	-8.7492
0	0	53.97	-8.7492
0	0	54.68	-8.7492
0	0	55.39	-8.7492
0	0	56.1	-8.7492
0	0	56.81	-8.7492
0	0	57.52	-8.7492
0	0	58.23	-8.7492
0	0	58.94	-8.7492
0	0	59.65	-8.7492
0	0	60.36	-8.7492
0	0	61.07	-8.7492
0	0	61.78	-8.7492
0	0	62.49	-8.7492
0	0	63.2	-8.7492
0	0	63.91	-8.7492
0	0	64.62	-8.7492
0	0	65.33	-8.7492
0	0	66.04	-8.7492
0	0	66.75	-8.7492
0	0	67.46	-8.7492
0	0	68.17	-8.7492
0	0	68.88	-7.1319
0	0	69.59	-7.1319
0	0	70.3	-7.1319
0	0	71.01	-7.1319
0	0	71.72	-7.1319
0	0	72.43	-7.1319
0	0	73.14	-7.1319
0	0	73.85	-7.1319
0	0	74.56	-7.1319
0	0	75.27	-7.1319
0	0	75.98	-7.1319
0	0	76.69	-7.1319
0	0	77.4	-7.1319
0	0	78.11	-7.1319
0	0	78.82	-7.1319
0	0	79.53	-7.1319
0	0	80.24	-7.1319
0	0	80.95	-7.1319
0	0	81.66	-7.1319
0	0	82.37	-7.1319
0	0	83.08	-7.1319
0	0	83.79	-7.1319
0	0	84.5	-4.5107
0	0	85.21	-4.5107
0	0	85.92	-4.5107
0	0	86.63	-4.5107
0	0	87.34	-4.5107
0	0	88.05	-4.5107
0	0	88.76	-4.5107
0	0	89.47	-4.5107
0	0	90.18	-4.5107
0	0	90.89	-4.5107
0	0	91.6	-4.5107
0	0	92.31	-4.5107
0	0	93.02	-4.5107
0	0	93.73	-4.5107
0	0	94.44	-4.5107
0	0	95.15	-4.5107
0	0	95.86	-4.5107
0	0	96.57	-4.5107
0	0	97.28	-4.5107
0	0	97.99	-4.5107
0	0	98.7	-4.5107
0	0	99.41	-4.5107
0	0	100.12	-0.85935
0	0	100.83	-0.85935
0	0	101.54	-0.85935
0	0	102.25	-0.85935
0	0	102.96	-0.85935
0	0	103.67	-0.85935
0	0	104.38	-0.85935
0	0	105.09	-0.85935
0	0	105.8	-0.85935
0	0	106.51	-0.85935
0	0	107.22	-0.85935
0	0	107.93	-0.85935
0	0	108.64	-0.85935
0	0	109.35	-0.85935
0	0	110.06	-0.85935
0	0	110.77	-0.85935
0	0	111.48	-0.85935
0	0	112.19	-0.85935
0	0	112.9	-0.85935
0	0	113.61	-0.85935
0	0	114.32	-0.85935
0	0	115.03	-0.85935
0	0	115.74	3.9074
0	0	116.45	3.9074
0	0	117.16	3.9074
0	0	117.87	3.9074
0	0	118.58	3.9074
0	0	119.29	3.9074
0	0	120	3.9074
0	0	120.71	3.9074
0	0	121.42	3.9074
0	0	122.13	3.9074
0	0	122.84	3.9074
0	0	123.55	3.9074
0	0	124.26	3.9074
0	0	124.97	3.9074
0	0	125.68	3.9074
0	0	126.39	3.9074
0	0	127.1	3.9074
0	0	127.81	3.9074
0	0	128.52	3.9074
0	0	129.23	3.9074
0	0	129.94	3.9074
0	0	130.65	3.9074
0	0	131.36	9.5288
0	0	132.07	9.5288
0	0	132.78	9.5288
0	0	133.49	9.5288
0	0	134.2	9.5288
0	0	134.91	9.5288
0	0	135.62	9.5288
0	0	136.33	9.5288
0	0	137.04	9.5288
0	0	137.75	9.5288
0	0	138.46	9.5288
0	0	139.17	9.5288
0	0	139.88	9.5288
0	0	140.59	9.5288
0	0	141.3	9.5288
0	0	142.01	9.5288
0	0	142.72	9.5288
0	0	143.43	9.5288
0	0	144.14	9.5288
0	0	144.85	9.5288
0	0	145.56	9.5288
0	0	146.27	9.5288
0	0	146.98	15.69
0	0	147.69	15.69
0	0	148.4	15.69
0	0	149.11	15.69
0	0	149.82	15.69
0	0	150.53	15.69
0	0	151.24	15.69
0	0	151.95	15.69
0	0	152.66	15.69
0	0	153.37	15.69
0	0	154.08	15.69
0	0	154.79	15.69
0	0	155.5	15.69
0	0	156.21	15.69
0	0	156.92	15.69
0	0	157.63	15.69
0	0	158.34	15.69
0	0	159.05	15.69
0	0	159.76	15.69
0	0	160.47	15.69
0	0	161.18	15.69
0	0	161.89	15.69
0	0	162.6	22.243
0	0	163.31	22.243
0	0	164.02	22.243
0	0	164.73	22.243
0	0	165.44	22.243
0	0	166.15	22.243
0	0	166.86	22.243
0	0	167.57	22.243
0	0	168.28	22.243
0	0	168.99	22.243
0	0	169.7	22.243
0	0	170.41	22.243
0	0	171.12	22.243
0	0	171.83	22.243
0	0	172.54	22.243
0	0	173.25	22.243
0	0	173.96	22.243
0	0	174.67	22.243
0	0	175.38	22.243
0	0	176.09	22.243
0	0	176.8	22.243
0	0	177.51	22.243
0	0	178.22	27.038
0	0	178.93	27.038
0	0	179.64	27.038
0	0	180.35	27.038
0	0	181.06	27.038
0	0	181.77	27.038
0	0	182.48	27.038
0	0	183.19	27.038
0	0	183.9	27.038
0	0	184.61	27.038
0	0	185.32	27.038
0	0	186.03	27.038
0	0	186.74	27.038
0	0	187.45	27.038
0	0	188.16	27.038
0	0	188.87	27.038
0	0	189.58	27.038
0	0	190.29	27.038
0	0	191	27.038
0	0	191.71	27.038
0	0	192.42	27.038
0	0	193.13	27.038
0	0	193.84	30.786
0	0	194.55	30.786
0	0	195.26	30.786
0	0	195.97	30.786
0	0	196.68	30.786
0	0	197.39	30.786
0	0	198.1	30.786
0	0	198.81	30.786
0	0	199.52	30.786
0	0	200.23	30.786
0	0	200.94	30.786
0	0	201.65	30.786
0	0	202.36	30.786
0	0	203.07	30.786
0	0	203.78	30.786
0	0	204.49	30.786
0	0	205.2	30.786
0	0	205.91	30.786
0	0	206.62	30.786
0	0	207.33	30.786
0	0	208.04	30.786
0	0	208.75	30.786
0	0	209.46	34.217
0	0	210.17	34.217
0	0	210.88	34.217
0	0	211.59	34.217
0	0	212.3	34.217
0	0	213.01	34.217
0	0	213.72	34.217
0	0	214.43	34.217
0	0	215.14	34.217
0	0	215.85	34.217
0	0	216.56	34.217
0	0	217.27	34.217
0	0	217.98	34.217
0	0	218.69	34.217
0	0	219.4	34.217
0	0	220.11	34.217
0	0	220.82	34.217
0	0	221.53	34.217
0	0	222.24	34.217
0	0	222.95	34.217
0	0	223.66	34.217
0	0	224.37	34.217
0	0	225.08	36.293
0	0	225.79	36.293
0	0	226.5	36.293
0	0	227.21	36.293
0	0	227.92	36.293
0	0	228.63	36.293
0	0	229.34	36.293
0	0	230.05	36.293
0	0	230.76	36.293
0	0	231.47	36.293
0	0	232.18	36.293
0	0	232.89	36.293
0	0	233.6	36.293
0	0	234.31	36.293
0	0	235.02	36.293
0	0	235.73	36.293
0	0	236.44	36.293
0	0	237.15	36.293
0	0	237.86	36.293
0	0	238.57	36.293
0	0	239.28	36.293
0	0	239.99	36.293
0	0	240.7	38.16
0	0	241.41	38.16
0	0	242.12	38.16
0	0	242.83	38.16
0	0	243.54	38.16
0	0	244.25	38.16
0	0	244.96	38.16
0	0	245.67	38.16
0	0	246.38	38.16
0	0	247.09	38.16
0	0	247.8	38.16
0	0	248.51	38.16
0	0	249.22	38.16
0	0	249.93	38.16
0	0	250.64	38.16
0	0	251.35	38.16
0	0	252.06	38.16
0	0	252.77	38.16
0	0	253.48	38.16
0	0	254.19	38.16
0	0	254.9	38.16
0	0	255.61	38.16
0	0	256.32	39.461
0	0	257.03	39.461
0	0	257.74	39.461
0	0	258.45	39.461
0	0	259.16	39.461
0	0	259.87	39.461
0	0	260.58	39.461
0	0	261.29	39.461
0	0	262	39.461
0	0	262.71	39.461
0	0	263.42	39.461
0	0	264.13	39.461
0	0	264.84	39.461
0	0	265.55	39.461
0	0	266.26	39.461
0	0	266.97	39.461
0	0	267.68	39.461
0	0	268.39	39.461
0	0	269.1	39.461
0	0	269.81	39.461
0	0	270.52	39.461
0	0	271.23	39.461
0	0	271.94	39.735
0	0	272.65	39.735
0	0	273.36	39.735
0	0	274.07	39.735
0	0	274.78	39.735
0	0	275.49	39.735
0	0	276.2	39.735
0	0	276.91	39.735
0	0	277.62	39.735
0	0	278.33	39.735
0	0	279.04	39.735
0	0	279.75	39.735
0	0	280.46	39.735
0	0	281.17	39.735
0	0	281.88	39.735
0	0	282.59	39.735
0	0	283.3	39.735
0	0	284.01	39.735
0	0	284.72	39.735
0	0	285.43	39.735
0	0	286.14	39.735
0	0	286.85	39.735
0	0	287.56	39.91
0	0	288.27	39.91
0	0	288.98	39.91
0	0	289.69	39.91
0	0	290.4	39.91
0	0	291.11	39.91
0	0	291.82	39.91
0	0	292.53	39.91
0	0	293.24	39.91
0	0	293.95	39.91
0	0	294.66	39.91
0	0	295.37	39.91
0	0	296.08	39.91
0	0	296.79	39.91
0	0	297.5	39.91
0	0	298.21	39.91
0	0	298.92	39.91
0	0	299.63	39.91
0	0	300.34	39.91
0	0	301.05	39.91
0	0	301.76	39.91
0	0	302.47	39.91
0	0	303.18	40.101
0	0	303.89	40.101
0	0	304.6	40.101
0	0	305.31	40.101
0	0	306.02	40.101
0	0	306.73	40.101
0	0	307.44	40.101
0	0	308.15	40.101
0	0	308.86	40.101
0	0	309.57	40.101
0	0	310.28	40.101
0	0	310.99	40.101
0	0	311.7	40.101
0	0	312.41	40.101
0	0	313.12	40.101
0	0	313.83	40.101
0	0	314.54	40.101
0	0	315.25	40.101
0	0	315.96	40.101
0	0	316.67	40.101
0	0	317.38	40.101
0	0	318.09	40.101
0	0	318.8	40.206
0	0	319.51	40.206
0	0	320.22	40.206
0	0	320.93	40.206
0	0	321.64	40.206
0	0	322.35	40.206
0	0	323.06	40.206
0	0	323.77	40.206
0	0	324.48	40.206
0	0	325.19	40.206
0	0	325.9	40.206
0	0	326.61	40.206
0	0	327.32	40.206
0	0	328.03	40.206
0	0	328.74	40.206
0	0	329.45	40.206
0	0	330.16	40.206
0	0	330.87	40.206
0	0	331.58	40.206
0	0	332.29	40.206
0	0	333	40.206
0	0	333.71	40.206
0	0	334.42	40.623
0	0	335.13	40.623
0	0	335.84	40.623
0	0	336.55	40.623
0	0	337.26	40.623
0	0	337.97	40.623
0	0	338.68	40.623
0	0	339.39	40.623
0	0	340.1	40.623
0	0	340.81	40.623
0	0	341.52	40.623
0	0	342.23	40.623
0	0	342.94	40.623
0	0	343.65	40.623
0	0	344.36	40.623
0	0	345.07	40.623
0	0	345.78	40.623
0	0	346.49	40.623
0	0	347.2	40.623
0	0	347.91	40.623
0	0	348.62	40.623
0	0	349.33	40.623
0	0	350.04	41.039
0	0	350.75	41.039
0	0	351.46	41.039
0	0	352.17	41.039
0	0	352.88	41.039
0	0	353.59	41.039
0	0	354.3	41.039
0	0	355.01	41.039
0	0	355.72	41.039
0	0	356.43	41.039
0	0	357.14	41.039
0	0	357.85	41.039
0	0	358.56	41.039
0	0	359.27	41.039
0	0	359.98	41.039
0	0	360.69	41.039
0	0	361.4	41.039
0	0	362.11	41.039
0	0	362.82	41.039
0	0	363.53	41.039
0	0	364.24	41.039
0	0	364.95	41.039
0	0	365.66	40.516
0	0	366.37	40.516
0	0	367.08	40.516
0	0	367.79	40.516
0	0	368.5	40.516
0	0	369.21	40.516
0	0	369.92	40.516
0	0	370.63	40.516
0	0	371.34	40.516
0	0	372.05	40.516
0	0	372.76	40.516
0	0	373.47	40.516
0	0	374.18	40.516
0	0	374.89	40.516
0	0	375.6	40.516
0	0	376.31	40.516
0	0	377.02	40.516
0	0	377.73	40.516
0	0	378.44	40.516
0	0	379.15	40.516
0	0	379.86	40.516
0	0	380.57	40.516
0	0	381.28	40.735
0	0	381.99	40.735
0	0	382.7	40.735
0	0	383.41	40.735
0	0	384.12	40.735
0	0	384.83	40.735
0	0	385.54	40.735
0	0	386.25	40.735
0	0	386.96	40.735
0	0	387.67	40.735
0	0	388.38	40.735
0	0	389.09	40.735
0	0	389.8	40.735
0	0	390.51	40.735
0	0	391.22	40.735
0	0	391.93	40.735
0	0	392.64	40.735
0	0	393.35	40.735
0	0	394.06	40.735
0	0	394.77	40.735
0	0	395.48	40.735
0	0	396.19	40.735
0	0	396.9	40.744
0	0	397.61	40.744
0	0	398.32	40.744
0	0	399.03	40.744
0	0	399.74	40.744
0	0	400.45	40.744
0	0	401.16	40.744
0	0	401.87	40.744
0	0	402.58	40.744
0	0	403.29	40.744
0	0	404	40.744
0	0	404.71	40.744
0	0	405.42	40.744
0	0	406.13	40.744
0	0	406.84	40.744
0	0	407.55	40.744
0	0	408.26	40.744
0	0	408.97	40.744
0	0	409.68	40.744
0	0	410.39	40.744
0	0	411.1	40.744
0	0	411.81	40.744
0	0	412.52	40.595
0	0	413.23	40.595
0	0	413.94	40.595
0	0	414.65	40.595
0	0	415.36	40.595
0	0	416.07	40.595
0	0	416.78	40.595
0	0	417.49	40.595
0	0	418.2	40.595
0	0	418.91	40.595
0	0	419.62	40.595
0	0	420.33	40.595
0	0	421.04	40.595
0	0	421.75	40.595
0	0	422.46	40.595
0	0	423.17	40.595
0	0	423.88	40.595
0	0	424.59	40.595
0	0	425.3	40.595
0	0	426.01	40.595
0	0	426.72	40.595
0	0	427.43	40.595
0	0	428.14	40.732
0	0	428.85	40.732
0	0	429.56	40.732
0	0	430.27	40.732
0	0	430.98	40.732
0	0	431.69	40.732
0	0	432.4	40.732
0	0	433.11	40.732
0	0	433.82	40.732
0	0	434.53	40.732
0	0	435.24	40.732
0	0	435.95	40.732
0	0	436.66	40.732
0	0	437.37	40.732
0	0	438.08	40.732
0	0	438.79	40.732
0	0	439.5	40.732
0	0	440.21	40.732
0	0	440.92	40.732
0	0	441.63	40.732
0	0	442.34	40.732
0	0	443.05	40.732
0	0	443.76	40.924
0	0	444.47	40.924
0	0	445.18	40.924
0	0	445.89	40.924
0	0	446.6	40.924
0	0	447.31	40.924
0	0	448.02	40.924
0	0	448.73	40.924
0	0	449.44	40.924
0	0	450.15	40.924
0	0	450.86	40.924
0	0	451.57	40.924
0	0	452.28	40.924
0	0	452.99	40.924
0	0	453.7	40.924
0	0	454.41	40.924
0	0	455.12	40.924
0	0	455.83	40.924
0	0	456.54	40.924
0	0	457.25	40.924
0	0	457.96	40.924
0	0	458.67	40.924
0	0	459.38	41.189
0	0	460.09	41.189
0	0	460.8	41.189
0	0	461.51	41.189
0	0	462.22	41.189
0	0	462.93	41.189
0	0	463.64	41.189
0	0	464.35	41.189
0	0	465.06	41.189
0	0	465.77	41.189
0	0	466.48	41.189
0	0	467.19	41.189
0	0	467.9	41.189
0	0	468.61	41.189
0	0	469.32	41.189
0	0	470.03	41.189
0	0	470.74	41.189
0	0	471.45	41.189
0	0	472.16	41.189
0	0	472.87	41.189
0	0	473.58	41.189
0	0	474.29	41.189
0	0	475	41.189
0	0	475.71	41.471
0	0	476.42	41.471
0	0	477.13	41.471
0	0	477.84	41.471
0	0	478.55	41.471
0	0	479.26	41.471
0	0	479.97	41.471
0	0	480.68	41.471
0	0	481.39	41.471
0	0	482.1	41.471
0	0	482.81	41.471
0	0	483.52	41.471
0	0	484.23	41.471
0	0	484.94	41.471
0	0	485.65	41.471
0	0	486.36	41.471
0	0	487.07	41.471
0	0	487.78	41.471
0	0	488.49	41.471
0	0	489.2	41.471
0	0	489.91	41.471
0	0	490.62	41.471
0	0	491.33	41.737
0	0	492.04	41.737
0	0	492.75	41.737
0	0	493.46	41.737
0	0	494.17	41.737
0	0	494.88	41.737
0	0	495.59	41.737
0	0	496.3	41.737
0	0	497.01	41.737
0	0	497.72	41.737
0	0	498.43	41.737
0	0	499.14	41.737
0	0	499.85	41.737
0	0	500.56	41.737
0	0	501.27	41.737
0	0	501.98	41.737
0	0	502.69	41.737
0	0	503.4	41.737
0	0	504.11	41.737
0	0	504.82	41.737
0	0	505.53	41.737
0	0	506.24	41.737
0	0	506.95	41.836
0	0	507.66	41.836
0	0	508.37	41.836
0	0	509.08	41.836
0	0	509.79	41.836
0	0	510.5	41.836
0	0	511.21	41.836
0	0	511.92	41.836
0	0	512.63	41.836
0	0	513.34	41.836
0	0	514.05	41.836
0	0	514.76	41.836
0	0	515.47	41.836
0	0	516.18	41.836
0	0	516.89	41.836
0	0	517.6	41.836
0	0	518.31	41.836
0	0	519.02	41.836
0	0	519.73	41.836
0	0	520.44	41.836
0	0	521.15	41.836
0	0	521.86	41.836
0	0	522.57	41.849
0	0	523.28	41.849
0	0	523.99	41.849
0	0	524.7	41.849
0	0	525.41	41.849
0	0	526.12	41.849
0	0	526.83	41.849
0	0	527.54	41.849
0	0	528.25	41.849
0	0	528.96	41.849
0	0	529.67	41.849
0	0	530.38	41.849
0	0	531.09	41.849
0	0	531.8	41.849
0	0	532.51	41.849
0	0	533.22	41.849
0	0	533.93	41.849
0	0	534.64	41.849
0	0	535.35	41.849
0	0	536.06	41.849
0	0	536.77	41.849
0	0	537.48	41.849
0	0	538.19	41.755
0	0	538.9	41.755
0	0	539.61	41.755
0	0	540.32	41.755
0	0	541.03	41.755
0	0	541.74	41.755
0	0	542.45	41.755
0	0	543.16	41.755
0	0	543.87	41.755
0	0	544.58	41.755
0	0	545.29	41.755
0	0	546	41.755
0	0	546.71	41.755
0	0	547.42	41.755
0	0	548.13	41.755
0	0	548.84	41.755
0	0	549.55	41.755
0	0	550.26	41.755
0	0	550.97	41.755
0	0	551.68	41.755
0	0	552.39	41.755
0	0	553.1	41.755
0	0	553.81	41.563
0	0	554.52	41.563
0	0	555.23	41.563
0	0	555.94	41.563
0	0	556.65	41.563
0	0	557.36	41.563
0	0	558.07	41.563
0	0	558.78	41.563
0	0	559.49	41.563
0	0	560.2	41.563
0	0	560.91	41.563
0	0	561.62	41.563
0	0	562.33	41.563
0	0	563.04	41.563
0	0	563.75	41.563
0	0	564.46	41.563
0	0	565.17	41.563
0	0	565.88	41.563
0	0	566.59	41.563
0	0	567.3	41.563
0	0	568.01	41.563
0	0	568.72	41.563
0	0	569.43	41.5
0	0	570.14	41.5
0	0	570.85	41.5
0	0	571.56	41.5
0	0	572.27	41.5
0	0	572.98	41.5
0	0	573.69	41.5
0	0	574.4	41.5
0	0	575.11	41.5
0	0	575.82	41.5
0	0	576.53	41.5
0	0	577.24	41.5
0	0	577.95	41.5
0	0	578.66	41.5
0	0	579.37	41.5
0	0	580.08	41.5
0	0	580.79	41.5
0	0	581.5	41.5
0	0	582.21	41.5
0	0	582.92	41.5
0	0	583.63	41.5
0	0	584.34	41.5
0	0	585.05	41.585
0	0	585.76	41.585
0	0	586.47	41.585
0	0	587.18	41.585
0	0	587.89	41.585
0	0	588.6	41.585
0	0	589.31	41.585
0	0	590.02	41.585
0	0	590.73	41.585
0	0	591.44	41.585
0	0	592.15	41.585
0	0	592.86	41.585
0	0	593.57	41.585
0	0	594.28	41.585
0	0	594.99	41.585
0	0	595.7	41.585
0	0	596.41	41.585
0	0	597.12	41.585
0	0	597.83	41.585
0	0	598.54	41.585
0	0	599.25	41.585
0	0	599.96	41.585
0	0	600.67	41.678
0	0	601.38	41.678
0	0	602.09	41.678
0	0	602.8	41.678
0	0	603.51	41.678
0	0	604.22	41.678
0	0	604.93	41.678
0	0	605.64	41.678
0	0	606.35	41.678
0	0	607.06	41.678
0	0	607.77	41.678
0	0	608.48	41.678
0	0	609.19	41.678
0	0	609.9	41.678
0	0	610.61	41.678
0	0	611.32	41.678
0	0	612.03	41.678
0	0	612.74	41.678
0	0	613.45	41.678
0	0	614.16	41.678
0	0	614.87	41.678
0	0	615.58	41.678
0	0	616.29	41.738
0	0	617	41.738
0	0	617.71	41.738
0	0	618.42	41.738
0	0	619.13	41.738
0	0	619.84	41.738
0	0	620.55	41.738
0	0	621.26	41.738
0	0	621.97	41.738
0	0	622.68	41.738
0	0	623.39	41.738
0	0	624.1	41.738
0	0	624.81	41.738
0	0	625.52	41.738
0	0	626.23	41.738
0	0	626.94	41.738
0	0	627.65	41.738
0	0	628.36	41.738
0	0	629.07	41.738
0	0	629.78	41.738
0	0	630.49	41.738
0	0	631.2	41.738
0	0	631.91	41.649
0	0	632.62	41.649
0	0	633.33	41.649
0	0	634.04	41.649
0	0	634.75	41.649
0	0	635.46	41.649
0	0	636.17	41.649
0	0	636.88	41.649
0	0	637.59	41.649
0	0	638.3	41.649
0	0	639.01	41.649
0	0	639.72	41.649
0	0	640.43	41.649
0	0	641.14	41.649
0	0	641.85	41.649
0	0	642.56	41.649
0	0	643.27	41.649
0	0	643.98	41.649
0	0	644.69	41.649
0	0	645.4	41.649
0	0	646.11	41.649
0	0	646.82	41.649
0	0	647.53	41.54
0	0	648.24	41.54
0	0	648.95	41.54
0	0	649.66	41.54
0	0	650.37	41.54
0	0	651.08	41.54
0	0	651.79	41.54
0	0	652.5	41.54
0	0	653.21	41.54
0	0	653.92	41.54
0	0	654.63	41.54
0	0	655.34	41.54
0	0	656.05	41.54
0	0	656.76	41.54
0	0	657.47	41.54
0	0	658.18	41.54
0	0	658.89	41.54
0	0	659.6	41.54
0	0	660.31	41.54
0	0	661.02	41.54
0	0	661.73	41.54
0	0	662.44	41.54
0	0	663.15	41.513
0	0	663.86	41.513
0	0	664.57	41.513
0	0	665.28	41.513
0	0	665.99	41.513
0	0	666.7	41.513
0	0	667.41	41.513
0	0	668.12	41.513
0	0	668.83	41.513
0	0	669.54	41.513
0	0	670.25	41.513
0	0	670.96	41.513
0	0	671.67	41.513
0	0	672.38	41.513
0	0	673.09	41.513
0	0	673.8	41.513
0	0	674.51	41.513
0	0	675.22	41.513
0	0	675.93	41.513
0	0	676.64	41.513
0	0	677.35	41.513
0	0	678.06	41.513
0	0	678.77	41.421
0	0	679.48	41.421
0	0	680.19	41.421
0	0	680.9	41.421
0	0	681.61	41.421
0	0	682.32	41.421
0	0	683.03	41.421
0	0	683.74	41.421
0	0	684.45	41.421
0	0	685.16	41.421
0	0	685.87	41.421
0	0	686.58	41.421
0	0	687.29	41.421
0	0	688	41.421
]
%8th point
x_137 = [-22	40.729	-22	27.015
-12	31.654	-21.29	27.015
-2	19.528	-20.58	27.015
8	5.479	-19.87	27.015
18	-6.716	-19.16	27.015
28	-12.752	-18.45	27.015
38	-15.282	-17.74	27.015
48	-15.908	-17.03	27.015
58	-15.987	-16.32	27.015
68	-15.615	-15.61	27.015
78	-14.982	-14.9	27.015
88	-14.278	-14.19	27.015
98	-13.465	-13.48	27.015
108	-12.412	-12.77	27.015
118	-11.354	-12.06	27.015
128	-10.091	-11.35	27.015
138	-8.768	-10.64	27.015
148	-7.153	-9.93	27.015
158	-5.46	-9.22	8.8142
168	-3.516	-8.51	8.8142
178	-1.719	-7.8	8.8142
188	0.568	-7.09	8.8142
198	2.992	-6.38	8.8142
208	5.705	-5.67	8.8142
218	8.844	-4.96	8.8142
228	12.726	-4.25	8.8142
238	17.645	-3.54	8.8142
248	23.777	-2.83	8.8142
258	30.855	-2.12	8.8142
268	37.679	-1.41	8.8142
278	42.05	-0.7	8.8142
288	43.006	1.00E-02	8.8142
298	42.886	0.72	8.8142
318	42.571	1.43	8.8142
338	42.314	2.14	8.8142
358	42.145	2.85	8.8142
378	42.012	3.56	8.8142
408	41.796	4.27	8.8142
438	41.64	4.98	8.8142
468	41.48	5.69	8.8142
508	41.286	6.4	-3.0776
548	41.128	7.11	-3.0776
588	41.16	7.82	-3.0776
638	41.168	8.53	-3.0776
688	41.066	9.24	-3.0776
0	0	9.95	-3.0776
0	0	10.66	-3.0776
0	0	11.37	-3.0776
0	0	12.08	-3.0776
0	0	12.79	-3.0776
0	0	13.5	-3.0776
0	0	14.21	-3.0776
0	0	14.92	-3.0776
0	0	15.63	-3.0776
0	0	16.34	-3.0776
0	0	17.05	-3.0776
0	0	17.76	-3.0776
0	0	18.47	-3.0776
0	0	19.18	-3.0776
0	0	19.89	-3.0776
0	0	20.6	-3.0776
0	0	21.31	-3.0776
0	0	22.02	-9.3188
0	0	22.73	-9.3188
0	0	23.44	-9.3188
0	0	24.15	-9.3188
0	0	24.86	-9.3188
0	0	25.57	-9.3188
0	0	26.28	-9.3188
0	0	26.99	-9.3188
0	0	27.7	-9.3188
0	0	28.41	-9.3188
0	0	29.12	-9.3188
0	0	29.83	-9.3188
0	0	30.54	-9.3188
0	0	31.25	-9.3188
0	0	31.96	-9.3188
0	0	32.67	-9.3188
0	0	33.38	-9.3188
0	0	34.09	-9.3188
0	0	34.8	-9.3188
0	0	35.51	-9.3188
0	0	36.22	-9.3188
0	0	36.93	-9.3188
0	0	37.64	-11.89
0	0	38.35	-11.89
0	0	39.06	-11.89
0	0	39.77	-11.89
0	0	40.48	-11.89
0	0	41.19	-11.89
0	0	41.9	-11.89
0	0	42.61	-11.89
0	0	43.32	-11.89
0	0	44.03	-11.89
0	0	44.74	-11.89
0	0	45.45	-11.89
0	0	46.16	-11.89
0	0	46.87	-11.89
0	0	47.58	-11.89
0	0	48.29	-11.89
0	0	49	-11.89
0	0	49.71	-11.89
0	0	50.42	-11.89
0	0	51.13	-11.89
0	0	51.84	-11.89
0	0	52.55	-11.89
0	0	53.26	-12.239
0	0	53.97	-12.239
0	0	54.68	-12.239
0	0	55.39	-12.239
0	0	56.1	-12.239
0	0	56.81	-12.239
0	0	57.52	-12.239
0	0	58.23	-12.239
0	0	58.94	-12.239
0	0	59.65	-12.239
0	0	60.36	-12.239
0	0	61.07	-12.239
0	0	61.78	-12.239
0	0	62.49	-12.239
0	0	63.2	-12.239
0	0	63.91	-12.239
0	0	64.62	-12.239
0	0	65.33	-12.239
0	0	66.04	-12.239
0	0	66.75	-12.239
0	0	67.46	-12.239
0	0	68.17	-12.239
0	0	68.88	-11.233
0	0	69.59	-11.233
0	0	70.3	-11.233
0	0	71.01	-11.233
0	0	71.72	-11.233
0	0	72.43	-11.233
0	0	73.14	-11.233
0	0	73.85	-11.233
0	0	74.56	-11.233
0	0	75.27	-11.233
0	0	75.98	-11.233
0	0	76.69	-11.233
0	0	77.4	-11.233
0	0	78.11	-11.233
0	0	78.82	-11.233
0	0	79.53	-11.233
0	0	80.24	-11.233
0	0	80.95	-11.233
0	0	81.66	-11.233
0	0	82.37	-11.233
0	0	83.08	-11.233
0	0	83.79	-11.233
0	0	84.5	-9.3486
0	0	85.21	-9.3486
0	0	85.92	-9.3486
0	0	86.63	-9.3486
0	0	87.34	-9.3486
0	0	88.05	-9.3486
0	0	88.76	-9.3486
0	0	89.47	-9.3486
0	0	90.18	-9.3486
0	0	90.89	-9.3486
0	0	91.6	-9.3486
0	0	92.31	-9.3486
0	0	93.02	-9.3486
0	0	93.73	-9.3486
0	0	94.44	-9.3486
0	0	95.15	-9.3486
0	0	95.86	-9.3486
0	0	96.57	-9.3486
0	0	97.28	-9.3486
0	0	97.99	-9.3486
0	0	98.7	-9.3486
0	0	99.41	-9.3486
0	0	100.12	-6.6151
0	0	100.83	-6.6151
0	0	101.54	-6.6151
0	0	102.25	-6.6151
0	0	102.96	-6.6151
0	0	103.67	-6.6151
0	0	104.38	-6.6151
0	0	105.09	-6.6151
0	0	105.8	-6.6151
0	0	106.51	-6.6151
0	0	107.22	-6.6151
0	0	107.93	-6.6151
0	0	108.64	-6.6151
0	0	109.35	-6.6151
0	0	110.06	-6.6151
0	0	110.77	-6.6151
0	0	111.48	-6.6151
0	0	112.19	-6.6151
0	0	112.9	-6.6151
0	0	113.61	-6.6151
0	0	114.32	-6.6151
0	0	115.03	-6.6151
0	0	115.74	-2.842
0	0	116.45	-2.842
0	0	117.16	-2.842
0	0	117.87	-2.842
0	0	118.58	-2.842
0	0	119.29	-2.842
0	0	120	-2.842
0	0	120.71	-2.842
0	0	121.42	-2.842
0	0	122.13	-2.842
0	0	122.84	-2.842
0	0	123.55	-2.842
0	0	124.26	-2.842
0	0	124.97	-2.842
0	0	125.68	-2.842
0	0	126.39	-2.842
0	0	127.1	-2.842
0	0	127.81	-2.842
0	0	128.52	-2.842
0	0	129.23	-2.842
0	0	129.94	-2.842
0	0	130.65	-2.842
0	0	131.36	1.8069
0	0	132.07	1.8069
0	0	132.78	1.8069
0	0	133.49	1.8069
0	0	134.2	1.8069
0	0	134.91	1.8069
0	0	135.62	1.8069
0	0	136.33	1.8069
0	0	137.04	1.8069
0	0	137.75	1.8069
0	0	138.46	1.8069
0	0	139.17	1.8069
0	0	139.88	1.8069
0	0	140.59	1.8069
0	0	141.3	1.8069
0	0	142.01	1.8069
0	0	142.72	1.8069
0	0	143.43	1.8069
0	0	144.14	1.8069
0	0	144.85	1.8069
0	0	145.56	1.8069
0	0	146.27	1.8069
0	0	146.98	7.1365
0	0	147.69	7.1365
0	0	148.4	7.1365
0	0	149.11	7.1365
0	0	149.82	7.1365
0	0	150.53	7.1365
0	0	151.24	7.1365
0	0	151.95	7.1365
0	0	152.66	7.1365
0	0	153.37	7.1365
0	0	154.08	7.1365
0	0	154.79	7.1365
0	0	155.5	7.1365
0	0	156.21	7.1365
0	0	156.92	7.1365
0	0	157.63	7.1365
0	0	158.34	7.1365
0	0	159.05	7.1365
0	0	159.76	7.1365
0	0	160.47	7.1365
0	0	161.18	7.1365
0	0	161.89	7.1365
0	0	162.6	13.015
0	0	163.31	13.015
0	0	164.02	13.015
0	0	164.73	13.015
0	0	165.44	13.015
0	0	166.15	13.015
0	0	166.86	13.015
0	0	167.57	13.015
0	0	168.28	13.015
0	0	168.99	13.015
0	0	169.7	13.015
0	0	170.41	13.015
0	0	171.12	13.015
0	0	171.83	13.015
0	0	172.54	13.015
0	0	173.25	13.015
0	0	173.96	13.015
0	0	174.67	13.015
0	0	175.38	13.015
0	0	176.09	13.015
0	0	176.8	13.015
0	0	177.51	13.015
0	0	178.22	19.726
0	0	178.93	19.726
0	0	179.64	19.726
0	0	180.35	19.726
0	0	181.06	19.726
0	0	181.77	19.726
0	0	182.48	19.726
0	0	183.19	19.726
0	0	183.9	19.726
0	0	184.61	19.726
0	0	185.32	19.726
0	0	186.03	19.726
0	0	186.74	19.726
0	0	187.45	19.726
0	0	188.16	19.726
0	0	188.87	19.726
0	0	189.58	19.726
0	0	190.29	19.726
0	0	191	19.726
0	0	191.71	19.726
0	0	192.42	19.726
0	0	193.13	19.726
0	0	193.84	26.453
0	0	194.55	26.453
0	0	195.26	26.453
0	0	195.97	26.453
0	0	196.68	26.453
0	0	197.39	26.453
0	0	198.1	26.453
0	0	198.81	26.453
0	0	199.52	26.453
0	0	200.23	26.453
0	0	200.94	26.453
0	0	201.65	26.453
0	0	202.36	26.453
0	0	203.07	26.453
0	0	203.78	26.453
0	0	204.49	26.453
0	0	205.2	26.453
0	0	205.91	26.453
0	0	206.62	26.453
0	0	207.33	26.453
0	0	208.04	26.453
0	0	208.75	26.453
0	0	209.46	32.113
0	0	210.17	32.113
0	0	210.88	32.113
0	0	211.59	32.113
0	0	212.3	32.113
0	0	213.01	32.113
0	0	213.72	32.113
0	0	214.43	32.113
0	0	215.14	32.113
0	0	215.85	32.113
0	0	216.56	32.113
0	0	217.27	32.113
0	0	217.98	32.113
0	0	218.69	32.113
0	0	219.4	32.113
0	0	220.11	32.113
0	0	220.82	32.113
0	0	221.53	32.113
0	0	222.24	32.113
0	0	222.95	32.113
0	0	223.66	32.113
0	0	224.37	32.113
0	0	225.08	35.284
0	0	225.79	35.284
0	0	226.5	35.284
0	0	227.21	35.284
0	0	227.92	35.284
0	0	228.63	35.284
0	0	229.34	35.284
0	0	230.05	35.284
0	0	230.76	35.284
0	0	231.47	35.284
0	0	232.18	35.284
0	0	232.89	35.284
0	0	233.6	35.284
0	0	234.31	35.284
0	0	235.02	35.284
0	0	235.73	35.284
0	0	236.44	35.284
0	0	237.15	35.284
0	0	237.86	35.284
0	0	238.57	35.284
0	0	239.28	35.284
0	0	239.99	35.284
0	0	240.7	37.44
0	0	241.41	37.44
0	0	242.12	37.44
0	0	242.83	37.44
0	0	243.54	37.44
0	0	244.25	37.44
0	0	244.96	37.44
0	0	245.67	37.44
0	0	246.38	37.44
0	0	247.09	37.44
0	0	247.8	37.44
0	0	248.51	37.44
0	0	249.22	37.44
0	0	249.93	37.44
0	0	250.64	37.44
0	0	251.35	37.44
0	0	252.06	37.44
0	0	252.77	37.44
0	0	253.48	37.44
0	0	254.19	37.44
0	0	254.9	37.44
0	0	255.61	37.44
0	0	256.32	39.144
0	0	257.03	39.144
0	0	257.74	39.144
0	0	258.45	39.144
0	0	259.16	39.144
0	0	259.87	39.144
0	0	260.58	39.144
0	0	261.29	39.144
0	0	262	39.144
0	0	262.71	39.144
0	0	263.42	39.144
0	0	264.13	39.144
0	0	264.84	39.144
0	0	265.55	39.144
0	0	266.26	39.144
0	0	266.97	39.144
0	0	267.68	39.144
0	0	268.39	39.144
0	0	269.1	39.144
0	0	269.81	39.144
0	0	270.52	39.144
0	0	271.23	39.144
0	0	271.94	40.099
0	0	272.65	40.099
0	0	273.36	40.099
0	0	274.07	40.099
0	0	274.78	40.099
0	0	275.49	40.099
0	0	276.2	40.099
0	0	276.91	40.099
0	0	277.62	40.099
0	0	278.33	40.099
0	0	279.04	40.099
0	0	279.75	40.099
0	0	280.46	40.099
0	0	281.17	40.099
0	0	281.88	40.099
0	0	282.59	40.099
0	0	283.3	40.099
0	0	284.01	40.099
0	0	284.72	40.099
0	0	285.43	40.099
0	0	286.14	40.099
0	0	286.85	40.099
0	0	287.56	40.338
0	0	288.27	40.338
0	0	288.98	40.338
0	0	289.69	40.338
0	0	290.4	40.338
0	0	291.11	40.338
0	0	291.82	40.338
0	0	292.53	40.338
0	0	293.24	40.338
0	0	293.95	40.338
0	0	294.66	40.338
0	0	295.37	40.338
0	0	296.08	40.338
0	0	296.79	40.338
0	0	297.5	40.338
0	0	298.21	40.338
0	0	298.92	40.338
0	0	299.63	40.338
0	0	300.34	40.338
0	0	301.05	40.338
0	0	301.76	40.338
0	0	302.47	40.338
0	0	303.18	40.589
0	0	303.89	40.589
0	0	304.6	40.589
0	0	305.31	40.589
0	0	306.02	40.589
0	0	306.73	40.589
0	0	307.44	40.589
0	0	308.15	40.589
0	0	308.86	40.589
0	0	309.57	40.589
0	0	310.28	40.589
0	0	310.99	40.589
0	0	311.7	40.589
0	0	312.41	40.589
0	0	313.12	40.589
0	0	313.83	40.589
0	0	314.54	40.589
0	0	315.25	40.589
0	0	315.96	40.589
0	0	316.67	40.589
0	0	317.38	40.589
0	0	318.09	40.589
0	0	318.8	40.545
0	0	319.51	40.545
0	0	320.22	40.545
0	0	320.93	40.545
0	0	321.64	40.545
0	0	322.35	40.545
0	0	323.06	40.545
0	0	323.77	40.545
0	0	324.48	40.545
0	0	325.19	40.545
0	0	325.9	40.545
0	0	326.61	40.545
0	0	327.32	40.545
0	0	328.03	40.545
0	0	328.74	40.545
0	0	329.45	40.545
0	0	330.16	40.545
0	0	330.87	40.545
0	0	331.58	40.545
0	0	332.29	40.545
0	0	333	40.545
0	0	333.71	40.545
0	0	334.42	40.849
0	0	335.13	40.849
0	0	335.84	40.849
0	0	336.55	40.849
0	0	337.26	40.849
0	0	337.97	40.849
0	0	338.68	40.849
0	0	339.39	40.849
0	0	340.1	40.849
0	0	340.81	40.849
0	0	341.52	40.849
0	0	342.23	40.849
0	0	342.94	40.849
0	0	343.65	40.849
0	0	344.36	40.849
0	0	345.07	40.849
0	0	345.78	40.849
0	0	346.49	40.849
0	0	347.2	40.849
0	0	347.91	40.849
0	0	348.62	40.849
0	0	349.33	40.849
0	0	350.04	41.489
0	0	350.75	41.489
0	0	351.46	41.489
0	0	352.17	41.489
0	0	352.88	41.489
0	0	353.59	41.489
0	0	354.3	41.489
0	0	355.01	41.489
0	0	355.72	41.489
0	0	356.43	41.489
0	0	357.14	41.489
0	0	357.85	41.489
0	0	358.56	41.489
0	0	359.27	41.489
0	0	359.98	41.489
0	0	360.69	41.489
0	0	361.4	41.489
0	0	362.11	41.489
0	0	362.82	41.489
0	0	363.53	41.489
0	0	364.24	41.489
0	0	364.95	41.489
0	0	365.66	40.959
0	0	366.37	40.959
0	0	367.08	40.959
0	0	367.79	40.959
0	0	368.5	40.959
0	0	369.21	40.959
0	0	369.92	40.959
0	0	370.63	40.959
0	0	371.34	40.959
0	0	372.05	40.959
0	0	372.76	40.959
0	0	373.47	40.959
0	0	374.18	40.959
0	0	374.89	40.959
0	0	375.6	40.959
0	0	376.31	40.959
0	0	377.02	40.959
0	0	377.73	40.959
0	0	378.44	40.959
0	0	379.15	40.959
0	0	379.86	40.959
0	0	380.57	40.959
0	0	381.28	41.177
0	0	381.99	41.177
0	0	382.7	41.177
0	0	383.41	41.177
0	0	384.12	41.177
0	0	384.83	41.177
0	0	385.54	41.177
0	0	386.25	41.177
0	0	386.96	41.177
0	0	387.67	41.177
0	0	388.38	41.177
0	0	389.09	41.177
0	0	389.8	41.177
0	0	390.51	41.177
0	0	391.22	41.177
0	0	391.93	41.177
0	0	392.64	41.177
0	0	393.35	41.177
0	0	394.06	41.177
0	0	394.77	41.177
0	0	395.48	41.177
0	0	396.19	41.177
0	0	396.9	41.148
0	0	397.61	41.148
0	0	398.32	41.148
0	0	399.03	41.148
0	0	399.74	41.148
0	0	400.45	41.148
0	0	401.16	41.148
0	0	401.87	41.148
0	0	402.58	41.148
0	0	403.29	41.148
0	0	404	41.148
0	0	404.71	41.148
0	0	405.42	41.148
0	0	406.13	41.148
0	0	406.84	41.148
0	0	407.55	41.148
0	0	408.26	41.148
0	0	408.97	41.148
0	0	409.68	41.148
0	0	410.39	41.148
0	0	411.1	41.148
0	0	411.81	41.148
0	0	412.52	41.077
0	0	413.23	41.077
0	0	413.94	41.077
0	0	414.65	41.077
0	0	415.36	41.077
0	0	416.07	41.077
0	0	416.78	41.077
0	0	417.49	41.077
0	0	418.2	41.077
0	0	418.91	41.077
0	0	419.62	41.077
0	0	420.33	41.077
0	0	421.04	41.077
0	0	421.75	41.077
0	0	422.46	41.077
0	0	423.17	41.077
0	0	423.88	41.077
0	0	424.59	41.077
0	0	425.3	41.077
0	0	426.01	41.077
0	0	426.72	41.077
0	0	427.43	41.077
0	0	428.14	41.165
0	0	428.85	41.165
0	0	429.56	41.165
0	0	430.27	41.165
0	0	430.98	41.165
0	0	431.69	41.165
0	0	432.4	41.165
0	0	433.11	41.165
0	0	433.82	41.165
0	0	434.53	41.165
0	0	435.24	41.165
0	0	435.95	41.165
0	0	436.66	41.165
0	0	437.37	41.165
0	0	438.08	41.165
0	0	438.79	41.165
0	0	439.5	41.165
0	0	440.21	41.165
0	0	440.92	41.165
0	0	441.63	41.165
0	0	442.34	41.165
0	0	443.05	41.165
0	0	443.76	41.105
0	0	444.47	41.105
0	0	445.18	41.105
0	0	445.89	41.105
0	0	446.6	41.105
0	0	447.31	41.105
0	0	448.02	41.105
0	0	448.73	41.105
0	0	449.44	41.105
0	0	450.15	41.105
0	0	450.86	41.105
0	0	451.57	41.105
0	0	452.28	41.105
0	0	452.99	41.105
0	0	453.7	41.105
0	0	454.41	41.105
0	0	455.12	41.105
0	0	455.83	41.105
0	0	456.54	41.105
0	0	457.25	41.105
0	0	457.96	41.105
0	0	458.67	41.105
0	0	459.38	41.365
0	0	460.09	41.365
0	0	460.8	41.365
0	0	461.51	41.365
0	0	462.22	41.365
0	0	462.93	41.365
0	0	463.64	41.365
0	0	464.35	41.365
0	0	465.06	41.365
0	0	465.77	41.365
0	0	466.48	41.365
0	0	467.19	41.365
0	0	467.9	41.365
0	0	468.61	41.365
0	0	469.32	41.365
0	0	470.03	41.365
0	0	470.74	41.365
0	0	471.45	41.365
0	0	472.16	41.365
0	0	472.87	41.365
0	0	473.58	41.365
0	0	474.29	41.365
0	0	475	41.365
0	0	475.71	41.665
0	0	476.42	41.665
0	0	477.13	41.665
0	0	477.84	41.665
0	0	478.55	41.665
0	0	479.26	41.665
0	0	479.97	41.665
0	0	480.68	41.665
0	0	481.39	41.665
0	0	482.1	41.665
0	0	482.81	41.665
0	0	483.52	41.665
0	0	484.23	41.665
0	0	484.94	41.665
0	0	485.65	41.665
0	0	486.36	41.665
0	0	487.07	41.665
0	0	487.78	41.665
0	0	488.49	41.665
0	0	489.2	41.665
0	0	489.91	41.665
0	0	490.62	41.665
0	0	491.33	41.901
0	0	492.04	41.901
0	0	492.75	41.901
0	0	493.46	41.901
0	0	494.17	41.901
0	0	494.88	41.901
0	0	495.59	41.901
0	0	496.3	41.901
0	0	497.01	41.901
0	0	497.72	41.901
0	0	498.43	41.901
0	0	499.14	41.901
0	0	499.85	41.901
0	0	500.56	41.901
0	0	501.27	41.901
0	0	501.98	41.901
0	0	502.69	41.901
0	0	503.4	41.901
0	0	504.11	41.901
0	0	504.82	41.901
0	0	505.53	41.901
0	0	506.24	41.901
0	0	506.95	42.005
0	0	507.66	42.005
0	0	508.37	42.005
0	0	509.08	42.005
0	0	509.79	42.005
0	0	510.5	42.005
0	0	511.21	42.005
0	0	511.92	42.005
0	0	512.63	42.005
0	0	513.34	42.005
0	0	514.05	42.005
0	0	514.76	42.005
0	0	515.47	42.005
0	0	516.18	42.005
0	0	516.89	42.005
0	0	517.6	42.005
0	0	518.31	42.005
0	0	519.02	42.005
0	0	519.73	42.005
0	0	520.44	42.005
0	0	521.15	42.005
0	0	521.86	42.005
0	0	522.57	41.996
0	0	523.28	41.996
0	0	523.99	41.996
0	0	524.7	41.996
0	0	525.41	41.996
0	0	526.12	41.996
0	0	526.83	41.996
0	0	527.54	41.996
0	0	528.25	41.996
0	0	528.96	41.996
0	0	529.67	41.996
0	0	530.38	41.996
0	0	531.09	41.996
0	0	531.8	41.996
0	0	532.51	41.996
0	0	533.22	41.996
0	0	533.93	41.996
0	0	534.64	41.996
0	0	535.35	41.996
0	0	536.06	41.996
0	0	536.77	41.996
0	0	537.48	41.996
0	0	538.19	41.939
0	0	538.9	41.939
0	0	539.61	41.939
0	0	540.32	41.939
0	0	541.03	41.939
0	0	541.74	41.939
0	0	542.45	41.939
0	0	543.16	41.939
0	0	543.87	41.939
0	0	544.58	41.939
0	0	545.29	41.939
0	0	546	41.939
0	0	546.71	41.939
0	0	547.42	41.939
0	0	548.13	41.939
0	0	548.84	41.939
0	0	549.55	41.939
0	0	550.26	41.939
0	0	550.97	41.939
0	0	551.68	41.939
0	0	552.39	41.939
0	0	553.1	41.939
0	0	553.81	41.806
0	0	554.52	41.806
0	0	555.23	41.806
0	0	555.94	41.806
0	0	556.65	41.806
0	0	557.36	41.806
0	0	558.07	41.806
0	0	558.78	41.806
0	0	559.49	41.806
0	0	560.2	41.806
0	0	560.91	41.806
0	0	561.62	41.806
0	0	562.33	41.806
0	0	563.04	41.806
0	0	563.75	41.806
0	0	564.46	41.806
0	0	565.17	41.806
0	0	565.88	41.806
0	0	566.59	41.806
0	0	567.3	41.806
0	0	568.01	41.806
0	0	568.72	41.806
0	0	569.43	41.857
0	0	570.14	41.857
0	0	570.85	41.857
0	0	571.56	41.857
0	0	572.27	41.857
0	0	572.98	41.857
0	0	573.69	41.857
0	0	574.4	41.857
0	0	575.11	41.857
0	0	575.82	41.857
0	0	576.53	41.857
0	0	577.24	41.857
0	0	577.95	41.857
0	0	578.66	41.857
0	0	579.37	41.857
0	0	580.08	41.857
0	0	580.79	41.857
0	0	581.5	41.857
0	0	582.21	41.857
0	0	582.92	41.857
0	0	583.63	41.857
0	0	584.34	41.857
0	0	585.05	42.007
0	0	585.76	42.007
0	0	586.47	42.007
0	0	587.18	42.007
0	0	587.89	42.007
0	0	588.6	42.007
0	0	589.31	42.007
0	0	590.02	42.007
0	0	590.73	42.007
0	0	591.44	42.007
0	0	592.15	42.007
0	0	592.86	42.007
0	0	593.57	42.007
0	0	594.28	42.007
0	0	594.99	42.007
0	0	595.7	42.007
0	0	596.41	42.007
0	0	597.12	42.007
0	0	597.83	42.007
0	0	598.54	42.007
0	0	599.25	42.007
0	0	599.96	42.007
0	0	600.67	42.145
0	0	601.38	42.145
0	0	602.09	42.145
0	0	602.8	42.145
0	0	603.51	42.145
0	0	604.22	42.145
0	0	604.93	42.145
0	0	605.64	42.145
0	0	606.35	42.145
0	0	607.06	42.145
0	0	607.77	42.145
0	0	608.48	42.145
0	0	609.19	42.145
0	0	609.9	42.145
0	0	610.61	42.145
0	0	611.32	42.145
0	0	612.03	42.145
0	0	612.74	42.145
0	0	613.45	42.145
0	0	614.16	42.145
0	0	614.87	42.145
0	0	615.58	42.145
0	0	616.29	42.104
0	0	617	42.104
0	0	617.71	42.104
0	0	618.42	42.104
0	0	619.13	42.104
0	0	619.84	42.104
0	0	620.55	42.104
0	0	621.26	42.104
0	0	621.97	42.104
0	0	622.68	42.104
0	0	623.39	42.104
0	0	624.1	42.104
0	0	624.81	42.104
0	0	625.52	42.104
0	0	626.23	42.104
0	0	626.94	42.104
0	0	627.65	42.104
0	0	628.36	42.104
0	0	629.07	42.104
0	0	629.78	42.104
0	0	630.49	42.104
0	0	631.2	42.104
0	0	631.91	42.011
0	0	632.62	42.011
0	0	633.33	42.011
0	0	634.04	42.011
0	0	634.75	42.011
0	0	635.46	42.011
0	0	636.17	42.011
0	0	636.88	42.011
0	0	637.59	42.011
0	0	638.3	42.011
0	0	639.01	42.011
0	0	639.72	42.011
0	0	640.43	42.011
0	0	641.14	42.011
0	0	641.85	42.011
0	0	642.56	42.011
0	0	643.27	42.011
0	0	643.98	42.011
0	0	644.69	42.011
0	0	645.4	42.011
0	0	646.11	42.011
0	0	646.82	42.011
0	0	647.53	41.873
0	0	648.24	41.873
0	0	648.95	41.873
0	0	649.66	41.873
0	0	650.37	41.873
0	0	651.08	41.873
0	0	651.79	41.873
0	0	652.5	41.873
0	0	653.21	41.873
0	0	653.92	41.873
0	0	654.63	41.873
0	0	655.34	41.873
0	0	656.05	41.873
0	0	656.76	41.873
0	0	657.47	41.873
0	0	658.18	41.873
0	0	658.89	41.873
0	0	659.6	41.873
0	0	660.31	41.873
0	0	661.02	41.873
0	0	661.73	41.873
0	0	662.44	41.873
0	0	663.15	41.852
0	0	663.86	41.852
0	0	664.57	41.852
0	0	665.28	41.852
0	0	665.99	41.852
0	0	666.7	41.852
0	0	667.41	41.852
0	0	668.12	41.852
0	0	668.83	41.852
0	0	669.54	41.852
0	0	670.25	41.852
0	0	670.96	41.852
0	0	671.67	41.852
0	0	672.38	41.852
0	0	673.09	41.852
0	0	673.8	41.852
0	0	674.51	41.852
0	0	675.22	41.852
0	0	675.93	41.852
0	0	676.64	41.852
0	0	677.35	41.852
0	0	678.06	41.852
0	0	678.77	41.792
0	0	679.48	41.792
0	0	680.19	41.792
0	0	680.9	41.792
0	0	681.61	41.792
0	0	682.32	41.792
0	0	683.03	41.792
0	0	683.74	41.792
0	0	684.45	41.792
0	0	685.16	41.792
0	0	685.87	41.792
0	0	686.58	41.792
0	0	687.29	41.792
0	0	688	41.792
]
% Normalisation
Amp = 5 % amplification factor
%point 1 x = -13
%experimental
z_13_exp = x_13(:,1);
u_13_exp = x_13(:,2);
u_norm_13 = Amp.*(u_13_exp./(max(u_13_exp)));
x1 = (-13) - (u_norm_13);
%simulated
z_13_sim = x_13(:,3);
u_13_sim = x_13(:,4);
u_norm_13_s = Amp.*(u_13_sim./(max(u_13_sim)));
x1_s = (-13) - (u_norm_13_s);
%point 2 x = -263
%experimented
z_263_exp = x_263(:,1);
u_263_exp = x_263(:,2);
u_norm_263 = Amp.*(u_263_exp./(max(u_263_exp)));
x2 = (-263) - (u_norm_263);
%Simulated
z_263_sim = x_263(:,3);
u_263_sim = x_263(:,4);
u_norm_263_s = Amp.*(u_263_sim./(max(u_263_sim)));
x2_s = (-263) - (u_norm_263_s);

%point 3 x = 37
%experimented
z_37_exp = x_37(:,1);
u_37_exp = x_37(:,2);
u_norm_37 = Amp.*(u_37_exp./(max(u_37_exp)));
x3 = (37) - (u_norm_37);
%Simulated
z_37_sim = x_37(:,3);
u_37_sim = x_37(:,4);
u_norm_37_s = Amp.*(u_37_sim./(max(u_37_sim)));
x3_s = (37) - (u_norm_37_s);

%point 4 x = 87
%experimented
z_87_exp = x_87(:,1);
u_87_exp = x_87(:,2);
u_norm_87 = Amp.*(u_87_exp./(max(u_87_exp)));
x4 = (87) - (u_norm_87);
%Simulated
z_87_sim = x_87(:,3);
u_87_sim = x_87(:,4);
u_norm_87_s = Amp.*(u_87_sim./(max(u_87_sim)));
x4_s = (87) - (u_norm_87_s);

%point 5 x = -113
%experimented
z_113_exp = x_113(:,1);
u_113_exp = x_113(:,2);
u_norm_113 = Amp.*(u_113_exp./(max(u_113_exp)));
x5 = (-113) - (u_norm_113);
%Simulated
z_113_sim = x_113(:,3);
u_113_sim = x_113(:,4);
u_norm_113_s = Amp.*(u_113_sim./(max(u_113_sim)));
x5_s = (-113) - (u_norm_113_s);

%point 6 x = -63
%experimented
z_63_exp = x_63(:,1);
u_63_exp = x_63(:,2);
u_norm_63 = Amp.*(u_63_exp./(max(u_63_exp)));
x6 = (-63) - (u_norm_63);
%Simulated
z_63_sim = x_63(:,3);
u_63_sim = x_63(:,4);
u_norm_63_s = Amp.*(u_63_sim./(max(u_63_sim)));
x6_s = (-63) - (u_norm_63_s);

%point 7 x = 187
%experimented
z_187_exp = x_187(:,1);
u_187_exp = x_187(:,2);
u_norm_187 = Amp.*(u_187_exp./(max(u_187_exp)));
x7 = (187) - (u_norm_87);
%Simulated
z_187_sim = x_187(:,3);
u_187_sim = x_187(:,4);
u_norm_187_s = Amp.*(u_187_sim./(max(u_187_sim)));
x7_s = (187) - (u_norm_187_s);

%point 8 x = 137
%experimented
z_137_exp = x_137(:,1);
u_137_exp = x_137(:,2);
u_norm_137 = Amp.*(u_137_exp./(max(u_137_exp)));
x8 = (137) - (u_norm_137);
%Simulated
z_137_sim = x_137(:,3);
u_137_sim = x_137(:,4);
u_norm_137_s = Amp.*(u_137_sim./(max(u_137_sim)));
x8_s = (137) - (u_norm_137_s);

%plot point 1
plot(x1,z_13_exp,'k');
hold on
plot(x1_s,z_13_sim);
%plot point 2
hold on
plot(x2,z_263_exp,'k');
hold on
plot(x2_s,z_263_sim);
%plot point 3
hold on
plot(x3,z_37_exp,'k');
hold on
plot(x3_s,z_37_sim);
%plot point 4
hold on
plot(x4,z_87_exp,'k');
hold on
plot(x4_s,z_87_sim);
%plot point 5
hold on
plot(x5,z_113_exp,'k');
hold on
plot(x5_s,z_113_sim);
%plot point 6
hold on
plot(x6,z_63_exp,'k');
hold on
plot(x6_s,z_63_sim);
%plot point 7
hold on
plot(x7,z_187_exp,'k');
hold on
plot(x7_s,z_187_sim);
%plot point 8
hold on
plot(x8,z_137_exp,'k');
hold on
plot(x8_s,z_137_sim);

Conclusions

• Created the cad model
• Simulated external flow over Ahmed body through transient simulation
• Post processed and extracted Drag and lift force values
• Extracted velocity contours
• Validated with experimental data by visualising the variation of velocity in x direction at different z locations
