Week 10 - Challenge 3 - Door Trim Lower with Engineering Features
AIM: To create HEAT STAKES AND LOCATOR in given door trim LOWER
There are two locations for HEAT STAKES
Class A:

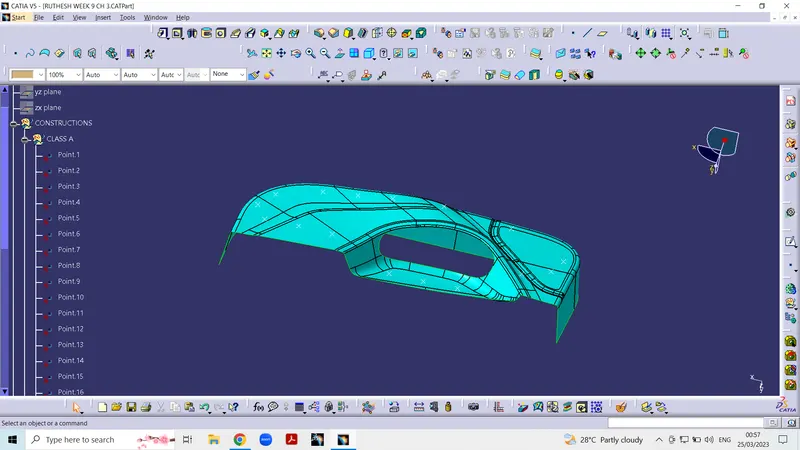

This is the given class A surface
Tooling Axis

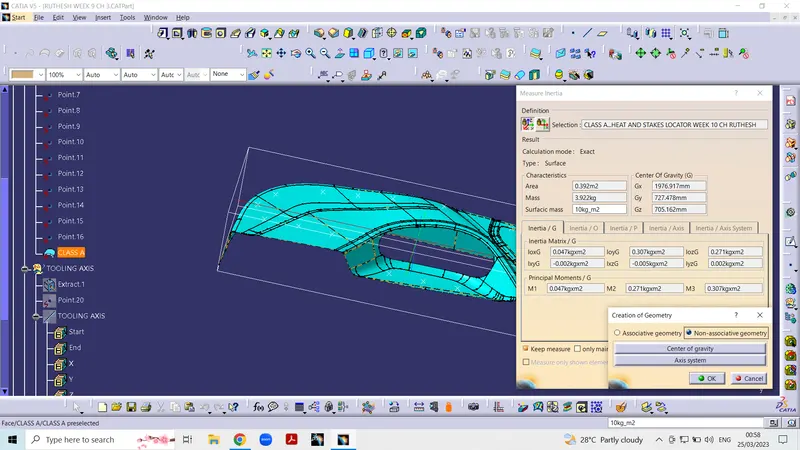

•click measure interia
•select the glass a surface and click create geometry
•select non associative geometry
•And the point is created

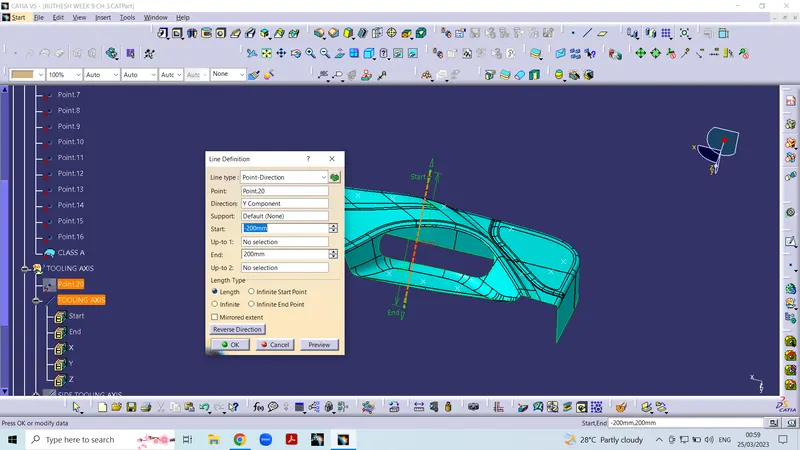

And the line is created through Y DIRECTION and the INERTIA point is taken as refernce so line is our TOOLING AXIS

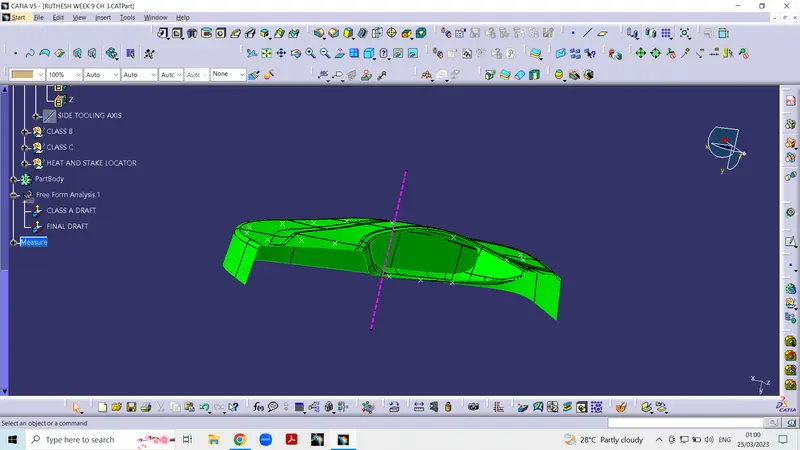

DRAFT ANALYSIS:
•Once the tooling Axis is created it is taken for dratanalysis
•The view mode is changed to material mode
•And the compass is moved towards the tooling Axis and the surface is clicked at a point so the draft analysis is done

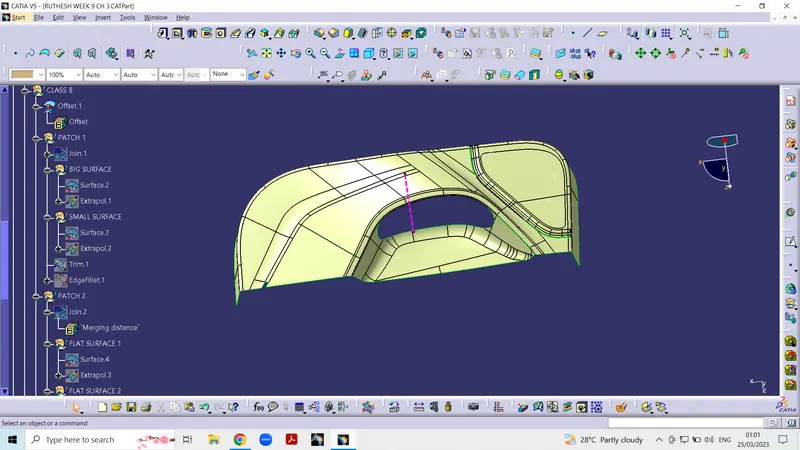

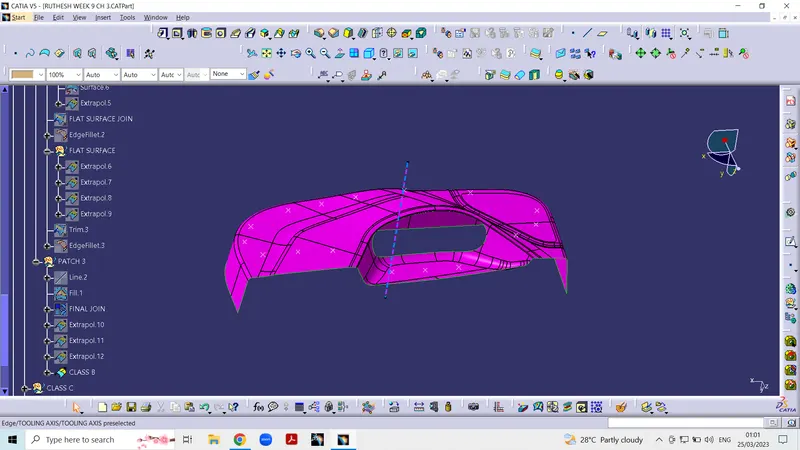

CLASS B:
• Class B surface is created using offset,
•join
•Extract
•Boundary
•Extrapolate
•and trim commands
•By selecting the class a surface it is offsetted for 2.5mm some patches are missed
•By using those commands the patches are cleared and the class B surface is formed with no missing patches

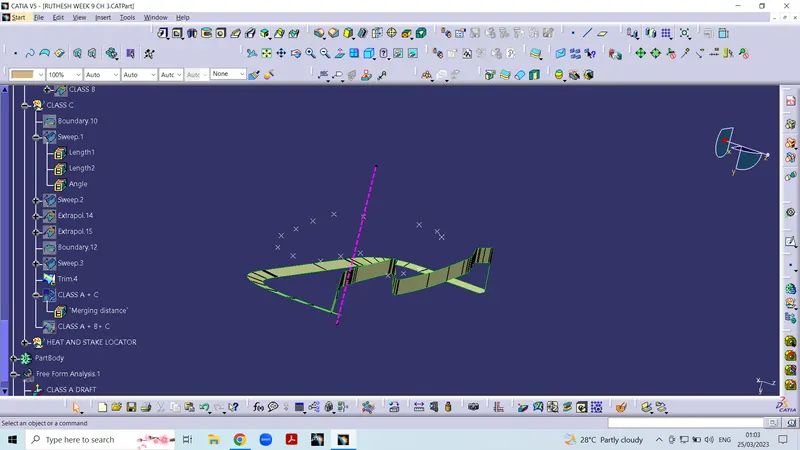

CLASS C SURFACE
• Class C surface is created using sweep
•Multiple extract
•join
•Extrapolate
•Intersect and split commands
•Surface which are perpendicular to the tooling Axis sweep command is used with reference surface with 90DEG

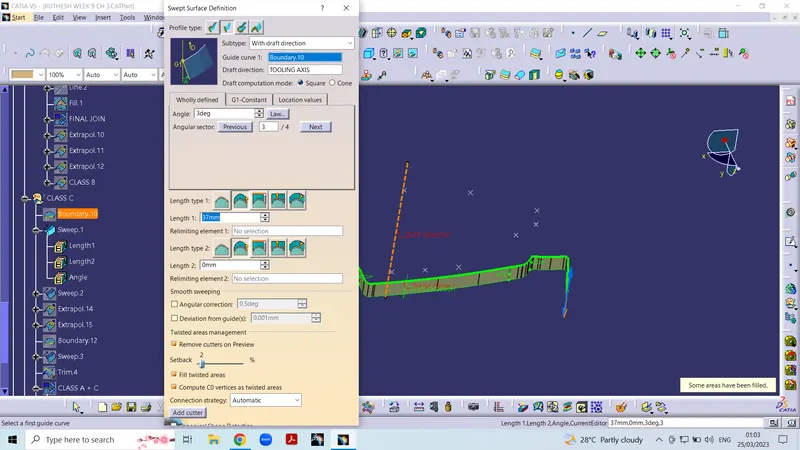

•For parallel to the tooling Axis sweep is created with draft direction with 3 DEG
•Using extrapolated the surface is increased and it is trimmed then C surface is formed

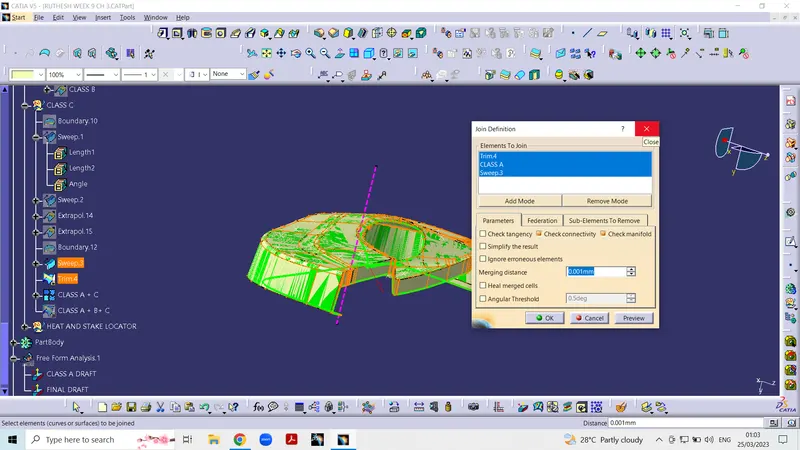

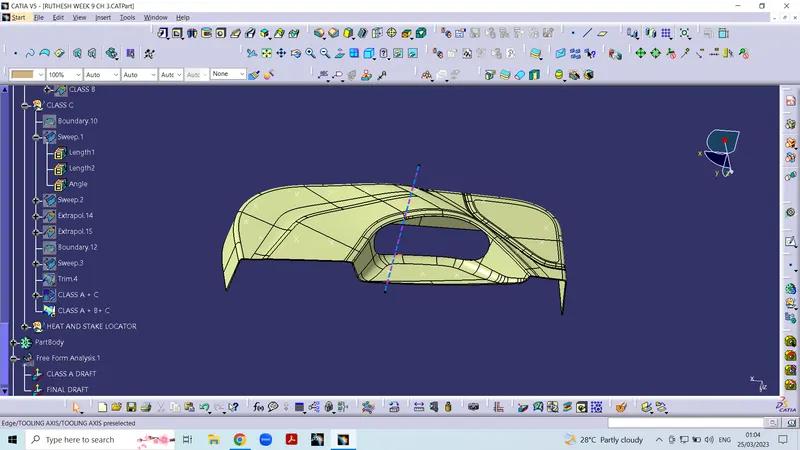

And it is joined with class A
And the class A+C is joined with B

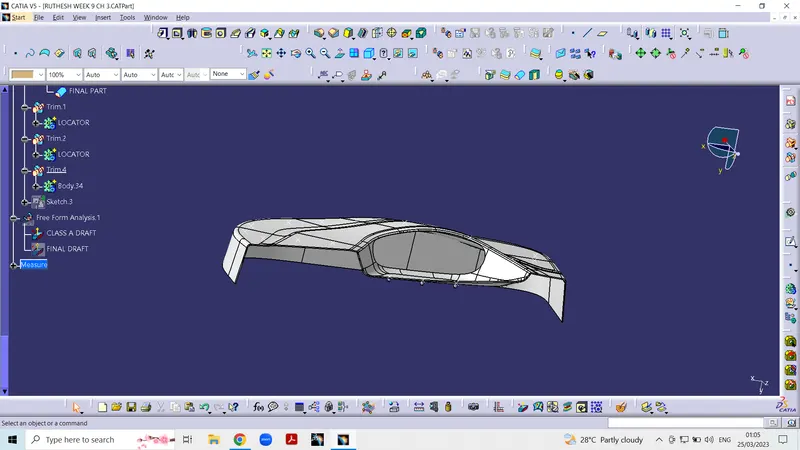

FINAL PART BODY:
using the thicknencommand the final part is created using part mode

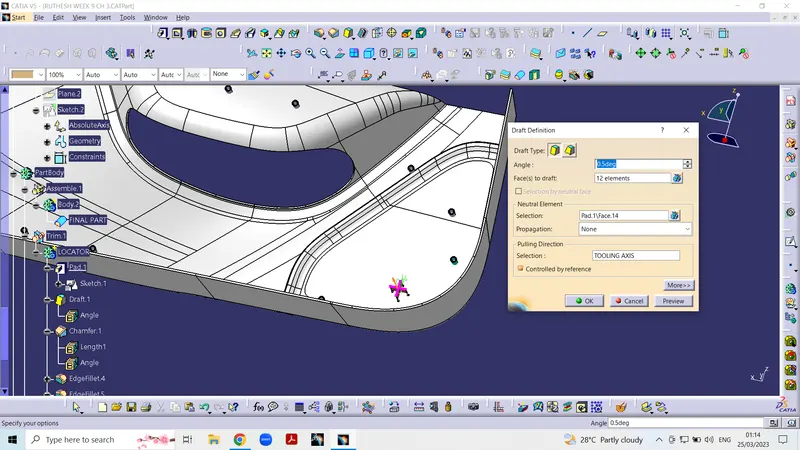

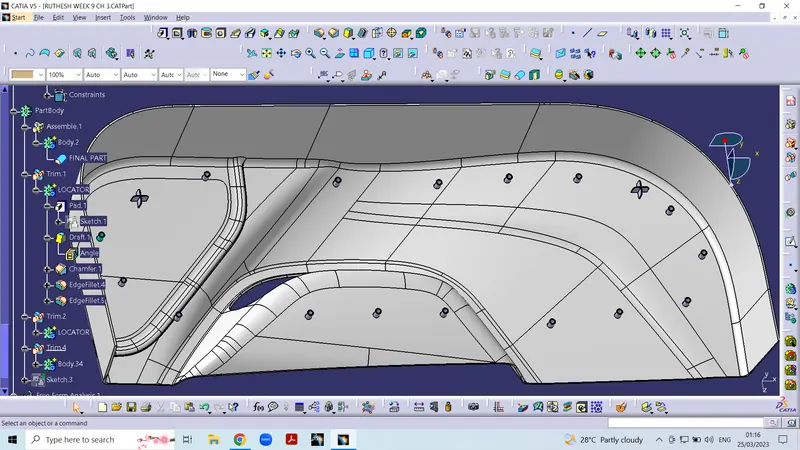

HEATSTAKE AND LOCATOR CREATION
- USING sketch
- pad

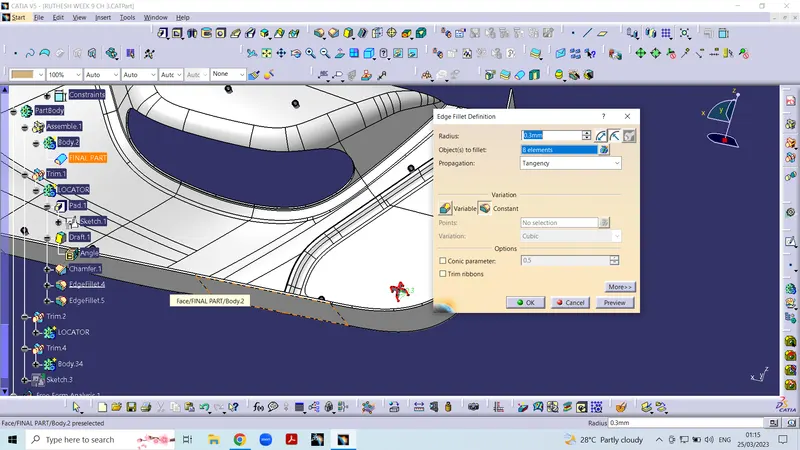

- fillet
- draft

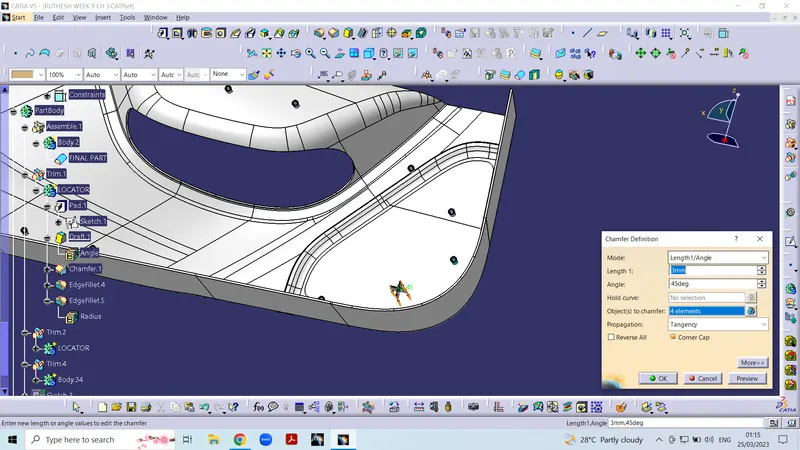

- chamber the heatstake and locators are cretaed
- heatstake is a engineering feature which is used in joining of two disimilar materials together

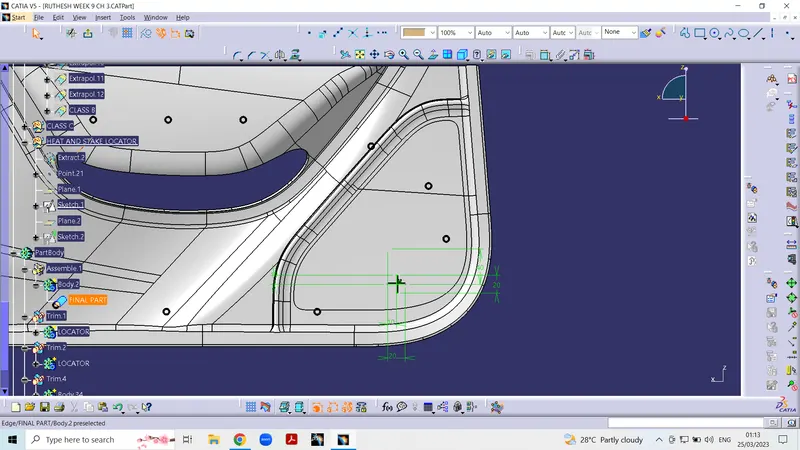

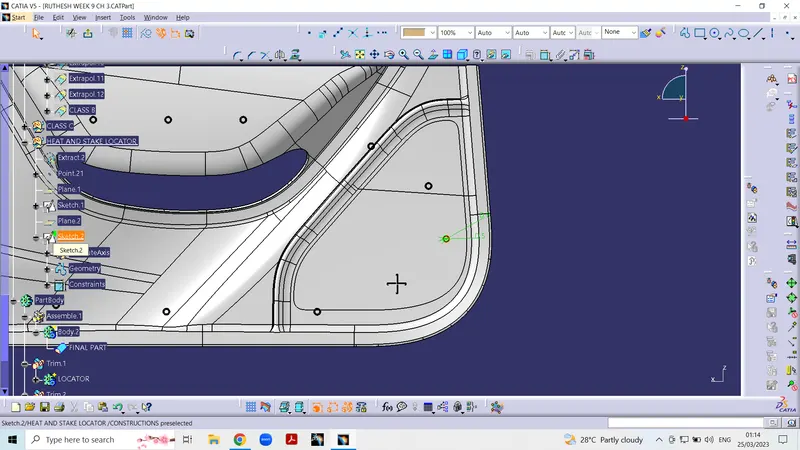

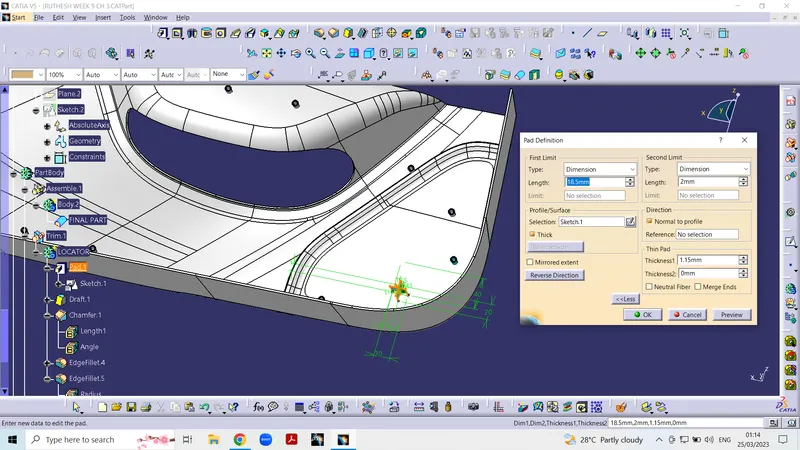

•The Sketch is drawn for the heatstake and locators and its is padded with new body and it is unitrimmed with the final component
•And translate the locators is created in desired locations

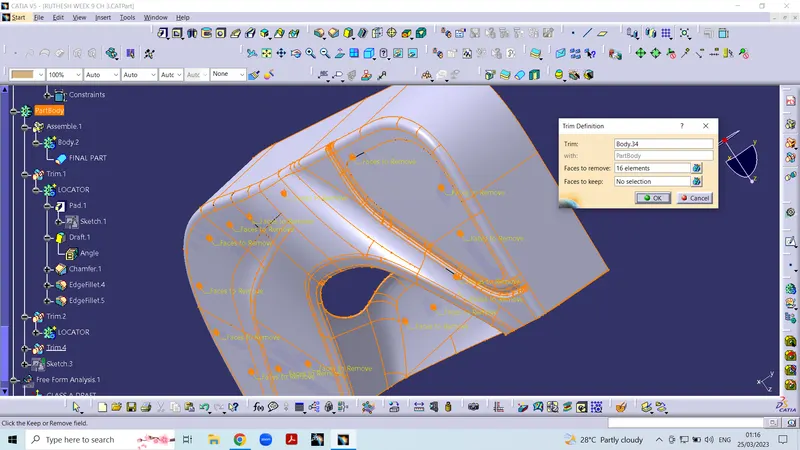

And using Boolean operations it is joined and outer faces are removed using trim command the desired heatstake and locators creation has been done successfully

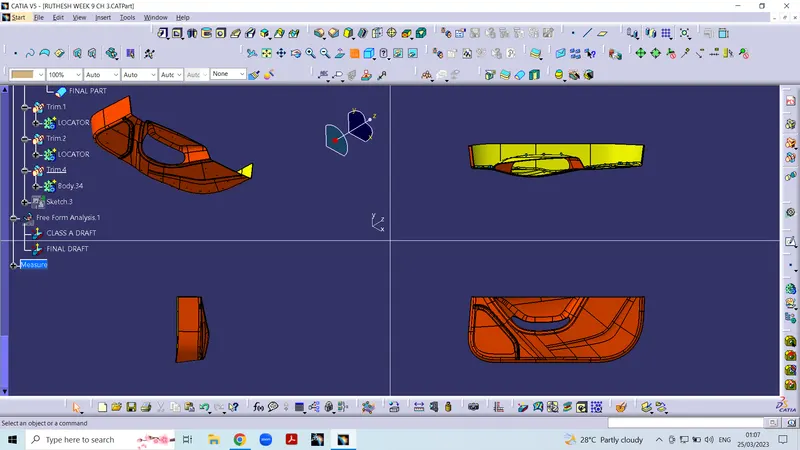

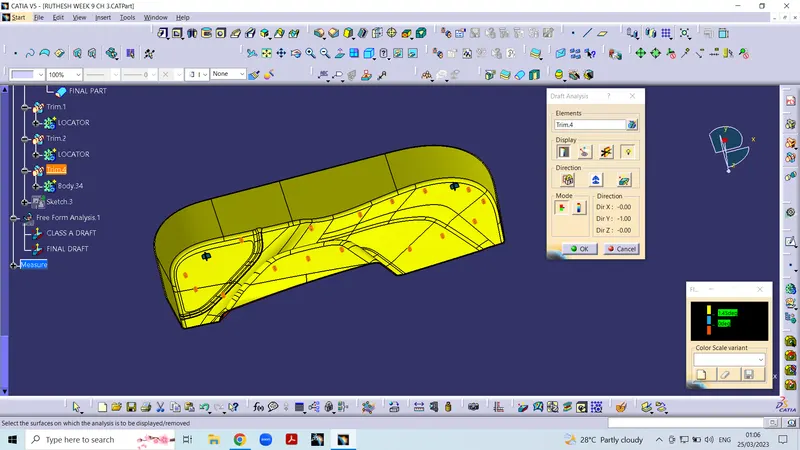

FINAL DRAFT ANALYSIS ON COMPONENT:
•The view mode is changed to material mode
•And the compass is moved towards the slide tooling Axis and the surface is clicked at a point so the draft analysis is done
